Novel Regenerative Drug, SPG302 Promotes Functional Recovery of Diaphragm Muscle Activity After Cervical Spinal Cord Injury

Abstract

Spinal cord hemisection at C₂ (C₂SH), sparing the dorsal column is widely used to investigate the effects of reduced phrenic motor neuron (PhMN) activation on diaphragm muscle (DIAm) function, with reduction in DIAm activity on the injured side during eupnoea. Following C₂SH, recovery of DIAm EMG activity may occur spontaneously over subsequent days/weeks. Various strategies have been effective at improving the incidence and magnitude of DIAm recovery during eupnoea, but little is known about the effects of C₂SH on transdiaphragmatic pressure (P_di) during other ventilatory and non-ventilatory behaviours. We employ SPG302, a novel type of pegylated benzothiazole derivative, to assess whether enhancing synaptogenesis (i.e., enhancing spared local connections) will improve the incidence and the magnitude of recovery of DIAm EMG activity and P_di function 14-days post C₂SH. In anesthetized Sprague Dawley rats, DIAm EMG and P_di were assessed during eupnoea, hypoxia/hypercapnoea and airway occlusion prior to surgery (C2SH or sham), immediately post-surgery and at 14-days post-surgery. In C₂SH rats, 14 days of DMSO (vehicle) or SPG302 treatments (IP injection) occurred. At the terminal experiment, maximum P_di was evoked by bilateral phrenic nerve stimulation. We show that significant EMG and P_di deficits are apparent in C₂SH compared to sham rats immediately after surgery. In C₂SH rats treated with SPG302, recovery of eupneic, HH and occlusion DIAm EMG was enhanced compared to vehicle rats after 14 days. Treatment with SPG302 also ameliorated Pdi deficits following C₂SH. In summary, SPG302 is an exciting new therapy to explore for use in spinal cord injuries.

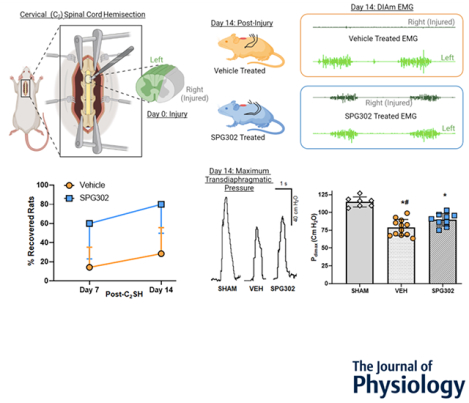

Graphical Abstract

Following a dorsal laminectomy, rats underwent a C₂ cervical hemisection surgery (C₂SH, surgical field inset) or sham (laminectomy only), severing the right-sided spinal projections of the lateral and ventral funiculus (grey portion of transverse spinal cord) and sparing the dorsal funiculus and the entire left side of C₂ (green portion of transverse spinal cord). Following C₂SH, rats were randomly assigned to either vehicle (DMSO-orange rats) or SPG302 (a novel pegylated benzothiazole derivatives-blue rats) treatments intraperitoneally for 14 days. Example diaphragm muscle (DIAm) RMS EMG on the injured side (grey) and uninjured (green) side from vehicle and SPG rats at 14-days post-C₂SH are shown on the right hand end of the top row of figures. 14 days post-C₂SH, DIAm RMS EMG, ventilatory transdiaphragmatic pressure (P_di), and maximum P_di (P_dimax), evoked via bilateral phrenic nerve stimulation, was compared to pre-injury values (within each rat) and across groups between sham, vehicle and SPG302 treated rats. SPG302 increased the % of rats exhibiting recovery from C₂SH compared to vehicle, with recovery defined as being >10% of the initial pre-injury DIAm RMS EMG during eupnoea. C₂SH depressed P_dimax, with SPG302 having improved P_dimax compared to vehicle treated. In conclusion, SPG302 presents a promising potential therapeutic for use in spinal cord injury.

INTRODUCTION

The diaphragm muscle (DIAm) is unique to mammals and is essential for ventilatory (breathing) and non-ventilatory behaviours, including cough, sneeze and straining maneuvers (Fogarty and Sieck, 2019). Neural control of the DIAm involves the orderly activation of motor units, comprising a phrenic motor neuron (PhMN) and the DIAm fibres it innervates, with DIAm motor units classified based on their mechanical and fatigue properties, and their fibre type composition (Fogarty and Sieck, 2019). The incessant indefatigable requirement for ventilation is accomplished by recruitment of Slow (type S) and Fast Fatigue-Resistant (type FR) units, comprising smaller, more excitable (lower capacitance, higher input resistance) PhMNs innervating lower force-producing fatigue resistant type I and type IIa DIAm fibres, respectively (Sieck and Fournier, 1989;Geiger et al., 2000). By contrast, higher pressure requiring expulsive and straining behaviours are accomplished by recruitment of Fast Fatigable (type FF) units, comprising larger, less excitable (higher capacitance, lower input resistance) PhMNs innervating higher force-producing fatigue resistant type IIx/IIb DIAm fibres (Sieck and Fournier, 1989;Geiger et al., 2000). The overall functional gamut of DIAm behaviours, as measured by transdiaphragmatic pressure (P_di, the difference between thoracic and abdominal pressures) in rats is >10-fold, with marked differences between eupnoea, ~15 cm H₂O and maximum P_di (P_dimax, assessed via bilateral phrenic nerve stimulation) ~85–125 cm H₂O (Khurram et al., 2018;Khurram et al., 2019).

Descending ipsilateral bulbospinal glutamatergic inputs to PhMNs from the rostral ventral respiratory group (rVRG) are responsible for “inspiratory drive” and inspiratory-related DIAm activity (McCrimmon et al., 1989;Lipski et al., 1994;McCrimmon et al., 1995;Fogarty et al., 2018a). Following cervical spinal cord hemisection (C₂SH), removal of these excitatory inputs (Rana et al., 2020b) results in absent/markedly reduced DIAm activity (Moreno et al., 1992;Fuller et al., 2006;Fuller et al., 2008). However, there are also latent contralateral excitatory inputs to PhMNs, which may provide a substrate for neuroplasticity and spontaneous recovery of inspiratory-related DIAm activity (Mantilla et al., 2013a;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017). Our past studies found a marked reduction in glutamatergic synaptic input to all PhMNs following C₂SH, but more pronounced reduction in smaller PhMNs (Rana et al., 2020b). We also found that recovery of inspiratory DIAm EMG following after C₂SH was enhanced by intrathecal administration of brain-derived neurotrophic factor (BDNF) (Sieck et al., 2021). We also found that inhibition of the high affinity receptor for BDNF, tropomyosin receptor kinase B (TrkB), blunts spontaneous recovery of inspiratory-related DIAm activity after C₂SH. While these data suggest that PhMN postsynaptic mechanisms may underlie spontaneous recovery, it is also possible that presynaptic restoration of glutamatergic drive to PhMNs facilitates functional recovery after C₂SH.

SPG302 is a 3^rd generation compound of a class of pegylated benzothiazole derivatives, which have been shown to restore synaptic density in Alzheimer’s disease and traumatic brain injury (Zhang et al., 2019;Trujillo-Estrada et al., 2021), with attendant physiological benefits – namely improving recovery of motor performance and cognition in rats (Zhang et al., 2019) and performance of hippocampus-dependent memory tasks in a mouse model of Alzheimer’s disease (Trujillo-Estrada et al., 2021). Earlier generations of pegylated benzothiazole derivatives were shown to increase post-synaptic spine densities and functional synapses via an F-actin cytoskeleton dependent mechanism (Cifelli et al., 2016;Lee et al., 2016;Zhang et al., 2019). While the effect of SPG302 and prototype compounds on spinal cord injury remains unknown, prior studies demonstrate the importance of glutamatergic receptors in improving recovery following C₂SH (Mantilla et al., 2012;ElMallah et al., 2015;Gransee et al., 2017;Rana et al., 2020a;Wollman et al., 2020) and the presence of dendritic spines on spinal motor neurons (Bandaru et al., 2015;Fogarty et al., 2017b;2020b).

Although a reduction of inspiratory DIAm EMG activity following C₂SH has been demonstrated in several studies (Golder et al., 2003;Fuller et al., 2006;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017), changes in P_di have not been systematically evaluated following C₂SH. After C₂SH, up to 50% of DIAm force generating capacity may be lost, which can certainly affect P_di. Furthermore, there may be deficits in the activation of chest wall muscles following C₂SH that alter chest wall compliance (Denton and McKinlay, 2009;Beth Zimmer et al., 2015), which may also affect P_di. We hypothesize that 14-day treatment with SPG302, will improve recovery of inspiratory related DIAm EMG and P_di following C₂SH.

MATERIALS AND METHODS

Ethical approval:

All procedures were performed in accordance with the American Physiological Society’s Animal Care Guidelines and the National Institutes of Health (NIH) guide for use and care of laboratory animals. These procedures were approved by the Institutional Animal Care and Use Committee (IACUC) at Mayo Clinic (A00005858–00 and A00003105–17-R20) and complied with the principles of the Journal outlined previously (Grundy, 2015). For three days following all procedures, animals were monitored for their level of discomfort a least three times per day. In this study, all animals exhibited no discomfort during recumbency, with normal feeding, drinking and stooling behaviours following surgeries.

Experimental animals:

A total of 33 adult male Sprague-Dawley (~370 g) obtained from Envigo (Indianapolis, IN) were used in the study. Rats were assigned to three groups, sham surgery (SHAM, n=7), C₂SH vehicle (VEH, n=14) and C₂SH SPG302-treated (SPG302 n=10). Based on previous studies, we anticipated that ~25% of the VEH animals would exhibit spontaneous recovery of inspiratory-related DIAm EMG during the 2-week post-C₂SH period, determined as an amplitude of >10% of the pre-surgery eupneic DIAm EMG activity (Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). In this study, we used male rats, due to their well-characterized recovery rates in past studies (Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). Animals were acclimated for at least 1 week before surgery and maintained on an alternating 12:12 h light-dark cycle with ad libitum access to fresh water and rat chow. For all surgical procedures, anesthesia was administered via intraperitoneal injections of xylazine (10 mg/kg) and ketamine (80 mg/kg), with the adequacy of anaesthetic depth ensured by continual monitoring of the palpebral and pedal withdrawal reflexes. The sham control animals underwent the same surgical procedures (DIAm EMG electrode insertion, laminectomy), excluding C₂SH.

SPG302 Treatment:

Based on prior reports with SPG compounds (Zhang et al., 2019;Trujillo-Estrada et al., 2021), a dose of 30 mg/kg was used in the present study. SPG302 (gift from Spinogenix Inc., San Diego CA) was diluted in 0.3% DMSO and injected intraperitoneally each day for 14 days following C₂SH surgery (day 0). Prior to injection the site and needle was sanitized with an 75% ethanol, and upon puncture of the peritoneum, the plunger was withdrawn slightly to ensure there was no perforation of the vasculature. Vehicle treated rats were administered 3% DMSO in saline injected intraperitoneally for 14 days following C₂SH surgery, with rat treatment groups chosen randomly. Previous in vitro and in vivo studies show a relatively flat dose response to benzothiazole derivatives (Cifelli et al., 2016;Zhang et al., 2019). We specifically chose 30 mg/kg, as this had a potent effect of increasing the expression of PSD95 (Trujillo-Estrada et al., 2021), which has been shown to be present on motor neurons (Fogarty et al., 2013) and is involved in excitatory neurotransmission (Kennedy, 1997). In vivo, this SPG302 concentration dose is well tolerated in rodents for at least one month of intraperitoneal daily dosing (Trujillo-Estrada et al., 2021). Following intraperitoneal dosing all rats were active and exploratory within their cage, exhibiting no overt signs of distress.

Diaphragm EMG activity:

Three days prior to sham or C₂SH surgery, under intraperitoneal anaesthesia with xylazine (10 mg/kg) and ketamine (80 mg/kg), with the adequacy of anaesthetic depth ensured by continual monitoring of the palpebral and pedal withdrawal reflexes, a pair of fine wire electrodes (~2 mm recording area) were implanted bilaterally into the mid-costal region of the DIAm to record chronic DIAm EMG activity, as previously described (Trelease et al., 1982;Hernandez-Torres et al., 2017;Khurram et al., 2019). The EMG electrode wires were tunneled subcutaneously to the dorsum of the rat for repeated recordings. In anaesthetised animals (xylazine (10 mg/kg) and ketamine (80 mg/kg)), DIAm EMG activity was recorded during eupnoea, hypoxia/hypercapnoea (HH) and airway occlusion. DIAm EMG activity recorded immediately prior to C₂SH or sham surgeries was used as a baseline for subsequent analyses of DIAm EMG activity immediately after C₂SH and sham surgeries (day 0) and at day 3 (eupnoea only) and day 14 following surgery (Hernandez-Torres et al., 2017;Sieck et al., 2021). The magnitude of DIAm EMG activity was quantified as the cumulative root-mean-square (RMS) across the entire inspiratory burst divided by the burst duration. These analyses were performed on both the injured and uninjured sides of the DIAm. Respiratory rates and duty cycle were calculated using DIAm EMG in a manner identical to prior studies (Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022).

Transdiaphragmatic Pressure Measurements:

Transdiaphragmatic pressure (P_di) was measured as the difference between esophageal and gastric pressures as previously described (Sieck and Fournier, 1989;Khurram et al., 2018;Fogarty et al., 2022) under intraperitoneal anaesthesia with xylazine (10 mg/kg) and ketamine (80 mg/kg), with the adequacy of anaesthetic depth ensured by continual monitoring of the palpebral and pedal withdrawal reflexes. Briefly, two 3.5 French Millar solid-state pressure catheters (SPR-524; Millar Instruments, Houston, TX, RRID:SCR_018840) were inserted through the mouth and into the esophagus and stomach. Correct catheter position was determined based on the direction of signal deflection during real-time measurements. Esophageal (P_es) and abdominal pressures (P_gas) were recorded and digitized (400 Hz) with PowerLab 4/35 and visualized in real-time with LabChart 8 (ADInstruments, Colorado Springs, CO, RRID:SCR_01755). From the P_di tracings peak amplitude, respiratory rate, inspiratory duration, and duty cycle were determined in a manner similar to previous reports (Sieck and Fournier, 1989;Khurram et al., 2018;Fogarty et al., 2022). During P_di measurements, the abdomen was bound to limit DIAm contraction and thereby approximate maximum isometric conditions (Sieck and Fournier, 1989).

Diaphragm Motor Behaviours:

At the time of surgery and at day 14 following C₂SH or sham surgery, the P_di generated during eupnoea, HH and airway occlusion was assessed. At day 3, only DIAm activity was evaluated for inclusion of C₂SH animals. In addition, at day 14 during the terminal experiment, under intraperitoneal anaesthesia with xylazine (10 mg/kg) and ketamine (80 mg/kg), with the adequacy of anaesthetic depth ensured by continual monitoring of the palpebral and pedal withdrawal reflexes, the phrenic nerves were isolated ventrally in the neck and stimulated bilaterally to evoke P_dimax. For bilateral phrenic nerve stimulation, two pairs of bipolar electrodes (125 μm platinum iridium wires with 0.5 mm inter-electrode spacing; FHC, #PBSD0875, Bowdoin, ME, RRID:SCR_018944) were used to stimulate (Grass S88 stimulator, RRID:SCR_016192) the phrenic nerves (0.05 ms duration ~10 mA pulses at a frequency of 100 Hz in a 330 ms duration train) (Khurram et al., 2018;Khurram et al., 2019). To avoid current spread, a mineral oil bath was created in the neck surrounding the isolated phrenic nerves.

Recovery of inspiratory related DIAm activity during anesthesia (xylazine (10 mg/kg) and ketamine (80 mg/kg)) was defined as eupneic activity >10% of pre-injury values (Figure 1), in accordance with prior studies in our and other labs (Moreno et al., 1992;Fuller et al., 2006;Fuller et al., 2008;Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). For eupnoea, HH and airway occlusion, DIAm EMG was normalized to the pre-injury value for each behaviour (namely eupnoea, HH and occlusion).

Figure 1.

Representative recordings of right (red) and left (blue) DIAm EMG activity from a rats that underwent sham surgery (SHAM) or C₂SH surgery (right side, dotted rectangles) and were subsequently treated with DMSO vehicle (VEH) or SPG302. Recordings across all behaviours were obtained immediately before laminectomy (pre-surgery) on day 0, immediately after C₂SH on day 0 or laminectomy in sham controls (post-surgery) and 14 days after surgery.

During eupnoea and HH, the average magnitude of DIAm EMG activity and P_di was calculated for 10 breaths (during the final 2 min of a 5-min exposure to HH). During airway occlusion, the average magnitude of DIAm EMG activity and P_di generated was determined for 3–5 maximal efforts. During bilateral phrenic nerve stimulation, the average of 3 maximal evoked P_di was calculated to determine P_dimax. Following terminal procedures, the rats were euthanized via transcardial exsanguination, under deep intraperitoneal anaesthesia (xylazine (50 mg/kg) and ketamine (80 mg/kg)), with death confirmed by the extended absence of circulation and respiration.

To compare EMG activation and P_dimax across behaviours within animals, we normalized all data as a % of EMG_max or P_dimax. Normalization procedures were identical to those used prior studies (Mantilla et al., 2011;Gill et al., 2015), with EMG_max and P_dimax extrapolated for pre-injury values, assuming a linear increase of RMS EMG and P_di across behaviours with increasing PhMN activation. Where it was not possible to assess EMG_max and P_dimax, occlusion P_di was considered to be 30% of P_dimax (Khurram et al., 2018;Khurram et al., 2019), with regression-based estimates of P_dimax in VEH (105.8 ± 7.1 cm H₂O) and SPG302 rats (107.4 ± 7.0 cm H₂O), resembling published data (Khurram et al., 2018;Khurram et al., 2019).

Cervical spinal cord hemisection surgery:

The surgical methods for C₂SH have been previously described in detail (Miyata et al., 1995;Fuller et al., 2006;Fuller et al., 2008;Mantilla et al., 2013a;Mantilla et al., 2013b;Beth Zimmer et al., 2015;Hernandez-Torres et al., 2017;Rana et al., 2020b;Streeter et al., 2020). Under intraperitoneal anaesthesia with xylazine (10 mg/kg) and ketamine (80 mg/kg), with the adequacy of anaesthetic depth ensured by continual monitoring of the palpebral and pedal withdrawal reflexes a dorsal laminectomy at C₂ was performed. Subsequently, the C₂ spinal cord was cut using a surgical microknife, beginning anterior to the dorsal root entry zone fissure and proceeding ventrally taking care to preserve the right hand side dorsal funiculus, ~7 mm from the midline at the level of the dorsal subdura. The right lateral and ventral funiculi are severed in this particular lesion, sparing the dorsal column. Anatomical locations were aided with the use of a rat spinal cord atlas (Watson et al., 2009). Following the completion of the day 14 post-C₂SH terminal procedures, a subset of rats (n=14) were perfused (~40 mL/min.) with saline followed by 4 % paraformaldehyde, the cervical spinal cord excised, frozen in OCT and crysectioned (horizontal orientation) at 70 μm, in a manner identical to prior studies. Sections were mounted in DPX and autofluorescence at 488 nm was used to image mosaics (10x objective NA 0.8) of the gross anatomy of the spinal cord using an Olympus Fluoview Microscope (FV1200, Olympus USA) (Gransee et al., 2015). Lesion severity was quantified (both in real terms and as a % of the total spinal hemisphere radius) in recovered and non-recovered rats by assessing the spared distance between the central canal and the medial extent of the lesion cut. This area corresponds to the “equatorial” latitude of the spinal cord (i.e., its widest extent) (Watson et al., 2009). Animals that did not have spinal cords assessed were euthanised via transcardial exsanguination under deep intraperitoneal anaesthesia (xylazine (50 mg/kg) and ketamine (80 mg/kg)), with death confirmed by the extended absence of circulation and respiration.

As in previous studies, DIAm EMG activity was monitored during surgery to ensure that rhythmic inspiratory activity on the right (lesioned) side of the DIAm disappeared during C₂SH surgery. Immediately after surgery, rats were administered subcutaneous carprofen (5 mg/kg) and buprenorphine (0.1 mg/kg). The efficacy of C₂SH was confirmed at day 3 by the absence of inspiratory related DIAm EMG activity under conditions of ketamine (80 mg/kg) anesthesia. Animals displaying inspiratory related DIAm EMG activity were excluded from the study following a priori inclusion criteria consistent with our previous studies (Miyata et al., 1995;Prakash et al., 1999;Mantilla et al., 2013a;Mantilla et al., 2013b;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Rana et al., 2020b;Sieck et al., 2021;Brown et al., 2022). A total of 2 rats were excluded from the study due to spontaneous day 3 recovery, with these rats euthanised via transcardial exsanguination under deep intraperitoneal anaesthesia (xylazine (50 mg/kg) and ketamine (80 mg/kg)), with death confirmed by the extended absence of circulation and respiration.

Statistical analyses:

Prism 9 was used for all statistical analyses (Graphpad, Carlsbad, CA). The data sets were assessed for normality with D’Agostino and Pearson tests. Data exclusion was based on a priori criteria of being outside a range of two times the standard deviation away from the mean. We were powered to detect a significant difference of >20% in DIAm EMG amplitude and P_di across behaviours, and a >20% change in P_dimax. Student’s unpaired t-test, one-way, matched two-way or three-way ANOVAs were performed on the measured variables with the following grouping factors: surgery (C₂SH vs sham), time (pre-surgery and day 0, 3 and 14 post-surgery), and treatment (vehicle or SPG302). When appropriate within group differences were evaluated using Tukey’s or Bonferroni post hoc tests. Data was reported in the Results and Figures as the mean ± the standard deviation of the mean. Statistical significance was set at P<0.05, with P values reported to three significant figures in the results.

RESULTS

C₂SH severely reduced unilateral DIAm EMG activity during eupnoea, HH and occlusion

The amplitude of DIAm EMG activity was assessed during eupnoea, HH and airway occlusion before and immediately after C₂SH (VEH: n=14; SPG302: n=10) or sham surgery (SHAM: n=7) in all rats (Figure 1). As expected, C₂SH resulted in a stark reduction of DIAm EMG activity during eupnoea and occlusion on the ipsilateral side to injury, compared to initial RMS EMG normalized to the pre-injury value for each behaviour (Figure 1). Notably, in all rats, DIAm RMS EMG increased across behaviours, with eupnoea < HH < occlusion (Figure 1). In SHAM control rats, DIAm EMG activity was equivalent on both left and right sides and unaffected by surgery across all behaviours (eupnoea: 107.5 ± 9.4 %; HH: 105.9 ± 10.3 %; occlusion: 107 ± 11.6 %; Figure 1). At 14 days post-surgery, DIAm EMG activity on the left side of the DIAm in C₂SH (VEH: 104.2 ± 18 %; SPG302: 108.2 ± 33 %) and SHAM (105.2 ± 33 %) rats was equivalent.

SPG302 increases incidence of recovery in DIAm EMG activity following C₂SH

The C₂SH lesion we employ in the present study is highly characterized structurally (Figure 2A) and functionally (i.e., with EMG inclusion/exclusion criteria during C₂SH and 3 days post-C₂SH) (Miyata et al., 1995;Prakash et al., 1999;Mantilla et al., 2013a;Mantilla et al., 2013b;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Rana et al., 2020b;Sieck et al., 2021;Brown et al., 2022). We have previously documented progressive spontaneous recovery (i.e., a return to >10% of pre-injury DIAm EMG on the lesioned side) in ~25% or male rats in the weeks following C₂SH lesions (Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). Treatment with SPG302 significantly increased the likelihood of recovery at 7-days (60% recovery; P=0.0323, Fisher’s exact test) and 14-days (80% recovery; P=0.0361, Fisher’s exact test) following C₂SH, compared to VEH rats (15% recovery at 7-days and 29% recovery at 14-days post C₂SH; Figure 2B). Overall, by 14 days, SPG302 treated rats were ~2.5 times more likely to have recovered DIAm EMG activity (odds ratio 10.0; Figure 2B).

Figure 2:

A: Schematic of the C₂SH lesion employed in the present study, note the severing of the lateral and ventral funiculi, and the preservation of the dorsal funiculus and some sparing adjacent to the central canal (CC). Descending motor tracts (magenta) comprising the lateral and ventral coticospinal tracts (LCT and VCT) along with ascending sensory (green) lateral and ventral spinothalamic tracts (L&VST) are depicted as lesioned (grey semitransparency) on the right hand side. B: The % (mean ± SD) of rats that recovered (> 10% initial RMS DIAm EMG during eupnoea) was greater in SPG302 treated rats (blue squares) compared to VEH rats (orange circles) at 7- (P=0.032) and 14-days post-C₂SH (P=0.036; n=14 VEH, n=10 SPG302; Fisher’s exact test). C: Epifluorescence images of spinal cord histology of horizontal sections (70 μm) at the level of the central canal (yellow dashed line) in non-revovered (Non-Rec.) and recovered (Rec.) vehicle and SPG302 treated rats. The quantification of the spared region following right sided C₂SH is illustrated by the red line. D: Scatterplot shows the spared portion (from the central canal to the cut lesion edge) of the spinal cord at the middle “equatorial” latitude of the C₂ spinal cord being unchanged between non-recovered (n=7) and recovered rats (n=7; P=0.687, Student’s unpaired t-test), regardless of treatment with VEH (orange circles) or SPG302 (blue squares). E: Scatterplot shows the spared portion expressed as a % of the radius at the middle “equatorial” latitude of C₂ being unchanged between non-recovered (n=7) and recovered rats (n=7; P=0.855, Student’s unpaired t-test), regardless of treatment with VEH (orange circles) or SPG302 (blue squares).

Lesion extent did not influence the likelihood of recovery in either SPG302 or VEH rats (Figure 2C), with the spared portion (central canal to lesion edge) of the spinal cord at the middle “equatorial” latitude of C₂ region being unchanged between non-recovered (454 ± 91 μm, n=7) and recovered rats (431 ± 113 μm, n=7; P=0.687, Student’s unpaired t-test; Figure 2D). Expressed as a % of the spinal cord radius at the “equatorial” latitude of C₂, we observed no differences in the spared region between non-recovered (24.8 ± 4.2 %, n=7) and recovered rats (24.3 ± 5.8 %, n=7; P=0.855, Student’s unpaired t-test; Figure 2E). Note that these spared portions are in addition to the spared dorsal columns.

SPG302 increases the magnitude of recovery of ventilatory EMG activity during eupnoea, HH and occlusion following C₂SH

Immediately prior to C₂SH surgery, immediately following C₂SH and 14 days following surgeries we assessed DIAm RMs EMG during eupnoea, HH and occlusion (Figure 3). Following C₂SH, treatment with SPG302 improved the DIAm EMG compared to VEH rats, with EMG dependent on behaviour (F_(2,44)=16.7, P<0.0001), treatment (F_(1,44)=7.0, P=0.0217), time post-injury (F_(1,22)=31.4, P<0.0001) and the interaction between time and treatment (F_(1,44)=10.2, P=0.0045, Three-way ANOVA; Figure 3).

Figure 3.

DIAm RMS EMG activity was calculated for each animal and behaviour and normalized to the corresponding day 0 pre-surgery mean DIAm RMS EMG (i.e., 100 is the starting point for eupnoea, HH and occlusion within each rat). The scatterplot shows mean DIAm RMS EMG for the right injured side for all behaviours with mean (± SD) values of each VEH (orange circle symbols) or SPG302 treated (blue square symbols) rats represented by each dotpoint. Within each behaviour, different levels of DIAm RMS EMG activity are indicated by different letters (ie., a ≠ b ≠ c, with P<0.05). Immediately following C₂SH, DIAm RMS EMG activity was reduced to <10% of initial during eupnoea and HH and <20% of initial during occlusion in both VEH and SPG302 treated rats. In VEH rats, 14-days post-C₂SH (darkened symbols) did not improve DIAm RMS EMG in eupnoea or HH (P>0.05) compared to immediate post-C₂SH values. However, there was an increase at 14-days following C2SH in the occlusion DIAm RMS EMG compared to immediately post-C₂SH (P<0.05). Treatment with SPG302 improved the magnitude of DIAm RMS EMG at 14 days following C₂SH (darkened symbols) in all behaviours. DIAm RMS EMG activity was returned to ~50% of initial values in SPG302 rats during eupnoea, HH and occlusion (P<0.05 in all comparisons). In addition, compared immediately post C₂SH, 14-day treatment with SPG302 led to greater DIAm RMS EMG compared to 14-day VEH rats during eupnoea and HH (P<0.05). Three-way ANOVA with Bonferroni post-test, n=14 VEH, n=10 SPG302.

During eupnoea, DIAm EMG immediately following injury was no different between VEH (4.8 ± 2.2 %) and SPG302 rats (4.0 ± 1.5 %; P>0.99; Figure 3). At 14 days post injury, there was no significant increase in DIAm EMG in VEH rats (10.9 ± 7.6 %) compared to immediately following injury (P>0.99; Figure 3). However, in SPG302 treated rats, DIAm EMG was increased by > 10-fold after 14 days (47.4 ± 30.3 %; P=0.0005; Figure 3). In addition, DIAm EMG activity during eupnoea was increased by ~4-fold by SPG302 treatment compared to VEH rats at day 14 (P=0.0013; Figure 3).

During HH, DIAm EMG immediately following injury was no different between VEH (5.8 ± 2.7 %) and SPG302 rats (4.0 ± 1.7 %; P>0.99; Figure 3). At 14 days post injury, there was no significant increase in DIAm EMG in VEH rats (17.8 ± 14.9 %) compared to immediately following injury (P>0.99; Figure 3). However, in SPG302 rats, DIAm EMG was increased by > 12-fold after 14 days (50.1 ± 33.4 %; P=0.0002; Figure 3). In addition, DIAm EMG activity during HH was increased by > 3-fold by SPG302 treatment compared to VEH rats at day 14 (P=0.0024; Figure 3).

During occlusion, DIAm EMG immediately following injury was no different between VEH (20.1 ± 19.6 %) and SPG302 rats (16.5 ± 10.7 %; P>0.99; Figure 3). At 14 days post injury, there was no significant increase in DIAm EMG in VEH rats (41.3 ± 31.7 %) compared to immediately following injury (P=0.674; Figure 3). However, in SPG302 rats, DIAm EMG was increased by > 3.5-fold after 14 days (57.9 ± 39.0 %; P=0.0013; Figure 3).

In recovered rats, DIAm EMG activity during eupnoea was increased in SPG302 treated rats compared to VEH treated rats.

In the subset of rats that exhibited recovery (i.e., >10% of initial eupneic DIAm RMS EMG), EMG was dependent on treatment (F_(1,10)=7.3, P=0.0220), time (F_(1,10)=28.1, P=0.0003), and the interaction between treatment and time (F_(1,10)=9.1, P=0.0128, Two-way ANOVA; Figure 4). Immediately post C₂SH surgery, there was no difference between SPG302 (3.8 ± 1.2, n=8) and VEH (5.7 ± 1.4, n=4) rat DIAm RMS EMG during eupnoea (P>0.99, Bonferroni post hoc test; Figure 4). At 14 days post C₂SH, DIAm RMS EMG was ~3-fold greater in SPG302 rats (58.6 ± 24.7 % of initial), compared to spontaneously recovered VEH controls (20.0 ± 9.7 % of initial; P=0.001, Bonferroni post hoc test; Figure 4).

Figure 4.

In exclusively recovered rats (ie., those that exhibited >10% of initial DIAm RMS EMG druring eupnoea) at 14 days following C₂SH, DIAm RMS EMG (mean ± SD) was greater in SPG302 treated (blue squares), compared to VEH rats (orange circles). Different letters indicate significant differences (P<0.05). Two-way ANOVA with Bonferroni post-test, n=4 VEH, n=8 SPG302.

Ventilatory P_di deficits following C₂SH are ameliorated with SPG302

We assessed P_di under anaesthetized conditions in SHAM (n=7), VEH (n=13) and SPG302 (n=9) rats immediately prior to and immediately after surgical procedures (sham or C₂SH) and 14 days after surgery. Eupneic P_di was dependent on treatment (F_(2,26)=6.5, P=0.005), time (F_(2,52)=30.8, P<0.0001) and the interaction between treatment and time (F_(4,52)=6.4, P=0.0003, Two-Way ANOVA; Figure 5). Bonferroni post-tests show unchanged eupnoea P_di between all experimental groups at day 0 prior to surgery (SHAM: 14.9 ± 3.6 cm H₂O; VEH: 13.2 ± 3.5 cm H₂O; SPG302: 15.0 ± 4.5 cm H₂O; P>0.64 in all combinations; Figure 5). Immediately following C₂SH (day 0), eupnoea P_di was reduced by ~49% in VEH (7.4 ± 1.0 cm H₂O; P<0.0001) and by ~43% in SPG302 rats (8.3 ± 2.0 cm H₂O; P=0.0007) compared to SHAM rats (14.5 ± 4.5 cm H₂O; Figure 5). There was no difference in eupnoea P_di between VEH and SPG302 immediately following C₂SH (P>0.99). After 14 days post C₂SH, eupnoea P_di remained reduced by ~34% in VEH rats (9.5 ± 2.8 cm H₂O; P=0.0042), whereas eupnoea P_di in SPG302 treated rats (12.9 ± 2.6 cm H₂O; P=0.968) was not different from SHAM (14.5 ± 3.7 cm H₂O; Figure 5). Additionally, SPG302 treatment improved eupnoea P_di at day 14 by ~36% compared to VEH (P=0.0329, Figure 5).

Figure 5.

A: Example P_di traces during eupnoea immediately prior to surgery (day 0), immediately following C₂SH (day 0) and 14-days after C₂SH in VEH and SPG302 rats. B: Scatterplot of P_di (mean ± SD), (with SHAM values represented by a dashed line) illustrate a marked reduction in P_di during eupnoea immediately following C₂SH in VEH (light orange circles) and SPG302 (light blue squares) treated rats compard to pre-surgery (grey symbols; *, P<0.05). By 14-days following C₂SH, VEH treated rats (dark orange circles) continue to have reduced P_di during eupnoea compared to SHAM (and pre-injury) (*, P<0.05) and to SPG302 treated rats (dark blue squares; ^#, P<0.05). Furthermore, P_di during eupnoea in SPG302 treated rats has returned to SHAM (and pre-injury) levels by day 14. Two-way ANOVA with Bonferroni post-test, n=7 SHAM, n=13 VEH, n=9 SPG302.

HH P_di was dependent on treatment (F_(2,26)=5.0, P=0.015), time (F_(2,52)=32.8, P<0.0001) and the interaction between treatment and time (F_(4,52)=6.7, P=0.0002, Two-Way ANOVA; Figure 6). Bonferroni post-tests show unchanged HH P_di between all experimental groups at day 0 prior to surgery (SHAM: 15.8 ± 3.7 cm H₂O; VEH: 14.0 ± 3.6 cm H₂O; SPG302: 15.6 ± 3.7 cm H₂O; P>0.820 in all combinations; Figure 6). Immediately following C₂SH (day 0), HH P_di was reduced by ~44% in VEH treated rats (8.3 ± 2.7 cm H₂O; P=0.0008) and by ~49% in SPG302 treated rats (7.5 ± 1.8 cm H₂O; P=0.0004) compared to SHAM rats (14.5 ± 4.2 cm H₂O; Figure 6). There was no difference in HH P_di between VEH and SPG302 treated rats immediately following C₂SH (P>0.99). After 14 days post C₂SH, HH P_di remained reduced by ~33% in VEH treated rats (10.0 ± 3.1 cm H₂O; P=0.0089), whereas HH P_di in SPG302 treated rats (14.0 ± 4.5 cm H₂O; P>0.99) was not different compared to SHAM treated rats (14.9 ± 4.2 cm H₂O; Figure 6). Additionally, SPG302 treatment improved HH P_di at day 14 by ~40% compared to VEH treatment (P=0.0269, Figure 6) in C₂SH rats.

Figure 6.

A: Example P_di traces during HH immediately prior to surgery (day 0), immediately following C₂SH (day 0) and 14-days after C₂SH in VEH and SPG302 rats. B: Scatterplot of P_di (mean ± SD), (with SHAM values represented by a dashed line) illustrate a marked reduction in P_di during HH immediately following C₂SH in VEH (light orange circles) and SPG302 treated rats (light blue squares) compard to pre-surgery (grey symbols; *, P<0.05). By 14-days following C₂SH, VEH treated rats (dark orange circles) continue to have reduced P_di during HH compared to SHAM (and pre-injury) (*, P<0.05) and to SPG302 treated rats (dark blue squares; ^#, P<0.05). Furthermore, P_di during HH in SPG302 treated rats has returned to SHAM (and pre-injury) levels by day 14. Two-way ANOVA with Bonferroni post-test, n=7 SHAM, n=13 VEH, n=9 SPG302.

Occlusion P_di was dependent on treatment (F_(2,26)=12.9, P=0.0001), time (F_(2,52)=36.8, P<0.0001) and the interaction between treatment and time (F_(4,52)=8.5, P<0.0001, Two-Way ANOVA; Figure 7). Bonferroni post-tests show unchanged occlusion P_di between all experimental groups at day 0, prior to surgery (SHAM: 34.9 ± 3.6 cm H₂O; VEH: 33.0 ± 4.8 cm H₂O; SPG302: 34.7 ± 4.9 cm H₂O; P>0.99 in all combinations; Figure 7). Immediately following C₂SH (day 0), occlusion P_di was reduced by ~46% in VEH treated rats (18.7 ± 5.8 cm H₂O; P<0.0001) and by ~47% in SPG302 treated rats (18.4 ± 5.3 cm H₂O; P<0.0001) compared to SHAM rats (34.5 ± 4.1 cm H₂O; Figure 7). There was no difference in occlusion P_di between VEH and SPG302 treated rats immediately following C₂SH (P>0.99). After 14 days post C₂SH, occlusion P_di remained reduced by ~31% in VEH rats (24.4 ± 6.3 cm H₂O; P=0.0001), whereas occlusion P_di in SPG302 rats (30.3 ± 7.4 cm H₂O; P=0.191) was not different compared to SHAM treatment (35.4 ± 4.9 cm H₂O; Figure 7). Additionally, SPG302 treatment improved occlusion P_di at day 14 by ~30% compared to VEH treatment (P=0.0453, Figure 7).

Figure 7.

A: Example P_di traces during occlusion immediately prior to surgery (day 0), immediately following C₂SH (day 0) and 14-days after C₂SH in VEH and SPG302 rats. B: Scatterplot of P_di (mean ± SD), (with SHAM values represented by a dashed line) illustrate a marked reduction in P_di during occlusion immediately following C₂SH in VEH (light orange circle) and SPG302 treated rats (light blue squares) compared to presurgery values (grey symbols; *, P<0.05). By 14-days following C₂SH, VEH treated rats (dark orange circles) continue to have reduced P_di during occlusion compared to SHAM (and pre-injury) (*, P<0.05) and to SPG302 treated rats (dark blue squares; ^#, P<0.05). Furthermore, P_di during occlusion in SPG302 treated rats has returned to SHAM (and pre-injury) levels by day 14. Two-way ANOVA with Bonferroni post-test, n=7 SHAM, n=13 VEH, n=9 SPG302.

P_dimax deficits following C₂SH are ameliorated with SPG302

Bilateral phrenic nerve stimulations were used to determine P_dimax in a manner identical to previous studies in rats (Figure 8). P_dimax was dependent on treatment (F_(2,25)=30.6, P<0.0001, One-way ANOVA), with Tukey’s post-tests showing that C₂SH reduced P_dimax in VEH treated rats (78.7 ± 11.5 cm H₂O; P<0.0001) and SPG302 treated rats (89.8 ± 8.8 cm H₂O; P<0.0001) compared to SHAM treatment (114.8 ± 7.1 cm H₂O; Figure 8) by ~31% and ~22%, respectively. In addition, compared to VEH treated rats, treatment with SPG302 increased P_dimax following C₂SH by ~14% (P=0.0419; Figure 8).

Figure 8.

A: Example P_dimax traces (achieved via bilaterl phrenic nerve stimulation) at terminal experiments (day 14) in SHAM, VEH and SPG302 rats. B: Scatterplot of P_dimax (mean ± SD), illustrate a marked reduction in P_dimax 14-days after C₂SH in VEH (orange circles) and SPG302 treated (blue squares) compared to SHAM rats (grey diamonds; *, P<0.05). However, 14-day treatement with SPG302 improved P_dimax in SPG302 rats compared to VEH (^#, P<0.05). One-way ANOVA with Tukey’s post-test, n=7 SHAM, n=12 VEH, n=9 SPG302.

SPG302 improves the EMG and Pdi of ventilatory and non-ventilatory behaviours in C2SH rats

As previously observed (Mantilla et al., 2011;Gill et al., 2015), there was a strong correlation between P_di and RMS EMG measures across ventilatory and non-ventilatory behaviours in VEH (r²>0.99) and SPG302 (r²=0.98) treated rats (Figure 9). Cluster analysis shows discrete groups of VEH and SPG302 values across all behaviours, with the XY relationships of EMG and P_di (normalized to EMG_max and P_dimax, respectfully) after 14 days of C₂SH (Figure 9). In all behaviours, the EMG and P_di values of VEH rats are reduced compared to those treated with SPG302.

Figure 9.

Correlation of normalised P_di values to estmated preinjury P_dimax and nomalised RMS EMG (on the injured side) to RMS EMG_max across the gamut of ventilatory (eupnoea, HH and occlusion) and non-ventilatory behaviours 14-days post C₂SH. XY plot shows the linearity of increased P_di with increased RMS EMG with increased DIAm motor unit recruitment. Cluster analyses shows increased P_di and RMS EMG of SPG302 treated rats (blue squares) compared to VEH (orange circles)

Effects of C₂SH on respiratory rate and occlusion during eupnoea, HH and occlusion

During eupnoea, there was no effect of time (F_(2,56)=0.9, P=0.396), group (i.e., surgery/treatment; F_(2,28)=0.3, P=0.750) or interaction between time and group (F_(4,56)=1.1, P=0.379) on respiratory rate, with eupnoea respiratory rates ~55 breaths/minute in all groups pre- and post-surgery (Two-Way ANOVA; Table 1). Likewise, the duty cycle of eupnoea was unaffected by time (F_(2,56)=1.6, P=0.212), group (F_(2,28)=0.2, P=0.790) or interaction between time and group (F_(4,56)=0.3, P=0.863) on respiratory rate, with eupnoea duty cycle ~42 % in all groups pre- and post-surgery (Two-Way ANOVA; Table 1).

Table 1:

Respiratory Parameters

Parameter		Sham (n=7)	Vehicle C2SH (n=14)	SPG302 (n=10)	Two-Way ANOVA
Eupnoea Respiratory Rate (bpm)	Pre-	60 ± 16	57 ± 14	61 ± 8	Time: F=0.9; P=0.40 Group: F=0.3; P=0.75 Interaction: F=1.1; P=0.37
	Post-	57 ± 15	52 ± 11	62 ± 10
	Day 14	59 ± 15	61 ± 11	60 ± 14
Eupnoea Duty Cycle (%)	Pre-	42 ± 8	39 ± 9	40 ± 10	Time: F=1.6; P=0.21 Group: F=0.2; P=0.79 Interaction: F=0.3; P=0.86
	Post-	44 ± 7	44 ± 8	46 ± 10
	Day 14	44 ± 6	41 ± 12	40 ± 8
HH Respiratory Rate (bpm)	Pre-	71 ± 18	76 ± 19	77 ± 14	Time: F=2.0; P=0.12 Group: F=0.1; P=0.88 Interaction: F=1.3; P=0.30
	Post-	73 ± 17	66 ± 13	71 ± 8
	Day 14	74 ± 17	84 ± 18	74 ± 14
HH Duty Cycle (%)	Pre-	50 ± 10	51 ± 9	51 ± 9	Time: F=0.4; P=0.68 Group: F=0.1; P=0.88 Interaction: F=1.5; P=0.21
	Post-	50 ± 5	49 ± 11	52 ± 10
	Day 14	53 ± 8	54 ± 8	50 ± 11
Occlusion Respiratory Rate (bpm)	Pre-	31 ± 11	37 ± 8	36 ± 9	Time: F=1.1; P=0.36 Group: F=0.5; P=0.61 Interaction: F=0.4; P=0.80
	Post-	32 ± 6	31 ± 6	32 ± 9
	Day 14	33 ± 11	34 ± 8	36 ± 13
Occlusion Duty Cycle (%)	Pre-	42 ± 13	38 ± 7	38 ± 12	Time: F=0.4; P=0.65 Group: F=0.4; P=0.69 Interaction: F=0.6; P=0.69
	Post-	41 ± 13	38 ± 9	35 ± 7
	Day 14	39 ± 8	41 ± 13	41 ± 14

All data presented as Mean ± SD. Two-Way ANOVA

During HH, there was no effect of time (F_(2,56)=2.0, P=0.124), group (F_(2,28)=0.1, P=0.880) or interaction between time and group (F_(4,56)=1.3, P=0.297) on respiratory rate, with HH respiratory rates ~70–75 breaths/minute in all groups pre- and post-surgery (Two-Way ANOVA; Table 1). Likewise, the duty cycle of HH was unaffected by time (F_(2,56)=0.4, P=0.678), group (F_(2,28)=0.1, P=0.880) or interaction between time and group (F_(4,56)=1.5, P=0.206) on respiratory rate, with eupnoea duty cycle ~50 % in all groups pre- and post-surgery (Two-Way ANOVA; Table 1).

During occlusion, there was no effect of time (F_(2,56)=1.1, P=0.356), group (F_(2,28)=0.5, P=0.610) or interaction between time and group (F_(4,56)=0.6, P=0.694) on respiratory rate, with occlusion respiratory rates ~35 breaths/minute in all groups pre- and post-surgery (Two-Way ANOVA; Table 1). Likewise, the duty cycle of occlusion was unaffected by time (F_(2,56)=0.4, P=0.646), group (F_(2,28)=0.4, P=0.694) or interaction between time and group (F_(4,56)=0.4, P=0.804) on respiratory rate, with eupnoea duty cycle ~40 % in all groups pre- and post-surgery (Two-Way ANOVA; Table 1).

Effects of C₂SH on the DIAm EMG of the unaffected side

At all time points and during all ventilatory behaviours (i.e., eupnoea, HH and airway occlusion), DIAm EMG of the uninjured side (ie., contralateral to the lesion) was recorded and analysed in the same manner as that of the injured side (Table 2). We did not observe any robust or systematic changes in DIAm EMG from the uninjured side with regard to time (F_(1,22)=2.2, P=0.152), behaviour (F_(2,44)=0.3, P=0.711), treatment (F_(1,22)=0.02, P=0.877), or the interaction between time and treatment (F_(1,22)=0.1, P=0.818; Three-Way ANOVA; Table 2).

Table 2:

Contralateral DIAm RMS EMG

Parameter		Vehicle C2SH (n=14)	SPG302 (n=10)	Three-Way ANOVA
Eupnoea (% Pre-Injury)	Post-	95 ± 29	105 ± 39	Time: F=2.2; P=0.15 Behaviour: F=0.3; P=0.71 Treatment: F=0.02; P=0.88 Interaction: F=0.1; P=0.82
	Day 14	104 ± 33	108 ± 33
HH (% Pre-Injury)	Post-	99 ± 38	95 ± 39
	Day 14	113 ± 42	95 ± 32
Occlusion (% Pre-Injury)	Post-	98 ± 37	92 ± 48
	Day 14	104 ± 53	128 ± 24

All data presented as Mean ± SD, normalised to pre-injury values of each behaviour. Three-Way ANOVA.

DISCUSSION

This study presents four novel findings in C₂SH-lesioned rats: (i) C₂SH causes marked EMG deficits across ventilatory behaviours; (ii) C₂SH causes significant impairments in DIAm P_di during eupnoea, HH, occlusion and P_dimax; (iii) 14-day treatment with SPG302 following C₂SH significantly increases the incidence and magnitude of DIAm EMG recovery and (iv) ameliorated DIAm P_di deficits across ventilatory and non-ventilatory behaviours. Overall, this study ushers in a new approach towards restoring DIAm function following cervical spinal cord injury by enhancing synaptogenesis utilizing pegylated benzothiazole derivatives, such as SPG302. In addition to our innovative use of SPG302, we are the first to characterize P_di across a variety of ventilatory and non-ventilatory behaviours at various timepoints following C₂SH.

Many facets of the C₂SH lesion have been extremely well characterized, including the interruption of descending glutamatergic inspiratory drive (Tai and Goshgarian, 1996;Fogarty and Sieck, 2020;Rana et al., 2020b), which is primarily ipsilateral (McCrimmon et al., 1989;Lipski et al., 1994;McCrimmon et al., 1995). The unilateral lesioning of descending inputs during C₂SH abolishes ipsilateral DIAm EMG activity during eupnoea (Miyata et al., 1995). Following C₂SH, DIAm EMG deficits have been routinely observed during some ventilatory behaviours, but not during maximum efforts and not normalized within behaviours. Indeed, the preponderance of past studies normalize to eupnoea, or sigh, (which is defined as a multiple of eupnoea) (Mantilla et al., 2011;Martinez-Galvez et al., 2016;Khurram et al., 2018). In the present study, we normalized all data to the values obtained immediately prior to C2SH or sham surgery within each behaviour. Immediately following C₂SH, DIAm EMG activity was markedly reduced compared to initial pre-surgery EMG during eupnoea (~4–5% in VEH and SPG302 rats), HH (~4–6% in VEH and SPG302 rats) and occlusion (~17–20% in VEH and SPG302 rats). These deficits were consistent with reductions in DIAm EMG activity reported for eupnoea (Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). In spontaneously recovered rats, DIA EMG is restored to ~25% of the initial level (Gransee et al., 2013;2015). In previous studies where all DIAm EMG values were normalized to pre-surgery eupnoea, DIAm EMG during HH and occlusion was unchanged at 21 days (Martinez-Galvez et al., 2016), although other groups have observed substantial depression of DIAm EMG during occlusion (Warren et al., 2018). In VEH treated rats following C₂SH, we observed DIAm EMG (normalized to pre-surgery RMS EMG within each behaviour) values of ~10, 15 and 40% for eupnoea, HH and occlusion, respectively, regardless of recovery status (i.e., all recovered animals included in the data set). Excluding recovered rats, the DIAm EMG activity declines to ~7, 13 and 26% for eupnoea, HH and occlusion, respectively. In addition to characterizing DIAm EMG across different behaviours, our within-behaviour normalization approach reduced any intra-animal variability in past assessments normalizing to eupnoea. Our prior study showing significant reduction (~40%) in the co-efficient of variation by normalizing to behaviours other than eupnoea underlines the importance of appropriate normalization (Mantilla et al., 2011).

Difficulties engendered by the variability of chronic DIAm EMG following C₂SH have led to integrative DIAm functional assessments of using plethysmography and arterial blood gases (Golder et al., 2003;Fuller et al., 2006;Warren et al., 2018) or ex vivo approaches assessing DIAm contractility (Mantilla et al., 2013b). Indeed, C₂SH reduced tidal volumes during eupnoea and augmented breaths in unanesthetized rats (Fuller et al., 2006;Fuller et al., 2008). However, these approaches are limited in scope and are not as well suited as P_di to estimate DIAm function across the range of ventilatory and non-ventilatory behaviours (Bellemare et al., 1986;Sieck and Fournier, 1989;Fogarty and Sieck, 2019). The present study substantially expands the scope of functional DIAm assessment compared to previous efforts from within our lab and others by investigating C₂SH-induced changes in P_di. Using P_di, eupneic values are consistently ~10–15% of P_dimax in rodents ~110 cm H₂O (Khurram et al., 2018;Khurram et al., 2019;Fogarty et al., 2022) and humans ~200 cm H₂O (Bellemare and Bigland-Ritchie, 1984;Aubier et al., 1985;Bellemare et al., 1986). Consistent with declines in tidal volumes with C₂SH, we observed reduced Pdi during eupnoea (~35%), HH (~35%) and occlusion (~35%) immediately following C₂SH, that persist until 14 days post-injury in VEH treated rats. In addition, we observed marked deficits in P_dimax following C₂SH, with VEH reduced by ~30% compared to SHAM treated rats. Thus, functional deficits following C₂SH are apparent across ventilatory and non-ventilatory behaviours, although the effects on endurance behaviours (eupnoea and HH) seem greater than effects on higher-pressure behaviours (occlusion and P_dimax). This result is consistent with a 60% reduction in glutamatergic inputs to smaller PhMNs (recruited for ventilatory activities (Sieck and Fournier, 1989;Fogarty and Sieck, 2019)) and an ~30% reduction in larger PhMNs (recruited for non-ventilatory behaviours (Sieck and Fournier, 1989;Fogarty and Sieck, 2019)), following C₂SH (Rana et al., 2020b). In the present study we did not observe any changes in respiratory rate nor duty cycle across ventilatory activities, consistent with past reports (Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022).

Previous studies have shown P_di deficits and DIAm weakness are dependent upon the level of dissociation between of PhMNs and their constituent DIAm fibres. Namely, denervation (severing of the phrenic nerve (Paterson, 1965)), C₄ contusion injury (with frank obliteration of ~30% of PhMNs (Alvarez-Argote et al., 2016)), early onset hypertonia (with ~30% PhMN death (Brandenburg et al., 2020)) and aging (with ~25% PhMN death (Fogarty et al., 2018b)) all present with reduced DIAm isometric force and/or P_dimax (Gill et al., 2015;Khurram et al., 2018;Khurram et al., 2019;Fogarty et al., 2022). By contrast, mild frank DIAm weakness has only been observed following extended (42-days) intervals post-C₂SH (Mantilla et al., 2013b). In our study, reduced P_di function across multiple behaviours may be related to either impaired activation or increased chest wall compliance during inspiration. We have extensive evidence (including in this study) that reduced PhMN activation is particularly apparent during ventilatory activities (Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). By contrast, increased chest wall compliance due to C₂SH-related impairment of the chest wall musculature (intercostals) that stiffens the thorax during inspiration (Denton and McKinlay, 2009;Beth Zimmer et al., 2015), may impair P_dimax without requiring DIAm weakness per se.

Extensive research by assorted research groups shows spontaneous recovery of DIAm EMG activity during eupnoea may occur in the days following C₂SH (Goshgarian et al., 1991;Moreno et al., 1992;Miyata et al., 1995;Fuller et al., 2006;Fuller et al., 2008;Singh et al., 2012;Mantilla et al., 2013a;Mantilla et al., 2013b;Gransee et al., 2015;Martinez-Galvez et al., 2016;Gransee et al., 2017;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). This improvement is likely related to both presynaptic and postsynaptic mechanisms strengthening spared connections (Fogarty and Sieck, 2020). Determining the locus of these spared pathways has generated considerable research interest, although differentiating the precise contributions of strengthened of contralateral descending, local segmental or ascending pre-synaptic inputs to PhMN has remained elusive (Porter, 1895;Streeter et al., 2017;Streeter et al., 2020;Sunshine et al., 2020). In addition, potent postsynaptic intrinsic and active PhMN mechanisms may precipitate recovery following C₂SH. Indeed, enhanced expression of postsynaptic glutamate receptor subtypes or serotonin activation may improve the intrinsic amplification of residual inspiratory drive from these spared inputs (Hadley et al., 1999;Zhou and Goshgarian, 1999;Mantilla et al., 2012;Gransee et al., 2017). Collateral branching from spared axons, or de novo axonal growth from spared pathways are likely to improve DIAm function over time. In rats, we have consistently observed ~25% spontaneous recovery in DIAm EMG during eupnoea at 7- and 14-days post C₂SH (Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Sieck et al., 2021;Brown et al., 2022). In concordance, VEH treated rats exhibited ~29% recovery of DIAm EMG during eupnoea by 14-days post C₂SH in our current study. Notably, we have no evidence that “bridging” of the glial scar from injury-side tracts from cranial to the injury to caudal to the injury is a likely cause of spontaneous recovery, with clear lesion demarcation occurring in non-recovered and recovered rats. It is also important to note that the dorsal columns are spared during C₂SH.

A plethora of therapeutic approaches have been shown to improve the proportion of rats with recovered DIAm EMG following C₂SH, including neurotrophic support, intermittent hypoxia and augmentation of glutamatergic or serotonergic receptor activation (Zhou and Goshgarian, 1999;Fuller et al., 2003;Gransee et al., 2013;Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017;Wollman et al., 2020;Sieck et al., 2021). Although not all these approaches display even a modicum of the practicality of the daily systemic dosing used in the current study. These previous approaches increase the % of rats recovering to >10% of initial DIAm EMG activity, from ~30% to ~50–80% (Gransee et al., 2013;Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016). Further, these approaches show increased magnitude of DIAm EMG activation compared to initial levels during eupnoea, with enhanced neurotrophic (BDNF/TrkB activation) support improving EMG activity in recovered rats to ~50–90% of initial, compared to the ~25–35% initial activity in spontaneously recovered rats (Gransee et al., 2013;Mantilla et al., 2013a;Gransee et al., 2015;Martinez-Galvez et al., 2016). In the present study, treatment with SPG302 increased the likelihood of recovery following C₂SH ~2.5-fold, compared to VEH treated controls. In addition, treatment with SPG302 significantly increased the magnitude of DIAm RMS EMG at 14-days post C₂SH compared to immediate post-surgery values across all ventilatory behaviours and compared to VEH treated controls at 14-days post C₂SH. Importantly, in recovered SPG302 treated rats, DIAm RMS EMG during eupnoea was ~60% of initial pre-surgery values, compared to ~20% of initial for recovered VEH treated rats. Overall, SPG302 significantly increased the incidence and magnitude of DIAm EMG recovery following C₂SH.

Treatment of C₂SH lesioned rats with SPG302 also provided substantial functional benefits, as evidenced by P_di assessment. Following 14 days of SPG302 treatment, SPG302 treated rats had greater P_di during eupnoea, HH, occlusion and bilateral phrenic nerve stimulation (P_dimax) compared to VEH treated rats. Importantly, the depression in P_di during eupnoea, HH and occlusion immediately post-surgery in all VEH and SPG302 treated C₂SH rats compared to SHAM treatment was ameliorated by 14 days of SPG302 treatment. Thus, SPG302 treatment essentially returned ventilatory P_di to a pre-surgery level and substantially improved P_dimax. A limitation of the current study was that treatment with SPG302 started prior to our 3-day assessment of our C₂SH lesion. Although in the present study we had no activity in any VEH or SPG302 rat at 3 days post C2SH, a few of our prior studies waited until day 3 to commence treatment, thus our improved magnitude of recovery compared to BDNF/TrkB approaches may be a result of earlier more aggressive treatment timing. Notably, none of these outcomes was mediated by any difference in anatomical lesion severity (nor was any evidence of axonal growth “bridging” the glial scar following SPG302 treatment), likely due to our rigorous functional inclusion exclusion/criteria. Similarly, none of the outcomes were influenced unduly by varying degrees of contralateral compensation, with negligeable changes in the DIAm RMS EMG on the contralateral side across differing time points, treatments and behaviours, in staunch agreement with past studies (Martinez-Galvez et al., 2016;Hernandez-Torres et al., 2017).

Although out of the scope of the current study, it is likely that SPG302 treatment improved functional outcomes following C₂SH by enhancing pre- or post-synaptic neurotransmission onto PhMNs. This result was likely achieved by either increasing the number or strength of spared contralateral or latent excitatory synaptic inputs onto PhMNs, or conversely, by increasing the abundance of post-synaptic sites for neural input. Studies of SPG302 in the triple transgenic mouse model of Alzheimer’s disease revealed significant increases in the density of dendritic spines and co-localized pre- and post-synaptic markers (a measure of functional contacts), but no significant differences in the density of presynaptic markers (Trujillo-Estrada et al., 2021); similar changes have been demonstrated in vitro. These observations suggest that SPG302 enhances the formation of postsynaptic elements to which existing presynaptic machinery can fruitfully couple to form a functional synapse. Previous studies using pegylated benzothiazole derivatives, the class of drug to which SPG302 belongs, support these interpretations, with these compounds enhancing F-actin cytoskeleton remodeling (Cifelli et al., 2016;Lee et al., 2016;Zhang et al., 2019;Cifelli et al., 2020). The essential role of F-actin in the maintenance and formation of dendritic spines has been highly characterized (van Bommel et al., 2019;Bucher et al., 2020). Despite motor neurons having lesser spine densities (Bandaru et al., 2015;Fogarty et al., 2016a;Kanjhan et al., 2016;Fogarty et al., 2017a;Fogarty et al., 2017b;2020a;b) compared to other neuronal subtypes (Kawaguchi et al., 2006;Fogarty et al., 2016b;Fogarty et al., 2016c;Klenowski et al., 2017), excitatory dendritic shaft synapses are common in many neurons (and likely motor neurons) (Bourne and Harris, 2011;Fogarty et al., 2013), with similar F-actin mechanisms responsible for generating and maintaining post-synaptic specializations of glutamatergic synapses on dendritic shafts (van Bommel et al., 2019). Alternatively, pre-synaptic F-actin is essential for axon guidance, presynaptic terminal differentiation and the budding of axon collaterals- necessary for creating de novo inputs (Zhang and Benson, 2001;Gallo, 2011;Nelson et al., 2013). Thus, while prior evidence favors a post-synaptic locus of SPG302 action, it may enhance the de novo formation of glutamatergic synapses following C₂SH by either a pre- or post-synaptic mechanism. Future investigations will include efforts defining the mode of action of SPG302 in the spinal cord.

Our study did not investigate the pharmacokinetics or timing of treatment with SPG302 in relation to C₂SH, parameters that would inform on the scope of SPG302’s potential therapeutic utility in spinal cord injuries. In vitro studies have shown spinogenic activity of SPG101 prototypes within an hour, and enhancement of motor function in vivo within 1 week during systemic delivery in a controlled cortical impact rat model of traumatic brain injury (Cifelli et al., 2016;Zhang et al., 2019). Longer term effectiveness out to 1 month was also established this model, and more recently for SPG302 in the triple transgenic mouse model of Alzheimer disease (Trujillo-Estrada et al., 2021). Of clinical relevance, it remains to be determined whether SPG302 will elicit any improvement in chronically non-recovered rats following C₂SH, where BDNF/TrkB approaches have had some success (Sieck et al., 2021). It remains unknown whether SPG302 will be effective in models that more closely approximate human spinal cord injuries, where frank PhMN death and a robust inflammatory response are prevalent as modelled by the C₄ hemi-contusion (Alvarez-Argote et al., 2016;Fogarty and Sieck, 2020).

In summary, this study provides two major advances in C₂SH investigation that are highly informative to the field. Firstly, we characterize a suite of EMG and functional deficits across a variety of behaviours following C₂SH. Secondly, we exhibit exciting preclinical evidence for improved outcomes in C₂SH by treatment with a novel synaptic regenerative therapeutic, SPG302. This promising therapeutic approach could lead to new opportunities in a space with a dearth of pharmacological or translatable discoveries.

Key Points:

Despite advances in our understanding of the effects of cervical hemisection (C₂SH) on diaphragm muscle (DIAm,) EMG activity, very little is understood about the impact of C₂SH on the gamut of ventilatory and non-ventilatory transdiaphragmatic pressures (P_di).

Recovery of DIAm activity following C₂SH is improved using a variety of approaches, but very few pharmaceuticals have been shown to be effective. One way of improving DIAm recovery is to enhance the amount of latent local spared connections onto phrenic motor neurons. A novel pegylated benzothiazole derivatives enhances synaptogenesis in a variety of neurodegenerative conditions.

Here, using a novel therapeutic SPG302, we show that 14 days of treatment with SPG302 ameliorated DIAm EMG and P_di deficits compared to vehicle controls.

Our results show that SPG302 is a compound with a very promising potential for use in improving functional outcomes post spinal cord injury.

Biography

Matt is currently an assistant professor at Mayo Clinic, Minnesota, arriving as a postdoctoral NHMRC Fellow in 2016 following his BVSc (2008) and PhD (2014) at The University of Queensland, Australia. He is striving to establish an independent research niche exploring and ameliorating ageing and neurodegeneration associated motor defects. His published oeuvre comprises all the station-stops between the motor cortex and skeletal muscle fibres, during conditions such as development, injury, ageing and disease. Most of Matt’s career has involved identifying pathogenetic dysfunctions. This therapeutic investigation marks a pleasant change of theme. To date, he has never performed a Western Blot.

Data Availability:

All individual data are presented in the Results, Figures and Tables.
