A diversified, widespread microbial gene cluster encodes homologs of methyltransferases involved in methanogenesis

Abstract

Analyses of microbial genome sequencing data have revealed unexpectedly wide distributions of enzymes from specialized metabolic pathways, including enzymes from methanogens, providing exciting opportunities for discovery. Here, we identify a family of gene clusters (the type 1 mlp gene clusters (MGCs)) that encodes homologs of the soluble coenzyme M methyltransferases (SCMTs) involved in methylotrophic methanogenesis and is widespread in bacteria and archaea. Type 1 MGCs are expressed and regulated in a number of medically, environmentally, and industrially important organisms, making them likely to be physiologically relevant. Enzyme annotation and analysis of genomic context suggests these gene clusters are likely to play a role in methyl-sulfur and/or methyl-selenide metabolism in numerous anoxic environments, including the human gut microbiome. Notably, we propose that type 1 MGCs could participate in selenium and methionine salvage pathways that could impact sulfur and selenium cycling in diverse, anoxic environments.

Introduction

Other the past 50 years, biochemists and microbiologists have made much progress in elucidating the enzymology of methanogenesis. The canonical methanogenic pathways are now well understood (1,2), and the vast majority of the central catabolic enzymes have been purified and at least partially characterized, and their genes identified and sequenced. This reservoir of biochemical knowledge presents the opportunity to identify homologs of methanogen specific enzymes in organisms that are categorically not methanogens. In doing so, we may discover previously unappreciated metabolic pathways that could have global or ecological relevance. Moreover, studying homologs of methanogen-specific enzymes in non-methanogenic organisms could shed light on the evolution of methanogenic pathways and organisms as well as the potential adaptation of methanogen genes to perform novel functions.

Methanogenesis can be regarded as a specialized metabolism—its pathways are biochemically quite distinct from those of most organisms and not expected to interface well with other metabolic processes when horizontally transferred. It is therefore interesting to note that methanogen cofactors and homologs of methanogen enzymes are indeed found in non-methanogens. Examples include the use of methanofuran- and methanopterin-dependent enzymes in aerobic methylotrophy (3), the use of deazaflavin redox cofactor F₄₂₀ in bacterial metabolism (4), the use of coenzyme M in alkene catabolism (5), and the use of heterodisulfide reductase-like enzymes in various metabolisms, including sulfate reduction (6), acetogenesis (7), and the degradation of benzoate (8). In each case the “methanogen” enzymes are performing an interesting, novel, and important function.

We wondered if this occurrence of methanogen enzymes in non-methanogenic organisms extends to the soluble coenzyme M methyltransferases (SCMTs) from methylotrophic methanogenesis. SCMTs are corrinoid-dependent methyltransferases that are responsible for transferring a methyl group from a methylated corrinoid-binding protein (corrinoid protein) to coenzyme M to form methyl-coenzyme M, the immediate precursor of methane (Fig. 1) (9). SCMTs belong to the very large and sequence-diverse uroporphyrinogen decarboxylase (UroD) superfamily, which includes uroporphyrinogen decarboxylase, cobalamin-independent methionine synthase, epoxide coenzyme M transferase, and a variety of corrinoid methyltransferases including O-, S-, and halogen-demethylases (10–16). However, we focused our attention on proteins having greater than 25% amino acid identity to a characterized SCMT. We will refer to such enzymes as MtaA-like proteins, or Mlps, after MtaA, the methanol-specific SCMT in Methanosarcina species (16). To our knowledge, these Mlps have not been assigned a role outside of methanogens.

Fig. 1. Searching genomes for the soluble coenzyme M methyltransferase (SCMT) MtaA involved in methylotrophic methanogenesis identifies related enzymes in non-methanogens.

Overview of genome mining strategy used in this work. The methanol-specific methanol:corrinoid methyltransferase MtaB transfers the methyl group of methanol to the cognate corrinoid protein MtaC (the corrinoid cofactor is represented by a square containing a cobalt ion). The SCMT MtaA then transfers to the methyl group from MtaC to coenzyme M (CoM). The methyl group incorporated onto CoM is then disproportionated into methane and carbon dioxide or solely reduced to methane, depending on the organism and environmental conditions.

Here, we propose a prospective role for Mlps in a wide range of microorganisms by identifying a diverse, widespread, and homologous set of microbial gene clusters that encode multiple Mlps, as well as a corrinoid protein and a corrinoid reductive activase (Ram/RACE enzyme). Gene cluster annotation, bioinformatic analysis, and biochemical logic suggests that the encoded enzymes have two functions—methyl-selenide recycling and/or methionine salvage—depending on the organism. These results illustrate the utility of using known enzymes involved in metabolisms of interest to discover uncharacterized microbial gene clusters that likely have intriguing and ecologically important functions.

Materials and methods

General methods and procedures

Manipulations and visualizations of genomic data were performed using Geneious Prime 2020.0.4 software (17). BLASTP searches were conducted through the Geneious interface using either National Center for Biotechnology Information (NCBI) nr/rt database or custom databases generated by the user. In all cases we used the BLOSUM62 matrix and a gap opening penalty of 11 and a gap extension penalty of 1. Protein alignments we performed using MUSCLE (18).

Identification of mlp gene clusters

To identify homologs of soluble coenzyme M methyltransferases (SCMTs) in C. ljungdahlii, we generated a protein database of all the predicted proteins encoded in the C. ljungdahlii DSM 13528 genome, and performed at BLASTP search of this database using the Methanosarcina barkeri MtbA protein sequence (Swiss-Prot ID: O30640) as a query. We then inspected the genomic context of the all the hits with E-values less than 1.0e-10.

To identify additional mlp gene clusters (MGCs), we performed BLASTP searches against NCBI’s nr/nt database using C. ljungdahlii Mlp1, Mlp2, and Mlp3 (locus tags in Table S1) as queries. We collected the top 1000 hits from each BLAST search. For the Mlp1 search, this yielded hits with as low as 19.8% amino acid identity to the query. For the Mlp2 and Mlp3 searches, the minimum percent identities of the hits were 28.0% and 24.9%, respectively. We then manually inspected the genomic context of each hit to determine whether they were found in true MGCs. A “true” MGC met the following criteria: 1) it encodes at least two Mlps, a corrinoid protein, and a Ram protein, 2) each of these components are predicted to be transcribed in the same direction with no intervening divergently-transcribed genes, 3) there is no more than 2 kb of DNA in between the genes noted in 1, and 4) the gene cluster encodes no homologs of tetrahydrofolate methylases within 20 kb of any of the genes noted in 1. Using these methods and definitions, we identified 367 MGCs.

SSN analysis of MGC proteins

We generated all SSNs using the Enzyme Function Initiative Enzyme Similarity Tool (EFI-EST) webtool (19). For each SSN, we first compiled the sequences of characterized superfamily members and superfamily members that are encoded in the 367 MGCs identified above, generating a superfamily-specific “preliminary input list”. We then pruned each list to ensure that only quality sequences (those lacking frameshifts or internal stops) within a certain length window were included. For the Mlp SSN, length window was 200 to 470 amino acids. The resulting sequence list was termed the “input list”. We next input both the appropriate superfamily and input list into the EFI-EST web server. For the Mlp SSN, the superfamily was IPR027980, for the Ram/RACE SSN, it was IPR027980, and for the corrinoid protein SSN it was IPR006158. We selected alignment score thresholds such that most MGC proteins fell into common network clusters, but were still as separated as possible from non-MGC proteins. We selected node representation percent identities to the highest that consistent with efficient use of the Cytoscape GUI on an ordinary laptop MacIntosh computer. For each SSN, we used the UniRef90 option and otherwise default parameters. Once generated, the SSNs were visualized with Cytoscape software (version 3.8.0) using the “preferred” layout (20).

Phylogenetic analysis of mlp gene cluster proteins

We compiled proteins encoded by type I MGCs and sequences of related characterized proteins and then aligned the resulting protein sequences using MUSCLE with default parameters, and trimmed the alignments manually. All trees were generated using FastTree (approximately-maximum likelihood method) with default parameters (21).

We generated the rooted phylogenetic tree of the Mlps as follows. We first compiled the sequences of Mlps1, Mlps2, and Mlps3 from type I MGCs included in the above SSN. We added the SCMTs identified in the unrooted tree to this list, as well as the known phenolic O-demethylases OdmB and VdmB (UniProt IDs: O87604 and Q6W001, respectively). The SCMTs were identified as the smallest set of branches containing the characterized SCMTs MtaA, MtbA, and MtsA (all from Methanosarcina barkeri Fusaro), but excluding the Mlps3. The SCMTs were identified as the smallest clade in the unrooted tree which contained the known SCMTs MtaA, MtbA, and MtsA. The tree was rooted on the branch connecting the O-demethylases to the rest of the sequences, based on the hypothesis that they serve as an appropriate outgroup.

Phylogenetic membership of type I MGC-encoding organisms

We analyzed the phylogenic composition of type I MGC-encoding bacteria and archaea according to the Genomes Taxonomy Database (GTDB) taxonomic system (22).

Construction of homology models

Clostridium ljungdahlii DSM 13528 Mlps 1, 2, and 3 were submitted to the SWISS-MODEL webserver (23) using Methanosarcina mazei MtaA (PDB ID: 4AY7) (24).

Results

While manually inspecting the genome of Clostridium ljungdahlii DSM 13528, a bacterium that has received attention as a potential producer of biofuels, we noticed that this organism encodes multiple members of the UroD superfamily. To see if these genes are closely related to SCMTs, we performed BLASTP searches of the SCMT MtbA (Methanosarcina barkeri Fusaro, MbMtbA) against the predicted C. lungdahlii DSM 13528 proteome. We identified seven hits with an E value lower than 1e-09 (Table S1). The highest hit was CLJU_RS09375, which showed 32.5% amino acid (aa) identity to MbMtbA. It is worth noting that the SCMTs MtbA, MtaA, and MtsA (all from M. barkeri Fusaro) show only about 30% aa identity to each other, suggesting that CLJU_RS09375 could be a close relative of the SCMTs. CLJU_RS09375’s amino acid sequence identity to the UroD superfamily phenolic O-demethylases OdmB and VdmB was only 17.6% and 17.0%, respectively.

To obtain clues as to the physiological role of CLJU_RS09375, we next examined this gene’s genomic context. CLJU_RS09375 is encoded in a gene cluster that includes genes encoding a corrinoid protein (CLJU_RS09370), a “bacterial-type” corrinoid protein reductive activase (Ram/RACE protein) (CLJU_RS09380), and two additional Mlps (CLJU_RS09360 and CLJU_RS09365) (Fig. 2a). This gene cluster has been independently predicted to form an operon by OperonDB, an automatic operon prediction database (25). Because this gene cluster encodes multiple Mlps, we named it the mlp gene cluster (MGC). We named the three Mlps in the gene cluster Mlp1, Mlp2, and Mlp3, (specifically, ClMlp1, 2, and 3) in order of their appearance in the gene cluster from the presumed transcriptional start site (see Fig. 2a).

Fig. 2. Type I MGCs encode orthologous proteins.

a The MGC from C. ljungdahlii. b Representative type I MGC. Coloring of the core MGC genes is the same as in a, but non-core genes are colored grey. c A protein SSN of the UroD superfamily (IPR000257) showing the clustering of Mlps1, 2, and 3. Nodes representing MtsA, MtbA, and MtaA (all from M. barkeri Fusaro) are shown in dark blue. The alignment score cutoff was 40 and the node representation percent cut was 50 % aa identity. The SSN shown is a trimmed version of the full SSN, with all nodes removed that are neither directly or indirectly connected to the Mlps1, 2, or 3.

Given the relatively high sequence similarity of the MGC Mlps to SCMTs, it seems reasonable to hypothesize that these enzymes are corrinoid methyltransferases. This is consistent with the presence of genes encoding a corrinoid protein and a Ram/RACE protein in the MGC. The former is a methyl group carrier (26), while the latter is an ATP-dependent corrinoid protein reductase that reductively activates the corrinoid protein to its catalytically-active Co(I) state (27,28). Corrinoid methyltransferases, corrinoid proteins, and Ram/RACE proteins are frequently found colocalized in gene clusters (29–31). In bacteria, gene clusters encoding components of corrinoid methyltransferase pathways are involved in methylotrophic metabolism and participate in transferring a methyl group from a donor substrate to tetrahydrofolate (H₄folate) via a methyl-corrinoid protein intermediate, a reaction catalyzed by a methyl-corrinoid protein:H₄folate methyltransferase (15,29). In most of the bacterial methyltransferase pathways examined to date, the H₄folate methylase is encoded in the same gene cluster as the corrinoid protein and methyl donor methyltransferase (29,30). It is therefore surprising that H₄folate methyltransferase is missing from the C. ljungdahlii MGC. While it is possible that a H₄folate methyltransferase encoded elsewhere in the C. ljungdahlii genome could cooperate with the MGC methyltransferase system, it is also possible that H₄folate is not involved in the MGC methyltransferase pathway or that one of the MGC Mlps is an undiscovered H₄folate methyltransferase.

In parallel with the identification of the C. ljungdahlii MGC, we located similar gene clusters in C. sporogenes DSM 795 and Hungateiclostridium (Clostridium) thermocellum DSM 1313. Like the MGC from C. ljungdahlii, the gene clusters in C. sporogenes and H. thermocellum encode multiple Mlps (each with about 30% identity to the SCMTs), a corrinoid protein and a Ram/RACE protein (Fig. 2b). The gene clusters from C. sporogenes and H. thermocellum also lack a H₄folate methylase. However, unlike C. ljungdahlii, which encodes H₄folate methylases elsewhere in its genome, homologs of H₄folate methylases are absent from sequenced C. sporogenes and H. thermocellum genomes, suggesting that H₄folate might not be involved in the presumptive methyltransferase pathways encoded by these gene clusters. Because of the similarity of the C. sporogenes and H. thermocellum gene clusters to the C. ljungdahlii MGC, we refer to these gene clusters as the CsMGC, HtMGC, and ClMGC, respectively.

We next wondered if related MGCs are found in organisms other than C. ljungdahlii, C. sporogenes, and H. thermocellum. To address this, we BLASTed ClMlp1, 2, and 3 against the NCBI non-redundant protein database. We notice that many of the organisms that had high alignment score hits for ClMlp1 also encoded high alignment score hits for ClMlp2 and 3. When we examined the genomic contexts of these hits, we found that they are indeed colocalized in gene clusters that resemble the C. ljungdahlii MGC (see Fig. 2b for examples).

We next asked if these MGCs are homologous or analogous. Because components of a corrinoid methyltransferase pathway are commonly encoded in gene clusters (14,15,29–31), it would not be surprising to find that evolutionary pressure to colocalize corrinoid methyltransferase genes resulted in MGCs that appear only superficially similar, but share no evolutionary relationship. Alternatively, the common appearance and genetic content of the MGCs could suggest that these gene clusters are descended from a common ancestor (i.e. are homologous), which would also suggest they likely have a shared function in diverse organisms. To address this question, we first compiled a list of 367 organisms encoding likely MGCs (see materials and methods). To preliminarily assess the similarity of the proteins encoded by these MGCs, we constructed several protein sequence similarity networks (SSNs) (19). We reasoned that if MGCs are homologous, each conserved component of the identified MGCs should preferentially form its own cluster in an SSN of the protein family to which that component belongs. For instance, in an SSN of the corrinoid protein superfamily, the MGC corrinoid proteins should form their own cluster within the SSN. The same should be true for the Ram/RACE proteins in an SSN of their superfamily. Because there are multiple mlp genes in each MGC, there are two SSN analysis outcomes that are consistent with the homology hypothesis. First, all of the Mlps from the MGCs could be grouped within a single cluster in the SSN. This would be expected to be the case if the multiple mlp genes in each MGC arose from gene duplication. Second, the MGC Mlps could each represent different lineages, and could therefore likely form distinct clusters within an SSN.

We first constructed an SSN (Fig. 2c) of the IPR000257 superfamily, which includes the Mlps. We found that 80.9% of the MGC Mlps localized into one of three sub-clusters within a larger cluster (Fig. 2c, three clusters of magenta-colored nodes). Interestingly, these three sub-clusters correspond to the three Mlps from the C. ljungdahlii MGC, with ClMlp1, 2, and 3 being grouped into one of each of the sub-clusters. Inspection of other MGCs reveal that almost of these clusters encode Mlps from clusters 2 and 3, while a gene encoding an Mlp from cluster 1 was present a majority of the time, but often absent. We denote the proteins in the sub-cluster containing ClMlp1 as Mlps1, and those from network sub-clusters containing ClMlp2 and 3 as Mlps2, and Mlps3, respectively. Altogether, this analysis shows that a large number of MGCs encode at least an Mlp2 and an Mlp3. We designate such gene clusters as “type 1 MGCs”.

Because the overwhelming majority (>95%) of MGCs examined here appear to be type 1 MGCs, we selected the type I MGCs for further study. The fact that the type 1 MGC Mlps fall into three separate clusters in the SSN hints that they might represent three distinct Mlp lineages, rather than a single lineage within the UroD superfamily that arose from recent gene duplication events. To solidify this inference, we constructed a phylogenetic tree of the Mlps and other members of the UroD superfamily that are close relatives of known corrinoid methyltransferases (Figure 3a). The phylogenetic tree showed that the Mlps 1, 2, and 3 are situated in a large branch that includes the SCMTs, to the exclusion of other known UroD superfamily corrinoid methyltransferases such as the aromatic O-demthylases (13). When rooted (Figure 3b), we found that the Mlps 1, 2 and 3 formed distinct, well-supported clades. Interestingly, the Mlps2 form a sister clade to the clade containing the SCMTs and the Mlps1 and Mlps3. Within this clade, the Mlps1 and Mlps3 form sister clades emerging from the SCMTs, which therefore appear to be paraphyletic.

Fig. 3. Type I MGCs encode orthologous proteins.

a An approximately-maximum likelihood (FastTree) phylogenetic tree of members of the UroD superfamily methyltransferases. The FastTree support values for the Mlps1, 2, and 3 clades are 0.95, 0.94, and 1.00, respectively. Scale bar: branch length corresponding to an average of one change per position. b A rooted approximately-maximum likelihood (FastTree) phylogenetic tree of selected protein sequences. Shown are the soluble coenzyme M methyltransferases (SCMTs), the Mlps1, 2 and 3, and the phenolic O-demethylases OdmB and VdmB (outgroup). Each branch is labeled with the branch’s FastTree support value. The number of sequences in each clade are as follows. O-demethylases: 2; Mlps2: 267; Misc. SCMT clade: 20; MtbA clade: 85; Mlps1: 147; Mlps3: 233; MtaA + MtsA clade: 252. c An approximately-maximum likelihood (FastTree) phylogenetic tree of members of the methyltransferase corrinoid protein family. The type I MGC proteins are shown in red. The FastTree support value for the type I MGC proteins is 0.92. Selected characterized family members are shown: MtbC1, MtmC1, and MttC1 (all from M. acetivorans C2A); DhMtgC from Desulfitobacterium hafniense Y51; MtqC from Eubacterium limosum ATCC 8486; MtsB from M. barkeri Fusaro; OdmA and VdmA from Acetobacterium dehalogenans DSM 11527. d An approximately-maximum likelihood (FastTree) phylogenetic tree of members of the Ram/RACE protein family. The type I MGC proteins are shown in orange. The FastTree support value for the type I MGC proteins is 0.98. A clade containing the corrinoid iron-sulfur protein reductive activases is labeled “AcsVs”. The locations of the activases RamQ (E. limosum ATCC 8486) and OdmC (A. dehalogenans DSM 11527) are shown. Scale bars for all tree represent respective branch length corresponding to an average of one change per position.

To further explore the sequence similarity relationships between MGCs, we first generated SSNs for the corrinoid protein (IPR006158) and Ram/RACE protein (IPR027980) superfamilies. These SSNs were similar: each contained a cluster consisting of proteins from MGCs (Fig. S2). The only exceptions amongst corrinoid proteins were found in cases where two corrinoid proteins were present in the MGC, one of which was located outside of the type I MGC network cluster. We refer to this second corrinoid protein as an “auxiliary.” A comparatively small number (13 in total) of type I MGC Ram/RACE proteins were found outside the main network cluster. Interestingly, all but two of these non-canonical Ram/RACE proteins were found in MGC that also encoded a non-pyrrolysine homolog of the methylamine methyltranasferase, MtmB. Ten of these MGCs encoded an auxiliary corrinoid protein. These data are consistent with the hypothesis that type 1 MGCs are homologous to each other, but not confirmatory, as they do not use phylogenetic algorithms. To further test this hypothesis, we generated two additional phylogenetic trees: one containing the type 1 MGC corrinoid proteins and other monomeric methyltransferase corrinoid proteins (Fig. 3c and 3d, respectively), and the other containing the type 1 MGC Ram/RACE proteins and other Ram/RACE proteins (Fig. S4). In each case, the type 1 MGC proteins were found in the same branch, with a handful of exceptions. These exceptions could be the result of gene conversion or the replacement of a “canonical” type 1 MGC gene with an isofunctional gene from outside of the MGC.

Together, the data from the SSN and phylogenetic analyses suggests that type 1 MGCs are homologous in that they encode mutually orthologous proteins (i.e. the conserved type 1 MGC Mlps are all orthologs, the type 1 MGC corrinoid proteins are all orthologs, and the type 1 MGC Ram/RACE proteins are all orthologs.) The simplest explanation for the homology of the type 1 MGCs is that they are preserved and horizontally transferred as a unit. However, we cannot rule out more complicated scenarios such as one in which the type 1 MGC genes are transferred individually into different regions of the genome and then brought together by selective pressure. This latter possibility gains some credence when we note the lack of conserved synteny in type 1 MGCs.

Having established that type 1 MGCs are homologous, we sought to analyze the phylogenetic distribution of these gene clusters (Fig. 4). To date, we have identified over one hundred genera (all of them prokaryotes) containing at least one strain encoding a type 1 MGC. Of these genera, only three (Methanococcus, Methanothermococcus, and Methanotorris) are archaeal. These three archaeal genera are of methanogens belonging to the Methanococcales order. This is noteworthy because members of the Methanococcales are not known to be methylotrophic and therefore would not be expected to encode SCMTs. Of genera that encode type I MGCs, all but two (Rhodoblastus and Rhodovastum) contain only obligate anaerobes, with the majority (73%) belonging to the Firmicutes phylum and a minor contribution from the Desulfobacterota phylum (composing 11% of the type I MGC-encoding genera). Although type 1 MGCs are found largely in a limited number of phyla, they are widely distributed in those phyla at the order level, as type 1 MGCs are found in at least 35 orders of bacteria and archaea. The two most well represented orders are the Peptostreptococcales and Clostridiales, which contain 14 and 13 identified type 1 MGC-encoding genera, respectively. From this analysis, we conclude that type 1 MGC are phylogenetically widespread and are associated with microorganisms that are restricted to anoxic environments. Individual species encoding type 1 MGCs include a number of interesting organisms, such as toxigenic clostridia (Clostridium botulinum, Paeniclostridium sordelii, certain strains of Clostridioides difficile) and industrially-relevant clostridia (Hungateiclostridium (Clostridium) thermocellum, Clostridium ljungdahlii and its close relatives).

Fig. 4. Type I MGCs are found in several prokaryotic Phyla.

Phylum composition of genera encoding type I MGCs. 101 genera are represented. The number of type I MGC-encoding genera within each phylum is enclosed in parentheses.

Many of the organisms encoding type I MGCs are either known acetogens or encode the proteins necessary for acetogenesis. These include the acetogenic Clostridium spp., Sporomusa spp., certain Clostridioides difficile strains, and acetogenic Treponema strains. It should be emphasized, however, that many known acetogens do not encode MGCs and many of the organisms that encode MGCs lack the critical acsA and acsB (genes encoding bacterial anaerobic carbon monoxide dehydrogenase and bacterial acetyl-CoA synthase, respectively) that are required for acetogenesis in all known instances.

We next turned our attention to analyzing additional components of the type 1 MGCs and proposing a biochemical function for these genes. The UroD superfamily includes corrinoid methyltransferases that (de)methylate several heteroatoms including halogens, sulfur atoms, and aryl oxygens (10,12,14,15,32). Several lines of evidence suggest that the type 1 MGCs encode a corrinoid S- or Se-methyltransferase system. First, the closest relationship between known UroD superfamily proteins and the type 1 mlp cluster Mlps is with the SCMTs (Fig. a and b), which are S-methyltransferases. Additional evidence comes from examination of the enzyme’s Zn²⁺-binding site. This Zn²⁺ cofactor coordinates the heteroatom of a substrate, activating it for (de)methylation (24,32,33). The primary coordination sphere of the Zn²⁺ cofactor is His-Cys-Cys in S-methyltransferases from the UroD superfamily and beyond, while in O-methyltransferases, one or both of the Cys ligands are substituted by carboxylates (Glu or Asp) or are substituted for non-coordinating residues (15,24,32,33). The His-Cys-Cys coordination environment favors the binding of a soft ligand such as a selenium or sulfur atom to the Zn²⁺ center, while substitution of Cys for a carboxylate favors binding of an oxygen atom. The coordination sphere of the type 1 MGC Mlps is (with the exception of a few of the Mlps1) invariably His-Cys-Cys, suggesting that these proteins are S- or Se-methyltransferases. We constructed homology models of each of the C. ljungdahlii Mlps in order to confirm that the His-Cys-Cys triads are likely appropriately positioned to coordinate Zn²⁺ (Fig. S3). Finally, examination of the non-core components of type I MGCs (genes that are found in type I MGCs, but do not encode Mlps, corrinoid proteins, or Ram/RACE proteins) consistently reveals genes involved in sulfur metabolism, including methionine aminotransferases, sulfurtransferases, methionine transporters, and close homologs of the recently-described MarHDK enzyme that catalyzes C–S bond cleavage in the production of ethylene from methylthioethanol (34). These observations suggest a potential role for type I MGCs in methyl-sulfur metabolism.

However, consideration of additional evidence suggests that most type I MGCs function in methyl-selenium metabolism. For instance, type 1 MGCs commonly contain genes provisionally linked to selenium metabolism, such as the recently characterized “dicubane cluster protein” (35–37). Several type 1 MGCs (Fig. 5) contain genes encoding authentic machinery for selenocysteine synthesis, encoding, and decoding (SelABCD), as well as the enzymes of the glycine reductase system, two of which have selenocysteine residues (38,39). A strikingly high percentage (87%) of sequenced species that encode type I MGCs also encode selenocysteine biosynthesis machinery within the same genome. For comparison, a recent study found that only about 21.5% of bacteria contain the requisite genes for selenocysteine biosynthesis, and even in the selenocysteine-rich Clostridia, only 42% of 184 genomes surveyed encoded selenocysteine biosynthesis machinery (35). Not all organisms that make use of selenium encode selenocysteine biosynthetic machinery—some organisms that use the selenium cofactor only encode selenide-water dikinase (SelD) (35). We therefore manually inspected genomes that contain a type I MGC, but lack SelAB or C, finding that several genomes lacked selABC, but had selD as well as selenium cofactor-dependent enzymes. As noted below, type 1 MGCs from C. ljungdahlii and C. drakei are upregulated during autotrophic growth on H₂ + CO₂, a condition where there is increased demand for selenoprotein biosynthesis (40). The Cys-Cys-His coordination of the active site Zn²⁺, in addition to being suggestive of binding a sulfur nucleophile/methyl-sulfur methyl donor, could also be compatible with a selenium nucleophile/methyl-selenide methyl donor. Most importantly, during the preparation of this manuscript, we became aware of a 2004 publication that used proteomic and genetic methods to implicate three type I MGC-encoded proteins (the corrinoid protein and two Mlps2) in the utilization of dimethyl-selenide as a selenium source in the hydrogenotrophic methanogen Methanococcus voltae (41). The authors suggested that the Mlps might demethylate (di)methyl-selenide and transfer the methyl group onto the MGC corrinoid protein, liberating selenide for incorporation into biological macromolecules. While the authors did not biochemically characterize the Mlps in this study, their data strongly support a role for the type I MGCs in methyl-selenol utilization.

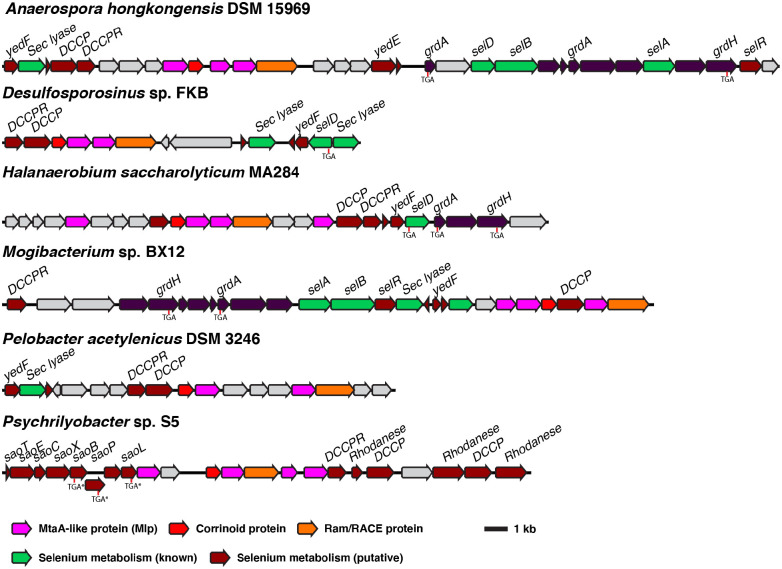

Fig. 5. Type I MGCs often encode genes involved in selenium metabolism.

Selenium metabolism gene show are either close homologs of genes with experimentally-confirmed roles in selenium metabolism (“Selenium metabolism (known)”) or have been associated with selenium metabolism by bioinformatic methods (“Selenium metabolism (putative)”) (35,36). The positions of selenocysteine codons are make with “TGA.” “TGA*” indicates a selenocysteine codon that has been bioinformatically predicted, but not experimentally confirmed (36). Sec lyase: selenocysteine lyase. DCCP: dicubane cluster protein. DCCPR: dicubane cluster protein reductase. grdA: glycine reductase subunit A. grdH: glycine betaine reductase subunit H. selA: L-seryl-tRNA(Sec) selenium transferase. selB: selenocysteine-specific translation elongation factor. selD: selenide water dikinase. selR: putative selenium transcriptional regulator (35). Sao: putative “selenocysteine-assisted organometallic operon genes.

Because type 1 MGCs are present in several model organisms that have been the subjects of proteomic and transcriptomic studies, we examined the expression of these genes in existing datasets for C. botulinum, C. ljungdahlii, and H. thermocellum to gain additional information regarding their functions. In all three organisms, the MGCs are expressed at a detectable level under all conditions examined. First, we found that the C. botulinum MGC is upregulated during growth at the organism’s optimal growth temperature of 37 °C compared to growth at 15 °C (transcripts 5.27–68.6 fold upregulated at 37 °C) (42). In C. ljungdahlii, we found that the type 1 MGC is transcriptionally upregulated roughly 3–5 fold during autotrophic growth on H₂ + CO₂ or CO versus heterotrophic growth on fructose (43–45). The same pattern is found in C. drakei (6 to13 fold transcriptional upregulation on H₂ + CO₂ compared to fructose) (40). In H. thermocellum, the type 1 MGC is upregulated during growth with supplemental acetate in a strain from which the FeFe hydrogenase maturation enzyme ΔhydG had been deleted (46). These findings imply that type 1 MGCs are expressed, indicating their physiological relevance, and respond to environmental and genetic perturbations in industrially and medically significant organisms.

Discussion

Methylotrophic methanogenesis is a unique mode of metabolism restricted to a subset of the archaea, so it is surprising to find homologs of enzymes from this pathway in non-methanogens. Here, we identify a diversified, widespread set of gene clusters—type 1 MGCs—that encode homologs of the SCMTs involved in methylotrophic methanogenesis. Type I MGCs are found exclusively in anaerobes, and are most common in the Firmicutes phylum. In these organisms, there is a strong tendency for type I MGCs to be found in genomes that also contain selenocysteine biosynthesis and decoding machinery.

What reactions do the enzymes encoded by type 1 MGCs catalyze and what is the physiological function of those reactions? The presence of a corrinoid protein, a corrinoid reductive activase, and homologs of corrinoid methyltransferases (Mlps) implies that the type 1 MGCs encode components of a corrinoid methyltransferase pathway. Protein sequence comparisons indicate that the Mlps are likely S- or Se-methyltransferases that (de)methylate thiol and selenol metabolites.

The potential physiological roles of such reactivity may be explored through considering features of the organisms that possess type I MGCs. It seems clear from earlier studies that type I MGCs can function in methyl-selenol valorization (39). However, those authors implicated only the corrinoid protein and two closely-related Mlps2 in dimethyl-selenide utilization—the more distantly related M. voltae Mlp1 and Mlp3 (which are also present in the M. voltae type I MGC) appear to have gone unnoticed. It seems likely that the full type I MGC contains methyltransferases for demethylation of several methyl-selenium compounds. While the genetic data in Ref. 39 implicates dimethyl-selenide and/or methyl-selenol as substates of the type I MGC Mlps2, we propose that the Mlps1 and Mlps3 may be responsible for demethylation of other methyl-selenium compounds such as methyl-selenocysteine and selenomethionine and concomitant methylation of the gene clusters’ encoded corrinoid proteins. The methylated corrinoid protein must be demethylated and the methyl group transferred to a methyl-accepting metabolite if the pathway is to continue to operate. Accordingly, we propose that the methyl-selenide-derived methyl group is subsequently transferred from the methylated corrinoid protein to a thiol containing compound such as sulfide. The resulting methyl-sulfur metabolite could then be excreted or recycled into methionine (or, in the type I MGC encoders from the Methanococcales, Mlp3 could methylate coenzyme M, making a presumably small contribution to methane production). Methyl-selenium of various forms are present in various environments, including (based on dietary considerations) the human gut (47). It may be that most type I MGCs function to valorize these methyl-selenium compounds. Nonetheless, we believe an additional explanation is required, as many organisms (such as C. ljungdahlii and M. voltae) upregulate their type I MGCs even when methyl-selenium compounds are not added to growth media. This observation suggests that there may be an endogenous source of methyl-selenium compounds. Indeed, it has been suggested and evidentially supported that the selenide generated as an intermediate in selenoprotein biosynthesis can react non-enzymatically with S-adenosyl-methionine (SAM) (48). This presents a problem for a cell that has a high demand for selenium metabolism: methyl selenide formation from SAM both wastes valuable selenium and leads to a potentially toxic dead-end metabolite. The enzymes encoded by type I MGCs could hypothetically solve this quandary by recycling the methyl selenide into methionine.

Some organisms, such as H. thermocellum encode and express type I MGCs, but lack genes encoding known selenoenzymes or other indicators of selenium metabolism. On further inspection, we found that all of the selenium-trait deficient organisms have Mlps3 that fall into a single clade of the Mlp phylogenetic tree (Fig. 3b). We refer this this clade as the “non-selenium” clade, and suggest that the corresponding type I MGCs are involved in methyl-sulfur metabolism. In fact, interrogation of the Mlp3 sequences from Sporomusa ovata indicates that this organism encodes two separate type I MGCs, one with an Mlp3 from the “non-selenium” clade, and one with an Mlp from elsewhere in the Mlp phylogenetic tree. It therefore seems that type I MGCs have at least two presumably distinct functions. One group, which makes up more than 90% of the type I MGCs profiled in this study, is likely involved in methyl-selenium metabolism, while the other, which encodes Mlps3 from the non-selenium clade, probably has a different, selenium-independent function.

At present, evidence from genomic context suggests that the non-selenium MGCs could be involved in a methionine salvage pathway, defined as a metabolic pathway that converts methylthio-adenosine (MTA) into methionine (49). MTA is a toxic by-product of the biosynthesis of key metabolites derived from S-adenosylmethionine (SAM) including polyamines, N-acyl serine homolactones, and secondary metabolites (50). Methionine salvage pathways therefore support sulfur metabolism both by detoxifying a by-product and preserving the metabolically expensive methylthiol group of MTA (51). The so-called “universal” methionine salvage pathway is O₂-dependent, and methionine salvage pathways that operate under anaerobic conditions have only recently begun to be discovered (49). The anaerobic methionine salvage pathway from Rhodospirillum rubrum was recently shown to dependent on the methylthio-alkane reductase MarHDK system, homologs of the nitrogenase subunits NifHDK, respectively (34). MarHDK-like genes belonging to the nitrogenase superfamily IV-A group are remarkably prevalent in or near type I MGCs from the non-selenium clade and when not present in the type I MGC itself, they are invariably present elsewhere in the genome in question (Fig. 6A). Although the enzymatic activity of the IV-A group nitrogenase superfamily members is not known (genetically characterized MarDK are in the IV-C group), the relatively high sequence identity (~40–50% amino acid identity) of proteins from group IV-A to those in IV-C could suggest a similar function in the reduction of carbon-sulfur bonds. This is consistent with their typical genomic context, which usually includes various genes putatively involved in sulfur metabolism. This suggests that the non-selenium type I MGCs encode enzymatic machinery for either methionine salvage, sulfur valorization from methyl-sulfide compounds, or both. This inference is further supported by the c. The Clostridium algoriphilum DSM 16153 MGC (which encodes an Mlp3 from the non-selenium clade) includes three predicted SAM riboswitches upstream of the MGC, as well as genes predicted to encoded homocysteine synthase, cysteine synthase, a methionine ABC transporter, and a S-ribosylhomocysteine lyase. Clostridium sp. CF012 possesses another highly suggestive non-selenium MGC, which contains five SAM riboswitches, a T-box leader, and a near-complete methionine biosynthetic pathway, including a cobalamin-dependent methionine synthase (MetH).

Fig. 6. Type I MGCs from encoding an Mlp3 from the non-selenium clade also encode putative sulfur and methionine metabolism genes.

a Non-selenium type I MGCs associated with group IV-A nitrogenase superfamily genes and other genes involved in sulfur metabolism. Methylthioribulose-1-P methylsulfurase is a methionine salvage enzyme originally described in Rhodospirillum rubrum (52). b Other non-selenium type I MGCs associated with methionine metabolism. MetY: O-acetyl-homoserine sulfhydrylase. CysK: cysteine synthase. CysI: assimilatory sulfite reductase. CysC: adenylyl-sulfate kinase. AprAB: phosphoadeninosine-phospho-sulfate reductase subunits A and B. CysND: sulfate adenylyltransferase subunits 1 and 2. MetC cystathionine beta-lyase. PatB: alternate cystathionine beta-lyase. Ald2: methylthioribulose-1-phosphate aldolase. MtnK: methylthio-ribose kinase. MtnA: methylthio-ribose-1-phosphate isomerase. MetB: cystathionine gamma-synthase. LuxS: S-ribosyl-homocysteine lyase. MetA: homoserine-O-succinyltransferase. MetF: methylene-tetrahydrofolate reductase. MccA: O-acetyl-serine dependent cystathionine beta-synthase. MetH: cobalamin-dependent methionine synthase. Hom: homoserine dehydrogenase. SAM: S-adenosyl-methionine.

As noted above, the sequences of the Mlps (in particular their Zn²⁺-binding sites) are compatible with (de)methylation of both methyl-sulfur compounds and of methyl-selenium compounds. Additionally, the sporadic distribution of type I MGCs across phylogenetic trees is potentially consistent with a role in methionine salvage, as such pathways are dispensable under many growth conditions (51) and are known to be not strictly conserved even in closely related strains. Indeed, many organisms lack a methionine salvage pathway, and in E. coli, methionine salvage is a strain-specific feature (53).

We propose how a type I MGC-encoded methionine salvage pathway could operate in Fig. 7, considering the simpler case of a type I MGC that encodes only two Mlps, such as the gene cluster from H. thermocellum. We suggest that MTA is metabolized to an unknown intermediate (R¹-SCH₃). One of the Mlps then catalyzes methyl transfer from R¹-SCH₃ to the corrinoid protein. The second Mlp then transfers the methyl group from the methylated corrinoid protein to a second metabolite, R²-SH. The sulfur atom of R¹-SH might be recycled into R²-SH by an unknown pathway. R²-SCH₃ could be converted into methionine, or perhaps might be methionine. The MarHDK-like enzymes may have a role in such a pathway, generating methyl-sulfide that might serve as the methyl donor for the MGC methyltransferase system (R¹-SCH₃ with R¹ = H). Alternatively, the MarHDK-like proteins might serve as part of a second, parallel methionine salvage pathway, or even as a branch of a topologically bifurcating pathway with two routes to methionine.

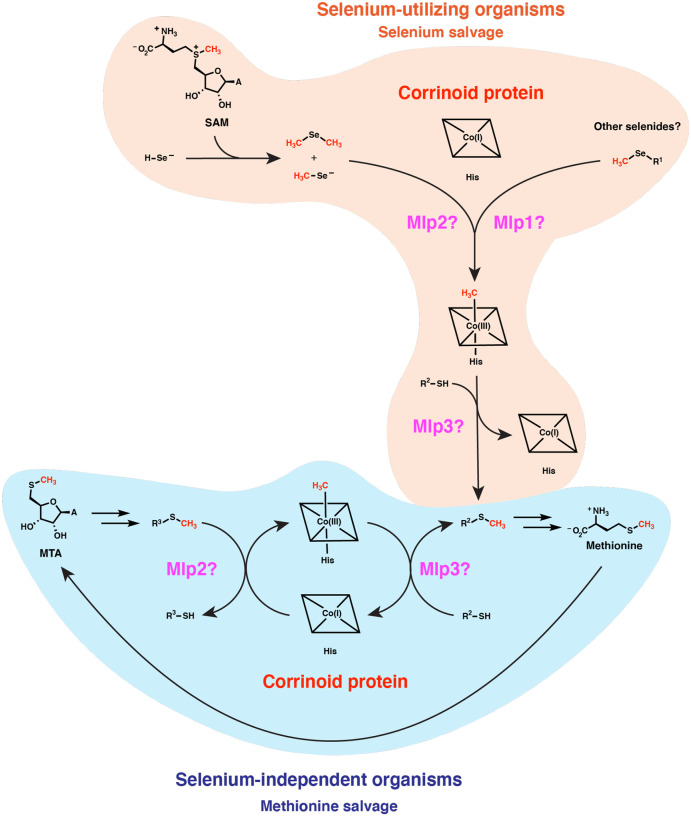

Fig. 7. Type I MGCs likely encode components of corrinoid-dependent selenium salvage or methionine salvage pathways.

The vast majority of type I MGC encoders likely use these methyltransferase systems to recycle methylated selenides formed from the non-enzymatic reaction of SAM with selenol compounds, potentially recycling the methyl group into methionine. A smaller subset of type I MGC encoders in the ref seq database (about 10%) lack known selenium metabolism traits. We propose that these MGCs have evolved to participate in a methionine salvage pathway. MTA: 5’-methylthioadenosine. His: histidine. A: adenine.

Intriguingly, this proposed methionine salvage pathway uses a distinct biochemical logic from related pathways. Characterized methionine salvage pathways all incorporate the methylthiol group of MTA intact into methionine (34,49,50,53). In the proposed methionine salvage pathway involving the type 1 MGCs, the methylthio-ether of MTA is dismantled into a methyl group which is carried by the corrinoid protein, leaving the free thiol behind. This pathway architecture theoretically avoids production of volatile methyl-sulfur intermediates that could be more readily lost from the cell. The proposed role of a corrinoid cofactor in methionine salvage is also novel. Ultimately, biochemical characterization of the enzymes encoded by type I MGCs will be required to test this proposal.

In summary, we have identified a class of widespread gene clusters encoding components of probable corrinoid S- and Se-methyltransferase pathways. The type I MGCs are found in phylogenetically and metabolically diverse microorganisms encompassing >100 microbial genera. Bioinformatic analyses suggest roles for type I MGCs in methyl-selenide metabolism and/or methionine salvage, setting the stage for experimental characterization. Ultimately, this previously unappreciated example of methanogen specific enzymes encoded outside of the archaea could provide insights into the vitally important fields of sulfur and selenium cycling.

Data Availability Statement:

All relevant data has been made available in the main text and Supplementary Information.
