Fast g-C₃N₄ sonocoated activated carbon for enhanced solar photocatalytic oxidation of organic pollutants through Adsorb & Shuttle process

Graphical abstract

Highlights

• •g-C₃N₄ coated activated carbon was designed by ball milling and ultrasonic routes.
• •Ball milling coating leads to destroy g-C₃N₄ structure and material porosity.
• •Ultrasonic coating leads to perfect g-C₃N₄ distribution on the surface of AC.
• •g-C₃N₄ sonocoated AC showed excellent surface area and physical stability.
• •Photoactivity performance of g-C₃N₄ sonocoated AC is twice better than bare g-C₃N₄.

Abstract

To solve low mass transfer in photocatalytic technology for water treatment, the combination of photoactive nanoparticles with highly adsorptive materials has been regarded as a successful approach. The optimization of photoactive particle coating in terms of dispersion on the surface of adsorbing support is the main key to reach a maximum synergism for pollutants removal. This study discusses the coating of as-prepared biomass based activated carbon by g-C₃N₄ using three routes, namely ball milling (AC-CN@BM), physical stirring (AC-CN@Phy) and ultrasonic assisted coating (AC-CN@US). The coating mechanisms by different processes were discussed using different characterization techniques. Ball milling based coating provides good g-C₃N₄ dispersion on the surface of AC, however, a partial degradation of g-C₃N₄ structure and a lower surface area were confirmed by FTIR, XRD and BET analysis. Physically designed sample shows a significant agglomeration of particles on the surface of AC. However, ultrasonic coating provides excellent distribution of g-C₃N₄ and high surface of the composite. In terms of photoactivity, AC-CN@BM exhibits the lowest adsorption and photocatalytic activity under solar light for the removal of ciprofloxacin. AC-CN@Phy showed medium performance, but less physical stability of g-C₃N₄ particles on AC, leading to their partial release. AC-CN@US showed the highest efficiency and stability after using; suggesting the good combination between g-C₃N₄ and AC, which in turn maximizes the removal of ciprofloxacin via Adsorb & shuttle process. The overall costs of composite, including the starting elements and the coating ultrasonic process are relatively low and green as compared to commonly reported routes.

1. Introduction

Photocatalysis has been widely investigated as an emerging route towards environmental and energy related applications [1], [2]. It focuses on the activation of photocatalyst with light energy which leads to form redox system on the surface of the photocatalyst [3]. In fact, this topic has been overdressed in the literature and ends up with much hope and doubt regarding its large scale application. Photocatalysis in theory, is considered as a green technology which can destroy totally organic pollutants into CO₂ and minerals in water. However, in operation, several technological issues have been raised which limit its application as an alternative approach instead of existing technologies [4]. In terms of photonic proprieties of photocatalytic materials, several approaches can be used to boost the visible light response or decrease the rate of e^-/h⁺ charges through doping [5], fabrication of heterojunction systems [6], defect engineering [7], crystal phase engineering [8]. However, by comparing the kinetics of photocatalytic technology with some other advanced oxidation approaches, i.e., Fenton or photo-Fenton, it can be deduced easily that photocatalysis exhibits very slow kinetics due to the limited mass transfer. At early stage, many scientific leaders in photocatalysis suggested the use of photocatalytic materials with lower adsorption ability in order to avoid the screen effect problem, wherein, the pollutant molecules can cover the photocatalytic nanoparticles and limit the penetration of light into the surface of the photocatalyst suppressing or decreasing the generation of redox system on the surface. It was believed that the high adsorption of pollutant could counter against the continuous photooxidation process. In addition, it was reported that the adsorption of smaller quantities of the pollutant is necessary as the photocatalytic oxidation by photogenerated reactive oxygen species and directly via positive holes takes place on the surface on the photocatalyst. Even though, this trade-off is obtained, the highest performance that fits the large scale requirement is not reached yet. Many recent reports have been published to discuss and bridge the transfer of photocatalytic technology to real world use. Loeb et al. discussed the photocatalytic technology from different sides and they pointed out that the development of pilot reactors for niche applications is still required, and in addition, they stressed that the improvement of photocatalytic efficiency can further be studied by considering the cost and availability of materials [9]. Recently, Djellabi et al. discussed the technological issues of photocatalysis from the materials point of view, along with SWOT analysis to facilitate its transfer to real application. In terms of materials design, the authors reported that the use of low cost approaches to design large amount of highly photoactive materials is much recommended [10], [11]. The combination of adsorptive materials and photoactive nanoparticles is regarded as one of the solutions to boost the mass transfer from one site and to reduce the release of by-products into the solution. This process is so-called Adsorb & Shuttle, wherein the adsorptive area plays the role to accumulate pollutant species on the surface nearby photoactive NPs to be oxidized by photogenerated ROSs. The process also ensures the self-cleaning of the surface, allowing further adsorption of pollutants in a continuous system. Several Adsorb & Shuttle based materials have been reported towards the photocatalytic removal of inorganic and organic pollutants such as TiO₂-montmorillonite [12], CuO-Montmorillonite [13], TiO₂-lignocellulosic biomass [14], BiPO₄-smectite [15], Ag₃PO₄-Activated carbon [16] and so on. In such type of materials, a synergistic effect combining the adsorption and photoactivity is usually obtained [17]. In addition, many reports demonstrated the enhancement of visible light responsiveness and charges separation when semiconductor NPs are coated on the surface of adsorptive materials via interface interaction, i.e., formation of Ti-O-C bonds between TiO₂ and biomass [18].

Apart from the photocatalytic materials design, the valorization of biomass waste into valuable materials has become a hot research and industrial trend nowadays as it fits with the circular economy concept [19], [20]. In short, circular economy is the closed-loop concept which involves the use of renewable energies and boosts the recycling of wastes as well as limits the usage of natural resources. Biomass wastes are considered as the largest worldwide renewable energy resource with about 1800 billion tonnes produced per year. However, less than 3% out of it is used at large scale. Up to date, the conversion of biomass into valuable products needs further investigation and wider large scale investments for various utilizations. The production of activated carbon from biomass towards environmental remediation has been widely suggested by the scientific community, a pool of studies has been reported discussing the conversion of different biomass waste and the optimization of carbonization factors and approaches as reviewed by many reports [21], [22], [23].

The present work aims to prepare activated carbon from biomass and then coating it with g-C₃N₄ to be used for the removal of organic pollutants from water. Since the coating of activated carbon by semiconductor nanoparticles has a direct effect on the performance of the composite, herein, we studied comparatively the ball milling and ultrasonic coating approaches. In-situ formation of g-C₃N₄ on the surface of adsorptive materials is difficult to obtain by direct condensation of urea or melamine, and the presence of interfering materials may affect its condensation process. Therefore, two steps synthesis could be more effective to produce g-C₃N₄ coated activated carbon. Three activated carbon/g-C₃N₄ composites were produced by different techniques, namely physically (AC-CN@Phy), ultrasonic (AC-CN@US) and ball milling (AC-CN@BM). The effect of coating approach on the structure, the morphology, the distribution of g-C₃N₄ on the AC were studied and discussed. The photocatalytic performance of different samples was studied for the removal of ciprofloxacin under solar light. The operating parameters and stability of materials were studied as well.

2. Materials and methods

2.1. Experimental

2.1.1. Synthesis of materials

Activated carbon was prepared by the chemical activation method using phosphoric acid (H₃PO₄, 85%) as an activating agent. A brief description of the preparation and activation procedures is as follows: 10 g of date stone biomass waste was impregnated with phosphoric acid (85%) at room temperature. The system was heated in a microwave until its puissance reached 540 w under N₂ atmosphere. After the activation process, the sample was leached with (2 M) NaOH solution to remove the excess of acid, filtered and repeatedly washed with distilled water until the pH of filtrate reached (6–7). The activated materials were then carbonized at 270 W for 8 min under N₂ atmosphere. g-C₃N₄ was been obtained by the calcination of urea at 500 °C for 2 h. AC/g-C₃N₄ composite was prepared by different methods. (i) A mixture of AC and g-C₃N₄ was ball milled at 500 rpm for four cycles of 15 min, resulting in ultrafine light-Black powder (AC-CN@BM). (ii) A mixture of AC and g-C₃N₄ was stirred in ethanol for 1 h, followed by ultrasonic treatment for 1 h at a frequency of 40 KHz (AC-CN@US). For comparison, a composite sample was prepared by physical stirring in the presence of ethanol and without ultrasonic treatment.

2.1.2. Photocatalytic tests

The photocatalytic experiments were carried out in a suntest CPS + ATLAS reactor, providing an irradiation with wavelengths ranging from 300 to 800 nm. The intensity of light irradiation was selected at 250 W/m² during the photocatalytic experiments. 25 mg of the sample is dispersed in 100 mL of 30 mg/L Ciprofloxacin (≥98%) solution. During the degradation, 1.5 mL of suspension was withdrawn at selected time intervals and filtered with a 0.45 µm membrane filter. The concentration of Ciprofloxacin was determined by UV–VIS spectrophotometer at the wavelength of maximum absorbance (278 nm).

3. Results and discussion

3.1. Characterization

XRD spectra of AC, bare g-C₃N₄, AC-CN@Phy, AC-CN@US and AC-CN@BM are shown in Fig. 1. X-ray diffractogram of AC shows two main peaks. The intense peak at 2θ of 20–30° is due to the C (0 0 2) amorphous carbon structures  , while the weaker band at 40–50° represents the C (1 0 1) graphite structure. These two peaks are characteristics of activated carbon [24], [25]. Bare g-C₃N₄ X-ray diffractogram shows two distinct diffraction peaks at 27.4° and 13.04° suggesting the successful thermal condensation of urea into hexagonal phase of g-C₃N₄ (JCPDS 87–1526) [26]. g-C₃N₄ is composed of tri-s-triazine building units. The peak at 13.04° (1 0 0) is characteristic for in-plane structural repeating motifs. However, the peak at 27.4° (0 0 2) is due to the interlayer stacking reflections of the aromatic systems [27], [28]. Both peaks are significantly intense in bare g-C₃N₄. It can be noticed that the intensities of (0 0 2) and (1 0 0) were reduced in AC-CN@Phy and AC-CN@US. The preparation of these two samples requires the use of ethanol to mix AC with g-C₃N₄. The physically prepared sample is simply dried after the mixing, while AC-CN@US sample is subjected to ultrasonic treatment for 1 h. The decrease in the intensity of peaks as compared to bare g-C₃N₄ or even to the sample prepared via ball milling route is due to solvent exfoliation of g-C₃N₄ which transforms g-C₃N₄ bulk to laminated structure [29], [30]. Ethanol has been proved to be excellent solvent for the exfoliation of g-C₃N₄ [31]. In addition, ultrasonic process become common route for the exfoliation of g-C₃N₄ in order to enhance the photoactivity or/and to allow the fixation of other semiconductor nanoparticles on its surface [32], [33], [34]. The ultrasonic waves produce heat and pressure which work cooperatively to transform bulk g-C₃N₄ into thinner layers. The combination of solvent and US power would boost the exfoliation of g-C₃N₄ as a result of synergistic effects. The physical effect of cavitation can help the penetration of solvent within the interlayer of g-C₃N₄. And on top of that, the produced heat and microjets can provoke the g-C₃N₄ exfoliation or/and assist the solvent exfoliation. In fact, similar to graphite, g-C₃N₄ is a multilayer based structure. Each layer, as shown in the insert of Fig. 1, is formed via strong covalent bonds between N and C atoms. Whilst, the connection of layers takes place via weak van der Waals force wherein layer to layer distance is about 3.3 nm [35], [36]. Therefore, chemical or physical routes could destroy inter-layer based bonds to dissociate g-C₃N₄ bulk. In terms of AC-CN@US sample, another scenario could take place. In fact, the (0 0 2) peak at 27.4° was reduced logically because there is less content of g-C₃N₄ in AC-CN samples as compared pure g-C₃N₄. However, in terms of AC-CN@Phy, it can be noticed that the peak of (2 0 0) crystal planes, is more intense which suggests that g-C₃N₄ is not exfoliated into laminated structure. In addition, the peak of (1 0 0) crystal planes was almost disappeared which probably led to shorter g-C₃N₄ conjugation.

Fig. 1.

XRD patterns of bare AC, bare g-C₃N₄, AC-CN@Phy, AC-CN@US and AC-CN@BM.

FTIR spectra recorded on bare g-C₃N₄ and AC-g-C₃N₄ composite materials are shown in Fig. 2. Bare g-C₃N₄ spectrum shows the characteristic peaks of standard g-C₃N₄. The series peaks appeared at the range 1240–1461 cm⁻¹ are due to the aromatic C—N stretching vibrations and C N stretching vibrations [37]. The peak at 810 cm⁻¹ is attributed to the breathing mode of s-triazine units [38]. Bands at 3074–3321 cm⁻¹ are due N—H stretching terminal NH groups [39]. FTIR spectra of AC-CN@Phy and AC-CN@US samples show as well the basic structure of g-C₃N₄ along with lower peak intensity due to the low quantity. However, in the case of AC-CN@BM, it can be seen that the peaks of aromatic C—N/C N and s-triazine units at the range 1240–1461 cm⁻¹ and 810 cm⁻¹ were significantly reduced or deformed. It is worthy to mention that ball milling has been used for the exfoliation of bulk g-C₃N₄ for enhanced photoactivity [40], [41], [42], [43]. As above-mentioned, van der Waals force based bonds that associate g-C₃N₄ layers can be easily destroyed by several routes. However, ball milling could have negative effect on the structure g-C₃N₄ by destroying bonds that are responsible for long conjugation [40] as confirmed by XRD and FTIR analysis.

Fig. 2.

FTIR spectra of bare AC, bare g-C₃N₄, AC-CN@Phy, AC-CN@US and AC-CN@BM.

The morphology of composites and g-C₃N₄ distribution was analyzed via ESEM-EDX, respectively. The recorded images are shown in Fig. 3. The morphology of bare activated carbon is shown in Fig. 3(a,b). It can be seen than AC exhibits porous structured surface which could be an excellent host of g-C₃N₄ particles. Fig. 3c shows ESEM image of bare g-C₃N₄ which is composed of aggregated irregular folding structured sheets. Fig. 3,d,e,f show ESEM images for AC-CN@BM, AC-CN@Phy and AC-CN@US, while Fig. 3,g,h,i show EDX mapping imaging for AC-CN@BM, AC-CN@Phy and AC-CN@US, respectively. The table in Fig. 3 shows the chemical composition of the analyzed area of each sample. It can be seen from these images that samples prepared by ball milling and ultrasonic routes showed a relatively homogenous distribution of g-C₃N₄ particles on the surface of activated carbon. Ball milling is common approach to create heterogeneous composites because of the strong mechanical and/or produced heat effects that would initiate bonds between solids. In addition, an excellent distribution is usually obtained. Based on the results of XRD analysis, the ball milling process does not transform bulk g-C₃N₄ into thinner layers g-C₃N₄ as compared to physical and ultrasonic routes because of solvent exfoliation of g-C₃N₄. The only advantage of ball milling in this case is the enhanced distribution of g-C₃N₄ on the surface of AC. Physical route showed unwanted aggregation of g-C₃N₄ particles on the surface of AC even though exfoliation of g-C₃N₄ was noticed because of the presence of ethanol as discussed previously. The recorded ESEM-EDX mapping images on the sample obtained via ultrasonic coating route prove excellent distribution of g-C₃N₄ on the surface of AC. As compared with AC-CN@Phy, it is clear that ultrasonic force was behind the distribution of g-C₃N₄ particle on AC surface. Ultrasonic process is used to control the size of particles and uniformity of their distribution on surfaces. Ultrasonic devices with low frequency operation is preferred due to their ability to provide extreme conditions via cavitation and collapsing of produced bubbles which allows intense surface/interface interactions between energy and matter [44], [45], [46]. The collapsing of bubbles on the surface of particles produce hot spots with extreme temperature value up to 5000 °C and high pressure up to 1000 bars which results in a violent acceleration of the nanoparticles (jetting phenomena) with extremely high velocity up to 600 km/h [47]. The chemical composition proves further the better distribution of N atom (from g-C₃N₄) on the surface of samples prepared by ball milling and ultrasonic routes, while in the case of physically prepared composite, the amount of N was less. It is important to mention that these analysis are carried out on randomly chosen area of materials, and the amount of N could be higher if the analyzed an area with accumulated g-C₃N₄. Overall, it could be assumed that ethanol-ultrasonic route ensures a simultaneous exfoliation and in situ uniform coating of g-C₃N₄ on the surface of AC without destroying the structure of g-C₃N₄.

Fig. 3.

(a) and (b) ESEM images for bare AC, (c) ESEM image for bare g-C₃N₄, (d), (e), (f) ESEM images for AC-CN@BM, AC-CN@Phy and AC-CN@US, respectively. (g), (h), (i) EDX mapping images for AC-CN@BM, AC-CN@Phy and AC-CN@US, respectively. Chemical composition of bare AC, g-C₃N₄ and different composites.

TEM images of bare AC, bare g-C₃N₄ and AC-CN@US are shown in Fig. 4. AC exhibits porous structured large particles. Bare g-C₃N₄ is non-porous laminated two-dimensional sheets. In terms of AC-CN@US, in fact, it is difficult to distinguish AC and g-C₃N₄ in the composite because of the homogenous distribution of g-C₃N₄ on the surface of AC as shown by ESEM images. It can be seen that the activated carbon and g-C₃N₄ are hybridized with each other, suggesting the excellent role of ultrasonic cavitation to link elements and form a homogenous composite at relatively low price. Even though g-C₃N₄ and AC are well connected, the structure of g-C₃N₄ was not affected as confirmed by FTIR and XRD. TEM image at 500 nm shows the small size of g-C₃N₄ sheets which could be due exfoliation by solvent/ultrasound treatment process. The exfoliation can promote the distribution of g-C₃N₄ on the surface of AC.

Fig. 4.

TEM images of (a) bare AC, (b) bare g-C₃N₄, (c) and (d) AC-CN@US sample at 1 µm and 500 nm, respectively.

BET analysis was carried out on bare AC, g-C₃N₄, AC-CN@BM, and AC-CN@US samples and the curves are shown in Fig. 5. Date stone biomass waste was used to prepare bare AC through chemical carbonization using H₃PO₄ as the activating agent. The results show that AC exhibits excellent surface area of 754.75 cm²/g and pore volume of 0.409 cm³/g. Bare g-C₃N₄ has a surface area of 56 cm²/g. The surface areas of AC-CN@BM and AC-CN@US were found to be 114.53 and 328.62 cm²/g, respectively, suggesting that the ball milling could also destroy the morphology or even push the insertion of g-C₃N₄ particle into block the pores of AC. The pore volumes for AC-CN@BM and AC-CN@US were found 0.037 and 0.174 cm³/g, respectively. The surface area and pore volume are very crucial in Adsorb & Shuttle based photocatalysts. Therefore, it was concluded that ultrasonic coating of g-C₃N₄ is more advantageous as compared to ball milling route.

Fig. 5.

N₂ adsorption/desorption analysis for (a)AC, (b) g-C₃N₄, (c)AC-CN@BM, and (d)AC-CN@US samples.

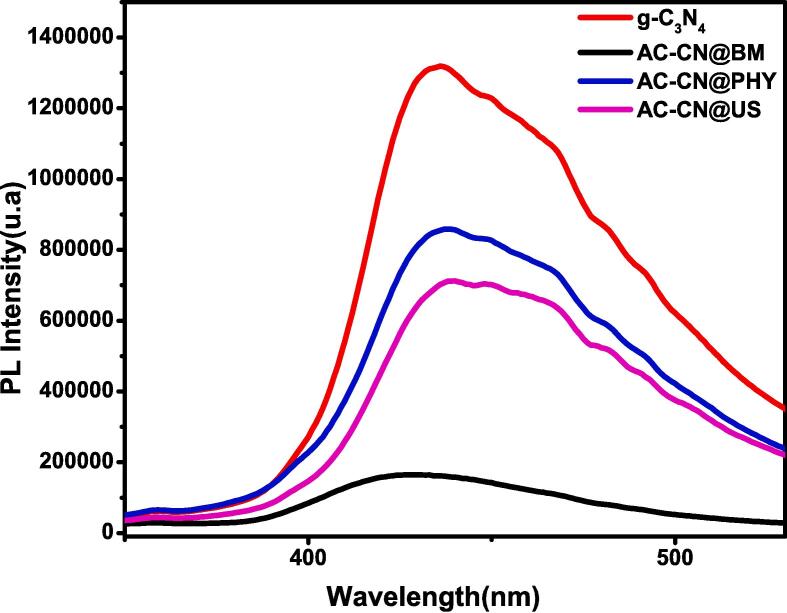

PL analysis was carried out on bare g-C₃N₄, AC-CN@BM, AC-CN@Phy and AC-CN@US samples. The curves are shown in Fig. 6. PL analysis can give an idea about the separation of charges. The combination of g-C₃N₄ with carbon materials could reduce the recombination of charges as the AC can play an electron host, resulting in positive holes liberation for the production of ROSs [48]. However, it is important to mention that the separation of charges takes place if there are strong interfacial bonds between the photocatalyst and the supporting adsorbent. The results show that the hybridization of g-C₃N₄ reduces the PL intensity. In fact, the activated carbon is not a photoactive material; therefore, a lower PL intensity is inevitably found when g-C₃N₄ and AC are combined. In terms AC-CN@Phy and AC-CN@US, PL curves seem to have similar manner as compared to bare g-C₃N₄ which further proves that the g-C₃N₄ coated on AC was not damaged. AC-CN@US shows lesser PL intensity compared to AC-CN@Phy, suggesting the good connection between g-C₃N₄ and AC which may help the separation of redox charges. In terms of AC-CN@Phy, the PL intensity is very low. As discussed above, the structure of g-C₃N₄ was destroyed by the effect of BM treatment which leads to limit the photocatalytic activity and charges production.

Fig. 6.

PL analysis of bare g-C₃N₄, AC-CN@BM, AC-CN@Phy and AC-CN@US samples.

3.2. Photocatalytic activities

The adsorption and the photocatalytic activities of as prepared materials were studied towards the photocatalytic oxidation of ciprofloxacin under solar irradiation. The results are shown in Fig. 7. As shown in Fig. 7a, bare AC shows an adsorption rate of about 50% within 2 h. Even though the surface area of AC is relatively high, but the functional groups could also play an important role to boost the fixation of ciprofloxacin. It is important to mention that the simple adsorption is not well recommended at large scale as it is a physical transfer of pollutants from liquid phase to solid phase, which then requires the regeneration of the AC to be recycled. Control experiment to check the adsorption of ciprofloxacin on bare g-C₃N₄ was also carried out and a modest adsorption of 20% was found within 2 h. g-C₃N₄ exhibits low surface area, making its photocatalytic performance very slow. Photolysis experiment shows that a decrease in the ciprofloxacin concentration of about 20% under irradiation within 2 h. The photolysis does not lead to mineralize the organic compounds, but mostly it is a partial oxidation or structure modification. In order to enhance the sorption ability, g-C₃N₄ was coated on activated carbon using different approaches. The use of ball milling to coat AC by g-C₃N₄ has led to reduce both the adsorption and photocatalytic ability. As proved by FTIR and XRD analysis, ball milling can destroy the crystal structure of g-C₃N₄ due to the in situ heat produced and physical force. In addition, the surface area of AC-CN@BM was reduced because of several factors such as the degradation of pores of activated carbon as well as their blockage by g-C₃N₄ deposition particles due the intense ball milling effect. Physically prepared sample showed better adsorption and photocatalytic activities than bare g-C₃N₄ and AC-CN@BM sample. In this case, the physically prepared composite could exhibits both adsorption and photocatalytic activities, but in separate manners, wherein there is no synergism between them as the connection between activated carbon and g-C₃N₄ could be weak. In addition, the non-uniformity of g-C₃N₄ on the surface of activated carbon, as shown by SEM-EDX analysis, could limit the synergistic removal of ciprofloxacin. AC-CN@US sample shows the best performance in terms of adsorption and photocatalytic activities. The highest photocatalytic removal was found to be twice higher than bare g-C₃N₄. Indeed, g-C₃N₄ can produce maximum separated charges and also reactive oxygen species on its surface, however, not only ROSs production is important in photocatalytic oxidation process, but also the mass transfer which allows consuming the photoproduced ROSs. From the synthesis point of view, the use of ultrasonic cavitation was found to be perfect approach to design g-C₃N₄ coated activated carbon because of the synergetic cavitation physical, thermal and chemical forces. In short, ultrasound is able to create bubbles in the medium via nucleation of pre-existing dissolved gas bubbles, which their collapsing results in three dominant effects. The ultrasonic waves assist the growth of bubbles consuming all types of gases in water and also the in situ produced water vapor till a critical size to be collapsed in bulk water (known as symmetrical bubble collapse) or on the surface of solid particles (known as asymmetrical bubble collapse) [46]. The collapsing of bubbles in bulk water leads to produce highly physical shock waves, allowing excellent mass transfer which helps the distribution of g-C₃N₄ particles on the surface of activated carbon. The violent collapse of bubbles produces as well high local temperature and pressure up to 5000 K and 1000 atm [19], which might assist to strengthen the fixation of g-C₃N₄ on AC. In addition, bubbles collapse at the interface of solid particles leads to generate a high-speed liquid microjet with velocities up to 100 m/s, in which such energy is concentrated at a particular point of the material. This latter effect might help to improve the porosity, solvent exfoliation of g-C₃N₄, and limits the aggregation of g-C₃N₄. It is important to mention that the applied frequency is a determinant role for governing the cavitation effects. At low frequency, big sized bubbles are produced with lower number, while at higher frequency the reverse is true. Big size bubbles are likely to develop physical effects are dominant include the production of intense shove waves and local heat. The produced heat can split water into reactive oxygen species (ROSs), but their concentration in the medium is less because of the low number of bubbles. The more the frequency, the more the number of bubbles and produced ROSs are, as well as lower physical effect. Herein, a frequency of 40 kHz was used, which provides a dominant physical effect.

Fig. 7.

(a) Photolysis, adsorption on bare AC, adsorption and photocatalytic oxidation of Ciprofloxacin by bare g-C₃N₄. (b), (c) and (d): adsorption (black line) and photocatalytic oxidation (ref line) by different composites, mass of photocatalyst: 0.25 g/L, pH 6.8, [Ciprofloxacin]: 30 ppm.

Apart from comparing the synthesis routes, the purpose of this material design is the optimization g-C₃N₄ coated activated carbon, keeping excellent g-C₃N₄ distribution and composite porosity as proved by above-discussed characterization analysis. The combination of sorbing domain and photoactive domain was reported by many studies as an excellent approach to obtain highly active materials for pollutants removal, and also boosts the total mineralization [12], [49], [50]. In small surface area based photocatalysts, the photocatalytic process is very slow because of low mass transfer and the photonic nature of the reaction. In general, the cycle adsorption and radical oxidation needs improvement to make faster and more effective. By assuming that the naked photocatalyst, such as g-C₃N₄, adsorbs high yield of pollutant species, the photocatalytic oxidation process could be inhibited as the particles of photocatalyst are covered with pollutants molecules, limiting the photoexcitation (screen effect) and ROSs generation. In the common scenario, a little quantity of pollutant is adsorbed, followed by radical oxidation, while the release of by-products requires another re-adsorption to reach the final mineralization. The adsorption affinity of different pollutants on the surface of naked also might affect significantly the radical oxidation. Based on the above mentioned discussion, the design of composites, that combine adsorptive and photoactive areas, can synergistically promote the removal of pollutants via the so-called Adsorb and Shuttle process. In this system, the adsorptive area works to concentrate the pollutants species on the surface of composite, nearby the photoactive deposited particles. In this manner, the screen effect is suppressed because the adsorption mostly takes place on the non-photoactive area. From one side, the mass transfer is significantly enhanced to boost the photocatalytic radical oxidation, and from another side, the pollutant species and their by-products can remain longer on the surface of the composite to be further oxidized. The oxidation of pollutant species on the surface of the activated carbon by photoactive g-C₃N₄ allows at the same time the continuous cleaning of the surface, suggesting a cooperative and continuous process. Due the cooperation of photocatalytic and adsorption, Adsorb and Shuttle Process based composites have longer life time and present several pros, on top to the efficiency, such as the low cost, easy separation after the treatment and less generation of by-products. The coating of photocatalytic nanoparticles on photothermal based supports, such as activated carbon, would benefit from the photogenerated local heat which might boost the photocatalytic activity through different ways. Activated carbon is known to be a blackbody solar absorber and photothermal light to heat conversion which can enhance the mass transfer pollutant species and ROSs attack [51], [52].

The effect of pH on the adsorption and photocatalytic removal was studied at three pH values, 4, 7 and 10 using AC-CN@US (Fig. 8a). At pH 4, it can be seen that the adsorption is quite dominate to remove ciprofloxacin from water, while the contribution of photocatalytic oxidation was about 7%. At acidic pH, the adsorption is high because of the enhanced electrostatic attraction between negatively charged ciprofloxacin species and protonated positive surface of AC-CN@US. Even through, the adsorption was higher, but the photocatalytic activity was low which could be due to the low yield of OH^– which reduces the production of HO^• radicals. At pH 7, the photocatalytic activity was the highest and almost three times higher than the adsorption. At this pH range, a tradeoff between the adsorption and photocatalytic oxidation of ciprofloxacin on the surface of AC-CN@US could be obtained, suggesting a fast removal of ciprofloxacin from water. It is important to mention that the adsorption and photocatalytic activity work cooperatively to make the Adsorb and Shuttle process into action. Because the photoproduced ROSs remain mostly on the surface of the photocatalyst, adsorbed pollutant species are subjected to fast oxidation as compared to species at the diffusion layer or in the bulk water. At higher pH, the adsorption was very low which could be due to the electrostatic repulsion between ciprofloxacin species and negatively charged AC-CN@US surface. On the contrary, the radical oxidation was quite high as compared to dark adsorption as a result of the fast production of HO^• radicals from adsorbed HO– species. However, due to the low adsorption, the yield of removal by photocatalytic system is relatively low. Fig. 8b shows the effect of scavengers to understand further the mechanistic pathways and the role of different ROSs toward the oxidation of ciprofloxacin. It is important to mention that the scavenging tests are not very convincing to check the activities of different ROSs in photoactive/adsorptive composites since the scavenging molecules could be adsorbed on the surface of AC rather than interact with different ROSs or directly with photogenerated e⁻/h⁺ charges. The results showed that scavenging of ^−•O₂ species reduces the oxidation the most, which means that these species participate significantly to oxidize ciprofloxacin molecules. In addition the scavenging of photoproduced electrons via the addition of potassium iodate diminishes as well the oxidation process because the photoproduced electrons are responsible for the generation of ^−•O₂ species. The quenching of ^•OH using tert-butanol as a scavenger led to reduce as well the oxidation of ciprofloxacin, but with lesser rate compared to the case of ^−•O₂ scavenging. Likewise, the addition of ammonium oxalate, as positive holes scavenger, does not affect significantly the oxidation of ciprofloxacin. Recycling tests were carried out using AC-CN@US, and the results (Fig. 8c) confirm the good stability if the photocatalyst as it can be recycling for five times without significant decrease in the effectiveness. To check further the stability of AC-CN@US and the possible release of g-C₃N₄ from AC, FTIR analysis was carried out after adsorption and photocatalytic experiments, and the results are shown in Fig. 8d. Clearly, it can be seen that the structure and the characteristic peaks of g-C₃N₄ remain in AC-CN@US after adsorption and photocatalytic experiments, proving the significant fixation of g-C₃N₄ on the surface of AC.

Fig. 8.

(a) Effect of pH on the photocatalytic oxidation of ciprofloxacin by AC-CN@US, (b) effect of the addition of scavenging agents. s(c) Recycling tests and (d) FTIR spectra of AC-CN@US before and after adsorption and photocatalytic experiments.

4. Conclusions

The present study reports the comparison of three synthesis routes to coat an as-prepared g-C₃N₄ on activated carbon such as physical, ball milling and ultrasound. Based on the characterization, it was concluded that the ball milling and ultrasonic could lead to well dispersed g-C₃N₄ particles on activated carbon. However, in the case of physical coating, an intense agglomeration of particles on the surface of activated carbon was found. Even though ball milling coating provides excellent particle distribution, it was found that the structure of g-C₃N₄ particles was partially destroyed along with a significant decrease in the surface area which was probably due to the degradation of macrospores of activated carbon or/and their blockage by g-C₃N₄ particles. In terms of photocatalytic activity, AC-CN@BM showed the lowest activity because the photoactive area was partially degraded and also the porosity and surface area were affected. On top of that, the structure of g-C₃N₄ was damaged under ball milling treatment. AC-CN@Phy was more efficient than AC-CN@BM and bare g-C₃N₄ as a result of good adsorption and also photocatalytic radical oxidation. AC-CN@US showed the highest photocatalytic activity, owing to the excellent g-C₃N₄ dispersion and high surface area. Excellent distribution of photocatalytic particles and high surface are important factors to govern the Adsorb & Shuttle process for enhanced removal of organic pollutants. In addition, the cost of starting materials, including biomass waste to prepare activated carbon and urea to prepare g-C₃N₄, as well as an easy and effective ultrasonic route to build the composite might fit with the industrial requirements and sustainable development.
