Metabolic changes to host cells with Toxoplasma gondii infection

Gina M Gallego-López ^1,², Emmanuel Contreras Guzman ¹, Laura J Knoll ^2,^#, Melissa Skala ^1,^3,^*

PMCID: PMC10441426 PMID: 37609172

Abstract

Toxoplasma gondii, the causative agent of toxoplasmosis, is an obligate intracellular parasite that infects warm-blooded vertebrates across the world. In humans, seropositivity rates of T. gondii range from 10% to 90%. Despite its prevalence, few studies address how T. gondii infection changes the metabolism of host cells. Here, we investigate how T. gondii manipulates the host cell metabolic environment by monitoring metabolic response over time using non-invasive autofluorescence lifetime imaging of single cells, seahorse metabolic flux analysis, reactive oxygen species (ROS) production, and metabolomics. Autofluorescence lifetime imaging indicates that infected host cells become more oxidized and have an increased proportion of bound NAD(P)H with infection. These findings are consistent with changes in mitochondrial and glycolytic function, decrease of intracellular glucose, fluctuations in lactate and ROS production in infected cells over time. We also examined changes associated with the pre-invasion “kiss and spit” process using autofluorescence lifetime imaging, which similarly showed a more oxidized host cell with an increased proportion of bound NAD(P)H over 48 hours. Glucose metabolic flux analysis indicated that these changes are driven by NADH and NADP+ in T. gondii infection. In sum, metabolic changes in host cells with T. gondii infection were similar during full infection, and kiss and spit. Autofluorescence lifetime imaging can non-invasively monitor metabolic changes in host cells over a microbial infection time-course.

INTRODUCTION

Host cells have evolved elaborate systems to counteract pathogen invasion, establishment, and replication, including phagolysosomal fusion, reactive oxygen species (ROS), nitrogen intermediates, sequestration of nutrients, and apoptosis [1–3]. However, host cell metabolic response to a microorganism infection remains unclear. Here, we examine how T. gondii infection changes the host metabolism including redox balance and NAD(P)H binding activities using autofluorescence lifetime imaging of single cells over an infection time-course, along with metabolic flux analysis, ROS production, metabolite sensing, and glucose labeling.

Previous studies have investigated how T. gondii infection reprograms the host cell. Blader et al., classified host genes modulated in response to T. gondii infection into three functionality different classes: (i) genes required for host defense; (ii) genes require parasite growth; and (iii) genes incidentally regulated as a consequence of modulating the first two classes [4]. Quantitative proteomic studies have suggested a global reprogramming of the cell metabolism by the parasite [1]. We recently published how a T. gondii full infection [5] and the pre-invasion “kiss and spit” process [6] produces significant changes in host metabolites. How T. gondii infection changes host metabolism has not yet been examined by live single-cell imaging or seahorse to determine the metabolic changes that T. gondii infection induces over time.

Here, we use fluorescence lifetime imaging microscopy (FLIM) of the autofluorescent metabolites NADH, NADPH, and FAD non-invasively monitor single host cell response to T. gondii infection over 48 hours. NADH and NADPH have overlapping fluorescence properties and are collectively referred to as NAD(P)H [7,8]. FLIM of NAD(P)H and FAD, or optical metabolic imaging (OMI), measures the optical redox ratio (ORR) defined as the fluorescence intensity of NAD(P)H / (FAD + NAD(P)H) (Table 1) [9–12]. ORR is an indicator of the oxidation-reduction state of the cell, and an important marker of cell health that can be used to monitor living tissues and cells. The ORR has been used to study numerous biological processes including cancer, thermal stress, de novo fatty acid synthesis, and diabetes [9–11,13]. Many factors can change the ORR, such as hypoxia, high carbon demands, increased proliferation rate, and fatty acid synthesis [11]. ORR imaging has been previously used in infectious disease research to monitor oxidative stress in host cells with chronic infection with hepatitis C virus (HCV) [14].

Table 1:

OMI parameters and definitions

Parameters	Description
Parameters	NAD(P)H	FAD
τ₁	Free lifetime	Protein-bound lifetime
τ₂	Protein-bound lifetime	Free lifetime
α₁	Proportion of free NAD(P)H	Proportion of bound FAD
α₂	Proportion of bound NAD(P)H	Proportion of free FAD
I	Absolute Intensity	Absolute Intensity
τ_m	Mean lifetime = α₁ τ₁ + α₂ τ₂
Optical Redox Ratio	ORR = I_NAD(P)H / (I_FAD + I_NAD(P)H)

Open in a new tab

OMI also provides a measurement of protein-binding activity for NAD(P)H and FAD [15,16]. Specifically, NAD(P)H has a short lifetime in the free conformation (τ₁) and a long lifetime in the protein-bound conformation (τ₂), while the converse is true for FAD (τ₁ is bound, τ₂ is free). Due to these distinct lifetimes, OMI can quantify the relative fractions of free and protein-bound NAD(P)H and FAD in the cell (Table 1) [17]. These fluorescence lifetimes have been previously used in numerous studies including infectious disease studies of HCV [18], Chlamydia trachomatis infection [19], and Plasmodium falciparum replication [20].

This study uses OMI to investigate how intracellular T. gondii manipulate their host cell metabolism. Human foreskin fibroblasts (HFF) cells were imaged with OMI over 48 hours of infection with T. gondii. Additional measurements of metabolic flux analysis, ROS production, intracellular and extracellular glucose and lactate provide validation of live cell OMI results. Comparisons of T. gondii full infection and the pre-invasion “kiss and spit” process were similarly performed with OMI. We aim to answer the following research questions: Does T. gondii infection affect the redox balance of the host cell? Does T. gondii infection affect the NAD(P)H or FAD binding activities of the host cell? Does OMI assess T. gondii infection consistently with standard measurements of cell metabolism? This research highlights the key role of unexplored redox biology in T. gondii infection.

RESULTS

Image analysis to quantify intracellular T. gondii.

We established T. gondii infection in quiescent HFF cells using ME49 mCherry-labeled parasites because mCherry fluorescence is spectrally separate from both NAD(P)H and FAD fluorescence [21]. FAD and NAD(P)H intensities and lifetimes of infected cells were obtained using two-photon FLIM. OMI was collected at 1, 6, 9, 12, 24 and 48hours post-infection (HPI) in two independent experiments. We used classical image processing techniques to create the host cell masks and the T. gondii masks (Figure 1). We used NAD(P)H images processed in CellProfiler and Napari to obtain the host cell masks, and T. gondii masks were created by processing the mCherry fluorescence images in python (Figure 1). After creating the final host cell masks and the final T. gondii masks for all the datasets, both masks were loaded into python to quantify the amount of T. gondii in each cell according to their overlap as shown in Figure 1.

Figure 1. — For each field of view three images were taken: NAD(P)H (750 ex, 440/80 em.) and FAD (890 ex, 550/100 em.) intensity and lifetime as well as mCherry *T. gondii* (1090 ex, 690/50 em.) intensity. Scale bar = 50 μm. NAD(P)H intensity images were used to generate individual host cell masks with semi-automated segmentation methods using CellProfiler and manual revision in Napari. *T. gondii* masks were generated from the mCherry intensity images in Python using the package scikit-image (see methods).After creating the host whole cell masks and the *T. gondii* masks, both masks were used to quantify the amount of *T. gondii* in each cell according to their pixel overlap. This was done by multiplying the *T. gondii* mask by the host cell mask to produce a mask capturing the intersection of the parasite in each cell area.

Establishing a T. gondii infection threshold

The percentage of intracellular T. gondii area by cell area was defined (Figure 2A). Variations in percent intracellular parasite showed that T. gondii did not infect quiescent HFF cells equally. To compare the infection distribution across the cells, we plotted histograms of percent intracellular T. gondii in each individual cell for each timepoint, for each experiment (Figure 2B, S1, S2, S3). The histogram in Figure 2B summarizes the percentage of intracellular T. gondii across two independent time course experiments. Figure S1 shows the percentage of intracellular T. gondii per timepoint in each independent experiment. Figure S2 and Figure S3 indicate the percentage of intracellular parasite in each time point in experiment #1 and #2, respectively.

Given that not all quiescent HFF cells were equally infected by the parasite, we grouped cells into low and high infection categories initially by setting a threshold on the percent intracellular T. gondii. Due to relatively low signal-to-noise ratio of the mCherry labeled T. gondii images, some of the noise pixels in the masks have been erroneously quantified as parasite and thus we compared 5% and 10% infection thresholds to prevent cells from being quantified as false positive for containing the parasite. We then compared OMI parameters but did not see any significant differences in the results between the 5 and 10% thresholds (data not shown). We selected 5% as our cutoff threshold because of the similar OMI parameter results and because it divided our data into roughly half between the two infection categories. We used this analysis to empirically determine that cells with lower than 5% had no significant T. gondii infection or the infection could be a false positive due to pixel noise captured by the T. gondii masks.

OMI changes in low vs high infected cells

Having categorized cells in the infected condition, we then compared low vs high parasite infected cells. OMI parameters were calculated as detailed in Figure 3. Figure 4A shows representative images outlining cells with low versus high infection with a 5% threshold. We used the fluorescence intensities of NAD(P)H and FAD to determine the ORR, which provides a label-free method to monitor the oxidation-reduction state of the cell (Figure 4B) [12]. Multiple definitions of the ORR exist, but here we used NAD(P)H/(NAD(P)H + FAD), (Table 1, and Figure 4B) as an increase in the ORR corresponds with a more reduced intracellular environment, suggestive of an increase in glycolysis, and it normalizes the values to be between 0 and 1 [22]. The decrease in ORR means a more oxidized intracellular environment, likely due to a decrease in glycolysis [23]. When comparing ORR, we observed a significant difference between low and high infection at 1 through 24 HPI (Figure 4C and Figure S4C). Cells with high infection showed a more oxidized ORR compared to cells with low infection. We did not find significant differences for NAD(P)H α₂ or NAD(P)H τ_m between low and high categories besides NAD(P)H τ_m at the 9-, 24-, and 48-hour time points (Figure 4D, 4E, S4D and S4E).

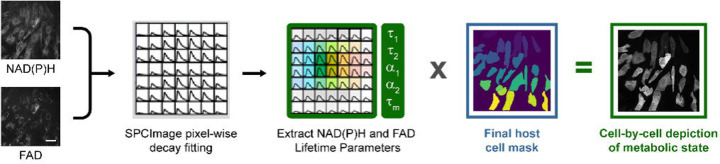

Figure 3. — NAD(P)H and FAD lifetime images were used to calculate OMI parameters by fitting the decay curves in each pixel using SPCImage. Parameters were then averaged across each whole cell for NAD(P)H and FAD parameters using host cell masks generated in Figure 1, resulting in single cell depiction of metabolic state. Scale bar = 50 μm.

Figure 4. — **(A)** Representative images of infected HFF with lower than 5% (yellow) and higher (red) than 5% mCherry *T. gondii*. Scale bar = 50 μm. **(B)** Optical Redox ratio [fluorescence intensity of NAD(P)H / (FAD + NAD(P)H)]**. (C)** Optical Redox ratio of *T. gondii* infected HFF cells with low vs. high intracellular *Toxoplasma gondii* over time course of infection. **(D)** Percentage of protein bound NAD(P)H (𝛼𝛼₂) of *T. gondii* infected HFF cells with low vs. high intracellular *Toxoplasma gondii* over time course of infection. **(E)** Mean lifetime of NAD(P)H (τ_m) of *T. gondii* infected HFF cells with low vs. high *Toxoplasma gondii* over time course of infection. The percentage of intracellular mCherry *T. gondii* lower than 5% is represented in yellow and higher than 5% is represented in red. Curves represent the mean and 95% confidence interval. Statistical significance was determined by an independent Student’s T-test. *p < 0.05. Cell count low *T. gondii* = 632, cell count high *T. gondii* = 974.

T. gondii infection changes the redox balance of the host cell

Using our previously established intracellular parasites threshold of 5% to differentiate cells with low versus high infection, we compared uninfected HFF cells with high ME49 T. gondii infected cells. T. gondii infected cells exhibited a significant decrease in ORR compared to uninfected cells, suggesting a more oxidized microenvironment (Figure 5A and Figure S5A). Single cell analysis allows us to quantify these redox changes (Figure 5B). We found that infected cells become more oxidized over time.

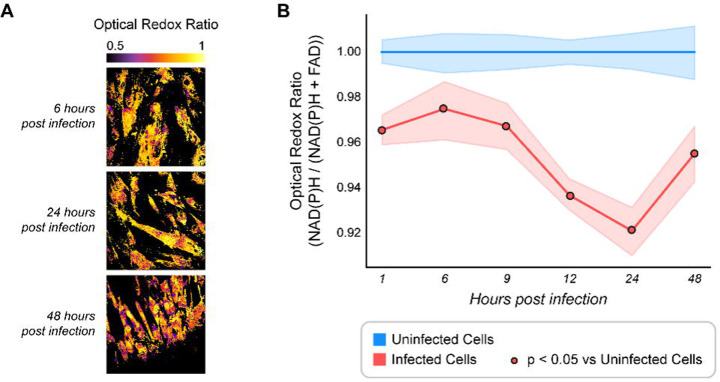

Figure 5. — **(A)** Representative images of temporal changes in optical redox ratio (ORR) of *T. gondii* infected HFF cells. Lower ORR means a more oxidized environment and higher ORR means a more reduced environment. Scale bar = 50 μm **(B)** ORR of *T. gondii* infected HFF cells vs. uninfected cells over a time course of infection, normalized to uninfected. Uninfected HFF cells are represented in blue and infected HFF cells are represented in red. Total number of cells n = 243, 225, 285, 277, 263, 312 for 1, 6, 9, 12, 24 and 48 HPI respectively. Each point represents the average of two independent experiments. Curves represent the mean and 95% confidence interval. Statistical significance was determined by an independent Student’s T-test. *p < 0.05. ps, picoseconds. Scale bar = 50 μm.

NAD(P)H lifetime changed in uninfected vs T. gondii infected HFF cells.

We obtained single cell qualitative (Figure 6A) and quantitative (Figure 6B) analysis of the mean NAD(P)H lifetime (τ_m, Table 1) in uninfected HFF cells compared with high ME49 T. gondii infected cells. NAD(P)H τ_m increased in infected HFF cells at 1, 9, 12, and 24 HPI then decreased at 48 HPI compared to uninfected HFF cells (Figure 6B). Similarly, the proportion of protein-bound NAD(P)H (α₂) in infected HFF cells increased at 1, 9, 12, 24, and 48 HPI compared to uninfected HFF cells (Figure 6C). NAD(P)H and FAD fluorescence of HFF cells changed differently with infection and reflect different metabolic activity during the 48-hour time-course in T. gondii infection (Figure 6, Figure S5B–D, Figure S6).

T. gondii infection alters the host mitochondrial and glycolytic activity.

We analyzed mitochondrial and glycolytic function to understand the mechanism of redox balance and NAD(P)H lifetime changes in T. gondii infection and validated our OMI results. These measurements have been standardized before with extracellular T. gondii [24] but not in infected cells or in intracellular parasites. We used a Seahorse XFp extracellular flux analyzer to measure the mitochondrial and glycolytic function of quiescent HFF host cells infected with wildtype T. gondii ME49 by a mitochondrial stress kit. As a control, we used a T. gondii type-I RH strain with and without a deletion in mitochondrial association factor 1 (RHΔMAF)[25].

Host mitochondria association (HMA) in T. gondii has been characterized previously and involves the T. gondii mitochondrial association factor (MAF) and 13 or more host proteins [25–28]. RH T. gondii strain infection on the host cells causes a relocalization of the host mitochondria around the parasite containing vacuole [28]. ME49 T. gondii strain does not have this phenotype or the MAF genes [25]. The cause and purpose of the mitochondria elongation in RH T. gondii infection is not totally clear. It could be a parasite strategy to induce host lipophagy, acquire fatty acids, amino acids, or pyruvate. It also could be a host defense mechanism that induces host mitochondria fusion that limits parasite proliferation [29].

We observed higher mitochondrial respiration measured in oxygen consumption rate (OCR) in the host cells infected with the parental T. gondii RH at 48 HPI as expected due to its association to host mitochondria (Figure 7A). HFF cells infected with T. gondii RHΔMAF showed reduced mitochondrial respiration. T. gondii ME49 infected HFF cells showed similar mitochondrial respiration as RHΔMAF infected HFF cells, probably due to the absence of host mitochondria association in both strains. Uninfected quiescent HFF cells showed low mitochondrial respiration as expected, suggesting that all changes observed correspond to the effect of intracellular parasite on host cells. We then compared the basal mitochondrial respiration in the four conditions (Figure 7B). There is a significant increase in basal mitochondrial respiration in HFF infected with RH and ME49 compared to uninfected HFF cells (Figure 7B). Extracellular acidification rate (ECAR) was also measured to evaluate glycolytic activity with a glycolysis stress kit and seahorse analysis (Figure 7C – 7F). It was observed that ME49 infected cells have significantly more glycolysis at 48 HPI than RH strains (Figure 7C and 7D). Similarly, ME49 infected cells have significantly more glycolytic capacity at 48 HPI than RH strains (Figure 7E). However, ME49 infected cells have significantly less glycolytic reserve or less capability to respond to energetic demand at 48 HPI than RH strains (Figure 7F). Additionally, the infected HFF cells showed higher mitochondrial respiration than glycolytic function at 48 HPI, indicating that the parasite induces a metabolism predominantly based on mitochondria function in the infected host cell (Figure 7A and 7C).

Figure 7. — **(A)** Mitochondrial respiration **(B)** Basal mitochondria respiration. **(C)** Glycolytic function. **(D)** Glycolysis. **(E)** Glycolytic capacity. **(F)** Glycolytic reserve. *T. gondii* strains evaluated include: ME49, RHΔMAF, and RH. A and B were obtained by Seahorse mito stress kit and C-F were obtained by Seahorse glycolysis stress kit. All activities were measured by oxygen consumption rate (OCR) or by Extracellular acidification rate (ECAR). Each bar represents the mean of 6 or 12 replicates and error bars represent the SEM. Statistical analysis was performed by ANOVA, multiple comparisons were performed by Tukey’s test using Prism. *p < 0.05.

We also performed Mitostress seahorse analysis in a time course experiment (Figure 8). We observed that RH and RHΔMAF infected HFF cells showed higher basal mitochondrial respiration than uninfected cells and ME49-infected HFF cells overtime (Figure 8A). ME49 infected HFF cells showed low basal mitochondrial respiration level and did not fluctuate over time (Figure 8A). RH infected HFF cells showed progressive increases in basal mitochondrial respiration levels until 36 HPI, then a reduction at 48 HPI (Figure 8A). This data suggests more mitochondrial activity in RH infected cells than ME49 infected cells in time-course infection. The Mitostress seahorse analysis also calculated ATP production in T. gondii infected HFF cells over time (Figure 8B). RH infected HFF cells and RHΔMAF infected HFF cells showed fluctuations in mitochondrial ATP during 48 HPI that were significant and not significantly, respectively (Figure 8B). ATP production in ME49 infected HFF cells did not fluctuate over time, like the uninfected cells (Figure 8B).

Additional metabolic parameters evaluated included the non-mitochondrial oxygen consumption in HFF cells (Figure 8C). The non-mitochondrial oxygen consumption was calculated when the respiratory chain was totally inhibited with rotenone in combination with Antimycin; determining that most of the oxygen consumption is inhibited in the cell and the remaining oxygen consumption is attribute to non-mitochondrial oxidases and ROS production [30]. The peak of non-mitochondrial OCR was 36 HPI for RH and ME49 infected HFF cells and 24 hours for RHΔMAF infected HFF cells (Figure 8C). These results suggest that in infected HFF cells, other cytosolic mechanisms are consuming oxygen and producing energy, such as ROS production.

We also evaluated proton leak in the HFF cells. Proton leak increased progressively until 36 HPI, but then was reduced at 48 HPI in HFF infected with either of the two RH strains (Figure 8D). However, ME49-infected HFF cells showed lower proton leak than the RH infected HFF cells, probably due to factors such as less mitochondrial / ETC complexes damage; less passage of ions (as calcium or others) in inner membrane, or less electron slippage than RH strains (Figure 8D) [30]. Furthermore, we performed a glycolysis stress seahorse analysis in a time course experiment (Figure 8E– 8G). We observed that the host cells infected with either of the three strains of T. gondii, fluctuated their glycolysis, glycolytic capacity, and glycolytic reserve during 48 hourinfection. Thus, the host cells infected with either of the three parasite strains have a fluctuation in glycolytic metabolism overtime, but the mitochondrial metabolism is predominantly active in RH infected cells.

T. gondii infection alters the reactive oxygen species in the host cell.

Oxidative stress results from an imbalance between the production of reactive oxygen species (ROS) and the ability of cells to scavenge them by the antioxidant system of the organism [31]. ROS include all highly reactive and unstable derivatives of molecular oxygen, such as hydrogen peroxide (H₂O₂), superoxide anion (O₂) and the most dangerous hydroxyl radical (•OH). Because ROS is produced from oxygen metabolism, it is impossible to avoid ROS in aerobic organisms. They are generated in the cytosol and in organelles, such as mitochondria and peroxisomes. At physiological levels, ROS participate in cell signaling processes, but enhanced oxidative stress due to the excessive ROS formation may cause damage to all cellular macromolecules such as lipids, proteins, and nucleic acids, ultimately leading to cell death.

When T. gondii multiplies, it causes cellular disruption and cell death in an infected host. The resulting necrosis attracts inflammatory host cells, such as lymphocytes and monocytes. In the immune response against the parasite, large amounts of ROS are generated [32]. Oxidative stress resulting from the host response is toxic to parasites, but many studies have also reported that some consequences of parasitic infection in a host organism are the result of host defense mechanisms involving increased production of ROS [32]. We measured intracellular ROS in T. gondii infected HFF cells. ROS production fluctuated over time in infected HFF cells (Figure 9). The maximum ROS production was 24 HPI for ME49-infected cells and 48 HPI for RH infected cells (Figure 9).

Figure 9. — ME49, RHΔMAF, and RH *T. gondii* strains were evaluated. Each bar represents the mean of 4 replicates and error bars represent the SEM. Statistical analysis was performed by two-way ANOVA, mixed-effects model with Geisser-Greenhouse correction, Tukey multiple comparison test in Prism. *p < 0.05.

T. gondii infection alters the host glucose and lactate production.

As we observed a predominant glycolytic metabolism in T. gondii ME49 infected HFF cells (Figure 7A vs 7C), we analyzed intra- and extracellular glucose and lactate concentrations. Intracellular glucose concentrations revealed a progressive increase until 9 HPI, then it dropped significantly in ME49 T. gondii infected cells (Figure 10A). Intracellular lactate concentrations revealed a progressive increase until 6 HPI and then slightly started decreasing significantly in ME49 T. gondii infected cells (Figure 10B). These results correlate with the gene expression of enzymes involved in glycolysis during ME49 T. gondii infection to HFF cells, described in our previous publication (Figure S9) [5].The uptake of glucose from media significantly changed during 48 hour time course infection with more uptake at 9 and 24 HPI (Figure 10C). The concentration of lactate in extracellular media increased progressively and significantly during the 48hour time course infection (Figure 10D). Infected cells switch to using lactate after depletion of glucose (24 and 48 HPI in Figure 10A and 10D), which may reflect the uptake and catabolism of this carbon source.

Figure 10. — **(A)** Intracellular production of glucose in ME49 *T. gondii* infected HFF host cells during a time course infection, n= 6–15 wells. **(B)** Intracellular production of lactate in ME49 *T. gondii* infected HFF host cells during a time course infection, n= 6 wells. **(C)** Glucose in media in ME49 *T. gondii* infected HFF host cells during a time course infection, n= 4 wells. **(D)** Lactate in extracellular media in ME49 *T. gondii* infected HFF host cells during a time course infection, n= 6 wells. Each bar represents the mean of n replicates and error bars represent the SEM. pink = intracellular and blue = media / extracellular

T. gondii Kiss and Spit modify the optical redox ratio and NAD(P)H lifetime of the host cell.

We performed an additional analysis called “kiss and spit” in which we used an actin polymerization inhibitor, cytochalasin D, which allows T. gondii to secrete the contents of their rhoptries into host cells while preventing infection [33]. Kiss and spit allow us to separate the effects of host manipulation due to secretion of rhoptries contents and the invasion. Cytochalasin D was administered during the different time-points of parasite infection by pretreating T. gondii with the inhibitor. Our previously published metabolomics study discovered that kiss and spit changes the host metabolism in nucleotide synthesis, the pentose, phosphate pathway, glycolysis, amino acid synthesis, and the abundance of the signaling molecules myo-inositol and cyclic-AMP [6]. Here, we demonstrated that kiss and spit alter many factors measurable by OMI. We found that kiss and spit reduced the ORR more than the normal infection (Figure 11A 11B, S7A, S7B, S8A and S8B). Additionally, kiss and spit increased NAD(P)H α₂ (Figure 11C, S7C, S8C, S8D) and NAD(P)H τ_m (Figure 11D,S7D, S8E S8F) compared to cells treated with Cytochalasin D.

Figure 11. — **(A)** Comparison of temporal Optical Redox Ratio changes in uninfected host cells, *T. gondii* infected host cells during active infection, kiss and spit, and in control of kiss and spit (Cell + Cytochalasin D (CD)). All groups normalized to uninfected cell control. **(B)** Temporal Optical Redox Ratio changes during *T. gondii* kiss and spit, normalized to its control (cells + CD). **(C)** Temporal changes in percentage of protein bound NAD(P)H (α₂) during *T. gondii* kiss and spit. **(D)** Temporal changes in mean lifetime of NAD(P)H (τ_m) during *T. gondii* kiss and spit. Uninfected HFF cells are represented in blue, infected HFF cells are represented in red, HFF cells treated with the inhibitor Cytochalasin D (CD) are represented in purple, and HFF cells with active *T. gondii* kiss and spit is represented in cyan. Each line represents the average of two independent experiments. Statistical significance was determined by an independent Student’s T-test. *p < 0.05. ps, picoseconds.

NADP+ and NAD(P)H are associated to redox changes in ME49 T. gondii infection and kiss and spit.

To determine the glucose contribution to the production of cofactors in T. gondii infection and kiss and spit, we performed a [¹³C] glucose labeling by LC/MS. We infected HFF with ME49 T. gondii and kiss and spit HFF cells at 9 HPI. Then, we labeled with [¹³C] glucose for 15 minutes and extracted the intracellular metabolites. We targeted the cofactors associated to redox changes: NAD+, NADP+, NADH, NADPH, and FAD. NAD+ (Figure 12A) and FAD (data not shown) also show some variations between infected vs non-infected cells and kiss and spit vs controls, but they were not significant. We found significant differences between infected and non-infected cells in NADP+ (Figure 12B), and NADH (Figure 12C). Similarly, kiss and spit produced a greater abundance of NADP+, NADH and NADPH compared to cells + cytochalasin D (Figure 12B, 12C,12D).

Figure 12. — Ion counts of notlabel (parental) and label (summatory of all label forms) of **(A).** NAD⁺. **(B).** NADP⁺. **(C).** NADH. **(D).** NADPH. Each bar represents the mean of two independent experiments with 7 replicates. Statistics were generated by a two-way ANOVA and Fisher LSD test. **(E).** Comparison of ORR calculated by OMI using NAD(P)H / (NAD(P)H + FAD formula, and RR (redox ratio) obtained by mass spectrometry using the formula (NADPH + NADH) / (NADPH + NADH + FAD) for the parental ion counts.

To evaluate whether there is a correlation between the optical redox ratio measured with OMI and the redox ratio measured with liquid chromatography/tandem mass spectrometry (LC/MS-MS), we compared both measures (Figure 12E). We used the average ORR calculated by NAD(P)H / (NAD(P)H +FAD) fluorescence at 9 HPI vs (NADPH + NADH) / (NADPH + NADH + FAD) calculated by LC/MS. Although there are differences between both techniques, we observed that the LC/MS redox ratio is similar to the ORR. Thus, infected cells showed a more oxidized redox ratio than uninfected cells (Figure 12E).

DISCUSSION

Changes in host cell metabolism as a consequence of nutrient scavenging by intracellular parasites is difficult to study because of the inability to effectively separate parasite-derived activities from the host functions [4]. OMI is a non-invasive, label-free imaging technique that can be used to discover the features of intracellular parasite manipulation on host cell metabolism. This study brings insights into previously unexplored changes in host cell metabolism by T. gondii infection. OMI discovered shifts in host cell redox balance with T. gondii infection. Specifically, we found that ORR was more oxidized in ME49 T. gondii infected cells over time (Figure 5). These results indicate that the parasite manipulates the host cells at the redox biology level. Table 2 summarizes the factors that affect the optical redox ratio in ME49 T. gondii infected cells. It has been suggested that redox and ROS changes in host cells can influence T. gondii differentiation from tachyzoite to bradyzoite stage [34]. In our follow up studies, we will use FLIM to study the differences between T. gondii strains and their effect on host cell metabolism, the metabolic switch form tachyzoite to bradyzoite, and the different effects of T. gondii on different host cells, including immune cells.

Table 2.

Factors that change Redox Ratio in ME49 T. gondii infected cells.

ORR	Oxidized in infected cells
NAD(P)H Bound	Increase in Infected cells until 24 HPI
NAD(P)H Free	Decrease in Infected cells until 24 HPI
NAD(P)H τ_m	Increase in Infected cells until 24 HPI
Mitochondrial respiration	Does not change significantly during time course infection
Mitochondrial ATP production	Low. Does not change significantly during time course infection
Proton Leak	Low. Does not change significantly during time course infection
Non-mitochondrial Oxygen consumption	Increased progressively until 36 HPI, Collapsed at 48 HPI
Glycolysis	Increase until 24 HPI, then start reducing progressively.
Reactive Oxygen species (ROS)	High at 24 HPI.
Intracellular glucose	Increase until 9HPI, then reduce progressively
Extracellular Glucose	Fluctuate over infection
Intracellular Lactate	High production. Increase until 6 HPI, then reduce progressively
Extracellular Lactate	Increase over infection time.

Open in a new tab

Similar to our results, previous studies found increased NADPH/NADP⁺ ratio associated with high oxidative phosphorylation activity in T. gondii infected myoblasts [34]. It was demonstrated by FLIM measurements that HCV induces increased NAD(P)H abundances in hepatic metabolism [18]. Oxidative pentose phosphate pathway (PPP) may be the main contributor of NAD(P)H in T. gondii parasite. Deletion of T. gondii Glucose-6-phosphate 1- dehydrogenase 2 (TgG6PDH2) enzyme, which is involved in the first step in the PPP, reduces the abundance of NADPH production, suggesting that this enzyme plays an important role in maintaining the cytosolic NADP/NADPH balance and tachyzoite anti-oxidant response [35]. We observed an increase in the amount of bound NAD(P)H with respect to free NAD(P)H in T. gondii infected HFF cells (Figure 6C and Figure S5C). Similar results were found in human cells infected with the intracellular bacteria Chlamydia trachomatis [19], where bound NAD(P)H was increased and freeNAD(P)H was reduced over the time course of infection measured by FLIM [19]. That study suggested that the reduction of free NAD(P)H is indicative of host cell starvation, by reduction of glycolysis. The reduction of free NAD(P)H was also observed in hepatic cells infected with HCV [18].

NADH and NADPH bind at least 334 known proteins in cells [36], and in infection [37], including enzymes important for diseases and T. gondii metabolism such as lactate dehydrogenase (LDH)[38], pyruvate dehydrogenase (PDH)[39], glucose 6-phosphate dehydrogenase (G6PDH)[40] and sirtuin 1 (SIRT1) [41]. The reason for increased bound NADPH (α₂) in T. gondii infected host cells could be due to: (a) protein-bound NAD(P)H lifetime being sensitive to multiple fates of glucose carbon [36]; (b) the binding of NAD(P)H to different enzymes such as LDH, G6PDH or PDH, which could increase NAD(P)H α₂ over time in T. gondii infected HFF cells (Figure 6C, Figures S10 - S12), or (c) host immune response mechanisms to eliminate the parasite [41].

In order to understand the molecular mechanism behind these changes observed by FLIM, we compared this results to our previously published RNA sequencing data on the same quiescent host cell system infected with ME49 T. gondii [5] and performed five different analysis. First, using the Database for Annotation, Visualization, and Integrated Discovery (DAVID), we analyzed the Go Terms related to molecular function of genes more abundant in ME49 T. gondii infected HFF cells (Supplemental Figure S10). In all time points, we observed increased abundance of Go terms related to NADH-dehydrogenases, hydrogen ion transmembrane transport, proton-transporting ATPases, electron carrier, Cytochrome C oxidase and oxidoreductase activity. These NADH dehydrogenase enzymes could be binding to NADPH (Figure 6C). Second, we analyzed the reactome of genes upregulated in ME49 T. gondii infected HFF cells (Figure S11). In all time points, we observed an increased abundance of genes clustered in different categories such as metabolism, respiratory electron transport, TCA cycle, cellular response to stress, ROS and reactive nitrogen species (RNS) production, and mitochondrial biogenesis. These genes could be upregulated in response to the T. gondii infection and affect the redox balance of host cell. Third, we analyzed the most abundant NAD(P)H-dependent enzymes (Figure S12)[5]. We assume that because there are more than 370 NAD(P)H-dependent enzymes, only the most abundant enzymes will have an impact on the resulting fluorescence lifetime of NAD(P)H and will preferentially bind to the coenzymes [37]. Time-course gene expression shows the most likely host enzymes to bind to NAD(P)H during T. gondii infection (Figure S12) similar to other parasites using FLIM [37]. We want to highlight the abundance of lactate dehydrogenase (LDH), Phosphoglycerate dehydrogenase (PHGDH), Succinate dehydrogenase subunit D, Nitric oxide synthase (NOS2), Isocitrate Dehydrogenase 3a, and Dual oxidase 1 (DUOX1), among others (Figure S12). Fourth, we also analyzed T. gondii gene expression of 58 genes related to redox biology [42] (Figure S13). At 48 HPI, the most expressed enzymes are T. gondii superoxide dismutase, catalase, and proteins with Thioredoxin domains (Figure S13). Fifth, Figure S14 shows the abundance of other genes that should also be related to redox biology in T. gondii metabolism. We did not identify the host NADPH–oxidase complex (NOX), another important bound or dependent NAD(P)H enzyme that plays an important role in T. gondii infection [43–45].

Previous studies have demonstrated that changes in ORR and NAD(P)H lifetimes correlate with changes in mitochondrial and glycolysis, measured by seahorse analysis [9,46–48]. Using this technique, we found that host cells infected with T. gondii RH parental strain, which has the MAF factor, show high mitochondrial respiration, more ATP demand (Figures 7 and 8), altered oxidative phosphorylation and/or mitochondrial gene expression reported previously, probably related to its association to host mitochondria [25,29,49]. T. gondii ME49 showed similar mitochondrial respiration to RHΔMAF (Figures 7 and 8), probably due to the absence of host mitochondria association in both strains [30]. ME49 infected cells do not produce mitochondrial ATP equal to RH strains and it does not fluctuate over time (Figure 8B) but have abundance in glycolysis (Figure 7D and 7E). Prior studies indicate that T. gondii is capable of maintaining cellular ATP homeostasis via either glycolysis or mitochondrial oxidative phosphorylation [50]. These results suggest that ORR and NAD(P)H changes observed by FLIM correspond to alterations in the glycolytic metabolism of ME49 infected cells.

There are other cytosolic mechanisms that consume oxygen and affect the redox biology of the cell [30]. For this reason, we measured ROS production in infected cells. Our results showed that the infected cell ROS production fluctuated over time (Figure 9). It has been demonstrated previously that host ROS production can inhibit T. gondii growth [51]. Human patients infected with T. gondii showed increase oxidative stress markers and reduction of antioxidant markers [52]. Elevated ROS levels have been previously reported in T. gondii infected host cells [34,43,53]. Asymptomatic T. gondii seropositive cats also showed an increase in ROS levels [54]. The rapid release of ROS plays a significant role against T. gondii, but also contributes to oxidative injury inflicting tissue damage and disease pathology. ROS production in T. gondii infection induces host DNA damage [53] and intracellular lysosomal membrane damage, which is followed by apoptosis or necrosis [31]. These results suggest that ROS production in ME49 infected cells would be an important factor affecting the ORR and NAD(P)H changes found by FLIM.

To understand the molecular mechanism behind the NAD(P)H and redox changes observed by FLIM, we analyzed glucose and lactate fate and flow during T. gondii infection. Glucose is the preferred nutrient for T. gondii and its assimilation via glycolysis supports the optimal growth of the parasite [50,55]. Here, we found a reduction of intracellular glucose in T. gondii infected host cells and an increase of lactate exportation over time (Figure 10). This reduction in host intracellular glucose, from 9 HPI and forward, correlates with the oxidized ORR quantified by OMI (Figure 5 and 10A). Similar results were observed in myoblasts and myotubes infected with T. gondii type II [34]. Many studies have demonstrated that T. gondii can propagate in the absence of glucose, using glutamine or acetate as an alternative source of energy [50,56]. Our intracellular measurements of glucose and lactate correlate with the intracellular metabolites [5] and up-regulation of glycolytic enzyme gene expression [4,5] (Figure S9). T. gondii and host lactate dehydrogenase (LDH) activity is upregulated during the infection (Figure S9J) [4,5]. In T. gondii infected host cells, lactate exportation was observed to progressively increase (Figure 10D). Pyruvate and lactate metabolites are abundant in T. gondii infection because the parasite must maintain a pyruvate homeostasis [57]. Both metabolites serve as a circulating redox buffer that equilibrates the NADH/NAD⁺ ratio in cells [58]. Lactate serves as a major circulating carbohydrate fuel [58], is exported from the parasite [59], and helps to regulate the redox balance in infection, cancer, and immune cells [60–62]. Lastly, lactate is responsible for 30% inhibition of T. gondii tachyzoite to bradyzoite conversion in Vero cells [63]. It has been demonstrated that low glucose and high lactate environments are immunosuppressive; these conditions are found in the placenta, gastrointestinal tract, and in tumor microenvironment [60], as well as T. gondii infection (Figure 10).

To understand the biological relevance of an optically derived redox ratio and the metabolic pathways that contribute to it in T. gondii infection, we performed a [¹³C] glucose flux analysis (Figure 12). Redox has been associated with intracellular concentrations of NADH and NAD⁺ in stem cells [64]. Previous studies found no production of NAD+ in T. gondii [65], and our data did not find significant differences in NAD+ levels with infection (Figure 12A). The changes in ORR (Figure 5) and relative amounts of bound and free NAD(P)H (Figure 6C) observed in T. gondii infection by OMI correspond to NADH or NADPH, the autofluorescence cofactors, which showed significant differences with infection by LC/MS (Figure 12C and 12D) [66]. LCM/MS found a significant abundance of NADP+ in ME49 T. gondii infected cells and kiss spit (Figure 12 B). The production of NADP+ is important for T. gondii because isocitrate dehydrogenase, the rate limiting step of the TCA cycle, is NADP+ dependent, not NAD+ dependent as the human enzyme [5,65]. Uninfected vs Infected cells ORR showed a similar trend as the biological redox ratio obtained by metabolomics (Figure 12E).

Finally, we determined by OMI how T. gondii rhoptry contents discharged during kiss and spit remodel the HFF metabolism. Kiss and spit is a pre-invasion process where the contents of the T. gondii rhoptry organelles are secreted into the host cytoplasm, even in uninfected cells [67,68]. The rhoptries contain an estimated fifty proteins and lipids, most of which are functionally uncharacterized, [68–73]. Cytochalasin D or Mycalolide B function as actin polymerization inhibitors that prevent invasion, allowing the host changes associated with kiss and spit to be studied independently of parasite invasion and replication [33,74–77]. We found that kiss and spit reduced the ORR (Figure 11, S7) and the free NAD(P)H (α₁) (data not shown) in a similar trend to normal infection (Figure S8). Kiss and spit increased the relative amount of bound NAD(P)H (α₂) and the NAD(P)H mean lifetime (Figure S7) as the full infection does. This finding suggests that the T. gondii kiss and spit manipulates the redox biology of the host cells similar to full infection, as has been demonstrated before using several reporter systems [78].

Conclusion

OMI has been used to understand the metabolic changes in numerous disease models. We investigated whether OMI could be used in T. gondii infection to determine the changes induced in the host cell by the parasite and evaluated the effect of infection on redox balance in the host cell. Our results concluded that T. gondii infected HFF cells show a more oxidized ORR than the uninfected cells. Many host and parasite genes (described in Figure S11- S15), could be related to these changes in redox biology, especially the ones implicated in ROS production (Figure 9). T. gondii infected HFF cells showed an increase in the relative amount of bound NAD(P)H with respect to free NAD(P)H over a time course of infection. This abundance of bound NAD(P)H in T. gondii infected HFF cells could be correlated to the abundance of enzymes that bind to NAD(P)H with T. gondii infection such as dehydrogenases, LDH, PHGDH, GAPDH, DUOX1 (Figure S13), or to the abundance of PPP and the high rate of glycolysis in the intracellular ME49 T. gondii parasite. Particularly, this strain of parasite depends more on glycolysis, and less on oxidative phosphorylation (Figure 7 and 8); since it does not have the mitochondrial association factor as the RH strains have. Finally, we explored changes associated with kiss and spit using OMI. Kiss and spit also showed a more oxidized ORR in the host cell and increases in the relative amount of bound NAD(P)H with respect to free NAD(P)H. Separate analysis of host and pathogen metabolism is still challenging and requires novel experimental and technical approaches that facilitate dynamic monitoring of metabolic changes inside the intracellular parasite separately from the host cell in living cells. A future OMI analysis of T. gondii parasite requires magnification of the images and segmentation of the intracellular and extracellular parasite.

A second limitation of NAD(P)H autofluorescence imaging is that conversion of NAD(P)H fluorescence intensity values to absolute concentration values is not straight forward because the different quantum yields of free and protein-bound NAD(P)H have to be calculated [19,79,80]. The fluorescence decay parameters of the phosphorylated and non-phosphorylated forms of reduced NAD are the same and are indistinguishable. Although estimations of cellular concentrations suggest that a substantial part of the cellular fluorescence originates from NADPH rather than from NADH [81], we and others have demonstrated significant NAD(P)H fluorescence lifetime changes by inhibiting glucose metabolism corresponding to projected changes of cellular NADH concentration [79,82,83].

A more detailed understanding of the metabolic activity and needs of T. gondii during the intracellular growth phase is needed to conceive novel therapeutic strategies that target the pathogen in its intracellular growth phase without affecting the host. More broadly, fluorescence lifetime imaging using two-photon microscopy reveals new insights into the crosstalk between host and pathogen metabolism and suggests manipulating T. gondii-induced changes in subcellular NAD(P)H contents and redox biology. In the process of understanding how intracellular pathogens interfere with host cell metabolism, metabolic profiling of infected cells by OMI will be an invaluable tool that complements established large scale genomic and proteomic approaches.

MATERIALS & METHODS

T. gondii Strains and Cell Culture

Low passage mCherry type II-ME49 T. gondii was used for OMI. Low passage type II ME49 T. gondii was used for the rest of the experiments. The parental strain RHΔKU80 (RH) and the modified RHΔKU80ΔMAF (RHΔMAF) strains obtained from Dr. Boothroyd were used as controls for Seahorse and ROS analysis. Human Foreskin Fibroblasts (HFFs) were grown in DMEM with 10% Fetal Bovine Serum (FBS), 2 mM L-glutamine, and 1% penicillin-streptomycin (Sigma-Aldrich). Once HFFs cells were in deep quiescence, defined as 10 days post confluency, DMEM media was changed to metabolomic media for all metabolomic analysis. Metabolomic media is made of RPMI1640 supplemented with 2 mM L-glutamine, 1% FBS dialyzed against PBS (MW cutoff of 10 kD), 10mM HEPES, and 1% penicillin-streptomycin.

Time Course Infection and Kiss and Spit

For OMI, HFF dishes in metabolic media and in triplicated were treated as follow: (a) Uninfected; (b) infected with 2 × 106 ME49 T. gondii tachyzoites; (c) infected with 2 × 10⁶ ME49 tachyzoites that had been pre-incubated with 1.5 μM cytochalasin D during 15 minutes at 37°C (Sigma-Aldrich); (d) incubated with 1.5 μM cytochalasin D (SigmaAldrich). Cytochalasin D was kept during all the length of experiments and imaging. At time points 1, 6, 9, 12, 24 and 48 -HPI, dishes were imaged and maintained during imaging at 37°C and 5% CO₂ using a stage-top incubator system (Tokai Hit).

Metabolomics

HFF dishes in triplicate were treated as the four conditions described previously. At time point 9-HPI, dishes were washed three times with ice cold PBS, and incubated for 15 minutes with metabolomic media plus Glucose-¹³C₆ (sigma) (1g/L). Then, the dishes were quenched with 80:20 HPLC grade Methanol: Water (Sigma-Aldrich). Dishes were incubated on dry ice at −80°C for 15 minutes. Plates were scraped, the solution removed, and spun at 2500 × g for 5 minutes at 4°C. The supernatant was removed and stored on ice, then the pellet was washed again in quenching solution and re-spun. Supernatants were combined, dried down under N₂, and stored at −80°C. Samples were resuspended in 100 μL HPLC grade water (Fisher Optima) for analysis on a Thermo-Fisher Vanquish Horizon UHPLC coupled to an electrospray ionization source (HESI) part of a hybrid quadrupole-Orbitrap high resolution mass spectrometer (Q Exactive Orbitrap; Thermo Scientific). Chromatography was performed using a 100 mm × 2.1 mm × 1.7 μm BEH C18 column (Acquity) at 30°C. 20 μL of the sample was injected via an autosampler at 4°C and flow rate was 200 μL/min. Solvent A was 97:3 water/methanol with 10 mM tributylamine (TBA) (Sigma-Aldrich) adjusted to a pH of 8.2 using approximately 9 mM Acetate (final concentration, Sigma-Aldrich). Solvent B was 100% methanol with no TBA (Sigma- Aldrich). Products were eluted in 95% A / 5% B for 2.5 minutes, then a gradient of 95% A / 5% B to 5% A / 95% B over 14.5 minutes, then held for an additional 2.5 minutes at 5%A / 95%B. Finally, the gradient was returned to 95% A / 5% B over 0.5 minutes and held for 5 minutes to reequilibrate the column. MS parameters included: scan in negative mode; scan range = 70 – 1000 m/z; Automatic Gain control (AGC) = 1e6, spray voltage = 3.0 kV, maximum ion collection time = 40 ms, and capillary temperature = 350C. Peaks were matched to known standards of NADH, NAD⁺, NADPH and NADP⁺ for identification. Data analysis was performed using the Metabolomics Analysis and Visualization Engine (MAVEN) software.

Two-Photon Imaging

Fluorescence lifetime images were taken on a custom-built inverted multiphoton microscope (Bruker Fluorescence Microscopy, Middleton, WI, USA), as previously described [84–86]. Briefly, the system consists of an ultrafast laser (Spectra Physics, Insight DS-Dual, Milpitas, CA, USA), an inverted microscope (Nikon, Eclipse Ti, Tokyo, Japan), and a 40× water immersion (1.15NA, Nikon) objective. NAD(P)H and FAD images were acquired sequentially for the same field of view using an excitation wavelength of 750 nm and a 440/80 nm emission bandpass filter for NAD(P)H fluorescence, and an excitation wavelength of 890 nm and a 550/100 nm emission bandpass filter for FAD fluorescence. mCherry T. gondii was excited at 1090 nm with emission at 690/50 nm. During imaging, dishes were maintained at 37°C and 5% CO₂ using a stage-top incubator system (Tokai Hit). Fluorescence lifetime images were collected using time-correlated single photon counting electronics (SPC-150, Becker and Hickl, Berlin, Germany) and a GaAsP photomultiplier tube (H7422P-40, Hamamatsu Photonics, Hamamatsu, Japan). A pixel dwell time of 4.8 μs was used to acquire 256 × 256-pixel images over 60 s total integration time. The photon count rates were maintained at 1–2 × 10⁵ photons/second to ensure adequate photon observations for lifetime decay fits, and no photobleaching. The instrument response function was measured from second harmonic generation of urea crystals excited at 900 nm, and the full width at half maximum (FWHM) was calculated to be 220 ps.

Quantification of Fluorescence Lifetime Components

NAD(P)H and FAD fluorescence lifetime images were analyzed using SPCImage software (Becker & Hickl, Berlin, Germany) as previously described [87]. At each pixel, the fluorescence lifetime decay curve was deconvolved with the instrument response function and fit to a two-component exponential decay model, I(τ) = α₁ × exp(−τ/τ₁) + α₂× exp(−τ/τ₂) + C. In this model, I(τ) is the fluorescence intensity at time t after the laser excitation pulse, α represents the fractional contribution from each component, C accounts for background light, and t represents the fluorescence lifetime of each component [15,87]. A two-component model was used because both NAD(P)H and FAD can exist in two conformational states, bound or unbound [17,88]. We use a binning factor of 1 or 2.

Creating HFF whole cell masks

Initial whole cell masks were created manually using the software CellProfiler. These masks were then further revised and validated for accuracy by a scientist using the Napari image viewer, by overlaying the mask over the NAD(P)H intensity image and improving the cell boundaries and/or labeling regions missed by CellProfiler. Whole cell was defined as the cell border including the nuclei.

Calculating Optical Redox Ratio, NAD(P)H and FAD parameters

The total NAD(P)H and FAD intensity was calculated from the lifetime data by summing the number of photons detected for every pixel in the cell mask. The intensity of NAD(P)H was then divided by the sum of FAD plus NAD(P)H intensity for each pixel to calculate the optical redox ratio (Table 1). Values for τ₁, τ₂, α_1, α₂ of NAD(P)H and FAD were measured for each host cell too (Table 1). The mean lifetime (τ _m) of both NAD(P)H and FAD were calculated as τ_m = α₁ τ₁ + α₂ τ₂. With the whole cell masks, the T. gondii masks and the SPCImage exports (τ₁, τ₂, α₁, α₂ for NAD(P)H and FAD), we extracted the OMI features for each cell for all the images collected. In python, we loaded all the images as sets containing corresponding masks and images. We then used the function regionprops_omi within the cell-analysis-tools [89] python library to extract features for each image for each cell and saved the output as a CSV file. All these resulting files were then aggregated into a single CSV file and used for data analysis and to generate figures. Statistical significance was added to the figures by the statannotations python package [90] using an independent t-test.

Quantifying Toxoplasma gondii in mCherry images

In python, the mCherry intensity image was loaded and the intensity of the top 5% of the pixels was mapped to equal the 95 percentile intensity value, then from the resulting image the top 10% brightest pixels of the image were kept (Figure 1). The resulting image was then binarized and then dilated using an octagon with footprint (1,1). Binarization was done by making all pixels with values greater than 0 equal to 1. Holes in the connected components were filled using the binary_fill_holes function from the image processing library scikit-image [91]. Followed by the function remove_small_objects from the same library to remove small sections of connected components less than 30 pixels in area. Another version of the mask was then created by taking the original NAD(P)H intensity image and keeping the 5% brightest pixels. Lastly, these two images were combined using a bitwise OR operation to create the final binary mask (Figure 1).

Quantifying intracellular Toxoplasma and establishing a 5% threshold.

After creating the whole cell masks and the T. gondii masks for the datasets, both masks were loaded into python to quantify the amount of T. gondii in each cell according to their overlap as shown in Figure 1. This was done by multiplying the final T. gondii mask with the final host cell mask to produce a mask capturing the amount of parasite in each cell. This new mask has the same region label for the T. gondii pixels as the pixels in the whole cell mask. We then divide the sum of the pixels in the mask containing T. gondii content inside the cell by the number of pixels in the whole cell area for every cell (Figure 2A). This quantified the percent of T. gondii infection in each cell. T. gondii did not infect all cells equally; to compare the percentage of infection, we plotted a histogram of percent T. gondii infection by cells for each timepoint, for each experiment, and determined empirically that the lower 5% had no significant T. gondii infection or the infection could be a false positive due to pixel noise captured by the T. gondii masks.

Metabolic Profiling- Seahorse analyzer

HFF cells were seeded in a seahorse 96 well plate and allow them to reach confluency and quiescent for two weeks. After this time, all steps were performed in metabolic media. Then, cells were infected with 6,000 taquizoites / well from the three different strains of T. gondii: ME49, RHΔMAF and RHΔKU80. The control group was the HFF cells without infection. After 48 HPI (Figure 7) or during time-course infection (Figure 8), Mito stress analysis was performed using 1 μM Oligomycin, 2 μM Carbonyl cyanide-4 phenylhydrazone (FCCP) and 0.5 μM rotenone. Glycolysis stress analysis was performed using 10 mM Glucose, 2 μM Oligomycin and 50 Mm of 2-DG. Seahorse analysis was performed in a Seahorse Bioscience XF96 Extracellular Flux Metabolic Analyzer in the Small Molecule Screening Facility at the University of Wisconsin. Oxygen consumption rate (OCR) and extracellular acidification rate (ECAR) was calculated [9]. Mitochondrial respiration is measured by OCR and is a quantitative metric of mitochondrial function via oxidative phosphorylation (OXPHOS). Glycolysis is indicated by ECAR [92]. Graphs and statistical analysis were performed in Wave software v 2.6.3.5 from Agilent technologies and statistical analysis was performed in prism.

ROS labeling

Live infected and non-infected HFF cells were stained with 5 μM CellROX^™ Green Reagent in complete medium for 30 minutes at 37°C, 5% CO₂. Fluorescence was measured in an Incucyte machine. Reactive oxygen species (ROS) were labeled using the CellROX^™ Green Reagent according to the manufacturer instructions (Molecular Probes, Eugene, USA). CellROX^™ Green predominantly detects hydroxyl radicals and superoxide anions and only to low extent tert-butyl-hydroperoxide and do not detect hydrogen peroxide (www.thermofisher.com)[34,93].

Lactate and glucose assays

Quiescent HFF cells in a 24-well plate were infected with 2×10⁵ ME49 T. gondii tachyzoites per well in cell metabolic culture media. Extracellular and intracellular samples were collected from three biological replicates for each of the seven timepoints after T. gondii infection time-course. For lactate and glucose intracellular assays samples were homogenized by sonication. Abcam Glucose assay kit (ab65333) and Abcam Lactate kit (ab65330) were used. Samples were read in a plate reader at 533/587 nm. Concentrations in pMol were determined by standard curve with glucose and lactate standards.

Gene expression analysis

We re-analyzed our previous published gene expression analysis (accession number PRJNA497277)[5]. This data corresponds to ME49 T. gondii infected HFF cells. Lists of significant genes were used as input for gene ontology enrichment analysis using the Database for Annotation, Visualization, and Integrated Discovery (DAVID, v6.8). First, we performed clustering by Go term of significant genes during each time point. Second, we performed clustering by significant genes related to reactome during each time point. Third, we generated heatmaps of time-course gene expression of the most likely host enzymes that bind to NAD(P)H during T. gondii infection, similarly as it has been published previously for other parasites using FLIM [37]. Fourth, we analyzed the expression of 58 genes related to redox biology in T. gondii. Fifth, we analyzed the expression of other genes related to redox biology in T. gondii.

Statistical analyses

Biological repeats are defined as separate time-point infections collected on separate days. Statistical significance was set to 0.05. Graphical displays were generated in Python using the open-source graphing package Matplotlib (https://matplotlib.org/) and Seaborn (https://seaborn.pydata.org/). Each data point is a different cell; boxplots show median (central line). Statistical significance was added to the figures by the statannotations python package [90] using an independent t-test. Prism was used to create graphs and run statistical analysis.

Supplementary Material

Supplement 1

Figure S1. Percentage of intracellular T. gondii infection per cell during time course infection in two independent experiments. (A) Experiment #1. (B) Experiment #2. Xaxis represents the percentage of intracellular parasite by cell area by time point using 5% bin sizes. There are six time points: 1, 6, 9, 12, 24, and 48 HPI. The Y-axis represents the cell count, number of cells in each specific bin.

media-1.tif^{(458.9KB, tif)}

Supplement 2

Figure S2. Percent of intracellular Toxoplasma gondii infection per cell during time course infection in experiment #1. There are six time points: 1, 6, 9, 12, 24, and 48 HPI. Each time point is represented by one graph. X-axis represents the percentage of intracellular parasites. The Y-axis represents the cell count, number of cells in each specific percentage. (A) Time point 1 HPI = 113 cells. (B) Time point 6 HPI = 150 cells. (C) Time point 9 HPI = 187 cells. (D) Time point 12 HPI = 196 cells. (E) Time point 24 HPI = 187 cells. (F) Time point 48 HPI = 242 cells.

media-2.tif^{(706.3KB, tif)}

Supplement 3

Figure S3. Percent of intracellular Toxoplasma gondii infection per cell during timecourse infection in experiment #2. There are six time points: 1, 6, 9, 12, 24, and 48 HPI. Each time point is represented by one graph. X-axis represents the percentage of intracellular parasites. The Y-axis represents the cell count, number of cells in each specific percentage. (A) Time point 1 HPI = 131 cells. (B) Time point 6 HPI = 75 cells. (C) Time point 9 HPI = 98 cells. (D) Time point 12 HPI = 81 cells. (E) Time point 24 HPI = 76 cells. (F) Time point 48 HPI = 70 cells.

media-3.tif^{(685.4KB, tif)}

Supplement 4

Figure S4. Establishing a threshold of T. gondii infection. (A) Representative images of infected HFF with lower than 5% (yellow) and higher (red) than 5% mCherry T. gondii. Scale bar = 50 μm. (B) ORR = intensity of NAD(P)H / (intensity of NAD(P)H + intensity of FAD). (C) Optical Redox ratio of T. gondii infected HFF cells with low vs. high intracellular Toxoplasma gondii in time course infection. (D) Percentage of protein bound NAD(P)H of T. gondii infected HFF cells with low vs. high intracellular Toxoplasma gondii in time course infection. (E) Mean lifetime of NAD(P)H of T. gondii infected HFF cells with low vs. high Toxoplasma gondii in time course infection. The percentage of intracellular mCherry T. gondii lower than 5% is represented in yellow and higher than 5% is represented in red. Values represent the median with 1.5 IQR. Statistical significance was determined by an independent Student’s T-test. *p < 0.05.**p < 0.01, ***p < 0.001, ****p < 0.0001. Cell count low T. gondii = 632, cell count high T. gondii = 974

media-4.tif^{(1.1MB, tif)}

Supplement 5

Figure S5. Temporal changes in optical redox ratio, NAD(P)H lifetime, and FAD lifetime of T. gondii infected HFF cells. (A) Optical redox ratio of T. gondii infected HFF cells vs. uninfected cells in time course. (B) NAD(P)H mean lifetime (τ_m) of T. gondii infected HFF cells. (C) Percentage of protein bound NAD(P)H (α₂) of T. gondii infected HFF cells. (D) Percentage of protein bound FAD (α₁) of T. gondii infected HFF cells. Uninfected HFF cells are represented in blue and infected HFF cells are represented in red. N = 243, 225, 285, 277, 263, 312 for 1, 6, 9, 12, 24 and 48 HPI respectively. Each point represents the average of two independent experiments. Statistical significance was determined by an independent Student’s T-test. *p < 0.05.**p < 0.01, ***p < 0.001, ****p < 0.0001. ps, picoseconds.

media-5.tif^{(547.5KB, tif)}

Supplement 6

Figure S6. Temporal changes in FAD lifetime of T. gondii infected HFF cells over 48-hrs. (A) Representative images of FAD mean lifetimes (τ_m) reported in ps, picoseconds. Scale bar = 50 μm. (B-C). FAD τ _m of T. gondii infected HFF cells as bar graphs and line plots respectively. Error bars in bar graph represent 1.5 IQR and 95% confidence interval in the line plots. Uninfected HFF cells are represented in blue and infected HFF cells are represented in red. n = 243, 225, 285, 277, 263, 312 for 1, 6, 9, 12, 24 and 48 HPI respectively. Each point represents the average of two independent experiments. Statistical significance was determined by an independent Student’s T-test. *p < 0.05.**p < 0.01, ***p < 0.001, ****p < 0.0001. ps, picoseconds

media-6.tif^{(1.2MB, tif)}

Supplement 7

Figure S7. Temporal changes in OMI parameters during T. gondii kiss and spit. (A) Comparison of temporal optical redox ratio changes across all conditions normalized to the control of uninfected cells. (B-D) Show trends during T. gondii kiss and spit vs. its control (cells + CD). (B) Temporal optical redox ratio changes. (C) Temporal changes in percentage of protein bound NAD(P)H (α₂). (D) Temporal changes in mean lifetime of NAD(P)H (τ_m). Uninfected cells are represented in blue bars, infected cells are represented in red bars, cells treated with the inhibitor Cytochalasin D (CD) are represented in purple, and kiss and spit are represented in cyan. Each bar represents the average of two independent experiments. Statistical significance was determined by an independent Student’s T-test. *p < 0.05.**p < 0.01, ***p < 0.001, ****p < 0.0001. ps, picoseconds.

media-7.tif^{(690KB, tif)}

Supplement 8

Figure S8. Temporal changes in OMI parameters during control, T. gondii infection, and kiss and spit infection. (A-B) Comparison of temporal optical redox ratio changes normalized to uninfected control cells shown in box plot and line plot respectively. (C-D) Temporal changes in percentage of protein bound NAD(P)H (α₂) shown in a box plot and line plot respectively. (E-F) Temporal changes in NAD(P)H mean lifetime (τ_m) shown in a box plot and line plot respectively. Uninfected cells are represented in blue, infected cells are represented in red, cells treated with the inhibitor Cytochalasin D (CD) are represented in purple, and kiss and spit are represented in cyan. Each bar represents the average of two independent experiments. Statistical significance was determined by an independent Student’s T-test. *p < 0.05.**p < 0.01, ***p < 0.001, ****p < 0.0001. ps, picoseconds.

media-8.tif^{(1.3MB, tif)}

Supplement 9

Figure S9. Gene expression of both host and parasite enzymes involved in glycolysis in T. gondii over 48-hours of infection. The line graphs represent mRNA abundance for the host (grey) and T. gondii (red). Host expression is shown as fold change (infected/uninfected) on the left Y-axis and T. gondii expression is shown in Fragments Per Kilobase of transcript per Million mapped reads (FPKM) values in the right Y-axis, X-axis shows hours post infection. Data extracted from our previous publication [5].

media-9.tif^{(968KB, tif)}

Supplement 10

Figure S10. Host go term molecular function clustering of significant upregulated genes during ME49 T. gondii infection. Data extracted from our previous publication [5]. Each of the seven time points are represented by a different color. Analysis was performed in the base data DAVID.

media-10.tif^{(607.2KB, tif)}

Supplement 11

Figure S11. Host reactome clustering of significant upregulated genes during ME49 T. gondii infection. Data extracted from our previous publication [5]. Each of the seven time points are represented by a different color. Analysis was performed in the base data DAVID.

media-11.tif^{(701.3KB, tif)}

Supplement 12

Figure S12. Heatmap of host enzymes gene expression most likely to bind to NAD(P)H during ME49 T. gondii time course infection. Data extracted from our previous publication [5]. Color scale represents the fold change with respect to the uninfected control.

media-12.tif^{(542.6KB, tif)}

Supplement 13

Figure S13. Expression of 58 genes related to redox biology in T. gondii. Data extracted from our previous publication [5]. The color scale represents the abundance in fragments per kilobase of exon per million mapped fragments (FPKM).

media-13.tif^{(720.5KB, tif)}

Supplement 14

Figure S14. Expression of other genes related to redox biology in T. gondii. Data extracted from our previous publication [5]. The color scale represents the abundance in fragments per kilobase of exon per million mapped fragments (FPKM).

media-14.tif^{(439KB, tif)}

ACKNOWLEDGEMENTS

The authors would like to thank Cerise Siamof, Kelsey Tweed and Andres Tibabuzo for their assistance with the processing of cell masks; Amani Guillette for assistance in seahorse analysis; Dr. John Boothroyd for providing the parental RHΔKU80 and the modified RHΔKU80ΔMAF strains; Matthew Stefely for edition of figures and visualization and Alicia Williams for editing of the manuscript.

FUNDING

This work was supported by grants from the NIH (R01CA272855, R01HL165726, R01AI144016-01), the Carol Skornicka Chair in Biomedical Imaging, the Retina Research Foundation Daniel M. Albert Chair and the University of Wisconsin Carbone Cancer Center Support Grant P30 CA014520. Gallego-Lopez was financed by Morgridge postdoctoral fellow.

Funding Statement

This work was supported by grants from the NIH (R01CA272855, R01HL165726, R01AI144016–01), the Carol Skornicka Chair in Biomedical Imaging, the Retina Research Foundation Daniel M. Albert Chair and the University of Wisconsin Carbone Cancer Center Support Grant P30 CA014520. Gallego-Lopez was financed by Morgridge postdoctoral fellow.

Footnotes

CONFLICTS OF INTEREST

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

CODE AND DATA AVAILABILITY

Codes used in this manuscript are available in https://github.com/skalalab/gallego_g-omi_toxoplasma_redox_ratio. Images are available upon request.

REFERENCES

1.Nelson MM, Jones AR, Carmen JC, Sinai AP, Burchmore R, Wastling JM. Modulation of the host cell proteome by the intracellular apicomplexan parasite Toxoplasma gondii. Infect Immun. 2008;76: 828–44. doi: 10.1128/IAI.01115-07 [DOI] [PMC free article] [PubMed] [Google Scholar]
2.Chasman D, Walters KB, Lopes TJS, Eisfeld AJ, Kawaoka Y, Roy S. Integrating Transcriptomic and Proteomic Data Using Predictive Regulatory Network Models of Host Response to Pathogens. Leslie CS, editor. PLOS Comput Biol. 2016;12: e1005013. doi: 10.1371/journal.pcbi.1005013 [DOI] [PMC free article] [PubMed] [Google Scholar]
3.Hilleman MR. Strategies and mechanisms for host and pathogen survival in acute and persistent viral infections. Proc Natl Acad Sci. 2004;101: 14560–14566. doi: 10.1073/pnas.0404758101 [DOI] [PMC free article] [PubMed] [Google Scholar]
4.Blader IJ, Manger ID, Boothroyd JC. Microarray Analysis Reveals Previously Unknown Changes in Toxoplasma gondii-infected Human Cells. J Biol Chem. 2001;276: 24223–24231. doi: 10.1074/jbc.M100951200 [DOI] [PubMed] [Google Scholar]
5.Olson WJ, Martorelli Di Genova B, Gallego-Lopez G, Dawson AR, Stevenson D, Amador-Noguez D, et al. Dual metabolomic profiling uncovers Toxoplasma manipulation of the host metabolome and the discovery of a novel parasite metabolic capability. PLOS Pathog. 2020;16: e1008432. doi: 10.1371/journal.ppat.1008432 [DOI] [PMC free article] [PubMed] [Google Scholar]
6.Gallego-Lopez GM, Olson WJ, Tibabuzo-Perdomo AM, Stevenson D, AmadorNoguez D, Lawrence G, et al. Kiss and spit metabolomics highlights the role of the host cN-II enzyme on purine metabolism during pathogen infection. bioRxiv. 2022; 2022.06.15.496273. doi: 10.21203/rs.3.rs-2167582/v1 [DOI] [Google Scholar]
7.Xiao W, Wang RS, Handy DE, Loscalzo J. NAD(H) and NADP(H) Redox Couples and Cellular Energy Metabolism. Antioxidants Redox Signal. 2018;28: 251–272. doi: 10.1089/ars.2017.7216 [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Blacker TS, Mann ZF, Gale JE, Ziegler M, Bain AJ, Szabadkai G, et al. Separating NADH and NADPH fluorescence in live cells and tissues using FLIM. Nat Commun. 2014;5: 3936. doi: 10.1038/ncomms4936 [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Alhallak K, Rebello LG, Muldoon TJ, Quinn KP, Rajaram N. Optical redox ratio identifies metastatic potential-dependent changes in breast cancer cell metabolism. Biomed Opt Express. 2016;7: 4364. doi: 10.1364/BOE.7.004364 [DOI] [PMC free article] [PubMed] [Google Scholar]
10.Gonçalves de Faria CM, Ciol H, Salvador Bagnato V, Pratavieira S. Effects of photobiomodulation on the redox state of healthy and cancer cells. Biomed Opt Express. 2021;12: 3902. doi: 10.1364/BOE.421302 [DOI] [PMC free article] [PubMed] [Google Scholar]
11.Kolenc OI, Quinn KP. Evaluating Cell Metabolism Through Autofluorescence Imaging of NAD(P)H and FAD. Antioxid Redox Signal. 2019;30: 875–889. doi: 10.1089/ars.2017.7451 [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Chance B, Schoener B, Oshino R, Itshak F, Nakase Y. Oxidation-reduction ratio studies of mitochondria in freeze-trapped samples. NADH and flavoprotein fluorescence signals. J Biol Chem. 1979;254: 4764–4771. doi: 10.1016/S0021-9258(17)30079-0 [DOI] [PubMed] [Google Scholar]
13.Skala M, Ramanujam N. Multiphoton Redox Ratio Imaging for Metabolic Monitoring In Vivo. In: Armstrong D, editor. Advanced Protocols in Oxidative Stress II. Totowa, NJ: Humana Press; 2010. pp. 155–162. doi: 10.1007/978-1-60761-411-1_11 [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Khatun M, Ray R, Ray RB. Hepatitis C virus associated hepatocellular carcinoma. 1st ed. Advances in Cancer Research. 1st ed. Elsevier Inc.; 2021. pp. 103–142. doi: 10.1016/bs.acr.2020.10.003 [DOI] [PubMed] [Google Scholar]
15.Lakowicz JR. Principles of Frequency-Domain Fluorescence Spectroscopy and Applications to Cell Membranes. In: Hilderson HJ, editor. Boston, MA: Springer US; 1988. pp. 89–126. doi: 10.1007/978-1-4613-9359-7_3 [DOI] [PubMed] [Google Scholar]
16.Lakowicz JR. Principles of Fluorescence Spectroscopy. Lakowicz JR, editor. Principles of fluorescence spectroscopy, Springer, New York, USA, 3rd edn, 2006. Boston, MA: Springer US; 2006. doi: 10.1007/978-0-387-46312-4 [DOI] [Google Scholar]
17.Lakowicz JR, Szmacinski H, Nowaczyk K, Johnson ML. Fluorescence lifetime imaging of free and protein-bound NADH. Proc Natl Acad Sci. 1992;89: 1271–1275. doi: 10.1073/pnas.89.4.1271 [DOI] [PMC free article] [PubMed] [Google Scholar]
18.Mazumder N, Lyn RK, Singaravelu R, Ridsdale A, Moffatt DJ, Hu C-W, et al. Fluorescence Lifetime Imaging of Alterations to Cellular Metabolism by Domain 2 of the Hepatitis C Virus Core Protein. Jhaveri R, editor. PLoS One. 2013;8: e66738. doi: 10.1371/journal.pone.0066738 [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Szaszák M, Steven P, Shima K, Orzekowsky-Schröder R, Hüttmann G, König IR, et al. Fluorescence Lifetime Imaging Unravels C. trachomatis Metabolism and Its Crosstalk with the Host Cell. Valdivia RH, editor. PLoS Pathog. 2011;7: e1002108. doi: 10.1371/journal.ppat.1002108 [DOI] [PMC free article] [PubMed] [Google Scholar]
20.Connelly S V., Manzella-Lapeira J, Levine ZC, Brzostowski J, Krymskaya L, Rahman RS, et al. Restructured Mitochondrial-Nuclear Interaction in Plasmodium falciparum Dormancy and Persister Survival after Artemisinin Exposure. Boyle JP, editor. MBio. 2021;12: e0075321. doi: 10.1128/mBio.00753-21 [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Heaster TM, Heaton AR, Sondel PM, Skala MC. Intravital Metabolic Autofluorescence Imaging Captures Macrophage Heterogeneity Across Normal and Cancerous Tissue. Front Bioeng Biotechnol. 2021;9: 1–10. doi: 10.3389/fbioe.2021.644648 [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Walsh AJ, Mueller KP, Tweed K, Jones I, Walsh CM, Piscopo NJ, et al. Classification of T-cell activation via autofluorescence lifetime imaging. Nat Biomed Eng. 2021;5: 77–88. doi: 10.1038/s41551-020-0592-z [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Miskolci V, Tweed KE, Lasarev MR, Britt EC, Walsh AJ, Zimmerman LJ, et al. In vivo fluorescence lifetime imaging of macrophage intracellular metabolism during wound responses in zebrafish. Elife. 2022;11: 1–24. doi: 10.7554/eLife.66080 [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Hayward J, Rajendran E, Makota F, Bassett B, Devoy M, Neeman T, et al. RealTime Analysis of Mitochondrial Electron Transport Chain Function in Toxoplasma gondii Parasites Using a Seahorse XFe96 Extracellular Flux Analyzer. BIO-PROTOCOL. 2022;12: 1–38. doi: 10.21769/BioProtoc.4288 [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Pernas L, Adomako-Ankomah Y, Shastri AJ, Ewald SE, Treeck M, Boyle JP, et al. Toxoplasma effector MAF1 mediates recruitment of host mitochondria and impacts the host response. PLoS Biol. 2014;12: e1001845. doi: 10.1371/journal.pbio.1001845 [DOI] [PMC free article] [PubMed] [Google Scholar]
26.Blank ML, Xia J, Morcos MM, Sun M, Cantrell PS, Liu Y, et al. Toxoplasma gondii association with host mitochondria requires key mitochondrial protein import machinery. Proc Natl Acad Sci. 2021;118: 1–12. doi: 10.1073/pnas.2013336118 [DOI] [PMC free article] [PubMed] [Google Scholar]
27.Blank ML, Parker ML, Ramaswamy R, Powell CJ, English ED, AdomakoAnkomah Y, et al. A Toxoplasma gondii locus required for the direct manipulation of host mitochondria has maintained multiple ancestral functions. Mol Microbiol. 2018;108: 519–535. doi: 10.1111/mmi.13947 [DOI] [PMC free article] [PubMed] [Google Scholar]
28.Li X, Straub J, Medeiros TC, Mehra C, den Brave F, Peker E, et al. Mitochondria shed their outer membrane in response to infection-induced stress. Science. 2022;375: eabi4343. doi: 10.1126/science.abi4343 [DOI] [PubMed] [Google Scholar]
29.Pernas L, Bean C, Boothroyd JC, Scorrano L. Mitochondria Restrict Growth of the Intracellular Parasite Toxoplasma gondii by Limiting Its Uptake of Fatty Acids. Cell Metab. 2018;27: 886–897.e4. doi: 10.1016/j.cmet.2018.02.018 [DOI] [PubMed] [Google Scholar]
30.Hill BG, Benavides GA, Lancaster JR, Ballinger S, Dell’Italia L, Zhang J, et al. Integration of cellular bioenergetics with mitochondrial quality control and autophagy. bchm. 2012;393: 1485–1512. doi: 10.1515/hsz-2012-0198 [DOI] [PMC free article] [PubMed] [Google Scholar]
31.Szewczyk-Golec K, Pawłowska M, Wesołowski R, Wróblewski M, Mila-Kierzenkowska C. Oxidative Stress as a Possible Target in the Treatment of Toxoplasmosis: Perspectives and Ambiguities. Int J Mol Sci. 2021;22. doi: 10.3390/ijms22115705 [DOI] [PMC free article] [PubMed] [Google Scholar]
32.Dincel GC, Atmaca HT. Role of oxidative stress in the pathophysiology of Toxoplasma gondii infection. Int J Immunopathol Pharmacol. 2016;29: 226–40. doi: 10.1177/0394632016638668 [DOI] [PMC free article] [PubMed] [Google Scholar]
33.Ryning FW, Remington JS. Effect of cytochalasin D on Toxoplasma gondii cell entry. Infect Immun. 1978;20: 739–43. doi: 10.1128/iai.20.3.739-743.1978 [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Rahman MT, Swierzy IJ, Downie B, Salinas G, Blume M, McConville MJ, et al. The Redox Homeostasis of Skeletal Muscle Cells Regulates Stage Differentiation of Toxoplasma gondii. Front Cell Infect Microbiol. 2021;11: 798549. doi: 10.3389/fcimb.2021.798549 [DOI] [PMC free article] [PubMed] [Google Scholar]
35.Xia N, Guo X, Guo Q, Gupta N, Ji N, Shen B, et al. Metabolic flexibilities and vulnerabilities in the pentose phosphate pathway of the zoonotic pathogen Toxoplasma gondii. Soldati-Favre D, editor. PLOS Pathog. 2022;18: e1010864. doi: 10.1371/journal.ppat.1010864 [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Sharick JT, Favreau PF, Gillette AA, Sdao SM, Merrins MJ, Skala MC. Proteinbound NAD(P)H Lifetime is Sensitive to Multiple Fates of Glucose Carbon. Sci Rep. 2018;8: 5456. doi: 10.1038/s41598-018-23691-x [DOI] [PMC free article] [PubMed] [Google Scholar]
37.Liublin W, Rausch S, Leben R, Lindquist RL, Fiedler A, Liebeskind J, et al. NAD(P)H fluorescence lifetime imaging of live intestinal nematodes reveals metabolic crosstalk between parasite and host. Sci Rep. 2022;12: 7264. doi: 10.1038/s41598-022-10705-y [DOI] [PMC free article] [PubMed] [Google Scholar]
38.Fantin VR, St-Pierre J, Leder P. Attenuation of LDH-A expression uncovers a link between glycolysis, mitochondrial physiology, and tumor maintenance. Cancer Cell. 2006;9: 425–34. doi: 10.1016/j.ccr.2006.04.023 [DOI] [PubMed] [Google Scholar]
39.McFate T, Mohyeldin A, Lu H, Thakar J, Henriques J, Halim ND, et al. Pyruvate dehydrogenase complex activity controls metabolic and malignant phenotype in cancer cells. J Biol Chem. 2008;283: 22700–8. doi: 10.1074/jbc.M801765200 [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Patra KC, Hay N. The pentose phosphate pathway and cancer. Trends Biochem Sci. 2014;39: 347–354. doi: 10.1016/j.tibs.2014.06.005 [DOI] [PMC free article] [PubMed] [Google Scholar]
41.Dong K, Jiang Z, Zhang J, Qin H, Chen J, Chen Q. The role of SIRT1 in the process of Toxoplasma gondii infection of RAW 264.7 macrophages. Front Microbiol. 2022;13. doi: 10.3389/fmicb.2022.1017696 [DOI] [PMC free article] [PubMed] [Google Scholar]
42.Alves E, Benns HJ, Magnus L, Dominicus C, Dobai T, Blight J, et al. An Extracellular Redox Signal Triggers Calcium Release and Impacts the Asexual Development of Toxoplasma gondii. Front Cell Infect Microbiol. 2021;11: 728425. doi: 10.3389/fcimb.2021.728425 [DOI] [PMC free article] [PubMed] [Google Scholar]
43.Matta SK, Patten K, Wang Q, Kim B-H, MacMicking JD, Sibley LD. NADPH Oxidase and Guanylate Binding Protein 5 Restrict Survival of Avirulent Type III Strains of Toxoplasma gondii in Naive Macrophages. MBio. 2018;9: 1–18. doi: 10.1128/mBio.01393-18 [DOI] [PMC free article] [PubMed] [Google Scholar]
44.Kim JH, Lee J, Bae S-J, Kim Y, Park B-J, Choi J-W, et al. NADPH oxidase 4 is required for the generation of macrophage migration inhibitory factor and host defense against Toxoplasma gondii infection. Sci Rep. 2017;7: 6361. doi: 10.1038/s41598-017-06610-4 [DOI] [PMC free article] [PubMed] [Google Scholar]
45.Zhou W, Quan J-H, Lee Y-H, Shin D-W, Cha G-H. Toxoplasma gondii Proliferation Require Down-Regulation of Host Nox4 Expression via Activation of PI3 Kinase/Akt Signaling Pathway. PLoS One. 2013;8: e66306. doi: 10.1371/journal.pone.0066306 [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Okkelman IA, Neto N, Papkovsky DB, Monaghan MG, Dmitriev RI. A deeper understanding of intestinal organoid metabolism revealed by combining fluorescence lifetime imaging microscopy (FLIM) and extracellular flux analyses. Redox Biol. 2020;30: 101420. doi: 10.1016/j.redox.2019.101420 [DOI] [PMC free article] [PubMed] [Google Scholar]
47.Hou J, Wright HJ, Chan N, Tran R, Razorenova O V., Potma EO, et al. Correlating two-photon excited fluorescence imaging of breast cancer cellular redox state with seahorse flux analysis of normalized cellular oxygen consumption. J Biomed Opt. 2016;21: 60503. doi: 10.1117/1.JBO.21.6.060503 [DOI] [PMC free article] [PubMed] [Google Scholar]
48.Varone A, Xylas J, Quinn KP, Pouli D, Sridharan G, McLaughlin-Drubin ME, et al. Endogenous two-photon fluorescence imaging elucidates metabolic changes related to enhanced glycolysis and glutamine consumption in precancerous epithelial tissues. Cancer Res. 2014;74: 3067–3075. doi: 10.1158/0008-5472.CAN-13-2713 [DOI] [PMC free article] [PubMed] [Google Scholar]
49.Syn G, Anderson D, Blackwell JM, Jamieson SE. Toxoplasma gondii Infection Is Associated with Mitochondrial Dysfunction in-Vitro. Front Cell Infect Microbiol. 2017;7: 512. doi: 10.3389/fcimb.2017.00512 [DOI] [PMC free article] [PubMed] [Google Scholar]
50.Shukla A, Olszewski KL, Llinás M, Rommereim LM, Fox BA, Bzik DJ, et al. Glycolysis is important for optimal asexual growth and formation of mature tissue cysts by Toxoplasma gondii. Int J Parasitol. 2018;48: 955–968. doi: 10.1016/j.ijpara.2018.05.013 [DOI] [PubMed] [Google Scholar]
51.Sun PR, Gao FF, Choi HG, Zhou W, Yuk J-M, Kwon J, et al. Dipenyleneiodonium Induces Growth Inhibition of Toxoplasma gondii through ROS Induction in ARPE-19 Cells. Korean J Parasitol. 2019;57: 83–92. doi: 10.3347/kjp.2019.57.2.83 [DOI] [PMC free article] [PubMed] [Google Scholar]
52.Paraboni MLR, Manfredini V, Schreiner GE, Gonçalves IL, Silveira C, Commodaro AG, et al. Comparative study of oxidative stress and antioxidative markers in patients infected with Toxoplasma gondii. Parasitol Int. 2022;91: 102645. doi: 10.1016/j.parint.2022.102645 [DOI] [PubMed] [Google Scholar]
53.Zhuang H, Yao C, Zhao X, Chen X, Yang Y, Huang S, et al. DNA double-strand breaks in the Toxoplasma gondii-infected cells by the action of reactive oxygen species. Parasit Vectors. 2020;13: 490. doi: 10.1186/s13071-020-04324-7 [DOI] [PMC free article] [PubMed] [Google Scholar]
54.Faria JLM, Couto C Do, Wierzynski SL, Bottari NB, Baldissera MD, Pereira WAB, et al. Feline Toxoplasmosis: Tumor Necrosis Factor, Nitric Oxide, and Free Radicals in Seropositive Cats. J Parasitol. 2018;104: 86–88. doi: 10.1645/17-85 [DOI] [PubMed] [Google Scholar]
55.Pomel S, Luk FCY, Beckers CJM. Host cell egress and invasion induce marked relocations of glycolytic enzymes in Toxoplasma gondii tachyzoites. PLoS Pathog. 2008;4: e1000188. doi: 10.1371/journal.ppat.1000188 [DOI] [PMC free article] [PubMed] [Google Scholar]
56.Nitzsche R, Zagoriy V, Lucius R, Gupta N. Metabolic Cooperation of Glucose and Glutamine Is Essential for the Lytic Cycle of Obligate Intracellular Parasite Toxoplasma gondii. J Biol Chem. 2016;291: 126–41. doi: 10.1074/jbc.M114.624619 [DOI] [PMC free article] [PubMed] [Google Scholar]
57.Xia N, Ye S, Liang X, Chen P, Zhou Y, Fang R, et al. Pyruvate Homeostasis as a Determinant of Parasite Growth and Metabolic Plasticity in Toxoplasma gondii. MBio. 2019;10: 1–16. doi: 10.1128/mBio.00898-19 [DOI] [PMC free article] [PubMed] [Google Scholar]
58.Rabinowitz JD, Enerbäck S. Lactate: the ugly duckling of energy metabolism. Nat Metab. 2020;2: 566–571. doi: 10.1038/s42255-020-0243-4 [DOI] [PMC free article] [PubMed] [Google Scholar]
59.Zeng JM, Hapuarachchi S V., Shafik SH, Martin RE, Kirk K, van Dooren GG, et al. Identifying the major lactate transporter of Toxoplasma gondii tachyzoites. Sci Rep. 2021;11: 6787. doi: 10.1038/s41598-021-86204-3 [DOI] [PMC free article] [PubMed] [Google Scholar]
60.Quinn WJ, Jiao J, TeSlaa T, Stadanlick J, Wang Z, Wang L, et al. Lactate Limits T Cell Proliferation via the NAD(H) Redox State. Cell Rep. 2020;33: 108500. doi: 10.1016/j.celrep.2020.108500 [DOI] [PMC free article] [PubMed] [Google Scholar]
61.Rana NF, Sauvageot N, Laplace J-M, Bao Y, Nes I, Rincé A, et al. Redox balance via lactate dehydrogenase is important for multiple stress resistance and virulence in Enterococcus faecalis. Infect Immun. 2013;81: 2662–8. doi: 10.1128/IAI.01299-12 [DOI] [PMC free article] [PubMed] [Google Scholar]
62.Tu VY, Ayari A, O’Connor RS. Beyond the Lactate Paradox: How Lactate and Acidity Impact T Cell Therapies against Cancer. Antibodies. 2021;10: 25. doi: 10.3390/antib10030025 [DOI] [PMC free article] [PubMed] [Google Scholar]
63.Weilhammer DR, Iavarone AT, Villegas EN, Brooks GA, Sinai AP, Sha WC. Host metabolism regulates growth and differentiation of Toxoplasma gondii. Int J Parasitol. 2012;42: 947–959. doi: 10.1016/j.ijpara.2012.07.011 [DOI] [PMC free article] [PubMed] [Google Scholar]
64.Quinn KP, Sridharan G V., Hayden RS, Kaplan DL, Lee K, Georgakoudi I. Quantitative metabolic imaging using endogenous fluorescence to detect stem cell differentiation. Sci Rep. 2013;3: 3432. doi: 10.1038/srep03432 [DOI] [PMC free article] [PubMed] [Google Scholar]
65.Denton H. Enzymes of energy metabolism in the bradyzoites and tachyzoites of Toxoplasma gondii. FEMS Microbiol Lett. 1996;137: 103–108. doi: 10.1016/03781097(96)00047-X [DOI] [PubMed] [Google Scholar]
66.Heikal AA. Intracellular coenzymes as natural biomarkers for metabolic activities and mitochondrial anomalies. Biomark Med. 2010;4: 241–263. doi: 10.2217/bmm.10.1 [DOI] [PMC free article] [PubMed] [Google Scholar]
67.Carruthers VB, Sibley LD. Sequential protein secretion from three distinct organelles of Toxoplasma gondii accompanies invasion of human fibroblasts. Eur J Cell Biol. 1997;73: 114–23. Available: http://www.ncbi.nlm.nih.gov/pubmed/9208224 [PubMed] [Google Scholar]
68.Boothroyd JC, Dubremetz J-F. Kiss and spit: the dual roles of Toxoplasma rhoptries. Nat Rev Microbiol. 2008;6: 79–88. doi: 10.1038/nrmicro1800 [DOI] [PubMed] [Google Scholar]
69.Bradley PJ, Sibley LD. Rhoptries: an arsenal of secreted virulence factors. Curr Opin Microbiol. 2007;10: 582–7. doi: 10.1016/j.mib.2007.09.013 [DOI] [PMC free article] [PubMed] [Google Scholar]
70.Bradley PJ, Ward C, Cheng SJ, Alexander DL, Coller S, Coombs GH, et al. Proteomic Analysis of Rhoptry Organelles Reveals Many Novel Constituents for Host-Parasite Interactions in Toxoplasma gondii *. J Biol Chem. 2005;280: 34245–34258. doi: 10.1074/jbc.M504158200 [DOI] [PubMed] [Google Scholar]
71.Leriche MA, Dubremetz JF. Characterization of the protein contents of rhoptries and dense granules of Toxoplasma gondii tachyzoites by subcellular fractionation and monoclonal antibodies. Mol Biochem Parasitol. 1991;45: 249–59. doi: 10.1016/0166-6851(91)90092-k [DOI] [PubMed] [Google Scholar]
72.Lebrun M, Carruthers VB, Cesbron-Delauw M-F. Toxoplasma Secretory Proteins and Their Roles in Cell Invasion and Intracellular Survival. In: Weiss LM, Kim Kami, editors. Toxoplasma Gondii. Elsevier; 2014. pp. 389–453. doi: 10.1016/B978-0-12-396481-6.00012-X [DOI] [Google Scholar]
73.Phelps ED, Sweeney KR, Blader IJ. Toxoplasma gondii rhoptry discharge correlates with activation of the early growth response 2 host cell transcription factor. Infect Immun. 2008;76: 4703–12. doi: 10.1128/IAI.01447-07 [DOI] [PMC free article] [PubMed] [Google Scholar]
74.Dobrowolski JM, Sibley LD. Toxoplasma invasion of mammalian cells is powered by the actin cytoskeleton of the parasite. Cell. 1996;84: 933–9. doi: 10.1016/s0092-8674(00)81071-5 [DOI] [PubMed] [Google Scholar]
75.Gaji RY, Behnke MS, Lehmann MM, White MW, Carruthers VB. Cell cycledependent, intercellular transmission of Toxoplasma gondii is accompanied by marked changes in parasite gene expression. Mol Microbiol. 2011;79: 192–204. doi: 10.1111/j.1365-2958.2010.07441.x [DOI] [PMC free article] [PubMed] [Google Scholar]
76.Saito S, Watabe S, Ozaki H, Fusetani N, Karaki H. Mycalolide B, a novel actin depolymerizing agent. J Biol Chem. 1994;269: 29710–29714. doi: 10.1016/S0021-9258(18)43938-5 [DOI] [PubMed] [Google Scholar]
77.Lima TS, Gov L, Lodoen MB. Evasion of Human Neutrophil-Mediated Host Defense during Toxoplasma gondii Infection. Weiss LM, editor. MBio. 2018;9: 1–15. doi: 10.1128/mBio.02027-17 [DOI] [PMC free article] [PubMed] [Google Scholar]
78.Koshy AA, Dietrich HK, Christian DA, Melehani JH, Shastri AJ, Hunter CA, et al. Toxoplasma co-opts host cells it does not invade. PLoS Pathog. 2012;8: e1002825. doi: 10.1371/journal.ppat.1002825 [DOI] [PMC free article] [PubMed] [Google Scholar]
79.Yu Q, Heikal AA. Two-photon autofluorescence dynamics imaging reveals sensitivity of intracellular NADH concentration and conformation to cell physiology at the single-cell level. J Photochem Photobiol B Biol. 2009;95: 46–57. doi: 10.1016/j.jphotobiol.2008.12.010 [DOI] [PMC free article] [PubMed] [Google Scholar]
80.Vishwasrao HD, Heikal AA, Kasischke KA, Webb WW. Conformational dependence of intracellular NADH on metabolic state revealed by associated fluorescence anisotropy. J Biol Chem. 2005;280: 25119–26. doi: 10.1074/jbc.M502475200 [DOI] [PubMed] [Google Scholar]
81.Pollak N, Dölle C, Ziegler M. The power to reduce: pyridine nucleotides--small molecules with a multitude of functions. Biochem J. 2007;402: 205–18. doi: 10.1042/BJ20061638 [DOI] [PMC free article] [PubMed] [Google Scholar]
82.Evans ND, Gnudi L, Rolinski OJ, Birch DJS, Pickup JC. Glucose-dependent changes in NAD(P)H-related fluorescence lifetime of adipocytes and fibroblasts in vitro: potential for non-invasive glucose sensing in diabetes mellitus. J Photochem Photobiol B. 2005;80: 122–9. doi: 10.1016/j.jphotobiol.2005.04.001 [DOI] [PubMed] [Google Scholar]
83.Skala MC, Riching KM, Bird DK, Gendron-Fitzpatrick A, Eickhoff J, Eliceiri KW, et al. In vivo multiphoton fluorescence lifetime imaging of protein-bound and free nicotinamide adenine dinucleotide in normal and precancerous epithelia. J Biomed Opt. 2007;12: 024014. doi: 10.1117/1.2717503 [DOI] [PMC free article] [PubMed] [Google Scholar]
84.Walsh AJ, Poole KM, Duvall CL, Skala MC. Ex vivo optical metabolic measurements from cultured tissue reflect in vivo tissue status. J Biomed Opt. 2012;17: 116015. doi: 10.1117/1.JBO.17.11.116015 [DOI] [PMC free article] [PubMed] [Google Scholar]
85.Walsh AJ, Cook RS, Manning HC, Hicks DJ, Lafontant A, Arteaga CL, et al. Optical metabolic imaging identifies glycolytic levels, subtypes, and earlytreatment response in breast cancer. Cancer Res. 2013;73: 6164–74. doi: 10.1158/0008-5472.CAN-13-0527 [DOI] [PMC free article] [PubMed] [Google Scholar]
86.Gillette AA, Babiarz CP, VanDommelen AR, Pasch CA, Clipson L, Matkowskyj KA, et al. Autofluorescence Imaging of Treatment Response in Neuroendocrine Tumor Organoids. Cancers (Basel). 2021;13: 1873. doi: 10.3390/cancers13081873 [DOI] [PMC free article] [PubMed] [Google Scholar]
87.Becker W. Advanced Time-Correlated Single Photon Counting Techniques. Castleman AW, Toennies JP, Zinth W, editors. Advanced Time-Correlated Single Photon Counting Techniques. Berlin, Heidelberg: Springer Berlin Heidelberg; 2005. doi: 10.1007/3-540-28882-1 [DOI] [Google Scholar]
88.Nakashima N, Yoshihara K, Tanaka F, Yagi K. Picosecond fluorescence lifetime of the coenzyme of D-amino acid oxidase. J Biol Chem. 1980;255: 5261–3. doi: 10.1016/S0021-9258(19)70779-0 [DOI] [PubMed] [Google Scholar]
89.Contreras Guzman E, Rehani P, Skala MC. Cell analysis tools: an open-source library for single-cell analysis of multi-dimensional microscopy images. In: Tarnok A, Houston JP, Su X, editors. Imaging, Manipulation, and Analysis of Biomolecules, Cells, and Tissues XXI. SPIE; 2023. p. 31. doi: 10.1117/12.2647280 [DOI] [Google Scholar]
90.Charlier F, Weber M, Izak D, Harkin E, Magnus M, Lalli J, et al. trevismd/statannotations: v0.5. 2022. [cited 10 May 2023]. doi: 10.5281/ZENODO.7213391 [DOI] [Google Scholar]
91.van der Walt S, Schönberger JL, Nunez-Iglesias J, Boulogne F, Warner JD, Yager N, et al. scikit-image: image processing in Python. PeerJ. 2014;2: e453. doi: 10.7717/peerj.453 [DOI] [PMC free article] [PubMed] [Google Scholar]
92.Rogers GW, Throckmorton H, Burroughs SE. Application Note: Drug Discovery. Gaining Insights into Disease Biology for Target Identification and Validation using Seahorse XF Technology. Agil Technol. 2019. Available: https://www.agilent.com/cs/library/applications/application-target-validationdisease-biology-seahorse-xf-application-cell-analysis-5995-0838en-agilent.pdf [Google Scholar]
93.Choi H, Yang Z, Weisshaar JC. Single-cell, real-time detection of oxidative stress induced in Escherichia coli by the antimicrobial peptide CM15. Proc Natl Acad Sci. 2015;112: E303–10. doi: 10.1073/pnas.1417703112 [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplement 1

media-1.tif^{(458.9KB, tif)}

Supplement 2

media-2.tif^{(706.3KB, tif)}

Supplement 3

media-3.tif^{(685.4KB, tif)}

Supplement 4

media-4.tif^{(1.1MB, tif)}

Supplement 5

media-5.tif^{(547.5KB, tif)}

Supplement 6

media-6.tif^{(1.2MB, tif)}

Supplement 7

media-7.tif^{(690KB, tif)}

Supplement 8

media-8.tif^{(1.3MB, tif)}

Supplement 9

media-9.tif^{(968KB, tif)}

Supplement 10

media-10.tif^{(607.2KB, tif)}

Supplement 11

media-11.tif^{(701.3KB, tif)}

Supplement 12

media-12.tif^{(542.6KB, tif)}

Supplement 13

media-13.tif^{(720.5KB, tif)}

Supplement 14

media-14.tif^{(439KB, tif)}

Data Availability Statement

Codes used in this manuscript are available in https://github.com/skalalab/gallego_g-omi_toxoplasma_redox_ratio. Images are available upon request.

[R1] 1.Nelson MM, Jones AR, Carmen JC, Sinai AP, Burchmore R, Wastling JM. Modulation of the host cell proteome by the intracellular apicomplexan parasite Toxoplasma gondii. Infect Immun. 2008;76: 828–44. doi: 10.1128/IAI.01115-07 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R2] 2.Chasman D, Walters KB, Lopes TJS, Eisfeld AJ, Kawaoka Y, Roy S. Integrating Transcriptomic and Proteomic Data Using Predictive Regulatory Network Models of Host Response to Pathogens. Leslie CS, editor. PLOS Comput Biol. 2016;12: e1005013. doi: 10.1371/journal.pcbi.1005013 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R3] 3.Hilleman MR. Strategies and mechanisms for host and pathogen survival in acute and persistent viral infections. Proc Natl Acad Sci. 2004;101: 14560–14566. doi: 10.1073/pnas.0404758101 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R4] 4.Blader IJ, Manger ID, Boothroyd JC. Microarray Analysis Reveals Previously Unknown Changes in Toxoplasma gondii-infected Human Cells. J Biol Chem. 2001;276: 24223–24231. doi: 10.1074/jbc.M100951200 [DOI] [PubMed] [Google Scholar]

[R5] 5.Olson WJ, Martorelli Di Genova B, Gallego-Lopez G, Dawson AR, Stevenson D, Amador-Noguez D, et al. Dual metabolomic profiling uncovers Toxoplasma manipulation of the host metabolome and the discovery of a novel parasite metabolic capability. PLOS Pathog. 2020;16: e1008432. doi: 10.1371/journal.ppat.1008432 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R6] 6.Gallego-Lopez GM, Olson WJ, Tibabuzo-Perdomo AM, Stevenson D, AmadorNoguez D, Lawrence G, et al. Kiss and spit metabolomics highlights the role of the host cN-II enzyme on purine metabolism during pathogen infection. bioRxiv. 2022; 2022.06.15.496273. doi: 10.21203/rs.3.rs-2167582/v1 [DOI] [Google Scholar]

[R7] 7.Xiao W, Wang RS, Handy DE, Loscalzo J. NAD(H) and NADP(H) Redox Couples and Cellular Energy Metabolism. Antioxidants Redox Signal. 2018;28: 251–272. doi: 10.1089/ars.2017.7216 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R8] 8.Blacker TS, Mann ZF, Gale JE, Ziegler M, Bain AJ, Szabadkai G, et al. Separating NADH and NADPH fluorescence in live cells and tissues using FLIM. Nat Commun. 2014;5: 3936. doi: 10.1038/ncomms4936 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R9] 9.Alhallak K, Rebello LG, Muldoon TJ, Quinn KP, Rajaram N. Optical redox ratio identifies metastatic potential-dependent changes in breast cancer cell metabolism. Biomed Opt Express. 2016;7: 4364. doi: 10.1364/BOE.7.004364 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R10] 10.Gonçalves de Faria CM, Ciol H, Salvador Bagnato V, Pratavieira S. Effects of photobiomodulation on the redox state of healthy and cancer cells. Biomed Opt Express. 2021;12: 3902. doi: 10.1364/BOE.421302 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R11] 11.Kolenc OI, Quinn KP. Evaluating Cell Metabolism Through Autofluorescence Imaging of NAD(P)H and FAD. Antioxid Redox Signal. 2019;30: 875–889. doi: 10.1089/ars.2017.7451 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R12] 12.Chance B, Schoener B, Oshino R, Itshak F, Nakase Y. Oxidation-reduction ratio studies of mitochondria in freeze-trapped samples. NADH and flavoprotein fluorescence signals. J Biol Chem. 1979;254: 4764–4771. doi: 10.1016/S0021-9258(17)30079-0 [DOI] [PubMed] [Google Scholar]

[R13] 13.Skala M, Ramanujam N. Multiphoton Redox Ratio Imaging for Metabolic Monitoring In Vivo. In: Armstrong D, editor. Advanced Protocols in Oxidative Stress II. Totowa, NJ: Humana Press; 2010. pp. 155–162. doi: 10.1007/978-1-60761-411-1_11 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R14] 14.Khatun M, Ray R, Ray RB. Hepatitis C virus associated hepatocellular carcinoma. 1st ed. Advances in Cancer Research. 1st ed. Elsevier Inc.; 2021. pp. 103–142. doi: 10.1016/bs.acr.2020.10.003 [DOI] [PubMed] [Google Scholar]

[R15] 15.Lakowicz JR. Principles of Frequency-Domain Fluorescence Spectroscopy and Applications to Cell Membranes. In: Hilderson HJ, editor. Boston, MA: Springer US; 1988. pp. 89–126. doi: 10.1007/978-1-4613-9359-7_3 [DOI] [PubMed] [Google Scholar]

[R16] 16.Lakowicz JR. Principles of Fluorescence Spectroscopy. Lakowicz JR, editor. Principles of fluorescence spectroscopy, Springer, New York, USA, 3rd edn, 2006. Boston, MA: Springer US; 2006. doi: 10.1007/978-0-387-46312-4 [DOI] [Google Scholar]

[R17] 17.Lakowicz JR, Szmacinski H, Nowaczyk K, Johnson ML. Fluorescence lifetime imaging of free and protein-bound NADH. Proc Natl Acad Sci. 1992;89: 1271–1275. doi: 10.1073/pnas.89.4.1271 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R18] 18.Mazumder N, Lyn RK, Singaravelu R, Ridsdale A, Moffatt DJ, Hu C-W, et al. Fluorescence Lifetime Imaging of Alterations to Cellular Metabolism by Domain 2 of the Hepatitis C Virus Core Protein. Jhaveri R, editor. PLoS One. 2013;8: e66738. doi: 10.1371/journal.pone.0066738 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R19] 19.Szaszák M, Steven P, Shima K, Orzekowsky-Schröder R, Hüttmann G, König IR, et al. Fluorescence Lifetime Imaging Unravels C. trachomatis Metabolism and Its Crosstalk with the Host Cell. Valdivia RH, editor. PLoS Pathog. 2011;7: e1002108. doi: 10.1371/journal.ppat.1002108 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R20] 20.Connelly S V., Manzella-Lapeira J, Levine ZC, Brzostowski J, Krymskaya L, Rahman RS, et al. Restructured Mitochondrial-Nuclear Interaction in Plasmodium falciparum Dormancy and Persister Survival after Artemisinin Exposure. Boyle JP, editor. MBio. 2021;12: e0075321. doi: 10.1128/mBio.00753-21 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R21] 21.Heaster TM, Heaton AR, Sondel PM, Skala MC. Intravital Metabolic Autofluorescence Imaging Captures Macrophage Heterogeneity Across Normal and Cancerous Tissue. Front Bioeng Biotechnol. 2021;9: 1–10. doi: 10.3389/fbioe.2021.644648 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R22] 22.Walsh AJ, Mueller KP, Tweed K, Jones I, Walsh CM, Piscopo NJ, et al. Classification of T-cell activation via autofluorescence lifetime imaging. Nat Biomed Eng. 2021;5: 77–88. doi: 10.1038/s41551-020-0592-z [DOI] [PMC free article] [PubMed] [Google Scholar]

[R23] 23.Miskolci V, Tweed KE, Lasarev MR, Britt EC, Walsh AJ, Zimmerman LJ, et al. In vivo fluorescence lifetime imaging of macrophage intracellular metabolism during wound responses in zebrafish. Elife. 2022;11: 1–24. doi: 10.7554/eLife.66080 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R24] 24.Hayward J, Rajendran E, Makota F, Bassett B, Devoy M, Neeman T, et al. RealTime Analysis of Mitochondrial Electron Transport Chain Function in Toxoplasma gondii Parasites Using a Seahorse XFe96 Extracellular Flux Analyzer. BIO-PROTOCOL. 2022;12: 1–38. doi: 10.21769/BioProtoc.4288 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R25] 25.Pernas L, Adomako-Ankomah Y, Shastri AJ, Ewald SE, Treeck M, Boyle JP, et al. Toxoplasma effector MAF1 mediates recruitment of host mitochondria and impacts the host response. PLoS Biol. 2014;12: e1001845. doi: 10.1371/journal.pbio.1001845 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R26] 26.Blank ML, Xia J, Morcos MM, Sun M, Cantrell PS, Liu Y, et al. Toxoplasma gondii association with host mitochondria requires key mitochondrial protein import machinery. Proc Natl Acad Sci. 2021;118: 1–12. doi: 10.1073/pnas.2013336118 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R27] 27.Blank ML, Parker ML, Ramaswamy R, Powell CJ, English ED, AdomakoAnkomah Y, et al. A Toxoplasma gondii locus required for the direct manipulation of host mitochondria has maintained multiple ancestral functions. Mol Microbiol. 2018;108: 519–535. doi: 10.1111/mmi.13947 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R28] 28.Li X, Straub J, Medeiros TC, Mehra C, den Brave F, Peker E, et al. Mitochondria shed their outer membrane in response to infection-induced stress. Science. 2022;375: eabi4343. doi: 10.1126/science.abi4343 [DOI] [PubMed] [Google Scholar]

[R29] 29.Pernas L, Bean C, Boothroyd JC, Scorrano L. Mitochondria Restrict Growth of the Intracellular Parasite Toxoplasma gondii by Limiting Its Uptake of Fatty Acids. Cell Metab. 2018;27: 886–897.e4. doi: 10.1016/j.cmet.2018.02.018 [DOI] [PubMed] [Google Scholar]

[R30] 30.Hill BG, Benavides GA, Lancaster JR, Ballinger S, Dell’Italia L, Zhang J, et al. Integration of cellular bioenergetics with mitochondrial quality control and autophagy. bchm. 2012;393: 1485–1512. doi: 10.1515/hsz-2012-0198 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R31] 31.Szewczyk-Golec K, Pawłowska M, Wesołowski R, Wróblewski M, Mila-Kierzenkowska C. Oxidative Stress as a Possible Target in the Treatment of Toxoplasmosis: Perspectives and Ambiguities. Int J Mol Sci. 2021;22. doi: 10.3390/ijms22115705 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R32] 32.Dincel GC, Atmaca HT. Role of oxidative stress in the pathophysiology of Toxoplasma gondii infection. Int J Immunopathol Pharmacol. 2016;29: 226–40. doi: 10.1177/0394632016638668 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R33] 33.Ryning FW, Remington JS. Effect of cytochalasin D on Toxoplasma gondii cell entry. Infect Immun. 1978;20: 739–43. doi: 10.1128/iai.20.3.739-743.1978 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R34] 34.Rahman MT, Swierzy IJ, Downie B, Salinas G, Blume M, McConville MJ, et al. The Redox Homeostasis of Skeletal Muscle Cells Regulates Stage Differentiation of Toxoplasma gondii. Front Cell Infect Microbiol. 2021;11: 798549. doi: 10.3389/fcimb.2021.798549 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R35] 35.Xia N, Guo X, Guo Q, Gupta N, Ji N, Shen B, et al. Metabolic flexibilities and vulnerabilities in the pentose phosphate pathway of the zoonotic pathogen Toxoplasma gondii. Soldati-Favre D, editor. PLOS Pathog. 2022;18: e1010864. doi: 10.1371/journal.ppat.1010864 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R36] 36.Sharick JT, Favreau PF, Gillette AA, Sdao SM, Merrins MJ, Skala MC. Proteinbound NAD(P)H Lifetime is Sensitive to Multiple Fates of Glucose Carbon. Sci Rep. 2018;8: 5456. doi: 10.1038/s41598-018-23691-x [DOI] [PMC free article] [PubMed] [Google Scholar]

[R37] 37.Liublin W, Rausch S, Leben R, Lindquist RL, Fiedler A, Liebeskind J, et al. NAD(P)H fluorescence lifetime imaging of live intestinal nematodes reveals metabolic crosstalk between parasite and host. Sci Rep. 2022;12: 7264. doi: 10.1038/s41598-022-10705-y [DOI] [PMC free article] [PubMed] [Google Scholar]

[R38] 38.Fantin VR, St-Pierre J, Leder P. Attenuation of LDH-A expression uncovers a link between glycolysis, mitochondrial physiology, and tumor maintenance. Cancer Cell. 2006;9: 425–34. doi: 10.1016/j.ccr.2006.04.023 [DOI] [PubMed] [Google Scholar]

[R39] 39.McFate T, Mohyeldin A, Lu H, Thakar J, Henriques J, Halim ND, et al. Pyruvate dehydrogenase complex activity controls metabolic and malignant phenotype in cancer cells. J Biol Chem. 2008;283: 22700–8. doi: 10.1074/jbc.M801765200 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R40] 40.Patra KC, Hay N. The pentose phosphate pathway and cancer. Trends Biochem Sci. 2014;39: 347–354. doi: 10.1016/j.tibs.2014.06.005 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R41] 41.Dong K, Jiang Z, Zhang J, Qin H, Chen J, Chen Q. The role of SIRT1 in the process of Toxoplasma gondii infection of RAW 264.7 macrophages. Front Microbiol. 2022;13. doi: 10.3389/fmicb.2022.1017696 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R42] 42.Alves E, Benns HJ, Magnus L, Dominicus C, Dobai T, Blight J, et al. An Extracellular Redox Signal Triggers Calcium Release and Impacts the Asexual Development of Toxoplasma gondii. Front Cell Infect Microbiol. 2021;11: 728425. doi: 10.3389/fcimb.2021.728425 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R43] 43.Matta SK, Patten K, Wang Q, Kim B-H, MacMicking JD, Sibley LD. NADPH Oxidase and Guanylate Binding Protein 5 Restrict Survival of Avirulent Type III Strains of Toxoplasma gondii in Naive Macrophages. MBio. 2018;9: 1–18. doi: 10.1128/mBio.01393-18 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R44] 44.Kim JH, Lee J, Bae S-J, Kim Y, Park B-J, Choi J-W, et al. NADPH oxidase 4 is required for the generation of macrophage migration inhibitory factor and host defense against Toxoplasma gondii infection. Sci Rep. 2017;7: 6361. doi: 10.1038/s41598-017-06610-4 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R45] 45.Zhou W, Quan J-H, Lee Y-H, Shin D-W, Cha G-H. Toxoplasma gondii Proliferation Require Down-Regulation of Host Nox4 Expression via Activation of PI3 Kinase/Akt Signaling Pathway. PLoS One. 2013;8: e66306. doi: 10.1371/journal.pone.0066306 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R46] 46.Okkelman IA, Neto N, Papkovsky DB, Monaghan MG, Dmitriev RI. A deeper understanding of intestinal organoid metabolism revealed by combining fluorescence lifetime imaging microscopy (FLIM) and extracellular flux analyses. Redox Biol. 2020;30: 101420. doi: 10.1016/j.redox.2019.101420 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R47] 47.Hou J, Wright HJ, Chan N, Tran R, Razorenova O V., Potma EO, et al. Correlating two-photon excited fluorescence imaging of breast cancer cellular redox state with seahorse flux analysis of normalized cellular oxygen consumption. J Biomed Opt. 2016;21: 60503. doi: 10.1117/1.JBO.21.6.060503 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R48] 48.Varone A, Xylas J, Quinn KP, Pouli D, Sridharan G, McLaughlin-Drubin ME, et al. Endogenous two-photon fluorescence imaging elucidates metabolic changes related to enhanced glycolysis and glutamine consumption in precancerous epithelial tissues. Cancer Res. 2014;74: 3067–3075. doi: 10.1158/0008-5472.CAN-13-2713 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R49] 49.Syn G, Anderson D, Blackwell JM, Jamieson SE. Toxoplasma gondii Infection Is Associated with Mitochondrial Dysfunction in-Vitro. Front Cell Infect Microbiol. 2017;7: 512. doi: 10.3389/fcimb.2017.00512 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R50] 50.Shukla A, Olszewski KL, Llinás M, Rommereim LM, Fox BA, Bzik DJ, et al. Glycolysis is important for optimal asexual growth and formation of mature tissue cysts by Toxoplasma gondii. Int J Parasitol. 2018;48: 955–968. doi: 10.1016/j.ijpara.2018.05.013 [DOI] [PubMed] [Google Scholar]

[R51] 51.Sun PR, Gao FF, Choi HG, Zhou W, Yuk J-M, Kwon J, et al. Dipenyleneiodonium Induces Growth Inhibition of Toxoplasma gondii through ROS Induction in ARPE-19 Cells. Korean J Parasitol. 2019;57: 83–92. doi: 10.3347/kjp.2019.57.2.83 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R52] 52.Paraboni MLR, Manfredini V, Schreiner GE, Gonçalves IL, Silveira C, Commodaro AG, et al. Comparative study of oxidative stress and antioxidative markers in patients infected with Toxoplasma gondii. Parasitol Int. 2022;91: 102645. doi: 10.1016/j.parint.2022.102645 [DOI] [PubMed] [Google Scholar]

[R53] 53.Zhuang H, Yao C, Zhao X, Chen X, Yang Y, Huang S, et al. DNA double-strand breaks in the Toxoplasma gondii-infected cells by the action of reactive oxygen species. Parasit Vectors. 2020;13: 490. doi: 10.1186/s13071-020-04324-7 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R54] 54.Faria JLM, Couto C Do, Wierzynski SL, Bottari NB, Baldissera MD, Pereira WAB, et al. Feline Toxoplasmosis: Tumor Necrosis Factor, Nitric Oxide, and Free Radicals in Seropositive Cats. J Parasitol. 2018;104: 86–88. doi: 10.1645/17-85 [DOI] [PubMed] [Google Scholar]

[R55] 55.Pomel S, Luk FCY, Beckers CJM. Host cell egress and invasion induce marked relocations of glycolytic enzymes in Toxoplasma gondii tachyzoites. PLoS Pathog. 2008;4: e1000188. doi: 10.1371/journal.ppat.1000188 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R56] 56.Nitzsche R, Zagoriy V, Lucius R, Gupta N. Metabolic Cooperation of Glucose and Glutamine Is Essential for the Lytic Cycle of Obligate Intracellular Parasite Toxoplasma gondii. J Biol Chem. 2016;291: 126–41. doi: 10.1074/jbc.M114.624619 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R57] 57.Xia N, Ye S, Liang X, Chen P, Zhou Y, Fang R, et al. Pyruvate Homeostasis as a Determinant of Parasite Growth and Metabolic Plasticity in Toxoplasma gondii. MBio. 2019;10: 1–16. doi: 10.1128/mBio.00898-19 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R58] 58.Rabinowitz JD, Enerbäck S. Lactate: the ugly duckling of energy metabolism. Nat Metab. 2020;2: 566–571. doi: 10.1038/s42255-020-0243-4 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R59] 59.Zeng JM, Hapuarachchi S V., Shafik SH, Martin RE, Kirk K, van Dooren GG, et al. Identifying the major lactate transporter of Toxoplasma gondii tachyzoites. Sci Rep. 2021;11: 6787. doi: 10.1038/s41598-021-86204-3 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R60] 60.Quinn WJ, Jiao J, TeSlaa T, Stadanlick J, Wang Z, Wang L, et al. Lactate Limits T Cell Proliferation via the NAD(H) Redox State. Cell Rep. 2020;33: 108500. doi: 10.1016/j.celrep.2020.108500 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R61] 61.Rana NF, Sauvageot N, Laplace J-M, Bao Y, Nes I, Rincé A, et al. Redox balance via lactate dehydrogenase is important for multiple stress resistance and virulence in Enterococcus faecalis. Infect Immun. 2013;81: 2662–8. doi: 10.1128/IAI.01299-12 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R62] 62.Tu VY, Ayari A, O’Connor RS. Beyond the Lactate Paradox: How Lactate and Acidity Impact T Cell Therapies against Cancer. Antibodies. 2021;10: 25. doi: 10.3390/antib10030025 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R63] 63.Weilhammer DR, Iavarone AT, Villegas EN, Brooks GA, Sinai AP, Sha WC. Host metabolism regulates growth and differentiation of Toxoplasma gondii. Int J Parasitol. 2012;42: 947–959. doi: 10.1016/j.ijpara.2012.07.011 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R64] 64.Quinn KP, Sridharan G V., Hayden RS, Kaplan DL, Lee K, Georgakoudi I. Quantitative metabolic imaging using endogenous fluorescence to detect stem cell differentiation. Sci Rep. 2013;3: 3432. doi: 10.1038/srep03432 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R65] 65.Denton H. Enzymes of energy metabolism in the bradyzoites and tachyzoites of Toxoplasma gondii. FEMS Microbiol Lett. 1996;137: 103–108. doi: 10.1016/03781097(96)00047-X [DOI] [PubMed] [Google Scholar]

[R66] 66.Heikal AA. Intracellular coenzymes as natural biomarkers for metabolic activities and mitochondrial anomalies. Biomark Med. 2010;4: 241–263. doi: 10.2217/bmm.10.1 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R67] 67.Carruthers VB, Sibley LD. Sequential protein secretion from three distinct organelles of Toxoplasma gondii accompanies invasion of human fibroblasts. Eur J Cell Biol. 1997;73: 114–23. Available: http://www.ncbi.nlm.nih.gov/pubmed/9208224 [PubMed] [Google Scholar]

[R68] 68.Boothroyd JC, Dubremetz J-F. Kiss and spit: the dual roles of Toxoplasma rhoptries. Nat Rev Microbiol. 2008;6: 79–88. doi: 10.1038/nrmicro1800 [DOI] [PubMed] [Google Scholar]

[R69] 69.Bradley PJ, Sibley LD. Rhoptries: an arsenal of secreted virulence factors. Curr Opin Microbiol. 2007;10: 582–7. doi: 10.1016/j.mib.2007.09.013 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R70] 70.Bradley PJ, Ward C, Cheng SJ, Alexander DL, Coller S, Coombs GH, et al. Proteomic Analysis of Rhoptry Organelles Reveals Many Novel Constituents for Host-Parasite Interactions in Toxoplasma gondii *. J Biol Chem. 2005;280: 34245–34258. doi: 10.1074/jbc.M504158200 [DOI] [PubMed] [Google Scholar]

[R71] 71.Leriche MA, Dubremetz JF. Characterization of the protein contents of rhoptries and dense granules of Toxoplasma gondii tachyzoites by subcellular fractionation and monoclonal antibodies. Mol Biochem Parasitol. 1991;45: 249–59. doi: 10.1016/0166-6851(91)90092-k [DOI] [PubMed] [Google Scholar]

[R72] 72.Lebrun M, Carruthers VB, Cesbron-Delauw M-F. Toxoplasma Secretory Proteins and Their Roles in Cell Invasion and Intracellular Survival. In: Weiss LM, Kim Kami, editors. Toxoplasma Gondii. Elsevier; 2014. pp. 389–453. doi: 10.1016/B978-0-12-396481-6.00012-X [DOI] [Google Scholar]

[R73] 73.Phelps ED, Sweeney KR, Blader IJ. Toxoplasma gondii rhoptry discharge correlates with activation of the early growth response 2 host cell transcription factor. Infect Immun. 2008;76: 4703–12. doi: 10.1128/IAI.01447-07 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R74] 74.Dobrowolski JM, Sibley LD. Toxoplasma invasion of mammalian cells is powered by the actin cytoskeleton of the parasite. Cell. 1996;84: 933–9. doi: 10.1016/s0092-8674(00)81071-5 [DOI] [PubMed] [Google Scholar]

[R75] 75.Gaji RY, Behnke MS, Lehmann MM, White MW, Carruthers VB. Cell cycledependent, intercellular transmission of Toxoplasma gondii is accompanied by marked changes in parasite gene expression. Mol Microbiol. 2011;79: 192–204. doi: 10.1111/j.1365-2958.2010.07441.x [DOI] [PMC free article] [PubMed] [Google Scholar]

[R76] 76.Saito S, Watabe S, Ozaki H, Fusetani N, Karaki H. Mycalolide B, a novel actin depolymerizing agent. J Biol Chem. 1994;269: 29710–29714. doi: 10.1016/S0021-9258(18)43938-5 [DOI] [PubMed] [Google Scholar]

[R77] 77.Lima TS, Gov L, Lodoen MB. Evasion of Human Neutrophil-Mediated Host Defense during Toxoplasma gondii Infection. Weiss LM, editor. MBio. 2018;9: 1–15. doi: 10.1128/mBio.02027-17 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R78] 78.Koshy AA, Dietrich HK, Christian DA, Melehani JH, Shastri AJ, Hunter CA, et al. Toxoplasma co-opts host cells it does not invade. PLoS Pathog. 2012;8: e1002825. doi: 10.1371/journal.ppat.1002825 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R79] 79.Yu Q, Heikal AA. Two-photon autofluorescence dynamics imaging reveals sensitivity of intracellular NADH concentration and conformation to cell physiology at the single-cell level. J Photochem Photobiol B Biol. 2009;95: 46–57. doi: 10.1016/j.jphotobiol.2008.12.010 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R80] 80.Vishwasrao HD, Heikal AA, Kasischke KA, Webb WW. Conformational dependence of intracellular NADH on metabolic state revealed by associated fluorescence anisotropy. J Biol Chem. 2005;280: 25119–26. doi: 10.1074/jbc.M502475200 [DOI] [PubMed] [Google Scholar]

[R81] 81.Pollak N, Dölle C, Ziegler M. The power to reduce: pyridine nucleotides--small molecules with a multitude of functions. Biochem J. 2007;402: 205–18. doi: 10.1042/BJ20061638 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R82] 82.Evans ND, Gnudi L, Rolinski OJ, Birch DJS, Pickup JC. Glucose-dependent changes in NAD(P)H-related fluorescence lifetime of adipocytes and fibroblasts in vitro: potential for non-invasive glucose sensing in diabetes mellitus. J Photochem Photobiol B. 2005;80: 122–9. doi: 10.1016/j.jphotobiol.2005.04.001 [DOI] [PubMed] [Google Scholar]

[R83] 83.Skala MC, Riching KM, Bird DK, Gendron-Fitzpatrick A, Eickhoff J, Eliceiri KW, et al. In vivo multiphoton fluorescence lifetime imaging of protein-bound and free nicotinamide adenine dinucleotide in normal and precancerous epithelia. J Biomed Opt. 2007;12: 024014. doi: 10.1117/1.2717503 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R84] 84.Walsh AJ, Poole KM, Duvall CL, Skala MC. Ex vivo optical metabolic measurements from cultured tissue reflect in vivo tissue status. J Biomed Opt. 2012;17: 116015. doi: 10.1117/1.JBO.17.11.116015 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R85] 85.Walsh AJ, Cook RS, Manning HC, Hicks DJ, Lafontant A, Arteaga CL, et al. Optical metabolic imaging identifies glycolytic levels, subtypes, and earlytreatment response in breast cancer. Cancer Res. 2013;73: 6164–74. doi: 10.1158/0008-5472.CAN-13-0527 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R86] 86.Gillette AA, Babiarz CP, VanDommelen AR, Pasch CA, Clipson L, Matkowskyj KA, et al. Autofluorescence Imaging of Treatment Response in Neuroendocrine Tumor Organoids. Cancers (Basel). 2021;13: 1873. doi: 10.3390/cancers13081873 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R87] 87.Becker W. Advanced Time-Correlated Single Photon Counting Techniques. Castleman AW, Toennies JP, Zinth W, editors. Advanced Time-Correlated Single Photon Counting Techniques. Berlin, Heidelberg: Springer Berlin Heidelberg; 2005. doi: 10.1007/3-540-28882-1 [DOI] [Google Scholar]

[R88] 88.Nakashima N, Yoshihara K, Tanaka F, Yagi K. Picosecond fluorescence lifetime of the coenzyme of D-amino acid oxidase. J Biol Chem. 1980;255: 5261–3. doi: 10.1016/S0021-9258(19)70779-0 [DOI] [PubMed] [Google Scholar]

[R89] 89.Contreras Guzman E, Rehani P, Skala MC. Cell analysis tools: an open-source library for single-cell analysis of multi-dimensional microscopy images. In: Tarnok A, Houston JP, Su X, editors. Imaging, Manipulation, and Analysis of Biomolecules, Cells, and Tissues XXI. SPIE; 2023. p. 31. doi: 10.1117/12.2647280 [DOI] [Google Scholar]

[R90] 90.Charlier F, Weber M, Izak D, Harkin E, Magnus M, Lalli J, et al. trevismd/statannotations: v0.5. 2022. [cited 10 May 2023]. doi: 10.5281/ZENODO.7213391 [DOI] [Google Scholar]

[R91] 91.van der Walt S, Schönberger JL, Nunez-Iglesias J, Boulogne F, Warner JD, Yager N, et al. scikit-image: image processing in Python. PeerJ. 2014;2: e453. doi: 10.7717/peerj.453 [DOI] [PMC free article] [PubMed] [Google Scholar]

[R92] 92.Rogers GW, Throckmorton H, Burroughs SE. Application Note: Drug Discovery. Gaining Insights into Disease Biology for Target Identification and Validation using Seahorse XF Technology. Agil Technol. 2019. Available: https://www.agilent.com/cs/library/applications/application-target-validationdisease-biology-seahorse-xf-application-cell-analysis-5995-0838en-agilent.pdf [Google Scholar]

[R93] 93.Choi H, Yang Z, Weisshaar JC. Single-cell, real-time detection of oxidative stress induced in Escherichia coli by the antimicrobial peptide CM15. Proc Natl Acad Sci. 2015;112: E303–10. doi: 10.1073/pnas.1417703112 [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

This is a preprint.

Metabolic changes to host cells with Toxoplasma gondii infection

Gina M Gallego-López

Emmanuel Contreras Guzman

Laura J Knoll

Melissa Skala

Abstract

INTRODUCTION

Table 1:

RESULTS

Image analysis to quantify intracellular T. gondii.

Figure 1. Pipeline for creating HFF host whole cell and T. gondii masks from two-photon FLIM images.

Establishing a T. gondii infection threshold

Figure 2. Percentage of intracellular Toxoplasma gondii infection per cell during time-course.

OMI changes in low vs high infected cells

Figure 3. Standard analysis pipeline for calculating OMI parameters in whole cells.

Figure 4. Establishing a threshold of T. gondii infection.

T. gondii infection changes the redox balance of the host cell

Figure 5. Optical Redox Ratio (ORR) temporal changes in T. gondii infected cells.

NAD(P)H lifetime changed in uninfected vs T. gondii infected HFF cells.

Figure 6. Temporal changes in NAD(P)H lifetime of T. gondii infected HFF cells.

T. gondii infection alters the host mitochondrial and glycolytic activity.

Figure 7. Mitochondrial and glycolytic activity in infected HFF cells using various T. gondii strains at 48 HPI.

Figure 8. Temporal mitochondrial and glycolytic changes in HFF infected cells by different strains of T. gondii during a time course of infection.

T. gondii infection alters the reactive oxygen species in the host cell.

Figure 9. Reactive oxygen species (ROS) production in HFF infected with three different strains of T. gondii during a time course of infection.

T. gondii infection alters the host glucose and lactate production.

Figure 10. Glucose and lactate production in ME49 T. gondii infected host cells during a time course of infection.

T. gondii Kiss and Spit modify the optical redox ratio and NAD(P)H lifetime of the host cell.

Figure 11. Temporal changes in OMI parameters during T. gondii kiss and spit.

NADP+ and NAD(P)H are associated to redox changes in ME49 T. gondii infection and kiss and spit.

Figure 12. 13C6 glucose labeling of intracellular NAD, NADP+, NADH and NADPH in T. gondii infection and Kiss and spit at 9 HPI by HPLC LC/MS.

DISCUSSION

Table 2.

Conclusion

MATERIALS & METHODS

T. gondii Strains and Cell Culture

Time Course Infection and Kiss and Spit

Metabolomics

Two-Photon Imaging

Quantification of Fluorescence Lifetime Components

Creating HFF whole cell masks

Calculating Optical Redox Ratio, NAD(P)H and FAD parameters

Quantifying Toxoplasma gondii in mCherry images

Quantifying intracellular Toxoplasma and establishing a 5% threshold.

Metabolic Profiling- Seahorse analyzer

ROS labeling

Lactate and glucose assays

Gene expression analysis

Statistical analyses

Supplementary Material

ACKNOWLEDGEMENTS

FUNDING

Funding Statement

Footnotes

CODE AND DATA AVAILABILITY

REFERENCES

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases

Figure 12. 13C₆ glucose labeling of intracellular NAD, NADP+, NADH and NADPH in T. gondii infection and Kiss and spit at 9 HPI by HPLC LC/MS.
