. 2022 May 17;105(2):00368504221099877. doi: 10.1177/00368504221099877

Assessment technologies of rail systems’ structural adequacy — A review from mechanical engineering perspectives

Xia Hua 1,, Wael Zatar 2, Alisha Gadedesi 2, Zhicheng Liao 1
PMCID: PMC10450495  PMID: 35581733

Abstract

The structural adequacy challenges of railroad track structures have received considerable attention globally. Track defects and failures due to weak strength and buckling effect account for one-third of all railroad accidents. The current paper provides a comprehensive study of the recent work on the structural adequacy/bearing capacity of rail systems from mechanical engineering perspectives; existing techniques for track stiffness/modulus evaluations, including standstill and continuous methods. Further, this paper demonstrates the current techniques for track stiffness/modulus evaluation. Prevailing track modulus techniques, while accurate but time-taking, effortful, requires a track closure and provides only single-point information. Also, this review provides a suggestion on the non-destructive and non-invasive technologies for example Ground-penetrating radar (GPR) and evaluation of the substructures of tracks as they have great potential for image subsurface features.

Keywords: Structural adequacy, track stiffness evaluation, ground-penetrating radar, structural health monitoring, nondestructive testing

Introduction

Bearing capacity challenges of railroad track structures have received considerable attention on a global scale. For example, international conferences have been held ten times on the predominant issues related to the bearing capacity of railroad track structures. Also, it provided a forum for promoting efficient design, construction, and maintenance for transportation infrastructure. The Office of R&D - Federal Railroad Administration (FRA) has a specific division dedicated to tracking areas that focus on improving transportation safety; this division comprises track structure and track-train interactions. Track quality is affected by track geometry and track stiffness; railway track evaluation methods and theoretical research determine the constraints in the track quality that are needed to overcome.

To develop robust railway track inspection, maintenance, and design solutions, it is necessary to take appropriate measures to measure railway track performance. To measure the track's performance, railways are using two types of evaluations: Functional and structural. From the user's point of view, functional evaluations relate to the track's version. These related measures include track geometry and driving comfort pertaining to the vehicle track system dynamics. The evaluation of structural conditions is associated with the structural integrity of the track system. It includes track deflection and stiffness related to the track's long-term performance.124

The variation of track positions both lateral and vertical is called track geometry. These are related to the longitudinal work; track layout, shape design, or alignment are called design geometry, and irregularities, roughness, and quality of track geometry are called deviations. The stability and the track structure geometry play a significant role in the railway track substructure, especially its ballast and sub-ballast layers.124 The track recording or geometry cars are known as the track geometry inspection vehicles. These inspection tools measure critical track geometry such as curvature, gauge, track cant or superelevation, cross-level, alignment, surface profile, and twist or warp which have become a standard inspection procedure of the track, mostly track geometry. Track recording cars may be either rail-bound which are self-propelled/hauled via a locomotive or Hy-rail vehicles with both on rail and on-the-road capabilities. Several evaluation methods are developed to evaluate track stiffness, such as dynamic, impulse, and quasi-static methods, depending on the form of excitation. Strong nonlinearity and frequency-dependent characteristics are seen in the track stiffness, and thus the measured value of stiffness under various amplitudes and frequencies of external load can vary enormously.

Track defects cause almost one-third of all rail accidents. Track problems occur due to weak strength and buckling. In addition to influencing the deformation, strength and stiffness of the track, the track defects can affect the friction coefficient of the rail surface as well as the contact behavior of the structure under the rail and sleeper. For example, the defects of rail surface including corrugation, shelling, spalling and cracking form due to the friction between the train wheel and rail, resulting in an irregular rail surface and further inducing sleeper hanging defects. The vertical stiffness/module of the track, which tests the vertical stiffness of the rail foundation, is one aspect that has a significant impact on the track's efficiency and safety. The prevailing track modulus techniques, while accurate but time-taking, effortful, require a track closure and provide only single-point information. Also, this review provides a suggestion on the non-destructive and non-invasive technologies like ground-penetrating radar (GPR) and evaluation of the substructures of the track as they have a lot of potential for imaging subsurface features. The method is based on the principles of electromagnetic (EM) waves being reflected from and transmitted across separate layers with different dielectric properties. A single EM energy pulse is launched into the ground at a sufficient frequency, and reflections are captured in the form of an image from different subsurface layers.

In the last decade, high-efficiency, non-destructive testing techniques for track inspection such as GPR have developed.2530 The GPR measuring techniques hold the train-borne advantage, efficient data collection at average train speed over a long section. Since it is an electromagnetic system, it is not affected by the interaction of vehicles and tracks. Besides, the most dominant track stiffness components are the ballast layer and subgrade and GPR implementation offers new possibilities for indirect track stiffness monitoring. GPR is used to classify the ballast layer and investigate the subgrade conditions in laboratory experiments and field evaluations. In general, the relationship between the track stiffness and description parameter shows a strong relationship with the ballast layer GPR calculations and subgrade state, indicating that GPR has a bright future in track stiffness investigations. GPR cannot calculate the ballast layer's state under the crosstie; therefore, the GPR evaluation is taken at the midpoint of the two rail seats. Interpolation is then used to create the supporting layer throughout the entire segment.

The GPR evaluation may determine track stiffness quality at relatively long wavelengths; however, GPR cannot determine the condition of the supporting layer underneath the crossties.

The GPR evaluation is a promising indirect approach for determining track stiffness variance over a relatively wide range of waves. Synthesized the traditional track geometry evaluations, stiffness, and non-destructive testing methods to perform track structural health monitoring and diagnosis, as shown in Figure 1.31,32

Figure 1.

Figure 1.

Example of root-cause model. 32

The goal is to identify track problem root causes such as

(a) Rail issues (low welding, inadequate joint insulation, and insufficient joint insulation);

(b) Issues related to ballast (ballast fouling and settlement of ballast);

(c) issues related to soil and embankment (settlement of soil/embankment and drainage).

Structural adequacy/bearing capacity of railway track system

A rail system's bearing capacity can be quantified using the conventional advanced stress analysis of concrete composites. Because the railway track comprises a series of subsystems, the system bearing capacity is dominated by the weakest subsystem. As a representative example, it shows the stresses in the respective subsystems in Figure 2.

Figure 2.

Figure 2.

Representation of the stress transfer system. 15

The bearing capacity of the ballast is determined by the threshold

σz[σz]γn (1)

Where σz, [σz], and γn denote the operating stress (MPa), limit stress value (MPa) according to the ballast bearing capacity testing calculation, and reliability factor, respectively.

The track modulus is used for general assessment. This coefficient tends to define the track stiffness by the unit of length, resulting in p(x) = k·z(x). Mathematically, k represents the track modulus (N/mm2). It is easy to understand this coefficient as it is equal to a uniform load p(x) applied on the rail that generates an absolute displacement. One of the most used parameters to describe a track's elasticity is the corresponding coefficient of stiffness.

1keq=1kb+1kp+1kbp+1ks (2)

Widely using the previous coefficients, progress and necessity have led to the adoption of coefficients to measure the vehicle's track stiffness when driving on the track (Teixeira, 2003). Vertical stiffness (K) is the beginning of what is now determined. K is the ratio of wheel loads acting on a track and the maximum displacement of rail below the wheel in the static example (Table 1).

K=Qymax (3)

Table 1.

Relations between stiffness-related parameters (teixeira, 2003).

Parameters Schematic representation Support reaction Relation with K
Ballast coefficient(C)
MN/m3
graphic file with name 10.1177_00368504221099877-img1.jpg p*(x)(kN/m2)
b = At/b
c=k464.EIdAts
Track modulus(K)
MN/m2
graphic file with name 10.1177_00368504221099877-img2.jpg p(x)(kN/m)
p(x) = p*(x).b
k=k464.EIs
Equivalent stiffness
stiffness(keq)
MN/m
graphic file with name 10.1177_00368504221099877-img3.jpg R(x)(kN)
R(x) = p(x).d
keq=k464.EIds

Track stiffness and the dominant portion, i.e., ballast stiffness, are displacement/load-dependent and frequency-dependent. Table 2 summarizes the frequency dependencies of the relevant quantities. Broken rails and track geometry problems cause a mechanical failure with results in the derailment of the train.33,34

Table 2.

Description of cause group (x-axis) for above chart. 33

Cause Group Description Cause Group Description
03E Handbrake defects (car) 05M Other miscellaneous
14E TOFC–COFC defects 06E Centerplate or car body defects (car)
06H Radio communications error 10T Turnout defects: switches
05H Failure to obey or display signals 01T Roadbed defects
16E Locomotive electrical and fires 13E Other wheel defects (car)
04H Employee physical condition 12T Miscellaneous track and structure defects
03H Brake operations (other) 07E Coupler defects (car)
08H Mainline rules 03M Lading problems
04E UDE (car or locomotive) 09E Side bearing, suspension defects (car)
11T Turnout defects: frogs 01H Brake operation (main line)
01S Signal failures 06T Rail defects at bolted joint
01E Air hose defect (car) 07T Joint bar defects
02E Brake rigging defect (car) 04M Track–train interaction
17E All other locomotive defects 09T Other rail and joint defects
02H Handbrake operations 11E Other axle or journal defects (car)
15E Locomotive trucks, bearings, wheels 12E Broken wheels (car)
05E Other brake defect (car) 09H Train handling (excluding brakes)
07H Switching rules 03T Wide gauge
18E All other car defects 10E Bearing failure (car)
08E Truck structure defects (car) 01M Obstructions
02T Nontraffic, weather causes 05T Buckled track
19E Stiff truck (car) 04T Track geometry (excluding wide gauge)
12H Miscellaneous human factors 08T Broken rails or welds
11H Use of switches 10H Train speed
20E Track–train interaction (hunting) (car)

Note: UDE = undesired emergency (brake application); TOFC = trailer on flat car; COFC = container on flat car.

Derailments that cause a broad gauge under dynamic loading are a safety concern. FRA extensive research developed a gauge restraint evaluation system (GRMS) which is used to estimate the track's ability to maintain a gauge under service load conditions. When GRMS data provides an understanding of gage widening derailments and improved level of safety together with the maintenance efficiency from the unbiased evaluation of tie conditions, GRMS technology is adopted widely.

The cutting-edge GRMS equipped vehicle uses a fifth split rail axle that has the capacity to load the two nearby tracks sideways. When a load is added on the rail motion, weak links and fasteners are identified both on the combined vertical and later. Regardless of the roll, pitch, or vertical movement of the car's body suspension, apply continuous perpendicular loads to the rails. For stowage testing, it raises and lowers the split axle. If the track curvature changes, it orients the split axle such that the wheels are tangential to the rails.

FRA's track safety standards have been developed to add the GRMS testing. This initiation is based on data provided by the rail FRA's rail-bound GRMS vehicle. The FRA GRMS vehicle is used to evaluate the track structure's ability to maintain a gauge under service load.

Broken rails have been inspected by several technologies such as ultrasonic, magnetic field techniques, radio graphics, eddy current detection, electromagnetic techniques, magnetic induction techniques, and acoustic emission methods.3539 The bearing potential of tracks and track subsystems has been calculated in numerous studies.4044 Typical rail defects are rail corrugation of short and long wavelengths, dipped welds and joints, pitting, and shelling, which can be identified based on the shape of dynamic load signals from the monitoring data. Based on force evaluation, essential to monitor real-time rail defects because the high impact loading caused by these anomalies will reduce the safety levels of a railway track; therefore, capacity is unexpectedly reduced by thermal effects and the occurrence of severe events. For example, high impact loading may drastically reduce the ability of concrete crossties if the crossties deteriorate due to excessive wear, such as abrasion, in the presence of surface moisture. The geotechnical behavior of the ballast, including shear strength, ballast breakage, and container pressure, has been determined through numerical, analytical, and laboratory tests. The subgrade rail track failure mechanisms were summarized as shown in Figure 3.

Figure 3.

Figure 3.

Cause and effect study of failure mechanisms for railway tracks built on fine-grained subgrades. 45

The results of both theoretical and experimental research aimed to predict the Vibro-dynamic load-bearing capacity of railway track ballast 46 The analysis of the existing ballast strength determination techniques has several disadvantages that lead to significant calculation errors. Limit Equilibrium Theory, by Sokolovsky, developed a mathematical model for describing the critical stress of rail track ballast, by studying how inertial forces affect the ballast and sub-grade as the rolling stock shifts.

When trains are running on a railway track under a crosstie base, both external and internal considerations come into play. The strength of the ballast layer and the subgrade, primarily, determine the resistance to damage under the influence of external forces. The state of limit stress occurs in the ballast layer where a minor increase of dynamic load in the solid surfaces of the ballast layer and subgrade, and shear force holds the exceeding forces caused in the ballast layer. When the shear force exceeds the restraining force, a separate area will form those sliding surface areas. However, the particular sliding area does not have large deformation. Also, they appear in the soil under limited even load. In large areas, surfaces soil shear deformation spreads, when loads are the same or higher than the limit loads. Consequently, under the state of limit stress, the active loads and the limit loads that are dependent on the strength of soil are equal and limit equilibrium. This condition is referred to as a correlation between soil strength and stress tensor. The ballast bearing capacity is dependent on the ballast layer's state of limit stress; the subgrade limit relies on the crosstie's pressure or the ballast47,48

Damping behavior is one of the important factors in dynamic stiffness evaluations of track structures. A novel method is proposed by the authors 49 to solve the damping problems and evaluate the amount of damping in a structure, through the equivalence of friction action to the viscous damping in a spring-friction isolation system, focusing on purely concave friction distribution cases, uniform friction distribution cases, and their combination cases. This offers excellent insight on evaluating the damping of track structure from friction distributions of contact interfaces.

The strength and stiffness of the components around the contact interface will affect the sliding behavior of the contact interface. The authors 50 have successfully constructed a system to realize an accurate analysis under the plane friction coupling effect of friction pendulum system. As the conclusion drew in the paper, when a specific ground motion is input, the shear keys in the structure will cause the friction pendulum system to have unwanted and harmful motions, resulting in the strong nonlinearity and complexity of the time history response of the bridge superstructure and greatly affecting the seismic isolation performance of the structure. To solve this problem, a Spring-Viscous Damping-Coulomb friction plane isolation system with XY shear keys is constructed, which realizes the detailed and accurate mechanical analysis under the plane friction coupling effect of friction pendulum system and realize the calculation of the time history response. This is a quite innovative way to get a better seismic isolation performance and should be applied to more structures like track structure.

Track stiffness/modulus evaluations at standstill condition

Vertical track stiffness is a critical measure of a railway track's structural integrity performance, and it is useful to determine the poor performance of a railway track. New tracks especially those built for high-speed lines must be designed and constructed to appropriate standards to ensure that the track stiffness is within an acceptable range of values. On one hand, if the track stiffness is below the acceptable limits, excessive track displacements can occur. On the other hand, unacceptable track deterioration may occur when the stiffness is higher than ideal.

Vertical railway track stiffness and its spatial variation are essential to measuring the railway track's structural condition. They are essential considerations in the track design and the correct diagnosis of track maintenance problems. Theoretically, there is an optimal track stiffness to which a railway line should be designed, constructed, and maintained. Below this optimal value, extreme track displacement and unacceptable track degradation may occur. If the railway track is not sufficiently rigid, load concentration can occur while the train's weight is spread over fewer supports leading to increased wear of the ballast and track stiffness changes, differential settlement. This differential settlement speeds up the track's deterioration and increases train-induced dynamic forces, worsening track geometry, thus speeding up the entire track structure's deterioration. If a track is not stiff, it affects the adjustment of the track and various subgrade failures. Spatial changes in track cause the disturbance in track/track interactions, leading to the degradation of the track superstructure and substructure. These issues include the problems related to the rail and the crosstie fatigue, including the track settlement because of the ballast's permanent deformation. The rate of deterioration of the track components and settlement depends on the severity of the stiffness difference. Moreover, irregularities in track stiffness trigger vibrations both in the train as well as the track. In many cases, the variation in stiffness along the track is random; longwave variations produce low-frequency random train oscillations, causing passengers to have poor ride comfort; moreover, these track vibrations cause disturbances in nearby buildings. Transitory and high-frequency track vibrations are produced when changes suddenly under track stiffness, such as turnouts and transitions from ballast to slab track. This issue results in localized track deterioration, such as fatigue of rails and crossties, cracks, wear, and plastic deformation. Several methods are adopted to evaluate the vertical track stiffness. The main difference exists between the measuring distance at discrete intervals while standing still and measuring stiffness while moving (rolling evaluation). Standstill evaluations are useful in research, whereas rolling evaluation techniques are in their origin; however, they are more used in production.

As stated earlier, vertical track stiffness is a function of frequency, and for the stiffness of the track must select an appropriate evaluation device based on the frequency of interest Geotechnical and geodynamical problems are related to the track's static and low-frequency characteristics. Track stiffness evaluations at these frequencies may help investigations related to bearing capacity of subgrade, surface vibrations, and soft-soil issues. High-level frequency involves issues related to ride comfort, noise, and train-to-train interaction.

The relationship between the applied force and displacement reaction of the rails is track stiffness. The track stiffness varies depending on the frequency, dynamic amplitude, applied preload, and location along the path. Track stiffness is a vital interface factor with a relationship between the wheel-rail and changes in track stiffness and low and high extreme values that affect the track's deterioration. Track stiffness can be measured both at a standstill and when rolling down the track; there are various approaches to rolling evaluations, all with different pros and cons.

A track impact factor (TIF) evaluates the effect of vehicle dynamics on the track; TIF is a coefficient used to estimate the rise in the dynamic load of the train and a major element in determining the dynamic stability of railway tracks. 51 Many TIFs only consider speed as a vector in various world regions in ballast and slab tracks. The track stiffness felt by a train varies throughout the track; 52 the stiffness difference is often considered within a short span of distance.

An example of an unsupported crosstie dangling from the rail. The strength of the rail would be very low, and the bending stiffness has a discontinuity with insulated joints. The transition from an embankment to a bridge is an added example of a sudden variation in the stiffness of the track. Mass and stiffness change rapidly. Those changes give variation in the track's stiffness; thus, it gives the difference in the contact force of the wheel/rail. Rapid changes can exacerbate track deterioration, such as accelerated wear, fatigue, and track settlement caused by the ballast, and substructure's permanent deformation. The changes in the wheel/rail contact forces will escalate as soon as the geometry of the track begins, which gives the deterioration and eventually the deterioration of the track. The possibility of smoothing out track stiffness variations is discussed here. It has been demonstrated that altering the track stiffness can substantially decrease the variations in wheel/rail interaction forces. Grouting or under crosstie pads are used for those differences along the track.

The track stiffness has been extensively measured. Depending on where the sensors are mounted, these measuring strategies are classified as track-borne or train-borne. The most used sensors are inductive transducers, strain gauges, velocimeters, and accelerometers. For train-borne methods shall collect the deflection, deflection velocity, or track acceleration under train runways or other manually applied loads. The vehicle-track relationship is defined in train-borne methods by vehicle response, axle acceleration, or calculation of the vehicle's track response. When two methods are compared, train-borne evaluation methods can efficiently collect data over long distances. However, this method requires specially equipped vehicles. Track-borne techniques, on the other hand, allow for the investigation of a short segment of the track but are not ideal for long section evaluations.

  1. The standstill evaluation of track stiffness can be done with many methods, as explained below3,14,15,5360 Conventional hydraulic jack loading approach: In a conventional hydraulic jack, apply a specific force to the rail, then measure rail deflection with a precision displacement dial/meter, and therefore a force-displacement curve obtains. Calculations may be performed using stiffness concepts such as secant or tangent stiffness.

  2. Method of impact hammer: This is a simple technique for measuring the track stiffness. Track stiffness can be measured by attaching accelerometers or displacement sensors to any number of crossties or rails and measuring the response during a train's section. If the axle load is specified, the corresponding stiffness for the track segment can be determined. Dynamic loads are considered for better accuracy, so the train's load can be measured with strain gauge sensors on the rail web or the crosstie. The standard result of such a calculation is a load-deflection map, with the stiffness defined using either of the stiffness concepts. A handheld impact hammer is used to strike the rail, crosstie, or ballast To calculate the impulse, a force sensor is attached to the hammerhead, and an accelerometer is attached to the railhead or crosstie. The conversion function between the hammer's impulse force and the rail's acceleration can be determined.

  3. Falling-Weight Deflectometer (FWD): It is a device that is commonly used to test the stiffness of the track structure, precluding rails. A weight is dropped from a specific height onto elastic buffers placed on a footplate in the traditional FWD system. The impact in the middle of the plate is measured by the load cell, and the surface velocity at different distances from the footplate is determined by velocity sensors. At that point, Integrate the velocities to obtain vertical displacements. This loading system produces a load pulse equivalent to that employed by a single axle of a high-speed train. At the center of the beam, measure the load applied. Place the velocity sensors on the loaded crosstie and the ballast at different distances from the beam's center.

  4. Travel loaded vehicle (TLV) Vehicle loading track method: The TLV method is similar to the traditional method of loading the hydraulic jack. However, this method is more comfortable and can provide greater upward force. A TLV uses the help of hydraulic jacks to load the track. The railheads are loaded, and the crosstie can be loaded with the decoupled rails as well. However, various loads can be applied, depending on the equipment. TLVs are owned and operated by several railway base companies. The Swedish TLV, for example, weighs 49 tons and can load up to 150 kN statically and up to 200 Hz dynamically on each rail. It can further measure the stability and stiffness of the lateral track. The main advantage of a standstill TLV over rolling evaluations is that the evaluations can be significantly more intensive in terms of variance of preload, dynamic load, and frequency spectrum. However, the procedure is more time-intensive and necessitates the closure of the railway track to all vehicles passing by.

The total track stiffness can also be measured using the following methods: the “PANDA” method and by using different types of sensors (devices) such as strain gauges, velocity, accelerometers, displacement, and transducers. Penetration testing (static or dynamic) was also used. The localized track stiffness is measured using a penetrometer known as “PANDA". This penetrometer determines the resistance of the track structure layers to the penetration of the cone. Using field evaluations with “PANDA” combined with endoscopy, different track structure layers can be identified, and layer thickness and cone penetration resistance. Further, track deflection can be measured by the following methods: particle image velocimetry or digital image correlation, and different conventional sensors, optical sensors, geophones, multi-depth deflectometer, and linear variable differential transformers.

The cone penetrometer is a widely used soil testing device adapted for inspecting ballast and subgrade states. A standard cone-shaped probe with a force evaluation tip is used for the evaluation. This tip is continually pushed downward from the ballast surface into the subgrade. Usually, the cone probe is pushed below 15 to 25 feet of the surface to depict the depth of impact of the substructure on track deflection. The cone probe penetration test (CPT) measures the strength, stiffness, and substructure thickness directly. The applications of the CPT at railways are:

  • Determination of railroad ballast strength, sub-ballast, and ballast subgrade zones

  • Determination of the depth of ballast as well as sub-ballast zones

  • Determination of any differences in strength properties around these zones

  • Examine the thickness of the ballast/sub-ballast to ensure that it is adequate to avoid subgrade failure.

  • Evaluation of the efficacy of subgrade enhancement methods such as lime slurry injection.

Different types of motion transducers were used for track deflection evaluations. Although the displacement sensor is only helpful for relative displacement evaluation. Accelerometers are the most used displacement transducers because of their simple mounting and great dynamic and frequency ranges. In addition, geophones (seismic sensors) are used because of the advantages they have, such as measuring high amplitudes of displacement, easy power source, and relatively inexpensive. Rail deflection can be measured using laser Doppler anemometry and high-speed video cameras. However, these two methods have relatively higher costs compared to that geophone.

On a high-speed railway line between Madrid and Barcelona, both direct and indirect evaluations, laser beam sensors, and geophones respectively are taken. 61 Laser beam receiver and geophones are clamped next to each other on the rail. After signal processing, it was evaluated that the maximum displacement amplitudes measured by the geophones are compared to the laser system's amplitudes.

Track stiffness for preventive maintenance is measured in four ways:

  1. Deficiency of track stiffness: After a certain operation period, railways constructed in delicate soils and poor soil tend to undergo severe rail dislocation and rapid track segment cracking. These disorders are caused by weak soil sub-grade stiffness and should therefore be strengthened. For the safe operations of the train, it is essential to check railway lines in time.

  2. Varying track stiffness: Since stiffness varies abruptly, transition zones should be set accordingly. 24 Also, if the geometric irregularity of the track is worsened, the track support would be unequal.

  3. Virtual railway track stiffness: Unclean ballast, hanging crossties, and loosen fasteners can cause rail support deformation and holes, resulting in virtual stiffness. Train safety can be jeopardized by virtual stiffness.

  4. Assortative stiffness: The right and left rails’ unrivaled supportive rigidity results in the variable displacement of the rail. It can cause crosstie center bending and other abnormal stresses, as well as track component cracking.

Track stiffness analysis can help guide routine railway line maintenance and provide a consistent foundation for planning optimum preventive maintenance policy. A fundamental track design and maintenance parameter that dominates the bearing capacity is vertical track stiffness (ratio of track load to its deflection). For a long time, vertical track rigidity or track modulus has been considered a critical parameter of the track's structural condition. Different types of track stiffness problems could lead to various maintenance actions.17,62Table 3 summarizes the findings.

Table 3.

Relationship amid track stiffness and track problems/maintenance. 17

Factor Major Issue Repair/Maintenance
Deficiency in track stiffness Subsoil that is poor, thin, or contaminated Designing of Substructure, Subsoil stabilization
Changing track stiffness Varying/uneven track support Corresponding rail pads, Substructure layout, Under-Ballast mats
Void crossties Ballast depletion, Local settlement, Inadequate fastener conditions Examine fasteners conditions, Tamping, Stone blow, Undercutting.

Many methods have been developed for track and subsystem evaluations.6369Figure 4 illustrates a diagram of the ballast test using an impact hammer.

Figure 4.

Figure 4.

Schematic of impact hammer ballast test. 69

The force sensor on the impact hammer measures the pulse, and the accelerometer is mounted on the railhead/crosstie. The conversion factor between the hammer's impulse force and rail acceleration is calculated based on the material used on the hammerhead top. The hammerhead can cover the frequency interval between 50–1500 Hz; for example, rubber has a lower frequency than metal since frequencies below 50 Hz are not registered. The impact hammer test is suitable for problems related to vibration, noise, and wheel-rail interaction forces.

As another example, the deflection of the rail can be measured using the optical method, as shown in Figure 5. 64

Figure 5.

Figure 5.

Setup of an optical evaluation device and a data collection system. 64

The authors’ methods for estimating the railway track vertical stiffness are discussed below. 65 This is focused on the calculation of the vertical deflections of the track during vehicle travel down the track at a speed of 5 kmph. A non-contact approach was used, which included two high-quality cameras (up to 0.05 mm) and two objectives. Then Place a camera pointing towards the rail and fix the targets to sleep. The train route film was studied, and selected frames were preserved for post-processing. The time gap between film frames in this example is 0.02 s, or 50 frames per second (fps).

A similar control method for evaluating rail displacements was shown. 66 In this case, the authors used a high-speed video camera with a frame rate of 250 fps. So, fix the video camera in the vicinity of the track. A method similar to an accelerometer was used by the webcam. In other words, the accelerometer was mounted along the track in order to increase displacements communicated from the ground to the optical device. 67 According to the contributors, the video camera had to be placed well away from the objective target in order to prevent ground vibrations and deflections. A telescope was fixed to the camera to measure longer distances. Set the speed of retrieval to 30 fps. At a distance of 15 m from the target, the device allows for accuracy of 0.04 mm.

Optical systems that use transmitters and receivers have been an excellent option to measure railway track displacement. An evaluation technique was presented by an author in 68 that consists of a laser and an array of photosensors. During the passage of the train, the laser beams are illuminated by the array of photosensors which provides a digital data collection of the target's relative movement to the laser, resulting in a retrieval rate of 15 Hz. In the INNOTRACK European project, 61 To monitor track displacement, a different optical device was used in which the laser beam receives a signal from a 1-D position-sensitive device/sensor (PSD) mounted in the rail. Based on the laser beam location on the position sensor, a voltage signal was produced. Calculate the rail's vertical movement after analyzing this signal. The equipment has a nominal resolution of 0.001 mm and an accuracy of 0.01 mm, according to this. It also has a 6 m distance between the laser beam and the position sensor. 67

Furthermore, indirect methods for estimating displacements have been developed. The authors devised a method that employs low-frequency geophones which are installed on the crossties to study complex track displacements. Geophone sensors provide a voltage output proportional to motion velocity, which can be filtered and incorporated to derive displacement. However, at low frequencies, the sensors exhibit operating limitations, resulting in displacement amplitude distortions that must be reduced. As a result, for closely coupled bogies, only a single occurrence can be observed. The European project INNOTRACK used a geophone in conjunction with a laser system for rail displacement evaluations. Again, the geophone output signal had amplitude distortions that needed to be corrected.

After studying and contrasting the technology, several flaws in the proposed techniques for assessing railway track displacement were discovered. The Position Sensitive Detector/laser beam systems have fewer benefits because they are not flexible to open platforms. Also, they do not support many sensors. Geophones cannot detect the quasi-static components of displacement. High-speed cameras are comparatively costly, and post-processing steps necessitate a powerful computer with plenty of disk space.

As previously mentioned, railway track stiffness is a frequency function, and it is important to choose a suitable evaluation instrument based on the frequency of concern. Geotechnical and geodynamical problems are mostly related to the track's static and low-frequency dynamics. Evaluation of the frequency is very useful at the track stiffness for investigating the bearing capacity of subgrade, soft-soil issues, and ground vibrations. High frequencies are linked to issues with noise and train-rail contact forces. Similar disturbances are introduced by wheel out-of-roundness and wheel flats. Several organizations have developed rolling devices to measure track rigidity. 70

The track bed's stiffness assessment should include assessing the ballast, sub-ballast, as well as sub-ballast depth and profile of the groundwater.71,72 Research has been conducted to correlate a site investigation that includes GPR, Lightweight Deflectometer (LWD), and FWD testing. The calculated elastic modulus of the LWD was well associated with the calculated elastic modulus of the Dynamic Cone Penetrometer (DCP) at a depth of 0 to 16 inches below the top of the crossties based on the data obtained. For homogeneous ballast properties, LWD evaluations are appropriate for determining rail ballast, when the range is equivalent to the ballast thickness. LWD evaluation may not be suitable if the ballast conditions are not uniform and the ballast between the cribs has different properties than that of underneath the crossties. Railway Maintenance Standing Committee (Transportation Research Board (TRB) Committee AR060) sponsored this report.

A similar study has been conducted; 73 the results are given as an example of a correlation. The strength and stiffness of the sub-grade, as well as sub-ballast layers, determine railway track fulfillment. In the latest days, FWD and other small-scale equipment, such as LWD, have gained popularity for on-site stiffness evaluations, among many other methods. Also, Light Drop Weight (LDW) replaced the German plate-bearing device. Israel believes that the periodic plate bearing test gives the static deformation modulus, which is the same as a surface module. These various devices need the correlation investigation between the LDW device results and conventional methods for instance FWD and DCP. This study concentrates on the similarity amongst these methods and local granular sub-base materials for local silty and clayey soils. Studies have shown that different equipment types can generate different stiffness values; the analytical relationships between the various experiments tend to be complex and possibly location-dependent. Furthermore, this paper explains the DCP test comparison between the stiffness results and California bearing ratio (CBR) values in connection with FWD and LDW tests. The sensitivity of the FWD device's depth of influence was studied for this purpose by (a) a two-layer elastic model's computational study (b) a quantifiable analysis of the FWD results for surface modulus and the variance of CBR values with depth using DCP test methods. The analysis concluded that determining a specific depth of effect is difficult. It is possible to propose approximate responses to establish a unique correlation between stiffness and CBR values 72 shown in Figures 6 to 9.

Figure 6.

Figure 6.

Relationships between the dynamic deformation modulus (Ev2) measured by the German plate-bearing device and the surface modulus (MLDW) measured by the LDW device. 72

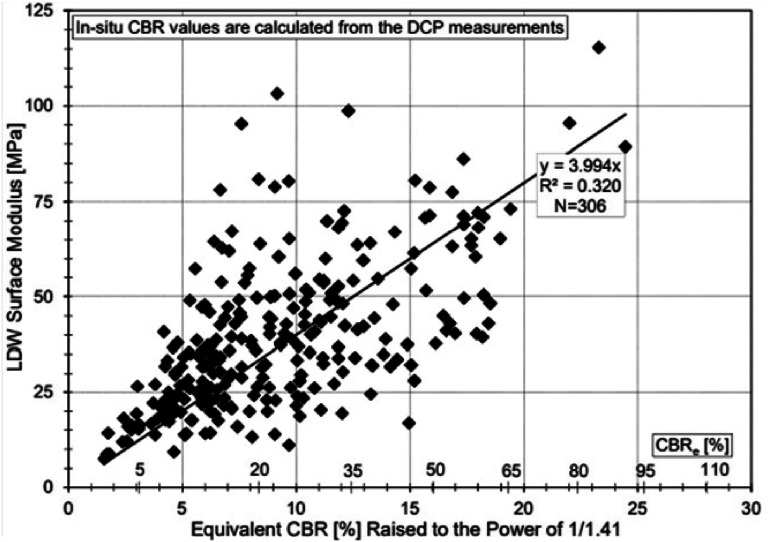

Figure 9.

Figure 9.

Surface modulus from LDW testing versus in-situ CBR as obtained for local silty and clayey materials. 72

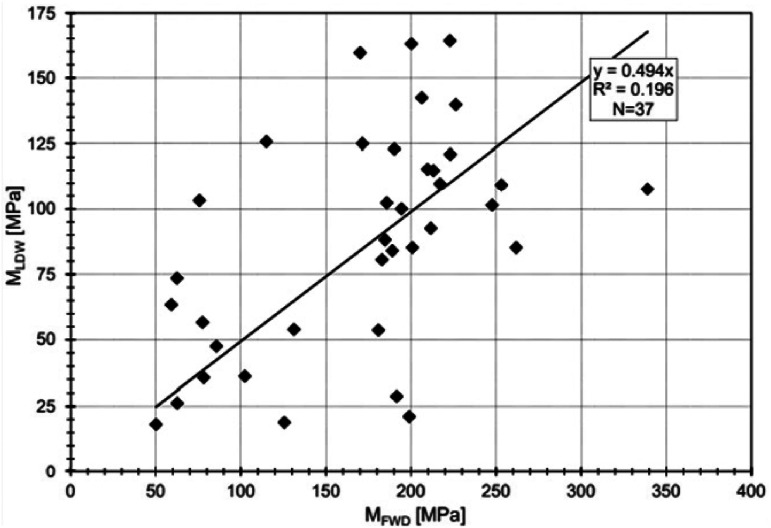

Figure 7.

Figure 7.

Measured MLDW versus measured MFWD at a chalky-marl embankment construction site [livneh, 2007b]. 72

Figure 8.

Figure 8.

Measured MLDW versus measured MFWD according to [fleming et al., 2000; fleming, 2001; bertuliene and laurinavicius, 2008]. 72

Important maintenance concerns are related to ballast fouling and ballast deterioration. 74 Ballast fouling is connected to ballast stiffness. Fouling happens as a result of the ballast's wear against the bond and other ballast, as well as the disruption of subgrade losses and the removal of soil particles or coal dust from the surface. This study shows the using geotechnical tests, the mechanical properties of fouled ballast Mechanical properties measured include reaction modulus of the subgrade, dynamic deformation modulus, and the CBR values from static plate loading test, Light Weight Deflectometer test, and Dynamic Cone Penetrometer test respectively. 73 The findings reveal similar patterns in these mechanical properties, which are calculated by varying moisture content and fouling. With the increase in moisture content, mechanical properties increased to a certain value and then rapidly decreased after reaching a peak. This study elucidates the similarities that were discovered between these mechanical properties as a result of the experiments.

The potential of railway substructures for fouling and water from ballast was demonstrated. 75 The infiltered fine material settles in the ballast railway system and ballast voids. Fouling is the term used to describe the sand and fine-grained materials found in ballast Reduced hydraulic conductivity and shear strength can be caused by increased ballast fouling. It can also reduce the overall stiffness and modulus of resilience of the track, and eventually, it requires maintenance. The largest ballast fouling occurs when fine materials mix with ballast due to repeated loading. This study uses the strength properties obtained from these test results and uses two frequently used ballast bearing capacity evaluations: Meyerhof and Hanna's model, which considers the track to be a consistent footing over a layered structure. This model identifies two types of failure: punching a single crosstie and a track structure bearing failure. The second model is the slope stability process, which uses a 2-D limit equilibrium technique and slices to quantify a safety factor against slope stability. With the degree of fouling and the water content of the ballast, the Mohr-Coulomb strength properties change, which is likely to influence the track substructure's bearing capacity. These analyses show the impact of water content and the ballast's fouling on the overall track substructure bearing capacity.

Track stiffness/modulus evaluations using continuous methods

Frequently, for maintenance, rolling evaluation or continuous method can be used. Along the track, vertical track stiffness can be measured in a variety of ways, and the majority of the techniques are used for measuring displacement caused by axle load and flexibility of the track under one or two axles. Track stiffness can be calculated by using static axle load. Axle loads behave differently in a two-axle configuration. The lightest loaded axle is then used to remove track anomalies that are affected. Because of the variety of track stiffness evaluation methods that use a moving load, the vertical track stiffness measured by each device for the same track section is unlikely to match due to the reasons described below:

  1. Static preload: In the same section of the track, when static preloads are applied to the wheelset by devices, for the same segment of the track, different stiffness values will be registered.

  2. Excitation frequency/speed: To load the track, static moving wheelsets are used, which activate the track at different frequencies based on the vehicle's speed. The frequency content would increase in proportion to the evaluation speed. Since the dynamic track stiffness varies with time, the stiffness specified is likely to vary.

  3. Spatial precision: The spatial resolution of the various measuring methods varies.

  4. Model dependence: This device measures the deflection of rail at various points near wheelsets because it cannot measure directly under the wheelset. To measure the wheelset directly, use a rail bending model to determine the deflection of the rail. Furthermore, these simulations are not true to practice and may result in ambiguity and inconsistencies.

  5. The extent to which track anomalies have an effect: Irregularities like longitudinal level can impact the stiffness evaluation. The deflection transducer used in the device has a deflection combination due to flexibility of track and displacement and anomalies in the geometry of the track. Roundness and flatness give comparable problems.

For example, A moving vehicle that measures the rail bending, a laser Doppler sensor is attached to the TU Delft High-Speed Deflectometer (HSD), which moves at 130 kmph. Also, in HSD, laser position can be observed with an input to a servo system using a 3-axle gyro and accelerometer, as a result, laser beams are perpendicular to the rail. At a standstill and speeds of up to 16 kmph, a track loading vehicle (TLV) has been designed to test the lateral and vertical stiffness. For rolling vertical stiffness evaluation, two rail cabs are used, while the TLV used for static evaluation is coupled with an empty cab (Figures 10 and 11).76,77

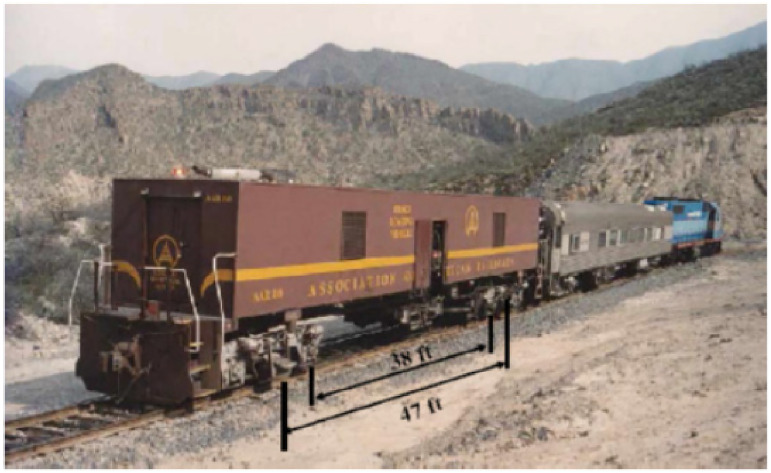

Figure 10.

Figure 10.

Transportation Technology Center, Inc. (TTCI) track stiffness evaluation vehicle. 78

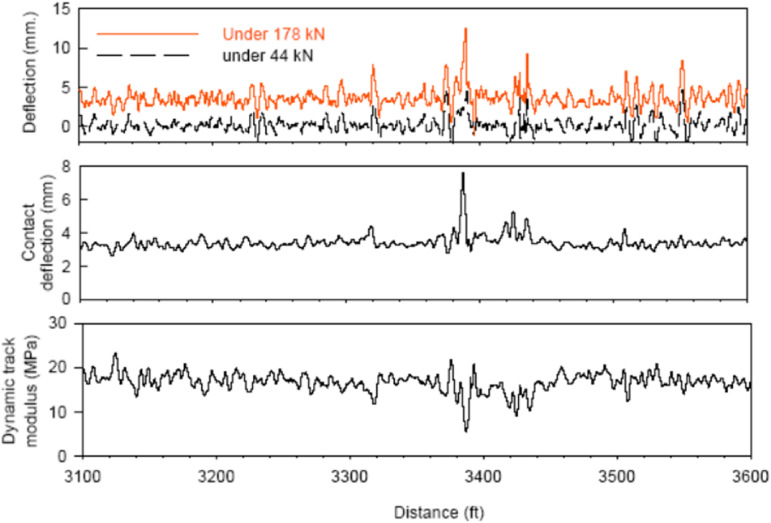

Figure 11.

Figure 11.

Example of results from TTCI stiffness evaluations. 78

The calculation theory of the Swiss Federal Railways’ (SBB 2007) stiffness evaluation vehicle is identical to the one described above.18,7985 To test dynamic track stiffness, the Swedish “Banverket” car employs a new technology known as the “Rolling Stiffness Evaluation Vehicle” (RSMV). RSMV can dynamically excite the track with two vibrating masses above a single wheelset. The magnitude of dynamic stiffness is directly related to load applied and deflection of the track. The phase is a comparison of deflection-delay to force. The stage is related to the damping properties and the ground vibration to some extent. The RSMV's repeatability is adequate, and tests at faster speeds (up to 50 kmph) as well as extensive examinations (below 10 kmph) can be performed.

The majority of these approaches evaluate the static stiffness of the track; however, dynamic stiffness up to 50 Hz is measured by RSMV. Two oscillating masses above the normal wheel axle of a RSMV freight wagon dynamically excite the track. The rigidity of the track is calculated on the strength and acceleration measured. With a static axle load of more than 180 Kilo-Newton and a maximum dynamic axle load amplitude of 60 Kilo-Newton, the RSMV can calculate dynamic stiffness up to a maximum frequency of 50 Hz. High-speed evaluations up to 60 kmph of up to three concurrent sinusoidal excitation frequencies are possible, as are more comprehensive investigations at lower speeds below 10 kmph with noise excitation.

During the last few years, Banverket has been used to perform research on rolling dynamic track stiffness evaluations, thereby resulting in a new evaluation car called the RSMV, as shown in Figure 12.

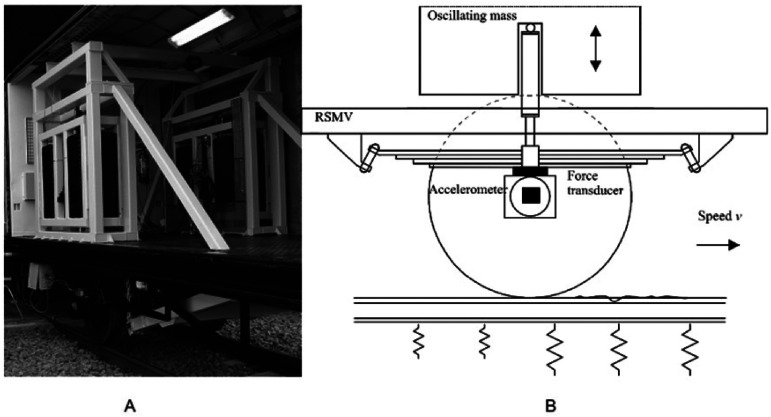

Figure 12.

Figure 12.

A. RSMV evaluation equipment; B. Schematic picture of evaluation principle (one side only) of RSMV. 10

Research conducted by the Federal Railroad Administration (FRA) in association with the University of Nebraska-Lincoln has developed a string-based deflection evaluation system for measuring track stiffness, as shown in Figure 13. A line laser is used to test the relative deflection of rail between bogie and rail in this technology. Using a camera and laser to determine the deflection between the two lines, and as the sensor travels closer to the surface of the track, the laser lines change positions. The relationship between estimated deflection and track modulus/stiffness is determined by the Winkler model. 86

Figure 13.

Figure 13.

UNL/FRA track safety research vehicle. 78

The recommended system forms from the relative displacement evaluations within the track and the contact point of the wheel/rail. Comparable displacement measure used the laser-based vision scheme. Then, to assess the modulus of the track, a mathematical model is used. The track modulus is determined by calculating the deflection of the rail applicable to the railcar. The modulus is then calculated using an empirical expression known as the Winkler model, which relates the rail's deflected form to the loads applied. In the reference, 78 the authors marketed the technology with specific details, as shown in Figure 14. Writers enhanced their technology in the reference (Table 4).87,88

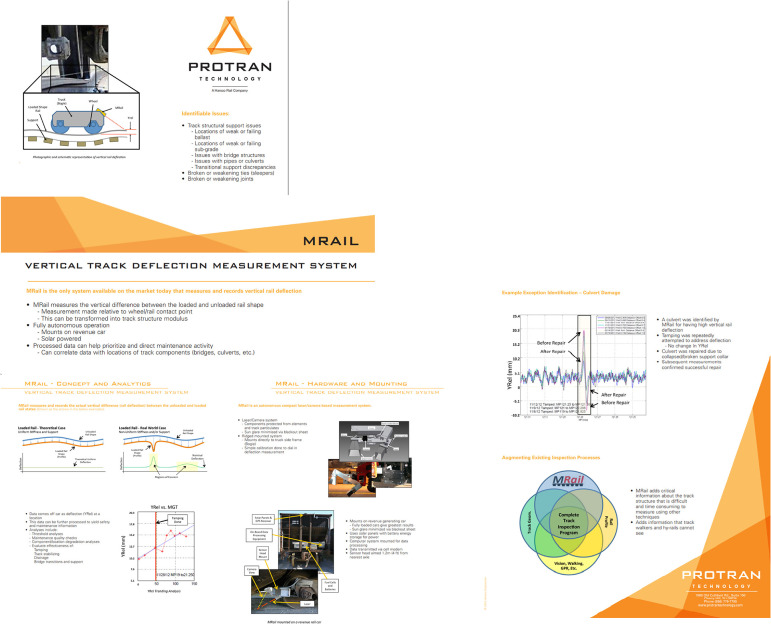

Figure 14.

Figure 14.

Vertical track deflection evaluation system. 78

Table 4.

The analogy of different track stiffness evaluation strategies. 10

S.No. Concept Accuracy Speed Research advancements
1 Standstill evaluation of static stiffness Vertical evaluation precision is high, but the stiffness variations along the line cannot be determined. Very slow Typically used on heavy-haul railway tracks.
2 Continuous evaluation, static stiffness under dynamic load Improved evaluation accuracy due to enhancing displacement evaluation Adjustable below 60 kmph usually Mature
3 Continuous evaluation, static stiffness under dynamic load, and high-speed deflectograph Unsure 130 kmph, even higher The road modulus evaluation has been successful, and the track modulus evaluation is currently underway.
4 Continuous evaluation, dynamic stiffness, excitation of the eccentric wheel, and hysteresis curve evaluation High precision due to an approximation of hysteresis curve, stiffness, and damping factor recognition. Slow approximate 6 kmph Data analysis and vehicle optimization
5 Continuous evaluation, dynamic stiffness, and eccentric wheel excitation High precision and the ability to recognize a wide range of railway track stiffness issues High-speed of 50 kmph Construction of a database and multi-line assessment.

CETE- Normandie Center for road structures. They Designed the French Portancemeter, which is a rigidity monitoring tool. CETE currently using it for the railways. 89 A vibrating wheel suspended by a spring and a damper applies a dynamic load to the device's track. A theoretical amplitude of 35 Hz was used in road testing with a static weight of 10 kN. These features can alter the augmented loads, static as well as dynamic to alter the pace of rail testing.

Swiss Railways - Switzerland Schweizerische Bundesbahnen (SBB), has developed a similar approach to Chinese and TTCI devices and employs two geometry evaluation techniques. One of the first institutions to create a track stiffness vehicle for continuous track stiffness assessments was the China Academy of Railway Sciences (CARS). 90 Their method, which can reach speeds of up to 60 kilometers per hour, employs two-track geometry chord assessment systems with separate loading added to each of the evaluation axles. A lightweight car is employed to lower track geometry anomalies on a heavy-weighted car's stiffness evaluation. The load of the heavy-weighted car can be ranged between 80 and 250 kN, allowing nonlinear properties of the same segment of the track to be studied by repeated evaluations of different loads. CARS proposed the concept of a track elasticity evaluation vehicle shown in Figure 15.

Figure 15.

Figure 15.

CARS-stiffness equipment's track elasticity evaluation principle. (a) On-track evaluation with no wheel load. (b) On-track evaluation of a heavy car-a wheel load. (c) On-track evaluation of a light car-b wheel load. 10

The vehicle evaluates the geometric anomaly of the track in a manner analogous to the chord evaluation process. The vehicle's primary function is to evaluate the track elastic deformation yK.

K=ΔPΔy=PAPByKHyKL=PAPByHyL (4)

Rolling evaluations can be performed considering the following:

  • Static (deflection of the ordinary wheelset)

  • Dynamic (vibration due to oscillating mass)

More recent work is found here.91,92 The difference in stiffness across a track stimulates a dynamic response in a train that the variation in stiffness will theoretically use. A new approach for detecting track stiffness heterogeneity is proposed, which involves studying in-service vehicle accelerations caused by dynamic contact with the vehicle track. The technique is described as the algorithm for measuring the stiffness of the track (TSMA), shown in Figure 16. To simulate vehicle track interaction, a two-dimensional half-bogie model was employed. As a simulated evaluation, the resulting vehicle response is used, and a two-dimensional vehicle model uses this simulation to quantify the stiffness profile. The calculated track stiffness data can be used to evaluate the algorithm's capability as an input.

Figure 16.

Figure 16.

TSMA flowchart. 92

Track scan methods such as GPR and correlation with stiffness

Continuous vertical track modulus/stiffness testing, which identifies the track substructure's capacity to support the track as an aggregate system, has been explored; however, its efficiency is limited. It cannot differentiate the condition of individual components. The GPR technique has been commonly used as a very effective tool for extracting physical and geometric details on railway ballast9399 It is dependent on the propagation and receiving of electromagnetic (EM) waves for each frequency spectrum into the ground. This approach's main benefit is that drive-by high-speed sampling and minimal or no disruptive sampling are needed to calibrate the system. Variations in the position and amplitude of the signal peaks are caused by material inhomogeneity with different EM characteristics and interfaces between various structural layers. As a result, information about layer thicknesses and material characteristics can be deduced.

Since the GPR system can be placed on a train, it can perform an uninterrupted survey. The track and ballast properties can be tracked and defined using GPS instruments and signal processing methods, and preventive maintenance actions are taken on-site. Interpreting GPR signals and automatically determining ballast state is a challenging problem. Since the GPR frequency spectrum illustrates the material properties along the EM wave direction, it has been used to automatically classify ballast fouling situations. Pre-processing, feature extraction, and classification are the three primary phases of a GPR system's inference, identification, and classification, as shown in Figure 17.

Figure 17.

Figure 17.

Block diagram of GPR system for inference, identification, and classification.

In existing research, feature extraction employs a Fourier transform to obtain the magnitude spectra, identifies specific salient frequencies utilizing training data and user-specified variables, and yields the feature vector formation based on frequencies. Many attempts have been made to use various GPR probes and spectrum settings within a laboratory experimental setup to classify crucial factors, probes, and core frequencies that are best suited for the investigation of the ballast layer.

Regulated laboratory research was used in this analysis to establish the dielectric constants/relative permittivity of two ballasts, granite, and limestones based on GPR data collected on ballast under different fouling conditions moisture. Also, laboratory-predicted ballast dielectric constants improved the ballast condition evaluation accuracy by using laboratory-predicted ballast dielectric constants. For each scenario's GPR data processing, the impact of varying physical conditions of the ballast on the material's EM response was measured using time-domain and frequency-domain signal processing methodologies.

The GPR is a common geophysical method that enables information to propagate EM fields to inspect relevant subsurface features. The propagation process is dominated by the characteristics of the specific device and the tested material's properties. The evaluation of the trackbed geometry and its overall stability has been investigated. In contrast, the focus has increasingly turned towards studying the trackbed fouling and degradation in the time and frequency-domain signals. Mathematical modeling and simulations used in various new avenues have recently been explored to assess the quality of ballast aggregates. It is suggested that data on the layering characteristics of the track substructure could be used to implicitly predict the modulus of the track. Over various track conditions, a complete collection of GPR coincidences and track modulus evaluations is obtained.

In the reference, 33 the authors correlated GPR data with geotechnical data. They studied a strong link between GPR in combination with the downhole/borehole seismic test (DHT) and geotechnical data such as standard penetrating test (SPT) results and boring reports to analyze geophysical data as an important help in understanding geotechnical factors. GPR data provides continuous layering information to geotechnical engineers. The DHT, on the other hand, provides geotechnical factors including, Young Modulus E, Bulk Moduli, Shear Modulus, and Poisson's Ratio σ. A comprehensive estimation of the geotechnical parameters combines the above data with SPT results and boring reports.

In the reference, 89 the authors correlated GPR data with evaluations of geometry. Cross-correlations with comparisons between various calculated parameters uncovered new facts; resonant frequency of the vehicle was excited by a comparable orientation waveform and 10 to 30 m wavelength cross-level, resulting in unsustainability. Another example, the correlation between the stiffness of the track and the longitudinal level suggests that the issue could be linked to stiffness. A statistical method for determining these correlations is normalized cross-correlation (Figures 18 and 19).

Figure 18.

Figure 18.

Example of processed 400 MHz GPR antenna data from measured railway section. 100

Figure 19.

Figure 19.

View of the RDMS software. Upper left-Digital video of the track; Lower left-Soil type map; Upper right-Interpreted result from GPR (layer thickness); Middle right, upper part-Database of man-made structures (in this case two areas of frost insulation boards and one with ditch are indicated); Middle right, lower part-Magnitude and phase of dynamic track stiffness; Lower right-Two evaluations of longitudinal level (track geometry quality). 100

In the reference, 100 The authors experimented with stiffness evaluations from track engineering along the track. The experimented track needs the values of stiffness and differences along the track; however, it is tough to solve the questions related to maintenance and design. The track's stiffness is investigated by the track geometry's quality (at the longitudinal level) and GPR evaluations. The multiple assessments complement one another, and cumulative review results in a more consistent condition assessment. Also, models are developed based on the statistical relationship between evaluations of GPR-data and stiffness. The most comfortable quantity to estimate is the embankment thickness, but the other quantities’ indicative results are also presented (shear wave velocity and soil layer thickness.

This article discusses the latest knowledge using pattern recognition techniques; This procedure displays a broad collection of data conditions derived from consistency of track geometry, dynamic stiffness, and GPR. This study provides evidence of the significance of dynamic evaluations of stiffness in determining track problems related to soil and embankment. Issues stemming from the upper portion or track layout, on the other hand, have no significance. GPR demonstrates the technique of a blend of data conditions from track geometry accuracy and dynamic stiffness. It shows that by creating a root-cause classifier, specific track problems are solved. In particular, GPR data, as well as RSMV data, can be used to solve soil-related issues and other issues of rail embankment (Figures 20 and 21).

Figure 20.

Figure 20.

8–25 m longitudinal level. 33

Figure 21.

Figure 21.

Stiffness evaluations: solid – measured at 6.8 Hz frequency and dotted – measured at 11.4 Hz frequency; GPR evaluations: solid - depth of ballast layer and dotted - depth of the sub-ballast layer. 33

In the reference,13 A non-destructive/non-invasive GPR technique evaluates both integrity of the substructure as well as the modulus of the track. For estimating the modulus of the track using GPR techniques, many authors compare the multivariate linear regression and neural network algorithms. The track substructure composition such as characteristics of layering, inhomogeneities, material migration, etc., and the image generated by GPR have a relationship. However, the track substructure composition affects the strength and so the modulus of the track. Thus, the GPR image can develop the features which are related to the track module based on coincident evaluations of the GPR and modulus.

A model based on multivariate linear regression and neural networks estimates the modulus of the track with a maximum limit of 3.4 Megapascal (500 psi) using GPR reflectivity values at specific depths. 101 When both the techniques are compared, the neural network technique shows better performance of the actual track module than the multivariate linear regression analysis model. Both, however, are beneficial for GPR assessment of the track module and reducing the time and expense of the track's operational strategies.

It contemplates that tracks’ substructure characteristics can indirectly indicate the track modulus. A coincidence between GPR and track modulus evaluation is at various track conditions of the railroad. A multivariate linear regression analysis model improved the precision of the weighted average of subsurface 400-MHz GPR reflectivity's at particular depths of the calculated track module by around 3.4 MPa (500 psi).

They are considering the strength characteristics, which are highly dependent on particle interactions. Also, assuming a relationship between electrical properties (e.g. electrical permittivity) and bulk density of materials, the GPR-based assessment of materials’ strength properties from electrical characteristics suggests that a good correlation is expected between mechanical and electrical parts. In the reference, 102 as explained below, the authors present some details of the correlations. The authors seek to enhance the interrelated analysis of the track superstructure and substructure in the reference.3,103,104 These studies aim to recognize and develop relationships between track geometry inspection parameters measured by a track recording vehicle (TRV) and track substructure as measured by a GPR. These relationships have been extensively debated in the literature, but they have not been established or verified. The positive results would enable infrastructure managers (IM) to derive information and learn from their vast multivariable inspection databases, allowing them to engage in maintenance activities.

Particularly in potential tracks where the conditions to develop, grow, and propagate, preventive maintenance is essential. These conditions form due to the locations of track geometry defects are caused by subsurface. After the preventive maintenance, analyze the results, which show the analysis that has the potential relationship between geometry deviation and poor condition. This condition of the subsurface has been statistically validated. GPR inspection parameters in Table 5, for instance, ballast layer thickness and Ballast Fouling Index (BFI), were used to define the subsurface conditions (BLT). Furthermore, the study findings include multiple statistical models of the probability of a profile variance as a function of the above GPR parameters.

Table 5.

Inspections classification and their parameters. 10

Inspection Type Parameters of the Inspection
Track Geometry 1 Gauge
2 Alignment 31/62/124 chord
3 Surface/Profile 31/62/124 chord
4 Superelevation
5 Warp
6 Twist 31/62 chord
7 Cross-Level Value Rate
Ground Penetration Radar 1 Ballast Fouling Left/Center/Right
2 Layer Roughness Left/Center/Right
3 Ballast Thickness Left/Center/Right
4 Free Draining Layer Left/Center/Right
5 Relative Moisture Left/Center/Right

This paper presents the findings of a FRA-sponsored report on the relationship between track geometry defects and track subsurface conditions as calculated by GPR. To include ballast fouling, moisture content, and ballast layer thickness, multiple track geometry runs and the related track geometry degradation behavior were used in the study, which was combined with GPR data. Correlation and statistical analysis were conducted to investigate the relationship between the likelihood of major geometry deterioration and calculated GPR parameters (e.g. BFI, BLT). The findings revealed a statistically significant relationship between elevated geometry deterioration rates and poor subsurface conditions, as established by the GPR parameters. A predictive model was also designed to calculate the likelihood of a high rate of geometry loss as a function of main GPR parameters.

In the reference, 105 using GPR, the authors carried out laboratory experiments to classify and describe the dielectric characteristics of track ballast Experiments with lower-frequency devices yielded greater performance. Wet and dry ballasts, as well as clean and spent ballasts, were distinguished. The GPR technique helps to identify defects in railway track beds. Figure 22 and Table 6 show a comparison of the two moisture profiles.

Figure 22.

Figure 22.

Profiles of moisture content: (a) low (b) high. 33

Table 6.

The dielectric constant and signal velocity in different materials. 105

Material Dielectric Constant Velocity(m/s)
Air 1.0 3 × 108
Dry spent ballast 4.3 1.45 × 108
Wet spent ballast(5% water) 7.8 1.07 × 108
Saturated spent ballast 38.5 0.58 × 108
Water 81.0 0.33 × 108

More relevant research can be found in the reference.106,107 Other techniques have also been applied to evaluate track and ballast108111 Laser/light Imaging Detection and Ranging LIDAR is a new tool used in the railroad industry to quantify and chart ballast profiles. Through illuminating the target with laser light and observing the backscattered light, LIDAR uses optical remote sensing techniques to determine the distance or other properties of the objects LIDAR innovation has been explicitly applied in the railways to calculate and chart the track terrain, especially the ballast profile, as seen in Figure 23. 3

Figure 23.

Figure 23.

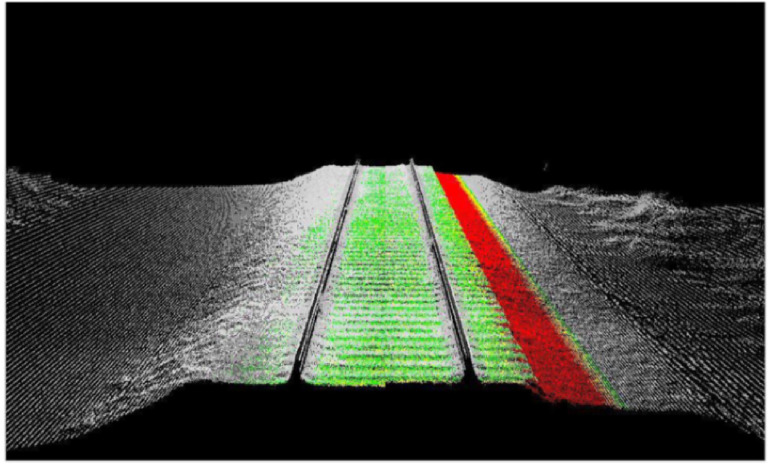

Picture of a LIDAR ballast profile with insufficient ballast zones highlighted in red. 3

These techniques are correlated with the characteristics of the ballast system. The ballast material should be resistant or free from the individual effect or combined effect of all properties such as chemical (failure comes due to the reactions of, for example, coal dust fines), mechanical (failure comes from moving train and dynamically loaded areas such as train's bolted joints), and environmental (repetitive cycle of weather changes such as intensive wetting, drying, freezing, and thawing). The mechanical property evaluation has been performed for a long time; it is aggregate internal friction that helps transmit the upcoming load to the underlying layer and then to the subgrade; the particle needs to be sufficiently hard to resist crushing, degradation, and wear.

To measure the characteristics of ballast particles, the following test methods are used.

  • Impact test

  • Deval abrasion test

  • L.A. abrasion test

  • Crushing value of Clay lumps and friable particles

  • Mill abrasion test

According to the American Railway Engineering Association (AREA) manual, LAA is the current best method for determining the capacity for railway ballast materials to fail upon loading. However, this test can only estimate the degree of abrasion; the bearing capacity or strength of ballast is quantified using a triaxial test The individual particle strength in the structure influences the overall performance. The cumulative bearing capacity or strength of each ballast particle can be seen and estimated in the laboratory using a triaxial test There will be high stress on the ballast structure when a moving wheel load is applied on the rail. So, the moving wheel stress condition is simulated in the laboratory. The triaxial test method is best suited to predict the stress condition in an actual structure considering the ballast's typical loading condition. It can be either a monotonic or cyclic triaxial test method based on the confining pressure's controlling mechanism. The advantages of the test method are:

  • The load can be applied as required thru expected output; frequency and amplitude vary.

  • The confining pressure of the testing machine can be controlled, and the methods used to apply loads on the confining pressure can be cyclic or constant.

  • The testing machine is accurate enough for measuring the radial and axial strains. Therefore, the testing machine can predict the permanent deformation and resilient modulus.

The cause of fouling in the ballast structure is attributed to the presence of finer ballast materials. The sources of fine materials can be categorized as external or internal. The external (surface spillage) fines are from freight transportation, coal fouling, upward migration of fine particles from the sub-grade, and fines produced from tie wear (wood or concrete). The internal (mineral fouling from crushed aggregate) fines are generated because of traffic repetition and heavily loaded traffic frequency. Even though there are conditions where one of the above conditions dominates for the formation of fines, ballast fouling is the most frequent cause of ballast fouling from ballast particle breakdown. Many other methods have been developed to evaluate track systems, such as machine vision, seismic surface waves, electrical resistance tomography, and infrared radiometer. 112

Conclusions

This article includes an in-depth examination of mechanical engineering perspectives on rail systems’ structural adequacy/bearing capacity. The track problem root-causes such as rail issues, issues related to ballast and issues related to soil and embankment can be effectively identified by GPR technology. Although the existing technology for frame stiffness/modulus evaluation is accurate, it is time-consuming and laborious, requires track closure, and only a single point of information is provided. Non-destructive and Non-invasive techniques (such as GPR) have shown great potential in imaging underground features and assessing orbital substructures’ integrity, such as being used to automatically classify ballast fouling situations. GPR implementation offers new possibilities for indirect monitoring of track stiffness of which the most dominant components are the ballast layer and subgrade. The relationship between the track stiffness and GPR description parameter demonstrates a strong relationship with the ballast layer GPR calculations and subgrade state, indicating that GPR has a bright future in the evaluations of track stiffness and rail systems’ structural adequacy.

Acknowledgment:

The authors would also like to thank Dr Gang Chen at Marshall University for his help in this research.

Author biographies

Xia Hua is a Professor and Doctoral Advisor of Mechanical Engineering and Director of Vehicle Engineering Research Institute at Zhejiang University of Technology. Before that he was an assistant professor at the Weisberg Department of Mechanical Engineering, Marshall University. He had stints with the Ford Motor Company and Fiat Chrysler Automobiles in Detroit covering five years, with his work pertaining to automotive research and development. Hua received his PhD in mechanical engineering from Purdue University, and his research expertise is mainly in dynamics, structural analysis, and assessment technology development of complex systems, including vehicle-track coupling systems, emerging vehicle and powertrain systems, and structural systems. Hua's research has been funded by NSF, NASA, ERDC, Google, Microsoft, and automotive companies. He has published more than 20 high-quality research articles and has been the recipient of multiple awards for his research. Currently, Hua teaches undergraduate and graduate courses in mechanical engineering.

Wael Zatar is a professor of civil engineering at Marshall University. He served as the Dean of the College of Information Technology and Engineering and was named the Distinguished J.H. Fletcher Chair of Engineering at Marshall University. Many factual references support the positive impacts Zatar has made in the engineering fields. A fellow of the Precast/Prestressed Concrete Institute, he received more than 80 awards and honors. He has 26 years of research and experience that gained him national and international acclaim as he made outstanding contributions to the education, research, and development through receiving a plethora of significant funded research grants.

Alisha Gadedesi received MSc in mechanical engineering from Marshall University in 2021. Her research includes the assessment technology development of rail systems and vehicles.

Zhicheng Liao is a student in Zhejiang University of Technology, who is pursuing his PhD degree in mechanical engineering. His research field includes design and optimization of high-performance driving system for electric vehicle (EV) and assessment technology development of rail systems.

Footnotes

Authors' contributions: Conceptualization, X.H. and W.Z.; methodology, X.H. and W.Z.; validation, X.H. and W.Z.; investigation, X.H. and W.Z.; resources, X.H. and W.Z.; writing—original draft preparation, X.H.; writing—review and editing, G.A. and Z.L.; visualization, X.H. and W.Z.; supervision, X.H. and W.Z.; project administration, X.H. and W.Z.; funding acquisition, X.H. and W.Z. All authors have read and agreed to the published version of the manuscript.

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding: The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

  • 1.De Man AP. DYNATRACK: A survey of dynamic railway track properties and their quality . PhD thesis, Delft University of Technology, The Netherlands, 2002. [Google Scholar]
  • 2.McHenry MT, Rose JG. Railroad subgrade support and performance indicators: A review of available laboratory and in-situ testing methods. Kentucky Transportation Center Research Report. Report no. KTC-12-02/FR136-04-6F, February 2012. Kentucky: University of Kentucky. [Google Scholar]
  • 3.Zarembski AM, Grissom GT, Eston TL. On the use of ballast inspection technology for the management of track substructure. Transp Infrastruct Geotech 2014; 1: 83–109. [Google Scholar]
  • 4.Dahlberg T. Railway track settlements—A literature review, http://www-classes.usc.edu/engr/ce/599/Thesis/RTRSETTL.pdf (January 3, 2004, accessed).
  • 5.Alabbasi Y, Hussein M. Large-scale triaxial and box testing on railroad ballast: a review. SN Appl Sci 2019; 1: 1592. [Google Scholar]
  • 6.Ngamkhanong C, Kaewunruen S, Costa B. State-of-the-art review of railway track resilience monitoring. Infrastructures 2018; 3: 18–36. [Google Scholar]
  • 7.Vilotijevića M, Brajovićb L, Lazarevićc Let al. Methods for track stiffness measurement—State of the art. In: VI International Symposium New Horizons of Transport and Communications, Doboj, Bosnia and Herzegovina, 17–18 November 2017. https://www.researchgate.net/profile/Milica-Vilotijevic/publication/321361926_METHODS_FOR_TRACK_STIFFNESS_MEASUREMENT_-_STATE_OF_THE_ART/links/5a1eb992458515a4c3d210ff/METHODS-FOR-TRACK-STIFFNESS-MEASUREMENT-STATE-OF-THE-ART.pdf, University of East Sarajevo, Lukavica, East Sarajevo. [Google Scholar]
  • 8.Kaewunruen S, Remennikov A. Dynamic properties of railway track and its components: A state-of-the-art review, https://ro.uow.edu.au/cgi/viewcontent.cgi?article=1512&context=engpapers (December 29, 2008, accessed).
  • 9.Alabbasi Y, Hussein M. Geomechanical modelling of railroad ballast: a review. Arch Comp Methods Eng 2019. DOI: 10.1007/s11831-019-09390-4 [DOI] [Google Scholar]
  • 10.Wang P, Wang L, Chen R, et al. Overview and outlook on railway track stiffness measurement. J Mod Transport 2016; 24: 89–102. [Google Scholar]
  • 11.Elkhoury N, Hitihamillage L, Moridpour S, et al. Degradation prediction of rail tracks: a review of the existing literature. Open Transp J 2018; 12: 88–104. [Google Scholar]
  • 12.Esveld C, Kok AWM, De Man A. Integrated numerical and experimental research of railway track structures. In: Proceedings of the 4th international workshop on design theories and their verification of concrete slabs for pavements and railroads, Bucaco, Portugal: MRT productions, September 1998. [Google Scholar]
  • 13.Fenander Å. Frequency dependent stiffness and damping of railpads. Proc Inst Mech Eng F J Rail Rapid Transit 1997; 211: 51–62. [Google Scholar]
  • 14.Kerr AD. On the determination of the rail support modulus k. Int J Solids Struct 2000; 37: 4335–4351. [Google Scholar]
  • 15.Esveld C. Modern railway track. 2nd ed. Zaltbommel: MRTProductions, 2001. [Google Scholar]
  • 16.Ooi LE, Ripin ZM. Dynamic stiffness and loss factor measurement of engine rubber mount by impact test Mater Des 2011; 32: 1880–1887. [Google Scholar]
  • 17.Sussman TR, Ebersöhn W, Selig ET. Fundamental nonlinear track load-deflection behavior for condition evaluation. Transp Res Rec 2001; 1742: 61–67. [Google Scholar]
  • 18.Berggren E. Railway track stiffness—Dynamic measurements and evaluation for efficient maintenance . PhD Thesis, Royal Institute of Technology (KTH), Stockholm, 2009. [Google Scholar]
  • 19.Wu TX, Thompson DJ. The effects of local preload on the foundation stiffness and vertical vibration of railway track. J Sound Vib 1999; 219: 881–904. [Google Scholar]
  • 20.Pita AL, Teixeira PF, Robuste F. High speed and track deterioration: the role of vertical stiffness of the track. Proc Inst Mech Eng F J Rail Rapid Transit 2004; 218: 31–40. [Google Scholar]
  • 21.Li D, Selig ET. Evaluation of railway subgrade problems, transportation research record 1489. Washington, D.C: Transportation Research Board, 1995. [Google Scholar]
  • 22.Frohling RD, Scheffel H, Ebersöhn W. The vertical dynamic response of a rail vehicle caused by track stiffness variations along the track. Veh Syst Dyn 1996; 25: 175–187. [Google Scholar]
  • 23.Loizos A, Al-Qadi I, Scarpas T.Bearing capacity of roads, railways and airfields. In: Proceedings of the 10th international conference on the bearing capacity of roads, railways and airfields (BCRRA 2017), Athens, Greece, 28–30 June 2017. London: Routledge. [Google Scholar]
  • 24.Indraratna B, Sun Q, Ngo NT, et al. Current research into ballasted rail tracks: model tests and their practical implications. Aust J Struct Eng 2017; 18: 204–220. [Google Scholar]
  • 25.Zhang Y, Venkatachalam AS, Xia T. Ground-penetrating radar railroad ballast inspection with an unsupervised algorithm to boost the region of interest detection efficiency. J Appl Remote Sens 2015; 9: 095058. [Google Scholar]
  • 26.Silvast M, Nurmikolu A, Wiljanen B, et al. Inspection of railway ballast quality using GPR in Finland. In: 9th International heavy haul conference, Shanghai, China, 22–25 June 2009. Virginia Beach, VA: International Heavy Haul Association. [Google Scholar]
  • 27.Kruglikov A, Yavna V, Lazorenko G, et al. Investigation of long-term moisture changes in roadbeds using GPR. In: Proceedings of the 15th International Conference on Ground Penetrating Radar, Bruseels, Belgium, 30 June–4 July 2014, pp.857–861. New Jersey: IEEE. [Google Scholar]
  • 28.Su L, Indraratna B, Rujikiatkamjorn C. Non-destructive assessment of rail track condition using ground penetrating radar, https://core.ac.uk/download/pdf/36982357.pdf (January, 2011, accessed).
  • 29.Anbazhagan P, Lijun S, Buddhima I, et al. Model track studies on fouled ballast using ground penetrating radar and multichannel analysis of surface wave. J Appl Geophys 2011; 74: 175–184. [Google Scholar]
  • 30.Benedetto F, Tosti F, Alani AM. An entropy-based analysis of GPR data for the assessment of railway ballast conditions. IEEE Trans Geosci Remote Sensing 2017; 55: 3900–3908. [Google Scholar]
  • 31.Burrow M, Teixeira PF, Dahlberg T. Track stiffness considerations for high speed railway lines. In: Scott NP. (ed) Railway transportation: policies, technology & perspectives. New York: Nova Science Publishers, 2009, pp.1–55. [Google Scholar]
  • 32.Berggren EG. Efficient track maintenance: methodology for combined analysis of condition data. Proc Inst Mech Eng F J Rail Rapid Transit 2010; 224: 353–360. [Google Scholar]
  • 33.Liu X, Rapik SM, Barkan CPL. Analysis of causes of major train derailment and their effect on accident rates, transportation research record. J Transport Res Board 2012; 2289: 154–163. [Google Scholar]
  • 34.US Department of Transportation. Gage restraint measurement system T-18, https://railroads.dot.gov/program-areas/testing-facilities-equipment/gage-restraint-measurement-system-t-18 (October 25, 2019, accessed).
  • 35.Hui S. Maintenance modelling, simulation and performance assessment for railway asset management . PhD Thesis, University of Technology of Troyes, France, 2015. [Google Scholar]
  • 36.Navaraja P. Crack detection system for railway track by using ultrasonic and PIR sensor. Int J Adv Inform Sci Technol 2014; 1: 126–130. [Google Scholar]
  • 37.Palmer SB, Dixon S, Edwards RS, et al. Transverse and longitudinal crack detection in the head of rail tracks using Rayleigh wave-like wideband guided ultrasonic waves. Proc S.P.I.E. 2005; 5767: 70–80. [Google Scholar]
  • 38.Li D. Rail crack monitoring using acoustic emission technique. Singapore: Springer, 2018. [Google Scholar]
  • 39.Zumpano G, Meo M. A new damage detection technique based on wave propagation for rails. Int J Solids Struct 2006; 43: 1023–1046. [Google Scholar]
  • 40.Sattler P, Fredlund DG, Klassen MJ, et al. Bearing capacity approach to railway design using subgrade matric suction. Transp Res Rec 1989; 1241: 27. [Google Scholar]
  • 41.McHenry MT, Rose JG. Railroad subgrade support and performance indicators, a review of available laboratory and in-situ testing methods. Kentucky Transportation Center Research Report no. KTC-12-02/FR136-04-6F, February 2012. Kentucky: University of Kentucky. [Google Scholar]
  • 42.Wang H, Zeng L-L, Bian X, et al. Train moving load-induced vertical superimposed stress at ballasted railway tracks. Adv Civ Eng 2020. DOI: 10.1155/2020/3428395 [DOI] [Google Scholar]
  • 43.Rohrman AK, Kashani HF, Ho CL. Influence of fouling and water content of ballast on railway substructure bearing capacity. In: 2017 Joint rail conference, Philadelphia, PA, April 4–7 2017, paper no. V001T01A010. New York: ASME. [Google Scholar]
  • 44.Indraratna B, Nimbalkar S. The performance of rail track incorporating the effects of ballast breakage, confining pressure and geosynthetic reinforcement, bearing capacity of roads, railways and airfields. London: Taylor & Francis, 2009. [Google Scholar]
  • 45.Usmana K, Burrowa M, Ghataoraa G. Railway track subgrade failure mechanisms using a fault chart approach. Proc Eng 2015; 125: 547–555. [Google Scholar]
  • 46.Kolosa A, Konona IDA. Mathematical model for forecasting of rail track ballast bearing capacity. Proc Eng 2017; 189: 916–923. [Google Scholar]
  • 47.Konon A. Bearing capacity calculations of railway ballast In: Proceedings of the XVII ECSMGE-2019 geotechnical engineering foundation of the future, Reykjavík, Iceland, 1–6 September 2019. Reykjavík: The Icelandic Geotechnical Society. [Google Scholar]
  • 48.Indraratna B, Nimbalkar S, Tennakoon N, et al. From theory to practice in rail geotechnology. In: Ninth international conference on the bearing capacity of roads, railways and airfields, 2013, pp.1–20. Norway: Akademika Publishing. [Google Scholar]
  • 49.Li S, Wei B, Tan H, et al. Equivalence of friction and viscous damping in a spring-friction system with concave friction distribution. J Test Eval 2021; 49: 372–395. [Google Scholar]
  • 50.Wei B, Fu Y, Li S, et al. Influence on the seismic isolation performance of friction pendulum system when XY shear keys are sheared asynchronously. Structures 2021; 33: 1908–1922. [Google Scholar]
  • 51.Lee JI, Oh KH, Park YG. Separate track impact factor application depending on track types through correlative analysis with track support stiffness. Infrastructures 2020; 5: 17–34. [Google Scholar]
  • 52.Dahlberg T. Railway track stiffness variations—consequences and countermeasures. Int J Civ Eng 2010; 8: 1–12. [Google Scholar]
  • 53.Kewunruen S, Remennikov A. Application of experimental modal testing for estimating dynamic properties of structural components. In: Proceedings of the Australian structural engineering conference, Newcastle, Australia, 11–14 September. Barton:¸Institution. of Engineers Australia. [Google Scholar]
  • 54.Kaewunruen S, Remennikov A. Monitoring structural degradation of rail bearing pads in laboratory using impact excitation technique. In: Proceedings of the 1st international conference on structural condition assessment, monitoring, and improvement, Perth, Australia, 15 December 2005, pp.389–394. Singapore: CI-Premier. [Google Scholar]
  • 55.Burrow MPN, Chan AHC, Shein A. Deflectometer-based analysis of ballasted railway tracks. Proc Inst Civil Eng Geotech Eng 2007; 160: 169–177. [Google Scholar]
  • 56.Liu W, Wang W. Study on dynamic stiffness and damp measurement of railway crushed stone ballast J China Railw Soc 2002; 24: 99–104. [Google Scholar]
  • 57.Kerr AD. A method for determining the track modulus using a locomotive or car on multi-axle trucks. Proceedings A.R.E.A 1983; 84: 269–286. [Google Scholar]
  • 58.Kerr AD. On the vertical modulus in the standard railway track analysis. Rail Int 1987; November: 101–127. [Google Scholar]
  • 59.Kerr AD. On the reduced area method for calculating the vertical track modulus. Proceedings A.R.E.A 1985; 86: 88–105. [Google Scholar]
  • 60.Esveld C. Track stiffness measurements using an adapted tamping machine. Rail Int 1980; February: 103–113. [Google Scholar]
  • 61.Innotrack. Methods of track stiffness measurements, http://www.charmec.chalmers.seinnotrack (January, 2011, accessed).
  • 62.Selig ET, Li D. Track modulus: its meaning and factors influencing it. In: Solomon N (ed.). Transportation research record 1470: railroad research issues. Washington, DC: National Academy Press, 1994. [Google Scholar]
  • 63.Le Pen L, Milne D, Thompson D, et al. Evaluating railway track support stiffness from trackside measurements in the absence of wheel load data. Can Geotech J 2016; 53: 1156–1166. [Google Scholar]
  • 64.Pinto N, Ribeiro CA, Gabriel J, et al. Dynamic monitoring of railway track displacement using an optical system. Proc Inst Mech Eng F J Rail Rapid Transit 2015; 229: 280–290. [Google Scholar]
  • 65.Droździel J, Sowiński B. Method of track vertical stiffness estimation based on experiment. Arch Transp 2010; 22: 153–162. [Google Scholar]
  • 66.Picoux B, Rotinat R, Regoin JP, et al. Prediction and measurements of vibrations from a railway track lying on a peaty ground. J Sound Vib 2003; 267: 575–589. [Google Scholar]
  • 67.Bowness D, Lock AC, Powrie W, et al. Monitoring the dynamic displacements of railway track. Proc Inst Mech Eng F J Rail Rapid Transit 2007; 221: 13–22. [Google Scholar]
  • 68.Hendry MT, Barbour SL, Martin CD. An evaluation of real-time deformation monitoring using motion capture instrumentation and its application in monitoring railway foundations. Geotech Test J 2011; 34: 1–11. [Google Scholar]
  • 69.Cedex&Adif. Supertrack final report: Instrumentation, monitoring and physical modelling of high-speed line, https://www.ngi.no/download/file/7932 (September 30, 2005, access).
  • 70.Burrow M, Teixeira PF, Dahlberg T, et al. Track stiffness considerations for high speed railway lines. In: Scott NP. (ed) Railway transportation. New York: Nova Science Publishers, 2009, pp.1–55. [Google Scholar]
  • 71.Cafiso S, Capace B, D’Agostino C, et al. Introduction of new systems for evaluation of ballast bearing capacity. In: Proceedings of the tenth international conference on the bearing capacity of roads, railways and airfields, (BCRRA 2017) (ed Loizos A, Al-Qadi I, Scarpas T.), Athens, Greece, June 28–30, pp.1993–2001. Boca Raton: CRC Press. [Google Scholar]
  • 72.Livneh M. Correlative studies of FWD, LDW and DCP testing of railway-track sub-ballast structures in Israel. In: Hoff I, Mork H, Saba RG. (eds) Proceedings of the ninth international conference on the bearing capacity of roads, railways and airfields, Vol 1. Norway: Norwegian University of Science and Technology, 2013, pp.209–218. [Google Scholar]
  • 73.Rubin AJ, Ho CL, Oden CP. A comparison of railroad ballast elastic modulus as estimated from lightweight deflectometer (LWD) and Dynamic Cone Penetrometer (DCP). In: Transportation research board 97th annual meeting, Washington, DC, 7 January 2018–11 January 2018. Washington: Transportation Research Board. [Google Scholar]
  • 74.Neupane M, Parsons RL, Han J. Rapid estimation of fouled railroad ballast mechanical properties. Geotech Test J 2018; 41: 20170022. [Google Scholar]
  • 75.Rohrman AK, Kashani HF, Ho CL. Influence of fouling and water content of ballast on railway substructure bearing capacity. In: ASME/IEEE joint rail conference, Philadelphia, PA, April 4–7 2017, paper no. V001T01A010. New York: American Society of Mechanical Engineers. [Google Scholar]
  • 76.Li D, Thompson R, Kalay S. Development of continuous lateral and vertical track stiffness measurement techniques. In: Railway engineering 2002: 5th international conference and exhibition, London, UK, 3–4 July 2002. Edinburgh: Engineering Technics Press. [Google Scholar]
  • 77.Thompson R, Marquez D, Li D. Track strength testing using TTCI’s track loading vehicle. Rail Track Struct 2001; 97: 15–17. [Google Scholar]
  • 78.Protran Technology. Vertical track deflection measurement system, https://www.protrantechnology.com/rail/measurement-inspection/mrail (January, 2018, access).
  • 79.Berggren E. Railway track stiffness: Dynamic measurements and evaluation for efficient maintenance . PhD Thesis, KTH, School of Engineering Sciences, 2009. [Google Scholar]
  • 80.Berggren E, Jahlénius Å, Bengtsson BE. Continuous track stiffness measurement: An effective method to investigate the structural conditions of the track. In: Railway engineering 2002: 5th international conference and exhibition, London, UK, 3­4 July 2002. Edinburgh: Engineering Technics Press. [Google Scholar]
  • 81.Berggren E, Berg M. Simulation, development and field testing of a track stiffness measurement vehicle. In: 8th International heavy haul conference, Rio de Janeiro, 14–16 June 2005. Virginia Beach: IHHA. [Google Scholar]
  • 82.Berggren E, Jahlénius Å, Bengtsson BE, et al. Simulation, development and field testing of a track stiffness measurement vehicle. In: 8th International heavy haul conference, Rio de Janeiro, 14–16 June 2005. Virginia Beach: IHHA. [Google Scholar]
  • 83.Berggren EG, Nissen A, Paulsson BS. Track deflection and stiffness measurements from a track recording car. Proc Inst Mech Eng F J Rail Rapid Transit 2014; 228: 570–580. [Google Scholar]
  • 84.Berggren EG, Kaynia AM, Dehlbom B. Identification of substructure properties of railway tracks by dynamic stiffness measurements and simulations. J Sound Vib 2010; 329: 3999–4016. [Google Scholar]
  • 85.Berggren E. Monitoring and substructure condition assessment of existing railway lines for upgrading to higher axle loads and speeds. In: 7th world congress on railway research, Montreal, Canada, 4–8 June 2006. [Google Scholar]
  • 86.Arnold R, Lu S, Hogan C, et al. Measurement of vertical track modulus from a moving railcar. In: Proceedings of the AREMA annual conference, Louisville, Kentucky, September 17–20 2006. Lanham, MD: American Railway Engineering and Maintenance of Way Association.78. [Google Scholar]
  • 87.Nafari SF, Gül M, Roghani A. Evaluating the potential of a rolling deflection measurement system to estimate track modulus. Proc Inst Mech Eng F J Rail Rapid Transit 2018; 232: 14–24. [Google Scholar]
  • 88.Do NT, Gül M, Nafari SF. Continuous evaluation of track modulus from a moving railcar using ANN-based techniques. Vibration 2020; 3: 149–161. [Google Scholar]
  • 89.Hosseingholian M. Dynamic track modulus from measurement of track acceleration. In: 9th World congress of railway research, Lille, France, 22–26 May 2011. Paris: International union of railways. [Google Scholar]
  • 90.Wangqing W, Geming Z, Kaiming Z, et al. Development of inspection car for measuring railway track elasticity. In: Proceedings from 6th international heavy haul conference, Cape Town, South Africa, 6–10 April 1997. Virginia Beach, VA: International heave haul association, 2808 forest hills court. [Google Scholar]
  • 91.Moraisa J, Santosa C, Moraisa P, et al. Continuous monitoring and evaluation of railway tracks system description and assessment. Procedia Structural Integrity 2019;17: 448-455. [Google Scholar]
  • 92.Quirke P, Cantero D, O’Brien EJ, et al. Drive-by detection of railway track stiffness variation using in-service vehicles. Proc Inst Mech Eng F Rail Rapid Transit 2017; 231: 498–514. [Google Scholar]
  • 93.Leng Z, Al-Qadi IL. Railroad ballast evaluation using ground-penetrating radar. Transport Res Rec 2010; 2159: 110–117. [Google Scholar]
  • 94.Shao W, Bouzerdoum A, Phung SL, et al. Automatic classification of 10 ground-penetrating-radar signals for railway-ballast assessment. I.E.E.E. T Geosci Remote 11 2011; 49: 3961–3972. [Google Scholar]
  • 95.Fontul S, Paixão A, Solla M, et al. Railway track condition assessment at network level by frequency domain analysis of GPR data. Remote Sens (Basel) 2018; 10: 559–585. [Google Scholar]
  • 96.Rahman AJ, Parsons R, Han J. Properties of fouled railroad ballast (phase 1). Mid-America Transportation Center Report. Report No. 25-1121-0001-465, October 2012. Lincoln, NE: Mid-America Transportation Center. [Google Scholar]
  • 97.Kelsey C. Permanent deformation and stiffness of fouled ballast N.D.T.E. Int 2017; 90: 39–47. [Google Scholar]
  • 98.Sussmann TR, O’Hara KR, Selig ET. Development of material properties for railway application of ground penetrating radar. Proc Soc Photo Opt Instrum Eng (SPIE) 2002; 4758: 45–59. [Google Scholar]
  • 99.Parnadi WW, Warsa W, Laesanpura RG, et al. Correlating ground-penetrating radar data with geotechnical data. In: 2nd International Conference on Applied Electromagnetic Technology (AEMT), Lombok, Indonesia, 9–12 April 2018. New Jersey: IEEE. [Google Scholar]
  • 100.Narayanan RM, Machavaram RN, Elias S, et al. Comparison of multivariate linear regression and neural network algorithms for ground penetrating radar (GPR) estimation of track modulus. In: Proceedings of the international conference and exhibition railway engineering 2003, London, UK, 30 April–1 May 2003. Edinburgh, UK: Engineering Technics Press. [Google Scholar]
  • 101.De Bold R. NDT and trackbed stiffness, http://www.erp.ac.uk/cee/Posters/G-Using_NDT_To_Determine_Railway_Trackbed_Stiffness-Robert_de_Bold.pdf (February 9, 2009, accessed).
  • 102.Yurlov D. Relationship between track geometry defects and measured track substructure condition using emerging data analysis methods . PhD Thesis, University of Delaware, 2018. [Google Scholar]
  • 103.Zarembski AM, Palese JW, Euston TL. Correlating ballast volume deficit with the development of track geometry exceptions utilizing data science algorithm. Transp Infrast Geotechnol 2017; 4: 37–51. [Google Scholar]
  • 104.Determination of probability of a track geometry defect based on GPR measured subsurface conditions using data analytics. In: 12th World congress for railway research (WCRR), Tokyo, Japan, 28 October–1 November 2019. Paris: International union of railways. [Google Scholar]
  • 105.Clark MR, Gillespie R, Kemp T, et al. Electromagnetic properties of railway ballast N.D.T. E Int 2001; 34: 305–311. [Google Scholar]
  • 106.Eriksen A, Gascoyne J, Mangan C, et al. Practical applications of GPR surveys for trackbed characterization in the UK, Ireland, USA, and Australia. In: Systems conference on railway engineering, Wellington, New Zealand, 12–15 September 2010. Turkey: World Academy of Science, Engineering and Technology. [Google Scholar]
  • 107.Indraratna B, Nimbalkar S, Rujikiatkamjorn C. Performance appraisal of ballasted rail track stabilized by geosynthetic reinforcement and shock mats. In: Seventh International Conference on C.A.S.E. Histories in Geotechnical Engineering, Chicago, IL, 9 April – 4 May 2013. Rolla, MO: Missouri University of Science and Technology. [Google Scholar]
  • 108.Xu P, Liu R-K, Wang F, et al. Railroad track deterioration characteristics based track measurement data mining, mathematical problems in engineering. Math Prob Eng 2013; 2013: 109–120. [Google Scholar]
  • 109.Sadeghi JM, Askarinejad H. Development of track condition assessment model based on visual inspection. Struct Infrastruct Eng 2011; 6: 895–905. [Google Scholar]
  • 110.Federal Railroad Administration. Rail integrity amendments & track safety standards: a proposed rule by the federal railroad administration. Federal Reg 2019; 84: 72526–72552. [Google Scholar]
  • 111.Lazarević L, Vučković D, Vilotijević M, et al. Application of seismic tomography for assessment of the railway substructure condition. Struct Health Monit 2019; 18: 792–805. [Google Scholar]
  • 112.Tan Y, Chen Y, Peterson AW, et al. Monitoring and detecting fouled ballast using forward-looking infrared radiometer (FLIR) aerial technology: Possibilities and limitations. In: Proceedings of the 2019 joint rail conference JRC2019, Snowbird, UT, April 9–12 2019. New York City, USA: ASME. [Google Scholar]

Articles from Science Progress are provided here courtesy of SAGE Publications

RESOURCES
