Biological diversification linked to environmental stabilization following the Sturtian Snowball glaciation

Abstract

The body fossil and biomarker records hint at an increase in biotic complexity between the two Cryogenian Snowball Earth episodes (ca. 661 million to ≤650 million years ago). Oxygen and nutrient availability can promote biotic complexity, but nutrient (particularly phosphorus) and redox dynamics across this interval remain poorly understood. Here, we present high-resolution paleoredox and phosphorus phase association data from multiple globally distributed drill core records through the non-glacial interval. These data are first correlated regionally by litho- and chemostratigraphy, and then calibrated within a series of global chronostratigraphic frameworks. The combined data show that regional differences in postglacial redox stabilization were partly controlled by the intensity of phosphorus recycling from marine sediments. The apparent increase in biotic complexity followed a global transition to more stable and less reducing conditions in shallow to mid-depth marine environments and occurred within a tolerable climatic window during progressive cooling after post-Snowball super-greenhouse conditions.

Regional nutrient availability and climate controlled oxygenation in the aftermath of the Sturtian Snowball Earth deglaciation.

INTRODUCTION

The end of the Sturtian cryochron [ca. 661 million years (Ma) ago ], during which global mean temperature increased from Snowball to super-greenhouse conditions, documents one of the most profound paleoclimatic shifts in Earth’s history (1). In the subsequent Cryogenian non-glacial interval (ca. 661 Ma to ≤650 Ma ago), molecular biomarker data record an increase in sterane diversity and abundance inferred to represent the transition from dominant bacterial to dominant green algal primary productivity. A proposed trigger for this fundamental ecological revolution is an increase in weathering-derived P availability following Sturtian deglaciation, although the appearance of mesophilic marine algae may have been delayed at tropical latitudes as a direct consequence of post-Snowball super-greenhouse conditions (2, 3). The radiation of green algae may then have expanded benthic habitats and created more efficient food sources for the subsequent appearance of larger, metabolically active organisms (2).

While intuitive, this hypothesized coevolution of biotic and geochemical change has remained difficult to test empirically, for two main reasons. The first is the absence of a unified global chronostratigraphic framework with which to correlate all non-glacial sedimentary successions. While this interval benefits from numerous high-resolution regional lithostratigraphic, sequence stratigraphic, and chemostratigraphic studies [e.g., see (4–15)], no fully integrated global correlation framework or age model exists to explore the potential regional versus global trends in data and biotic records of coeval carbonate and siliciclastic successions (4). The second limitation concerns the absence of essential geochemical information for this interval with which to resolve coupled paleoredox and P dynamics. Therefore, despite considerable effort, the evolution of regional versus global paleoenvironmental redox conditions remains poorly understood, and attendant changes in the supply and recycling of nutrients (particularly P) remain unconstrained.

To address these challenges, we first provide a series of possible global lithostratigraphic and chemostratigraphic age models for the Cryogenian non-glacial interval, to fully calibrate inter-regional geochemical and fossil data, and to explore ongoing uncertainties. We then present the first high-resolution multiproxy paleoredox and phosphorus dataset for this interval, from five drill core profiles that document marine sedimentary successions in Australia and South China. For each core, we interpret regional redox dynamics using integrated records of Fe speciation, trace metal concentrations, and pyrite sulfur isotopes (δ³⁴S_py), before assessing associated changes in the degree of bioavailable P recycling via P phase association analyses. Last, we calibrate our data alongside pertinent published geochemical data within each global age framework to provide a series of possible timelines for the coevolution of the biosphere and changes to the regional and global geochemical environment throughout this interval. Trends in the time-calibrated data compilations are considered relative to the modeled duration of post-Sturtian climatic recovery associated with the silicate weathering feedback. This enables a fully integrated assessment of the relative timing of geochemical and climatic stabilization, allowing links to changes in the biotic record to be interrogated through the non-glacial interval.

RESULTS

Global correlation of Cryogenian non-glacial successions

The timings of Sturtian glaciation (ca. 717 Ma ago) and deglaciation (ca. 661 Ma ago) are relatively well calibrated by U-Pb and Re-Os geochronology on multiple continents (Fig. 1) (16–18). However, the precise timing for the onset of reglaciation associated with the Marinoan cryochron remains uncertain (4, 17, 19). Current best estimates from U-Pb geochronology suggest that the onset of Marinoan glaciation occurred after 651.69 ± 0.64 Ma in Laurentia (19), after 651.2 ± 3.3 Ma in South China (20), and before 639.29 ± 0.26 Ma on the Congo Craton (21). These radiometric ages permit possible non-glacial durations of between ca. 10 Ma and 21 Ma. Therefore, we present a series of age models that encompass the full range of possible non-glacial durations (models A to D; fig. S1 and table S1). Model A is displayed throughout the main text, wherein the non-glacial duration is set at ca. 11 Ma (see the Supplementary Materials). However, the relative trends in geochemical data and patterns of fossil occurrence are consistent between each model (set by the global correlation of regional lithostratigraphic composite profiles; Fig. 1F). The age models presented assume globally synchronous timings for glaciation and deglaciation, which are currently justified on the basis of available geochronological constraints and associated uncertainties, and modeled estimates of Snowball Earth dynamics (see Discussion, and Materials and Methods).

Fig. 1. Integrated chronology and biostratigraphy of globally distributed Cryogenian non-glacial successions (model A; table S1).

(A) Paleogeography after (77), but note ongoing uncertainties associated with precise positions of some cratons (especially South China and the Congo craton) (1, 4). All subsequent data are color-coded by provenance (region/craton) as indicated in (A) and by colored bars to the right of (F). (B) Global composite δ¹³C_carb profile based on regional lithostratigraphic and chemostratigraphic correlation, followed by subsequent best-fit to data trends exhibited in the most continuous globally distributed successions. (C) Global ⁸⁷Sr/⁸⁶Sr chemostratigraphy calibrated directly within the δ¹³C_carb age model. (D) Range in possible atmospheric CO₂ concentration after (24), shaded to indicate likelihood based on corresponding temperature relationship. Expected changes in global mean surface temperature based on FOAM (fast ocean-atmosphere model) CO₂-temperature relationship. The solid black line represents the CO₂-temperature scenario most consistent with conditions required to initiate the Marinoan Snowball glaciation and corresponds to the presence of a highly reactive surface of glacial rock flour [see (24) for detailed methods]. (E) Fossil occurrences, including putative body fossils, microfossils, problematica, and biomarkers (full references and model ages in table S1). The maximum age for the first appearance of biomarker data from a shale package 150 m below (or within) a Marinoan-age diamictite of the Ghadir Manqil Formation, Oman, remains poorly constrained (29). OSM, organic spore-like microfossils (28). (F) Regional composite lithostratigraphic correlation, color-coded by dominant lithology and paleodepth interpretation (see legend). Colored bars to the right show the color coding of data and information in (A) to (C), (E), and (G). (G) Radiometric geochronology (U-Pb and Re-Os) used to calibrate the timing of global Sturtian deglaciation and anchor magnitudes and trends in δ¹³C_carb in this age model (table S3). See Materials and Methods for details of age model construction and tables S1 and S3 for compiled data and full references.

Trends in δ¹³C_carb and ⁸⁷Sr/⁸⁶Sr during the Cryogenian non-glacial are well established and described from carbonate-dominated successions globally [e.g., see (4–6, 8, 11, 22, 23)]. These trends are reproduced in our age models and summarized briefly to aid reference. Each named δ¹³C_carb excursion recorded throughout the Cryogenian non-glacial interval corresponds to a positive or negative deviation from 0‰, and the absolute durations of each excursion remain uncertain (see below and Materials and Methods). The non-glacial record begins in strata deposited atop Sturtian diamictites with the Rasthof negative δ¹³C_carb anomaly [Fig. 1B; note that this is renamed the “Twitya carbon isotope excursion (CIE)” or Cryogenian CIE “Cn1” by Hoffman et al. (4)]. This excursion is globally reproducible but variable in magnitude with minimum values exhibited in mixed siliciclastic-carbonate successions of Australia and Laurentia [see below; (7, 13)]. The duration of recovery from the Rasthof anomaly toward positive δ¹³C_carb values [“Cn2” of (4)] is poorly constrained because of a dearth of available radiometric ages in carbonate successions (Fig. 1B). Positive δ¹³C_carb values are subsequently interrupted by the negative Taishir anomaly (“Cn3” of (4)]. The magnitude of the Taishir anomaly is highly variable with the most negative δ¹³C_carb values exhibited at the base of Taishir Unit 3 in the carbonate-dominated Zavkhan terrane, Mongolia (8). The Taishir anomaly appears to coincide with a transition from highstand to transgressive deposition in multiple regions (e.g., Arctic Alaska, Congo craton, and Zavkhan Terrane; Fig. 1F). The subsequent interval of positive δ¹³C_carb, termed the “Keele Peak” [“Cn4” of (4)], also exhibits highly variable magnitude, ranging from 0 to 1‰ to >11‰. A maximum depositional age of 651.69 ± 0.64 Ma (zircon U-Pb chemical abrasion isotope dilution thermal ionization mass spectrometry) constrains δ¹³C_carb values that may be associated with the Keele Peak in the upper Kingston Peak Formation of Laurentia [see the Supplementary Materials; (13, 19)].

Variability in the magnitude of the Taishir anomaly and Keele Peak between sections has previously been examined in detail within the context of regional lithostratigraphy and facies of the Otavi Group of the Congo craton, northern Namibia (4, 12), but is clearly demonstrated on other cratons. The differences in magnitude but general consistency of trends in δ¹³C_carb have been suggested to reflect facies-related differential diagenesis (4, 12, 13, 23). Following the Keele Peak, numerous global successions record a prominent downturn in δ¹³C_carb, termed the “Trezona” anomaly [“Cn5” of (4)], which reaches a nadir approaching −12‰ in Laurentia and Australia (Fig. 1B). As discussed in numerous studies, Marinoan glacial erosion is a likely cause for the variable continuity of carbonate successions (e.g., truncated in Mongolia) and thus the completeness of the preserved Trezona anomaly, in the aftermath of the Keele Peak (4, 8).

The δ¹³C_carb age framework directly anchors ⁸⁷Sr/⁸⁶Sr data in carbonate samples from the Congo craton, Laurentia, Zavkhan terrane, and Arctic Alaska (6, 8, 11, 16). The resulting ⁸⁷Sr/⁸⁶Sr profile is consistent with previous compilations (6, 8, 16, 22) and shows initially low values of ~0.7067 immediately following Sturtian deglaciation with a gradual increase to ~0.7074 before the onset of Marinoan glaciation (Fig. 1C).

Cryogenian paleotemperature

The initiation of global deglaciation at the termination of the Sturtian and Marinoan cryochrons required super-greenhouse conditions driven by the long-term build-up of atmospheric CO₂ (1). Model estimates of the subsequent decline in atmospheric CO₂ concentrations in the aftermath of Cryogenian Snowball glaciations have accounted for a range of possible rates of CO₂ drawdown via the silicate weathering feedback, associated with differences in weathering profiles and runoff (Fig. 1D) (24). Using these pCO₂ values in the ocean-atmosphere general circulation climate model FOAM (25) yields an envelope of minimum and maximum global mean surface temperature change associated with decreasing atmospheric pCO₂ throughout the Cryogenian non-glacial interval (Fig. 1D and table S1). While associated uncertainty envelopes are large, these model runs reveal initially high global average temperatures (≥48°C), associated with post-Sturtian super-greenhouse conditions, to lower temperatures (~6° to 27°C) in the prelude to Marinoan reglaciation (Fig. 1D). The lower bound of this uncertainty envelope (solid black line in Fig. 1D) represents the pCO₂ evolution most consistent with the conditions required to initiate the Marinoan Snowball Earth glaciation and corresponds to the presence of a highly reactive surface (due to glacial rock flour) in the upper layers of the soil (24).

Cryogenian biostratigraphy

Figure 1E shows a schematic depiction of the age ranges of key biomarker data, microfossil assemblages (including problematica), and problematic macrofossil occurrences throughout the Cryogenian non-glacial interval that result from the global lithostratigraphic and chemostratigraphic correlation. We do not attempt to interrogate the biological affinity of any putative fossils but simply show the relative ages of each reported specimen/assemblage (table S1). The non-glacial fossil record is dominated by a low-diversity microfossil assemblage, largely constrained to the Cn1 to Cn3 interval (26–28). Sediments that immediately overlie Sturtian glacial deposits contain biomarker data that are restricted to traces of cholestanes (C₂₇ steranes) possibly indicating minimal red algal activity (2). The subsequent first appearances of green algal (C₂₈ and C₂₉) and putative sponge (C₃₀) steranes in pre-Marinoan to Marinoan-equivalent shales of Oman [(29) but see (30)] are poorly constrained relative to the δ¹³C_carb profile but are likely younger than Cn1 based on their absence from postglacial deposits of the lower Aralka Formation (2). Reported occurrences of putative macrofossils, including aspidellamorph “Twitya discs” in the lower Ice Brook Formation of Laurentia [e.g., see (31)], are restricted to the latter half of the Cryogenian non-glacial interval, from Cn3 to Cn5 (table S1).

Geological and stratigraphic context of sampled drill cores

We report geochemical data from 295 drill core samples that span the Cryogenian non-glacial interval, recovered from five siliciclastic-dominated sections deposited on two paleocontinents (fig. S2). The analyzed material includes samples of the Aralka Formation of the Amadeus Basin (Centralian Superbasin) and Tapley Hill Formation of the Adelaide Superbasin, Australia, and the Datangpo and Xiangmeng formations of the Nanhua Basin, South China. Full details of all analyzed drill cores are presented in the Supplementary Materials and are briefly outlined below. Additional published data compiled in Figs. 2 to 5 are presented in table S1.

Fig. 2. Stratigraphy and selected geochemical data for the Aralka Formation of the Amadeus Basin recovered by drill cores BR05-DD01 and Wallara-1.

Data include (A and K) total organic carbon (TOC), (B, C, L, and M) Fe speciation, (D and N) authigenic Mo concentrations (Mo_auth), (E and O) δ³⁴S_py, (F and P) δ¹³C_org, and (G to J and Q to V) P speciation. Horizontal red bands indicate the intervals of euxinic water column conditions, and horizontal yellow bands indicate the intervals of ferruginous water column conditions with sulfidic pore waters (detailed redox interpretation is provided in the Supplementary Materials and table S2). Vertical dashed lines in (B), (C), (L), and (M) correspond to calibrated threshold ratios for paleoredox interpretation by Fe speciation, detailed in Materials and Methods. Vertical dashed lines in (H), (I), (R), and (S) correspond to the Redfield ratio. Wa, Wallara Formation. Positions of samples analyzed for biomarker data in core BR05-DD01 (2) indicated by green stars. S/H, sterane/hopane ratio.

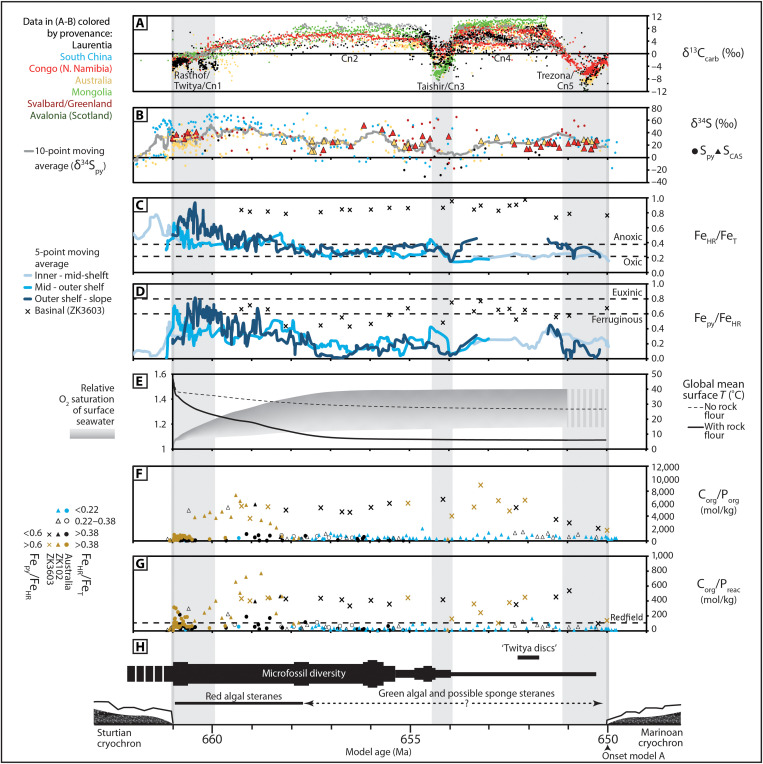

Fig. 5. High-resolution global age model compilation of selected geochemical proxy data (published and herein), modeling results, and fossil occurrences (following model A).

(A) δ¹³C_carb, (B) δ³⁴S_py, (C) Fe_HR/Fe_T, (D) Fe_py/Fe_HR, (E) global mean surface temperature and calculated relative O₂ saturation of surface seawater (gray envelope) based on FOAM CO₂-temperature relationship, (F) C_org/P_org, (G) C_org/P_reac, and (H) fossil occurrences summarized from Fig. 1 and references therein (occurrences calibrated directly within each age model; table S1). Data in (A) and (B) are color-coded according to provenance (see Fig. 1). Data in (F) and (G) are color-coded according to threshold ratios of Fe speciation data in the same samples (see legend). (C) and (D) show the five-point moving averages for a global compilation of Fe speciation data, binned by depositional environment (see legend and table S1). Horizontal dashed lines in (C) and (D) represent the calibrated threshold ratios for deposition under different paleoredox conditions discussed in Materials and Methods (39, 74). See table S1 for the full geochemical dataset, age model, and full references.

The Amadeus Basin and Adelaide Superbasin, Australia

Three drill cores were investigated from the Amadeus Basin of the Centralian Superbasin (BR05-DD01 and Wallara-1) and the Stuart Shelf of the Adelaide Superbasin (SCYW-79-1A). In the central-western Amadeus Basin, core BR05-DD01 comprises Sturtian glacially influenced diamictites of the Areyonga Formation, overlain by ~331 m of mid-outer ramp dolomitic shale and siltstone, with rare stromatolitic carbonate interbeds of the Aralka Formation (9). The lower ca. 243 m of the Aralka Formation in core BR05-DD01 host low sterane/hopane ratios (≤0.012), where eukaryotic steranes are limited to cholestane (2). Red siltstones that dominate the uppermost ~100 m of the sampled interval may represent progressive shallowing of the upper Aralka Formation during the non-glacial or may correlate with the Ediacaran-Cambrian Arumbera sandstone (see the Supplementary Materials). Sediments of the Wallara-1 core were deposited in the Amadeus Basin to the east of BR05-DD01 and constitute a similar but condensed lithological profile, comprising diamictite of the Areyonga Formation overlain by dolomitic shale of the lowermost Aralka Formation.

Core SCYW-79-1A recovers strata of the northwest Adelaide Superbasin, along the northeastern Stuart Shelf. In this core, Sturtian glaciogenic deposits of the lower Umberatana Group (Yudnamutana Subgroup) are represented by the Appila tillite (32, 33) and are conformably overlain by non-glacial carbonaceous shales and siltstones of the Tapley Hill Formation (Nepouie Subgroup). The Tapley Hill Formation was deposited time-equivalent to the Aralka Formation of the Amadeus basin, and correlative transgressive siliciclastic deposits throughout the Centralian Superbasin (33). In addition to the high-resolution record obtained for SCYW-79-1A, we also provide data for the Tapley Hill Formation from a second core recovered from the Adelaide Superbasin (SR/17-2). Because of low sampling resolution, we do not discuss this core in detail, but the results are provided in the supplementary dataset (tables S4 and S5) and the trends in all associated datasets mirror those obtained from SCYW-79-1A.

The Nanhua Basin, South China

The Nanhua Basin developed along the southeast margin of the Yangtze Block, South China, as a consequence of rifting during the Tonian break-up of Rodinia (34). The most complete Cryogenian sections of the Nanhua Basin were deposited within the Hunan-Guangxi sub-basin in eastern Guizhou Province and western Hunan Province. Here, the succession includes syn-glacial deposits of the Sturtian (including the Gucheng, Tiesi’ao, Dongshanfeng, Chang’an, and Fulu formations) and Marinoan (Nantuo Formation) cryochrons, separated by the non-glacial Datangpo and Xiangmeng formations (14, 17, 34).

We present data from two drill core profiles that comprise continuous siliciclastic deposits of the Datangpo and Xiangmeng formations. Core ZK102 records outer shelf-slope shales and siltstones of the Datangpo Formation, while core ZK3603 records deeper, slope-basin shales of the Xiangmeng Formation. In both cores, the contacts between the Datangpo and Xiangmeng formations and the underlying and overlying diamictites appear to be conformable (14).

Geochemical results

Geochemical techniques are outlined in Materials and Methods, and further discussion, including a detailed evaluation of the robustness of the applied multiproxy approach, is provided in the Supplementary Materials. Sturtian-age deposits have highly reactive to total iron (Fe_HR/Fe_T) ratios of >0.22 and pyrite to highly reactive (Fe_py/Fe_HR) ratios of <0.60 (Cores BR05-DD01, Wallara-1, and SCYW-79-1A; Figs. 2 and 3). At the lithological transition between glacial and non-glacial deposits, all studied cores record prominent and synchronous increases in Fe_HR/Fe_T and Fe_py/Fe_HR ratios, and total organic carbon (TOC) and authigenic molybdenum (Mo_auth) concentrations, which represent Mo enrichment relative to the detrital background flux (Figs. 2 to 4; see Supplementary Materials for methods). Fe_py/Fe_HR ratios peak in the lowermost siliciclastic-dominated intervals of each non-glacial succession, culminating in values that are ubiquitously >0.60. This interval is also associated with a peak in δ³⁴S_py and a negative δ¹³C_org excursion and is time-equivalent to the Rasthof anomaly based on its position immediately overlying Sturtian diamictite (Figs. 1, 2, and 4). Following this initial peak, the most continuous cores deposited in shelf settings (BR05-DD01, SCYW-79-1A, and ZK102) exhibit progressive decreases in Fe_HR/Fe_T ratios that approach values of <0.38, accompanied by decreasing Fe_py/Fe_HR (<0.60) and decreasing Mo_auth (Figs. 2 to 4). By contrast, all samples from the most distal core (ZK3603) continue to record Fe_HR/Fe_T > 0.38. In this core, Fe_py/Fe_HR ratios oscillate from <0.60 to >0.60 with low Mo_auth throughout.

Fig. 3. Stratigraphy and selected geochemical data for the Tapley Hill Formation recovered by drill core SCYW-79-1A.

Data include (A) TOC, (B and C) Fe speciation, (D) Mo_auth, (E) δ³⁴S_py, (F) δ¹³C_org, and (G to L) P speciation. Additional Fe speciation data are from Canfield et al. (37) and δ³⁴S_py are from Gorjan et al. (15). Horizontal red bands indicate the intervals of euxinic water column conditions, and horizontal yellow bands indicate the intervals of ferruginous water column conditions with sulfidic pore waters (detailed redox interpretation is provided in the Supplementary Materials and table S2). Vertical dashed lines in (B) and (C) correspond to calibrated threshold ratios for paleoredox interpretation by Fe speciation, detailed in Materials and Methods. Vertical dashed lines in (H) and (I) correspond to the Redfield ratio.

Fig. 4. Stratigraphy and selected geochemical data for the Datangpo and Xiangmeng formations recovered by drill cores ZK102 and ZK3603, respectively.

Data include (A and K) TOC, (B, C, L, and M) Fe speciation, (D and N) Mo_auth, (E and O) δ³⁴S_py, (F and P) δ¹³C_org, and (G to J and Q to V) P speciation. Additional δ¹³C_org data for ZK3603 are from Peng et al. (14). Horizontal red bands indicate the intervals of euxinic water column conditions, and horizontal yellow bands indicate the intervals of ferruginous water column conditions with sulfidic pore waters (detailed redox interpretation is provided in the Supplementary Materials and table S2). Vertical dashed lines in (B), (C), (L), and (M) correspond to calibrated threshold ratios for paleoredox interpretation by Fe speciation, detailed in Materials and Methods. Vertical dashed lines in (I) and (S) correspond to the Redfield ratio.

Australian cores record total phosphorus (P_Tot) concentrations that approximate, or slightly exceed, the average Phanerozoic shale (AS) value [Amadeus Basin mean = 684 parts per million (ppm), Adelaide Superbasin mean = 951 ppm; AS = 700 ppm; (35)], but normalization to Al suggests that the majority of samples are elevated relative to average shale (Amadeus Basin mean = 0.013, Adelaide Superbasin mean = 0.017; AS = 0.008; Figs. 2, G and Q, and 3G) (35). By contrast, cores from South China are depleted in P_Tot relative to average shale, both in absolute concentration (mean = 454 ppm) and after normalization to Al (mean = 0.005) (Fig. 4, G and Q). The available samples in each environment record minor increases in P_Tot and P_Tot/Al across the transitionary interval from Sturtian-aged glacial deposits to overlying non-glacial shales (Figs. 2 to 4). In South China, this is represented by a short-lived positive excursion at the conformable boundary between the Tiesi’ao and Datangpo formations, followed by recovery to low values, but high values are maintained in Australian cores throughout the duration of non-glacial deposition following this initial increase.

Shelf cores (BR05-DD01, Wallara-1, SCYW-79-1A, and ZK102) show consistent stratigraphic trends in the ratios of organic carbon to organic phosphorus (C_org/P_org) and organic carbon to reactive phosphorus (C_org/P_reac), where P_reac equates to the sum of phosphorus bound in iron phases (P_Fe), authigenic carbonate fluorapatite, biogenic apatite and calcium carbonate (P_auth), and organic matter (P_org) (36). The observed trends in C_org/P_org and C_org/P_reac largely mirror the trends observed in paleoredox data, whereby peak values of C_org/P_org and C_org/P_reac in the lowermost non-glacial deposits are followed by decreasing values in overlying strata (Figs. 2 to 4). In core SCYW-79-1A, C_org/P_org values recover and remain scattered throughout the sampled non-glacial interval (Fig. 3H). By contrast, C_org/P_org and C_org/P_reac ratios in the most distal core (ZK3603) remain elevated throughout, with a possible decreasing trend in C_org/P_org toward the top of the non-glacial succession (Fig. 4, R and S). The analyzed cores show regional distinction in P phase associations, whereby Australian cores (BR05-DD01, Wallara-1, and SCYW-79-1A) are dominated by P_det and subordinate P_auth (Figs. 2, J and T, and 3J), while cores from South China show a lesser P_det contribution relative to P_auth (Fig. 4, J and T). The most distal core (ZK3603) also shows a substantial contribution from P_Fe (Fig. 4T).

DISCUSSION

Tracking the evolution of non-glacial water column and pore water redox conditions

Shelf-to-slope environments in Australia and South China display markedly similar trends in Fe speciation and redox-sensitive trace metal datasets across the transition from syn-glacial to postglacial deposition (Figs. 2 to 4 and figs. S3 to S5). Compiled Fe speciation data from limited syn-glacial shale interbedded with Sturtian-age diamictite in Australia and South China support deposition under equivocal (Fe_HR/Fe_T = 0.22 to 0.38) to anoxic and ferruginous (Fe_HR/Fe_T > 0.38, Fe_py/Fe_HR < 0.60) water column conditions (Figs. 2 to 4), consistent with previous Fe speciation studies (37). Dominantly ferruginous subglacial conditions are also consistent with models for the genesis of syn-glacial Fe formations (32, 37, 38). In the immediate aftermath of Sturtian deglaciation, elevated Fe_HR/Fe_T ratios support anoxic depositional conditions (39) (see the Supplementary Materials for expanded discussion). Elevated Fe_py/Fe_HR ratios and redox-sensitive trace element enrichments support sulfidic pore water conditions in all cores (Figs. 2 to 4 and figs. S4 and S5), and moderate to high Mo_auth concentrations, which require appreciable free sulfide, suggest short-lived intervals of euxinia in some cores (BR05-DD01, Wallara-1, and ZK102; Figs. 2 and 4). Short-lived euxinia at this level is also consistent with available information on the morphology and size distribution of framboidal pyrite in deposits of the Nanhua Basin (40). The close agreement between two independent paleoredox proxies (i.e., Fe speciation and Mo_auth) provides strong support for a robust paleoredox reconstruction (see the Supplementary Materials for expanded discussion). Where Fe_HR/Fe_T is >0.38 and Fe_py/Fe_HR is >0.60, but concentrations of Mo_auth are low to moderate, these data are conservatively interpreted to reflect the development of sulfidic pore waters beneath a ferruginous water column, where Mo enrichment was limited by sulfide availability and/or sedimentation rate (Figs. 2 to 4 and figs. S4 and S5) (41). However, during, and in the immediate aftermath of, Sturtian deglaciation, seawater Mo and U concentrations are highly likely to have been depleted as a consequence of long-term (ca. 56 Ma) trace metal drawdown under dominantly anoxic Snowball ocean conditions and/or intervals of semi-restriction (see fig. S3) (42). For this reason, some core intervals interpreted to record sulfidic pore waters within sediments deposited beneath a ferruginous water column may instead represent deposition beneath a euxinic water column (e.g., Wallara-1; Fig. 2 and fig. S4).

Following the short-lived euxinic/sulfidic interval, shelf-to-slope environments (BR05-DD01, SCYW-79-1A, and ZK102) record a gradual decrease in Fe_HR/Fe_T, Fe_py/Fe_HR, and Mo_auth that together suggest a trend toward less reducing conditions (Figs. 2 to 4). However, elevated Fe_HR/Fe_T (>0.38) in all samples from ZK3603 suggest that anoxia was maintained in the deepest environments throughout the non-glacial interval, with variable Fe_py/Fe_HR (0.43 to 0.77) and generally muted trace metal enrichments implying dominantly ferruginous conditions, with the occasional development of sulfidic porewaters during early diagenesis (Fig. 4 and fig. S5).

The majority of globally distributed successions record gradual shallowing throughout the Cn1 and Cn2 interval (e.g., see Fig. 1F), which may suggest that slow rates of deposition in the immediate aftermath of deglaciation promoted higher relative accumulation of organic carbon in anoxic deep waters, and this was followed by infill of accommodation space and gradual shallowing into less reducing surface to mid-depth waters. However, there are a number of lines of evidence to suggest that the trends in paleoredox data are not controlled solely by changes in a depositional rate. First, though each of our cores shows sedimentological evidence for shallowing, the trends in paleoredox data do not always correspond directly with recorded lithological shifts (see the Supplementary Materials). For example, in core ZK102, the transition from black to gray shale (ca. 1280 m) is not noted to correspond with an increase in mean grain size that may otherwise represent abrupt shallowing and associated depositional rate increase (Fig. 4). Hence, the geochemical trends recorded in underlying strata cannot simply be attributed to an increasing depositional rate. Second, diagenetic models suggest that muted Mo_auth would be expected in intervals of elevated sedimentation rate (41). However, our deepest core (ZK3603), which was likely deposited at the slowest rate when considering total core thickness, lithofacies, and deposition throughout the full non-glacial duration, exhibits persistently low Mo_auth despite Fe_HR/Fe_T > 0.38 and Fe_py/Fe_HR as high as 0.77 (e.g., see Fig. 4, M and N). If increasing sedimentation rates throughout the non-glacial were solely responsible for the observed decrease in Mo_auth in shelf-slope environments then moderate Mo_auth may be expected in deeper settings, where sedimentation rates remained low and pore waters were occasionally sulfidic (e.g., ZK3603), but this is not recorded. Last, a number of independent geochemical proxies have similarly been interpreted to record a transition toward less reducing conditions across this interval, including sedimentary selenium (Se) isotope data in successions of both Laurentia and Australia and Fe isotope data from the Nanhua Basin (43, 44). In sum, trends in the reported geochemical data are most parsimoniously interpreted to represent temporal changes in the extent of reducing conditions rather than shifts associated with depositional rates.

Interrogating the importance of regional redox conditions for the evolution of the non-glacial P cycle

Phosphorus is generally accepted to be the ultimate limiting nutrient for primary productivity on geological time scales (45) with a principal source of phosphate to the marine system being via continental weathering. However, both persistent and transitory changes in marine redox conditions can profoundly alter the degree of syn-depositional and early diagenetic recycling of bioavailable phosphorus from sediments (46–50). The ability of bacteria and archaea to store P is reduced under anoxic conditions (51). Furthermore, microbial sulfate reduction under euxinic water column conditions, or within sulfidic sediment pore waters, promotes the preferential release of P from organic matter and limits the formation of unsulfidized Fe minerals to which P can readily re-adsorb (36, 51, 52). Sulfidic pore water conditions, elevated temperature, and reduced pH may also limit P uptake through inhibition of apatite authigenesis (53). In this way, sulfidic conditions, ocean warming, and acidification all have the potential to supplement nutrient input for primary production in surface waters by driving extensive bioavailable P recycling from sediments (48, 54).

Given that the C_org/P_org of organic carbon delivered to the sediment is expected to approximate the Redfield ratio (106:1; see the Supplementary Materials), molar ratios of C_org/P_org in excess of the Redfield ratio cannot simply occur as a function of elevated organic carbon burial. Instead, molar ratios of C_org/P_org that exceed the Redfield ratio (e.g., see Figs. 2U, 3K, and 4U) indicate preferential P release during the anaerobic remineralization of organic matter, which is commonly particularly intense during microbial sulfate reduction (51). Phosphorus released by this process, and via reductive dissolution of Fe (oxyhydr)oxide minerals, can either be recycled to the water column or fixed in the sediment via “sink-switching” to authigenic phases, either in the form of carbonate fluorapatite, via uptake to Fe (oxyhydr)oxide minerals close to the sediment-water interface, or via precipitation of vivianite ((Fe₃PO₄)_2·8H₂O) (55–58). The degree to which bioavailable P is recycled to the water column relative to organic carbon is indicated by the ratio of C_org/P_reac, whereby values higher than the Redfield ratio suggest P recycling, and values close to the Redfield ratio are indicative of P retention in sediments (see the Supplementary Materials for expanded discussion). C_org/P_reac ratios below the Redfield ratio can result either from additional drawdown of P in association with Fe minerals formed under ferruginous water column conditions [e.g., see (47, 48)] or via extensive aerobic oxidation of organic matter under oxic conditions followed by sequestration of a proportion of the released P in association with microbial biomass (36).

With the exception of some oxic and ferruginous samples from the Amadeus Basin, all C_org/P_org data are elevated relative to the Redfield ratio (Figs. 2U, 3K, and 4U). The highest C_org/P_org values correspond to euxinic/sulfidic depositional conditions (Australia max C_org/P_org = 1,397, South China max C_org/P_org = 11,293). In Australia, C_org/P_reac ratios are commonly lower than the Redfield ratio, implying sedimentary P retention (Figs. 2V and 3L). Here, C_org/P_reac ratios greater than the Redfield ratio (max C_org/P_reac = 315) are generally restricted to sulfidic/euxinic samples from Wallara-1, which also have the highest Mo_auth (Fig. 2, N and V, and fig. S4), consistent with the expected higher degree of P recycling under more sulfidic conditions. Together, and consistent with contemporaneous elevated δ³⁴S_py, this suggests that the degree of bioavailable P recycling from sediments in the Australian basins was limited by the availability of sulfate to promote both microbial sulfate reduction and subsequent Fe (oxyhydr)oxide dissolution. As a result, bioavailable P recycling in Australian sections was restricted to some localized environments that were characterized by short-lived euxinia and/or where pore water sulfide was generated close to the sediment-water interface in the immediate aftermath of Sturtian deglaciation (Wallara-1; Fig. 2V).

In contrast to the Australian record, both drill cores from South China show a clear distinction in C_org/P_reac between oxic and anoxic samples (Fig. 4V). Here, oxic samples yield C_org/P_reac ratios below the Redfield ratio, indicating efficient sedimentary P retention, whereas sulfidic/euxinic samples are dominated by C_org/P_reac ratios that greatly exceed the Redfield ratio (max C_org/P_reac = 771), implying efficient recycling of bioavailable P to the water column (Fig. 4V). While P recycling under sulfidic/euxinic conditions on the shelf-slope (ZK102) was restricted to the interval immediately following Sturtian deglaciation, sulfidic pore water conditions were sufficient to permit a degree of bioavailable P recycling in the deepest basinal environment (ZK3603) throughout the non-glacial interval (Fig. 4V).

Assessing the global response of paleo-marine redox and phosphorus to Sturtian deglaciation

A recent study based on the character of P-bearing minerals and associated thermodynamic modeling of Tonian carbonates was interpreted to reflect an interval of enhanced P concentrations (59). However, the broader significance of this work remains unclear, and given the intense climatic perturbations to the Earth System that occurred in the interim, the coevolution of paleo-marine redox conditions and P cycling during the critical Cryogenian interval also remains unclear and warrants study. During Sturtian deglaciation, marine phosphate concentrations may have been high due to enhanced weathering rates promoted by the high surface area of sediments generated by glacial erosion (60). Furthermore, active rifting associated with the break-up of Rodinia resulted in the development of paleotopography that was highly weatherable (1).

During, and in the immediate aftermath of, Sturtian deglaciation, the primary sources of bio-available P to Australian basinal environments would have been from the chemical weathering of glacial rock flour and exposed Tonian large igneous provinces (61, 62). An additional P source was contributed via bioavailable P recycling under euxinic conditions and from sulfidic sediment pore waters. This interval of relatively efficient P recycling was short-lived in Australian basins, largely as a consequence of limited water column sulfate availability. Elevated δ³⁴S_py in successions of both South China and Australia approach or exceed contemporaneous δ³⁴S_CAS (as recorded in carbonates of the Congo Craton), which likely attest to low-sulfate concentrations in global seawater at the onset of non-glacial deposition (Fig. 5B) (15, 63). The interval of globally extensive sulfidic/euxinic conditions in the immediate aftermath of Sturtian deglaciation (Fig. 5, C and D) would have further reduced oceanic sulfate concentrations via widespread pyrite burial. Dissolved P would also have been supplied to the Nanhua Basin by chemical weathering of glacial rock flour and exposed crust, but our P phase association data suggest that this P input was strongly supplemented by enhanced recycling of bioavailable P from sediments under both euxinic conditions and when sulfidic pore waters existed close to the sediment-water interface (Fig. 6A). An additional source of sulfur from local hydrothermal activity may help explain sustained sulfide availability in the deep Nanhua Basin, despite generally low global marine sulfate concentrations (38).

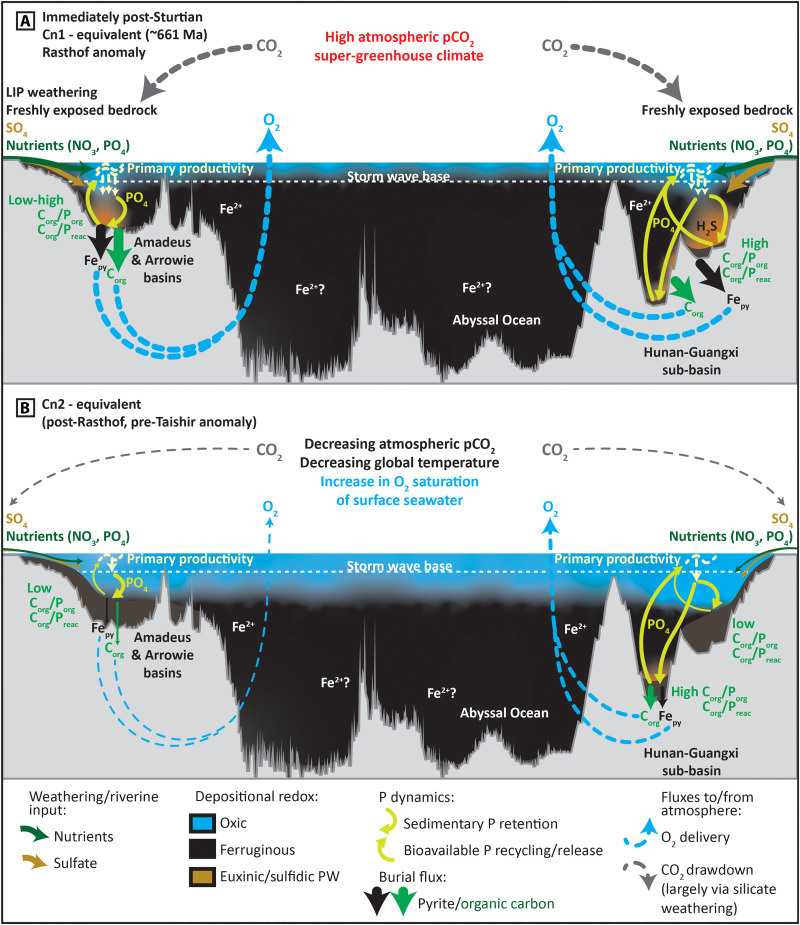

Fig. 6. Schematic dioramas representing proposed marine redox and phosphorus dynamics, in addition to burial fluxes and atmospheric response at two-time slices during the Cryogenian non-glacial interval.

(A) In the immediate aftermath of the Sturtian deglaciation (~661 Ma), and (B) coincident with Cn2, between the Rasthof (Cn1) and Taishir (Cn3) δ¹³C_carb anomalies (poorly constrained time interval <661 Ma to >650 Ma). The thicknesses of individual lines/arrows correspond with the relative magnitude of fluxes. The vertical scale is greatly exaggerated.

The dual source of bioavailable P from primary input and redox-dependent recycling from sediments likely resulted in extensive surface ocean primary productivity and a short-lived, but globally widespread, interval of euxinic/sulfidic depositional conditions. This interval of anoxia has been recognized in multiple regional Fe speciation datasets (full compiled dataset and references in table S1) and is also consistent with reported Mo isotope data (42). The resulting global episode of pyrite and organic carbon burial is evident in the geochemical records of δ³⁴S_py, TOC, and Fe_py/Fe_HR, all of which are elevated (but to a regionally variable degree) approximately coincident with the Rasthof anomaly and the subsequent rising δ¹³C_carb limb approaching Cn2 (Fig. 5, A to D).

The burial of organic carbon and pyrite permits the long-term build-up of oxygen in the atmosphere (64). Furthermore, the solubility of oxygen in seawater is inversely related to temperature, and an increase in the O₂ saturation of surface seawater would therefore have accompanied gradual cooling in the aftermath of initial super-greenhouse conditions (Fig. 5E). Consistent with these observations, our global compilation of Fe speciation data supports a trend toward less reducing water column conditions in shallow to mid-depth environments during gradual cooling in the aftermath of the initial postglacial productivity peak (Figs. 5, C and D, and 6B and table S1). The partial and gradual oxygenation of shallow to mid-depth environments may also be consistent with the relative timing of temporary oxygenation recorded by δ²³⁸U_carb and rare earth element patterns in the lower Taishir Formation of Mongolia (65, 66), as well as trends in Fe isotope data recorded in the Datangpo Formation (44), and Se isotope data recorded in successions from both Australia and Laurentia (43).

We further interrogate the published Fe speciation record (n > 570) by using available sedimentological and lithostratigraphic information, and published facies interpretations from each depositional environment to bin data by relative depositional depth from inner shelf to slope and basin (table S1). Data trends revealed by five-point moving averages of binned Fe speciation data within the compiled age models suggest that (i) the shallowest environments experienced the fastest transition to sulfidic/euxinic conditions during the melting stage of Sturtian deglaciation, (ii) the shallowest environments experienced the fastest transition to less reducing conditions in the aftermath of Sturtian deglaciation, and (iii) the deepest basinal environment in South China remained anoxic throughout the non-glacial interval (Figs. 5, C and D, and 6B). The combined record also hints at the possibility for partial oxygenation of outer shelf-to-slope environments coincident with the Trezona (Cn5) anomaly (Fig. 5C). While numerous uncertainties remain in the relative timings of these transitions between each prescribed paleodepth, all environments from the shelf to slope clearly display the same broad transition to less reducing conditions in the interval from Cn1 to Cn2 (Fig. 5, C and D). Continued redox stratification throughout the non-glacial interval, in addition to regionally sulfidic deep marine deposition under sulfate-limited conditions, is also consistent with the available Mo, δ³⁴S, and δ²³⁸U_carb records (e.g., Fig. 5B and table S1) (42, 66).

In a low-sulfate, post-Sturtian global ocean, the gradual decrease in weathering-derived nutrient and sulfate input would have reduced the shallow marine area conducive to the development of euxinic water column and sulfidic porewater conditions, leading to enhanced sedimentary P retention in shelf environments. Global cooling and decreasing atmospheric pCO₂ may also have led to enhanced apatite authigenesis (53). This was accompanied by a corresponding reduction in the global areal extent of shallow seafloor conducive to bioavailable P recycling, which persisted in lower productivity deep basin environments (Fig. 6B). Even with continued continental P supply, a global decrease in sedimentary P recycling, relative to P retention, limited primary productivity and expanded the area of shallow marine oxic waters. This led to reduced organic carbon and pyrite burial on continental shelves, which may have stalled or slowed continued atmospheric oxygenation. However, positive δ¹³C_carb values recorded during the Cn2 and Cn4 intervals may also imply that organic carbon burial persisted, but that the preservation of organic carbon was largely restricted to the anoxic deeper ocean and in zones of upwelling, consistent with high TOC throughout our deepest analyzed core (Fig. 4K) (14, 67).

Geochemical stabilization and ecological transition during the Cryogenian non-glacial

Untangling cause and effect from the calibrated records of geochemical change and biotic first and last appearances is limited by the fragmentary nature of the paleontological record and the sensitivity of geochemical proxies to capturing ecologically meaningful changes to ecosystem habitability. Hence, we make the following observations based on our current understanding of Cryogenian non-glacial chronology and the available geochemical proxy record.

In the immediate wake of Sturtian deglaciation (Cn1), microfossil records, climate modeling, P phase association, and paleoredox proxy data suggest that a depauperate assemblage of micro-organisms inhabited warm, P-rich, redox-stratified waters, with anoxic and euxinic deeper waters recorded in multiple globally distributed environments (Figs. 1, B, D, and E, and 5). Available biomarker data show a low abundance or even the absence of eukaryotic algae in this interval, and by inference, primary production was most likely dominated by cyanobacteria (Fig. 5H) (2). The associated low sterane/hopane ratios (cholestane only) are recorded through ca. 240 m of strata that are coincident with, and overlie (and thereby postdate), the transition to less reducing conditions recorded by multiproxy geochemical data from the same core (BR05-DD01; Fig. 2) (2). This cyanobacterial-dominated assemblage therefore largely persisted throughout the gradual expansion of less reducing surface to mid-depth waters, during increasing δ¹³C_carb to Cn2 (Figs. 1, B and E, and 5, C and D). While the absolute age for the first appearance of green algal steranes and putative sponge biomarkers remains uncertain, it likely postdates Cn1 (2) and is interpreted herein to have a maximum relative age coincident with the peak of Cn2, corresponding to the temporal position of the upper Aralka Formation recorded by core BR05-DD01 (Fig. 5H).

The delayed rise to dominance of green algae and first appearance of Demospongiae following global postglacial geochemical stabilization may reflect the continued environmental impediment of high sea surface temperatures for mesophilic algae before climate-carbon steady state (Fig. 5E and fig. S1) (2). Because of the dearth of globally distributed biomarker data in this interval, our age model makes the implicit assumption that there was one globally synchronous shift from red algal to green algal primary production. Following Cn3, the latter half of the Cryogenian non-glacial interval documents the first appearance of problematic macrofossils (Fig. 5H) [see, e.g., (31)]. These structures are found in strata that were deposited during a time in which our combined record supports generally stable redox stratification, with oxic to dysoxic (above the reduction potential conducive to the oxidation of ferrous Fe) shallow to mid-depth waters, and largely ferruginous basinal waters. The combined record also hints at the possibility for further pulsed oxygenation associated with the Trezona anomaly (Fig. 5C).

This age model framework, combined with our paleoredox and nutrient data, resolves an intuitive sequence of biotic first appearances relative to attendant climatic and geochemical change. It constrains the rise to dominance of green algae, and the first appearance of putative sponges and problematic macrofossils to an interval characterized by waning continental nutrient delivery. This interval was characterized by increased sedimentary P retention and the global expansion of less reducing, and likely more oligotrophic, inner to outer shelf environments (Figs. 1E and 5, C, D, F, and G). The timing of the maximum first appearance of putative sponges and problematic macrofossils is also consistent with the time scale of silicate weathering and CO₂ drawdown required to convert the inhospitable postglacial super-greenhouse environment to a cooler, habitable climate (Figs. 1D and 5E and fig. S1) (24). Thus, the gradual global stabilization of geochemical environments appears to have set the stage for an increase in biotic diversity and complexity following the Sturtian Snowball deglaciation. The time frame required for environmental stabilization may similarly be responsible for the delayed appearance of complex macrofossils (68) following Marinoan Snowball deglaciation.

MATERIALS AND METHODS

Global chronostratigraphic age model construction

The construction of global age models follows a hierarchical approach by first integrating litho- and δ¹³C_carb chemostratigraphic information section by section into regional composite correlations based on published stratigraphic information. Individual sections are subdivided into units that are interpreted to represent broadly invariant lithofacies based on lithostratigraphy and sedimentology, and sedimentation rates are constant within (but permitted to vary between) each unit. Sedimentation rates are generally consistent with lithofacies (e.g., low rates in units of deeper marine shale and higher rates in units of shallow marine oolitic grainstone). Hiatuses are permitted at surfaces that show evidence of exposure or erosion, or where prior geochronological or geochemical information informs the presence of a cryptic hiatus. We then compare each regional composite to globally distributed datasets to produce global chemostratigraphic age frameworks.

We begin calibrating non-glacial age frameworks by constructing a chemostratigraphic scaffold of established δ¹³C_carb trends from globally distributed carbonate-dominated successions of the Congo Craton, northern Namibia, the Zavkhan terrane of Mongolia, and the Brooks Range of Arctic Alaska (4, 8, 11, 12). The resulting shape of the δ¹³C_carb skeleton, and calibration of ⁸⁷Sr/⁸⁶Sr data from corresponding carbonate samples, is consistent with previous composite profiles developed for this interval (Fig. 1, B and C) (4, 8, 13, 22, 69, 70). This skeleton profile provides a scaffold for calibration of geochemical data from interbedded carbonate-siliciclastic packages that include successions of the Centralian and Adelaide superbasins of Australia, and the Hay Creek Group and Kingston Peak Formation of Laurentia [e.g., see (7, 9, 10, 13)]. In this intermediate step, the ages of clastic units are constrained after visual alignment between δ¹³C_carb data from interbedded carbonates and trends in the global δ¹³C_carb scaffold. This approach thereby calibrates trends in a variety of proxy data from siliciclastic strata (e.g., Fe speciation and δ³⁴S_py) relative to global trends in δ¹³C_carb. Last, we integrate wholly siliciclastic successions [e.g., Greenland, the Nanhua Basin, South China (14, 42)] that lack any δ¹³C_carb tie points but may contain radiometrically dated tuff interbeds [e.g., see (17)], δ¹³C_org, which may or may not correlate with global records of δ¹³C_carb, and geochemical proxy data of regional significance (e.g., Fe speciation). Given the sparsity of available radiometric constraints throughout the non-glacial interval, the absolute ages and durations of some of the resulting global geochemical trends and excursions remain uncertain (see the Supplementary Materials for expanded discussion).

Geochemical methods

To investigate the coevolution of biotic and geochemical records throughout the Cryogenian non-glacial interval, we used independent geochemical proxies that characterize regional water column and pore water paleoredox (Fe speciation and redox-sensitive trace element concentrations), as well as nutrient (P phase association) dynamics. Details of chemical extraction protocols and analytics, alongside detailed data interpretation for each core, are provided in the Supplementary Materials. All data analyzed herein are provided in tables S4 and S5.

Major and trace element concentrations of all samples were measured by inductively coupled plasma optical emission spectrometry and mass spectrometry, respectively, after quantitative HNO₃-HF-HClO₄ digestion. Fe speciation was performed after the established methodology of Poulton and Canfield (71) to extract operationally defined Fe phases, including Fe associated with carbonates (Fe_carb), ferric oxides (Fe_ox), magnetite (Fe_mag), and pyrite (Fe_py). The sum of these Fe pools constitutes the proportion of Fe that is considered highly reactive (Fe_HR) toward dissolved sulfide (72, 73). Ratios of Fe_HR/Fe_T > 0.38 support Fe_HR enrichment and deposition under anoxic bottom water conditions, whereas values of <0.22 indicate deposition from oxic bottom waters (39). The intermediate range of 0.22 to 0.38 is regarded as equivocal because of the possibility for rapid sediment deposition or early diagenetic transformation of unsulfidized Fe_HR to poorly reactive sheet silicate minerals (39). For anoxic samples (Fe_HR/Fe_T > 0.38), the degree of sulfidation of the Fe_HR pool can be used to distinguish ferruginous (Fe_py/Fe_HR < 0.7) from euxinic (Fe_py/Fe_HR > 0.8) conditions, with an intermediate zone ascribed to “possible euxinia” (39). Recent analyses of Holocene sapropels and the euxinic Lake Cadagno indicate that Fe_py/Fe_HR > 0.6 may be a more suitable threshold for distinguishing ferruginous from possible euxinic conditions (74). We interpret possible euxinia in our study cores through a combination of Fe_HR/Fe_T > 0.38 and Fe_py/Fe_HR > 0.6, with additional corroborating evidence from authigenic trace element (Mo, U, and Re) enrichments (calculations and screening criteria detailed in table S2).

Selected shale samples from each core were analyzed for pyrite sulfur isotopes (δ³⁴S_py), TOC, organic carbon isotopes (δ¹³C_org), and P phase associations. The P measurements use a sequential extraction method to distinguish the proportion of total P (P_Tot) associated with detrital apatite (P_det) relative to potentially bioavailable and reactive (P_reac) minerals, including Fe (oxyhydr)oxides (P_Fe), organic matter (P_org), and authigenic carbonate fluorapatite, biogenic apatite, and CaCO₃-bound P (P_auth) (75, 76).

Supplementary Materials

This PDF file includes:

Supplementary Text

Figs. S1 to S8

Legend for table S1

Tables S2 to S5

References

Other Supplementary Material for this manuscript includes the following:

Table S1

Correction 1 November 2023:

fter publication, the authors noted that in the 13th column of table S4 in the Supplementary Materials, “ppm” should be corrected to “ppb”. This has been corrected and the Supplementary Materials has been updated. The original version is available here:
