MultiGML: Multimodal graph machine learning for prediction of adverse drug events

Abstract

Adverse drug events constitute a major challenge for the success of clinical trials. Several computational strategies have been suggested to estimate the risk of adverse drug events in preclinical drug development. While these approaches have demonstrated high utility in practice, they are at the same time limited to specific information sources. Thus, many current computational approaches neglect a wealth of information which results from the integration of different data sources, such as biological protein function, gene expression, chemical compound structure, cell-based imaging and others. In this work we propose an integrative and explainable multi-modal Graph Machine Learning approach (MultiGML), which fuses knowledge graphs with multiple further data modalities to predict drug related adverse events and general drug target-phenotype associations. MultiGML demonstrates excellent prediction performance compared to alternative algorithms, including various traditional knowledge graph embedding techniques. MultiGML distinguishes itself from alternative techniques by providing in-depth explanations of model predictions, which point towards biological mechanisms associated with predictions of an adverse drug event. Hence, MultiGML could be a versatile tool to support decision making in preclinical drug development.

1. Introduction

Adverse drug events (ADEs) are defined as an injury resulting from the use of a drug, including harm caused by the drug (adverse drug reactions and overdoses) and harm from the use of the drug (including dose reductions and discontinuations of drug therapy) [1]. Noteworthy, the appearance of an ADE can be associated with the choice of the primary target protein or properties of the chemical structure of a drug. Experimental approaches to address potential ADEs (e.g. liver-toxicity) based on animal and tissue models are well established in pharma research. Yet, results obtained in such model systems may not always reflect the situation in humans, and there are ethical concerns regarding the use of animal models. Furthermore, reliable model systems do not exist for all indication areas. Computational approaches which model relevant aspects of human biology could bridge this gap and provide supportive information regarding potential ADE prediction. Hence, there is a strong interest in computational strategies. Computational ADE prediction has been tackled with the help of several data sources, such as human genetics [[2], [3], [4]], chemical structures [[5], [6], [7], [8], [9], [10]], high-throughput literature mining [11], gene expression data [12,13], protein sequences [14], electronic health records [15] and data from electronic pharmacovigilance systems such as the FDA Adverse Event Reporting System [16]. While each of these approaches have their own merits, they also come along with unavoidable limitations: For example, genetic variants associated with a certain phenotype may not be identifiable in genome-wide association studies due to lack of statistical power. Chemical compound structure can inform about binding affinity to a given target, but does not cover the question whether the choice of a specific target should per se raise safety concerns due to the expected biological downstream consequences. Electronic health records can inform about real-world post-marketing aspects of drugs, but have limited utility in the preclinical drug development phase due to the lack of quantitative biological data.

An alternative strategy is to use biological networks, which represent a rich resource of relational information. In this context knowledge graphs (KGs) have become popular due to their ability to accurately represent multiple types of relationships between different entities [[17], [18], [19]]. That means KGs are multi-relational graphs with entities as nodes and their relations as edges. Relations are represented as triples of (source entity, relation type, target entity). KGs often incorporate a variety of heterogeneous information in the form of different node and edge types. In recent years, numerous knowledge graphs have been published such as OpenBioLink [20], Hetionet [21], PharmKG [22] or CTKG [23], a knowledge graph on clinical trials. These comprehensive KGs contain a variety of entity types and relation types which model biology as accurately as possible and can be applied to multiple tasks due to their versatile design.

From a network-perspective, ADE prediction can be formulated as a link prediction task in a KG, either between a compound and an unwanted phenotype, or between a drug target and a phenotype. Earlier approaches extracted manually crafted features of the topology of the KG by using the neighborhood information of each node [24] or by extracting local information indexes and path information [25]. Other authors used an enrichment test of known causes of ADEs to construct features that were subsequently employed in a machine learning algorithm [26]. Another network-based approach used structural information of the drug molecules for a logistic regression model [27]. As interactions between co-prescribed drugs are also a possible cause of ADEs [28], the prediction of drug-drug interactions has been the focus of several approaches. For that purpose, similarity measures [29] and representative KG embeddings of chemical drug structures via neural networks [30] have been used in prediction approaches. Other authors proposed network representation learning techniques and graph regularized matrix factorization for predicting ADEs of individual drugs [31,32]. Also, ensembles of several learning techniques have been tested [33].

From a methodological point of view, link prediction in KGs can be addressed by first learning an embedding of the graph structure in Euclidean space. Essentially, the KG embedding is a low-dimensional representation which captures key information about entities and their relations. Typically, entities with similar embeddings are also similar in the original space. Hence, we can assess the likelihood that two entities should be connected by a relation type. In addition to established network representation learning methods such as TransE [34], ComplEx [35], DistMult [36], RotatE [37], DeepWalk [38] and node2vec [39], graph neural networks (GNNs) have emerged as an efficient machine learning method. GNNs were first introduced by Scarselli et al. [40]. Subsequently, graph convolutional neural networks (GCNs) [41] and graph attention networks (GATs) [42] were developed as variants of GNNs. GNNs have been successfully applied to various tasks in network analytics, including clustering [43] and disease classification [44], prediction of molecular fingerprints [45] and protein interfaces [46], as well as prediction of drug-protein interactions [47] and poly-pharmacological side effects [48]. A GNN has also been used on a drug-disease graph for ADE prediction [49]. This approach has been further developed by combining two GNNs for graph and node embedding in a hybrid approach to predict ADEs via a matrix completion process [50]. Recently, a graph convolutional autoencoder approach coupled with an attention mechanism has been suggested, leveraging the pairwise attributes for drug-related ADE prediction in a heterogeneous graph [51].

A limitation of these existing KG focused approaches is that they neglect any orthogonal information, including genetic associations, chemical compound structure, gene expression signatures and cell morphology changes. The aim of this paper is thus to address limitations of previous work by developing a Graph Machine Learning approach, which integrates biological networks, genetic variant to phenotype association, gene expression, cell based imaging, protein sequence information, clinical concept embeddings as well as chemical compound fingerprints into one end-to-end trainable algorithm. The idea is thus to integrate a large number of potentially relevant sources of evidence to predict potential ADEs that could occur during clinical trials. Consequently, well-informed ADE predictions could reduce the risk of late and costly failures [52]. To do so, we built a dedicated KG and designed a novel GNN architecture tailored for ADE prediction. The KG consists of multi-relational and heterogeneous information collected from 14 different databases. The KG is enriched with multi-modal features for each node in order to capture various relevant biomedical data in addition to graph topology. As opposed to state-of-the-art approaches, our proposed MultiGML model is thus designed to integrate multi-modal and in particular also quantitative input data (e.g. gene expression). We demonstrate the superior prediction performance of our approach by comparing it with several state-of-the-art models. Moreover, we introduce a technique to make model predictions explainable, which is crucial in the context of an application in the early phases of drug development. Based on a number of examples we show that our method in this way allows for pointing towards the biological mechanisms associated with a given ADE prediction. Finally, we provide literature evidence for some of the predictions made by our GNN method. The source code and the Python package of MultiGML is available on GitHub (https://github.com/SCAI-BIO/MultiGML).

2. Results

2.1. Link prediction performance

In the following, we show the prediction performance of our MultiGML models compared to various competing methods for link prediction in KGs. We first evaluated MultiGML for the task of predicting any link in the KG and second for the more specific task of adverse drug event prediction. Regarding the task of general link prediction, our MultiGML-RGCN model reached a performance of 0.808 area under precision recall curve (AUPR), and the MultiGML-RGAT model reached an AUPR of 0.798, both outperforming all competing methods (Table 1) by at least ∼5%. These results show the superiority of our graph neural network-based architecture compared to more shallow knowledge graph embedding techniques. When using a randomly initialized vector embedding instead of the multi-modal feature embedding (i.e. essentially only learning from the graph topology), there is only a slight decrease in performance. That means, our MultiGML models already allowed us to reach a high prediction performance by the graph structure alone, which could be further enhanced by adding multi-modal node features.

Table 1.

Model performance results for general relation prediction. The table shows the test results of several competing KG embedding methods, including TransE, RotatE, ComplEx, DistMult, DeepWalk and node2vec, as well as our two tested MultiGML model variants. Best results are marked in bold. Both RGCN and RGAT variants of the MultiGML model were tested with two types of input features. The model variant “multimodal” refers to the use of several modalities for each node type described in section 3.1.2. In the model variant “basic” all input features have been initialized with the Xavier-Glorot method, i.e. the model effectively learns from the topology only.

Model	AUROC	AUPR
TransE	0.667	0.633
RotatE	0.793	0.759
ComplEx	0.757	0.699
DistMult	0.765	0.696
DeepWalk	0.648	0.622
Node2Vec	0.807	0.794
MultiGML-RGCN (basic)	0.847	0.787
MultiGML-RGAT (basic)	0.843	0.793
MultiGML-RGCN (multimodal)	0.859	0.808
MultiGML-RGAT (multimodal)	0.845	0.798

We focused subsequently on the task of predicting links between compounds and ADEs. For that purpose we employed a version of our MultiGML model for which we specifically optimized hyperparameters on the validation set with respect to the loss for this specific relation type. Once again, all MultiGML variants performed better than all competing methods with AUROC and AUPR close to 1 (Table 2). TransE performed very poorly on the ADE prediction task, which could result from the limitations that this approach has to model complex relations, such as one-to-many, many-to-one, many-to-many, which can occur especially in the context of drugs and phenotypes. Performance gains were highly significant compared to the Random Forest approach by Wang et al. Notably, reported performance measures were based on the negative sampling scheme explained in section 3.3.1. When increasing the ratio of negative samples in the test set from 1:1 to 1000:1 AUROC and AUPR remained stable (see Suppl. Fig. 1).

Table 2.

Model performance results for predicting a novel relation between a drug and an ADE. Test results of competing KG embedding methods, including TransE, RotatE, ComplEx, DistMult, DeepWalk, node2vec and additionally Random Forest for adverse drug event prediction in comparison to our MultiGML models. Best results are marked in bold. Both MultiGML-RGCN and -RGAT variants were tested with basic and multimodal input features. The model variant “multimodal” refers to the use of several modalities for each node type described in section 3.1.2. In the model variant “basic” all input features have been initialized with the Xavier-Glorot method, i.e. the model effectively learns from the topology only.

Model	AUROC	AUPR
TransE	0.293	0.389
RotatE	0.943	0.915
ComplEx	0.884	0.934
DistMult	0.963	0.966
DeepWalk	0.575	0.604
Node2Vec	0.504	0.505
Random Forest	0.512	0.164
MultiGML-RGCN (basic)	1.0	1.0
MultiGML-RGAT (basic)	1.0	1.0
MultiGML-RGCN (multimodal)	1.0	1.0
MultiGML-RGAT (multimodal)	0.980	0.982

Next, we evaluated the model performance for predicting links between genes and phenotypes, which would be of relevance in the context of target selection. For this purpose we used our MultiGML models which were trained for general link prediction. Once again all variants of the MultiGML model outperformed competing methods with AUROC ∼0.89 and AUPR ∼0.83 (Table 3). Even though these models were not optimized for the given task, they still achieved a high prediction performance which reflects that they are not trained to be biased towards any kind of relation type and advocates for a strong generalizability of the models.

Table 3.

Model performance results for predicting a novel gene - phenotype association. Test results of competing KG embedding methods, including TransE, RotatE, ComplEx, DistMult, DeepWalk and node2vec for prediction of a gene - phenotype association in comparison to our MultiGML models. Both MultiGML-RGCN and -RGAT variants were tested with basic and multimodal input features.The model variant “multimodal” refers to the use of several modalities for each node type described in section 3.1.2. In the model variant “basic” all input features have been initialized with the Xavier-Glorot method, i.e. the model effectively learns from the topology only.

Model	AUROC	AUPR
TransE	0.735	0.674
RotatE	0.723	0.680
ComplEx	0.843	0.770
DistMult	0.848	0.767
DeepWalk	0.654	0.630
Node2Vec	0.793	0.781
MultiGML-RGCN (basic)	0.898	0.832
MultiGML-RGAT (basic)	0.897	0.831
MultiGML-RGCN (multimodal)	0.897	0.832
MultiGML-RGAT (multimodal)	0.892	0.826

As a further analysis, we explored which feature modalities contributed most to our model's predictions. Notably, in both MultiGML variants, available protein and drug features played an important role, i.e. were selected during the hyperparameter optimization (see Suppl. Fig. 2). More specifically, the molecular fingerprint of the drugs as well as the gene ontology fingerprint of the proteins were found to be the best choices of node features for the prediction of ADEs with our MultiGML models. Additionally, gene expression signatures of drugs were identified as relevant. When replacing these node features by randomly initialized vectors the performance of MultiGML variants did not suffer significantly, i.e. the graph topology contributed most of the relevant information. Despite this finding, we would like to point out that the inclusion of multimodal node features could enhance the interpretation of models, as shown later.

Altogether our results indicate that MultiGML demonstrates superior prediction performance compared to baseline methods for the prediction of adverse event prediction and general phenotypes.

2.2. Use cases

To illustrate the practical use of our MultiGML method we further explored two newly predicted links between drugs and ADEs that were not part of the KG. Furthermore, we show an example of a newly predicted gene - phenotype association. All links have been predicted with probability >70% by MultiGML-RGAT.

2.2.1. Acute liver failure as a predicted adverse drug event of alendronic acid

MultiGML predicted a link between alendronic acid (DRUGBANK:DB00630), a bisphosphonate, and acute liver failure (UMLS:C0162557). Alendronic acid is used to prevent and treat osteoporosis [53], and was found to cause liver damage in a patient that was in treatment for osteoporosis [54]. Alendronic acid is also listed in the NIH LiverTox lexicon as a “rare cause of clinically apparent liver injury” [55].

To better explain the prediction by our model we investigated the attention coefficients calculated by the attention mechanism and the feature importances obtained via integrated gradients. First, we extracted the attention weights for all relations involving acute liver failure and alendronic acid of the MultiGML-RGAT model of the last graph attention layer (see Fig. 1 A). Several relations between alendronic acid and proteins, including two tyrosine phosphatases, PTPRS and PTPN4, and the phenotype Paget's Disease (UMLS:C0029401), were weighted higher than all other direct relations by the MultiGML-RGAT model. Indeed, alendronic acid is used to treat Paget's Disease of bone, also known as Osteitis Deformans [56] by inhibiting tyrosine-protein phosphatases [53]. Protein tyrosine phosphatase receptor type S (PTPRS) acts as a metastatic suppressor in hepatocellular carcinoma [57] and was found dysregulated in cirrhotic liver [58]. PTPN4 belongs to the same family of proteins and has accordingly been reported as a prognostic marker for hepatocellular carcinoma [59].

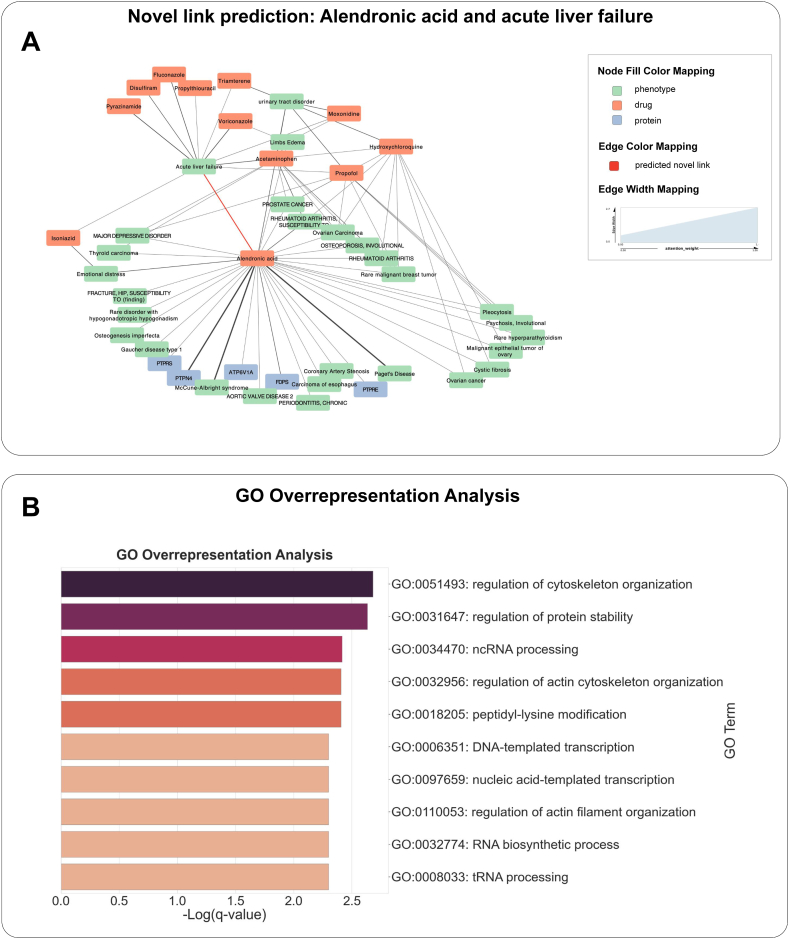

Fig. 1.

Prediction of acute liver failure as an ADE for alendronic acid. A) Novel prediction of acute liver failure (UMLS:C0162557) as a potential ADE of alendronic acid (DRUGBANK:DB00630) in the KG, colored in red. The attention weight for every edge from the last MultiGML-RGAT graph attention layer is indicated by the edge strength. B) GO overrepresentation analysis of the top 100 genes from the L1000 drug signature identified via the integrated gradients method. Top 10 enriched terms (one per cluster) created with Metascape. -Log₁₀(q) - values are reported and color coded for each term.

To better understand the prediction by our MultiGML model, we investigated the importances of the input features by using the integrated gradients method [60]. We focused on the gene expression signature of alendronic acid in our analysis. More specifically, we identified the top 100 influential genes of the L1000 gene expression signature of this drug. Next, we performed a Gene Ontology (GO) overrepresentation analysis via a hypergeometric test. After multiple testing correction, according to the Benjamini-Hochberg method and choosing a false discovery rate cutoff of 5% we identified the biological pathways that the most influential genes of the gene expression signature were enriched in. We found that regulation of the cytoskeleton organization and protein stability were important for the prediction of acute liver failure as an adverse drug event of alendronic acid (see Fig. 1 B, Suppl. Table 1). A comprehensive list of the top 100 positively and negatively attributed genes can be found in the Supplementary Material (Suppl. Table 2).

2.2.2. Paralysis as a predicted adverse drug event of kanamycin

Kanamycin (DRUGBANK:DB01172), which is an aminoglycoside bactericidal antibiotic [53], was predicted to be associated with a paralytic side effect (UMLS:C0522224). Kanamycin is used to treat a wide variety of bacterial infections [53]. In several studies, Kanamycin was reported to be neurotoxic and induce neuromuscular paralysis or blockades [[61], [62], [63]]. More recent studies with organoids suggested a damaging effect on early postnatal but not on adult ganglion neurons [64]. Indeed, ototoxicity of kanamycin is a significant dose-limiting side effect [65].

As done previously, we extracted the attention weights for all relations involving kanamycin and paralysis of the MultiGML-RGAT model of the last graph attention layer (see Fig. 2 A). Of all direct relations, the relation between the drug cyclopentolate and the phenotype paralysis was weighted higher than all other direct relations by the MultiGML-RGAT model. Cyclopentolate (DRUGBANK:DB00979) is an anticholinergic agent used to dilate the eye for diagnostic and examination purposes [53]. Additionally to inducing mydriasis - the dilation of the pupil -, cyclopentolate also causes reversible paralysis of the ciliary muscle by blocking muscarinic receptors [66].

Fig. 2.

Prediction of paralysis as an ADE for kanamycin. A) Novel prediction of paralysis (UMLS:C0522224) as potential ADE of kanamycin (DRUGBANK:DB01172) in the KG, colored in red. The attention weight for every edge from the last MultiGML-RGAT graph attention layer is indicated by the edge strength. B) GO overrepresentation analysis of the top 100 genes from the L1000 drug signature identified via the integrated gradients method. Top enriched terms created with Metascape. -Log₁₀(q) - values are reported and color coded for each term.

We again investigated which genes from the gene expression signature of kanamycin were found to be important for the prediction by the integrated gradient analysis. We performed a GO overrepresentation analysis of the top 100 genes via a hypergeometric test (see Fig. 2 B, Suppl. Table 3), reporting the Benjamin-Hochberg adjusted p-value (q-value) for multiple testing. As a result, we found that biological processes involved in metabolism and responses to stimuli were significantly overrepresented in the most influential genes of the gene expression signature of kanamycin. Altogether, this demonstrates the ability of our method to point towards biological mechanisms associated with ADEs. A comprehensive list of the top 100 genes can be found in the Supplementary Material (Suppl. Table 4).

2.2.3. Association of WNT3 with thrombophlebitis

WNT3 (HGNC:12782) is a gene that is part of the Wnt signaling pathway (KEGG:hsa04310) in humans. Wnt proteins are secreted morphogens that are required for basic developmental processes, such as cell-fate specification, progenitor-cell proliferation and the control of asymmetric cell division, in many different species and organs [67]. Our MultiGML-RGAT model predicted an association between WNT3 and Thrombophlebitis (UMLS:C0040046). Thrombophlebitis is an inflammation of a vein associated with a blood clot [68]. Several studies suggest that WNT signaling has a regulatory role in inflammation [69], is involved in the calcification of vascular smooth muscle cells [70], and that it is a key player in the development of vascular disease, including thrombosis [71]. A recent study on endothelial injury has shown protective effects of Wnt signaling [72]. More specifically, attenuated apoptosis and exfoliation of vascular endothelial cells and infiltration of inflammatory cells was observed upon activation of the Wnt/beta-catenin pathway.

In Fig. 3, we display the novel link of WNT3 to thrombophlebitis in the knowledge graph together with the attention weights learned by our MultiGML-RGAT model. Several relations between WNT3 and other proteins were attributed a high attention weight, including insulin (INS), LRP6, as well as their relations with other proteins, FZD4, FZD7, FZD9, SFRP2 with INS and FZD10 with LRP6. Betamethasone and its relation to thrombophlebitis as an ADE was also attributed with a high attention weight. Associations between the phenotypes essential thrombocythemia (UMLS:C0040028) and rare diabetes mellitus (UMLS:C5681799) with insulin were also much attended by the model. The association between thrombosis, vascular inflammation and diabetes in relation with insulin resistance has been observed in many studies [73,74]. A modulation of the interaction of the insulin and Wnt signaling has even been proposed as an attractive target in treating diabetes [75], and could potentially have a role in mediating the effect of inflammatory conditions affecting the vascular system, such as thrombophlebitis. Despite this supporting evidence it should be highlighted that the exact link between WNT3 and thrombophlebitis is new and requires further clinical or experimental validation.

Fig. 3.

Prediction of thrombophlebitis as a phenotype associated with WNT3. Novel prediction of thrombophlebitis (UMLS:C0040046) associated with WNT3 (HGNC:12782) in the KG, colored in red. The attention weight for every edge from the last MultiGML-RGAT graph attention layer is indicated by the edge strength.

3. Materials and methods

3.1. Multi-modal knowledge graph generation

3.1.1. Integration of biomedical knowledge from databases

We integrated information from 14 well-established databases to generate an heterogeneous KG (see Table 4). Our KG contains information about interactions and associations between drugs, proteins, and phenotypes. We introduce the node type ‘phenotype’ to resolve the ambiguity between ADEs and diagnoses. That means ADEs and diagnoses are both subsumed as ‘phenotype’. As a result, we generated a heterogeneous and multi-relational KG with 3 different entity types and 8 different relation types (see Fig. 4A). It contains 20,930 nodes and 420,072 relations (see Table 5 Table 6). The relation types that occur in the KG are drug-protein, protein-phenotype, genetic variant-phenotype, drug-adverse drug event and 3 different types of protein-protein interactions (physical interaction, functional interaction and signaling interaction). The knowledge graph is formally defined as $G=\left(V,L\right)$, with $V$ as entities, and $L$ as relations.

Table 4.

Source databases for knowledge graph generation. The databases that were used as a resource for building the heterogeneous and multi-relational knowledge graph in section 3.1. Are listed here with their total counts of relations that were selected.

Database	Count	Publication
BioGRID	102447	[76]
Clinical Trials	7626	[77]
DisGeNET	5448	[78]
DrugBank	10072	[53]
IntAct	23055	[79]
IUPHAR-DB	2379	[80]
KEGG	63356	[67]
NeuroMMSig	1761	[81]
OffSIDES	62	[82]
Open Targets	5222	[83]
Pathway Commons	32928	[84]
PheWAS Catalog	159202	[85]
Reactome	6379	[86]
SIDER	135	[87]

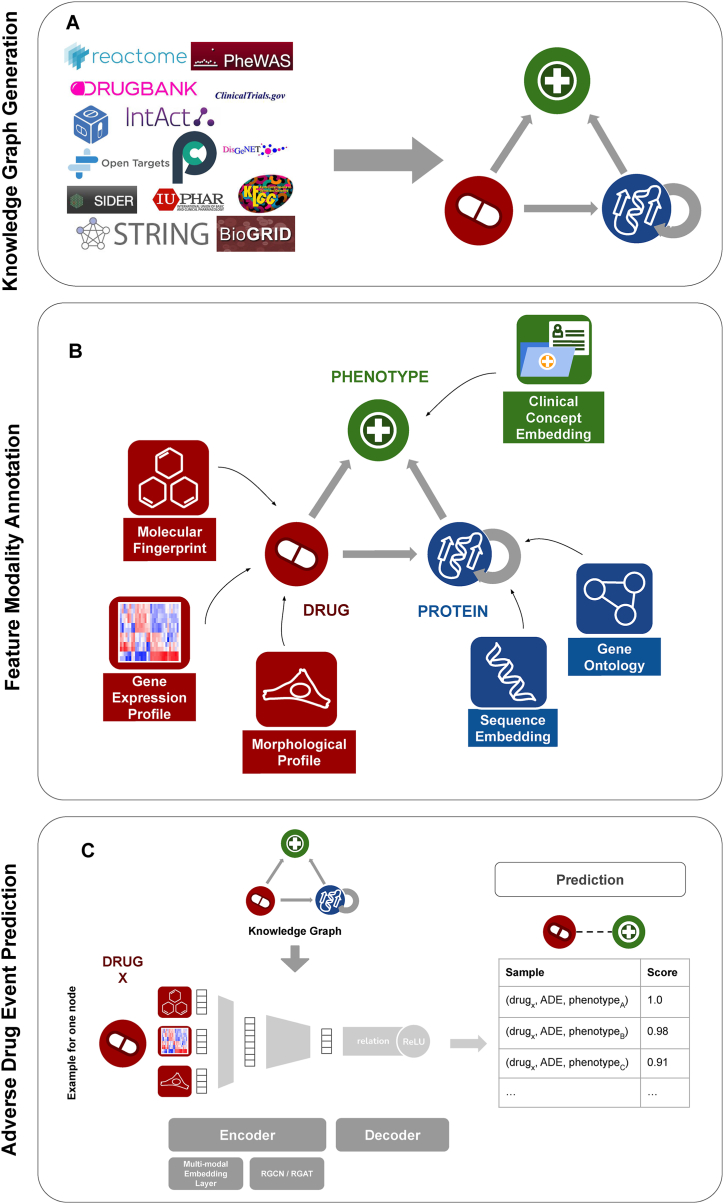

Fig. 4.

Overview of workflow. A) Knowledge Graph compilation. In the first step of data processing, interaction information from 14 biomedical databases was parsed with data on drug-drug interactions, drug-target interactions, protein-protein interactions, indication, drug-ADE and gene-phenotype associations. The data was harmonized across all databases and a comprehensive, heterogeneous, multi-relational knowledge graph was generated. B) Feature definition. Descriptive data modalities were selected to annotate entities in the knowledge graph. Drugs were annotated with their molecular fingerprint, the gene expression profile they cause, and the morphological profile of cells they induce. Proteins were annotated with their protein sequence embedding and a gene ontology fingerprint. Phenotypes, comprising indications and ADEs, were annotated by their clinical concept embedding. C) Proposed MultiGML approach. The heterogeneous Knowledge Graph with its feature annotations is used as the input for our graph neural network approach, the MultiGML. For each node entity, a multi-modal embedding layer learns a low dimensional representation of entity features. These embeddings are then used as input for either the RGCN or RGAT of the encoder (see section 3.2.1), which learns an embedding for each entity in the KG. A bilinear decoder takes a source and a destination node, drug X and several phenotypes A, B and C in the example here, and produces a score for the probability of their connection, considering their relation type with each other.

Table 5.

Overview of entities in the knowledge graph.

Entity Type	Count
phenotype	16,560
drug	2378
protein	12,953

Table 6.

Overview of relation types in the knowledge graph.

Relation Type	Count
drug-adverse drug event	197
functional protein-protein association	1761
protein-phenotype	5448
physical protein-protein interaction	6087
drug-protein	12,451
drug-indication	12,848
genetic variant-phenotype	159,202
protein-protein signaling interaction	222,078

Interaction information between approved drugs and their protein targets was taken from DrugBank [53] and IUPHAR [80]. Associations between proteins and indications (here: phenotypes) with a high confidence score >0.6 were extracted from DisGeNet [78] and specific gene-phenotype associations from PheWAS [85], with an odds-ratio >1. Drug indications for diseases were obtained from OpenTargets [83] and ClinicalTrials [77]. Protein-protein interactions were gathered from renowned databases, including KEGG [67,88], Reactome [86], BioGRID [76], IntAct [79], PathwayCommons [84] and NeuroMMSig [81]. The OFFSIDES database [82] as well as the renowned SIDER database [87] were used to extract known ADEs of drugs (see Table 4).

Because more severe ADEs tend to increase the risk for a drug to fail in clinical trials or be withdrawn from the market, the following heuristic was employed to filter out more severe ADEs from the information contained in the aforementioned databases: first, we designed a novel metric called the failure ratio, which we computed for each phenotype in the graph which served as a target node in an “adverse drug event” edge. The failure ratio is defined in Equation (1). Given the number of trials in which a given phenotype is listed as an “adverse drug event” on ClinicalTrials.gov, the failure ratio is equal to the proportion of these trials which were suspended, terminated, or withdrawn. All phenotypes with a failure ratio greater than 0.75 among at least 3 trials were chosen to be used for the graph. This resulted in nearly two hundred ADE relations, approximately 0.1% of the unique ADE between SIDER and OFFSIDES, which were subsequently added to the KG. All identifiers and interaction types were harmonized across all databases (Fig. 4 A). A complete overview about the entity and relation types in the KG is provided in Table 5, Table 6.

$$Failureratio=(Trialswithconditionas"adverseevent"ANDsuspended,terminatedorwithdrawn)/(Totaltrialswithconditionas"adverseevent")$$ (1)

3.1.2. Definition of entity related features

The integration of multiple biologically, chemically and medically relevant modalities into a knowledge graph enriches the information quality of the graph. This enrichment may subsequently be beneficial for downstream link prediction tasks as well the post-hoc explanation of neural network models. Therefore, we decided to incorporate multiple feature modalities in our dataset (see Fig. 4 B). We chose modalities that were descriptive for the individual entity type, and generated features for each entity type as described below:

• ●DRUGS: Transcriptomics data are informative about the effect of a drug on biological processes in a defined system of a cell culture experiment. A molecular signature can therefore be generated for each drug, measuring the gene expression fold change of selected transcripts. We chose the LINCS L1000 dataset [89] to annotate the drugs with gene expression profile information. More specifically, we retrieved the consensus signatures calculated by Himmelstein et al. [21,90]. The background is that each LINCS compound may have been assayed across multiple cell lines, dosages and replicates. Himmelstein et al. thus estimated a single consensus transcriptional profile across multiple signatures.

The effects of a drug perturbation in a cell culture experiment can not only be seen in the gene expression fold change, but also in the change in morphology of the treated cells. Therefore, we additionally annotate the drug with the Cell Painting morphological profiling assay information from the LINCS Data Portal (LDG-1192: LDS-1195) [91].

Furthermore, the molecular structure of the drugs was also taken into account by generating the molecular fingerprints. We here took the Morgan count fingerprint [92] with a radius = 2, generated with the RDKit [93].

• ●PROTEINS: We used structural information of proteins in form of protein sequence embeddings. We generated the embeddings for each protein with the ESM-1b Transformer [94], a recently published pre-trained deep learning model for protein sequences.

In addition, we generated a binary Gene Ontology (GO) fingerprint for biological processes for each protein using data from the Gene Ontology Resource [95,96]. A total of 12,226 human GO terms of Biological Processes were retrieved and their respective parent terms obtained. This resulted in a 1298 dimensional binary fingerprint for each protein, with each index either set to 1, if the protein was annotated with the respective GO term or 0 if not.

• ●PHENOTYPES: Medical concept embeddings from Beam et al. [97] were used to annotate phenotypes including ADEs and indications. The so-called cui2vec embeddings were generated on the basis of clinical notes, insurance claims, and biomedical full text articles for each clinical concept. Briefly, the authors mapped ICD-9 codes in claims data to UMLS concepts and then counted co-occurrence of concept pairs. After decomposing the co-occurrence matrix via singular value decomposition, they used the popular word2vec approach [98] to obtain concept embeddings in the Euclidean space. We refer to Beam et al. for more details.

3.2. Graph neural network architecture

MultiGML consists of two main structures, an encoder and a decoder. The encoder has two main components which create a low-dimensional embedding of each node in the KG (see section 3.2.1.). Due to its design, the encoder can handle multimodal input data. The second part of the model decodes edges from node embeddings with a bilinear form (see section 3.2.2.). The entire model architecture is shown in Fig. 4C and discussed in more detail in the subsequent paragraphs.

3.2.1. Encoder

3.2.1.1. Multi-modal embedding of node features

Due to the multi-modal character of our KG, we require a model that can integrate input features of multiple modalities for one node into the message passing. To do so, we implemented a specific architecture based on our previous work [99] that combines representations from different data modalities (Fig. 5).

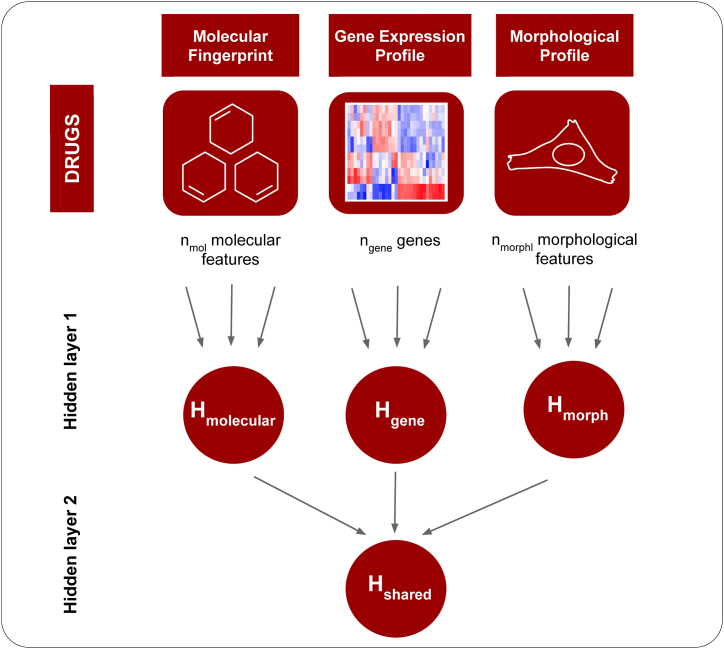

Fig. 5.

Multi-modal embedding (example of drug input): Each drug is represented by $\mathit{f}$ different feature modalities, which are fed into a multi-modal neural network with bottleneck architecture. That means ${\mathit{H}}_{\mathit{m}\mathit{o}\mathit{l}\mathit{e}\mathit{c}\mathit{u}\mathit{l}\mathit{a}\mathit{r}},{\mathit{H}}_{\mathit{g}\mathit{e}\mathit{n}\mathit{e}},{\mathit{H}}_{\mathit{m}\mathit{o}\mathit{r}\mathit{p}\mathit{h}}$ are the output of dense feed-forward layers, each having ${\mathit{k}}_{\mathit{r}}/\mathbf{2}$ hidden units, where ${\mathit{k}}_{\mathit{r}}$ is the number of original input features for data modality $\mathit{r}$. ${\mathit{H}}_{\mathit{s}\mathit{h}\mathit{a}\mathit{r}\mathit{e}\mathit{d}}=\left({\mathit{H}}_{\mathit{m}\mathit{o}\mathit{l}\mathit{e}\mathit{c}\mathit{u}\mathit{l}\mathit{a}\mathit{r}}\Vert {\mathit{H}}_{\mathit{g}\mathit{e}\mathit{n}\mathit{e}}\Vert {\mathit{H}}_{\mathit{m}\mathit{o}\mathit{r}\mathit{p}\mathit{h}}\right)$ represents the multi-modal embedding.

In a nutshell, this multimodal embedding learns hidden representations of each modality separately in the first densely connected layer. The hidden feature representations are then concatenated and passed to a second densely connected layer to generate a shared multimodal embedding for each entity $v$ in the KG: Let $x_1,x_2,...,x_k$ denote the $k$ feature vectors of dimensions $d_1,d_2,...,d_k$ associated to entity $v$. The embedding $H_{shared}$ (see Equation (2)) is therefore learned as follows:

$$H_{shared}=\sigma \left(W_{multi}\left(\sigma \left(W_1\left(x_1\right)\right)\Vert \sigma \left(W_2\left(x_2\right)\right)\Vert ...\Vert \sigma \left(W_k\left(x_k\right)\right)\right)\right)$$ (2)

where $\sigma$ is the tanh activation function and || denotes a concatenation.

We use dropout units in each layer with a dropout ratio that is adjusted during Bayesian hyperparameter optimization. This is followed by a batch normalization with a tanh activation function.

3.2.1.2. Relational Graph Convolutional Neural Network (RGCN)

KGs often incorporate a variety of heterogeneous information in the form of different node and edge types. In the following, we will refer to the prominent Relational Graph Convolutional Neural Network (RGCN) that was proposed by Schlichtkrull et al. [100] to deal with the multirelational data characteristic of KGs. The RGCN includes information from the neighborhood of a node into the message passing by differentiating between the relation types. Due to this characteristic, the model is able to learn the inherent relationships between the entities in the KG.

The RGCN takes as input a heterogeneous multi-relational knowledge graph $G$ with features $x$ ∈ ℝ^q and learns an embedding $h_i$ of each entity $v_i\epsilon V$ in the KG. The architecture of the implemented model has three consequent RGCN layers ¹⁰⁰:

• ●input to hidden layer: input feature vectors $x_i$ ∈ ℝ^q are transformed into their hidden representation $h_i$ ∈ ℝ^k’
• ●hidden to hidden layer: convolution of hidden feature vectors $h_i$ ∈ ℝ^k’, maintaining their shape
• ●hidden to output layer: hidden feature vectors $h_i$ ∈ ℝ^k’ are transformed into their latent representation $h_i$ ∈ ℝ^l

The message passing for node $i$ is given by Equation (3):

$$h_i^{\left(l+1\right)}=\sigma \left(\sum _{r\epsilon R}\sum _{j\epsilon N_i^r}\frac{1}{c_{i,r}}{W}_r^{\left(l\right)}{h}_j^{\left(l\right)}+W_0^{\left(l\right)}{h}_i^{\left(l\right)}\right)$$ (3)

The updated hidden representation $h_i$ of entity $v_i$ at layer $l+1$ is a non-linear combination of the hidden representations of neighboring entities with index $j\epsilon N_i^r$ weighted by the learnable relation type specific weight matrix $W_r^{\left(l\right)}$. Here, $N_r$ is the set of neighbors of node $v_i$ of relation type $r$. A self-loop is defined by adding the node's own hidden representation $h_i$, multiplied by the weight matrix $W_0$. $c_{i,r}$ is a normalization constant that is task-dependent and can either be learned or chosen in advance, such as $c_{i,r}=\left|N_i^r\right|$. We refer to this variant of our MultiGML model as MultiGML-RGCN.

3.2.1.3. Relational graph attention network (RGAT)

Alternatively to the RGCN we considered a relational graph attention network [42] as part of the encoder. The input is a set of entity features $h=\left\{h_1,h_2,h_3,...,h_V\right\},h_i\epsilon {\mathbb{R}}^p$ with $V$ being the number of entities and $p$ being the number of features of each entity. Self-attention is performed on the entities, whereby a shared attention mechanism $a$ computes attention coefficients [42] for each relation type (Equation (4))

$$E_{i,j}^{\left(r\right)}=a\left(W^{\left(r\right)}{h}_i,W^{\left(r\right)}{h}_j\right)$$ (4)

The attention mechanism $a$ is a single-layer feedforward neural network feeding into a Leaky ReLU unit (angle of negative slope = 0.2). The attention coefficients are normalized across all choices of $j$ via the softmax function [42,101] (Equation (5)),

$${\alpha }_{i,j}^{\left(r\right)}={softmax}_j\left(E_{i,j}^{\left(r\right)}\right)=\frac{\mathit{exp}\left(E_{i,j}^{\left(r\right)}\right)}{\sum _{k\epsilon N_i^{\left(r\right)}}\mathit{exp}\left(E_{i,k}^{\left(r\right)}\right)},\forall i,r:\sum _{j\epsilon N_i^{\left(r\right)}}{\alpha }_{i,j}^{\left(r\right)}=1$$ (5)

leading to the propagation model for a single node update in a multi-relational graph of the following form (Equation (6)):

$$h_i^{\left(l+1\right)}=\sigma \left(\sum _{r\epsilon R}\sum _{j\epsilon N_i^r}{\alpha }_{i,j}^{\left(r\right)}{h}_i{\left(W^{\left(r\right)}\right)}^T\right)$$ (6)

The graph attention layer allows assigning different importances to nodes of a same neighborhood which can be analyzed to interpret the model predictions [42]. We refer to this variant of our MultiGML model as MultiGML-RGAT.

3.2.2. Bilinear decoder

The decoder structure in our model uses the entity embeddings to decode relations in the KG. We calculate a score for a given triple of entities $v_i$ and $v_j$ connected by relation $r$. We use a bilinear form on the embeddings $h_i$ and $h_j$ with a trainable matrix $M_r$ representing the relation type and apply a sigmoid function $\sigma$ to the result as in Equation (7):

$${\mathit{s}\mathit{c}\mathit{o}\mathit{r}\mathit{e}}_{\mathit{i},\mathit{j}}^{\left(\mathit{r}\right)}=\mathit{s}\mathit{c}\mathit{o}\mathit{r}\mathit{e}\left({\mathit{v}}_{\mathit{i}},\mathit{r},{\mathit{v}}_{\mathit{j}}\right)=\mathit{\sigma }\left({\mathit{h}}_{\mathit{i}}^{\mathit{T}}{\mathit{M}}_{\mathit{r}}{\mathit{h}}_{\mathit{j}}\right)$$ (7)

3.3. Empirical evaluation

3.3.1. Model training strategy

We trained our MultiGML model on the KG described in section 3.1. The binary cross-entropy loss was applied to supervise the model. We performed a stratified random split of all relations into a 70% train, 20% test and 10% validation set. The stratification was done such that each data subset contained the same fraction of each relation type. The number of relations amounted to 302,445 in the training set, 33,608 in the validation set and 84,019 in the test set. Note that all those real existing relations provide positive examples. We wanted to see whether the input features have an effect on the performance of the models, and therefore ran our experiments with different types of input features. We created random uniform features that do not express any biological meaning, which we refer to as the “basic” feature variant, and we applied the multi-modal biological, chemical and medical features described in section 3.1.2. to the “multi-modal” feature variant. An important question in Graph Machine Learning is, how to generate negative samples for non-existing relations. In this work we performed negative sampling where for each positive relation one negative relation was generated by randomly exchanging the target for each source entity according to a uniform distribution (uniform sampling). In very small graphs it can happen due to this sampling technique that randomly generated negative samples actually represent a true positive sample. In large graphs such as ours, this is however not of concern since this would be a rare event. Yet, we made sure when evaluating the predictions that no true positive sample was counted as a negative sample. We used the Deep Graph Library (DGL) Python package [102] to implement the graph neural networks, the PyTorch package [103] for the multi-modal embedding layer, and applied the PyTorch Lightning framework [104] for high-performance artificial intelligence. We employed a hyperparameter optimization with the Optuna package [105], with a customized search space for each hyperparameter (see Suppl. Table 5). Notably, hyperparameter optimization also included the selection of node feature modalities. That means we allowed entire data modalities to be dropped from the model during training. The Tree Parzen Estimator [106], an independent sampling algorithm, was used for an efficient exploration of the search space. Each hyperparameter optimization for both the RGCN and RGAT model consisted of 50 trials. Models within each trial were trained for 100 epochs unless the hyperband pruner [107] determined that a trial should be pruned. After each training epoch the model was evaluated on the validation test. After the best set of hyperparameters was found, we trained a final model for 100 epochs with the selected hyperparameters (see Suppl. Table 7). The problem of overfitting (i.e. low bias and high variance of model predictions) was counteracted by several strategies. First of all, a large training set of more than 300.000 samples was used, and we ensured a stratified split of relation types into train, validation and test set to provide a dataset with high variability and low bias. During training of the model, L2 regularization was used. Furthermore, early stopping was employed, triggered in case of a stagnation in the loss calculation for 10 epochs. We also tried to reduce the complexity of the model architecture by limiting the number of hidden layers to max. 7 during the hyperparameter optimization. Finally, the model was tested on the unseen test set.

3.3.2. Comparison against competing methods

We benchmarked MultiGML against several competing approaches for both general link prediction and adverse drug event prediction. All methods were evaluated using the same data splits. We compared our models against four well-established KG embedding approaches, namely TransE [34], RotatE [37], DistMult [36] and ComplEx [35], DeepWalk [38] and node2vec [39]. All of these models produce an embedding of a KG. Shortly summarized, TransE models relations as translations of a source entity $v_{source}$, a target entity $v_{target}$ and a relation $r$ in the embedding space by trying to minimize the distance $d\left(v_{source}+r,v_{target}\right)$, while RotatE represents relations as a rotation from the source entity to the target entity - both are translation-based approaches. DistMult and ComplEx both use similarity-based scoring functions, where DistMult restricts $r$ to be a diagonal matrix $diag$, and ComplEx extends DistMult to the complex vector space. DeepWalk and node2vec are KG embedding techniques based on random walks. DeepWalk creates a mapping of entities to a low-dimensional space of features using a random walk strategy, where neighboring nodes have equal probability to be chosen at the next step, while node2vec additionally uses weights that influence the random walk behavior. The entity embeddings and the scores for all samples were generated using the implementation by Ref. [108], which incorporates a multi-layer perceptron with three layers as a predictor. We also compared our models to a Random Forest (RF) based machine learning approach for ADE prediction [10], which uses gene expression as data as well as compound fingerprints. The competing methods are summarized in Table 7.

Table 7.

Summary of competing methods that were used as a comparison to our MultiGML variants.

Model	Type of model	Reference
TransE	translation-based	[34]
RotatE	translation-based	[37]
DistMult	semantic matching-based	[36]
ComplEx	semantic matching-based	[35]
DeepWalk	random walk-based	[38]
Node2vec	random walk-based	[39]
Random Forest	ensemble-based	[10]

3.4. Making models explainable

From an application perspective it is important to be able to explain which features of a compound influence the model's predictions in each single instance. For this purpose we build on the integrated gradients method [60] as implemented in captum.ai [109]. Integrated gradients is an axiomatic attribution method which represents the integral of gradients with respect to inputs along the path from a given baseline to input [60]. The integrated gradient along the ith dimension from baseline x₀ to input x is defined in Equation (8):

$$IntegratedGrad{s}_i{\left(x\right)}^{approx}:=\left(x_i-{x_i}^{\text{'}}\right)\times \underset{0}{\overset{1}{\int }}\frac{\delta F\left(x^{\text{'}}+\alpha \times \left(x-x^{\text{'}}\right)\right)}{\delta x_i}d\alpha$$ (8)

with $\alpha$ as a scaling coefficient and F as a function $F:R^p\Rightarrow \left(\mathrm{0,1}\right)$ which represents our MultiGML model. The Integrated Gradients method provides information about both local and global feature contributions. Local feature contributions can be explained by the completeness axiom, which states that “given x and a baseline $x_0$, the attributions of x add up to the difference between the output of F at the input x and the baseline $x_0$” is chosen. In case both are true, all attributions are on the same scale and can be compared globally with each other.

For each predicted link between a drug and a side effect, we calculated the integrated gradients to receive the importances of the individual features. We used n = 500 steps for the approximation method. We focused our analysis on the gene expression signature of the drug entities. A mean vector was used for the baseline x₀. In a further step, the attributions of the Integrated Gradient analysis were evaluated. The top 100 influential genes of the gene expression signature were identified for each drug in the ADE prediction. As a next step, a gene ontology enrichment analysis of biological processes was performed on the top 100 positively and negatively attributed genes from the molecular gene expression signature of the drugs using Metascape [110]. For the enrichment analysis, all genes in the human genome were used as background, and a q-value cut-off of 0.05, a minimum count of 3 and an enrichment factor >1.5 were chosen. A hypergeometric test was performed and q-values were calculated using the Benjamini-Hochberg procedure [111] to account for multiple testing.

We evaluate our models on the independent test set according to area under the ROC curve (AUROC) and area under the precision-recall curve (AUPR).

4. Conclusions

We proposed a novel Graph Machine Learning neural network architecture for adverse drug event prediction that combines multi-modal quantitative data with a heterogeneous, multi-relational KG. MultiGML uses a multi-modal encoder to learn an embedding of multiple input data modalities into a joint space. Each point in this joint space represents a node of the graph. Subsequently, we use heterogeneous graph convolution and graph attention techniques, respectively, to consider the knowledge graph structure. Finally, a bilinear decoder is employed for link prediction.

MultiGML demonstrated excellent prediction performance in comparison to a broad set of competing approaches, including translation based (TransE, RotatE), semantic matching based (DistMult, ComplEx) and random walk based (DeepWalk, node2vec) techniques. Furthermore, we demonstrated that predictions made by our MultiGML method could be explained via the method of integrated gradients and visualization of attention weights. We showed that due to the integration of multimodal node features it was possible to identify biologically plausible mechanisms associated with predicted ADEs. Therefore, our approach could provide valuable information during the early phases of drug development, where it is important to lower the failure risk of later clinical trials. Getting insights into relevant biological mechanisms associated with a high risk could support selection of safe targets. We thus see the value of integrating multimodal data into MultiGML not so much in terms of increase in link prediction performance, but much more with regard to the far better interpretability compared to purely graph topology based techniques.

5. Limitations

Of course, MultiGML is not without limitations: for example, specific feature modalities may be unavailable for some of the entities in the KG. The neighborhood aggregation approach of MultiGML in such a case provides a way to mitigate this issue, because it essentially smoothens features over the neighborhood of a given entity, but that can not perfectly replace missing information. Furthermore, ADEs are in reality also dependent on pharmacodynamic (PD) properties of a compound, including dose, which are currently not considered in our model. Finally, model explanations can only disentangle model predictions, but they do not always point to the right biological cause of an ADE. Due to the versatile model design, MultiGML offers the perspective of applications of link prediction tasks other than the one discussed in this paper, including drug repositioning. Moreover, MultiGML could be used to integrate other or additional data modalities, for example protein and tissue expression and pathology imaging slides. Altogether, we thus see MultiGML as a flexible approach to support important decisions in early drug discovery.
