Visual Dysfunction after Repetitive Mild Traumatic Brain Injury in a Mouse Model and Ramifications on Behavioral Metrics

Abstract

Mild traumatic brain injury (mTBI) is a major cause of morbidity and mortality with a poorly understood pathophysiology. Animal models have been increasingly utilized to better understand mTBI and recent research has identified visual deficits in these models that correspond to human literature. While visual impairment is being further characterized within TBI, the implications of impaired vision on behavioral tasks commonly utilized in animal models has not been well described thus far. Visual deficits may well confound behavioral tests that are believed to be isolated to cognitive functioning such as learning and memory. We utilized a mouse model of repetitive mTBI (rmTBI) to further characterize visual deficits using an optomotor task, electroretinogram, and visually evoked potential, and located likely areas of damage to the visual pathway. Mice were tested on multiple behavioral metrics, including a touchscreen conditional learning task to better identify the contribution of visual dysfunction to behavioral alterations. We found that rmTBI caused visual dysfunction resulting from damage distal to the retina that likely involves pathology within the optic nerve. Moreover, loss of vision led to poorer performance of rmTBI animals on classic behavioral tests such as the Morris water maze that would otherwise be attributed solely to learning and memory deficits. The touchscreen conditional learning task was able to differentiate rmTBI induced learning and memory dysfunction from visual impairment and is a valuable tool for elucidating subtle changes resulting from TBI.

Introduction

Mild traumatic brain injury (mTBI), including concussion, is a major cause of morbidity and mortality worldwide.^1-3 Potential long-term sequelae of mTBI/concussion include but are not limited to neurocognitive impairment and alterations to mental health in diffuse neural circuits,^4–8 the incidence of which increase with repetitive mild TBI (rmTBI).^9-11 Animal models designed to simulate recurrent concussion have increasingly been used to explore mechanisms of rmTBI to elucidate pathophysiology and develop therapies.

The clinical relevance of animal models of human pathologies relies on recapitulating specific associated behaviors and evaluating the underlying biological changes in the relevant tissues. For example, rodent literature has extensively used the Morris water maze (MWM) task to explore spatial learning and memory and has demonstrated a strong relationship between hippocampal function and MWM performance.^12–15 However, the MWM task also requires mice to see visual cues positioned around the pool in order to learn their spatial location and navigate to the platform. In fact, many commonly deployed behavioral tasks require an intact visual system. Despite this, the explicit interrogation of the role of visual systems in TBI models is rarely undertaken. A significant vision impairment may compromise task performance and be misinterpreted as a failure in cognitive abilities, rather than a combination of learning, memory, and visual defects.

Prior studies have focused primarily on the mechanisms underlying visual dysfunction after rmTBI rather than its influence on behavior.^16–20 It is therefore necessary to both further explore visual changes resulting from rmTBI and to re-examine behavioral metrics used to demonstrate the clinical relevance of animal models. In order to do so, we performed two sets of experiments: one in which adult mice underwent rmTBI and performed a comprehensive battery of behavioral tests along with electroretinogram (ERG) and visual-evoked potential (VEP) to evaluate anxiety and motor, visual and cognitive function^21–27 and a second using a visual cognitive task before and after rmTBI.^28-30 Together, these experiments allowed a behavioral differentiation between deficits in visual function and learning/memory.

Methods

Further description of methods can be found in Supplementary Information S1.

Animals

We used 64 male 8-week-old C57BL/6 mice from Jackson Laboratories, fed ad libitum apart from touchscreen testing and housed in a reverse dark/light cycle such that all behavioral testing was conducted during the dark cycle to optimize performance. Mice that underwent the Touchscreen behavioral task (total of 24 animals) were food restricted only for the duration of that task. Food was administered and logged every day of the behavioral test. Bodyweights were tracked and kept in a special care notebook in the housing facility. Any mouse that lost 20% of its bodyweight was removed from the study. No mice had to be removed from the study due to weight loss. Water was provided freely to all animals throughout the experiments. All experiments were approved by the Boston Children's Hospital Institutional Animal Care and Use Committee and complied with the NIH Guide for the Care and Use of Laboratory Animals. Timeline of experiments is shown in Figure 1.

FIG. 1.

Experiment timeline. Two separate cohorts of animals underwent repetitive mild traumatic brain injury (rmTBI) or sham injury, behavioral testing, and sacrifice at the times outlined above.

Repetitive mild TBI

Mice were divided into two groups and subsequently randomized to undergo closed-head, repetitive mild traumatic brain injury (rmTBI) or sham injury. Group 1 (rmTBI, n = 11; sham n = 10) was injured at 8 weeks and Group 2 (rmTBI, n = 13; sham, n = 11) was injured when mice had passed initial touchscreen training as described below, which was between 12-14 weeks of age. Mice underwent rmTBI as previously reported.^28–35 In brief, mice were anesthetized with 4% isoflurane in oxygen for 45 sec until the toe-pinch response was absent. Anesthetized mice were placed on a delicate tissue (Kimwipe, Irving, TX) that was grasped on both sides to create tensions without breaking the Kimwipe before the injury. The head was placed directly under a copper guide tube centered over the bregma. Mice were held by the tail as the impact was delivered to the dorsal skull. A 54 g metal bolt (12.75 mm diameter) was dropped through the guide tube from a 107 cm height, resulting in a rotational acceleration of the head through the Kimwipe. Mice received one injury per day for 5 consecutive days. Sham animals received exposure to the isoflurane only. All animals recovered in room air post-injury and were monitored for signs of distress before being returned to their cage. Loss of consciousness was recorded for each animal as the time from removal of anesthesia until they righted themselves.

Classic behavioral tests: Group 1

Locomotor activity and elevated plus maze (EPM) was measured at 4 weeks, 16 weeks, and 28 weeks post-injury. Prior research has demonstrated behavioral deficits from this injury model at these specific time-points and extending up to a year after injury.^28,30,34 Locomotor boxes tracked total movement (rmTBI and sham, n = 8) and was run to establish exploratory behavior within sham and rmTBI mice, as lack of exploratory behavior would confound elevated plus maze results. The elevated plus maze is an established metric for impulsive behavior, with interventions that increase impulsivity leading to more time spent in the open arms and decision zone, and less time in the closed arms of the maze. Percent time in closed arms, open arms, and decision zone was calculated.

The rotarod is an established behavioral test for assessing gross locomotor and vestibular function that is known to be disrupted following TBI, with injured animals demonstrating decreased latency to fall.^34–37 Rotarod consisted of a habituation day and 2 testing days of four trials per day averaged for one result per day. Latency to fall was recorded.

Group 1 performed the MWM at 28 weeks post-injury (rmTBI and sham n = 8). We chose not to repeat the MWM at different time-points using the same mice in order to avoid pre-training prior to the final evaluation. A white, opaque, circular tub (60 cm depth × 83 cm diameter) was filled with water to a depth of 29 cm at approximately 25°C. Four visible, distinct shapes were placed in each of the four quadrant inner walls of the tub to distinguish the quadrants. A white platform (10 cm diameter) was placed in one quadrant, 1 cm below the water. Two hidden sub-trials per day were run with the platform just out of sight on Days 1-4 of MWM testing for a total of eight sub-trials. Mice were started from a randomly generated quadrant for each sub-trial and sub-trials were spaced at minimum 20 min apart. The two sub-trials of each day were averaged together and the average was reported, with a possible maximum of 90 sec. Two probe trials were run where the platform was removed and mice were allowed 60 sec within the pool, probe 1 on Day 4 following the hidden trials and probe 2 on Day 5 prior to the visible trials. Software (Noldus Ethovision 11.5) was used to track the path of each mouse. A peri-platform area was drawn around the platform during probe trials set to 20% of the total area of the maze. This was done because the platform is close to the center of the pool and thus traditional quadrants would hemi-sect the area searched by a mouse that remembered the platform location.³⁸ Visible trials were run on the last day and involved placement of a prominent red and white circular reflector, 8.26 cm in diameter, on the platform above the water level, highlighting the location of the platform. Latency to the platform was timed and Ethovision was used to track the total distance traveled to the platform.

Optomotor visual acuity task: Group 1

The optomotor visual acuity task (OPT) allows rapid testing of sub-cortical visual acuity and was used to assess behavioral threshold visual acuity in Group 1 at 28 weeks post injury (PI) (CerebralMechanics Inc.).³⁶ Vertical sine wave gratings were projected around a testing arena (OptoMotry; CerebralMechanics). If the mouse's head tracked the cylinder rotation it was judged that the animal could see the grating. The OPT value is reported as the highest spatial frequency which elicited head tracking of the waves. Higher values correspond to tighter gratings, indicating better visual acuity. Experimenters were blinded to the injury status.

Electroretinogram (ERG) with visual evoked potential (VEP) test: Group 1

Physiological measurements from ERG and paired VEP were used to assess the activity of retinal neurons and cortical response to a visual stimulus, respectively, in a subset of animals from Group 1 (seven rmTBI, six sham) at 28 weeks post-injury. At the time of testing, mice were anesthetized with a ketamine/xylazine mixture and placed on the instrument's monitored heating pad for the duration of the procedure, as is standard practice to ensure stability of electrodes during monitoring.^22-24,39-41 The eyes were moistened with eye lubricant and for the ERG, a LED light stimulator/electrode was placed against the cornea of the eye. For the VEP, a set of electrodes were placed subcutaneously, one under the scalp in correspondence of the occipital region (V1) of the brain, one in the snout as a reference, and the third placed at the base of the tail to serve as the ground electrode. A protocol of three different tests were run; a dark-adapted protocol that elicited and measured an a-wave, b-wave, oscillatory potentials (OPs), and VEP with stimulus of 1 cd sec/m², a dark-adapted protocol that elicited an a-wave, b-wave, and c-wave stimulus of 150 cd sec/m², and a light-adapted white stimulus of 20 cd sec/m² on top of 40 cd sec/m² of green background to elicit an a-wave, b-wave, and photopic negative response (PhNR; Table 1).

Table 1.

ERG Components and VEP and their Respective Cell Populations

Test	Measured output	Cell populations/pathways	Potential causes of measured disruption (if applicable)
ERG	a-wave (amplitude, latency)	Photoreceptors (rods, cones)	Damage to rods/cones; phototoxicity58
	b-wave (amplitude, latency)	Muller cells ON-Bipolar cells	Ischemia Intracellular signaling within retina41,49–53
	c-wave (amplitude, latency)	Pigmented epithelium function Retinal glial cells	Retinal inflammation, oxidative stress54,55
	Oscillatory potentials (1, 2, 3)	Amacrine cells	Glutamate toxicity56,57
	Photopic negative response (PhNR)	Retinal ganglion cells	Optic nerve atrophy, lens damage21,26,27,46-48
VEP	Calculated as N1-P2	Entire visual pathway from retina to visual cortex	Impaired signal transmission distal to retina21–25,42,43

Measured outputs from the ERG and paired VEP with contributing cell populations and known causes of alterations. VEP recorded from the occipital region of the brain corresponding to V1 allowed us to determine whether visual inputs were able to travel from the retina to the lateral geniculate, arrive to V1, and elicit neuronal activity intracortically. Disruptions anywhere along this pathway would lead to a decreased recorded VEP signal.

ERG, electroretinogram; VEP, visual-evoked potential; ON, optic nerve.

Behavioral tests: Group 2

Group 2 underwent an iteration of the MWM consisting only of visible trials, where the platform was marked with the large red circular reflector, 3.4 cm × 3.4 cm protruding 4 cm above the platform, for each of the trials. There were two sub-trials per trial over 4 days for a total of eight sub-trials and four trials. Trials were run in the manner described above. Latency to the platform was timed. (rmTBI, n = 13; sham, n = 11).

The forced swim test (FST) was used to test ability and motivation to swim 16-weeks post-injury in Group 2 (rmTBI, n = 5; sham, n = 4) as the final behavioral task. Total distance, speed, time mobile, and time immobile were recoded for each time bin. The immobility was determined as lack of detectable movement.

Touchscreen conditional learning task

The Bussey-Saksida touchscreen system (Lafayette Instrument, Lafayette, IN) was used to conduct the touchscreen task which evaluated learning and memory before and after rmTBI in Group 2. The test consisted of a learning period and then a testing window. Mice were food restricted throughout this task.

The system consists of a chamber with a screen containing two target touchspots and a reward delivery system. A light was illuminated on the screen and the mouse was rewarded if the correct touchspot was chosen within the allotted time. Failure to touch any point on the screen within the allotted time was defined as an omitted trial. The system recorded the number of correct, incorrect, and omitted trials.

The pre-injury training phase began when Group 2 mice were 8 weeks of age, and consisted of gradually decreasing allotments of time (response window [RW], 30, 10, 4, and 2 sec) for which the mouse was shown the light stimulus and was required to select the correct touchspot. Mice had to respond correctly 80% of the 60-trial session for 2 consecutive days to progress to the next phase. After achieving this on the 2-sec training phase, the variable window task, comprised of 60 runs per day for 4 consecutive days, with RW randomly alternating between 2 sec, 1 sec, 0.5 sec, and 0.2 sec, was run. The number of correct, incorrect, and omitted responses was recorded for each trial.

After injury or sham injury, mice entered into post-injury training, identical to the pre-injury training. Mice unable to achieve the 80% needed to progress past each training phase after 10 days (600 trials) were labeled as “Failed.” Mice were again given the variable window task after either failing or completing the 2-sec phase.

Euthanasia and optic nerve collection

All mice in the study were euthanized via cardiac perfusion. Both brain and optic nerve were removed. Additional mice underwent the same injury paradigm and optic nerves were harvested for total Sham n = 20, rmTBI = 20. Optic nerves were examined under a microscope following 24 hours in 4% paraformaldehyde (PFA) in PBS. Diameters from proximal and distal optic nerves from both eyes were measured and averaged for each mouse.

Statistical analysis

All statistical analysis was performed using STATA. Differences between two groups were analyzed using unpaired two-tailed t-tests. Differences between more than two groups were analyzed using analysis of variance (ANOVA) with Bonferroni correction. Multivariate analysis of variance (MANOVA) significance was explored with post hoc one-way ANOVA. Simple regression was used when correlating variables. Statistical sentences are reported as mean ± SD; behavioral data are graphed as mean ± standard error of the mean. A value of p < 0.05 after Bonferroni correction was used to determine significance.

Results

Group 1

Repetitive mTBI leads to behavioral changes in anxiety, gross locomotion, and locomotor function

We examined behavioral tasks that quantify overall locomotion, swimming ability, and exploratory behavior, to understand if these behaviors might contribute to changes to more complex behavioral tasks such as the visible MWM. The locomotor task was run to establish exploratory behavior as lack of exploratory behavior could result in injured mice not seeking new components of their environment, such as the marked platform in the MWM.^37,42,43 Within Group 1, rmTBI mice traveled further than sham mice at 16 weeks (p = 0.0165) and 28 weeks PI (p = 0.0147), indicating that rmTBI mice did not explore less than sham mice. Repetitive mTBI mice were quicker to fall off the rotarod than sham mice at 28 weeks post-injury (p = 0.009). There were no differences in time mobile between sham and rmTBI mice in the forced swim task (rmTBI mice spent more time in the open arm of the elevated plus maze than sham mice at 16 weeks post-injury (p = 0.0115; Fig. 2).

FIG. 2.

Repetitive mild traumatic brain injury (rmTBI) leads to behavioral changes in anxiety, gross locomotion, and locomotor function. (A) Within Group 1, rmTBI mice traveled further than sham mice as measured by locomotor activity at 16 weeks (p = 0.0165; sham = 3541 ± 784 cm; rmTBI = 4583 ± 745 cm) and 28 weeks post injury (p = 0.0147; sham = 2,383 ± 1093 cm; rmTBI = 3750 ± 856 cm), indicating an overall increase in exploratory behavior after rmTBI. (B) Repetitive mTBI mice were quicker to fall off the rotarod than sham mice at 28 weeks post-injury (p = 0.009; sham = 20.59 ± 3.95 sec; rmTBI = 15.42 ± 2.76 sec). (C) There were no differences in time mobile between sham and rmTBI mice in the forced swim task. (D) Repetitive mTBI mice spent more time in the open arm of the elevated plus maze than sham mice at 16 weeks post-injury (p = 0.0115; sham = 6.23 ± 3.20%; rmTBI = 30.67 ± 21.95%). Data are graphed as mean ± standard error of the mean. *p < 0.05; **p < 0.01.

Repetitive mTBI leads to impaired performance in the hidden MWM without impaired swim ability

There was a significant difference in the hidden MWM between Group 1 rmTBI mice and sham [MANOVA, F(1,11) = 5.49, p = 0.011] (Fig. 3). Group 1 rmTBI mice were slower to find the hidden platform in the water maze at 28 weeks post-injury on hidden trials 3 (p = 0.001) and 4 (p = 0.007) but not on hidden trials 1 or 2. During probe trials, sham mice spent more time in the peri-platform area than rmTBI mice (p = 0.02) during the first probe trial only, indicating that sham animals remembered the platform location but began searching for a new platform location during the second trial, after failing to find the platform in the original location.^44,45 There was not a significant difference between sham and rmTBI groups in either swim speed or distance traveled during probe trials (p > 0.05), indicating injured animals were both as able and as motivated to swim as well as sham animals.

FIG. 3.

Repetitive mild traumatic brain injury (rmTBI) leads to impairment in the hidden trials Morris water maze (MWM). (A) Group 1: There was a significant difference in the hidden MWM between Group 1 rmTBI mice and sham [MANOVA, F(1,11) = 5.49, p = 0.011]. with rmTBI slower to find the hidden platform in the water maze at 28 weeks post-injury on hidden trials 3 (p = 0.001; sham = 23 ± 15.02 sec; rmTBI = 53.2 5 ± 14.42 sec) and 4 (p = 0.007; sham = 11.06 ± 5.14 sec; rmTBI = 34.25 ± 20.06 sec) only. (B) Diagram of the MWM with peri-platform zone labeled along with platform and quadrants. Peri-platform zone is 20% of the area of the pool. (C) Heatmap tracings of probe trials reveal that sham animals appear to spend more time around platform location. Quadrants are marked by bisecting lines and probe location on prior hidden trials is marked by black circle in left lower quadrant. Data are graphed as mean ± standard error of the mean. *p < 0.05; **p < 0.01.

Repetitive mTBI leads to impaired visual acuity in the optomotor task

The optomotor task (OPT) was used to evaluate behavioral visual function in Group 1 mice at 28 weeks PI. While sham mice were able to track gratings at a visual acuity consistent with that in the literature,^36,46 rmTBI mice were almost completely unable to see even the lowest frequency of gratings presented across their visual field, indicating near blindness (Fig. 4).

FIG. 4.

Repetitive mild traumatic brain injury (rmTBI) results in decreased visual acuity bilaterally as measured by the optomotor task. The threshold spatial frequency at which the mouse could track a moving stimulus (cycles-per-degree, cpd) represents optomotor visual acuity task (OPT) acuity. Sham control mice exhibited an OPT acuity around 0.364 c/deg, similar to what has been reported for C57BL6 control mice. In terms of Snellen equivalents, or “20/20 vision,” this is equal to 20/1648 vision, a normal value for the myopic mouse.^36,46 In contrast, rmTBI mice showed a strong deficit in the OPT, being almost unable to track the lowest spatial frequencies and had a visual acuity of 0.039 cpd equal to 20/15,384 vision (p < 0.0001; sham = 0.364 ± 0.02 cpd; rmTBI = 0.039 ± 0.053 cpd) indicating near blindness. Data are graphed as mean ± standard error of the mean. *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001.

Repetitive mTBI leads to minimal deficits in retinal function measured by ERG and decreased visual cortical function measured by VEP. ERG with the VEP was run on Group 1 mice at 28 weeks post-injury

Using ERG along with the VEP in response to flash stimuli after dark adaptation allowed us to evaluate activity of different discrete cell types in the retina and transduction to the visual cortex (Table 1).^{21,26,27,41,47–59}

The mean amplitude of major ERG components revealed a decrease in OP3 in rmTBI mice (p = 0.049). There was a significant loss of VEP in rmTBI (p = 0.0007; Fig. 5), indicating that rmTBI induced major damages in signal transmission from the retina to the visual cortex, potentially caused by damage to the both the main and accessory optic tract.⁶⁰

FIG. 5.

Repetitive mild traumatic brain injury (rmTBI) disrupts visual pathway signaling distal to the retina as measured by electroretinogram (ERG) and visually evoked potential (VEP) test. (A) Repetitive mTBI led to decreased latency to a-wave peak at 1 cd sec/m² (p < 0.001; sham = 17.25 ± 1.97 msec; rmTBI = 14.14 ± 2.10 msec) and at 150 cd sec/m² (p = 0.011; sham = 21.00 ± 1.26 msec; rmTBI = 19.54 ± 1.42 msec) without changes in a-wave amplitude. Repetitive mTBI led to a decrease in oscillatory potential 3 (OP3; p = 0.049; sham = 27.90 ± 11.45 uV; rmTBI = 20.64 ± 6.01 msec). Repetitive mTBI did not change photopic negative response (PhNR) or b-wave or c-wave amplitude or time to peak. (B) Tracings of ERG components of sham and rmTBI animals overlain. VEP responses in rmTBI mice were dramatically impaired. While Sham control mice exhibited a clear response to flash stimuli with well-defined P1 and N1 peaks, rmTBI mice showed a decreased P1 amplitude (p = 0.007; sham = 11.56 ± 7.14 uV; rmTBI = -0.50 ± 12.51 uV) and N1 response (p = 0.0025; sham = -33.78 ± 17.17 uV; rmTBI = -11.50 ± 19.30 uV). *p < 0.05.

VEP predicts rotarod performance

Vestibular and visual function are closely linked in both humans and animals.^61-63 Simple regression revealed a negative correlation between VEP and latency to fall on rotarod (coefficient = -0.14, p = 0.04, adjusted R² = 0.46).

Repetitive mTBI leads to gross morphological changes in the optic nerve at 7 months

Repetitive mTBI resulted in decreased averaged diameter of the optic nerve (p < 0.0001, sham = 0.43 ± 0.03 mm; rmTBI = 0.29 ± 0.03 mm; Fig. 6).

FIG. 6.

Optic nerves (ONs) are grossly abnormal and have decreased diameters following repetitive mild traumatic brain injury (rmTBI). (A) Prior to removal, optic nerves were visualized by dissecting away the superior orbit and frontal bone of skull. ONs were subsequently dissected out following perfusions and diameters were measured at proximal and distal ends of the nerves. (B) Grossly, ONs were translucent and less distinct from surrounding tissue in rmTBI animals and ON diameter was significantly reduced following rmTBI (p < 0.05).

Group 2

All mice can learn the touchscreen task

Prior to rmTBI, all mice successfully learned the touchscreen task and advanced through all training stages (Table 2). There was no significant difference between mice randomized to the rmTBI and sham groups (p > 0.05). In the variable-window task, mice overall answered fewer trials correctly, answered more trials incorrectly, and omitted more trials when the RW was shorter [F(9, 219) = 24.16, p < 0.0001; Table 3].

Table 2.

Pre-Injury (All Mice): Ability to Progress

Training phase(s)	Number of trials	Correct (%)	Incorrect (%)	Omitted (%)
30	400.2 ± 120.0	69.6 ± 9.22	23.42 ± 5.13	6.96 ± 6.73
10	155.3 ± 53.0***	86.83 ± 6.19***	9.54 ± 3.34***	3.63 ± 4.93
4	170.0 ± 92.9	84.32 ± 7.38	6.79 ± 3.22	8.88 ± 5.66**
2	357.3 ± 154.4***	79.7 ± 3.27	6.26 ± 2.51	14.08 ± 3.06**

All animals were able to learn the touchscreen conditional learning task before injury (training phase). Twenty-four animals were trained in total and randomly assigned to sham injury or repetitive mild traumatic brain injury following training. The minimum possible number of trials needed to progress is 120, as mice needed to demonstrate 80% correct response rate over 2 days with 60 trials/day. Data are shown as mean ± standard deviation. Statistically significant difference of each phase from the preceding phase are shown (i.e., a significance marker within 10-sec phase indicates difference from 30-sec phase).

^* p < 0.05; ^**p < 0.01; ^***p < 0.001.

Table 3.

Pre-Injury (All Mice): Baseline Variable Test

Testing phase (sec)	Correct (%)	Incorrect (%)	Omitted (%)
2	79.74 ± 9.14	7.55 ± 4.00	12.63 ± 8.92
1	66.70 ± 8.30***	9.96 ± 5.40	23.58 ± 8.74**
0.5	50.64 ± 11.77***	14.82 ± 5.11***	34.68 ± 12.65**
0.2	37.00 ± 8.41***	21.27 ± 6.58***	41.44 ± 11.82

Pre-injury baseline variable window test for all mice following touchscreen training task. All 24 mice underwent the variable window test, consisting of trials with varying windows of time of 2 sec, 1 sec, 0.5 sec, or 0.2 sec randomly alternating. Pre-injury training on the touchscreen task. Overall, mice were less likely to respond correctly and more likely to respond incorrectly or omit trials during trials with a shorter response window in the variable window test; notably, mice did not answer more trials incorrectly until response window was under 1 sec, but started omitting more trials at when limited to under 2 sec. Mice omitted the same number of trials, around 40%, at the two shortest response windows of 0.5 and 0.2 sec. Statistically significant difference of each phase from the preceding phase are shown (i.e., a significance marker within 10-sec phase indicates difference from 30-sec phase).

^* p < 0.05; ^**p < 0.01; ^***p < 0.001.

Sham animals re-learn touchscreen task more rapidly than initial training

Animals who received sham injury progressed through the touchscreen task more rapidly than initial learning (Table 3 in Supplementary Information S1), indicating they remembered the task after the week of sham injury.

Repetitive mTBI slows or prevents progression through the touchscreen task

After injury, rmTBI mice were less able to progress through the touchscreen training than sham mice. Seven of the 13 rmTBI animals failed the 30-sec task, and one additional mouse failed the 4-sec task. All sham animals were able to progress through the entire task (Fig. 7). For further analysis, rmTBI mice were divided into those that progressed past the 30-sec task (Injured/Progressed, I/P) and those that failed (Injured/Failed, I/F). I/P mice performed worse than sham mice, but better than I/F mice on the 30-sec phase (Fig. 8; Table S4 in Supplementary Information S1).

FIG. 7.

Post-injury touchscreen. A significant percent of repetitive mild traumatic brain injury (rmTBI) animals were unable to re-learn the touchscreen conditional learning task after injury, despite having adequately learned the task initially. Seven of 13 animals failed at the 30-sec phase, defined as unable to reach 2 consecutive days of 80% correct responses within 10 days. One additional mouse failed the 4-sec phase.

FIG. 8.

Repetitive mild traumatic brain injury (rmTBI) leads to more incorrect and more omitted trials in the touchscreen conditional learning task. Repetitive mTBI mice were divided into two groups based on ability to progress past post-injury 30-sec training phase, Injured/Progressed (I/P) and Injured/Failed (I/F). (A) At all phases, I/P responded to fewer trials correctly than Sham. This was driven predominantly by an increased number of incorrect trials (B), apart from the 2-sec training phase where I/P animals omitted more trials than Sham (C). Within the 30-sec phase, I/P mice responded to more trials correctly than I/F, responded to fewer trials incorrectly, and omitted fewer trials. *p < 0.05; **p < 0.01; ***p < 0.001 between sham and I/P mice. #p < 0.05; ##p < 0.01; ###p < 0.001 between I/P and I/F mice.

Repetitive mTBI impairs performance on the touchscreen variable testing task

In the post-injury touchscreen variable window test, compared to sham mice, I/P mice answered fewer trials correctly when the RW was 2 sec, 1 sec, and 0.5 sec, more trials incorrectly when the RW was 1 sec, and omitted more trials when the RW was 2 sec and 1 sec. I/P mice answered more trials correctly and omitted fewer trials than I/F mice across all RWs, and answered fewer trials incorrectly when RW was 1 sec and 0.2 sec (Fig. 9; Table S5 in Supplementary Information S1).

FIG. 9.

Repetitive mild traumatic brain injury (rmTBI) results in impaired performance in the post-injury variable window test of the touchscreen task. Injured mice were separated into two groups as in Figure 8 (Injured/Progressed [I/P) and Injured/Failed [I/F]). (A) Within 2-sec trials, I/P responded to fewer trials correctly than sham, and I/F animals responded to fewer trials correctly than I/P. (B) I/P responded to more trials incorrectly than sham within 1-sec trials. (C) I/P omitted more trials than sham within 2-sec and 1-sec trials, but omitted fewer trials than I/F in all trials. *p < 0.05; **p < 0.01; ***p < 0.001 between sham and I/P mice. #p < 0.05; ##p < 0.01; ###p < 0.001 between I/P and I/F mice.

Repetitive mTBI leads to deficits in the visible MWM. Group 2 mice underwent the visible MWM after the touchscreen task

Injured animals were separated during analysis as described above (I/P, I/F). I/P mice were slower to platform than sham on visible trials 3-4 (Fig. 10; Sham vs. I/P, p < 0.05) despite swimming faster during the task (Sham = 16.1 ± 6.9 cm/sec, I/P = 18.9 ± 5.83 cm/sec, p = 0.027). I/F mice were slower to platform on all visible trials compared to sham performance (Fig. 10; Sham vs. I/F, p < 0.05) with no difference in swim speed (p > 0.05). There was no difference between I/P mice and I/F mice in latency to platform or swim speed (Fig. 10; I/P vs. I/F, p > 0.05).

FIG. 10.

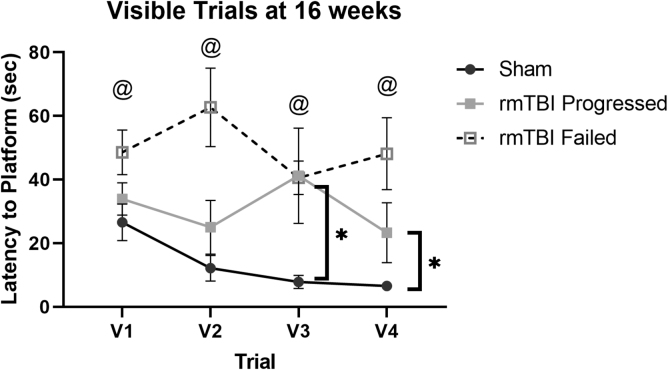

Repetitive mild traumatic brain injury (rmTBI) results in impairment in a visible Morris water maze that is different between Injured/Progressed (I/P) mice vs. Injured/Failed (I/F) mice. Mice that received rmTBI were divided into I/P and I/F groups based on touchscreen performance. I/P mice are slower than sham to find the visible platform on Days 3 and 4. I/F mice are slower than shame to reach the visible platform on all visible trials (p < 0.05). *p < 0.05 between sham and I/P mice. @p < 0.05 between sham and I/F mice.

Visible trial performance predicts omitted trials on the touchscreen 30-sec task regardless of injury severity

All visible trials of the MWM were summed for an aggregate metric of performance to assess functional visual capacity; a mouse that could see the platform would navigate quicker than a mouse that could not see it.^15,64,65 Within the touchscreen task, mice may have omitted trials because they were unable to see the cue. A multiple regression controlling for loss of consciousness, as a marker for severity of injury, revealed that the aggregate latency to visible platform in the MWM was related to number of omitted trials in the 30-sec touchscreen task (coefficient = 3.10, p = 0.020, adjusted R² = 0.409) but was not related to loss of consciousness (p = 0.054; Fig. 11).

FIG. 11.

Aggregate time required for a mouse to reach the visible platform in the MWM predicted number of omitted trials in at 30-sec in the touchscreen task (coefficient = 0.04, p = 0.0006, adjusted R² = 0.397). Visible trials were summed to create a metric for overall visual performance. Thirty-second trial omitted trials were chosen as mice that were unable to see the cue starting the task would have failed to respond to the trial entirely, resulting in trial omission.

Discussion

Here, we found that a reliable model of rmTBI elicits clear damage to multiple cortical and subcortical brain regions impacting not only locomotor function, anxiety behaviors, and cognition, but also visual processing, strongly suggesting possible interactions between the primary sensory modality deficits and higher function behavioral performance.

Notably, visual impairment was correlated with locomotor dysfunction on the rotarod, a task that relies on vestibular function. The vestibulo-ocular reflex (VOR) maintains balance via positional and spatial feedback to stabilize during movement⁶⁶ and is disrupted after TBI in both humans and animals.^62,63,67-69 Tasks that require rapid balance adjustment such as the rotarod are strongly affected by damage to the VOR.⁶¹ The relationship between dysfunction in vision and vestibular function establishes the sensitivity of the VOR to damage after our model of rmTBI.

Repetitive mTBI-induced visual pathway dysfunction was distal to the retina as evidenced by the almost complete erosion of VEP without notable ERG changes, indicating a deficit in retinal signal transduction which has been noted in a similar model of rmTBI.¹⁸ Proposed mechanisms for such transduction damage include traumatic optic neuropathy concurrent with loss of retinal ganglion cells (RCG)^19,20,70 and widespread cortical and sub-cortical axonal injury.^71–75 Both of these mechanisms are likely contributory to visual dysfunction noted here. The axons of retinal ganglion cells make up the optic nerve, which was atrophied here similarly to other models of TBI^19,20,76 and may be explained by the reduction in number and demyelination of axons that occurs after TBI.^77-79 The results of this study, in conjunction with prior research, implicate both optic neuropathy and white and gray matter damage as key mediators of impaired visual function following rmTBI.

It is important to examine the behavioral implications of this damage in addition to elucidating the underlying pathology. Our model of rmTBI, like many others, partially relies on behavioral testing paradigms to support the external validity of the model regarding clinical phenotypes. For example, the Morris water maze, a metric for spatial learning and memory, requires the mouse to see visual cues to spatially orient itself and find the platform. Injured mice were slower to navigate to both the hidden and visible platforms than sham, suggesting the visual system may be a moderator of the relationship between brain injury and MWM performance as impaired visual processing limits the ability of the animal to orient itself. Importantly, injured animals demonstrated more exploratory behavior in the locomotor task, were as mobile in the FST, and did not swim slower during the MWM. Mice were therefore motivated to escape the MWM and able to navigate it, further implicating visual dysfunction as the primary pathology underlying impaired performance. In the setting of injuries such as TBI, it is therefore necessary to either develop methods to control for visual damage or utilize tasks that can distinguish visual impairment from learning, memory, and other cognitive deficits.

The touchscreen learning task allows separation between visual processing and cognitive impairments. Repetitive mTBI resulted in more incorrect and omitted trials indicating concurrent deficits in both learning/memory and in visual function. Separating injured mice into two groups based on performance on the 30-sec task allowed distinction between mice that failed to see and thus omitted trials, and mice that could see trials but responded incorrectly, suggesting that vision was preserved enough for this group to see and respond to the stimulus. The increase in omitted trials during shorter training phases reveals subtler visual deficits still elucidated by this task. By selectively evaluating differences in incorrect trials between groups, we could reasonably well isolate impairments in learning from visual deficits. Importantly, mice that omitted more trials on the 30-sec task were slower to find the visible platform in the MWM regardless of injury severity. This further supports omissions in the touchscreen task as a metric for visual impairment, as well as implicates visual dysfunction as the underlying variable between omissions in touchscreen and latency on the visible MWM.

There are limitations to this study. We were not able to measure all outcomes in all animals; a complete assessment of the impact of visual deficits across the spectrum of behavioral tests is necessary. Our ERG with VEP protocol utilized only one stimulus intensity each for measurement of VEP, c-wave, and PhNR. More robust testing with a broader range of stimuli including pattern stimuli may reveal more subtle differences previously noted by Tzekov and colleagues after TBI.⁷⁶ We selected a relatively strict passing criteria (80%) to advance onto subsequent touchscreen phases; a less stringent criteria would likely have resulted in more injured mice progressing past the 30-sec re-training phase.

Our model of rmTBI resulted in widespread functional impairment in the key cortical circuits controlling learning and memory, vision, and anxiety behaviors. As visual impairments have been reported after TBI in humans, including acute symptoms like photosensitivity and blurry vision,^70,80–83 and long-term visual dysfunction in the majority of high-risk populations,⁸⁴ future work across species should be devoted to better characterize the impact of loss of proper visual processing on higher cognitive and emotional functions.
