Incorporation of noncanonical base Z yields modified mRNA with minimal immunogenicity and improved translational capacity in mammalian cells

Summary

Chemically modified mRNAs hold great potential for therapeutic applications in vivo. Currently, the base modification scheme largely preserves the canonical Watson-Crick base pairing, thus missing one mode of mRNA modulation by altering its secondary structure. Here we report the incorporation of base Z (2-aminoadenine) into mRNA to create Z-mRNA with improved translational capacity, decreased cytotoxicity, and drastically reduced immunogenicity compared to the unmodified mRNA in mammalian cells. In particular, the A-to-Z substitution renders modified mRNAs less immunogenic than the state-of-the-art base modification N¹-methylpseudouridine (m1ψ) in mouse embryonic fibroblast cells. As a proof of concept, we developed a Z-mRNA-based vaccine against severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). Antigen-encoding Z-mRNA elicited substantial humoral and cellular immune responses in vivo in mice, albeit with relatively lower efficacy than the state-of-the-art m1ψ-mRNA. Z-mRNA expands the scope of mRNA base modifications toward noncanonical bases and could offer an advantageous platform for mRNA-based therapeutics where minimal immunogenicity is desired.

Graphical abstract

Highlights

• •Replacing base A with noncanonical base Z to create Z-mRNA
• •Z-mRNA has higher translational capacity and lower immunogenicity than unmodified mRNA
• •RBD-encoding Z-mRNA elicited substantial immune response in mice
• •Z-mRNA expands the current scope of mRNA base modifications toward noncanonical bases

Biological sciences; Biochemistry; Medical biochemistry

Introduction

Chemically modified messenger RNA (mRNA) has emerged as a promising therapeutic agent over the past decade.¹ Compared to unmodified mRNAs that are typically unstable and unfavorably immunogenic (i.e., adverse immune reactions such as inflammation activation), synthetic mRNAs containing modified bases such as pseudouridine (ψ) or N¹-methylpseudouridine (m1ψ) demonstrate reduced immunogenicity and improved translational capacity.^2,3 Importantly, mRNA vaccines for coronavirus disease 2019 (COVID-19) developed by both Pfizer-BioNTech and Moderna adopt the m1ψ modification to minimize the innate immune response to introduced mRNAs and to enhance antigen production.^4,5 These mRNA-based vaccines have contributed enormously to combatting the global severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) pandemic, validating this novel vaccine platform. Given the essential role modified bases play in the development of mRNA-based therapeutics,⁶ it is important to explore additional base modifications, potentially beyond the current modification scheme, that may further alleviate the unwanted side effects associated with high immunogenicity and improve the translational capacity of mRNA.

The current base modification scheme largely preserves the canonical Watson-Crick base pairing that is also involved in RNA secondary structure formation. Accumulating evidence has pointed out that mRNA secondary structure regulates protein expression, with GC-rich mRNAs overall exhibiting higher expression level than AU-rich ones.^7,8,9 Moreover, studies have revealed that the enhanced translation of ψ/m1ψ-modified mRNA was associated with its improved stability and increased secondary structure.^2,10 In fact, compared to base U, ψ could thermodynamically enhance its hydrogen bonding with A, thanks to its extra hydrogen bond donor (N1 imino proton).^11,12

Inspired by these observations, we set out to explore if by replacing base A with base Z (2-aminoadenine), a noncanonical base that naturally forms three hydrogen bonds with base T and in theory with base U (Figure 1A),^13,14 the resultant mRNA (named Z-mRNA) would entail distinct properties that are favorable for therapeutic applications. For instance, extra hydrogen bonds formed between Z:U pairs would, in theory, stabilize the secondary structure of Z-mRNA, which may in turn improve its expression. Furthermore, base Z originates from cyanophage¹³ and was also identified as an extraterrestrial nucleobase in carbonaceous meteorites.¹⁵ Considering the foreign nature of base Z to mammalian systems, we hypothesized the Z-mRNA may exhibit reduced immunogenicity as it might escape the innate immune surveillance when delivered into mammalian cells. This hypothesis was partially inspired by the fact that the Z-DNA genome of cyanophage confers an evolutionary advantage to escape the host defense system in bacteria (e.g., restriction enzyme digestion),¹³ a strategy adopted by nature to bypass the detection of foreign nucleic acids delivered into host cells.

Figure 1.

Overview and in vitro characterizations of Z-mRNA

(A) Comparison of base pairings between A:U, A:m1ψ, and Z:U.

(B) Schematic overview of mRNA synthesis, including in vitro transcription (IVT) followed by 5′ capping and 3′ tailing reactions.

(C) Denaturing gel electrophoresis of Z-mRNA synthesized from three different DNA templates, including GFP, mCherry, and RBD by two RNA polymerases (SP6 and T7), and a comparison of the Z-mRNA IVT yield by two RNA polymerases (N = 3). Error bars represent means ± SD (standard deviation). n.s. = not significant. Ladder: NEB ssRNA ladder. ∗: 500 bases. ∗∗: 1000 bases.

(D) IVT yield of mRNAs. N = 10 for unmodified (abbreviated as “Un”) and Z-mRNA. N = 8 for m1ψ-mRNA. Error bars represent means ± SEM (standard error of the mean). p value was calculated by two-tailed unpaired t test. n.s. = not significant. One-way ANOVA test of three groups: n.s.

(E) Denaturing gel electrophoresis of mRNAs prior to (top) or after 3′ polyA tailing (bottom). Un: unmodified mRNA. Z: Z-mRNA. m1ψ: m1ψ-mRNA. GFP/RBD mRNA (without the 3′ polyA tail): ∼960 bases. Ladder: NEB ssRNA ladder. ∗: 500 bases. ∗∗: 1000 bases.

(F) UV absorbance of unmodified and Z-mRNA over temperature (see STAR Methods for details). Dash line = 0.5. Representative image shown from two replicates.

(G) The median fluorescence intensity (MFI) of EGFP⁺ population in HCT116 cells transfected with Z-mRNAs under various capping and tailing configurations. Cells were analyzed 24 h after transfection. N = 3. Error bars represent means ± SD. p value was calculated by two-tailed unpaired t test, ∗∗: p < 0.01, ∗∗∗: p < 0.001. n.s. = not significant.

(H) Representative images showing the gating strategy used for flow cytometry analysis for four populations, including wild-type cells (no mRNA transfection, top left), cells that received Z-mRNA without cap or tail (top right), cells that received Z-mRNA with cap0 and a polyA tail (bottom left), and cells that received Z-mRNA with cap0 and a polyZ tail (bottom right). P5: gate for autofluorescence. P3: gate for EGFP⁺ cells. See also Figures S2 and S3.

However, to date it remains unknown if such a radical change in base pairing by the complete A-to-Z substitution in mRNA would adversely affect mRNA translation, a process that requires proper base pairing between the transfer RNA (tRNA) and mRNA for codon decoding.¹⁶ In this regard, it was previously reported that nonstandard codons such as ZGG and GZG did not significantly alter the eukaryotic translation process but preserved the unambiguous base pairing of Z with U during mRNA-tRNA interaction,¹⁷ suggesting the robustness of the decoding process. Nevertheless, the effect of global A-to-Z substitution in mRNA remains undetermined, and the characterization and application of Z-mRNA have not been reported before.

In this work, we demonstrate that, compared to unmodified mRNA, Z-mRNA exhibits improved translational capacity, decreased cytotoxicity, and minimal immunogenicity in mammalian cells. As a proof of concept for its therapeutic applications, we further developed an effective Z-mRNA-based COVID-19 vaccine that successfully elicited substantial humoral and cellular immune responses in vivo in mice. Z-mRNA leverages the robustness of the translation process and could shift the paradigm of current mRNA base modifications by bringing into play the noncanonical base that alters Watson-Crick base pairing for mRNA-based technologies.

Results

Synthesis and characterization of Z-mRNA in vitro

To test our hypothesis, we first synthesized Z-mRNA via in vitro transcription (IVT) by replacing ATP with ZTP (2-Amino-ATP) in the reaction. The mRNA consists of a 5′ untranslated region (UTR), the Kozak sequence to enhance translation initiation, the coding sequence (CDS), and the 3′ UTR containing the bGH-plA termination signal (Figure 1B; Table S1). Both SP6 and T7 RNA polymerases could efficiently incorporate ZTP during IVT, yielding similar amounts of transcripts with correct size from all three templates tested (Figure 1C), including EGFP (enhanced green fluorescent protein), RBD (receptor binding domain of SARS-CoV-2), and mCherry fluorescent protein. When comparing Z-mRNA synthesis with unmodified or m1ψ-modified mRNA using the SP6 RNA polymerase, we observed no statistically significant difference in the IVT yield of three mRNAs, although the average yield of Z-mRNA was slightly lower than the other two (Figure 1D). When analyzed by the spectrophotometer, Z-mRNA exhibited lower spectral ratios (A260/280, A260/230) compared to the unmodified mRNA (Figure S1), which was in line with the typical spectral feature observed for the Z-DNA isolated from cyanophage S-2L.¹³

Interestingly, Z-mRNA appeared to have migrated faster in the denaturing gel compared to unmodified or m1ψ-modified GFP/RBD-encoding mRNA (Figure 1E, top), indicating it may encompass a more compact secondary structure. Similarly, when using UV spectroscopy to probe the folding energy of synthesized RNA,¹⁸ we found that Z-mRNA had a distinct absorbance profile at 260 nm with a higher melting temperature compared to its unmodified counterpart (Figure 1F). The distinct electrophoresis and spectroscopy profiles of Z-mRNA prompted us to further examine its biophysical property. Toward this goal, we tested the activity of 4 different nucleases (Table S2) on unmodified, Z- or m1ψ-mRNA in vitro as another indirect means of probing mRNA secondary structure. mRNAs were first subject to annealing to induce secondary structure formation before nuclease treatment (Figure S2A). Interestingly, we observed incomplete digestion of Z-mRNA by RNase If (Figure S2B, left), in contrast to the unmodified mRNA. Given RNase If selectively removes nucleotides in single-stranded RNAs,¹⁹ its incomplete digestion of Z-mRNA suggests an increased secondary structure of the modified mRNA with A-to-Z substitution. The remaining nucleases (RNase A, RNase R, S1 Nuclease) showed no obvious difference in substrate preference as all mRNAs were efficiently digested (Figure S2B, right), which was not unexpected considering these nucleases are less stringent on the secondary structure of an RNA substrate (Table S2). Taken together, these results strongly indicate that the A-to-Z substitution in mRNA increased and further stabilized the secondary structure of modified mRNA.

The 5′ cap and 3′ polyA tail are essential elements to regulate mRNA translation in eukaryotic cells.²⁰ Hence, we systematically evaluated the effects of various combinations of 5′ capping and 3′ tailing on Z-mRNA expression using EGFP as a reporter (Figure S3A). We adopted the post-transcriptional capping and tailing route for two reasons: 1) co-transcriptional capping with cap analogs could reportedly reduce the yield of mRNA with modified bases and 2) given the “A-to-Z substitution” nature of Z-mRNA, co-transcriptional tailing using a DNA template with an encoded 3′ polyA tail would inevitably lead to Z-mRNA synthesized with a 3′ polyZ tail, of which the effect on mRNA translation was unknown.

We confirmed both the polyA tail and polyZ tail could be efficiently added to the mRNA transcript via a 3′ tailing reaction, with either ATP or ZTP provided (Figure 1E, bottom; Figure S3B). To evaluate the capping efficiency, we compared the expression level of EGFP-encoding Z-mRNA with or without a 5′ cap in HCT116 cells (human colorectal carcinoma cells). Our results showed that with no cap or tail, Z-mRNA expressed poorly in cells (Figures 1G, 1H, and S3C). By contrast, Z-mRNA under the “Cap0/1, polyA tail” configuration exhibited the highest expression level with >94% EGFP⁺ cells observed at 24 h after transfection (Figures 1G, 1H, and S3C), indicating the high efficiency of post-transcriptional capping and tailing methods. However, we noticed that a polyZ tail at the 3′ end adversely affected Z-mRNA expression compared to a polyA tail, thus necessitating the addition of the polyA tail to Z-mRNA in a post-transcription step (Figures 1G and S3C). Considering the polyA-binding protein is needed to initiate efficient mRNA translation in eukaryotic cells,²¹ A-to-Z substitutions in the 3′ tail likely reduced the binding affinity of polyA-binding protein to the mRNA 3′ tail, thus leading to decreased translational activity. For following studies, all mRNAs underwent the same 5′ capping (cap0) and 3′ tailing (polyA) reactions for efficient expression and direct comparison across groups.

Z-mRNA exhibited improved translational capacity in mammalian cells

To examine if the A-to-Z substitution would result in increased mRNA translation in mammalian cells, we delivered mRNA encoding EGFP or mCherry fluorescent protein into cultured cells via lipofectamine-based transfection and quantified mRNA expression by flow cytometry. Notably, in HCT116 cells Z-mRNA consistently outperformed its unmodified counterpart in EGFP expression over the monitored time course, by up to a 23.8-fold increase in MFI (median fluorescence intensity) at 24 h after transfection (Figures 2A, 2B, and S4A). When compared to m1ψ-mRNA as a control, Z-mRNA exhibited similar kinetics in translation with expression level peaked around 24 h after transfection (Figure 2A). However, its overall expression was moderately lower than that of the state-of-the-art m1ψ-mRNA by ∼ 40% in HCT116 (Figure 2A, right, quantified by the area under the curve).

Figure 2.

Translation of Z-mRNA in cultured cells

(A) EGFP expression in HCT116 cells as measured by the EGFP⁺ cells percentage (left) or MFI of the EGFP⁺ population (right) over time. MFI: median fluorescence intensity. N = 3. Error bars represent means ± SD.

(B) Representative fluorescent images of HCT116 cells transfected with unmodified or Z-mRNA encoding GFP. Images captured under the same exposure conditions. Scale bar: 50 μm.

(C) Normalized EGFP MFI in HEK293T cells (left) and in NIH3T3 cells (right). N = 3. Data collected at 24 h after transfection. Error bars represent means ± SD.

(D) Normalized mCherry MFI in HCT116 cells (left) and HEK293T cells (right). N = 3. Data collected at 24 h after transfection. Error bars represent means ± SD.

(E) Normalized EGFP MFI in primary BMDCs. N = 3. Data collected at 8 h after transfection. For normalization in (C-E), the absolute MFI of each group was divided by the MFI of EGFP⁺ or mCherry⁺ population transfected by unmodified mRNA. p value was calculated by two-tailed unpaired t test, ∗: p < 0.05, ∗∗: p < 0.01, ∗∗∗: p < 0.001, ∗∗∗∗: p < 0.0001. n.s. = not significant. Error bars represent means ± SD. In addition to the t test of neighboring two groups, we also performed the one-way ANOVA statistical analysis for all three groups shown in (C–E), and the results were summarized in Table S5. See also Figures S4–S6.

We further examined Z-mRNA expression in two other cell lines: HEK293T (immortalized human embryonic kidney cells) and NIH3T3 (immortalized mouse embryonic fibroblast [MEF] cells) and included mCherry (Table S3) as a second reporter. We selected cell lines of various origins to ensure that the results we observed would be translatable in different cell types. In particular, we included the HEK293 cell line also because it was used to evaluate the translational capacity of ψ- and m1ψ-modified mRNA in two seminal works reported previously.^2,3 In all cases, Z-mRNA demonstrated superior translational capacity than the unmodified mRNA (Figures 2C, 2D, and S4B), with on average an 8.6-fold increase in the MFI of EGFP⁺/mCherry⁺ population. When compared to the state-of-the-art base modification m1ψ, Z-mRNA showed either comparable mCherry expression in HCT116 (Figure 2D, left; Figure S4B) or moderately lower expression in other cases by ∼ 48% on average (Figures 2C and 2D). The consistent increase in expression of Z-mRNAs encoding two different reporter proteins (EGFP and mCherry) also suggests that the enhanced translation of Z-mRNA is likely independent of the CDS of the protein.

We also tested if there was potential synergistic effect between base Z and other reported modifications, including ψ, m1ψ, and 5-methylcytidine (m5C).⁶ For this purpose, we synthesized mRNA with two base modifications (“Z + ψ”, “Z + m1ψ” and “Z + m5C”) and compared its expression to Z-mRNA (i.e., only A-to-Z substitution) in HCT116 cells using EGFP as the reporter. All four types of modified mRNAs resulted in high transfection efficiency, with >90% EGFP-positive cells observed at 24 h after transfection (Figure S5A) Interestingly, we observed drastically reduced EGFP expression when base Z was coupled with ψ, whereas adding a second modification such as m5C or m1ψ did not significantly affect mRNA expression compared to base Z modification alone (Figures S5B and S5C).

To examine if the increased expression of Z-mRNA was also true in primary cells, we performed the comparison in mouse bone marrow-derived dendritic cells (BMDCs). We observed comparable EGFP expression from Z-mRNA and m1ψ-mRNA in BMDCs, both of which were significantly higher than the unmodified mRNA (Figures 2E and S6A). We noticed that the absolute expression level of all mRNAs in BMDCs were much lower than in other cell lines (Figure S6B), and this difference was likely due to the hard-to-transfect nature of primary cells such as BMDCs. Taken together, our results demonstrate that Z-mRNA with a 3′ polyA tail could be successfully translated into functional proteins (e.g., EGFP and mCherry) in mammalian cells at a capacity greater than the unmodified mRNA. Compared to the state-of-the-art m1ψ-mRNA, Z-mRNA exhibited moderately lower or similar expression level depending on the cell line tested.

Z-mRNA demonstrated reduced cytotoxicity and immunogenicity in mammalian cells

While comparing the translational capacity of different mRNAs, we consistently noticed that cells transfected with Z-mRNA appeared less stressed and maintained healthier morphology (Figure S7). Indeed, cell viability assay revealed Z-mRNA as significantly less toxic to cells than unmodified mRNA in all three cell lines tested as well as in primary BMDCs (Figure 3A). Specifically, at 48 h following transfection, cells (HCT116, HEK293T, or NIH3T3) that received Z-mRNA or m1ψ-mRNA had similar viability that was significantly higher than cells transfected with unmodified mRNA (Figure 3A). Notably, in BMDCs we noticed m1ψ-mRNA exhibited cytotoxicity similar to the unmodified mRNA (Figure 3A, BMDCs), in line with a previous study.³ Interestingly, Z-mRNA was significantly less toxic in BMDCs compared to both unmodified mRNA and m1ψ-mRNA, suggesting a potential advantage of base Z modification over m1ψ.

Figure 3.

Cytotoxicity and immunogenicity of Z-mRNA in mammalian cells

(A) Viability of cells transfected with different mRNAs at 48 h after transfection, including HCT116, HEK293T, NIH3T3, and primary BMDCs. Lipo = lipofetamine MessengerMax only. Ctrl = no transfection. N = 3. Error bars represent means ± SD. p value was calculated by two-tailed unpaired t test, ∗: p < 0.05, ∗∗: p < 0.01, ∗∗∗: p < 0.001, ∗∗∗∗: p < 0.0001.

(B and C) Secretion of IFN-β (B) and CCL5 (C) by MEF cells following mRNAs transfection at indicated doses. N = 3. Error bars represent means ± SD. p value was calculated by two-tailed unpaired t test, ∗∗: p < 0.01, ∗∗∗: p < 0.001, ∗∗∗∗: p < 0.0001. n.s. = not significant. Values above each bar represent mean.

(D and E) Secretion of IFN-β (D) and CCL5 (E) by BMDCs following mRNAs transfection. N = 3. Cell culture supernatant was collected at 24 h after transfection for cytokine detection. Dashed line in (C–E) denotes the cytokine level detected from the no-mRNA control. N = 3. p value was calculated by two-tailed unpaired t test, ∗: p < 0.05, ∗∗: p < 0.01, ∗∗∗: p < 0.001, ∗∗∗∗: p < 0.0001. n.s. = not significant. Error bars represent means ± SD. In addition to the t test of neighboring two groups, we also performed the one-way ANOVA statistical analysis for all five groups in (A) and four groups in (D and E), and the results were summarized in Table S5. See also Figures S7–S9.

Considering the improved translational capacity and decreased cytotoxicity of modified mRNAs often correlate with the reduction of innate immune signaling activation,^3,22,23 we sought to examine the immunogenicity of Z-mRNA in mammalian cells. Toward this goal, we first compared the induction of two cytokines in MEF cells by the enzyme-linked immunosorbent assay (ELISA): interferon beta (IFN-β), a major orchestrator of intracellular innate immune signaling,²⁴ and CCL5/RANTES, a key cytokine significantly upregulated upon unmodified mRNA transfection.²³ We chose MEF cells because they are commonly used for the functional characterization of innate immune signaling pathways,²⁵ and they were also adopted to examine the immunogenicity of modified mRNAs in the original study by Karikó et al.²

We transfected EGFP-encoding mRNA into MEF cells using lipofectamine. As expected, at all three doses tested, unmodified mRNA induced the highest levels of IFN-β and CCL5 secretion (Figures 3B and 3C), confirming its highly immunogenic nature. In comparison, m1ψ-mRNA significantly reduced cytokines secretion in MEF cells, in line with its reported low immunogenicity.³ Strikingly, we observed significantly lower induction of IFN-β and CCL5 from MEF cells transfected with Z-mRNA compared to m1ψ-mRNA. Specifically, MEF IFN-β induction by Z-mRNA was on average ∼11-fold lower than m1ψ-mRNA (Figure 3B). In addition, CCL5 induction by Z-mRNA was statistically comparable to the background level (i.e., no mRNA transfected), whereas CCL5 induction by m1ψ-mRNA was ∼ 3-fold higher than the no-mRNA control (Figure 3C). Taken together, these results suggest incorporating base Z into mRNA could aid in the escape of innate immune surveillance against foreign mRNAs, and Z-mRNA outperformed m1ψ-mRNA with further reduced immunogenicity when assessed by IFN-β and CCL5 induction in MEF cells. We also confirmed that the minimal immunogenicity of Z-mRNA in MEF cells was not due to its low expression, as both Z- and m1ψ-mRNA gave significantly higher EGFP expression than unmodified mRNA in MEF cells (Figures S8A and S8B), consistent with what we observed in other cell types (Figure 2). To confirm the reduced cytokine induction by Z-mRNA in MEF cells was not caused by low cell viability, we determined the viability of MEF cells transfected with different mRNAs. Again, consistent with results obtained in other cell lines (Figure 3A), we found Z-mRNA exhibited significantly lower cytotoxicity in MEF cells than the unmodified mRNA (Figure S9).

To further characterize the immunogenicity of Z-mRNA in the context of adaptive immune system, we performed the comparison in mouse BMDCs. Consistent with results obtained in MEF cells, unmodified mRNA induced the highest levels of IFN-β and CCL5 secretion, which were significantly higher than the induction by both Z-mRNA and m1ψ-mRNA (Figures 3D and 3E). This difference was not caused by the potentially low expression of modified mRNAs in BMDCs, as both Z-mRNA and m1ψ-mRNA gave significantly higher expression than unmodified mRNA in BMDCs (Figure 2E). When comparing the immunogenicity of Z-mRNA against m1ψ-mRNA in BMDCs, we observed a relatively lower IFN-β induction by Z-mRNA (Figure 3D), although the difference was not considered as statistically significant (p = 0.12). Nonetheless, these results demonstrated that, in addition to adopting RNA modifications that are naturally present in mammalian systems, it is also possible to reduce the immunogenicity of synthetic mRNA by incorporating other types of base modifications such as base Z explored here.

Z-mRNA as an effective vaccine against SARS-CoV-2 in vivo in mice

Compared to unmodified mRNA, the increased translational capacity, reduced cytotoxicity, and decreased immunogenicity of Z-mRNA poise it as a promising candidate for in vivo therapeutic applications (Figure 4A). As a proof of concept, we developed a Z-mRNA-based vaccine against SARS-CoV-2 and tested its efficacy in mice.

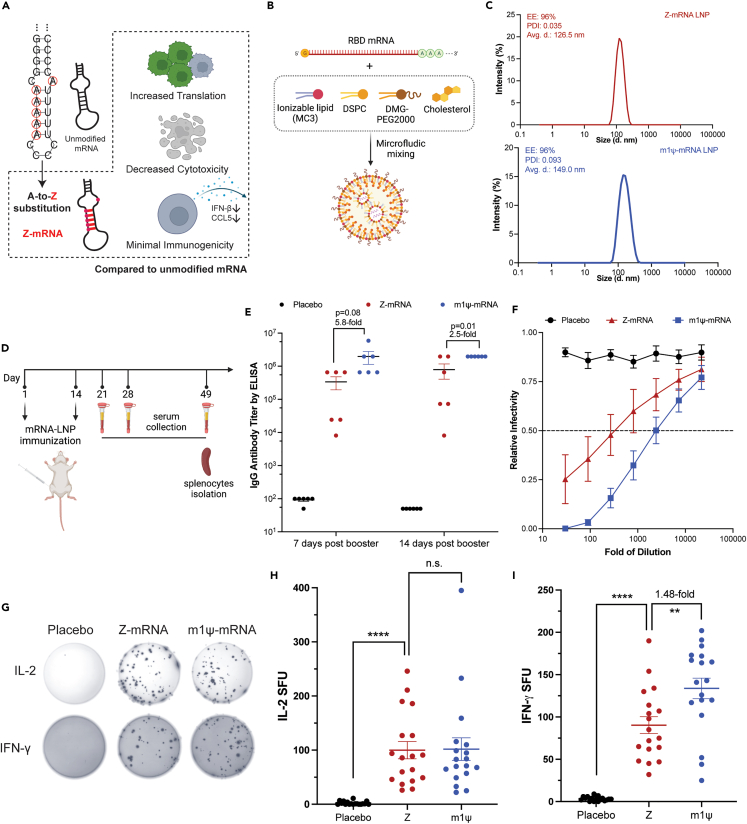

Figure 4.

Development and evaluation of Z-mRNA-based COVID-19 vaccine in vivo

(A) Schematic representation of the A-to-Z substitution in Z-mRNA and its advantages over unmodified synthetic mRNA.

(B) Synthesis of mRNA LNPs via microfluidic mixing. Ionizable lipid: D-Lin-MC3-DMA. DSPC: distearoylphosphatidylcholine. DMG-PEG2000: 1,2-dimyristoyl-rac-glycero-3-methoxypolyethylene glycol-2000.

(C) Characterization of Z- and m1ψ-mRNA LNPs. EE: encapsulation efficiency (top left). PDI: polydispersity index (top left). The size distribution was detected by dynamic light scattering and the average of three technical replicates was shown in the figure.

(D) Mouse vaccination scheme adopted in this study.

(E) SARS-CoV-2 RBD-specific IgG antibodies in sera determined by ELISA. Mice sera was collected 7 days or 14 days after second immunization and used for RBD-specific IgG antibody detection by ELISA. N = 6. Error bars represent means ± SEM. p value was calculated by two-tailed unpaired t test.

(F) Pseudovirus neutralization curve. Mice sera collected 14 days after second immunization was used for pseudovirus neutralization assay. N = 6. Error bars represent means ± SEM. Dashed line: 0.5.

(G) Representative well images of ELISPOT assays. Mouse splenocytes were isolated 35 days after second immunization for ELISPOT assay. Image here shows the spot forming units (based on IL-2 or IFN-γ secretion) from mouse splenocytes stimulated in vitro with the antigen RBD peptide-mix pool.

(H and I) ELISPOT assays of IL-2 (H) and IFN-γ (I) secretion. Error bars represent means ± SEM. N = 6 × 3 = 18 in (H) and (I) (three ELISPOT replicates per mouse splenocyte sample). p value was calculated by two-tailed unpaired t test, ∗: p < 0.05, ∗∗: p < 0.01, ∗∗∗: p < 0.001, ∗∗∗∗: p < 0.0001. n.s. = not significant. See also Figures S10–S12.

We selected the RBD (Table S3) of the SARS-CoV-2 spike protein as the antigen as previously reported^26,27 and included m1ψ-mRNA to serve as a positive control. We first examined RBD-encoding mRNA expression in HEK293T cells. Consistent with the fluorescence reporter-based assay, we detected successful RBD expression by both western blot (Figure S10A) and ELISA (Figure S10B), with Z-mRNA showing significantly higher RBD expression compared to the unmodified mRNA. Furthermore, considering western blot and ELISA rely on specific antibody-antigen interactions for target detection, these results also indicate the protein translated from Z-mRNA (i.e., RBD) also maintained the proper conformation that is recognizable to its corresponding antibody.

To achieve efficient delivery and expression of mRNAs in vivo, we encapsulated synthesized mRNAs into lipid nanoparticles (LNPs) by microfluidic mixing (Figure 4B).²⁸ We obtained ∼96% encapsulation efficiency (EE) for both Z- and m1ψ-mRNA LNPs as determined by the ribogreen-based encapsulation assay (Figure 4C, top left). The dynamic light scattering of LNPs revealed the average diameter of Z-mRNA and m1ψ-mRNA LNPs to be 126.5 nm and 149.0 nm, respectively (Figure 4C). The polydispersity index (PDI) of both LNPs was below 0.01 (Figure 4C, top left), suggesting the high quality of prepared LNPs.

To examine the efficacy of Z-mRNA LNPs as a COVID-19 vaccine in mice, we adopted the two-dose vaccination scheme with a two-week interval (Figure 4D). Three groups of BALB/c mice (n = 6) were immunized by the intramuscular (i.m.) route on day 1 and day 14 with either 15 μg Z-mRNA_RBD, or 15 μg m1ψ-mRNA_RBD, or with a placebo (phosphate-buffered saline only). The 15 μg dose was selected based on a relevant study that adopted the same mRNA dosage using RBD as the antigen.²⁷ We collected serum samples from mice 7 days (day 21) and 14 days (day 28) after the second injection to evaluate the immune response. On both days we successfully detected RBD-specific immunoglobulin G (IgG) antibodies from Z-mRNA-immunized mice serum by ELISA with the mean antibody level > 10⁵ (Figure 4E), demonstrating that Z-mRNA could be translated in vivo and elicit efficient antigen-specific humoral immune response. However, we observed that the level of RBD-specific IgG antibodies elicited by Z-mRNA was lower than that elicited by m1ψ-mRNA by ∼ 5.8-fold on day 21 (p = 0.08) and ∼2.5-fold on day 28 (p = 0.01), likely due to the lower expression level of RBD from Z-mRNA compared to m1ψ-mRNA (Figure S10B).

To evaluate anti-SARS-CoV-2 neutralizing antibodies in the serum, we performed the pseudovirus neutralization assay as previously described.²⁹ Consistent with the ELISA-based quantification of RBD-specific IgG antibodies, we observed significant neutralization of pseudovirus following its incubation with serum from Z-mRNA- or m1ψ-mRNA-immunized mice (Figure 4F), with Z-mRNA having relatively lower NT₅₀ (mean value 523.5) compared to m1ψ-mRNA (mean value 1858, p = 0.058) (Figure S10). Nonetheless, these results collectively demonstrate Z-mRNA-encapsulated LNPs can work as an effective vaccine to elicit humoral immune response in immunized mice, albeit with lower potency than the state-of-the-art m1ψ-mRNA.

We also performed the enzyme-linked immunospot (ELISPOT) assay to characterize cellular immune responses induced by the vaccine. We harvested spleens from immunized mice at 5 weeks (day 49) after the second injection (Figure 4D). Splenocytes were then isolated and stimulated in vitro with RBD peptide pools to evaluate cellular cytokines secretion. ELISPOT assays revealed that mice immunized with either Z-mRNA or m1ψ-mRNA produced T cells that could be activated by RBD to release cytokines interleukin-2 (IL-2) and IFN-γ, in contrast to the placebo group (Figure 4G). Specifically, splenocytes from Z-mRNA-immunized mice had a similar level of IL-2 secretion compared to that of m1ψ-mRNA-immunized mice (Figure 4H) and a slightly lower level of IFN-γ secretion (Figure 4I) following RBD stimulation. Collectively, these results demonstrate that alongside the humoral immune response detected from mouse serum, Z-mRNA also induced significant cellular immune response against the SARS-CoV-2 RBD antigen. In addition, we observed no significant difference in the body weight (Figure S12A, left), spleen weight (Figure S12A, middle), and spleen size (Figure S12A, right; Figure S12B) between Z-mRNA- and m1ψ-mRNA-immunized mice on day 49, suggesting no obvious toxicity of Z-mRNA in vivo within the time span of this study.

Discussion

In this work, we report a novel type of modified mRNA named Z-mRNA and demonstrated its in vivo application as an effective vaccine against SARS-CoV-2 in mice. To the best of our knowledge, Z-mRNA represents the first of its kind with the noncanonical base Z incorporated (Figure 1A) that alters Watson-Crick base pairing yet manifests favorable biological properties, including enhanced translation, decreased cytotoxicity, and minimal immunogenicity in mammalian cells compared to unmodified synthetic mRNA (Figure 4A).

The increased folding energy and electrophoresis mobility of Z-mRNA were in line with our prediction that Z-mRNA may encompass a more compact and stable secondary structure due to the extra hydrogen bonds introduced by base Z when paired with U. The increased secondary structure of Z-mRNA was likely associated with and could have contributed to its enhanced translational capacity in cells as previous studies suggested that the structure of mRNA regulates its expression.^7,8,9,10 Moreover, Z-mRNA could be successfully translated into functional proteins in mammalian cells, indicating the Z:U base pairing was preserved during the decoding process, consistent with a previous report.¹⁷ Hence, the A-to-Z base substitution in Z-mRNA is, in theory, equivalent to an increased GC content of mRNA without CDS or codon alteration. Interestingly, the complete A-to-Z substitution in DNA drastically reduced the expression of encoded EGFP in HCT116 cells (Figure S13), suggesting a more stringent regulation on transcription than translation in mammalian cells. This observation was also consistent with a previous study reporting the inhibitory effect of base Z on transcription in human cells.³⁰

The current base modification scheme for mRNA is largely restricted to naturally occurring RNA modifications such as ψ, m1ψ, N⁷-methylguanosine (m7G), N⁶-methyladenosine (m6A), and m5C.⁶ This strategy is based on the rationale that synthetic mRNA incorporated with natural eukaryotic RNA modifications may better mimic endogenous RNA to bypass the innate immune surveillance, thus reducing the immunogenicity of modified mRNA.¹ Surprisingly, however, we observed minimal immunogenicity of Z-mRNA in mammalian cells, despite that base Z was originally discovered from the genomic DNA of cyanophage S-2L and its existence in eukaryotic cells has not been reported. In this regard, our work indicates that foreign nucleobases such as Z could also be harnessed to reduce the immunostimulatory effect of synthetic mRNA, thus expanding the scope of modified nucleosides for future exploration. Further research is needed to unravel the underlying mechanism of immunosuppression by Z-mRNA.

Interestingly, the base Z, commonly known as 2,6-diaminopurine or 2-aminoadenine, was once used as a drug to treat leukemia in humans thanks to its ability to arrest the proliferation of cancer cells.³¹ This fact raises certain safety concern over the usage of Z-mRNA in mammalian systems. In this respect, it is important to note that Z-mRNA and base Z are chemically distinct molecules. For a given Z-mRNA macromolecule, only corresponding A bases are replaced with Z bases, while the sugar backbone, phosphodiester bonds, and other nitrogenous bases remain unchanged. Hence, Z-mRNA may not exhibit antiproliferation activity in mammalian cells because the functional group (i.e., 2,6-diaminopurine) responsible for this activity is attached to the ribose via a covalent bond in the mRNA macromolecule. In line with this hypothesis, we did not observe adverse effect on cell growth in our cytotoxicity assay comparing Z-mRNA and unmodified mRNA in cultured cells. In fact, the 2,6-diaminopurine was used to treat leukemia because following administration this circulating compound could disrupt DNA replication in cancer cells.³¹ Z-mRNA, by contrast, consists of no free 2,6-diaminopurine. It is possible that following in vivo delivery, Z-mRNA could be digested by the host’s digestive system to generate free Z bases. However, the evidence for this possibility is lacking and future studies are needed to elucidate metabolic pathways involved in Z-mRNA digestion in vivo.

We anticipate the translational capacity of Z-mRNA could be further improved through systematic engineering efforts such as optimizing 5′ and 3′ UTRs.³² More importantly, the minimal immunogenicity of Z-mRNA in certain cell types (e.g., MEF cells) could make it a more attractive platform for in vivo therapeutic applications where minimal immunogenicity is desired, e.g., the treatment of autoimmune diseases.¹

Limitations of the study

In this study we adopted the same UTR sequences (Table S1) for all reporter constructs tested. Considering UTRs play an important role in regulating mRNA translation, it would be of interest to test the compatibility of Z-mRNA with diverse UTRs. In addition, in our study we evaluated the immunogenicity of Z-mRNA in MEF cells and BMDCs. Although previous studies reported strong correlation between in vitro and in vivo measurements of mRNA immunogenicity,^2,3,33 it would be beneficial to further determine the immunogenicity of Z-mRNA in vivo. Furthermore, although we did not observe obvious adverse effects in Z-mRNA-immunized mice, the duration of our in vivo study was relatively short (7 weeks) and the long-term safety profile of Z-mRNA warrants further investigation.
