Multiscale theoretical model shows that aging-related mechanical degradation of cortical bone is driven by microstructural changes in addition to porosity

Abstract

This study aims to gain mechanistic understanding of how aging-related changes in the microstructure of cortical bone drive mechanical consequences at the macroscale. To that end, cortical bone was modeled as a bundle of elastic-plastic, parallel fibers, which represented osteons and interstitial tissue, loaded in uniaxial tension. Distinct material properties were assigned to each fiber in either the osteon or interstitial fiber “families.” Models representative of mature (20–60 yrs.) bone, and elderly (60+) bone were created by modeling aging via the following changes to the input parameters: (i) increasing porosity from 5% to 15%, (ii) increasing the ratio of the number of osteon fibers relative to interstitial fibers from 40% to 50%, and (iii) changing the fiber material properties from representing mature bone samples to representing elderly bone samples (i.e., increased strength and decreased toughness of interstitial fibers together with decreased toughness of osteon fibers). To understand the respective contributions of these changes, additional models isolating one or two of each of these were also created. From the computed stress-strain curve for the fiber bundle, the yield point $\left({ϵ}_y,{\sigma }_y\right)$, ultimate point $\left({ϵ}_u\right.,\left.{\sigma }_u\right)$, and toughness $\left(U_T\right)$ for the bundle as a whole were measured. We found that changes to all three input parameters were required for the model to capture the aging-related decline in cortical bone mechanical properties consistent with those previously reported in the literature. In both mature and elderly bundles, rupture of the interstitial fibers drove the initial loss of strength following the ultimate point. Plasticity and more gradual rupture of the osteons drove the remainder of the response. Both the onset and completion of interstitial fiber rupture occurred at lower strains in the elderly vs. mature case. These findings point to the importance of studying microstructural changes beyond porosity, such as the area fraction of osteons and the material properties of osteon and interstitial tissue, in order to further understanding of aging-related changes in bone.

1. Introduction

Bone tissue is a multiscale living material that fulfills important biomechanical demands, such as to support movement and protect vital organs. Cortical bone is the highly dense type of bone tissue that encases all bones, contributes to whole-bone stiffness and strength [1], and is characterized by a complex hierarchical microstructure [2]. At times, cortical bone sustains mechanical loads that strain the tissue beyond its elastic regime [3]. Evidence indicates that aging impairs the ability of cortical bone to withstand these post-yield strains, and that this impairment may contribute to the increased incidence of fracture with aging [4]. In particular, degradation of mechanical properties such as strength and toughness is evident with aging [5]. However, less is clear about how aging-related changes in the microstructure of cortical bone [6] may be driving these changes in mechanical behavior at the macroscale. Since cortical bone plays a key load-bearing role in the skeleton, studying how the inelastic mechanical behavior of this tissue depends on its microstructure over the course of aging is critical to understanding how and when bones fail.

The microstructural constituents of cortical bone differ from one another in their mechanical behavior, and both these behaviors and the relative amounts of these constituents have been observed to change with aging [5–8]. Mature human cortical bone is characterized by a Haversian structure that is made up of osteons encased in an interstitial bone matrix. Osteons are structures of bone tissue composed of mineralized collagen fibers that are layered parallel to each other into stacks of sheets (lamellae). These concentric lamellae are wrapped around a central pore (Haversian canal) and are bordered by a cement line. Interstitial bone tissue is the primary bone tissue that has not yet remodeled into an osteon, as well as the fragments of osteons that remain after portions of those osteons have been remodeled. Nanoindentation [9–17] and microindentation [6] studies show that interstitial bone tissue is stiffer than osteon bone tissue. In addition, one such nanoindentation study demonstrated that interstitial bone tissue is less crack resistant [17]. Although there is a paucity of data directly comparing the strength or toughness of these two tissues, the well documented inverse relationship between stiffness and toughness in mineralized tissues such as bone [18, 19], and the microradiographic evidence that shows interstitial tissue to be more mineralized than osteons [20], together suggest that the two tissues differ in their material properties. With regards to aging, nanoindentation measurements have shown osteons from older bone exhibit similar stiffness to osteons from younger bone [11]. Mechanical testing of whole osteons demonstrated similar tensile strength [8] and higher compressive strength [21] between ages, while nano-scratch tests [7] show that osteons from older bones exhibit lower toughness than those from younger bone. However, comparisons across broad age ranges are lacking due to experimental challenges such as the difficulty of isolating single osteons for testing. These challenges may also contribute to the high variability in the reported data. Meanwhile, evidence suggests aging-related increases in the strength, yield stress, and stiffness, along with a decrease in toughness, of interstitial tissue [22]. The aging-related change in the relative amounts of osteon and interstitial tissue can be estimated from the data in [5, 23]¹. These calculations show that the volume fraction of osteons increases with age, while that of interstitial bone tissue decreases.

How aging-related differences in the microscale constituents of cortical bone influence the failure behavior at the macroscale is not well understood [6]. Porosity increases with aging and is strongly correlated with loss of stiffness, strength, and toughness [5, 6, 11, 23–27], but can only account for about 75% of the variation in strength and 60% in that of toughness [5, 6, 28, 29]. Evidence of aging-related changes in mineral content, which correlates with stiffness, is mixed, with some reports of increasing ash content [29] and others suggesting no change in ash content [5, 30], calcium content [5, 30, 31], or mineral-to-matrix ratio [6]. Furthermore, stiffness and strength have been shown to correlate with morphological changes in the microstructure [30], such as increasing number of osteons [5, 23, 32], decreasing area fraction of osteons [27], and increasing Haversian canal area [27, 32]. Taken together, these studies lend credence to the idea that multiple aging-related changes in morphology of the microstructure, rather than just porosity, may be important determinants of bone mechanical properties. Studies have also shown that changes in the interstitial fracture toughness [33] and mechanical integrity of the collagen network, rather than porosity [30, 34, 35], may play an important role in the toughness of cortical bone. Mechanistic interpretation of how these various morphological, compositional, and mechanical factors at the microscale, alone and in combination, affect the mechanical behavior at the macroscale is still lacking.

This study aims to understand how aging-related changes in the microstructure of cortical bone may drive mechanical consequences at the macroscale. Given the difficulty in using an experimental approach to isolate individual, aging-related changes in material properties, we used a multiscale constitutive model to simulate the mechanical behavior of cortical bone tissue (Figure 1). With this model, we explored the effects of aging-related changes in material properties, the relative volume fraction of osteons and interstitial bone tissue, and porosity on the mechanical behavior of cortical bone.

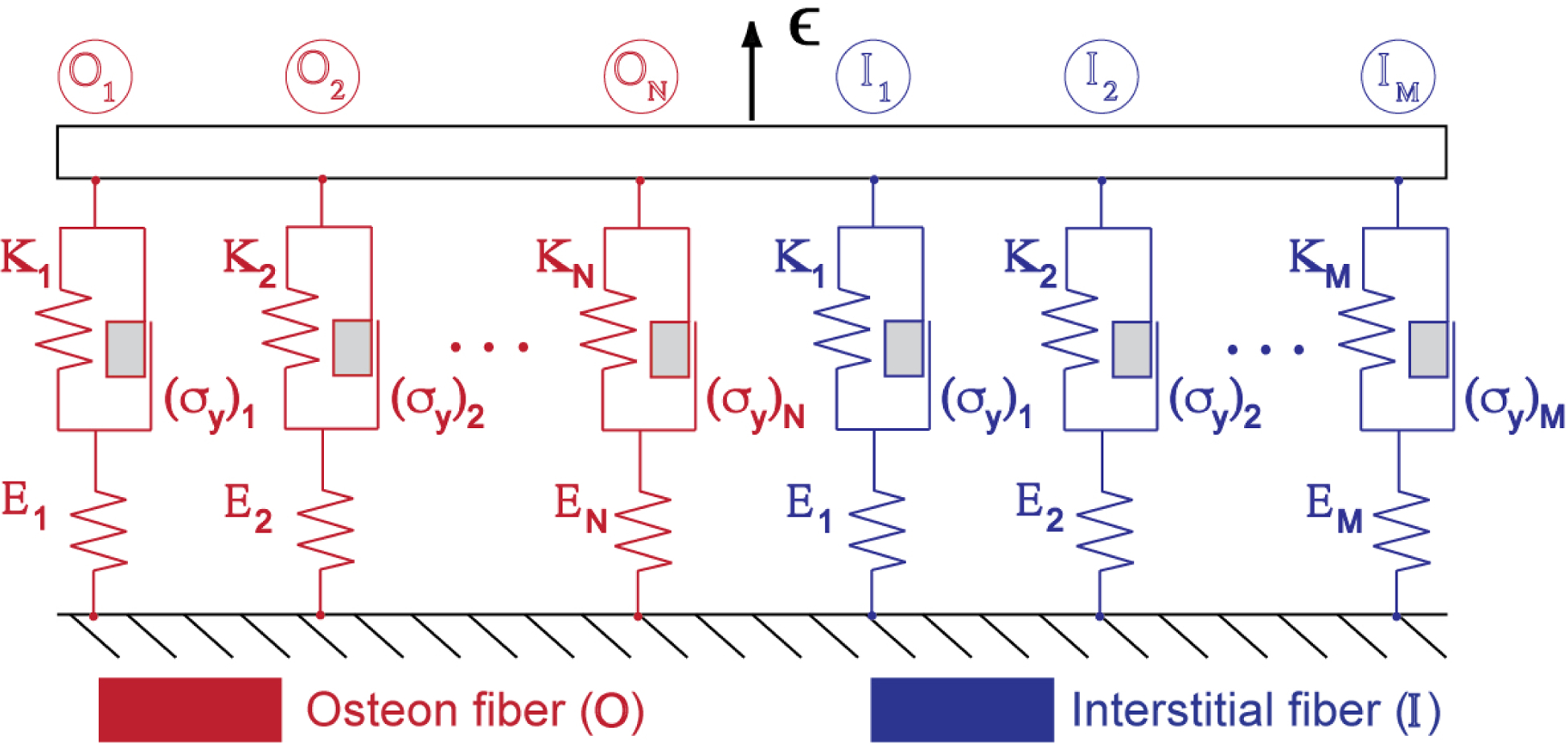

Figure 1:

Cortical bone is modeled in a one-dimensional setup consisting of a bundle of parallel fibers loaded in strain-control, (where $ϵ\equiv \text{strain}$). Each fiber is represented as a primary elastic spring $\left(E\right)$ connected in series with a plastic element comprising a secondary spring $\left(K\right)$ mounted in parallel with a Coulomb block that undergoes permanent deformation when its yield stress $\left({\sigma }_y\right)$ is exceeded. Distinct material properties, sampled from normal distributions, are assigned to each fiber within each osteon (red) and interstitial (blue) fiber “family”.

2. Methods

We consider the mechanical behavior of cortical bone loaded in the longitudinal direction. We model cortical bone as a heterogeneous bundle of straight, longitudinally oriented, elasto-plastic fibers. Damage is modeled by the progressive rupture of individual fibers in the bundle. This type of one-dimensional (1D) damage model [36] of cortical bone has been used previously to analyze the nonlinearity in the tensile response of cortical bone [37, 38]. We extend that model here to incorporate plasticity as well as two fiber families, one representing osteon bone tissue and the other interstitial tissue. Each fiber family has its own distributions of modulus, yield stress, and rupture stress, as depicted in Figure 1. Thus, the model represents heterogeneity on two scales. At the scale of the fiber bundle, the difference in mechanical behavior between the two types of microstructural constituents (i.e., osteon or interstitial) is considered by varying the material properties and volume fraction of each fiber family. At the scale of individual fibers, the mechanical heterogeneity within each type of microconstituent is considered by sampling from a distribution for each fiber family. We note that while the present fiber bundle model incorporates tissue heterogeneity in material properties, as well as elasticity, plasticity, and damage, it neglects viscoelasticity and so cannot capture rate-dependent phenomena. We limit attention to tensile loading, which allows comparison to commonly used experimental configurations to measure the properties of bone [23, 39, 40]. Furthermore, tensile stress is known to be a part of the mixed loading experienced by bone in normal physiological conditions [41, 42].

Microstructural changes apparent with aging are represented in two different ways. First, the volume fraction of each fiber family is assigned to represent the aging-related changes in the makeup of, and porosity in, cortical bone. Second, the property distributions of the fiber families are selected to represent aging-related changes in the material properties of each microconstituent. We assume the bone to be disease-free, and therefore assign material properties that correspond to healthy cortical bone. In this way, observed aging-related changes in the intrinsic material properties and morphology of bone tissue can be modeled through the properties of the fiber families, and the outputs of the model, the bundle’s mechanical properties, represent the macroscale mechanical behavior of cortical bone.

2.1. Fiber bundle model: constitutive behavior

2.1.1. Bundle stress and strain

The stress state of the entire fiber bundle $\left(\sigma \right)$ can be determined in terms of the stress $\left({\sigma }_i^{\mathit{\text{fiber}}}\right)$ in each individual fiber $i$ within the bundle. Assuming all fibers have the same cross-sectional area $\left(A^{\mathit{\text{fiber}}}=\text{constant})\right.$, the bundle stress $\left(\sigma \right)$ is given by the total force $\left(F_{\mathit{\text{TOT}}}\right)$ and cross-sectional area $\left(A_{\mathit{\text{TOT}}}\right)$:

$$\sigma =\frac{F_{\mathit{\text{TOT}}}}{A_{\mathit{\text{TOT}}}}=\frac{1}{A_{\mathit{\text{TOT}}}}\sum _i^T {\sigma }_i^{\mathit{\text{fiber}}}{A}^{\mathit{\text{fiber}}}$$ (1)

Since all fibers have constant cross-sectional area, the volume fraction of each fiber family $\left({\varphi }^{\mathit{\text{OST}}}\right.,{\varphi }^{\mathit{\text{INT}}})$ can be determined by the number of fibers belonging to that family:

$${\varphi }^{\mathit{\text{OST}}}=\frac{N{A}^{\mathit{\text{fiber}}}}{A_{\mathit{\text{TOT}}}}$$ (2)

$$\begin{array}{rr}& \\ {\varphi }^{\mathit{\text{INT}}}& =\frac{M{A}^{\mathit{\text{fiber}}}}{A_{\mathit{\text{TOT}}}}\end{array}$$ (3)

where $N$ refers to the total number of fibers in the osteon (OST) fiber family and $M$ the total number of fibers in the interstitial (INT) family. The porosity, ${\varphi }^{\mathit{\text{PORE}}}$, is defined as ${\varphi }^{\mathit{\text{PORE}}}=1-{\varphi }^{\mathit{\text{OST}}}-{\varphi }^{\mathit{\text{INT}}}$. Hence, the bundle stress is now given by:

$$\sigma =\frac{{\varphi }^{\mathit{\text{OST}}}}{N}\sum _{i=1}^N {\sigma }_i^{\mathit{\text{OST}}}+\frac{{\varphi }^{\mathit{\text{INT}}}}{M}\sum _{i=1}^M {\sigma }_i^{\mathit{\text{INT}}}$$ (4)

We assume the fibers to be loaded in parallel such that all fibers in the bundle are strained uniformly. Therefore, the strain on each fiber $\left({ϵ}_i^{\mathit{\text{fiber}}}\right)$ is equal to the bundle strain $\left(ϵ\right)$. With this assumption in mind, the simulated loading in the model is strain-controlled.

2.1.2. Mechanical behavior of an individual elastic-plastic fiber

Each fiber is modeled as elastic-plastic with linear hardening prior to rupture. The fiber stress is fully characterized by the fiber strain, accumulated plastic strain in the fiber, and the following material properties, where the subscript $i$ is omitted for clarity:

$${\sigma }^{\mathit{\text{fiber}}}=F\left({ϵ}^{\mathit{\text{fiber}}},{ϵ}_p^{\mathit{\text{fiber}}};E^{\mathit{\text{fiber}}},\right.\left.{\sigma }_y^{\mathit{\text{fiber}}},K^{\mathit{\text{fiber}}},{\sigma }_R^{\mathit{\text{fiber}}}\right)$$ (5)

$$\begin{array}{ll}{ϵ}^{\mathit{\text{fiber}}}& \equiv \text{strain}\text{applied}\text{to}\text{the}\text{fiber}\\ {ϵ}_p^{\mathit{\text{fiber}}}& \equiv \text{accumulated}\text{plastic}\text{strain}\text{in}\text{the}\text{fiber}\\ E^{\mathit{\text{fiber}}}& \equiv \text{fiber}\text{Young}’\text{s}\text{modulus}\\ {\sigma }_y^{\mathit{\text{fiber}}}& \equiv \text{fiber}\text{yield}\text{stress}\\ K^{\mathit{\text{fiber}}}& \equiv \text{fiber}\text{plastic}\text{modulus}\\ {\sigma }_R^{\mathit{\text{fiber}}}& \equiv \text{fiber}\text{rupture}\text{strength}\end{array}$$

We discretize the load history over time into load steps – assuming equilibrium at each load $\text{step}-\left(\dot{ϵ}=\frac{dϵ}{dt}\approx \frac{\Delta ϵ}{\Delta t}\right)$, and assuming that the relevant state variables from the prior load step are known, such that ${\sigma }_n={\sigma }^{\mathit{\text{fiber}}},{ϵ}_n=ϵ$, and ${ϵ}_{p,n}={ϵ}_p^{\mathit{\text{fiber}}}$. Variables with the subscript $n$ refer to the previous load step (known), while those with subscript of $n+1$ refer to values at the current load step (unknown). We drop the superscript “fiber” for the variables below, since these all correspond to a single fiber. To determine the stress increment in a given fiber due to a prescribed strain step $\Delta ϵ$, we use the trial stress ${\sigma }_{n+1}^{\mathit{\text{trial}}}$, which is the predicted stress for a given strain corresponding to the elastic modulus of the fiber; i.e., the stress corresponding to an elastic step [43]:

$${ϵ}_{n+1}={ϵ}_n+\Delta ϵ$$ (6)

$$\begin{array}{c}\\ {\sigma }_{n+1}^{\mathit{\text{trial}}}=E\left({ϵ}_{n+1}-{ϵ}_{p,n}\right)\end{array}$$ (7)

A yield function $f\left({\sigma }_{n+1}^{\mathit{\text{trial}}},{\sigma }_y,K,{ϵ}_{p,n}\right)$ is used to determine if the fiber has yielded. If so, then plastic strain, ${ϵ}_p$, will be updated accordingly. Linear strain-hardening and tensile loading are assumed, with $\left|{ϵ}_p\right|$ as the hardening parameter[43]. The yield function is therefore:

$$f_{n+1}^{\mathit{\text{trial}}}={\sigma }_{n+1}^{\mathit{\text{trial}}}-\left[{\sigma }_y+K{ϵ}_{p,n}\right]$$ (8)

The deformation and stress in the fiber at the given strain increment can then be determined by the sign of the resulting value for the yield function, where:

$$\begin{array}{rr}& f\le 0⟺\text{elastic}\text{step}\\ & \end{array}$$ (9)

$$\begin{array}{rr}& \\ & f>0⟺\text{plastic}\text{step}\end{array}$$ (10)

Elastic step $\left(f\left({\sigma }_{n+1}^{\mathit{\text{trial}}},{\sigma }_y,K,{ϵ}_{p,n}\right)\le 0\right)$

In this case, the fiber stress is computed directly based on the elastic modulus of the material, and only the elastic strain is considered:

$${\sigma }_{n+1}^{\mathit{\text{predicted}}}={\sigma }_{n+1}^{\mathit{\text{trial}}}={\sigma }_n+E\Delta {ϵ}_n.$$ (11)

Plastic step $\left(f\left({\sigma }_{n+1}^{\mathit{\text{trial}}},{\sigma }_y,K,{ϵ}_{p,n}\right)>0\right)$

In this case, the fiber yields, and the stress is updated according to a return mapping algorithm [43] in which the trial stress is projected onto, or mapped back (“returned”), to the yield surface. The plastic strain is updated in terms of the plastic slip $\left(\Delta \gamma \right)$:

$${ϵ}_{p,n+1}={ϵ}_{p,n}+\Delta \gamma .$$ (12)

The plastic slip is the increase in plastic strain due to the change in the yield surface due to hardening:

$$\Delta \gamma =\frac{f_{n+1}}{E+K}.$$ (13)

Hence, the fiber stress can be predicted by

$${\sigma }_{n+1}^{\mathit{\text{predicted}}}={\sigma }_{n+1}^{\mathit{\text{trial}}}-\Delta \gamma E.$$ (14)

Check for rupture

Regardless of yielding, the fiber will rupture if its predicted stress exceeds its rupture strength $\left({\sigma }_R\right)$. First, the predicted fiber stress $\left({\sigma }_{n+1}^{\mathit{\text{predicted}}}\right)$ is computed from Eq. 11 or 14, and the corresponding value is used in Eq. 15 below:

$${\sigma }_{n+1}=\left\{\begin{array}{ll}{\sigma }_{n+1}^{\mathit{\text{predicted}}}& \text{if}{\sigma }_{n+1}^{\mathit{\text{predicted}}}<{\sigma }_R^{\mathit{\text{fiber}}}\\ 0& \text{if}{\sigma }_{n+1}^{\mathit{\text{predicted}}}\ge {\sigma }_R^{\mathit{\text{fiber}}}\end{array}\right.,$$ (15)

If ${\sigma }_{n+1}^{\mathit{\text{predicted}}}\ge {\sigma }_R^{\mathit{\text{fiber}}}$, the fiber has ruptured and so its modulus is diminished accordingly,

$$E_f=0.$$ (16)

2.1.3. Assignment of material properties

The moduli and rupture strengths of each fiber family were assumed to follow normal distributions. The parameters characterizing each property’s distribution are listed in Table 1. The choices of their values are discussed below. The manner by which properties are assigned and distributed has significant ramifications on the bundle behavior. Some of the consequences surrounding the types of distributions and their types are presented in the appendix. The properties of each individual fiber were randomly sampled from the assumed distributions assigned to its fiber family (i.e., osteon, interstitial).

Table 1:

Model inputs for mature bone (baseline case) and elderly bone. Mean ± stdev are specified for prescribed material property distributions.

	Fiber family	$\varphi$ [%]	$E$ [GPa]	${\sigma }_R$ [Mpa]	$\beta =K/E$	$\alpha ={\sigma }_y/{\sigma }_R$
Mature	Osteon	40	18 ± 2	115 ± 17.5	0.1	0.5
	Interstitial	55	20 ± 2	160 ± 15	0.1	0.9
	Pores	5	-	-	-	-
Elderly	Osteon	50	18 ± 2	115 ± 17.5	0.1	0.7
	Interstitial	35	20 ± 2	210 ± 15	0.1	0.99
	Pores	15	-	-	-	-

Data for osteon Young’s modulus were available from both nanoindentation studies and tensile tests of individual osteons. Nanoindentation studies, in which a nanoindenter was used to measure the elastic moduli within individual lamellae, reported values of 14–22GPa [9, 11, 13, 15, 44, 45] for the tissue modulus of hydrated, fully mineralized osteons sampled from healthy human cortical bone. These values are in line with moduli reported from tensile tests on whole osteons (6–22 GPa) [8]. Since interspecimen (osteon-to-osteon) coefficient of variation was estimated to be approximately 10% on average based on nanoindentation tests [45], and 50% at most based on tensile tests [8], we base our modulus values primarily on nanoindentation data. Therefore, we assume osteon moduli fall into a normal distribution centered at 18 GPa with coefficient of variation of ~10%.

Data for osteon inelastic behavior were available from tensile tests of individual osteons. Taking into account previously measured average dimensions of whole osteons and their corresponding Haversian canals [27], the ultimate strengths reported from tensile tests on osteons were adjusted to estimate the effective ultimate stress of the bone tissue within the osteon alone (i.e., excluding the Haversian canal area). Those tensile experiments reported osteon ultimate stress in the range of 88–135 MPa, and also reported that the proportional limit (i.e., the transition to nonlinear mechanical behavior as measured on a representative stress-strain curve) was approximately half of its ultimate stress. Accounting for the fraction of osteons occupied by Haversian canals gives a tissue ultimate stress estimate in the range 93–144 MPa. While these mechanical tests measure the mechanical behavior of osteons at a larger length scale than nanoindentation, we note that the average modulus values obtained from nanoindentation across the lamellae within individual osteons [14, 39] are consistent with those obtained by the tensile tests on whole osteons [8]. Therefore, we assumed osteon rupture strengths fall into a normal distribution centered at 115 MPa with coefficient of variation of 15%, and set ${\alpha }^{\mathit{\text{OST}}}={\sigma }_y/{\sigma }_R=0.5$. The plastic modulus $\left({\beta }^{\mathit{\text{OST}}}=K/E=0.1\right)$ was obtained by computing the secant modulus of the plastic region of the stress-strain curve shown by Ascenzi et al. [8] of a fully mineralized, wet osteon. These four properties, ${\alpha }^{\mathit{\text{OST}}},{\beta }^{\mathit{\text{OST}}},E,{\sigma }_R$, fully determine the bilinear stress-strain curve (Figure 2) modeling a given osteon fiber.

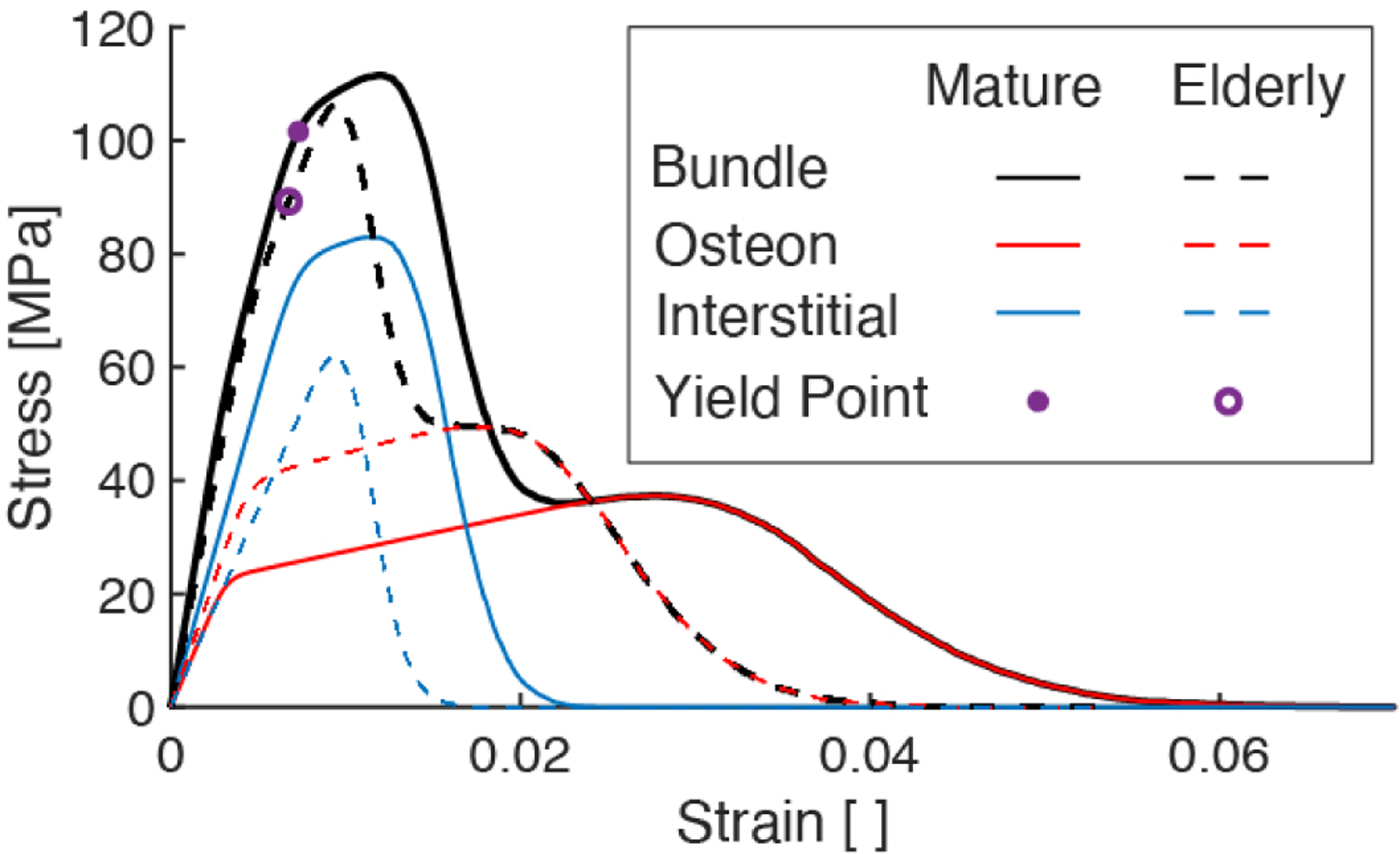

Figure 2:

The stress in a representative mature osteon fiber (solid red), a mature interstitial fiber (solid blue), an elderly osteon fiber (dashed red), and an elderly interstitial fiber (dashed blue). “X” marks the failure point for each fiber.

Data for interstitial Young’s modulus were available from nanoindentation studies and tensile tests of primary bone tissue. Nanoindentation studies report moduli in the range of 15–26 GPa [6, 11, 13, 15, 45] for samples of interstitial bone tissue. These values were in line with values reported from tensile tests on primary bone tissue (about 20 GPa) [46]. Inter-specimen variability of interstitial tissue was found to be under 10% in those studies. Therefore, we assume interstitial moduli fall into a normal distribution centered at 20 GPa with a coefficient of variation of 10%.

The inelastic behavior of interstitial tissue was specified based on the tensile data on primary bone tissue. Since no data directly analogous to the tensile tests of individual osteons exists for interstitial bone tissue, we assumed that measurements of primary bone mechanical properties [46] are representative of interstitial bone. Based on these data, we assumed interstitial rupture strengths fall into a normal distribution centered at 160 MPa with standard deviation of 15 MPa. Taking into account the highly mineralized nature of interstitial bone tissue as compared to osteon tissue [47], which results in a lower resistance to fracture than that for osteons [7, 17, 25], the yield stress was set to be only slightly lower (10%) than the corresponding strength of each fiber (i.e., ${\alpha }^{\mathit{\text{INT}}}=\frac{{\sigma }_y}{{\sigma }_R}=0.9$. This assumption allows only minimal post-yield deformation. The plastic modulus was estimated by assuming the toughness to be 20% lower than that of osteon tissue, resulting in ${\beta }^{\mathit{\text{INT}}}=K/E=0.1$ (Figure 2).

Aging-related changes in each of the two microconstituent tissues are observed to be different, and therefore modeled accordingly. The previously mentioned values for osteon and interstitial elastic and inelastic parameters, summarized in Table 1, represent the baseline case of healthy, mature (20–60 years of age) cortical bone. Different values are chosen to reflect aging-related microstructural and material changes to establish the model of elderly cortical bone (60+ years of age), and are done so independently of a change in porosity.

Aging of osteon fibers was modeled primarily by reducing their toughness in addition to increasing their volume fraction with respect to interstitial fibers. As mentioned previously, values of osteon elastic modulus [8, 11] and osteon strength [8] measured from a population of elderly samples were not distinct from those taken from mature samples. Therefore, the property distributions corresponding to moduli and rupture strengths of osteon fibers were set to be the same in the mature and elderly bone models. Two options exist for reducing fiber toughness to model reported measurements [7]: increasing $\beta$ or increasing $\alpha$. We chose the latter and raised ${\alpha }^{\mathit{\text{OST}}}$ to 0.7 (Figure 2) assuming a reduction in toughness of 25% and known ${\alpha }^{\mathit{\text{OST}}},E,{\sigma }_R$.

Aging of interstitial fibers, on the other hand, was modeled by reducing their toughness and increasing their rupture strength, in addition to the aforementioned change in volume fraction. Preliminary data reported in [22] suggest that the ultimate strength and toughness of interstitial tissue from older subjects are approximately 30% higher and 30% lower, respectively, than that from younger subjects. Therefore, the mean strength of interstitial fibers was increased to 210 MPa [46], and ${\alpha }^{\mathit{\text{INT}}}$ was raised to 0.99.

Using this fiber bundle model, we characterized elderly cortical bone in terms of the following changes in model inputs along the following three dimensions: morphological aging, porosity increase, and material aging (Table 2). Morphological aging refers to the increase of the volume fraction of osteon fibers $\left({\varphi }^{\mathit{\text{OST}}}\right)$ with respect to that of interstitial fibers $\left({\varphi }^{\mathit{\text{INT}}}\right)$. Porosity increase refers to the reduction of the total solid volume fraction (comprising osteon and interstitial fibers), thus increasing the porosity $\left({\varphi }^{\mathit{\text{PORE}}}\right)$ in the model. Finally, material aging refers to the aforementioned changes in osteon $\left({\alpha }^{\mathit{\text{OST}}}\right)$ and interstitial $\left({\alpha }^{\mathit{\text{INT}}},{\left({\sigma }_R\right)}^{\mathit{\text{INT}}}\right)$ inelastic parameters.

Table 2:

Model inputs changed between mature (baseline), elderly, and additional cases; 0 signifies no change, while bold 1 signifies an aging-related change.

Change label	Morphological	Porosity	Material
Properties changed (Δ)	$({\varphi }^{\mathit{\text{OST}}}:{\varphi }^{\mathit{\text{INT}}})$	$({\varphi }^{\mathit{\text{PORE}}})$	$\left(\begin{array}{c}{({\sigma }_R)}^{\mathit{\text{INT}}}\\ {\alpha }^{\mathit{\text{OST}}}\\ {\alpha }^{\mathit{\text{INT}}}\end{array}\right)$
(1) Baseline (mature bone)	0	0	0
(2) Elderly bone	1	1	1
(3) Morphological aging	1	0	0
(4) Porosity increase	0	1	0
(5) Material aging	0	0	1
(6) Morphological aging & porosity increase	1	1	0
(7) Morphological & material aging	1	0	1
(8) Material aging & porosity increase	0	1	1

2.1.4. Brittle model and the role of plasticity

Simulations corresponding to the volume fraction $\left(\varphi \right)$, modulus $\left(E\right)$, and strength $\left({\sigma }_R\right)$ parameters listed in Table 1 were repeated with a brittle fiber model, in which all fibers were considered perfectly elastic, for both mature and elderly cortical bone. The comparison of the predictions of the perfectly brittle model to those of the elasticplastic model will reveal the effect of the plastic behavior of microstructural constituents (i.e. osteon and interstitial bone tissue) on the overall behavior of the model.

In this brittle model, the mechanical behavior for each fiber was fully defined by its modulus and rupture strength; yield stress $\left({\sigma }_y\right)$ was equal to the rupture stress $(\alpha =1)$ and plastic modulus $\left(K\right)$ was undefined. As established for the elasticplastic model discussed above, material properties for each fiber were randomly sampled from a Gaussian distribution according to the parameters presented in Table 1.

2.1.5. Model outputs

For each bundle modeled, $\sigma$ was computed at each strain step, and the stress-strain $(\sigma -ϵ)$ curve was used to quantify key aspects of the overall mechanical response. The yield point $\left({ϵ}_y,{\sigma }_y\right)$ was identified using a 0.2% offset in strain, ultimate stress $\left({\sigma }_{\mathit{\text{ult}}}\right)$ as the highest stress sustained by the bundle, ultimate strain $\left({ϵ}_{\mathit{\text{ult}}}\right)$ as the strain at the ultimate stress, and toughness $\left(U_T\right)$ as the area under the stress-strain curve. The model simulations and subsequent analyses are implemented in MATLAB scripts. Material property distributions were created using the nrmrnd function developed by MATLAB, which generates an array of normal random numbers with specified mean, standard deviation, and array size.

2.2. Model cases

The multi-scale nature of the fiber bundle model enables a direct examination of the effects of changes to individual inputs (material properties, volume fraction, etc.) on the macroscopic mechanical behavior to understand the respective contributions of these changes. In total, eight cases were considered: the baseline (Case 1: mature bone) and elderly (Case 2) models already described, and six cases that isolate one or two changes at a time (Table 2). First, only the ratio of volume fractions of osteon fibers to interstitial fibers was increased proportionate to the change in areal osteon density observed with aging [23, 26] (Case 3: morphological aging). Secondly, only porosity was increased (Case 4: porosity increase). Then, changes in material properties were isolated, by only increasing the interstitial average rupture strength, interstitial yield stress, and osteon yield stress (Case 5: material aging). Finally, cases 6–8 capture pairs of these independent changes.

2.3. Sensitivity analysis

The intra-specimen variability of, for example, Young’s modulus is captured in our model by drawing Young’s modulus values from a distribution with specified mean and standard deviation. Here we capture inter-specimen variability by considering the sensitivity of our model predictions to variability, or uncertainty in, for example, the mean value of Young’s modulus specified in the model. Therefore, a local sensitivity analysis was conducted to investigate the effects of biological variation of, or our uncertainty in, model inputs on the bundle’s macroscale mechanical properties. The sensitivities of ultimate stress, yield stress, ultimate strain, yield strain, and toughness to the moduli (mean $E^{\mathit{\text{OST}}},E^{\mathit{\text{INT}}}$), strengths (mean ${\left({\sigma }_R\right)}^{\mathit{\text{OST}}},{\left({\sigma }_R\right)}^{\mathit{\text{INT}}}$), yield stress ratios $\left({\alpha }^{\mathit{\text{OST}}},{\alpha }^{\mathit{\text{INT}}}\right)$, and plastic modulus ratios $\left({\beta }^{\mathit{\text{OST}}},{\beta }^{\mathit{\text{INT}}}\right)$, as well as to osteon and pore volume fractions $\left({\varphi }^{\mathit{\text{OST}}},{\varphi }^{\mathit{\text{PORE}}}\right)$, were evaluated. For each of these macroscale mechanical properties, the change in the property’s value relative to a change in each one of the model inputs was computed, then normalized by the ratio of standard deviations [48]:

$$S_j=\frac{{\zeta }_j}{{\zeta }_Y}\frac{\partial Y}{\partial {\Psi }_j}.$$ (17)

Here, $Y$ represents each mechanical property (i.e.: $E,{ϵ}_y,{\sigma }_y,{ϵ}_{\mathit{\text{ult}}},{\sigma }_{\mathit{\text{ult}}},U_T$), ${\Psi }_j$ represents the $j^{\text{th}}$ input parameter (e.g., osteon modulus, interstitial modulus, osteon strength,…), ${\zeta }_j$ is the expected standard deviation in the input ${\Psi }_j$, and ${\zeta }_Y$ is the variation in the outputs, expressed as a standard deviation and given by ${\zeta }_Y=\sqrt{{\sum }_{j=1}^J {\zeta }_j\cdot \frac{\partial Y}{\partial {\Psi }_j}}$, with $J=10$ equalling the total number of model inputs. We note that $\frac{\partial Y}{\partial {\Psi }_j}$ was computed by finite differences at the nominal value, ${\Psi }_j$. We also note that the standard deviations initially used to define material property distributions $\left(E,{\sigma }_R\right)$ are representative of the expected variation across a specimen population and are therefore considered to be representative of the natural biological variation between specimens within the sampled population in this sensitivity analysis. We consider the range of possible $\beta$ values as log-normal, and characterize our uncertainty in $\beta$ as the standard deviation of ${\text{log}}_{10}\beta$.

3. Results

We validate the present model by comparing predicted mechanical properties to those measured in monotonic uniaxial tensile tests of hydrated cortical bone tissue [6, 39] (Figure 3, Table 3). The predicted mechanical properties for the fiber bundle models representing mature (Case 1) and elderly (Case 2) cortical bone are quantitatively similar to those experimentally measured (Table 3), showing decreases with age in modulus, yield stress, yield strain, ultimate stress, ultimate strain, and toughness by 14%, 11%, 8%, 6%, 20%, 30%, respectively (Table 4). However, the shapes of the stress-strain curves appear qualitatively different (Figure 3): experimentally obtained stressstrain curves exhibit bilinear behavior with brittle (seemingly instantaneous) failure [23, 39, 40] at or near the ultimate stress, whereas the present model predicts prolonged softening beyond the ultimate point due to the gradual accumulation of damage of osteon fibers (Figure 4). This difference in the shape of the stress-strain curves indicates that the model is less realistic beyond the ultimate point (Figure 3); however, we note that this difference only affects our measurement of toughness. If the toughness is calculated by taking the area under the curve up to the ultimate point (rather than the area under the whole curve up to failure), a decrease in toughness (22.4%) similar to the present calculation (30%) is recovered.

Figure 3:

Characteristic average stress-strain curves from uniaxial tensile tests of cortical bone specimens (from human ribs) across various age groups [39] with the fiber bundle simulated results overlaid in dashed lines.

Table 3:

Mechanical properties predicted by the present model compared to reported data

Age range	$E$ [GPa]	${\sigma }_y$ [MPa]	${ϵ}_y$ [%]	${\sigma }_{\mathit{\text{ult}}}$ [MPa]	${ϵ}_{\mathit{\text{ult}}}$ [%]	$U_T$	Notes [MJ/m3]
Predicted:
20–60	18.2	101	0.73	113	1.18	2.34	(Case 1)
60+	16.0	89.3	0.67	106	0.95	1.63	(Case 2)
Measured:
46–99	18.16 (1.88)	84.52 (10.47)	0.67 (0.04)	92.95 (10.07)	1.9 (0.6)	1.49 (0.55)	Proximal femur [6]
49–56	18.5 (1.5)			104.9 (8.2)		2.73 (0.73)
72–90	18.2 (1.4)	-	-	96.8 (6.2)	-	1.36 (0.34)	Tibia [49]
20–60	12.0–22.3	44.9–111	0.42–0.69	70.2–164	1.26–4.94	0.769–6.14	“RiKo TQQl
60–99	8.2–20.7	28.0–97.1	0.33–0.62	36.2–134	0.81–3.57	0.285–3.33	Ribs [39]

Values corresponding to elderly specimens are labeled by italics, and standard deviations placed in parentheses.

Table 4:

Model outputs for bundle mechanical properties corresponding to various cases

Case	$E$ [GPa]	${ϵ}_y$ · 10−3	${\sigma }_y$ [MPa]	${ϵ}_{\mathit{\text{ult}}}$ ·10−2	${\sigma }_{\mathit{\text{ult}}}$[GPa]	$U_T$ [MJ/m3]
(1) Baseline (mature bone)	18.2	7.29	101	1.18	113	2.34
(2) Elderly bone	16.0	6.74	89.3	0.95	106	1.63
(3) Morphological aging	17.9	6.57	86.2	1.21	99.7	2.54
(4) Porosity increase	16.3	6.46	85.5	1.18	100	2.08
(5) Material aging	18.2	8.79	130	0.94	133	1.67
(6) Morphological aging & porosity increase	16.0	5.78	71.2	1.21	88.6	2.28
(7) Morphological & material aging	17.9	7.83	110	0.98	124	1.81
(8) Material aging & porosity increase	16.3	7.43	104	0.94	120	1.48
Brittle mature	18.2	6.5	86.6	0.57	91.6	0.51
Brittle elderly	16.0	5.90	74.4	0.54	76.0	0.58

Figure 4:

Stress-strain curves of elastic-plastic fiber bundle model comparing the mechanical behavior of the mature bone and elderly bone model cases. The blue (and red, respectively) curves show the partial stress borne by the interstitial (and osteon, respectively) fibers. The sum of the partial stresses give the total stress (black curves).

The decrease in the bundle’s mechanical properties are due in part to the aging-related change in the amount of stress borne by each fiber family over the course of loading (Figure 4). Despite the increased strength and equivalent stiffness of the interstitial fibers in the elderly case, the decreased volume fraction of these fibers resulted in a decrease in the proportion of stress borne by them (dashed blue) and thus, decreased ultimate strength at the macroscale. Concomitant with a decrease in volume fraction of interstitial fibers is an increase in volume fraction of osteon fibers, which is responsible for osteon fibers carrying an increased portion of the total stress in the elderly bone model. Along with a decrease in osteon toughness, its larger volume fraction contributes to an overall reduction in the bundle’s toughness.

As an individual fiber is loaded, it may be in any one of 3 states: elastic, yielded, or ruptured. Quantifying the fraction of fibers in each of these states for each of the osteon and interstitial fibers revealed the extent of yielding and/or rupture in each family as the mature and elderly fiber bundles were strained (Figure 5). The three vertical lines in Figure 5 located at the yield strain, ultimate strain, and the strain at which the last interstitial fiber ruptured, provide visual guides as to the fractions of fibers in each state at these three key points in loading. From these results, it is evident that the apparent hardening of the mature bundle is due to plasticity in both fiber families, whereas that in the elderly bundle is predominantly due to plasticity in the osteons only. In both mature and elderly bundles, rupture of the interstitial fibers drives the initial loss of strength following the ultimate point, and the plasticity and more gradual rupture of the osteons, which deform over a longer strain range than interstitial fibers, drive the remainder of the stress-strain response. However, both the onset and completion of interstitial fiber rupture occur at lower strains in the elderly vs. mature case. The reduction in strain over which interstitial fibers yield prior to rupture contributes to aging-related decreases in ultimate strain and toughness.

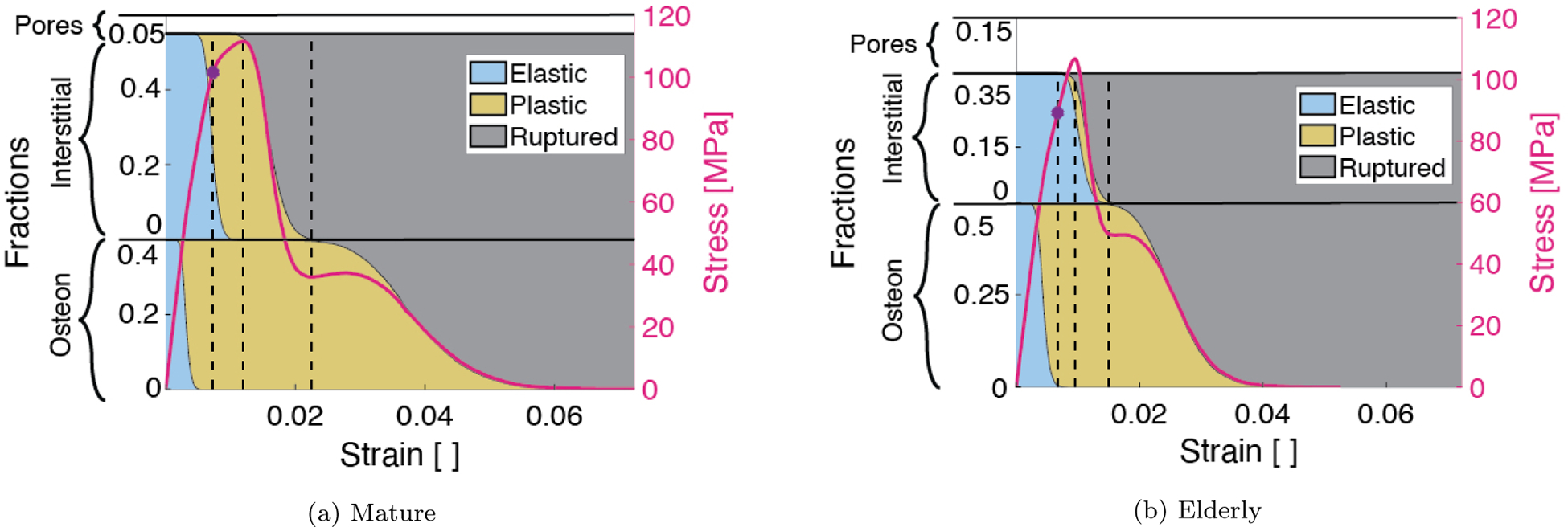

Figure 5:

Fractions of osteon (bottom) and interstitial (top) fibers separated into elastic (blue), yielded (yellow), and ruptured (gray) regimes at each bundle deformation step. The stress-strain curve corresponding to each case (mature on the left and elderly on the right) is overlayed on the area fractions. Dotted black lines indicate the fraction of fibers pertaining to key regimes of the bundle mechanical behavior at the yield strain, ultimate strain, and the strain at which all interstitial fibers have ruptured.

Additional model cases that explored changes in individual inputs (Figure 6) indicate that the differences in mechanical behavior between mature (Case 1) and elderly (Case 2) cases are the result of all three aging-related changes to the input parameters considered in the model: morphological aging (increase in ${\varphi }^{\mathit{\text{OST}}}/{\varphi }^{\mathit{\text{INT}}}$), material aging, and porosity increase. Cases (3, 4, 5) (rose, yellow, green) each correspond to an individual aging-related change, while Cases (6, 7, 8) (indigo, magenta, teal) each correspond to a combination of two (but not all) changes in input parameters. Figure 6 shows the net change in each mechanical property due to individual or combined changes to the input parameters (as defined by the various cases). The model outputs predicted for each case were normalized to the respective value for the baseline case. Hence, the effect on a given mechanical property of the changes in inputs for a particular case can be seen by comparing the height of the corresponding bar in Figure 6 to the dashed line, whose height is 1. For example, the effect of changing all three inputs simultaneously is shown by comparing the height of the light blue bar to the dashed line. Either morphological aging alone (Case 3) or an increase in porosity alone (Case 4) captured nearly all of the decline in yield stress, yield strain, and ultimate stress in elderly compared to mature bone. However, these two cases differ in that morphological aging alone (Case 3) caused toughness to increase, which demonstrates that an increasing density of osteons has an effect opposite to increasing porosity. Material aging by itself (Case 5), or combined with either morphological aging (Case 7) or porosity decrease (Case 8), captured the decline in ultimate strain and toughness, but led to increases of the strength parameters. Combining morphological aging and porosity increase (Case 6), on the other hand, predicted a decrease in the strength parameters, but left ultimate strain and toughness largely unaffected. These results suggest that simultaneous changes in all three dimensions of aging are required to capture the full macroscale behavior of elderly bone.

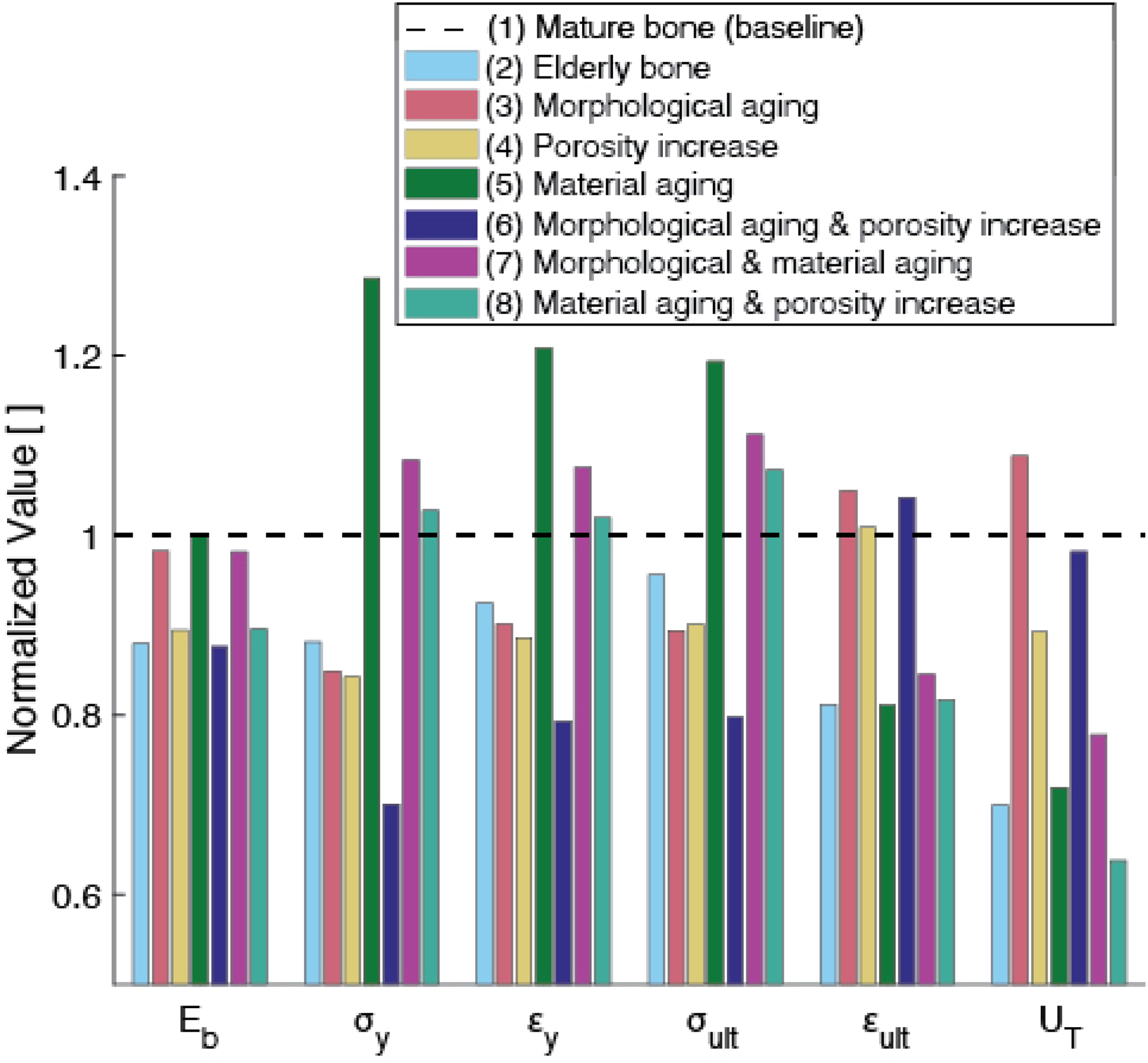

Figure 6:

Normalized model outputs for various cases (as listed in Table 2). Case (2) (light blue) corresponds to the prediction for elderly bone, which contains all three aging-related changes to the inputs: morphological (increased volume fraction of osteons with respect to interstitial fraction), increased porosity, and changes in material properties. Cases (3, 4, 5) (rose, yellow, green) correspond to an individual aging-related change, while Cases (6, 7, 8) (indigo, magenta, teal) correspond to a combination of two (but not all) changes in input parameters. Referring to, for example, the group of bars related to toughness (on the right, labeled ‘ $U_T$ ‘), we can see that changing morphology alone causes toughness to increase by less than 10%. Aging porosity alone causes toughness to decrease from the baseline case by roughly 10%.

The brittle models, which lacked plasticity at the microstructural scale, demonstrate some but not all of these changes in mechanical properties with aging (Figure 7). While the fibers in this model were all brittle, the bundle exhibits nonlinear behavior due to a progressive accumulation of damage arising from the heterogeneity in material properties of all the fibers. The brittle model predicted decreases with age in modulus, yield stress, yield strain, ultimate stress, and ultimate strain of 3%, 36%, 3%, 34%, and 13%, respectively, along with an increase of 15% in toughness (Table 4). Compared to the plastic model results (Table 4, Figure 4), the brittle model showed larger decreases in yield and ultimate stress, but an increase in toughness.

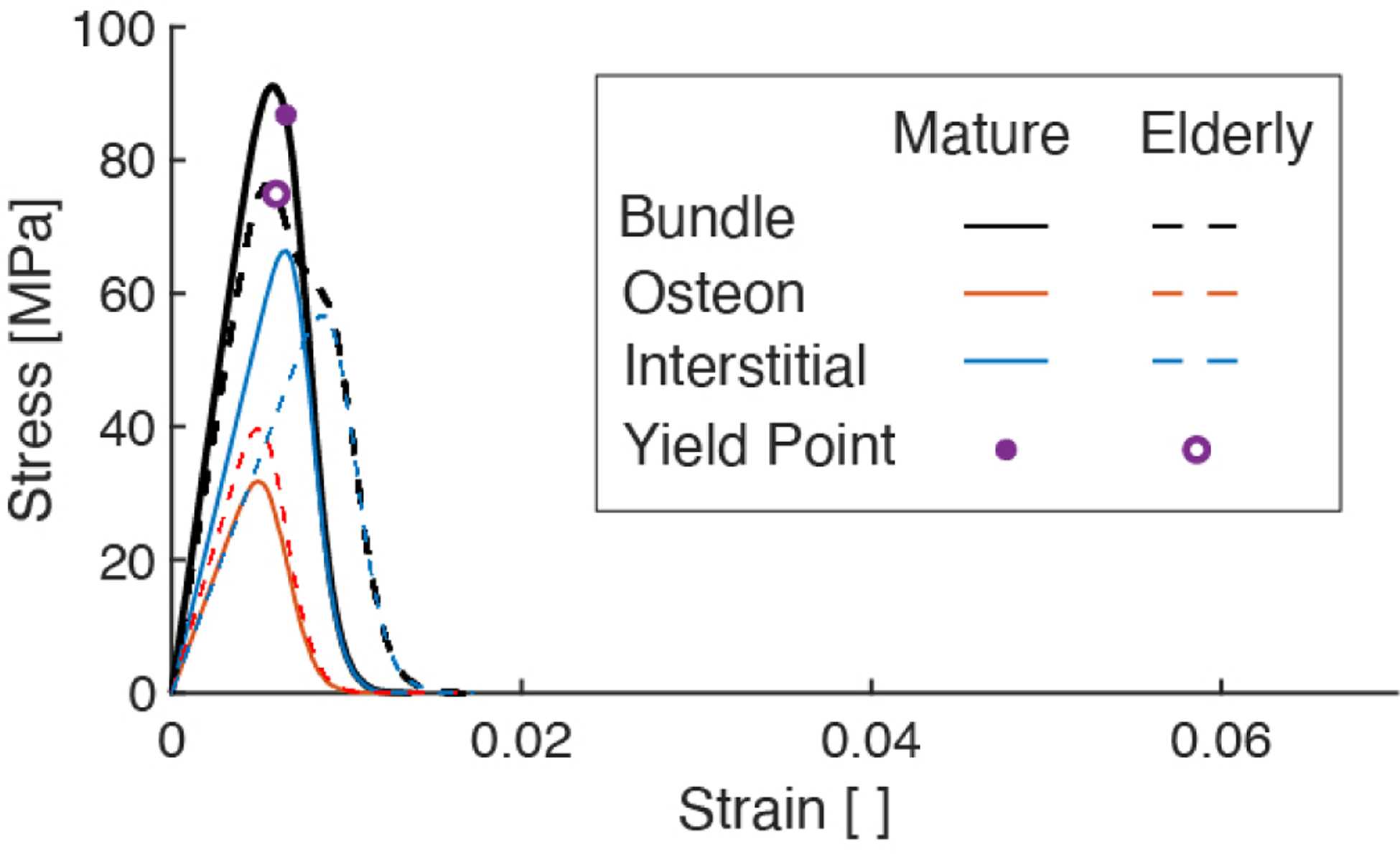

Figure 7:

Stress-strain curves for models with perfectly brittle-elastic fibers (in contrast with behavior of bundles of elastic-plastic fibers, shown in Figure 4). The bundle curves show the overall predicted mechanical behavior of mature (M) and elderly (E) bone models with brittle fibers. The ‘osteon’ and ‘interstitial’ curves show the fraction of stress carried by each of those fiber families, respectively.

Among the input parameters considered, the elastic-plastic model results were most sensitive to changes in the yield and post-yield properties of both the osteon and interstitial fiber families (Figure 8). Chief among these properties were the plastic moduli of both fiber families and, to a lesser extent, the yield stresses. The plastic modulus and yield stress of the interstitial fibers (controlled by ${\beta }^{\mathit{\text{INT}}}$ and ${\alpha }^{\mathit{\text{INT}}}$, respectively), and the osteon fibers (controlled by ${\beta }^{\mathit{\text{OST}}}$ and ${\alpha }^{\mathit{\text{OST}}}$, respectively) were the most influential inputs to the post-yield behavior of the model. For example, the sensitivities of the ultimate stress and toughness to ${\beta }^{\mathit{\text{OST}}}$ and ${\beta }^{\mathit{\text{INT}}}$ were more than 2.2-fold greater than those to all other inputs, and the same was true for the sensitivity of ultimate strain to ${\alpha }^{\mathit{\text{INT}}}$ and ${\beta }^{\mathit{\text{INT}}}$. Similarly, the sensitivities of yield stress and yield strain to ${\alpha }^{\mathit{\text{OST}}},{\alpha }^{\mathit{\text{INT}}}$, and ${\beta }^{\mathit{\text{OST}}}$ were about 2.4-fold greater than those for all other inputs. In contrast, model outputs exhibited low sensitivities across the board to osteon modulus $\left(E^{\mathit{\text{OST}}}\right)$, osteon rupture strength $\left({\sigma }_R^{\mathit{\text{OST}}}\right)$, osteon volume fraction $\left({\varphi }^{\mathit{\text{OST}}}\right)$, interstitial modulus $\left(E^{\mathit{\text{INT}}}\right)$, and porosity $\left({\varphi }^{\mathit{\text{PORE}}}\right)$. To facilitate comparison of sensitivities among outputs, we computed the coefficients of variation, defined as the standard deviation in output, ${\zeta }_Y$, divided by the output value for the baseline cases (Table 5). Toughness and ultimate strain had much greater coefficient of variation (296% and 250%, respectively) than did all the other outputs (30%, on average), indicating that these two outputs were the most sensitive to uncertainty in input values.

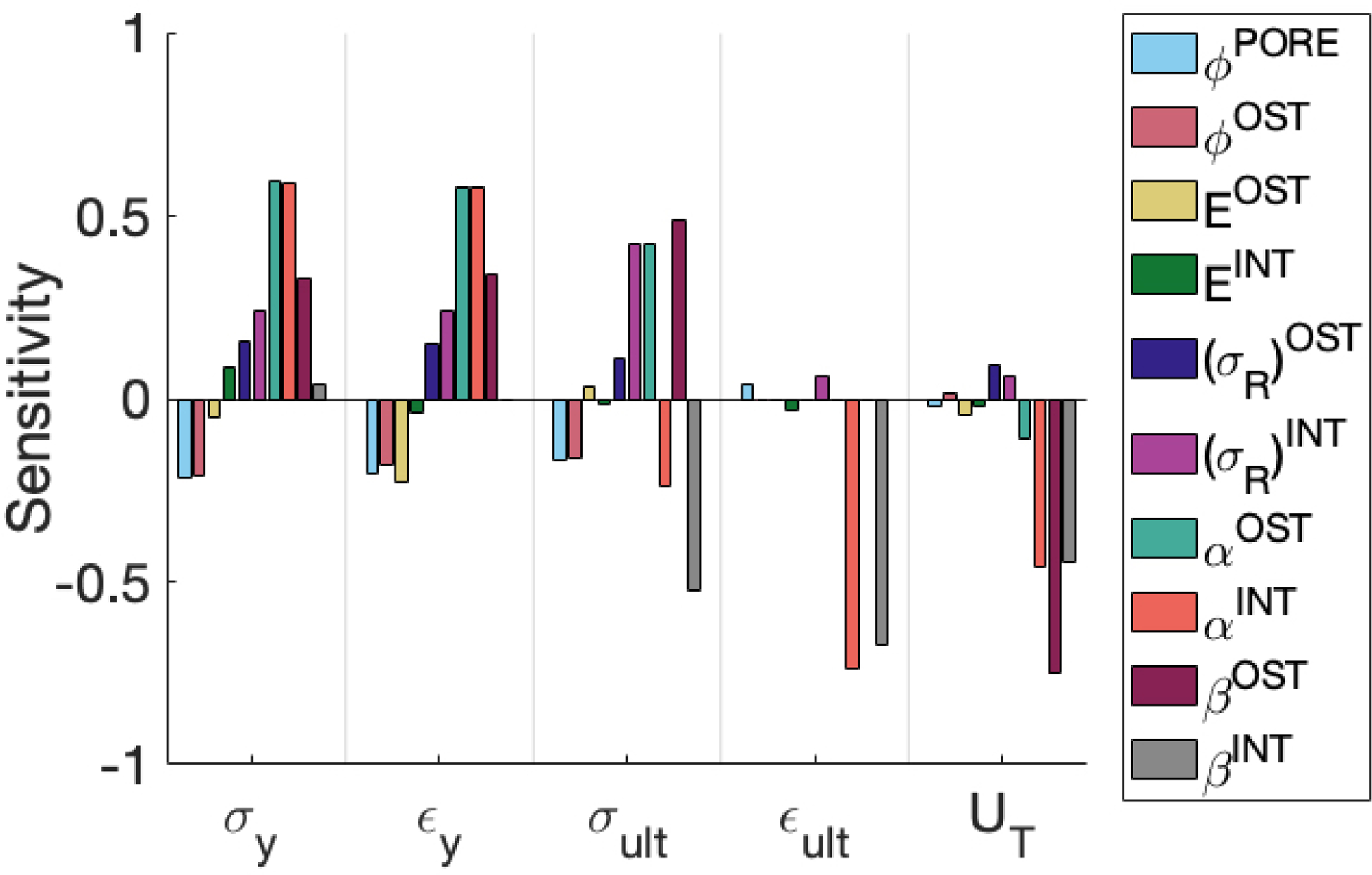

Figure 8:

Bar chart showing sensitivity of model outputs to various model inputs (according to a finite difference evaluation of Eq 17)

Table 5:

Estimated uncertainty or variance in input values (expressed as its standard deviation) and resulting variation in outputs.

Inputs (${\Psi }_j$)	${\zeta }_j$	Mean	CoV [%]
${\varphi }^{\mathit{\text{PORE}}}$	2.5%	5%	50
${\varphi }^{\mathit{\text{OST}}}$	5%	40%	12.5
$E^{\mathit{\text{OST}}}$ [GPa]	2	18	11
$E^{\mathit{\text{INT}}}$[GPa]	2	20	10
${\alpha }^{\mathit{\text{OST}}}$	15	115	13
${\alpha }^{\mathit{\text{INT}}}$	17.5	160	11
$lo{g}_{10}({\varphi }^{\mathit{\text{OST}}})$	0.25	0.5	50
$lo{g}_{10}({\varphi }^{\mathit{\text{INT}}})$	0.25	0.9	28
$lo{g}_{10}({\beta }^{\mathit{\text{OST}}})$	1	−1	100
$lo{g}_{10}({\beta }^{\mathit{\text{INT}}})$	1	−1	100
Output (Y)	${\zeta }_Y$	Mean	CoV [%]
${\sigma }_y$ [MPa]	29.9	101	30
${ϵ}_y$	0.0016	0.0073	22
${\sigma }_{\mathit{\text{ult}}}[\text{MPa}]$	41.7	113	37
${ϵ}_{\mathit{\text{ult}}}$	0.0294	0.0118	250
$U_T[\text{MPa}]$	6.93	2.34	296

4. Discussion

In this study, we implemented a one-dimensional mechanical model to understand how aging-related changes in the microstructure of cortical bone drive mechanical consequences at the macroscale. Simulations using the mature and elderly models with elastic-plastic fibers demonstrated decreased stiffness, yield stress and yield strain, ultimate stress and ultimate strain, and, most of all, toughness with age. Results of the cases that simulated only subsets of aging-related changes in inputs indicated that the deficits in macroscale mechanical behavior of the elderly model resulted from morphological and material changes at the microscale to a level on par with the effects of increased porosity. Morphological aging alone captured approximately all of the decline in yield and ultimate stress observed when comparing the elderly case to mature bone, and material aging alone captured the decline in ultimate strain. Interestingly, material aging alone, but not an increase in porosity, reduced toughness to a value on par with that seen for elderly bone, suggesting that a change in microstructural material properties may be a route to loss of toughness in cortical bone with age. The model with brittle fibers, however, predicted an increase in toughness, counter to experimental findings [5, 22, 50–52]. The expected decrease in toughness is found when fiber plasticity is incorporated into the model, indicating that plasticity of the osteons and interstitial tissue, rather than only damage (fiber rupture), may play a key role in the aging-related decline in macroscopic cortical bone toughness. Collectively, the findings of this study illustrate that multiple facets of aging-related changes at the microscale in cortical bone may affect the macroscale behavior, via the effects of these changes on the onset and progression of yielding and rupture of osteons and interstitial tissue.

While simpler in nature than two- or threedimensional models, our model results confirm prior findings that changing microstructural material properties, in addition to porosity, are reflected in the macroscopic, aging-related decrease in toughness [6, 53–55] due potentially to reduced ductility of the microconstituents [55]. The heterogeneity modeled here allows the estimation of the contributions of individual cortical bone microconstituents (i.e., osteon and interstitial tissue), and the effect of aging-related changes in these microconstituents, that was not possible with earlier models [40, 56]. With these microstructural material properties in hand, our baseline model successfully predicted the mean elastic modulus of cortical bone [57], yield strain, ultimate stress, and ultimate strain [6], and toughness [49] within one standard deviation, as well as yield stress [6] within 3 standard deviations of cortical bone. Furthermore, the difference in material properties between microconstituents captured by our model implies that the aging-related decrease in ultimate strain arose from changes in the interstitial material properties (Figure 5). While the mechanical properties predicted by the model are well within ranges reported in the literature (Table 3), the predicted stress-strain curves are qualitatively different than experimental data (Figure 3). As mentioned previously, this difference suggests that the behavior following the ultimate point may not be accurate. The shapes of the predicted curves following the ultimate point are largely determined by the post-yield behavior of the osteon and interstitial fibers (i.e., that the interstitial fibers all rupture before any of the osteon fibers). However, the model does not consider any possible interaction between osteon and interstitial bone tissue that may ultimately affect the shape of the resulting stress-strain curve. For example, stress concentrations near the tip of a crack propagating through interstitial tissue may cause the crack to propagate through osteons. While more complex than other one-dimensional fiber bundle models [36, 37], incorporating plasticity into the fibers enabled us to observe the well documented, aging-related decrease in toughness of cortical bone [5, 49].

This study has some limitations. First, the model is only one-dimensional. Any aging-related changes in the 2D or 3D geometry (e.g., increased circularity of osteons [58–60]) of the microconstituents, are not reflected in this model. The model does not include any changes in cross-sectional area over the length of the fibers, or any change in the mechanical behavior resulting from a change in the three-dimensional morphology of the bone tissue (e.g., misalignment of the osteon with the longitudinal or transverse axis and/or with the accompanying Haversian canal [21]). Since quasistatic loading is assumed, rate dependence of cortical bone, and how that might change with aging, is not considered. Porosity in the model represents only that contributed by Haversian canals in osteons; the effects of lacunae and canaliculi density, which may also change with aging [61, 62], are not considered. The cement line surrounding osteons has also been shown to play a role in the progression of fractures around or through osteons [55, 63–66]. Its effect on crack propagation seems to partly depend on its composition [25, 55, 63], which is not clear; some studies report high mineralization [67, 68] and others report minimal mineralization [69, 70]. Furthermore, cement lines occupy a very small volume fraction of the bone. Therefore, they were omitted from the model. Furthermore, prior studies have found a site-specific correspondence between preferential loading direction and collagen orientation within osteons [41, 42], which may be affected by an aging-related change in the variability of the collagen fiber orientation [71]. As mentioned previously, we only consider material properties pertaining to osteons containing longitudinally oriented fibers. Thus, the effect of secondary “morphotypes” (i.e., an osteon “type” characterized by its collagen and lamellar organization [72]) on mechanical behavior is not considered in this study.

Sensitivity values (Figure 7) are the result of output derivatives (Eq. 17) and the expected standard deviation of the inputs: the model’s high sensitivity to post-yield parameters $\left(\beta \right)$ arises from the high uncertainty in the values of those parameters, as measured in the coefficients of variation (Table 5). While all mechanical properties were most sensitive to variations in $\beta$ (of either osteon or interstitial fibers), a 10% change in either of these inputs results in only a 1% change in ultimate stress and less than 10% change in toughness. On the other hand, a 10% change in other inputs, such as $\alpha$ and osteon volume fraction results in a change of about 20% in both ultimate stress and toughness; since our model predicted a difference of 5% in ultimate strength between the mature and elderly bone cases, these values of 10% and 20% are rather meaningful even if the computed sensitivity is low relative to $\alpha$ or $\beta$. It is clear that the model’s sensitivity to these $\alpha$ and $\beta$ arises from the high uncertainty in the values of these parameters, due to limited experimental data on post-yield properties of individual microconstituents. For example, one nanoindentation study quantified the aging-related change in the toughness of osteon lamellae [7] but did not report yield stress or plastic modulus. Micropillar experiments produced stress-strain curves of lamellae, but were conducted on dry ovine [73, 74] or bovine specimens [75, 76], which were likely less ductile than fully hydrated tissue [44]. A small amount of data from micropillar tests on human osteons are available, but only for compression rather than tensile loading [21]. Other computational studies, which investigate the crack propagation behavior of cortical bone, have been similarly challenged in defining material properties [12]. For instance, one group estimated the fracture toughness of osteon and interstitial bone tissue based on the difference in their moduli and the homogenized (macroscopic) fracture toughness [25, 77]. The sensitivity of the present model to these parameters suggests that characterizing the post-yield behavior of the microconstituents of Haversian bone is necessary to understand the microstructural basis of the aging-related increase in cortical bone fragility.

The discrepancy between the brittle and elasticplastic models’ predictions of toughness reveals that decreased toughness is observed only when plasticity is incorporated into fiber material properties. We see in the brittle model that making the interstitial fibers stronger also increases their toughness without also increasing their modulus. Since there is no reported aging-related change in interstitial modulus [11], the increase in strength of the interstitial fibers then increases toughness of the whole bundle. While it is apparent that plasticity within microconstituents plays a key role in the post-yield behavior of cortical bone, a mechanistic understanding of decreased toughness with aging is still lacking.

We find here that aging-related changes other than porosity —in the material properties and relative volume fraction of osteon and interstitial tissue— point toward a microconstitutive basis for increased bone fragility in the elderly population. Our results show that material aging (namely, reduced plasticity) alone and in combination with either porosity increase or morphological aging reduced toughness to a value on par with that seen for the elderly bone. Although porosity has been found to be negatively correlated with yield stress and ultimate stress [5, 6] (and as seen in Case 4, Figure 6), there is agreement that porosity alone cannot fully account for reduction in toughness [6] or fracture toughness [22]. Factors that have been proposed include aging-related changes in microstructure [6, 30] and decrease in plasticity of the bone tissue matrix [5, 30, 33, 78] leading to an accumulation of damage in the form of microcracks [6, 30, 79]. Evidence also points out an aging-associated relationship between decreased toughness and degradation in the integrity [30, 35] as well as dehydration [50, 80] of the mineralized collagen that makes up bone lamellae, which are not explicitly considered in this model. Furthermore, our elastic-plastic model predicted increased toughness when the volume fraction of osteons increased, which reinforces the idea that morphological changes also play a key role in the fragility of cortical bone [6, 81]. This idea is consistent with prior findings that micromechanical properties (i.e., osteon and interstitial hardness and elastic modulus) are sufficient to predict macroscopic stiffness, but not toughness [30]. Furthermore, a study examining the morphology of osteons across young and elderly groups predicted weaker osteons in the elderly group, due to agingrelated changes in geometric indices of the osteons (e.g., the percentage of osteon refilling, given by the ratio of total osteon area that is made up by solid bone tissue [27]). When implemented in a numerical study examining three-dimensional micro-morphological changes, changes to the micromorphology (representative of the osteons bone refilling rate), along with increased porosity, degraded the bulk mechanical properties in the model.

The prediction in Figure 5 showing that the interstitial fibers all rupture before any osteons do is extreme compared to reports in published fractography studies. Those studies show the fracture surfaces to be rough, with osteons protruding up from the fracture plane in ways that suggest comparatively large amounts of plastic strain relative to the interstitial tissue strain. Some histological studies [82–84] of cortical bone that was loaded to failure have noted that most cracks occur in the interstitial tissue, although cracks visibly cross through osteons in some cases [85]. Several studies have pointed out that the relatively brittle interstitial tissue serves as a starting point for initiation and propagation of cracks [86–88]. Other studies report fracture surfaces that demonstrate intact osteons surrounded by interstitial tissue that has completely failed [81, 89–93] (osteon “pullout”), observing plasticity in the osteons prior to rupture. One such study employed scanning electron microscope (SEM) imaging to quantify osteon “pullout” percentage, which measured the ratio of osteon pullout area (the area of debonded osteons that displayed a “pullout” presentation or cavities from which osteons were “pulled out,” characteristic of interstitial failure) to fracture surface area, and showed a decrease in this quantity with aging [91]. While these results seem to be broadly consistent with predictions here that interstitial tissue fails before osteons, they may also be indicative of cement line failure, which is not accounted for by our model. Furthermore, whether cracks propagate through osteons has been shown to depend, in part, on the material properties and geometry of the interface, even if its mechanistic role is not fully understood [25, 55]. While these geometric factors are not considered in the present model, we do predict that osteons, which are considered tougher than interstitial tissue, resist fracture over longer strains than interstitial tissue.

Our results are consistent with the growing understanding that aging-related changes in the morphology and material properties, in addition to porosity, play important roles in aging-induced decreases in strength and toughness of cortical bone. By isolating the mechanical behavior of osteon vs. interstitial tissue, we found that aging-related changes in the plastic behavior of interstitial tissue, as shown in Fig. 5, directly affects the resulting resistance to fracture at the macroscale. The toughness and ultimate strain, in particular, were shown to depend the most on the post-yield properties of interstitial and osteonal bone tissue. Uncertainty due to the lack of data describing the post-yield behavior of interstitial bone tissue contributes substantially to the un-certainty in macroscale predictions of toughness and ultimate strain. It is therefore clear that measurement of these intrinsic material properties will lead to greater insights into the exact nature of aging-related microstructural changes that give rise to aging-related macroscale changes in cortical bone mechanical properties. Future studies may consider other loading conditions, such as compression, biaxial, shear, and mixed loading. Nonetheless, the tensile test configuration replicated in this study is often used to determine the representative behavior of a material in response to loading. While not necessarily representative of the response in other loading scenarios, we might expect that some of our qualitative findings may apply there —key among those is that the agingrelated increase in porosity does not explain all aging-related changes in the mechanical properties of cortical bone. As cortical bone is a major contributor to whole bone stiffness and strength, further insight into how features besides porosity influence bone fragility will inform our understanding of aging-related fracture.

Highlights.

• Cortical bone is modeled by a porous bundle of osteon and interstitial fibers.

• Aging is modeled by changes in fiber volume fraction, fiber properties, & porosity.

• The mechanical contributions of osteon vs. interstitial tissue are isolated.

• Reduced interstitial tissue plasticity compromised ultimate strain and toughness.

• Simulations show the importance of changes in microconstituent material properties.

Appendix A. Appendix

Appendix A.1. Type of property distribution

Accumulation of damage in the bundle is driven by the progressive rupture of individual fibers, which in turn is characterized by the distribution of material properties assigned to the fibers. Thus, the particular type of distribution, and whether the properties are assigned in a manner that makes them correlated with one another (e.g., modulus vs. strength), affects the bundle’s overall mechanical behavior. Prior models feature material properties which are either linearly related [36] or randomly sampled from a uniform distribution [37, 94]. A normal distribution may more accurately reflect the spread in material properties observed in cortical bone. More importantly, the correlation of fiber material properties such as modulus and strength, as shown in (Figure Appendix A.1a), also affects model behavior. To investigate this effect, a multivariate Gaussian distribution was constructed with a correlation coefficient $\left(\rho \right)$ of 1 to correlate the modulus and strength distributions. Simulations of fiber bundles constructed from both correlated and uncorrelated distributions were then conducted to evaluate these potential effects.

For the case of a “correlated” uniform distribution, modulus and strength distributions are defined for monotonically increasing functions of $x$ [36].

$$E=\overline{E}\left[1+A\left(2x-1\right)\right]$$ (A.1)

$${\sigma }_R=\overline{{\sigma }_R}\left[1+B\left(2x-1\right)\right]$$ (A.2)

for $x\in [0,1]$ (representative of the increasingly strong fibers) where $A$ and $B$ are characteristic coefficients that each define the extreme values for modulus $\left(E\right)$ and rupture strength $\left({\sigma }_R\right)$ centered about $\bar{E}$ and ${\overline{\sigma }}_R$, the mean modulus and rupture strength values, respectively.

For a Gaussian distribution in which modulus and rupture strength values are correlated, a multivariate distribution is constructed by first defining a correlation coefficient $\left(\rho \right)$, which describes the relationship between the two variables. Then, the standard deviation $\left({\sigma }_x,{\sigma }_y\right)$ corresponding to each distribution $(x,y)$ is used to construct a covariance matrix $\left(\Sigma \right)$. A built-in function (“mvnrnd”) within MATLAB [95] is implemented to sample an arbitrary number of samples from both distributions according to the specified covariance matrix and distribution means.

$$\Sigma =\left[\begin{array}{cc}{\sigma }_x^2& \rho \mathrm{*}{\sigma }_x\mathrm{*}{\sigma }_y\\ \rho \mathrm{*}{\sigma }_x\mathrm{*}{\sigma }_y& {\sigma }_y^2\end{array}\right]$$ (A.3)

Table Appendix A.1:

Material property distribution parameters - average & standard deviation (Gaussian) and value range (uniform), which define an osteon fiber bundle

	Gaussian	Uniform
Modulus [GPa]	10 (1)	8–12
Strength [MPa]	150 (20)	110–190

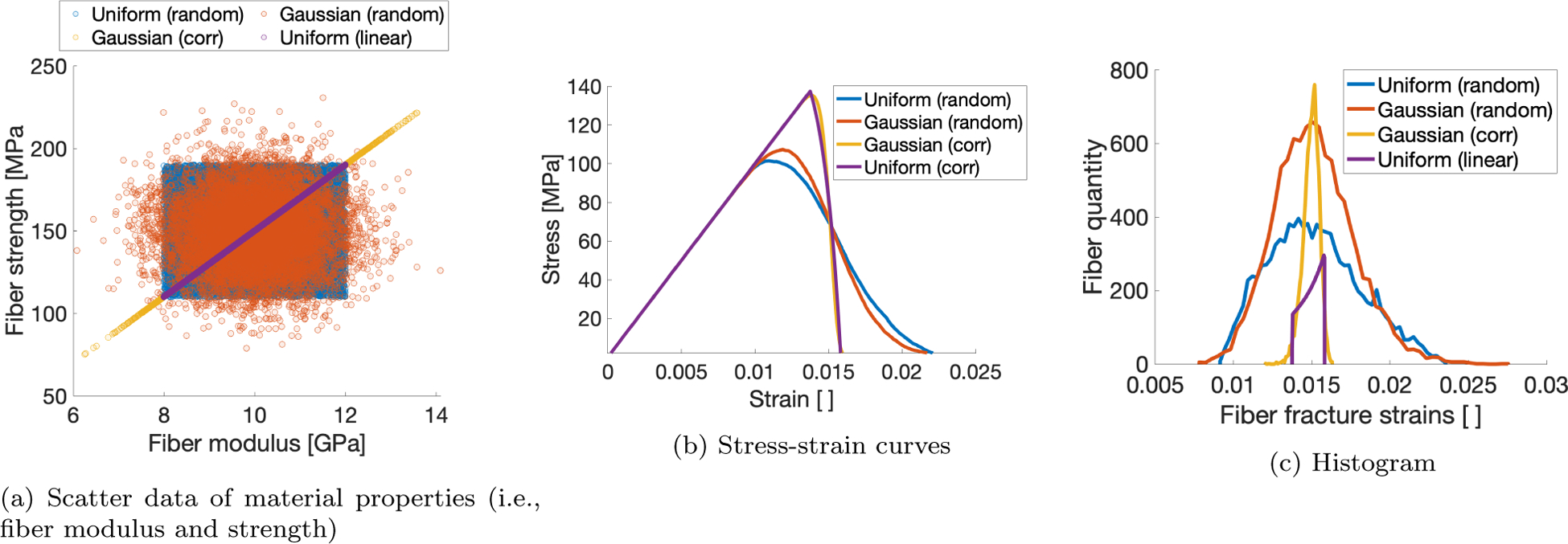

Figure Appendix A.1:

Plots pertaining to 2 distribution types (i.e., uniform and normalized), correlated and randomly sampled.

The failure behavior of the fiber bundle depended slightly on the shape of the distribution used to define the material properties of the fibers that comprise the bundle, but strongly on their correlation. The ultimate stress of the bundle (Figure Appendix A.1b) is increased when the strength of each fiber is correlated with its modulus, regardless of distribution type. Coupled with the decreased ultimate strain and subsequent failure strain (when the bundle stress drops to zero), this results in embrittled behavior. This effect is highlighted when the fracture strains for all fibers in the bundle is considered (Figure Appendix A.1c), in which the fibers from the bundle models for which inputted material properties were correlated are narrower than the models in which properties are drawn independently. Though not shown here, we found also that selecting a normal distribution rather than uniform reduces model artifacts when multiple fiber families are incorporated into the model.

Appendix A.2. Convergence analyses: dependence on algorithmic parameters

The number of fibers (“bundle size”) affects how closely the mean and standard deviation of sampled fiber material properties are to the prescribed mean and standard deviation of the material property distribution. To evaluate the effect of the bundle size, simulations with bundles consisting of varying fiber number were conducted; 100 simulations per particular bundle size. Then, the yield stress and ultimate stress for each simulation were computed, as well as their mean and standard deviation for each bundle size. These simulations show that a bundle size on the order of 10⁴ result in a standard deviation of the outputs that is less than 1% of the mean value (Figure Appendix A.2).

The strain step size described in Eq. 6 dictates the “time” resolution of the simulation and thus defines how frequently the stress is computed within a given strain range. Since damage in the fiber bundle model is driven by progressive rupture of fibers, the strain resolution may affect the accuracy of the output data; too coarse of a step size could result in a fiber rupturing at a strain larger than would correspond to its material properties. To evaluate the effect of the step size, the yield and ultimate stress were computed for simulations conducted with varying strain step sizes. The model appears to converge at a step size of 10⁻⁴ (Figure Appendix A.3), which indicates that the step size of 10⁻⁵ used in this study was appropriate.

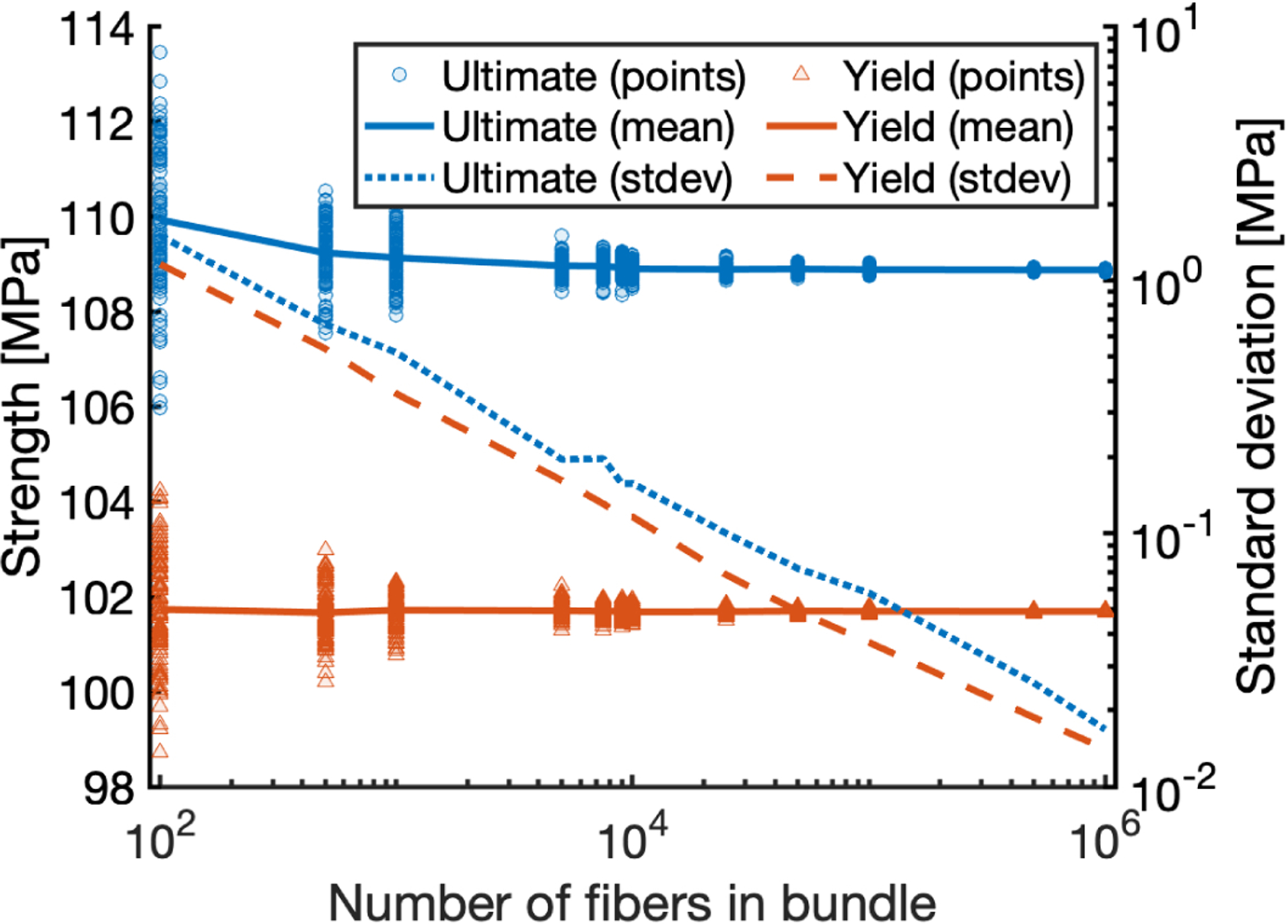

Figure Appendix A.2:

Predicted strength and its standard deviation vs. number of fibers in the bundle. Convergence of ultimate stress (upper line, blue) and yield stress (lower line, red) resulting from randomly sampling model inputs for 100 simulations for each trial number of fibers.

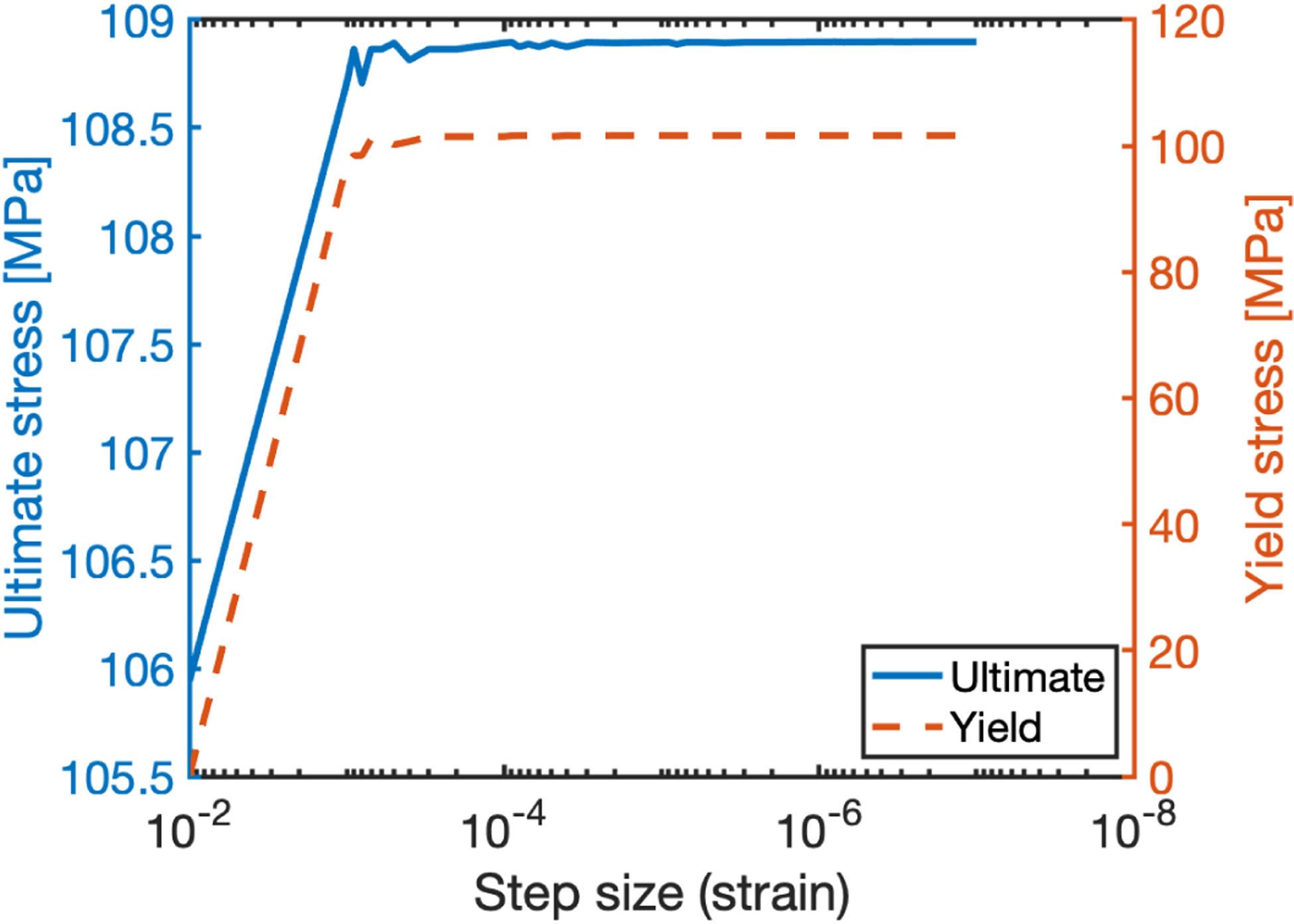

Figure Appendix A.3:

Convergence of ultimate stress (solid) and yield stress (dashed) model outputs from decreasing strain step size.
