Whole-cell multi-target single-molecule super-resolution imaging in 3D with microfluidics and a single-objective tilted light sheet

Abstract

Multi-target single-molecule super-resolution fluorescence microscopy offers a powerful means of understanding the distributions and interplay between multiple subcellular structures at the nanoscale. However, single-molecule super-resolution imaging of whole mammalian cells is often hampered by high fluorescence background and slow acquisition speeds, especially when imaging multiple targets in 3D. In this work, we have mitigated these issues by developing a steerable, dithered, single-objective tilted light sheet for optical sectioning to reduce fluorescence background and a pipeline for 3D nanoprinting microfluidic systems for reflection of the light sheet into the sample and for efficient and automated solution exchange. By combining these innovations with PSF engineering for nanoscale localization of individual molecules in 3D, deep learning for analysis of overlapping emitters, active 3D stabilization for drift correction and long-term imaging, and Exchange-PAINT for sequential multi-target imaging without chromatic offsets, we demonstrate whole-cell multi-target 3D single-molecule super-resolution imaging with improved precision and imaging speed.

Introduction

Single-molecule localization microscopy (SMLM) has become an invaluable tool for subcellular investigation at the nanoscale^1–6. In single-molecule super-resolution (SR) imaging⁷, individual fluorescent molecules are temporally separated and localized, thereby surpassing the resolution limit set by the diffraction light. Exchange-PAINT⁸, i.e. sequential DNA Point Accumulation for Imaging in Nanoscale Topography (DNA-PAINT), is a localization-based SR approach that involves labeling multiple targets of interest with antibodies conjugated with oligonucleotide strands, called docking strands, and imaging the targets sequentially by introducing the complementary oligonucleotide-dye conjugated sequences, called imager strands. As multiple structures can be labeled using different oligonucleotide pairs and imaged sequentially using the same fluorophore, offsets caused by chromatic aberrations typical in multi-color approaches⁹ can be avoided. One challenge with Exchange-PAINT is that it requires perfusion of the various imager strand solutions and buffers without disturbing the image acquisition process. Another challenge with this method is the increased fluorescence background from freely diffusing imager strands, which increases the achievable single-molecule localization precision¹⁰. The requirement of low imager strand concentrations for reduced fluorescence background leads to long acquisition times in order to acquire sufficient localization density to achieve good resolution, especially when imaging multiple targets. Recently developed self-quenching fluorogenic DNA probes¹¹ reduce background fluorescence in DNA-PAINT imaging, but suffer from an increased localization precision compared to conventional DNA-PAINT due to their short binding times which restrict photon collection.

Here, we present soTILT3D, a platform where we developed a steerable, dithered, single-objective tilted light sheet (LS) and a nanoprinted microfluidic chip and combined them with point spread function (PSF) engineering⁷, deep learning¹², and active stabilization drift correction¹³ to achieve fast, accurate, and precise 3D single-molecule multi-target SR whole-cell imaging using Exchange-PAINT.

LS illumination^2,7,14,15, where the sample is illuminated with a thin sheet of light at the image plane, has emerged as a simple and effective method of reducing fluorescence background, phototoxicity, and photobleaching of fluorophores. Several LS approaches involving the use of separate objectives for illumination and detection have been designed for single-molecule imaging in cells, however, they suffer from optical complexity, low numerical aperture (NA) objectives, steric hindrance, the inability to optically section adherent cells, incompatibility with microfluidic systems, or drift between the objectives^14,16–27. Previous single-objective LS designs have been demonstrated to reduce the complexity and limitations of multi-objective systems, but they have been limited by beam thickness²⁸, the need for beam scanning^29,30, and limited effective NA in the detection path and the requirement for post-processing due to an illumination beam that is not aligned to the detection axis³¹. Our approach based on a fully steerable single-objective tilted LS together with engineered PSFs solves all issues above and enables the use of a single high-NA objective lens for light sheet focusing and high photon collection efficiency without steric hindrance or relative drift, optical sectioning of entire adherent cells cultured on regular coverslips, and easy combination with microfluidic chips while avoiding the LS aberrations that occur when imaging through microfluidic chip walls^24,31–35. By using LS illumination for Exchange-PAINT imaging, freely diffusing imager strands outside of the focal plane are not excited, resulting in reduced fluorescence background and improved single-molecule localization precision. Tilting the LS enables cellular imaging all the way down to the coverslip without special sample mounts¹⁵. In addition, our single-objective LS is dithered to achieve homogeneous illumination and reduce shadowing artifacts¹⁶.

Our microfluidic chips consist of a polydimethylsiloxane (PDMS) channel^36–41 with a 3D nanoprinted metalized insert which reflects the LS into the sample and enables convenient perfusion of solutions during multi-target Exchange-PAINT imaging. Previously developed single-objective LS systems have utilized various reflection mechanisms such as a micromirror⁴², an AFM cantilever mirror⁴³, pyramidal microcavities⁴⁴, a glass prism⁴⁵, and a microfluidic chamber with metalized side walls⁴⁶ to redirect the LS into the sample. However, these systems use imaging chambers that do not offer design flexibility^{18,42–44,46}, active solution exchange^18,42–44, or compatibility with epi-illumination and transmission microscopy^42,46. Our approach solves these issues with a customizable 3D nanoprinted microfluidic insert in a PDMS channel for user-specified LS tilt angle and chip dimensions and a transparent top for flexible combination with other imaging modalities.

To extend SR imaging to 3D, soTILT3D employs PSF engineering, where the shape of the PSF is modulated to encode axial information about the molecule of interest over several microns axial range in a single slice. PSF engineering is relatively simple to implement, requiring minimal additions to the emission path⁷. Several different PSFs have been designed for this purpose^47–53. Here, we use the double-helix PSF^15,54 (DH-PSF), which is robust to aberrations, offers good 3D single-molecule localization precision, and requires relatively low computational costs.

SoTILT3D combines PSF engineering with the deep learning based single-molecule localization software DECODE¹² to enable localization of overlapping emitters in 3D. Due to the enlarged footprint of engineered PSFs, conventional 3D imaging with engineered PSFs requires low emitter density to ensure that no overlap occurs between PSFs. Combined with the low imager strand concentrations already required to reduce fluorescence background during Exchange-PAINT imaging, whole-cell 3D single-molecule SR imaging with engineered PSFs can be a time-consuming process, often taking multiple days to complete. Combined with the background reduction from LS illumination, the incorporation of a neural network for localization of overlapping PSFs enables the use of higher imager strand concentrations, leading to denser localizations and drastically increased imaging speeds^55–58. While previous work has used PAINT approaches and deep learning to localize 2D data⁵⁸, our approach implements a deep learning algorithm with PAINT and the DH-PSF to localize 3D data.

Furthermore, soTILT3D utilizes an active stabilization feedback loop¹³ to correct for drift during image acquisition and enable long-term imaging.

Taken together, soTILT3D combines a steerable, dithered, single-objective tilted LS with microfluidics, PSF engineering, deep learning, and active stabilization drift correction to create a flexible imaging platform for whole-cell multi-target 3D single-molecule SR imaging through Exchange-PAINT with improved localization precision and imaging speeds. We quantify the background reduction and 3D localization precision improvement by performing 3D single-molecule SR imaging of the nuclear lamina protein lamin B1 with soTILT3D compared to conventional epi-illumination. We quantify the speed improvement by imaging α-tubulin and comparing the number of localizations per length of microtubule over time when analyzing with DECODE compared with non-neural network-based localization software. Finally, we demonstrate the performance of soTILT3D for multi-target 3D single-molecule SR imaging of nuclear lamina proteins and mitochondria and quantify the relative distances between nuclear lamina proteins lamin B1, lamin A/C, and lamina associated protein 2 (LAP2). SoTILT3D achieves up to ten-fold faster whole-cell multi-target 3D SR imaging with Fourier ring correlation (FRC) resolution values below 30 nm laterally and 40 nm axially, enabling a range of applications for correlating proteins at the nanoscale.

Results

SoTILT3D design and performance

SoTILT3D enables 3D single-molecule imaging by reflecting a LS off of a metalized insert with an angled side wall inside of a microfluidic PDMS chip (Fig. 1a,b). The LS is formed using a cylindrical lens and steered with galvanometric mirrors in the x and y directions (Supplementary Figs. 1, 2a,b) and defocused with a tunable lens (Supplementary Figs. 1, 2c,d). An additional galvanometric mirror is used to dither the LS at a half-angle of 20° in the LS plane at a frequency of 100 Hz to reduce striping and shadowing effects (Supplementary Figs. 1, 2e). The resulting LS is 1.1 μm thick (1/e² beam waist radius) (Fig. 1c, Supplementary Fig. 3a), 74.7 μm wide (1/e² diameter) (Supplementary Fig. 3b), and has a confocal parameter of 18.0 μm (1/e²) (Supplementary Fig. 3c), and these parameters can easily be tuned by the choice of lenses (see Methods). The angle and dimensions of the nanoprinted insert (Fig. 1b) as well as the dimensions of the PDMS chip are easily tunable. Here, a LS beam angle of 12° was used for whole-cell imaging to enable sectioning of adherent cells all the way down to the coverslip. The transparent top of the microfluidic chip allows for easy combination with other epi- and transmission illumination modalities. A 4f-system was implemented in the emission path to access the Fourier plane for PSF engineering with a DH phase mask (Fig. 1d, Supplementary Fig. 4) to enable 3D localization of single molecules.

Fig 1.

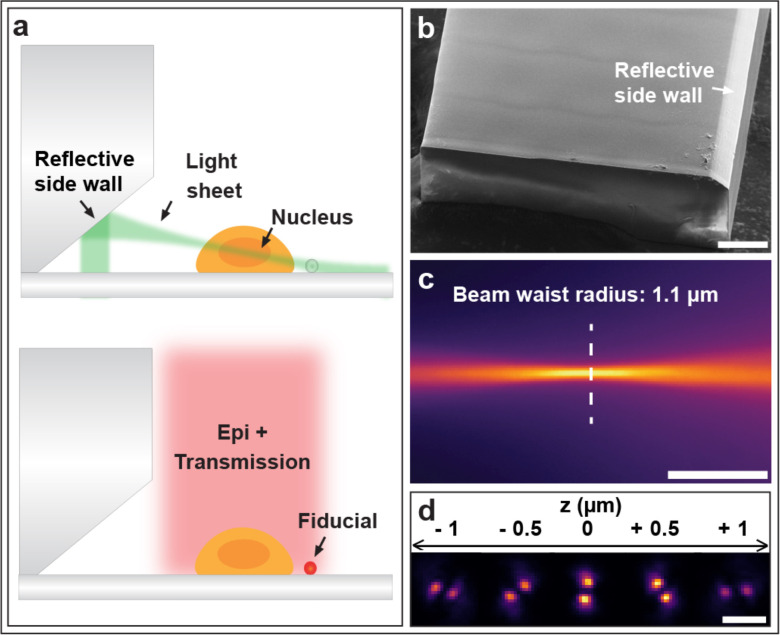

a, SoTILT3D combines a microfluidic chip that has a nanoprinted insert with metalized side wall with a single-objective tilted light sheet (LS) and is compatible with epi- and transmission illumination for fiducial bead tracking. b, Scanning electron micrograph of the microfluidic chip insert used for LS reflection. Scale bar 50 μm. c, The thin end of the LS imaged in a fluorescent solution. Scale bar 10 μm. d, Fluorescent beads imaged with the 2 μm axial range double helix point spread function (DH-PSF) at the indicated positions. Scale bar 2 μm.

SoTILT3D improves the localization precision of 3D single-molecule imaging

Using the LS improves the signal-to-background ratio (SBR) 4x for diffraction-limited imaging (Fig. 2a) and over 6x for single-molecule imaging (Fig. 2b), as demonstrated for imaging of lamin B1 in U2OS cells. Single-molecule DNA-PAINT data of lamin B1 in U2OS cells was acquired in 3D using the DH-PSF with epi- or LS illumination to assess the performance of the soTILT3D platform in terms of localization precision (Fig. 2c). While roughly matching the signal intensities from the individual molecules with median values of 8,400 photons/localization for epi- and 11,400 photons/localization for LS illumination, the fluorescence background was drastically reduced when using LS illumination and resulted in median background values of 125 photons/pixel for epi- compared to 64 photons/pixel for LS illumination (Fig. 2c). This resulted in improvements in lateral and axial localization precisions, with median values for epi-illumination of 11.2 nm in xy and 16.9 in z and median values for LS illumination of 7.8 nm in xy and 11.8 nm in z (Fig. 2c).

Fig 2.

SoTILT3D offers improved signal-to-background ratio and 3D localization precision compared with conventional widefield epi-illumination. a, Diffraction-limited and b, single-molecule images of lamin B1 in U2OS cells excited with epi- or light sheet (LS) illumination. Graphs show line scans demonstrating the contrast improvement when using LS compared to epi-illumination. Scale bars 5 μm. c, Histograms demonstrating comparable signal photon levels but decreased fluorescence background levels leading to improved localization precisions in xy and z for LS compared to epi-illumination for 3D single-molecule super-resolution imaging of lamin B1.

SoTILT3D improves the speed of 3D single-molecule imaging

The speed improvement of soTILT3D together with deep learning analysis was quantified by 3D single-molecule SR imaging of microtubules in U2OS cells. First, the approach was benchmarked by analysis of the same single-molecule data and fluorescent bead data with Easy-DHPSF^59,60, an open-source least-squares fitting-based analysis software, and DECODE, which resulted in comparable localization precisions (Supplementary Figs. 5 and 6). Then, high density data was acquired with a 0.2 nM concentration of imager strands while our standard concentration data for non-overlapping emitters was acquired at 0.025 nM (Fig. 3a,b). The non-overlapping single-molecule data was localized with Easy-DHPSF. The high-density data was localized with a DECODE model which was trained on the 0.025 nM microtubule data set and converged to a Jaccard Index of 0.69 after 1000 epochs. This resulted in a more than ten-fold increase in possible imaging speed when using DECODE (Fig. 3a,b). The achieved resolutions after 50,000 frames were estimated using FRC calculations in the xy, yz, and xz planes, resulting in resolutions of 35.4/38.6/36.9 nm and 28.4/32.1/33.0 nm for the Easy-DHPSF data set and the DECODE data set, respectively, demonstrating overall improved resolution when using DECODE for the same number of frames (Fig. 3c,d).

Fig 3.

SoTILT3D demonstrates increased 3D acquisition speeds compared with conventional analysis methods. a, Projections of 3D super-resolution reconstructions of microtubules after acquiring 1,000, 10,000, and 50,000 image frames with 0.025 nM imager strands and analyzed with least-squares fitting-based analysis software (Easy-DHPSF, top row) or with 0.2 nM imager strands and analyzed using deep learning (DECODE, bottom row). Scale bar 1 μm. b, Quantitative comparison of the number of localizations per length of microtubule over time achieved with Easy-DHPSF (yellow) and DECODE (purple). The average localizations per μm per second are shown in text above each line, demonstrating a ten-fold increase in speed when using DECODE. Each data point on the graph represents the average localizations per length of microtubule for three different microtubule sections and error bars are ± standard deviations of these data sets. c, Fourier ring correlation (FRC) curves in the xy, yz, and xz planes after 50,000 frames for the Easy-DHPSF-analyzed data and d, the DECODE-analyzed data, demonstrating improved resolution.

Whole-cell multi-target 3D single-molecule super-resolution imaging with soTILT3D

Whole-cell single-molecule data was acquired using soTILT3D and DECODE for analysis to demonstrate the performance of soTILT3D for accurate and precise multi-target 3D SR imaging (Figs. 4,5). The focal plane and LS were moved in 1 μm steps to image each target in overlapping slices while a pressure-driven pump was used to introduce imager strand sequences sequentially. First, 3D two-target imaging was demonstrated by imaging of mitochondria and lamin A/C (Fig. 4a), where the hollow structure of the mitochondrial outer membrane (TOMM20) was clearly resolved (Fig 4b and Supplementary Fig. 7). The resulting FRC resolutions were found to be 39.3/41.1/44.2 nm for lamin A/C and 34.1/37.6/42.1 nm for mitochondria (Supplementary Fig. 7).

Fig. 4.

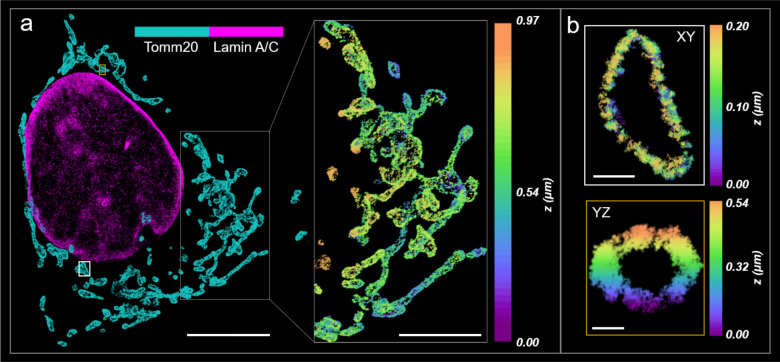

Two-target 3D high-density single-molecule super-resolution (SR) imaging with soTILT3D. a 3D SR reconstruction of lamin A/C and mitochondria (TOMM20) in a U2OS cell. Scale bar 10 μm. Inset scale bar 5 μm. b, 200 nm thick z-slice of the mitochondrion shown in the white box in a, shown in the xy-plane, and 200 nm x-slice of the mitochondrion shown in yellow box in a, shown in the yz-plane. Scale bars 500 nm and 200 nm, respectively.

Fig. 5.

Whole-cell multi-target 3D high-density single-molecule super-resolution (SR) imaging with soTILT3D. a, 3D multi-target SR reconstruction of an entire U2OS cell nucleus labeled for lamin B1, LAP2, and lamin A/C. Scale bars 5 μm. b, 500 nm thick z-slice of the nuclear proteins in a, shown in the xy plane merged, and then individually for each target. Scale bar 5 μm. c, Gaussian fits to an example line scan across the nuclear rim (white line in the merged sample in b,), demonstrating the separation distances between lamin B1 (LB1), LAP2, and lamin A/C (LA/C) in nm. d, Average intensity profile plots corresponding to line scans across the nuclear rim characterizing distances between lamin B1 and LAP2, LAP2 and lamin A/C, and lamin B1 and lamin A/C. Insert box-and-whisker plots represent the distribution of separations (nm) across all line scans. e, Fourier ring correlation (FRC) curves in the xy, yz, and xz planes of all three targets in a,.

Next, whole-cell multi-target imaging was demonstrated on nuclear proteins lamin B1, LAP2, and lamin A/C in U2OS cells (Fig. 5). The nuclear protein distributions were resolved with only 10,000 frames per slice (Fig. 5a), as high-density data analyzed with DECODE allows for a greater number of localizations in a shorter time. The nanoscale separation between these nuclear targets were then quantified from these 3D SR reconstructions using Gaussian fits of line scans across the nuclear rim and found to be 41 ± 8 nm for lamin B1 and lamin A/C, 29 ± 9 nm for lamin B1 and LAP2, and 12 ± 10 nm for LAP2 and lamin A/C (reported as mean ± standard error of the mean for 25 line scans) (Fig. 5b–d and Supplementary Fig. 8). Representative fits to a line scan can be seen in Fig. 5c, where nuclear protein distribution distances were found to be 41 nm between lamin B1 and lamin A/C, 27 nm between lamin B1 and LAP2, and 14 nm between LAP2 and lamin A/C. Average nuclear target distributions across all line scans are shown pairwise with Gaussian fits to the average distributions (Fig. 5d). SoTILT3D maintained high resolution throughout the cell during whole-cell, multi-target, 3D SR imaging, as demonstrated by FRC analysis (Fig 5e, Supplementary Fig. 7). FRC analysis resulted in resolutions in the xy/yz/xz plane of 29.2/36.2/38.6 nm for the whole cell reconstruction and of 27.9/36.1/39.9 nm, 30.2/37.6/38.0 nm, and 31.3/38.9/40.6 nm for lamin B1, LAP2, and lamin A/C, respectively.

Discussion

The combination of a steerable, dithered, single-objective tilted LS with microfluidics, PSF engineering, deep learning, active drift stabilization, and Exchange-PAINT resulted in improved localization precision and imaging speeds for whole-cell multi-target 3D single-molecule SR imaging. The optical system is simple and requires only standard, commercially available optical elements, and can be easily implemented on conventional microscopes.

The developed microfabrication pipeline provides a simple procedure for fabricating microfluidic devices that are compatible with single-objective LS illumination, conventional widefield epi-illumination, and transmission microscopy. The flexibility of the 3D nanoprinted insert geometry along with the wide range of design options for the PDMS channels allow for easy adaptability and implementation for various applications.

The soTILT3D platform can be easily extended to live-cell imaging and single-particle tracking (SPT). The biocompatibility of the insert and PDMS together with the gas permeability of PDMS makes the microfluidic channels suitable for live-cell studies. In fact, the cells in this study were cultured inside the chip before fixation. Solution perfusion through the channel allows for precise control of the extracellular environment and swift removal of heat or waste products with a constantly replenishing fluid reservoir. The single-objective light sheet design is also compatible with standard microscope stage top incubators. Furthermore, LS illumination minimizes photodamage to the specimen and the auto-stabilization drift correction scheme allows for easy decoupling of cell movement from sample drift over long acquisition periods. The design flexibility of the soTILT3D setup also allows for easy implementation with other live-cell compatible single-molecule imaging modalities, such as Peptide-PAINT^61,62 and SR imaging using SiR dyes^63–65. New fluorophore developments, including self-quenched DNA-PAINT probes⁶⁶, will further improve the performance of soTILT3D imaging in the future.

Overall, we think that soTILT3D offers a simple and flexible approach for improved 3D SR imaging and SPT that can be adapted and utilized for various single-molecule imaging applications for faster and more efficient and precise nanoscale investigation of cellular structures and molecular dynamics.

Methods

Optical platform

The optical platform was built around a conventional inverted microscope (IX83, Olympus) (Supplementary Fig. 1). The excitation pathway includes illumination lasers (560 nm, 1000 mW, MPB Communications; 642 nm, 1000 mW, MPB Communications) which were spectrally filtered (FF01–554/23–25, Semrock; FF01-631/36-25, Semrock) and circularly polarized (560 nm: Z-10-A-.250-B-556 quarter-wave plate, Tower Optical; 642 nm: LPVISC050-MP2 polarizer, Thorlabs, and Z-10-A-.250-B-647 quarter-wave plate, Tower Optical) before being expanded and collimated (LA1951-A, f = 25.4 mm, Thorlabs; LA1417-A, f = 150 mm, Thorlabs). Switching between lasers was controlled with shutters (VS14S2Z1, Vincent Associates Uniblitz) connected to a shutter control box (VDM-D3, Vincent Associates Uniblitz). The laser pathways were then merged into a single optical path with a dichroic mirror (T5901pxr-UF2, Chroma). The laser light was then either sent to the epi-illumination or single-objective LS illumination pathway, where switching between paths was achieved by manually flipping two flip mirrors. Along the epi-illumination pathway, the beam was further expanded and collimated (AC508-075-A, f = 75 mm, Thorlabs; AC508-300-A, f = 300 mm, Thorlabs) to achieve a laser spot size that would illuminate the entire field of view (FOV) of ~50 μm × 50 μm. The beam was reflected off of a flip mirror and directed through a Köhler lens (AC508-300-A, f = 300 mm, Thorlabs) that focused the beam at the back aperture of a high-NA oil immersion objective (UPLXAPO100x, 100x, NA 1.45, Olympus) used for both illumination and detection to generate collimated widefield epi-illumination in the sample plane. Along the LS illumination pathway, the beam was reduced and collimated (AC254-15-A-ML, f = 150 mm, Thorlabs; AC254-075-A-ML, f = 75 mm, Thorlabs) before going through a cylindrical lens (ACY254-150-A, f = 150 mm, Thorlabs) which focused the light in only one dimension onto a galvanometric mirror oriented horizontally and conjugated to the back focal plane of the objective lens for beam steering in the sample plane in the y direction (GVS211, Thorlabs; GPS011-US Galvo Power Supply, Thorlabs). The beam was then reduced and collimated once again (AC254-150-A-ML, f = 150 mm, Thorlabs; AC254-075-A-ML, f = 75 mm, Thorlabs) and focused onto a second galvanometric mirror oriented vertically and conjugated to the back focal plane of the objective lens for beam steering in the sample plane in the x direction (GVS211, Thorlabs; GPS011-US Galvo Power Supply, Thorlabs). The beam was then reduced and collimated once again AC254-150-A-ML, f = 150 mm, Thorlabs; AC254-075-A-ML, f = 75 mm, Thorlabs) and focused in one dimension onto a tunable lens (EL-3-10-VIS-26D-FPS, Optotune; EL-E-4 Electrical Lens Driver, Optotune) conjugated to the back focal plane of the objective lens for focal steering in the sample plane. The beam was then directed through a lens (AC508-300-A, f = 300 mm, Thorlabs) focusing the beam onto a third galvanometric mirror (SP30Y-AG, Thorlabs; GPWR15 Galvo Power Supply, Thorlabs; CBLS3F Galvo System Cable Set, Thorlabs) oriented horizontally and conjugated to the sample plane for rapid dithering of the LS with a function generator (15 MHz DDS Signal Generator/Counter, Koolertron). Finally, the beam was directed through the Köhler lens, a common element between both the epi- and the LS illumination paths. All lenses in the illumination path were chosen to generate a LS with dimensions suitable for mammalian cell imaging. The high-NA objective lens then focused the LS into a microfluidic chip bonded to a coverslip (vide infra) and was reflected off of its metalized side wall at a 12° angle into the sample. For whole-cell SR imaging, mirrors on removable magnetic mounts in the red epi-illumination path were used for simultaneous epi-illumination for fiducial bead-based drift correction (Supplementary Fig. 9). A dichroic mirror (69–216, 600 nm Dichroic Shortpass Filter, Edmund Optics) was placed on a sideways-mounted magnetic mount in place of the flip mirror just before the Köhler lens to allow for simultaneous LS illumination with the 560 nm laser and epi-illumination with the 642 nm laser. This allowed for fiducial bead-based drift correction using 0.20 μm 660/680 fiducial beads (F8807, Invitrogen) in both lateral and axial dimensions while acquiring single-molecule data with the single-objective LS.

Real-time active stabilization was achieved using an infrared (IR) LED (BLS-LCS-0850-03-22, Mightex; BLS-SA02-US LED Control Box, Mightex) mounted in place of the microscope’s white light halogen lamp for IR brightfield illumination. An 800 nm dichroic short-pass mirror (14–015, Edmund) was mounted between the objective lens and the Köhler lens to direct transmitted IR light to a separate path where it was focused using a tube lens (ACT508-200-B, f = 200 nm, Thorlabs) onto the sensor of a CMOS camera (CS235MU, Thorlabs) aligned in an optical cage system. Optical cleanup filters (FF01–842/56–25, Semrock) were placed between the LED and sample and in front of the CMOS camera to filter stray IR wavelengths in the transmission path. Furthermore, a short-pass cleanup filter (BSP01-785R-25, Semrock) was placed in the fluorescence detection path to remove residual IR wavelengths from the fluorescence emission light. This allowed for active stabilization of the system using the standard PSF of nonfluorescent 3 μm polystyrene beads (C37484, Invitrogen) in both lateral and axial dimensions using an open-source active stabilization ImageJ/Micromanager Plugin¹³ (Supplementary Fig. 9) while acquiring single-molecule data.

The microfluidic chip was mounted in a stage top incubation chamber (P-736-ZR1S/ZR2S, OkoLab) compatible with an xy translation stage (OPH-XYS-O, Physik Instrumente) and a fine adjustment xyz piezoelectric translation stage (OPH-PINANO-XYZ, Physik Instrumente). Solutions were perfused using a pressure-based flow control pump (LU-FEZ-0345, Fluigent, Inc.) connected to compressed air. Switching between solutions was achieved with an 11-port/10-position bidirectional valve connected to multiple solutions (ESSMSW003, Fluigent, Inc.) and locally controlled using a microfluidic flow controller (ELUSEZ, Fluigent, Inc.). Tubing (FEP 1/16” OD, 1/100” ID, Cole-Parmer) was connected from the pump to the microfluidic chip for solution perfusion.

Emission from fluorophores was collected by the same high-NA objective lens (UPLXAPO100x, 100x, NA 1.45, Olympus) used for epi- and LS illumination, spectrally filtered (ZT405/488/561/640rpcV3 3 mm thick dichroic filter set mounted in Chroma BX3 cube, Chroma; ZET642NF, ZET561NF, both Chroma), and focused by the microscope tube lens to form an image at the intermediate image plane (IIP). The light then continued to the first lens of a 4f system (AC508-080-AB, f = 80 mm, Thorlabs) positioned one focal length away from the IIP. An iris attached to a lens tube on the emission port of the microscope allowed for control of the emission spot size on the camera sensor. A dichroic mirror (T660lpxr-UF3, Chroma) was used to split the emission into two color channels: a “green path” where wavelengths shorter than 660 nm were reflected into and a “red path” where wavelengths longer than 660 nm were transmitted into. A second 4f lens (AC508-080-AB, f = 80 mm, Thorlabs) was placed in each path two focal lengths away from the first 4f lens. One focal length after the first 4f lens, the Fourier plane of the microscope was accessible, and the phase of emitted light was modulated to engineer the PSFs to encode axial positions of emitters in each path. This was achieved using a 2-μm axial range dielectric DH phase mask (DH-1 phase mask, 590 nm with diameter of 2.484 mm, Double-Helix Optics, LLC) in the green channel for single-molecule data collection and a 12-μm axial range DH phase mask (DH-12 phase mask, 670 nm with diameter of 2.484 mm, Double-Helix Optics, LLC) in the red channel for bead localizations and drift correction. After phase modulation with the phase masks, the emitted light in each color channel was focused by the second 4f lens in each channel and directed onto opposite corners of the sensor of an EMCCD camera (iXon Ultra 897, Andor, Oxford Instruments).

For fluorescence imaging, a set EM gain of 200 was used, which corresponded to a calibrated EM gain of 182 for the EMCCD camera. The EMCCD camera conversion gain was found experimentally to be 4.41 photoelectrons per A/D count. This camera was operated at a shift speed of 1.7 μm/s and normal vertical clock voltage amplitude. The read-out rate was set to 10 MHz at 16 bits using a preamplifier gain of 3. The calibrated pixel size of the camera was 159 nm/pixel vertically and 157 nm/pixel horizontally. For transmission imaging, the CMOS camera was set to a gain of 20 photoelectrons per A/D count, and the calibrated pixel size was 42.7 nm/pixel.

Fabrication process for microfluidic chips with reflective angled side walls

An overview of the fabrication process for microfluidic chips can be found in Supplementary Fig. 10. The microfluidic chip consists of two main parts: a 3D nanoprinted metalized insert and a PDMS channel.

For insert fabrication, inserts of desired dimensions were first designed using AutoCAD (Autodesk) and sliced and hatched for 3D nanoprinting in Describe (Nanoscribe GmbH & Co.KG) with the 10x Silicon Shell recipe using a slicing distance of 0.3 μm and a hatching distance of 0.3 μm with a hatching angle of −6° and a hatching angle offset of 0°. The block size (X:840 μm, Y:800 μm, Z: 4000 μm), block offset (X:400 μm, Y:425 μm, Z:0 μm), and block shear angle (0°) were adjusted to avoid any stitching lines throughout the printed structure. For characterization of the LS in fluorescent solution, inserts were printed to be 105 μm tall, 300 μm wide, and 2.8 mm long. The side wall had an angle of 45° and a height of 70 μm. For imaging in mammalian cells, inserts were printed to be 105 μm tall, 300 μm wide, and 4 mm long. The side wall had an angle of 39° and a height of 15 μm to allow for a reflected LS with a 12° tilt. The design was then printed using two-photon polymerization direct laser writing on a fused silica substrate with the Nanoscribe Photonic Professional GT2 (Nanoscribe GmbH & Co.KG). The structure was printed using the 10x objective with IP-Visio resin (Nanoscribe GmbH & Co.KG), a non-cytotoxic, optically transparent, nonfluorescent methacrylate-based resin, with a laser power set to 100% and a scan speed of 30 mm/s. The structure was then briefly immersed in SU8 developer (mr-Dev 600, Kayaku Advanced Materials, Inc.) where a pipette was used to gently dissolve excess unpolymerized resin. The structure was then briefly immersed in isopropyl alcohol (MPX18304, Fisher Scientific) and dried gently with nitrogen gas. The insert was then treated for 15 minutes with an 18 W UV light source (140010, Vacuum UV-Exposure Box, Gie-Tec GmbH). The insert was then mounted on its side for vapor deposition. This orientation ensured that only the edge of the insert containing the side wall was metalized to reduce unnecessary scattering from reflectivity of other portions of the insert. The insert was then mounted in an e-beam vapor deposition chamber where 200 nm of silica was deposited (EVMSIO21–5D, Kurt J. Lesker), followed by 350 nm of aluminum (EVMAL50EXEB, Kurt J. Lesker), and followed by 5 nm of silica (EVMSIO21–5D, Kurt J. Lesker). The first layer of silica provides an insulating layer to the plastic insert to protect it from the laser intensities used for imaging, the layer of aluminum provides a reflective layer for single-objective LS reflection, and the final layer of silica provides a dielectric coating for the mirror surface. These layers were optimized to provide the best heat protection for the thermoplastic base as well as good reflectivity. Scans profiling the surface of the insert side wall were performed using atomic force microscopy (AFM). A 10 μm × 10 μm region of the side wall was scanned (NCHR-10, NanoWorld; NX20, Park Systems) and analyzed (XEI 4.3.4, Park Systems), revealing a root mean square (RMS) roughness of 25.9 nm for the entire 100 μm² scanned region (Supplementary Fig. 10).

For the PDMS base, PDMS (SYLGARD 184 Silicone Elastomer Kit, Dow Inc.) channels were formed from SU8 molds made on silicon wafers (444, University Wafer, Inc.) with SU8–100 photoresist (Y131273, Kayaku Advanced Materials, Inc.). SU8 molds were prepared by spin-coating (WS-650Mz-23NPPB, Laurell Technologies) approximately 2 mL of the photoresist onto a silicon wafer first to 500 revolutions per minute (rpm) at 100 rpm/second acceleration, then held at 500 rpm for 10 seconds, then ramped to 3000 rpm at an acceleration of 300 rpm/second and held at this speed for 30 seconds. The molds were then heated on a hot plate at 65°C for 10 minutes followed by 95°C for 30 minutes. A custom film photomask (Micro Lithography Services Ltd) designed in AutoCAD (Autodesk) with desired channel dimensions was applied to the photoresist-coated silicon wafers which were then exposed to UV light under vacuum (140010, Vacuum UV-Exposure Box, Gie-Tec GmbH) with an 18 W light source for 27 seconds. The molds were then heated again on a hot plate at 65°C for 1 minute followed by 95°C for 10 minutes. The molds were then placed in a beaker with approximately 20 mL of SU8 developer (mr-Dev 600, Kayaku Advanced Materials, Inc.) and gently swirled for 10 minutes to dissolve residual untreated photoresist. All these steps were performed in accordance with the procedure outlined on the technical data sheet for SU8–100 negative epoxy photoresist (https://kayakuam.com/wp-content/uploads/2020/09/KAM-SU-8-50-100-Datasheet-9.3.20-Final.pdf). SU8 molds were designed to have channels that were 700 μm wide, 100 μm tall, and 1 cm long. Approximately 25 mL of PDMS was prepared from a two-part system of a 10:1 ratio of elastomer to curing agent and poured over SU8 molds placed in 60 mm petri dishes (FB0875713A, Fisher Scientific). Pins were placed on both ends of the channel prior to pouring the PDMS and were left in place as the PDMS cured to generate holes for tubing. The PDMS was left to cure at room temperature overnight followed by an additional 2 hours at 65°C in an oven. Once the PDMS was cured, the PDMS slab was peeled off the SU8 mold, and the metalized insert, which can be handled with forceps, was carefully placed into the PDMS channel. Care must be taken to ensure the insert is seated in the correct orientation within the PDMS for LS reflection into the sample.

For bonding of the microfluidic chip, coverslips (#1.5, 22 mm × 22 mm, Electron Microscopy Sciences) were first cleaned via sonication (Branson Ultrasonics Cleaning Bath, 15-336-120, Fisher Scientific) in acetone (BP2403–4, Fischer Scientific) for 25 minutes followed by plasma treatment (PDC-32G, Harrick Plasma Inc) with argon gas for 25 minutes. A clean coverslip was then placed with the PDMS into the plasma cleaner (PDC-32G, Harrick Plasma Inc) and treated with air plasma for 30 seconds. Immediately after removal from the plasma cleaner, the PDMS and coverslip were pressed together, allowing covalent bonds to form between the two, and bonding the microfluidic chip to form a sealed channel.

Cell culture

Before plating cells, the microfluidic channel was cleaned with 70% ethanol (BP82031GAL, Fisher Scientific), nanopure water, and coated with a 1:100 solution of fibronectin (F0895, Sigma-Aldrich) in phosphate-buffered saline (PBS) (SH3025601, Fisher Scientific). Human osteosarcoma cells (U-2 OS – HTB-96, ATCC) were then seeded into the microfluidic chips 24 hours before labeling and incubated at 37°C and 5% carbon dioxide (Thermo Scientific Heracell 150i CO₂ Incubator, 51-032-871, Fisher Scientific) in high-glucose Dulbecco’s modified Eagle’s medium (DMEM, Gibco) with 25 mM HEPES and supplemented with 10% (v/v/) fetal bovine serum (FBS, Gibco) and 100 mM sodium pyruvate (Gibco).

Sample preparation

After culturing the U2OS cells inside the microfluidic chip for 24 hours, the cells were fixed and immunolabeled inside of the microfluidic chip. For fixation, cells were first washed three times in PBS (SH3025601, Fisher Scientific), fixed for 20 min in chilled 4% formaldehyde solution made by dissolving paraformaldehyde (PFA, Electron Microscopy Sciences) in PBS, washed once more in PBS, and incubated with 10 mM ammonium chloride (Sigma-Aldrich) in PBS for 10 minutes. The cells were then permeabilized with three washing steps with 0.2% (v/v) Triton X-100 (Sigma-Aldrich) in PBS with a five-minute incubation period between each wash, and blocked with 3% (w/v) bovine serum albumin (BSA, Sigma-Aldrich) in PBS for 1 hour.

For diffraction-limited imaging, cells were labeled with rabbit anti-lamin B1 (ab16048, Abcam) primary antibodies using a 1:1,000 dilution in 1% (w/v) BSA in PBS for two hours. Cells were then washed three times with 0.1% (v/v) Triton X-100 in PBS with a three-minute incubation period during each wash before being labeled with donkey anti-rabbit secondary antibodies conjugated with dye CF568 (20098–1, Biotium) at a 1:100 dilution in 1% (w/v) BSA in PBS for one hour. Cells were then washed five times in 0.1% (v/v) Triton X-100 in PBS and 0.1 μm 580/605 nm fiducial beads (F8801, Invitrogen) at a dilution of 1:100,000 in PBS were flowed in just before imaging. An oxygen scavenging buffer⁶⁷ containing 100 mM Tris-HCl (J22638-K2, Thermo Scientific), 10% (w/v) glucose (215530, BD Difco), 2 μl/ml catalase (C100, Sigma-Aldrich), and 560 μg/ml glucose oxidase (G2133, Sigma-Aldrich) was added during imaging to reduce photobleaching.

For single-molecule imaging comparing epi- and LS illumination, cells were labeled with rabbit anti-lamin B1 (ab16048, Abcam) primary antibodies using a 1:1,000 dilution in 1% (w/v) BSA in PBS for two hours. Cells were then washed three times with 0.1% (v/v) Triton X-100 in PBS with a three-minute incubation period during each wash before being labeled with donkey anti-rabbit oligonucleotide-conjugated secondary antibodies (Massive Photonics) in antibody incubation buffer (Massive Photonics) for one hour. Cells were then washed three times with 1X washing buffer (Massive Photonics) in nanopure water, three times with 0.2% (v/v) Triton X-100 in PBS, and once in imaging buffer (500 mM NaCl in PBS, pH 8). 0.1 μm 580/605 nm fiducial beads (F8801, Invitrogen) at a dilution of 1:100,000 in nanopure water were then flowed in just before imaging. Finally, single-molecule data was obtained by flowing in imager strand solutions containing the complementary oligonucleotide-Cy3B dye conjugates (Massive Photonics) diluted in imaging buffer to a concentration of 0.01 nM.

For single-molecule imaging of microtubules for acquisition speed comparison and for analysis method control (Supplementary Fig. 5), cells were labeled with mouse anti-α-tubulin (T5168, Sigma-Aldrich) primary antibodies using a 1:500 dilution in 1% (w/v) BSA in PBS for two hours. Cells were then washed three times with 0.1% (v/v) Triton X-100 in PBS with a three-minute incubation period during each wash before being labeled with donkey anti-mouse oligonucleotide-conjugated secondary antibodies (Massive Photonics) at a dilution of 1:100 in antibody incubation buffer (Massive Photonics) for one hour. Cells were then washed three times with 1X washing buffer (Massive Photonics) in nanopure water, three times with 0.2% (v/v) Triton X-100 in PBS, and once in imaging buffer (500 mM NaCl in PBS, pH 8). Before imaging, 0.1 μm 580/605 nm fiducial beads (F8801, Invitrogen) at a dilution of 1:100,000 in nanopure water were flowed in. Finally, complimentary oligonucleotide-Cy3B dye conjugates (Massive Photonics) diluted in imaging buffer were flowed in at a concentration of 0.025 nM (standard concentration) or 0.2 nM (high concentration) just before imaging.

For two-target imaging of Tomm20 and lamin A/C, before cells were seeded into the microfluidic chips, the chips were first flowed through with 3 μm carboxylated polystyrene fiducial beads (C37484, Invitrogen) and 0.2 μm 660/680 nm fiducial beads (F8807, Invitrogen) and placed on a hotplate at 200°C for 1 minute and then at 100°C for 5 minutes to facilitate active stabilization and drift correction in post-processing (Supplementary Fig. 9). After fixation, permeabilization and blocking, cells were labeled with rabbit anti-Tomm20 (ab186735, Abcam) and mouse anti-lamin A/C (sc-376248, Santa Cruz Biotechnology) primary antibodies at a dilution of 1:200 and 1:100, respectively, in 1% (w/v) BSA, 5% (v/v) salmon sperm ssDNA (ab229278, Abcam), and 10% donkey serum (ab7475, Abcam) in PBS for two hours. Cells were then washed three times with 0.1% (v/v) Triton X-100 in PBS with a three-minute incubation period during each wash before being labeled with donkey anti-rabbit and donkey anti-mouse oligonucleotide-conjugated secondary antibodies (Massive Photonics) at a dilution of 1:100 in antibody incubation buffer (Massive Photonics) for one hour. Cells were then washed three times with 1X washing buffer (Massive Photonics) in nanopure water, three times with 0.2% (v/v) Triton X-100 in PBS, and once in imaging buffer (500 mM NaCl in PBS, pH 8) before imaging. Finally, complimentary oligonucleotide-Cy3B dye conjugates (Massive Photonics) diluted in imaging buffer were flowed in at concentrations of 0.04 nM for Tomm20 and 0.08 nM for lamin A/C sequentially for the two targets during imaging.

For multi-target imaging of lamin B1, lamin A/C, and LAP2, cells were labeled with rabbit anti-lamin B1 (ab16048, Abcam), mouse anti-lamin A/C (sc-376248, Santa Cruz Biotechnology), and goat anti-thymopoietin (AF843, R&D Systems) primary antibodies at a dilution of 1:1000, 1:100, and 1:50, respectively, in 1% (w/v) BSA, 5% (v/v) salmon sperm ssDNA (ab229278, Abcam), and 10% donkey serum (ab7475, Abcam) in PBS for two hours. Cells were then washed three times with 0.1% (v/v) Triton X-100 in PBS with a three-minute incubation period during each wash before being labeled with donkey anti-rabbit, donkey anti-mouse, and donkey anti-goat oligonucleotide-conjugated secondary antibodies (Massive Photonics) at a dilution of 1:100 in antibody incubation buffer (Massive Photonics) for one hour. Cells were then washed three times with 1X washing buffer (Massive Photonics) in nanopure water, three times with 0.2% (v/v) Triton X-100 in PBS, and once in imaging buffer (500 mM NaCl in PBS, pH 8). Before imaging, 0.2 μm 660/680 nm fiducial beads (F8807, Invitrogen) at a dilution of 1:100,000 were flowed in. Finally, complimentary oligonucleotide-Cy3B dye conjugates (Massive Photonics) diluted in imaging buffer were flowed in at concentrations of 0.04 nM for lamin B1, 0.08 nM for lamin A/C, and 0.08 nM for LAP2 sequentially for the three targets during imaging. Multi-target sequential labeling controls are shown in Supplementary Fig. 11.

Imaging procedure and settings

For diffraction-limited imaging, cells were imaged with the 560 nm laser at ~90 W/cm² and an exposure time of 50 ms.

For single-molecule imaging comparing epi- and light sheet illumination and the speed when using Easy-DHPSF or DECODE for analysis, the 560 nm laser was used at ~580 W/cm² for epi-illumination and at ~800 W/cm² for LS illumination using an exposure time of 100 ms to match the on/off binding rate of imager-docking strands. 50,000 frames were acquired for the epi- versus light sheet comparison and 100,000 frames were acquired for the speed comparison. After imaging, dark frames were acquired with the lasers turned off and camera shutters closed and z-scan calibration stacks of the 2-μm axial range DH-PSF in the green channel were acquired with fiducial beads (T7280, TetraSpeck, 0.2 μm, Invitrogen) spin coated in 1% (w/w) PVA (Mowiol 4–88, #17951, Polysciences Inc.) in nanopure water on a coverslip.

For two-target single-molecule imaging of mitochondria and lamin A/C, 50,000 frames were acquired for each target using the 560 nm laser at ~550 W/cm² and an exposure time of 100 ms. For fiducial bead drift correction, 0.2 μm 660/680 nm fiducial beads were excited using 642 nm epi-illumination at ~3 W/cm². To combat fiducial bead saturation, a 0.6 ND filter was placed in the red channel of the emission path. For active stabilization with 3 μm carboxylated polystyrene fiducial beads, the 850 nm LED was used at ~1.3 W/cm² (Supplementary Fig. 9). The CMOS camera was operated at an exposure time of 10 ms with a correction speed of 400 ms for active stabilization. Imager strands for each target and washing buffer between targets were flowed through the microfluidic with a pressure-based flow control pump set to a pressure of 345 mbar, which corresponded to a calibrated flow rate of 58 μL/min. After imaging, dark frames were acquired with the lasers turned off and camera shutters closed and z-scan calibration stacks of the 12-μm axial range DH-PSF in the red channel and the 2-μm axial range DH-PSF in the green channel were acquired with fiducial beads (T7280, TetraSpeck, 0.2 μm, Invitrogen) spin coated in 1% (w/w) PVA in nanopure water on a coverslip. Registration images of both channels were acquired using the standard PSF with fiducial beads (T7280, TetraSpeck, 0.2 μm, Invitrogen) spin coated in 1% (w/w) PVA in nanopure water on a coverslip.

For multi-target single-molecule imaging of the three nuclear targets, 10,000 frames were acquired for each target at each slice using the 560 nm laser at ~190 W/cm² and an exposure time of 100 ms. For fiducial bead drift correction, 0.2 μm 660/680 nm fiducial beads were excited using 642 nm epi-illumination at ~3 W/cm². To combat fiducial bead saturation, a 1.0 ND filter was placed in the red channel of the emission path. Imager strands for each target and washing buffer between targets were flowed through the microfluidic channel with the pressure-based flow control pump set to a pressure of 345 mbar, which corresponded to a calibrated flow rate of 58 μL/min. After imaging, dark frames were acquired with the lasers turned off and camera shutters closed and z-scan calibration stacks of the 12-μm axial range DH-PSF in the red channel and the 2-μm axial range DH-PSF in the green channel were acquired with fiducial beads (T7280, TetraSpeck, 0.2 μm, Invitrogen) spin coated in 1% (w/w) PVA in nanopure water on a coverslip. Registration images of both channels were acquired using the standard PSF with fiducial beads (T7280, TetraSpeck, 0.2 μm, Invitrogen) spin coated in 1% (w/w) PVA in nanopure water on a coverslip.

Data analysis

After imaging, 3D single-molecule images acquired using the DH phase mask in the green channel were imported into either Easy-DHPSF^59,60, a MATLAB-based open-source localization software for non-overlapping emitters, or the deep learning based single-molecule detection and localization tool DECODE¹² for overlapping emitter analysis. 2D single-molecule data for Exchange-PAINT labeling and imaging controls was analyzed in ThunderSTORM⁶⁸, an open-source ImageJ plugin (Supplementary Fig. 11). For one channel imaging where the fiducial bead was detected in the same channel as the single-molecule data, data localized by Easy-DHPSF was drift corrected with the built in Easy-DHPSF drift correction while DECODE-localized data was drift corrected separately with a custom MATLAB script using fiducial bead data localized in Easy-DHPSF. For two channel whole-cell imaging, where fiducial bead data was acquired in the red channel with the 12-μm range DH-PSF and single-molecule data was acquired in the green channel with the 2-μm range DH-PSF, the 12-μm fiducial bead data was localized with a custom-edited version of Easy-DHPSF compatible with the 12-μm range DH-PSF. The 12-μm range fiducial bead data was then transformed into the green channel with a custom 2D registration code which utilized an affine transformation to map beads from one channel to another. The tracked motion of the fiducial bead was smoothed with a cubic spline fitting function and subtracted from the high-density green channel single-molecule data localized by DECODE using a custom MATLAB script. For whole-cell imaging, slices were stitched together with custom scripts which first shifted the data sets based on the position of fiducial beads that were detectable across multiple slices owing to the very long axial range of the 12-μm DH-PSF, and then corrected any residual offsets in z using cross-correlation between adjacent slices. Finally, localizations were filtered along a gradient from the top of each slice to avoid the appearance of harsh lines between stitched slices. An illustration of the full data analysis pipeline is shown in Supplementary Fig. 12.

Once 3D single-molecule data had been localized, drift corrected, and stitched together, it was rendered using the software Vutara SRX (Bruker) for visualization, where localizations were visualized by a 3D Gaussian with a 16 nm diameter using point splat rendering. Epi- versus LS illumination comparison data of lamin B1 (Fig. 2c) was filtered to remove any localizations with localization precisions in x, y or z greater than 100 nm, photon counts greater than 50,000, and a DH lobe separation below 4.5 or greater than 8.5 pixels. For Easy-DHPSF versus DECODE comparison data of microtubules (Fig. 3a), localizations with a localization precision greater than 20 nm in xy or greater than 30 nm in z were filtered out. The data sets were also filtered for 20-nearest neighbors with a denoise range of 0.01 to 10 to remove spurious localizations. The lamin A/C and mitochondria data sets (Fig. 4) were filtered to remove localizations with localization precision greater than 30 nm in xy or greater than 50 nm in z. Whole-cell lamin B1, lamin A/C, and LAP2 data sets (Figs. 5a,b) were filtered to remove localizations with localization precision greater than 30 nm in xy and greater than 150 in z. Each slice was also filtered to remove localizations with z values greater than 1 μm (the upper limit of our 2-μm DH-PSF).

For resolution analysis, the FRC was calculated in Vutara SRX and used to analyze data in the xy, yz, and xz planes (Fig. 3c,d and 5d, and Supplementary Fig. 7). A super-resolution pixel size of 8 nm was used with a threshold of 0.143 (1/7) to extract the resolution.

For DECODE training, DECODE receives experimental single-molecule data and simulates realistic single-molecule data for training. For this work, a DECODE model was trained to detect high density data acquired with the 2-μm range DH-PSF. Training was performed by feeding the DECODE environment a calibration file based on the experimental parameters of our imaging system including signal photons in the range of 0 to 18,000 photons per localization, background levels of 0 to 200 photons per pixel, a dark level of 477 A/D counts, an EM gain of 182, a conversion gain of 4.41 photoelectrons per A/D count, and the axial range of our 2-μm PSF, as well as sparse 3D single-molecule data acquired with our single-objective light sheet. High density (2.17 μm⁻²) data sets were then simulated based on these conditions. The DECODE model was trained on our 0.025 nM microtubule data set and converged to a Jaccard index of 0.69 after 1000 epochs. The performance of this model was benchmarked in terms of precision by comparing the localization precision of single-molecule data from 200,000 frames and of three different fiducial beads localized in over 25,000 frames using both DECODE and Easy-DHPSF (Supplementary Fig. 5 and 6). The localization precisions in x, y, and z for the three beads were extracted from Gaussian fits of the localization distributions and the localization precisions for the single-molecule data were extracted from each software. The results showed comparable values between the two approaches both for the beads and single-molecule data.
