Surface modification of polypropylene hollow fiber membranes using fluorosilane for CO₂ absorption in a gas-liquid membrane contactor

Abstract

Conventional methods for improving the hydrophobicity of polypropylene (PP) membranes to prevent wetting phenomena require complex pretreatment procedures in order to activate the surface for enabling the reaction with fluorosilane (FS)-based materials. This study successfully prepared PP membrane contactors with enhanced hydrophobicity through a simple single-step dip-coating method using perfluoroether-grafted silanes for CO₂ capture. The FS coating layer on the PP membrane surface was confirmed through ATR-FTIR spectroscopy, XPS, FE-SEM, and EDS. Furthermore, the evaluation of the CO₂ absorption performance and long-term stability of the FS-coated PP membrane according to the variation of the gas flow rate (50, 100, 200, 400, and 800 mL/min) confirmed the superior chemical stability and durability of our membranes to those of previously reported hydrophobic membranes. The as-prepared FS-coated PP membrane expands the application scope of gas-liquid membrane contactors for CO₂ capture from the flue gas of coal-fired power plants.

Highlights

• •Single-step fluorosilane (FS) dip-coating method was used to modify the PP membrane.
• •Abundant C–F moieties in FS enhance hydrophobicity and prevent membrane wetting.
• •The long-term stability of the PP membrane increased by 55% after FS coating.
• •FS-coated PP is promising for CO₂ capture from flue gas of coal-fired power plants.

Abbreviations

PP

polypropylene

FS

fluorosilane

HFMC

hollow fiber membrane contactor

ATR-FTIR

attenuated total reflection-Fourier transform infrared

XPS

X-ray photoelectron spectroscopy

FE-SEM

field-emission scanning electron microscopy

EDS

energy-dispersive X-ray spectroscopy

1. Introduction

The amount of anthropogenic CO₂ emitted by fossil fuel combustion for energy production has increased by 6% annually [1,2]. Anthropogenic CO₂ accounts for 80% of the total greenhouse gas emissions and is a significant cause of climate change and global warming [3]. Therefore, considerable efforts have been devoted to the development of CO₂ capture technologies to reduce CO₂ emissions. In general, strategies designed to reduce CO₂ emissions from fossil fuel combustion through CO₂ capture can be divided into oxy-combustion, pre-combustion, and post-combustion separation processes. Post-combustion separation is practical because it can easily be applied to all combustion processes in existing power and industrial plants [4,5].

In conventional post-combustion separation processes, packed columns are typically used as reactors. However, industrial-scale reactors occupy a large area and are difficult to operate owing to several issues, including liquid channeling, flooding, and bubble formation [6]. In contrast, a hollow fiber membrane contactor (HFMC) is a hybrid technology that combines membrane separation and absorption and overcomes the above mentioned limitations of packed columns because the role of the membrane as a physical boundary enables sufficient contact between the gas and liquid phases for mass transfer without direct contact and complete mixing [4,7]. HFMCs have recently attracted appreciable attention because they can effectively reduce absorber size. Remarkably, the gas-liquid interface area of an HFMC is 30 times larger than that of a conventional packed column, although using a membrane inevitably leads to additional mass-transfer resistance [8,9]. In addition, HFMCs have the advantage of being easily scalable owing to their modularity [10]. However, HFMCs are susceptible to wetting. The wetting of the membrane with solvents can induce mass-transfer resistance, which increases as the solvent gradually penetrates the membrane's pores during long-term operation, thereby reducing the absorption performance of the membrane [11,12]. Therefore, the ability of the membrane to resist wetting is a critical factor in the selection of the polymer material because it affects the lifetime of the HFMC system [13].

Increasing the hydrophobicity of a membrane is an invaluable method for reducing its wetting. Compared with other polymers, polypropylene (PP) has the advantages of improved hydrophobicity, high chemical stability, and good mechanical strength. In addition, PP has been widely used as a membrane material for HFMC particularly because of its low cost [[14], [15], [16], [17]]. PP costs 36 times lower than polyvinylidene fluoride (PVDF), which possesses superior physical properties, thus making PP relatively advantageous for commercialization [18]. However, the inherent hydrophobicity of the PP membrane is insufficient to prevent its wetting during long-term operation [19]. Therefore, improving the hydrophobicity of the PP membrane to minimize or avoid its wetting with solvents is of utmost priority for the practical application of PP-based HFMCs in CO₂ absorption.

Although some attempts have been made to improve the hydrophobicity of PP membranes via surface treatment with a fluorosilane (FS)-based material [20,21] reported studies on improving the hydrophobicity of PP membranes through surface modification for CO₂ separation have been scarce. For the surface modification of PP, which contains abundant C–H bonds, it is essential first to replace the inactive C–H bonds with C–OH bonds to facilitate a reaction with an FS molecule [22]. Hydroxyl groups are appropriate reactive sites for immobilizing an FS on the membrane surface through a crosslinking reaction. Currently, the functionalization of the PP membrane surface with hydroxyl groups is mostly accomplished through physical (plasma or UV/ozone treatment) or chemical pretreatment processes (wet acid or alkali treatment) [[22], [23], [24]]. However, physical pretreatment requires special equipment, which incurs high initial installation and operating costs [25]. In contrast, chemical pretreatment could alter the physical properties of the membrane if the treatment conditions are inappropriate [26]. In addition, the chemical pretreatment process is complicated and time-consuming and generally requires two steps: 1) hydroxylation of the PP membrane surface and 2) subsequent reaction with an FS. Therefore, it would be advantageous to simplify the two-step process into a single one. In general, the surface coating process with FS-based materials, such as 1H,1H,2H,2H-perfluorodecyltriethoxysilane, 1H,1H,2H,2H-perfluorodecyltrimethoxysilane, and 1H,1H,2H, 2H-perfluorododecyltrichlorosilane, requires a high-temperature curing process at 353.15 K or higher [22,27,28]. Therefore, the coating processes at high temperatures are unsuitable for PP membranes because of the decomposition issue (melting point of PP: 403.15 K) [29].

In this study, to improve the wetting resistance of the PP membrane-based HFMC in the CO₂ capture process, the surface of the PP membrane was hydrophobized using perfluoroether-grafted silane in a single step without physical or chemical pretreatment. The selected FS was expected to be suitable for enhancing the hydrophobicity of the PP membrane surface because it could be cured at a relatively low temperature (298.15 K). After surface modification, the chemical structure of the FS-coated PP membrane surface was investigated by attenuated total reflection-Fourier transform infrared (ATR-FTIR) and X-ray photoelectron spectroscopy (XPS) to confirm the presence of the FS coating layer, which contains abundant C–F bonds, using a pristine PP membrane as the control. In addition, the surface morphology and chemical composition of the FS-coated PP membrane were evaluated using field-emission scanning electron microscopy (FE-SEM) and energy-dispersive X-ray spectroscopy (EDS). Furthermore, the CO₂-absorption performances (CO₂ removal efficiency and CO₂ absorption flux) of pristine PP and FS-coated PP membranes were evaluated comparatively by applying them in a gas-liquid membrane contactor. Finally, the long-term stability of the FS-coated PP membrane was investigated and compared with those of other reported hydrophobic membranes. This study aimed to examine the characteristics of FS-coated PP HFMCs and the possibility of improving the wetting resistance of the membrane through membrane surface modification for CO₂ capture from coal-fired power plants.

2. Experimental section

2.1. Materials

PP HFMCs were purchased from SepraTeck Co., Korea. Perfluoroether-grafted silane (KY-164, 20.0 wt%) used as the FS was obtained from Shin-Etsu Co., Japan. Hydrofluoroethers (HFE-7200, 99.0 wt%) were supplied by 3 M Deutschland GmbH, Germany. Monoethanolamine (MEA; 99.0 wt%) and ethanol (94.5%) were purchased from DAEJUNG Chemical and Metals Co., Ltd., Korea. CO₂ gas (15 vol%, N₂ balance) was purchased from Korea Gas & Electric Technology Co., Ltd., Korea.

2.2. Preparation of the FS-coated PP membrane

2.2.1. Coating

The preparation process of the hollow fiber FS-coated PP membrane is illustrated in Fig. 1. A dip-coating method was used for coating the membrane. The cleaned PP membrane was immersed for 1 h in 2 wt% KY-164 diluted with HFE-7200 at 298.15 K. In the case of the membrane contactor, the coating liquid was filled on the shell side, and the absorbent flowed. During immersion, PP and KY-164 adsorbed to the surface of the PP membrane because of hydrophobic interactions between their nonpolar alkyl groups [30].

Fig. 1.

Schematic illustration of the preparation of FS-coated PP membranes.

2.2.2. Curing

Next, the immersed membrane was removed and exposed to 80% relative humidity (RH) for 24 h at 298.15 K in an oven to allow the reaction shown in Fig. 1 to proceed. KY-164 was adsorbed on the membrane surface via hydrophobic interactions under sufficient moisture conditions. The R–OH molecules generated by the hydrolysis of KY-164 facilitated the binding of KY-164 to the PP membrane surface through hydrophobic interactions and hydrogen bonding. Subsequently, a crosslinking reaction occurred through dehydration and condensation reactions. Eventually, the KY-164 on the membrane cured into a stable form on the surface of the PP membrane.

2.2.3. Washing and drying

After the curing process, the modified surface of the PP membrane was washed twice with ethanol to remove unreacted materials and residual solvent. Finally, the modified PP membrane was dried in a vacuum oven at 328.15 K for 24 h.

2.3. CO₂ absorption mechanism of MEA used as the absorbent

The absorption of CO₂ by primary amines based on the zwitterion mechanism was first proposed by Caplow and reintroduced by Danckwerts [31,32]. When MEA, a primary amine, is reacted with CO₂ to form a zwitterion, $\text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{N}{\mathrm{H}}_2^{+}\text{CO}{\mathrm{O}}^{-}$ (Eq. (1)), the zwitterion is instantaneously deprotonated by a basic species (unreacted MEA, OH⁻, or H₂O) present in the system to form a carbamate molecule $\left(\text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\text{NHCO}{\mathrm{O}}^{-}\right)\text{,}$ as shown in Eq. (2).

$$\mathrm{C}{\mathrm{O}}_2+\text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{N}{\mathrm{H}}_2\leftrightarrow \text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{N}{\mathrm{H}}_2^{+}\text{CO}{\mathrm{O}}^{-}$$ (1)

$$\text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{N}{\mathrm{H}}_2^{+}\text{CO}{\mathrm{O}}^{-}+\mathrm{B}\leftrightarrow \text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\text{NHCO}{\mathrm{O}}^{-}+\mathrm{B}{\mathrm{H}}^{+}$$ (2)

The resulting carbamate can further react with water to form bicarbonate ($\text{HC}{\mathrm{O}}_3^{-})\text{,}$ as shown in Eq. (3). Many factors, including the carbamate's chemical stability, influence the reaction kinetics. In particular, the lower the basicity of the amine is, the faster the decomposition of the carbamate is.

$$\text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\text{NHCO}{\mathrm{O}}^{-}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow \text{HO}{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{N}{\mathrm{H}}_2+\text{HC}{\mathrm{O}}_3^{-}$$ (3)

Further, CO₂ reacts with water to form bicarbonate (Eqs. (4), (5), (6))). Finally, the bicarbonate is converted to carbonate in the presence of a base capable of extracting H⁺ from it (Eq. (7)). At this time, the base may act as an amine molecule or a hydroxide ion; however, in the case of an amine, the reaction proceeds quickly.

$$\mathrm{C}{\mathrm{O}}_2+{\mathrm{H}}_2\mathrm{O}\leftrightarrow {\mathrm{H}}_2\mathrm{C}{\mathrm{O}}_3$$ (4)

$$\mathrm{C}{\mathrm{O}}_2+\mathrm{O}{\mathrm{H}}^{-}\leftrightarrow \text{HC}{\mathrm{O}}_3^{-}$$ (5)

$${\mathrm{H}}_2\mathrm{C}{\mathrm{O}}_3+\mathrm{O}{\mathrm{H}}^{-}\leftrightarrow \text{HC}{\mathrm{O}}_3^{-}+{\mathrm{H}}_2\mathrm{O}$$ (6)

$$\text{HC}{\mathrm{O}}_3^{-}+\mathrm{B}\leftrightarrow \mathrm{C}{\mathrm{O}}_3^{2-}+\mathrm{B}{\mathrm{H}}^{+}$$ (7)

2.4. Experimental apparatus and procedure of CO₂ absorption

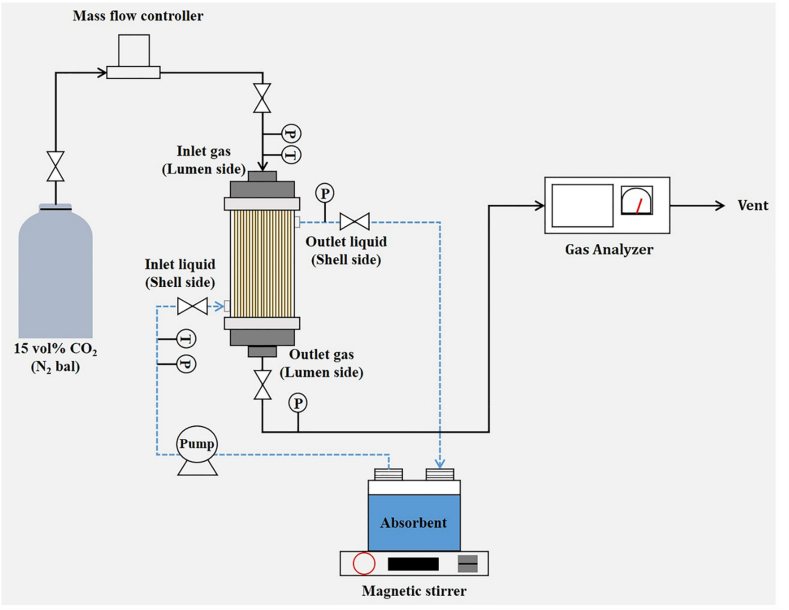

Fig. 2 Shows a schematic of the CO₂ absorption apparatus using the FS-coated PP HFMC. In absorption experiments, a 15% CO₂/N₂ mixture was used as the feed gas to simulate the CO₂ concentration in coal-fired power plant emissions [33]. The feed gas was introduced through the lumen side of the fibers of the membrane contactor, and the gas flow rate was adjusted using a mass-flow controller (GMC 1200, Atovac, Korea). The operating conditions of the CO₂ absorption are given in Table 1. The CO₂ concentrations of the inlet and outlet gases were measured at 1 min intervals using a CO₂ gas analyzer (Multi Master, Sensoronic Co., Ltd., Korea).

Fig. 2.

Schematic of the experimental apparatus used for CO₂ absorption.

Table 1.

Operating conditions of the polypropylene-based HFMC.

Parameters	Value	Unit
Absorbent	30 wt% MEA	–
CO2 concentration	15	%
N2 concentration	85	%
Gas flow rate (QG)	50, 100, 200, 400, and 800	mL/min
Liquid flow rate (QL)	5	mL/min
Temperature	313.15	K

Details of the commercial membrane contactor used in the present study are provided in Table 2; 30 wt% MEA was used as the chemical absorbent. The absorbent was flown counter-currently through the shell side of the membrane contactor because the CO₂ absorption flux is higher in the counter-current flow than in the co-current flow [34]. To avoid channeling and dead zones, the absorbent was flown from the bottom to the top [35]. The absorption experiments were conducted at 313.15 K and were monitored using a temperature gauge installed at the inlet of the absorbent. A hotplate equipped with a magnetic stirrer was used to maintain the homogeneity and temperature of the absorbent. The absorbent was pumped through the shell side of the membrane contactor using a digital gear pump (5970-Optos, Eldex Laboratories, Inc., USA) to maintain a flow rate of 5 mL/min. It was recirculated back to the absorbent tank. The liquid-side pressure was set to be slightly higher than that of the gas side to avoid gas permeation to the liquid side. The membrane could be wet if the pressure on the liquid side exceeds the liquid entry pressure [36]. The CO₂ removal efficiency and CO₂ absorption flux were calculated using Eqs. (8), (9)), respectively [37,38]:

$$\mathrm{C}{\mathrm{O}}_2\text{removal}\text{efficiency}(\%)=\frac{{{\mathrm{Q}}_{\text{in}}\times \mathrm{C}}_{\text{in}}-{\mathrm{Q}}_{\text{out}}\times {\mathrm{C}}_{\text{out}}}{{{\mathrm{Q}}_{\text{in}}\times \mathrm{C}}_{\text{in}}}\times 100$$ (8)

$$\mathrm{C}{\mathrm{O}}_2\text{absorption}\text{flux}\left(\text{mol}/{\mathrm{m}}^2\times \mathrm{s}\right)=\frac{\left({\mathrm{Q}}_{\text{in}}\times {\mathrm{C}}_{\text{in}}-{\mathrm{Q}}_{\text{out}}\times {\mathrm{C}}_{\text{out}}\right)\times 273.15}{0.0224\times {\mathrm{T}}_{\mathrm{g}}\times \mathrm{S}}$$ (9)

where Q_in and Q_out represent the inlet and outlet gas flow rates (m³/h), respectively; C_in and C_out are the concentrations of the inlet and outlet gases, respectively; T_g is the gas temperature (K); and S represents the gas-liquid mass-transfer area, which is equal to the effective membrane area (m²).

Table 2.

Specifications of the HFMC.

Parameters	Value	Unit
Fiber material	Polypropylene	–
Housing material	Acryl	–
Packing material	Epoxy resin	–
Module length	190	mm
Fiber: outer diameter	690	μm
Fiber: inner diameter	500	μm
Number of fibers	440	–
Effective pore size	0.225	μm
Surface area	0.2	m2

2.5. Characterization methods

The amounts of fluorine, carbon, and silicon in the coated hollow fiber membranes were quantitatively determined through XPS analysis (K-alpha, ThermoFisher, USA). The morphology and constituent elements of the surface and cross-section of the coated hollow fiber membrane were investigated using FE-SEM and EDS (S-4800, Hitachi High-Technologies, Japan). ATR-FTIR spectroscopy (FT/IR-4600, Jasco, Japan) was performed to evaluate the surface chemical composition of the coating layer. The FTIR spectrum recorded in the 450–4000 cm⁻¹ with a resolution of 4 cm⁻¹ was averaged over 16 scans.

3. Results and discussion

3.1. Characterization of the FS-coated PP membrane

The surface chemical groups of the pristine PP and modified PP membranes were analyzed by ATR-FTIR spectroscopy. The ATR-FTIR spectra of the samples are shown in Fig. 3(A). The spectra of both samples exhibited the characteristic C–H stretching vibrations of PP at 2835–2950, 1455, and 1375 cm⁻¹. In particular, the peaks observed at 1455 and 1375 cm⁻¹ are attributable to the C–H vibrations of the –CH₂ and –CH₃ groups, respectively [23]. For the FS-coated PP membrane, the Si–O–Si asymmetric stretching vibrations peak was observed at 1100 cm⁻¹, indicating that KY-164 was crosslinked through dehydration and condensation reactions during the curing process. The peak corresponding to C–F stretching vibrations from the perfluoropolyether unit of KY-164 appeared at 1210 cm⁻¹. In addition, the stretching vibrations of –OH and C–O bonds were observed at 3290 and 1065 cm⁻¹, respectively. These peaks indicate that R–OH was generated during the curing process.

Fig. 3.

(A) ATR-FTIR spectra and (B) XPS profiles of pristine PP and surface-modified PP membranes.

XPS provides qualitative information on the chemical composition of the membrane surface before and after modification [39]. Therefore, the chemical compositions of the pristine PP and FS-coated PP membranes were compared through XPS analysis. As shown in Fig. 3(B), increased Si, F, and O signals were detected for the FS-coated PP membrane. The detailed contents of the different elements in the pristine PP and FS-coated PP membranes are listed in Table 3. Thus, the ATR-FTIR and XPS spectra confirmed the successful formation of the FS-coated PP membrane, as illustrated in Fig. 1. The hydrophobicity of the PP membrane surface was enhanced by the fluorine groups in the FS coating layer, which are highly hydrophobic; this is expected to prevent the wetting of the membrane.

Table 3.

Surface composition (atom.%) of pristine PP and surface-modified PP membranes.

	C 1s	O 1s	Si 2p	F 1s
Pristine PP	97.14%	1.57%	0.30%	–
FS-coated PP	52.59%	11.92%	1.51%	33.23%

The surface morphology of the modified PP membrane was observed using SEM. After modification, the shape of the hollow fibers of the PP membrane was maintained. However, the comparison of the structural features of the membrane before and after modification (Fig. 4(A) and (B)) confirmed that the inner diameter of the hollow fibers increased by approximately 71 μm. In comparison, the thickness of the hollow fiber wall increased by about 44 μm. Fig. 4(C) and (D) confirm that the size of the hollow fiber increased significantly after coating treatment. These results indicate that the hollow fiber PP membrane swelled during modification. Membrane swelling occurred because the FS-based coating liquid at the shell side permeated into the lumen side through the pores of the membrane, and the coating liquid was adsorbed and then cured on the surface of the PP membrane to form an FS layer. Consequently, the pores in the membrane increased, more because of the FS layer than the pristine PP (Fig. 4(E)), as shown in Fig. 4(F). In addition, EDS analysis (Fig. 4(G) and (H)) confirmed the formation of a thick fluorine-based coating on the shell side and the presence of a thin fluorinated layer on the lumen side. This result indicates that the coating liquid penetrated the membrane's pores and was adsorbed onto the inner surface. This phenomenon occurs when the membrane substrate is hydrophobic and the viscosity of the coating liquid is low. According to the supplier, the kinematic viscosity of KY-164 is 1.2 mm²/s at 298.15 K, and the kinematic viscosity of HFE-7200 is 0.33 mm²/s at 293.15 K [40]. Tai et al. reported that a coating liquid with low viscosity easily penetrates the pores and surface of the membrane, and the coating extends from the surface to the pores. In contrast, a high-viscosity coating solution does not penetrate the pores and is coated only on the surface [41]. Thus, overall, the shell side of the modified PP hollow fiber membrane and the pore and lumen sides were coated with the FS layer. The effect of swelling caused by surface modification on the CO₂-absorption performance of the FS-coated PP hollow fiber membrane is discussed in Section 3.2.

Fig. 4.

Cross-sectional SEM images of pristine PP (A) and surface-modified PP (B) membranes. Plane-view SEM images of pristine PP (C, E) and modified PP membranes (D, F). EDS mapping images for the fluorine component (shown in yellow) on modified membranes (G, H).

3.2. CO₂ absorption performance

3.2.1. Effect of gas flow rate on the CO₂ removal efficiency and CO₂ absorption flux

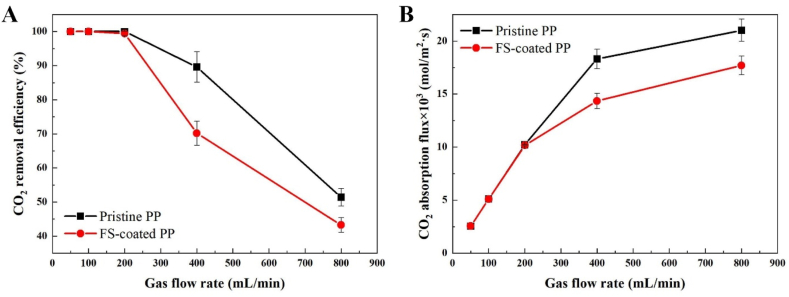

Fig. 5 shows the effect of the gas flow rate on the CO₂ removal efficiency and CO₂ absorption flux for the pristine and FS-coated PP membranes. The operating conditions of the CO₂ absorption experiments are provided in Table 1. As shown in Fig. 5(A), the CO₂ removal efficiencies of the systems using pristine PP and FS-coated PP membranes with 30 wt% MEA decreased from 100% to 51.4 and 43.3% as the gas flow rate increased from 50 to 800 mL/min, respectively. In comparison, the CO₂ absorption flux of the membranes increased from 2.55 to 21.01 and 17.70 × 10⁻³ (mol/m²·s), respectively. As the gas flow rate increases, the CO₂ absorption flux increases due to decreased gas-phase resistance [42].

Fig. 5.

(A) CO₂ removal efficiency and (B) CO₂ absorption flux of the systems with pristine PP and modified PP membranes (absorbent: 30 wt% MEA; liquid flow rate: 5 mL/min).

However, the CO₂ removal efficiency decreased because the residence time of the inlet gas in the membrane contactor was shortened, and the diffusivity of CO₂ was reduced [38]. Interestingly, both the CO₂ removal efficiency and CO₂ absorption flux of the FS-coated PP membrane with enhanced hydrophobicity decreased in relation to those of the pristine PP membrane. During the CO₂ removal process, the CO₂-containing gas diffuses from the gas phase to the membrane surface. Then it passes through the membrane's pores to form a uniform and fine bubbles, resulting in dissolution, diffusion, and chemical reactions in the absorbent (MEA in this study). However, the CO₂ removal efficiency and CO₂ absorption flux of the FS-coated PP were lower than those of pristine PP because the pore pathway was complicated owing to the hydrophobic FS coating layer, leading to an increase in mass-transfer resistance, as illustrated in Fig. 6. Lee and Park reported that the formation of an optimal hydrophobic coating layer is essential for avoiding interference with CO₂ transport [42]. Although the fact that the resistance of the membrane phase increases with an increase in membrane thickness, in this study, the effect of increasing the membrane thickness was insignificant because the CO₂ removal efficiency and absorption flux of the pristine PP and modified PP membranes were similar at gas flow rates of 50, 100, and 200 mL/min at a slow liquid flow rate of 5 mL/min, which is adequate to evaluate the effect of changing the membrane thickness. Table 4 summarizes the CO₂ removal efficiency and absorption flux of the pristine PP and FS-coated PP membranes.

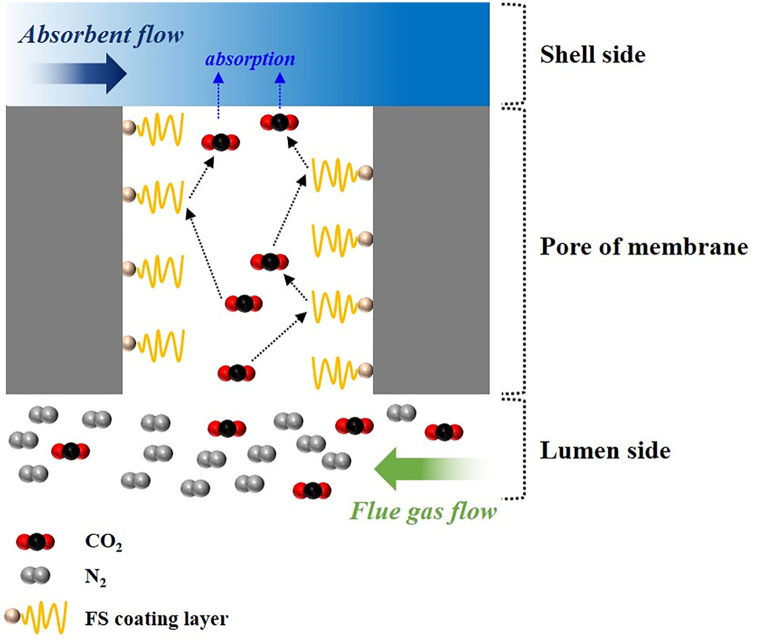

Fig. 6.

Schematic of gas permeation through the pores of the FS-coated PP membrane during absorption experiments.

Table 4.

Summary of the CO₂ removal efficiency and absorption flux of the pristine PP and FS-coated PP membranes.

Membrane	Gas flow rate (mL/min)	CO2 removal efficiency (%)	CO2 absorption flux $\times$ 103 (mol/m2·s)
Pristine PP	50	100	2.55
	100	100	5.11
	200	100	10.22
	400	89.6	18.32
	800	51.4	21.01
FS-coated PP	50	100	2.55
	100	100	5.11
	200	99.4	10.17
	400	70.2	14.35
	800	43.3	17.70

3.2.2. Long-term CO₂ absorption performance of the surface-modified PP membrane

CO₂ absorption experiments were conducted at the same CO₂ absorption flux to investigate the long-term stability and wetting resistance of the pristine PP and FS-coated PP membranes using 30 wt% MEA as the absorbent (Fig. 7). In the case of pristine PP, the CO₂ removal efficiency decreased rapidly after 10 days of the CO₂ absorption experiment. The period over which a 90% removal rate was maintained for 11 days. Note that most CO₂ capture processes are aimed at 90% CO₂ removal efficiency from coal-fired power plants [35]. In contrast, in the case of the FS-coated PP, the CO₂ removal efficiency gradually decreased from the 11th day onward, and 90% removal efficiency was maintained for 17 days. These results indicate that the CO₂ removal efficiency of the modified membrane system decreased gradually. The period with 90% CO₂ removal efficiency was also extended because the FS coating layer increased the wetting resistance of the membrane. Therefore, these results confirm that the FS-coated PP possesses high chemical stability and durability, even under extreme operating conditions in contact with an MEA solution for a long time.

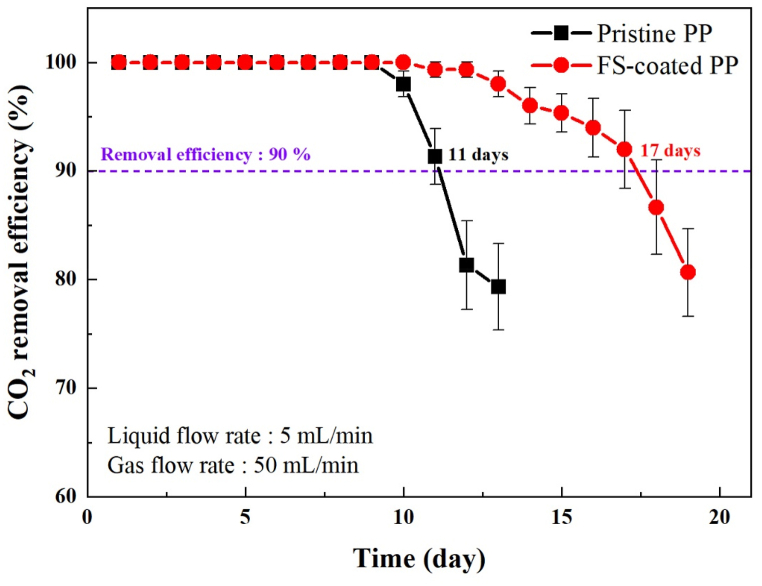

Fig. 7.

Long-term CO₂-absorption performances of pristine PP and surface-modified PP membranes.

3.2.3. Comparison of the long-term stabilities of the FS-coated PP membrane and other reported membranes

The long-term stability of the FS-coated PP membrane was compared with those of recently reported hydrophobic membranes. As shown in Table 5, the membrane developed in this study exhibited long-term competitive stability even though these experiments were conducted under more severe conditions than those in the literature (concentration of absorbent: 30 wt% MEA, absorption temperature: 313.15 K, and liquid-to-gas ratio: 0.1 in this study). It is well known that the absorbent concentration or absorption temperature increases the wettability of the membrane [13]; therefore, the FS-coated PP membrane can effectively resist wetting in harsher conditions. Considering this, the results of this study suggest that FS-coated PP membranes can be directly applied in CO₂ capture from the flue gas of coal-fired power plants.

Table 5.

Comparison of the long-term stability of the FS-coated PP membrane with those of previously reported membranes.

Membrane	Inlet gas (gas flow rate)	Liquid absorbent (gas flow rate)	Liquid-to-gas ratio	Absorption temperature (K)	Long-term stability	Ref.
FS-coated PP	15% CO2 in N2 (50 mL/min)	30 wt% MEA (5 mL/min)	0.1	313.15	Decline 10% after 17 d	This study
PVDF-TDMS-1.5	19% CO2 in N2 (20 mL/min)	1 M DEA (50 mL/min)	2.5	Not reported	Decline 17% after 17 d	[43]
Al2O3-FAS	15% CO2 in N2 (50 mL/min)	20 wt% MEA (10 mL/min)	0.2	293.15	Decline 15% after 3 d	[42]
PVDF + LDPE	20% CO2 in N2 (150 mL/min)	1 M MEA (50 mL/min)	0.33	Not reported	Decline 14% after 1 d	[44]
PVDF + DL-4% SiO2-80	19% CO2 in N2 (100 mL/min)	1 M DEA (50 mL/min)	0.5	293.15	Decline 18% after 6 d	[45]
PP	20% CO2 in N2 (200 mL/min)	1 M MEA (17 mL/min)	0.08	293.15	Decline 14% after 7 d	[14]
PVDF-PA	19% CO2 in N2 (130 mL/min)	Water (70 mL/min)	0.54	297.15	Decline 17% after 2 d	[46]

4. Conclusion

This study reports a simple single-step dip-coating method to prepare a hollow PP fiber membrane contactor with enhanced hydrophobicity using perfluoroether-grafted silane as the surface modifier for CO₂ capture. The FS coating layer contained abundant C–F bonds, as revealed by the surface analysis (ATR-FTIR, XPS, and SEM/EDS). The enhanced hydrophobicity of the FS-coated PP membrane was confirmed by evaluating the CO₂ absorption performance in a gas-liquid membrane contactor. The FS-coated PP membrane's CO₂ removal efficiency and CO₂ absorption flux were comparable to those of pristine PP at gas flow rates of 50, 100, and 200 mL/min. In terms of long-term stability, the FS-coated PP membrane maintained 90% CO₂ removal efficiency for a significantly longer duration (55% increase in time) than the pristine PP membrane, which confirms its higher chemical stability and durability, even under extreme operating conditions in contact with a 30 wt% MEA solution for a long time. In addition, the FS-coated PP membrane exhibited greater long-term stability than previously reported hydrophobic membranes. The results of this study suggest that FS-coated PP membranes can be used directly to capture CO₂ in the flue gas emitted from coal-fired power plants. Our future study will explore the effects of various operating conditions (such as liquid flow rate, liquid concentration, liquid temperature, feed gas composition) on CO₂ absorption performance and membrane wetting using mathematical modeling.
