Poly[[μ-1,3-bis­(pyridin-3-yl)urea]bis­(μ₄-succinato)dicopper(II)], a ribbon-like coordination polymer

A divalent copper one-dimensional ribbon copper(II) coordination polymer, with 1,3-bis­(pyridin-3-yl)urea and succinate ligands, was structurally characterized by single-crystal X-ray diffraction.

Abstract

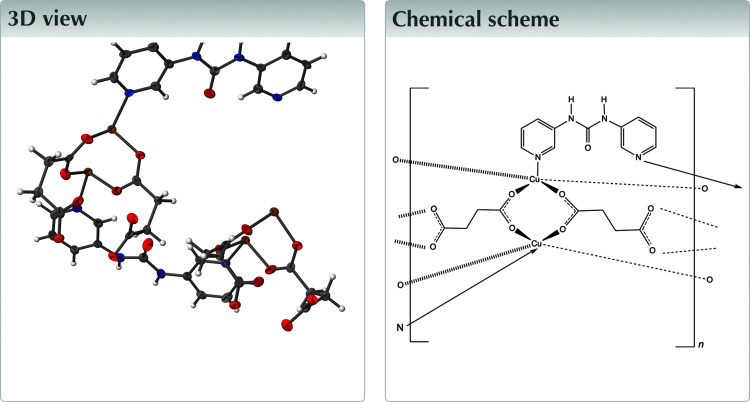

In the title com­pound, [Cu₂(C₄H₄O₄)₂(C₁₁H₁₀N₄O)] _n , mono-periodic coordination polymer ribbons are held into the crystal structure by means of N—H⋯O hydrogen bonding and crystal packing forces.

Structure description

The title com­pound was isolated during an exploratory synthetic effort aiming to produce a copper coordination polymer containing both succinate (succ) and 1,3-bis­(pyridin-3-yl)urea (or 3,3′-di­pyridyl­urea, 3-dpu) ligands. Previously, our group had isolated a series of cadmium succinate coordination polymers featuring isomeric di­pyridyl­amide coligands. Structural topologies were highly dependent on the specific di­pyridyl­amide ligand used (Uebler et al., 2013 ▸).

The asymmetric unit of the title com­pound contains two divalent Cu atoms, two crystallographically distinct fully deprotonated succ ligands, and a full 3-dpu ligand. The Cu1 and Cu2 atoms display [NO₄] square-pyramidal coordination environments, with elongated apical positions occupied by pyridyl N-atom donors from 3-dpu ligands. Their basal planes com­prise four carboxyl­ate O-atom donors from four different succ ligands (Table 1 ▸). The Cu1 and Cu2 atoms possess trigonality factors τ of 0.044 and 0.035 (Addison et al., 1984 ▸), indicating only a slight variance from idealized square-pyramidal geometry. Complete coordination environments and ligand sets are shown in Fig. 1 ▸.

Table 1. Selected geometric parameters (Å, °).

Cu1—O2	1.960 (4)	Cu2—O1	1.979 (4)
Cu1—O4i	2.023 (4)	Cu2—O3i	1.990 (4)
Cu1—O6	1.963 (4)	Cu2—O5	1.980 (4)
Cu1—O8i	1.961 (4)	Cu2—O7i	1.973 (4)
Cu1—N4ii	2.197 (5)	Cu2—N1	2.167 (5)
O2—Cu1—O4i	90.48 (18)	O1—Cu2—O3i	89.16 (18)
O2—Cu1—O6	87.41 (18)	O1—Cu2—O5	90.34 (18)
O2—Cu1—O8i	166.45 (17)	O1—Cu2—N1	95.10 (17)
O2—Cu1—N4ii	91.11 (18)	O3i—Cu2—N1	99.11 (18)
O4i—Cu1—N4ii	89.25 (17)	O5—Cu2—O3i	166.52 (17)
O6—Cu1—O4i	169.11 (17)	O5—Cu2—N1	94.36 (18)
O6—Cu1—N4ii	101.47 (18)	O7i—Cu2—O1	168.62 (18)
O8i—Cu1—O4i	88.52 (17)	O7i—Cu2—O3i	88.50 (18)
O8i—Cu1—O6	91.03 (18)	O7i—Cu2—O5	89.35 (19)
O8i—Cu1—N4ii	102.38 (18)	O7i—Cu2—N1	96.27 (18)

Symmetry codes: (i) ; (ii) .

Figure 1.

The copper coordination environments in the title com­pound with the full ligand set and the com­plete {Cu₂(OCO)₄} paddlewheel cluster. Displacement ellipsoids are drawn at the 50% probability level. Color code: Cu dark blue, O red, N light blue, and C black. H-atom positions are represented as sticks. The symmetry codes are as listed in Table 1 ▸.

The carboxyl­ate groups of the succ ligands bridge Cu1 and Cu2 atoms in a syn–syn fashion, giving rise to {Cu₂(OCO)₄} paddlewheel dimers with a Cu⋯Cu separation of 2.657 (1) Å. The full span of the gauche-conformation succ ligands connect the dimeric clusters into [Cu₂(succ)₂] _n coordination polymer chains oriented parallel to the b crystal direction (Fig. 2 ▸). The 3-dpu ligands, which adopt a syn conformation, conjoin Cu1 and Cu2 along the top and bottom of the [Cu₂(succ)₂] _n chain motifs, affording [Cu₂(succ)₂(3-dpu)] _n coordination polymer ribbons oriented parallel to the b crystal direction (Fig. 3 ▸).

Figure 2.

The [Cu₂(succ)₂] _n coordination polymer chain in the title com­pound, featuring {Cu₂(OCO)₄} paddlewheel clusters.

Figure 3.

A [Cu₂(succ)₂(3-dpu)] _n coordination polymer ribbon in the title com­pound, with a [Cu₂(succ)₂] _n chain motif drawn in red.

Regarding supra­molecular inter­actions, adjacent [Cu₂(succ)₂(3-dpu)] _n motifs aggregate into supra­molecular layers parallel to the bc crystal planes by means of N—H⋯O hydrogen bonding between the urea groups of 3-dpu ligands in one ribbon, and succ carboxyl­ate O atoms in the next ribbon (Fig. 4 ▸). In turn, the supra­molecular layers aggregate into the three-dimensional crystal structure of the title com­pound by crystal packing forces (Fig. 5 ▸). Details regarding the hydrogen bonding patterns in the title com­pound are listed in Table 2 ▸.

Figure 4.

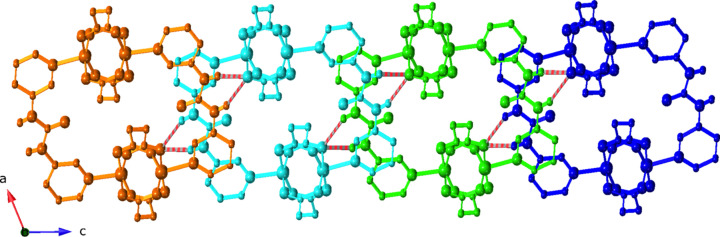

Supra­molecular layer formed by N—H⋯O hydrogen bonding (hatched bonds) between [Cu₂(succ)₂(3-dpu)] _n ribbon motifs.

Figure 5.

Aggregation of supra­molecular layer motifs in the title com­pound.

Table 2. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N2—H2⋯O4iii	0.88	2.21	3.042 (6)	157
N3—H3⋯O4iii	0.88	2.36	3.174 (6)	154

Symmetry code: (iii) .

Synthesis and crystallization

Cu(NO₃)₂·2.5H₂O (86 mg, 0.37 mmol), succinic acid (succH₂; 44 mg, 0.37 mmol), 3,3′-di­pyridyl­urea (3-dpu; 79 mg, 0.37 mmol), and 0.75 ml of a 1.0 M NaOH solution were placed into 10 ml distilled water in a Teflon-lined acid digestion bomb. The bomb was sealed and heated in an oven at 393 K for 48 h, and then cooled slowly to 273 K. Green crystals of the title com­plex were obtained in 43% yield.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3 ▸. All H atoms were placed in calculated positions and refined with a riding model.

Table 3. Experimental details.

Crystal data
Chemical formula	[Cu2(C4H4O4)2(C11H10N4O)]
M r	573.45
Crystal system, space group	Monoclinic, P21/c
Temperature (K)	173
a, b, c (Å)	15.587 (2), 6.7579 (10), 20.942 (3)
β (°)	111.614 (2)
V (Å3)	2050.9 (5)
Z	4
Radiation type	Mo Kα
μ (mm−1)	2.14
Crystal size (mm)	0.24 × 0.12 × 0.05
Data collection
Diffractometer	Bruker APEXII CCD
Absorption correction	Multi-scan (SADABS; Bruker, 2013 ▸)
T min, T max	0.568, 0.745
No. of measured, independent and observed [I > 2σ(I)] reflections	15941, 3758, 2378
R int	0.110
(sin θ/λ)max (Å−1)	0.603
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.056, 0.151, 0.99
No. of reflections	3758
No. of parameters	307
H-atom treatment	H-atom parameters constrained
Δρmax, Δρmin (e Å−3)	1.12, −0.60

Computer programs: COSMO (Bruker, 2009 ▸), SAINT (Bruker, 2013 ▸), SHELXT2018 (Sheldrick, 2015a ▸), SHELXL2018 (Sheldrick, 2015b ▸), CrystalMakerX (Palmer, 2020 ▸), and OLEX2 (Dolomanov et al., 2009 ▸).
