. 2023 Sep 22;3(1):vbad133. doi: 10.1093/bioadv/vbad133

Atomistic simulations suggest dietary flavonoids from Beta vulgaris (beet) as promising inhibitors of human angiotensin-converting enzyme and 2-alpha-adrenergic receptors in hypertension

Joy A Adetunji 1,, Oludare M Ogunyemi 2,, Gideon A Gyebi 3,4, Anuoluwapo E Adewumi 5, Charles O Olaiya 6
Editor: Alex Bateman
PMCID: PMC10562952  PMID: 37822725

Abstract

Motivation

Beta vulgaris (beet) is extensively reported for its antihypertensive activity. However, the mechanismunderpinning its antihypertensive activity is not well understood. In this study, we evaluated the in silico interactionsof 70 compounds derived from beta vulgaris against the active sites of angiotensin-converting enzyme (ACE) and alpha-adrenergic receptor (AR).

Results

Structure-based virtual screening against angiotensin-converting enzyme revealed that, Cochliophilin A (−9.0 Kcal/mol), Miraxanthin (−8.3 Kcal/mol), and quercimeritrin (−9.7 Kcal/mol) had lower docking scores than the reference lisinopril (−7.9 Kcal/mol). These compounds exhibited dual binding tendency as they also ranked top compounds upon screening against adrenergic receptor. The thermodynamic parameters computed from the resulting trajectories obtained from the 100 ns full atomistic molecular dynamics simulation revealed structural stability and conformational flexibility of the ligand–receptor complexes as indicated by the RMSD, RMSF, RoG, SASA, and H-bond calculations. The molecular mechanics with generalized Born and surface area solvation binding energy calculations revealed that the proteins exhibit considerable binding energy with the phytochemicals in a dynamic environment. Furthermore, the hit compounds possess good physicochemical properties and drug-likeness. Overall, cochliophilin and quercimeritrin are promising dual-target directed flavonoids from Beta vulgaris; and are suggested for further experimental and preclinical evaluation.

Availability and implementation

All data was provided in the manuscript.

1 Introduction

Hypertension is the leading cause of cardiovascular disease-related death worldwide. The disease burden and prevalence of hypertension are significant worldwide. Currently, Africa has the highest disease burden and prevalence in the world with 46% of adults 25 years and above being hypertensive and there is a 30% estimated increase by the year 2025 (Ferdinand 2020, Sharma et al. 2021). Hypertension is a major public health concern with a 30% estimated increase by the year 2025 (Sharma et al. 2021). Despite the widespread use of antihypertensive drugs, it has not significantly impacted the global mean pressure. The prevalence has however increased with an increasing premature death toll, indicating the need for more research on effective pharmacological intervention in the management and treatment of hypertension (Mills et al. 2020, Zhou et al. 2021). Hypertension is the persistent elevation of the blood pressure in the systemic arteries, characterized by systolic blood pressure (SBP) of 140 mmHg or more and diastolic blood pressure (DBP) of 90 mmHg or more (Carey et al. 2018). The renin–angiotensin–aldosterone system (RAAS) is a critical regulator of blood volume and systemic vascular resistance, while the baroreceptor reflex responds in a short-term manner to decreased arterial pressure, making the RAAS a target for pharmacological therapy (Hall et al. 2021). The choice of an antihypertensive drug is based on individual tolerability and efficacy, however, angiotensin-converting enzyme (ACE) and angiotensin II receptor blockers are considered first-line medication for hypertension (Oparil et al. 2018). ACE inhibitors exert their effect on ACE by forming a zinc ligand, the functional group binding to ACE via the zinc moiety is the primary structural difference among these agents (Song and White 2002). Lisinopril and Captopril are the only ACE inhibitors that are not prodrugs, making them better treatment options for patients with severe hepatic disorder. The physiochemical characteristics of ACE inhibitors help determine at least part of their pharmacologic potency. After Angiotensin I is converted to Angiotensin II by ACE, it has effects on the kidney, adrenal cortex, arterioles, and brain by binding to Angiotensin II type I (AT) and type II (AT) receptors. The role of AT receptors is still being investigated, but pertinently, they have been shown to cause vasodilation by nitric oxide generation. In the plasma, angiotensin II has a half-life of 1–2 min, at which point peptidases degrade it into Angiotensins III and IV (Hall et al. 2019, Fountain and Lappin 2021). Adrenergic receptors (ARs) form the interface between the endogenous catecholamines epinephrine and norepinephrine and a wide array of target cells in the body to mediate the biological effects of the sympathetic nervous system (Philipp et al. 2002). 2-alpha-receptors are involved in the control of blood pressure homeostasis at several locations. The 2A-receptor is a therapeutic target for subtype-selective antihypertensive agents and is also required for the development of salt-sensitive hypertension (Philipp et al. 2002). Dexmedetomidine has been demonstrated to be a highly selective alpha2-adrenergic agonist. It reduces both heart rate and the mean arterial blood pressure (Bari et al. 1993). The most important active site residue for ACE includes GLU 162 HIS 353 ALA 354ASP 377 GLU 384HIS 387 LYS 511 HIS 513 TYR 520 and TYR 523 (Akif et al. 2011). The orthosteric pocket of alpha-AR includes ASP113, SER144, TRP182, PHE186, PHE189, HIS230, SER284, and PHE289 (Yuan et al. 2020). Inhibition of these proteins via interaction with target amino acid residues results in a reduction in blood pressure.

Beta vulgaris (beet) is a plant in the Amaranthaceae family sometimes called beetroot or garden beet (Kavitha et al. 2016). Beetroot is grown for food and likewise for sugar production and biofuel. It is also consumed as dietary supplement and has gradually become a functional food source (Liliana and Oana-Viorela 2020). In the western part of Nigeria, beetroot is commonly referred to as Alubosa eleje, Isu dandan, or Koba-kogbe by the Yorubas. Different classes of phytochemicals are reported to be present in beetroot, such as alkaloids, steroids, tannins, flavonoids, glycosides, saponins, and steroids (Afiomah and Iwuozor 2020), and are responsible for the pharmacological properties of beetroot (Bavec et al. 2010, Adetunji et al. 2023). Studies by Clifford et al. provided compelling evidence that beetroot ingestion offers beneficial physiological effects that may translate to improved clinical outcomes for several pathologies, such as; hypertension, and atherosclerosis (Clifford et al. 2015). In another study, Siervo et al. gave an account of the significant drop in SBP and DBP after doses of beetroot supplement, suggesting a dose–dependent basis for lowering blood pressure figures (Siervo et al. 2013). More recently, Alshehry et al. reported that beetroot has strong antihypertensive properties, although the specific phytochemical that mediates the decrease in blood pressure is not known yet (Alshehry et al. 2021). Computational analysis tools have been explored for phytochemical research aimed at drug design and discovery. Molecular docking of compounds is now being applied in medicinal chemistry, drug discovery and design, and structural molecular biology (Anifowose et al. 2023, Ogunyemi et al. 2023). The computer-assisted drug design CADD has been an efficient tool in the pharmaceutical industry, improving drug synthesis (Zhang 2011, Aldridge et al. 2013). Fatima et al. recently reported a computational-based approach that has been used in identifying a potential drug candidate against hypertension (Fatima et al. 2022). Crizotinib is another example of a successful drug demonstrated to be clinically effective that was developed using structure-based approach (Cui et al. 2020). Despite the popular dietary and ethnopharmacological use of beet in hypertension, most of the phytocompounds reported from this plant have not been explored for their role in alleviating hypertension. Therefore, this study employs computational methods to screen and assess the molecular interactions of 70 previously reported phytocompounds from beet with the active sites of human ACE and alpha-AR; to investigate and predict possible hit compounds and interactions between ligands (phytochemicals) and macromolecules (ACE and 2AR) using computational tools.

2 Methods

2.1 Ligand preparation

The phytochemical constituents of beet were obtained from literature containing experimental data on GCMS and x-ray crystallography on beetroot extracts. About 70 phytochemicals were compiled (Duke 1992, Reuss 2000). The 2D structures of the compounds and reference drugs were downloaded in Structure data file (SDF) format from PubChem (www.pubchem.ncbi.nlm.nih.gov), respectively. They were prepared to PDB format using the BIOVIA Discovery studio, uploaded to PyRx software and converted to dockable PDBQT format using the Open Babel plugin (O’Boyle et al. 2011) of the PyRx software. The output files were minimized to obtain the minimum energy for the ligand docking.

2.2 Protein preparation

The crystal 3D structure of Human ACE in complex with phosphonic tripeptide (PDB ID: 2XY9) as elucidated through X-ray diffraction as 1.97 Å resolution was downloaded from (https://www.rcsb.org/) with the protein database ID: 2XY9 (Akif et al. 2011). The structure of alpha 2-B adrenoceptor protein elucidated through electron microscopy with 4.1 Å resolution (PDB ID: 6K42) was also downloaded for the same web database (Yuan et al. 2020). After retrieval, the native crystallized ligands were extracted, and water molecules were removed from the structure. Hydrogen atoms were added to the structures using Autodock version 4.2 programs (Scripps Research Institute, La Jolla, CA).

2.3 Receptor grid box generation

The docking carried out was site-directed, done by selecting specific amino acids using the AutoDock plugin of the PyRx. The receptor grid file in Table 1 was generated using a receptor grid generation panel, which represents the active sites of the receptor for glide ligand docking jobs.

Table 1.

Grid box parameters of ACE and adrenoceptor.

Dimensions ACE (Å) AR (Å)
Center_x 13.49 168.38
Center_y 5.80 165.80
Center_z 23.15 197.06
Size x 23.03 18.21
Size y 23.03 17.75
Size z 17.19 24.06
Exhaustiveness 8 8

2.4 Molecular docking simulations

Prior to docking analysis, the docking protocol was validated by redocking the native inhibitor into the active region of the enzyme, lisinopril, the co-crystallized compound with the human ACE structure (PDB ID: 1o86) was retracted from the structure. The compound was subsequently redocked into the same domain of the enzyme structure. The binding pose with the minimal binding energy was superimposed on the retrieved co-crystallized inhibitor (Fig. 1), after which the root mean square deviation (RMSD) was calculated using Discovery Studio. Molecular docking of the prepared ligands and proteins was performed using AutoDock Vina in the PyRx workspace. The ligand structures ligands were imported into AutoDock Vina in PyRx 0.8 and minimized using the incorporated Open Babel plugin applying the Universal Force Field as the energy minimization parameter and conjugate gradient descent as the optimization algorithm. The ligand structures were then screened against active sites of ACE and AR. The molecular docking simulations were initiated keeping all other parameters as default. The docking tools were set to generate eight poses for each of the ligands to be docked to the protein binding site. After docking simulation with ACE, the ligand poses with lower than −7.9 docking scores were computed and docked against AR for multi-target binding analysis. The molecular interactions were viewed with BIOVIA Discovery Studio (Dassault Systèmes, Visualizer version 21.1.0.0).

Figure 1.

Figure 1.

Superimposition of selected docked conformer of co-crystallized myricetin on the retracted co-crystallized structure.

2.5 Molecular dynamics simulation

The complexes of ACE and AR with the two lead phytocompounds each from the docking experiment (Cochliophilin A and Quercimeritrin for ACE; Cochliophilin A and Miraxanthin III for AR) as well as those of the reference inhibitors, Lisinopril and Dexmedetomidine, respectively, were selected for molecular dynamics simulation (MDS) using Gromacs. The backbone and protein–ligand complexes were subjected to a 100 ns full atomistic MDS production run. The necessary MDS files were prepared using CHARMM-GUI and the CHARMM36 force field was used in the dynamic simulations (Jo et al. 2008, Brooks et al. 2009, Lee et al. 2016). The salt concentration and temperature of the biomolecular systems were set to 0.154 NaCl and 310 K, respectively, to mimic the physiological conditions. Before the production run, the system was minimized for 10 000 steps in a constant number of atoms, constant volume, and constant temperature (NVT) ensemble apply a conjugate gradient algorithm, and then equilibrated in a constant number of atoms, constant pressure, and constant temperature (NPT) ensemble for 1 ns as demonstrate earlier (Ogunyemi et al. 2023). The simulation pressure was set to 1.01325 bar and controlled by the Nose–Hoover Langevin piston, while the temperature was controlled by Langevin dynamics.

2.6 Free energy calculation

The binding free energy of each complex system was determined using the Molecular Mechanics Generalized Born Surface Area (MM-GBSA) method and decomposition analysis to get the binding energies of amino acids within 1 nm of the ligand as demonstrated earlier (Ogunyemi et al. 2023, Gyebi et al. 2023) using the gmx MMPBSA package (Miller et al. 2012, Valdés-Tresanco et al. 2021). The ionic strength was set to 0.154 M, and the solvation technique was set to 5. A value of 1.0 used for the internal dielectric constant and a value of 78.5 for the external dielectric constant, with all other parameters left in their default values. The MM-GBSA method is depicted in Equation (1)

ΔG=GcomplexGreceptorGligand. (1)

Different energy terms were calculated according to Equations (2)–(6)

ΔGbinding=ΔHTΔS, (2)
ΔH=ΔEgas+ΔEsol, (3)
ΔEgas=ΔEele+ΔEvdW, (4)
ΔEsolv=EGB+ESA, (5)
ESA=γ.SASA, (6)

where:

ΔH is the calculated enthalpy from solvation-free energy (Esol) and gas-phase energy (Egas).

The TΔS is the entropic contribution to the free binding energy but was not computed in this study.

E gas comprises of van der Waals (EvdW) and electrostatic (Eele) terms.

E sol was computed from the polar solvation energy (EGB) while (ESA) non-polar solvation energy was assessed from the accessible solvent surface area (Xue et al. 2018, Tuccinardi 2021).

2.7 ADMET studies

The ADMET properties including lipophilicity (log Po/w), water solubility (log S), drug-likeness, bioavailability score, pharmacokinetics, and toxicity profile of the test compounds were determined for the top eight compounds (Fig. 2) using in silico integrative model predictions at the SwissADME (http://www.swissadme.ch/index.php) (Daina et al. 2017) and PROTOX II (https://toxnew.charite.de/protox_II/index.php) (Banerjee et al. 2018) online servers. Parameters, such as Lipinski’s rule of five, were evaluated to predict the drug-likeness of the chemical compounds. The SDF files and canonical SMILES of the compounds were retrieved from the PubChem Database to estimate the ADMET properties using default parameters.

Figure 2.

Figure 2.

Top docking phytocompounds with target enzymes.

3 Results

3.1 Molecular docking studies

Molecular docking is of great importance in the planning and design of new drugs. It correctly predicts the experimental binding mode and affinity of a native molecule within the binding site of the drug target. A major, metabolic step in the pathophysiology of hypertension is the reaction catalyzed by ACE. In this study, selected compounds were investigated as potential inhibitors against ACE and alpha-AR. Human ACE was employed as one of the drug targets to evaluate its interaction with novel inhibitors alongside its reference drugs, lisinopril, and captopril.

To assess the performance of the docking protocol, which was based on the scoring function in AutoDock Vina, lisinopril, the co-crystallized compound with the human ACE structure (PDB ID: 1086) was retracted from the structure. The compound was subsequently redocked into the same domain of the enzyme structure. The result revealed that all the docking conformations of lisinopril structure were located within the active site region of the enzyme (Fig. 1). Estimation of the RMSD between the lowest binding pose and the initial crystal structure gave 2.50 Å, while the best-docked conformation of lisinopril with ACE had a docking score of −8.4 Kcal/mol.

This study revealed that, several phytochemical structures reported from beet exhibited lower binding energy than the reference antihypertensive drugs as shown in Table 2.

Table 2.

Docking scores of lisinopril, captopril, dexmedetomidine, and top 10 hit compounds from beet against active site residues of ACE and AR.

S/N Phytochemical Class Pubchem ID ACE AR
S1 Lisinopril −7.9
S2 Captopril −6.0
S3 Dexmedetomidine −7.4
1 Quercimeritrin Flavonoids 5 282 160 −9.7 −8.8
2 Beta-sitosterol Steroid 222 284 −9.3 −8.8
3 2'-O-beta-D-Glucosylisovitexin Flavonoids 185 995 −9.2 −7.7
4 Cochliophilin A Flavonoids 927 642 −9.0 −9.1
5 Betagarin Flavonoids 442 261 −8.9 −7.4
6 Betavulgarin Isoflavonol 442 668 −8.7 −7.7
7 Miraxanthin III Carboxylic acid 135 935 708 −8.3 −8.5
8 Kaempferol Flavonoids 5 280 863 −8.1 −8
9 Apigenin Flavonoids 5 280 443 −8.0 −7.9
10 Naringenin Flavonoids 932 −8.0 −8.1

Lisinopril and captopril, the reference inhibitors have binding affinities of −7.9 and −6 Kcal/mol for ACE, respectively. Ranking based on the negative and low value of DG, and comparing with the reference inhibitors, presented docking scores ranging from −10.3 to −1.6 Kcal/mol. The docking analysis of the phytochemicals in comparison with the reference drugs (lisinopril and captopril) against the active site of the ACE shows that the compounds exhibited good docking conformations. Subsequent docking with the active region of the alpha-AR revealed 22 compounds with binding affinities (−9.1 to −7.4 Kcal/mol) lower than the reference drug Dexmedetomidine (−7.4 Kcal/mol). These compounds are presented in Table 2.

3.2 Molecular interaction of hit compounds with enzyme/receptor

The lead phytocompounds for each enzyme and receptor target were selected for interaction analysis based on their docking scores and interactions with active regions of the receptors in comparison with the reference compounds. The interactions involved hydrogen bond interaction, hydrophobic interactions, and other interactions. Assessment of the interactions showed that the phytocompounds and the reference drugs elicited good interactions including several active site residues of ACE as shown in Table 3.

Table 3.

Interacting amino acid residue of the target enzyme and receptor with the top binding phytocompounds from beet.


Compounds
Enzymes Hydrogen bonds interactions (bond distance Å)
Hydrophobic interaction
Other interactions
Numbers Residues Numbers Residues Numbers Residues
Cochliophilin A ACE 4 GLN281 (2.85); HIS513 (2.19, 2.69); HIS353 (2.34) 7 TYR523 PHE527 HIS353 TYR523 HIS383 TYR523 HIS513 0 None
Lisinopril 6 ALA354 (2.11, 2.44); HIS513 (2.09); ASP415 (2.26, 2.97); GLU162 (2.42) 5 PHE457 TYR523 VAL380 HIS353 HIS383 0 None
Betavulgarin 3 HIS383 (2.2) HIS387 (2.24, 2.88) 5 HIS383 HIS387 ALA356 VAL518 1 HIS383
Quercimeritrin 9 HIS387 (2.11); GLU384 (2.58); TYR520 (2.72); GLN281 (2.06, 2.64); LYS511 (2.93, 2.78); HIS513 (2.89); GLU162 (2.89) 1 VAL380 3 HIS353 GLU162 HIS353
Betagarin AR 5 HIS 387 (2.24, 2.88); HIS 383 (2.19); HIS353 (2.10); HIS513 (2.23) 6 VAL380 HIS353 TYR523 ALA354 HIS387 VAL518 0 None
Naringenin 6 CYS 370 (2.95); GLU162 (2.35); GLN281 (2.15); LYS511 (2.46, 1.97, 2.66); TYR520 (2.21) 3 VAL380 TYR523 ALA354 4 HIS353 ASP377 GLU162 HIS513
Cochliophilin A 2 SER180 (2.92); SER176 (1.94) 7 LEU166 VAL93 PHE412 VAL93 CYS96 VAL93 TYR391 CYS96 0 None
Dexmedetomidine 1 ASP92 (2.20) 9 TYR391 LEU166 PHE388 TYR391 VAL93 PHE388 VAL93 LEU166 PHE387 0 None
Miraxanthin III AR 5 ASN 167(2.49); GLN168 (2.58); ASP92 (2.51); SER180 (2.97); CYS96 (3.57) 3 LEU166 LEU89 PRO147 0 None
Quercimeritrin 3 SER69 (2.20); GLU73 (2.16); ASN167 (2.89) 1 LYS165 0 None
Naringenin 3 PHE 412 (1.16); SER180 (2.70) CYS96 (4.10) 2 VAL93 PHE412 0 None
Kaempferol 2 PHE 412 (2.23); SER180 (2.62) 6 VAL93 PHE412 VAL 93 CYS 96 VAL 93 CYS 96 0 None

Quercimeritrin shows similar bind interaction with the reference drugs, forming a hydrogen bond with HIS513 and GLU162 and hydrophobic interactions with HIS353 and GLU162. Cochliophilin A in a similar pattern to the reference drug forms hydrogen interactions with HIS353 and hydrophobic interactions with TYR523 and HIS513. Likewise, the Cochliophilin A and Miraxanthin III and reference drugs showed good interactions with the orthosteric pocket of AR forming hydrogen bonds with the active site amino acids; ASP92, SER180, and hydrophobic interactions with the orthosteric pocket TYR391 and LEU166.

Protein–ligand complexes play a pivotal role in biological systems and the environment. The ligands can be an inhibitor, signal transducer, cofactor, allosteric regulator, and activator. The role helps to define protein function while the structure of these complexes aids the analysis of the interaction between the ligand and the protein. The detailed analysis of the hydrogen bond formed is crucial in studying their interaction (Rajan et al. 2013).

Specific interaction analysis revealed that Cochliophilin A formed a complex with ACE via the hydrogen bonding with GLN281, HIS513, HIS353, and hydrophobic interactions with TYR523, PHE527, HIS353, HIS383, and HIS513 while Lisinopril elicited strong binding interactions to ACE with five hydrogen bonds including HIS513 and four hydrophobic interactions (Fig. 3).

Figure 3.

Figure 3.

3D representation of the amino acid interactions of the ACE with (a) Cochliophilin A, (b) Betagarin, (c) Naringenin, (d) Betavulgarin, and (e) Quercimeritrin amino acids are represented by 3-letter abbreviations. Hydrogen bonds, hydrophobic interactions, and other interactions are represented by green, purple, and Liliac dotted lines, respectively.

The interactions were maintained by the benzene ring of Lisinopril. Cochliophilin A, the second hit phytocompound forms pi–pi T-shaped hydrophobic interaction PHE527. This bond involves the aromatic side chain of PHE527 and the phenyl B ring of the flavonoid (flavone). TYR523 is coordinated to the A and C rings of the benzopyran ring of the flavone backbone via pi–pi stacked hydrophobic interactions. This interaction is like the TYR523 and phenyl ring in Lisinopril. Pi–pi stacking is non-covalent attractive interaction that are vital in the organization of biomolecular structures and biological recognition occurring between benzene rings.

Comparably the hit phytocompound Quercimeritrin, a flavonoid glycoside displayed nine hydrogen bonding five of which were with the active site residues HIS387, TYR520, LYS511, HIS513, and GLU162. This phytocompound formed pi–anion interaction between its phenyl rings and the side chain of GLU162. The benzopyran ring likewise forms electrostatic interaction via pi–cation and the side residue of HIS353. The phenyl B ring of the flavonoid backbone forms pi-alkyl hydrophobic interaction with VAL380. The interaction profile of Quercimeritrin is like that of lisinopril, forming hydrogen bonds with HIS513 (2.89); GLU162.

Betagarin belonging to the flavanone class of flavonoids maintains conventional hydrogen bonds with HIS387, HIS383, HIS353, and HIS513; pi–pi T-shaped hydrophobic interaction with TYR523; pi–sigma interaction with HIS387; alkyl interaction with ALA354 and VAL518 and pi-alkyl with HIS353 and VAL518 in comparison to lisinopril, betagarin similar hydrogen bonding, and hydrophobic interaction. Naringenin, a flavan interacts with ACE forming six hydrogen bonds inclusive of active site amino acids GLU162, LYS511, and TYR520: pi–cation electrostatic interaction with HIS383, and pi–anion interaction with ALA356 and VAL518.

It also forms hydrophobic pi–pi T-shaped and pi-alkyl interactions with target amino acids. Betavulgarin had three hydrogen bond interactions with HIS383 and HIS387; electrostatic pi–cation interaction with HIS383, hydrophobic pi–sigma bond with HIS387, pi–pi stacked interaction with HIS383, pi-alkyl interaction with VAL518, and alkyl interactions with ALA356 and VAL518.

The beetroot-derived compounds were docked against the active site region of AR, Fig. 4 shows the 3D representation of the amino acid interaction of AR with the phytocompounds. Cochliophilin A, the top docked compound with AR after the previous docking with ACE demonstrated a higher binding affinity. The flavonoid demonstrates the lowest binding energy with AR. Cochliophilin A interacts with the side chain of active site amino acid via the oxygen of the benzopyranone rings (A and C rings). The oxygen for the 2-phenylchromen-4-one accepts hydrogen from the serine side chains forming strong interactions.

Figure 4.

Figure 4.

3D representation of the amino acid interactions of the 2-α AR with (a) Cochliophilin A, (b) Kaempferol, (c) Miraxanthin III, (d) Naringenin, and (e) Quercimeritrin. Amino acids are represented by three-letter abbreviations. Hydrogen bonds, hydrophobic interactions, and other interactions are represented by green, purple, and Liliac dotted lines, respectively.

Furthermore, this phytocompound forms seven hydrophobic interactions with amino acids that make up the orthosteric pocket of AR. A pi–sigma interaction with VAL93, pi–pi stacked interaction with PHE412, two alkyl interactions with LEU166 VAL93, and four pi-alkyl interactions with VAL93, CYS96, and TYR391.

Miraxanthin III the second top hit compound interacted with AR forming five conventional hydrogen binds, three of which are active site residues. It also forms two pi-alkyl hydrophobic interactions with LEU89 and PRO147 and one pi–sigma hydrophobic interaction with LEU166 an active site residue. Kaempferol; a flavonol (hydroxy flavone) forms a conventional hydrogen bond with PHE 412 and SER180 via the oxygen of the phenyl B ring and the ketone oxygen of the C ring, respectively. Pi–pi stacked and pi–sigma and pi-alkyl interactions are all maintained with PHE412, VAL93, and CYS96. Observations from these molecular interactions provide mechanistic insight into in vitro and in vivo reports on the blood pressure-lowering activity of beetroot. A recent study (Baião et al. 2020) and a current review (Liliana and Oana-Viorela 2020) on the antihypertensive property of beetroot/red beet juice indicates that phytochemical bioavailability in beetroot contributes to the vascular protective effect and blood-pressure-lowering/antihypertensive activity via inhibiting ACE. These studies agree with the 2-fold inhibitory potential of the flavonol (Quercimeritrin) and flavone (Cochliophilin A) on ACE and 2 alpha-ARs.

3.3 Molecular dynamics simulation

The recognition between a ligand (substrate or regulator) and a macromolecule is by nature a dynamic process. This process requires structural rearrangement (Hospital et al. 2015). Molecular docking provides or predicts the binding affinity between a macromolecule and a ligand. However, when a ligand approaches a protein e.g. a receptor, it encounters a macromolecule that is in constant dynamic motion. MDSs, therefore, provide insights into protein motion, which is significant in drug discovery (Durrant and McCammon 2011). MDS can be simply put as protein–ligand interaction at the atomic level, it gives an insight into what occurs in vivo. An atomic-level structure is vital and provides insightful information about how the biomolecule functions, conformational changes, ligand binding, and protein folding (Hollingsworth and Dror 2018). Assessment and evaluation of the stability of complexes and computation of thermodynamic parameters are mediated by MDSs. This validates the static model of ligand–protein interaction. In this study, 100 ns MDS was performed to compare the stability and structural conformation of the ligand–enzyme, ligand–receptor complexes with the unbound enzyme/receptor (apoprotein) in a full atomistic dynamic environment.

3.4 Trajectory analysis of ligand

3.4.1 RMSD of atomic position

In structure-based drug design, the RMSD is a measure of the difference between a crystal conformation of the ligand conformation and a docking prediction. The stability of the native state (the apoprotein) is investigated with respect to the reference structure i.e. when bound to the ligand. It, therefore, measures the deviation from the overlap of compared structures. Measurements are based on the alpha carbon atoms (Cα), which are the backbone of amino acids in proteins (Arnittali et al. 2019). The smaller the deviation the more spatially equivalent the two compared structures are. This also gives information about the extent of stability of the complex.

The RMSD plot for the apoenzyme 2XY9 (ACE) and its complexes lisinopril, Quercimeritrin, and Cochliophilin A is shown in Fig. 5a the plot showed stable trajectories featuring “consistent” and minor fluctuations. This observation during MDS indicates that the biomolecular system is equilibrated and stabilized while higher fluctuations indicate lower stability. The apoprotein and the protein complex show an initial rise to 1.6 Å, where they are stabilized, and subsequent fluctuation is between 1.8 and 3.2 Å. At frame 169 (16.9 ns) 2XY9_Quercemaritrin shows a slight increase in fluctuation from 2.6 Å to a value of 3.3 Å at frame 219 (21.9 ns) and finally stabilizes at frames 250 (25 ns). However, since the fluctuations are within 2.0 Å and the trajectories are stable, the biomolecular system has obtained a stable conformation during the MDS without significant conformational transitions. The RMSD plot for Apoprotein 6K42, Dexmedetomidine, Cochliophilin A, and Miraxanthin III is indicated in Fig. 5b. The apoprotein shows a slight rise in the trend from 4.46 Å at 22.6 ns, the fluctuating rising trend continues to about 5.14 Å at 39.6 ns before stabilizing back to 4.46 Å at 65.1 ns. Generally, the RMSD plots show that the apoprotein and protein–ligand complex reaches a stable conformation during the MDS runs. The plot also indicates that although they have a similar binding pattern, the Cochliophilin A_6K42 complex had a more stable conformation during the MDS runs. 6K47_Cochliophilin A complex showed the steadiest RMDS tones across the 1000 frames (100 ns) all-atoms MDS.

Figure 5.

Figure 5.

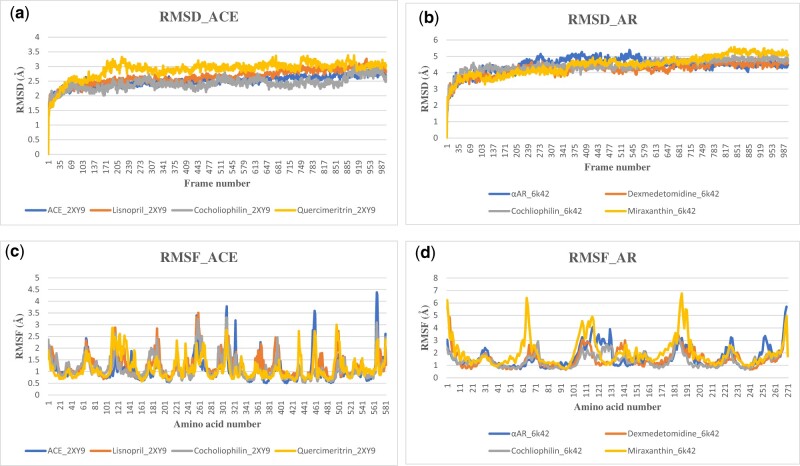

The backbone-RMSD plots of MDS of (a) ACE (b) 2-α AR. Per residue RMSF plots of MDS of (c) ACE (d) 2-α AR (apo and protein–ligands complexes).

3.4.2 Root mean squared fluctuation

RMSD and root mean squared fluctuation (RMSF) are two common measures of structural fluctuations in molecular dynamics (MD) (Martínez 2015). RMSF plot computed from the MDS (Fig. 5) trajectory files was estimated for each of the protein–ligand complex relative to the apo-state. The RMSF plot for the apoprotein (2XY9), 2XY9_lisinopril, 2XY9_Cohliophilin, and 2XY9_Quercimeritrin are depicted in Fig. 5. RMSF estimates the time evolution of the average deviation for each residue from its reference position (Al-Karmalawy et al. 2021). RMSF validation parameter highlights the contribution of individual amino acid residue within protein–ligand complex stability (Elhady et al. 2021).

The dynamic behavior of the protein residue in terms of flexibility is evaluated by explaining the mean deviation of each protein residue relative to its reference position over time. The apoprotein, Cochliophilin A_2XY9, and Lisinopril_2XY9 show similar fluctuation patterns. The apoprotein (6K42) had fewer fluctuations compared to the 6K42_Dexmedetomidine (Fig. 5) complex suggesting the protein is less flexible with the bound ligand. However, the 6K42_Miraxanthin III complex had high fluctuations (RMSD) value for almost all the critical amino acid residues, thus, 6K42_Miraxanthin III had a more flexible nature and there were structural changes. This increased interaction indicates that the ligand may be able to adapt well to the binding pocket of the protein. Higher RMSF values indicated greater flexibility during MDS (Zhao et al. 2015), and for a receptor–ligand complex like the 6K42–ligand interaction in this study, it indicated a higher adaptation for accommodation and binding stability.

3.4.3 The radius of gyration

To further elucidate the stability of the complex, the radii of gyration (RoGs) were monitored across the whole MD’ trajectories using GROMACS (gmx_gyrate) command script. RoG is the mass-weighted RMSD for a group of atoms relative to their common mass central (Al-Karmalawy et al. 2021), providing insight into their overall protein dimension. The stability parameter evaluated with RoG accounts for the global stability of either the ligand or tertiary structure of the protein. Taken together, a high RoG value achieving a plateau around an average value for the apoprotein and protein–ligand complexes in Fig. 6 depicts sustained stability or compactness of the biomolecular environment. Table 5 shows the mean values of the biomolecular systems.

Figure 6.

Figure 6.

The RoG plots of MDS of (a) ACE (b) 2-α AR. The changes in the number of H-bonds during the MDS trajectory of (c) ACE (d) 2-α AR (apo and protein–ligands complexes). The SASA plots of MDS of (e) ACE (f) 2-α AR (apo and protein–ligands complexes).

Table 5.

Mean RoG values of biomolecular systems.

Biomolecular system/complexes Mean values (Å)
2XY9 ACE_2XY9 23.193
Lisnopril_2XY9 23.159
Cocholiophilin_2XY9 23.398
Quercimeritrin_2XY9 23.335
6K42 αAR_6k42 19.645
Dexmedetomidine_6k42 20.109
Cochliophilin_6k42 19.911
Miraxanthin_6k42 19.943

3.5 Binding interaction analysis

3.5.1 H-bonds

H-bond interaction between the protein and the ligand is crucial for understanding the observed conformational changes and stability of the ligand–protein complex. H-bonds is a more detailed analysis at the atomic level performed through the calculation of the number of formed hydrogen bonds in all systems (Arnittali et al. 2019). Using the VMD hydrogen bonds tool, the established ligand–protein hydrogen bond interaction and their relative frequencies were explored. Hydrogen bonds provide most of the directional interactions that underlie protein structure, protein folding, and molecular recognition. Hydrogen bonds provide rigidity to the protein structure and specificity to intermolecular interactions. Observation of the four biomolecular systems shows a stable trend in the number of H-bonds, with an average of 145,145,150, and 152 for the apoprotein (2XY9), 2XY9_lisinopril, 2XY9_Cohliophilin, and 2XY9_Quercimeritrin, respectively (Fig. 6), aside from the drop in H-bonds for lisinopril to 100 at 225 frames (22.5 ns). The fluctuation of H-bonds is likewise stable for 6K42 and the complexes with an average of 74, 61, 60, and 67 H-bonds for apoprotein (6K42), 6K42_ Dexmedetomidine, 6K42_Cohliophilin, and 6K42_Miraxanthin III, respectively (Fig. 6).

3.5.2 Solvent-accessible surface area

The solvent-accessible surface area (SASA) calculation addresses the surface properties of the peptide or protein. SASA accounts for the biomolecular surface area that is accessible to solvent molecules (Kamaraj and Purohit 2013) providing a quantitative measurement of the extent of a protein/solve interaction (Al-Karmalawy et al. 2021). The plotted SASA values are in alignment with the radius of the gyration trend of the simulated trajectories at 100 ns. The plot (Fig. 6e and f) showed that SASA is decreased after the binding of a ligand, the most obvious is the case of 6K42 and its ligand complexes. This suggests higher compactness ad stability of the docked complexes during simulation. The slight rise in the case of 2XY9_Cochliophilin A indicates an exposure of some buried residues to the solvent. However, it does not involve structural shifts. The stable values of SASA, RoG, and H-bonds indicate that the system was stable during the simulation time and not likely to undergo an unfolding process. This correlates with previous RMSD analysis confirming preferential better stability of Cochliophilin A and Quercimeritrin over lisinopril and Cochliophilin A and Miraxanthin III over dexmedetomidine.

3.6 Free energy calculation

Simulation-based estimation of free binding energy of ligands to proteins in a dynamic environment has been demonstrated to be a more considerably reliable and accurate calculations of the binding affinity using MM-GBSA as it accounts for solvation effects and entropy contributions to the binding (Perez et al. 2016, Ogunyemi et al. 2023). Thus, the ΔGbind computations provides an in-depth information about the binding modes of best-docked compounds at the initial stages of drug design and development (Kollman et al. 2000, Gyebi et al. 2023). The results for the ACE biomolecular system are shown in Table 6.

Table 6.

The average binding free energy and the energy terms.

Energy terms (Kcal/mol) Cocholiophilin_2XY9 complex Quercimeritrin_2XY9 complex
ΔEVDW −19.57 ± 4.81 −28.41 ± 5.10
ΔEELE −7.43 ± 3.74 −47.78 ± 13.23
ΔGGB 22.97 ± 10.27 61.39 ± 11.30
ΔGSA −2.73 ± 0.78 −4.31 ± 0.06
ΔGGAS −27.00 ± 13.39 −4.32 ± 0.69
ΔGSOLV 20.24 ± 9.80 57.07 ± 10.82
ΔGTOTAL −6.76 ± 4.42 −19.12 ± 6.17

The results showed that quercimeritrin possessed considerable binding affinity (−19.12 ± 6.17 Kcal/mol) with ACE. This is higher than that of Cocholiophilin (−6.76 ± 4.42 Kcal/mol); and thereby validates the results of the molecular docking as reported in this study. The MM-GBSA binding energy of quercimetrin was mainly contributed by van der Waals (ΔEVDW) as shown in Table 6. The MMPBSA free energy decomposition of residues of the ligands in the protein–ligand complexes is depicted in Fig. 7.

Figure 7.

Figure 7.

MM-GBSA plot of binding free energy contribution per residue of human ACE-phytochemical complexes (top) ACE-cocholiophilin (bottom) ACE-Quercimeritrin.

Key residues around the binding site region of ACE contributed significantly to the overall binding free energy of the protein with the flavonoid structures based on the results of the MMPBSA free energy decomposition of residues of the ligands in the complexes (Fig. 7).

3.7 Phytochemical screening and ADMET analysis

ADMET analysis is a procedure used for defining whether the compounds can be easily absorbed, transported to their target site of action, metabolized in a way that still retains the pharmacological property, and is easily eliminated from the body while preventing toxic responses. These properties are generally termed ADMET (absorption, distribution, metabolism, elimination, and toxicity) (Sun et al. 2014). In silico prediction of ADMET properties is an alternative to standard experimental approaches (Ntie-Kang 2013), thus, has been an essential part of the drug discovery process (Darvas et al. 2002). This has helped in reducing the rate of pharmacokinetics-related failure of drugs in the clinical phases (Lombardo et al. 2003). Lipophilicity and water solubility are critical physicochemical properties that determine the ADMET behaviors of a drug. An orally administered drug should be sufficiently lipophilic to pass through the intestinal lining, penetrate the membrane of target cells and be sufficiently hydrophilic to travel in the aqueous blood. The higher the log P-value of a compound, the higher its lipophilicity and the lower its water solubility.

Drug-likeness analysis, a qualitative assessment of oral bioavailability is a feature of advanced stages of drug development (Daina et al. 2017). Tables 4 and 7 features the SwissADMET (http://www.swissadme.ch/index.php) (Daina et al. 2017) prediction of lipophilicity, drug-likeness, water solubility, and physicochemical and bioavailability scores of the hit compounds. Christopher A. Lipinski (1997) formulated the Lipinski rule of five. The rule describes the physicochemical properties important for a drug’s pharmacokinetics in the human body composing their absorption, distribution, metabolism, and excretion (Lipinski et al. 1997). However, the rule does not predict the pharmacological activity of the compound. The rule states that for a drug to be orally bioavailable it should have; a molecular weight ≤500 g/mol, log P (octanol-water partition coefficient) ≤5, hydrogen bond acceptors ≤10, and hydrogen bond donors ≤5 (Lipinski et al. 1997).

Table 4.

Eight hit compounds with multi-targeting potential.

Phytochemical Bioavailability Lipinski/drug-likeness Toxicity class LD50 (mg/kg) Hepatotoxicity Probability
Lisinopril 0.55 No violations 6 8500 Inactive 0.93
Captopril 0.56 No violations 5 2078 Inactive 0.89
Dexmedetomidine 0.55 No violations 3 155 Inactive 0.85
Apigenin 0.55 No violations 5 2500 Inactive 0.68
Betavulgarin 0.55 No violations 5 2500 Inactive 0.82
Betagarin 0.55 No violations 4 2000 Inactive 0.78
Cochliophilin A 0.55 No violations 5 4000 Inactive 0.78
Kaempferol 0.55 No violations 5 3919 Inactive 0.68
Miraxanthin III 0.56 No violations 4 750 Inactive 0.75
Naringenin 0.55 No violations 4 2000 Inactive 0.67
Quercimeritrin 0.11 No violations 5 5000 Inactive 0.82

Table 7.

ADMET, physicochemical, and drug-likeness properties of multi-target binding phytochemicals of beet.

Descriptors Cochliophilin A Quercemetrin Miraxanthin III
Absorption
 HIA
 GI absorption High Low High
 Log Kp (skin permeation) cm/s −5.10 −8.88 −7.32
 P-glycoprotein substrate No No No
 P-glycoprotein inhibitor
Distribution
 Blood–brain barrier Yes No No
Metabolism
 CYP450 1A2 inhibitor Yes No No
 CYP450 3A4 inhibitor Yes No No
 CYP4502C9 inhibitor Yes No No
 CYP4502C19 inhibitor No No No
 CYP4502D6 inhibitor Yes No No
Toxicity
 hERG blockers
 Hepatotoxicity Inactive (0.78) Inactive (0.75) Inactive (0.82)
 Carcinogenesis Active (0.68) Inactive (0.61) Inactive (0.85)
 Immunotoxicity Inactive (0.79) Inactive (0.94) Active (0.58)
 Mutagenicity Inactive (0.61) Inactive (0.69) Inactive (0.76)
 Cytotoxicity Inactive (0.82) Inactive (0.66) Inactive (0.69)
 PAINS 0 alert 1 alert 0 alert
 Mitochondrial membrane potential Inactive (0.59) Inactive (0.83) Inactive (0.98)
Physiochemical properties
 Molecular weight (g/mol) 282.25 464.38 330.34
 Num. heavy atoms 21 33 24
 Num. aromatic heavy atoms 16 16 6
 Num. rotatable bonds 1 4 6
 Num. H-bond acceptors 5 12 6
 Hydrogen bond donor 1 8 4
 iLogP 2.74 1.54 1.53
 XLogP 4.11 0.36 1.4
 WLogP 2.89 −0.54 0.97
 MLogP 1.17 −2.59 −1.88
 Molar refractivity 76.01 110.16 92.38
 TPSA (Ų) 68.9 210.51 119.22
Druglikeness
 Lipinski No violation 2 violations No violation
 Bioavailability score 0.55 0.17 0.56

The hit compounds elicit physiochemical properties that enable them to be drug-able (Table 4). Cochliophilin A, Quercimeritrin, and Miraxanthin III featured good molecular weight properties, which are all <500 Da, with log P-values of <5 indicating that they possess good lipophilicity. This implies that these phytocompounds are likely going to be membrane-permeable and would be orally absorbed. According to the Lipinski rule, a molecule will not be orally available if it violates two or more of the rules. Cochliophilin A and Miraxanthin III meet the requirements for oral bioavailability. Based on these molecular and physicochemical properties of the phytocompounds including log P, molecular reactivity, number of H-bonds acceptor, and donors, they possess features that make them drug-able. Cochliophilin A and Miraxanthin III likewise pass Veber’s rule of having 10 or fewer rotatable bonds and polar surface area (TPSA) not >140 Å2 (Veber et al. 2002).

Cochliophilin A has a 0.55 bioavailability score indicating that it is likely to be good as an oral drug. Pgp is an important member of the ATP-binding cassette transporters and it is responsible for the active efflux of xenobiotics through biological membranes to protect the body from foreign chemicals. It also contributes to drug resistance by limiting the entry of some drugs into sensitive areas. Cochliophilin A and Miraxanthin III are not substrates of Pgp, thus are not likely to be prevented from entering their target site of action. From the pharmacokinetic predictions, Cochliophilin A as a CYP inhibitor could cause drug–drug interaction, CYP superfamily of isoenzyme is the key phase I metabolism enzyme catalyst. However, Miraxanthin III did not display inhibitory potential against the various CYP isoenzymes (CYP 1A2, CYP 3A4, CYP 2C9, CYP 2C19, and CYP 2D6) and may not adversely affect Phase I drug metabolism in the liver. Toxicity prediction showed that both Cochliophilin A and Miraxanthin III were not hepatotoxic, mutagenic, and cytotoxic although Cochliophilin A was predicted to be slightly carcinogenic.

4 Conclusion

We evaluated the inhibitory effect of phytochemicals derived from beetroot against ACE and AR in hypertension. A total of 70 compounds reported to be present in beetroot were subjected to virtual screening, molecular docking, and MDSs. The three hit compounds—Cochliophilin A, Quercimeritrin, and Miraxanthin III, were selected due to the exhibition of high binding affinity in structure-based virtual screening. They had good ADMET profiles and the results for the MD trajectories showed that they formed strong hydrogen bonds with active site residues and stable complexes with the target proteins. Throughout the all-atom 100 ns MD simulation, the resulting trajectories of ACE and AR complexed with the lead phytocompounds showed higher stability and increased flexibility alongside higher interaction potential of the residues of the receptor toward the phytocompounds. SASA plots also indicated accessibility of the phytocompounds to the binding pockets. Based on available evidence, we present these phytocompounds as potential drug candidates for hypertension. Thus, reports from this study can enhance the development of safe nutraceuticals and drug candidates for the management or treatment of hypertension. Further experimental investigations and lead optimizations may help in optimizing these molecules for increased affinity and specificity for ACE and AR.

Contributor Information

Joy A Adetunji, Nutritional and Industrial Biochemistry Laboratory, Department of Biochemistry, Faculty of Basic Medical Sciences, College of Medicine, University of Ibadan, Ibadan 200005, Nigeria.

Oludare M Ogunyemi, Nutritional and Industrial Biochemistry Laboratory, Department of Biochemistry, Faculty of Basic Medical Sciences, College of Medicine, University of Ibadan, Ibadan 200005, Nigeria.

Gideon A Gyebi, Department of Biochemistry, Faculty of Science and Technology, Bingham University, Karu, Nigeria; Natural Products and Structural (Bio-Chem)-informatics Research Laboratory (NpsBC-Rl), Bingham University, Nasarawa, Nigeria.

Anuoluwapo E Adewumi, Nutritional and Industrial Biochemistry Laboratory, Department of Biochemistry, Faculty of Basic Medical Sciences, College of Medicine, University of Ibadan, Ibadan 200005, Nigeria.

Charles O Olaiya, Nutritional and Industrial Biochemistry Laboratory, Department of Biochemistry, Faculty of Basic Medical Sciences, College of Medicine, University of Ibadan, Ibadan 200005, Nigeria.

Author contributions

Joy A. Adetunji (Conceptualization [lead], Data curation [lead], Formal analysis [lead], Investigation [equal], Methodology [supporting], Resources [supporting], Software [equal], Visualization [supporting], Writing—original draft [lead]), Oludare M. Ogunyemi (Conceptualization [equal], Data curation [supporting], Formal analysis [supporting], Investigation [equal], Methodology [lead], Project administration [lead], Resources [lead], Supervision [supporting], Validation [lead], Writing—review & editing [supporting], Gideon A. Gyebi (Investigation [supporting], Resources [equal], Software [lead], Visualization [supporting]), Anuoluwapo E. Adewumi (Data curation [supporting], Visualization [supporting]), and Charles O. Olaiya (Conceptualization [supporting], Methodology [supporting], Project administration [lead], Resources [equal], Supervision [lead], Writing—review & editing [lead])

Conflict of interest

None declared.

Funding

None declared.

References

  1. Adetunji JA, Fasae KD, Awe AI. et al. The protective roles of citrus flavonoids, naringenin, and naringin on endothelial cell dysfunction in diseases. 2023;9:6. 10.1016/j.heliyon.2023.e17166. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Afiomah CS, Iwuozor K.. Nutritional and phytochemical properties of Beta vulgaris Linnaeus (Chenopodiaceae)–a review. Niger J Pharm Appl Sci Res 2020;9:38–44. [Google Scholar]
  3. Akif M, Schwager SL, Anthony CS. et al. Novel mechanism of inhibition of human angiotensin-l-converting enzyme (ACE) by a highly specific phosphinic tripeptide. Biochem J 2011;436:53–9. 10.1042/BJ20102123. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Al-Karmalawy AA, Dahab MA, Metwaly AM. et al. Molecular docking and dynamics simulation revealed the potential inhibitory activity of ACEIs against SARS-CoV-2 targeting the hACE2 receptor. Front Chem 2021;9:661230. 10.3389/FCHEM.2021.661230/BIBTEX. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Aldridge R, Naysmith L, Ee Ting O. et al. Europe PMC funders group. Acta Derm Venereol 2013;93:1911–23. [Google Scholar]
  6. Alshehry G, Abdelazez A, Abdelmotaal H. et al. Investigating antioxidant and antibacterial activity of functional cookies enriched with beetroot during storage. Czech J Food Sci 2021;39:479–86. 10.17221/138/2021-CJFS. [DOI] [Google Scholar]
  7. Anifowose LO, Paimo OK, Adegboyega FN. et al. Molecular docking appraisal of dysphania ambrosioides phytochemicals as potential inhibitor of a key triple-negative breast cancer driver gene. In Silico Pharmacol 2023;11:15. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Arnittali M, Rissanou AN, Harmandaris V.. Structure of biomolecules through molecular dynamics simulations. Procedia Comput Sci 2019;156:69–78. 10.1016/J.PROCS.2019.08.181. [DOI] [Google Scholar]
  9. Baião DdS, da Silva DVT, Paschoalin VMF.. Beetroot, a remarkable vegetable: its nitrate and phytochemical contents can be adjusted in novel formulations to benefit health and support cardiovascular disease therapies. Antioxidants (Basel) 2020;9:1–36. 10.3390/ANTIOX9100960. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Banerjee P, Eckert AO, Schrey AK. et al. ProTox-II: a webserver for the prediction of toxicity of chemicals. Nucleic Acids Res 2018;46:W257–W263. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Bari F, Horvath G, Benedek G.. Dexmedetomidine-induced decrease in cerebral blood flow is attenuated by verapamil in rats: a laser Doppler study. Can J Anaesth 1993;40:748–54. 10.1007/BF03009771 [DOI] [PubMed] [Google Scholar]
  12. Bavec M, Matja Z, Turinek Grobelnik-Mlakar S. et al. Influence of industrial and alternative farming systems on contents of sugars, organic acids, total phenolic content, and the antioxidant activity of red beet (Beta vulgaris L. ssp. vulgaris rote kugel). J Agric Food Chem 2010;58:11825–31. 10.1021/jf103085p. [DOI] [PubMed] [Google Scholar]
  13. Brooks BR, Brooks CL, Mackerell AD. et al. CHARMM: The biomolecular simulation program. J Comput Chem 2019;30:1545. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Carey RM, Calhoun DA, Bakris GL. et al. ; American Heart Association Professional/Public Education and Publications Committee of the Council on Hypertension; Council on Cardiovascular and Stroke Nursing; Council on Clinical Cardiology; Council on Genomic and Precision Medicine; Council on Peripheral Vascular Disease; Council on Quality of Care and Outcomes Research; and Stroke Council. Resistant hypertension: detection, evaluation, and management a scientific statement from the American Heart Association. Hypertension 2018;72:E53–90. 10.1161/HYP.0000000000000084. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Clifford T, Howatson G, West DJ. et al. The potential benefits of red beetroot supplementation in health and disease. Nutrients 2015;7:2801–22. 10.3390/NU7042801. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Cui W, Aouidate A, Wang S. et al. Discovering anti-cancer drugs via computational methods. Front Pharmacol 2020;11:733. 10.3389/FPHAR.2020.00733/BIBTEX. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Daina A, Michielin O, Zoete V.. SwissADME: a free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci Rep 2017;7:42717. 10.1038/srep42717. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Darvas F, Keseru G, Papp A. et al. In silico and ex silico ADME approaches for drug discovery. Curr Top Med Chem 2002;2:1287–304. 10.2174/1568026023392841. [DOI] [PubMed] [Google Scholar]
  19. Duke JA. Handbook of Phytochemical Constituents of GRAS Herbs and Other Economic Plants. Boca Raton, FL, USA: CRC Press 1992, 654. https://books.google.com/books/about/Handbook_of_Phytochemical_Constituent_Gr.html?id=692-OZ4OEsIC.
  20. Durrant JD, McCammon JA.. Molecular dynamics simulations and drug discovery. BMC Biol 2011;9:71–9. 10.1186/1741-7007-9-71/FIGURES/4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Elhady SS, Abdelhameed RFA, Malatani RT. et al. Molecular docking and dynamics simulation study of Hyrtios erectus isolated scalarane sesterterpenes as potential SARS-CoV-2 dual target inhibitors. Biology (Basel) 2021;10:389. 10.3390/BIOLOGY10050389. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Fatima I, Ihsan H, Masoud MS. et al. Screening of drug candidates against endothelin-1 to treat hypertension using computational based approaches: molecular docking and dynamics simulation. PLoS One 2022;17:e0269739. 10.1371/JOURNAL.PONE.0269739. [DOI] [PMC free article] [PubMed] [Google Scholar] [Retracted]
  23. Ferdinand KC. Uncontrolled hypertension in sub‐Saharan Africa: now is the time to address a looming crisis. J Clin Hypertens (Greenwich) 2020;22:2111–3. 10.1111/JCH.14046. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Fountain JH, Lappin SL. Physiology, Renin Angiotensin System. In: StatPearls [Internet]. Treasure Island, FL: StatPearls Publishing, 2021. [PubMed] [Google Scholar]
  25. Gyebi GA, Ogunyemi OM, Ibrahim IM. et al. Identification of potential inhibitors of cholinergic and β-secretase enzymes from phytochemicals derived from Gongronema latifolium Benth leaf: an integrated computational analysis. Mol Divers 2023. 10.1007/s11030-023-10658-y. [DOI] [PubMed] [Google Scholar]
  26. Hall JE, do Carmo JM, da Silva AA. et al. Obesity, kidney dysfunction and hypertension: mechanistic links. Nat Rev Nephrol 2019;15:367–85. 10.1038/S41581-019-0145-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Hall JE, Mouton AJ, da Silva AA. et al. Obesity, kidney dysfunction, and inflammation: interactions in hypertension. Cardiovasc Res 2021;117:1859–76. 10.1093/cvr/cvaa336. [DOI] [PMC free article] [PubMed] [Google Scholar]
  28. Hollingsworth SA, Dror RO.. Molecular dynamics simulation for all. Neuron 2018;99:1129–43. 10.1016/J.NEURON.2018.08.011. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Hospital A, Goñi JR, Orozco M. et al. Molecular dynamics simulations: advances and applications. Adv Appl Bioinform Chem 2015;8:37–47. 10.2147/AABC.S70333. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Jo S, Kim T, Iyer VG. et al. CHARMM-GUI: a web-based graphical user interface for CHARMM. J Comput Chem 2008;29:1859–65. [DOI] [PubMed] [Google Scholar]
  31. Kamaraj B, Purohit R.. In silico screening and molecular dynamics simulation of disease-associated nsSNP in TYRP1 gene and its structural consequences in OCA3. Biomed Res Int 2013;2013:697051. 10.1155/2013/697051. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Kavitha K, Bhaumik A, Sultana S. et al. Phytochemical screening and evaluation of analgesic activity of various extracts of beet root (Beta vulgaris). World J Pharm Biotechnol 2016;3:60–4. [Google Scholar]
  33. Kollman PA, Massova I, Reyes C. et al. Calculating structures and free energies of complex molecules: combining molecular mechanics and continuum models. Acc Chem Res 2000;33:889–97. [DOI] [PubMed] [Google Scholar]
  34. Lee J, Cheng X, Swails JM. et al. CHARMM-GUI input generator for NAMD, GROMACS, AMBER, OpenMM, and CHARMM/OpenMM simulations using the CHARMM36 additive force field. J Chem Theory Comput 2016;12:405–13. [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Liliana C, Oana-Viorela N.. Red beetroot: composition and health effects - a review. J Nutri Med Diet Care 2020;5. 10.23937/2572-3278.1510043. [DOI] [Google Scholar]
  36. Lipinski CA, Lombardo F, Dominy BW. et al. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv Drug Deliv Rev 1997;23:3–25. 10.1016/S0169-409X(96)00423-1. [DOI] [PubMed] [Google Scholar]
  37. Lombardo F, Gifford E, Shalaeva M.. In silico ADME prediction: data, models, facts and myths. Mini Rev Med Chem 2003;3:861–75. 10.2174/1389557033487629. [DOI] [PubMed] [Google Scholar]
  38. Martínez L. Automatic identification of mobile and rigid substructures in molecular dynamics simulations and fractional structural fluctuation analysis. PLoS One 2015;10:e0119264. 10.1371/JOURNAL.PONE.0119264. [DOI] [PMC free article] [PubMed] [Google Scholar]
  39. Mills KT, Stefanescu A, He J.. The global epidemiology of hypertension. Nat Rev Nephrol 2020;16:223–37. 10.1038/S41581-019-0244-2. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Miller BR III, McGee TD Jr, Swails JM. et al. MMPBSA.py: an efficient program for end-state free energy calculations. J Chem Theory Comput 2012;8:3314–21. 10.1021/ct300418h. [DOI] [PubMed] [Google Scholar]
  41. Ntie-Kang F. An in silico evaluation of the ADMET profile of the StreptomeDB database. Springerplus 2013;2:353–11. 10.1186/2193-1801-2-353/FIGURES/11. [DOI] [PMC free article] [PubMed] [Google Scholar]
  42. O’Boyle NM, Banck M, James CA. et al. Open babel: an open chemical toolbox. J Cheminform 2011;3:1–14. 10.1186/1758-2946-3-33/TABLES/2. [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Ogunyemi OM, Gyebi GA, Ibrahim IM. et al. Identification of promising multi-targeting inhibitors of obesity from Vernonia amygdalina through computational analysis. Mol Divers 2023;27:1–25. 10.1007/s11030-022-10397-6. [DOI] [PubMed] [Google Scholar]
  44. Oparil S, Acelajado MC, Bakris GL. et al. Hypertension. Nat Rev Dis Primers 2018;4:18014. 10.1038/NRDP.2018.14. [DOI] [PMC free article] [PubMed] [Google Scholar]
  45. Perez A, Morrone JA, Simmerling C. et al. Advances in free-energy-based simulations of protein folding and ligand binding. Curr Opin Struct Biol 2016;36:25–31. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Philipp M, Brede M, Hein L.. Physiological significance of alpha(2)-adrenergic receptor subtype diversity: one receptor is not enough. Am J Physiol Regul Integr Comp Physiol 2002;283:R287–95. 10.1152/AJPREGU.00123.2002. [DOI] [PubMed] [Google Scholar]
  47. Rajan S, Baek K, Yoon HS.. C-H.O hydrogen bonds in FK506-binding protein-ligand interactions. J Mol Recognit 2013;26:550–5. 10.1002/jmr.2299. [DOI] [PubMed] [Google Scholar]
  48. Reuss W. Hagers Handbuch der Pharmazeutischen Praxis. Berlin, Heidelberg: Springer, 2000. 10.1007/978-3-642-57008-7. [DOI]
  49. Sharma JR, Mabhida SE, Myers B, Apalata T, Nicol E, Benjeddou M, Muller C, Johnson R. Prevalence of hypertension and its associated risk factors in a rural black population of mthatha town, south africa. Int J Environ Res Public Health 2021;18:1215. [DOI] [PMC free article] [PubMed] [Google Scholar]
  50. Siervo M, Lara J, Ogbonmwan I. et al. Inorganic nitrate and beetroot juice supplementation reduces blood pressure in adults: a systematic review and meta-analysis. J Nutr 2013;143:818–26. 10.3945/JN.112.170233. [DOI] [PubMed] [Google Scholar]
  51. Song JC, White CM.. Clinical pharmacokinetics and selective pharmacodynamics of new angiotensin converting enzyme inhibitors: an update. Clin Pharmacokinet 2002;41:207–24. 10.2165/00003088-200241030-00005 [DOI] [PubMed] [Google Scholar]
  52. Sun H, Li Y, Shen M. et al. Assessing the performance of MM/PBSA and MM/GBSA methods. 5. Improved docking performance using high solute dielectric constant MM/GBSA and MM/PBSA rescoring. Phys Chem Phys 2014;16:22035–45. 10.1039/C4CP03179B. [DOI] [PubMed] [Google Scholar]
  53. Tuccinardi T. What is the current value of MM/PBSA and MM/GBSA methods in drug discovery? Expert Opin Drug Discov 2021;16:1233–7. 10.1080/17460441.2021.1942836. [DOI] [PubMed] [Google Scholar]
  54. Valdés-Tresanco MS, Valdés-Tresanco ME, Valiente PA. et al. Gmx_MMPBSA: a new tool to perform end-state free energy calculations with GROMACS. J Chem Theory Comput 2021;17:6281–91. 10.1021/acs.jctc.1c00645. [DOI] [PubMed] [Google Scholar]
  55. Veber DF, Johnson SR, Cheng HY. et al. Molecular properties that influence the oral bioavailability of drug candidates. J Med Chem 2002;45:2615–23. 10.1021/JM020017N/SUPPL_FILE/JM020017N_S.PDF. [DOI] [PubMed] [Google Scholar]
  56. Xue W, Yang F, Wang P. et al. What contributes to Serotonin-Norepinephrine reuptake inhibitors' dual-targeting mechanism? ACS Chem Neurosci 2018;9:1128–40. 10.1021/acschemneuro.7b00490. [DOI] [PubMed] [Google Scholar]
  57. Yuan D, Liu Z, Kaindl J. et al. Activation of the α2B adrenoceptor by the sedative sympatholytic dexmedetomidine. Nat Chem Biol 2020;16:507–12. 10.1038/s41589-020-0492-2. [DOI] [PubMed] [Google Scholar]
  58. Zhang S. Chapter 2 computer-aided drug discovery and development. Methods Mol Biol 2011;716:23–38. 10.1007/978-1-61779-012-6_2. [DOI] [PubMed] [Google Scholar]
  59. Zhao Y, Zeng C, Massiah MA.. Molecular dynamics simulation reveals insights into the mechanism of unfolding by the A130T/V mutations within the MID1 Zinc-Binding Bbox1 domain. PLoS One 2015;10:e0124377. 10.1371/JOURNAL.PONE.0124377. [DOI] [PMC free article] [PubMed] [Google Scholar]
  60. Zhou B, Carrillo-Larco RM, Danaei G. et al. Worldwide trends in hypertension prevalence and progress in treatment and control from 1990 to 2019: a pooled analysis of 1201 population-representative studies with 104 million participants. Lancet 2021;398:957–80. 10.1016/S0140-6736(21)01330-1. [DOI] [PMC free article] [PubMed] [Google Scholar]

Articles from Bioinformatics Advances are provided here courtesy of Oxford University Press

RESOURCES
