Light Energy Efficiency in Lettuce Crop: Structural Indoor Designs Simulation

Luisa F Lozano-Castellanos 1,2,*, Luis Manuel Navas-Gracia 1,*, Adriana Correa-Guimaraes 1
Editors: Hail Rihan, Mick Fuller
PMCID: PMC10574718  PMID: 37836195

Abstract

Indoor agricultural offers efficient alternatives for intensive food production through automation technologies and controlled environments. Light plays a crucial role in plant development; however, photons captured by the crop are often wasted in empty spaces, resulting in low light efficiency and high energy costs. This research aims to simulate eight structural designs for an indoor lettuce crop, exploring different planting systems and light and culture bed combinations (static and mobile) to identify the most effective mechanism for light efficiency during crop growth. The simulations were carried out with spreadsheets based on applying formulas of yield in dry biomass per photosynthetic photons, lighting costs, harvest, and production. The results indicate that Circular Moving Light and Mobile Culture Bed with Quincunx Planting (CML-QM) and Circular Moving Light and Mobile Culture Bed with Linear Planting (CML-LPM) exhibit higher photon capture percentages (85% and 80%, respectively) and lower electricity consumption compared to static designs. The simulation results demonstrate the potential for significant improvements in photon capture and cost savings through optimized system designs. This investigation provides valuable insights for designing more efficient systems and reducing electricity consumption to enhance the capture of photosynthetic photons in indoor lettuce cultivation.

Keywords: electrical consumption, indoor agricultural designs, indoor crops, lighting efficiency

1. Introduction

Advances in lighting for indoor crops and horticulture have allowed controlled environmental parameters in closed environments and under different methods, handling and monitoring the plant development of a cultivar to guarantee its economic and ecological viability. Artificial light is one of the most important environmental parameters for developing and growing plants in indoor production systems. However, it has been strengthened by the replacement of conventional lamp technologies with Light-emitting Diodes (LEDs) [1] and by the use of technology and communication tools for the design of more efficient structures and adaptability to the species, production needs, available space, and cultivation methods that meet high-quality conditions [2]. Its efficiency must continue to be improved not only from the point of view of operational and production costs, but also from the real photon capture by the plants [1,3,4].

The proportion of irradiation emitted by the LED lamps is not significantly captured by the plants since most of it is reflected in the empty cultivation spaces or plants that grow during cultivation [3]. Minimizing these photon losses requires the analysis, forecasting, and control of the components of the light environment: photosynthetic photon flux density (PPFD or light intensity), the spatial arrangement, quality, cycle, and angle of the LEDs, of the characteristics of the cultivation space and the vegetative area (leaf area, growth, etc.) [5,6], especially in immobile systems that depend 100% on electronic devices for their operation.

There are various methods and strategies to improve lighting efficiency, e.g., evaluation of the grams of biomass produced and the photosynthetically active radiation (PAR) absorbed by plants, also known as light use efficiency (LUE); LUE quantification with morphological measures such as leaf area index (LAI) or projected canopy size (PCS) [3,7]; lamps with a high luminous efficacy or conversion efficiency into PAR; evaluation of the ratio of PAR received at the plant canopy by the PAR emitted from the lamps; PPFD distribution histogram estimated by the reflection of the canopy, exponential models of relative growth rate or leaf area growth rate, 2D and 3D modeling for vegetative growth [3]; LEDs with small viewing angle and the use of secondary optics [8], supplemental lighting with directional and mobility properties [9], spatial distribution simulation software of PPFD in cultivation space [6], among others.

In general, automation and control of elements in indoor systems are widely applied to increase lighting efficiency and agricultural productivity (e.g., [10,11,12]). However, its application in the development of crops in mobile beds is less documented, focusing on business experiences and cost–benefit analysis, and barely in the design, construction, and measurement of efficiency [13,14,15]; compared to the control of luminaries, which have a more extensive field in scientific documents [3,16,17,18], even though it has been established that the automatic or manual spacing of the plants throughout the cultivation period contributes to improving the LUE [19].

The present investigation highlights the importance of adequately taking advantage of the photonic capture available to plants through sensitivity analysis (simulation) in lighting systems with static and mobile lighting structural designs and crop bases with linear and quincunx planting systems. Lettuce was considered for this analysis. It is one of the most cultivated vegetable crops worldwide and the most stable and constant concerning production and harvested area [20]. Spain is one of the largest producers in Europe [21], and although indoor lettuce production is still a relatively small industry, it has been growing in recent years.

The main aim of this investigation is to identify the design of a realistic system that improves the total proportion of photosynthetic photons captured during indoor lettuce crop growth.

2. Results

The simulation of the proportion of the total photosynthetic photons captured by the leaves during the lettuce cycle under the design of Linear static light and Static Culture Bed with Linear Planting (LSL-LPS) and luminaires with 140° beam aperture is 50% (Figure 1). This structure would require an annual electricity consumption of approximately 4100 thousand kWh for a yearly production of 500 thousand kg and up to 62,000 thousand kWh for producing 7500 thousand kg of lettuce, representing an electricity annual cost of 955 and 14,325 thousand euros, respectively.

Figure 1.

Figure 1

Open in a new tab

Top and side view of the simulated indoor farming system under the Linear static light and Static Culture Bed with Linear Planting (LSL-LPS) design for four stages (a–d) of lettuce growth.

The Linear Static Light and Static Culture Bed with Quincunx Planting (LSL-QS) simulation and luminaires with a 140° beam opening is 55% (Figure 2). This structure would require an annual electricity consumption of 3775 thousand kWh for a yearly production of 500 thousand kg and up to 56,619 thousand kWh for the production of 7500 thousand kg, representing an electricity annual cost of 868 and 13,022 thousand euros, respectively. The additional 5% of photon capture in this system decreases the price per kilogram of lettuce to EUR 1.74, a difference concerning the base value of the LSL-LPS structure of EUR 0.17.

Figure 2.

Figure 2

Open in a new tab

Top and side view of the simulated indoor farming system under the Linear static light and Static culture bed with quincunx planting (LSL-QS) design for four stages (a–d) of lettuce growth.

The Circular Moving Light and Static Culture Bed with Linear Planting (CML-LPS) (Figure 3) and the Circular Moving Light and Static Culture Bed with Quincunx Planting (CML-QS) (Figure 4) designs with 45, 90, and 140° aperture beam luminaires represent a photon capture of 60 and 65% during the lettuce cycle. They require an approximate annual electricity consumption of 3400 and 3100 thousand kWh, respectively, for producing 500 thousand kg and up to 51,000 and 47,000 thousand kWh for producing 7500 thousand kg. The annual cost of electricity for CML-LPS is 17% lower than LSL-LPS, achieving a price per kg of lettuce of EUR 1.59; and for CML-QS, it represents 23% less with a cost of EUR 1.47 per kg.

Figure 3.

Figure 3

Open in a new tab

Top and side view of the simulated indoor farming system under the Circular Moving Light and Static Culture Bed with Linear Planting (CML-LPS) design for four stages (a–d) of lettuce growth.

Figure 4.

Figure 4

Open in a new tab

Top and side view of the simulated indoor farming system under the Circular Moving Light and Static Culture Bed with Quincunx Planting (CML-QS) design for four stages (a–d) of lettuce growth.

As for the Circular Moving Light and Mobile Culture Bed with Linear Planting (CML-LPM) (Figure 5) and Circular Moving Light and Mobile Culture Bed with Quincunx Planting (CML-QM) (Figure 6), both with an opening beam of 45, 90 and 140°. The first, with a capture of 80%, requires an annual electricity consumption of 2595 thousand kWh to produce 500 thousand kg of lettuce at a yearly cost of 597 thousand euros, and 38,925 thousand kWh to produce 7500 thousand kg with an annual cost of electricity of 8953 euros. On the other hand, CML-QM, with 85% capture, reduces annual electricity consumption to 2442 and 36,636 thousand kWh to produce 500 and 7500 thousand kg, achieving annual cost savings of 35 and 527 thousand euros compared to the design CML-LPM, and savings of 393 and 5898 thousand euros compared to the LSL-LPS design. With these designs, the cost per kg of lettuce is 1.19 and EUR 1.12.

Figure 5.

Figure 5

Open in a new tab

Top and side view of the simulated indoor farming system under the Circular Moving Light and Mobile Culture Bed with Linear Planting (CML-LPM) design for four stages (a–d) of lettuce growth.

Figure 6.

Figure 6

Open in a new tab

Top and side view of the simulated indoor farming system under the Circular Moving Light and Mobile Culture Bed with Quincunx Planting (CML-QM) design for four stages (a–d) of lettuce growth.

Finally, the Linear Moving Light and Mobile Culture Bed with Linear Planting (LML-LPM) (Figure 7) and the Linear Moving Light and Mobile Culture Bed with Quincunx Planting (LML-QM) (Figure 8) have a photon capture percentage of 70 and 75, respectively.

Figure 7.

Figure 7

Open in a new tab

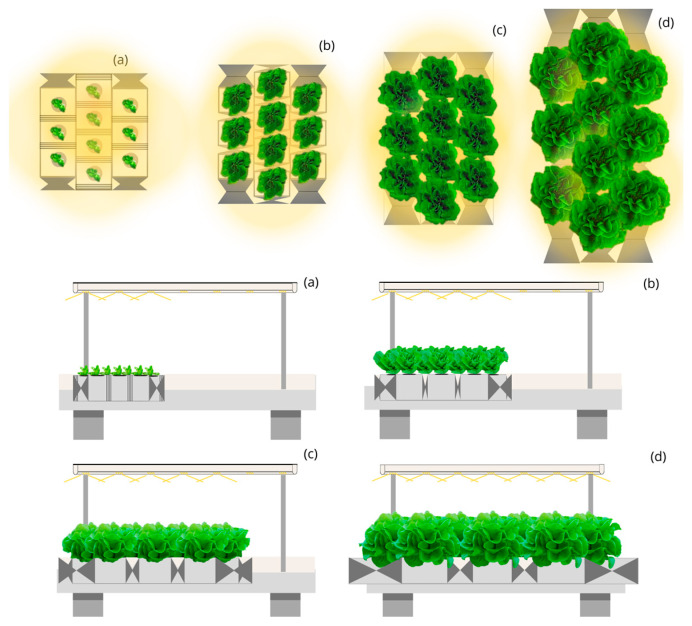

Top and side view of the simulated indoor farming system under the Linear Moving Light and Mobile Culture Bed with Linear Planting (LML-LPM) design for four stages (a–d) of lettuce growth.

Figure 8.

Figure 8

Open in a new tab

Top and side view of the simulated indoor farming system under the Linear Moving Light and Mobile Culture Bed with Quincunx Planting (LML-QM) design for four stages (a–d) of lettuce growth.

For the production of 500 thousand kg of lettuce under the LML-LPM structure, there will be an annual electricity consumption of 2966 thousand kWh, compared to LML-QM, which would require 2768. The above represents a yearly electricity expense of 682 and 637 thousand euros. Compared with producing 7500 thousand kg of lettuce, 44,486 thousand kWh per year would be required with an electrical energy cost of 10,232 thousand euros using the LML-LPM structure. In contrast, with the LML-QM, 41,521 thousand kWh are needed per year with an expense of 9550 thousand euros per year. The cost to produce a kg of lettuce is EUR 1.36 for LML-LPM and EUR 1.27 for LML-QM.

In addition to the simulations on the percentage of photon capture achieved by each structural design, the annual electrical consumption (Table 1) and the annual electrical energy expenses (Table 2) are included below on hypothetical structures that achieve 90 and 95% use of light, and on the yearly production between 500 and 7500 thousand kilos of lettuce.

Table 1.

Simulation of the annual electricity consumption (in thousands of kWh) for producing between 500 and 7500 thousand kilos of lettuce.

LSL-LPS LSL-QS CML-LPS CML-QS LML-LPM LML-QM CML-LPM CML-QM Hypothetical Structures
50% 55% 60% 65% 70% 75% 80% 85% 90% 95%
500 4152 3775 3460 3194 2966 2768 2595 2442 2307 2185
1000 8304 7549 6920 6388 5932 5536 5190 4885 4613 4371
1500 12,456 11,324 10,380 9582 8897 8304 7785 7327 6920 6556
2000 16,608 15,098 13,840 12,776 11,863 11,072 10,380 9770 9227 8741
2500 20,760 18,873 17,300 15,969 14,829 13,840 12,975 12,212 11,533 10,926
3000 24,912 22,648 20,760 19,163 17,795 16,608 15,570 14,654 13,840 13,112
3500 29,064 26,422 24,220 22,357 20,760 19,376 18,165 17,097 16,147 15,297
4000 33,216 30,197 27,680 25,551 23,726 22,144 20,760 19,539 18,454 17,482
4500 37,368 33,971 31,140 28,745 26,692 24,912 23,355 21,981 20,760 19,668
5000 41,521 37,746 34,600 31,939 29,658 27,680 25,950 24,424 23,067 21,853
5500 45,673 41,521 38,060 35,133 32,623 30,448 28,545 26,866 25,374 24,038
6000 49,825 45,295 41,521 38,327 35,589 33,216 31,140 29,309 27,680 26,223
6500 53,977 49,070 44,981 41,521 38,555 35,984 33,735 31,751 29,987 28,409
7000 58,129 52,844 48,441 44,714 41,521 38,752 36,330 34,193 32,294 30,594
7500 62,281 56,619 51,901 47,908 44,486 41,521 38,925 36,636 34,600 32,779
Open in a new tab

First row: Simulated and hypothetical structures; second row: Percentage of photon capture; first column: Lettuce annual production in thousand kilos.

Table 2.

Simulation of the annual electrical energy expenses (in thousands of EUR) for producing between 500 and 7500 thousand kilos of lettuce.

LSL-LPS LSL-QS CML-LPS CML-QS LML-LPM LML-QM CML-LPM CML-QM Hypothetical Structures
50% 55% 60% 65% 70% 75% 80% 85% 90% 95%
500 955 868 796 735 682 637 597 562 531 503
1000 1910 1736 1592 1469 1364 1273 1194 1123 1061 1005
1500 2865 2604 2387 2204 2046 1910 1791 1685 1592 1508
2000 3820 3473 3183 2938 2728 2547 2387 2247 2122 2010
2500 4775 4341 3979 3673 3411 3183 2984 2809 2653 2513
3000 5730 5209 4775 4408 4093 3820 3581 3370 3183 3016
3500 6685 6077 5571 5142 4775 4457 4178 3932 3714 3518
4000 7640 6945 6366 5877 5457 5093 4775 4494 4244 4021
4500 8595 7813 7162 6611 6139 5730 5372 5056 4775 4524
5000 9550 8682 7958 7346 6821 6366 5969 5617 5305 5026
5500 10,505 9550 8754 8081 7503 7003 6565 6179 5836 5529
6000 11,460 10,418 9550 8815 8185 7640 7162 6741 6366 6031
6500 12,415 11,286 10,346 9550 8868 8276 7759 7303 6897 6534
7000 13,370 12,154 11,141 10,284 9550 8913 8356 7864 7428 7037
7500 14,325 13,022 11,937 11,019 10,232 9550 8953 8426 7958 7539
Open in a new tab

First row: Simulated and hypothetical structures; second row: Percentage of photon capture; first column: Lettuce annual production in thousand kilos.

3. Discussion

Lettuce is an important crop for the Spanish economy, as it is one of the country’s most widely cultivated and consumed vegetables. Although there are no exact costs of lettuce production in Spain, the prices published by the Ministry of Agriculture, Fisheries and Food provide the approximate value for this crop, being EUR 0.91 per kilogram for week 13 of 2023 [22]. This price is lower than the cost per kilogram of lettuce under a hypothetical structure of 95% photon capture (EUR 1.01) and the simulated indoor CML-QM structure with 85% photon capture (EUR 1.12), which did not consider additional costs of production, such as the packaging and distribution of the product.

The cost of production of indoor lettuce can vary depending on the specific production system and technology used. However, indoor lettuce production tends to be more expensive than conventional production due to the higher energy and equipment costs [23,24]. Simulation shows that growing lettuce indoors can indeed be more costly but offer benefits such as year-round production, higher yields, lower water use, and investment recovery in the following years, depending on the system [25,26,27].

Searching for cost-reduction measures with interior mobile structures that improve energy systems and energy efficiency in plants is still under development. In typical systems in indoor agriculture, approximately 50% of the photon capture is achieved [28]. Structures such as those proposed in this research provide alternatives for improvement, especially during the initial phase of plant growth, where the space occupied by plant material in the culture bed is minimal, and the space occupied by irradiated light is more extensive [5,29,30].

The waste of light and the high electricity costs are controlled, among other alternatives, by the angle of the light beam and the on/off programming to define or limit the irradiated area to the size of the crop in its different phases [30,31]. This situation is reflected in CML-LPS and CML-QS, which achieve 60% and 65% photon capture by applying a 45° beam in the first phase of growth, 90° in the second and third, and 140° in the last with interleaved ignition lights. These structures, mainly due to the circular design of the luminaire [32], show savings in energy costs compared to LSL-LPS and LSL-QS, which maintain static lights with the same opening angle throughout the lettuce growth.

Modular and mobile indoor growing systems have been developed to maximize crop production in a limited space and minimize costs. These include levels with moving conveyor belts and pipelines that transport plants from one level to the next and employ closed systems and automated operating protocols to plant, cultivate, and harvest, allowing access and maintenance of crops through the mobility of the cultivation system [13,15,33,34,35].

The accordion-shaped growing bed design represents a form of automation that utilizes progressive movement during plant growth to optimize available space and favor photon capture and lettuce growth. While this design has demonstrated high performance, as in the LML-LPM and LML-QM structures, there are more options for further improvement.

Considering factors such as growth bed, light distribution, and plant density, exploring alternative approaches to maximize system efficiency and productivity is essential. As a result, there was increased photon capture, reduced light waste, and significant savings with the CML-LPM and CML-QM structures compared to other cultivation approaches. These findings support carefully considering the mentioned factors to maximize light-use efficiency in growing plants [36,37,38].

It is crucial to acknowledge the limitations and assumptions inherent in conducting simulations as an initial step towards characterizing electrical consumption and proposing cost optimization strategies based on photon capture percentages, contingent upon luminaire distribution and culture bed patterns. Firstly, this simulation was carried out with a specific plant species, which means that its applicability to other species may require consideration of varying crop yields, for example.

The use of a generic concept for luminaires and the reliance on recent electrical lighting costs in Spain, which can fluctuate throughout the year, introduce uncertainties in the proposed cost optimization strategies.

Future research should focus on conducting accurate tests of the simulations carried out to measure the photon capture and its veracity and other relevant aspects for the optimization of cultivation in controlled environments. Comprehensive studies on light characterization should be carried out, considering the influence of different light spectra and spectral distribution on plant growth and development. In addition, the effect of light color on plants’ physiological and metabolic processes and the quality of the final products should be investigated.

On the other hand, it is necessary to carry out economic and life cycle analyses to assess these farming systems’ financial viability and sustainability. This implies considering the costs of implementing and maintaining indoor structures, energy consumption, and environmental impacts. Likewise, developing new structures and technologies that maximize production and reduce energy expenditure should be encouraged, such as efficient lighting systems, water recirculation systems, and automated control systems. Together, these research directions will improve photon capture and move towards more efficient and sustainable cultivation systems in controlled environments.

4. Materials and Methods

Lettuce (Lactuca sativa) has been established as a prominent horticultural species in trials conducted in indoor agriculture [39,40]. Irrespective of the lettuce variety and the cultivation system employed, it is commonly planted at a standardized spacing of 20 cm between individual plants [41,42]. The growth cycle of lettuce typically spans approximately 48 days from the initial germination stage to the final harvest. In hydroponic systems, the dimensions of the lettuce plants can reach an approximate width of 25 cm and height of 24 cm, with slight variations depending on the species under cultivation [43].

4.1. Variables Simulation

The sensitivity analysis was carried out through simulations using Microsoft Excel 2016 spreadsheet based on the application of data, equations, and formulas of yield in dry biomass per photosynthetic photons (Equations (1) and (2)), lighting costs of systems with 100% contribution of artificial light (Equations (3)–(5)), harvest (Equations (6)–(10)) and production (Equations (11)–(13)). The analysis was developed in proposals for indoor structural designs (See Section 4.2) for the annual production of 500 to 7500 thousand kilos of lettuce during the four (4) most representative stages of growth.

4.1.1. Yield in Dry Biomass by Photosynthetic Photons

The simulation begins by applying “The energy cascade model” (Equation (1)) for the potential yield in dry biomass of a crop in a controlled environment, followed by the identification of grams of dry biomass for each mole of photons (Equation (2)) [28,44,45].

E=A×B×C×D (1)

where:

E = Mol of carbon per mol photons;

A = Fraction absorbed photons;

B = Quantum yield;

C = Conversion efficiency on respiration;

D = Harvest index.

F=E×G (2)

where:

F = Grams of dry biomass per mole of photons;

E = Mol of carbon per mol photons;

G = Biomass per mol of carbon.

4.1.2. Electricity Cost

The photonic efficiency of the LED is carried out as follows (Equation (3)):

H=IJ (3)

where:

H = Photon efficiency;

I = Photon output;

J = Input electrical energy.

Then, the cost of electricity for each mole of photons is identified (Equation (4)):

K=LM (4)

where:

K = Cost of electricity per mole of photons;

L = Cost of electricity per kWh;

M = Performance (Equation (5)).

M=(I×3600×10−6)( J×10−3) (5)

4.1.3. Costs, Consumptions, and Mol of Photons per Kilogram

  • Cost per kg harvested (Equation (6)):

N=L×P (6)

where:

N = Cost per kg harvested;

L = Cost of electricity per kWh;

P = Electricity consumption per kg harvested (Equation (7)).

  • Electricity consumption per kg harvested (Equation (7)):

P=Q×(1−R) (7)

where:

P = Electricity consumption per kg harvested;

R = Water content of the species;

Q = Electricity consumption per kg of dry biomass (Equation (8)).

  • Electricity consumption per kg of dry biomass (Equation (8)):

Q=1000F×M (8)

where:

Q = Electricity consumption per kg of dry biomass;

F = Grams of dry biomass per mole of photons;

M = Performance.

  • Cost per kg of dry biomass (Equation (9)):

S=L×Q (9)

where:

S = Cost per kg of dry biomass;

L = Cost of electricity per kWh;

Q = Electricity consumption per kg of dry biomass.

  • Moles of photons per kg harvested (Equation (10)):

T=1000×(1−R)F (10)

where:

T = Moles of photons per kg harvested;

R = Water content of the species;

F = Grams of dry biomass per mole of photons.

4.1.4. Cost of Electrical Energy Consumed for Lighting

The electrical energy consumed for lighting was calculated as follows (Equation (11)):

U=P×V×103 (11)

where:

U = Electrical energy consumed for lighting;

P = Electricity consumption per kg harvested;

V = Annual production.

Then, the total annual cost is identified (Equation (12)):

W=L×U (12)

where:

W = Total annual cost;

L = Cost of electricity per kWh;

U = Electrical energy consumed for lighting.

Finally, the cost per kilogram produced was calculated as follows (Equation (13)):

X=WV×103 (13)

where:

X = Cost per kg produced;

W = Total annual cost;

V = Annual production.

4.2. Structural Designs

The simulations were developed in eight structural designs:

  1. Linear Static Light and Static Culture Bed with Linear Planting (LSL-LPS);

  2. Linear Static Light and Static Culture Bed with Quincunx Planting (LSL-QS);

  3. Circular Moving Light and Static Culture Bed with Linear Planting (CML-LPS);

  4. Circular Moving Light and Static Culture Bed with Quincunx Planting (CML-QS);

  5. Circular Moving Light and Mobile culture bed with linear planting (CML-LPM);

  6. Circular Moving Light and Mobile culture bed with quincunx planting (CML-QM);

  7. Linear Moving Light and Mobile Culture Bed with Linear Planting (LML-LPM);

  8. Linear Moving Light and Mobile culture bed with quincunx planting (LML-QM).

4.2.1. Illumination

For this research, information from commercial luminaires was gathered to serve as a reference for the necessary characteristics in developing equations related to these luminaire features. These characteristics include a typical photon flux of 168 µmol/s and an input electrical energy ranging from 51 to 70 watts. These values pertain to general indoor agriculture luminaires and were essential for conducting simulations (Figure 9):

  • One focused on linear static luminaires where during the productive cycles, will not have movement or the option of gradual ignition.

  • Two luminaires with mobile structures or with progressive lighting from the inside to the outside (circular light) or from one end to the other (linear light) to increase the beam of light as the plant grows in width.

Figure 9.

Figure 9

Open in a new tab

Structural lighting design.

4.2.2. Culture Bed and Planting Systems

Two static and mobile cultivation beds were considered for two planting systems: linear and quincunx. As a structural principle, the mobile bed will have a frontal displacement as an accordion (Figure 10). The dimensions of the growing beds are 10 cm wide, 80 cm long, and 20 cm growing distance with a distance of 50 cm from the lights.

Figure 10.

Figure 10

Open in a new tab

Structural design of cultivation base and planting system.

5. Conclusions

This study analyzed various indoor system designs to identify the most efficient system for capturing photosynthetic photons during indoor lettuce crop growth. The simulation results revealed that structures with circular moving lights and mobile culture beds achieved the highest photon capture percentages, ranging from 60% to 85%. These systems showed the potential for reducing annual electricity consumption and lowering the cost per kilogram of lettuce compared to static lighting systems.

Static designs captured a lower percentage of photosynthetic photons. In contrast, mobile designs (bed and light) demonstrated even better results, capturing 80% to 85% of the photons and achieving significant cost savings, lighting efficiency, and profitability in lettuce production.

Efforts are underway to reduce costs and improve energy efficiency in indoor lettuce production systems. Automation, controlled lighting angles, and optimized space utilization are some strategies to minimize light waste and electricity costs. In addition, developing modular and mobile growing systems, such as accordion-shaped beds, presents new opportunities to improve efficiency and productivity.

Future research should focus on performing empirical tests to validate the simulations and explore other variables on plant growth and quality, considering implementation and maintenance costs, energy consumption, and environmental impacts. In addition, continued innovation in lighting systems, mobile beds, and automated control will contribute to more efficient and sustainable indoor growing practices.

Acknowledgments

The main author of this article thanks her tutors who motivate the writing of this article. The authors would like to acknowledge Miguel Angel Cifuentes for his valuable contributions and idea support in this article. Luisa F. Lozano-Castellanos has been financed under the call predoctoral recruitment of research staff, co-financed by the Ministry of Education (Junta de Castilla y León (Spain) and the European Social Fund.

Author Contributions

Conceptualization, L.F.L.-C. and L.M.N.-G.; methodology, L.F.L.-C., L.M.N.-G. and A.C.-G.; software, L.F.L.-C.; formal analysis, L.F.L.-C., L.M.N.-G. and A.C.-G.; investigation, L.F.L.-C.; resources, L.M.N.-G.; data curation, L.F.L.-C.; writing—original draft preparation, L.F.L.-C.; writing—review and editing, L.F.L.-C., L.M.N.-G. and A.C.-G.; visualization, L.F.L.-C.; supervision, L.M.N.-G. and A.C.-G.; project administration, L.F.L.-C., L.M.N.-G. and A.C.-G. All authors have read and agreed to the published version of the manuscript.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Funding Statement

This research was funded by the European Union supporting this work through the FUSILLI project (H2020-FNR-2020-1/CE-FNR-07-2020) and the CIRAWA project (HORIZON-CL6-2022-FARM2FORK-01).

Footnotes

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

References

  • 1.Hayashi E., Higgins C. Global LED lighting players, economic analysis, and market creation for PFALs. In: Kozai T., Fujiwara K., Runkle E.S., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. pp. 317–345. Chapter 24. [DOI] [Google Scholar]
  • 2.Ting K.C., Lin T., Davidson P.C. Integrated urban controlled environment agriculture systems. In: Kozai T., Fujiwara K., Runkle E.S., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. pp. 21–37. Chapter 2. [DOI] [Google Scholar]
  • 3.Ibaraki Y. Lighting efficiency in plant production under artificial lighting and plant growth modeling for evaluating the lighting efficiency. In: Kozai T., Fujiwara K., Runkle E.S., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. pp. 151–161. Chapter 11. [DOI] [Google Scholar]
  • 4.Bugbee B. Economics of LED lighting. In: Gupta S.D., editor. Light Emitting Diodes for Agriculture. Springer; Singapore: 2017. pp. 81–99. Chapter 5. [DOI] [Google Scholar]
  • 5.Kozai T., Zhang G. Some aspects of the light environment. In: Kozai T., Fujiwara K., Runkle E.S., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. pp. 49–55. Chapter 4. [DOI] [Google Scholar]
  • 6.Akiyama T., Kozai T. Light environment in the cultivation space of plant factory with LEDs. In: Kozai T., Fujiwara K., Runkle E.S., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. pp. 91–109. Chapter 7. [DOI] [Google Scholar]
  • 7.Jayalath T.C., van Iersel M.W. Canopy Size and Light Use Efficiency Explain Growth Differences between Lettuce and Mizuna in Vertical Farms. Plants. 2021;10:704. doi: 10.3390/plants10040704. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Gupta S.D., Agarwal A. Artificial lighting system for plant growth and development: Chronological advancement, working principles, and comparative assessment. In: Gupta S.D., editor. Light Emitting Diodes for Agriculture. Springer; Singapore: 2017. pp. 1–24. Chapter 1. [DOI] [Google Scholar]
  • 9.Ibaraki Y. LED supplementary lighting. In: Gupta S.D., editor. Light Emitting Diodes for Agriculture. Springer; Singapore: 2017. pp. 27–35. Chapter 2. [DOI] [Google Scholar]
  • 10.Kozai T., Niu G., Takagaki M., editors. Plant Factory: An Indoor Vertical Farming System for Efficient Quality Food Production. 2nd ed. Academic Press; Cambridge, MA, USA: 2020. pp. 419–475. Charlotte Cockle. [Google Scholar]
  • 11.Siregar R.R.A., Seminar K.B., Wahjuni S., Santosa E. Vertical Farming Perspectives in Support of Precision Agriculture Using Artificial Intelligence: A Review. Computers. 2022;11:135. doi: 10.3390/computers11090135. [DOI] [Google Scholar]
  • 12.Saad M.H.M., Hamdan N.M., Sarker M.R. State of the Art of Urban Smart Vertical Farming Automation System: Advanced Topologies, Issues and Recommendations. Electronics. 2021;10:1422. doi: 10.3390/electronics10121422. [DOI] [Google Scholar]
  • 13.Watawana B., Isaksson M. Design and Simulations of a Self-Assembling Autonomous Vertical Farm for Urban Farming. Agriculture. 2023;13:112. doi: 10.3390/agriculture13010112. [DOI] [Google Scholar]
  • 14.Gu S., Ji H., Yang Y., Chu Q., Yang Y., Liu H., Jiang X. Analysis on Transporting Methods of Cultivation Unit for Vertical Cultivation in Plant Factory. Agriculture. 2021;11:989. doi: 10.3390/agriculture11100989. [DOI] [Google Scholar]
  • 15.Delorme M., Santini A. Energy-efficient automated vertical farms. Omega. 2022;109:102611. doi: 10.1016/j.omega.2022.102611. [DOI] [Google Scholar]
  • 16.Craver J.K., Lopez R.G. Control of Morphology by Manipulating Light Quality and Daily Light Integral Using LEDs. In: Kozai T., Fujiwara K., Runkle E., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. [DOI] [Google Scholar]
  • 17.Runkle E.S. Recent Developments in Plant Lighting. In: Kozai T., Fujiwara K., Runkle E., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. [DOI] [Google Scholar]
  • 18.Fujiwara K. Basics of LEDs for Plant Cultivation. In: Kozai T., Fujiwara K., Runkle E., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. [DOI] [Google Scholar]
  • 19.Kozai T., Niu G. Plant factory as a resource-efficient closed plant production system. In: Kozai T., Niu G., Takagaki M., editors. Plant Factory: An Indoor Vertical Farming System for Efficient Quality Food Production. Charlotte Cockle; Academic Press; Cambridge, MA, USA: 2020. pp. 93–112. Chapter 5. [Google Scholar]
  • 20.Shatilov M., Razin A., Ivanova M. Analysis of the world lettuce market. IOP Conf. Ser. Earth Environ. Sci. 2019;395:012053. doi: 10.1088/1755-1315/395/1/012053. [DOI] [Google Scholar]
  • 21.FAOSTAT Crops and Livestock Products, Lettuce and Chicory. [(accessed on 8 May 2023)]. Available online: https://www.fao.org/faostat/en/#data/QCL/visualize.
  • 22.Ministerio de Agricultura, Pesca y Alimentación. Subdirección General de Análisis, Coordinación y Estadística Precios Coyunturales, Informe Semanal de Coyuntura, Semana 13. 2023. [(accessed on 8 May 2023)]. Available online: https://www.mapa.gob.es/es/estadistica/temas/publicaciones/informesemanaldecoyuntura2023s-13_tcm30-649653.pdf.
  • 23.Barbosa G.L., Gadelha F.D.A., Kublik N., Proctor A., Reichelm L., Weissinger E., Wohlleb G.M., Halden R.U. Comparison of Land, Water, and Energy Requirements of Lettuce Grown Using Hydroponic vs.Conventional Agricultural Methods. Int. J. Environ. Res. Public Health. 2015;12:6879–6891. doi: 10.3390/ijerph120606879. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Cichocki J., von Cossel M., Winkler B. Techno-Economic Assessment of an Office-Based Indoor Farming Unit. Agronomy. 2022;12:3182. doi: 10.3390/agronomy12123182. [DOI] [Google Scholar]
  • 25.Seong J., Valle de Souza S., Peterson H.C. Seeds of Industry Sustainability: Consumer Attitudes towards Indoor Agriculture Benefits versus Its Advanced Technology. Sustainability. 2023;15:2369. doi: 10.3390/su15032369. [DOI] [Google Scholar]
  • 26.Chavan S.G., Chen Z.-H., Ghannoum O., Cazzonelli C.I., Tissue D.T. Current Technologies and Target Crops: A Review on Australian Protected Cropping. Crops. 2022;2:172–185. doi: 10.3390/crops2020013. [DOI] [Google Scholar]
  • 27.Morella P., Lambán M.P., Royo J., Sánchez J.C. Vertical Farming Monitoring: How Does It Work and How Much Does It Cost? Sensors. 2023;23:3502. doi: 10.3390/s23073502. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Bugbee B. Turning Photons into Food. Calculating Potential Yield in Optimal Environments. Utah State University, Utah, United States of America. Oct 20, 2019. [(accessed on 15 June 2023)]. Available online: https://www.youtube.com/watch?v=wsaufB5F8dk&t=146s.
  • 29.Ibaraki Y. Evaluation of Spatial Light Environment and Plant Canopy Structure. In: Kozai T., Fujiwara K., Runkle E., editors. LED Lighting for Urban Agriculture. Springer; Singapore: 2016. [DOI] [Google Scholar]
  • 30.Nelson J.A., Bugbee B. Economic analysis of greenhouse lighting: Light emitting diodes vs. high intensity discharge fixtures. PLoS ONE. 2014;9:e99010. doi: 10.1371/journal.pone.0099010. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Seginer I., Ioslovich I. Optimal spacing and cultivation intensity for an industrialized crop production system. Agric. Syst. 1999;62:143–157. doi: 10.1016/S0308-521X(99)00057-8. [DOI] [Google Scholar]
  • 32.Balasus J., Blank J., Babilon S., Hegemann T., Khanh T.Q. Energy Efficient Lighting in Plant Factories: Addressing Utilance. Agronomy. 2021;11:2570. doi: 10.3390/agronomy11122570. [DOI] [Google Scholar]
  • 33.Dufresne S.A., Van Geest I. Multilevel Mobile Gutter System for Growing Indoor Vegetation. 10390504B2. U.S. Patent. 2019 October 27;
  • 34.Dufresne S.A. Automated Mobile Terrace Growing System. 11343985B2. U.S. Patent. 2022 May 31;
  • 35.Cuello J.L., Mehdipour Y., Welchert J. Mobile and Modular Cultivation Systems for Vertical Farming. WO2020041762A1. U.S. Patent. 2020 February 27;
  • 36.Kim J., Kang W.H., Son J.E. Interpretation and Evaluation of Electrical Lighting in Plant Factories with Ray-Tracing Simulation and 3D Plant Modeling. Agronomy. 2020;10:1545. doi: 10.3390/agronomy10101545. [DOI] [Google Scholar]
  • 37.Saito K., Ishigami Y., Goto E. Evaluation of the Light Environment of a Plant Factory with Artificial Light by Using an Optical Simulation. Agronomy. 2020;10:1663. doi: 10.3390/agronomy10111663. [DOI] [Google Scholar]
  • 38.Balázs L., Dombi Z., Csambalik L., Sipos L. Characterizing the Spatial Uniformity of Light Intensity and Spectrum for Indoor Crop Production. Horticulturae. 2022;8:644. doi: 10.3390/horticulturae8070644. [DOI] [Google Scholar]
  • 39.Nájera C., Gallegos-Cedillo V.M., Ros M., Pascual J.A. Role of Spectrum-Light on Productivity, and Plant Quality over Vertical Farming Systems: Bibliometric Analysis. Horticulturae. 2023;9:63. doi: 10.3390/horticulturae9010063. [DOI] [Google Scholar]
  • 40.Nájera C., Gallegos-Cedillo V.M., Ros M., Pascual J.A. LED Lighting in Vertical Farming Systems Enhances Bioactive Compounds and Productivity of Vegetables Crops. Biol. Life Sci. Forum. 2022;16:24. doi: 10.3390/IECHo2022-12514. [DOI] [Google Scholar]
  • 41.Li Q., Li X., Tang B., Gu M. Growth Responses and Root Characteristics of Lettuce Grown in Aeroponics, Hydroponics, and Substrate Culture. Horticulturae. 2018;4:35. doi: 10.3390/horticulturae4040035. [DOI] [Google Scholar]
  • 42.Khater E. Comparison between hydroponic and aeroponic systems for lettuce production; Proceedings of the 20th Annual Conference of Misr Society of Agricultural Engineering; Cairo, Egypt. 12 December 2015. [Google Scholar]
  • 43.Ali Hamuda G.M. Master’s Thesis. Science in Horticultural, United Arab Emirates University; Abu Dhabi, United Arab Emirates: 2018. [(accessed on 6 June 2023)]. Growth and Development of Lettuce (Lactuca sativa L.) in A Hydroponic System with Different Lighting Sources. Available online: https://scholarworks.uaeu.ac.ae/aridland_theses/1. [Google Scholar]
  • 44.Volk T., Bugbee B., Wheeler R. An approach to crop modeling with the energy cascade. Life Support Biosph. Sci. Int. J. Earth Space. 1995;1:119–127. [PubMed] [Google Scholar]
  • 45.Bugbee B.G., Salisbury F.B. Exploring the limits of crop productivity. I. Photosynthetic efficiency of wheat in high irradiance environments. Plant Physiol. 1988;88:869–878. doi: 10.1104/pp.88.3.869. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

Not applicable.

Articles from Plants are provided here courtesy of Multidisciplinary Digital Publishing Institute (MDPI)

RESOURCES
