Discovery of novel reversible inhibitor of DprE1 based on benzomorpholine for the treatment of tuberculosis

ABSTRACT

About a quarter of the world’s population is infected with Mycobacterium tuberculosis, equivalent to about two billion people. With the emergence of multidrug-resistant tuberculosis, those existing anti-tuberculosis drugs no longer meet the demand for cure anymore; there is an urgent need for the development of new anti-tuberculosis drugs. Decaprenylphosphoryl-β-D-ribose 2´-epimerase (DprE1) has been proven to be a potential antimycobacterial target, and several inhibitors have entered clinical trial. Herein, we designed and synthesized a series of compounds based on the indole and benzomorpholine by using the strategy of scaffold hopping. The preferred compound B18 showed strong antimycobacterial activity in H37Rv and drug-resistant clinical isolates. In addition, compound B18 did not exhibit antimycobacterial efficacy against other species of strains. Subsequently, the target of B18 was identified as DprE1 by analyzing spontaneous compound-resistant mutation data, and a docking study was performed to illustrate the binding mode between B18 and DprE1. In general, compound B18 is compatible to current DprE1 inhibitors, even higher phosphodiesterase 6C selectivity and plasma protein binding rate, which represent a new type of effective reversible DprE1 inhibitor.

IMPORTANCE

Drug therapy remains the cornerstone of tuberculosis (TB) treatment, yet first-line anti-tuberculosis drugs are associated with significant adverse effects that can compromise patient outcomes. Moreover, prolonged and widespread use has led to an alarming rise in drug-resistant strains of Mycobacterium tuberculosis, including multidrug-resistant [MDR-tuberculosis (TB)] and extensively drug-resistant (XDR-TB) forms. Urgent action is needed to develop novel anti-tuberculosis agents capable of overcoming these challenges. We report that compound B18, a decaprenylphosphoryl-β-D-ribose 2´-epimerase inhibitor with a benzomorpholine backbone, exhibits potent activity against not only the non-pathogenic strain H37Ra, but also the pathogenic strain H37Rv and clinical MDR and XDR strains. Preliminary druggability studies indicate that B18 possesses high safety and acceptable pharmacokinetic properties, rendering it a promising candidate for further development as a novel anti-tuberculosis agent.

INTRODUCTION

Tuberculosis (TB), a chronic disease caused by Mycobacterium tuberculosis (Mtb) infection, is one of the top 10 causes of death worldwide and the leading cause of death from a single infectious agent (1). While the global incidence rate of TB was reduced by 11% from 2015 to 2020 as a result of the worldwide TB prevention and control efforts (1). However, this number falls significantly behind the 2020 milestone of a 20% reduction in the TB incidence rate set by the World Health Organization (2).

The approved first-line drugs that form the core of current standard TB treatment regimens for drug-susceptible TB, including rifampicin and isoniazid—the two most effective first-line drugs, were all developed in the 1950s and 1960s. The prolonged and widespread use of these drugs over the last 30 years led to a rapid growth of drug-resistant TB worldwide (3). A global total of 206,030 people with multidrug- or rifampicin-resistant TB (MDR/RR-TB) were detected and notified in 2019, a 10% increase from 186,883 in 2018 (2). The main reason leading to the rise of drug-resistant TB has been attributed to the practical or logistical difficulties that hinder patient adherence to medication regimens (4). Due to the low efficacy and high toxicity of all currently available anti-TB agents, treatment regimens are always lengthy and complicated, and cause a significant health resource burden, especially with treatment for drug-resistant TB (3). The premature treatment discontinuation among a fraction of patients is almost inevitable. It is urgently needed to develop new classes of anti-TB drugs with novel targets that are safer, superior in terms of efficacy, and less prone to resistance.

Decaprenylphosphoryl-β-D-ribose 2´-epimerase (DprE1), an essential enzyme for the biosynthesis of the cell wall of mycobacteria, has been proven to be a potential anti-TB drug target in recent years (5, 6). Several DprE1 inhibitors are currently under evaluation in clinical trials (6 – 9). However, the slow clinical progress of covalent inhibitors BTZ-043 and PBTZ-169 may be attributed to potential safety risks and unsatisfactory pharmacokinetic properties (10). The synthetic challenge posed by reversible inhibitor OPC-167832 may result in a high drug price (9). TBA-7371 (8) is a reversible inhibitor of DprE1 currently in a phase II trial, which shows a high antimycobacterial effect in vitro, but its off-target activity against phosphodiesterase 6 (PDE6) presents potential safety issues. There are ongoing efforts seeking better TBA-7371 analogs. Several design examples based on TBA-7371 demonstrated either maintained or improved antibacterial activity (Fig. S1), which provided us with the confidence to further explore potential anti-TB drugs (11 – 13).

In the present study, we have designed and synthesized a series of compounds derived from TBA-7371, in which the azaindole core of TBA-7371 has been replaced by a benzomorpholine core utilizing a scaffold hopping strategy. We evaluated the in vitro potency of the new series in susceptibility testing against both drug-susceptible Mtb strains and drug-resistant Mtb clinical isolates, and identified compound B18 as the most active compound in the series that demonstrated a promising novel class of reversible DprE1 inhibitor with potent antimycobacterial activity.

RESULTS AND DISCUSSION

Rational design of DprE1 inhibitor

The docking study of TBA-7371 with DprE1 suggested that the replacement of the core may be tolerated because 4-azaindole binds to a larger substrate binding cavity (Fig. 1A). As a common skeleton in medicinal chemistry, indole has the advantages of high biological activity and low chemical synthesis difficulty, so it was introduced in our investigation. Furthermore, indole is an aromatic ring with higher electronic density than 4-azaindole, which may be helpful to maintain π-π stacking interaction between 4-azaindole and flavin adenine dinucleotide (FAD) or DprE1. In addition, we previously reported the discovery of some potent Enhancer of Zeste Homolog 2 (EZH2) inhibitors based on a benzomorpholine core that exhibited favorable physicochemical properties and relatively good metabolic stability (14). In the present study, we attempted to derive a new class of DprE1 inhibitors from TBA-7371 using a scaffold hopping approach that replaces the central azaindole core of TBA-7371 with a benzomorpholine ring structure. The pyrrole ring of TBA-7371 is closer to the solvent region, and the replaced morpholine ring has a higher hydrophilic character and may be a suitable choice. Considering the difficulty of synthesis, we placed the attachment site of the amide side chain on the benzene ring of indole and benzomorpholine, and a similar transposition was successful in the design of DprE1 inhibitors based on benzimidazole. These designs were aimed at introducing some desirable changes in the physicochemical profile of the compound with novel core that in turn could potentially improve their biological activities.

Fig 1.

(A) Predicted binding model of TBA-7371 in complex with DprE1. TBA-7371 is depicted by gray solid line, FAD is depicted by purple solid line, residues of DprE1 are depicted by green solid line, hydrogen bonds are depicted by green dashed lines, alkyl-pi interactions are depicted by purple dashed lines. (B) Design strategy of target compounds.

Synthesis of compounds

The synthesis of final compounds A1–10 was shown in Fig. 2. The commercially available A11 was hydrolyzed to obtain the intermediate A12, and then A1–5 was obtained by amide condensation and nucleophilic substitution reaction. Subsequently, the palladium-catalyzed coupling reaction of A1–5 afforded A6–10, respectively.

Fig 2.

Synthesis of compounds A1–10. Reaction conditions: (a) NaOH, MeOH, H₂O, 40°C, 4 h; (b) N-(3-Dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDCI), N-Hydroxy-7-azobenzotriazole (HOAt), 4-Methylmorpholine (NMM), Dimethyl sulfoxide (DMSO), room temperature (rt), overnight; (c) ArCH₂Br, K₂CO₃, N,N-Dimethylformamide (DMF), rt, 4 h; (d) CH₃BF₃K, Pd(dppf)Cl₂, K₂CO₃, 1,4-dioxane, H₂O, 105°C, N₂, 5 h.

The synthesis of final compounds B2, B11, and B18 was outlined in Fig. 3. Nucleophilic Aromatic Substitution reaction (SNAr) displacement reaction of commercially available B35 with 1,2-dibromoethane afforded crucial intermediate B36. Undergoing a palladium-catalyzed coupling reaction, B36 was transformed to B39 and B42, which subsequently undergoes displacement, deprotection and an amide condensation reaction to afford final compounds B2, B11, and B18 with an excellent overall yield.

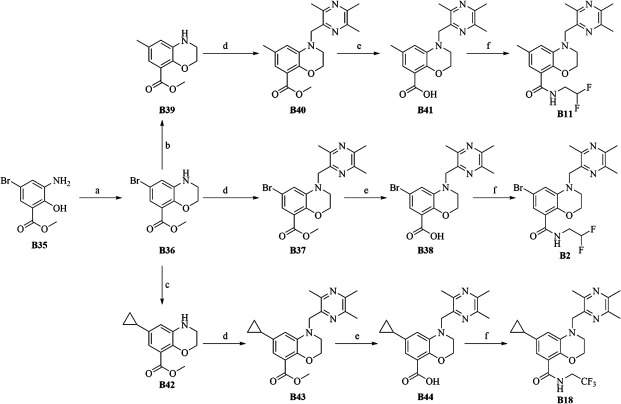

Fig 3.

Synthesis of compounds B2, B11, and B18. Reaction conditions: (a) 1,2-dibromoethane, K₂CO₃, DMF, 80°C, 8 h, 95.6%; (b) CH₃BF₃K, Pd(dppf)₂Cl₂, K₂CO₃, 1,4-dioxane, H₂O, N₂, 110°C, 1 day，57%; (c) cyclopropylboronic acid, Pd(OAc)₂, (C₆H₁₁)₃P, K₃PO₄, PhMe, H₂O, 100°C, overnight, 64%; (d) 2-(bromomethyl)-3,5,6-trimethylpyrazine, Na₂CO₃, DMF, 80°C, 3 h, 62%; (e) NaOH, MeOH:H₂O:THF = 1:1:1, 1 h, 70°C; (f) 2,2-difluoroethylamine hydrochloride or 2,2,2-trifluoroethylamine hydrochloride, 2-(7-Azabenzotriazol-1-yl)-N,N,N',N'-tetramethyluronium hexafluorophosphate (HATU), N,N-Diisopropylethylamine (DIPEA), DMF, dichloromethane (DCM), rt, 2 h，60%–90%.

The synthesis of compound B33 was outlined in Fig. 4. Compound B45 was obtained by a Suzuki coupling reaction between compound B37 and phenylboronic acid, and followed by a two-step reaction of hydrolysis and amide condensation to afford the compound B33.

Fig 4.

5Synthesis of compound B33. Reaction conditions: (a) Phenylboronic acid, Pd(dppf)₂Cl₂, Na₂CO₃, 1,4-dioxane, H₂O, N₂, 100°C, 6 h, 68%; (b) NaOH, MeOH:H₂O:THF = 1:1:1, 1 h, 70°C; (c) 2,2,2-trifluoroethylamine hydrochloride, HATU, DIPEA, DMF, rt, 2 h, 83%.

Structure−activity relationship

We first kept R₁ as the bromine atom while investigating the effects of different substituents at R₂ and R₃ (Fig. 5) on antimycobacterial activity by in vitro susceptibility testing against non-pathogenic drug-susceptible Mtb strain H37Ra. The selected substituents are either previously used in the design of TBA-7371 or are commercially available. In the indole series, most of the compounds were inactive except A4, which had introduced the same group as TBA-7371 at the R₂ position and has a minimum inhibitory concentration (MIC) of 0.5 µg/mL. In benzomorpholine series, compounds B6–10, which were introduced either a 2,3-difluoro-6-methoxyphenyl or a 3,4-difluoro-2-methoxyphenyl at the R₂ position, were essentially devoid of activity. Compounds B3–5 with a 2-methoxy-5-(trifluoromethyl)pyridine group introduced at the R₂ position exhibited moderate activity (at the µg/mL level) at least about one order of magnitude lower than TBA-7371. However, the introduction of trimethylpyrazine at the R₂ position (Compounds 1–2, Fig. 5) could significantly improve the antimycobacterial activity against H37Ra. B2, which was also introduced a 2,2-difluoroethyl group at the R₃ position, showed a potent antimycobacterial activity (MIC = 0.39 µg/mL) approximating the level of TBA-7371. Compounds B3–5 with a 2-methoxy-5-(trifluoromethyl)pyridine group introduced at the R₂ position exhibited antimycobacterial activity at the microgram level, but still had an order of magnitude difference with TBA-7371.

Fig 5.

The antimycobacterial activity of compounds A1–5 and B1–10 against H37Ra.

Encouraged by its promising activity, A4 and B2 were chosen to serve as the bases for further synthetic optimization that explored the effects of other R₁ substituents. We first attempted the replacement of the bromine atom with a methyl group, a preference of TBA-7371 at the R₁ position. In the indole series, we methylated A1–5 to afford A6–10, respectively. Except for A9, which had a twofold increase in antimycobacterial potency, the other compounds had no activity, which was consistent with the previous results. In benzomorpholine series, this substitution (B11 vs B2) also resulted in a twofold increase in antimycobacterial potency. B11 was further optimized by probing the effect of different substitutions at the R₃ position. Replacing the 2,2-difluoroethyl group with a 2,2,2-trifluoroethyl or an ethanol group to form B12 and B13 (Fig. 6), however, almost abolished activity completely (MIC ≥100 µg/mL). While the cyclic alkane substitutions (B14–16, Fig. 6) did not improve the antimycobacterial potency as compared to B2, they demonstrated that bulkier substituents at the R₃ position are more optimal.

Fig 6.

The antimycobacterial activity of compounds A6–10 and B11–16 against H37Ra.

We, furthermore, explored the introduction of a cyclopropyl moiety at position R₁ in B11–13, which resulted in B17–19. In contrast to B17 and B19 that were found to have no improvement on the MIC against H37Ra, compound B18 showed a very potent antimycobacterial activity against H37Ra and it has an MIC value equivalent to that of TBA-7371. Notably, compound B18 may be bactericidal (MBC/MIC <4, Figure S2) (15). All attempts to further optimize B18, including the introduction of electron-rich aromatic groups at the R₂ position (B20-25, Fig. 7) and modulation of linker length, methylation of -NH, or introduction of hydroxyl at the R₃ position (B26-34, Fig. 7), have been unable to achieve any further improvement in antimycobacterial activity.

Fig 7.

The antimycobacterial activity of compounds B17–34 against H37Ra.

Antibacterial activity study in vitro

Currently, first-line anti-TB drugs have lengthy treatment cycles and poor patient adherence in the management of drug-sensitive TB. Meanwhile, second-line anti-TB drugs exhibit high toxicity and serious drug resistance when treating MDR/extensively drug-resistant (XDR)-TB patients, with a lack of strict evidence regarding their efficacy (16). Therefore, the effectiveness of new anti-TB drugs against these resistant strains is a crucial determinant for their developmental value. As the most active compounds among the whole new series of TBA-7371 derivatives, the antimycobacterial activity of B18 was further investigated in a susceptibility testing performed on the drug-susceptible pathogenic Mtb strain H37Rv as well as drug-resistant clinical isolates that included MDR strains Y48 and Y17, and XDR strain Y198 (Table 1; Table S1). In addition, B11 and A9 were discarded due to failure in the simultaneous cultivation experiment of H37Ra resistant strains. Although B18 has equivalent MIC to TBA-7371 against H37Ra, their activities are very different against this expanded testing panel. As shown in Table 1, B18 was similar to TBA7371, and it showed strong potency against all the strains that we tested.

TABLE 1.

MIC values of selected compounds against H37Rv and clinical isolates

	Strain		B18	TBA-7371	Fold increase
MIC (µg/mL)	H37Rv	3 days	0.625	2.5	4
		7 days	0.625	0.625	1
	Y48 (MDR)		0.6	0.6	1
	Y17 (MDR)		0.6	0.6	1
	Y198 (XDR)		5	1.25	0.25

Antibacterial selectivity study

We also assessed the susceptibility of a panel of 10 representative strains of common Gram-positive and Gram-negative pathogenic bacteria toward compound B18 (Table 2). Neither of compounds B18 and TBA-7371 showed growth inhibitory activity on any of these strains in a treatment time of 24 h, which suggested that like TBA-7371, B18 is basically specific antimycobacterial.

TABLE 2.

The MIC of selected compounds against other strains

Species	Strain	24 h (µg/mL)
		B18	TBA-7371
Staphylococcus aureus	ATCC29213	>64	>64
S. aureus	ATCC33591	>64	>64
S. epidermidis	ATCC12228	>64	>64
Enterococcus faecalis	ATCC29212	>64	>64
E. faecium	ATCC19434	>64	>64
Streptococcus pneumoniae	ATCC49619	>64	>64
Escherichia coli	ATCC25922	64	>64
E. coli	ATCC35218	>64	>64
Klebsiella pneumoniae	ATCC700603	64	>64
Pseudomonas aeruginosa	ATCC27853	64	>64

Antibacterial mechanism study

The whole-genome sequencing (WGS) of spontaneous Mtb H37Ra resistant mutants, upon exposure to either B18 or TBA-7371, was performed in order to establish cellular compound-target (DprE1 protein) engagement by the existence of DprE1 gene mutation(s) (Table 3). Spontaneous resistant mutants were isolated by growing Mtb H37Ra in the media containing 5×, 10×, 20× MIC of corresponding compounds. In total, 11 compound B18-resistant and 6 TBA-7371-resistant mutants were isolated and sequenced. All the mutants were found to possess the same point mutation at codon 314 of MRa3830 (corresponding to Rv3790 in H37Rv) that encodes the enzyme DprE1, which results in Tyr→His substitution in DprE1 that has been described previously in the resistant mutants to other DprE1 inhibitors (Table 3). These data indicated that DprE1 is a target of both B18 and TBA-7371 and DprE1 modification confers the resistance to them.

TABLE 3.

Sequencing of spontaneous resistant mutants identifies SNPs ^a in DprE1

Compound	Mutant	Genome position of SNP	Base change	Amino-acid substitution
B18	11 resistant mutants	4236718	940 TAC→CAC	Tyr→His
TBA-7371	6 resistant mutants	4236718	940 TAC→CAC	Tyr→His

^a SNPs: single nucleotide polymorphisms.

To understand the binding mode between B18 and DprE1, we conducted docking analysis (Fig. 8). The best binding pose showed that B18 can bind to the receptor cavity of DprE1. Specifically, the cyclopropyl group of B18 extends into a small pocket formed by Y67, Q341, and K425, which may be difficult to accommodate a larger group. Meanwhile, cyclopropyl also forms several important alkyl-pi interactions with FAD, which proves that the introduction of cyclopropyl is appropriate.

Fig 8.

Predicted binding model of B18 in complex with DprE1 (4F4Q). B18 is depicted by gray solid line, FAD is depicted by purple solid line, residues of DprE1 are depicted by green solid line, alkyl-pi interactions are depicted by purple dashed lines.

Preliminary druggability study

The off-target effect of TBA-7371 on human PDE6C has been reported previously, and this potentially toxicological effect has been considered as a safety risk (6). Our fluorescence polarization assays showed the target selectivity of B18 is significantly better than that of TBA-7371, and its IC₅₀ value of PDE6C is 81 µM (Table 4). The solubility of B18 is slightly lower than that of TBA-7371; however, B18 has a higher plasma protein binding rate (Table 4). Moreover, cell viability assays demonstrated that neither B18 nor TBA-7371 exhibited discernible cytotoxicity in A549 and VERO cell lines.

TABLE 4.

Preliminary druggability study of compound B18

Compound	B18	TBA-7371
cLogP	3.8	1.21
PDE6C IC50/µM·L−1	81	5
A549 IC50/µM·L−1	>40	>40
VERO IC50/µM·L−1	>40	>40
Water solubility/µg·mL−1	21	54
Rat plasma protein binding rate	95.8%	33.3%

Conclusion

Development of more effective new anti-TB regimen relies on the discovery of new classes of anti-TB agents, especially those that would target novel therapeutic targets in Mtb. Over the last decade, DprE1 has emerged as a promising novel antimycobacterial target, and currently, several clinical trials with DprE1 inhibitors are underway. Here, we reported the design, synthesis, and structure-activity relationship (SAR) study of a series of indole- and benzomorpholine-based novel compounds derived from TBA-7371. Scaffold hopping from the azaindole core of TBA-7371 to the benzomorpholine ring and complementing with systematic side chain optimizations led to the discovery of several lead compounds that possess potent in vitro antimycobacterial activity comparable or equivalent to that of TBA-7371 but have completely new structures. Particularly, the representative compound B18, which was identified after extensive structure optimization, showed strong activity not only against non-pathogenic strain H37Ra (MIC = 0.18 µg/mL) but also against pathogenic H37Rv and the clinical MDR and XDR isolates. B18 is specifically antimycobacterial, as it showed no activity against other common pathogenic bacteria other than Mtb, both Gram-positive and Gram-negative species. Our whole-genome sequencing revealed that B18 resistant mutants and TBA-7371 resistant mutants bear the same point mutation. In addition, the docking study showed that B18 can bind to the receptor cavity of DprE1. It thus proved that B18 exerted strong antimycobacterial efficacy by targeting DprE1 in the same way as TBA-7371, demonstrating better target selectivity. Furthermore, B18 exhibits significantly reduced off-target activity on PDE6C when compared to TBA-7371. Our study suggests that B18 exhibits benzomorpholine-based selectivity, moderate water solubility, and an ultra-high plasma protein binding rate. Together with the promising drug-like profile of B18, these data provide significant confidence for the discovery of a class of DprE1 inhibitors with a completely new structure.

Chemistry

Unless otherwise noted, all materials were obtained from commercial suppliers and used without further purification. Positive compound TBA-7371 (catalog number: HY-19750) was purchased from Selleck. The ¹H and ¹³C NMR spectra were recorded on a Bruker Avance 400 spectrometer at 25°C using DMSO-d₆ or CDCl₃ as the solvent. Chemical shifts (δ) are reported in parts per million (ppm) relative to Me4Si (internal standard), coupling constants (J) are reported in hertz, and peak multiplicity is reported as s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet), or br s (broad singlet). High-resolution mass analysis was performed on a Waters Q-TOF Premier mass spectrometer with electron spray ionization (ESI). Thin layer chromatography (TLC) was performed on 0.20 mm silica gel F-254 plates (Qingdao Haiyang Chemical, China). Visualization of TLC was accomplished with UV light and/or aqueous potassium permanganate or I2 in a silica gel. Column chromatography was performed using silica gel 60 of 300–400 mesh (Qingdao Haiyang Chemical, China).

The minimum inhibitory concentration determination and resistant mutant generation

M. tuberculosis H37Ra was grown at 37°C in Middlebrook 7H9 liquid medium (Difco) supplemented with 0.5% albumin, 0.2% glucose, 0.085% NaCl, 0.2% glycerol, and 0.05% Tween 80 (7H9-ADN-Tw) (17). The MIC of compounds in current research was determined by microplate Alamar blue assay. Briefly, each compound was placed in a 96-well clear bottom plate with twofold dilutions; the culture of M. tuberculosis H37Ra was aliquoted into the 96-well plates. The inhibitory concentrations of compounds were determined as previously described, based on color change following overnight incubation after addition of Alamar blue, with pink indicating growth and blue indicating absence of growth (18). The MIC was defined as the concentration of compound that caused 90% inhibition of bacterial growth. Spontaneous M. tuberculosis H37Ra resistant mutants were generated by plating 10⁸ cells from a mid-log phase culture on solid media containing either 5×, 10×, or 20× MIC of compounds B18 and TBA-7371 (17, 19), respectively. Potentially resistant colonies were inoculated into liquid media, cultured to mid-log growth phase, and selected on solid media containing 10× MIC of compounds B18 and TBA-7371 to confirm phenotypic resistance.

The MICs against M. tuberculosis clinical isolates were determined by a microdilution plate assay. Final drug concentration ranges were as follows: for MDR-TB and XDR-TB strains, 0.0156 to 64 µg/mL. TBA-7371 was used as positive control in each experiment; control wells were prepared with bacterial suspension only.

Sequencing of resistant mutants

Wild-type M. tuberculosis H37Ra parent and the M. tuberculosis H37Ra resistant mutants of compounds B18 and TBA-7371 were characterized by WGS (Illumina). Briefly, M. tuberculosis H37Ra genomic DNA was extracted by hexadecyl trimethyl ammonium bromide (CTAB), and the purified genomic DNA was determined by NanoDrop 2000 and Qubit 3.0 Fluorometer (Thermo). The DNA libraries were purified using Agencourt AMPure XP beads (Beckman Coulter Genomics). Fragment sizes were determined using an Agilent Technologies 2100 Bioanalyzer with a high sensitivity DNA chip, the libraries were sequenced using Illumina’s high-throughput sequencing platform NovaSeq 6000 (Gene-optimal, Shanghai). Reads were aligned to the reference genome M. tuberculosis H37Rv (accession: NC_000962), followed by paired comparison referred to wild-type M. tuberculosis H37Ra parent strain.

The minimum inhibitory concentration determination against other strains

All selected strains were clinically isolated pathogens collected from the Chengdu area and were identified with the collection unit by using a VITEK-60 automatic microbial identification instrument. Cells were cultured in conventional Mueller-Hinton (MH) medium at 35°C–37°C for 18–24 h. The MIC was determined by the agar double dilution method as recommended by the Clinical and Laboratory Standards Institute using the following agar medium: 1% peptone, 0.3% beef powder, 0.5% NaCl, and 1.2% agar powder. One milliliter of the test solution was added to a sterile plate and 14 mL of melted MH(A) medium (~50°C) was added. The final concentrations of the drugs in each plate were 128, 64, 32, 16, 8, 4, 2, 1, 0.5, 0.25, 0.125, 0.06, 0.03, 0.015, 0.008 mg/mL. After cooling, bacteria were inoculated with a multi-point inoculator and the agar plate was covered. The agar plates were incubated at 35°C–37°C for 18–24 h. At the end of the incubation period, the minimum concentration of the sample without bacterial growth on the plate was determined to be the minimum bacteriostatic concentration. A control without drugs and a solvent control with DMSO were also prepared and analyzed using the same procedure described above.

Cell viability assay

Cells were seeded in 96-well plates at 1,000–3,000 cells per well and treated with compounds B18 and TBA-7371 for 48 h. Cell viabilities were measured by 3-(4,5-dimethylthiazol-2-yl)−2,5-diphenyltetrazolium bromide (MTT) assay. Briefly, 20 µL of 5 mg/mL MTT solution was added to the culture medium and incubated at 37°C for 3 h. Then 50 µL of 20% (wt/vol) SDS was directly added to each well and incubated at 37°C overnight. The plates were shaken for 15 s and the fluorescence reading were obtained at 570 nm wavelength. The IC₅₀ values were calculated using the GraphPad Prism 8 software.

Protein binding of compounds in mouse plasma

0.1 M sodium phosphate and 0.15 M NaCl buffer (pH = 7.4 ± 0.1) were preheated. The frozen plasma was thawed at 37°C. Plasma was centrifuged at 12,000 rpm for 5 min to remove clots. Pipette and collect the supernatant as the plasma to be used in the experiment. Dialysis membrane strips were soaked in distilled water for an hour. Add 20% by volume ethanol and soak for a further 20 min. The membrane strips were then rinsed in distilled water three times before use. Five microliters of 10 mM stock solution were added into 95 µL of acetonitrile (ACN) for reference and test compounds, which was 0.5 mM solution A. Eight microliters of 10 mM stock solution were added into 192 µL of ACN for reference and test compounds, which was 0.02 mM solution B. A 96-well plate with 380 µL aliquots of plasma was preloaded in the wells designated for plasma, respectively. Twenty microliters of solution B (0.02 mM) were spiked into the pre-loaded plasma in the 96-well plate. The final concentration is 1 µM, containing 0.01% DMSO. Aliquots of 100 µL of blank dialysis buffer were applied to the receiver side of dialysis chambers. Then, aliquots of 100 µL of the plasma spiked with test and reference compounds were applied to the donor side of the dialysis chambers (always add the blank buffer to the receiver first, clearly mark the buffer and plasma chamber holes to avoid cross-contamination). The dialysis block was covered with a plastic lid and the entire apparatus was placed in a shaker (120 rpm) for 5 h at 37°C. At end of incubation, each of post-dialysis samples will be drawn from the buffer and the plasma chambers and processed. All the samples (0, 5 h) were vortexed at 600 rpm for 10 min followed by centrifugation at 6,000 rmp for 15 min. Transfer 100 µL of the supernatant from each well into a 96-well sample plate containing 100 µL of ultrapure water for LC/MS analysis.

IMAP fluorescence polarization assay for screening compounds against PDE6C

Prepare assay buffer and stop buffer were prepared. PDE6C (BPS, catalog number: 60060) was added in 1× assay buffer, which was the 2× enzyme solution. Fluorescein Amidite - cyclic Guanosine Monophosphate (FAM-cGMP) was added in the 1× assay buffer for PDE6C, which was the 2× substrate solution. Two times enzyme solution was transferred to the assay plate: (i) assay plate already contained corresponding volume of compound in 100% DMSO; (ii) add 2× enzyme solution to each well of the 384-well assay plate; and (iii) incubate at room temperature for 15 min. Two times substrate solution was transferred to the assay plate. PDE reaction and termination: (i) incubate at 25°C for 40 min; (ii) add stop buffer to stop reaction, and incubate at RT for 60 min. Data were collected on Envision (Perkin Elmer). Data were fitted in Excel to obtain inhibition values using equation (1). Equation (1): Inh % = (Max − Signal)/(Max − Min) × 100. Fit the data in XL-Fit to obtain IC₅₀ values using equation (2). Equation (2): Y = Bottom + (Top − Bottom)/[1 + (IC₅₀/X) × HillSlope]. Y is the % inhibition and X is the compound concentration.

Aqueous solubility measurement

Aqueous solubility of selected compounds was determined by High Performance Liquid Chromatography (HPLC) analysis. A solution of known concentration of target compound was prepared in methanol by volumetric flask (1,000 µg/mL, 200 µg/mL, 40 µg/mL, 8 µg/mL, 1.6 µg/mL). The absorption intensity of different concentrations of solutions was obtained by HPLC. The linear regression equation between absorption intensity and concentration was obtained by statistical method (R ² >0.99). A supersaturated aqueous solution of the target compound was prepared and shaken in 37°C water bath for 24 h. The supersaturated solution was centrifuged and filtered. The absorption intensity of the supersaturated solution was obtained by HPLC. The concentration of saturated aqueous solution was obtained by linear regression equation, which was the aqueous solubility of target compound.

Chemistry

General method for the preparation of A12

To a solution of ethyl 6-bromo-1H-indole-4-carboxylate (500 mg, 1.86 mmol) in solvent (9 mL, THF:MeOH:H₂O = 1:1:1), NaOH (134 mg, 5.58 mmol) was added. The mixture was stirred at 40°C for 4 h and monitored by TLC. Upon completion, the mixture was concentrated in reduced pressure. Subsequently, the residue was dissolved in methanol and filtered with celite. The organic phase was concentrated to afford the title compound (423 mg, 95%) without further purification. ¹H NMR (400 MHz, DMSO-d ₆) δ 12.95 (s, 1H), 11.98–11.01 (m, 1H), 7.83 (d, J = 1.7 Hz, 1H), 7.75 (d, J = 1.8 Hz, 1H), 7.54 (t, J = 2.8 Hz, 1H), 6.95 (t, J = 2.5 Hz, 1H).

General method for the preparation of A13

To a solution of A12 (200 mg, 0.83 mmol) and 2-fluoroethylamine hydrochloride (100 mg, 1 mmol) in DMSO (6 mL) was added EDCI (286 mg, 1.49 mmol), HOAt (203 mg, 1.49 mmol), and NMM (0.46 mL, 4.15 mmol). The mixture was stirred at ambient temperature overnight. Upon completion, the mixture was diluted with ethyl acetate and washed three times with H₂O. The organic phase was concentrated in reduced pressure and purified by biotage column chromatography (10%–30% ethyl acetate in hexane) to afford title compound (236 mg, quant yield). ¹H NMR (400 MHz, DMSO-d ₆) δ 11.41 (s, 1H), 8.58 (t, J = 5.6 Hz, 1H), 7.72 (dd, J = 1.7, 0.9 Hz, 1H), 7.56 (d, J = 1.7 Hz, 1H), 7.48 (t, J = 2.8 Hz, 1H), 7.01–6.79 (m, 1H), 4.63 (t, J = 5.2 Hz, 1H), 4.51 (t, J = 5.2 Hz, 1H), 3.62 (q, J = 5.3 Hz, 1H), 3.56 (q, J = 5.3 Hz, 1H).

6-bromo-N-(2,2-difluoroethyl)-1H-indole-4-carboxamide (A14)

Prepared from the general methods for A13 by replacing 2-fluoroethylamine hydrochloride with 2,2-difluoroethylamine hydrochloride. ¹H NMR (400 MHz, DMSO-d ₆) δ 11.45 (s, 1H), 8.75 (t, J = 5.9 Hz, 1H), 8.04–7.68 (m, 1H), 7.59 (d, J = 1.7 Hz, 1H), 7.50 (t, J = 2.8 Hz, 1H), 6.86 (t, J = 2.5 Hz, 1H), 6.41–5.91 (m, 1H), 3.81–3.55 (m, 2H).

General method for the preparation of A1

To a solution of A13 (118 mg, 0.41 mmol) and 2,3-difluoro-6-methoxybenzyl bromide (118 mg, 0.49 mmol) in DMF (6 mL), K₂CO₃ (170 mg, 1.23 mmol) was added. The mixture was stirred at ambient temperature for 3 h and monitored by TLC. Upon completion, the mixture was diluted with ethyl acetate and washed three times with H₂O. The organic phase was concentrated in reduced pressure and purified by biotage column chromatography (10%–30% ethyl acetate in hexane) to afford title compound (145 mg, 80.2%). ¹H NMR (400 MHz, chloroform-d) δ 7.94–7.82 (m, 1H), 7.62–7.53 (m, 1H), 7.36–7.32 (m, 1H), 7.09 (q, J = 9.4 Hz, 1H), 6.80 (d, J = 3.2 Hz, 1H), 6.66–6.58 (m, 1H), 6.51 (s, 1H), 5.33 (d, J = 2.0 Hz, 2H), 4.69 (t, J = 4.8 Hz, 1H), 4.57 (t, J = 4.8 Hz, 1H), 3.89–3.87 (m, 3H), 3.86–3.75 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 167.37, 137.67, 130.92, 127.78, 124.97, 122.40, 116.06, 114.49, 101.30, 83.73, 82.08, 56.10, 40.41, 38.23. MS(ESI): calcd for C₁₉H₁₇BrF₃N₂O₂ ⁺, m/z, 441.0.

6-bromo-1-(2,3-difluoro-6-methoxybenzyl)-N-(2,2-difluoroethyl)-1H-indole-4-carboxamide (A2)

Prepared from the general methods for A1. ¹H NMR (400 MHz, chloroform-d) δ 7.99–7.80 (m, 1H), 7.59 (t, J = 1.4 Hz, 1H), 7.42–7.33 (m, 1H), 7.16–7.01 (m, 1H), 6.85–6.70 (m, 1H), 6.67–6.50 (m, 1H), 6.39 (s, 1H), 6.18–5.77 (m, 1H), 5.42–5.20 (m, 2H), 3.95–3.79 (m, 5H). ¹³C NMR (101 MHz, chloroform-d) δ 167.60, 137.68, 131.14, 127.01, 125.00, 122.52, 116.99, 116.79, 116.40, 114.44, 113.68, 105.93, 101.22, 56.11, 42.09. MS(ESI): calcd for C₁₉H₁₆BrF₄N₂O₂ ⁺, [M + H]⁺, m/z, 459.0.

6-bromo-N-(2,2-difluoroethyl)-1-((3,5,6-trimethylpyrazin-2-yl)methyl)-1H-indole-4-carboxamide (A3)

Prepared from the general methods for A1. ¹H NMR (400 MHz, chloroform-d) δ 7.83 (s, 1H), 7.68–7.54 (m, 1H), 7.21 (d, J = 3.3 Hz, 1H), 6.83 (d, J = 3.2 Hz, 1H), 6.43 (s, 1H), 6.21–5.79 (m, 1H), 5.36 (s, 2H), 4.01–3.82 (m, 2H), 2.50 (s, 6H), 2.44 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 151.45, 144.85, 137.96, 130.65, 122.73, 116.51, 115.69, 114.58, 113.67, 111.27, 101.49, 50.23, 21.62, 21.46, 20.85. MS(ESI): calcd for C₁₉H₂₀BrF₂N₂O⁺, [M + H]⁺, m/z, 437.1.

6-bromo-N-(2,2-difluoroethyl)-1-((6-methoxy-5-methylpyrimidin-4-yl)methyl)-1H-indole-4-carboxamide (A4)

Prepared from the general methods for A1. ¹H NMR (400 MHz, chloroform-d) δ 8.57 (s, 1H), 7.68–7.64 (m, 1H), 7.60 (t, J = 1.4 Hz, 1H), 6.92–6.82 (m, 1H), 6.42 (s, 1H), 6.22–5.80 (m, 1H), 5.32 (s, 2H), 4.00 (d, J = 1.1 Hz, 3H), 3.95–3.80 (m, 2H), 2.17 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 168.25, 160.11, 155.53, 137.97, 131.04, 127.35, 125.25, 122.88, 116.01, 115.97, 114.75, 107.03, 101.66, 54.31, 49.21, 10.09. MS(ESI): calcd for C₁₈H₁₈BrF₂N₄O₂ ⁺, [M + H]⁺, m/z, 439.1.

6-bromo-N-(2,2-difluoroethyl)-1-((2-methoxy-5-(trifluoromethyl)pyridin-3-yl)methyl)-1H-indole-4-carboxamide (A5)

Prepared from the general methods for A1. ¹H NMR (400 MHz, chloroform-d) δ 8.39 (d, J = 2.3 Hz, 1H), 7.63 (d, J = 1.5 Hz, 1H), 7.57 (d, J = 1.5 Hz, 1H), 7.25 (d, J = 3.3 Hz, 1H), 7.13–7.05 (m, 1H), 6.94 (d, J = 3.2 Hz, 1H), 6.43 (s, 1H), 6.23–5.80 (m, 1H), 5.29 (s, 2H), 4.10 (d, J = 1.1 Hz, 3H), 3.97–3.81 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 167.42, 144.37, 137.61, 130.60, 127.59, 125.42, 122.96, 119.92, 115.66, 115.01, 113.65, 102.41, 54.48, 44.80. MS(ESI): calcd for C₁₉H₁₆BrF₅N₃O₂ ⁺, [M + H]⁺, m/z, 492.0.

General method for the preparation of A6

CH₃BF₃K (120 mg, 0.27 mmol), A1 (99 mg, 0.81 mmol), Pd(dppf)Cl₂ (12 mg, 0.027 mmol), and K₂CO₃ (0.77 mg, 0.54 mmol) were added in 1,4-dioxane (4 mL) and H₂O (1 mL). The mixture was sparged with nitrogen for 15 min and heated under nitrogen at 110°C for 1 day. Upon completion, the reaction mixture was concentrated to remove solvent. The residue was filtered through celite and washed with solvent (hexane/ethyl acetate = 1/1). The filtrate was concentrated and purified by biotage column chromatography (20%–50% ethyl acetate in hexanes) to afford the title compound as brown liquid (53 mg, 53%). ¹H NMR (400 MHz, chloroform-d) δ 6.97 (d, J = 2.1 Hz, 1H), 6.53 (d, J = 2.1 Hz, 1H), 4.44–4.22 (m, 2H), 3.87 (s, 3H), 3.57–3.25 (m, 2H), 2.20 (s, 3H).

1-(2,3-difluoro-6-methoxybenzyl)-N-(2,2-difluoroethyl)-6-methyl-1H-indole-4-carboxamide (A7)

Prepared from the general methods for A6. ¹H NMR (400 MHz, chloroform-d) δ 7.54 (s, 1H), 7.36 (s, 1H), 7.30 (d, J = 3.0 Hz, 1H), 7.12–7.01 (m, 1H), 6.72 (d, J = 3.2 Hz, 1H), 6.63–6.52 (m, 1H), 6.44 (t, J = 6.3 Hz, 1H), 6.19–5.71 (m, 1H), 5.33 (t, J = 1.5 Hz, 2H), 3.93–3.79 (m, 5H), 2.52 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 168.96, 154.01, 137.30, 131.02, 130.00, 125.39, 123.83, 121.37, 116.66, 116.48, 114.84, 114.70, 113.88, 113.43, 113.40, 100.43, 56.09, 42.05, 41.79, 21.77. MS(ESI): calcd for C₂₀H₁₉F₄N₂O₂ ⁺, [M + H]⁺, m/z, 395.1.

N-(2,2-difluoroethyl)-6-methyl-1-((3,5,6-trimethylpyrazin-2-yl)methyl)-1H-indole-4-carboxamide (A8)

Prepared from the general methods for A6. ¹H NMR (400 MHz, chloroform-d) δ 7.43 (s, 1H), 7.37 (s, 1H), 7.14 (d, J = 3.3 Hz, 1H), 6.77 (d, J = 3.3 Hz, 1H), 6.48 (d, J = 6.5 Hz, 1H), 6.23–5.79 (m, 1H), 5.36 (s, 2H), 3.88 (tdt, J = 15.0, 10.6, 4.7 Hz, 2H), 2.53–2.46 (m, 6H), 2.40 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 168.90, 151.13, 149.08, 148.61, 145.48, 137.57, 131.23, 129.32, 125.61, 124.14, 121.55, 113.52, 100.89, 50.09, 21.61, 21.47, 20.86. MS(ESI): calcd for C₂₀H₂₃F₂N₄O⁺, [M + H]⁺, m/z, 373.2.

N-(2,2-difluoroethyl)-1-((6-methoxy-5-methylpyrimidin-4-yl)methyl)-6-methyl-1H-indole-4-carboxamide (A9)

Prepared from the general methods for A6. ¹H NMR (400 MHz, chloroform-d) δ 8.59 (s, 1H), 7.37 (s, 1H), 7.30 (s, 1H), 7.20 (d, J = 3.2 Hz, 1H), 6.81 (d, J = 3.3 Hz, 1H), 6.46 (s, 1H), 6.21–5.78 (m, 1H), 5.33 (s, 2H), 3.99 (s, 3H), 3.95–3.80 (m, 2H), 2.47 (s, 3H), 2.14 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 168.87, 168.25, 160.78, 155.42, 137.55, 131.42, 129.72, 125.74, 124.05, 121.70, 116.15, 113.22, 101.05, 54.24, 49.28, 42.07, 21.69, 10.05. MS(ESI): calcd for C₁₉H₂₁F₂N₄O₂ ⁺, [M + H]⁺, m/z, 375.2.

N-(2,2-difluoroethyl)-1-((2-methoxy-5-(trifluoromethyl)pyridin-3-yl)methyl)-6-methyl-1H-indole-4-carboxamide (A10)

Prepared from the general methods for A6. ¹H NMR (400 MHz, chloroform-d) δ 8.36 (s, 1H), 7.39 (s, 1H), 7.20 (t, J = 2.8 Hz, 1H), 7.17 (s, 1H), 7.04 (s, 1H), 6.89 (d, J = 3.1 Hz, 1H), 6.48 (d, J = 6.4 Hz, 1H), 6.23–5.80 (m, 1H), 5.29 (s, 2H), 4.10 (d, J = 2.3 Hz, 3H), 4.02–3.76 (m, 2H), 2.47 (d, J = 2.3 Hz, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 168.83, 162.97, 137.22, 132.63, 131.75, 129.48, 125.97, 124.28, 121.76, 120.62, 113.85, 112.83, 111.45, 101.73, 54.39, 44.58, 42.10, 21.64. MS(ESI): calcd for C₂₀H₁₉F₅N₃O₂ ⁺, [M + H]⁺, m/z, 428.1.

General method for the preparation of B35

To a solution of methyl 3-amino-5-bromo-2-hydroxybenzoate (4.92 g, 20 mmol) and K₂CO₃ (5.52 g, 40 mmol) in DMF (23 mL), 1,2-dibromoethane (8.6 mL, 100 mmol) was added. The mixture was stirred at 80°C for 8 h and monitored by TLC. Upon completion, the reaction mixture was poured into ice cold water. The solid formed was filtered and dried in reduced pressure to afford title compound as brown solid (5.2 g, 95.6%). ¹H NMR (400 MHz, chloroform-d) δ 7.24 (d, J = 2.4 Hz, 1H), 6.81 (d, J = 2.4 Hz, 1H), 4.35–4.28 (m, 2H), 3.99 (s, 1H), 3.87 (s, 3H), 3.48–3.41 (m, 2H).

General method for the preparation of B36

To a solution of B35 (272 mg, 1 mmol) and Na₂CO₃ (212 mg, 2 mmol) in DMF (6 mL) was added 2-(bromomethyl)-3,5,6-trimethylpyrazine (215 mg, 1 mmol). The mixture was stirred at 80°C for 3 h. Upon completion, the reaction mixture was poured into ice cold water, extracted with ethyl acetate. The organic layer was dried with Na₂SO₄, purified by biotage column chromatography (30%–60% ethyl acetate in hexanes) to afford the title compound as brown liquid (252 mg, 62%). ¹H NMR (400 MHz, chloroform-d) δ 7.20 (d, J = 2.4 Hz, 1H), 6.98 (d, J = 2.3 Hz, 1H), 4.47 (s, 2H), 4.33 (t, 2H), 3.86 (s, 3H), 3.44 (t, J = 4.5 Hz, 2H), 2.52 (s, 3H), 2.49 (s, 3H), 2.46 (s, 3H).

General method for the preparation of B38

CH₃BF₃K (1.22 g, 10 mmol), B35 (1.36 g, 5 mmol), Pd(dppf)Cl₂ (0.366 g, 0.5 mmol), and K₂CO₃ (1.73 g, 12.5 mmol) were added in 1,4-dioxane (12 mL) and H₂O (4 mL). The mixture was sparged with nitrogen for 15 min and heated under nitrogen at 110°C for 1 day. Upon completion, the reaction mixture was concentrated to remove solvent. The residue was filtered through celite and washed with solvent (hexane/ethyl acetate = 1/1). The filtrate was concentrated and purified by biotage column chromatography (20%–50% ethyl acetate in hexanes) to afford the title compound as brown liquid (589 mg, 57%). ¹H NMR (400 MHz, chloroform-d) δ 6.97 (d, J = 2.1 Hz, 1H), 6.53 (d, J = 2.1 Hz, 1H), 4.44–4.22 (m, 2H), 3.87 (s, 3H), 3.57–3.25 (m, 2H), 2.20 (s, 3H).

General method for the preparation of B41

Pd(OAc)₂ (473 mg, 2.1 mmol), B35 (1.9 g, 7 mmol), cyclopropylboronic acid (0.96 g, 11.2 mmol), (C₆H₁₁)₃P (588 mg, 2.1 mmol), and K₃PO₄ (4.45 g, 21 mmol) were added in PhMe (22.5 mL) and H₂O (0.5 mL). The mixture was sparged with nitrogen for 15 min and heated under nitrogen at 100°C for 3 h. Upon completion, the reaction mixture was concentrated to remove solvent. The residue was filtered through celite and washed with solvent (hexane/ethyl acetate = 1/1). The filtrate was concentrated and purified by biotage column chromatography (20%–50% ethyl acetate in hexanes) to afford the title compound as brown liquid (1.2 g, 64%).

General method for the preparation of B37

A solution of B36 (120 mg, 0.29 mmol) and NaOH (27 mg, 0.58 mmol) in solvent (6 mL, THF:MeOH:H₂O = 1:1:1) was stirred at 70°C for 1 h. Upon completion, the mixture was concentrated in reduced pressure to afford the title compound without further purification.

General method for the preparation of B2

To a solution of B37 (40 mg, 0.1 mmol), 2,2-difluoroethylamine hydrochloride (12 mg, 0.1 mmol), and HATU (38 mg, 0.1 mmol) in DMF (3 mL), DIPEA (40 mg, 0.3 mmol) was added. The mixture was stirred at ambient temperature for 4 h. Upon completion, the mixture was concentrated to remove solvent. The residue was purified by biotage column chromatography (3%–5% MeOH in dichloromethane) to afford title compound as white solid (38.8 mg, 85.2%). ¹H NMR (400 MHz, DMSO-d ₆) δ 8.49 (t, J = 6.0 Hz, 1H), 7.05 (d, J = 2.4 Hz, 1H), 6.99 (d, J = 2.3 Hz, 1H), 6.10 (m, 1H), 4.62 (s, 2H), 4.35–4.28 (m, 2H), 3.66 (m, 2H), 3.47 (m, 2H), 2.47 (s, 3H), 2.41 (s, 3H), 2.38 (s, 3H). ¹³C NMR (101 MHz, DMSO-d ₆) δ 165.27, 149.79, 148.97, 148.31, 146.76, 141.53, 138.10, 123.59, 119.49, 116.48, 115.02, 113.03, 65.14, 53.30, 46.86, 21.72, 21.51, 20.74. High Resolution Microwave Survey (HRMS). Direct analysis in real time - Time of Flight (DART-TOF). HRMS (DART-TOF): calcd for C₁₉H₂₂BrF₂N₂O₄ ⁺, [M + H]⁺, m/z, 455.0845.

General method for the preparation of B45

Phenylboronic acid (0.45 g, 3.7 mmol), B37 (1 g, 2.5 mmol), Pd(dppf)Cl₂ (0.18 g, 0.25 mmol), and Na₂CO₃ (0.78 g, 7.4 mmol) were added in 1,4-dioxane (12 mL) and H₂O (3 mL). The mixture was sparged with nitrogen for 15 min and heated under nitrogen at 100°C for 6 h. Upon completion, the reaction mixture was concentrated to remove solvent. The residue was filtered through celite and washed with solvent (DCM/MeOH = 10/1). The filtrate was concentrated and purified by biotage column chromatography (20%–50% ethyl acetate in hexanes) to afford the title compound as brown liquid (685 mg, 68%). ¹H NMR (400 MHz, chloroform-d) δ 7.53–7.46 (m, 2H), 7.42–7.35 (m, 3H), 7.34–7.22 (m, 2H), 4.55 (s, 2H), 4.40 (t, J = 4.4 Hz, 2H), 3.89 (s, 3H), 3.49 (d, J = 3.9 Hz, 2H), 2.55 (s, 3H), 2.49 (s, 6H).

General method for the preparation of B33

A solution of B45 (403 mg, 1 mmol) and NaOH (120 mg, 3 mmol) in solvent (9 mL, THF:MeOH:H₂O = 1:1:1) was stirred at 70°C for 1 h. Upon completion, the mixture was concentrated in reduced pressure.

The residue was dissolved in DMF (8 mL). Then, HATU (570 mg), DIPEA (520 µL, 3 mmol), and 2,2,2-trifluoroethylamine hydrochloride (203 mg, 1.5 mmol) were added to the solution and the mixture was stirred for 2 h. Upon completion, the mixture was concentrated to remove solvent. The residue was purified by biotage column chromatography (3%–5% MeOH in dichloromethane) to afford title compound as white solid (390 mg, 83%). ¹H NMR (400 MHz, chloroform-d) δ 8.16 (t, J = 6.2 Hz, 1H), 7.81 (d, J = 2.2 Hz, 1H), 7.56–7.49 (m, 2H), 7.39 (dd, J = 8.4, 6.8 Hz, 2H), 7.34–7.23 (m, 2H), 4.57 (s, 2H), 4.48 (t, J = 4.4 Hz, 2H), 4.22–4.09 (m, 2H), 3.55 (t, J = 4.5 Hz, 2H), 2.56 (s, 3H), 2.49 (s, 6H). ¹³C NMR (101 MHz, chloroform-d) δ 207.34, 197.73, 185.59, 165.93, 148.69, 146.66, 144.43, 142.55, 140.44, 136.01, 134.50, 134.35, 128.66, 127.06, 126.77, 120.03, 119.29, 115.16, 65.64, 64.83, 59.12, 55.11, 47.12, 21.53, 19.31. MS(ESI): calcd for C₂₅H₂₆F₃N₄O₂ ⁺, [M + H]⁺, m/z, 471.2.

6-bromo-N-(2-fluoroethyl)−4-((3,5,6-trimethylpyrazin-2-yl)methyl)−3,4-dihydro-2H-benzo[2, 4]oxazine-8-carboxamide (B1)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.06 (s, 1H), 7.60 (d, J = 2.4 Hz, 1H), 6.97 (d, J = 2.4 Hz, 1H), 4.65 (t, J = 4.8 Hz, 1H), 4.53 (t, J = 4.8 Hz, 1H), 4.48 (s, 2H), 4.43–4.36 (m, 2H), 3.76 (m, 2H), 3.51–3.44 (m, 2H), 2.56–2.43 (m, 9H). ¹³C NMR (101 MHz, DMSO-d ₆) δ 164.88, 149.78, 148.96, 148.31, 146.81, 141.40, 138.06, 124.20, 119.51, 116.25, 112.99, 81.81, 65.08, 53.33, 46.89, 21.72, 21.50, 20.72. MS(ESI): calcd for C₁₉H₂₃BrFN₄O₂ ⁺, [M + H]⁺, m/z, 437.1.

6-bromo-N-(2-fluoroethyl)-4-((2-methoxy-5-(trifluoromethyl)pyridin-3-yl)methyl)-3,4-dihydro-2H-benzo[2, 4]oxazine-8-carboxamide (B3)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.40 (d, J = 2.2 Hz, 1H), 8.03 (m, 1H), 7.63 (d, J = 2.4 Hz, 1H), 7.57 (d, J = 2.3 Hz, 1H), 6.73 (d, J = 2.4 Hz, 1H), 4.66 (t, J = 4.8 Hz, 1H), 4.54 (t, J = 4.8 Hz, 1H), 4.49–4.42 (m, 2H), 4.40 (s, 2H), 4.08 (s, 3H), 3.81 (q, J = 5.1 Hz, 1H), 3.74 (q, J = 5.1 Hz, 1H), 3.54–3.47 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 164.43, 163.64, 143.72, 141.72, 136.43, 132.46, 122.83, 122.42, 119.68, 117.69, 114.56, 83.71, 82.06, 64.95, 54.33, 50.80, 47.22, 40.30. HRMS (DART-TOF): calcd for C₁₉H₁₉BrF₄N₃O₃ ⁺, [M + H]⁺, m/z, 492.0536.

6-bromo-N-(2-hydroxyethyl)-4-((2-methoxy-5-(trifluoromethyl)pyridin-3-yl)methyl)-3,4-dihydro-2H-benzo[2, 4]oxazine-8-carboxamide (B4)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.41 (d, J = 2.3 Hz, 1H), 8.06 (s, 1H), 7.63 (d, J = 2.4 Hz, 1H), 7.57 (d, J = 2.4 Hz, 1H), 6.74 (d, J = 2.4 Hz, 1H), 4.43 (t, J = 4.5 Hz, 2H), 4.40 (s, 2H), 4.08 (s, 3H), 3.83 (s, 2H), 3.63 (m, 2H), 3.50 (t, J = 4.5 Hz, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.63–165.54 (m), 163.65, 143.75, 141.67, 136.39, 132.50, 132.47, 122.84, 122.44, 119.66, 117.73, 117.72, 114.58, 64.97, 62.82, 54.31, 50.78, 47.21, 43.04. HRMS (DART-TOF): calcd for C₁₉H₂₀BrF₃N₃O₄ ⁺, [M + H]⁺, m/z, 490.0609.

6-bromo-N-(2,2-difluoroethyl)-4-((2-methoxy-5-(trifluoromethyl)pyridin-3-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B5)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.41 (d, J = 2.0 Hz, 1H), 7.96 (s, 1H), 7.63 (d, J = 2.4 Hz, 1H), 7.60–7.54 (m, 1H), 6.75 (d, J = 2.4 Hz, 1H), 5.96 (m, 1H), 4.48–4.43 (m, 2H), 4.41 (s, 2H), 4.08 (s, 3H), 3.83 (m, 2H), 3.51 (t, J = 4.5 Hz, 2H). MS(ESI): calcd for C₁₉H₁₈BrF₅N₃O₃ ⁺, [M + H]⁺, m/z, 510.0.

6-bromo-4-(2,3-difluoro-6-methoxybenzyl)-N-(2-fluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B6)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.04 (s, 1H), 7.58 (d, J = 2.4 Hz, 1H), 7.26 (s, 1H), 7.09 (m, 1H), 6.62 (m, 1H), 4.63 (t, J = 4.8 Hz, 1H), 4.51 (t, J = 4.8 Hz, 1H), 4.45 (d, J = 1.7 Hz, 2H), 4.31 (t, J = 4.4 Hz, 2H), 3.89 (s, 3H), 3.78 (m, 1H), 3.74–3.67 (m, 1H), 3.47 (t, J = 4.4 Hz, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 164.71, 151.01, 141.81, 136.42, 128.94, 121.96, 121.94, 120.38, 118.63, 116.31, 114.49, 114.32–114.12 (m), 105.72–105.40, 83.72, 82.07, 64.99, 56.17, 46.36, 44.15. HRMS (DART-TOF): calcd for C₁₉H₁₉BrF₃N₂O₃ ⁺, [M + H]⁺, m/z, 459.0515.

6-bromo-4-(2,3-difluoro-6-methoxybenzyl)-N-(2,2-difluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B7)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.01 (d, J = 6.4 Hz, 1H), 7.56 (d, J = 2.4 Hz, 1H), 7.05 (d, J = 9.3 Hz, 1H), 6.72–6.54 (m, 2H), 6.11–5.74 (m, 1H), 4.76 (d, J = 2.0 Hz, 2H), 4.45 (d, J = 1.8 Hz, 2H), 4.31 (t, J = 4.4 Hz, 2H), 3.89 (s, 3H), 3.48 (t, J = 4.4 Hz, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.12 , 147.18–145.39 (m), 144.68–143.76 (m), 141.88 , 136.44 , 121.87 , 121.25 , 118.85 , 116.52–116.08 (m), 116.04–115.21 (m), 114.66–114.34 (m), 114.30 , 105.43–105.03 (m), 65.09 , 57.81–55.55 (m), 54.19–53.74 (m), 48.17–45.69 (m), 44.11. HRMS (DART-TOF): calcd for C₁₉H₁₈BrF₄N₂O₃ ⁺, [M + H]⁺, m/z, 477.0435.

6-bromo-4-(2,3-difluoro-6-methoxybenzyl)-N-(2-hydroxyethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B8)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.08 (s, 1H), 7.58 (d, J = 2.4 Hz, 1H), 7.27 (s, 1H), 7.09 (m, 1H), 6.62 (m, 1H), 4.46 (d, J = 1.7 Hz, 2H), 4.31 (t, J = 4.4 Hz, 2H), 3.89 (s, 3H), 3.80 (t, J = 4.9 Hz, 2H), 3.59 (m, 2H), 3.52–3.43 (m, 2H), 2.86 (s, 1H). HRMS (DART-TOF): calcd for C₁₉H₂₀BrF₂N₂O₄ ⁺, [M + H]⁺, m/z, 457.0559.

6-bromo-4-(3,4-difluoro-2-methoxybenzyl)-N-(2,2-difluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B9)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 7.99 (s, 1H), 7.59 (d, J = 2.4 Hz, 1H), 6.94 (m, 1H), 6.79 (d, J = 2.4 Hz, 1H), 6.74 (m, 1H), 5.96 (m, 1H), 4.41 (t, J = 4.5 Hz, 2H), 4.36 (s, 2H), 3.84 (s, 3H), 3.83–3.75 (m, 2H), 3.48 (t, J = 4.4 Hz, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 164.92, 141.68, 136.66, 122.24, 121.54, 120.43, 117.94, 116.18, 116.05, 115.86, 114.66, 113.78, 100.92, 100.71, 65.08, 56.05, 50.20, 46.80, 42.18. HRMS (DART-TOF): calcd for C₁₉H₁₈BrF₄N₂O₃ ⁺, [M + H]⁺, m/z, 477.0435.

6-bromo-4-(3,4-difluoro-2-methoxybenzyl)-N-(2-hydroxyethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B10)

Prepared from the general methods for B35–37 and B2. ¹H NMR (400 MHz, chloroform-d) δ 8.09 (s, 1H), 7.59 (d, J = 2.4 Hz, 1H), 6.94 (m, 1H), 6.80–6.69 (m, 2H), 4.40 (m, 2H), 4.36 (s, 2H), 3.84 (s, 3H), 3.82 (m, 2H), 3.62 (m, 2H), 3.47 (q, J = 4.5, 3.8 Hz, 2H). HRMS (DART-TOF): calcd for C₁₉H₂₀BrF₂N₂O₄ ⁺, [M + H]⁺, m/z, 457.0563.

N-(2,2-difluoroethyl)-6-methyl-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B11)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 8.09 (s, 1H), 7.33 (d, J = 2.0 Hz, 1H), 6.76 (d, J = 2.1 Hz, 1H), 5.96 (m, 1H), 4.49 (s, 2H), 4.37 (t, J = 4.4 Hz, 2H), 3.81 (m, 2H), 3.40 (t, J = 4.5 Hz, 2H), 2.55 (s, 3H), 2.50 (s, 3H), 2.47 (s, 3H), 2.23 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 166.45, 150.17, 148.80, 148.66, 146.66, 141.05, 135.43, 130.71, 120.73, 119.74, 117.04, 113.97, 65.23, 54.44, 46.56, 21.56, 21.08, 20.77. HRMS (DART-TOF): calcd for C₂₀H₂₅F₂N₄O₂ ⁺, [M + H]⁺, m/z, 391.1950.

6-methyl-N-(2,2,2-trifluoroethyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B12)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 8.18 (t, J = 6.2 Hz, 1H), 7.34 (d, J = 1.8 Hz, 1H), 6.76 (d, J = 2.0 Hz, 1H), 4.49 (s, 2H), 4.46–4.35 (m, 2H), 4.12 (m, 2H), 3.50–3.32 (m, 2H), 2.55 (s, 3H), 2.50 (s, 3H), 2.47 (s, 3H), 2.23 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 166.16, 150.16, 148.81, 148.62, 146.61, 141.01, 135.44, 130.78, 120.84, 119.47, 117.17, 65.26, 54.38, 46.56, 21.53, 21.06, 20.74. HRMS (DART-TOF): calcd for C₂₀H₂₄F₃N₄O₂ ⁺, [M + H]⁺, m/z, 409.1840.

N-(2-hydroxyethyl)-6-methyl-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B13)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 8.21 (t, J = 5.6 Hz, 1H), 7.29 (d, J = 15.5 Hz, 1H), 6.81–6.72 (m, 1H), 4.47 (d, J = 10.8 Hz, 2H), 4.35 (t, J = 4.5 Hz, 2H), 3.81 (t, J = 4.8 Hz, 2H), 3.60 (m, 2H), 3.37 (t, J = 4.5 Hz, 2H), 2.54 (s, 3H), 2.49 (s, 3H), 2.47 (s, 3H), 2.23 (s, 3H). ¹³C NMR (101 MHz, chloroform-d) δ 167.46, 150.14, 148.79, 148.70, 146.73, 140.94, 135.36, 130.58, 120.70, 120.27, 116.83, 65.17, 62.99, 54.47, 46.54, 43.11, 21.52, 21.09, 20.73. HRMS (DART-TOF): calcd for C₂₀H₂₇N₄O₃ ⁺, [M + H]⁺, m/z, 371.2078.

N-cyclopropyl-6-methyl-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B14)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 7.80 (s, 1H), 7.34 (d, J = 2.0 Hz, 1H), 6.73 (d, J = 2.1 Hz, 1H), 4.47 (s, 2H), 4.40 – 4.28 (m, 2H), 3.44 – 3.32 (m, 2H), 2.80 (s, 1H), 2.56 – 2.43 (m, 9H), 2.23 (s, 3H), 0.83 (m, 2H), 0.61 – 0.52 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 167.19, 150.12, 148.74, 146.79, 140.82, 135.27, 130.55, 120.80, 120.76, 116.58, 65.03, 54.55, 46.55, 22.81, 21.59 – 21.55 (m), 21.53, 21.09, 20.79, 6.78. HRMS (DART-TOF): calcd for C₂₁H₂₇N₄O₂ ⁺, [M + H]⁺, m/z, 367.2133.

N-cyclopentyl-6-methyl-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B15)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 7.70 (d, J = 6.9 Hz, 1H), 7.32 (d, J = 2.0 Hz, 1H), 6.73 (d, J = 2.1 Hz, 1H), 4.47 (s, 2H), 4.37–4.29 (m, 2H), 3.40–3.33 (m, 2H), 2.57–2.45 (m, 9H), 2.23 (s, 3H), 2.12–1.98 (m, 2H), 1.77–1.58 (m, 5H), 1.56–1.42 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.25, 150.11, 148.76, 148.73, 146.84, 140.70, 135.27, 130.51, 121.26, 120.80, 116.37, 64.98, 54.59, 51.35, 46.56, 33.25, 23.82, 21.58–21.55 (m), 21.53, 21.12, 20.81. HRMS (DART-TOF): calcd for C₂₃H₃₁N₄O₂ ⁺, [M + H]⁺, m/z, 395.2443.

N-cyclohexyl-6-methyl-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B16)

Prepared from the general methods for B35–38 and B11. ¹H NMR (400 MHz, chloroform-d) δ 7.65 (d, J = 7.9 Hz, 1H), 7.32 (d, J = 2.1 Hz, 1H), 6.73 (d, J = 2.1 Hz, 1H), 4.47 (s, 2H), 4.41–4.29 (m, 2H), 3.45–3.33 (m, 2H), 2.57–2.44 (m, 9H), 2.23 (s, 3H), 1.99 (m, 2H), 1.75–1.65 (m, 1H), 1.43 (m, 2H), 1.36–1.20 (m, 5H), 0.84 (s, 1H). ¹³C NMR (101 MHz, chloroform-d) δ 164.72, 150.11, 148.77, 146.86, 140.70, 135.27, 130.49, 121.42, 120.84, 116.33, 66.09–64.06 (m), 54.61, 46.55, 33.03, 25.78, 24.72, 21.56, 21.53, 21.10, 20.77. HRMS (DART-TOF): calcd for C₂₄H₃₃N₄O₂ ⁺, [M + H]⁺, m/z, 409.2589.

6-cyclopropyl-N-(2,2-difluoroethyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B17)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.08 (t, J = 6.0 Hz, 1H), 7.26 (d, J = 6.2 Hz, 1H), 6.73 (d, J = 2.1 Hz, 1H), 5.95 (m, 1H), 4.48 (s, 2H), 4.39 (m, 2H), 3.80 (m, 2H), 3.45 (m, 2H), 2.67–2.38 (m, 9H), 1.78 (m, 1H), 0.87 (m, 2H), 0.60 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.39, 150.21, 148.73, 146.86, 141.05, 136.79, 135.53, 119.74, 117.56, 114.23, 114.22, 65.34, 55.06, 47.00, 21.58–21.54 (m), 21.53, 20.86, 15.11, 8.65. HRMS (DART-TOF): calcd for C₂₂H₂₇F₂N₄O₂ ⁺, [M + H]⁺, m/z, 417.2094.

6-cyclopropyl-N-(2,2,2-trifluoroethyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B18)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.16 (t, J = 6.3 Hz, 1H), 7.26 (d, J = 2.2 Hz, 1H), 6.74 (d, J = 2.2 Hz, 1H), 4.48 (s, 2H), 4.41–4.35 (m, 2H), 4.12 (m, 2H), 3.54–3.42 (m, 2H), 2.55 (s, 3H), 2.49 (d, J = 2.2 Hz, 6H), 1.77 (m, 1H), 0.93–0.80 (m, 2H), 0.67–0.51 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.09, 150.23, 148.76, 148.71, 146.82, 141.01, 136.89, 135.54, 119.49, 117.74, 114.37, 65.38, 55.02, 47.01, 41.01, 40.67, 21.54, 20.85, 15.11, 8.66. HRMS (DART-TOF): calcd for C₂₂H₂₆F₃N₄O₂ ⁺, [M + H]⁺, m/z, 435.2003.

6-cyclopropyl-N-(2-hydroxyethyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B19)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.19 (t, J = 5.6 Hz, 1H), 7.24 (d, J = 2.2 Hz, 1H), 6.72 (d, J = 2.2 Hz, 1H), 4.47 (s, 2H), 4.42–4.33 (m, 2H), 3.80 (t, J = 4.8 Hz, 2H), 3.60 (m, 2H), 3.42 (t, J = 4.5 Hz, 2H), 2.54 (s, 3H), 2.50 (s, 3H), 2.49 (s, 3H), 1.77 (m, 1H), 0.92–0.79 (m, 2H), 0.66–0.55 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 167.42, 150.19, 148.76, 148.73, 146.93, 140.94, 136.67, 135.46, 120.27, 117.56, 114.02, 65.28, 63.08, 55.09, 46.99, 43.16, 21.52, 20.84, 15.12, 8.64. HRMS (DART-TOF): calcd for C₂₂H₂₉N₄O₃ ⁺, [M + H]⁺, m/z, 397.2238.

6-cyclopropyl-4-(naphthalen-2-ylmethyl)-N-(2,2,2-trifluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B20)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.20 (t, J = 6.4 Hz, 1H), 7.84 (d, J = 8.2 Hz, 2H), 7.81–7.78 (m, 1H), 7.72 (s, 1H), 7.48 (m, 2H), 7.40 (m, 1H), 7.23 (d, J = 2.2 Hz, 1H), 6.68 (d, J = 2.2 Hz, 1H), 4.62 (s, 2H), 4.41 (t, J = 4.5 Hz, 2H), 4.13 (m, 2H), 3.45 (t, J = 4.5 Hz, 2H), 1.73 (m, 1H), 0.92–0.72 (m, 2H), 0.61–0.44 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.12, 140.76, 137.27, 135.65, 134.91, 133.46, 132.85, 128.73, 127.75, 127.71, 126.38, 125.94, 125.72, 125.16, 123.08, 119.73, 116.98, 114.63, 65.27, 55.80, 46.71, 41.04, 40.70, 15.12, 8.66. MS(ESI): calcd for C₂₅H₂₄F₃N₂O₂ ⁺, [M + H]⁺, m/z, 441.2.

6-cyclopropyl-4-(4-methylbenzyl)-N-(2,2,2-trifluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B21)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.18 (t, J = 6.6 Hz, 1H), 7.22 (d, J = 2.2 Hz, 1H), 7.16 (s, 4H), 6.62 (d, J = 2.2 Hz, 1H), 4.43 (s, 2H), 4.37 (t, J = 4.5 Hz, 2H), 4.12 (m, 2H), 3.39 (t, J = 4.4 Hz, 2H), 2.35 (s, 3H), 1.75 (m, 1H), 0.83 (h, J = 4.6 Hz, 2H), 0.63–0.52 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.13, 140.68, 137.16, 137.09, 135.64, 134.28, 129.48, 127.08, 125.84, 123.07, 119.61, 116.84, 114.43, 65.24, 55.22, 46.55, 21.11, 21.08, 15.11, 8.63. HRMS (DART-TOF): calcd for C₂₂H₂₄F₃N₂O₂ ⁺, [M + H]⁺, m/z, 405.1771.

6-cyclopropyl-4-(3,5-dimethylbenzyl)-N-(2,2,2-trifluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B22)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.18 (s, 1H), 7.22 (d, J = 2.2 Hz, 1H), 6.92 (s, 1H), 6.89 (s, 2H), 6.62 (d, J = 2.2 Hz, 1H), 4.38 (d, J = 5.3 Hz, 4H), 4.13 (m, 2H), 3.52–3.37 (m, 2H), 2.31 (s, 6H), 1.75 (m, 1H), 0.85–0.82 (m, 2H), 0.63–0.54 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.14, 140.69, 138.42, 137.45, 137.17, 135.75, 129.05, 124.87, 119.60, 116.82, 114.45, 65.22, 55.59, 46.67, 21.37, 21.34, 15.10, 8.62. HRMS (DART-TOF): calcd for C₂₃H₂₆F₃N₂O₂ ⁺, [M + H]⁺, m/z, 419.1932.

6-cyclopropyl-4-(3,5-dimethoxybenzyl)-N-(2,2,2-trifluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B23)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.18 (t, J = 6.3 Hz, 1H), 7.22 (d, J = 2.2 Hz, 1H), 6.61 (d, J = 2.2 Hz, 1H), 6.43 (d, J = 2.2 Hz, 2H), 6.38 (t, J = 2.3 Hz, 1H), 4.39 (s, 4H), 4.12 (m, 2H), 3.77 (s, 6H), 3.41 (t, J = 4.5 Hz, 2H), 1.75 (m, 1H), 0.92–0.75 (m, 2H), 0.65–0.54 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.10, 161.26, 140.71, 140.12, 137.18, 135.55, 125.84, 123.07, 119.64, 117.02, 114.56, 104.99, 98.95, 65.24, 55.74, 55.37, 55.34, 46.77, 41.03, 40.68, 15.10, 8.65. HRMS (DART-TOF): calcd for C₂₃H₂₆F₃N₂O₄ ⁺, [M + H]⁺, m/z, 451.1827.

6-cyclopropyl-4-(3-fluoro-4-methoxybenzyl)-N-(2,2,2-trifluoroethyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B24)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.17 (t, J = 6.4 Hz, 1H), 7.23 (d, J = 2.2 Hz, 1H), 7.10–6.89 (m, 3H), 6.58 (d, J = 2.2 Hz, 1H), 4.39 (d, J = 5.4 Hz, 4H), 4.12 (m, 2H), 3.88 (s, 3H), 3.40 (t, J = 4.5 Hz, 2H), 1.75 (m, 1H), 0.92–0.75 (m, 2H), 0.64–0.51 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.03, 153.84, 151.39, 146.96, 146.85, 140.75, 137.19, 135.35, 130.47, 130.42, 122.66, 119.73, 117.19, 114.51, 113.69, 65.22, 56.38, 56.33, 54.79, 46.71, 15.09, 8.65. MS(ESI): calcd for C₂₂H₂₃F₄N₂O₃ ⁺, [M + H]⁺, m/z, 439.2.

methyl 3-((6-cyclopropyl-8-((2,2,2-trifluoroethyl)carbamoyl)-2,3-dihydro-4H-benzo[b][1,4]oxazin-4-yl)methyl)benzoate (B25)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.17 (t, J = 6.3 Hz, 1H), 7.96 (d, J = 7.5 Hz, 2H), 7.46 (m, 2H), 7.23 (s, 1H), 6.56 (s, 1H), 4.50 (s, 2H), 4.41 (t, J = 4.5 Hz, 2H), 4.19–4.06 (m, 2H), 3.92 (s, 3H), 3.44 (t, J = 4.5 Hz, 2H), 1.73 (m, 1H), 0.82 (d, J = 8.3 Hz, 2H), 0.56 (t, J = 5.5 Hz, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.88, 166.03, 140.80, 138.11, 137.22, 135.32, 131.45, 130.79, 128.98, 128.72, 128.19, 119.76, 117.32, 117.30, 114.55, 114.53, 65.18, 55.51, 52.24, 46.99, 15.07, 8.63. MS(ESI): calcd for C₂₃H₂₄F₃N₂O₄ ⁺, [M + H]⁺, m/z, 449.1701.

(S)-6-cyclopropyl-N-(1,1,1-trifluoropropan-2-yl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B26)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.00 (d, J = 9.3 Hz, 1H), 7.25 (d, J = 2.2 Hz, 1H), 6.73 (d, J = 2.2 Hz, 1H), 5.02–4.87 (m, 1H), 4.48 (s, 2H), 4.38 (t, 2H), 3.45 (t, J = 4.5 Hz, 2H), 2.55 (s, 3H), 2.50 (s, 3H), 2.49 (s, 3H), 1.85–1.72 (m, 1H), 1.38 (d, J = 6.9 Hz, 3H), 0.91–0.80 (m, 2H), 0.63–0.55 (m, 2H). MS(ESI): calcd for C₂₃H₂₈F₃N₄O₂ ⁺, [M + H]⁺, m/z, 449.2.

(R)-6-cyclopropyl-N-(1,1,1-trifluoropropan-2-yl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B27)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.00 (s, 1H), 7.24 (d, J = 2.2 Hz, 1H), 6.73 (d, J = 2.2 Hz, 1H), 5.01–4.87 (m, 1H), 4.48 (s, 2H), 4.38 (t, J = 4.5 Hz, 2H), 3.45 (t, J = 4.4 Hz, 2H), 2.55 (s, 3H), 2.49 (s, 6H), 1.85–1.72 (m, 1H), 1.39 (d, J = 6.9 Hz, 3H), 0.92–0.79 (m, 2H), 0.66–0.55 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.44, 150.19, 148.71 (d, J = 3.7 Hz), 146.84, 140.95, 136.83, 135.53, 119.71, 117.59 (d, J = 2.2 Hz), 114.21 (d, J = 2.7 Hz), 65.27 (d, J = 3.8 Hz), 55.02, 47.01, 21.51 (d, J = 3.9 Hz), 20.84 (d, J = 4.5 Hz), 15.10, 14.65, 8.63. MS(ESI): calcd for C₂₃H₂₈F₃N₄O₂ ⁺, [M + H]⁺, m/z, 449.2.

6-cyclopropyl-N-(3,3,3-trifluoropropyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B28)

Prepared from the general methods for B35–37, B41, and B18 ¹H NMR (400 MHz, chloroform-d) δ 8.13 (t, J = 5.9 Hz, 1H), 7.25 (d, J = 2.2 Hz, 1H), 6.72 (d, J = 2.2 Hz, 1H), 4.48 (s, 2H), 4.37–4.32 (m, 2H), 3.70 (t, J = 6.3 Hz, 2H), 3.48–3.39 (m, 2H), 2.54 (s, 3H), 2.49 (s, 3H), 2.49 (s, 3H), 2.53–2.38 (m, 2H), 1.82–1.72 (m, 1H), 0.91–0.82 (m, 2H), 0.63–0.55 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.90, 150.18, 148.75, 148.71, 146.91, 140.96, 136.70, 135.48, 120.19, 117.45, 113.95 (d, J = 2.6 Hz), 65.15, 55.09, 47.02, 33.32–32.91 (m), 21.84–21.23 (m), 20.88, 15.12, 8.64. MS(ESI): calcd for C₂₃H₂₈F₃N₄O⁺, [M + H]⁺, m/z, 449.2.

6-cyclopropyl-N-(2,2-difluoropropyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B29)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.09 (t, J = 6.2 Hz, 1H), 7.25 (d, J = 2.2 Hz, 1H), 6.73 (d, J = 2.2 Hz, 1H), 4.48 (s, 2H), 4.38 (t, J = 4.4 Hz, 2H), 3.98–3.76 (m, 2H), 3.44 (t, J = 4.4 Hz, 2H), 2.55 (s, 3H), 2.49 (s, 6H), 1.84–1.72 (m, 1H), 1.64 (t, J = 18.7 Hz, 3H), 0.91–0.80 (m, 2H), 0.65–0.53 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.12, 150.19, 148.72, 146.89, 140.97, 136.73, 135.53, 120.03, 117.64, 114.07, 65.30, 55.12, 55.09, 55.06, 47.02, 21.56, 21.40, 21.13, 20.83, 15.11, 8.64. MS(ESI): calcd for C₂₃H₂₉F₂N₄O₂ ⁺, [M + H]⁺, m/z, 447.2.

6-cyclopropyl-N-(2,2-difluoro-3-hydroxypropyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B30)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 8.33 (t, J = 6.6 Hz, 1H), 7.24 (d, J = 2.2 Hz, 1H), 6.75 (d, J = 2.2 Hz, 1H), 4.80 (t, J = 7.8 Hz, 1H), 4.49 (s, 2H), 4.41 (t, J = 4.4 Hz, 2H), 3.94–3.80 (m, 2H), 3.73–3.56 (m, 2H), 3.52–3.43 (m, 2H), 2.55 (s, 3H), 2.49 (d, J = 2.3 Hz, 6H), 1.84–1.69 (m, 1H), 0.96–0.79 (m, 2H), 0.65–0.51 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 168.16, 150.26, 148.79, 148.67, 146.73, 141.24, 136.96, 135.64, 118.79, 117.54, 114.58, 65.50, 61.03, 54.97, 46.99, 41.02, 21.55, 20.80, 15.09, 8.68. MS(ESI): calcd for C₂₃H₂₉F₂N₄O₃ ⁺, [M + H]⁺, m/z, 431.2.

6-cyclopropyl-N-(4,4,4-trifluorobutyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B31)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 7.83 (t, J = 6.0 Hz, 1H), 7.24 (d, J = 2.1 Hz, 1H), 6.72 (d, J = 2.2 Hz, 1H), 4.48 (s, 2H), 4.36 (t, J = 4.4 Hz, 2H), 3.58–3.47 (m, 2H), 3.43 (t, J = 4.4 Hz, 2H), 2.80 (s, 2H), 2.55 (s, 3H), 2.49 (s, 6H), 2.30–2.09 (m, 2H), 1.81–1.70 (m, 1H), 0.91–0.79 (m, 2H), 0.65–0.52 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 166.03, 150.18, 148.73, 146.93, 140.78, 136.72, 135.46, 120.61, 117.52, 113.83, 65.22, 55.10, 47.02, 38.60, 38.32, 22.49, 21.67, 20.86, 15.12, 8.63. MS(ESI): calcd for C₂₄H₃₀F₃N₄O₂ ⁺, [M + H]⁺, m/z, 463.2.

6-cyclopropyl-N-(4,4-difluorocyclohexyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B32)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 7.72 (d, J = 7.7 Hz, 1H), 7.23 (d, J = 2.1 Hz, 1H), 6.71 (d, J = 2.2 Hz, 1H), 4.48 (s, 2H), 4.35 (t, J = 4.4 Hz, 2H), 3.43 (t, J = 4.4 Hz, 2H), 2.54 (s, 3H), 2.49 (d, J = 1.8 Hz, 6H), 2.14–2.01 (m, 4H), 2.01–1.82 (m, 1H), 1.82–1.72 (m, 2H), 1.71–1.54 (m, 2H), 0.94–0.78 (m, 2H), 0.68–0.48 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 165.11, 150.19, 148.76, 146.93, 140.73, 136.74, 135.45, 120.74, 117.51, 113.78, 65.22, 55.10, 47.01, 46.02, 32.31, 32.06, 31.82, 28.58, 21.59, 20.89, 15.13, 8.63. MS(ESI): calcd for C₂₆H₃₃F₂N₄O₂ ⁺, [M + H]⁺, m/z, 471.2.

6-cyclopropyl-N-methyl-n-(2,2,2-trifluoroethyl)-4-((3,5,6-trimethylpyrazin-2-yl)methyl)-3,4-dihydro-2H-benzo[b][1,4]oxazine-8-carboxamide (B34)

Prepared from the general methods for B35–37, B41, and B18. ¹H NMR (400 MHz, chloroform-d) δ 6.65–6.56 (m, 1H), 6.36–6.27 (m, 1H), 4.46 (s, 2H), 4.24 (s, 3H), 4.01–3.61 (m, 1H), 3.39–3.31 (m, 2H), 3.18 (s, 1H), 3.00 (s, 2H), 2.54 (s, 3H), 2.49 (d, J = 3.0 Hz, 6H), 1.81–1.67 (m, 1H), 0.92–0.78 (m, 2H), 0.60–0.49 (m, 2H). ¹³C NMR (101 MHz, chloroform-d) δ 170.76, 150.10, 148.87, 148.60, 147.06, 138.02, 137.08, 135.43, 123.54, 123.02, 113.59, 111.28, 64.86, 54.76, 47.28, 37.27, 34.13, 21.55, 21.49, 20.88, 20.83, 15.12, 8.55. MS(ESI): calcd for C₂₃H₂₈F₃N₄O₂ ⁺, [M + H]⁺, m/z, 449.2.

SUPPLEMENTAL MATERIAL

The following material is available online at https://doi.org/10.1128/spectrum.04721-22.

Supplemental information. spectrum.04721-22-s0001.pdf.

Fig. S1 and S2; Table S1.

ASM does not own the copyrights to Supplemental Material that may be linked to, or accessed through, an article. The authors have granted ASM a non-exclusive, world-wide license to publish the Supplemental Material files. Please contact the corresponding author directly for reuse.
