Perceptual formant discrimination during speech movement planning

Hantao Wang 1, Yusuf Ali 1, Ludo Max 1,*
PMCID: PMC10592784  PMID: 37873157

Abstract

Evoked potential studies have shown that speech planning modulates auditory cortical responses. The phenomenon’s functional relevance is unknown. We tested whether, during this time window of cortical auditory modulation, there is an effect on speakers’ perceptual sensitivity for vowel formant discrimination. Participants made same/different judgments for pairs of stimuli consisting of a pre-recorded, self-produced vowel and a formant-shifted version of the same production. Stimuli were presented prior to a “go” signal for speaking, prior to passive listening, and during silent reading. The formant discrimination stimulus /uh/ was tested with a congruent productions list (words with /uh/) and an incongruent productions list (words without /uh/). Logistic curves were fitted to participants’ responses, and the just-noticeable difference (JND) served as a measure of discrimination sensitivity. We found a statistically significant effect of condition (worst discrimination before speaking) without congruency effect. Post-hoc pairwise comparisons revealed that JND was significantly greater before speaking than during silent reading. Thus, formant discrimination sensitivity was reduced during speech planning regardless of the congruence between discrimination stimulus and predicted acoustic consequences of the planned speech movements. This finding may inform ongoing efforts to determine the functional relevance of the previously reported modulation of auditory processing during speech planning.

Keywords: speech production, formant discrimination, auditory feedback, sensory modulation, sensory gating, sensory prediction

Introduction

Behavioral and neurophysiological studies of both limb and speech movements consistently show that sensory processing is modulated during active movements (Press et al., 2020; Waszak et al., 2012). Such movement-induced sensory modulation is commonly interpreted in the framework of predictive motor control, in which the sensorimotor system uses the predicted sensory consequences of a motor command to generate and control the movement (Miall & Wolpert, 1996; Sperry, 1950; Von Holst & Mittelstaedt, 1950).

For example, using extracranial neural recording techniques such as electroencephalography (EEG) and magnetoencephalography (MEG), many studies with human participants have shown attenuated brain responses to either movement-generated sensory feedback (Aliu et al., 2009; Bäß et al., 2008; Houde et al., 2002; Hughes & Waszak, 2011) or external sensory stimuli delivered during movement (Houde et al., 2002; Ito et al., 2020; Numminen & Curio, 1999). On the other hand, intracranial recordings in both humans and animal models have revealed a more complex picture, with vocalization or limb movements leading to both suppression and facilitation across different neuronal populations or single cells in auditory or somatosensory cortex (Creutzfeldt et al., 1989; Eliades & Wang, 2003, 2019; Greenlee et al., 2013; Müller-Preuss & Ploog, 1981; Singla et al., 2017; Suga & Shimozawa, 1974). At the behavioral level, many studies have found that limb movements lead to an attenuated perception of self-generated tactile, auditory or visual stimuli, including increased perceptual thresholds and decreased sensitivity (Bays et al., 2005; Blakemore et al., 1998; Cardoso-Leite et al., 2010; Sato, 2008; Shergill et al., 2003). However, several recent studies have shown that movement modulates perception in a complex manner. For example, as compared with externally generated stimuli, the perception of self-generated sensory feedback was found to be enhanced at low stimulus intensity but attenuated at high stimulus intensity (Paraskevoudi & SanMiguel, 2021; Reznik et al., 2015), or enhanced at an early time point and attenuated at a later time point (Yon et al., 2018; Yon & Press, 2017).

In order to fully understand how active movements affect sensory processing and perception, one also needs to consider that the auditory and somatosensory systems are already modulated during vocalization and limb movement planning prior to movement onset (Daliri & Max, 2016; Eliades & Wang, 2003, 2005, 2019; Mock et al., 2011; Seki et al., 2003; Williams et al., 1998). Here, we address this topic further in the context of our laboratory’s series of speech studies that compared long-latency auditory evoked potentials (AEPs) elicited by pure tone probe stimuli delivered during the planning phase in a delayed-response speaking task versus control conditions without speaking. The probe tone stimulus was always delivered 400 ms after initial presentation of a word and 200 ms prior to the go signal cueing over production (or at the equivalent time point in the passive listening and/or silent reading control conditions). Results consistently indicated that the amplitude of the cortical N1 component in the AEPs is reduced prior to speaking (Daliri & Max, 2015a, 2015b, 2016; Max & Daliri, 2019). However, the functional relevance of this pre-speech auditory modulation (PSAM) phenomenon remains entirely unknown.

To date, only Merrikhi et al. (2018) have investigated potential perceptual correlates of PSAM. Adapting the delayed-response tasks used in our previous PSAM studies, they asked participants to compare the intensity of two pure tone stimuli in both speaking and no-speaking conditions. The standard stimulus with a fixed intensity level was presented at the beginning of each trial. The comparison stimulus with varying intensity was presented during the speech planning phase at the time point where PSAM had been previously demonstrated. Based on a two-interval forced choice intensity discrimination test (“Which one was louder?”), the speaking condition showed (a) a statistically significantly higher point of subjective equality (i.e., the comparison stimulus had to be louder to be perceived equally loud as the standard stimulus), and (b) statistically significantly lower slope values for the psychometric functions (i.e., greater uncertainty in the perceptual judgments). Thus, results were consistent with the idea that PSAM during speech movement planning is associated with an attenuation in the perception of auditory input. However, given that Merrikhi et al. (2018) tested only intensity perception and only used pure tones, it remains to be determined whether speech planning modulates other perceptual processes with more direct relevance for monitoring auditory feedback once speech is initiated. For example, it is possible that prior to speech onset neuronal populations with different characteristics are already selectively inhibited and facilitated to suppress the processing of irrelevant events but enhance the processing of speech-related auditory feedback. In addition, it is not clear to what extent the results of Merrikhi et al. (2018) may have been influenced by a working memory component. In their paradigm, each trial’s time interval between the standard and comparison stimuli was 900 ms, and the target word to be spoken, read, or listened to by the participant always appeared on a computer monitor during this comparison interval.

To further investigate the functional relevance of PSAM, the current study combined our prior delayed-response speaking task paradigm with a novel same/different formant discrimination perceptual test that used brief stimuli derived from the participant’s own speech and delivered as a pair centered around the exact time point where PSAM has been previously demonstrated (Daliri & Max, 2015a, 2015b, 2016, 2018; Max & Daliri, 2019). The first two formants, or resonance frequencies of the vocal tract, are critical for the production of vowels, and speakers are sensitive to formant frequency changes perceived in their auditory feedback (Houde & Jordan, 1998; Niziolek & Guenther, 2013; Purcell & Munhall, 2006b, 2006a; Tourville et al., 2008; Wang & Max, 2022). We therefore asked participants to make the same/different judgments for comparison stimuli that were created by extracting and truncating a pre-recorded self-produced vowel, and digitally altering the formant frequencies of the second stimulus. We controlled the congruency between these stimuli for the formant discrimination test and the vowel of the words in the delayed-response speaking task by using two different word lists: one list only included words containing the same vowel as the discrimination stimuli and the other list excluded words containing that vowel. Silent reading (Reading condition) and passive listening (Listening condition) were included as control conditions. We hypothesized that, if auditory feedback monitoring starts being suppressed during the speech planning phase, formant discrimination sensitivity would already decrease in the Speaking condition as compared with the control conditions. Alternatively, if the auditory system is selectively tuned to the predicted acoustic outcomes of the planned speech movements, formant discrimination in the Speaking condition may be enhanced, especially when the discrimination stimuli are congruent with the vowel in the predicted acoustic outcome (i.e., planned production).

Materials and methods

Participants

Twenty-six right-handed adult native speakers of American English (16 women, 10 men, age M=22.90 years, SD=4.68 years, range = 18–36 years) with no self-reported history of speech, hearing, or neurological disorders participated after providing written informed consent (all procedures were approved by the Institutional Review Board at the University of Washington). Based on a pure tone hearing screening, all participants had monaural thresholds at or below 20 dB HL at all octave frequencies from 250 Hz to 8 kHz in both ears.

Instrumentation

Inside a sound-attenuated room, participants were seated approximately 1.5 m from a 23-inch monitor. Their speech was captured by a microphone (WL185, Shure Incorporated, Niles, IL) placed 15 cm from the mouth and connected to an audio interface (RME Babyface Pro, RME, Haimhausen, Germany). The audio interface was connected to a computer with custom software written in MATLAB (The MathWorks, Natick, MA, United States) that recorded the speech signal to computer hard disk. The output of the audio interface was amplified (HeadAmp6 Pro, ART ProAudio, Niagara Falls, NY) and played back to the participant via insert earphones (ER-1, Etymotic Research Inc., Grove Village, IL), providing speech auditory feedback throughout the whole experiment. In addition, the insert earphones were also used to deliver the binaural auditory stimuli for formant discrimination testing and playback of the participant’s previously recorded speech in the Listening condition (see below).

Before each recording session, the settings on the audio interface and the headphones amplifier were adjusted such that speech input with an intensity of 75 dB SPL at the microphone resulted in 73 dB SPL output in the earphones (Cornelisse et al., 1991). To calibrate the intensity of the speech signal in the earphones, a 2 cc coupler (Type 4946, Bruel & Kjaer Inc., Norcross, GA) was connected to a sound level meter (Type 2250A Hand Held Analyzer with Type 4947 ½″ Pressure Field Microphone, Bruel & Kjaer Inc., Norcross, GA).

Procedure

The experiment consisted of two parts, a pre-test to record the participant’s productions to be used for the creation of the auditory stimuli for formant discrimination testing, and a series of speaking, listening, and silent reading tasks during which formant discrimination was tested. The pre-test consisted of thirty trials of a speech production task. During each trial, the word “tuck” appeared in green color on a black background and remained visible for 1500 ms. The participant spoke the word when it appeared. After the pre-test was completed, the experimenter used a custom MATLAB script to examine the thirty productions of “tuck” offline and manually mark the onset and offset of the vowel /uh/ (International Phonetic Alphabet symbol /ʌ/) for each trial by visually inspecting the waveform and a wide-band spectrogram. The MATLAB script then extracted the frequencies of the first two formants (F1 and F2) of the middle 20% of each production (a window from 40% to 60% into the vowel duration) as tracked by the Audapter software using the linear predictive coding algorithm (Cai et al., 2008; Tourville et al., 2013). The median F1 and F2 frequencies of the thirty trials were calculated and the pre-test token closest to the median F1 and F2 was selected based on Euclidean distance in the F1-F2 space. The middle 60 ms of the vowel in the selected token was then used to generate the stimuli for formant discrimination testing. Truncated vowels were used so that the two auditory stimuli could be presented back-to-back as close as possible to the time point where PSAM had been demonstrated in our previous studies. Each participant’s chosen production was first modified with a linear amplitude envelope to create a 10 ms onset rise and 10 ms offset fall. Next, eleven formant-shifted versions of this truncated vowel were created with the Audapter software by shifting both F1 and F2 upward from 0 to 250 cents in 25 cents increments (i.e., 0 cents, +25 cents, +50 cents, etc.; note that 100 cents = 12 semitones = 1 octave). To control for any unwanted effects caused by processing in the Audapter software, the processed version with 0-cent shift was used as the standard syllable in the formant discrimination test instead of the original truncated syllable.

The main part of the study included three conditions (Speaking, Listening, and Reading) with two different word lists. Thus, each participant completed six tasks. The order of the conditions and the word lists were randomized for each participant, but within the same word list, the Listening condition always had to be completed after the Speaking condition as the participant’s own recorded speech had to be played back in the Listening condition.

The entire experiment consisted of 110 trials. Each trial began with a white word appearing on a black background on a computer monitor (Fig 1). The word was chosen randomly from the applicable word list. The white word remained on the screen for 600 ms. After 600 ms, the color of the word on the screen changed from white to green, and this change in color served as the go signal in the Speaking condition. The green word stayed on the screen for 1400 ms. While the word in white characters was displayed on the monitor, the standard stimulus (0 cents shift, 60 ms duration) was first played through the earphones at 290 ms. Then, 100 ms after the end of the standard stimulus (450 ms after the white word appeared), the comparison stimulus was played. The comparison stimulus was randomly selected from the eleven shifted versions of the truncated syllable (0 to +250 cents). The two stimuli were played at ~75 dB SPL (the formant shifting technique sometimes induces a small intensity difference up to ~2 dB SLP). The timing of the two syllable stimuli was chosen such that the pair was centered around the time point for which PSAM had been documented in our previous studies (i.e., 400 ms after presentation onset of the word in white characters and 200 ms prior to the go signal; Daliri & Max [2015a, 2015b, 2016, 2018], Max & Daliri [2019]).

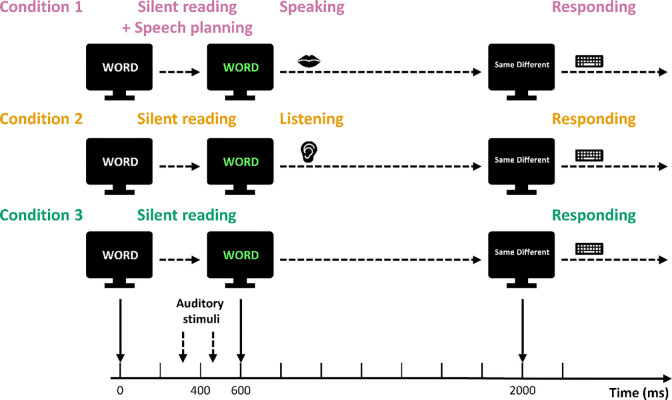

Fig 1. Experimental Procedure.

Fig 1.

Each trial started with a white word on a black screen. During the white word period, two truncated vowels, a standard stimulus (at 290 ms) and a comparison stimulus (at 450 ms), were played to the participants. The word changed to green at 600 ms and this color change served as the go signal in the Speaking condition. In the Listening condition, participants listened to playback of their own production after the word changed to green. In the Reading condition, participants silently read the word. At 2000 ms, the green word disappeared and the participants were asked to judge whether the standard and comparison stimuli sounded the same or different by pressing keys on a keyboard.

When the green word disappeared, a prompt “Same Different” was presented on the monitor for the participant to judge whether the standard and comparison stimuli sounded the same or different by pressing either the F key with their left index finger or the J key with their right index finger, respectively, on a keyboard placed on their lap. The prompt disappeared after 1500 ms or as soon as one of the two buttons was pressed. The screen then remained blank for 1000 ms until the next trial started.

In the Speaking condition, participants were instructed to say the word on the monitor out loud after the word turned from white to green. In the Listening condition, participants listened to playback of their own production of each word shown on the monitor as recorded during a preceding Speaking condition with the same word list (albeit in different randomized order). Each word was played back with the same intensity and production latency as when it had been actively produced. In the Reading condition, participants were instructed to silently read the words on the monitor without making any articulatory movements.

Each of the two word lists contained 55 CVC words containing three to four letters. To test for a potential effect of congruency between the formant discrimination stimuli and the produced words, one word list (“word list with /uh/”) included only words that had /uh/ as their syllable nucleus (e.g., “love”, “run”) whereas the other word list (“word list without /uh/”) excluded any words with /uh/ (e.g., “talk”, “sit”). The two word lists were balanced in terms of word frequency (Brysbaert & New, 2009) and word length.

Data analysis

For each participant, a logistic regression was fitted to the formant discrimination response data from each of the six tasks using the glm() function in the R software (R Core Team, 2019). Two parameters, the just-noticeable difference (JND, defined as the shift amount at which the logistic fit predicts a 50% chance of responding “Different”) and the slope of the logistic curve were calculated from each fit. The key-pressing response time for each trial was also extracted. Two steps were taken to exclude data points that were outliers. First, three participants with a negative JND or slope were excluded. Second, the sample distributions of the JND averaged across the six tasks (Fig 2A) and the JND of each task (Fig 2B) were examined. One additional participant was excluded because their JND averaged across the six tasks was more than three absolute deviations away from the sample median (Leys et al., 2013). All data from the remaining 22 participants were included in the statistical analyses.

Fig 2. Boxplots illustrating exclusion of an outlier participant.

Fig 2.

(A) just-noticeable difference (JND) averaged across all six tasks. (B) JND by condition (Reading, Speaking, Listening) and word list. The cross symbol (×) indicates the participant who was excluded because the JND averaged across the six tasks was more than three absolute deviations (grey bars) away from the sample median (grey dots).

All statistical analyses were conducted in the R software (R Core Team, 2019). JND, slope, and response time were used as dependent variables for which we conducted a two-way repeated measures analysis of variance (rANOVA) with Condition (Reading, Speaking, and Listening), Word list (“word list with /uh/” and “word list without /uh/”) and their interaction as within-subjects variables. To account for potential violations of the sphericity assumption, the degrees of freedom for within-subject effects were adjusted using the Huynh–Feldt correction (Max & Onghena, 1999). Post-hoc tests of simple effects were conducted by means of paired t-tests adjusted with the Holm-Bonferroni method (Holm, 1979). For effect size calculations, generalized eta-squared ηG2 was used for rANOVA (Olejnik & Algina, 2003) and Cohen’s d was used for pair-wise post-hoc tests (Cohen, 1988). Additionally, because the formant discrimination test was a novel test for the participants, a potential practice effect was explored for JND, slope, and response time with one-way rANOVAs with Task order (1 to 6) as the within-subject variable, followed by post-hoc t-tests. The same adjustment method for multiple comparisons was applied. Lastly, Pearson correlation coefficients were used to examine a potential relationship between response time and either the JND or slope values.

Results

Fig 3A shows logistic curves fitted to group averaged data for the proportion of “Different” responses at each formant shift level of the comparison stimulus in the six tasks (three conditions by two word lists). For each task, the group averaged JND and corresponding individual participant data are shown in Fig 3B. A two-way rANOVA (Conditions × Word lists) revealed that there was a statistically significant effect for Condition (F(2.20,46.12)=4.82,p=0.01,ηG2=0.02), but not for Word list or for the interaction. Post-hoc analyses of the Condition effect revealed that the JND in the Speaking condition (M=130.77 cents, SD=30.29 cents) was statistically significantly larger than in the Reading condition (M=117.32 cents, SD=30.81 cents; t(21)=3.23, p=0.01, d=0.69). There was no statistically significant difference in JND between the Speaking and Listening conditions (M=123.91 cents, SD=37.59 cents; t(21)=1.56, p=0.27, d=0.33) or between the Reading and Listening conditions (t(21)=1.49,p=0.27,d=0.32). A one-way rANOVA with Task order as the within-subjects effect found no statistically significant change in JND with practice F(3.61,75.82)=1.91,p=0.12,ηG2=0.03.

Fig 3. Formant Discrimination Task Results.

Fig 3.

(A) Logistic curves fitted to group averaged data for the proportion of “Different” responses by condition and word list. (B) Mean and individual participant JNDs by condition and word list. (C) Mean and individual participant slopes by condition and word list. JND and slope were calculated from the logistic curves fitted to each participant’s responses in each task. (D) Mean keypress response time at each formant shift level of the comparison stimulus by condition and word list. Error bars correspond to standard errors.

For slope of the fitted curves, none of the main effects or interactions were found to be statistically significant (Fig 3C). However, there was a significant change in slope with practice as revealed by a Task order effect in a one-way rANOVA F4.25,89.35=1.91,p<0.01,ηG2=0.06) and post-hoc analyses showing that slope in the first task was statistically significantly smaller than that in the fifth task (t(21)=3.39,p=0.04,d=0.72) and the sixth task (t(21)=3.38,p=0.04,d=0.72).

Fig 3D shows group averaged data for response time at each formant shift level of the comparison stimulus. A two-way rANOVA conducted with the response time data revealed a statistically significant main effect of Condition F(1.47,30.86)=10.32,p<0.01,ηG2=0.07. Post-hoc analyses then revealed that response time in the Speaking condition (M=423.88ms,SD=98.37ms) was significantly slower than in the Listening condition (M=360.22ms,SD=67.82ms;t(21)=7.39,p<0.01,d=1.58), but there was no significant difference between the Speaking and Reading conditions (M=388.08ms,SD=87.73ms;t(21)=2.09,p=0.97,d=0.45) or between the Reading and Listening conditions (t(21)=1.86,p=0.97,d=0.40). Additionally, a one-way rANOVA examining the influence of Task order revealed a statistically significant effect (F(2.89,60.62)=18.32,p<0.01,ηG2=0.20). Post-hoc analyses showed a significantly slower response time for the first and second task versus the third, fourth, fifth, and sixth task, and for the third, fourth and fifth task versus the sixth task (p<0.05 in all pairwise comparisons).

Lastly, we calculated Pearson correlation coefficients for the relationship between response time and JND or slope in all three conditions. No statistically significant correlations were found between response time and JND. For slope, there was a significant negative correlation between response time and slope only in the Speaking condition (r=0.56,p<0.01;p>0.07 for all other correlations).

Discussion

Building upon previous findings of modulated AEPs and weakened intensity discrimination of pure tone stimuli during the speech planning phase, the current study examined whether speech planning modulates speakers’ ability to detect small formant frequency differences in recordings of their own vowel productions. The premise was that formant discrimination is critical for auditory feedback monitoring during speech, and that the previously documented phenomenon of PSAM (Daliri & Max, 2015a, 2015b, 2016, 2018; Max & Daliri, 2019) may reflect either suppression or selective tuning of auditory neuronal populations in preparation for this feedback monitoring.

Participants performed same/different formant judgments for recordings of self-produced vowels during the speech planning phase before speaking (Speaking condition) as well as prior to passive listening (Listening condition) and during silent reading (Reading condition). We also examined whether congruency between the formant discrimination stimuli and the planned production would affect participants’ judgments. Logistic regression functions were fitted to the participants’ responses in each condition for both incongruent and congruent word lists. JND was calculated as a measure of formant discrimination sensitivity. We found that participants showed a small but statistically significant decrease in formant discrimination sensitivity (i.e., higher JND) during the speech planning phase in the Speaking condition as compared with the Reading condition. Although other pair-wise comparisons showed no statistically significant differences, the group average JND for the Listening condition fell in-between those for the Speaking condition and the Reading condition. Descriptively, this ranking of JND across the conditions was more clear when the vowels presented for discrimination were congruent with the vowels to be produced, but the influence of congruency was not statistically significant (no main effect or interaction).

In addition to JND, we also determined the slope of the fitted logistic curves as another psychometric measure. Statistical tests showed no significant effects of either independent variable (Condition and Word list) on these slope measures. However, unlike JND, slope showed significant changes over time and it increased from earlier to later tasks. In other words, for slope, there was a practice effect. The interpretation of slope in a same/different discrimination paradigm is not entirely straightforward but relates to the “decisiveness” of a participant’s responses given that a greater slope value indicates a more abrupt transition from “same” responses to “different” responses regardless of the JND value. Keypress response times also exhibited a significant practice effect and decreased from earlier to later trials. Thus, our slope and response time measures indicate that participants’ formant discrimination responses became more decisive and faster throughout the experiment, but these behavioral changes did not affect the JND data.

Overall, our results are mostly consistent with those of the only other study that already investigated perceptual correlates of PSAM. Merrikhi et al. (2018) found that speech planning led to higher discrimination thresholds and higher perceptual uncertainty in a pure tone intensity discrimination test. Nevertheless, there are some differences between the results of the two studies. In the current study, the small decrease in formant discrimination sensitivity was only statistically significant for Speaking versus Reading, but not for Speaking versus Listening and also not for Listening versus Reading. On the other hand, in Merrikhi et al. (2018), the Speaking condition showed a significantly higher discrimination threshold than both the Reading and Listening conditions. Additionally, we found no effect of condition or word list on the slope of the logistic regression functions as a measure of perceptual uncertainty, whereas Merrikhi et al. (2018) found that perceptual uncertainty in their Speaking condition was significantly higher than in their Reading condition.

What may account for these discrepancies between the results from the two studies? First, in both studies the changes in discrimination ability observed during speech planning are very small, and, thus, participant sampling and inter-individual variability may cause inconsistency in terms of whether or not these effects reach statistical significance in a given study. Second, there is prior evidence that speech planning has different effects on the auditory processing of pure tones versus truncated syllables: although the modulation of N1 amplitude seems equivalent for the two types of stimuli, modulation of P2 amplitude, reflecting later stages of auditory processing, may be specific to speech stimuli (Daliri & Max, 2016). Sensory prediction of the speech auditory input in our Listening condition may have a small modulating effect on formant discrimination, thereby reducing the difference in discrimination ability between the Speaking and Listening conditions. Third, the timing of the stimuli for comparison differed between the two studies. In Merrikhi et al. (2018), two 50 ms pure tones were separated by 900 ms. In the current study, two 60 ms truncated syllables were separated by only 100 ms such that both tokens could be presented as close as possible to the time point for which PSAM has been documented. It is possible that our paradigm with such a short interstimulus interval made formant discrimination overall more difficult or more variable.

Taken together, the slightly decreased formant discrimination sensitivity during the speech planning phase as compared with during silent reading and the lack of a word list congruency effect are largely consistent with a general auditory suppression account of PSAM. These results then suggest that a speaking-induced partial suppression of the auditory system already starts during the speech planning phase prior to movement onset, even for stimuli that are acoustically similar to the predicted acoustic outcomes of the planned speech movements. This interpretation would be in keeping with evidence from several other lines of human and nonhuman vocalization studies indicating that, during the actual production, some of the suppressed auditory neurons respond more strongly when a mismatch is detected between perceived and predicted feedback (Behroozmand et al., 2009; Behroozmand & Larson, 2011; Eliades & Tsunada, 2018; Eliades & Wang, 2008, 2019; Heinks-Maldonado et al., 2005, 2006; Houde et al., 2002; Liu et al., 2011).

Nevertheless, a number of alternative interpretations cannot be ruled out at this time. For example, it has been argued that tasks requiring discrimination of same or different syllable pairs recruit sensorimotor networks that are also involved in speech production (Jenson & Saltuklaroglu, 2021, 2022). This raises the possibility that the requisite activation of these networks during the planning phase in our Speaking condition negatively impacted their contributions to the detection of subtle differences between the discrimination stimuli that were presented during the same time window. In fact, as a more narrow version of this hypothesis suggesting “interference” between sensorimotor processing during speech planning and auditory processing, PSAM may reflect neither a purposeful general suppression nor a fine-tuning of auditory cortex to optimize feedback monitoring but an active involvement of auditory neuronal populations in feedforward speech planning. This novel hypothesis certainly is testable, most directly with experimental paradigms examining whether individual participant PSAM measures relate more closely to aspects of speech that reflect the extent of feedforward preparation or, alternatively, that reflect the implementation of feedback-based corrections.

In sum, the current study examined perceptual correlates of PSAM by investigating participants’ formant discrimination ability prior to speaking, prior to passive listening, and during silent reading. We found that speech planning led to a small but statistically significant decrease in formant discrimination sensitivity in the absence of a statistically significant effect of congruency between the discrimination stimuli and the predicted acoustic outcomes of the planned speech movements. This work provides new behavioral evidence regarding modulation of the auditory system during speech movement planning and motivates further research into the phenomenon’s functional relevance.

Funding:

This research was supported by grants R01DC017444 and R01DC020162 from the National Institute on Deafness and Other Communication Disorders. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institute on Deafness and Other Communication Disorders or the National Institutes of Health.

References

  1. Aliu S. O., Houde J. F., & Nagarajan S. S. (2009). Motor-induced suppression of the auditory cortex. Journal of Cognitive Neuroscience, 21(4), 791–802. 10.1162/jocn.2009.21055 [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Bäß P., Jacobsen T., & Schröger E. (2008). Suppression of the auditory N1 event-related potential component with unpredictable self-initiated tones: Evidence for internal forward models with dynamic stimulation. International Journal of Psychophysiology, 70(2), 137–143. 10.1016/j.ijpsycho.2008.06.005 [DOI] [PubMed] [Google Scholar]
  3. Bays P. M., Wolpert D. M., & Flanagan J. R. (2005). Perception of the consequences of self-action is temporally tuned and event driven. Current Biology, 15(12), 1125–1128. 10.1016/j.cub.2005.05.023 [DOI] [PubMed] [Google Scholar]
  4. Behroozmand R., Karvelis L., Liu H., & Larson C. R. (2009). Vocalization-induced enhancement of the auditory cortex responsiveness during voice F0 feedback perturbation. Clinical Neurophysiology: Official Journal of the International Federation of Clinical Neurophysiology, 120(7), 1303–1312. 10.1016/J.CLINPH.2009.04.022 [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Behroozmand R., & Larson C. R. (2011). Error-dependent modulation of speech-induced auditory suppression for pitch-shifted voice feedback. BMC Neuroscience, 12(1), 1–10. 10.1186/1471-2202-12-54/FIGURES/5 [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Blakemore S. J., Wolpert D. M., & Frith C. D. (1998). Central cancellation of self-produced tickle sensation. Nature Neuroscience, 1(7), 635–640. 10.1038/2870 [DOI] [PubMed] [Google Scholar]
  7. Brysbaert M., & New B. (2009). Moving beyond Kučera and Francis: A critical evaluation of current word frequency norms and the introduction of a new and improved word frequency measure for American English. Behavior Research Methods, 41(4), 977–990. 10.3758/BRM.41.4.977 [DOI] [PubMed] [Google Scholar]
  8. Cai S., Boucek M., Ghosh S., Guenther F., & Perkell J. (2008). A System for Online Dynamic Perturbation of Formant Trajectories and Results from Perturbations of the Mandarin Triphthong /iau/. Undefined. [Google Scholar]
  9. Cardoso-Leite P., Mamassian P., Schütz-Bosbach S., & Waszak F. (2010). A new look at sensory attenuation: Action-effect anticipation affects sensitivity, not response bias. Psychological Science, 21(12), 1740–1745. 10.1177/0956797610389187 [DOI] [PubMed] [Google Scholar]
  10. Cohen J. (1988). Statistical Power Analysis for the Behavioral Sciences. In Statistical Power Analysis for the Behavioral Sciences. Routledge. 10.4324/9780203771587 [DOI] [Google Scholar]
  11. Cornelisse L. E., Gagne J. P., & Seewald R. C. (1991). Ear level recordings of the long-term average spectrum of speech. Ear and Hearing, 12(1), 47–54. 10.1097/00003446-199102000-00006 [DOI] [PubMed] [Google Scholar]
  12. Creutzfeldt O., Ojemann G., & Lettich E. (1989). Neuronal activity in the human lateral temporal lobe. II. Responses to the subjects own voice. Experimental Brain Research, 77(3), 476–489. 10.1007/BF00249601 [DOI] [PubMed] [Google Scholar]
  13. Daliri A., & Max L. (2015a). Electrophysiological evidence for a general auditory prediction deficit in adults who stutter. Brain and Language, 150, 37–44. 10.1016/j.bandl.2015.08.008 [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Daliri A., & Max L. (2015b). Modulation of auditory processing during speech movement planning is limited in adults who stutter. Brain and Language, 143, 59–68. 10.1016/j.bandl.2015.03.002 [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Daliri A., & Max L. (2016). Modulation of Auditory Responses to Speech vs. Nonspeech Stimuli during Speech Movement Planning. Frontiers in Human Neuroscience, 10(MAY2016), 234. 10.3389/fnhum.2016.00234 [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Daliri A., & Max L. (2018). Stuttering adults’ lack of pre-speech auditory modulation normalizes when speaking with delayed auditory feedback. Cortex, 99, 55–68. 10.1016/j.cortex.2017.10.019 [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Eliades S. J., & Tsunada J. (2018). Auditory cortical activity drives feedback-dependent vocal control in marmosets. Nature Communications 2018 9:1, 9(1), 1–13. 10.1038/s41467-018-04961-8 [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Eliades S. J., & Wang X. (2003). Sensory-motor interaction in the primate auditory cortex during self-initiated vocalizations. Journal of Neurophysiology, 89(4), 2194–2207. 10.1152/jn.00627.2002 [DOI] [PubMed] [Google Scholar]
  19. Eliades S. J., & Wang X. (2005). Dynamics of auditory-vocal interaction in monkey auditory cortex. Cerebral Cortex, 15(10), 1510–1523. 10.1093/cercor/bhi030 [DOI] [PubMed] [Google Scholar]
  20. Eliades S. J., & Wang X. (2008). Neural substrates of vocalization feedback monitoring in primate auditory cortex. Nature 2008 453:7198, 453(7198), 1102–1106. 10.1038/nature06910 [DOI] [PubMed] [Google Scholar]
  21. Eliades S. J., & Wang X. (2019). Corollary Discharge Mechanisms During Vocal Production in Marmoset Monkeys. Biological Psychiatry. Cognitive Neuroscience and Neuroimaging, 4(9), 805–812. 10.1016/J.BPSC.2019.06.008 [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Greenlee J. D. W., Behroozmand R., Larson C. R., Jackson A. W., Chen F., Hansen D. R., Oya H., Kawasaki H., & Howard M. A. (2013). Sensory-motor interactions for vocal pitch monitoring in non-primary human auditory cortex. PloS One, 8(4). 10.1371/JOURNAL.PONE.0060783 [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Heinks-Maldonado T. H., Mathalon D. H., Gray M., & Ford J. M. (2005). Fine-tuning of auditory cortex during speech production. Psychophysiology, 42(2), 180–190. 10.1111/J.1469-8986.2005.00272.X [DOI] [PubMed] [Google Scholar]
  24. Heinks-Maldonado T. H., Nagarajan S. S., & Houde J. F. (2006). Magnetoencephalographic evidence for a precise forward model in speech production. NeuroReport, 17(13), 1375–1379. 10.1097/01.WNR.0000233102.43526.E9 [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Holm S. (1979). A Simple Sequentially Rejective Multiple Test Procedure. Scandinavian Journal of Statistics, 6(2), 65–70. http://www.jstor.org/stable/4615733 [Google Scholar]
  26. Houde J. F., & Jordan M. I. (1998). Sensorimotor adaptation in speech production. Science, 279(5354), 1213–1216. 10.1126/science.279.5354.1213 [DOI] [PubMed] [Google Scholar]
  27. Houde J. F., Nagarajan S. S., Sekihara K., & Merzenich M. M. (2002). Modulation of the auditory cortex during speech: An MEG study. Journal of Cognitive Neuroscience, 14(8), 1125–1138. 10.1162/089892902760807140 [DOI] [PubMed] [Google Scholar]
  28. Hughes G., & Waszak F. (2011). ERP correlates of action effect prediction and visual sensory attenuation in voluntary action. NeuroImage, 56(3), 1632–1640. 10.1016/j.neuroimage.2011.02.057 [DOI] [PubMed] [Google Scholar]
  29. Ito T., Ohashi H., & Gracco V. L. (2020). Changes of orofacial somatosensory attenuation during speech production. Neuroscience Letters, 730. 10.1016/J.NEULET.2020.135045 [DOI] [PubMed] [Google Scholar]
  30. Jenson D., & Saltuklaroglu T. (2021). Sensorimotor contributions to working memory differ between the discrimination of Same and Different syllable pairs. Neuropsychologia, 159. 10.1016/J.NEUROPSYCHOLOGIA.2021.107947 [DOI] [PubMed] [Google Scholar]
  31. Jenson D., & Saltuklaroglu T. (2022). Dynamic auditory contributions to error detection revealed in the discrimination of Same and Different syllable pairs. Neuropsychologia, 176. 10.1016/J.NEUROPSYCHOLOGIA.2022.108388 [DOI] [PubMed] [Google Scholar]
  32. Leys C., Ley C., Klein O., Bernard P., & Licata L. (2013). Detecting outliers: Do not use standard deviation around the mean, use absolute deviation around the median. Journal of Experimental Social Psychology, 49(4), 764–766. 10.1016/J.JESP.2013.03.013 [DOI] [Google Scholar]
  33. Liu H., Meshman M., Behroozmand R., & Larson C. R. (2011). Differential effects of perturbation direction and magnitude on the neural processing of voice pitch feedback. Clinical Neurophysiology, 122(5), 951–957. 10.1016/J.CLINPH.2010.08.010 [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Max L., & Daliri A. (2019). Limited Pre-Speech Auditory Modulation in Individuals Who Stutter: Data and Hypotheses. Journal of Speech, Language, and Hearing Research, 62(8S), 3071–3084. 10.1044/2019_JSLHR-S-CSMC7-18-0358 [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Max L., & Onghena P. (1999). Some Issues in the Statistical Analysis of Completely Randomized and Repeated Measures Designs for Speech, Language, and Hearing Research. Journal of Speech, Language, and Hearing Research, 42(2), 261–270. 10.1044/JSLHR.4202.261 [DOI] [PubMed] [Google Scholar]
  36. Merrikhi Y., Ebrahimpour R., & Daliri A. (2018). Perceptual manifestations of auditory modulation during speech planning. Experimental Brain Research, 236(7), 1963–1969. 10.1007/s00221-018-5278-3 [DOI] [PubMed] [Google Scholar]
  37. Miall R. C., & Wolpert D. M. (1996). Forward models for physiological motor control. Neural Networks, 9(8), 1265–1279. 10.1016/S0893-6080(96)00035-4 [DOI] [PubMed] [Google Scholar]
  38. Mock J. R., Foundas A. L., & Golob E. J. (2011). Modulation of sensory and motor cortex activity during speech preparation. European Journal of Neuroscience, 33(5), 1001–1011. 10.1111/j.1460-9568.2010.07585.x [DOI] [PubMed] [Google Scholar]
  39. Müller-Preuss P., & Ploog D. (1981). Inhibition of auditory cortical neurons during phonation. Brain Research, 215(1–2), 61–76. 10.1016/0006-8993(81)90491-1 [DOI] [PubMed] [Google Scholar]
  40. Niziolek C. A., & Guenther F. H. (2013). Vowel category boundaries enhance cortical and behavioral responses to speech feedback alterations. Journal of Neuroscience, 33(29), 12090–12098. 10.1523/JNEUROSCI.1008-13.2013 [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Numminen J., & Curio G. (1999). Differential effects of overt, covert and replayed speech on vowel-evoked responses of the human auditory cortex. Neuroscience Letters, 272(1), 29–32. 10.1016/S0304-3940(99)00573-X [DOI] [PubMed] [Google Scholar]
  42. Olejnik S., & Algina J. (2003). Generalized Eta and Omega Squared Statistics: Measures of Effect Size for Some Common Research Designs. Psychological Methods, 8(4), 434–447. 10.1037/1082-989X.8.4.434 [DOI] [PubMed] [Google Scholar]
  43. Paraskevoudi N., & SanMiguel I. (2021). Self-generation and sound intensity interactively modulate perceptual bias, but not perceptual sensitivity. Scientific Reports 2021 11:1, 11(1), 1–13. 10.1038/s41598-021-96346-z [DOI] [PMC free article] [PubMed] [Google Scholar]
  44. Press C., Kok P., & Yon D. (2020). The Perceptual Prediction Paradox. In Trends in Cognitive Sciences (Vol. 24, Issue 1, pp. 13–24). Elsevier Ltd. 10.1016/j.tics.2019.11.003 [DOI] [PubMed] [Google Scholar]
  45. Purcell D. W., & Munhall K. G. (2006a). Adaptive control of vowel formant frequency: Evidence from real-time formant manipulation. The Journal of the Acoustical Society of America, 120(2), 966–977. 10.1121/1.2217714 [DOI] [PubMed] [Google Scholar]
  46. Purcell D. W., & Munhall K. G. (2006b). Compensation following real-time manipulation of formants in isolated vowels. Citation: The Journal of the Acoustical Society of America, 119, 2288. 10.1121/1.2173514 [DOI] [PubMed] [Google Scholar]
  47. R Core Team. (2019). R: A language and environment for statistical computing. R Foundation for Statistical Computing. https://www.R-project.org/ [Google Scholar]
  48. Reznik D., Henkin Y., Levy O., & Mukamel R. (2015). Perceived loudness of self-generated sounds is differentially modified by expected sound intensity. PloS One, 10(5). 10.1371/JOURNAL.PONE.0127651 [DOI] [PMC free article] [PubMed] [Google Scholar]
  49. Sato A. (2008). Action observation modulates auditory perception of the consequence of others’ actions. Consciousness and Cognition, 17(4), 1219–1227. 10.1016/j.concog.2008.01.003 [DOI] [PubMed] [Google Scholar]
  50. Seki K., Perlmutter S. I., & Fetz E. E. (2003). Sensory input to primate spinal cord is presynaptically inhibited during voluntary movement. Nature Neuroscience, 6(12), 1309–1316. 10.1038/nn1154 [DOI] [PubMed] [Google Scholar]
  51. Shergill S. S., Bays P. H., Frith C. D., & Wolpert D. M. (2003). Two eyes for an eye: The neuroscience of force escalation. Science, 301(5630), 187. 10.1126/science.1085327 [DOI] [PubMed] [Google Scholar]
  52. Singla S., Dempsey C., Warren R., Enikolopov A. G., & Sawtell N. B. (2017). A cerebellum-like circuit in the auditory system cancels responses to self-generated sounds. Nature Neuroscience, 20(7), 943–950. 10.1038/NN.4567 [DOI] [PMC free article] [PubMed] [Google Scholar]
  53. Sperry R. W. (1950). Neural basis of the spontaneous optokinetic response produced by visual inversion. Journal of Comparative and Physiological Psychology, 43(6), 482–489. 10.1037/h0055479 [DOI] [PubMed] [Google Scholar]
  54. Suga N., & Shimozawa T. (1974). Site of neural attenuation of responses to self-vocalized sounds in echolocating bats. Science (New York, N.Y.), 183(130), 1211–1213. 10.1126/SCIENCE.183.4130.1211 [DOI] [PubMed] [Google Scholar]
  55. Tourville J. A., Cai S., & Guenther F. (2013). Exploring auditory-motor interactions in normal and disordered speech. Proceedings of Meetings on Acoustics, 19(1), 060180. 10.1121/1.4800684 [DOI] [Google Scholar]
  56. Tourville J. A., Reilly K. J., & Guenther F. H. (2008). Neural mechanisms underlying auditory feedback control of speech. NeuroImage, 39(3), 1429–1443. 10.1016/j.neuroimage.2007.09.054 [DOI] [PMC free article] [PubMed] [Google Scholar]
  57. Von Holst E., & Mittelstaedt H. (1950). The Principle of Reafference : Interactions Between the Central Nervous System and the Peripheral Organs.
  58. Wang H., & Max L. (2022). Inter-Trial Formant Variability in Speech Production Is Actively Controlled but Does Not Affect Subsequent Adaptation to a Predictable Formant Perturbation. Frontiers in Human Neuroscience, 16. 10.3389/FNHUM.2022.890065 [DOI] [PMC free article] [PubMed] [Google Scholar]
  59. Waszak F., Cardoso-Leite P., & Hughes G. (2012). Action effect anticipation: Neurophysiological basis and functional consequences. In Neuroscience and Biobehavioral Reviews (Vol. 36, Issue 2, pp. 943–959). Pergamon. 10.1016/j.neubiorev.2011.11.004 [DOI] [PubMed] [Google Scholar]
  60. Williams S. R., Shenasa J., & Chapman C. E. (1998). Time course and magnitude of movement-related gating of tactile detection in humans. I. Importance of stimulus location. Journal of Neurophysiology, 79(2), 947–963. 10.1152/jn.1998.79.2.947 [DOI] [PubMed] [Google Scholar]
  61. Yon D., Gilbert S. J., de Lange F. P., & Press C. (2018). Action sharpens sensory representations of expected outcomes. Nature Communications, 9(1). 10.1038/s41467-018-06752-7 [DOI] [PMC free article] [PubMed] [Google Scholar]
  62. Yon D., & Press C. (2017). Predicted action consequences are perceptually facilitated before cancellation. Journal of Experimental Psychology: Human Perception and Performance, 43(6), 1073–1083. 10.1037/xhp0000385 [DOI] [PubMed] [Google Scholar]
