Synthesis and Fluorescence Sensing for Nitro Explosives and Pesticides of Two Cd-Coordination Polymers

Hua-li Cui 1,*, Wen Liu 1, Xin-yue Xu 1, Jie Zhou 1, Xiao-ming Song 1, Xiao-li Chen 1
PMCID: PMC10600892  PMID: 37901517

Abstract

graphic file with name ao3c06439_0009.jpg

Two cadmium coordination polymers (CPs), {[Cd(zgt)(2,2′-bipy)(H2O)]·H2O}n (1) and {[Cd(zgt)(BPP)(H2O)]·H2O}n (2) (H2zgt = 5-methoxyresorcinic acid, 2,2′-bipy = 2,2′-bipyridine, and BPP = 1,3-bis(4-pyridyl)propane), were prepared by the hydrothermal method. The structures of CPs 1–2 were characterized by IR, TGA, X-ray powder diffraction, and elemental analysis. The single-crystal structure analysis shows that CP 1 is a typical 1D chain structure and CP 2 belongs to a 2D layered structure. Based on the excellent luminescence properties of CP 1 and 2, fluorescence sensing experiments were carried out for explosives and pesticides. The results of the explosion sensing experiment showed that CP 1 and 2 had an excellent fluorescence quenching effect on PNBA (p-nitrobenzoic acid) and TNP (2,4,6-trinitrophenol), respectively, and the detection limits were 3.28 and 11.4 nM, respectively. Interestingly, both CP 1 and 2 showed good fluorescence quenching against the pesticide fluridine (Flu), and CP 1 had a lower detection limit and was more sensitive. In addition, the fluorescence quenching mechanism was discussed in detail by the UV absorption spectrum and density functional theory. In order to explore its practical application, the content of Flu in water samples was detected by a labeling recovery method.

1. Introduction

With the progress of modern society and the rapid development of industry, the common pollutants in water such as heavy metal ions,1−3 organic matter,4−6 pesticides,7−9 and antibiotics10−12 pose a certain threat to human health. Water pollution has gradually become an intractable problem faced by people in today’s society, so the detection of pollutants in water is particularly necessary. Researchers have tried a variety of detection methods, such as electrochemical methods, inductively coupled plasma atomic emission spectrometry (ICP-AES), high-performance liquid chromatography (HPLC), atomic absorption spectrometry (AAS), or mass spectrometry (MS). However, these methods have shortcomings such as complex instrument operation, high cost, long time, and insensitivity, so researchers are urgently looking for a simple and responsive detection technology, and the photochemical method is regarded as an effective detection method because of its low cost, high sensitivity, and selectivity.

There are pesticide residues on crops, and there are many ways in which pesticides can be present in our food and drinking water and threaten our health, so pesticide detection is tricky. Nitrocellulose explosive,13−15 a common chemical raw material, is an explosive and toxic substance, which can pollute groundwater and soil and harm people’s health. The fluorescence method16−20 can detect explosives quickly and efficiently. Therefore, it is very necessary to establish a kind of fluorescence sensor that can detect both pesticides and nitro explosives.

Luminescent sensing materials are attractive for environmental analysis due to their high selectivity, excellent sensitivity, and potential for rapid (even instantaneous) response to target analytes in different sample matrices.21 Many types of analytes have been detected in wastewater samples used for environmental protection, reagents and products used in pharmaceutical and pesticide industrial production, and biomarkers in blood and urine used for early diagnosis. However, developing suitable materials with the best sensing function for the target analyte remains challenging.22,23 Coordination polymers (CPs)24−26 are a class of porous materials formed by the coordination of metal and organic ligands. They have the characteristics of rich and varied structure, large specific surface area, adjustable aperture, and good luminescence performance. Due to their unique and excellent luminescence characteristics, they are often widely used as luminous sensors in the field of fluorescence analysis.27 It is still a challenge to design and synthesize luminous CP materials with high sensitivity and selectivity for the detection of pollutants in water. Therefore, the establishment of convenient and efficient complex fluorescence sensors for water pollution has become a research hotspot.

Liu et al.28 synthesized a light-emitting 3D supramolecular Cd-CP that can selectively detect TNP in 13 electron-deficient explosives with a detection limit of 0.27 μM. Fluorescence quenching can be explained by a combination of fluorescence resonance energy transfer (FRET) and photoinduced electron transfer (PET). Chen et al.29 synthesized six kinds of Cd-coordination polymers by the hydrothermal method, and their fluorescence responses to Fe3+, anions, aspartic acid, and bovine serum albumin were studied. The research results indicate that the complex has a low detection limit for the responsive compound, indicating that Cd-MOFs have great potential in fluorescence detection. Bairy et al.30 and Liu et al.31 also synthesized some Cd-MOFs and conducted experiments to study their properties, achieving good results, indicating that Cd-MOFs have good application prospects in the future. This also proves the correctness of our work direction. Li et al.32 synthesized a novel 3D Eu-CP by the solvothermal method. Eu-CP shows chemical stability and tolerance in water and organic solvents, and its intense fluorescence is not affected by pH (pH = 3–12). Eu-CP can rapidly detect antibiotics like metronidazole (MDZ) and dimethylimidazole (DMZ) and pesticides like 2, 6-dichloro-4-nitroaniline (DCN) in water, with good recyclability and a low detection limit. MDZ, DMZ, and DCN have been successfully detected in calf serum and lake water. Liu’s team33 synthesized one Zn-CP and three Cd-CPs to study the fluorescence properties of CPs 1–4 against explosives. The experiment showed that increasing the concentration of explosives would reduce the fluorescence intensity of CPs 1–4, especially the CPs containing TNP solution; the fluorescence intensity decreased most obviously. Through comparison, the quenching efficiency decreased in the following order: 2,4,6-trinitrophenol > p-nitrophenol > 4-nitrotoluene > nitrobenzene, which is consistent with the polarity order of the four explosives. It can be concluded that the greater the polarity of the explosives, the better the fluorescence quenching effect of the CPs.

Wang et al.34 synthesized a series of highly luminous complexes based on H2zgt: [Ln2(mip)3(H2O)8·4H2O]n (Ln = Sm, Eu, Gd, Tb, Dy). The experimental results show that weak intermetallic energy transfer can be used to predict the color modulation of heteronuclear families by adding color strategies. We synthesized complexes CP 1 and CP 2 under hydrothermal conditions using Cd metal with excellent luminescence properties, H2zgt, and nitrogen-containing ligands.

2. Experimental Section

2.1. Materials and Methods

All reagents were commercially available and of analytical grade and used without any purification treatment. Thermogravimetric analysis (TGA) was performed using a NETZSCHSTA 449C thermogravimetric analyzer in a nitrogen atmosphere with temperature increased from room temperature to 900 °C at a heating rate of 10 °C· min–1. The IR spectra of KBr particles in the region of 4000–400 cm–1 were recorded on a Bruker EQUINOX55 spectrophotometer. X-ray diffraction (XRD) was carried out on a Rigaku D/Max 3III diffractometer with Cu Kα radiation (λ = 0.15418 nm) from 5 to 50°. The UV–vis spectra were measured using a UV-2700 spectrophotometer. The fluorescence spectrum was determined by a F-7100 spectrometer made by Hitachi of Japan.

2.2. Synthesis of {[Cd(zgt)(2,2′-bipy)(H2O)]·H2O}n (1)

Accurately weighed Cd(NO3)2·4H2O (0.075 mmol, 23.1 mg), H2zgt (0.065 mmol, 12.7 mg), and 2,2′-bipy (0.05 mmol, 7.8 mg), dissolved in N,N-dimethylformamide (DMF) (2 mL) and H2O (5 mL), were transferred to 10 mL transparent glass bottles, placed in an oven at 95 °C, and the reaction was carried out at constant temperature for 5 days to obtain a final colorless transparent massive crystal, in calculated yield of 58% based on Cd. Anal. calculated for C19H18CdN2O7 (%): C, 45.71; H, 3.61; N, 5.61; Measured (%): C, 45.73; H, 3.62; N, 5.59. FT-IR (KBr, cm–1): 3534 (w), 3526 (m), 3117 (w), 3085 (w), 3005 (w), 2356 (w), 1803 (w), 1555 (s), 1443 (s), 1394 (s), 1363 (s), 1266 (m), 1138 (m), 1058 (s), 1018 (w), 914 (m), 777 (s), 722 (s), 649 (m), 409 (m).

2.3. Synthesis of {[Cd(zgt)(1,3-bis)(H2O)]·H2O}n (2)

Accurately weighed Cd(NO3)2·4H2O (0.075 mmol, 23.1 mg), H2zgt (0.065 mmol, 12.7 mg), and 1,3-bis (0.05 mmol, 9.8 mg), dissolved in N,N-dimethylacetamide (DMA) (1 mL) and H2O (5 mL), were taken. The mixture was stirred evenly and transferred to a 10 mL transparent glass bottle, placed in a hot air drying oven at 95 °C, and the reaction was carried out at constant temperature for 5 days to obtain a final colorless transparent massive crystal, in calculated yield of 55% based on Cd. Anal. calculated for C22H24CdN2O7 (%): C, 48.81; H, 4.44; N, 5.18; Measured (%): C, 48.80; H, 4.42; N, 5.19. FT-IR (KBr, cm–1): 3670 (w), 3374 (s), 2973 (s), 2901 (s), 1627 (s), 1562 (s), 1458 (m), 1378 (s), 1250 (m), 1058 (s), 881 (m), 802 (m), 737 (m), 609 (w), 569 (w), 504 (m), 432 (w).

2.4. X-ray Crystallography

Crystals of CPs 1–2 without cracks were selected at room temperature, X-ray diffraction was carried out using graphite-monochromatized Mo Kα radiation (λ = 0.071073 nm) on a Bruker APEX-II single-crystal diffractometer at 298 K, and the diffraction intensity data were collected. The diffraction intensity data were corrected using the SADABS program by semiempirical absorption. The structure was solved by direct methods using the SHELXTL-2018 program, and full matrix least-squares optimization was performed based on F2. The coordinates of all of the hydrogen atoms were obtained through theoretical hydrogenation. All non-hydrogen atoms were refined by anisotropic displacement parameters. The riding model was used to refine the hydrogen atom isotropic in the computational position, and its Uiso value was limited to 1.2 times the parent atomic Ueq. The disordered solvent molecules in the structure were removed by the PLATON/SQUEEZE program. The crystal parameters of CPs 1–2 are shown in Table 1, the main bond lengths and angles of CPs 1–2 are shown in Tables S1 and S3, and the hydrogen bond angles (deg) and bond distances (nm) of CP 1 are listed in Table S2. CCDC: 2219473 (1) and 2220218 (2).

Table 1. Crystallography Data of CP 1 and CP 2.

identification code 1 2
empirical formula C19H18CdN2O7 C22H24CdN2O7
formula weight 498.75 540.83
temperature/K 296.15 296.15
crystal system monoclinic monoclinic
space group P21/c C2/c
a/Å 9.029(5) 16.463(5)
b/Å 17.450(9) 17.105(5)
c/Å 12.646(7) 18.809(6)
α/° 90 90
β/° 96.337(8) 109.226(5)
γ/° 90 90
V/Å3 1980.1(18) 5001(3)
Z 4 8
ρcalc (g/cm3) 1.673 1.437
μ (mm–1) 1.147 0.914
F (000) 1000.0 2192.0
reflections collected 9718 16166
S on F2 1.112 1.084
R1, wR2a [I > 2σ(I)] 0.0260, 0.0603 0.0432, 0.1285
R1, wR2a (all data) 0.0315;, 0.0627 0.0543, 0.1421
Open in a new tab
a

R1 = ∑||F0| – |Fc||/∑|F0|, wR2 = [∑w(F02 – Fc2)2/∑w(F02)2]1/2

2.5. Luminescence Sensing Experiments

The fluorescence induction experiments were performed at room temperature. First, 30 mg of CP 1 or CP 2 powder was finely dispersed in 100 mL of distilled water, sonicated for 1 h, and left for 24 h, and the supernatant was taken for use. Then, 20 μL of the prepared series of nitroaromatic compounds (10 mmol/L) and pesticides (10 mmol/L) were used. Nitroaromatic compounds (NACs) included 2,4-dinitrophenylhydrazine (DNPH), ortho-nitroaniline (O-NT), 2,4,6-trinitrophenylhydrazine (TRI), nitrobenzene (NB), 3-nitroaniline (3-NT), para-nitrophenylhydrazine (4-NPH), p-nitrophenol (4-NP), p-nitrobenzoic acid (PNBA), O-nitrophenol (O-NP), and 2,4,6-trinitrophenol (TNP). Pesticides included imazalil (Ima), pyrimethanil (Pth), emamectin benzoate (Em-B), zhongshengmycin (Myc), 2,4-epibrassinolate (24-epi), pyraclostrobin (Pst), prochloraz (Pro), triadimefon (Tdi), and fluazinam (Flu).

3. Results and Discussion

3.1. Crystal Structures

According to the results of X-ray single crystal diffraction analysis, CP 1 is a monoclinic system belonging to the P21/c space group. Each unit contains a crystallographically independent CdII ion, a zgt2– ligand, a 2,2′-bipy ligand, a coordinated water molecule, and a lattice water molecule. The central CdII ion adopts a seven-coordination mode in a twisted pentagonal dipyramidal configuration. Among the seven atoms directly coordinated with Cd1, there are five oxygen atoms (O1, O2, O3#1, O4#1, and O6) and two nitrogen atoms (N1 and N2), as shown in Figure 1a. O1, O2, O3#1, and O4#1 all come from the zgt2–ion, and O6 comes from the coordination water molecule. The bond length of the Cd–O bond ranges from 2.278 (2) to 2.625 (2) Å. Both N1 and N2 are derived from 2,2′-bipy molecules, and the bond length of the Cd–N bond ranges from 2.3350 (19) to 2.344 (2) Å, which is similar to that of Cd-CP reported in the literature.

Figure 1.

Figure 1

Open in a new tab

(a) Coordination pattern of CdII in CP 1; (b) coordination pattern of zgt2– in CP 1; (c) one-dimensional chain of CP 1; (d) two-dimensional structure of CP 1, the dotted line is hydrogen bonding; and (e) three-dimensional supramolecular structure of CP 1, the dotted line is π–π packing. (Symmetry Codes: #11 – x,1/2 + y,1/2 – z).

In the coordination process of H2zgt, two protic hydrogens are removed to form zgt2–. zgt2– adopts the coordination mode of μ2-η1-η1, and both carboxylic acids are attached to the metal CdII ion by chelating bicentals, as shown in Figure 1b. Based on this coordination pattern, adjacent metals form 1D chains through zgt2– ion connections (Figure 1c). The adjacent chains are linked into the 2D supramolecular network under the directions of the hydrogen bonding interaction between the lattice water molecule oxygen atom and the carboxylate group oxygen atom of [O6–H6A···O7, 2.640 (3) Å, O6–H6B···O1, 2.727 (3) Å, O7–H7A···O2, 2.889 (3) Å, O7–H7B···O3#1, 2.736 (3) Å] (Figure 1d). Then, the adjacent 2D network forms 3D supramolecular structures through π–π stacking (3.880 (3) Å), as shown in Figure 1e.

CP 2 is a monoclinic system belonging to the C2/c space group. Each misformation unit contains a crystallographically independent CdII ion, a zgt2– ligand, a BPP ligand, and a coordination and a free water molecule (Figure 2a). The central metal CdII ion adopts a seven-coordination pattern, in which four coordination oxygen atoms (O1, O2, O3, and O4) are derived from the zgt2– ligand, another coordination oxygen atom (O6) is derived from coordination water, and two nitrogen atoms (N1 and N2) are derived from the BPP ligand. The bond length of the Cd–O bond is 2.299(3)–2.562(3) Å, and the bond length of the Cd–N bond is 2.311(3)–2.340(3) Å, which is similar to the reported value.34

Figure 2.

Figure 2

Open in a new tab

(a) Coordination pattern of CdII in CP 2 (symmetry codes: #1 x, 1 – y, 1/2 + z; #2 1/2 + x, 1/2 + y, + z); (b) coordination pattern of zgt2– in CP 2; (c) one-dimensional chain of CP 2; (d) two-dimensional structure of CP 2; (e) single three-dimensional supramolecular structure of CP 2; and (f) three-dimensional supramolecular interpenetrating structure of CP 2.

The zgt2– ligand uses the coordination mode of μ2-η1-η1, and the two carboxyl groups are chelated with two CdII ions bidentately (Figure 2b). According to this coordination pattern, two adjacent metal CdII ions are connected via the zgt2– ligand to form a one-dimensional chain (Figure 2c). The adjacent one-dimensional chains form a two-dimensional network structure through the connection of the BPP ligand in different directions (Figure 2d). Interestingly, the three-dimensional structure of CP 2 (Figure 2f) is formed by the interpenetration of two-dimensional network structures with the same structure and different angles (Figure 2e).

3.2. Thermogravimetric Analyses

In order to be better applied in practice, the stability tests of CP 1-2 become extremely important. The thermal stabilities of CP 1-2 are tested under nitrogen protection at a heating rate of 10 °C per minute, according to TGA spectral analysis (Figure S1). For CP 1, solvent water molecules are lost at 140 °C; the weight loss rate is 8% (calcd. 7.2%). At 230 °C, the skeleton begins to collapse. For CP 2, solvent water molecules are lost at 120 °C; the weight loss rate is 7% (calcd. 6.7%). Its skeleton begins to collapse at 210 °C. Both ultimately exist in the form of CdO. The test results indicate that all CPs have good thermal stability.

3.3. PXRD Analysis

In order to verify the purity of the synthesized complex, powder X-ray diffraction experiments were conducted on CPs 1-2, as shown in Figure S2. The experimental results show that the position and intensity of the diffraction peaks are roughly the same as the simulated data, which indicates that CPs 1-2 have good phase purity and integrity.

3.4. Solid-State Fluorescence of CPs 1–2

It has been reported that Cd-CP has excellent fluorescence properties and is often used as a fluorescence sensor to detect pollutants. Therefore, we tested the solid-state fluorescence of CPs 1–2 in order to determine whether to conduct further fluorescence sensing performance tests. The test results are known at room temperature at the same voltage and slit: CPs 1–2 (λex 380, 356 nm), CPs 1–2 (emission peaks λem position 471 nm, 465 nm), respectively. The solid-state fluorescence of H2zgt (λex = 385 nm) was also detected. The position of the emission peak λem is 448 nm, as shown in Figure S3.

Compared with H2zgt, the fluorescence intensity of CPs 1–2 was significantly enhanced, and the range was large. The emission peak position of the complex was red-shifted compared with H2zgt, which was probably due to the charge transfer between H2zgt and CdII ion.35 In short, CPs 1–2 showed enhanced fluorescence intensity compared to ligands.

3.5. NAC Sensing

As shown in Figure 3a, fluorescence intensities of emission spectra (λem = 328 nm) of different nitro explosives (10 μL, 10 mmol/L) under excitation spectra (λex = 304 nm) were recorded, and the fluorescence intensities of different analytes were made as bar charts, which could be clearly seen. CP 1 has different quenching effects on different nitro explosives, but the quenching effect on p-nitrobenzoic acid (PNBA) is the most obvious. In addition, it is necessary to explore whether CP 1 can still selectively detect PNBA in the presence of other nitro explosives. PNBA (10 μL, 10 mmol/L) was added into a CP 1 suspension containing other nitro explosives (10 μL, 10 mmol/L). The fluorescence intensity did not decrease sharply after the addition of other nitro explosives, but the fluorescence was almost completely quenched after the addition of equimolar amounts of PNBA, as shown in Figure 3b. The results of the anti-interference experiment show that the addition of PNBA is not interfered with by other nitro explosives, which proves that CP 1 has good selectivity to PNBA, and CP 1 has better anti-interference performance.

Figure 3.

Figure 3

Open in a new tab

(a) Fluorescence intensity of CP 1 dispersed in different nitroaromatic compounds; (b) anti-interference experiment; (c) fluorescence emission spectrum of CP 1 with different concentrations of PNBA; and (d) linear fitting curve.

Based on the good quenching response of CP 1 to PNBA, a quantitative experiment was conducted to test CP 1 at room temperature, and the change rule of fluorescence intensity of CP 1 was explored by quantitatively increasing the concentration of PNBA. As the concentration of PNBA increased from 0 to 70 μmol/L, the fluorescence intensity of CP 1 decreased gradually, and CP 1 was almost completely quenched when the concentration of PNBA increased to 70 μmol/L, as shown in Figure 3c. In order to more accurately study the relationship between PNBA concentration and fluorescence intensity, linear fitting was carried out according to the S–V equation. When the concentration increased to 70 μmol/L, the linear relationship was shown in the low concentration range (3 × 10–5 to 7 × 10–5): Y = 1.671 × 106X – 57.69 (R2 = 0.9921) (Figure 3d). The detection limit (LOD) can be obtained by using the equation LOD = 3σ/K. The final detection limit reaches the nM level, and the accurate detection limit of PNBA is 3.28 nM, which is lower than the reported value36,37 and shows that CP 1 can detect PNBA sensitively.

The specific operation of CP 2 detection of explosives is the same as above. The emission spectra of different objects to be measured under excitation spectra (λex = 310 nm) are recorded respectively, and the emission peak position is at the wavelength 336 nm. Fluorescence intensity was quenched for different substances to be tested but at the same time showed different degrees of quenching; especially, the quenching effect of 2,4,6-trinitrophenol (TNP) was the most obvious (Figure 4a). In order to explore the antijamming ability of CP 2, the antijamming experiment was carried out. The experimental results are listed in Figure 4b. CP 2 is not interfered with by other tested substances and TNP, and it still has a significant quenching effect without interference from other tested substances.

Figure 4.

Figure 4

Open in a new tab

(a) Fluorescence intensity of CP 2 dispersed in different nitroaromatic compounds; (b) anti-interference experiment; (c) fluorescence emission spectrum of CP 2 with different concentrations of TNP; and (d) linear fitting curve.

Based on the above experimental results, we conducted a quantitative experiment to detect TNP with CP 2 at room temperature and studied the change rule of fluorescence intensity of CP 2 with the increase of TNP concentration. As shown in Figure 4c, the fluorescence intensity of CP 2 decreased with the increasing concentration of TNP. The fluorescence was almost completely quenched when the concentration of TNP increased from 0 to 70 μmol/L. The results showed that CP 2 was almost completely quenched when the concentration of TNP was increased to 70 μmol/L. In order to further study the precise relationship between the concentration of TNP and the fluorescence intensity of CP 2, linear fitting was conducted according to the S–V equation, as shown in Figure 4d. In the low concentration range, the linear relationship was good: Y = 1.6306 × 106X – 51.96 (R2 = 0.9968), and the detection limit was 11.4 nM. The detection limit is lower than the reported value.38

3.6. Pesticide Sensing

Due to the excellent luminescence performance and water stability of CPs, we evaluated their potential detection for pesticides. This measure has long-term significance for both environmental protection and human health.39

When the excitation spectrum of CP 1 is 304 nm, the emission spectrum of CP 1 is 328 nm. Due to the pore structure and excellent fluorescence properties of CP 1, the potential of CP 1 as a pesticide luminous sensor is further explored. As shown in Figure 5a, the photoluminescence spectra of different pesticides (λex = 304 nm) were recorded separately. The quenching effect of CP 1 on most pesticides was not obvious, and the quenching effect on Flu was the most obvious. In addition, Flu can be selectively tested under the interference of other pesticides. The fluorescence intensity did not decrease significantly when other pesticides were added, but the fluorescence was obviously quenched after the addition of Flu, as shown in Figure 5b. The experiment showed that CP 1 had a good selectivity to Flu.

Figure 5.

Figure 5

Open in a new tab

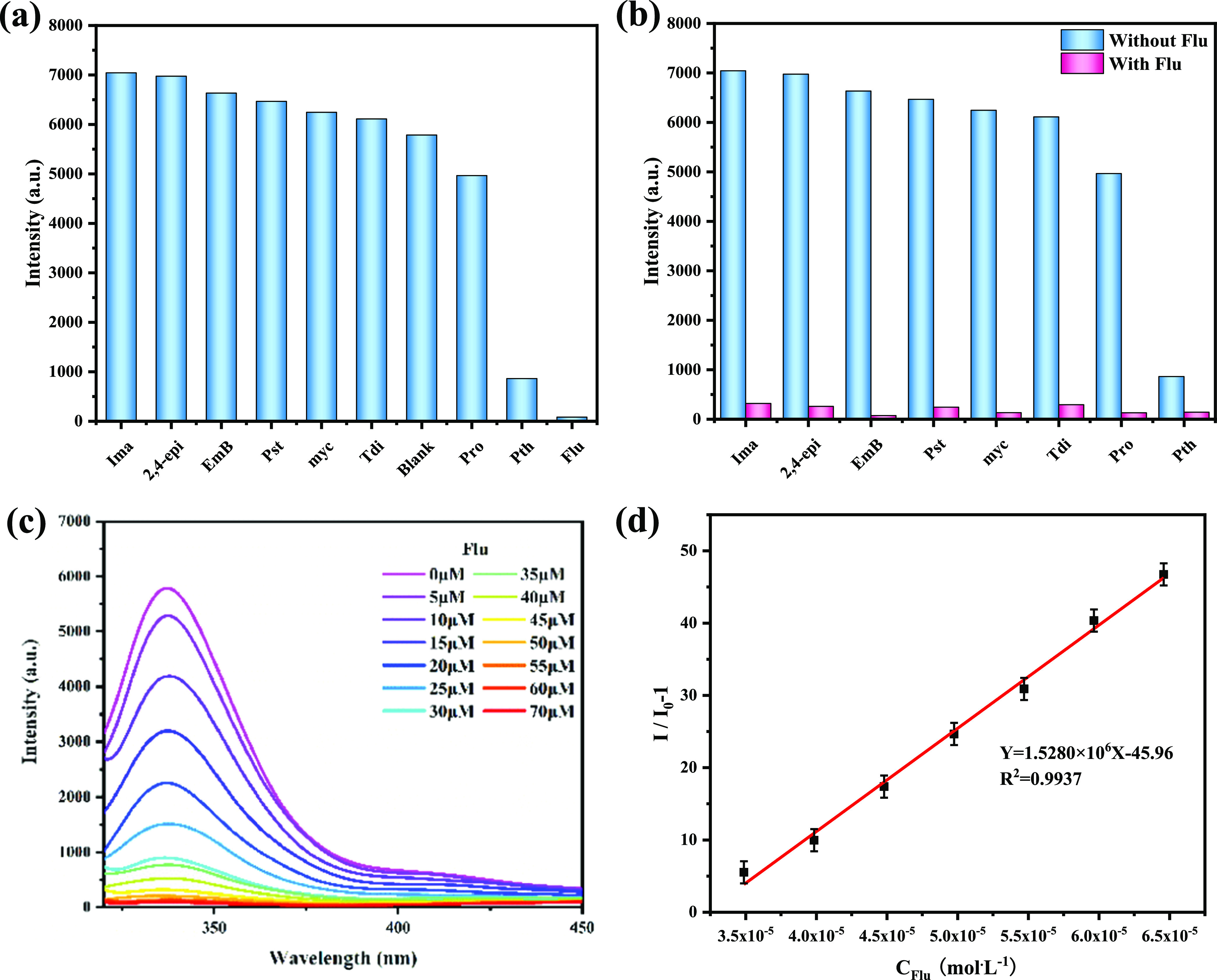

(a) Fluorescence intensity of CP 1 dispersed in different pesticides; (b) anti-interference experiment; (c) fluorescence emission spectrum of CP 1 with different concentrations of Flu; and (d) linear fitting curve.

To investigate the quenching effect of different concentrations of Flu (10 mmol/L) on CP 1 fluorescence at room temperature, quantitative experiments were conducted. The fluorescence intensity decreased gradually with the gradual increase in Flu concentration (10 mmol/L, 0 μmol/L to 65 μmol/L). The fluorescence was almost completely quenched when the concentration was increased to 65 μmol/L, as shown in Figure 5c. In order to study the relationship between Flu concentration and fluorescence intensity more accurately, the linear curve was fitted according to the S–V equation. When the concentration increased to 65 μM, the linear relationship was good in the low concentration range of 2.0 × 10–5 to 5.5 × 10–5: Y = 3.9894 × 105X – 7.0826 (R2 = 0.9941). It was calculated that the detection limit reached 13.8 nM (Figure 5d).

When the excitation spectrum is 310 nm, the emission spectrum of CP 2 is 336 nm. The photoluminescence spectra of different pesticides (λex = 310 nm) are recorded, respectively. The test results showed that CP 2 had different quenching effects on different pesticides, among which Flu had the most obvious quenching effect, as shown in Figure 6a. Flu can be selectively tested under the interference of other pesticides. The fluorescence intensity did not decrease significantly when other pesticides were added, but the fluorescence was obviously quenched after the addition of Flu, as shown in Figure 6b. The anti-interference experiment showed that CP 2 had a good anti-interference ability to Flu without the influence of other selected pesticides after adding Flu.

Figure 6.

Figure 6

Open in a new tab

(a) Fluorescence intensity of CP 2 dispersed in different pesticides; (b) anti-interference experiment; (c) fluorescence emission spectrum of CP 2 with different concentrations of Flu; and (d) linear fitting curve.

To investigate the quenching effect of different concentrations of Flu (10 mmol/L) on CP 2 fluorescence at room temperature, the fluorescence intensity decreased gradually with the gradual increase in Flu concentration (10 mmol/L, 0–70 μmol/L). The fluorescence was almost completely quenched when the concentration increased to 70 μmol/L, as shown in Figure 6c. When the concentration increases to 70 μM, there is a good linear relationship in the low concentration range of 1.5 × 10–5 to 5.5 × 10–5: Y = 1.5280 × 106X – 45.96 (R2 = 0.9937); the detection limit of Flu was estimated to be 52.7 nM (Figure 6d). The detection limit is lower than the reported value.40

3.7. Discussion on the Quenching Mechanism

Detailed research was conducted on the sensing mechanisms of CP 1 on PNBA, Flu, and CP 2 on TNP and Flu. It is believed that the luminescence changes of metal organic complexes are mediated by the following factors: structural collapse, energy competitive absorption, resonance energy transfer, central metal ion exchange, and photoluminescence electron transfer (PET).41

The PXRD spectra generated by CP 1 dispersed in PNBA and Flu aqueous solutions are highly similar to the main peaks of the simulated spectra. The PXRD spectra generated by CP 2 dispersed in TNP and Flu aqueous solutions also showed good agreement with the simulated spectra, ruling out the possibility of skeleton collapse as the cause (Figure S2). Because CPs 1–2 detect nitro explosives and pesticides, they indicate that there is no metal ion exchange during fluorescence quenching. In addition, the overlapping area between the excitation emission spectra of the complex and the UV absorption spectra of the responsive compound was studied.42,43 The results indicate that the absorption spectra of nitro explosive PNBA and pesticide Flu overlap with the excitation spectra of CP 1 (Figure S4), suggesting that the quenching mechanism of both is energy competitive absorption. The emission spectrum of CP 2 overlaps significantly with the absorption spectrum of TNP (Figure S5a), and its quenching mechanism is resonance energy transfer. The absorption spectrum of Flu overlaps with the excitation spectrum of CP 2 (Figure S5b), suggesting that the quenching mechanism is energy competitive absorption. Therefore, the energy resonance transfer mechanism and energy competitive absorption mechanism are the factors that lead to fluorescence quenching.

On the other hand, density functional theory (DFT) calculations show that the LUMO energy level (−2.28 eV) of CP 1 is higher than those of PNBA (−3.39 eV) (Figure 7a) and Flu (−4.10 eV) (Figure 8), and the LUMO energy level (−1.33 eV) of CP 2 is higher than those of TNP (−4.52 eV) (Figure 7b) and Flu (−4.10 eV) (Figure 8). Therefore, during excitation, electrons are induced to transfer from the LUMO orbitals of CP 1 and CP 2 to the LUMO orbitals of the analyte. This leads to a fluorescence quenching effect.44−47 Therefore, we infer that the PET mechanism is also the cause of fluorescence quenching.

Figure 7.

Figure 7

Open in a new tab

(a) HOMO and LUMO energies of CP 1 and nitro explosives. (b) HOMO and LUMO energies of CP 2 and nitro explosives.

Figure 8.

Figure 8

Open in a new tab

HOMO and LUMO energies of CP 1, CP 2, and pesticides.

3.8. Detection of Flu in Yan River

Based on the results of the above fluorescence sensing experiment, it is concluded that CP 1 is most sensitive to the detection of Flu and the detection limit is the lowest. CP 1 is selected for the actual sample determination. With Yan River as the actual sample, Flu in the water sample was detected by the adding and recovering methods, and CP 1 was placed in the water sample for reaction, and then its fluorescence was measured. Three concentrations of Flu (30, 40, 50 μM) were added to the water samples, and each group was repeated 5 times. The results are shown in Table 2, with recoveries ranging from 96.8 to 102.0%. The results show that CP 1 is one of the few complexes that can be used for the quantitative detection of Flu in actual samples and has certain feasibility for the quantitative detection of pesticides in water samples.

Table 2. Recovery Results of Determination of CP 1-Flu in Real Samples (n = 5).

sample content (μM) added (μM) detected (μM) recovery (%) RSD (%)
river 1 0 30.00 29.04 96.8 0.8
river 2 40.00 40.80 102.0 2.5
river 3 50.00 49.35 98.7 2.7
Open in a new tab

4. Conclusions

Two cadmium complexes with excellent fluorescence properties, CP 1 and CP 2, were synthesized by using the dicarboxylic acid ligand H2zgt and different nitrogen-containing ligands. CP 1 had a quenching response to p-nitrobenzoic acid (PNBA) with a detection limit of 3.28 nM, while CP 2 had a quenching response to 2,4,6-trinitrophenol (TNP) with a detection limit of 11.4 nM. Both CP 1 and CP 2 were responsive to the pesticide fluridine (Flu). The detection limits were 13.8 and 52.7 nM. CP 1 has the lowest detection limit of Flu, and it is selected for the detection of actual water samples. The results show that CP 1 has a certain application prospect for the quantitative detection of Flu in actual water samples. Finally, the sensing mechanism is discussed in detail. The cause of PNBA/TNP and Flu quenching might be competitive absorption/energy resonance transfer or electron transfer.
