Modeling and forecasting CO₂ emissions in China and its regions using a novel ARIMA-LSTM model

Abstract

Since China joined the WTO, its economy has experienced rapidly growth, resulting in significantly increase in fossil fuel consumption and corresponding rise in CO₂ emissions. Currently, China is the world's largest emitter of CO₂, the regional distribution is also extremely uneven. so, it is important to identify the factors influence CO₂ emissions in the three regions and predict future trends based on these factors. This paper proposes 14 carbon emission factors and uses the random forest feature ranking algorithm to rank the importance of these factors in three regions. The main factors affecting CO₂ emissions in each region are identified. Additionally, an ARIMA + LSTM carbon emission predict model based on the inverse error combination method is developed to address the linear and nonlinear relationships of carbon emission data. The findings suggest that the ARIMA + LSTM is more accurate in predicting the trend of CO₂ emissions in China. Moreover, the ARIMA + LSTM is employed to forecast the future CO₂ emission trends in China's east, central, and west regions, which can serve as a foundation for China's CO₂ emission reduction initiatives.

1. Introduction

In the era of economic globalization, issues related to CO₂ (carbon dioxide) emissions and climate change have emerged and attracted the attention of scholars. According to the Intergovernmental Panel on Climate Change, the quantity of CO₂ in the atmosphere is rising at a rate of 2 % per year. In 2014, global CO₂ emissions amounted to 36.14 billion tons, which is triple the amount emitted in 1960. The massive CO₂ emissions are aggravating the Global Warming process and powerful measures are necessary to maintain a sustainable global development [1].

China is now the world's biggest emitter of CO₂ (IEA, 2018). To deal with this issue, the Chinese government has implemented various pledges and initiatives. China ratified the Kyoto Protocol in 1998 and the Paris Climate Agreement in 2016. During the general debate of the 75th United Nations General Assembly on September 22, 2020, China announced its goals are to achieve peak CO₂ emissions by 2030 and carbon neutrality by 2060. To effectively decrease CO₂ emissions, the primary reasons for the increase in CO₂ emissions must be identified, forecasting China's future CO₂ emission tendencies based on these causes, and carry out suitable emission reduction measures.

The paper introduces two main innovations: (1) the use of the random forest feature screening method for CO₂ emission impact factor analysis. This method effectively identifies the factors with the most influential factor on CO₂ emissions, improving the accuracy and interpret ability of the model. (2) The construction of an ARIMA + LSTM CO₂ emissions prediction model based on a weighted combination of ARIMA and LSTM. This model combines the advantages of both methods and provides more accurate predictions of carbon dioxide emissions. Additionally, the model predicts CO₂ emissions for China as a whole and its three regions (East, West, and Central), provide valuable insights for developing carbon reduction policies.

This article is organized into six parts. Section 2 reviews the factors and prediction methods that affect CO₂ emissions. Section 3 introduces the LSTM and ARIMA, as well as the integrated prediction weighting methods and model evaluation indicators. Section 4 describes the data collection, analysis and processing process in detail. In section 5, the prediction results of LR, BPNN, ARIMA, LSTM and ARIMA + LSTM are compared and analyzed. The conclusion of the study is that the ARIMA + LSTM is more precise in predicting CO₂ emissions. The model is used to predict CO₂ emissions from 2018 to 2025 in China as a whole and in three regions, east, west and central, to assess the efficacy of China's carbon reduction strategies. In section 6, credible proposals are presented based on the analysis of the carbon emission forecast results for China as a whole and for the three regions of east, west, and central. These recommendations are intended to support China in attaining its carbon emission reduction goals.

2. Literature review

2.1. Impacting factors of CO₂ emissions

In the last few years, the scholars have extensively investigated the factors affecting CO₂ emissions, focusing on the economy, energy consumption, population, urbanization, transportation, and technological progress [2]. analyzed 14 energy-related emission drivers and their provincial characteristics in the eastern and southern coastal regions of China using the log-averaged dies index approach. They discovered that there was a remarkable correlation between economical growth and CO₂ emissions even in the socio-economically developed regions of China [3]. studied the factors influencing CO2 emissions in China from 2006 to 2012 with production theory and data envelopment analysis. They demonstrated that economic activities is the primary reason for the increase CO₂ emissions in China [4]. have analyzed the intensity of CO₂ emissions based on alternative, fossil and renewable energy sources and investigated the economic growth on the basis of CO₂ emission intensity. They found that the intensity of CO₂ emissions from solid fuels had the greatest effect on the economic growth.

In terms of energy consumption [5], researched the correlation on energy consumption and economic growth for 30 mainland Chinese provinces from 1985 to 2007. They used the panel unit root method, the homogeneous panel co-integration method, and the panel-based dynamical OLS method to revisit the synergistic movement of energy consumption and economic growth. The research found that increased energy consumption, which includes oil, gas and electricity, contributed to increased CO₂ emissions [6]. [7] found that under the current energy consumption scenario, China is not expected to reach the peak of CO₂ emissions. Therefore, energy consumption must be restructured to achieve an earlier and less severe peak in CO₂ emissions.

In terms of population [8], used the panel auto-regressive distributed lag (ARDL) model framework and combined mean group (PMG) estimator to explore the association between demographic drivers, low-carbon technologies, and CO₂ emissions in 285 cities. The study found that population size and density can increase CO₂ emissions, while the quality of population and low-carbon innovations are significant elements in mitigating the CO₂ emission pressure in long term. Acheampong et al. (2019) conducted a research of China's carbon intensity based on economic growth, population size, technology research development, energy consumption, financial growth, trade liberalization, foreign investment, industrialization, and urbanization [9]. analyzes the determinants of CO₂ emissions in China by using extended STIRPAT model and finds that population size, energy intensity, GDP per person, the degree of urbanization, the coal consumption share, the secondary sector share and investment each have a positive effect on CO₂ emissions in a significant way. In particular, population size has the largest influence, while energy intensity has the smallest influence.

In terms of urbanization [10], studied the influencing factors of CO₂ emissions in five major regions of China by using the STIRPA model. The study shows that population, industrial structure, GDP per capita, level of technological development and urbanization have various effects on CO₂ emissions in different regions, but they are primarily the major affecting factors. The study finds that urbanization and GDP per capita are more influential on CO₂ emissions than other factors [11]. analyzed the urbanization process in Shandong province and found that rapid urbanization accompanied by high energy consumption has increased the province's CO₂ emissions significantly over the past 20 years [12]. used an autoregressive distributed lag (ARDL) constraint test to examine the cointegration of carbon emission data from 1972 to 2014. Following a causal analysis, the research found that urbanization increases CO₂ emissions in the feature [13]. assessed CO₂ emission efficiency based on panel data of 30 Chinese provinces from 2000 to 2016, which found a positive correlation between urbanization rate, economic development level, energy consumption structure and CO₂ emission efficiency. In addition, there is also a noticeable regional heterogeneity in the mechanism of urbanization level on regional CO₂ emissions [14].

In transportation [15], investigated the decoupling association of economic growth and transportation CO₂ emissions of Jiangsu province by using Tapio model. The study shows that transportation is an important affecting factor of CO₂ emissions in Jiangsu province [16]. has identified six primary factors affecting China's CO₂ emissions from the transportation industries and developed a CO₂ emission prediction model using support vector regression (SVR). The experimental results have shown that the CO₂ emissions in the transportation industry vary depending on the intensity of CO₂ emissions. To accelerate the achievement of peak CO₂ emissions in the transportation industries. it is essential to make changes to economic growth pattern and appropriately decrease economic development rate.

According to Refs. [17,18], technological progress has played a vital role in China's CO₂ emissions. The decrease of CO₂ emissions in different regions is influenced by the degree of technological progress and the types of technologies. These researches have studied the factors affecting CO₂ emissions in different perspectives, which are crucial to reduce CO₂ emissions. In this article, we have analyzed the factors that are responsible for CO₂ emissions, for example, economy, energy consumption, population, urbanization rate, transportation and technology. We summarize the factors affecting CO₂ emissions from four perspectives: economy, population, transportation, and technology, taking into account the features of CO₂ emissions in China's different regions.

2.2. The models of CO₂ emissions prediction

The determination of CO₂ emission factors is crucial to reduce emissions volume, and the investigation on carbon emission projection methods is indispensable. Recently, numerous scholars have studied the methods of CO₂ emission forecasting [19]. established CO₂ emission trends and total world CO₂ emissions for the top 25 countries from 1971 to 2007 b y using linear tendency analysis, and concluded that this method can forecast the CO₂ emissions of these 25 countries effectively [20]. delves into the association of urban population, energy consumption, economic growth and CO₂ emissions in BRICS countries from 2004 to 2010 through a multi-variate gray model, and proposes positive carbon reduction recommendations [21]. used a non-linear gray multivariate model to predict CO₂ emissions caused by fossil energy consumption in China and attained a better prediction accuracy than the traditional gray model [22]. modeled the correlation between CO₂ emissions and economic growth in China by using gray vehulst model based on the PSO algorithm and concluded that the correlation of CO₂ emissions and economic growth is inverted U-shaped, emissions are at a rapidly increase rate, and the government should take efficient initiatives to decrease CO₂ emissions. Although the above prediction model is relatively simple, has fewer parameters, easily trained, and has high forecasting accuracy, it is weak in extracting the nonlinear series of carbon emission data. To further improve the forecasting accuracy and use the data nonlinear series information fully, machine learning-based carbon emission forecasting methods have become a new research direction.

[23] predicted CO₂ emissions resulting from oil consumption in OPEC countries by utilizing hybrid cuckoo search algorithm and neural networks. They concluded that their prediction accuracy was higher than that of artificial neural networks [24]. predicted the carbon intensity of Brazil, Australia, India, China, and the United States by using artificial neural networks (ANN), the results showed that the accuracy of the artificial neural network predictions was higher [25]. introduced a hybrid algorithm to predict the CO2 emissions of individual countries in 2018–2025 based on an improved lion swarm optimizer [26]. has used 12 machine learning algorithms to forecast costs and CO₂ emissions in an energy-water integrated optimization model of buildings, which has achieved excellent forecasting results [27].have developed a fast learning network (FLN) prediction algorithm for forecasting CO₂ emissions in Guangdong Province for the years 2020–2060 based on the chicken flock algorithm. Their results show a significant improvement compared to the basic fast learning network. These machine learning algorithms show good fitting and generalization ability for non-linear and unfit data. But, these models have many training parameters, which can lead gradient disappearance and get stuck in local optima and over fitting.

Based on the literature reviewed, it is evident that the accuracy and stability of single linear or nonlinear models in predicting carbon dioxide emissions require improvement. To address this issue, combined prediction methods that consider both linear and nonlinear information within the data have emerged as a new research direction. Hybrid methods that have been successfully applied in various fields on the basis of linear econometric models and machine learning models [28,29]. However, in CO₂ emission prediction filed, there has been limited research on the combination of linear and no-linear forecasting models. the ARIMA model is a classical linear statistical model that is excellent at identifying linear relationships in time series. In contrast, the LSTM is great for handling nonlinear relationships in time series due to its unique gate structure [30]. has forecast China's main energy consumption by using an ARIMA model and found that the energy consumption growth rate at 2014–2020 showing a substantial increase, but is smaller than the start of the first decade of the 21st century [31]. used LSTM to predict China's CO₂ emissions with significantly improved accuracy compared to models such as GP (Gaussian Process Regression) and BPNN (Back Propagation Neural Network) [32]. predicted the air quality index effectively by using LSTM [33]. used an LSTM-ARIMA hybrid model to effectively forecast the future export volume of Indonesia, which supported the Indonesian government in formulating economic policies [34]. accurately and effectively predicts well production by combining ARIMA and LSTM models, which is critical for prolonging the life cycle of wells and enhancing the recovery of reservoirs.

To use of the time series data fully, in this article we used the error inverse method to combine the ARIMA and LSTM in a weighted manner. After comparing and analyzing the LR, BPNN, ARIMA as well as LSTM, we find that the ARIMA + LSTM has a better predict results.

3. Construction and evaluation of ARIMA + LSTM

3.1. ARIMA model

ARIMA model is a method of time series analysis, based on stochastic theory and was proposed by Box and Jenkins in 1970. Time series is a collection of time-varying stochastic variables that exhibit certain regularities that make it possible to predict future trends. the structure of the ARIMA model is shown in Eq. (1).

$${\Delta }^d{y}_t={\theta }_0+\sum _{i=1}^p{\phi }_i{\Delta }^d{y}_{t-1}+{\epsilon }_t+\sum _{j=1}^q{\theta }_j{\epsilon }_{t-j}$$ (1)

In Eq. (1). ${\epsilon }_t$ presents the series of $y_t$ after d-differential transformation; ${\epsilon }_t$ presents the residual term at t time, it is a mutually independent white noise series and obeys a normal distribution with mean 0 and variance constant ${\sigma }^2$; ${\mathrm{\Phi }}_i\left(i=\mathrm{1,2},...,p\right)$ and ${\theta }_j\left(j=\mathrm{1,2},...,q\right)$ are the parameters to be estimated, and $p$ and $q$ are the orders. Thus, the above model can be written as $ARIMA\left(p,d,q\right)$, ${\epsilon }_t$ is an process of $ARIMA\left(p,q\right)$, $y_t$ is an $ARIMA\left(p,d,q\right)$ process. ARIMA is a linear model, Therefore, its ability is restricted to describe the non-linear features of the time series.

ARIMA modeling and forecasting includes four steps: (1) series smoothing process. If the series is non-stationary, it needs to satisfy the smoothness test by differential variation; (2) determining the $p$ and $q$ orders through the auto-correlation coefficients and partial autocorrelation coefficients; (3) evaluating the parameters of the model as well as testing them to determine whether the model is desirable; and (4) using the model with the appropriate parameters selected to make predictions.

3.2. Long short term memory networks(LSTM)

LSTM is a recurrent neural network with gate structure proposed by Ref. [35]. (Hochreiter et al., 1997). Compared with the traditional RNN, LSTM has three additional gates unit structure: input gate, forget gate and output gate. These gates effectively control the updating and discarding of data, overcoming the disadvantages of RNN, such as excessive influence of weights, gradient vanishing and exploding. Therefore, the LSTM can converge faster and increase the carbon emission prediction accuracy. Fig. 1 below is a diagrammatic representation of the LSTM (see Fig. 2).

$$\text{Input}\text{gate}:i_t=sigmoid\left(W_i{x}_t+W_i{h}_{t-1}+b_i\right)$$ (2)

$$\text{Forget}\text{gate}:f_t=sigmoid\left(W_f{x}_t+W_f{h}_{t-1}+b_f\right)$$ (3)

$$\text{Unit}:c_t=f_t\odot c_{t-1}+i_t\odot \tanh \left(W_c{x}_t+W_c{h}_{t-1}+b_c\right)$$ (4)

$$\text{Output}\text{gate}:o_t=sigmoid\left(W_o{x}_t+W_o{h}_{t-1}+b_o\right)$$ (5)

$$\text{Final}\text{output}:h_t=o_t\odot \tanh \left(c_t\right)$$ (6)

in Eqs. (2), (3), (4), (5), (6), $W_i$ is input gate's weight matrix, $b_i$ is input gate's bias term, $W_f$ is input gate's weight matrix; $b_f$ is forget gate's bias term; the cell state $c_t$ is obtained by multiplying the cell $c_{t-1}$ at the previous moment with the oblivion gate $f_t$ , the input gate $i_t$ controls how much information flows into the internal memory unit $c_t$ at the current moment, the forgetting gate controls how much information from the previous moment internal memory unit $c_{t-1}$ can be accumulated to the current moment internal memory unit $c_t$; $\odot$ denotes the element-wise product of the corresponding elements of two vectors.

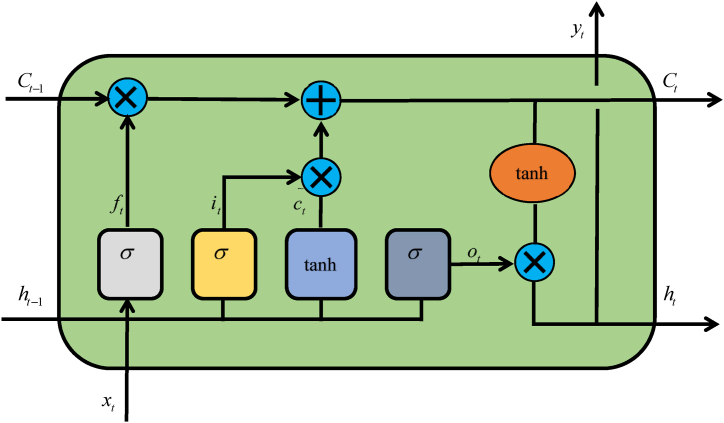

Fig. 1.

Structure of LSTM

Fig. 2.

Flowchart of ARIMA + LSTM model.

3.3. ARIMA + LSTM model

Based on the review above, it is evident that ARIMA exhibits excellent linear prediction ability, while LSTM demonstrates more accurate prediction effects for time series data. Both ARIMA and LSTM can achieve more accurate prediction tasks. This paper analyzes the collected carbon emission data and identifies its obvious time series characteristics. To better utilize the time series information of carbon emission data, we assume that it contains both linear and nonlinear information. To verify the existence of linear and nonlinear information in carbon emission time series data and improve prediction accuracy, this paper employs the inverse error combination method to weigh the combination of ARIMA and LSTM. The weighted combination is presented in Eqs. (7)–(9) in this paper, which aims to enhance the prediction accuracy.

$$f_t={\omega }_1{f}_{1t}+{\omega }_2{f}_{2t},t=\mathrm{1,2},...,n$$ (7)

$${\omega }_1=\frac{{\lambda }_2}{{\lambda }_1+{\lambda }_2}$$ (8)

$${\omega }_2=\frac{{\lambda }_1}{{\lambda }_1+{\lambda }_2}$$ (9)

in Eq. (7), $f_{it}$ is the prediction value obtained from LSTM or ARIMA, ${\omega }_i$ is the weight coefficient, and ${\lambda }_1$, ${\lambda }_2$ are the prediction errors of LSTM and ARIMA, respectively. According to formula, it shown that the model with smaller errors will be assigned larger weight coefficients, so that the whole combined model error tends to be reduced and the prediction value error is smaller, which achieves the effect of improving the whole prediction accuracy [17].

The application process model described in the figure above can be divided into three steps: (1) Collect carbon emission data from each region and account for the CO₂ emissions of various regions. (2) Use ARIMA model to fit and forecast carbon emission data linearly and LSTM to fit and predict CO₂ emission data non-linearly. (3) Combine ARIMA + LSTM to fit and forecast CO₂ emissions data and evaluate the indicators Finally, forecasting the total CO₂ emissions of China and three regions by using the model.

3.4. Evaluation indicators

To evaluate the accuracy of different models, in this paper, we select root mean square error (RMSE), mean absolute error (MAE) and mean absolute percentage error (MAPE) as prediction evaluation indicators, The evaluation formula are Eqs. (10)–(12).

$$MAE=\frac{1}{m}\sum _{i=1}^m\left|\left(y_i-\widehat{y_i}\right)\right|$$ (10)

$$RMSE=\sqrt{\frac{1}{m}{\sum _{i=1}^m\left(y_i-\widehat{y_i}\right)}^2}$$ (11)

$$MPAE=\frac{100\%}{m}\sum _{i=1}^m\left|\frac{\widehat{y_i}-y_i}{y_i}\right|$$ (12)

in the above evaluation indicators, $\widehat{y_i}$ indicates the predicted value of CO₂ emissions in different years, $y_i$ indicates the real value of CO₂ emissions in different years, and $m$ indicates the number of time series; generally speaking, the smaller the value of MAE, RMSE and MAPE, the smaller the mistake between the real value and the forecast value, the more accurate the forecast result.

4. Regional CO₂ emissions accounting and impact factors analysis

4.1. CO₂ emission regional division

China's vast territory and differences in geographic location, resource endowment, and national regional development strategies result in significant regional differences in carbon dioxide emissions. CO₂ emissions studies use various regional classification methods, including the three-division method, the four-division method, and the eight-division method. The three-division method is the most widely used and better reflects the characteristics of China's regional CO₂ emissions. This paper selects the trichotomous method as the CO₂ emissions region classification method, combining the data structure published by the China Bureau of Statistics and the geographical location and economic development of each province in China. The country is classified into three carbon emission regions: East, West, and Central. Table 1 shows the specific regional division.

Table 1.

Provinces of each region.

Regions	Provinces
Eastern	Beijing, Tianjin, Hebei, Liaoning, Shanghai, Jiangsu, Zhejiang, Fujian, Shandong, Guangdong, Hainan
Central	Jilin; Heilongjiang; Shanxi, Anhui, Jiangxi, Henan, Hunan; Hubei
Western	Xinjiang, Qinghai, Ningxia, Gansu, Inner Mongolia, Shaanxi, Chongqing, Sichuan, Guizhou, Yunnan, Guangxi,

4.2. Accounting for CO₂ emissions

The data adopted in this article are all from public data published by the National Bureau of Statistics (NBS), and considering the possible impact of the novel coronavirus pneumonia epidemic on the data analysis thus leading to errors, for this reason, this paper selected data before 2018 for analysis, considering the completeness of the data published by the NBS. Data sources include the China Statistical Yearbook, Energy Statistical Yearbook, and Science and Technology Statistical Yearbook from 1997 to 2017.

Currently, there are several methods for calculating CO₂ emissions, including material balance algorithms, c-measurement methods, model estimation methods, and IPCC inventory methods. Of these methods, the IPCC inventory method is regarded as the most authoritative method for accounting for CO₂ emissions in the world (Liu et al., 2014). This method calculates CO₂ emissions based on energy consumption, using simple and mature accounting formulas, emission factors, and a large number of application examples. Therefore, this article adopts the IPCC inventory method to account for CO₂ emissions caused by energy consumption across China and three regions in the east, west, and central regions, without considering cross-regional or international transfer issues. The National Greenhouse Gas Inventory Guidelines are referred to for this purpose [1]. To calculate CO₂ emissions by fossil fuel combustion, this paper focuses on the combustion of eight major fossil fuels: raw coal, coke, diesel, kerosene, fuel oil, gasoline, crude oil, and natural gas. CO2 emissions are calculated as shown in Eq. (13).

$$EC=\sum _{i=1}^8{C}_i=\sum _{i=1}^8{E}_i\times F_i\times \frac{44}{12}=\sum _{i=1}^8{E}_i\times C{F}_i\times C{C}_i\times CO{F}_i\times \frac{44}{12}$$ (13)

in Eq. (13), $i$ expressed the energy type; $EC$ expressed the total carbon dioxide emission of energy consumption; $C_i$ expressed the carbon emission; $E_i$ expressed the ratio of consumption to standard quantity; $F_i$ expressed the carbon emission factor; $C{F}_i$ expressed the low-level heat generation; $C{C}_i$ expressed the carbon content; $CO{F}_i$ expressed the oxidation rate; $\frac{44}{12}$ expressed the carbon dioxide to carbon element molecular weight ratio; $C{F}_i\times C{C}_i\times CO{F}_i$ expressed carbon emission factor; $C{F}_i\times C{C}_i\times CO{F}_i\times \frac{44}{12}$ expressed carbon dioxide emission factor, the specific emission factors are listed in Table 2 below.

Table 2.

Carbon emission factors of fossil fuels.

Types	Low level heat generation $\left(KJ/Kg\right)$	Carbon content $\left(KgC/GJ\right)$	Carbon oxidation rate	Carbon emission factors $\left(t-C/t\right)$ or $\left(t-C/m^3\right)$	CO2 emission factors $\left(t-C{O}_2/t\right)$ or $\left(t-C{O}_2/m^3\right)$
Raw Coal	20908	26.4	0.98	0.54	2.0
Coke	28435	29.5	0.93	0.78	2.9
Diesel	42653	20.3	0.98	0.85	3.1
Kerosene	43070	19.6	0.98	0.83	3.0
Fuel oil	41816	21.1	0.98	0.87	3.2
Gasoline	43070	18.9	0.98	0.80	2.9
Crude Oil	41816	20.1	0.98	0.82	3.0
Natural Gas	389310	15.3	0.99	5.90	21.6

4.3. Analysis of CO₂ emission impact factors

This paper provides a comprehensive summary of the four factors that influence CO₂ emissions, namely population, economy, transportation, and technology. The relevant literature was analyzed, and the actual situation in the three major regions of East, Central, and West China was taken into account. The demographic factors considered were population size, urbanization rate, and consumption level. The economic factors included the GDP of primary, secondary, and tertiary industries, total import and export, and energy consumption structure. The transportation factors included road and railroad mileage, passenger and freight volume. The technological factors considered were energy intensity and technological progress. Table 3 provides a detailed explanation of each influencing factor.

Table 3.

Explanation of impact factors.

Factors		Explanation	Unit
Population	Population size	Total population at year-end	10000 people
	Urbanization rate	Ratio of non-rural population to total population	Percentage
	Consumption level	Ratio of total personal consumption to average total population per year	Percentage
Economy	Primary industry	The Agriculture	Trillion yuan
	Secondary industry	The Manufacturing industry	Trillion yuan
	Tertiary industry	All industries other than primary and secondary industries	Trillion yuan
	Total import and export value	Total amount of goods actually entering and leaving China's borders	Million dollars
	Energy consumption structure	Ratio of coal consumption to total energy consumption	Percentage
Transportation	Road mileage	Total highway mileage at year-end	Kilometre
	Railway mileage	Total railway mileage at year-end	Kilometre
	Passenger	traffic Number of passengers transported throughout the year	10000 people
	Freight	traffic Weight of goods transported throughout the year	10000 tons
Technology	Energy intensity	Ratio of total energy consumption to GDP	Percentage
	Tech progress	Ratio of science and technology expenditure to GDP	Percentage

To assess the impact of different factors on CO₂ emissions in three regions, this study employs the random forest feature filtering method to rank the factors based on their importance. Initially, the study identified 14 carbon emission factors as variables to be ranked, which were then input into the random forest algorithm. To minimize errors and avoid randomness, a five-fold cross-validation method was utilized, and the experiment was repeated 20 times. The importance of each CO₂ emissions factor was then averaged to determine its influence on the three regions. The results are presented in Table 4, which displays the importance of each carbon emission effect factor to CO₂ emissions in the eastern region, Table 5, which shows the contribution to the central region, and Table 6, which presents the contribution to the western region. According to the data in Tables 4 and it is evident that various factors influence CO₂ emissions in the whole China. Population accounts for 21.2 %, the economy accounts for 25 %, transportation has the largest share with 45.5 %, and technology has the smallest share with only 9.3 %. Specifically, freight volume, secondary industry, population size, railroad mileage, and road mileage are the top five factors that contribute the most, with 13.9 %, 10.2 %, 10.2 %, 9 %, and 8.6 %, respectively. These factors significantly impact China's CO₂ emissions. On the other hand, passenger volume, technological progress, and energy consumption structure have the smallest contribution, at 2.8 %, 1.9 %, and 1.3 %, respectively.

Table 4.

Contribution of national CO₂ emissions impact factors.

Influencing factors	Contribution	Influencing factors	Contribution
Freight	13.90 %	Energy intensity	7.40 %
Secondary industry	10.20 %	Total import and export value	6.90 %
Population size	10.20 %	Urbanization rate	5.70 %
Railway mileage	9.00 %	Consumption level	5.30 %
Highway mileage	8.60 %	Passenger	2.80 %
Tertiary industry	8.40 %	Technological advancement	1.90 %
Primary industry	8.20 %	Energy consumption structure	1.30 %

Table 5.

Contribution of CO₂ emissions impact factors in the eastern region.

Influencing factors	Contribution	Influencing factors	Contribution
Urbanization rate	13.60 %	Primary industry	6.10 %
Secondary industry	12.40 %	Total import and export value	5.90 %
Railway mileage	10.70 %	Population size	5.30 %
Tertiary industry	10.40 %	Consumption level	3.50 %
Energy intensity	9.30 %	Technological advancement	3.30 %
Freight	9.00 %	Passenger	1.70 %
Highway mileage	7.50 %	Energy consumption structure	1.30 %

Table 6.

Contribution of CO₂ emissions impact factors in the central region.

Influencing factors	Contribution	Influencing factors	Contribution
Railway mileage	15.30 %	Freight	7.70 %
Passenger	11.50 %	Urbanization rate	7.30 %
Highway mileage	10.40 %	Primary industry	6.70 %
Total import and export value	8.70 %	Energy intensity	3.60 %
Secondary industry	7.90 %	Population size	2.60 %
Consumption level	7.80 %	Technological advancement	1.50 %
Tertiary industry	7.70 %	Energy consumption structure	1.30 %

According to Tables 5 and it is evident that different factors in the eastern region. Specifically, demographic factors account for 22.4 %, economic factors for 36.1 %, transportation factors for 28.9 %, and technological factors for 12.6 %. Notably, the top five factors that significantly influence CO₂ emissions in the region are urbanization rate (13.6 %), secondary industry (12.4 %), railroad mileage (10.7 %), tertiary industry (10.4 %), and energy intensity (9.3 %). Conversely, technological progress, passenger traffic, and energy consumption structure have the least impact, accounting for only 3.3 %, 1.7 %, and 1.3 %, respectively.

According to Tables 6 and it is evident that various factors in the central region. Specifically, demographic factors account for 17.7 %, economic factors account for 32.3 %, transportation factors account for 44.9 %, and technological factors account for 5.1 %. The five top factors that significantly affect carbon dioxide emissions in the central region are railroad mileage (15.3 %), passenger traffic (11.5 %), road mileage (10.4 %), total import and export (8.7 %), and secondary industry (7.9 %). Additionally, population size, technological progress, and energy consumption structure have the least impact, accounting for only 2.6 %, 1.5 %, and 1.3 %, respectively.

According to Table 7, it is evident that different factors in the western region. Specifically, demographic factors account for 22.8 %, economic factors for 35.5 %, transportation factors for 33.4 %, and technological factors for 8.4 %. Among these factors, primary industry, road mileage, urbanization rate, freight volume, and railroad mileage are the five top influences to CO₂ emissions in the western region, accounting for 11.5 %, 11.5 %, 10.8 %, 10.5 %, and 9.7 %, respectively. Conversely, technological progress, passenger volume, and energy consumption structure have the smallest impact, accounting for only 2 %, 1.7 %, and 1.4 %, respectively.

Table 7.

Contribution of CO₂ emissions impact factors in the western region.

Influencing Factors	Contribution	Influencing Factors	Contribution
Primary industry	11.50 %	Consumption level	6.70 %
Highway mileage	11.50 %	Energy intensity	6.40 %
Urbanization rate	10.80 %	Population size	5.30 %
Freight	10.50 %	Total import and export value	4.90 %
Railway mileage	9.70 %	Technological advancement	2.00 %
Secondary industry	9.30 %	Passenger	1.70 %
Tertiary industry	8.40 %	Energy consumption structure	1.40 %

Fig. 3 illustrated the degree of effect of various factors on the three regions, in the eastern region, urbanization is the greatest impact factor, indicating that the rapid rise in urban population along with economic growth has led to a significant raise in CO₂ emissions. To address this issue, the government should take significant measures to control population size and establish a reasonable urban and rural spatial layout. Additionally, the eastern region has the most complex transportation network in China, with the highest mileage of roads and railroads, a complex intercity transportation network, and the largest number of private transportation. Therefore, this region should implement policies to reduce the proportion of fuel vehicles, develop energy-efficient public transportation systems, reduce private transportation, and promote the use of new energy transportation. It is essential to note that the eastern region has the highest energy intensity in the country, indicating a high dependence on traditional energy consumption. Therefore, the region should optimize its energy layout and increase the percentage of renewable energy sources, for example, hydrogen and wind energy. Technological advances have a relatively small impact on CO₂ emissions reduction; therefore, eastern region should improve the targeting of emission reduction technologies and increase efforts to decrease CO₂ emissions with precision.

Fig. 3.

Radar map of CO2 emissions impact factors.

For central region, transportation is the primary factor contributing to CO₂ emissions. To decrease these emissions, the region should optimize its transportation strategy, adjust the market structure for fuel and new energy vehicles, and provide financial and policy support to new energy vehicle companies. The central region has a relatively large proportion of secondary and tertiary industries, and while plans to upgrade these industries have promoted economic development, they have also increased CO₂ emissions. To solve this problem, the region should build a reasonable industrial layout while maintaining economic growth, incentivizing developing new low-carbon and green enterprises, and increase the investment in the tertiary industry. Technological advances have a restricted influence on reducing CO₂ emissions in the central region; therefore, the region should put more effort into R&D, especially the developing and applying of carbon decrease technologies.

For western region, the primary industry has the largest influence on CO₂ emissions, next to the secondary and tertiary industries. Due to the region's reliance on traditional industries and the concentration of industries, relevant authorities should plan the industrial structure and increase the market share of tertiary industries. The government also should accelerate the development of renewable Energy industries, for example, photovoltaic and wind energy, according to the geographical characteristics of the region. Although technological advances have a restricted affect on reducing CO₂ emissions, investment in technological innovation and application should remain a priority.

In China, there are evident regional disparities in CO₂ emissions, and each region should develop and implement tailored emission reduction policies based on their specific circumstances. The primary and secondary industries have a close association with the three major regions, and a rational industrial structure and regional layout are critical to achieving carbon emission reduction goals. Transportation is a primary contributor to CO₂ emissions in China, mainly caused by the use of traditional energy sources. To reduce the use of fuel vehicles, relevant authorities should develop effective policies to promote the adoption of cleaner energy, increase the market share of new energy mobility Scooter and encourage the use of public transportation. Furthermore, technological advancements can also facilitate carbon emission reduction by encouraging enterprises and research institutions to create carbon-control and carbon-reduction products.

5. Prediction of CO₂ emissions

5.1. Prediction of CO₂ emissions by using ARIMA model

The previous section examined the factors that affect CO₂ emissions in different regions and identified the primary factors for each region. In this part, an ARIMA model was used to forecast the CO₂ emissions of three regions. At first, the CO₂ emission data of three regions were smoothed, and after the smoothing test, we determine that the ARIMA model is a smoothed time series with $d$-values of 1, 1, and 1 for the nationwide, eastern, and central regions, respectively, when the difference is of order 2. For the western region, the ARIMA model is a smoothed time series with a $d$-value of 1 when the difference is of order 1. Subsequently, by calculating the autocorrelation coefficient ACF and partially autocorrelation coefficient PACF values, we determine the orders of $p$ and $q$ of the ARIMA model for each region based on the principle of minimizing the AIC error measure, as presented in Table 8.

Table 8.

Order $p$ and $q$ of ARIMA models.

Regions	p	d	q
Nationwide	1	1	0
Eastern	1	1	0
Central	1	1	0
Western	0	1	1

After determining the parameters of the $ARIMA\left(p,d,q\right)$ model for both the entire country and each region, CO₂ emissions were predicted for China as a whole and its three regions: East, Central, and West. In this process, 80 % of the data set was used for training and 20 % for testing. The results of each evaluation indicators were calculated and presented in Table 9. The MAPE values of the ARIMA model for predicting CO₂ emissions for China and its three regions were 0.0261, 0.0260, 0.0336, and 0.0411, respectively. These values shown that the ARIMA model has efficient linear prediction ability, and Changes in CO₂ emissions are reflected in the selected impact factors. However, the ability of ARIMA to express the nonlinear relationships within the data is unknown. Therefore, to test the nonlinear relationships in the carbon emission data, an LSTM model was used to forecast the CO₂ emissions for three regions (see Table 10).

Table 9.

Prediction evaluation indicators values of ARIMA model.

Regions	RMSE	MAE	MAPE
Nationwide	2.1751	1.7083	0.0261
Eastern	1.0094	0.7821	0.0260
Central	0.7598	0.6202	0.0336
Western	0.7448	0.6066	0.0411

Table 10.

Prediction evaluation indicators values of LSTM.

Regions	RMSE	MAE	MAPE
Nationwide	2.1082	1.8948	0.0192
Eastern	1.1582	1.1427	0.0258
Central	0.6328	0.5541	0.0200
Western	0.5205	0.4087	0.0148

5.2. Prediction of CO₂ emissions by using LSTM

In this paper, we input carbon emission data from 1997 to 2017 into an LSTM and utilize a sliding window forecasting method. Specifically, we use data points $y_t$, $y_{t+1}$, …, $y_{t+n}$ to predict CO₂ emissions in year $y_{t+\left(n+1\right)}$. To prevent over fitting and maintain the model's generalization ability, we standardize the data. We employ minimum-maximum normalization to linearly transform the original data $x$, mapping the data values to the range $\left[\mathrm{0,1}\right]$. The specific formula is shown in the following Eq. (14).

$$\hat{x}=\frac{x-\min \left(x\right)}{\max \left(x\right)-\min \left(x\right)}$$ (14)

in this paper, various parameters such as the Dropout layer, optimizer, and regularization were configured to enhance the performance of the LSTM. Training times were set to four gradients of 100, 200, 300, 400, and 500. The data was split into 80 % for training and 20 % for testing, with 10 iterations performed each time. The training number corresponding to the minimum RMSE was selected. After several experiments, it was found that the error was minimized at a training number of 200, with the optimizer set to SGD and the regularization parameter L1 set to 0.001. Based on these results, carbon emission forecasts were carried out for China as a whole and for three regions (east, west, and east), with evaluation indicators MAPE of 0.0192, 0.0258, 0.0200, and 0.0148, respectively. These findings suggest that the LSTM model can effectively reflect the no-linear prediction correlation within the data, and that the selected influence factors can represent the change of CO₂ emissions. To further investigate the linear and nonlinear nature of carbon emission data, this paper combines ARIMA and LSTM to predict CO₂ emissions.

5.3. Prediction of CO₂ emissions by using ARIMA + LSTM

Although a single ARIMA or LSTM can provide more accurate forecasts, it can only utilize linear or nonlinear information from the data and cannot fully verify the correlation relationship within the CO₂ emissions data. By combining ARIMA and LSTM, we can better predict future carbon emission trends in China. Table 11 shows that the ARIMA + LSTM is more accurate than either model used alone.

Table 11.

Prediction evaluation indicators values of ARIMA + LSTM model.

Regions	RMSE	MAE	MAPE
Nationwide	1.9842	1.8213	0.0186
Eastern	1.1019	1.0808	0.0243
Central	0.5774	0.5107	0.0185
Western	0.4966	0.3917	0.0146

5.4. Comparison of prediction results

Various models, including ARIMA, LSTM, ARIMA + LSTM, LR, and BPNN, are considered in this paper, to predict CO₂ emissions of total China and three regions. Fig. 4 and Table 12 present the predicted index values of CO₂ emissions for total China and for the three regions by different models. Results show that the ARIMA linear prediction model and the LSTM nonlinear prediction model were more accurate than the conventional LR and the BPNN. For example, for the eastern region, the ARIMA has an RMSE of 1.0094, MAE of 0.7821, and MAPE of 0.0260, while the LSTM model has an RMSE of 1.1582, MAE of 1.1427, and MAPE of 0.0258. after using the combined ARIMA and LSTM, the model is further improved. Table 12 and Fig. 4 (d) show that the combined model is similar to the single model with the lowest value of the evaluation index, indicating that the inverse error combination method can effectively decrease the error caused by model singularity and the combined model is reasonable. This also validates the hypothesis that there are linear and non-linear relationships within the data.

Fig. 4.

Changes in evaluation indicators of different models.

Table 12.

Comparison of different model prediction results.

Regions	Models	Evaluation indicators
		RMSE	MAE	MAPE
Nationwide	LR	13.0206	9.5111	1.3010
	BPNN	10.6617	8.7357	1.5093
	ARIMA	2.1751	1.7083	0.0261
	LSTM	2.1082	1.8948	0.0192
	ARIMA + LSTM	1.7842	1.6213	0.0186
Eastern	LR	9.0006	6.3393	1.8566
	BPNN	2.8001	2.2576	0.9793
	ARIMA	1.0094	0.7821	0.0260
	LSTM	1.1582	1.1427	0.0258
	ARIMA + LSTM	0.8417	0.7241	0.0243
Central	LR	4.2760	2.9988	1.3875
	BPNN	7.4927	4.8271	2.1703
	ARIMA	0.7598	0.6202	0.0336
	LSTM	0.6328	0.5541	0.0200
	ARIMA + LSTM	0.5774	0.5107	0.0185
Western	LR	2.0035	1.4122	0.8814
	BPNN	3.0440	2.3719	1.5890
	ARIMA	0.7448	0.6066	0.0411
	LSTM	0.5205	0.4087	0.0148
	ARIMA + LSTM	0.4966	0.3917	0.0146

5.5. Application of ARIMA + LSTM to predict future CO₂ emissions

After comparison, it shown that the ARIMA + LSTM shows better forecast accuracy and is more suitable for predicting China's CO₂ emissions Table 13 presents the results of CO₂ emission projections for each region, while Fig. 5 illustrates the prospective tendency of CO₂ emissions in each region. Table 13 and Fig. 5 shown that China's CO₂ emissions are expected to continue to increase from 2018 to 2025, albeit at a reduced rate compared to the period from 2000 to 2015. This suggests that China's efforts to implement a range of carbon reduction measures are beginning to yield positive results.

Table 13.

Forecasting carbon dioxide emissions by region, 2018–2025.

Regions	Years
	2018	2019	2020	2021	2022	2023	2024	2025
Nationwide	99.56	100.5	101.2	102.01	102.83	103.43	103.94	104.66
Eastern	43.8	44.1	44.25	44.41	44.52	44.63	44.71	44.92
Central	27.2	27.51	27.83	28.14	28.42	28.63	28.81	29.1
Western	28.56	28.89	29.12	29.46	29.89	30.17	30.42	30.64

Fig. 5.

China's national and three major regional CO₂ projections, 2018–2025.

By comparing (b), (c) and (d) in Fig. 5, it can be seen that CO₂ emissions in all each regions of China will increase in the coming years. Compared to the central and western regions, CO₂ emissions in the eastern region will grow more slowly, suggesting that the eastern region may earlier reaching the peak of CO₂ emissions. However, due to the industrial transfer from the eastern region and the economic development needs of the central and western regions, CO₂ emissions will continue to climb rapidly year by year thus making the mission to reduce CO₂ emissions in these regions more urgent.

General speaking, China's efforts to reduce CO₂ emissions have yielded positive results. However, there is still a need to introduce relevant policies, strengthen the monitoring of carbon emission reduction plans, and restructure primary, secondary and tertiary industries. Targeted carbon emission reduction measures should be implemented in different regions to promote economic development while reducing CO₂ emissions. Additionally, the promotion of a CO₂ emissions trading system and the upgrading of new environmental industries are necessary to promote a low-carbon economy.

6. Conclusions

In the article, a new hybrid model, ARIMA + LSTM, is proposed to predict CO₂ emissions for total China and for the three regions We selected 14 factors that influence CO₂ emissions and used random forest method to calculate and rank their contributions. These factors are then fed into the ARIMA + LSTM hybrid model, which better than the LR, BPNN, ARIMA and LSTM. As a result, the new model can predict CO₂ emission trends more accurately. Our results show that this new model can be effectively applied in the field of CO₂ prediction.

After analyzing the influences of demographic, economy, transportation, and technological advances on CO₂ emissions in China as a whole and in the three regions, To summarize the following conclusions. Firstly, the production activities of the primary and secondary industries in different regions cause the largest amount of CO₂ emissions. Therefore, reducing their shares can effectively reduce CO₂ emissions. Each region should continue to adjust its industrial structure according to its own situation and encourage the development of tertiary industries. However, the transfer of industries from the eastern region to the central and western regions will inevitably lead to an increase in CO₂ emissions. Therefore, the central government should integrate the actual situation of each region to optimize the industrial layout. Secondly, transportation factors have a great impact on all three regions, particularly the eastern and central regions. These two regions have a large share of the country's population, economy and transportation, resulting in a much larger number of fuel cars than in the western region. Therefore, China should promote the use of cleaner energy in all regions, encouraging the adoption of clean energy and new energy cars, and providing policies and funding support and assistance to new energy companies. Finally, the low influence of science and technology on the three regions, especially the western region, indicates that the importanceof science and technology in improving energy efficiency and emission control has not been realized. China should optimize the structure of scientific research and guide enterprises and scientific research institutions to move closer to CO₂ emission reduction.

Declaration of competing interest

The authors declare the following financial interests/personal relationships which may be considered as potential competing interests:Tingxin Wen reports article publishing charges, statistical analysis, and writing assistance were provided by Liaoning Social Science Planning Foundation. Tingxin Wen reports article publishing charges, statistical analysis, and writing assistance were provided by National Natural Science Foundation of China.
