Rapid assembly of structurally diverse cyanamides and disulfanes via base-mediated aminoalkylation of aryl thiourea

Abstract

A general method for the preparation of cyanamides and disulfanes from aryl thiourea and halide through a base-mediated strategy is described. Mercaptan and N-aryl cyanamide are the key intermediates in the reaction. The current method is convenient, eco-friendly, and has high yields for the synthesis of substituted cyanamide and functional disulfanes in a one-pot procedure from readily available starting materials.

A general one-pot method for the preparation of cyanamides and disulfanes from aryl thioureas and halides via a base-mediated reaction was accomplished.

Cyanamide was first discovered as early as 1851 by Cannizzaro, and features a nucleophilic nitrogen atom bearing an electrophilic nitrile unit. Due to their unique structure (N-CN) and chemical properties, cyanamides are valuable organonitrogen compounds in pharmaceuticals, material science, and synthetic applications.¹ Remarkably, cyanamide-containing compounds exhibit interesting biological activities.² Moreover, cyanamides are frequently transformed into heterocycles through transition-metal catalyzed cycloaddition reactions.³ Among cyanamide derivatives, N-cyano-N-phenyl-p-toluenesulfonamide (NCTS) is an efficient cyanation reagent under transition metal catalytic conditions.^2d

As a valuable dinitrogen resource, many elegant works have been reported for the introduction of a cyanamide group. The most widely known and extensively used strategy for the preparation of substituted cyanamides is based on the electrophilic N-cyanation of amines using cyanogen bromide (Scheme 1, Method a). However, BrCN is a very hazardous chemical which can be absorbed into the body by inhalation of its vapor and through the skin and may cause convulsions or death. Several alternative N-cyanation procedures have been developed that aim to solve that security issue in recent years.

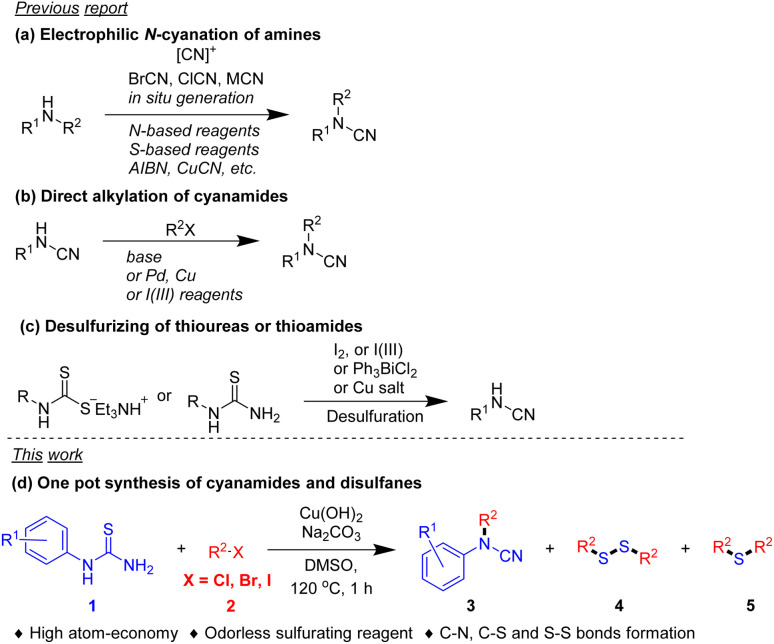

Scheme 1. Synthetic methods for the preparation of cyanamides.

Kappe and co-workers developed a continuous-flow process for the on-demand generation of BrCN, which subsequent utilization for the construction of cyclic guanidine.⁴ The development of safer electrophilic cyanation reagents is another efficient approach. Alcarazo and co-workers introduce two sulfur-based reagents for the efficient electrophilic cyanation.⁵ In addition, AIBN⁶ and CuCN⁷ also serve as sources of nitrile under copper catalysis. The direct nucleophilic substitution of cyanamide is another straightforward method for the synthesis of substituted cyanamides (Scheme 1, Method b).⁸ Yet these transformations suffer from uncommon cyanamide sources. In recent years, representative methods for the preparation of substituted cyanamide that do not need a cyanide source have been developed (Scheme 1, Method c). I(iii) reagents or iodine-mediated desulfurization of thioamide or dithiocarbamate are the most useful methods to obtain N-substituted cyanamides.⁹ Further, transition metal-catalyzed desulphurization is also an efficient method for the synthesis of cyanamides.¹⁰ It is a pity that sulfphur was abandoned in this progress. However, most of these transformations suffer from certain limitations, such as the need for excessive amounts of waste generating agents, harsh reaction conditions, poor functional group tolerance, and tedious synthetic procedures to access substrates. Hence, there is a high demand for efficient and environmentally benign new methods for the synthesis of cyanamide from readily available starting materials under mild conditions. As part of our continuing studies on green chemistry,¹¹ we envisage that the sulfphur in thiourea could transfer to useful compounds in elegant reactions. We herein report an efficient method for the synthesis of cyanamides and disulfanes from aryl thiourea and halides in one pot procedure.

Initially, 1-phenylthiourea (1a) and (2-chloroethyl)benzene (2a) were selected as the model substrates to screen the optimal reaction conditions, and the results are summarized in Table 1. To our delight, under the combination of Na₂CO₃ and Cu(OH)₂ in DMSO in the open air at 120 °C for 1 h, the desired product N-phenethyl-N-phenylcyanamide (3aa) and disulfane (4a) were obtained in 95% and 79% yield, respectively (Table 1, entry 1). The yields of compounds 3 and 4 were calculated based on arylthiourea (1). In addition, thioether (5a) was also detected in trace amount by GC-MS. The reaction fails without base (entry 2), and the starting materials 1a and 2a were all recoved in yield >95%, showing that base is critical to the reaction. In this reaction, inorganic bases may be acid scavenger, promoting the nucleaddition reaction between aylthiourea and halide. The yield of cyanamide (3aa) was increased as the amount of base used in the reaction, however, the yield of disulfane was low without Cu(OH)₂ (entries 3–6). Various kinds of bases were then screened, such as K₂CO₃, Cs₂CO₃, KHCO₃, NaHCO₃, and Et₃N; among them, K salts gave the similar results to Na salts, but no desired products were determined under organic bases (entries 7–11). These results indicated that Na₂CO₃ is the best choice to promote the reaction. With the increase of Cu(OH)₂, the yield of disulfane decreased, while the yield of cyanamide remained excellent (entries 12; see ESI† for details). These results may be due to the chelation between copper and mercaptan. Subsequently, different solvents, including water, MeCN, DMF, DMA, acetone, and toluene were estimated, and DMSO was superior to the others (entries 15–18). Furthermore, the reaction temperature and time were also optimized. It was found that increasing the temperature higher than 80 °C can obviously shorten the reaction time, and the reaction finished under 120 °C within 1 h (for more details, see ESI†).

Optimization of reaction conditions^a.

Entry	Base	Solvent	Yield of 3aab/%	Yield of 4ab/%	Yield of 5ab/%
1	Na2CO3	DMSO	95 (93)	79 (70)	Trace
2	—	DMSO	0	0	0
3c,d	Na2CO3	DMSO	33	16	20
4c,e	Na2CO3	DMSO	65	30	32
5c,f	Na2CO3	DMSO	74	26	30
6c,g	Na2CO3	DMSO	81	26	40
7	K2CO3	DMSO	97	70	Trace
8	Cs2CO3	DMSO	70	50	Trace
9	NaHCO3	DMSO	90	75	Trace
10	KHCO3	DMSO	92	70	Trace
11	Et3N	DMSO	0	0	0
12h	Na2CO3	DMSO	97	0	0
13i	Na2CO3	DMSO	81	57	Trace
14j	Na2CO3	DMSO	92	70	Trace
15k	Na2CO3	H2O	0	0	0
16l	Na2CO3	CH3CN	76	30	Trace
17	Na2CO3	DMAc	79	62	Trace
18	Na2CO3	DMF	91	71	Trace

^aUnless otherwise note, all reactions were performed with 1a (0.20 mmol), 2a (0.48 mmol, 2.4 equiv.), base (2.5 equiv.), Cu(OH)₂ (10 mol%), solvent (0.5 mL) at 120 °C for 1 h.

^bYields were based on ¹H NMR analysis of the crude product using CH₂Br₂ as an internal standard. The value in parentheses is the isolated yield of product.

^cWithout Cu(OH)₂.

^dBase (0.5 equiv.).

^eBase (1.0 equiv.).

^fBase (1.5 equiv.).

^gBase (2.0 equiv.).

^hCu(OH)₂ (1.0 equiv.).

ⁱ2a (2.0 equiv.).

^j2a (2.2 equiv.).

^kAt 100 °C for 12 h.

^lAt 80 °C for 12 h. DMAc = N,N-dimethylacetamide.

With the optimal reaction conditions in hand, we then tried to explore the generality and limitations of the protocol. First, various halides were investigated and the results are summarized in Table 2. Long-chain chloroalkanes are good substrates for the preparation of corresponding cyanamides (3ad–3ae) in 84% to 95% yields and disulfanes (4d–4e) in 73% to 95% yields. Phenol ether is tolerant in the reaction, and the corresponding cyanamide (3af) and disulfane (4f) were obtained in high yields. Simple primary chloroalkane and steric-hindrance halides can also offer corresponding products (3ag, 3ah) in 70% and 88% yields, respectively. Benzyl chloride and its alkyl, alkoxy, halo, and cyan substituted derivatives will react smoothly and produce cyanamides (3ai–3aq) in moderate to good yields. To our surprise, except for 3-methylbenzyl chloride affording disulfane 4l, the other benzyl chloride derivatives produce thioethers (5i–5q) in excellent yields under standard conditions. Halides with a terminal or internal C C double bond are suitable partners and give the desired products (3av–3ax, 4v–4x) in moderate yields. Particularly, 5-chloropent-1-yne is also perfectly compatible under this reaction condition, and the corresponding cyanamide (3ay) was obtained in an 80% yield. To our delight, dichloroalkanes are acceptable for the preparation of halo-substituted cyanamides (3az–3aaa) and halo-substituted disulfane products (4aa). Benzyl bromide and its electron-withdrawing or donating derivatives can offer moderate yields of cyanamide products (3ai, and 3aab–3aah). To our confusion, sulfane products were not easily obtained in these cases, and olyl dibenzyldisulfane (4i) was obtained in 58% isolated yield. Moreover, bromoethane can produce cyanamide in excellent yield (90%) under standard reaction conditions. Furthermore, 1-iodopropane and methyl iodide successfully provide corresponding products (3ag and 3aak) in yields of 66% and 70%, respectively. These results indicated that chloride, bromide, and iodo hydrocarbons are all available materials for the corresponding cyanamide products.

Substrate scope of various halides 2^a.

^aAll reactions were performed with 1a (0.2 mmol), 2 (2.4 equiv.), Cu(OH)₂ (10 mol%), Na₂CO₃ (2.5 equiv.), DMSO (0.5 mL) at 120 °C for 1 h. Yields referred to isolated yield.

To explore further the generality of this protocol, various structurally diverse arylthioureas were then evaluated, and the representative results are summarized in Table 3. Ortho-substituted phenyl thioureas are tested first. Satisfactorily, both electron-rich (Me, Bn, MeO, and CF₃O) and electron-withdrawing (Cl) substituents arylthioureas can be successfully coupled with 2a, and the corresponding cyanamide products 3ba–3ga and disulfane 4a were furnished in yields ranging from 54% to 96%. However, the high-steric-hindrance substrate 1-(2-(tert-butyl)phenyl)thiourea cannot obtain a cyanamide product. In addition, ethyl 2-thioureidobenzoate reacting with 2a will produce 3ha and 3ha′ in moderate yields. In this case, 3ha was generated via thiolysis between ethyl ester and in situ disulfane 4a. Similarly, naphthyl thiourea substrate gives the corresponding cyanamide 3ia in 58% yield and disulfane 4a in 81% yield. Meta-substituted phenyl thioureas were well tolerated under the current reaction conditions, and the cyanamide products 3ja–3la were obtained in good to excellent yields. Either electron-donating or electron-withdrawing substituents on the para site, aryl thioureas are successful in achieving the desired products. To our delight, multi-substituted alkyl, alkoxyl, and/or halogen on the phenyl ring were well accommodated, and the corresponding products were generated in yields ranging from 48 to 95%. The configurations of 3bba (ref. 12) and 3bea (ref. 13) were unequivocally confirmed by X-ray crystallographic analysis.

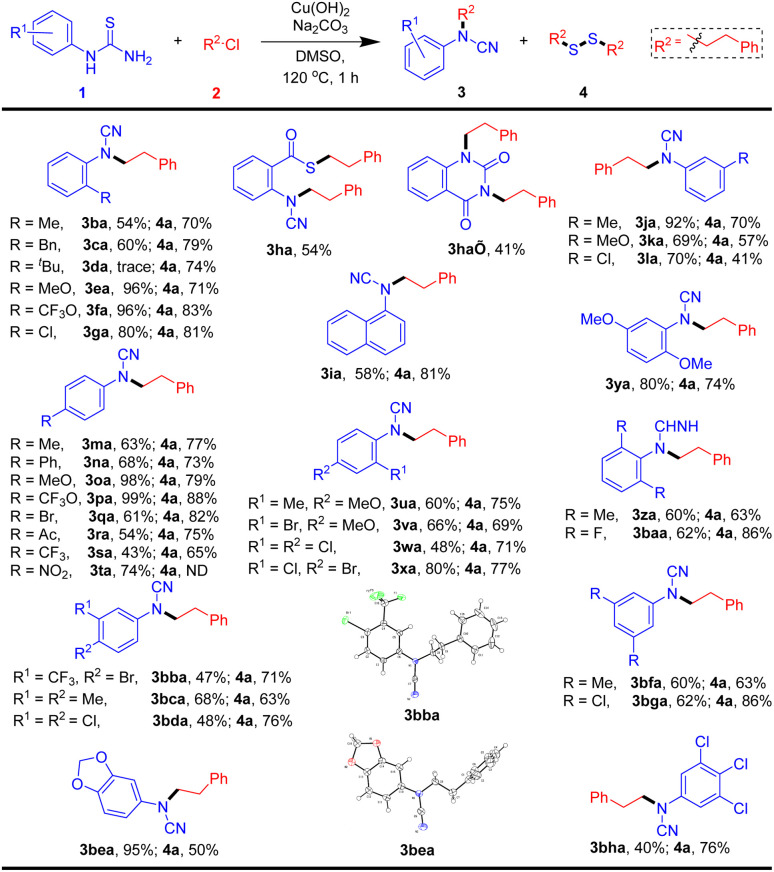

Substrate scope of various arylthioureas 1^a.

^aAll reactions were performed with 1 (0.2 mmol), 2a (2.4 equiv.), Cu(OH)₂ (10 mol%), Na₂CO₃ (2.5 equiv.), DMSO (0.5 mL) at 120 °C for 1 h. Yields referred to isolated yield.

To investigate the practicality of this method, gram-scale reactions and further transformations were carried out (Scheme 2). On a 6.6 mmol scale, the desired cyanamide 3aa and disulfane 4a were isolated in 88% and 48% yield, respectively. It is noteworthy that this approach can perform at a 2 g scale with iodomethane for the synthesis of the desired methyl cyanamide product (3aak) in 58% yield. Subsequently, disulfane 4a can be readily converted to the corresponding sulfonyl chloride 5 and sulfenylindole 6 (ref. 14) in high yield. These results show that disulfane can replace mercaptan as an odorless reagent in organic synthetics. Phenyl cyanamides were easily brominated in the para site of the phenyl ring when treated with NBS in THF under reflux. It is a pity that the cyan group was eliminated when treating with TFA or LiAlH₄.

Scheme 2. Scale-up reactions and application transformations of products.

In order to further understand the reaction mechanism, some control experiments (Scheme 3) were conducted. First, the model reaction is performed under standard conditions (eqn (a)). Cyanamide (3a) and disulfane (4a) were found in the yields of 95% and 79%, respectively, and only a trace amount of thioether (5a) was detected by GC-MS. In the absence of Cu(OH)₂, the yield of thioether (5a) increased dramatically. Meanwhile, trace amounts of thiol and N-phenyl cyanamide were detected in GC-MS. These results showed that Cu(OH)₂ may promote the formation of disulfane (4a). Subsequently, 2-phenylethanethiol (9) was tested under various conditions (eqn (b)), and only disulfane (4a) was obtained. In the presence of 1.0 equiv. Cu(OH)₂, thiol (9) is consumed, and no sulfane products are detected by GC-MS. Indicating that excess copper salt may chelate with mercaptan. Moreover, 1,2-dibenzyldisulfane (4i) is produced in high yield when benzyl mercaptan (10) is performed under air in the presence or absence of benzyl chloride (eqn (c)). However, thiother (5i) becomes the main product in the presence of a base. Indicating that base facilitates the S_N2 reaction between thiol and halide. Furthermore, substituted cyanamide (3aa) was obtained successfully when treating N-phenyl cyanamide (11) with 2a under standard conditions. These results indicated that mercaptan and N-phenyl cyanamide might be the intermediates in the reaction (Scheme 4).

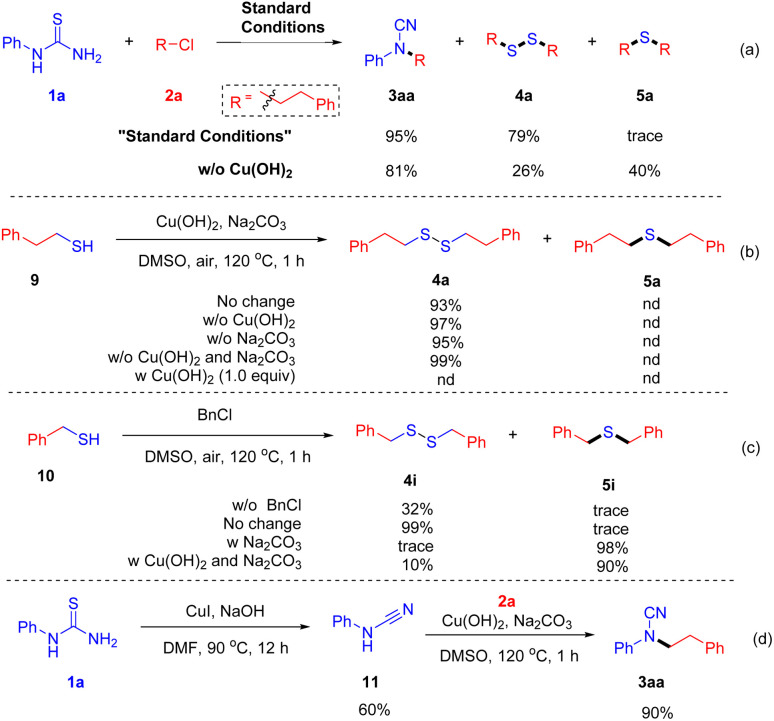

Scheme 3. Control experiments (a–d).

Scheme 4. Plausible mechanism.

Based on the above experimental results and previous reports,¹⁵ a tentative mechanistic interpretation of the preceding observations is proposed in Scheme 4. First, base-promoted nucleoaddition of halide to arylthiourea forms isthiourea Int-I, which undergoes further intramolecular elimination in the presence of base and copper to generate cyanamide Int-II and thiol intermediate Int-III. Then halide 2 and Int-II undergo S_N2 progress to afford the substituted cyanamide product (3). Meanwhile, thiol Int-III is oxidized by air to form a sulfane compound.

Conclusions

In summary, a simple method for the preparation of cyanamides and disulfanes has been established under mild reaction conditions in one pot. Many diverse substituted cyanamides and functional sulfanes are successfully prepared in moderate to excellent yields with this strategy. Importantly, the present methodology demonstrates excellent functional group compatibility, high atom- and step-economy, and mild reaction conditions. Further studies on the synthetic application of this strategy are underway in our lab.

Conflicts of interest

There are no conflicts to declare.
