Harnessing chemical pressure

Pressure profoundly changes all physical characteristics of a condensed matter and provides a vast and fertile dimension to search for materials with extremely favorable properties for technological applications [1,2]. However, these favorable properties are only optimally tuned at a specific high pressure and will vanish or revert at the ambient pressure, rendering them merely of academic interest.

A promising solution is to take advantage of the ‘chemical pressure’. When a relatively large atom is replaced by a smaller atom, it will be locally ‘squeezed’ by the surrounding crystal lattice with an additional chemical pressure, P_chem, and exhibits pressure-induced functional changes even at ambient pressure. Using this chemical pressure to achieve desired properties has been a long-standing idea. For instance, the concept of chemical pressure inspired the replacement of La in the 1987 Nobel Prize-winning lanthanum barium cuprite [3] that reached 30 K superconducting Tc, with Y [4] that reached an astounding Tc of 93 K and kicked off the era of the YBCO superconductor revolution. The discovery of hydrogen-dominant hydrides as near room Tc superconductors [5,6] was initially an attempt to ‘precompress’ hydrogen with chemical pressure [7] for metallization of hydrogen. Regardless of these impressive successes, however, fundamental questions remain. How do we measure the chemical pressure localized at a specific atom? Can it be sufficiently large to create metallic hydrogen or to stabilize exotic functional materials for applications under ambient conditions?

To address these questions, Zhou et al. [8] designed an innovative study on pressure-tuned luminescence of Bi³⁺ dopant in yttrium and gadolinium orthovanadates with a general formula of AVO₄ where the dodecahedral A sites are filled with various large cations, Y³⁺ and Gd³⁺, as well as the dopant Bi³⁺. The Bi³⁺ emission spectra strongly depend upon the A site volume, which can be compressed by application of external pressure P_phy or by varying the chemical substitutions of Y, Gd and Sc of different ionic radii to generate local chemical pressure P_chem. The multivariable experiments include measurements of the AO₈ polyhedral volume (V) and the Bi³⁺ emission peak wavelength (λ) as functions of external pressure (P_phy) and chemical substitution (x) of Y_0.98–xSc_xBi_0.02VO₄ and Gd_0.98–xSc_xBi_0.02VO₄ that generates the chemical pressure. The comprehensive approach first calibrated λ as a function of P_phy without P_chem (x = 0) for yttrium orthovanadate and gadolinium orthovanadate (Fig. 1a and c). Then the λ–P calibration is used to determine P_chem as a function of x for P_phy = 0 (Fig. 1b and d). The P_chem value calculated on the basis of the λ–P calibration agrees very well with that on the basis of the V–P relations (Fig. 1e and f).

Figure 1.

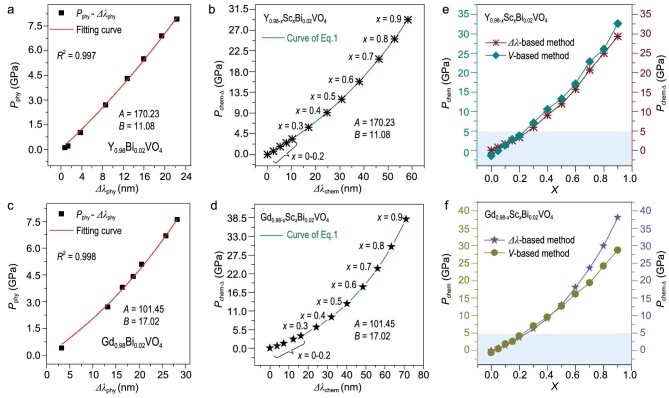

(a) Pressure-dependent spectra shift (Δλ_phy) of Y_0.98Bi_0.02VO₄ and (c) Gd_0.98Bi_0.02VO₄ fitted by the Mao–Bell equation [9]. (b) The fitted curve also reflects the relationship between the spectra shift (Δλ_chem) and (d) the local chemical pressure (P_chem) of Y_0.98–xSc_xBi_0.02VO₄ and Gd_0.98–xSc_xBi_0.02VO₄. The comparison of relationships between P_chem and x are determined by using V- and λ-based methods for (e) Y_0.98–xSc_xBi_0.02VO₄ and (f) Gd_0.98–xSc_xBi_0.02VO₄. Reproduced from Ref. [8].

The study [8] provides valuable answers to the aforementioned questions. The functional effect induced by chemical pressure on localized atoms, such as luminescence, is indeed equivalent to that induced by the physical pressure on the bulk crystal and can be used to quantify the chemical pressure. The finding of chemical pressure as big as 30–40 GP offers hope for stabilizing hydrogen-dominant high Tc superconductors. Recent efforts on lowering the synthesis pressure to <100 GPa with ternary hydrides [6] are promising with the additional chemical pressures.

Conflict of interest statement. None declared.
