O2 pulse slope correlates with stroke volume during exercise in patients with a Fontan circulation

Abstract

Background

Peak oxygen pulse (O₂pulse=oxygen consumption/heart rate) is calculated by the product of stroke volume (SV) and oxygen extraction. It has been shown to be reduced in patients with a Fontan circulation. However, in the Fontan population, it may be a poor marker of SV. We propose that the slope of the O₂ pulse curve may be more reflective of SV during exercise.

Methods

We analysed cardiopulmonary exercise test data in 22 subjects with a Fontan circulation (cohort A) and examined the association between peak SV during exercise (aortic flow measured on exercise cardiac MRI), and O₂ pulse parameters (absolute O₂ pulse and O₂ pulse slopes up to anaerobic threshold (AT) and peak exercise). In a separate Fontan cohort (cohort B, n=131), associations between clinical characteristics and O₂ pulse kinetics were examined.

Results

In cohort A, peak aortic flow was moderately and significantly associated with O₂pulseslope^PEAK (r=0.47, p=0.02). However, neither absolute O₂pulse^AT nor O₂pulse^PEAK was significantly associated with peak aortic flow. In cohort B, O₂pulseslope^PEAK and O₂pulseslope^AT were not significantly associated with clinical parameters, apart from a weak association with forced vital capacity.

Conclusion

The slope of the O₂ pulse curve to peak exercise may be more reflective of peak SV in the Fontan population than a single peak O₂ pulse value.

WHAT IS ALREADY KNOWN ON THIS TOPIC

• Patients with a Fontan circulation have reduced peak oxygen pulse, a marker of stroke volume (SV) in the healthy population. However, with the potential of impaired oxygen extraction by exercising muscles, peak O₂ pulse may be a poor marker for SV in this cohort.

WHAT THIS STUDY ADDS

• Peak O₂ pulse slope may be more reflective of peak SV in the Fontan population than a single peak O₂ pulse value.

HOW THIS STUDY MIGHT AFFECT RESEARCH, PRACTICE OR POLICY

• The O₂ pulse slope may be a useful submaximal marker of SV in the Fontan cohort.

Introduction

Cardiopulmonary exercise testing (CPET) is an important tool in assessing the haemodynamic response to exercise in patients with a Fontan circulation, and certain CPET parameters are emerging as useful in the prognostic assessment of these patients.^{1 2} However, maximal exercise is not met in a substantial proportion of Fontan patients³ and hence there is significant interest in submaximal exercise parameters, their determinants and association with clinically relevant outcomes.^{4 5}

One maximal parameter, peak oxygen (O₂) pulse, has been shown to be reduced in patients with a Fontan circulation.^{3 6} O₂ pulse represents the relationship between oxygen consumption (VO₂) and heart rate (HR) (O₂ pulse=VO₂/HR) and is determined by the product of stroke volume (SV) and oxygen extraction (arteriovenous oxygen difference (a-vO₂)).⁷

In healthy populations, the change in a-vO₂ between rest and peak exercise is predictable, such that peak O₂ pulse has been used as a non-invasive surrogate measure of SV.^{8 9} However, as SV plateaus from mid-range exercise onward,¹⁰ O₂ pulse from mid-exercise is mainly determined by a-vO₂. As skeletal muscle abnormalities are highly prevalent and variable in patients with a Fontan circulation,^{11 12} with the potential of impaired oxygen extraction by exercising muscles,¹³ peak O₂ pulse may be a poor marker for SV in this cohort.¹⁴

O₂ pulse can be evaluated across the whole of exercise and O₂ pulse kinetics, including the slope of the O₂ pulse curve, have been examined in patients with a Fontan circulation.¹⁵ Fontan patients have been shown to have an altered O₂ pulse slope compared with healthy controls. Given that O₂ pulse slope takes into account both submaximal and maximal responses to exercise, we postulated that it, rather than peak O₂ pulse, may be more strongly associated with SV.

The relationship between SV during exercise and O₂ pulse slope in Fontan patients has not been determined. Thus, the primary aim of this study in patients with a Fontan circulation was to examine the association between SV (assessed as ascending aortic flow measured by exercise cardiac MR (exCMR)) obtained during exercise, and peak O₂ pulse and O₂ pulse slope during CPET. As a secondary aim, we explored associations between clinical characteristics and both peak O₂ pulse and O₂ pulse slope in a larger cohort of patients with a Fontan circulation.

Methods

Recruitment

Two cohorts of Fontan participants were used in this study as follows (figure 1):

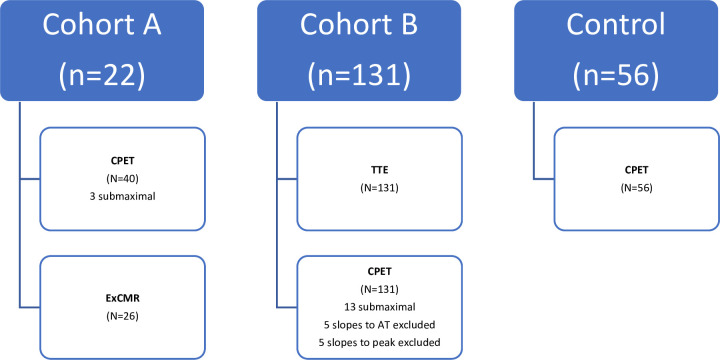

Figure 1.

Study participants. AT, anaerobic threshold; CPET, cardiopulmonary exercise testing; ExCMR, exercise cardiac magnetic resonance; n, number of subjects; N, number of tests; TTE, transthoracic echocardiogram.

1. In the first cohort (cohort A—22 subjects with 40 CPETs and 26 exCMR analysed), we examined the association between absolute O₂ pulse, O₂ pulse slope and SV during exercise. These participants were part of a study analysing the effects of inspiratory muscle training, as previously described.¹⁶ Cohort A was participants identified through the cardiology database at The Children’s Hospital at Westmead (CHW) in Sydney, Australia. Only participants with a non-fenestrated extracardiac conduit aged 12–20 years were included.

2. In the second cohort (cohort B—131 subjects with 131 CPETs and transthoracic echocardiograms (TTE)), we examined the association between clinical characteristics and O₂ pulse parameters. These participants with a Fontan circulation were identified through the Australian and New Zealand Fontan Registry (ANZFR) and were part of the ANZFR Functional Outcomes after Fontan study conducted across Sydney, Melbourne and Auckland. Inclusion criteria for this study were age ≥13 years and ≥5 years since Fontan completion.

Exclusion criteria for both cohorts were those with severe heart failure, a history of significant exercise-induced arrhythmia, severe systemic outflow tract obstruction or severe systemic hypertension at rest, or significant cognitive impairment or intellectual disability. Clinical data for Fontan participants were retrospectively collected from the local cardiology database at CHW (cohort A) and the ANZFR REDCap database (cohort B, hosted by the Murdoch Children’s Research Institute).

Cohort A subjects underwent CPET at CHW. A subset of these patients underwent exCMR, also performed at CHW.¹⁶ Cohort B subjects underwent CPET and TTE at one of four sites—Sydney (CHW and The Royal Prince Alfred Hospital, RPAH), Melbourne (The Royal Children’s Hospital) and Auckland (Starship Children’s Hospital).

To compare O₂ pulse parameters between Fontan subjects and healthy controls, data from healthy controls were obtained through the exercise labs at CHW, RPAH and the Women’s and Children’s Hospital in Adelaide, Australia (n=56). These subjects had no underlying cardiac, respiratory or neurological conditions and were undergoing exercise testing for non-specific symptoms.

Cardiopulmonary exercise testing

CPET was performed in all participants, in a standardised fashion on an upright cycle ergometer using a progressive ramp protocol, aiming to achieve peak oxygen consumption (VO₂) within 7–10 min. Cohort A underwent CPET at baseline and at 6 weeks after inspiratory muscle training (n=40). HR, blood pressure and oxygen saturations were recorded from rest to recovery. Breath-by-breath VO₂, carbon dioxide consumption (VCO₂) and minute ventilation (VE) were measured. Anaerobic threshold (AT) was calculated using a combination of the V-slope, ventilatory equivalents and respiratory exchange ratio methods.

O₂ pulse was calculated throughout testing, from the start of exercise until the beginning of recovery. Absolute O₂ pulse was determined at AT (O₂pulse^AT) and at peak exercise (O₂pulse^PEAK). O₂ pulse against time curves were reviewed and the curves were determined to have an overall linear pattern, without clear inflection points at consistent time points. Due to this pattern, lines of best fit for O₂ pulse against exercise time up to AT (O₂pulseslope^AT) and peak (O₂pulseslope^PEAK) were determined by regression (GraphPad Prism V.9), and the slope of these regression lines were taken as the O₂ pulse slope (see figure 2 as representative). Lines of best fit were visually checked by two independent observers (KL and JA) and poorly fitting lines were excluded by agreement (five slopes from cohort A and five slopes from cohort B were thus excluded). No slopes from the control cohort were excluded. For analysis, indexing of O₂ pulse metrics to body surface area was not undertaken given that indexing of aortic flow was also not undertaken.

Figure 2.

O₂ pulse. AT, anaerobic threshold.

Spirometry

Spirometry was performed in all participants using standardised techniques.¹⁷ Forced vital capacity (FVC) and forced expiratory volume in 1 s (FEV₁) were measured, and per cent predicted FVC and FEV₁ were determined.¹⁸

ExCMR imaging

ExCMR was performed (1.5T, Phillips Intera, Best, The Netherlands) at baseline (n=14) and then 6 weeks after inspiratory muscle training (n=12).¹⁶ Exercise in the MRI scanner was undertaken using an MRI compatible stepper (Ergospect, Innsbruck, Austria). Testing was performed on the same day as the cardiopulmonary exercise test. The initial workload was set to 30W, and increased by 20W every 3 min until exhaustion. Flow and cine imaging was acquired from 50% of the participants’ maximum workload based on the prior CPET, and at every stage thereafter until fatigue. Resting and exercise non-gated real time phase contrast flow (200 consecutive dynamics, dynamic scan time 75 ms, corresponding to approximately 15 s of flow data) was measured. Ascending aortic flow was measured at rest (Aortic flow^REST) and at the final stage prior to exhaustion (Aortic flow^PEAK), as a measure of SV. Typical scan parameters for balanced steady-state free-precession cine imaging have been described previously.¹⁶ Ventricular volumes were determined by manual contouring of the endocardial border of each short axis slice, at end-diastole (EDV) and end-systole volume (ESV). Ejection fraction was calculated (EF=(EDV-ESV)/EDV×100%). To study the association between SV and O₂ pulse metrics, all ExCMR studies and their corresponding CPET (n=26) were analysed.

Echocardiography

Participants in cohort B had TTEs performed and the following were obtained: anatomy, ventricular dominance, atrioventricular (AV)-valve regurgitation (none-trivial, or mild or more) and global systolic dysfunction as a qualitative measurement (normal or impaired).

Statistical analyses

Statistical analyses were performed using GraphPad Prism V.9. Non-parametric and parametric data are presented as median (range) or mean±SD, respectively. Categorical and continuous data were compared between healthy and Fontan groups using χ² tests, t-tests or Mann-Whitney U tests, as appropriate. Correlations between clinical Fontan and O2 pulse parameters were assessed using Pearson or Spearman correlation and multiple linear regression models. A p<0.05 was considered statistically significant.

Results

The baseline characteristics of cohort A and cohort B are shown in table 1. Cohort B included a wider age range, with an older mean age than cohort A (23.0 vs 15.8 years). Due to the inclusion criteria of cohort A, more subjects in cohort B were fenestrated at the time of Fontan completion and had non-extracardiac conduits. Other baseline characteristics were similar between the two Fontan groups. Characteristics of the control subjects were: 33 (59%) males, age 29.5±12.0 years, height 169.8±11.8 cm, weight 77.5±22.2 kg and body mass index 22.7±6.0. Resting and peak parameters obtained during CPET and exCMR are compared in online supplemental table 1. Results from the CPET have previously been reported.^{16 19} Peak workload between CPET and exCMR positively correlated (r=0.64, p<0.001).

Table 1.

Anthropometrics and clinical characteristics of Fontan subjects (cohorts A and B)

	Cohort A Fontan (n=22)	Cohort B Fontan (n=131)	P value
Age (years)	15.8±2.3	23.0±7.9	<0.01
Gender (male:female)	11 (50%):11 (50%)	67 (51%):64 (49%)	>0.9
Height (cm)	164.3±8.1	165±10.0	0.56
Weight (kg)	60.6±14.8	64.9±15.7	0.23
Body mass index	22.0±4.5	23.5±4.9	0.27
Dominant ventricle (right:other)	14 (64%):8 (32%)	92 (70%):39 (30%)	0.62
Age of Fontan (years)	5.2±2.0	6.0±4.3	0.40
Type of Fontan (extracardiac conduit:other)	22 (100%):0 (0%)	82 (63%):49 (37%)	<0.01
Fenestration (no:yes)	22 (100%):0 (0%)	89 (64%):41 (36%) one unknown	<0.01

There was no significant difference in O₂pulse^PEAK, O₂pulse^AT, O₂pulseslope^PEAK or O₂pulseslope^AT, between cohort A and B (figure 3). Both Fontan cohorts had significantly lower peak VO₂, O₂pulse^PEAK, O₂pulse^AT and O₂pulseslope^PEAK compared with healthy controls. O₂pulseslope^AT was significantly different between cohort A and healthy controls, but not between cohort B and healthy controls (table 2, figure 3).

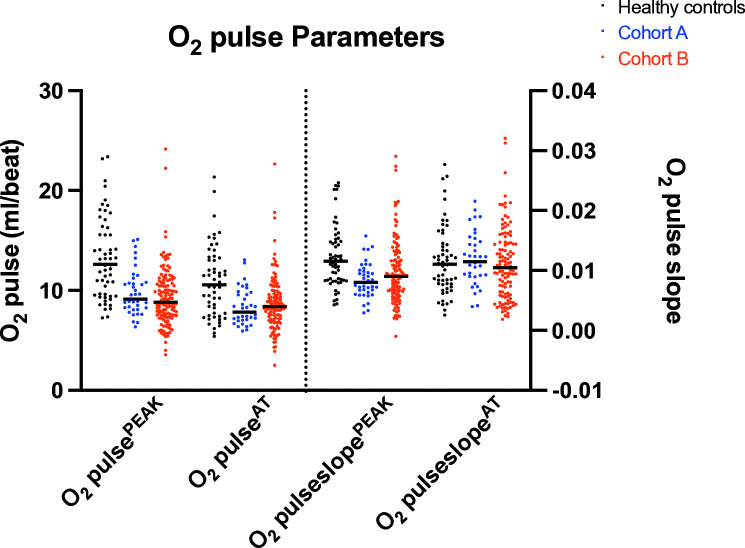

Figure 3.

O₂ pulse parameters. AT, anaerobic threshold.

Table 2.

O₂ pulse parameters

Parameter	Healthy controls	Cohort A Fontan	Cohort B Fontan
Peak VO2 (mL/kg/min)	36.0±10.3	25.1±7.1*	20.9±7.1*
O2 pulsePEAK (mL/beat)	13.2±4.1	9.8±2.2*	9.3±2.9*
O2 pulseAT (mL/beat)	10.9±3.5	8.4±1.8*	8.7±2.8*
O2 pulse slopePEAK	0.01±0.005	0.008±0.003*	0.009±0.005*
O2 pulse slopeAT	0.01±0.006	0.01±0.004*	0.01±0.0005†

*Compared with healthy controls, p<0.01.

†Compared with healthy controls, not statistically significant (p>0.05).

AT, anaerobic threshold.

In cohort A, aortic flow^PEAK was moderately and significantly associated with O₂pulseslope^PEAK (r=0.47, p=0.02) but was not significantly associated with O₂pulseslope^AT (r=0.37, p=0.09). Neither O₂pulse^PEAK nor O₂pulse^AT correlated with aortic flow^PEAK (r=−0.05, p=0.82; r=0.20, p=0.33, respectively). There was a weak negative association between EF measured at peak exercise on exCMR and O₂ pulse at peak and rest (r=−0.40, p=0.03; r=−0.53, p<0.01, respectively). There were no significant associations between EF and other O₂ pulse parameters.

In cohort B, neither resting nor peak oxygen saturation were correlated with any of the O₂ pulse parameters (data not shown). O₂pulseslope^PEAK correlated with O₂pulse^PEAK (r=0.56, p<0.01) and O₂pulseslope^AT with O₂pulse^AT (p<0.01, r=0.44). O₂pulse^PEAK and O₂pulse^AT were negatively associated with age of Fontan completion (r=−0.19, p=0.03;r=−0.20, p=0.03, respectively). O₂pulseslope^AT was associated with severity of AV-valve regurgitation (U=847, p=0.03) with a lower slope in those with at least mild regurgitation. However, AV-valve regurgitation was not associated with O₂pulseslope^PEAK. O₂pulseslope^PEAK and O₂pulseslope^AT were not significantly associated with other clinical variables including ventricular morphology or function, Fontan type, age of Fontan completion, presence of fenestration or pacemaker, presence of permanent pacemaker or use of HR-limiting medications (online supplemental table 2). Baseline FVC %predicted but not FEV₁ was weakly associated with O2pulse^PEAK O2pulseslope^PEAK (r=0.2, p=0.03) and O₂pulseslope^AT (r=0.21, p=0.03).

Discussion

We have demonstrated a positive association between O₂ pulse slope to peak exercise and SV, in patients with a Fontan circulation. We have also confirmed the lack of association between peak O₂ pulse and SV, as previously demonstrated by other authors.¹⁴ Our data suggest that O₂ pulse slope, which incorporates O₂ pulse kinetics across exercise, may be a better surrogate marker than absolute peak O₂ pulse of maximal SV during exercise in Fontan patients.

SV and the a-vO2 difference

O₂ pulse is determined by SV and oxygen extraction (a-vO₂ difference). In untrained healthy subjects, SV increases during exercise but then plateaus at a submaximal load.²⁰ The a-vO₂ difference, however, increases as a linear function during exercise in healthy subjects, and is the main determinant of O₂ pulse from mid-exercise.¹⁰ SV and a-vO₂ difference responses across exercise in patients with a Fontan circulation appear to be more heterogeneous.

SV has been shown to increase throughout exercise in some Fontan patients but plateau or decrease in others at maximum exertion.^{14 21–24} This variable SV response may relate to differences in underlying patient characteristics but also to differences in the way SV is measured across different studies. Although submaximal and maximal HR is lower in Fontan patients than healthy controls,^{6 24 25} the slope of the response of HR against workload or VO₂ appears to be higher or equivalent.^{6 24} The exercise chronotropic response of patients with a Fontan circulation may thus be adaptive to preload insufficiency in order to maintain ventricular filling and cardiac output. In keeping with these data, we did not find a difference in the O₂ pulse slope up to AT between Fontan patients and controls.

In a small study of 10 Fontan subjects before and after a single dose of sildenafil, Van De Bruaene et al showed decreasing SV (measured by ExCMR) and increasing a-vO₂ difference (measured from direct arterial and venous blood sampling) from rest to peak exercise.²³ In a study of 15 children with a Fontan circulation, Strömvall Larsson and Eriksson showed increasing a-vO₂ difference across exercise but with considerable variability in the difference at peak exercise (median 16.8, range 10.5–21.5 mL/100 mL).²² Rosenthal et al demonstrated higher a-vO₂ difference in 43 children with a Fontan circulation compared with healthy controls at rest and across all stages of exercise.²⁶

The impact of chronic cyanosis on a-vO₂ has been poorly studied. It is possible that cyanosis, related to the either the presence of a fenestration or systemic venous collateral, results in a reduced ability to augment oxygen extraction at peak exercise or impaired microcirculatory function. We found no association between O₂ pulse parameters and either the presence of a fenestration or resting or peak oxygen saturation. This is in keeping with a study by Loomba et al showing similar exercise arterial-venous saturation difference (utilising regional near infrared spectroscopy) in fenestrated versus non-fenestrated Fontan patients²⁷ and a study by Strieder et al showing similar tissue oxygenation during exercise in cyanotic versus repaired acyanotic CHD.²⁸ We speculate that a more heterogeneous a-vO2 difference during exercise in patients with a Fontan circulation may explain the poor association of peak O2 pulse with SV. However, this would need to be examined in a future study where exercise SV, O2 pulse and a-vO2 difference are directly measured.

Association between O₂ pulse slope and clinical variables

In our exploratory study, we found no association between clinical variables and O₂pulseslope^PEAK or O₂pulseslope^AT, apart from a weakly positive association with baseline FVC %predicted. There was no association with other spirometry parameters.

Fontan subjects have been shown to have abnormal spirometry, with an association between FVC and peak VO₂.^{19 29} Its association with O₂ pulse slope is beyond the scope of this study, however, may reflect a ventilation driven inability to augment pulmonary blood flow, and therefore, SV.

O₂ pulse and long-term outcomes

Neither O₂ pulse nor its change over serial testing have been shown to predict long-term adverse Fontan outcomes.³⁰ We speculate that, in part, this relates to its poor correlation with SV in Fontan patients. It would be of interest to investigate the association between O₂ pulse slope and its change and long-term Fontan outcomes.

Implications of study findings and study limitations

In a study of 411 Fontan subjects (age 12.4±3.2 years, 166 achieving a maximal exercise test) Paridon et al found, as expected, that per cent predicted peak O₂ pulse was strongly associated with per cent predicted peak VO₂ and moderately with per cent predicted VO₂ at AT.³ Based on the strength of these associations, the authors inferred that SV limitation was solely responsible for the variation in aerobic performance. However, our data suggest caution in using peak O₂ pulse as a surrogate marker for SV in Fontan patients. We speculate that this may relate to a greater variability in the a-vO₂ difference at peak compared with submaximal exercise.

As this was a preliminary study, our study cohorts were small, and we did not have exCMR data available for cohort B. However, even based on our small cohort A, we were still able to demonstrate a moderately significant association between O₂ pulse slope to peak exercise and peak SV.

Our exCMR protocol was performed using recumbent exercise, likely producing submaximal exercise testing; compared with our upright cycle ergometer CPET. The use of serial gas measurements and CMR-augmented CPET, including continuous oxygen saturation monitoring, would have allowed simultaneous assessment of gas exchange, and a-vO₂ during exercise.

Our healthy controls were retrospectively obtained from subjects previously undergoing CPET, and therefore, we did not have a prospectively matched cohort. However, given the older age of the control subjects, we are more likely to have underestimated the significance of the difference between our Fontan and control cohorts.

Given our relatively small sample size and short-term follow-up, we were unable to examine whether O₂ pulse slope predicted adverse long-term Fontan outcomes. In our exploratory analysis of cohort B, adjustments for multiple comparisons were not performed, increasing the risk of type I error. Further larger studies would be of interest to analyse the association between O₂ pulse parameters and clinical variables.

Conclusion

Peak O₂ pulse slope may be more reflective of peak SV in the Fontan population than a single peak O₂ pulse value, taking into account changes in a-vO₂ during exercise. The O₂ pulse slope may be a useful submaximal marker of SV.

Data availability statement

All data relevant to the study are included in the article or uploaded as online supplemental information.

Ethics statements

Patient consent for publication

Not applicable.

Ethics approval

This study involves human participants and the study was approved by the Sydney Children’s Hospitals Network Human Research Ethics Committee. Reference numbers: HREC/15/SCHN/249 and HREC/14/SCHN/278. Participants gave informed consent to participate in the study before taking part.
