High temporal frequency light response in mouse retina requires FAT3 signaling in bipolar cells

Abstract

Vision is initiated by the reception of light by photoreceptors and subsequent processing via downstream retinal neurons. Proper cellular organization depends on the multi-functional tissue polarity protein FAT3, which is required for amacrine cell connectivity and retinal lamination. Here we investigated the retinal function of Fat3 mutant mice and found decreases in physiological and perceptual responses to high frequency flashes. These defects did not correlate with abnormal amacrine cell wiring, pointing instead to a role in bipolar cell subtypes that also express FAT3. The role of FAT3 in the response to high temporal frequency flashes depends upon its ability to transduce an intracellular signal. Mechanistically, FAT3 binds to the synaptic protein PTPσ, intracellularly, and is required to localize GRIK1 to OFF-cone bipolar cell synapses with cone photoreceptors. These findings expand the repertoire of FAT3’s functions and reveal its importance in bipolar cells for high frequency light response.

Introduction

The remarkable ability to detect light over a wide range of intensities and frequencies is accomplished by highly specialized cell types within the retina. Retinal circuits encode signals originating in the photoreceptors, which synapse with bipolar cells (BCs). BCs are classified as ON or OFF depending upon their response to photoreceptor signals, thereby setting the stage for downstream processing events. Critical to these transformations are the >80 types of retinal interneurons^1–4, which are organized into laminae with the cell bodies of the horizontal, BCs, and amacrine cells (ACs) located in the inner nuclear layer (INL). In the adjacent outer nuclear layer (ONL) reside the cell bodies of the photoreceptors. Retinal interneurons form synaptic connections in two layers: in the outer plexiform layer (OPL) among BCs, horizontal cells and photoreceptors, and in the inner plexiform layer (IPL) among BCs, ACs, and the output neurons of the retina, the retinal ganglion cells (RGCs) (Figure 1A). Despite the stereotyped and conserved organization of retinal neurons and their connections, it is unclear how important the lamination is for the sense of vision. Also unknown is how the organization of most retinal neurons mediate specific visual responses, e.g. which cell types and connections are needed to process and transmit high frequency signals⁵.

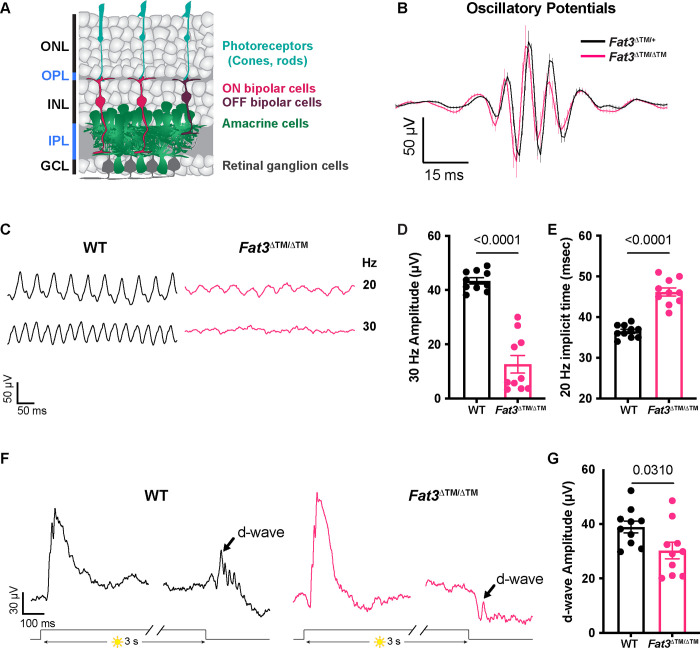

Figure 1: Flicker ERG and vision at high frequency and step ERG of Fat3-deficient mice.

A. Schematic representation of retinal layers and their neurons.

B. Averaged Oscillatory potentials of Fat3^Δ™/+ (n=8) and Fat3^Δ™/Δ™ (n=10) eyes at scotopic condition elicited by 0.1 cd s/m² flashes (same as Figure S1B).

C. Representative flicker ERG raw traces of WT control and Fat3^Δ™/Δ™ eyes elicited by 3.162 cd s/m² flashes at 20 and 30 Hz frequencies.

D. Flicker ERG amplitude at 30 Hz for WT control (n=10) and Fat3^Δ™/Δ™ (n=10) eyes. Unpaired two-tailed Student’s t test.

E. Flicker ERG implicit time (1^st peak) at 20 Hz for WT control (n=10) and Fat3^Δ™/Δ™ (n=10) eyes. Unpaired two-tailed Student’s t test.

F. Representative step ERG raw traces of WT (n=10) control and Fat3^Δ™/Δ™ (n=10) eyes elicited by a 3-second step light at 1000 cd/m² intensity.

G. Statistics of step ERG amplitudes (b-wave, d-wave and b : d ratio) of WT (n=10) control and Fat3^Δ™/Δ™ (n=10) eyes elicited by a 3-second step of light at 1000 cd/m² intensity. Unpaired two-tailed Student’s t test.

Several features of retinal organization depend upon FAT3, a tissue polarity protein^6–8. FAT cadherins are transmembrane receptors that can sense cell position in the environment via their huge extracellular domains. They induce appropriate changes in cell morphology via their intracellular domains, thereby creating cellular asymmetries that are aligned across the tissue. In Fat3 mutant retinas, many ACs migrate to ectopic locations in the IPL and the ganglion cell layer (GCL). They also fail to retract their trailing neurites, which go on to form ectopic synapses in two misplaced plexiform layers, one in the INL (the outer misplaced plexiform layer, OMPL) and one below the GCL (the inner misplaced plexiform layer, IMPL)^6–8. These ectopic layers contain synapses between ACs and between ACs and rod BCs, which do not express FAT3², but seem to “follow” their AC partners to abnormal locations⁷. FAT3, which is localized to AC dendrites in the IPL, mediates these effects by localizing cytoskeletal effectors needed for migration and retraction⁶. The FAT3 intracellular domain also binds a variety of synaptic proteins⁶ and is therefore poised to control synapse localization or function independent of its effects on cell morphology. A direct functional role at the synapse has not been described, and it has not been clear how the loss of FAT3 impacts vision.

Here, we used retinal physiology and behavioral analyses to investigate the effects of FAT3 disruptions on retinal function. We discovered an additional function for FAT3 at the cone-BC synapse that impacts transmission of high temporal frequency signals. Basic light responses of retinal neurons were found to be preserved in Fat3 mutant mice despite the highly abnormal pattern of lamination. However, overall retinal responses to 30 Hz flashes were severely reduced in amplitude and many Fat3 mutants behaved as if they see constant illumination. Analysis of a series of conditional Fat3 knock-out mice revealed that this phenotype is not due to altered AC position or connectivity. Instead, we found that the OFF-cone pathway is abnormal, as revealed by an in vivo electroretinogram (ERG) protocol that we developed. Further, we show that the FAT3 intracellular domain binds to the synaptic protein PTPσ, and that in Fat3 mutants, both PTPσ and the glutamate receptor subunit GRIK1 are present at reduced levels in the ribbon synapses that link cones to OFF-cone BCs. Thus, FAT3 is required to set up and/or maintain a properly organized and functional synapse between photoreceptors and BCs and the transmission of high frequency signals, highlighting its multiple and versatile roles in the development and function of the retina.

Results

Global loss of Fat3 affects the retinal response to high temporal frequency light

In Fat3^Δ™/Δ™ mutant mice, which lack a membrane localized form of FAT3, retinal lamination is strongly disrupted, with changes in the position of ACs and their synapses with other ACs, as well as with other retinal cell types⁷. The abnormal lamination can also be seen by optical coherence tomography (OCT) imaging in animals in vivo (Figure S1A). To assess the functional consequences of this change in retinal cell organization, we used the electroretinogram (ERG), a common way to measure electrical changes in the retina in response to light. By altering the stimulus, it is possible to reveal the contributions of specific retinal pathways. For instance, signaling through the rod pathway is assayed by performing the ERG after dark-adaptation and under scotopic conditions, using dim flashes that elicit little response from the cone pathway. Conversely, photopic ERG tests isolate the cone pathway by light-adapting the eyes and using a background light that saturates rod phototransduction. In an ERG waveform, the a-wave originates from photoreceptors and is followed by the b-wave, which reflects the activity of rod bipolar cells (RBC) and/or ON-types of cone BCs (ON-CBCs). By flashing the stimulus on and off with increasing frequency, it is possible to determine how well photoreceptors and BCs are able to resolve temporal differences in the visual stimulus. As the frequency of the flash increases, OFF-CBCs are hypothesized to dominate the response⁹. Additionally, the ERG d-wave, which emerges when turning off a light step that lasts for a few seconds¹⁰, is thought to represent mainly OFF-CBC activity¹¹.

Conventional ERG assays under scotopic and photopic conditions revealed no obvious difference in Fat3^Δ™/Δ™ vs. Fat3^Δ™/+ littermates, indicating that overall signaling through rod and cone pathways was preserved (Figure S1B–E). Likewise, the oscillatory potentials between the a- and b-waves, which are thought to reflect the activity of ACs and/or RGCs¹², showed no dramatic change in the number, amplitude or timing of peaks (Figure 1B). Thus, Fat3^Δ™/Δ™ mutant mice can detect standard light stimuli despite abnormal retinal lamination.

Although previous work focused on its role in ACs^6,7, Fat3 is also expressed in RGCs and some subtypes of BCs, especially OFF-CBCs². To determine whether Fat3 is required for the proper response to high temporal frequency light, we recorded ERGs in response to lights that flicker in the high frequency range (i.e. over 15 Hz⁹). Flicker ERG responses in this range were hypothesized to be dominated by the OFF-pathway⁹. We observed a significant decrease in the amplitude of responses to lights flickering at 30 Hz in Fat3^Δ™/Δ™ compared to their Fat3^Δ™/+ littermates (Figure 1C,D). Additionally, the timing of the first peak in response to 20 Hz stimulation (“the implicit time”) was delayed (Figure 1E). The 30 Hz implicit time was not measured, as many Fat3 mutant mice presented no response at this frequency. These results suggested that the transmission of high temporal frequency light responses was impaired, presumably in BCs, where the signal to the flicker ERG likely originates⁹. To determine if this physiological deficit in the retina had perceptual consequences, behavioral assays were conducted to examine if the mutant mice can perceive high frequency flickering light, using contextual and vision-cued fear conditioning tests^13,14. Normally, fear conditioned animals increase the time of “freezing” if they have been conditioned to associate an unpleasant stimulus with an environmental cue, in this case, 33 Hz light (Figure S1F,G, Supplementary movies). In contrast to Fat3^Δ™/+ mice (n=8 animals), some Fat3^Δ™/Δ™ mice (5 out of 9 animals) failed to show a freezing response when switching from a static light to a 33 Hz flicker (Figure S1G), similar to the 30 Hz flicker ERG results (6 out of 10 Fat3^Δ™/Δ™ eyes presented amplitudes smaller than the cut-off level of 20 μV, Figure 1D). The lack of response was not due to an inability to form fear memories, as all Fat3^Δ™/Δ™ and Fat3^Δ™/+ animals froze less when switching from an unpleasant olfactory and tactile context (group “context”) to a novel and safe context within the group with static light (group “static light”) (Figure S1G). Mutant mice also performed like the wildtype (WT) controls in an optomotor behavioral assay, which measures spatial discrimination (Figure S1H).

Responses to different frequencies of light are used to study the temporal properties of vision at photoreceptor, brain, or psychophysical levels¹⁵. The flicker ERG at high temporal frequency has been proposed to depend on OFF-CBC function⁹. Usually, OFF-CBC function is probed using patch-clamping of single cells or assessed at the population level by examination of the d-wave of the ERG. However, to our knowledge, there has not been an ERG protocol to measure the d-wave from mice in vivo. To address this unmet need, we designed an in vivo ERG protocol for mice based on a study of the ex vivo ERG response of amphibian retinas. This assay measures the retinal voltage change, the d-wave, after turning off a long step of light (i.e. light-off)¹⁰, which is called a “step ERG”. Using this newly developed in vivo protocol on mice, we found that WT mice had a strong d-wave with robust oscillatory potentials at the end of a three-second exposure to a 1,000 cd/m² step of light (Figure 1F,G). By contrast, in Fat3^Δ™/Δ™ mice, the d-wave amplitude was decreased, and the d-wave related oscillatory potentials were absent (Figure 1F,G). Thus, responses to both high frequency flickering light and light-off stimuli showed that Fat3^Δ™/Δ™ mice have deficits in processing specific types of visual stimuli that have been associated with OFF-CBCs.

To test the impact of an ectopic plexiform layer and other FAT3-dependent AC properties on retinal physiology, Fat3 was deleted specifically from ACs using Ptf1a^{CRE 7,16} and a Fat3 floxed allele (Figure 2A,B). In these conditional knock-out (cKO) mutants, ACs migrate normally, but do not retract their trailing processes, leading to the formation of an OMPL⁷. We found that the 30 Hz flicker ERG amplitude and 20 Hz implicit time were normal in Ptf1a^CRE Fat3cKO mice compared to littermate Ptf1a^CRE control mice (Figure 2C–E), indicating that the high frequency light response defects were not secondary either to the presence of Fat3 mutant ACs or the mild lamination defects they caused. This raised the possibility that the highly specific physiological deficits seen in Fat3^Δ™/Δ™ mice are due instead to altered BC function.

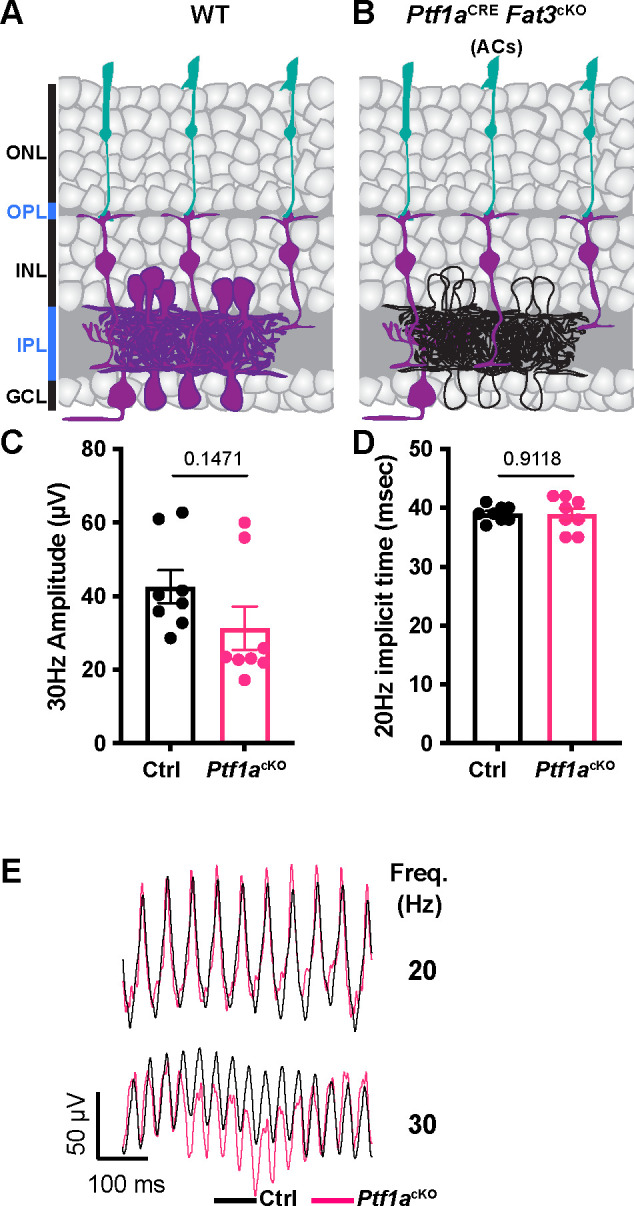

Figure 2: Flicker ERG at high frequency of Ptf1a^CRE conditional Fat3 mice.

A. Schematic representation of cell classes that express FAT3 in wild type tissue. Cells that express FAT3 are represented in magenta.

B. Schematic representation of cell classes, i.e. ACs, that lose Fat3 expression in a Ptf1a^CRE cKO, shown in black outlines.

C. Flicker ERG amplitude at 30 Hz for the Ptf1a^CRE Fat3cKO condition. Control genotypes are Ptf1a^CRE;Fat3^fl/+ (n=8 eyes) and Ptf1a^cKO genotypes are Ptf1a^CRE;Fat3^fl/Δ™ (n=8 eyes). Unpaired two-tailed Student’s t test.

D. Flicker ERG implicit time at 20 Hz for Ptf1a^CRE;Fat3^fl/+ (control, n=8 eyes) and Ptf1a^CRE;Fat3^fl/Δ™ (Ptf1a^cKO, n=8 eyes). Unpaired two-tailed Student’s t test.

E. Representative flicker ERG raw traces for Ptf1a^CRE;Fat3^fl/+ (control, n=8 eyes) and Ptf1a^CRE;Fat3^fl/Δ™ (Ptf1a^cKO, n=8 eyes).

Consistent with previous single cell RNA sequencing data showing its expression in CBC type 1A, 1B, 2 and 3A², we confirmed that Fat3 mRNA is present in BCs by in situ hybridization (Figure 3A–C). Additionally, FAT3 protein localizes not only to the IPL but also to the OPL, where BC dendrites form synapses with photoreceptors (Figure 3D). In situ hybridization confirmed co-expression of Fat3 with the OFF-CBC marker Grik1, which encodes an ionotropic glutamate receptor^2,17(Figure 3F–I). Fat3 is also expressed in some Grik1-negative CBCs, which are positive for the ON-CBC marker Grm6, though to a less degree (Figure 3I, S2). This expression pattern is in line with FAT3 having a role on retinal functions associated with OFF-CBC pathways, as was suggested by the flicker and step ERG responses.

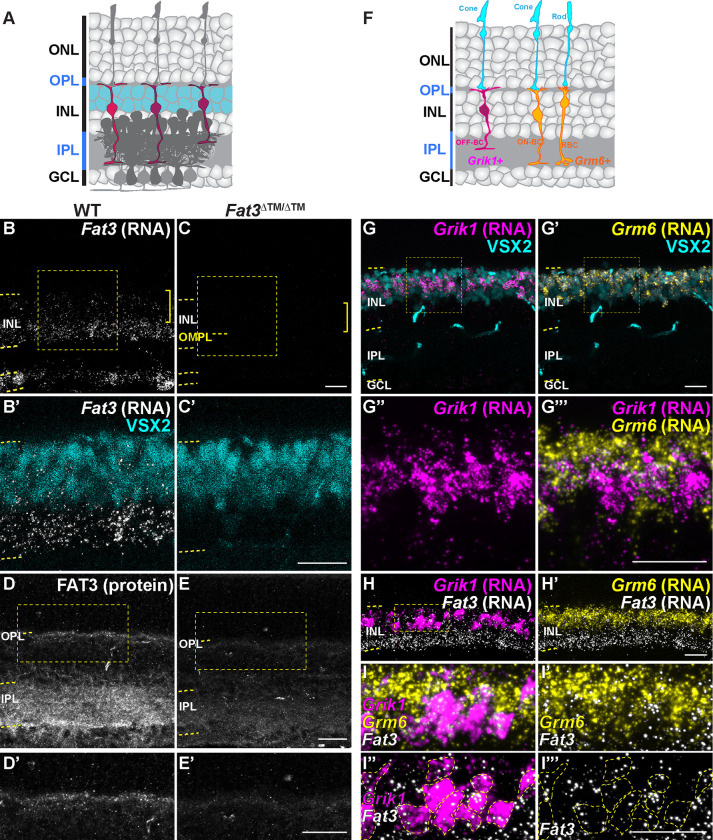

Figure 3: Fat3 RNA is enriched in OFF-cone bipolar cells.

A. Schematic representation of the retina highlighting the position of bipolar cell bodies, as stained by VSX2.

B. in situ hybridization for Fat3 RNA in WT P22 retinas.

C. in situ hybridization for Fat3 RNA in Fat3^Δ™/Δ™ P22 retinal tissue. In B and C the RNA puncta are shown in white and the yellow brackets indicate the area of VSX2+ cell bodies. Yellow dashed lines demark the inner nuclear layer (INL) and the outer misplaced plexiform layer (OMPL) in Fat3^Δ™/Δ™ tissue. The squares demark the insets seen in B’ and C’ at higher magnification. VSX2 protein is seen in cyan.

D. Hybridization Chain Reaction-Immunohistochemistry (HCR-IHC) of FAT3 in wild type retinas. Inset demarked in a yellow box in d is shown at higher magnification in D’.

E. HCR-IHC of FAT3 in Fat3^Δ™/Δ™ mutant retinas. Inset demarked in a yellow box in e is shown at higher magnification in E’.

F. Schematic representation of Grik1 and Grm6 RNA enrichment in bipolar cells, according to data in Figure S2.

G. in situ hybridization of Grik1 RNA (magenta) and Grm6 RNA (yellow, G’) with immunostaining for VSX2 (cyan). The insets in G and G’ are shown at a higher magnification in G” and G”’.

H. Triple in situ hybridization to Fat3, Grik1 and Grm6 RNA. Inset in H is seen at higher magnification in I-I”’.

I. Higher magnification of inset shown in H. Yellow dashed lines in I” and I”’ demark Grik1 RNA+ cell bodies. Fat3 RNA (white) is shown together with Grm6 RNA in I’, with Grik1 RNA in I” and alone in I”’.

Scale bars: 20μm.

Retinal lamination defects do not disrupt responses to flickering stimuli

We next asked how the presence of FAT3 in other retinal neurons influences retinal organization and contributes to the impaired high frequency light response seen in Fat3^Δ™/Δ™ mutant mice. To survey other FAT3+ cells for possible effects on the high frequency light response, we used the Isl1^CRE mouse line to drive recombination in all ON-CBCs, starburst ACs, and RGCs, but not in OFF-CBCs¹⁸ (Figure 4A–H). Although Isl1^CRE Fat3cKO mice exhibited all the cellular phenotypes previously described in the retina of Fat3^Δ™/Δ™ mice (Figure 4B–H), the 30 Hz flicker ERG amplitude and 20 Hz implicit time were normal compared to littermate Isl1^CRE control mice (Figure 4I–K). Thus, the high frequency light response defects are not due to the gross disorganization of retinal lamination and do not reflect a role for FAT3 in RGCs or ON-CBCs alone. The 30 Hz amplitude and 20 Hz implicit timing were also unaffected by removal of Fat3 from GABAergic ACs and the type 2 OFF-CBC subset using Bhlhe22^CRE (Figure S3A–K). We were not able to directly test whether high frequency light response requires FAT3 in OFF-CBCs, as there is no Cre line that is active in all OFF-CBCs. Nonetheless, these experiments showed that the high frequency light response defects are not caused by retinal lamination defects and most likely involve the loss of FAT3 from OFF-CBCs.

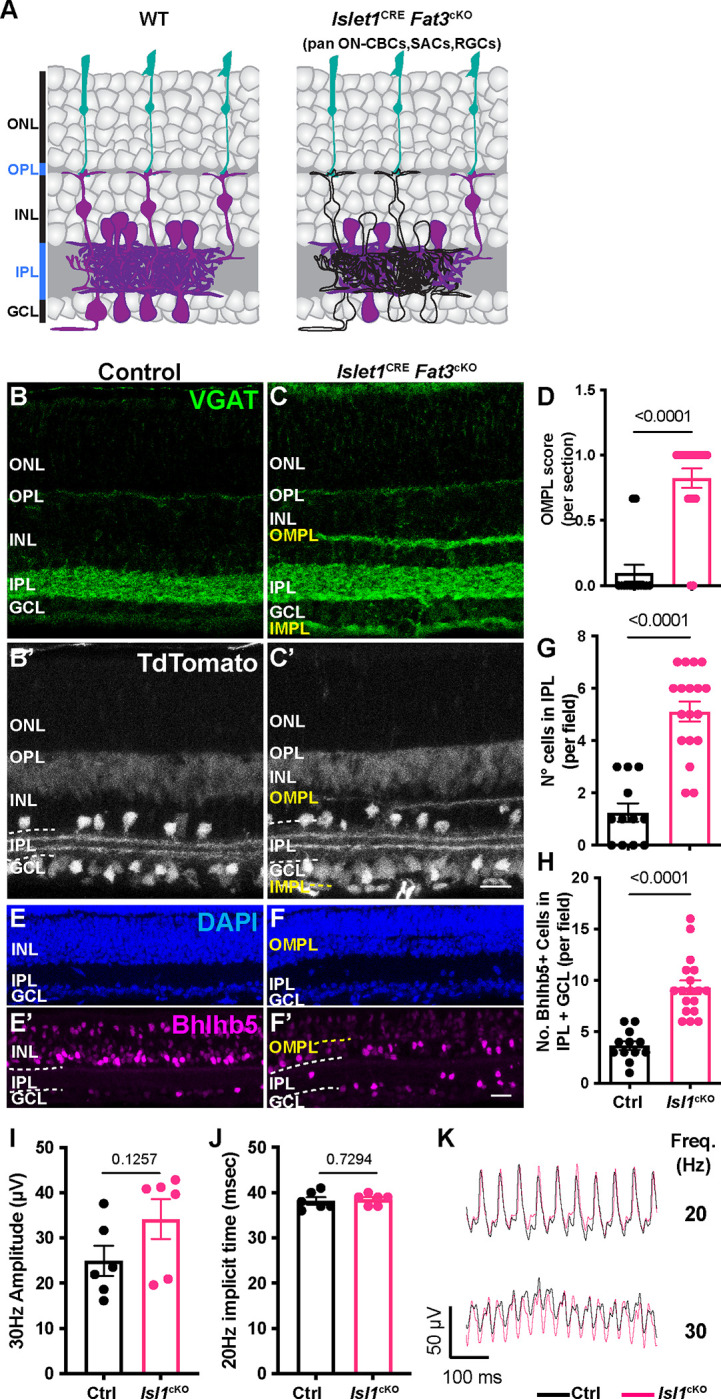

Figure 4: Flicker ERG at high frequency of Ptf1a^CRE and Isl1^CRE conditional Fat3 mice.

A. Schematic representation of cell classes, i.e. starburst ACs, RGCs and ON-CBCs, that lose Fat3 expression in an Isl1^CRE cKO, shown in black outlines compared to magenta cells seen in WT controls.

B. VGAT immunostaining for control Isl1^CRE/+;Fat3^fl/+ mice.

C. VGAT immunostaining for Isl1^CRE/+;Fat3^fl/Δ™ Isl1^cKO. TdTomato reporter of Cre expression is seen in B’-C’.

D. Quantification of the OMPL score for Isl1^CRE Fat3^cKO. Controls (Isl1^CRE/+;Fat3^fl/+): 0.095 ± 0.065 (n=14 sections, N=3 animals); Isl1^cKO (Isl1^CRE/+;Fat3^fl/Δ™): 0.825 ± 0.074 (n=19 sections, N=3 animals), Mann-Whitney test.

E. DAPI and Bhlhb5 immunostaining of control retinas (Isl1^CRE/+;Fat3^fl/+).

F. DAPI and Bhlhb5 immunostaining of Isl1^CRE Fat3^cKO (Isl1^CRE/+;Fat3^fl/Δ™) retinas.

G. Quantification of the number of nuclei per field in the IPL. Controls (Isl1^CRE/+;Fat3^fl/+): 1.25 ± 0.35 (n=12 sections, N=3 animals); Isl1^cKO (Isl1^CRE/+;Fat3^fl/Δ™): 5.11 ± 0.39 (n=18 sections, N=3 animals). t test.

H. Quantification of the number of Bhlhb5+ nuclei per field in the IPL and GCL. Controls (Isl1^CRE/+;Fat3^fl/+): 3.67 ± 0.43 (n=12 sections, N=3 animals); Isl1^cKO (Isl1^CRE/+;Fat3^fl/Δ™): 9.33 ± 0.67 (n=18 sections, N=3 animals). t test.

I. Flicker ERG amplitude at 30 Hz for control (Isl1^CRE/+;Fat3^fl/+, n=6 eyes) and Isl1^cKO (Isl1^CRE/+;Fat3^fl/Δ™, n=6 eyes). Unpaired two-tailed Student’s t test.

J. Flicker ERG implicit time at 20 Hz for control (Isl1^CRE/+;Fat3^fl/+, n=6 eyes) and Isl1^cKO (Isl1^CRE/+;Fat3^fl/Δ™, n=6 eyes). Unpaired two-tailed Student’s t test.

K. Representative flicker ERG raw traces for control and Isl1^CRE Fat3cKO.

Scale bars: 20μm.

To investigate possible cellular origins of the visual deficits, we analyzed cone and BC number and morphology. We found no change in the number or distribution of cones (detected by staining for cone arrestin, ARR3) (27.77 ± 0.91 cones, n=13 sections from 4 eyes vs. 29.00 ± 0.59 cones, n=15 sections from 4 WT eyes) or BCs (detected by staining for VSX2), which occupied a similar area in WT compared to Fat3^Δ™/Δ™ mutant retinas (21.09 ± 1.04 arbitrary units, n=15 sections from 4 eyes vs. 21.59 ± 0.97 arbitrary units, n=15 sections from 4 WT eyes (Figure S4A–F). To visualize OFF-CBC morphology, we created a novel AAV vector (AAV8-Grik1-GFP) using our previously described Grik1 enhancer/promoter element¹⁷. WT and mutant P2/P3 retinas were injected with AAV8-Grik1-GFP and evaluated at P22. Whereas 100% (n=12 cells from 5 animals) of OFF-CBC axons terminated and stratified in the OFF sublaminae of the IPL in WT animals, only 49 ± 17 % of the mutant OFF-CBC axons (n=7 animals, 22 cells) terminated properly with 56 ± 19 % of axons terminating instead in the OMPL or in both the OMPL and the IPL (Figure S4G–I). Despite this change in axon position, mutant OFF-CBCs showed typical BC morphologies and extended dendrites that terminated properly in the OPL, as in the WT retina (Figure S4G–I). Thus, unlike its role in ACs, FAT3 is not essential for the position of OFF-CBC dendritic arbors.

FAT3 intracellular signaling is critical for high frequency light response and the step ERG d-wave

FAT3 is a versatile protein that can mediate non-autonomous interactions via its extracellular domain and autonomous effects by recruiting different sets of cytoskeletal effectors to its ICD⁶. To better understand how FAT3 signaling supports high frequency visual signal transmission and contributes to the step ERG d-wave, we analyzed Fat3^ΔICD-GFP animals, in which most of the ICD is replaced with GFP while keeping the extracellular and transmembrane domains anchored to the cell membrane⁶ (Figure 5A). These animals showed expression of the FAT3-GFP fusion protein in the OPL (Figure 5B,C), consistent with FAT3 protein localization (Figure 3D). In Fat3^{ΔICD-GFP/ΔICD-GFP} mutant mice, ACs migrate to abnormal cell layers and fail to retract their neurites, but do not form ectopic plexiform layers, as shown previously⁶. Therefore, analyzing Fat3^{ΔICD-GFP/ΔICD-GFP} mutants can reveal whether high frequency light response depends on intracellular signaling and/or the ability to form synapses.

Figure 5: High frequency flicker ERG and step ERG of FAT3 intracellular domain (ICD) deficient mice.

A. Schematics of molecular structure of FAT3 wild type protein and FAT3^ΔICD-GFP.

B. Immunostaining for GFP in WT retinal sections. The arrow points the OPL.

C. Immunostaining for GFP in Fat3^{ΔICD-GFP/ΔICD-GFP} retinal sections. The arrow points the OPL.

D. Representative OCT images of Fat3^ΔICD-GFP/+ control and Fat3^{ΔICD-GFP/ΔICD-GFP} eyes.

E. Representative flicker ERG raw traces of Fat3^ΔICD-GFP/+ control and Fat3^{ΔICD-GFP/ΔICD-GFP} eyes elicited by 3.162 cd s/m² flashes at 20 and 30 Hz frequencies.

F. Flicker ERG amplitude at 30 Hz for Fat3^ΔICD-GFP/+ control (n=10 eyes) and Fat3^{ΔICD-GFP/ΔICD-GFP} (n=10) eyes. Unpaired two-tailed Student’s t test.

G. Flicker ERG implicit time at 20 Hz for Fat3^ΔICD-GFP/+ control (n=10 eyes) and Fat3^{ΔICD-GFP/ΔICD-GFP} (n=10) eyes at 20 Hz. Unpaired two-tailed Student’s t test.

H. Representative step ERG raw traces of Fat3^ΔICD/+ control and Fat3^{ΔICD-GFP/ΔICD-GFP} eyes elicited by a 3-second step light at 1000 cd/m² intensity.

I. Statistics of step ERG d-wave amplitudes for Fat3^ΔICD-GFP/+ control (n=10 eyes) and Fat3^{ΔICD-GFP/ΔICD-GFP} (n=10) eyes elicited by a 3-second step of light at 1000 cd/m² intensity. Unpaired two-tailed Student’s t test.

Consistent with previous histological analysis⁶, no ectopic plexiform layers were detected by OCT in vivo imaging of Fat3^{ΔICD-GFP/ΔICD-GFP} eyes (Figure 5D). Nonetheless, the amplitude of the 30 Hz flicker ERG response was decreased in Fat3^{ΔICD-GFP/ΔICD-GFP} mice, as in Fat3^Δ™/Δ™ mice (Figure 5E,F). Likewise, the 20 Hz implicit time was delayed and the amplitude of the d-wave in step ERG responses was decreased (Figure 5G–I). These changes in Fat3^{ΔICD-GFP/ΔICD-GFP} mice are highly similar to those in Fat3^Δ™/Δ™ mice (Figure 1D,E,G). The loss of high frequency flicker ERG responses even in the absence of ectopic plexiform layers further underscores that changes in AC wiring do not contribute to altered visual function in Fat3 mutant mice. Rather, these results suggest a potential role for FAT3 signaling in OFF-CBCs, in keeping with the results of the genetic analyses described above.

GRIK1 localization to the ribbon synapse is reduced in Fat3 mutants

Given the absence of obvious changes in the position or morphology of BC dendrites (Figure S4), we hypothesized that the observed changes in retinal function are due instead to FAT3-dependent effects on retinal ribbon synapses. Indeed, in addition to binding to a variety of cytoplasmic effectors important for neuronal migration and neurite retraction, GST-pulldown assays showed that the FAT3 ICD binds to several proteins associated with synaptic function, such as HOMER1⁶ and the LAR family protein, PTPσ, which is encoded by the Protein tyrosine phosphatase receptor type S (Ptprs) gene (Figure 6A). Further, Drosophila Fat-like interacts with the related Receptor-type Protein Tyrosine Phosphatase (RPTP) protein dLAR¹⁹, and PTPσ is required for excitatory synapse formation in hippocampal neurons^20–22. Since Ptprs RNA is detected in both ON- and OFF-BCs² (Figure S2), we asked whether cell type-specific synaptic features might be altered in the absence of FAT3. Immunostaining revealed that PTPσ localized to the post-synaptic dendrites of CBCs, overlapping with the postsynaptic glutamate receptor subunit GRIK1 (Figure 6B, Figure S5A,B,C–G) and apposing CtBP2+ ribbons in the ARR3+ cone terminals (Figure 6C). However, significantly less PTPσ was detected in the OPL of Fat3^Δ™/Δ™ mutants (density in the OPL of 4871 ± 463.5, n=3 mutants vs 8682 ± 583.0 in n=4 WT) (Figure 6D–F). Immunostaining revealed no change in the levels of post-synaptic HOMER1, which continued to oppose SV2+ synaptic terminals in the OPL of Fat3 mutants (Figure 6G–I). Pre-synaptic CTBP2+ ribbons were also not affected in Fat3 mutants (OPL mean fluorescence intensity: 5.00 ± 0.14 in n= 4 Fat3^Δ™/Δ™ animals vs. 4.80 ± 0.16 in n=4 WT; 9.70 ± 0.39 in n= 4 Fat3^{ΔICD-GFP/ΔICD-GFP} animals vs. 10.03 ± 0.32 in n=4 WT) (Figure S5H–M), suggesting that FAT3 may not be required for synapse formation per se.

Figure 6: PTPσ and HOMER1 localization in WT and FAT3 mutant retinas.

A. Binding of FAT3-ICD to PTPσ was assayed using a pull down, with GST fused to FAT3-ICD.

B. Immunostaining of PTPσ and (B’) GRIK1.

C. Immunostaining of PTPσ and (C’) CtBP2, a marker of ribbons in photoreceptor axons.

D. Immunostaining of PTPσ in WT retinas and ARR3 (D’).

E. Immunostaining of PTPσ in Fat3^{Δ™ /Δ™} retinas and ARR3 (E’).

F. Quantification of PTPσ integrated intensity in the OPL. WT Controls: 8682 ± 583 (n=16 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 4871 ± 463.5 (n=12 sections, N=3 animals), Mann-Whitney test.

G. Immunostaining of HOMER1 and SV2, and (G’) HOMER1 alone in WT retinas.

H. Immunostaining of HOMER1 and SV2, and (H’) HOMER1 alone in Fat3^{Δ™ /Δ™} retinas.

I. Quantification of HOMER1 integrated intensity in the OPL. WT Controls: 34997 ± 2509 (n=8 sections, N=3 animals); Fat3^{Δ™ /Δ™}: 32051 ± 2003 (n=8 sections, N=3 animals), t test.

Scale bars: 20μm.

GRIK1 is the only subunit of ionotropic glutamate receptors (iGluR) enriched specifically in OFF-CBCs ^2,17,23,24 (Figure S5C,E,F). GRIK1 staining was strongly reduced in the OPL of both Fat3^Δ™/Δ™ (Figure 7A–C) and Fat3^{ΔICD-GFP/ΔICD-GFP} (Figure 7D–F) retinas compared to WT littermates (density in the OPL: 25838 ± 5028, n=4 Fat3^Δ™/Δ™ vs 52727 ± 7204 in n=4 WT and 11687 ± 1110 in n= 4 Fat3^{ΔICD-GFP/ΔICD-GFP} vs. 16119 ± 1168 in n=4 WT). BCs also expressed less Grik1 RNA in Fat3^Δ™/Δ™ animals compared to WT (Figure S6A–C). By contrast, the ON-CBC synaptic protein GRM6, which is a metabotropic glutamate receptor subunit (Figure S5D,G), was present at similar levels in the OPL of mutant and control retinas (Figure S6E,F,I) and in Fat3^{ΔICD-GFP/ΔICD-GFP} mutants (Figure S6G,H,J). There was also no difference in the level of Grm6 RNA in the INL of mutant and control retinas (Figure S6A,B,D). Loss of Ptprs also resulted in a modest decrease of GRIK1 in the OPL (Figure 7G–I). However, unlike Fat3 mutants, Ptprs^−/− animals did not show any change in the ERG response to a 30 Hz flickering stimulus, the implicit timing of the response to a 20 Hz stimulus, or the d-wave amplitude in the step ERG assay (Figure S6K–O). Thus, FAT3 likely impacts not only the presence of PTPσ and GRIK1, but also additional features of the CBC synapses necessary for responses to high temporal frequency stimuli.

Figure 7: GRIK1 localization in WT, FAT3 and PTPσ mutant retinas.

A. Immunostaining for GRIK1 in WT retinas.

B. Immunostaining for GRIK1 in Fat3^{Δ™ /Δ™} retinas. Cone arrestin (ARR3) labels the cone photoreceptor axonal endings in the OPL in A’ and B’.

C. Quantification of GRIK1 integrated intensity in the OPL. WT Controls: 52727 ± 7204 (n=19 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 25838 ± 5028 (n=18 sections, N=4 animals), Mann-Whitney test.

D. Immunostaining for GRIK1 in WT retinas.

E. Immunostaining for GRIK1 in Fat3^{ΔICD-GFP/ΔICD-GFP} retinas.

Cone arrestin (ARR3) labels the cone photoreceptor endings in the OPL in D’ and E’.

F. Quantification of GRIK1 integrated intensity in the OPL. WT Controls: 16119 ± 1168 (n=16 sections, N=4 animals); Fat3^{ΔICD /ΔICD}: 11687 ± 1110 (n=15 sections, N=4 animals), Mann-Whitney test.

G. Immunostaining for GRIK1 in WT retinas.

H. Immunostaining for GRIK1 in Ptprs^{− /−} retinas. Cone arrestin (ARR3) labels the cone photoreceptor endings in the OPL in G’ and H’.

I. Quantification of GRIK1 integrated intensity in the OPL. WT Controls: 12996 ± 1418 (n=15 sections, N=3 animals); Ptprs^{− /−}: 8758 ± 792 (n=15 sections, N=3 animals), t test.

Scale bars: 20μm.

Discussion

A major goal in retinal physiology is to understand how the diverse cell types of the retina, including >80 types of interneurons, properly connect to form and operate within parallel circuits that transform information about specific elements of the visual world. A valuable approach is to characterize retinal physiology and visual behavior in mice carrying mutations in genes required for proper connectivity and/or function. However, the nature of the retinal neurons that enable responses to stimuli that change with high temporal frequency has been explored very little, in part because standard assays of retinal function, particularly the conventional scotopic and photopic ERGs, are not designed to detect signals elicited by these stimuli. Despite lacking the cellular level resolution that can be achieved by ex vivo patch clamping, the ERG is a relatively simple measurement that can be used in vivo to reveal behaviorally-relevant changes in overall retinal function from populations of cells. Here, we use flicker and step ERGs to show that retinal activity in response to high frequency flickering and light-off stimuli is altered in Fat3 mutant mice, which also show an impaired behavioral response to flickering stimuli. FAT3 is a multi-functional transmembrane protein that is expressed by ACs, BCs, and RGCs and is required for proper lamination of retinal neurons and their synapses. By analyzing the consequences of Fat3 deletion from different retinal cell types, we discovered that the loss of high frequency light response was not due to changes in AC position or connectivity. Instead, these visual defects appear to be due to abnormal BCs. Although the precise nature of the synaptic defects remains unclear, we found that FAT3 binds to the synaptic protein PTPσ and that both FAT3 and PTPσ are required for enrichment of GRIK1 at the cone to OFF-CBC synapse. Together, these data uncover a role for FAT3 in the formation and/or maintenance of functional cone to BC synapses.

FAT3 mutant mice show deficits in high frequency light response

Despite their severe defects in neuronal wiring, Fat3 mutant mice are not blind, as seen by the preservation of conventional ERG and optomotor responses. However, when presented with fast flickering stimuli, Fat3 mice showed severe visual deficits consistent with loss of signaling from cones to OFF-CBCs. In support of this idea, abnormal high temporal frequency light response was observed only in mice lacking Fat3 in BCs and did not correlate with effects on retinal lamination (Figure 1,2,4). Additionally, Fat3 is expressed by multiple BC types, including GRIK1-positive OFF-CBCs, and GRIK1 levels were reduced in the OPL of Fat3 mutant mice (Figure S2,3,7), as were levels of PTPσ, a synaptic protein that binds to FAT3 (Figure 6). To independently assay cone to OFF-CBC signaling, we established a simple and non-invasive step ERG protocol and showed that the d-wave was reduced in Fat3 mutant mice compared to WT littermates (Figure 1). Collectively, these data suggest that FAT3 is required for proper OFF-CBC function and hence the ability to detect fast flickering stimuli. This phenotype is fundamentally different from that which occurs in Fat3 mutant ACs, which extend extra neurites that form ectopic synapses.

BCs are the first retinal interneurons that encode, segregate, and relay visual information into over a dozen pathways for further processing. It had been hypothesized that the OFF-CBCs mediate high frequency visual signal transmission, based upon indirect evidence from flicker ERG studies of mice carrying mutations such as Grm6^{−/− 9}. OFF-CBC activities are thought to be initiated by two classes of ionotropic GluRs, namely kainate and AMPA receptors, which were proposed to differentially encode temporal signals from cones²⁵. AMPA receptors also have been reported to mediate high frequency signaling in cb2, a particular OFF-CBC subtype in ground squirrel retina, as shown by ex vivo patch recording²⁶. However, due to lack of reliable antibodies, we were not able to investigate Fat3 mutant mice for changes in AMPA receptor level or localization.

It is unclear whether the observed changes in ERG responses are entirely due to altered OFF-CBC activity. In addition to OFF-CBCs, Fat3 RNA is weakly expressed in the 5D and 6 ON-CBC subtypes² (Figure S2), possibly affecting some ON-CBC functions directly. However, it is unlikely that an autonomous change in only two subtypes would alter the ON-CBC population responses that the ERG measures. Further, Fat3 mutants showed no detectable change in the level of GRM6, the glutamate receptor that leads to membrane voltage changes in ON-CBCs²⁷. Non-autonomous effects are possible, as OFF-CBCs are connected to ON-BCs via AII amacrine cells in IPL. Thus, modulation originating within the IPL could affect OPL signaling through a backpropagation mechanism, which has not been described but was suggested by an ex vivo study using pharmacological blockers within the amphibian retina²⁸. For example, PTPσ might serve as an intermediary, as it can act in trans, is expressed in both ON and OFF-BCs² (Figure S2), and is reduced in Fat3 mutants (Figure 6). Further studies, including detailed patch clamp analysis, are needed to address these possibilities.

Fat3 effects on high temporal frequency light response requires intracellular signaling

The discovery of a new type of synaptic defect in Fat3 mutant retinas highlights FAT3’s versatility as a signaling molecule. Previous work showed that FAT3 acts through different motifs in its ICD to control AC migration, neurite retraction, and synapse localization, likely by recruiting different combinations of cytoplasmic effectors⁶. Here, we found that the FAT3 ICD is also required for proper organization of the synapses between cones and OFF-CBCs, possibly acting through a separate module of synapse-related effectors. The FAT3-ICD interacts with several known synaptic proteins, including PTPσ, which is one of the four type IIA family of receptor-type protein tyrosine phosphatase in the LAR-RPTP subfamily²⁹. Interactions between FAT3 and PTPσ appear to regulate the amount of GRIK1 at the synapse, since PTPσ levels were reduced in the OPL of Fat3 mutants (Figure 6) and GRIK1 levels were reduced in the OPL of both Fat3 and Ptprs mutants (Figure 7). Although PTPσ plays a well-established role in differentiation of the pre-synaptic component of excitatory synapses in the brain^20,22,29, our findings point to a role on the post-synaptic side, as suggested previously²¹. Further, the related protein LAR also can be localized to the post-synaptic compartment and is required for proper surface expression and clustering of AMPA receptors³⁰. Thus, it is possible that PTPσ acts similarly to control the distribution of GRIK1 in CBCs, either on its own or in collaboration with FAT3. Since Ptprs mutants do not show the same visual deficits as Fat3 mutants (Figure S6), other LAR subfamily members may compensate. This might also explain why Ptprs mutants have no obvious changes in retinal lamination³¹. Alternatively, other FAT3-dependent proteins may enable sufficient GRIK1 activity for OFF-CBC signaling in Ptprs mutants. Although much remains to be learned about the contribution of FAT3-PTPσ interactions to the synapse, this seems to be a conserved relationship, since Drosophila Fat-like and LAR interact to ensure collective cell migration¹⁹, in this case acting in trans³².

There are several ways that FAT3 might influence synaptic function. One model is that the FAT3 ICD serves as a scaffold for synaptic proteins that secures them to the OFF-CBC dendrites in the OPL and thus directly shapes visual signal transmission. This fits with the fact that FAT3, PTPσ, and GRIK1 are all localized to the OPL, and that several other synaptic proteins, including the WAVE regulatory complex, also interact with the FAT3 ICD⁶. Alternatively, FAT3 may ensure directed trafficking of PTPσ and other proteins to the synapse, echoing its role as a tissue polarity protein and its ability to promote asymmetric localization of cytoskeletal proteins⁸. These possibilities are not mutually exclusive, as FAT3 could control synapse assembly during development and then maintain the synapse in the mature retina. Finally, FAT3 may impact the synapse through effects on gene expression. In flies, the Fat-like ICD is cleaved and binds to a transcriptional co-repressor to influence gene expression³³. Since the LAR ICD can be internalized and thus inhibit transcription³⁴, FAT3 and PTPσ could cooperate to control expression of synaptic genes. This notion is supported by the observation that Grik1 RNA is modestly reduced in Fat3 mutant bipolar cells (Figure S6).

Limitations of the study

Although our data provide strong evidence that FAT3 impacts the OFF-CBC signaling needed for high frequency light response, this study does not show definitively what is wrong at the level of the synapse. The ERG is a measurement of cellular activity across a population of cells, i.e. a group of cells from the same class that function similarly, such as OFF-CBC vs. ON-CBC. ERGs are not designed to detect signals carried within distinct microcircuits that perform transformations of particular features of a visual scene. Additionally, due to the lack of Cre lines specific for all BCs, or only OFF-CBCs or ON-CBCs, it is not possible to analyze the consequences of FAT3 loss in these cell types. Patch clamping is necessary to study the responses of specific BC types at single-cell resolution. Finally, due to the extremely large size of FAT3, we were not able to carry out the biochemical analysis needed to determine precisely how FAT3 affects PTPσ, GRIK1 and other uncharacterized candidate effectors⁶. Our discovery that CBC activity is compromised in Fat3 mutants sets the stage for more detailed analysis in the future.

Methods

Animals

The Fat3^Δ™ mouse line lacks exon 23, which contains the coding region for the transmembrane domain. Since no ICD anchored to the membrane has been detected^6,7, this allele is expected to act as a full loss of function. The Fat3^floxed line contains LoxP sites flanking exon 23⁷. The Fat3^ΔICD-GFP mouse line has a deletion of most of the FAT3-ICD, which is replaced by GFP. This line possesses a full extracellular domain anchored to the cell membrane⁶. Heterozygous mice were used as breeders to obtain wildtype and knockout littermates. Grik1^−/− mice were obtained from Christophe Mulle (University of Bordeaux, France)³⁵. Grm6^−/− mice (also known as Grm6^nob3), which was characterized by Maddox and colleagues³⁶, were purchased from The Jackson Laboratory (ME, Strain #: 016883). Ptprs KO mice were made by Michel Tremblay’s laboratory (McGill University)³⁷. Transgenic mice expressing Cre recombinase were obtained from the following sources: Ptf1a^CRE (C. Wright, Vanderbilt U.)¹⁶; Islet1^CRE (a.k.a. Isl1^tm1(cre)Sev/J)³⁸ (The Jackson Laboratory, ME. Strain #: 024242); and Bhlhe22^CRE (a.k.a Bhlhb5^CRE)³⁹ (M.E. Greenberg, Harvard Medical School). Mice were maintained on a 12 hour/12 hour light/dark cycle at 18–23 °C and 40–60% humidity. Animals were handled ethically according to protocols approved by the Institutional Animal Care and Use Committee at Harvard Medical School. Genotyping was done using real time PCR (Transnetyx, Cordova, TN).

Electroretinography (ERG)

Mice were dark adapted overnight before in vivo ERG recordings. Animals were anesthetized with 100/10 mg/kg ketamine/xylazine cocktail and placed on a heating pad. Their pupils were dilated with a drop of 1% tropicamide solution (Bausch + Lomb). Electrodes were applied to the cornea to pick up the electrical signals from the retina. Eyes were kept moist by a drop of phosphate buffered saline (PBS). With an Espion E3 System (Diagonsys LLC), four types of ERG tests were performed: 1) scotopic test; 2) photopic tests with 1, 10, 100 and 1,000 cd s/m² under a 30 cd/m² background light to saturate the rod responses; 3) flicker tests at 0.5, 10, 20, 30, 40 and 50 Hz; and 4) step-light test with a three-second light step of 1,000 cd/m². The scotopic and photopic ERGs were conducted as described previously⁴⁰. The flicker ERG was recorded using 3.162 cd s/m² flashes as adapted from a published protocol⁹. The step ERG was created for this study to probe the d-wave from OFF-bipolar cells.

Optical Coherence Tomography (OCT)

OCT of mouse eyes was conducted using an OCT2 system (Phoenix Research Labs), as described previously⁴⁰. OCT imaging was performed on the mice in vivo immediately after the ERG tests to confirm the previously observed ex vivo histological changes. Before OCT imaging, a drop of GONAK 2.5% hypromellose solution (Akorn) was applied to the eye as the immersion medium with the OCT lens.

Flicker-light cued fear conditioning assay

The fear conditioning test for high temporal frequency vision was created by modifying previously published protocols¹³. The Med Associates (St Albans, VT) system was used for the tests with four LED lights (two green and two yellow) controlled by a computer software (Med PC). Mice were videotaped through Media Recorder Software and the fear response of freezing was analyzed by researchers who were blinded to the genotypes as a surrogate measurement of memory linked with visual input. On Day 1, the mice were brought to the electric shock cage individually to get familiar with the environment and procedure. They were in the cage for 30 minutes under a dim house light in the background and LEDs turned off (Figure S1). On Day 2, mice were brought back to the electric shock cage, first exposed to static green/yellow LED lights for two minutes, followed by 30 seconds of 33 Hz LED flicker light (i.e. the cue). Within the last 2 seconds of the cue, a series of 0.7mA shocks were initiated to trigger the fear memory linked with the cue. This static-flicker-shock cycle was repeated twice more. On Day 3, contextual memory (i.e. context test) was measured by placing the mouse back into the conditioning chamber for three minutes (no electric shock was delivered during this session), and the duration of freezing was recorded. Then, cued memory was measured by placing the mouse into an altered context, which was composed of different tactile and olfactory cues. The amount of freezing in the altered context was measured as a baseline (3 minutes, static light) followed by measurement of freezing during presentation of the cued stimulus (3 minutes, 33 Hz flicker light). The videos were analyzed by an examiner blinded to the genotypes to extract the freezing time of all three conditions (i.e. context, static and 33 Hz flicker).

Optomotor assay

Using an OptoMotry System (CerebralMechanics), the optomotor assay to measure the visual acuity of mice was conducted as described previously⁴⁰. The testing grates were set with 100% contrast and were moved at 1.5 Hz temporal frequency. The visual acuity (i.e. maximal spatial frequency in the unit of cycle/degree) was tested by an examiner, who was blinded to the genotype. During each testing episode, the examiner reported either “yes” or “no” to a computer program until the threshold of acuity was reached. The parameter of each testing episode (i.e. spatial frequency) was determined by the computer program and blinded to the examiner.

Dissections and immunohistochemistry

Animals of the desired postnatal age (3 or 6 weeks of age, as indicated) were euthanized by CO₂ inhalation and cervical dislocation. Extraocular tissue, the cornea and the lens were removed from the eyes and the eyecups were further fixed by immersion in 4 % paraformaldehyde (PFA, EMS Cat#15710) for 30 minutes (min) at room temperature or 15 min on ice. After several washes with PBS buffer, the eyes were submerged in 30% sucrose and kept at 4°C for at least 2 hours (h). After sucrose cryoprotection, eyes were incubated in NEG-50 (VWR, Cat#84000–154) overnight at 4°C and embedded by freezing in a liquid nitrogen vapor bath. Retinal slices were obtained by cryosectioning the eyes at 20 μm thickness and mounting on Superfrost^® Plus Micro Slide (VWR, Cat#48311–703). The sections were either stained immediately or stored at −80°C.

For regular immunohistochemistry, NEG-50 was removed by short incubation in PBS and then sections were blocked and permeabilized by incubation in 5% Normal Donkey Serum (NDS, Jackson ImmunoResearch Cat#017–000-121) in Sorensońs supplemented with 0.5% Triton-X for 1–2 h at room temperature. Sections were then incubated in primary antibody diluted in blocking buffer overnight at 4°C. After several washes with PBS, sections were incubated with fluorescent secondary antibodies diluted in 5% NDS in Sorensońs buffer supplemented with 0.02% Triton-X for 1.5–2 h at room temperature. After final washes, sections were mounted in DAPI-Fluoromount-G (SouthernBiotech Cat#0100–20). Primary antibodies used for immunohistochemistry were: rabbit anti-ARR3 (Millipore Sigma, Cat#AB15282), goat anti-Bhlhb5 (1:500; Santa Cruz Biotechnology, Cat#sc-6045), mouse anti-CtBP2 (1:2,000, BD Biosciences, Cat#612044), rabbit anti-dsRed (cross-reacts with TdTomato, 1:1,000, Clontech, Cat#632496), mouse anti-FAT3^6,7 (1:200), chicken anti-GFP (1:500; Aves, Cat#GFP-1020), mouse anti-GRIK1 (GluR5, 1:200, Santa Cruz Biotechnology, Cat#sc-393420)⁴¹, sheep anti-GRM6 (1:2,000, a gift from Jeannie Chen, USC and originally developed by Kirill Martemyanov Lab⁴²), goat anti-PTPσ (1:200; R&D Systems, Cat# AF3430), rabbit anti-VGAT (1:300; SynapticSystems, Cat#131002), and mouse anti-VSX2 (Chx10, 1:100; Santa Cruz Biotechnology, Cat#sc-365519). All secondary antibodies were diluted 1:1,000 and were: Donkey anti-chicken Alexa Fluor^® 488, Donkey anti-goat Alexa Fluor^® 568, Donkey anti-mouse Alexa Fluor^® 488, Donkey anti-mouse Alexa Fluor^® 568, Goat anti-mouse Alexa Fluor^® 647, Donkey anti-rabbit Alexa Fluor^® 488, Donkey anti-rabbit Alexa Fluor^® 568, Donkey anti-rabbit Alexa Fluor^® 647, and Donkey anti-sheep Alexa Fluor^® 568.

To detect FAT3 on retinal sections, we performed Hybridization Chain Reaction Immunohistochemistry (HCR-IHC)⁴³, according to the manufacturer’s instructions (Molecular Instruments, CA). In brief, on day 1 sections were treated similarly to regular immunohistochemistry. After overnight incubation of the primary mouse anti-FAT3⁷ (1:200) antibody, sections were rinsed with PBS-0.1% Tween-20 (PBS-T) and incubated with 1 μg/mL of initiator-labeled anti-mouse secondary antibody (Molecular Instruments) for 1 h at room temperature. Slides were rinsed with PBS-T and a final rinse with 5X Saline-Sodium Citrate buffer with 0.1% Tween-20 (SSC-T) and incubated with amplification buffer (Molecular Instruments) for 30 min at room temperature. H1 and h2 fluorescently-labeled hairpins were separately denaturated at 95 °C for 90 s followed by 30 min incubation at room temperature in the dark. A 60 mM hairpin solution mix was prepared by adding snap-cooled h1 and h2 hairpins to amplification buffer and incubated on the slides over night at room temperature in a dark, humidified chamber. After several washes with SSC-T, sections were mounted with DAPI-Fluoromount-G.

In situ hybridization (RNAscope)

Tissue collection was performed similar as to for immunohistochemistry, except using RNAase-free conditions. For RNAscope in situ hybridization, we used RNAscope^® Fluorescent Multiplex Reagent Kit v2 (ACD, Cat#323120) assay following the manufactureŕs instructions. In brief, retinal sections were post-fixed in 4% PFA for 15 min at room temperature, treated with hydrogen peroxide for 10 min at room temperature and treated with Protease III for 10 min at 40°C before probe incubation. Probes were obtained from ACD (see Key Resource table). Immunohistochemistry was performed after in situ hybridization by rinsing the sections in PBS after the final RNAscope wash and permeabilized and blocked again with 5% NDS/0.5% Triton X-100 Sorensońs buffer, followed by the regular immunohistochemistry protocol.

KEY RESOURCES TABLE.

Reagent or resource	Source	Identifier
Antibodies
Rabbit anti-ARR3	Millipore Sigma	Cat#AB15282; RRID:AB_ 1163387
Goat anti Bhlhb5	Santa Cruz	Cat#sc-6045; RRID:AB_2065343
Mouse anti-CTBP2	BD Biosciences	Cat#612044; RRID:AB_399431
Rabbit anti-dsRed	Clontech	Cat#632496; RRID:AB_10013483
Mouse anti FAT3	6,7	N/A; RRID:AB_2904260
Chicken anti GFP	Aves	Cat#GFP-1020; RRID:AB_10000240
Mouse anti-GRIK1 (GluR5)	Santa Cruz Biotechnology	Cat#sc-393420; RRID:AB_2716684
Sheep anti-GRM6	42	N/A
Goat anti-PTPσ	R&D Systems	Cat#AF3430; RRID:AB_2175157
Mouse anti-PTPσ	Medimabs	Cat# MM-0020-P
Rabbit anti VGAT	Synaptic systems	Cat#131002; RRID:AB_887871
Mouse anti-VSX2 (Chx10)	Santa Cruz Biotechnology	Cat#sc-365519; RRID:AB_10842442
Donkey anti chicken, Alexa Fluor® 488	Jackson ImmunoResearch	Cat#703-545-155; RRID:AB_2340375
Donkey anti goat, Alexa Fluor® 568	Thermo Fisher Scientific	Cat#A11057; RRID:AB_142581
Donkey anti mouse, Alexa Fluor® 488	Abcam	Cat#ab150105; RRID:AB_2732856
Donkey anti mouse, Alexa Fluor® 568	Thermo Fisher Scientific	Cat#A10037; RRID:AB_2534013
Goat anti mouse, Alexa Fluor® 647	Thermo Fisher Scientific	Cat#A-21235; RRID:AB_2535804
Donkey anti rabbit, Alexa Fluor® 488	Thermo Fisher Scientific	Cat#A21206; RRID:AB_2535792
Donkey anti rabbit, Alexa Fluor® 568	Thermo Fisher Scientific	Cat#A10042; RRID:AB_2534017
Donkey anti rabbit, Alexa Fluor® 647	Thermo Fisher Scientific	Cat#A31573; RRID:AB_2536183
Donkey anti sheep, Alexa Fluor® 568	Thermo Fisher Scientific	Cat#A-21099; RRID:AB_2535753
Goat anti mouse – HRP	BioRad	Cat# 170–6516; RRID:AB_11125547
Commercial assays
RNAscope® Multiplex	ACD	Cat#323100
Fluorescent Reagent Kit v2
HCR IHC Bundle	Molecular Instruments	N/A
Experimental models: Organisms/Strains
Mouse: Ptf1aCRE	C. Wright, Vanderbilt U 16	MGI:2387812
Mouse: Isl1CRE	The Jackson Laboratory38	Strain #: 024242
Mouse: Bhlhe22CRE	M.E. Greenberg (Harvard Medical School)39	N/A
Mouse: Fat3floxed	7	N/A
Mouse: Fat3ΔTM	7	N/A
Mouse: Fat3ΔICD-GFP	6	N/A
Mouse: Grik1-/-	Christophe Mulle (University of Bordeaux, France)35	N/A
Mouse: Grm6-/-	The Jackson Laboratory36	Strain #: 016883
Mouse: Ptprs-/-	Michel Tremblay37	MGI:2158757
In situ hybridization Probes
RNAscope® Probe- Mm-Fat3-O1	ACD	Cat# 509051
RNAscope® Probe- Mm-Grik1-C3	ACD	Cat# 438771-C3
Recombinant DNA
AAV-Grik1-GFP plasmid	This paper	N/A
Viral vectors
AAV8-Grik1-GFP	This paper	N/A

In vivo viral injection

The AAV-Grik1-GFP plasmid was generated by cloning a previously identified Grik1 enhancer (CRM4)¹⁷ upstream of a simian virus 40 (SV40) intron, Kozak sequence, GFP coding sequence, woodchuck hepatitis virus post-transcriptional regulatory element (WPRE), and polyadenylation sequence. To produce the AAV8-Grik1-GFP vector, HEK293T cells were triple transfected with a mixture of AAV-Grik1-GFP plasmid, adenovirus helper plasmid, and rep2/cap8 packaging plasmid. Viral particles were harvested from the supernatant 72 hours after transfection and purified using an iodixanol gradient as described previously⁴⁴. The titer of AAV8-Grik1-GFP was determined by comparing SYPRO Ruby (Molecular Probes) staining for viral capsid proteins (VP1, VP2, and VP3) to that of a reference vector with known titer.

To deliver AAV8-Grik1-GFP into the developing retina, we injected into the subretinal space as described previously^45,46. In brief, neonatal P2–3 mouse pups were anesthetized by chilling on ice. We injected 2.5 × 10⁹ vector genomes (vg) per eye, which is at a titer not toxic to the eye, diluted in PBS and 0.1% Fast Green (for visualization) using a pulled borosilicate glass needle with an opening of 0.5–1mm diameter connected to an Eppendorf FemtoJet injector into the subretinal space. The pups recovered on a warm pad and upon regaining consciousness they were returned to their mother. We then let them develop until performing histological procedures at P22.

Image acquisition

After immunohistochemistry or RNAscope, retinal sections were imaged within 300 μm from the optic nerve head on a Leica SP8 or a Zeiss LSM800 confocal microscope. The entire sections were imaged in consecutive z-slices separated by 1 μm using a 40x or 63x oil objective. The z stacks were then projected at maximum fluorescence intensity using Fiji/ImageJ.

Histochemical quantifications

We assigned random numbers to each image to ensure blinded quantifications. Only after the quantification was done, the identity of the images was revealed to assign the values to their corresponding genotype. All the procedures were done under the same technical parameters, and the comparisons were made between control and experimental conditions within the same experiment to avoid batch effects. The animal (N) and sample (i.e. sections, n) numbers, statistical test performed, and p values are indicated in figure legends and/or figures.

We assessed AC migration and the “ectopic synapse score” or “OMPL score’ as described previously⁶. To quantify expression of PTPσ, GRIK1 or GRM6 proteins in the OPL, the images were thresholded until background signal in the OPL was not observed. All images from the same experiment were treated the same way using Fiji (ImageJ). Then, the integrated density was measured to quantify protein expression in the same total area of each image on the OPL region (44.69 μm × 17.78 μm). To quantify CtBP2 fluorescence intensity on immunohistochemistry samples we used Fiji (ImageJ) to measure the Mean Gray Value on areas of the OPL by tracing a rectangle that took up most of the OPL height. In addition, the Mean Gray Value was measured on a rectangle traced on the ONL (region where photoreceptors reside and is used as background signal) to normalize the value of the OPL.

Statistics

To determine significant differences between control and experimental groups, we used Prism6 software for statistical analysis. After applying a D’Agostino-Pearson omnibus normality test to determine Gaussian distribution of the samples, we either used two-tailed t test (if the samples followed a Gaussian distribution) or Mann-Whitney test (if the samples did not follow a Gaussian distribution) to calculate the p values. For ERG data of more than two groups, one-way ANOVA with Dunnett multiple comparison test was used.

GST Pull down and Western blot

For binding analysis, we performed Western blots of supernatants after pulling down binding partners from mouse brain protein homogenates with the FAT3-ICD fused to Glutathione-S-transferase (GST) and GST alone generated previously⁶. Samples were denatured at 95°C for 10 mins and subjected to SDS-PAGE in a 4–12% Criterion^™ XT Bis-Tris Protein Gel (Bio-Rad) using XT MES Running Buffer (Bio-Rad). After 2 h at 150 V of electrophoresis, the proteins were transferred to Immobilon-P PVSF (0.45μm, Sigma-Millipore) in Tris-Glycine buffer supplemented with 20% methanol for 1 h at 75V. The Immobilon-P membranes were blocked with 5% skim milk in TBS buffer and then incubated with primary antibodies at 4°C overnight. The primary antibody used for Western blots was mouse anti-PTPσ (1:1,000, Medimabs, Cat# MM-0020-P). After several washes with TBS supplemented with 0.5% Tween 20 (Sigma-Aldrich), the membranes were incubated with a secondary goat anti-mouse HRP antibody (Biorad, Cat# 170–6516) diluted 1:2,000 for 1–2 h at room temperature. The signal was developed using Clarity ECL substrate following the manufactureŕs instructions (Bio-Rad). Western blots were done at least twice with similar results.

External gene expression profile datasets

Gene expression in different types of retinal bipolar cells was analyzed by using the single-cell RNAseq database (https://singlecell.broadinstitute.org/single_cell/study/SCP3/retinal-bipolar-neuron-drop-seq#study-visualize) and a modified R script that were published previously².

Resource and data availability

The source data for graphs are provided with this paper. For all quantifications, the raw data are shown along with means and standard errors of the means as well as the statistical analyses utilized. The original images used to generate these data are available from the corresponding author upon request. All unique materials generated in this study are available upon request.

Supplementary Material

Supplement 1

Figure S1 (related to Figure 1): Scotopic and photopic ERG of FAT3-deficient mice.

A. Representative OCT images of Fat3^Δ™/+ control and Fat3^Δ™/Δ™ eyes.

B. Representative scotopic ERG raw traces of Fat3^Δ™/+ and Fat3^Δ™/Δ™ eyes elicited by 0.1 cd s/m² flashes.

C. Statistics of scotopic ERG parameters (amplitude and implicit time of a-wave and b-wave) of Fat3^Δ™/+ (n=8) and Fat3^Δ™/Δ™ (n=10) eyes.

D. Representative photopic ERG raw traces of Fat3^+/− and Fat3^−/− eyes elicited by 1, 10, 100 and 1,000 cd s/m² flashes at 30 cd/m² background light to saturate the response from rod-pathway.

E. Ensemble-averaged photopic ERG b-wave amplitude from Fat3^Δ™/+ (n=8) and Fat3^Δ™/Δ™ (n=10) eyes.

F. Schematics of fear conditioning and optomotor behavioral experiment. On Day 1, a mouse is brought to the electric-shock cage with a floor of metal bars for habituation of the environment. On Day 2, the mouse is conditioned by electrical shock paired with 33 Hz flashing light. On Day 3 (see Supplementary movies for representative recordings from Fat3 mutant mice), the mouse is first subjected to a contextual check, in which the “Context” measures the freezing time of the mouse after it is brought back to the electric shock cage, which presents a fear-associated context environment, without the shock. “Static” measures the freezing time of the mouse with a static light, after the covering the metal bars and an odor change. Following this measurement, a 33 Hz flickering light is turned on, and the freezing time of the mouse is measured, as the “flicker” time.

G. Fear conditioning responses as freezing time (sec) from Fat3^Δ™/+ (n=8) and Fat3^Δ™/Δ™ (n=9) mice. One-way ANOVA with Dunnett multiple comparison test.

H. The visual threshold of spatial frequency of WT (n=8) and Fat3^Δ™/Δ™ (n=10) mice measured with the optomotor behavioral assay. Unpaired two-tailed Student’s t test.

Abbreviations: RPE, retinal pigmented epithelium; IS/OS, inner-outer segments junction; OLM, outer limiting membrane; OPL, outer plexiform layer; IPL, inner plexiform layer; IMPL: inner misplaced plexiform layer. NS: non-significant. All data are presented as mean ± SEM.

Figure S2 (related to Figure 2): scRNAseq data display. Expression of Fat3, Grik1, Grm6 and Ptprs gene transcripts by bipolar cell identity are displayed. These data is based on Shekhar et al. (2016) dataset.

Figure S3 (related to Figure 4): Effect of removal of Fat3 from OFF-CBC type 2 on flicker ERG.

A. Schematic representation of cells types, i.e. type 2 OFF-CBCs and GABAergic ACs, that lose Fat3 expression in a Bhlhe22^CRE cKO. Magenta coloring represents cell type expression of FAT3.

B. VGAT immunostaining for control Bhlhe22^CRE/+;Fat3^fl/+ mice.

C. VGAT immunostaining for Bhlhe22^CRE/+;Fat3^fl/Δ™ cKOs.

D. Quantification of the OMPL score for Bhlhe22^CRE Fat3cKO. Controls (Bhlhe22^CRE/+;Fat3^fl/+): 0.0 ± 0.0 (n=15 sections, N=3 animals); Bhlhe22^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™): 1.0 ± 0.0 (n=18 sections, N=3 animals), Mann-Whitney test.

E. DAPI and Bhlhb5 (a.k.a. Bhlhe22 gene encoded protein) staining of Bhlhe22^CRE/+;Fat3^fl/+ mouse retinas.

F. DAPI and Bhlhb5 staining of Bhlhe22^CRE/+;Fat3^fl/Δ™ retinas.

G. Quantification of the number of nuclei per field in the IPL. Controls (Bhlhe22^CRE/+;Fat3^fl/+): 2.79 ± 0.66 (n=14 sections, N=3 animals); Bhlhe22^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™): 7.53 ± 1.20 (n=15 sections, N=3 animals). Mann-Whitney test.

H. Quantification of the number of Bhlhb5+ nuclei per field in the IPL and GCL. Controls (Bhlhe22^CRE/+;Fat3^fl/+): 4.29 ± 0.98 (n=14 sections, N=3 animals); Bhlhe22^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™): 11.13 ± 1.34 (n=15 sections, N=3 animals). t test.

I. Flicker ERG amplitude at 30 Hz for controls (Bhlhe22^CRE/+;Fat3^fl/+, n=6 eyes) and Bhlhe22^CRE Fat3^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™, n=6 eyes).

J. Flicker ERG implicit time at 20 Hz for controls (Bhlhe22^CRE/+;Fat3^fl/+, n=6 eyes) and Bhlhe22^CRE Fat3^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™, n=6 eyes).

K. Representative flicker ERG raw traces for controls (Bhlhe22^CRE/+;Fat3^fl/+, n=6 eyes) and Bhlhe22^CRE Fat3^cKO (Bhlhe22^CRE/+;Fat3^fl/Δ™, n=6 eyes) at 20 and 30 Hz.

Scale bars: 20μm.

Figure S4 (related to Figure 3, 4): BC and cones numbers, visualization of Grik1+ BCs morphology via injection of an AVV-Grik1-GFP virus in Fat3 mutants.

A. VSX2 immunostaining of WT retinas.

B. VSX2 immunostaining of Fat3^{Δ™ /Δ™} retinas.

C. ARR3 immunohistochemistry of WT retinas. C’ shows ARR3 staining together with DAPI staining.

D. ARR3 immunohistochemistry of Fat3^{Δ™ /Δ™} retinas. D’ shows ARR3 staining together with DAPI staining.

E. Quantification of thickness of area occupied by VSX2 staining, as shown in A and B. WT controls: 21.09 ± 1.045 (n=15 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 21.59 ± 0.969 (n=15 sections, N=4 animals). t test.

F. Quantification of number of cones marked by ARR3, as shown in C and D. WT controls: 27.77 ± 0.907 (n=13 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 29.00 ± 0.593 (n=14 sections, N=4 animals). t test.

G. Examples of wild type (WT) retinal sections showing cells expressing GFP under the control of the Grik1 enhancer. The GFP reporter was introduced through in vivo injection of AAV8-Grik1-GFP.

H. Fat3^{Δ™ /Δ™} retinas injected with AAV8-Grik1-GFP. The OPL is indicated with a yellow arrowhead and the OMPL, labeled with VGAT staining, is marked with a yellow arrow. Scale bar: 20μm.

I. Quantification of Grik1+ BC dendrites in the OPL (WT Controls: 100%; Fat3^{Δ™ /Δ™}: 100%), axons in the IPL (WT Controls: 100%; Fat3^{Δ™ /Δ™}: 49 ± 17.4%), and axons in the OMPL (WT Controls: 0%; Fat3^{Δ™ /Δ™}: 56 ± 18.5%). Controls: n=5 animals, 12 cells, Fat3^{Δ™ /Δ™}: n=7 animals, 22 cells. Mann-Whitney test.

Figure S5 (related to Figure 6 and 7): Expression pattern of postsynaptic components PTPσ, HOMER1, GRIK1 and GRM6 in the retina.

A. PTPσ immunostaining in WT retinas

B. PTPσ immunostaining in Ptprs^−/− retinas. Cone arrestin (ARR3) labels the cone photoreceptors endings in the OPL in A’ and B’.

C. Schematic representation of OFF-BCs and their synapses with cone photoreceptors. ARR3 (white) labels cones and GRIK1 (magenta) labels postsynaptic BC dendrites.

D. Schematic representation of ON-BCs and their synapses with cone photoreceptors. ARR3 (white) labels cones and GRM6 (magenta) labels postsynaptic cone and rod BC (RBC) dendrites.

E. GRIK1 and GRM6 (E’) immunostaining of adult WT retina.

F. GRIK1 and GRM6 (F’) immunostaining of Grik1^−/− retina.

G. GRIK1 and GRM6 (G’) immunostaining of Grm6^−/− retina.

H. Immunostaining for CtBP2, a marker of presynaptic ribbon in WT retinas.

I. Immunostaining for CtBP2 Fat3^{Δ™ /Δ™} retinas. Cone arrestin (ARR3) labels the cone photoreceptors endings in the OPL in H’ and I’.

J. Quantification of CtBP2 mean fluorescence intensity in the OPL, normalized by ONL signal. Wild type (WT) Controls: 4.8 ± 0.16 (n=16 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 5.0 ± 0.14 (n=16 sections, N=4 animals), t test.

K. Immunostaining for CtBP2 in WT retinas, littermates of Fat3^{ΔICD-GFP/ΔICD-GFP} animals.

L. Immunostaining for CtBP2 in Fat3^{ΔICD-GFP/ΔICD-GFP} retinas. Cone arrestin (ARR3) labels the cone photoreceptors endings in the OPL in K’ and L’.

M. Quantification of CtBP2 mean fluorescence intensity in the OPL, normalized by ONL signal. Wild type (WT) Controls: 10.03 ± 0.32 (n=16 sections, N=4 animals); Fat3^{ΔICD /ΔICD}: 9.7 ± 0.39 (n=16 sections, N=4 animals), t test.

Scale bars: 20μm.

Figure S6 (related to Figure 7): Immunostaining of GRM6 and in situ hybridization of Grik1 and Grm6 upon loss of Fat3 in mouse retina.

A. VSX2 immunostaining (A) after in situ hybridization for Grik1 (A’) and Grm6 (A”) in WT retina.

B. VSX2 immunostaining (B) after in situ hybridization for Grik1 (B’) and Grm6 (B”) in Fat3^{Δ™ /Δ™} retina.

C. Quantification of Grik1 RNA pixel density in bipolar cells. WT: 352076 ± 27459, n=16 sections, N= 4 animals; Fat3^{Δ™ /Δ™}: 264572 ± 18120, n=17 sections, N=4 animals. t test.

D. Quantification of Grm6 RNA pixel density in bipolar cells. WT: 447054 ± 21371, n=16 sections, N= 4 animals; Fat3^{Δ™ /Δ™}: 443575 ± 25398, n=17 sections, N=4 animals. t test.

E. Immunostaining for GRM6 in WT retinas.

F. Immunostaining for GRM6 in Fat3^{Δ™ /Δ™} retinas. Cone arrestin (ARR3) labels the cone photoreceptors endings in the OPL in E’ and F’.

G. Immunostaining for GRM6 in WT retinas, littermates of Fat3^{ΔICD-GFP/ΔICD-GFP} animals.

H. Immunostaining for GRM6 in Fat3^{ΔICD-GFP/ΔICD-GFP} retinas. Cone arrestin (ARR3) labels the cone photoreceptors endings in the OPL in H’ and I’.

I. Quantification of GRM6 integrated intensity in the OPL. WT Controls: 16435 ± 1953 (n=16 sections, N=4 animals); Fat3^{Δ™ /Δ™}: 14603 ± 1195 (n=23 sections, N=5 animals), Mann-Whitney test.

J. Quantification of GRM6 integrated intensity in the OPL. WT Controls: 23190 ± 2018 (n=21 sections, N=5 animals); Fat3^{ΔICD /ΔICD}: 20051 ± 1696 (n=22 sections, N=5 animals), Mann-Whitney test.

K. Flicker ERG amplitude at 30 Hz for WT (n=6 eyes) and Ptprs^−/− retinas (n=6 eyes).

L. Flicker ERG implicit time at 20 Hz for WT (n=6 eyes) and Ptprs^−/− retinas (n=6 eyes).

M. Representative flicker ERG raw traces of wild type control and Ptprs^−/− eyes elicited by 3.162 cd s/m² flashes at 20 and 30 Hz frequencies.

N. Statistics of step ERG d-wave amplitudes of WT and Ptprs^−/− eyes elicited by a 3-second step of light at 1000 cd/m² intensity.

O. Representative step ERG raw traces of wild type control and Ptprs^−/− eyes elicited by a 3-second step light at 1000 cd/m² intensity.

Scale bars: 20μm.
