. 1997 Mar;62(3):223–228. doi: 10.1136/jnnp.62.3.223

Magnetisation transfer ratio of normal brain white matter: a normative database spanning four decades of life.

N C Silver 1, G J Barker 1, D G MacManus 1, P S Tofts 1, D H Miller 1
PMCID: PMC1064148  PMID: 9069474

Abstract

OBJECTIVES: To establish a normative database for magnetisation transfer ratio (MTR) measurements in the white matter of healthy adult brains. Such MTR values were evaluated for regional variation and evidence of differences associated with aging, sex, and handedness. METHODS: Forty one healthy volunteers, ranging in age from 16 to 55 years, underwent axial brain magnetisation transfer (MT) imaging on a 1.5 Tesla magnetic resonance scanner. Calculated MT images allowed evaluation of MTR from specific regions within the corpus callosum, cerebral hemispheres, and pons. RESULTS: Highest values were noted in the corpus callosum. No significant sex differences were seen for any region studied. Small but significant age related reductions in MTR were noted in the corpus callosum and other cerebral white matter regions studied. Comparing MTR values between young (16-35 years) and older (36-55 years) age groups, this was most apparent in the corpus callosum (40.82% units in the young group v 40.28% units in the older group, P < 0.05) and frontal white matter (39.65% units in the young group v 39.18% units in the older group, P < 0.005). In addition, values for MTR were analysed for evidence of hemispheric asymmetry. MTR values were higher in the left hemisphere for all regions studied, reaching significance in the centrum semiovale (37.75% units v 37.57% units, P < 0.05) and parieto-occipital white matter (37.67% units v 37.43% units, P < 0.05). No relation between such interhemispheric MTR differences and handedness was noted. CONCLUSIONS: Magnetisation transfer imaging shows significant age related changes in normal brain white matter. In addition to regional variations in MTR in the normal brain, there seem to be small but significant variations in MTR between the cerebral hemispheres. It is important to consider such normal variations when evaluating MTR in pathological states.

Full text

PDF
223

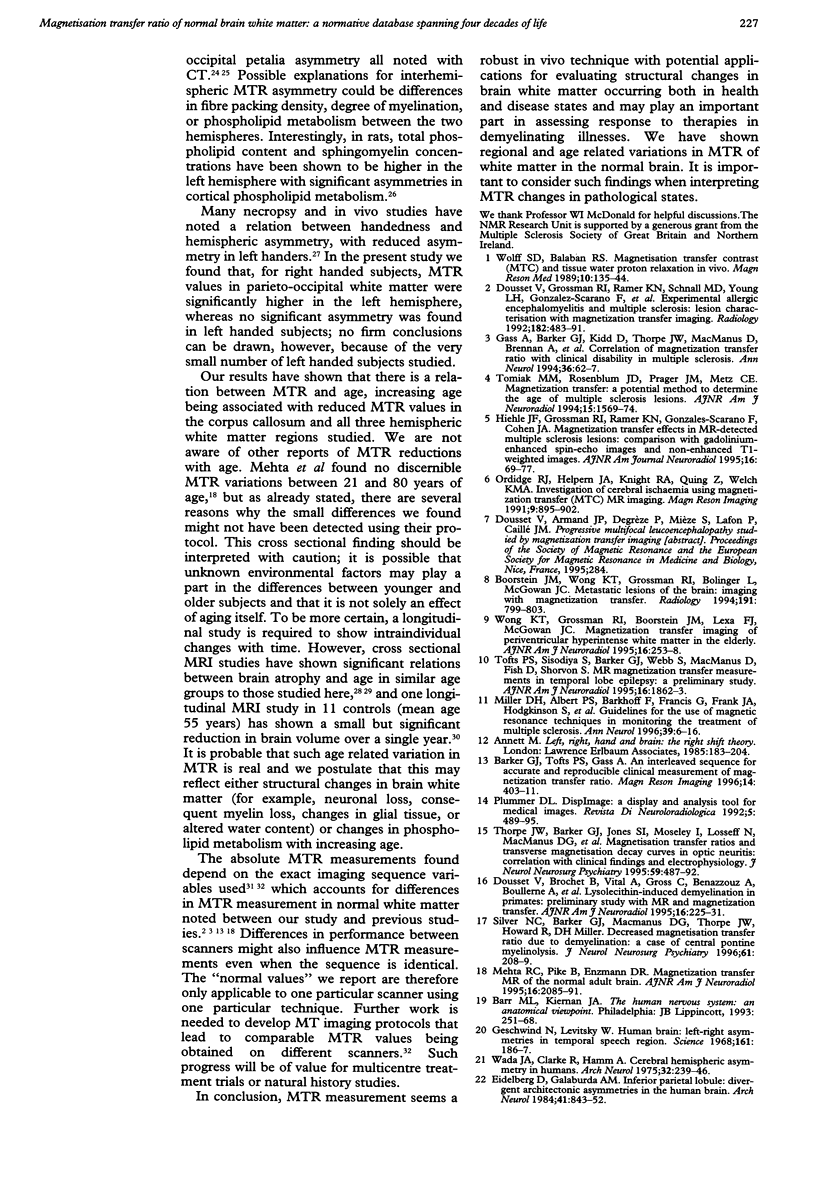

Images in this article

224Image
on p.224

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Barker G. J., Tofts P. S., Gass A. An interleaved sequence for accurate and reproducible clinical measurement of magnetization transfer ratio. Magn Reson Imaging. 1996;14(4):403–411. doi: 10.1016/0730-725x(96)00019-7. [DOI] [PubMed] [Google Scholar]
  2. Blatter D. D., Bigler E. D., Gale S. D., Johnson S. C., Anderson C. V., Burnett B. M., Parker N., Kurth S., Horn S. D. Quantitative volumetric analysis of brain MR: normative database spanning 5 decades of life. AJNR Am J Neuroradiol. 1995 Feb;16(2):241–251. [PMC free article] [PubMed] [Google Scholar]
  3. Boorstein J. M., Wong K. T., Grossman R. I., Bolinger L., McGowan J. C. Metastatic lesions of the brain: imaging with magnetization transfer. Radiology. 1994 Jun;191(3):799–803. doi: 10.1148/radiology.191.3.8184068. [DOI] [PubMed] [Google Scholar]
  4. Condon B., Grant R., Hadley D., Lawrence A. Brain and intracranial cavity volumes: in vivo determination by MRI. Acta Neurol Scand. 1988 Nov;78(5):387–393. doi: 10.1111/j.1600-0404.1988.tb03674.x. [DOI] [PubMed] [Google Scholar]
  5. Dousset V., Brochet B., Vital A., Gross C., Benazzouz A., Boullerne A., Bidabe A. M., Gin A. M., Caille J. M. Lysolecithin-induced demyelination in primates: preliminary in vivo study with MR and magnetization transfer. AJNR Am J Neuroradiol. 1995 Feb;16(2):225–231. [PMC free article] [PubMed] [Google Scholar]
  6. Dousset V., Grossman R. I., Ramer K. N., Schnall M. D., Young L. H., Gonzalez-Scarano F., Lavi E., Cohen J. A. Experimental allergic encephalomyelitis and multiple sclerosis: lesion characterization with magnetization transfer imaging. Radiology. 1992 Feb;182(2):483–491. doi: 10.1148/radiology.182.2.1732968. [DOI] [PubMed] [Google Scholar]
  7. Eidelberg D., Galaburda A. M. Inferior parietal lobule. Divergent architectonic asymmetries in the human brain. Arch Neurol. 1984 Aug;41(8):843–852. doi: 10.1001/archneur.1984.04050190049013. [DOI] [PubMed] [Google Scholar]
  8. Fox N. C., Freeborough P. A., Rossor M. N. Visualisation and quantification of rates of atrophy in Alzheimer's disease. Lancet. 1996 Jul 13;348(9020):94–97. doi: 10.1016/s0140-6736(96)05228-2. [DOI] [PubMed] [Google Scholar]
  9. Gass A., Barker G. J., Kidd D., Thorpe J. W., MacManus D., Brennan A., Tofts P. S., Thompson A. J., McDonald W. I., Miller D. H. Correlation of magnetization transfer ratio with clinical disability in multiple sclerosis. Ann Neurol. 1994 Jul;36(1):62–67. doi: 10.1002/ana.410360113. [DOI] [PubMed] [Google Scholar]
  10. Geschwind N., Levitsky W. Human brain: left-right asymmetries in temporal speech region. Science. 1968 Jul 12;161(3837):186–187. doi: 10.1126/science.161.3837.186. [DOI] [PubMed] [Google Scholar]
  11. Habib M., Robichon F., Lévrier O., Khalil R., Salamon G. Diverging asymmetries of temporo-parietal cortical areas: a reappraisal of Geschwind/Galaburda theory. Brain Lang. 1995 Feb;48(2):238–258. doi: 10.1006/brln.1995.1011. [DOI] [PubMed] [Google Scholar]
  12. Hajnal J. V., Baudouin C. J., Oatridge A., Young I. R., Bydder G. M. Design and implementation of magnetization transfer pulse sequences for clinical use. J Comput Assist Tomogr. 1992 Jan-Feb;16(1):7–18. doi: 10.1097/00004728-199201000-00003. [DOI] [PubMed] [Google Scholar]
  13. Hiehle J. F., Jr, Grossman R. I., Ramer K. N., Gonzalez-Scarano F., Cohen J. A. Magnetization transfer effects in MR-detected multiple sclerosis lesions: comparison with gadolinium-enhanced spin-echo images and nonenhanced T1-weighted images. AJNR Am J Neuroradiol. 1995 Jan;16(1):69–77. [PMC free article] [PubMed] [Google Scholar]
  14. Le May M., Kido D. K. Asymmetries of the cerebral hemispheres on computed tomograms. J Comput Assist Tomogr. 1978 Sep;2(4):471–476. doi: 10.1097/00004728-197809000-00018. [DOI] [PubMed] [Google Scholar]
  15. Mehta R. C., Pike G. B., Enzmann D. R. Magnetization transfer MR of the normal adult brain. AJNR Am J Neuroradiol. 1995 Nov-Dec;16(10):2085–2091. [PMC free article] [PubMed] [Google Scholar]
  16. Miller D. H., Albert P. S., Barkhof F., Francis G., Frank J. A., Hodgkinson S., Lublin F. D., Paty D. W., Reingold S. C., Simon J. Guidelines for the use of magnetic resonance techniques in monitoring the treatment of multiple sclerosis. US National MS Society Task Force. Ann Neurol. 1996 Jan;39(1):6–16. doi: 10.1002/ana.410390104. [DOI] [PubMed] [Google Scholar]
  17. Pediconi M. F., Barrantes F. J. Brain asymmetry in phospholipid polar head group metabolism: parallel in vivo and in vitro studies. Neurochem Res. 1990 Jan;15(1):25–32. doi: 10.1007/BF00969180. [DOI] [PubMed] [Google Scholar]
  18. Shapiro R., Galloway S. J., Shapiro M. D. Minimal asymmetry of the brain: a normal variant. AJR Am J Roentgenol. 1986 Oct;147(4):753–756. doi: 10.2214/ajr.147.4.753. [DOI] [PubMed] [Google Scholar]
  19. Silver N. C., Barker G. J., MacManus D. G., Miller D. H., Thorpe J. W., Howard R. S. Decreased magnetisation transfer ratio due to demyelination: a case of central pontine myelinolysis. J Neurol Neurosurg Psychiatry. 1996 Aug;61(2):208–209. doi: 10.1136/jnnp.61.2.208. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Thorpe J. W., Barker G. J., Jones S. J., Moseley I., Losseff N., MacManus D. G., Webb S., Mortimer C., Plummer D. L., Tofts P. S. Magnetisation transfer ratios and transverse magnetisation decay curves in optic neuritis: correlation with clinical findings and electrophysiology. J Neurol Neurosurg Psychiatry. 1995 Nov;59(5):487–492. doi: 10.1136/jnnp.59.5.487. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Tofts P. S., Sisodiya S., Barker G. J., Webb S., MacManus D., Fish F., Shorvon S. MR magnetization transfer measurements in temporal lobe epilepsy: a preliminary study. AJNR Am J Neuroradiol. 1995 Oct;16(9):1862–1863. [PMC free article] [PubMed] [Google Scholar]
  22. Tomiak M. M., Rosenblum J. D., Prager J. M., Metz C. E. Magnetization transfer: a potential method to determine the age of multiple sclerosis lesions. AJNR Am J Neuroradiol. 1994 Sep;15(8):1569–1574. [PMC free article] [PubMed] [Google Scholar]
  23. Wada J. A., Clarke R., Hamm A. Cerebral hemispheric asymmetry in humans. Cortical speech zones in 100 adults and 100 infant brains. Arch Neurol. 1975 Apr;32(4):239–246. doi: 10.1001/archneur.1975.00490460055007. [DOI] [PubMed] [Google Scholar]
  24. Wolff S. D., Balaban R. S. Magnetization transfer contrast (MTC) and tissue water proton relaxation in vivo. Magn Reson Med. 1989 Apr;10(1):135–144. doi: 10.1002/mrm.1910100113. [DOI] [PubMed] [Google Scholar]
  25. Wong K. T., Grossman R. I., Boorstein J. M., Lexa F. J., McGowan J. C. Magnetization transfer imaging of periventricular hyperintense white matter in the elderly. AJNR Am J Neuroradiol. 1995 Feb;16(2):253–258. [PMC free article] [PubMed] [Google Scholar]
