. 2023 Oct 31;8(45):42689–42698. doi: 10.1021/acsomega.3c05459

Electrospun Manganese-Based Metal–Organic Frameworks for MnOx Nanostructures Embedded in Carbon Nanofibers as a High-Performance Nonenzymatic Glucose Sensor

So Eun Kim †, Jae Chol Yoon †, Hyun-Jin Tae ‡, Alagan Muthurasu §,*
PMCID: PMC10652823  PMID: 38024713

Abstract

graphic file with name ao3c05459_0007.jpg

Material-specific electrocatalytic activity and electrode design are essential factors in evaluating the performance of electrochemical sensors. Herein, the technique described involves electrospinning manganese-based metal–organic frameworks (Mn-MOFs) to develop MnOx nanostructures embedded in carbon nanofibers. The resulting structure features an electrocatalytic material for an enzyme-free glucose sensor. The elemental composition, morphology, and microstructure of the fabricated electrodes materials were characterized by using energy-dispersive X-ray spectroscopy (EDX), field-emission scanning electron microscopy (FESEM), and transmission electron microscopy (TEM). Cyclic voltammetry (CV) and amperometric i–t (current–time) techniques are characteristically employed to assess the electrochemical performance of materials. The MOF MnOx-CNFs nanostructures significantly improve detection performance for nonenzymatic amperometric glucose sensors, including a broad linear range (0 mM to 9.1 mM), high sensitivity (4080.6 μA mM–1 cm–2), a low detection limit (0.3 μM, S/N = 3), acceptable selectivity, outstanding reproducibility, and stability. The strategy of metal and metal oxide-integrated CNF nanostructures based on MOFs opens interesting possibilities for the development of high-performance electrochemical sensors.

1. Introduction

Diabetes mellitus is a chronic metabolic disorder that occurs when the body is unable to properly process glucose (sugar) from food, and blood glucose levels rise above the normal range of 80–120 mg/dL (4.4–6.6 mM).1,2 Chronically increased blood glucose levels can lead to a variety of health problems, including damage to the heart, blood vessels, nerves, kidneys, and eyes.3 According to the International Diabetes Federation (IDF), more than 415 million people worldwide were diagnosed with diabetes in 2015.4 Furthermore, the IDF predicts that if no major steps are taken to address this global health issue, diabetes will be the seventh leading cause of death by 2030.5 In order to avoid the life-threatening diseases mentioned above, continuous monitoring of blood glucose levels is essential not only for diabetic patients but also for various other applications in the food industry and biotechnology.6 It is critical to continually check glucose levels to monitor and control diabetes. However, collecting blood samples for analysis can be a painful and uncomfortable process for patients, and there is also the risk of cross-infection if the right safety measures are not accomplished.7 Therefore, the significance of noninvasive, simple, and sensitive glucose examinations has been emphasized. Many noninvasive technologies are currently in development in a variety of industries.8,9 Reverse iontophoresis,10 absorbance spectroscopy,11 and near-infrared spectroscopy12 are a few examples. However, none of them have yet attained the sensitivity and precision required to completely replace finger-prick monitoring.6,7 Minimally invasive glucose monitoring techniques can provide precise glucose monitoring while reducing the burden on a patient’s quality of life.13 These approaches have been frequently criticized for their difficulties, periodic calibration requirements, and sensitivity to biofouling, yet effective biosensor development can overcome these drawbacks.6,13

Over the years, several advanced glucose test detection technologies have been developed, including fluorescence spectroscopy,14,15 chromatography,16,17 colorimetry,18−20 and electrochemical methods,21−23 and they are all examples of analytical techniques. Electrochemical methods have gained significant attention in glucose determination due to their many advantages, including simplicity, rapidity, cost-effectiveness, high selectivity, and lower limit of detection.24 It is important to note that enzyme-based glucose sensors have several limitations. Ongoing research and development efforts are focused on resolving these limitations and enhancing the overall performance and cost-effectiveness of these sensors.25 Furthermore, there is a lack of stability under adverse environmental conditions such as temperature, pH, and humidity.26,27 Enzyme-free glucose sensors are a promising alternative to traditional enzyme-based sensors. They rely on the direct electrocatalysis of glucose at the surface of the electrode rather than using an enzyme to catalyze the reaction.28 This has several advantages such as cost-effectiveness, stability, and faster assay efficiency. The electrode material plays a crucial role in determining the electrocatalytic performance of a nonenzymatic sensor.29 Electrode materials with enhanced conductivity and a large specific surface area can promote electron transfer occurring at the electrolyte/electrode interface, which is essential for the sensor’s sensitivity and response time, and the electrode material should also have good biocompatibility.30

Transition metal oxides, such as manganese oxide (MnO2),31−33 cobalt oxide (Co3O4),34−36 and nickel oxide (NiO),37−39 have shown promise as electrocatalysts in various electrochemical applications, including sensing and biosensing. Among them, MnO2 exhibits unique electronic and electrochemical properties that make it an attractive material for glucose sensor fabrication.40 The material has a high surface area and good conductivity, which enables it to efficiently catalyze the oxidation of glucose molecules.41 Additionally, the intrinsic redox behavior of MnO2 (Mn3+/Mn4+) allows for the material to act as an electron mediator, facilitating the transfer of electrons between the glucose molecules and the electrode surface.42 Due to its physical and electrochemical characteristics, MnO2 is widely acknowledged as the perfect substance for biosensor applications.43 MnO2 exists in multiple forms, including α-, β-, γ-, λ-, and δ-type, which are determined by the different connections of MnO6 octahedron units. The research on glucose sensing using MnO2 has predominantly centered around the α-type due to its distinctive 2 × 2 and 1 × 1 tunnels that facilitate electrode kinetics.44 Despite these advantages, there are relatively few MnO2-based glucose sensors reported in the literature.33 Xiao et al. developed a procedure involving electrodeposition to promote an interconnected PtAu alloy and MnO2 on self-supporting graphene paper, creating a nonenzymatic glucose sensor.42 Weina et al. conducted a study using β-MnO2 on carbon fibers as an electrode material to investigate its importance in the electrochemical sensing of glucose.31 They also tested β-MnO2 for dopamine sensing and analyzed the probabilities of dopamine binding using docking analysis.45 Additionally, the MnO2/GO composite, known for its strong catalytic activity, has been utilized as a heterogeneous catalyst in the aerobic oxidation of benzyl alcohol.46 Among the various MnOx nanostructures investigated, a metal–organic framework (MOF)-based MnOx nanostructure has gained increasing attention in recent years due to its unique design and advantages in various applications.47 The active element (for example, MnOx) is enclosed within a hollow shell in the yolk–shell structure, leaving a void in the center. Additionally, the void space in the center can be used for various purposes, such as accommodating more active material to boost electrochemical activity.48 Despite the excellent electrocatalytic activity, the low electronic conductivity of metal oxides can limit the efficiency of electrocatalysis and its application in electrochemistry. The most common approach to overcome this limitation is to build hybrid electrodes that combine nanostructured metal oxides and highly conductive materials.49 In this scenario, an electrospun carbon nanofiber (CNF) is considered a potentially promising candidate to make hybrid nanostructures by an electrospinning method.31 Particularly, the well-aligned CNF structure can act as a scaffold to support the metal oxide nanostructures, and the alignment of the CNF structure is important because it can reduce the distance electrons must travel through the material, improving conductivity and lead to a composite material with improved properties for electrochemical sensing applications.32

According to the aforementioned aspects, herein, we propose a simple method for synthesizing nonenzymatic glucose sensor electrocatalysts employing a manganese-based metal–organic framework (Mn-BTC) electrospun into carbonized fibers (MOF MnOx-CNFs). The electrode architecture has robust electrical conductivity, which enables efficient electron transport to target molecules, such as glucose, increasing sensing efficiency. For glucose detection, the MOF MnOx-CNFs-modified electrode demonstrates remarkable sensitivity, quick response time, outstanding selectivity, and a wide linear detection range. These features are due to the improved electroactive sites, excellent conductivity, extremely high catalytic activity of MOF MnOx-CNFs, and stability of the three-dimensional framework. The combination of the MOF MnOx with CNFs exhibits a synergistic effect, resulting in a hybrid material with improved glucose oxidation activity. This hybrid material is anticipated to outperform the individual MOF MnOx, CNF, and bare GCE systems. Furthermore, MOF MnOx-CNFs have shown potential reliability for glucose detection in human serum.

2. Experimental Section

2.1. Chemicals

Mn(NO3)2·4H2O (98+%, Sigma-Aldrich), C2H5OH (Sigma-Aldrich), trimesic acid (1,3,5-H3BTC) (98%, Sigma-Aldrich), N,N-dimethylformamide (DMF) (≥99.5%), and polyacrylonitrile (PAN) (Mw 200,000, Sigma-Aldrich) were used as obtained. Sodium hydroxide (NaOH), potassium ferricyanide (K3Fe(CN)6), glucose (C6H12O6), dopamine (DA), l-ascorbic acid (AA), and uric acid (UA) were obtained from Sigma-Aldrich. All compounds were of analytical reagent quality and were utilized without additional purification.

2.2. Synthesis of MOF Mn Spheres

In brief, 0.188 g of Mn(NO3)2·4H2O was added to 50 mL of ethanol and dissolved completely to make solution A. After that, 30 mL of ethanol was used to dissolve 0.088 g of 1,3,5-H3BTC to make solution B. Then, solution B was mixed with solution A to form a uniform solution. After stirring for 20 min, the mixture was transferred to a 100 mL Teflon-lined stainless-steel autoclave. The mixture was then heated to 160 °C for 12 h. Finally, the obtained powder was washed five times with ethanol and dried at 60 °C for 12 h in an electric oven to obtain the MOF Mn spheres.

2.3. Fabrication of MOF MnOx-CNFs

First, 0.5 g of PAN was added to 5 g of DMF to form a homogeneous solution. The solution was then stirred at 50 °C to obtain a pale-yellow clear solution. Second, after cooling to room temperature, 0.25 g of MOF Mn spheres was dispersed in the above solution. The mixture solution was transferred to a 5 mL plastic syringe fitted with a plastic nozzle. The needle and collector, which were separated by 15 cm, were then supplied with a high output potential of 17 kV. The feeding rate, temperature, and relative humidity (RH) were all set to 1 mL/h, 25 °C, and 45  ±  3, respectively. The obtained film was then dried at 60 °C overnight, and the electrospun PAN mat was stabilized at 300 °C with a ramping rate of 2 °C min–1 for 2 h. Subsequently, carbonization of the preoxidized fiber mat was continued by heating the film at a ramping rate of 2.5 °C min–1 up to 600 °C and keeping it for 2 h in a tubular furnace under an N2 environment. The obtained films were named MOF MnOx-CNFs. MOF Mn spheres were also calcined under the same conditions without the use of electrospinning.

2.4. Material Characterizations

The surface morphology of materials was determined by a Hitachi S-7400 (Japan). The Hitachi S-7400, FESEM model is designed to produce high-quality images at a variety of magnifications. The crystal structure and defects within the material were examined using a high-resolution transmission electron microscope (JEOL Ltd., Japan JEM-2100 200 kV). The JEOL Ltd. (Japan) JEM-2100 200 kV is a specific model of HRTEM that can provide high-quality images of nanofibers. The elemental composition of a sample is detected and measured using an energy-dispersive X-ray spectrometer. X-ray photoelectron spectroscopy (XPS) is a technique for determining the chemical composition of a material. A Thermo Scientific KA 1066 instrument with a monochromatic Al Kα X-ray source was employed for this analysis. The crystal structure was identified by X-ray diffraction (Rigaku Co., Japan). The Raman spectra of carbonized nanofibers were obtained by using an RFS-100S evolution spectrometer from Bruker (Germany).

2.5. Preparation of the MOF MnOx-CNFs-Modified Electrode

Prior to modification, the GCE was polished with 0.05 mm alumina and thoroughly rinsed with DI water and acetone. After that, 5 min of ultrasonic cleaning in DI water and air drying were carried out. 5 mg of MOF MnOx-CNFs material was dispersed in 1 mL of ethanol–water (v/v = 1:3) and 10 μL of 5% Nafion solution, which was then constantly sonicated to generate a uniform ink mixture. Afterward, 10 μL of MOF MnOx-CNFs material ink dispersion was drop cast onto the cleaned GCE surface and dried in a hot air oven. And the prepared electrode is called MOF MnOx-CNFs/GCE. When not in use, the modified electrodes were kept at room temperature. Cyclic voltammetry (CV), chronoamperometry (CA), and electrochemical impedance spectroscopy (EIS) experiments were performed using VersaSTAT 4 electrochemical analyzers and a typical three-electrode electrochemical workstation. The three-electrode electrochemical system comprised of a MOF MnOx-CNFs/GCE electrode as the working electrode and a platinum wire and saturated KCl and Ag/AgCl as the counter electrode and reference electrode, respectively, and all tests were conducted at room temperature. Typically, the electrolyte solution is the 0.1 M NaOH solution used in glucose sensors. We also employed our newly developed sensor to evaluate glucose levels in human serum samples (Jeonbuk University Institute of Medicine).

3. Results and Discussion

The fabrication route of MOF MnOx-CNFs is schematically shown in Figure 1. The Experimental Section describes the experiment in detail. Briefly, the MOF Mn spheres are a crystalline structure prepared via a hydrothermal reaction in an aqueous solution containing Mn(II)-based compounds and trimesic acid. The MOF Mn spheres have an average size of roughly 300 nm and are uniform in structure (Figure S1). After that, an electrospun solution of PAN and MOF Mn spheres in N,N-dimethylformamide (DMF) was used to produce a fibrous membrane. The synthesis membrane consists of randomly aligned microfibers that are linked together to form a network. Each hybrid fiber comprises MOF Mn spheres that are evenly distributed throughout the fiber. As illustrated in Figure S2, the hybrid fiber’s surface structure is porous and rough. After that, the resultant fiber membrane is then preoxidized in air at 300 °C for 2 h and carbonized in N2 gas at 600 °C. The fiber shape is highly retained after heat treatment, and the MOF MnOx is uniformly dispersed in the carbon fiber. The FESEM images in Figure 2 demonstrate that the MOF MnOx-CNFs have nitrogen-doped carbon. FESEM elemental mapping and EDX spectra are shown in Figure S3. The MOF MnOx-CNFs show average diameters of 350 nm. The magnified FESEM image (Figure 2B,C) and transmission electron microscopy (TEM) image (Figure 2D) demonstrate that the microfibers are composed of MOF MnOx-CNFs that are linked together by a carbon matrix generated from PAN. MOF MnOx particles are dispersed with mild aggregation in both cavities and within a portion of the solid PAN-derived carbon fibers. These findings are depicted in magnified TEM images in Figure 2E. MOF MnOx is found inside the yolk and appears darker than the surrounding carbon matrix. High-magnification TEM images of MnOx nanoparticles on the shell of MOF MnOx-CNFs (Figure 2F) show 0.257 and 0.267 nm lattice fringe planes compatible with the (120) and (023) planes of orthorhombic Mn3O4, respectively (JCPDS No. 65-1123).50 The inset of Figure 2F shows the polycrystalline character of the shell in the selected area electron diffraction pattern (SAED). MOF MnOx-CNFs were analyzed by bright-field STEM and subsequent EDX elemental mapping (Figure 2G–L). The findings of the study revealed a homogeneous distribution of four elements within the membrane: manganese (Mn), carbon (C), nitrogen (N), and oxygen (O). The existence of Mn, C, N, and O in the MOF MnOx-CNFs is also revealed by the EDX spectrum (Figure S4).

Figure 1.

Figure 1

Open in a new tab

Schematic representation of the fabrication method for MOF MnOx-CNFs.

Figure 2.

Figure 2

Open in a new tab

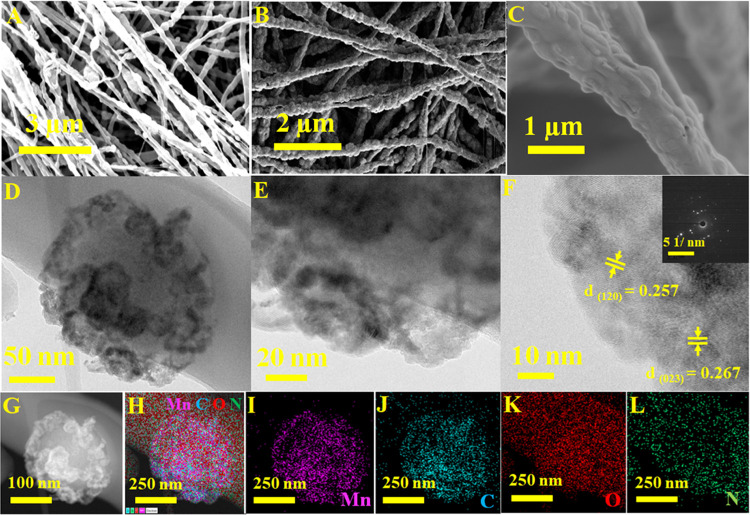

Different magnifications of (A, B, C) FESEM images, (D, E) TEM images, (F) high-magnification TEM (inset is the corresponding SAED image), and (G–L) TEM-EDX mapping of Mn, C, O, and N of MOF MnOx-CNFs.

The X-ray diffraction pattern in Figure 3A reveals broad peaks with no significant diffraction peaks, demonstrating the presence of carbon layer enclosing the MnOx nanoparticles in the MOF MnOx-CNFs composites. The X-ray diffraction (XRD) patterns of a MnOx sample are illustrated in Figure S5. The peaks observed at 34.8, 40.5, 58.6, and 70.1° correspond to the crystal planes (111), (200), (220), and (311) of the cubic phase of MnO (JCPDS = 78-0424). Raman spectroscopy is an effective tool to investigate material molecular vibrations and structural characteristics. The Raman spectra of carbonized PAN fibers display two notable peaks known as the D and G bands. The D band appears at approximately 1354 cm–1, whereas the G band appears at around 1590 cm–1. These bands are typical of graphitic carbon structures. Additionally, the incorporation of Mn-BTC resulted in an intensity of 676 cm–1 at the Mn–O stretching frequency, and the broad peak in the 2500–3000 cm–1 range is associated with the C–H stretching vibrations in organic molecules (CNF), showing that the carbonized fibers were successfully packed with MnOx species (Figure 3B). X-ray photoelectron spectroscopy (XPS) is a technique for determining the elemental composition and chemical states of a material’s surface. XPS survey spectra from the MOF MnOx-CNFs composite revealed the presence of C, N, O and Mn (Figure S6). The high-resolution C 1s spectrum of the MOF MnOx-CNFs composite was deconvoluted into three peaks. Each peak corresponds to a different carbon species. The binding energies associated with these subpeaks are 284.1, 285.6, and 288.6 eV, corresponding to the carbon species C=C, C–N/C–O, and C=O (Figure 3C).26 The high-resolution N 1s spectrum (Figure 3D) contains three deconvoluted peaks with different binding energies: 397.7, 399.4, and 403.2 eV.51 Each peak represents a different nitrogen species, such as pyridinic, graphitic, and oxidized nitrogen. Figure 3E exhibits a high-resolution O 1s spectrum with a strong peak found at 530.8 eV. This peak indicates the presence of a Mn–O bond, confirming the presence of MnOx.32 The binding energy peaks of Mn 2p1/2 and 2p3/2 in the high-resolution Mn 2p spectra are 652.6 and 641.2 eV, respectively (Figure 3F). These findings suggest that the oxidation state of manganese (Mn) in the samples fluctuates between Mn2+ (MnO) and Mn3+ (Mn2O3).33,50

Figure 3.

Figure 3

Open in a new tab

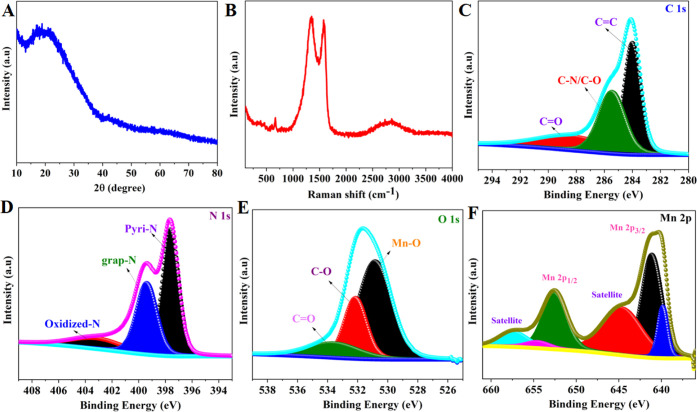

(A) XRD patterns, (B) Raman spectra, and high-resolution XPS spectra of MOF MnOx-CNFs: (C) C 1s, (D) N 1s, (E) O 1s, and (F) Mn 2p.

The prepared MOF MnOx-CNFs electrode was scanned by using cyclic voltammetry (CV) in a 0.1 M NaOH electrolyte at a scan rate of 50 mV s–1 until the CV curves entirely overlapped. This technique is likely to activate and stabilize the electrochemical performance of the electrode. Following that, CV was used to study the electrochemical properties of a MOF MnOx-CNFs electrode in a 0.1 M NaOH electrolyte with and without the addition of glucose, and the electrode was scanned within a potential window of 0.0 and 0.8 V vs Ag/AgCl. Figure 4A demonstrates the CV curves of three separate samples, MOF MnOx-CNFs, MOF MnOx, and bare GCE materials are recorded in the presence of 0 and 0.1 mM glucose. There is no redox peak in the CV curve of the bare CC. This implies that at the investigated potential range, the bare GCE exhibits no electrochemical activity. Furthermore, the CV curve of the bare GCE does not alter significantly when glucose is added. This suggests that the presence of glucose has no noticeable impact on the electrochemical behavior of the bare GCE. On the other hand, in the absence of glucose, the MOF MnOx-CNFs/GCE electrode exhibits a broad shoulder oxidation peak extending from 0.15 to 0.55 V. This implies that a redox reaction is taking place in this potential range, most likely related to the oxidation or reduction of Mn3O4/MnOOH and MnOOH/MnO2 species.31,33 When glucose (0.1 mM glucose) is introduced, the anodic (oxidation) peak current of the MOF MnOx-CNFs/GCE electrode considerably increases. This suggests that the electrode has outstanding catalytic ability for glucose oxidation. In comparison to MOF MnOx-CNFs/GCE, the current response of MOF MnOx after glucose addition is significantly lower. Previous research suggests that the catalytic glucose oxidation pathway might involve the following33,48,49

3. 1
3. 2
3. 3

Figure 4.

Figure 4

Open in a new tab

(A) CV curves of the (a, b) bare GCE, (c, d) MOF MnOx, and (e, f) MOF MnOx-CNFs-modified GCE without and with the presence of glucose recorded at a scan rate of 50 mV s–1, (B) CV curves of MOF MnOx-CNFs-modified GCE recorded at the scan rate of 50 mV s–1 in the presence of various glucose concentrations, (C) CV curves of MOF MnOx-CNFs-modified GCE electrode at different scan rates from 10 to 100 mV s–1 in 0.1 M NaOH with 0.1 mM glucose, (D) corresponding calibration plot of peak current (Ip) vs square root of scan rate (√v), (E) amperometric response of the MOF MnOx-CNFs-modified GCE electrode under successive addition of various concentrations of glucose, and (F) calibration curve of current density vs concentration of glucose.

The CV curve of the MOF MnOx-CNFs/GCE in the glucose concentration range of 0–5.0 mM is shown in Figure 4B. The data reveal that the peak anodic current of the MOF MnOx-CNFs/GCE increases as the glucose concentration increases. All of these results indicate that the MOF MnOx-CNFs/GCE exhibits potential glucose oxidation activity. To investigate the effect of the scan rates, CV curves for the MOF MnOx-CNFs/GCE was obtained at various scan rates ranging from 10 to 100 mV s–1 (Figure 4C). The square root of the scan rate and peak current had a nearly parallel linear relationship. The oxidation reaction appears to be a diffusion-controlled process based on the linear relationship between the square root of the scan rate and peak current (Figure 4D). The two linear regression equations are formulated as follows: Epa = 0.2478 + 0.075gv (R2 = 0.992) and Epc = 0.1292–0.060 lg v (R2 = 0.991), which match the black and red dotted lines (Figure 5c). According to Laviron’s equation, the transfer coefficient (α) and the number of electrons transported (n) were computed. Their values were 1.512 and 0.469, showing that electron-transfer kinetics during electrocatalytic processes are relatively fast.23,47

3. 4
3. 5

where n is the number of electrons transferred, α is the electron-transfer coefficient, ν is the scan rate, and E0 is the formal potential. F, R, and T have traditional connotations.

Figure 5.

Figure 5

Open in a new tab

Mechanism of the electro-oxidation of glucose at the MOF MnOx-CNFs@GCE electrode.

The applied potential can have an effect on the response current and enhance the sensor performance of the modified electrode. Figure S7 shows how the amperometry response curves of glucose obtained at the MOF MnOx-CNFs/GCE electrode with successive injections of 1.0 mM glucose changed as the applied potential varied from 0.4 to 0.55 V. The response current increases as the potential increases from 0.4 to 0.55 V, suggesting a positive relationship between the applied potential and the response current. However, above 0.55 V, the response current drops as the applied potential increases, indicating a negative correlation. Therefore, the response current of the system is maximum at 0.55 V, indicating the most efficient glucose detection and measurement. The detection performance of a MOF MnOx-CNFs/GCE electrode for glucose detection may be affected by the concentrations of OH– anions (COH–) in the alkali electrolyte. This is because the electrochemical activity is closely related to the COH– levels under alkaline conditions.52 To achieve maximum glucose oxidation current, we examined the impact of COH– on the amperometric reaction toward glucose oxidation in the MOF MnOx-CNFs/GCE, using NaOH solution with varying concentrations and an applied potential near the anodic peak. In a continuous stirred solution of NaOH, glucose was added at incremental concentrations. Regardless of the different NaOH concentrations, the amperometry curves all demonstrated a rapid increase in current upon the addition of glucose, as depicted in Figure S8. The performance of the MOF MnOx-CNFs/GCE for glucose detection in a 0.1 M NaOH solution showed significant improvements in sensitivity, detection limit, and linear range compared to the performance in 0.1, 0.25, 0.5, 0.75, and 1 M NaOH solutions. In our investigations, we determined that an OH– anion concentration of 0.1 M is the most suitable working electrolyte for glucose detection.

Amperometry is a technique that measures the current response of an electrode as a function of the analyte concentration. Each addition of glucose is performed at 60 s intervals with an applied potential of 0.55 V. Figure 4E clearly depicts a series of stepwise i–t curves in response to continuous glucose additions. This indicates that the oxidation current appears to increase with each addition of glucose, implying a possible relationship between the observed current and the concentration of glucose. It is worth noting that upon the addition of glucose, a response signal is immediately observed and stabilizes within 3 s. This indicates that the detection performance is quick and sensitive. The reason for this performance is considered to be the good electrocatalytic properties mentioned above. As illustrated in Figure 4F, a calibration curve is developed to measure the concentration of glucose by detecting changes in current density. The calibration curve shows that the current density increases linearly with an increase in glucose concentration. The glucose oxidation of MOF MnOx-CNFs/GCE can be categorized into two ranges of linear functions for concentrations of 0 to 4.1 mM and 4.1 to 9.1 mM with R2 of 0.998. Furthermore, based on the slope of the calibration curve, the sensitivity of 0–4.1 mM is calculated to be 4080.6 μA mM–1 cm–2. The limit of detection (LOD) is a measurement of the lowest concentration of an analyte estimated to be 0.3 μM by using the calibration curve’s sensitivity and a signal-to-noise ratio (SNR) of 3. The calibration curves show two different linear curves that could be caused by distinct reasons. The first linear fit implies that the electro-oxidation of the glucose reaction is limited by glucose absorption onto electrochemically active sites, which is followed by redox reaction and charge transfer. In the second linear range of 4.1–9.1 mM, MOF MnOx-CNFs provide an optimal environment to allow efficient adsorption of glucose molecules and desorption of reaction byproducts.53 In particular, the sensing characteristics of the MOF MnOx-CNFs/GCE electrode are among the best-reported values for nonenzymatic sensors based on nanostructured materials (Table 1).54−60 The outstanding catalytic activity of MOF MnOx-CNFs in glucose oxidation can be attributed to the following factors. First, the combination of manganese oxide nanoparticles with carbon nanofibers in MOF MnOx-CNFs has a synergistic effect. MOF MnOx particles serve as active catalytic sites, while CNFs provide structural stability and electron conductivity.42 This synergy increases the effective electron transfer throughout the oxidation reaction, resulting in improved catalytic performance. Second, manganese oxide is well-known for its outstanding oxidation and reduction properties.50 It is capable of redox reactions during the glucose oxidation process, enhancing electron transport and increasing the conversion of glucose to a desirable product.

Table 1. Comparison of the Analytical Performance of Manganese Oxide-Based Glucose Sensors.

electrode optimal potential (V) linear range sensitivity/μA cm–2 mM–1 detection limit (μM) refs
MnO2/Co3O4@ECNFs 0.55 5 μM–1.93 mM 1159 0.3 (48)
GOx/MnO2/MWCNTs/GCE 0.55 5–200 μM   2 (33)
α-MnO2 0.45 5–855 μM 3730   (32)
MnO2/MWNT 0.55 0–1 mM 3406 0.5 (49)
Cu/MnO2/MWCNTs 0.6 0.64–2200 μM 1302 1.7 (54)
CoFe2O4 @MnO2 0.25 0.53–1300 μM 318 0.325 (55)
Ni/MnO2 0.45 0.25–3500 μM 104.0 0.1 (56)
Cu/MnO2/GCE 0.7 0.25–1.02 μM 26.96 0.1 (57)
PVA/MnO2@GO/CuO MIP   0.55–4.4 mM   53 (58)
MnO2/Co3O4 0.55 0–7 mM 127 0.3 (59)
MnO2/gra-H 0.45 0–5.0 mM 45 0.08 (41)
Pd/MnO2 0.45 65–455 μM 6.0   (40)
MnO2 NS/NF 0.45 0.001–1.13 mM 6.45 0.5 (60)
MOF MnOx-CNFs 0.55 0–9.10 4080.6 0.3 this work
Open in a new tab

The mechanism for detecting glucose using the MOF MnOx-CNFs electrode is explained in Figure 5. Mn(III) undergoes electro-oxidation to Mn(IV), a highly reactive compound that reacts with glucose adsorbed on the surface of MOF MnOx-CNFs. This reaction oxidizes glucose into gluconic acid, after which Mn(IV) is reduced to Mn(III). As this cycle repeats, the generated electrons from the electro-oxidation of Mn(III) travel through the nanostructure to the conductive substrate below, resulting in the detection of an anodic signal.46,47,57

The stability, repeatability, and selectivity of biosensors are critical parameters in their practical application. Monitoring the sensitivity of the MOF MnOx-CNFs electrode to 0.1 mM glucose was performed on a regular basis to determine its stability over time. Figure S9A shows that after 30 days, the fabricated sensor retains approximately 94.2% of its initial amperometric current response. This indicates that the sensor exhibits a relatively stable performance over a period of time, with a slight decrease in the amperometric current response. In terms of reproducibility, 10 MOF MnOx-CNFs electrodes were made under identical conditions and then individually tested for their current responses to a glucose concentration of 0.1 mM, as shown in Figure S9B. These findings show that the MOF MnOx-CNFs electrode has excellent stability and reproducibility. In addition, the selectivity of the MOF MnOx-CNFs electrode refers to its ability to detect and quantify a specific analyte in the presence of simultaneous interferences in human blood, such as dopamine (DA), ascorbic acid (AA), uric acid (UA), and chloride ions. As shown in Figure 6, the interference of specific species in the presence of glucose in human blood is 30 times greater than that of the interfering species. To begin, 1 mM glucose was added to a 0.1 M NaOH solution. Then, 0.1 mM interfering species was added to the same solution. When a 1 mM glucose solution was injected, the oxidation current increased immediately. However, subsequent injections of DA, AA, and UA had no significant effect on the current response when compared to the glucose injection. Even though these three specific interferents can oxidize at low potentials, the ensuing signals are feeble. These findings indicate that these interferences have a minor effect on the electrocatalysis current response at the conditions investigated. This means that the MOF MnOx-CNFs electrode has good selectivity for detecting glucose because the presence of these interfering chemicals does not affect them.

Figure 6.

Figure 6

Open in a new tab

Amperometry responses of MOF MnOx-CNFs-modified GCE recorded in 1.0 mM glucose and under the sequential influence of electroactive interferences, namely, 0.5 mM AA, 0.1 mM DA, 0.1 mM UA, and 0.5 mM KCl.

It is vital to emphasize the practical necessity of using sensors in serum samples. The MOF MnOx-CNFs electrode is used as an electrode material for amperometric glucose concentration determination in human serum samples. Human serum samples of different concentrations were added to a stirred solution of 0.1 M NaOH, and the amperometric response was measured by using an electrode at an applied voltage of 0.55 V. Table 2 shows that the addition of serum causes a noticeable change in the electrical current. The electrical current increases in proportion to the serum concentration, showing a relationship between the two parameters. MOF MnOx-CNFs/GCE electrode test findings with commercial blood glucose devices indicate that the MOF MnOx-CNFs/GCE electrode is a potential tool for detecting glucose levels in real samples. This study shows that the composite electrode could be employed in practical applications, such as glucose monitoring for medical purposes or the development of glucose sensing devices.

Table 2. Glucose Detection in Human Serum Samples.

sample added (mM) found (mM) RSD% (n = 3) recovery (%)
1 1.25 1.29 3.5 103.2
2 2.01 1.95 3.0 97.0
3 3.28 3.35 3.6 103.3
4 5.80 5.65 4.5 95.9
5 8.49 8.32 2.67 97.9
Open in a new tab

4. Conclusions

In summary, using MOF Mn spheres as the structural template, our study successfully used electrospinning to generate MnOx nanoparticles confined in nitrogen-doped carbon fibers. Incorporating MOF MnOx structures into carbonized nanofibers improved nanostructures. Benefits include improved structural integrity, increased electrical conductivity, and an increased electrochemically active surface area. The MOF MnOx-CNFs electrode used as an active material in an enzymeless glucose sensor has been found to have improved sensitivity and a low detection limit. The MOF MnOx-CNFs composite has an excellent electrocatalytic oxidation performance for glucose. This improved performance can be attributed to two key factors: the compact structure and the synergistic effect of MOF MnOx and CNFs. Moreover, the MOF MnOx-CNFs electrode addressed above is well-known for fulfilling the selectivity, stability, and reproducibility criteria. Our method for fabricating MOF metal oxide with CNFs offers new avenues for developing nanohybrid electrodes with tailored compositions and functionality. This nanohybrid electrode could be a potential candidate for nonenzymatic glucose sensors.

Acknowledgments

This study was supported by the Fund of the Biomedical Research Institute and Jeonbuk National University Hospital and by the Research Funds for Newly Appointed Professors of Jeonbuk National University in 2023.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.3c05459.

  • Detailed material characterization, including SEM images, elemental mapping, EDX spectra, XRD patterns, XPS survey spectra, CA curves, and current response of different time intervals and various electrodes (PDF)

The authors declare no competing financial interest.

Supplementary Material

ao3c05459_si_001.pdf (903.8KB, pdf)
