Abstract
The watermark disease, caused by Brenneria salicis (formerly Erwinia salicis), is of significant concern wherever tree-forming willows are grown or occur naturally. The movement of infected, asymptomatic cuttings is a major cause of pathogen dispersal. A reliable and sensitive diagnostic procedure is necessary for the safe movement of willow planting material. We derived primers from the nucleotide sequence of the 16S rRNA gene of B. salicis for the development of a PCR to detect this pathogen. One set of primers, Es1a-Es4b, directed the amplification of a 553-bp fragment from B. salicis genomic DNA as well as B. salicis cells. PCR products were not observed when genomic DNA was tested for 27 strains of other, related plant-associated bacteria. Genomic fingerprinting by amplification fragment length polymorphism of B. salicis strains, originating from four different countries, and related Brenneria, Pectobacterium, and Erwinia strains revealed a very high similarity among the B. salicis genomes, indicating that the spread of the pathogen is mainly due to the transportation of infected cuttings. The PCR had to be preceded by a DNA extraction in order to detect the pathogen in the vascular fluid of willows. The minimum number of cells that could be detected from vascular fluid was 20 CFU/ml. The PCR assays proved to be very sensitive and reliable in detecting B. salicis in willow plant material.
The willow (Salix spp.), together with the poplar (Populus spp.), is a deciduous tree of the family Salicaceae. Most of the Salix species thrive in a humid environment and are often used in forestry. Material from willows is used for several economic applications, e.g., the wood and twigs of willows are used to produce cricket bats (1) and basketwork (6).
The watermark disease is a vascular wilting disease that causes great losses among willow populations. The bacterium Brenneria salicis (10), formerly Erwinia salicis, is the causal agent of this disease and occurs mainly in the xylem vessels of the host plant. Infected willows show wilted, dried, brown-colored leaves and a watery, transparent color of the wood. It is commonly accepted that the spread of the watermark disease occurs by the transportation of plant material (cuttings) infected with B. salicis. Infected cuttings do not show any internal or external symptoms of the watermark disease. In order to minimize the distribution of this disease, it is of major importance to detect low concentrations of latent B. salicis bacteria in an early stage by means of a sensitive and specific molecular test. The current detection method applying immunofluorescence (enzyme-linked immunosorbent assay) often yields false positives as a result of cross-reactions but also yields false negatives because low densities of bacteria (<104/ml) are not detected (5). Latent infections characterized by low densities of B. salicis require a more sensitive detection method.
PCR has proven to be successful in detecting plant-pathogenic bacteria as well as fungi (2, 7, 8, 11, 17, 18, 21, 22, 30). A PCR-based identification method for B. salicis was developed based on four specific base positions of the 16S ribosomal DNA (rDNA) sequence (9): A at Escherichia coli numbering position (3) 114, G at 217, G at 583, and A at 625. Species-specific primers complementary to these sites were developed. In the present study, the specificity of the PCR was tested with a larger collection of B. salicis strains and related plant-associated bacteria. In order to establish the genomic similarity of the B. salicis strains studied and in the hope that the origins of the various populations could be determined, amplification fragment length polymorphism (AFLP) has been used to fingerprint the genomes.
The PCR detection method for B. salicis was adjusted to be applied to the vascular fluid of willows, and a collection of willow clones was tested.
MATERIALS AND METHODS
Bacterial strains and growth.
The bacterial strains used were obtained from the Belgian Coordinated Collections of Microorganisms, Laboratory of Microbiology, University of Ghent, Belgium (BCCM/LMG). Three ICMP strains were kindly provided by A. Spiers from the Horticulture and Food Research Institute, Palmerston North, New Zealand (Table 1). The following non-B. salicis phytobacteria were also included in our study: ICMP 12481T (Brenneria alni), LMG 2694T (Brenneria nigrifluens), LMG 2542T (Brenneria paradisiaca), LMG 2709T (Brenneria rubrifaciens), LMG 2724T (Brenneria quercina), LMG 10245T (Enterobacter nimipressuralis), LMG 2693T (Enterobacter cancerogenus), LMG 2683T (Enterobacter dissolvens), LMG 2715T (Pantoea stewartii subsp. stewartii), LMG 2632T (Pantoea stewartii subsp. indologenes), LMG 2665T (Pantoea ananatis), LMG 2565 (Pantoea agglomerans), LMG 2660 (P. agglomerans), LMG 2906T (Erwinia tracheiphila), LMG 7034 (Erwinia psidii), LMG 2708T (Erwinia mallotivora), LMG 2024T (Erwinia amylovora), LMG 11254T (Erwinia persicinus), LMG 2688T (Erwinia rhapontici), LMG 2404T (Pectobacterium carotovorum subsp. carotovorum), LMG 2386T Pectobacterium carotovorum subsp. atrosepticum), LMG 2466T (Pectobacterium carotovorum subsp. betavasculorum), ICMP 9121T (Pectobacterium carotovorum subsp. wasabiae), LMG 17566T (Pectobacterium carotovorum subsp. odoriferum), LMG 17936T (Pectobacterium cacticidum), LMG 2804T (Pectobacterium chrysanthemi), and LMG 2657T (Pectobacterium cypripedii).
TABLE 1.
B. salicis strains used in the PCR specificity test with primer pair Es1a-Es4b
| Strain(s) | Host | Origina | PCRb |
|---|---|---|---|
| LMG 2698T, LMG 2699, LMG 2700, LMG 2701, LMG 2702, LMG 2703, LMG 2704, LMG 2706, LMG 2855, LMG 2856, LMG 2857, LMG 2858, LMG 2860, LMG 2947, LMG 5119, LMG 5219 | Salix spp. | UK | + |
| LMG 5217 | − | ||
| LMG 5024, LMG 5025, LMG 5026, LMG 5027, LMG 5029, LMG 5138, LMG 5139, LMG 5218, LMG 5221, LMG 5223, LMG 5224, LMG 5225, LMG 5227 | Salix spp. | The Netherlands | + |
| LMG 5216 | − | ||
| LMG 5222 | Alnus sp. | + | |
| LMG 5226 | Crataegus sp. | + | |
| LMG 6381 | P. robusta | + | |
| LMG 6089, LMG 6090, LMG 6091, LMG 6092, LMG 6144, LMG 6145, LMG 6146, LMG 6147, LMG 6148, LMG 6149, LMG 6150, LMG 6151, LMG 6152, LMG 6153, LMG 6154, LMG 6155, LMG 6156, LMG 6157, LMG 6158, LMG 6159, LMG 6160, LMG 18273, LMG 18274, LMG 18275, LMG 18276, LMG 18277, LMG 18278, LMG 18279, LMG 18280, LMG 18281, LMG 18282, LMG 18283, LMG 18284, LMG 18285, LMG 18286, LMG 18287, LMG 18288, LMG 18289, LMG 18290 | Salix spp. | Belgium | + |
| ICMP 10153, ICMP 10154, ICMP 10155 | Salix spp. | NZ | + |
UK, United Kingdom; NZ, New Zealand.
+, production of the 553-bp amplification fragment from genomic DNA; −, no amplification product observed on agarose gel.
Bacteria were grown on GYCA plates (1% [wt/vol] glucose, 0.5% [wt/vol] yeast extract, 3% [wt/vol] CaCO3, and 2% [wt/vol] agar in distilled water).
Total bacterial DNA preparations.
Genomic DNAs were prepared according to the method of Pitcher et al. (24).
PCR amplifications.
PCR with primers Es1A (5′-GCGGCGGACGGGTGAGTAAA-3′) and Es4B (5′-CTAGCCTGTCAGTTTTGAATGCT-3′) was performed in a Genius thermal cycler (Techne, Cambridge, United Kingdom), using the following program: initial denaturation for 5 min at 95°C, followed by 35 cycles of 95°C for 25 s, 68°C for 25 s, and 72°C for 40 s, and a final extension at 72°C for 10 min. All reaction mixtures had a final volume of 20 μl and contained PCR buffer (1.5 mM MgCl2, 50 mM KCl, 10 mM Tris [pH 8.3]), 0.2 mM (each) deoxynucleoside triphosphate, 0.45 μM (each) primer, 0.8 U of Taq polymerase (Eurotaq; Eurogentec), and 5 μl of sample. The PCR products were analyzed by running the entire reaction mixture in a Tris-acetate agarose gel (2%), staining it with ethidium bromide, and visualizing it under UV light.
PCR efficiency in vascular fluid.
PCR efficiency in plant material was tested by using vascular fluid to which B. salicis cells had been added. We found that the production of the 553-bp band was inhibited by components of the vascular fluid. The following buffers and components, separate or combined, were used in an attempt to neutralize the PCR-inhibiting factors of the vascular fluid: SCP (0.01% disodium succinate, 0.01% trisodium citrate, 0.15% K2HPO4, 0.01% KH2PO4 [pH 7] [21]), SCPAP (SCP, 0.02 M sodium ascorbate, 5% polyvinylpolypyrrolidone [PVPP] [21]), extraction buffer 1 (0.01 M phosphate buffer [pH 7.2], 0.14 M NaCl, 0.1% Tween 20, 2.5% polyvinylpyrrolidone [PVP] [20]), extraction buffer 2 (extraction buffer 1 plus 2.5% PVPP [20]), bovine serum albumin, and proteinase K. None of them was able to neutralize the inhibiting factor(s). Performing a bacterial DNA extraction on the vascular fluid prior to PCR yielded the 553-bp band.
Bacterial DNA isolation from vascular fluid.
Vascular fluid from willows was obtained by squeezing a cutting wiped with ethanol in a bench vise and collecting the xylem fluid in a sterile tube. One hundred microliters of this fluid was subjected to the method of Pitcher et al. (24) for DNA preparation. The DNA obtained was dissolved in 5 μl of T0.1E buffer (10 mM Tris, 0.1 mM EDTA, pH 8).
PCR sensitivity tests.
To estimate the sensitivity of PCR detection in a pure B. salicis suspension, decimal B. salicis dilutions were prepared in phosphate-buffered saline. These dilutions were used for PCR and plated on GYCA medium to determine the B. salicis titer. For PCR, 1 ml of each dilution was centrifuged (10,000 × g, 10 min) and the bacterial pellet was resuspended in 1 ml of water. Five-microliter aliquots were then heated for 5 min at 95°C, cooled on ice, and tested in PCR.
To estimate the sensitivity of PCR detection in the vascular fluid of willows, serial dilutions of the vascular fluid of an infected willow were prepared in phosphate-buffered saline. One hundred microliters of these dilutions was used for DNA preparation followed by PCR, and 50 μl was plated on GYCA medium to determine the bacterial titer. The colony type of the bacteria growing on the GYCA plates was universal, and B. salicis purity was checked by subjecting several colonies, randomly picked, to a PCR with the primer pair Es1a-Es4b. For all tested colonies, the 553-bp fragment was amplified.
AFLP.
AFLP, a DNA-fingerprinting technique based on the selective amplification of genomic restriction fragments, was performed according to the method of Janssen et al. (13). The combination of EcoRI (Pharmacia, Uppsala, Sweden) and MseI (New England Biolabs) as restriction enzymes and the primer combination E01-M02 (E stands for EcoRI, and M stands for MseI; 0 stands for no selective base at the 3′ end, 1 stands for an adenine, and 2 stands for a cytosine) revealed AFLP patterns composed of some 30 to 60 clearly distinguishable bands on average. The resulting profiles were further processed with the GelCompar software package (Applied Maths bvba, Kortrijk, Belgium). Concurrent amplification of large numbers of fragments typically yielded bands with unequal intensities within a single pattern. This fact together with the large numbers of bands made it particularly difficult to assign discrete band positions to the patterns, and therefore, in order to avoid subjective interpretations of band positions, the Pearson product-moment correlation coefficient was applied to measure the similarity between normalized densitometric profiles.
RESULTS
Four species-specific nucleotide positions on the 16S rRNA genes of B. salicis strains were used for the development of four oligonucleotide primers. They could be combined in four different pairs to amplify four specific fragments of the 16S rDNA of B. salicis strains (9). One of these primer combinations ES1a-ES4b, resulted in a 553-bp PCR amplification product. This primer pair was used in the present study to detect B. salicis strains in the vascular fluid of willows.
PCR specificity.
To check the specificity of the Es1a-Es4b primer combination under the specified PCR conditions, 103 phytobacterial strains were used as targets, comprising 81 Brenneria, 6 Erwinia, 8 Pectobacterium, 5 Pantoea, and 3 Enterobacter strains. Among the bacteria from the genus Brenneria, 76 B. salicis strains were tested (Table 1). With the primers Es1a and Es4b, B. salicis strains with different geographical origins all produced a PCR band of the same length, except LMG 5216 and LMG 5217, which did not produce any PCR product at all. Phenotypic analyses by API 20E and API ZYM profiles (data not shown) and genotypic analysis by AFLP profiling (Fig. 1) revealed that LMG 5216 and LMG 5217 are not B. salicis strains. The described PCR differentiated all typical B. salicis bacteria from the other phytobacteria. None of the non-B. salicis phytobacteria produced a PCR product.

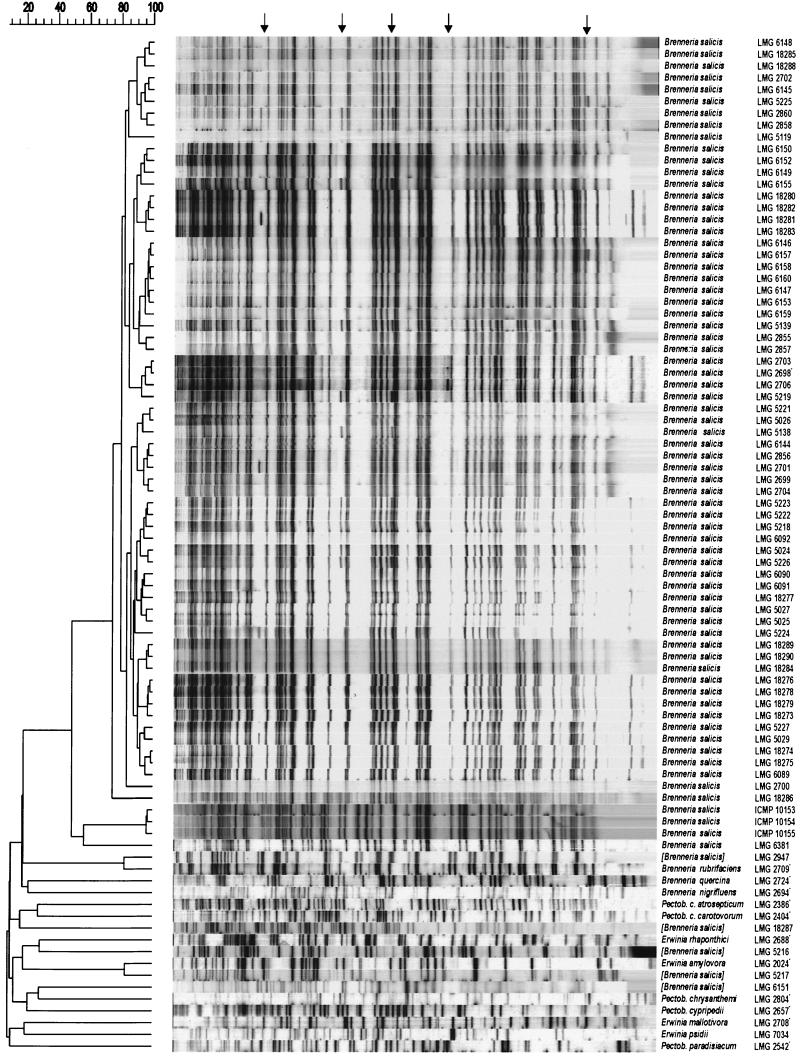

FIG. 1.
AFLP patterns of B. salicis strains and related Brenneria, Pectobacterium (Pectob.), and Erwinia strains. Aberrant bands within the B. salicis profiles are indicated with arrows. Pectob. c., Pectobacterium carotovorum subspecies. Braces around species names indicate a doubtful taxonomic position of the strain.
Detection sensitivity in pure culture.
We were able to observe the production of a 553-bp band on agarose gel with dilutions of a pure B. salicis culture containing 40 CFU ml−1. This sensitivity corresponded with an average detection limit of 0.2 CFU of B. salicis per PCR. It was possible to confirm that the PCR product was from amplification of the target DNA and not of any other fragment of the genome by sequencing the amplification product. The nucleotide sequence of the amplification product was identical to the nucleotide sequence of the corresponding part of the 16S rRNA gene of B. salicis.
AFLP genotyping of B. salicis and related Brenneria, Pectobacterium, and Erwinia strains.
Figure 1 shows normalized AFLP patterns for 86 strains sorted according to an unweighted pair group method with averages dendrogram based upon the product-moment correlations between entire densitometric profiles.
Apart from those of the three ICMP strains, LMG 6381, and five misnamed B. salicis strains (LMG 5216, LMG 5217, LMG 18287, LMG 6151, and LMG 2947), the genomic fingerprints of B. salicis strains are very much alike, showing ≥75% correlation. However, a few polymorphic bands within the main B. salicis core can be observed (Fig. 1). The AFLP patterns of the non-B. salicis strains (i.e., Pectobacterium, Brenneria, and Erwinia strains) cluster at an average correlation of less than 18% with the B. salicis strains.
PCR detection in vascular fluid of willows.
We selected three willow clones (89/036.73, 89/036.68, and 89/036.62) which had been artificially infected with B. salicis in October 1993 by stem incision and from which the bacterium B. salicis could be isolated from the vascular fluid by plating in 1997. These plants showed external symptoms of the watermark disease at the moment that vascular fluid was taken. With the described procedure, i.e., DNA extraction followed by PCR amplification, positive PCR products were detected in the vascular fluid from these willow clones (Fig. 2). In none of these plant tests was a nonspecific PCR signal produced by plant material or other plant-associated organisms. The vascular fluid of willow clone 89/036.62 was filtered through a sterile bacterial filter (0.22-μm pore size) in order to generate a negative control. This filtrate did not yield any PCR product after the molecular test (Fig. 3).

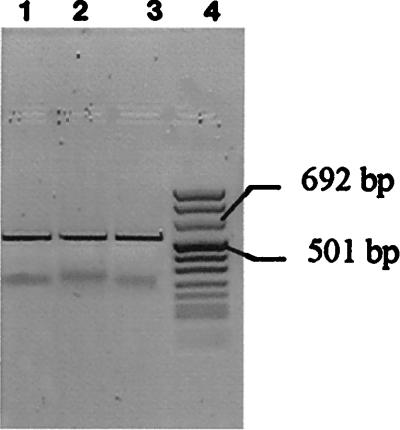

FIG. 2.
PCR product, formed with primers Es1a and Es4b, of vascular fluid of infected willow clones 89/036.73 (lane 1), 89/036.68 (lane 2), and 89/036.62 (lane 3). Lane 4, DNA molecular size marker VIII (Boehringer Mannheim).

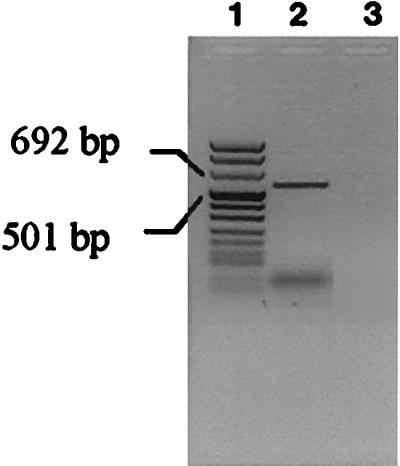

FIG. 3.
PCR product, formed with primers ES1a and ES4b, of vascular fluid of the infected willow clone 89/036.62 (lane 2) and a filtrate (filter pore size, 0.22 μm) of the same extract (lane 3). Lane 1, DNA molecular size marker VIII (Boehringer Mannheim).
Detection limit in vascular fluid of willows.
We were able to observe the production of a 553-bp band on agarose gel with dilutions of vascular fluid containing 20 CFU ml−1 (Fig. 4). This sensitivity corresponded to detection of an average of 0.1 B. salicis cells per PCR. The vascular fluid samples of the willows were not fresh but had been collected and kept frozen for a period of time; therefore, an unknown portion of the B. salicis population might have died, resulting in underestimated CFU values in the sensitivity test. Positive PCRs found in a few dilutions where no colonies were recovered may have resulted from DNA templates of dead B. salicis cells. Nevertheless, the detection limits of the proposed procedure for B. salicis in willows are lower than those found for other bacteria in similar studies (21, 22, 30).

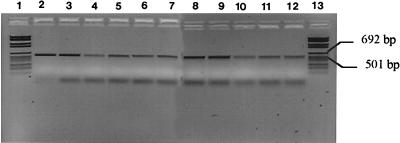

FIG. 4.
Sensitivity test of detection on gel of the PCR products obtained with the primer pair ES1a-ES4b and with diluted vascular fluid of willows containing approximately 105, 104, 2.8 × 103, 3.8 × 102, 80, 20, 2, and <1 CFU of B. salicis ml−1 (lanes 2 through 12, respectively). Lanes 1 and 13, DNA molecular size marker VIII (Boehringer Mannheim).
Field study.
In addition to the three clones tested earlier, the vascular fluid of 31 artificially infected and 13 nonartificially infected willow clones and three poplar clones were tested with the proposed molecular detection method (Tables 2 and 3). All artificially infected willow clones were found to contain B. salicis bacteria in their vascular fluid. Of the nonartificially infected clones, two were found to contain B. salicis, although they did not show any external or internal symptoms of the watermark disease. One of the three poplar clones was also found to contain B. salicis cells in its vascular fluid.
TABLE 2.
Willow clone cuttings tested for the presence of B. salicis bacteria in their vascular fluida
| Clone no. (species) | Symptoms of watermark disease
|
|
|---|---|---|
| External | Internal | |
| 89.036/52, 89.036/53, 89.036/54, 89.036/55, 89.036/57, 89.036/58, 89.036/59, 89.036/60, 89.036/63, 89.036/66, 89.036/67, 89.036/71, 89.036/72, 89.036/74 (half-sibling S. alba) | No | NDb |
| 89.036/56, 89.036/62, 89.036/64, 89.036/68, 89.036/69, 89.036/73 (half-sibling S. alba) | Yes | ND |
| 89.001/47, 89.001/58, 89.001/79 (S. alba × S. alba) | No | ND |
| 89.001/43, 89.002/24 (S. alba × S. alba) | No | Yes |
| 89.018/6, 89.018/13, 89.018/17, 89.018/18 (S. rubens × S. alba) | No | ND |
| 89.018/20, 89.018/27, 89.018/4, 89.018/20 (S. rubens × S. alba) | No | Yes |
| 89.018/2 (S. rubens × S. alba) | Yes | Yes |
The cuttings were planted in 1992 and artificially infected with B. salicis in 1993. Vascular fluid was taken in September 1997. All clones revealed the 553-bp band after PCR amplification with the primer pair Es1a-Es4b.
ND, not determined.
TABLE 3.
Willow and poplar clone cuttings tested for the presence of B. salicis bacteria in their vascular fluida
| Clone no. (species) | Age (yr)b | 553-bp bandc |
|---|---|---|
| 95021/4 (S. longifolia) | 2 | − |
| 95022/5 (S. triandra) | 2 | − |
| S.96001 (S. fragilis × S. alba) | 2 | − |
| 880309, 77683, 78118 | 3 | − |
| 82.237 (S. alba hybrid) | 4 | + |
| 82.240 (S. alba hybrid) | 4 | − |
| 82.276 (S. fragilis) | 5 | + |
| 82.284 (S. fragilis hybrid) | 5 | − |
| 82.320 (S. alba × S. fragilis) | 5 | − |
| 82.242 (S. alba) | 5 | − |
| 81.003 (not determined) | 5 | − |
| (P. nigra) | ? | + |
| 71051/19 (P. nigra × P. nigra) | ? | − |
| F22 (P. nigra) | ? | − |
The cuttings were not artificially infected with B. salicis. The plants did not show any internal or external symptoms of the watermark disease.
?, unknown.
Presence (+) or absence (−) of 553-bp band after PCR amplification with primer pair ES1a-ES4b.
DISCUSSION
Separately, the nucleotide sequences of the primers Es1a and Es4b showed similarities up to 100% with known sequences in EMBL and GenBank data banks. However, the nucleotide sequences of the combined primers did not match with any sequence in the data banks other than that of B. salicis, indicating that this primer pair is specific for this species. In most bacteria, the rDNA operon is present in several copies per genome (28), implying a relatively high and constant sensitivity of the rDNA PCR (18, 27). The expected 553-bp fragment was amplified only from B. salicis strains. No DNA fragments were amplified from the 27 related phytobacterial strains (Table 1).
AFLP genotyping of B. salicis strains revealed that the bacterial genomes of this pathogen in Northwest Europe are very similar. The very similar AFLP patterns of the B. salicis strains investigated indicate that the spread of the watermark disease in Belgium, the United Kingdom, and The Netherlands is most probably due to the import and export of infected cuttings. The banding pattern of one European strain, LMG 6381, is slightly aberrant, which is probably related to its origin, as this strain was not isolated from Salix spp. but from Populus robusta. The three New Zealand isolates included in our study were identified as B. salicis by PCR analysis with the primer pair Es1a-Es4b. Their AFLP pattern, however, differed from those of the European isolates, suggesting that these strains were not imported from Europe as was initially thought. Of the 71 European strains, 66 had very similar AFLP patterns, with the exception of five possible polymorphic bands (Fig. 1). Five of the 15 isolates from the United Kingdom, 10 of the 16 Dutch isolates, and 4 of the 35 Belgian isolates showed at least one of these polymorphic bands; the geographical origins of the strains could not be correlated with one or more of the polymorphic bands. In an attempt to correlate AFLP fingerprints with the virulence of B. salicis, we were unable to correlate the nonconforming bands with the outcomes of hypersensitivity tests performed on tobacco leaves (data not shown). This lack of correlation can be explained by the difference in composition of tobacco leaves compared to the xylem vessels of a willow. Infection trials on willows are more suitable for testing virulence, but they are more time consuming, as it can take 5 to 10 years before disease symptoms are detectable. Such infection tests are currently being carried out, but results are not yet available.
PCR efficiency in vascular fluid could only be obtained after a DNA extraction. This is probably due to compounds present in the vascular fluid that inhibit the PCR. Similar problems have been encountered in other plant-associated PCR studies (4, 15, 21, 31). The inhibition might be due to tannins, humic acids, polysaccharides, or phenolic compounds, which are suspected to affect enzymatic activities and to bind to RNA and DNA upon cell lysis (14, 29). Several procedures have been proposed to overcome these problems. The use of PVP and PVPP improved the PCR results in other studies (14, 20, 23, 32). Other buffers proved to be useful as well (16, 21). More recently, a combined biological and enzymatic amplification (BIO-PCR [26]), magnetic capture-hybridization–PCR (12), and immunocapture-PCR (19) were developed to circumvent inhibiting compounds. After having tested several buffers, we found that a very sensitive PCR detection could be achieved after a DNA extraction, a procedure that has also been successful in other PCR detection methods for plant pathogens (4, 18, 25).
Five strains showed a completely different AFLP band pattern and could be excluded from the species B. salicis: LMG 2947, LMG 6151, LMG 18287, LMG 5217, and LMG 5216 (Fig. 1). We mentioned before that the last two strains reacted negatively in our PCR test for B. salicis. The AFLP pattern of LMG 5217 correlated very well (82.6%) with that of the type strain of E. amylovora. Strain LMG 2947 correlated at about the same level (82.2%) with the type strain of B. rubrifaciens. Strains LMG 5217 and LMG 2947 can therefore probably be identified as E. amylovora and B. rubrifaciens, respectively. Among the other three strains that are aberrant in AFLP, strain LMG 6151 showed API 20E and API ZYM profiles different from those of the majority of the B. salicis strains (data not shown). Although our results indicate that these three strains do not belong to B. salicis either, the available data do not allow us to determine their exact species identities.
When applied to the vascular fluid of 34 willow clones, which had all been artificially infected with B. salicis a few years ago (Table 2), our detection method revealed the presence of B. salicis cells in all 34 samples. However, only 13 of the 34 clones showed external and/or internal symptoms of the watermark disease at the time of sampling. Thirteen nonartificially infected willow clones were tested as well. Two (82.237 and 82.276) of these clones were found to be positive for the presence of B. salicis (Table 3), which indicates a natural infection before or after planting. Clones 82.237 and 82.276, therefore, should not be used for multiplication. B. salicis was also found in the vascular fluid of one of three poplars that were planted near infected willows. The infected poplar did not show any symptoms of disease. As Populus spp. also belong to the family Salicaceae, this bacterium might well occur in the vascular fluid of poplars without exhibiting any form of pathogenicity.
The PCR assay described here allows the detection of the watermark disease pathogen in the vascular fluid of willows in an early stage and opens new perspectives for breeding and epidemiology.
ACKNOWLEDGMENTS
This work was supported by the Flemish Government under the authority of the Department Bos en Groen (B&G/3/1995).
We thank S. Van Eygen and S. Neyrinck for excellent technical assistance.
REFERENCES
- 1.Adegeye A O, Preece T F. Brenneria salicis in cricket bat willows: rate of movement of the bacterium and the production of symptoms in young trees and shoots. J Appl Bacteriol. 1978;44:265–277. [Google Scholar]
- 2.Audy P, Laroche A, Saindon G, Huang H C, Gilbertson R L. Detection of the bean common blight bacteria, Xanthomonas campestris pv. phaseoli and X. c. phaseoli var. fuscans, using the polymerase chain reaction. Phytopathology. 1994;84:1185–1192. [Google Scholar]
- 3.Brosius J, Dull T J, Sleeter D D, Noller H F. Gene organization and primary structure of a ribosomal RNA operon from Escherichia coli. J Mol Biol. 1981;148:107–127. doi: 10.1016/0022-2836(81)90508-8. [DOI] [PubMed] [Google Scholar]
- 4.Brown A E, Muthumeenakshi S, Sreenivasaprasad S, Mills P R, Swinburne T R. A PCR primer specific to Cylindrocarpon heteronema for detection of the pathogen in apple wood. FEMS Microbiol Lett. 1993;108:117–120. doi: 10.1111/j.1574-6968.1993.tb06083.x. [DOI] [PubMed] [Google Scholar]
- 5.De Kam M. Detection of soluble antigens of Brenneria salicis in leaves of Salix alba by enzyme linked immunosorbent assay. Eur J For Pathol. 1982;12:1–6. [Google Scholar]
- 6.De Kam M. Watermark disease of willow. Wageningen, The Netherlands: De Dorschkamp, Institute for Forestry and Urban Ecology; 1989. [Google Scholar]
- 7.Hartung J S, Daniel J F, Pruvost O P. Detection of Xanthomonas campestris pv. citri by the polymerase chain reaction method. Appl Environ Microbiol. 1993;59:1143–1148. doi: 10.1128/aem.59.4.1143-1148.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 8.Hartung J S, Pruvost O P, Villemot I, Alvarez A. Rapid and sensitive colorimetric detection of Xanthomonas axonopodis pv. citri by immunocapture and a nested-polymerase chain reaction assay. Phytopathology. 1996;86:95–101. [Google Scholar]
- 9.Hauben L, Steenackers M, Wynant I, Swings J. Annals of the 5th International Conference on Plant Diseases 1997. Paris, France: Association Nationale de Protection des Plantes; 1997. Molecular identification and detection methods for Brenneria salicis; pp. 621–628. [Google Scholar]
- 10.Hauben, L., E. R. B. Moore, L. Vauterin, M. Steenackers, J. Mergaert, L. Verdonck, and J. Swings. Phylogenetic position of phytopathogens within the Enterobacteriaceae. Syst. Appl. Microbiol., in press. [DOI] [PubMed]
- 11.Henson J M, French R. The polymerase chain reaction and plant disease diagnosis. Annu Rev Phytopathol. 1993;31:81–109. doi: 10.1146/annurev.py.31.090193.000501. [DOI] [PubMed] [Google Scholar]
- 12.Jacobsen C S. Microscale detection of specific bacterial DNA in soil with a magnetic capture-hybridization and PCR amplification assay. Appl Environ Microbiol. 1995;61:3347–3352. doi: 10.1128/aem.61.9.3347-3352.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 13.Janssen P, Coopman R, Huys G, Swings J, Bleeker M, Vos P, Zabeau M, Kersters K. Evaluation of the DNA fingerprinting method AFLP as a new tool in bacterial taxonomy. Microbiology. 1996;142:1881–1893. doi: 10.1099/13500872-142-7-1881. [DOI] [PubMed] [Google Scholar]
- 14.John M E. An efficient method for isolation of RNA and DNA from plants containing polyphenolics. Nucleic Acids Res. 1992;20:2381. doi: 10.1093/nar/20.9.2381. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 15.Katterman F R H, Shattuck V I. An effective method for DNA isolation from the mature leaves of Gossypium species that contain large amounts of phenolic terpenoids and tannins. Prep Biochem. 1983;13:347–359. doi: 10.1080/00327488308068177. [DOI] [PubMed] [Google Scholar]
- 16.Kreader C A. Relief of amplification inhibition in PCR with bovine serum albumin or T4 gene 32 protein. Appl Environ Microbiol. 1996;62:1102–1106. doi: 10.1128/aem.62.3.1102-1106.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 17.Leite R P, Jr, Minsavage G V, Bonas U, Stall R E. Detection and identification of phytopathogenic Xanthomonas strains by amplification of DNA sequences related to the hrp genes of Xanthomonas campestris pv. vesicatoria. Appl Environ Microbiol. 1994;60:1068–1077. doi: 10.1128/aem.60.4.1068-1077.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 18.Li X, De Boer S H. Selection of polymerase chain reaction primers from an RNA intergenic spacer region for specific detection of Clavibacter michiganensis ssp. sepedonicus. Phytopathology. 1995;85:837–842. [Google Scholar]
- 19.Lopes S A, Damann K E. Immunocapture and PCR detection of Xanthomonas albilineans from vascular sap of sugarcane leaves. Summa Phytopathol. 1996;22:244–247. [Google Scholar]
- 20.Maes M, Garbeva P, Crepel C. Identification and sensitive endophytic detection of the fire blight pathogen Erwinia amylovora with 23S ribosomal DNA sequences and the polymerase chain reaction. Plant Pathol. 1996;45:1139–1149. [Google Scholar]
- 21.Minsavage G V, Thompson C M, Hopkins D L, Leite R M V B C, Stall R E. Development of a polymerase chain reaction protocol for detection of Xylella fastidiosa in plant tissue. Phytopathology. 1994;84:456–461. [Google Scholar]
- 22.Pan Y-B, Grisham M P, Burner D M. A polymerase chain reaction protocol for the detection of Xanthomonas albilineans, the causal agent of sugarcane leaf scald disease. Plant Dis. 1997;81:189–194. doi: 10.1094/PDIS.1997.81.2.189. [DOI] [PubMed] [Google Scholar]
- 23.Picard C, Ponsonnet C, Paget E, Nesme X, Simonet P. Detection and enumeration of bacteria in soil by direct DNA extraction and polymerase chain reaction. Appl Environ Microbiol. 1992;58:2717–2722. doi: 10.1128/aem.58.9.2717-2722.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24.Pitcher D G, Saunders N A, Owen R J. Rapid extraction of bacterial genomic DNA with guanidium thiocyanate. Lett Appl Microbiol. 1989;8:151–156. [Google Scholar]
- 25.Roberts P D, Jones J B, Chandler C K, Stall R E, Berger R D. Survival of Xanthomonas fragariae on strawberry in summer nurseries in Florida detected by specific primers and nested polymerase chain reaction. Plant Dis. 1996;80:1283–1288. [Google Scholar]
- 26.Schaad N W, Cheong S S, Tamaki S, Hatziloukas E, Panopoulos N J. A combined biological and enzymatic amplification (BIO-PCR) technique to detect Pseudomonas syringae pv. phaseolicola in bean seed extracts. Phytopathology. 1995;85:243–248. [Google Scholar]
- 27.Seal S E, Jackson L A, Young J P W, Daniels M J. Differentiation of Pseudomonas solanacearum, Pseudomonas syzygii, Pseudomonas pickettii and the blood disease bacterium by partial 16S rDNA sequencing: construction of oligonucleotide primers for sensitive detection by polymerase chain reaction. J Gen Microbiol. 1993;139:1587–1594. doi: 10.1099/00221287-139-7-1587. [DOI] [PubMed] [Google Scholar]
- 28.Srivastava A K, Schlessinger D. Mechanism and regulation of bacterial ribosomal RNA processing. Annu Rev Microbiol. 1990;44:105–129. doi: 10.1146/annurev.mi.44.100190.000541. [DOI] [PubMed] [Google Scholar]
- 29.Steffan R J, Atlas R M. DNA amplification to enhance detection of genetically engineered bacteria in environmental samples. Appl Environ Microbiol. 1988;54:2185–2191. doi: 10.1128/aem.54.9.2185-2191.1988. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 30.Verdier V, Mosquerea G, Assigbétsé K. Detection of the cassava bacterial blight pathogen, Xanthomonas axonopodis pv. manihotis, by polymerase chain reaction. Plant Dis. 1998;82:79–83. doi: 10.1094/PDIS.1998.82.1.79. [DOI] [PubMed] [Google Scholar]
- 31.Watson R J, Haitas-Crockett C, Martin T, Heys R D. Detection of Rhizobium meliloti cells in field soil and nodules by polymerase chain reaction. Can J Microbiol. 1995;41:816–825. doi: 10.1139/m95-112. [DOI] [PubMed] [Google Scholar]
- 32.Young C C, Burghoff R L, Keim L G, Minak-Bernero V, Lute J R, Hinton S M. Polyvinylpyrrolidone-agarose gel electrophoresis purification of polymerase chain reaction-amplifiable DNA from soils. Appl Environ Microbiol. 1993;59:1972–1974. doi: 10.1128/aem.59.6.1972-1974.1993. [DOI] [PMC free article] [PubMed] [Google Scholar]
