. 1998 Feb;180(3):594–599. doi: 10.1128/jb.180.3.594-599.1998

Identification of Campylobacter jejuni Promoter Sequences

Marc M S M Wösten 1, Miranda Boeve 1, Mirjam G A Koot 1, Ad C van Nuenen 1, Bernard A M van der Zeijst 1,*
PMCID: PMC106926  PMID: 9457862

Abstract

A promoterless lacZ shuttle vector, which allowed screening of promoters by β-galactosidase activity in Campylobacter jejuni and Escherichia coli, was developed. Chromosomal DNA fragments from C. jejuni were cloned into this vector; 125 of 1,824 clones displayed promoter activity in C. jejuni. Eleven clones with strong promoter activity in C. jejuni were further characterized. Their nucleotide sequences were determined, and the transcriptional start sites of the putative promoters in C. jejuni were determined by primer extension. Only 6 of these 11 promoters were functional in E. coli. The 11 newly characterized and 10 previously characterized C. jejuni promoters were used to establish a consensus sequence for C. jejuni promoters. The 21 promoters were found to be very similar. They contain three conserved regions, located approximately 10, 16, and 35 bp upstream of the transcriptional start point. The −10 region resembles that of a typical ς70 E. coli promoter, but the −35 region is completely different. In addition a −16 region typical for gram-positive bacteria was identified.


The initiation of transcription of eubacterial genes is catalyzed by RNA polymerase and requires specific proteins, known as ς factors. The main ς factor used for transcription of housekeeping genes is ς70 (17), also known as ςA or ς43 in gram-positive bacteria such as Bacillus subtilis. The ς70 factor is essential for the viability of all known eubacteria (12). In Escherichia coli and B. subtilis, the ς70 promoter is characterized by two nucleotide sequences, TTGACA and TATAAT, respectively, centered at positions −35 and −10 relative to the transcription start site (+1). In more than 90% of the E. coli promoters these −35 and −10 hexamers are separated by 17 ± 1 nucleotides.

Promoters in gram-positive bacteria have other conserved regions in addition to the −35 and −10 hexamers. These include an A-rich region positioned at −43 and a region at −16 with the consensus sequence 5′-TnTG-3′ (9, 16). At least part of the −16 region is also weakly conserved in E. coli ς70 promoters (1, 38). In general, the strength of a promoter is determined by how close its sequence resembles the consensus sequence and by the spacing between the −10 and −35 motifs (6).

Campylobacter jejuni is a major cause of bacterial diarrhea worldwide; however, compared to other enteric pathogens only a few genes have been cloned, and little is known about gene regulation in this bacterium (19). It is generally accepted that genes from C. jejuni are often difficult to clone or analyze in E. coli because of their high A+T content (70%). This may result in expression from normally nonfunctional promoter-like sequences and lack of specific expression due to the absence of required accessory factors (19). Compared to the ς70 promoter consensus sequences of E. coli or B. subtilis, the few housekeeping genes from C. jejuni that have been cloned, including the ones from which the transcriptional start sites have been mapped, show a typical −10 region but no −35 region or one that is very weakly conserved. With the exception of the C. jejuni glyA promoter, none of these putative promoters have proven promoter activity in C. jejuni or in E. coli (3). On the other hand, typical E. coli promoters like the lacZ or ampC promoters are not transcribed in C. jejuni (37). These anecdotal observations raise the question of whether an unusual promoter structure might occur frequently in the C. jejuni chromosome.

To determine promoter sequences active in C. jejuni, a direct approach in which genomic DNA fragments of C. jejuni were cloned in a shuttle promoter vector was followed. Fragments with promoter activity in C. jejuni were identified by their ability to cause expression of a promoterless lacZ gene. The nucleotide sequences of promoter-containing genomic fragments and the transcriptional start points of the transcribed mRNAs were determined. A consensus promoter sequence was deduced from the sequences of the various active promoters.

MATERIALS AND METHODS

Bacterial strains, plasmids, media, and growth conditions.

C. jejuni 129108 (7) was originally isolated from a patient with recurrent C. jejuni infections and was obtained from H. P. M. Endtz, University Hospital Rotterdam-Dijkzigt, Rotterdam, The Netherlands. C. jejuni was routinely cultured at 42°C on Skirrow agar medium (34) under microaerophilic conditions (5% O2, 10% CO2, and 85% N2). E. coli DH5α was used as the host for all plasmid constructions and transformations (31). Plasmids pILL550 (23), pBR322 (36), and pCB267 (33) were used for the construction of a promoter probe vector. E. coli strains were cultured in Luria broth (LB) or on LB agar. Antibiotics ampicillin (100 μg/ml) and kanamycin (30 μg/ml) were added when required.

Construction of a shuttle promoter probe vector.

E. coli promoter probe vector pCB267 contains a promoterless lacZ gene. The DNA containing this gene was removed with restriction endonucleases BamHI and PvuII and was ligated into plasmid pBR322 digested with BamHI and XmnI. The resulting plasmid, pMW9, was digested with PstI to give a 5.1-kb fragment containing the lacZ gene and the origin of replication for E. coli. Finally, this fragment was ligated to a 5.1-kb PstI fragment of plasmid pILL550 carrying the origin of replication for C. jejuni and a kanamycin resistance gene.

Construction of a C. jejuni promoter library.

Chromosomal DNA of C. jejuni 129108, prepared as described previously (39), was digested with Sau3AI. After 3 h of digestion the endonuclease was heat inactivated. To remove the smallest chromosomal DNA fragments, the digestion mixture was precipitated with isopropanol. Plasmid pMW10 isolated from C. jejuni 129108 with the Qiagen plasmid kit (Qiagen Inc., Chatsworth, Calif.) was digested with BglII and dephosphorylated with alkaline phosphatase (Pharmacia, Uppsala, Sweden). After phenol-chloroform extraction and ethanol precipitation, 2 μg of digested pMW10 was ligated with 3 μg of the remaining chromosomal fragments with 10 U of T4 ligase at 16°C for 16 h. The promoter library was obtained after electroporation of the ligation mixture into C. jejuni 129108. Electroporation was performed with a Bio-Rad Gene Pulser (Biotechnologies and Experimental Research Inc., San Diego, Calif.) set at 12.5 kV/cm, 25 μF, and 600 Ω. Bacteria were suspended in 200 μl of heart infusion broth (Difco) and plated onto heart infusion broth agar plates. After 3 h of regeneration at 37°C, they were harvested and plated onto Campylobacter-selective Skirrow agar plates supplemented with kanamycin.

Screening for promoter elements.

C. jejuni transformants were picked and grown in 96-well plates filled with 100 μl of 0.4% thioglycolate agar. After growth of the bacteria for 16 h at 42°C the β-galactosidase activity was demonstrated by adding 50 μl of 0.1% 5-bromo-4-chloro-3-indolyl-β-galactose (X-Gal) in phosphate-buffered saline (PBS).

DNA sequencing and analysis.

Plasmid DNA of C. jejuni was purified by the alkaline lysis method (31), with the modification that C. jejuni transformants were harvested from Skirrow agar plates after 16 h of growth with 1 ml of PBS containing 100 mM EDTA. Plasmids isolated from C. jejuni were electroporated into E. coli DH5α. Plasmids from E. coli were isolated with the Qiagen plasmid kit. The number of bacteria in each E. coli or C. jejuni culture and the amounts of plasmids isolated from these cultures were calculated by measuring the absorbance at 600 or 260 nm, respectively. The sequences of the cloned DNA were determined by the dideoxy chain termination method (32), with an Autoread sequencing kit using T7 DNA polymerase (Pharmacia). Either a Cy5-labelled universal primer (UP) or a kanamycin primer (Km) was used (Table 1) in an automated laser fluorescent DNA sequencer (Pharmacia). PC/Gene, version 6.70 (22), was used to analyze nucleotide and amino acid sequences. The program Multalin, version 4.0 (5), was used to align promoter sequences. The symbol comparison table, identity, and gap weights were set on 1.

TABLE 1.

Oligonucleotide primers used for sequencing and the primer extension experiment

Primer Sequence Positiona
UP 5′-CGACGTTGTAAAACGACGGCCAGT-3′
Km 5′-TATCACCTCAAATGGTTCGCTGGG-3′
1B7 5′-TCTTTTGAACTTCATTAAGC-3′ 52
1G9 5′-TCCATGAGTTTTGCTATGCT-3′ 54
4C7 5′-CTCCCACCTTTAACTTCGAAAAAAAC-3′ 38
4C11 5′-ATAAGTCGCAAGAGCTGGCG-3′ 64
5G10 5′-AGCGAGTAAGCATGATAAAGACTAC-3′ 35
12G7 5′-GCAAATACCCTGTTGGGCTTGGAGC-3′ 36
23E5 5′-TTCTGAAGTGAATAGATACATAA-3′ 22
a

Position of the transcription start point with respect to the 5′ end of the oligonucleotide used for the primer extension of the cognate promoter clone.

RNA isolation and primer extension reaction.

From each C. jejuni transformant total RNA was isolated from bacteria which had been grown for 16 h on thioglycolate plates. RNA isolation and cDNA synthesis were performed as described previously (40), with the exception that 50 U of reverse transcriptase were used. The primer used to map the 5′ ends of the mRNA was the UP or one of the internal primers 1B7, 1G9, 4C7, 4C11, 5G10, 12G7, and 23E5, which are complementary to the coding strand (Table 1). The cDNA product was analyzed by electrophoresis on a 6% polyacrylamide gel containing 8 M urea, and its sequence was compared to sequence ladders obtained with the same oligonucleotide primer used for the primer extension. The sequence reactions were performed according to the dideoxy chain termination method (32).

β-galactosidase assay.

β-galactosidase activity in C. jejuni and E. coli was measured by the conversion of o-nitrophenyl-β-d-galactopyranoside in nitrophenol as described by Miller (25), with the modification that C. jejuni transformants were grown for 16 h on thioglycolate plates before they were harvested with medium A (31) and diluted until the absorbancy at 600 nm was 0.4. Assays of β-galactosidase activity were carried out in triplicate.

Nucleotide sequence accession numbers.

The complete nucleotide sequence of pMW10 has been submitted to the EMBL nucleotide sequence database under accession no. AJ001494. The nucleotide sequences of the cloned C. jejuni promoter regions are available from the EMBL database under the accession numbers listed in Table 2.

TABLE 2.

C. jejuni promoter fragments cloned in pMW10

Transformant Insert sizea (bp) Accession no. β-Galactosidase activity (Miller units) ± SD in:
Primer used for cDNA synthesis Distance of RNA start site to 3′-end inserta (bp) Homologyc
C. jejuni E. coli
1B7 684 AJ002416 80 ± 14 2 ± 2 1B7 162 yabC
1G9 1,000b AJ002417 260 ± 41 2 ± 3 1G9 251
2A12 1,400b AJ002421 143 ± 9 4 ± 2 UP 53
3D8 445 AJ002419 103 ± 10 1,985 ± 263 UP 17
4C7 666 U38524 169 ± 17 9 ± 3 4C7 369
4C11 574 AJ002418 70 ± 9 363 ± 52 4C11 251 icd
5G10 489 Z36940 210 ± 35 3 ± 3 5G10 156 orf11
11B4 800b AJ002422 116 ± 32 781 ± 55 UP 126
12G7 432 AJ002027 260 ± 24 46 ± 11 12G7 256 glu-tRNA
14B7 446 AJ002420 59 ± 10 3,545 ± 731 UP 70
23E5 900b AJ002415 252 ± 27 427 ± 67 23E5 367 metK
pMW10 AJ001494 4 ± 1 3 ± 1
a

The precise lengths were determined by sequencing.

b

The fragment size was estimated by digesting the promoter clones with EcoRI and examining the digest after electrophoresis in a 1% agarose gel.

c

Gene whose product is homologous to the product of the ORF of the corresponding transformant.

RESULTS

Construction of a shuttle promoter probe vector.

Shuttle promoter probe vector pMW10, designed and constructed for this study (Fig. 1), replicates in both C. jejuni and E. coli. It contains a promoterless lacZ gene 30 bp downstream of a small multiple cloning site. Translational stop codons between the multiple cloning site and the lacZ gene are present in all three reading frames. The lacZ gene is also preceded by a ribosome binding site (RBS) sequence. Endogenous expression of the promoterless lacZ gene on pMW10 was not detectable in C. jejuni or E. coli. The β-galactosidase encoded by lacZ can be estimated colorimetrically in liquid cultures or in situ in colonies of C. jejuni and E. coli. The C. jejuni origin of replication (ORI) of pMW10 was sequenced. Genes mob and repB appear to be essential for replication in C. jejuni (23). The sequence of the ORI is similar to the sequences found in two cryptic Campylobacter coli plasmids registered under accession no. X82079 and X82080 (34a).

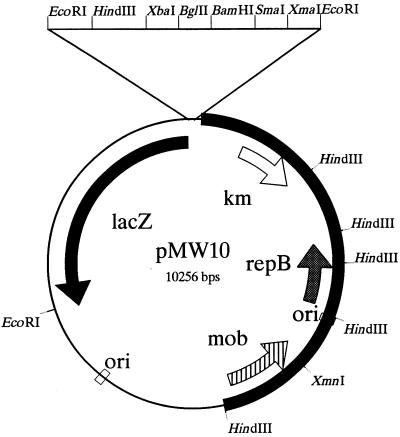

FIG. 1.

FIG. 1

Map of promoter shuttle vector pMW10. This plasmid contains a Campylobacter-derived kanamycin resistance gene (km), the genes mob and repB, which are necessary for replication in C. jejuni, and the ORI (ori) for E. coli. A small polylinker region is situated in front of the promoterless E. coli lacZ gene. Restriction sites and the direction of transcription of the genes are indicated. Campylobacter sequences are represented by the thick-lined part of the circle.

Construction and screening of a promoter library.

C. jejuni 129108 (7) was chosen as the host for the promoter library. It is a human isolate that can be transformed by electroporation with plasmids isolated from E. coli. Electroporation of C. jejuni 129108 with pMW10 isolated from E. coli was, however, less efficient (600 colonies/μg) than electroporation with the same plasmid isolated from C. jejuni 129108 (5 × 104 colonies/μg). Digestion of C. jejuni 129108 chromosomal DNA with Sau3A resulted in DNA fragments with an average length of 500 bp. These fragments were ligated into pMW10, and the ligation mixture was introduced into C. jejuni by electroporation, resulting in 14,000 kanamycin-resistant transformants. We picked 1,824 colonies and screened them for β-galactosidase. Direct screening on medium containing X-Gal inhibited the growth of transformants. Therefore the X-Gal was added after 16 h of growth. To prevent contamination between colonies by swarming, this had to be done in 96-well plates. Among the 1,824 transformants 125 showed varying degrees of blue color, which indicates that they contain a DNA fragment with promoter activity in front of the lacZ gene.

Sequence analysis of promoter elements.

The plasmids of 11 C. jejuni transformants containing relatively strong promoters (dark blue colonies) were isolated and transferred by electroporation into E. coli. The amounts of the different plasmids isolated from C. jejuni transformants or E. coli transformants, starting with approximately 1010 bacteria, were each 5 ± 2 μg. This indicates that the cloned DNA fragments in pMW10 did not alter the copy number of pMW10 in these organisms. The sequences of the inserts in these plasmids were determined. Each clone contained a different chromosomal DNA fragment with an open reading frame (ORF) preceded by a typical RBS (Table 2, Fig. 2). In five cases, homology of the translated products of these ORFs with protein sequences in the databases was found (Table 2). Clone 1B7 contains an insert for which the encoded protein showed homology with the hypothetical protein YabC of Mycoplasma pneumoniae. The translated product of clone 4C11 showed homology with the isocitrate dehydrogenase of other bacteria. Plasmid 5G10 contains an insert homologous to C. jejuni ORF L1, which has already been sequenced by Hani and Chan (14). The function of L1 is unknown. Strong homology with glu-tRNA genes of numerous other bacteria was found for the insert of plasmid 12G7. Plasmid 23E5 contains a part of the gene coding for S-adenosylmethionine synthetase.

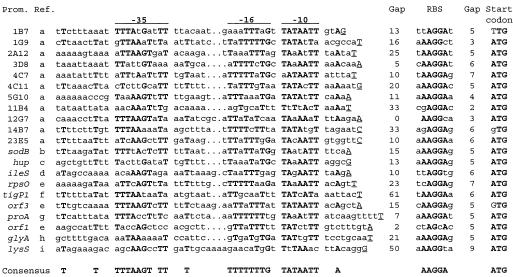

FIG. 2.

FIG. 2

Alignment of 21 experimentally determined C. jejuni promoter sequences. The underlined nucleotide downstream of the −10 region for each sequence is the experimentally determined transcriptional start site. The consensus sequence derived from this alignment is given at the bottom. It consists of nucleotides that are present in any given position in more than 51% of the sequences. Dots indicate gaps introduced to maximize the alignment. The distances between each RBS and the associated transcriptional start site and between the transcriptional start site and the start codon of the downstream-situated gene are indicated (Gap). The origins of the promoter sequences are indicated in the “Ref.” column. “a” stands for this study; the other letters and associated reference numbers are as follows: b, 30; c, 21; d, 18; e, 26; f, 10; g, 24; h, 3; i, 4. Promoter sequence nucleotides that match those of the consensus sequence are capitalized and in boldface; those that do not are lowercase and in lightface.

Determination of relative promoter strength.

To determine the strengths of the 11 promoters described above, the β-galactosidase activity resulting from the fragments containing these promoters was measured both in C. jejuni and E. coli (Table 2). C. jejuni and E. coli strains harboring plasmid pMW10, which does not produce significant β-galactosidase activity, were used as negative controls. The β-galactosidase activities of the 11 C. jejuni promoters varied more in E. coli than in C. jejuni. Only 6 of the 11 C. jejuni promoters showed detectable β-galactosidase activity in E. coli. Reintroduction of the other five plasmids in C. jejuni resulted in dark blue colonies, indicating that they had not mutated.

Identification of transcriptional start sites.

To localize the 5′ ends of the mRNAs of the 11 promoters, primer extension experiments were performed. cDNA was synthesized from total RNA isolated from the 11 C. jejuni transformants indicated in Table 2, with the M13 UP (Table 1). In four cases this resulted in a cDNA product of which the start could be determined with single-base-pair accuracy. For the other 7 transformants internal primers (Table 1) which are located approximately 25 bp downstream of the putative start codons were used. For each promoter clone, we obtained a single dominant cDNA product. The RNA 5′ ends identified in this way are underlined in Fig. 2. The average distance between the transcription start site and the putative initiation codon is 30 nucleotides.

Search for a ς70-like promoter consensus sequence.

The 11 promoter regions characterized in this study as well as 10 C. jejuni promoters mapped in other studies (3, 4, 10, 18, 21, 24, 26, 30) were used to derive a promoter consensus sequence (Fig. 2). The initial alignment of the DNA sequences from position −50 to +1 of the promoter region was made by the program Multalin (5). Next, the alignment was visually inspected and adapted with respect to the known transcriptional start points. The promoter consensus sequence that could be deduced from this alignment contains nucleotides that appear in more than 50% of the cases at any given position. It consist of three regions: a −10, a −16, and a −35 region. The −10 region is positioned 4 to 11 bp before the experimentally determined RNA start points (Fig. 2). The consensus sequence of this region, TATAATT, is very similar to the sequence of the −10 region of a typical ς70 promoter of E. coli. In front of each −10 region, separated by one nonconserved nucleotide, the sequence TTTTTTTG, known as the −16 region (38), was found. This region is weakly conserved in E. coli but is more common in gram-positive bacteria (1, 9, 38). The −35 consensus sequence TTTAAGTnTT of C. jejuni completely differs from those of E. coli and B. subtilis. Only the sequences of the 3D8, 4C11, and hup promoters show some similarity to the −35 portion of the ς70 promoter consensus sequence of E. coli. The spacing between the −35 and −10 regions varies from 15 to 19 bp and is thus similar to the spacing observed in B. subtilis (16) and E. coli (15).

Putative RBSs in C. jejuni mRNA.

In all cases a putative RBS was found, 1 to 62 nucleotides beyond the transcriptional start site (Fig. 2). Alignment of the 21 RBSs revealed that AAGGA was the consensus sequence. This consensus sequence is short compared to the C. jejuni 16S rRNA sequence from which an RBS with the sequence AGGAGG was predicted (20). The putative RBS is followed by a possible initiation codon, either ATG, TTG, or GTG, located after a spacer of 2 to 10 bp.

Comparison with other ς70 bacterial consensus sequences.

The C. jejuni ς70 promoter consensus sequence was compared with those of B. subtilis (16), Corynebacterium glutamicum (28), Streptomyces spp. (35), and E. coli (15) (Table 3). The major C. jejuni consensus sequence is highly conserved compared to ς70 promoter consensus sequences of the other bacteria. There is a tendency that the number of conserved nucleotides, especially in the −10 and −16 regions of the ς70 promoter consensus sequence, increases when the G+C content of the bacterium decreases (Table 3). The conserved −35 region of the C. jejuni ς70 promoter totally differs from the −35 regions of other bacteria with the exception of the G at position −34.

TABLE 3.

Comparison of putative ς70 consensus sequencesa

Bacterium (G+C con- tentb [%]) Most-common nucleotidec at position:
−45 −44 −43 −42 −41 −40 −39 −38 −37 −36 −35 −34 −33 −32 −31 −30 −29 −28 −27 −26 −25 −24 −23 −22 −21 −20 −19 −18 −17 −16 −15 −14 −13 −12 −11 −10 −9 −8 −7 −6 −5 −4 −3 −2 −1 +1
Streptomyces  (74) T86 T90 G100 A69 C66 T59 A89 T100
C. glutamicum  (57) T48 T48 G73 A54 A52 G55 T79 A73 A58 T85
E. coli (51) T78 T82 G68 A58 C51 A55 T82 A90 T52 A59 A49 T89
B. subtilis (43) A56 A48 T87 T83 G78 A64 C51 A58 T52 T58 G52 T94 A96 T60 A78 A74 T94 A52 A48
C. jejuni (30) T52 T52 T67 T57 A67 A76 G62 T57 T71 T52 T62 T62 T62 T52 T57 T71 T52 T71 G52 T95 A90 T57 A76 A62 T81 T86 A52
a

Included are sequences of 21 C. jejuni promoters (this study), 237 B. subtilis promoters (16), 33 C. glutamicum promoters (28), 29 Streptomyces promoters (35), and 263 E. coli promoters (15).

b

G+C content of the chromosomal DNA.

c

The subscript values are the frequencies of occurrence in percent. Most-common nucleotides are only given when the percentages exceed 47%.

DISCUSSION

The lack of typical E. coli ς70 promoter consensus sequences (15) in front of C. jejuni genes led to the question of what kind(s) of sequences act as promoters in C. jejuni. To answer this question we constructed promoter probe vector pMW10. This vector turned out to be an effective tool to identify promoter elements and allows subsequent testing of these elements in both C. jejuni and E. coli. Earlier studies concluded that the lacZ gene is not expressed in C. jejuni (37). From the results described here we can conclude that the lacZ gene, but not the lac promoter, is functional. The constructed promoter library in pMW10 is the first described chromosomal library made in C. jejuni. Theoretically, it contains all C. jejuni promoters, except the promoters containing a Sau3A site.

Eleven strong C. jejuni promoter elements were characterized. They induce various levels of β-galactosidase activity in C. jejuni. A reason for these differences could be the variation in distance between promoters and the lacZ gene. The secondary structure of mRNA may affect both the rate of initiation of translation and the half-life of the mRNA molecules. Thus, direct measurement of product activity may not reflect actual promoter strength.

Another reason for the different levels of β-galactosidase activity may be the sequence identity of a given promoter with the predicted consensus promoter sequence, which we assumed roughly correlates with the β-galactosidase activity. Therefore, the 11 characterized promoter sequences and 10 promoter sequences from other studies were used to identify a potential C. jejuni promoter consensus sequence. Most promoters aligned in this study are situated in front of C. jejuni housekeeping genes which are generally assumed to be under the control of ς70 promoters (17). No clear correlation between promoter sequence and/or distance between the promoter and the lacZ gene and β-galactosidase activity in C. jejuni was found.

The C. jejuni promoter consensus sequence, which we derived in this study, differs from the ς70 promoter consensus sequences of E. coli and other bacteria, especially in the −16 and −35 regions. The −16 region, mainly found in gram-positive bacteria, is extended (9, 38). In B. subtilis, mutations in the −16 region may result in a 94-fold decrease in transcription; the G residue at position −15 is particularly important (1, 38). Functional E. coli promoters lacking a conserved −35 region but containing a TG dinucleotide at positions −14 and −15 have been described previously (2). The function of the −16 region may be to compensate for weak −35 and −10 hexamers (38). The C. jejuni −35 region is highly conserved among the 21 compiled promoters, but its sequence is totally different from the other bacterial ς70 promoter consensus sequences.

The lack of expression of 5 of the 11 promoter regions in E. coli also indicates that the C. jejuni promoter sequence is different from that of E. coli. The results indicate that the lack of expression of C. jejuni genes in E. coli observed in earlier studies is probably due to the level of transcription (19). Five C. jejuni promoter regions, however, were found to be stronger in E. coli than in C. jejuni. This could be due to utilization of some other cryptic promoter sequences and/or alternative transcription start sites. Another explanation for this might be the different codon usage in E. coli and C. jejuni. For example, the 96 leucine amino acids present in the LacZ protein are encoded in 56% of the cases by CUG. In 71 proteins of C. jejuni only 1.1% of the leucine amino acids are encoded by CUG (Codon Usage Database of Genbank). Similar percentages are seen for other codons.

Allele-specific suppression of ς70 promoter mutations by specific changes in the corresponding ς factor in E. coli resulted in the identification of two conserved regions which recognize the −10 and −35 promoter elements (6, 11). We hypothesize that the poor transcription of biosynthetic and housekeeping gene promoters of C. jejuni in E. coli is due to differences in the ς70 amino acid sequences for these regions. This idea could be tested by the identification and characterization of a C. jejuni housekeeping ς70-factor gene. We have cloned this gene. Preliminary sequence data show that the Campylobacter ς70 is highly similar to the ς70 protein of Helicobacter pylori but at the same time is highly divergent compared to the products of other rpoD genes.

Previous studies have mentioned that the recognition specificity of the RNA polymerase complex decreases with a decreasing A+T content of the chromosomal DNA of a bacterium (27, 28). The large number of conserved nucleotides in the major C. jejuni consensus sequence is in agreement with the high A+T content in this organism. However, the suggestion made by Gruber and Bryant (12) that typical promoters in all eubacteria should contain sequence motifs and spacing similar to those of the consensus promoter sequence for the ς70 factor of E. coli is premature.

The major C. jejuni consensus sequence derived in this study can be used to identify additional promoters in the C. jejuni genome, once the genomic sequence becomes available. So far, we have analyzed the recA, peb1A, and katA genes of C. jejuni of which the transcription start points have not been mapped. They do contain promoter sequences similar to the promoter consensus sequence we found (8, 13, 29). Our study shows that it is necessary to determine promoter sequences of bacteria experimentally, since they may contain sequence motifs different from those present in E. coli or B. subtilis.

ACKNOWLEDGMENTS

This work was supported by the Netherlands Foundation for Chemical Research (SON) with financial aid from the Netherlands Organization for Scientific Research (NWO).

We thank A. J. A. M. van Asten, L. van Dijk, and K. A. Zwaagstra for ALF sequencing.

REFERENCES

  • 1.Barne K A, Bown J A, Busby S J W, Minchin S D. Region 2.5 of the Escherichia coli RNA polymerase ς70 subunit is responsible for the recognition of the ‘extended-10’ motif at promoters. EMBO J. 1997;16:4034–4040. doi: 10.1093/emboj/16.13.4034. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Belyaeva T, Griffiths L, Minchin S, Cole J, Busby S. The Escherichia coli cysG promoter belongs to the ’extended -10’ class of bacterial promoters. Biochem J. 1993;296:851–857. doi: 10.1042/bj2960851. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Chan V L, Bingham H L. Complete sequence of the Campylobacter jejuni glyA gene encoding serine hydroxymethyltransferase. Gene. 1991;101:51–58. doi: 10.1016/0378-1119(91)90223-x. [DOI] [PubMed] [Google Scholar]
  • 4.Chan V L, Bingham H L. Lysyl-tRNA synthetase gene of Campylobacter jejuni. J Bacteriol. 1992;174:695–701. doi: 10.1128/jb.174.3.695-701.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Corpet F. Multiple sequence alignment with hierarchical clustering. Nucleic Acids Res. 1988;16:10881–10890. doi: 10.1093/nar/16.22.10881. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Dombroski A J, Walter W A, Record M T, Jr, Siegele D A, Gross C A. Polypeptides containing highly conserved regions of transcription initiation factor ς70 exhibit specificity of binding to promoter DNA. Cell. 1992;70:501–512. doi: 10.1016/0092-8674(92)90174-b. [DOI] [PubMed] [Google Scholar]
  • 7.Endtz H P, Giesendorf B A, van Belkum A, Lauwers S J, Jansen W H, Quint W G. PCR-mediated DNA typing of Campylobacter jejuni isolated from patients with recurrent infections. Res Microbiol. 1993;144:703–708. doi: 10.1016/0923-2508(93)90034-y. [DOI] [PubMed] [Google Scholar]
  • 8.Grant K A, Park S F. Molecular characterization of katA from Campylobacter jejuni and generation of a catalase-deficient mutant of Campylobacter coli by interspecific allelic exchange. Microbiology. 1995;141:1369–1376. doi: 10.1099/13500872-141-6-1369. [DOI] [PubMed] [Google Scholar]
  • 9.Graves M C, Rabinowitz J C. In vivo and in vitro transcription of the Clostridium pasteurianum ferredoxin gene. Evidence for “extended” promoter elements in gram-positive organisms. J Biol Chem. 1986;261:11409–11415. [PubMed] [Google Scholar]
  • 10.Griffiths P L, Park R W, Connerton I F. The gene for Campylobacter trigger factor: evidence for multiple transcription start sites and protein products. Microbiology. 1995;141:1359–1367. doi: 10.1099/13500872-141-6-1359. [DOI] [PubMed] [Google Scholar]
  • 11.Gross C A, Lonetto M, Losick R. Bacterial sigma factors. In: Yamamoto K R, McKnight S L, editors. Transcriptional regulation. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory Press; 1992. pp. 129–176. [Google Scholar]
  • 12.Gruber T M, Bryant D A. Molecular systematic studies of eubacteria, using ς70-type sigma factors of group 1 and group 2. J Bacteriol. 1997;179:1734–1747. doi: 10.1128/jb.179.5.1734-1747.1997. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Guerry P, Pope P M, Burr D H, Leifer J, Joseph S W, Bourgeois A L. Development and characterization of recA mutants of Campylobacter jejuni for inclusion in attenuated vaccines. Infect Immun. 1994;62:426–432. doi: 10.1128/iai.62.2.426-432.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Hani E K, Chan V L. Expression and characterization of Campylobacter jejuni benzoylglycine amidohydrolase (hippuricase) gene in Escherichia coli. J Bacteriol. 1995;177:2396–2402. doi: 10.1128/jb.177.9.2396-2402.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Harley C B, Reynolds R P. Analysis of E. coli promoter sequences. Nucleic Acids Res. 1987;15:2343–2361. doi: 10.1093/nar/15.5.2343. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 16.Helmann J D. Compilation and analysis of Bacillus subtilis ςA-dependent promoter sequences: evidence for extended contact between RNA polymerase and upstream promoter DNA. Nucleic Acids Res. 1995;23:2351–2360. doi: 10.1093/nar/23.13.2351. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Helmann J D, Chamberlin M J. Structure and function of bacterial sigma factors. Annu Rev Biochem. 1988;57:839–872. doi: 10.1146/annurev.bi.57.070188.004203. [DOI] [PubMed] [Google Scholar]
  • 18.Hong Y, Wong T, Bourke B, Chan V L. An isoleucyl-tRNA synthetase gene from Campylobacter jejuni. Microbiology. 1995;141:2561–2567. doi: 10.1099/13500872-141-10-2561. [DOI] [PubMed] [Google Scholar]
  • 19.Ketley J M. Pathogenesis of enteric infection by Campylobacter. Microbiology. 1997;143:5–21. doi: 10.1099/00221287-143-1-5. [DOI] [PubMed] [Google Scholar]
  • 20.Kim N W, Gutell R R, Chan V L. Complete sequences and organization of the rrnA operon from Campylobacter jejuni TGH9011 (ATCC43431) Gene. 1995;164:101–106. doi: 10.1016/0378-1119(95)00471-h. [DOI] [PubMed] [Google Scholar]
  • 21.Konkel M E, Marconi R T, Mead D J, Cieplak W J. Cloning and expression of the hup gene encoding a histone-like protein of Campylobacter jejuni. Gene. 1994;146:83–86. doi: 10.1016/0378-1119(94)90837-0. [DOI] [PubMed] [Google Scholar]
  • 22.Korn L J, Queen C. Analysis of biological sequences on small computers. DNA. 1984;3:421–436. doi: 10.1089/dna.1.1984.3.421. [DOI] [PubMed] [Google Scholar]
  • 23.Labigne-Roussel A, Harel J, Tompkins L. Gene transfer from Escherichia coli to Campylobacter species: development of shuttle vectors for genetic analysis of Campylobacter jejuni. J Bacteriol. 1987;169:5320–5323. doi: 10.1128/jb.169.11.5320-5323.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Louie H, Chan V L. Cloning and characterization of the gamma-glutamyl phosphate reductase gene of Campylobacter jejuni. Mol Gen Genet. 1993;240:29–35. doi: 10.1007/BF00276880. [DOI] [PubMed] [Google Scholar]
  • 25.Miller J H. Experiments in molecular genetics. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory Press; 1972. pp. 352–355. [Google Scholar]
  • 26.Miller S, Pesci E C, Pickett C L. Genetic organization of the region upstream from the Campylobacter jejuni flagellar gene flhA. Gene. 1994;146:31–38. doi: 10.1016/0378-1119(94)90830-3. [DOI] [PubMed] [Google Scholar]
  • 27.Morrison D A, Jaurin B. Streptococcus pneumoniae possesses canonical Escherichia coli (sigma 70) promoters. Mol Microbiol. 1990;4:1143–1152. doi: 10.1111/j.1365-2958.1990.tb00689.x. [DOI] [PubMed] [Google Scholar]
  • 28.Patek M, Eikmanns B J, Patek J, Sahm H. Promoters from Corynebacterium glutamicum: cloning, molecular analysis and search for a consensus motif. Microbiology. 1996;142:1297–1309. doi: 10.1099/13500872-142-5-1297. [DOI] [PubMed] [Google Scholar]
  • 29.Pei Z, Blaser M J. PEB1, the major cell-binding factor of Campylobacter jejuni, is a homolog of the binding component in gram-negative nutrient transport systems. J Biol Chem. 1993;268:18717–18725. [PubMed] [Google Scholar]
  • 30.Pesci E C, Cottle D L, Pickett C L. Genetic, enzymatic, and pathogenic studies of the iron superoxide dismutase of Campylobacter jejuni. Infect Immun. 1994;62:2687–2694. doi: 10.1128/iai.62.7.2687-2694.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Sambrook J, Fritsch E F, Maniatis T. Molecular cloning: a laboratory manual 2nd ed. Cold Spring Harbor, N.Y: Cold Spring Harbor Laboratory; 1989. [Google Scholar]
  • 32.Sanger F, Nicklen S, Coulson A R. DNA sequencing with chain-termination inhibitors. Proc Natl Acad Sci USA. 1977;74:5463–5467. doi: 10.1073/pnas.74.12.5463. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Schneider K, Beck C F. Promoter-probe vectors for the analysis of divergently arranged promoters. Gene. 1986;42:37–48. doi: 10.1016/0378-1119(86)90148-4. [DOI] [PubMed] [Google Scholar]
  • 34.Skirrow M B. Campylobacter enteritis: a “new” disease. Br Med J. 1977;2:9–11. doi: 10.1136/bmj.2.6078.9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34a.Stonnet, V., and J. L. Guesdon. Unpublished data.
  • 35.Strohl W R. Compilation and analysis of DNA sequences associated with apparent Streptomycete promoters. Nucleic Acids Res. 1992;20:961–974. doi: 10.1093/nar/20.5.961. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Sutcliffe J G. Complete nucleotide sequence of the Escherichia coli plasmid pBR322. Cold Spring Harbor Symp Quant Biol. 1979;43:77–90. doi: 10.1101/sqb.1979.043.01.013. [DOI] [PubMed] [Google Scholar]
  • 37.Taylor D E. Genetics of Campylobacter and Helicobacter. Annu Rev Microbiol. 1992;46:35–64. doi: 10.1146/annurev.mi.46.100192.000343. [DOI] [PubMed] [Google Scholar]
  • 38.Voskuil M I, Voepel K, Chambliss G H. The −16 region, a vital sequence for the utilization of a promoter in Bacillus subtilis and Escherichia coli. Mol Microbiol. 1995;17:271–279. doi: 10.1111/j.1365-2958.1995.mmi_17020271.x. [DOI] [PubMed] [Google Scholar]
  • 39.Wassenaar T M, Bleumink Pluym N M C, van der Zeijst B A M. Inactivation of Campylobacter jejuni flagellin genes by homologous recombination demonstrates that flaA but not flaB is required for invasion. EMBO J. 1991;10:2055–2061. doi: 10.1002/j.1460-2075.1991.tb07736.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Wösten M M S M, Dubbink H J, van der Zeijst B A M. The aroA gene of Campylobacter jejuni. Gene. 1996;181:109–112. doi: 10.1016/s0378-1119(96)00482-9. [DOI] [PubMed] [Google Scholar]
