Carbon Capture: Theoretical Guidelines for Activated Carbon-Based CO₂ Adsorption Material Evaluation

Abstract

Activated carbon (AC)-based materials have shown promising performance in carbon capture, offering low cost and sustainable sourcing from abundant natural resources. Despite ACs growing as a new class of materials, theoretical guidelines for evaluating their viability in carbon capture are a crucial research gap. We address this gap by developing a hierarchical guideline, based on fundamental gas–solid interaction strength, that underpins the success and scalability of AC-based materials. The most critical performance indicator is the CO₂ adsorption energy, where an optimal range (−0.41 eV) ensures efficiency between adsorption and desorption. Additionally, we consider thermal stability and defect sensitivity to ensure consistent performance under varying conditions. Further, selectivity and capacity play significant roles due to external variables such as partial pressure of CO₂ and other ambient air gases (N₂, H₂O, O₂), bridging the gap between theory and reality. We provide actionable examples by narrowing our options to methylamine- and pyridine-grafted graphene.

Rapid anthropogenic climate change is one of the central challenges in the 21st century, with atmospheric CO₂ concentration exceeding 400 ppm.¹⁻³ CO₂ concentration must be maintained at ≤ 450 ppm to mitigate the climate change crisis, which requires capture on the gigaton scale.⁴ This target has necessitated urgent research efforts in the field of carbon capture from both concentrated sources of CO₂ emissions as well as direct air capture from the atmosphere.^5,6 Activated carbon (AC)-based materials have shown promising carbon capture performance.⁶⁻⁸ They can be inexpensive when sustainably sourced from amply available natural resources such as Balsa wood and Biochar.⁹⁻¹² Moreover, both Balsa wood and Biochar have porous microstructures that can be enhanced multifold and chemically modified during the preparation process to further augment CO₂ adsorption.^9,13−16 Overall, their low-cost preparation, hydrophobicity, porosity, and chemical tunability make them attractive solutions for carbon capture via a steam-assisted temperature vacuum swing desorption process.¹⁷Figure 1 depicts the carbon capture process where wood-derived AC is used as the CO₂ adsorbent, which is regenerated when subject to high temperature steam. The adsorbed CO₂ is then separated from water and sent for storage or conversion, while the water is recycled for the next cycle. Furthermore, the adsorption and regeneration system can be strategically coupled with integrated dynamic energy supply systems where excess energy during periods of lower demand can be diverted for sorbent regeneration to provide a more sustainable approach to carbon capture. By designing ACs for optimal CO₂ adsorption and integrating them with a dynamic energy supply, we can potentially unleash a new generation of relatively cheap, energy-efficient, and highly effective solutions for carbon capture.

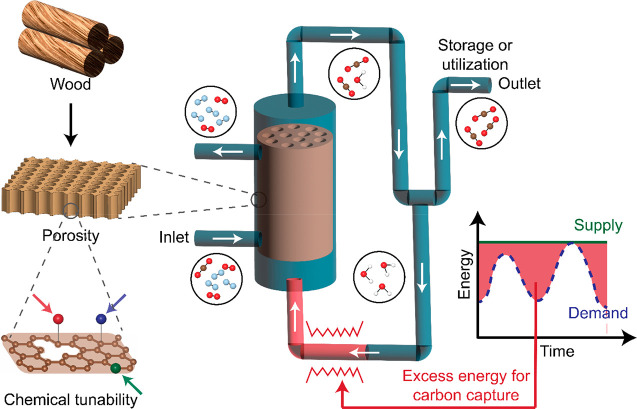

Figure 1.

Schematic showing the steam-assisted temperature vacuum swing desorption process with wood-derived AC as the CO₂ adsorbent. Graphene-derived materials are suitable templates for evaluating activated carbon-based materials. Integrating with a dynamic energy supply results in energy- and cost-effective solutions for carbon capture.

Despite extensive interest in ACs as a new class of materials themselves,⁶⁻⁸ a comprehensive theoretical guideline is essential for gauging their viability. Such a theoretical guideline is critically missing. In this work, we made strides in this direction by formulating a list of crucial criteria that underpins the success and scalability of AC-based materials. The single most important parameter determining performance is the CO₂ adsorption energy (E_ads). Optimum performance necessitates an ideal range of E_ads where CO₂ is bound neither too strongly for ease of desorption nor too weakly for good selectivity. We used Density Functional Theory (DFT) to evaluate E_ads of CO₂ on graphene, the ideal surrogate model for present studies¹⁸ (see Figure 2), with select dopants, functional groups, and defects. To determine the target E_ads accurately, the entire parameter space should be explored by using a consistent computational framework. While there have been multiple DFT studies that calculated CO₂E_ads on graphene-based materials,¹⁸⁻²² none of them have explored the entire parameter space thoroughly, as summarized in Figure S1. To bridge these gaps, we used a consistent computational setup to construct a clear knowledge map of CO₂ adsorption on graphene-derived materials and opted for a target CO₂E_ads based on the parasitic energy metric benchmarked with the state-of-art solid-sorber Mg-MOF-74.^23,24

Figure 2.

Dopants and functional molecules (FMs) screened in order from least to most stable CO₂E_ads (a) and their corresponding CO₂E_ads (b). The most stable CO₂ configurations on pristine graphene (PG), doped graphene (DG), and functionalized graphene (FG) are either top (T) or hollow (H) sites and T or inserted (I) sites, respectively. E_ads of the most stable sites is reported here, whereas the comprehensive results of all sites can be found in Tables S1 and S3 and Figures S3–S8 and S20–S28.

We then addressed secondary criteria, including thermal stability, defect sensitivity, CO₂ capacity, and selectivity, to aid in determining the best performing graphene-derived materials for carbon capture and release. Careful considerations mandate that the carbon capture material remain thermally stable and display defect-insensitive performance. This secondary tier of the stability criteria ensures continued performance in the presence of variables such as temperature and defects that are intrinsic to the material. We urge that future studies consider these additional criteria along with adsorption energies to obtain a holistic picture of the viability of the carbon capture material. On the other hand, selectivity and capacity dictate the performance when subjected to variables extrinsic to the material such as partial pressure of CO₂ and other ambient air gases. These parameters constitute the tertiary tier of requirements that characterize performance in the presence of gases simulating a realistically complex carbon capture system. Finally, other considerations like synthesizability, economic feasibility, and life cycle analysis serve as the last check before a technology can be scaled up successfully.

CO₂E_ads is the primary metric to determine the best performing graphene-derived materials due to its inherent nature of containing the energy required to release CO₂ (see eq 1)

1

where E_{grapheneder + CO2}, E_grapheneder, and E_CO2 are the total energies of their relaxed structures. The chemisorption threshold is commonly accepted between −0.41 and −0.51 eV,²⁵ where more stable (more negative) is chemisorption and less stable (less negative) is physisorption. The less stable boundary of this threshold range is consistent with our target CO₂E_ads, which is motivated by the parasitic energy metric,²³ based on monoethanolamine, an industry standard,²⁴ used to screen covalent organic frameworks (COFs) for carbon capture in Deeg et al.²⁴ Parasitic energy contains the energy required to separate CO₂ from flue gas (Q_separation), which should be minimized to reduce energy losses resulting in a CO₂ heat of adsorption threshold of −0.46 eV.²⁴ Further, the best COFs are comparable to Mg-MOF-74 (metal organic framework). A DFT calculation of CO₂E_ads on Mg-MOF-74 is −0.41 eV (see Figure S2), which is assigned as our target CO₂E_ads.

To determine materials that satisfy our primary criteria, a wide selection guided by electronegativity (EN) difference was chosen, and CO₂E_ads was evaluated as indicated in Figure 2 (see Tables S1 and S3 and Figures S3–S8 and S20–S28 for all CO₂ sites and E_ads). First, the baseline case of CO₂ adsorption on pristine graphene (PG) was evaluated and found to be less stable than that of our target. Next, N was substitutionally doped due to its (∼0.5 )²⁶ EN difference with C, but it resulted in weak physisorption. In addition, this result ruled out B and P as dopants due to their smaller EN difference with C in graphene-based materials than dopants such as O and N. Therefore, we expect O and N to be better representatives of dopants for this system. Thereafter, we increased the EN difference with O (>1.0 )²⁶ by moving to transition metal doping, but this showed too strong chemisorption. Next, for a lower EN difference (>0.9 )²⁶ with CO₂, we moved to O-containing functional molecules (FMs) adsorbing in the basal plane on PG. CO₂ physisorbed on CO and COOH functionalized graphene (FG), while CO₂ chemisorbed on OH FG and formed bicarbonate. Overall, graphene derivatives with dopants and O-containing FMs drove the CO₂E_ads farther from our target.

To get closer to our target CO₂E_ads, we reduced the EN difference with CO₂ by moving to N-containing FMs. CO₂ physisorbed with aniline FG, while CO₂ chemisorbed with amine, guanidine, and imidazole FG. All of these are sufficiently far from our target, but aniline and amine provide a platform for further improvement. In the amine case, we decreased the EN difference with CO₂ by moving to methylamine FG, which adsorbed CO₂ near our target. Similarly, we moved from aniline to pyridine, in which the latter met the CO₂E_ads target. To understand further, we investigated the Bader charge difference (BCD) and charge density difference (CDD) for a few N-containing FMs (Figure 3 and Tables S10–S15). Interestingly, CO₂ is more stable interacting with amine in the inserted site over the top site as the former shows a higher amount of BCD compared with the latter. The other N-containing FMs also prefer to interact with CO₂ in the inserted sites. Significant BCD is seen in amine and guanidine due to bonding but not in pyridine and methylamine which fall in the target E_ads range, which further shows the unique positions of pyridine and methylamine at the boundary between physisorption and chemisorption as desired.

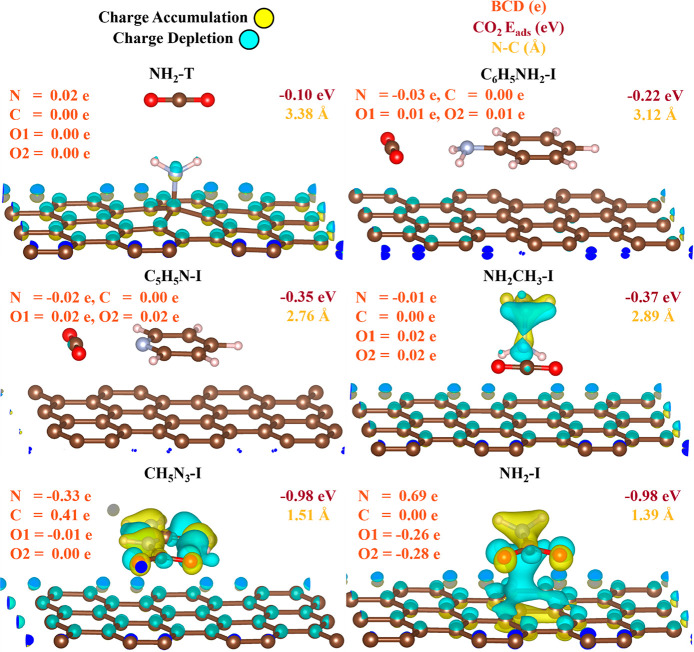

Figure 3.

Charge density difference (CDD) plots, Bader charge difference (BCD), CO₂E_ads, and distances between N (of functional molecule (FM)) and C (of CO₂) for graphene-derived materials (GDM) in top (T) and inserted (I) sites. BCD is reported for N (of FM), C (of CO₂), and both O’s (of CO₂) with the top/left as the O1 atom and the right/bottom as the O2 atom.

While the primary criteria of target CO₂E_ads ensure an ideal adsorption condition, other guidelines should also be considered to enable the viability of this technology. The secondary tier of criteria governs the intrinsic properties of the material that is essential for performance. It accounts for ineradicable material defects and ensures thermal stability. We define thermal stability as the ability of a material to stay unaltered during the CO₂ desorption process. For thermal stability, the FM must bind with PG in the chemisorption range to eliminate its removal post CO₂ desorption. While a general guideline is hard to propose, a higher E_ads (in the chemisorption range) of the FM on PG compared to the CO₂E_ads on the corresponding FG is needed to ensure thermal stability. Thus, we calculated the E_ads of FMs on PG (see Figure 4b, Table S2, and Figures S9–S19). Pyridine adsorbed onto PG in the chemisorption range and is, therefore, thermally stable. However, methylamine is less stable on PG than CO₂, revealing it will desorb with CO₂ and provide an impure CO₂ stream. An impure CO₂ stream may be acceptable if the stakeholders use this technology for sequestration. Moreover, manufacturing materials completely free of defects is extremely difficult. We define a defect insensitive material as a desirable material whose CO₂E_ads does not change when defects are introduced. In other words, the CO₂E_ads values of the pristine material and the material with defects are the same. Thus, to ensure that the properties of the capture material are unaffected by the presence of defects, CO₂E_ads must be invariant between PG and defect graphene. We considered monovacancy graphene (MG) defects as they alter CO₂E_ads more than any other graphene defect (like the Stone–Wales defect)^19,27 due to the dangling C bonds interacting more strongly with CO₂ (see Figure 4c, Table S5, and Figure S31). Methylamine adsorbs onto MG near the lower chemisorption threshold (see Table S4 and Figure S29) while adsorbing CO₂ near our target CO₂E_ads (see Figure 4c, Table S5, and Figure S32) and is therefore a defect insensitive material. However, pyridine forms two C–C bonds with MG and is much more stable than on PG (see Table S4 and Figure S30), but pyridine is near perpendicular to MG resulting in a less stable CO₂E_ads when compared to pyridine FG (see Figure 4c, Table S5, and Figure S33). Overall, while pyridine and methylamine satisfy the primary criterion of being near the target CO₂E_ads, they fail the material defects and thermal stability criteria, respectively, indicating the importance of considering such secondary factors in the evaluation criteria.

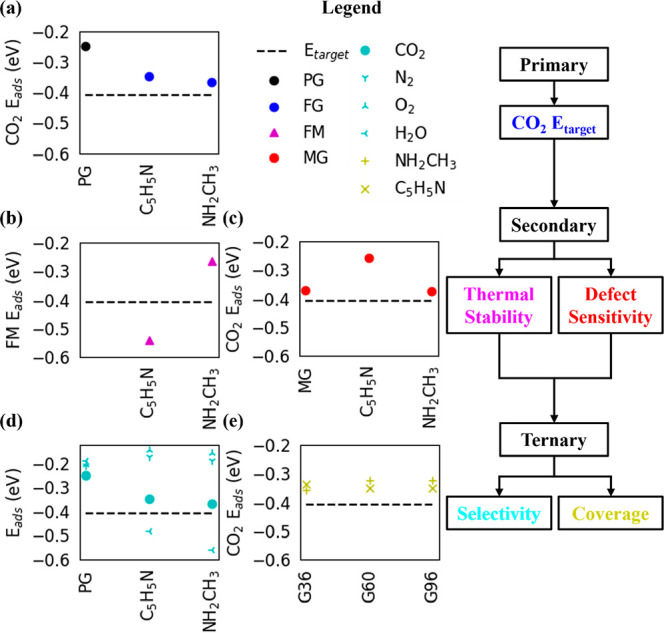

Figure 4.

CO₂E_ads (a) of most stable CO₂ configurations on pristine graphene (PG) and functionalized graphene (FG), (b) thermal stability by functional molecule (FM) E_ads on PG, (c) defect sensitivity by CO₂E_ads on monovacancy graphene (MG), (d) selectivity by CO₂, N₂, O₂, and H₂O E_ads, and (e) coverage effects by CO₂E_ads (single point calculations without ionically relaxing PG) on G36 (36 C atoms), G60 (60 C atoms), and G96 (96 C atoms) PG sheets.

Lastly, ternary selection criteria are important to consider like selectivity and capacity, which control the performance of the material due to extrinsic parameters like the presence of ambient air gases. While selectivity will be dependent on the sticking coefficient, kinetic diameter, and pore size of the material in the realistic carbon capture setting, the comparative CO₂E_ads is a necessary parameter to investigate at the DFT level (see Table S6 and Figures S34–S42). PG energetically favors CO₂ over H₂O, O₂, and N₂ (see Figure 4d). On methylamine and pyridine FG, O₂ and N₂ prefer to adsorb onto PG, leaving the inserted sites near the FM open for CO₂. However, H₂O is more stable than CO₂ on methylamine and pyridine FG due to N–H bonding in the inserted sites, which opens the door for either cooperative or competitive adsorption (see Table S7 and Figures S43–S45). When CO₂ and H₂O were both allowed to adsorb, adsorbates such as bicarbonate and carbonic acid can also form. For methylamine FG, CO₂ forms carbonic acid with H₂O, which then dissociates H to NH₂CH₃ and forms NH₃CH₃⁺ and bicarbonate. Further, bicarbonate adsorption on NH₃CH₃⁺ FG is much more stable than CO₂ adsorption on H₂O adsorbed methylamine FG, followed with bicarbonate and NH₃CH₃⁺ adsorption on PG. Thus, bicarbonate and NH₃CH₃⁺ will desorb from PG together as they are the least stable of the three interactions. For pyridine FG, CO₂ and H₂O form carbonic acid and interact strongly with pyridine due to the N–H bond. Similar to methylamine FG, pyridine and carbonic acid will desorb together, as their E_ads on PG is less than that of carbonic acid on pyridine. Although both methylamine and pyridine FG support cooperative adsorption with H₂O and CO₂, both FMs desorb with either bicarbonate or carbonic acid, leading to an impure CO₂ stream, and therefore fail the thermal stability requirement in the secondary criteria.

The variation of CO₂E_ads with increasing adsorption sites is an important factor for the CO₂ capacity. Here the number of available adsorption sites was changed by varying the number of FMs in a given PG area. We used the Langmuir Isotherm^28,29 model to predict CO₂ coverage at select CO₂ concentrations (see equation S1). To study the baseline case of PG, we calculated CO₂E_ads on PG in sheets of 36, 252, 780, and 1152 C atoms (see Table S8 and Figure S46). CO₂E_ads is well-converged for all PG sheet sizes when only considering enthalpy. In addition, we calculated CO₂E_ads on methylamine and pyridine FG at select coverages (see Figure 4e, Table S8, and Figures S47 and S48). van der Waals interactions are minimal at 7 Å and negligible > 10 Å, and these distances correspond to 60 and 96 C atom sheets, respectively, for both methylamine and pyridine FG. CO₂E_ads is converged with both methylamine and pyridine FG at a coverage of 60 C atoms/CO₂ molecules (15000 ppm). Interestingly, CO₂ is more stable on the 36 C atom sheet (than 60 and 96) of methylamine FG due to an attractive O–H interaction between CO₂ and methylamine in repeating images. On the contrary, CO₂ is less stable on the 36 C atom sheet (than 60 and 96) of pyridine FG due to repulsive H–H interactions of pyridine in repeating images. Enhanced attractive interactions are seen in higher methylamine and lower pyridine coverages, indicating preferred CO₂ adsorption at those coverages. This highlights the importance of evaluating FG coverage in E_ads studies as a precursor to understanding capacity.

Traditionally, only E_ads has been utilized as the sole parameter for evaluating carbon capture performance,²⁴ but this work defines the target value and shows how comprehensive perspectives like thermal stability, defect sensitivity, selectivity, and capacity can have a defining role in ensuring functionality. While methylamine and pyridine pass the primary criteria, they fail at some of the secondary and ternary ones. Moreover, ternary parameters like selectivity underscore the complex interactions that are often at play which can decisively impact the performance as demonstrated by the creation of adsorbates like bicarbonate following cooperative adsorption. These adsorbates can have an adverse effect on other factors such as thermal stability as highlighted by the instability of both pyridine and methylamine upon carbonic acid and bicarbonate formation. Merely considering only the primary criteria overlooks the complexity of the chemical space and can lead to erroneous predictions. Thus, we highly recommend considering these secondary and ternary factors when making predictions for carbon capture in the future.

In summary, we designed a comprehensive theoretical guideline consisting of a hierarchy of crucial criteria that maps the complex carbon capture challenge to a set of fundamental physical chemistry properties. The primary criteria of optimal CO₂E_ads is followed by secondary ones like thermal stability and material defects and succeeded by ternary parameters like selectivity and capacity. To ensure optimum performance, we opted for a target CO₂E_ads of −0.41 eV that represents the desired boundary between physisorption and chemisorption and aligns well with state-of-art Mg-MOF74 CO₂ adsorption strength (see more in the SI). Moreover, a good candidate material must also be thermally stable during the CO₂ desorption process. Only those functional groups which adsorbed on graphene with a higher energy (<−0.41 eV) compared to the adsorption energy of CO₂ on graphene functionalized with that group passed this criterion of thermal stability. Since defects are unavoidable, it is imperative that the CO₂E_ads remains unchanged in the presence of defects. Additionally, a good candidate material must also preferentially adsorb CO₂ over other gases. In other words, the selectivity criterion requires the CO₂E_ads to be higher than the rest. Finally, the CO₂E_ads can also vary with the density or coverage of the functional groups, and for optimum capacity, the coverage resulting in the highest CO₂E_ads should be chosen.

Based on the devised criteria and to provide practical guidance, we computed the E_ads of a variety of FMs and dopants on PG with the objective of exploring the E_ads parameter space and designing suitable AC-based adsorbents for CO₂ capture and release. By using a consistent computational setup, we ensured that all the results are reproducible and comparable. We found that methylamine and pyridine adsorb CO₂ near the target. We showed that since defects in the structure are unavoidable, for optimal performance, the CO₂E_ads should be relatively insensitive to these defects. Additionally, the FMs should be more strongly bound than CO₂ to PG to ensure thermal stability during CO₂ desorption. While cooperative adsorption between CO₂ and H₂O on methylamine and pyridine FG is predicted, it is accompanied by thermal instability. Lastly, the variation of CO₂E_ads with FG coverage translated to a lower pyridine and higher methylamine coverage for enhanced adsorption. This work sheds light on the necessity to evaluate FMs on secondary and ternary requirements. We propose that our approach creates a pathway to evaluate materials for carbon capture systems and that consideration of FG-like surfaces are a promising platform. Future work on carbon capture using adsorbent technology should also consider these additional requirements. Furthermore, this theoretical guideline can be generalized to different carbon capture materials, like other 2D materials (MoS₂, WSe₂, CrO₂, CrS₂, VO₂, VS₂, h-BN, NbSe₂, etc.), since the list of criteria devised for CO₂ capture that include optimum E_ads, thermal stability, defect insensitivity, high selectivity, and capacity is material agnostic. CO₂E_ads, the primary parameter that all the other criteria are dependent on, in turn relies on the knowledge of fundamental interactions between CO₂ and the solid-sorber of interest. Such studies will play a critical role in the future designs of the CO₂ capture solutions.
