Recent advances in waste-derived functional materials for wastewater remediation

Abstract

Water pollution is a major concern for public health and a sustainable future. It is urgent to purify wastewater with effective methods to ensure a clean water supply. Most wastewater remediation techniques rely heavily on functional materials, and cost-effective materials are thus highly favorable. Of great environmental and economic significance, developing waste-derived materials for wastewater remediation has undergone explosive growth recently. Herein, the applications of waste (e.g., biowastes, electronic wastes, and industrial wastes)-derived materials for wastewater purification are comprehensively reviewed. Sophisticated strategies for turning wastes into functional materials are firstly summarized, including pyrolysis and combustion, hydrothermal synthesis, sol–gel method, co-precipitation, and ball milling. Moreover, critical experimental parameters within different design strategies are discussed. Afterward, recent applications of waste-derived functional materials in adsorption, photocatalytic degradation, electrochemical treatment, and advanced oxidation processes (AOPs) are analyzed. We mainly focus on the development of efficient functional materials via regulating the internal and external characteristics of waste-derived materials, and the material’s property-performance correlation is also emphasized. Finally, the key future perspectives in the field of waste-derived materials-driven water remediation are highlighted.

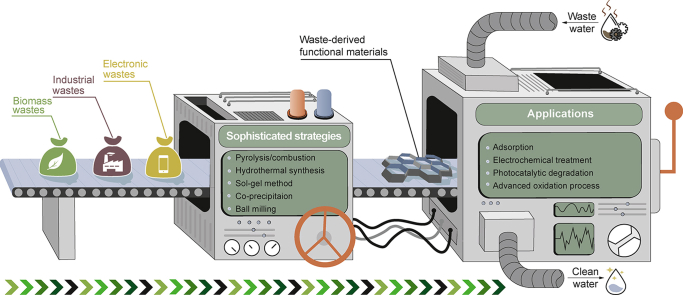

Graphical abstract

Highlights

• •Efficient strategies for converting wastes into functional materials are summarized;
• •Waste-derived materials for water remediation are systematically reviewed;
• •The material’s property–performance correlation is emphasized;
• •Perspectives in waste-derived materials-driven water remediation are highlighted.

1. Introduction

Ensuring clean water is a high-priority issue in the sustainable development of our society. Currently, rapid industrialization and urbanization have led to severe water pollution, which puts much pressure on the ecosystem and human health [1,2]. In this context, eliminating hazardous pollutants (e.g., heavy metals, microplastics, antibiotics, and viruses) from water is of great urgency, which has attracted enormous scientific attention. Thus, efficiently innovative methods have been developed for wastewater remediation, including adsorption, photocatalysis degradation, electrochemical treatment, and AOPs [[3], [4], [5]]. Although these methods differ greatly in mechanisms and operation processes, all of them require functional micro/nanomaterials to attain good pollutant degradation/removal performance. Therefore, designing advanced materials (e.g., carbon materials, metal oxides, and metal sulfides) for the aforementioned methods plays a central role in water remediation [6,7].

Creating functional materials from waste via effective strategies gains increasing attention. The “waste-to-value” principle is of great economic and environmental significance [8,9]. Recently, numerous earth-abundant carbon- and transition metal-based materials designed from wastes have exhibited satisfactory performance in water purification. In this framework, problematic municipal solid wastes are transformed into favorable materials for water remediation via feasible strategies (e.g., pyrolysis, precipitation, and ball milling) [[10], [11], [12]]. To date, diverse biomass wastes (e.g., soya waste [13], lotus seedpod [14], tea waste [15], animal feces [16]), industrial wastes (e.g., coal mining waste [17], red mud [18], sewage sludge [19], brick waste [20]), and electronic wastes (e.g., waste printed circuit boards–WPCBs) [21], spent batteries [22], waste liquid crystal displays [23], electronic packaging waste [24]) with diverse sizes, densities, chemical compositions, shapes, and moistures (Fig. 1a) have been converted into functional materials (e.g., adsorbents, photocatalysts, electrocatalysts) for wastewater purification (Fig. 1b) [[25], [26], [27], [28], [29], [30], [31], [32], [33], [34], [35]]. For example, Liu et al. synthesized biochar from agricultural wastes via a pyrolysis process, which presented a high adsorption capacity of 49.70 mg/g toward Pb²⁺ [36]. The “waste-to-value” principle is of great environmental and economic significance because it can significantly minimize the environmental impact of solid/liquid wastes and cut the fabrication cost of functional materials (e.g., adsorbents, catalysts) [[37], [38], [39], [40]]. Apart from adsorption, waste-derived functional materials have also been widely employed in photocatalysis, electrochemical treatment, and AOPs for water purification [[41], [42], [43], [44]]. A critical issue in enhancing the performance of waste-derived materials is the rational design of their nanostructures/components, which can be achieved by controlling the precursors and experimental parameters in the synthesis process. Therefore, developing efficient strategies to turn solid wastes into functional materials with desirable characteristics (e.g., large surface area and high stability) is highly needed. Encouragingly, many sophisticated methods (e.g., pyrolysis, combustion, wet-chemical process, and ball milling) can successfully convert various solid wastes into functional materials, and the selection of synthesis methods highly depends on the properties of waste precursors. For instance, biomass wastes and sewage sludges are often pyrolyzed to obtain carbon materials [45,46], and metal oxides are generally prepared by combustion and sol–gel methods [42,47].

Fig. 1.

(a) Representative wastes that have been converted into functional materials for wastewater treatment (Soya waste [13], Copyright © 2021, Elsevier; lotus seedpod [14], Copyright © 2020, Elsevier; tea waste [15], Copyright © 2020, Elsevier; animal feces [16], Copyright © 2020, Elsevier; coal mining waste [17], Copyright © 2021, Elsevier; red mud [18], Copyright © 2021, Elsevier; sewage sludge [19], Copyright © 2022, Elsevier; brick waste [20], Copyright © 2021, MDPI; waste printed circuit boards (WPCBs) [21], Copyright © 2013, American Chemical Society; spent batteries [22], Copyright © 2021, American Chemical Society; waste liquid crystal displays [23], Copyright © 2019, Elsevier; electronic packaging waste [24], Copyright © 2022, Elsevier). (b) Milestone timeline of studies related to the waste-derived materials for wastewater treatment (AC, activated carbon; MB, methylene blue) [[25], [26], [27], [28], [29], [30], [31], [32], [33], [34], [35]].

Although a handful of review papers have summarized environmental applications of waste-derived materials, they mainly focused on the utilization of biomass waste-derived biochar in adsorption and AOPs [6,10,12,[44], [45], [46],[48], [49], [50], [51], [52], [53]]. The systematic summary of the rapidly growing applications of various wastes (e.g., biomass, industrial wastes, and electronic wastes)-derived materials in adsorption, photocatalytic degradation, electrochemical treatment, and AOPs have been seldom reported. Thus, it is urgent to comprehensively review the advances in waste-derived low-cost materials for wastewater remediation.

This review aims to provide an overview of recent advances in the applications of waste-derived materials for wastewater remediation. First, efficient strategies for converting wastes into advanced materials are summarized, and critical experimental parameters within different design strategies are also discussed. Then, recent applications of waste-derived materials in adsorption, photocatalysis, electrochemical treatment, and AOPs are analyzed, and the design of efficient functional materials via regulating the internal and external characteristics of waste-derived materials is emphasized. Finally, perspectives on the development of next-generation waste-derived materials are proposed.

2. Strategies for converting wastes into functional materials

Wastes themselves are rarely used for wastewater purification directly, requiring efficient methods to transform them into desirable functional materials. Currently, diverse biomass, electronic wastes, and industrial wastes with different sizes, densities, chemical compositions, shapes, and moistures have been transformed into functional materials for wastewater treatment. Pyrolysis and calcination, hydrothermal synthesis, sol–gel method, coprecipitation, and ball milling are the mainstream strategies detailed in this section. Moreover, critical experimental parameters that influence the properties of waste-derived materials are analyzed.

2.1. Pyrolysis and calcination

Pyrolysis and calcination are two widely employed thermal activation strategies to convert wastes into functional materials. Pyrolysis is a thermochemical decomposition process generally performed in an inert atmosphere that induces the generation of carbon-enriched biochar, hydrocarbons (bio-oils), and volatile gasses [45,46]. With a different atmosphere in the thermal process, calcination refers to heating solid wastes (e.g., electronic wastes, eggshells) under a high temperature and in an oxygen-involved condition, and it is usually employed to synthesize metal oxide-based functional materials (e.g., photocatalysts) from wastes [54,55].

The physicochemical properties and yields of pyrolysis products largely depend on the characteristics of starting biomass wastes and the operational conditions of the pyrolysis process (e.g., pyrolysis temperature, heating rate, and residence time) [45,49]. For diverse applications, different physicochemical properties are required; thus, the optimal pyrolysis conditions of biochar are different. Take the pyrolysis temperature as an example, which governs the chemical compositions and surface properties of biochar. It has been well demonstrated that the functional groups (e.g., –OH, –COOH, and –C O) on the biochar surface are important for the removal of pollutants from wastewater. At high pyrolysis temperatures (e.g., ≥800 °C), the oxygen-containing functional groups on biochar can be well obliterated to shape aromatic structures with higher carbonization degrees. In this context, the high-temperature-derived biochar owns high hydrophobicity and aromaticity and often contributes to excellent adsorption performance toward organic contaminants [56]. Nevertheless, a higher temperature could also lead to the chemical rearrangement of biochar. The destruction of the biochar structure would obstruct the pores, thus degrading the adsorption performance of biochar [57]. Differently, biochar prepared at a relatively low pyrolysis temperature (e.g., ≤450 °C) contains richer surface functional groups than that synthesized at high temperatures. These functional groups can provide abundant active sites for the adsorption of inorganic pollutants and the activation of persulfate (PS) and H₂O₂ [58]. However, another study suggested that compared with the rich oxygen function groups and persistent free radicals (PFRs) of biochar pyrolyzed at low temperature (e.g., 300 °C), the graphite electron donor–transfer complex generated during pyrolysis of biochar at higher temperature (e.g., 700 °C) played a more important role in the activation of PS, which acted as electron donor, increased electron transfer and formed graphite holes during the degradation of acid orange 7 [59]. In this context, the pyrolysis of biochar should be checked on a one-by-one basis to optimize its surface chemistry (functional groups, defects, hydrophility), conductivity, and nanostructure (porosity) for target applications.

A critical issue involved in the pyrolysis of biochar with a relatively low temperature is the formation of hazardous environmentally persistent free radicals (EPFRs, e.g., oxygen-centered, carbon-centered, and oxygenated carbon-centered radicals), which may have potentially adverse effects on the ecosystems and host organisms [60]. Accordingly, toxicological studies should be implemented in the production and adoption stages of biochar to determine the specific risks to the surrounding living organisms concerning generated EPFRs in biochar [61]. In addition, it is necessary to optimize the pyrolysis parameters and the biomass properties to limit the generation of EPFRs [62]. Apart from pyrolysis temperature, the heating rate is another widely studied parameter. Depending on the heating rate and residence time, the pyrolysis process can be divided into slow pyrolysis, fast pyrolysis, and flash pyrolysis. The heating rate has a big influence on the contents of gaseous, liquid, and solid products [12,49]. Generally, biochar synthesized directly from biomass pyrolysis shows poor surface functionality, low porosity, and small surface area, which profoundly confine its applications in wastewater treatment. The surface modification and functionalization of biochar (e.g., alkaline/acid modification, chloride modification, loading of functional nanomaterials, surface doping) have been extensively studied to address this issue, and shape the nanostructure, chemical composition, electronic structure, and stability of biochar-based materials for typical applications [12].

In the calcination procedure, the calcination temperature influences the nanostructure and crystallinity of waste-derived materials, and thus, their performance. In general, a higher temperature leads to a higher crystallinity and a more severe aggregation of particles [63,64]. The former can influence the electronic structure of materials, and the latter will result in a reduced surface area [65]. In this term, the optimal calcination temperature should be checked on a case-by-case basis for different wastes. Controlling the chemical composition of waste precursors is another route to enhance the performance of waste-derived materials [42]. This can be achieved by calcinating the mixture of wastes and desirable chemicals or wastes [66,67]. For example, Xu and coworkers developed a Fe₂O₃-TiO₂/spent fluid catalytic cracking catalyst composite (Fe-Ti/SF) via an impregnation-calcination process [68]. Benefiting from the favorable photoactivity of Fe₂O₃ and TiO₂, the interparticle electrons transfer between TiO₂ and Fe₂O₃, and the fast charge transfer rate, the Fe-Ti/SF displayed a higher methylene blue (MB) photodegradation efficiency over its single Fe₂O₃ and TiO₂ loaded counterparts. With the one-pot calcination process, one can optimize the chemical composition of waste-derived materials by adding suitable precursors to wastes.

2.2. Hydrothermal synthesis

Hydrothermal synthesis involves chemical reactions in water solution at both high temperature and pressure in sealed, high-pressure vessels. There are mainly two routes to construct functional materials from wastes via the hydrothermal method. First, the hydrothermal carbonization of biomass can produce hydrochar, which also holds great potential in wastewater remediation [69,70]. Of particular interest, this method is suitable for the conversion of biomass wastes with high moisture content (e.g., sewage sludge and animal excreta) because it avoids the separate drying process [71]. Second, hydrothermal synthesis can be applied to the preparation of metal-based functional materials/composites from solid/liquid wastes, such as metal oxides and sulfides [[72], [73], [74], [75], [76]], metal oxide/sulfide composites [77], metal (hydr)oxide/carbon composites [78], metal sulfide/biochar composites [79], and red mud/biomass waste composites [80]. The reaction temperature, solid/liquid ratio, pH value, and reaction time of the hydrothermal process are important factors that influence the properties (e.g., nanostructure, phase, and surface property) of waste-derived materials.

Aside from the single hydrothermal process, many studies have attempted integrated techniques to design efficient functional materials from waste. As reported, a hydrothermal synthesis (210 °C, 12 h) followed by one-step calcination (750 °C, 1 h) was used to construct hierarchical activated porous carbon microspheres from fallen Platanus orientalis leaves [81]. Similarly, an integrated hydrothermal process-thermal conversion method was applied to convert red mud into porous γ-Al₂O₃ microspheres [82]. For the hazard-free treatment and resource utilization of wastewater sludge, Cai et al. developed a coagulation-hydrothermal reaction-pyrolysis technique to turn waste sludge into mesoporous biochar composed of goethite, quartz, biochar, and polymer [83]. Of note, the combination of these methods can efficiently convert diverse wastes (e.g., plant leaves, sludge, red mud) into value-added materials.

2.3. Sol–gel method

The sol–gel method proposes the chemical transformation of a liquid “sol” (generally a colloidal suspension of inorganic particles) into a gelatinous network “gel” phase with a subsequent high-temperature calcination process and further conversion into oxide materials [84]. The obtained materials keep high crystallinity, purity, homogeneity, as well as high modifiability [85]. The main operational conditions of the sol–gel process contain solution concentration, reaction time, temperature, and pH value. Currently, a series of wastes have been exploited to fabricate functional materials via the sol–gel process [[86], [87], [88], [89], [90]]. The mainstream method converts solid wastes (e.g., electronic wastes and biomass) into liquid wastes, which act as the sol’s precursor [87,88]. For example, the spent Ni–Cd batteries’ positive-electrode leaching solution was transformed into mixed oxide containing iron, nickel, cobalt, and cadmium via the sol–gel method, and the metal oxide exhibited high photocatalytic degradation performance toward the textile-reactive black V–2B dye [91]. Another method refers to the preparation of waste-bearing composite materials via the sol–gel process. In this framework, small-sized solid wastes (e.g., fly ash) can be directly added to the reaction solution and act as a support for functional components, and the resulting composites can be applied in wastewater purification [86]. As reported, the TiO₂/calcined eggshell composite was prepared by a sol–gel technique followed by a self-assembly coprecipitation method, which acted as a hybrid nano-biosorbent for the removal of acid dye from aqueous media [92]. Differently, Zhang et al. developed a sol–gel/pyrolyzing route to construct the magnetic biochar-MnFe₂O₄ nanocomposite. Within the composite, biochar could support and disperse MnFe₂O₄ effectively, which contributed to the superior adsorption performance [93].

2.4. Coprecipitation

Coprecipitation is a convenient way to prepare oxide-based nanomaterials, which can be defined as the occurrence of simultaneous nucleation, growth, coarsening, and/or agglomeration processes in solution [94]. The properties of the obtained precipitates, such as composition, size, and morphology, highly depend on the reaction parameters (e.g., precursor ratio, temperature, pH value, surface ligand, etc.). Similar to the sol–gel process, there are mainly two strategies for constructing functional materials from wastes with the coprecipitation process: (1) extracting metal components from solid wastes (e.g., electronic wastes) to liquid phases, which work as the precursor of metal oxides in the coprecipitation process [95,96]; (2) focusing on applying waste-derived carbon materials as the support of metal (hydr)oxides, and producing metal (hydr)oxides/carbon composites with the coprecipitation method [[97], [98], [99], [100]]. For instance, a chemical coprecipitation and subsequent pyrolysis process were implemented to prepare magnetic reed biochar in which iron oxides were loaded on the surface of biochar [101]. A similar impregnation-pyrolysis technique was used to develop iron-modified biochar for phosphate adsorption starting from waste-activated sludge. Noticeably, the iron in FeCl₃-impregnated sludge-based biochar mainly existed in the amorphous phase, which improved the adsorption performance [102].

2.5. Ball milling

Ball milling, also known as mechanochemical milling, is a mechanical-chemical process that consumes mechanical energy to cause structural and chemical changes in materials [5,103]. Compared with traditional material synthesis methods (e.g., hydrothermal process, calcination, and pyrolysis), the mechanochemical process owns many advantages: (1) avoiding the energy-consuming high-temperature operation, (2) reducing the time and chemicals required in the milling process, (3) facilitating large-scale fabrication of materials with high yield from wastes [104,105]. In addition, depending on the requirement of products, one can select suitable milling parameters such as milling time, temperature, speed, atmosphere, and ball/material ratio.

Ball milling has been widely employed in preparing functional materials from solid wastes, with biochar-based materials as the representative [10]. A main function of milling is to decrease the size of materials, resulting in enlarged surface area and thus benefits the reaction between materials and pollutants [106]. By using ball milling to reduce the size of waste cassava slag, the following hydrothermal carbonization could turn the milled slag into cassava slag biochar for dye adsorption [107]. Incorporating nano-sized functional materials in highly porous and structurally stable biochar via ball milling produces nanocomposites that consolidate the advantages of both raw materials for wastewater remediation [10,108]. For example, a pyrolysis-ball milling technique was capable of synthesizing magnetic biochar based on biomass and iron or iron oxides [109]. Apart from reducing the size of wastes, the introduced intensive mechanical energy can also activate wastes by increasing the number of surface functional groups and defects [110]. Therefore, ball milling is suitable for converting solid wastes into targeted functional materials (e.g., nanostructure and surface chemistry).

3. Waste-derived adsorbents for pollutant removal

Adsorption is a cost-effective method to remove pollutants from wastewater [36,111,112]. The adsorption efficiency highly depends on the properties of adsorbents, especially the surface area and surface functional group. Waste-derived low-cost materials with flexible physical and chemical properties have gained great interest in the adsorption of metal/anion ions, dye, and antibiotics, as summarized in Table 1.

Table 1.

Summary of representative waste-derived adsorbents for pollutant removal.

Adsorbent	Pollutant	Adsorption conditions					Adsorption amount (mg/g)
		A.D.a (g/L)	C0b (mg/L)	Time (h)	pH	Tc (°C)
WPCB-derived adsorbent	Cd(II)	1	562	4 days	4	20	236.12 [113]
Corn stalk-derived biochar	Pb(II)	2	100	12	5.5	25	49.7 [114]
Leaching residues of biotite minerals	Hg(II)	–	200	2	2	25	355.23 [115]
Sorghum root-derived ACd	Pb(II)	0.2	40	1	–	–	197.6 [116]
Cow dung waste-derived composite (PEI-Fe3O4@CDB)	Cu(II)	5	1200	3	7	25	183.82 [117]
	Cd(II)	5	1200	3	7	25	231.48 [117]
Blast furnace slag-derived Al2O3-SiO2-BFS	U(VI)	0.5	300	5	6	25	88.5 [118]
Pinewood-derived biochar	NO3−	2.5	60	6	2	22 ± 1	4.2 [119]
	PO43−	2.5	60	6	2	22 ± 1	20.5 [119]
Red mud/base treated rice husk composite	SO42−	7.5	100	1.5	4	65	12.41 [80]
Paper waste-derived AC	F−	0.3	12	18	5	25	39.76 [120]
Acidosasa edulis shoot shell-derived biochar	ReO4−	3	20	8	1	∼22	4.42 [121]
Pine sawdust-derived AC (CZn5)	Basic Green 4	5	50–2000	2	6–10	26	370.37 [122]
Rice husk-derived AC (PK-AC)	RhBe	10	300	3	1.3–10.2	19.8	235 [123]
Blast furnace sludge-derived carbonaceous adsorbent	Basic Orange 2	1	124.36	2	6.5–7.5	25	10.1 [124]
Sugarcane bagasse derived biochar/ZnO	Reactive Red 24	1	250	1	3	RTf	105.24 [125]
Sewage sludge-derived AC	Amoxicillin	2.5	100	–	6	–	27 [126]
Polyethylene terephthalate waste-derived α-Fe/Fe3C	Tetracycline hydrochloride	0.25	200	1.5	6	25	652.08 [127]
Modified waste expanded polystyrene	Fluoroquinolone	0.2	25	0.5	6	–	554.3 [128]
Walnut shell-derived AC	SMXg	0.01	40	48	5.5	30	93.5 [129]
	Metronidazole	0.01	40	48	8	30	107.4 [129]
Methanol-modified biochar	Tetracycline	1	100	12	5	30	95.63 [130]

^aAdsorbent dosage.

^bInitial pollutant concentration.

^cTemperature.

^dActivated carbon.

^eRhodamine B.

^fRoom temperature.

^gSulfamethoxazole.

3.1. Inorganic pollutants

Inorganic ions in wastewater are of growing environmental concern due to their high toxicity and cumulative biological effects [112,115,131]. Rich in hydroxyl, carboxyl, and other functional groups, waste-derived materials can react with inorganic ions via ion exchange, surface complexation, hydrogen bonding, π-π interaction, electrostatic attraction, etc [45]. Therefore, they can be employed as competent adsorbents to remove inorganic ions.

Biowaste-derived carbon materials (e.g., AC) are widely used absorbents for heavy metal ions mainly due to their rich oxygen-based functional groups (e.g. –OH, –COOH, and –C O), high surface area, and low price [132]. For enhancing the adsorption performance of biowaste-based adsorbents, nanostructure regulation and surface modification via acid, base, oxidizing agent, organic compound, and salt activation have been widely explored. Typically, base (KOH, NaOH) and chloride (ZnCl₂) activation in the pyrolysis process can optimize the porosity of the activated biochar, which benefits the adsorption of inorganic ions via increasing the surface area and facilitating mass/charge transfer. Differently, acid (e.g., H₂SO₄) treatment mainly focuses on introducing functional groups (e.g., –SO₃H), which can attract metal ions efficiently and improve the adsorption capacity [133]. Similarly, the application of oxidizing agent (e.g., NaClO) will increase the number of active binding sites by oxidizing some of the functional groups of biochar to carboxylic groups; hence, more metal ions can be adsorbed and removed [134].

Anions (e.g., F⁻, Cl⁻, NO₃⁻, SO₄²⁻, and PO₄³⁻) can also be removed by waste-derived carbon materials via adsorption. Positively charged segments should be introduced onto the carbon surface to ensure a high removal efficiency. Thus, chemical modifications are required to obtain desirable functional groups (e.g., amidine and amino groups) and multivalent metal ions [135]. For N-containing group modification, Pan and coworkers developed a recoverable amine-functionalized biosorbent (BR-N) from biogas residue for NO₃⁻ and PO₄³⁻ removal from wastewater [136]. The BR-N showed a cross-staggered structure with rich quaternary-amine groups. These characteristics led to enhanced pollutant diffusion and strong electrostatic attraction of BR-N with NO₃⁻/PO₄³⁻. In terms of metal ion regulation, Yang et al. found that the adsorption performance of PO₄³⁻ on Fe-modified biochar derived from waste-activated sludge was better than the untreated counterparts [102]. The Fe species in the biochar existed mainly as amorphous hematite and hydroxides, which enhanced the PO₄³⁻ adsorption. In addition, ligand exchange played a critical role in the adsorption of PO₄³⁻ by the Fe-modified biochar.

Beyond biowaste-based materials, industrial wastes (e.g., slag, mine waste, spent limestone, fly ash, and electronic waste)-derived adsorbents also exhibit good performance for inorganic ion removal [22,[137], [138], [139], [140]]. Adsorbents derived from industrial wastes are generally in the form of (mixed) metal (hydr)oxides, which possess abundant active sites for the adsorption of metal ions and anions. Apart from the advantages in chemical composition, the nanostructure of some industrial waste-derived adsorbents also enhances the adsorption performance. Zou et al. developed a zeolite from the spent LiFePO₄ battery via hydrothermal treatment, which held three-dimensional 12-member-ring channels [22]. Benefiting from its high structural porosity, high chemical adsorption capacity, and fast cation exchange, the waste-derived zeolite showed a high Pb²⁺ removal capacity of up to 723.8 mg/g. It should be noted that the adsorption of ions on waste-derived oxides highly depends on the reaction conditions, including pH value, reaction time, and temperature. As suggested by Qiu and coauthors, the adsorption behavior of Cd²⁺ by the hydrothermally modified circulating fluidized bed fly ash (HM-CFB-FA) was controlled by the initial pH value. When the initial pH value was <6.2, the chemical precipitation process was inhibited by H⁺, and the adsorption function dominated in the removal of Cd²⁺. Differently, when an initial pH > 6.2 was adopted, part of the oxides of Ca and Al might undergo hydrolysis and ionization reactions. Afterward, the release of OH⁻ improved the solution pH, which led to the chemical precipitation of Cd²⁺ (Figure S1) [137]. This pH-dependent ion adsorption is a ubiquitous phenomenon, which should attract attention to optimize adsorption performance and uncover the adsorption mechanism. Another interesting issue worth mentioning here is the adsorption time-dependent adsorption mechanism. Recently, Pérez et al. found that the fundamental role of Ca(OH)₂ in waste-derived Ca(OH)₂/CaCO₃ materials for P adsorption finished before 15 min, and thereafter, CaCO₃ was responsible for the removal of orthophosphate ions [141]. Under a high concentration of orthophosphate ions, direct ligand exchange of PO₄³⁻ by CO₃²⁻ appeared while improving the crystallinity of the generated apatite.

Combining the merits (e.g., large surface area, low cost, and high adsorption activity) of different adsorbents can form high-performance composites for pollutant removal. Carbon/zeolite-based composites have aroused great interest [142,143]. For instance, Han et al. developed a nanoscale zerovalent iron (nZVI)-loaded microspherical carbon (SC) composites (SCZ) from the waste carton for Cr(VI) ion removal (Fig. 2a). The SC facilitated the adsorption of Cr(VI) ions, which were further reduced to Cr(III) by nZVI and –OH on SC. Simultaneously, the nZVI converted to iron oxides (Fig. 2b) [144]. The SCZ composite integrates adsorption and chemical reduction in one system, which accelerates the removal of hazardous high-valence metal ions. Apart from nZVI, metal (hydr)oxides/sulfides/metal–organic frameworks (MOFs) with high adsorption capacity are widely coupled with carbon/zeolite materials. Ngambia and coauthors designed a sewage sludge-derived biochar (SDBC)-Mg(II) composite via a facile precipitation-calcination process, which was able to eliminate >99% of Ag⁺, Pb²⁺, Cu²⁺, and Cd²⁺ ions from pond water [145]. The high adsorption performance can be attributed to the high surface area (91.57 m²/g) and rich sorption sites.

Fig. 2.

Waste-derived adsorbents for metal ions removal. (a) Schema of the synthesis of a new nanocomposite (SCZ), spherical carbon (SC) loaded with zerovalent iron (ZVI), and its application in Cr(VI) adsorption. (b) Schematic diagram of Cr(VI) removal mechanism by SCZ [144], Copyright © 2018, American Chemical Society.

3.2. Organic pollutants

The wide application of dye, herbicides, pesticides, surfactants, plastics, pharmaceuticals/antibiotics, and fungicides in the mining, chemical, food, and light industries causes serious organic pollution and delivers risks to the aquatic environment and human health [[146], [147], [148], [149], [150], [151]]. It is effective to remove those organic pollutants by sorption, and the main removal mechanisms involve electrostatic interactions, hydrogen bonding, ion exchange π-π interactions, n-π interactions, and pore-filling [152,153]. Carbon-based materials are widely studied due to their high surface area and flexible surface chemistry. Using molecular simulations, Bahamon and coworkers found the adsorption properties of AC for five typical antibiotics (naproxen, paracetamol, amoxicillin, diclofenac, and ibuprofen) were different and were essentially associated with their atom affinities and molecular structures [154]. Given the diversity in the structure of organic contaminants, a series of strategies aiming at structural modifications and surface functionalization have been performed on waste-derived carbon materials.

Texture properties and surface chemistry of adsorbents play a central role in determining their adsorption capacity toward organic pollutants. It is widely accepted that adsorbents with a porous structure and high surface area are suitable for the adsorption of organic contaminants [155]. Unlike texture properties, the role of surface functional groups in influencing the adsorption of organic pollutants shows a case-by-case feature. Alivand et al. found that the melamine incorporation (as the agent for mesopore formation) and –NH₂ immobilization could enhance the adsorption capacity of asphaltene residue-derived nanoporous carbons (IANC) for amoxicillin and metronidazole antibiotics elimination from wastewater effluents. Apart from the melamine modification-induced high surface area (2693 m²/g) and mesopore volume (1.61 cm³/g), the introduction of the –NH₂ group significantly improved the adsorption energy of amoxicillin and metronidazole due to a more favorable electrostatic and charge-transfer effects [156]. The water flow characteristics should be optimized to ensure efficient contact between pollutants and functional groups on adsorbents. Guo et al. designed a cross-flow filtration material (β-CD/WS) based on wood sawdust and β-cyclodextrin-polymer. The pharmaceutical contaminant water flowed through the micropores on the surface of the cell walls and the sawn-off vessel channels. The water flow characteristics of β-CD/WS led to full contact between organic pollutants (e.g., propranolol) and grafted β-CD on the cellulose backbone of WS, thus improving the pollutant removal efficiency [157]. It should be noted that not all surface functionalization leads to enhanced adsorption performance. For example, Jaria and coworkers found that the introduction of thiol groups on waste-based AC resulted in a worse adsorption capacity toward SMX [158]. This was because the specific surface area played a more decisive role than the proposed functionalization in the adsorption performance. Similar studies also pointed out that the most influencing factors for the organic pollutants’ adsorption were the AC’s textural parameters, but not the introduced functional groups [159,160]. Therefore, for surface functionalization, it is necessary to consider the effect of functional groups on the specific surface area and porous properties of adsorbents.

Composites can integrate the merits of different functional materials and thereby show enhanced adsorption performance. Materials like metal oxides, clay minerals, zeolite, silica, and nZVI are promising candidates to enhance the adsorption performance of carbon materials by introducing functional groups and active sites [[161], [162], [163], [164]]. Mei and coworkers developed a Fe-N co-modified biochar (Fe-N-RSBC) via a one-pot pyrolysis process. The Fe-N-RSBC possessed rich functional groups, graphitized carbon structure, and magnetic components (Fe₃O₄, γ-Fe₂O₃, and Fe₃C), which led to a high tetracycline (TC) adsorption ability (156 mg/g). The Fe components decorated porous biochar adsorbed TC via surface complexation, electrostatic interaction, hydrogen–bond interaction, pore filling, and π-π interaction [165]. Of particular interest, low-cost layered clay minerals with large surface areas can not only enlarge the specific surface area but also interact with the pollutants via exchangeable cations in the layer of minerals [163]. Apart from these carbon-based composites, Basaleh et al. developed a steel slag-acrylamide acrylic acid (SSAA) copolymer with an addition polymerization method. The SSAA composite showed great performance in the removal of cationic and anionic dyes, and the maximum efficiencies of 94% and 97% were attained for MB and methyl orange (MO), respectively. Further investigations suggested that physical adsorption was found to be the dominating mechanism for MB, while the chemisorption mechanism was found for MO [166]. Such inorganic/organic composites combining the merits of low cost and high performance are of great interest in the development of efficient multifunctional adsorbents.

4. Waste-derived photocatalysts for pollutants degradation

Photocatalysis is an appealing strategy to exploit green and renewable solar energy for pollutant degradation. When photocatalysts are exposed to appropriate light irradiation, excited holes (h⁺) and electrons (e⁻) will be generated [167,168]. The photogenerated h⁺ with a strong oxidation ability can oxidize pollutants directly, and several important free radicals (e.g., ·OH) generated by the reaction of h⁺ and e⁻ with OH⁻, H₂O, and O₂ can also degrade pollutants into small nontoxic or less toxic compounds (e.g., CO₂, H₂O) [[169], [170], [171], [172]]. To enhance the utilization efficiency of sunlight and cut the cost of semiconductor photocatalysts, waste-derived metal oxide/carbon-based materials have attracted great interest. Table 2 summarizes representative waste-derived photocatalysts for pollutant degradation.

Table 2.

Summary of representative waste-derived photocatalysts for pollutant degradation.

Photocatalyst	Pollutant	Photodegradation conditions					Degradation efficiency (%)
		P.A.a (g/L)	C0 (mg/L)	Irradiation	Time (h)	pH
Cotton waste-derived carbon microtube	BPAb	0.5	10	Visible light	2	–	∼95 [173]
Industrial waste-derived TiO2/Fe2O3	Methyl blue	1	79.9	Natural sunlight	2	5	100 [174]
	RhB	1	47.9	Natural sunlight	2	5	93 [174]
	Congo red	1	69.67	Natural sunlight	2	5	99 [174]
Waste toner powder-derived g-C3N4-Fe2O3	MO	1	20	Natural sunlight	1.5		99 [175]
Spent batteries-derived graphene oxide/copper composite	MB	0.5	100	UV lightc	3	–	90 [176]
Industrial waste-derived multiphase photocatalysts	Ritonavir	0.4	10	Visible light	0.25	–	95 [177]
	Lopinavir	0.4	10	Visible light	1	–	95 [177]
ZnO immobilized onto wood waste-derived AC	MB	3	10–50	Visible light	3	8	100 [178]
Cd2+-loaded spent adsorbent	MB	0.4	20	Visible light	0.33	–	97.41 [179]
Pb2+-loaded spent adsorbent	Acetaminophen	0.2	5	Visible light	3	7	93 [180]
Polystyrene waste supported Ag-TiO2	MB	6.7	45	UV light	2.5	6	60 [181]
	Cr(VI)	6.7	15	UV light	2.5	2	32 [181]
Red mud modified montmorillonite	Phenol	1	100	Visible light	1	6	95 [67]
	Cr(VI)	1	60	Visible light	2	4	97 [67]

^aPhotocatalyst amount.

^bBisphenol A.

^cUltraviolet light.

4.1. Waste-derived semiconductor photocatalysts

Semiconductor metal oxide-based catalysts are widely implemented in the photodegradation of pollutants. Metal-bearing solid wastes are promising precursors for the fabrication of metal oxide photocatalysts. Abdo et al. found that the recovered SnO₂ nanoparticles from WPCBs leachate solution showed a high photocatalytic performance toward MB dye degradation under UV light illumination [182]. The key to the successful preparation of the high-performance SnO₂ nanoparticles was the selective leaching of Sn from WPCBs in the Na₂-EDTA chelating agent. Eggshell, a ubiquitous biowaste, can be employed to prepare CaO via a calcination process. The obtained CaO nanopowders enable the photodegradation of the textile acid dye Lanasyn Rez F5B [183] and the MB dye [184]. With a bandgap of 2.75 eV, copper slag (mainly containing magnetite and fayalite) could be directly applied in the photooxidation of a series of alcohols and the photoreduction of water [185]. Hence, the copper slag realizes the oxidation of organic pollutants and the simultaneous hydrogen production in industrial wastewater under solar radiation.

Carbon-based metal-free photocatalysts (e.g., carbon dots, graphitic carbon nitride (g-C₃N₄)) obtained from biowastes possess good performance toward pollutant mineralization. As a metal-free and visible light-responsive material, g-C₃N₄ is widely used in the photodegradation process. Yang and coworkers developed a g-C₃N₄ from the mixture of dicyandiamide and mushroom waste via a thermal condensation process followed by thermal exfoliation. The waste-derived photocatalyst exhibited a good activity toward the degradation of MB (over 90% removal in 270 min) due to its high graphitic degree and few pyrrolic-N forming repeated tri-s-triazine units oriented along the plane [186]. Photoactive carbon dots and graphene can also be directly fabricated from biowastes [[187], [188], [189], [190]]. Apart from the photodegradation of dye, carbon dots also enable the photoreduction of Cr(VI). Aggarwal et al. found that carbon dots obtained from cellulose could remove 20 ppm of Cr(VI) completely in wastewater within about 2 h under sunlight illumination [189]. In this context, the applications of carbon dots can realize the co-removal of organic and inorganic pollutants.

The emerging single-atom catalysts (SACs) have gained growing scientific attention due to their ultrahigh atom utilization efficiency and remarkable catalytic activity [[191], [192], [193]]. Li et al. recently synthesized a Fe single-atom catalyst (FeSAC-800) from iron mines contaminated biomass waste ferns by facile pyrolysis (Fig. 3a) [35]. The FeSAC-800 owned a FeN₄ structure confined in the porous carbon (Fig. 3b). The FeSAC-800 presented a high photodegradation efficiency in the catalytic of typical antibiotics in 60 min. With the addition of peroxymonosulfate (PMS), the photodegradation of norfloxacin (NOR) followed a Fenton-like oxidation route, and ROS (e.g., O₂^·−, ¹O₂) played a central role (Fig. 3c). Thus, metal-contaminated biomass wastes are appealing precursors for the preparation of cheap and photoactive SACs for wastewater remediation.

Fig. 3.

Waste-derived single-atom catalysts for pollutant photodegradation. (a) Schema of utilizing biomass waste ferns for photocatalytic degradation of antibiotics. (b) Extended X-ray absorption fine structure R-space fitting curve of FeSAC-800. (c) Photocatalytic mineralization mechanism of NOR by waste-derived FeSAC-800 [35], Copyright © 2022, Elsevier.

4.2. Waste-derived composite photocatalysts

For upgrading the photocatalytic performance of semiconductor photocatalysts, it is highly recommended to design waste-derived composite photocatalysts with low electron–hole recombination efficiency, a wide range of light absorption, strong photo anticorrosion, and high electronic conductivity. Typically, photoactive carbon-based composites are frequently employed to degrade organic pollutants [194,195]. Take the e-waste-derived g-C₃N₄-Fe₂O₃ photocatalyst as an example [175]. Compared with the single g-C₃N₄ and Fe₂O₃, the composite showed better photocatalytic activities for the degradation of MO and textile effluents due to the enhanced absorption of visible light, formation and synergistic effect of heterojunction in g-C₃N₄-Fe₂O₃, and the promoted separation efficiency of photoinduced electron-hole pairs. Another feature of the iron oxide-based composite was that it could be easily separated and recovered from the solution under an external magnetic field. For the graphitic carbon-encapsulated V₂O₅ nanocomposites (GC-V₂O₅) developed via an ultrasonication process (Figure S2a), the enhanced photocatalytic performance toward dye degradation could be attributed to the encapsulation of defective V₂O₅ by the waste-derived conductive carbon that would enhance the photocarrier transport and the catalytic reaction at the interface and in the medium of the dye-catalyst mixture (Figure S2b-c) [196]. Beyond these binary carbon/metal oxide composites, the ZnO-polypyrrole (PPy)-AC-based trinary-nanocomposite also attained a high photodegradation efficiency of 98.12% toward MB dye in 20 min at room temperature under visible light. Therefore, designing multicomponent composites from wastes might improve photocatalytic performance, and an emphasis should be put on figuring out the role of each component in the composites.

Waste biomass-derived biochar-based composites are widely employed for organic and heavy metal photodegradation [197]. Biochar is good support for photoactive materials due to its large surface area, which can effectively upgrade the durability of photocatalysts and shape the morphology of the nanoparticles. What is more, the strong adsorption capacity, rich surface functional groups, and good electrical conductivity of biochar can improve the photocatalytic performance of composite catalysts [198]. Recently, metal oxide/biochar composites have demonstrated high potential in the photodegradation of pollutants. Taking the red mud/g-C₃N₄ (RM-CN) composite as a representative, which was synthesized by a thermal polymerization process (Figure S2d) [199]. Compared with single g-C₃N₄, the specific surface area and the optical absorption and photocurrent response of RM-CN have been significantly enhanced with the presence of red mud. Under the synergistic effect of adsorption and photocatalysis, RM-CN composite exhibited excellent photodegradation performance for dyes and antibiotics. In a tricomponent composite biochar@CoFe₂O₄/Ag₃PO₄, Zhai et al. found that the electrical conductivity of biochar enabled to assist the transfer of e⁻ from the conduction band (CB) of Ag₃PO₄ to the valence band (VB) of CoFe₂O₄ and then to the CB of CoFe₂O₄, in the Z-scheme biochar@CoFe₂O₄/Ag₃PO₄ photocatalyst (MBA-3) [200]. This biochar-mediated electron movement significantly promoted the separation of photogenerated electron–hole pairs, and thus, contributed to the efficient degradation of BPA.

Aside from carbon-based composites, recent attempts have investigated waste-derived metal oxide-based composites for pollutant degradation. By using eggshells as the template and support, Zhang et al. developed a CuS/CaCO₃ nanocomposite. Under NIR irradiation, the nanocomposite displayed good photocatalytic performance for 4-nitrophenol reduction (98% removal efficiency in 15 min) and strong photothermal ablation behavior against bacteria [201]. Notably, the waste eggshell not only acted as a support to immobilize nanoparticles but also could provide active carbonate radicals for the degradation of target pollutants. Composites based on earth-abundant mining/industrial wastes, including the mesoporous ZnO@silica fume-derived SiO₂ [202], TiO₂/biogenetic jarosite composite [203], and red mud/montmorillonite [67] show good catalytic performance for the degradation of organic pollutants and the reduction of metal ions. Considering the large-scale production and negative effect of mining/industrial wastes, as well as their oxide–rich properties, it is of great environmental and economic value to design high-performance mining/industrial wastes-based composites with suitable band structures for photodegradation of contaminants.

5. Waste-derived materials for electrochemical wastewater treatment

Electrochemistry-driven wastewater treatment techniques have many advantages, including high efficiency, less chemical consumption, ease of implementation, and environmental friendliness [4,204]. The performance of the electrochemical wastewater treatment system largely depends on the electroactive materials, and designing cost-effective materials is a critical issue. At present, waste-based electroactive materials have displayed great potential in the electrochemical deionization and pollutant electrodegradation processes (Table S1-2), which are discussed in this part.

5.1. Waste-derived materials for electrochemical deionization

Electrochemical deionization is a highly energy-efficient and effective desalting technique to remove ionic elements or salt ions from wastewater/seawater via electrosorption and/or faradaic reactions [205]. Electrochemical deionization properties significantly rely on the electrode materials. High-performance electrodes should meet several textural and electrochemical requirements, including large specific surface area, high ionic conductivity, high porosity, and strong mechanical stability [206]. Recently, biomass and plastic waste-derived carbon materials have been widely employed as promising electrodes for electrochemical deionization [207]. Great efforts have been made to engineer porous structures within carbon materials to enhance the deionization performance. Wang et al. prepared graphitic porous carbon nanosheets (GPCSs) from straw waste via an integrated Zn salt activation and graphitization treatment. Benefiting from the graphitic carbon sheets and abundant pores in the carbon framework, the GPCSs showed a large specific surface area and good wettability and conductivity, contributing to a good deionization capacity of 19.3 mg/g at 1.2 V in 500 mg/L NaCl solution [208]. Aside from Zn salt activation, KOH modification [207,209,210], calcination temperature control [211], and microwave treatment [212,213] are also powerful methods to enlarge the specific surface area and regulate the porosity of carbon materials.

Introducing dopants and functional groups can enhance carbon materials’ electrochemical deionization performance [[214], [215], [216]]. Chang et al. found that the N and S co-doped carbon (NS-C) from plastic wastes held higher deionization capacities and faster deionization rates than those of the single-element (N or S) doped carbon. The improved performance of NS-C in the removal of heavy metal ions could be attributed to the large accessible specific surface area and the deeply AC surface by rich heteroatom doping sites (∼4.55 at% N and ∼13.30 at% S) [217]. A recent study suggested that the N, S, O-co-doped porous carbon (NSO-PC) obtained from buckwheat husk exhibited a high electrosorption capacity (12.7 mg/g in 500 mg/L NaCl solution at 1.2 V), a high charge efficiency (over 0.9), and good reusability (the electrosorption capacity retained 96% after 30 cycles) in the capacitive deionization (CDI) application [214]. The N, S, and O dopants improved the deionization performance via enlarging the specific surface area, regulating the porous structure, enhancing the wettability, providing faradaic pseudocapacitance, and facilitating the adsorption and distribution of ionic charges. Adding functional groups to biochar can enhance pollutant removal capacity and ion selectivity. Stephanie et al. found that the sulfonate and amine groups functionalized biochar showed an enhanced electrosorption capacity and improved charge efficiency than the bare biochar because the ion-selective functional groups ameliorated the wettability and provided more ion transport inside the pore of the electrode [218]. Wang and coworkers found that the quaternary ammonium nitrogen functionalized mesoporous biochar presented a high electrosorption capacity of 28.31 mg/g toward 20 mg/L ClO₄⁻ at 1 V. The good electrosorption activity should contribute to the increased specific surface area and regulated pore structure via ZnO activation, as well as the improved surface wettability and conductivity caused by quaternary amine nitrogen (Figure S3a) [219].

Compositing biochar with electroactive components for electrochemical deionization has gained growing interest. For example, the Ag nanospheres incorporated biomass waste-derived AC (Ag/P-AC) was synthesized via a multi-step process and employed in the electrosorption of NaCl and toxic metal ions within a CDI system (Figure S3b) [206]. Using Ag/P-AC as the anode and P-AC as the cathode, the asymmetric Ag/P-AC//P-AC based CDI system possessed a higher NaCl electrosorption capacity over the P-AC//P-AC-based symmetric system (36 vs. 22.7 mg/g). Additionally, the asymmetric CDI system was more suitable for anions adsorption than the symmetric one. Metal oxides/biochar composites also retain good capacities for electrochemical deionization application because the pseudocapacitive property of metal oxides derived from reversible and fast Faradaic reactions can synergistically improve the electrochemical performance when combined with biochar [[220], [221], [222], [223]]. Rambabu et al. synthesized a watermelon-derived AC (WMAC)/MnFe₂O₄ composite (WMAC/MnFe₂O₄) via a pyrolysis-hydrothermal process (Figure S3c). Based on the principle of the analogous desalination battery system, the WMAC/MnFe₂O₄ electrode attained a high NaCl electrosorption capacity of 29.7 mg/g, with rapid desalination and good recyclability (Figure S3d) [224].

Apart from biomass and plastic wastes, industrial and electronic wastes have also been used in the electrochemical deionization application [[225], [226], [227]]. For instance, Weng and coauthors developed activated microporous carbon spheres (AMCS) from anode materials of spent Li-ion batteries, which could be employed as efficient CDI electrodes. With a high specific surface area (2626 m²/g) and pore volume of (0.98 cm³/g), the AMCS demonstrated good NaCl electrosorption capacity (12.73 mg/g) and a fast salt adsorption rate (2.64 mg/(g·min)) at 1.2 V [227].

5.2. Waste-derived materials for pollutant electrodegradation

As a destructive technology for pollutant degradation, electrocatalysis has made great progress in wastewater treatment because of its high effectiveness, high energy efficiency, and easy implementation [4,34]. It is widely recognized that electrocatalysts/electrodes play a central role in pollutant degradation, and designing cheap and efficient catalysts is an important task. In this context, waste (e.g., biomass wastes, sludge, industrial wastes)-derived materials have been extensively implemented for contaminant electrodegradation [228,229]. With good electrical conductivity, large specific surface area, high chemical resistance, and flexible, functional groups, biochar is widely applied as the electrocatalyst or the support for metal-based electroactive materials. Liu and coauthors found that Fe and Zn-modification enlarged the specific surface area and surface functional groups of biochar and enhanced the adsorption and electrolysis of nitrobenzene [230]. Since the electrocatalytic performance of catalysts highly depends on their nanostructure and electronic properties [191,193,[231], [232], [233]], more studies loaded electroactive materials on porous biochar and formed composites for electrocatalytic applications [[234], [235], [236]]. Starting from municipal sludge, Zhao and coworkers developed a Pd/sludge-biochar loaded foam nickel electrode (Pd-SAC@Ni) for the electroreductive degradation of 4-chlorophenol (4-CP) (Figure S4a) [237]. Under a current density of 5 mA/cm², the removal efficiency of 4-CP reached 98.9% within 2 h, with an initial concentration of 0.8 mM. The indirect and direct reduction pathways were both involved in the 4-CP electrodegradation process, and their contributions were 80.5% and 19.5%, respectively. In a similar Pd/N-doped loofah sponge-derived biochar electrode, the N dopant played an important role in the electroreduction of bromate by enhancing the adsorption ability and electrocatalytic activity of the composite electrode [238]. Aside from these noble metals, transition metal-based oxides and sulfides are also employed to construct composite with biochar. Zhou et al. found that the porous structure of TiO₂/tea porous carbon (TPC) composite created a large number of good channels for electron transport and promoted the yield of hydroxyl radicals (·OH) in the degradation of phenol [47]. Gong and coworkers designed an O and N-enriched hierarchical MoS₂ nanospheres decorated with cornstalk-derived AC (MoS₂/CSAC) for phenol degradation. The hierarchical structure of the MoS₂/CSAC composite contributed to more catalytic active sites, and the abundant mesopores with diverse pore sizes benefited fast electrocatalytic reactions. In addition, the coexistence of Mo⁶⁺ and Mo⁴⁺ species in the MoS₂/CSAC composite accelerated the formation of ·OH from H₂O₂ (Figure S4b) [236].

The development of three-dimensional electrochemical reactors (3DERs) is a breakthrough in electrochemical pollutant degradation due to the high mass transfer, high current efficiency, easy operation, and high area-to-volume ratio [239,240]. In a 3DER, the particle electrode governs the electrocatalytic efficiency. A Ti-Sn-Ce/bamboo biochar (BC) composite was synthesized and used as particle electrodes in a 3DER for coking wastewater treatment (Figure S4c-d). The BC possessed compact and uniform pores, and the metal oxides effectively covered the internal pore surface of the biochar support. These structure and chemical compositional features contributed to an enhanced degradation performance of the BC particle electrode [239]. Apart from these biochar-based composites, industrial flotation tailings have also been adopted as particle electrodes for the degradation of TC in a three-dimensional aeration electrocatalysis reactor (3D-AER) (Figure S4e). The flotation tailings particle electrode (FPE) exhibited a high TC adsorption capacity, and the adsorption-saturated FPE could be regenerated by an electrochemical process to induce further absorption and form in situ electrodegradation [34].

6. Waste-derived materials for AOPs

AOPs utilizing powerful hydroxyl (·OH) or sulfate radicals (SO₄^‧−) as the major oxidizing active species have gained growing attention in wastewater treatment due to their great potential in removing anthropogenic pollutants [241]. Generally, nanomaterials are involved in the activation of oxidizers and the subsequent oxidation process, and waste-derived materials (especially carbon materials) are extensively studied, as depicted in Table S3.

6.1. Waste-derived materials for hydroxyl radical-based AOPs

Hydroxyl radicals (·OH) are a kind of powerful and nonselective oxidizing agent, with an oxidation potential of 2.8 V vs. NHE (normal hydrogen electrode, pH = 0) and a short lifetime (t_1/2 ≤ 1 μs). Hydroxyl radicals can attack organic pollutants through four basic mechanisms: radical addition, radical combination, hydrogen abstraction, and electron transfer [242,243]. Since hydroxyl radicals show a very short lifetime, they are generally in situ generated during application by various methods, including a combination of oxidizing agents (e.g., H₂O₂), catalysts (e.g., Fe²⁺, carbon), and/or irradiation (e.g., ultraviolet light) [244]. In this context, controlling the production of hydroxyl radicals via using waste-derived catalysts would benefit the water treatment process.

Waste-derived metal-bearing Fenton-like catalysts (such as those containing Fe, Cu, Cr, Co, Ce, and Ru) are widely used due to their high efficiency in the decomposition of H₂O₂ to ·OH [[245], [246], [247]]. For instance, Wang et al. developed iron-doped biochar (Fe@BC) Fenton-like catalyst from sawdust, which presented high degradation performance toward RhB (over 92.7% degradation within 140 min). In addition, the biochar support of Fe@BC was ineffective in activating H₂O₂ for RhB removal, and iron species on biochar were central active sites for RhB degradation [248]. Similarly, diverse Fe-based Fenton catalysts have been designed from wastes (e.g., waste lithium-ion batteries [75], iron ore tailings [249], sludge [250,251], and biomass [252]) for organic contaminant degradation. Aside from Fe-based catalysts, Cu-based Fenton-like catalysts synthesized from WPCBs also held a good performance for RhB degradation (a removal efficiency of 95.78% within 6 h at neutral pH) [253]. Given the differences in the electronic properties of various metals, constructing dual/triple metal active sites would enhance the production of hydroxyl radicals. It should be noted that the difference in pollutants’ concentration between actual water (μg/L level) and simulated sewage (mg/L level) severely hinders the application of Fenton-like oxidation in natural wastewaters. To overcome this challenge, Zhou et al. designed an adsorptive catalyst from waste leather to degrade trace SMX. First, the adsorptive catalyst (WLBC) was able to effectively adsorb trace SMX via hydrophobic interaction, electrostatic attraction, π-π interaction, etc. Then, the oxidation of SMX by the in situ produced ·OH from WLBC mediated Fenton-like process could recover WLBC’s adsorption ability (Figure S5a) [254]. The integrated adsorption and in situ Fenton-like oxidation process enables the removal of organic pollutants with low concentrations.

Metal leakage is a general problem of metal-bearing Fenton-like catalysts, which leads to performance degradation and metallic sludges [255]. Hence, metal-free Fenton-like catalysts from biowaste have attracted great interest. For example, Zhuang and co-workers developed a metal-free 3D graphene-based Fenton-like catalyst (OG) from biowastes [245]. Compared with the common two-dimensional (2D) graphene structure, the 3D graphene assembly associated with the confinement effect of OG led to a smaller energy barrier (1.1 vs. 1.6 eV) for the decomposition of H₂O₂. In addition, the electron migration via the C–O–C bridge in OG increased electron loss from the C–F bonds and facilitated the mineralization of perfluorooctanoic acid (PFOA). These structural and electronic properties of OG contributed to a high degradation performance (93.4% of PFOA was removed in 150 min).

Waste-derived catalysts involving field-assisted Fenton-like processes can degrade pollutants effectively. Sono-Fenton-like, photo-Fenton-like, and electro-Fenton-like catalytic oxidation has attracted great interest. Sonolysis is capable of producing ·OH and other strong ROS through the thermal dissociation of water vapor inside the cavitation bubble during the transient collapse and improving the mass transfer efficiency in the reaction medium via intensive microturbulence and micromixing [256,257]. Coupling sonolysis with a Fenton-like process is thus of great efficiency for organic degradation [258,259]. Chu et al. studied the applicability of waste antivirus copper film (CF) as a Fenton-like catalyst in the sono-Fenton-like catalytic oxidation of BPA (Figure S5b) [256]. The degradation of BPA was significantly enhanced by ultrasound irradiation, and both surface-bound and free ·OH participated in the pollutant degradation under the sono-Fenton-like process using CF as the catalyst.

The Fenton-like process can also be intensified by the application of solar radiation, namely the photo-Fenton-like process [260]. Thus, the optical properties of catalysts are important for degradation performance. Nasuha and coworkers found that the magnetic-activated electric arc furnace slag (A-EAFS) was an effective Fenton-like catalyst for the photodegradation of MB and acid blue 29 (AB29) [261]. The A-EAFS provided additional Fe₃O₄ due to the changes in the iron oxide phase and its favorable response to visible light. Taking advantage of metal oxides’ good photoactivity, spent Li-ion batteries [262] and sludge [263] have been employed to design photo-Fenton-like catalysts for organic degradation. Photoactive sulfides also attract scientific interest. Chen et al. developed CuS nanoparticles embedded with carbon nanosheets (CuS@CNs) using waste biomass-derived hydrogel as a template, which performed well for degrading 2,4-dichlorophenol in a photo-Fenton-like system [264]. The introduction of CNs significantly improved the separation of photogenerated charge carriers to stimulate the degradation of pollutants by CuS.

Compared with sono-Fenton-like and photo-Fenton-like oxidation, electro-Fenton systems gain more attention due to the advantage of in situ H₂O₂ generation through electrochemical oxygen reduction reaction (ORR). Both the selective generation of H₂O₂ and the conversion of H₂O₂ to ·OH significantly depend on the cathode catalysts [265,266]. Significant progress has been made in applying waste-derived materials as high-performance cathode catalysts in the electro-Fenton process. Figure S6 shows a general electro-Fenton system in which the nickel foam cathode was functionalized with a giant reed-derived N-doped biochar [267]. The obtained B@Ni-F cathode demonstrated a high ORR activity and H₂O₂ selectivity (70.41%) due to the rich pyridinic N and O-bearing groups on the biochar. Along with the Fe-F catalyst, the B@Ni-F involved electro-Fenton system enabled the efficient degradation of sulfamerazine (SMR). This study also emphasized the importance of electrolytes. Using polyphosphate-based electrolytes induced enhanced SMR degradation. This should be linked with the improved generation of ·OH from Fe²⁺-polyphosphate ligand complexes through the activation of O₂. To reduce the energy consumption of the electro-Fenton process, the self-powered electro-Fenton degradation system based on triboelectric nanogenerator (TENG) technology realizes pollution mineralization in an eco-friendly and energy-saving manner [268]. Zhu et al. synthesized N-doped biomass carbon catalysts for a self-powered electro-Fenton system. This system combines 3D printed flexible multilayered TENG (PFM-TENG) with the N-doped porous carbon as the electro-Fenton catalyst (Fig. 4). With a high surface area (1790.8 m²/g) and a high content of N/O dopants (20.6 at%), the waste-derived cathode-driven electro-Fenton process enabled high degradation efficiencies of crystal violet (95.4%) and orange Ⅳ (96.0%) in 1 h [269]. Furthermore, waste-derived cathodes can also realize an effective neutral Fe-free electro-Fenton process. As reported, the bamboo-derived graphitic biochar (GB) could support O₂ reduction and H₂O₂ activation at pH 7 simultaneously. The composite cathode that combined GB with stainless steel mesh (GBSS) was able to remove various model pollutants (4-nitrophenol, orange II, reactive blue 19) effectively within 2 h, in the absence of Fe salts [270]. Beyond electrochemistry-assisted Fenton reaction, the heterogeneous visible-light-driven photo-electro-Fenton (H-VL-PEF) system based on N/O biomass self-doped porous carbon (NO/PC) cathode demonstrated a high degradation performance toward tetracycline [271]. In the H-VL-PEF process, the introduction of CuFeO₂/biochar catalysts and visible light decreased energy consumption and improved pollutant mineralization efficiency via promoting ≡Cu²⁺/≡Cu⁺ and ≡Fe³⁺/≡Fe²⁺ redox cycles and benefiting ‧OH/O₂^‧− formation. These modified electro-Fenton systems promote the development of low-cost and efficient techniques for organic pollutant degradation based on hydroxyl radicals.

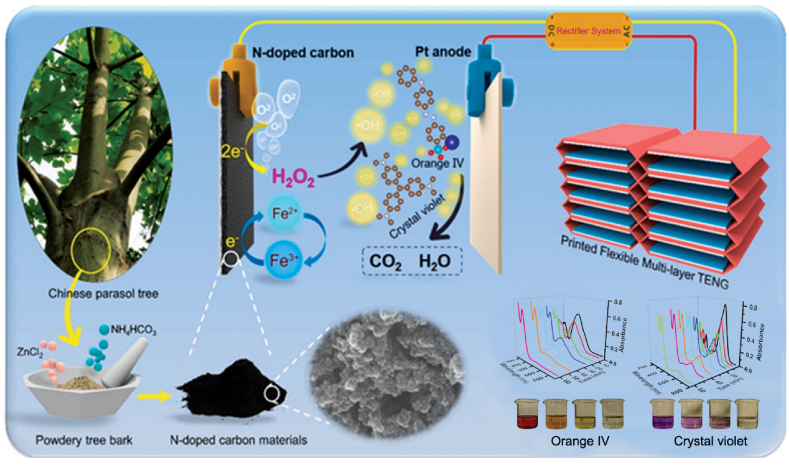

Fig. 4.

Waste-derived materials for hydroxyl radical-based advanced oxidation processes. Schema of an energy-saving electro-Fenton system based on biochar and triboelectric nanogenerator (TENG) technology [269], Copyright © 2021, Elsevier.

6.2. Waste-derived materials for sulfate radical-based AOPs

AOPs based on SO₄^‧− gain significant attention due to the high redox potential (2.5–3.1 V vs. NHE), long half-life time (t_1/2 = 30–40 μs), and fast pollutant degradation rate (10⁶–10⁹/(M‧s)) of SO₄^‧− [50]. SO₄^‧− can be produced from peroxydisulfate (PDS) or PMS activated by catalysts, ultrasound, heat, UV light, electro-chemistry method, etc [44,49]. Currently, a crucial issue is to develop low-cost and efficient catalysts to activate PDS/PMS, and waste-derived materials have presented their advantages such as high catalytic efficiency, low price, and environmental friendliness [48].

Metal-bearing industrial and electronic wastes can be converted to activators for PDS/PMS [272]. Rahimi et al. found that the grounded pyrite (FeS₂) mine waste could be directly employed as nontoxic catalysts for PMS activation to oxidize tetracycline [273]. Simultaneous generation of SO₄^‧− and ·OH was observed in the pyrite/PMS system, and a high tetracycline (50 mg/L) degradation efficiency of 98.3% was attained within 30 min. Rahimi and coauthors developed a Fe-containing carbonaceous catalyst (PMCW) from coagulation wastes, which displayed a good performance in activating PMS for degradation of Reactive Red 2 (RR2). Both radical and nonradical pathways contributed to RR2 decomposition in the PMCW/PMS system. Apart from ROS (SO₄^‧−, ·OH, and ¹O₂), the –OH and π-π^∗ system-induced electron transfer also contributed to the reaction [274]. Starting from iron sludge, Zhu et al. designed a dual-active metal component on SiO₂ (Co-Fe/SiO₂ LC) as the activator of PMS for the mineralization of ciprofloxacin (CIP) (Fig. 5) [275]. A synergistic effect between Fe and Co was witnessed on the catalyst’s surface because Fe²⁺ accelerated the reduction of Co³⁺. In addition, both ·OH and SO₄^‧− were produced in the PMS activation process, and SO₄^‧− dominated the CIP degradation process. Similarly, a Fe/Mn-based catalyst (MS-N3H) derived from electrolytic manganese slag could activate PMS for levofloxacin degradation [276]. In the degradation of levofloxacin, both radical and nonradical pathways were disclosed. The rich Mn and Fe sites on the MS-N3H catalyst surface contributed to the formation of SO₄^‧−, ·OH, and O₂^‧− radicals, and the lattice oxygen benefited the nonradical ¹O₂ production. Thus, the successive oxidation reaction induced by active species led to the efficient decomposition of levofloxacin (degradation rate of 82.6% in 2 h). Besides these Fe-based wastes, copper oxide derived from the anode electrode of spent lithium-ion batteries was capable of activating PMS for degradation of various organic contaminants (e.g., RhB, MO) [277]. The redox cycle of Cu(II)/Cu(I) in the catalyst was the main force to drive PMS activation for the generation of active oxygen species, in which SO₄^‧− and ¹O₂ exerted a dominant effect.

Fig. 5.

Waste-derived materials for sulfate radical-based advanced oxidation processes. The preparation of Co–Fe/SiO₂ LC and the catalytic mechanisms of PMS [275], Copyright © 2020, Elsevier.

Metal-free biochar also demonstrates good catalytic performance for PMS/PDS activation, and the surface functional groups and N dopants play a central role in enhancing pollutants’ degradation properties [278,279]. Wang et al. developed an N-doped biochar catalyst from agricultural waste pomelo peel. The N-doped biochar exhibited a high specific surface area (738 m²/g) and a high level of nitrogen content (13.54 at%) [280]. Integrating with rich defects, carbonyl groups, and high content of pyrrolic N and graphitic N, the N-doped biochar showed high catalytic performance for PMS activation to degrade SMX (95% of the pollutant was removed within 30 min) via a nonradical oxidation process. Similarly, in a passion fruit shell-derived biochar (PFSC)/PMS system for tetracycline hydrochloride degradation, the graphitic N atoms and the carboxyl group of ketones were the possible active sites of the nonfree radical pathway, including the formation of O₂^‧−/¹O₂ or direct electron transfer [281]. To this end, the catalytic performance of biochar can be improved via chemical component regulation, which can be achieved by selecting suitable biomass precursors and optimizing the pyrolysis parameters.

To enhance the catalytic performance of biochar, developing transition metal-bearing/doping biochar and constructing metal component/biochar composites are extensively studied. By using waste watermelon peel as the starting material, a co-doped carbon aerogel catalyst (Co–CA) was synthesized by a hydrothermal method. The Co–CA catalyst was capable of activating PMS for 2, 4-dichlorophenol (2, 4-DCP), CIP, and BPA degradation in various water matrices. The PMS activation mainly followed two pathways, radical (·OH and SO₄^‧−) pathways and nonradical (¹O₂) pathways, depending on the Co²⁺/Co³⁺ redox cycle [282]. In a sludge-derived biochar/PS system, the Fe²⁺/Fe³⁺ redox cycle also influenced the generation of active SO₄^‧− and O₂^‧− for the degradation of 4-chlorophenol [283]. Combining biochar with metal-based materials enables improved catalytic performance. For a biochar-supported iron sulfide (Fe_xS_y) composite (Fe_xS_y@biochar), the high catalytic performance of Fe_xS_y@biochar for PS activation was mainly attributed to the production of free radicals (·OH and SO₄^‧−) induced by Fe_xS_y particles on biochar, followed by the possible activation by oxygen-containing functional groups [284]. Benefiting from the advantages of metals’ redox properties and carbon’s high conductivity and large surface area, ZVI-sludge derived biochar/PS system [285], Ag₂O-Ag-waste eggshell/PMS system [286], and FeClO-sludge derived biochar/PMS system [287] also possess high performance for organic degradation.

7. Conclusions and perspectives

Developing waste-derived functional materials for wastewater remediation is significant in ensuring sustainable clean water security. Herein, the recent applications of waste (e.g., biomass wastes, electronic wastes, and industrial wastes)-derived materials for wastewater purification are reviewed. Sophisticated strategies like pyrolysis and combustion, hydrothermal synthesis, sol–gel method, coprecipitation, and ball milling for turning wastes into functional materials are first analyzed. Also, critical experimental parameters within different design strategies are discussed. After that, recent applications of waste-derived functional materials in adsorption, photocatalytic degradation, electrochemical treatment, and AOPs are detailed. The advancement of efficient functional materials via regulating the internal and external characteristics of waste-derived materials is well illustrated, and the material’s property–performance correlation is emphasized.

Currently, although great progress has been achieved in the development of waste-derived materials for wastewater remediation, there remain some critical issues that deserve further investigation. First, exploring more waste precursors for the design of cost-effective materials for wastewater purification is needed. Currently, biomass wastes have been well explored, while industrial and electronic wastes attract less attention. Because of the negative environmental impacts and favorable metal-rich features, the conversion of industrial and electronic wastes into functional materials may have high environmental and economic values. Second, for the application of waste-derived materials, the purity of materials should be well examined since the chemical composition profoundly affects their performance. Third, integrating advanced characterization techniques (e.g., Raman spectroscopy, microscopy, spectroscopy, and X-ray absorption spectroscopy) with computational tools can facilitate the understanding of the materials’ structure–performance correlation and optimize the material design/synthesis. Furthermore, novel strategies are required to design materials with low fabrication costs and high performance, and strategies with a short process and low-carbon emissions are highly favorable for achieving the carbon neutrality goal. In addition, since many waste-derived materials work in different techniques, the applications of waste-derived materials in integrated technologies (e.g., adsorption-AOP process, electro-Fenton process, photo-Fenton process, photo-assisted PMS activation process, and bioelectrochemical system) for wastewater remediation may upgrade the performance and decrease the operational costs. In addition, coupling solar energy with the wastewater treatment process (e.g., electrochemical degradation) can reduce the utilization of fossil fuels and further limit carbon emissions. Last, it is of great significance to apply waste-derived functional materials in other rising fields, such as electrochemical water splitting, by which we can develop a carbon-free energy system.

Declaration of competing interests

The authors have declared no conflict of interest.
