Assessing nutritional and genetic variations within foxtail millet (Setaria italica) landraces collected from indigenous communities across the Philippines

Abstract

Unknown to many, the Philippines is host to a few remaining accessions of the underutilised and understudied cereal foxtail millet (Setaria italica (L.) P. Beauv.). We collected together accessions of this crop from different eco-geographical locations within the Philippines, along with a few accessions from Lanyu, Taiwan, to undertake a study of their nutritional value and genetic diversity. All accessions were field-grown in 2022, dry season (DS) at the Institute of Plant Breeding (IPB) Experiment Station, Los Baños, Laguna, Philippines. The accessions were tested for micronutrients, including Zn and Fe, nitrogen as a proxy for protein, β-carotene, phytic acid, and a number of phenolic compounds with known nutritional potential. Of the 20 accessions tested, the accessions Bayaras and GB61438 had the highest level of Zn (107.1 mg/kg) and Fe (70.52 mg/kg), respectively, higher than levels found in traditional rice varieties. For β-carotene the highest concentration was found in the accession Balles (∼10 μg/g). Twelve phenolic compounds were detected, with catechin, syringic acid, ferulic acid and kaempferol having the highest concentrations. To assess the genetic diversity, we sequenced a set of eight samples selected from among the accessions to a depth of at least 25-fold using whole-genome re-sequencing. Analysis of the population structure, using genome-wide, high-quality SNPs, showed modest diversity among the accessions, with two unadmixed groups. The accessions are monophyletic relative to their earliest common ancestor, with the very light brown accessions emerging earlier than the light brown and reddish-brown varieties. Analysis of zinc-regulated, iron-regulated transporter-like protein (ZIP) transporters within the foxtail millet reference sequence, var. Yugu1 identified 17 putative ZIP transporters. Variant calling identified SNPs primarily within 3′ and 5’ regions, and introns, indicating variation between foxtail millet accessions within regulatory gene regions rather than in structural proteins. The local foxtail millet accessions, therefore, represent a potential alternative source of nutrients which may help in addressing malnutrition in the Philippines.

1. Introduction

Among the more than 100 species within the genus Setaria, only foxtail millet (S. italica (L.) P. Beauv.) became an important domesticated crop [1]. It is a self-pollinating diploid (2n = 2x = 18) with a small genome size (∼490 Mb) [2]. It is easy to grow, having a short growing period, with good productivity, even under conditions of abiotic stress. It is quickly becoming a model organism in which to study beneficial traits such as C₄ evolution, biofuel potential and the molecular mechanisms underlying abiotic and biotic resistance [3]. Foxtail is cultivated for food and fodder across Europe, China and other Asian countries. The crop is also grown in Australia, North and South America, and parts of Africa as a minor cereal [4]. Archaeobotanical evidence supports the significant contribution of foxtail millet in ancient civilization [5]. It was thought to originate in China, where domestication began, becoming a staple crop in Eurasia [1].

Foxtail millet has been shown to contain comparable and often higher nutrient content (protein, dietary fibre, Ca, Zn, Fe, etc.) relative to major cereals such as wheat and rice [6,7]. Thus, this crop could be exploited as an alternative source of nutrients, particularly in the Philippines where people suffer from widespread malnutrition, the most alarming of which is iron deficiency affecting more than half of the population [8]. A study of foxtail millet landraces from across India grain was shown to contain mean values of 12.3 % protein, 4.7 % fat, 60.6 % carbohydrates and 3.2 % ash [9]. Nutritional composition analysis of 75 elite germplasms from India, USA and China exhibited mean values of 12.63 % protein, 3.52 % fat, 2.07 % crude fiber, 72.89 % carbohydrate and 2.30 % total minerals [10], close to the values reported in the study of Indian accessions [9]. These data suggest that millets can provide an alternative source of energy and nutrients. Additionally, this crop has a low glycaemic index and high fibre content. Taken all together, millets could help address sustainable developmental goal (SDG) 3, Good Health and Well Being [11]. The consumption of millets is advised for people with lifestyle-related illnesses [11]. A change in the diet such as diversifying calorie sources (e.g., corn, wheat bread) or supplementing rice with millets, may alter consumption habits and may contribute to addressing issues of malnutrition.

In terms of genetic variation, 62 varieties collected from Asia, Europe and Africa clustered into five groups using RFLP (digested with EcoR V) [12]. A study using inter simple sequence repeat (ISSR) markers identified a high level of polymorphism among 81 accessions of nine Setaria species [13]. This study further confirmed northern China as the centre of domestication. Gene flow among accessions from different eco-geographical areas was also shown to be high. A study conducted in Nepal also showed marked diversity among 27 foxtail millet accessions [14].

A draft genome reference of foxtail millet (∼423 Mb) has been assembled using a combination of whole genome shotgun and next generation sequencing [15,16]. This study identified chromosome reshuffling events and rearrangements [15,16]. This draft genome sequence will aid the identification of functionally important variants and future breeding design. An extensive library of genomic variations has been established from the re-sequencing of 312 foxtail millet accessions. This study identified geographical adaptation, which may facilitate the genetic improvement of the crop [17].

In the Philippines, the cultivation of this ancient crop is now restricted to the indigenous communities of (i) Batanes, a group of small islands located at the northernmost tip of the country situated between Luzon, Philippines and Taiwan, and (ii) Northern Mindanao, including Bukidnon, Misamis Oriental and Misamis Occidental [18]. A few accessions have also been found in Cagayan and Catanduanes. How and when these accessions were introduced to these different areas is still unknown.

Limited research has been undertaken on Philippine foxtail millets. It has been suggested that the Batanes accessions are similar to accessions from Orchid (Lanyu Township) [19], an island belonging to Taiwan. This was later confirmed by an investigation of the molecular differences of Asian and European landraces using RFLP, the Batanes accessions clustering with Taiwanese varieties [12]. In another study [20] foxtail millets from Batanes were classified as having round type grains. No further studies are known to have been performed on foxtail millet landraces from the Philippines.

Foxtail millet has been neglected and is unknown to many Filipinos, the local people of the Philippines. The dwindling cultivation of foxtail millet is largely due to the convenient availability of easy-to-cook rice, which is financially supported and distributed by the government in the Philippines. This is compounded by the lack of conservation efforts by both local and national stakeholders, foxtail millet being a non-priority and underutilised crop. Additionally, problems associated with threshing and milling further contribute to this crop's demise, with no mechanized approach having been introduced in the indigenous communities. Today, the Ivatans, the locals of Batanes, prepare foxtail millet as a dessert dish. In Northern Mindanao it is cooked as “suman” (millet cake wrap) and “biko” (pudding) [18]. To our knowledge, no study has been undertaken to assess the genetic diversity and nutritional value of Philippine foxtail millet accessions.

There is a need to assess the potential of foxtail millet as an alternative nutrient resource. In this paper we (1) quantify the nutritional composition of several foxtail millet accessions grown at several localities in the Philippines, with a particular focus on Zn and Fe, and (2) identify the molecular variations and diversity present among eight selected local accessions using whole-genome re-sequencing. Additionally, as the Philippines suffers chronic problems of Zn and Fe deficiency, we analysed the genetic variations of the zinc- and iron-regulated transporter-like protein (ZIP) family of transporters (also including Zinc/Iron Permeases) among the varieties, as this may shed insights on the molecular mechanism of Zn/Fe uptake.

The United Nations General Assembly (UNGA) declared 2023 as the International Year of Millets. In time with this celebration, the project was conceptualised to motivate farmers to utilise and cultivate this ancient plant. As this crop is under-utilised, we hope to incite curiosity among biologists, breeders and farmers, helping to preserve this crop.

2. Methods

2.1. Plant materials

Seeds of twenty foxtail millet accessions from Batanes were collected by Dr. Rodora Hontomin and Mr. Cesar Hostallero. The Batanes varieties were tentatively named after either the donor or the field site where they were collected. One accession was collected from Amulung, Cagayan, named here as Palacu, the village site of its collection. Another variety was collected from Virac, Catanduanes, Bicol Region, which is locally known as “Ukig”. Two Philippine varieties, GB61483 and GB61739 of unknown provenances, were requested from the National Plant Genetics Resources Laboratory of IPB. Six accessions from Orchid Is., Taiwan, were requested from the Germplasm Resource Information Network (GRIN), USA. These were originally collected in 1977 from Orchid Is., Lanyu Township, Taiwan by GRIN and were shipped from USDA. Taiwanese accessions were included to compare their agro-morphological (data not included in this paper) and nutrient content with the Batanes accessions, since previous studies showed their potential genetic relatedness [12,19]. Seeds of two accessions from Bukidnon were collected by Raquel Salingay of Central Mindanao University, Bukidnon. Taken all together, there were 24 accessions collected across the Philippines, with the addition of six accessions from Taiwan.

In terms of elevation, Batan Is. of Batanes is located at the northernmost tip of the Philippines and is around 77 ft (23 m) above sea level (asl); Amulung, Cagayan, 78.2 feet (23.8 m); Bukidnon, 3002 ft (915 m) asl. Laguna, the experimentation site, has an estimated elevation of 387 ft (118 m) asl. All accessions were sent to IPB, Los Baños, Laguna for agro-morphological assessment, nutritional composition analysis and whole-genome re-sequencing analysis of a set of sample accessions.

2.2. Greenhouse trial

All accessions were initially grown in two replicates under greenhouse conditions on August 31, 2021 at the Institute of Plant Breeding (IPB), University of the Philippines Los Baños (UPLB) to propagate seed for subsequent field experiment. Greenhouse trials also aimed to (i) assess their adaptability to the current site (Laguna) since these accessions were collected from different eco-geographical locations, (ii) check for any insect pest and disease infestation or susceptibility, (iii) identify variation in traits such as growth habit, spike colour, and flowering time. Ten seeds from each accession were directly seeded into a soil mix composed of sand: silt: clay proportions of 32 %–48 % – 20 %, and loam as textural grade and water holding capacity (WHC) of 67 %. Fungicide was applied a week prior to seeding. Seedling thinning was performed to retain 3–5 stalks. Plants were watered with approximately 1 L of water once a week, as previously described [21].

Of the 30 accessions grown, five did not germinate (non-viable) at the current site. These include three Taiwanese and two Bukidnon accessions. Additionally, five accessions were discarded due to their agro-morphological similarities to other accessions (data on agro-morphological, quantitative and qualitative, will be a subject of a separate paper).

2.3. Dry (DS) and wet season (WS) field experiments

Seeds of the remaining 20 accessions were grown in the field, in three block–replicates. These lines were pre-germinated in seedling trays on January 14, 2022 and transplanted on February 03, 2022 for DS field trials. The experiment was performed at E3–West of the IPB Experiment station 14°08′24.8”N, 121°15′32.3”E. The previous crop cultivated on this site during the 2021 WS was eggplant. Sugarcane was also grown in two previous season–years (2019, 2020). We implemented incomplete block design with three blocks, with accessions randomly arranged as designed by the blockdesign application [22] in Rstudio. The field was laid out with plot dimensions of 11 m × 3 m, with 0.5 m in between rows and 0.25 m in between hills in each row (i.e., 50 cm × 25 cm plant spacing). Each block was separated by 1.5 m alleys. Furrow (∼15 cm in depth) and ridge sowing were implemented in DS and WS trials, respectively. Three seedlings were planted per hill with twelve hills in each row. Seedling thinning was performed, if necessary, to retain three seedlings per hill. Spikes from 10 hills in each row were collected for nutrient composition assessment. Border rows were also included in the design, but nutrient composition was not analysed from samples collected from border rows.

As practiced by the locals and to avoid bias in micro-nutrient accumulation, no fertilizer was added throughout the experiment. Pest, weed, and disease infestations were monitored regularly, and control measures were applied if needed. However, there was visually negligible incidence of disease infestation in our field trials. This is consistent with the literature, in which foxtail millet accessions are reported to be both biotic- and abiotic-stress resistant (reviewed in Ref. [23]). Weeding was performed as needed. Unless precipitation occurred, watering was done once a week for the DS as previously suggested for foxtail millet [21]. No watering was performed during the WS.

For the WS, seeds were sown on July 8, 2022 on seedling trays and were transplanted 20 DAS. However, the foxtail millet accessions were observed not to thrive well under wet conditions presumably due to frequent precipitation and enormous cloud cover. This is not surprising as foxtail millet is known to thrive under arid and semi-arid conditions and was said to be a summer crop [24]. No data on nutrient composition was, therefore, obtained for the 2022 WS.

2.4. Soil sampling

Soil samples were collected by composite sampling before transplanting. Individual soil cores were collected using a soil auger from five points in X shape at 0–25 cm depth in each block and were mixed (three reps, in total). The representative samples were then bulked, air-dried, sieved through 2-mm mesh, and prepared for analyses at the Plant Physiology Laboratory, IPB and Analytical Services Laboratory, Department of Soil Science, Agricultural Systems Institute (ASL-DSS-ASI), College of Agriculture and Food Science, UPLB. The following were analysed: pH, organic matter content, total nitrogen (N), available phosphorus (P), potassium (K), zinc (Zn), and iron (Fe) based on procedures previously described (see Table 1 for references).

Table 1.

Methods of analyses and references used for determining soil chemical properties.

Parameter	Method	References
pH	1:1 soil-water mixture, glass electrode (soil/water slurry using pH meter)	[25]
Soil Organic Matter (SOM), %	1 N K2Cr2O7.H2SO4 oxidation, FeSO4 titration	[26]
Available Phosphorous, ppm	Bray Extracting Solution (0.03 N NH4F), colorimetry	[27]
Exchangeable Potassium, meq/100g soil	1 N NH4CH3COO buffered pH 7.0 extraction, flame photometry	[25]
Available Iron, mg/kg	DTPA Extraction, Atomic Absorption Spectroscopy	[28]
Available Zinc, mg/kg

2.5. Nutrient composition analysis

Grain samples were milled using an electronic grinder (RainPhil®) set at a fixed rotational speed for 30 s. Foxtail millet flour was separated from the bran, implementing manual winnowing to initially remove the hulls, then mesh-sieving with No. 80 mesh testing sieve (180 μm) (US Standard Sieve Series). Flour samples were analysed for nutrient composition including Zn, Fe, Mg, Ca, Cu, N (proxy for crude protein), phytate, and β-carotene across the three biological reps collected from the 2022 DS field trial, implementing three technical replicates (3 bio reps × 3 tech reps = 9 reps for each element) at the Analytical Services Lab (ASL), IPB. Each biological rep represents each block–replicate of each variety collected from the field.

Nitrogen content of the foxtail millet samples was determined following the method of [29]. For the quantification of metals (Zn, Fe, Mg, Cu and Ca), 1 g of each of the samples was ashed and digested with 25 mL 37 % hydrochloric acid with 5 drops of 69 % nitric acid until 10 mL concentrate was obtained. The concentrate was diluted to 50 mL with ultra-pure water. Metal ion concentrations in the dissolved ash solution were quantitatively determined by Atomic Absorption Spectroscopy (AAS) (Model: AA-7000, Shimadzu, Japan).

The phenolic compounds were analysed at the National Institute of Agricultural Botany (NIAB), Cambridge following standard procedure as previously described [30]. Phenolic compounds were assessed using HPLC. Flour samples of approx. 2.5g were extracted into 50 ml of ethanol-acetic acid (10 % 1 M acetic acid v/v) under reflux conditions for 2h. Extracts were stored at −20 °C until analysed. The extracts were prepared for chromatography by centrifugation for 2 min at 13000 rpm, then filtrated through a 0.2 μm filter. The compounds were separated using the Dionex Ultimate 3000 HPLC system. A 150 mm × 4.6 mm × 5 μm × 100 Å Kinetix C18 column was used, with a gradient 0.1 % formic acid/acetonitrile mobile phase running at 0.2 ml/min (gradient of 0.95: 0.05 for 2min, then 0.72; 0.28 for 18min, 0.00; 0.10 for 28min, and then held until 45min) were used. The column effluent was monitored with a PDA detector between 200 and 600 nm, with data recorded at 254 nm, 280 nm, 340 nm and 520 nm. Samples were replicated, with three biological reps and two technical reps each.

Determination of β-carotene levels was adopted from Ref. [31]. One gram of dried flour sample was added to chilled 50-mL acetone. The mixture was shaken using a vortex mixer at high speed and left to stand for 15 min, with occasional shaking. The solution was filtered using Whatman filter paper No. 42. With the receiver submerged in an ice bath. The addition of acetone was repeated twice and the supernatants pooled. The absorbance of the extract was read at 449 nm using UV–vis spectrophotometer. β-carotene levels were determined against a standard. β-carotene was analysed in three biological reps, with three technical replicates run for each sample (3 bio reps × 3 tech reps = 9 reps).

For phytic acid (PA) analysis, HCl was used to extract the flours of each foxtail millet accession (every accession was comprised of three biological reps, each with a corresponding two technical reps). PA content was determined using a Megazyme phytic acid assay kit (Cat. No. K-PHYT, Megazyme International, Ireland) following the manufacturer's instructions with minor modifications as previously described [30]. Samples were calculated from a calibration curve using standard phosphorus and read at 655 nm using Epoch microplate spectrophotometer.

2.6. Statistical analysis

For micronutrient analysis (e.g., Zn, Fe) basic statistical tests, such as means and standard deviations, were calculated using the ‘aggregate’ function. Two-way Analysis of Variance (ANOVA) was fitted in our samples using ‘aov’ function to infer significance among accessions. Tukey's HSD (Honest Significant Difference) was also performed to compare each group in a pairwise fashion. R (v. 4.1.0) [32] was used to analyse datasets.

Histograms were generated to view distribution of datasets. Residual analysis was also performed by calculating and creating plots on Residuals vs Fitted plot, Normal QQ plot, Scale–Location, Residuals vs Leverage. Datasets were also tested using Shapiro–Wilk normality test and Bartlett test of homogeneity of variances. As described previously, we ensure our statistical analyses are robustified by generating biological and technical replicates. Figures were created using ggplot2 package [33].

Correlations between trace minerals, N, PA, and β-carotene were calculated using Pearson rank correlation in rcorr function found in Hmisc package. Likewise, correlations were also calculated between phenolic compounds.

2.7. DNA extraction

For DNA extraction, flag leaf samples were taken at 35 days after transplanting (DAT). Until usage, samples were kept at −80 °C. The modified CTAB protocol [34], was employed to isolate genomic DNA from the foxtail millet leaf samples.

2.8. Whole genome Re-sequencing

Genomic DNA was sequenced by Novogene, Singapore using the Illumina platform NovaSeq PE150. Briefly, gDNA was randomly sheared into short fragments, end repaired, A-tailed and ligated with Illumina adapters. The fragments were PCR-amplified, size selected and purified. Reads were checked for adapters, and low-quality reads (at Q > 20) by Novogene. No further pre-processing procedure were required as demonstrated using FASTQC [35] since there are no adapters and low-quality reads. The genome sequence of the foxtail millet reference sequence (Setaria italica cv. Yugu1 v2.0.54) was downloaded from Ensembl Plants [36] and indexed using BWA [37]. A dictionary for the reference genome was created using PICARD tool (option: CreateSequenceDictionary). Reads were mapped against the indexed genome reference using BWA (option: mem), implementing default parameters. Outputs were piped to bam and sorted using SAMtools [38]. PICARD was used to assign reads to a single Read Group (option: AddOrReplaceReadGroup) after which PCR duplicates were flagged using MarkDuplicates option. BAM files were indexed using PICARD (option: BuildBamIndex).

Variants were identified using the Broad Institute Genome Analysis Tool Kit (GATK v4.1.9.0) [39]. Best Practices for germline SNP/Indel discovery. GATK (option: Haplotypecaller) was run for each foxtail millet accession dataset, using its default parameters, to call variants between the reference genome sequence and each sequenced accession, in both Variant Call Format (VCF) and Genomic VCF (option: -ERC GVCF; multiple samples) modes. For individual samples, we used VCFtools v0.1.15 [40] to filter the variant calls with the following parameters: a Minor Allele Frequency (MAF) of 0.05–0.1 (the number of output did not change within the range); a minimum mean depth for a site, 7; minimum quality score 30; and, a minimum missing data of 0.9 (--maf 0.05 to 0.1 --min-meanDP 7 --minQ 30 --max-missing 0.9). Note that Indels were not removed at this stage.

Using GVCF mode for multiple samples, all accessions were merged using GATK CombineGVCFs command. Joint genotyping was performed using GATK GenotypeGVCFs. Indels (option: -remove-indels) and monomorphic SNPs were removed (option: -maf 0.001) sequentially using VCFtools. Sites were filtered using the same tool with the following options: -min-meanDP 7 --max-missing 0.5 --mac 3 --minQ 30. This enabled us to kept variants that have been successfully genotyped in 50 % of individuals, a mean depth value of 7, a minimum quality score of 30, and a minor allele count of 3. Variant Effect Predictions was performed using SNPEff 5.1d [41] and Setaria_italica as database from Ensembl.

Structure analysis. FastStructure [42] was used to infer population structure within the foxtail millet accessions using the same SNPs, with simple (at K = 2 to 5) prior.

Phylogenetic tree. Using PLINK2 the VCF file of the whole genome sequence was converted into PLINK binary format (bed, bim and fam). A phylogenetic tree was created using VCF kit [43] using the genome-wide SNPs identified across the foxtail millet accessions implementing Neighbor–Joining algorithm.

Principal Component Analysis (PCA). Using the VCF file a PCA plot was created using PLINK2. Linkage pruning and removal of rare variants was first performed. The plot was generated using the libraries tidyverse [44] and ggplot2 in R.

Phylogenetic analysis. Fasta files of both gene and translated amino acid ZIP transporter sequences of foxtail millet, rice, and A. thaliana were all downloaded from Ensembl Plants. Multiple sequence alignment (MSA) was performed using Clustal Omega [45] with output in Newick format. Phylogenetic tree was created using VCF-kit [43]. All scripts are run in R.

3. Results

Foxtail millet accessions were collected from several eco-geographical sites across the Philippines (Table 2). These include accessions collected from Batanes (20 accessions), Bukidnon (2 accessions), Cagayan (1 accession) and Catanduanes (1 accession) (Fig. 1). Two local varieties of unknown provenances and 6 Taiwanese accessions were also included in the study (Table 2). From this collection, seeds from 20 accessions were subsequently multiplied during the 2022 DS field trial (Table 2; Fig. 2). Milled grain was analysed in these 20 accessions for elemental micronutrients, N as a proxy for crude protein content, β-carotene, PA, and a range of phenolic compounds. Whole genome re-sequencing was undertaken on eight of the accessions to assess diversity.

Table 2.

Foxtail millet accessions planted in the 2022 DS field trials: visual characteristics, days to 50 % flowering (DTF), and origin.

Accession	Growth habit	Seed and spike color	DTF∗	Origin
Alcon	Semi upright	Very light brown	84	Batanes
Arie	Spreading	light brown	57	Orchid, Taiwan
Balles	Semi upright	Reddish-brown	61	Batanes
Bayaras	Semi upright	Very light brown	92	Batanes
Camacho	Erect	Reddish-brown	59	Batanes
Cobico	Semi upright	Very light brown	92	Batanes
Cordel	Semi upright	Reddish-brown	62	Batanes
de Sagon	Spreading	Very light brown	84	Batanes
Diahang	Erect	Reddish-brown	59	Batanes
Felicidad	Semi upright	Very light brown	83	Batanes
GB61483	Erect	Reddish-brown	66	Unknown
GB61739	Semi upright	Very light brown	81	Unknown
Karanet	Semi upright	black with some light brown	60	Orchid, Taiwan
Langa	Erect	black with some light brown	59	Orchid, Taiwan
Mavaheng	Semi upright	Reddish-brown	56	Batanes
Palacu∗	Erect	Light brown	40	Amulung, Cagayan
Primitivo	Erect	Reddish-brown	62	Batanes
Salengua	Semi upright	Very light brown	92	Batanes
Tukon	Semi upright	Very light brown	86	Batanes
Ukig∗	Drooping	Light brown	86	Catanduanes, Bicol
Valugan	Erect	Reddish-brown	60	Batanes
Viola	Erect	Reddish-brown	59	Batanes

*Note that accessions Palacu and Ukig were not included in the 2022 dry season field trial and nutrient composition analysis due to shipping and work disruptions in 2021. Data on these accessions were taken from 2022 wet season and greenhouse trials.

^*Number of days from sowing to at least half (50 %) of plants per accession have full spikes.

Fig. 1.

Eco-geographical locations of the foxtail millet accessions collected in this study: (i) Batanes (circled blue), located at the northernmost tip of the Philippines; (ii) Cagayan (filled blue); (iii) Bukidnon, highlighted in red, and (iv) Orchid Is. (circled purple). Also shown is Laguna (green), the site of greenhouse and field experimentation trials. Accessions from Orchid Is. were shipped from USDA and were originally collected by the Germplasm Resource Information Network (GRIN). Map taken from https://simplemaps.com. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

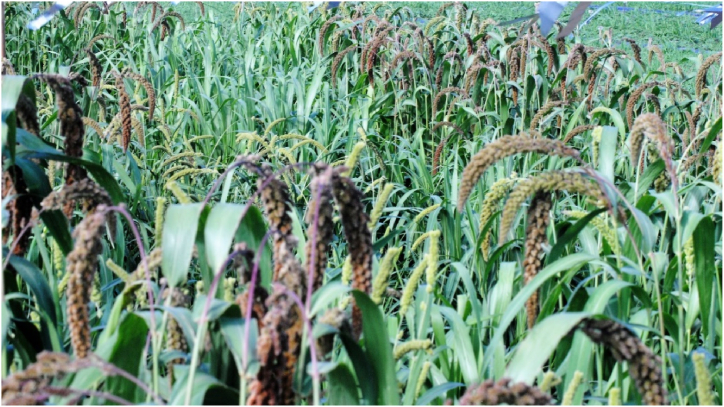

Fig. 2.

Philippine and Taiwanese foxtail millet accessions planted at the field experimentation site of the Institute of Plant Breeding (IPB) during the 2022 DS.

4. Field experiment

4.1. Soil analysis of the field site

Analysis of the soil samples collected from the experimentation site (E3–West, IPB, UPLB) showed a composition of 31 % sand, 42 % silt, and 27 % clay; a clay–loam textural grade; and a water holding capacity (WHC) of 66 %. Specific soil analysis of the three blocks showed that the site is moderately acidic, with an average pH of 6.04 (Table 3). Organic matter (OM) content showed an average of 2.01 %, which is classified as a medium content scale [46]. Total N and available N exhibited an average of 2006.7 kg N/ha and 60.2 kg N/ha, respectively. Available P concentration was high at 15.62 ppm; K levels were of medium concentration at 0.44 meq/100g soil. The field site had a medium concentration of Zn and high levels of Fe, with an average 4.78 mg/kg and 104.10 mg/kg, respectively, based on the classification by Ref. [46].

Table 3.

Soil analysis of E3, IPB, the site of the field experiment for the 2022 DS.

Block	pH	OM	Total N	Available N	Avail P	K	Zn	Fe
	(1:1, water)	(%)	(kg N/ha)	(kg N/ha)	Bray P2 (ppm)	(meq/100g)	(mg/kg)	(mg/kg)
1	6.12	2.07	2070	62.1	16.18	0.387	3.99	116.18
2	5.97	1.94	1940	58.2	13.27	0.412	5.14	104.06
3	6.04	2.01	2010	60.3	17.42	0.511	5.22	92.05
Ave	6.04	2.01	2006.67	60.20	15.62	0.44	4.78	104.10

Note: OM, organic matter; N, nitrogen; P, phosphorus; K, potassium; Zn, zinc; Fe, iron.

4.2. Nutritional composition analysis of foxtail millet accessions

Milled grain from 20 foxtail millet accessions were analysed for N, as a proxy for crude protein content, the micronutrients Fe, Zn, Mg, Ca and Cu, β-carotene, phytic acid (PA), and a range of phenolic compounds. Grain of the 20 accessions used for these assessments was obtained from the plants grown at the field experimentation site during the DS. Eight of these accessions were analysed for WGS.

4.3. Ash and nitrogen analyses

Ash content of the accessions ranged from 0.59 % (GB61739) to 1.07 % (Camacho), with an overall average across accessions of 0.84 % (0.84 g/100g) (see Suppl. Table 1). Analysis of the N content, as a proxy to protein content, showed significant differences (ANOVA, P < 0.001) among the accessions, with a mean value of 1.67 g/100g (or 16.7 g/kg) (Fig. 3; Suppl. Table 2). The accessions de Sagon and Camacho exhibited the lowest (0.90 g/100g) and highest (2.14 g/100g) concentrations of N, respectively, with 12 of the accessions having high N levels, similar to Camacho (Fig. 3). Based on a nitrogen-to-protein conversion factor (NPCF) of 6.25, the crude protein content would range from 5.63 to 13.38 g/100g (or 5.63–13.38 %).

Fig. 3.

Variation in Nitrogen content in 20 foxtail millet accessions.

4.4. Micronutrient content (Zn and Fe)

Focusing on minerals essential for human health, we analysed Zn and Fe levels in the 20 accessions. Significant variation in Zn concentrations was observed (ANOVA, P < 0.001) with overall mean of 52.50 mg/kg across all accessions, with average values ranging from 34.63 mg/kg (GB61739) to 107.05 mg/kg (Bayaras) (Fig. 4; Suppl. Table 3 for raw data). Compared to the three Taiwanese accessions (Arie, Karanet and Langa), the Philippine lines Tukon, Felicidad, Valugan, and Bayaras were found to contain significantly higher levels Zn (Tukey's HSD; Fig. 4; Suppl. Table 4).

Fig. 4.

Variation in Zn (mg/kg) content in 20 foxtail millet accessions.

Similarly, significant variation in Fe concentrations was observed across the accessions (ANOVA, P < 0.001). The mean concentration of Fe was 45.66 mg/kg. The accessions Felicidad and GB61483 were found to contain the lowest and highest mean concentrations of Fe, with 30.04 and 70.52 mg/kg, respectively (Fig. 5; Suppl. Table 5).

Fig. 5.

Variation in Fe (mg/kg) content in 20 foxtail millet accessions.

4.5. Other micronutrient concentrations (mg, Ca and Cu)

Analysis of Mg, Ca and Cu concentrations showed significant variations between the foxtail millet accessions (P < 0.001). Mg had a mean value of 282.84 mg/kg (Table 4). Primitivo was found to contain the lowest concentration of Mg with 154.29 mg/kg and Diahang, the highest, at 595.57 mg/kg (Suppl. Table 6). The accessions demonstrated a mean Ca concentration of 564.14 mg/kg, with values ranging from 229.04 mg/kg in accession GB61483 to 1504.59 mg/kg in Bayaras (Table 4; Suppl. Table 7). Cu concentration had a mean value of 7.41 mg/kg. The accessions Valugan and Camacho showed the highest concentrations of this trace mineral, with 10.18 and 9.93 mg/kg, respectively. Accession GB61739 had the lowest concentration, with 3.73 mg/kg (Table 4; Suppl. Table 8).

Table 4.

Average Mg, Ca, and Cu (in mg/kg) contents in 20 foxtail millet accessions^a.

Accessions	Mg	Ca	Cu
Diahang	595.57a	481.24d	9.56bc
Cordel	500.06b	438.34de	8.79d
de Sagon	461.79b	458.94de	8.84d
Bayaras	362.40c	1504.59a	8.99cd
Balles	317.08d	450.22de	7.03f
Felicidad	287.21de	1147.97b	8.00e
Valugan	285.76d-f	1399.82a	10.18a
Arie	275.24e-g	268.71g-i	5.91h
Salengua	257.52e-h	250.16hi	7.71e
Viola	251.21e-i	1093.47b	6.26gh
Tukon	245.91f-j	304.90g-i	7.91e
Langa	236.98g-j	354.29e-h	3.79i
Mavaheng	223.41h-j	289.36g-i	6.22gh
Camacho	213.59i-k	315.54f-i	9.93ab
GB61739	211.54i-k	302.68g-i	3.73i
GB61483	210.60jk	229.04i	8.62d
Alcon	210.39jk	426.29d-f	6.41g
Cobico	178.45kl	312.68g-i	9.54bc
Karanet	177.89kl	878.69c	5.85h
Primitivo	154.29l	375.90d-g	6.98f
Average	282.84	564.14	7.51

^aMeans in each column followed by the same letter(s) are not significantly different at 5 % level using Least Significant Difference (LSD) test for multiple comparisons. Table sorted based on the values of Mg.

4.6. β-carotene content

All 20 accessions of foxtail millet were found to contain β-carotene, with an overall mean of 5.39 μg/g. The accession Arie had the lowest β-carotene concentration, with 3.44 μg/g (Fig. 6; Suppl. Table 9). On the other hand, Balles and Diahang showed the highest levels of β-carotene concentration, with 9.69 and 9.12 μg/g (not statistically significant using Tukey's HSD; Suppl. Table 10), respectively.

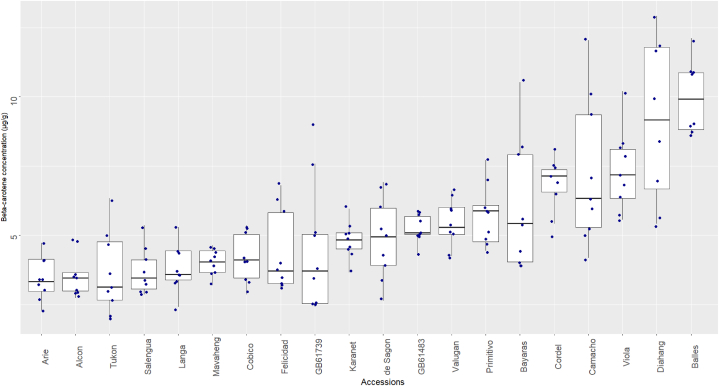

Fig. 6.

β-carotene concentrations of 20 foxtail millet accessions (in μg/g).

4.7. Phytic acid content

Significant variation of PA content also occurs among the accessions (P < 0.001) with an average of 3.27 mg/g (Fig. 7; Suppl. Table 11). Bayaras and Diahang were identified to have the lowest (1.72 mg/g) and highest (5.02 mg/g) levels of the anti-nutrient, respectively.

Fig. 7.

Variation in Phytic acid levels of 20 foxtail millet accessions (in mg/g).

4.8. Correlations among the inorganic nutrients

Correlation analysis of the micronutrients, including N, β-carotene, and PA, using Pearson's rank correlation, identified a number of significant correlations (Fig. 8). There was a positive correlation between Ca and Zn (R = 0.66, P < 0.001), between Zn and Cu (R = 0.43; P < 0.001), and between Mg and Cu (R = 0.40; P < 0.001), and a negative correlation between Mg and N (R = −0.51, P < 0.001). A low, but positive correlation (R = 0.31, P < 0.001) was observed between β-carotene and Mg. We found a statistically significant relationship between PA and Ca, however, the correlation was negligible (R = −0.2, P = 0.03). No strong correlation between PA and the other minerals was found.

Fig. 8.

Pearson correlations among the micronutrients. Colour intensity indicate degree of correlations based on the colour scale bar (right); numbers indicate P-values. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

4.9. Phenolic compound content

Flour samples of the foxtail millet accessions were screened for 20 phenolic compounds, with significant differences (P < 0.001) among the 20 accessions being found for 12 phenolic compounds (Suppl. Table 12).

Catechin, kaempferol, myricetin, and quercetin are phenolic compounds classified as flavonoids. Quercetin was present at a low mean concentration of 0.10 μg/g, with most of the quercetin being present in its glycosylated state, as quercetin glycoside (mean 0.31 μg/g). Myricetin was synthesized at an average concentration of 0.32 μg/g. Kaempferol and its glycoside product, kaempferol glycoside, were both present, with mean concentrations of 1.51 and 0.84 μg/g, respectively (Fig. 9). The flavonoid catechin was found to be the highest phenolic synthesized, with an average value of 4.50 μg/g (Fig. 9; Suppl. Table 12). Syringic acid and ferulic acid were present at high levels, with average values of 4.14 and 2.97 μg/g, respectively (Fig. 9; Suppl. Table 12). GB61483 was found to produce the highest levels of catechin, syringic and ferulic acid, with average concentrations of 20.61, 17.12, and 2.84 μg/g, respectively (Suppl. Table 12).

Fig. 9.

Variations in the content of 12 phenolic compounds detected across all foxtail millet accessions.

A Pearson's correlation analysis was undertaken between the phenolic compounds (Fig. 10B). The highest positive correlation was seen between catechin and ferulic acid (R = 0.90, P < 0.001), followed by cinnamic acid and quercetin (R = 0.86, P < 0.001). Strong correlations were also found between ferulic acid and kaempferol (R = 0.65; P < 0.001), ferulic acid and syringic acid (R = 0.62; P < 0.001) and ferulic acid and quercetin glycoside (R = 0.59; P < 0.001), with strong positive correlations also seen between catechin and kaempferol (R = 0.68; P < 0.001) catechin and syringic acid (R = 0.54; P < 0.001) and catechin and quercetin glycoside (R = 0.70; P < 0.001). The biochemical relationship between these phenolic compounds is shown in Fig. 10A.

Fig. 10.

(A) Biochemical pathway relationship between phenolic compounds assessed in this study [adapted from [[47], [48]]]. Dashed lines indicate multi-step reactions. (B) Correlations between the levels of phenolic compounds detected in this study. Legend, similar to Fig. 8.

4.10. Whole genome re-sequencing analysis

We wanted to determine the genetic diversity within a selected set of local foxtail millet accessions. Eight accessions (Table 5) were, therefore, selected for whole genome re-sequencing (WGS), using Illumina NovaSeq paired end (PE150) technology, at a 25 × coverage. Bayaras and GB61438 were selected for sequencing as they were found to accumulate high levels of Zn and Fe, respectively. For comparison, we sequenced the lowest Fe- and Zn-accumulating lines, Felicidad and GB61739, respectively. Palacu and Ukig were included as they are geographically different from the rest of the lines. Mavaheng and de Sagon were randomly selected to represent reddish brown and very light brown accessions, respectively, from Batanes. Note that both GB* accessions were of unknown origins, therefore, their genetic relatedness to the other accessions would be of interest.

Table 5.

Summary of variant calls (SNPs and Indels) in each accession after filtering.

Varieties	Total no. of variants	No. of SNPs	No. of Insertions	No. of Deletions	Variant Rate (for every 1 kb)
Palacu	920,357	842,834	35,593	41,930	2.27
Mavaheng	863,841	790,133	33,685	40,023	2.14
Felicidad	903,157	826,214	35,545	41,398	2.23
Bayaras	833,621	833,621	32,385	38,198	2.06
GB61739	826,818	787,481	33,601	39,742	2.13
GB61438	860,824	756,766	32,254	37,798	2.04
De Sagon	943,601	863,265	37,020	43,316	2.33
Ukig	968,517	886,292	37,631	44,594	2.39

A total of 862,100,516 raw reads were generated across all eight accessions (Suppl. Table 13). Data quality metrics Q20 and Q30 showed percentages of more than 97 % and 93 %, respectively, suggesting relatively high-quality datasets. Quality assessment of the reads using FASTQC indicated no residual adapter sequences, over-represented sequences, or low-quality bases. Thus, no further pre-processing step was performed.

Mapping of the reads showed more than 99 % alignment to the Yugu1 reference genome. Variant calling using GATK4 (HaplotypeCaller; by-sample, in VCF mode) identified more than 3 Mb of unfiltered variants for each accession. Implementation of filtering parameters revealed that Ukig and GB61739 have the highest and lowest number of variants, with 968,517 and 826,818, respectively (Table 5). There were also considerable numbers of Indels, with Ukig having the highest number with 82,225 Indels and GB61438 the lowest, with 70,052 Indels. Variant rate calling indicated that Ukig contained 2.39 variants for every 1 kb (or 1 in every 418 bases), while GB61438 had 2.04 variants per kb (or 1 in every 489 bases).

4.11. Population structure and phylogeny

We identified 2,046,040 SNPs in GVCF mode (for multi-sample cohorts) across all eight accessions after implementing several filtering parameters with VCFtools (Indels and monomorphic SNPs removed; see Materials and Method). Using the genome-wide SNP data as an input, the population structure was inferred viz. fastStructure across varying number of populations (K). The distruct plot consistently partitioned the accessions into two unadmixed groups at varying K values (K = 2 to 5) (Fig. 11A). The first group includes the very light brown accessions (Bayaras, Felicidad, de Sagon, and GB61739); the other, the light brown (Palacu and Ukig) and reddish-brown accessions (GB61438 and Mavaheng).

Fig. 11.

(A) Structure analysis assuming K = 2; (B) PCA; (C) Phylogenetic tree implementing Neighbor–Joining algorithm in VCF kit.

The finding that the accessions were partitioned into two groups was consistent with the PCA (Fig. 11B) in which PC1 (x-axis) explained the majority of the variation (65.8 %) among the eight varieties, segregating them into two groups. PC2 (y-axis) explained 9.7 % of the variation.

To further determine the evolutionary relationship among the sequenced accessions we generated a phylogenetic tree (Fig. 11C). Relative to their earliest common ancestor, the accessions are monophyletic, with the very light brown accessions Bayaras, Felicidad, de Sagon, and GB61739 emerging earlier than the light brown (Palacu and Ukig) and reddish-brown accessions (GB61438 and Mavaheng). As shown by the short branch lengths (Fig. 11C), Felicidad, de Sagon and Bayaras are apparently closely related, and showed limited divergence. This is further confirmed by the PCA, in which all three accessions are clustered contiguously. As the GB* accessions are of unknown origin, we can infer from these analyses of genetic relatedness that GB61438 is genotypically close to Ukig, a Bicol accession, while GB61739 sits close to the Batanes accessions Felicidad and Bayaras.

4.12. ZIP transporter

We were particularly interested in elucidating the molecular mechanism behind Zn and Fe uptake, as these are nutritionally limited in the Philippines. The lack of both minerals being a chronic problem in the country. Both metals are actively accumulated by transporters from the ZIP family of proteins and iron-regulated transporters (IRTs). The EBI Interpro database showed that Pfam code PF02535 is associated with ZIP transporters (integrated in Interpro, IPR003689). This family was mainly contributed from Arabidopsis thaliana [49]. To identify putative ZIP sequences, we searched Ensembl Plant (Setaria italica ref Yugu1) with the code PF02535. Results returned 17 hits of genes containing this protein domain. This is comparable to A. thaliana and rice which harbour 15 and 17 ZIP transporters, respectively [50]. However, recent interrogation of Ensembl Plants revealed 20 genes in indica and 15 in japonica rice. The 17 ZIP genes were scattered across the foxtail millet reference genome of var. Yugu1, being located on chromosomes I (2 genes), II, III (3 genes per chromosome), IV, VI (3 genes per chromosome), VII (3 genes), and IX (4 genes).

Phylogenetic analysis of the translated amino acid sequences of the ZIP transporters from foxtail millet, A. thaliana, and rice (japonica) indicated a closer relationship between foxtail millet and rice ZIP proteins (Fig. 12). This is expected as both are cereal monocots, while A. thaliana is a dicot. In most cases, for every single foxtail millet ZIP protein there was a corresponding rice ZIP protein, suggesting parallel descent from a common ancestral gene. In a few cases, rice ZIP proteins were found associated with two foxtail millet ZIP proteins. Example, rice protein ZIP9 was found linked with the two foxtail millet ZIP proteins, KQL15068 (Gene: SETIT_024505 mg) and KQK98376 (Gene: SETIT_010745 mg). These two are said to be paralogs (indicated by blue arrows in Fig. 12). On the other hand, the paralogs KQL29912 (Gene: SETIT_016756 mg) and KQK86158 (Gene: SETIT_034876 mg) were found associated with a single rice gene, OsZIP (Os05t0316100-01).

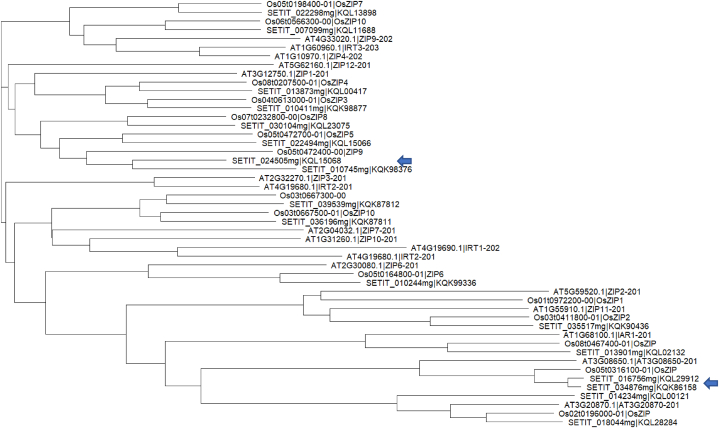

Fig. 12.

Phylogenetic tree of ZIP transporter of foxtail millet (Setaria italica; prefixed with SETIT), rice (Oryza sativa; prefixed with Os), and Arabidopsis thaliana; prefixed with AT). Figure generated using VCF-kit in R. Blue arrows indicate location of foxtail ZIP protein paralogs. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

As we found that the mineral levels in foxtail millet are comparable, or even higher than those found in conventional rice varieties, we further scrutinized the foxtail millet ZIP transporter gene sequences. Using SNPEff, we detected several SNPs found within 14 of the 17 ZIP transporter genes. Most of these SNPs were located in the 5′ upstream region (109 SNPs), in intron (174 SNPs), and in 3’ downstream regions (284 SNPs) (Suppl. Table 14) suggesting that the SNPs may mainly affect gene regulation rather than altering the function of the protein through changes in the DNA sequence of the coding region.

5. Discussion

The Philippines has chronic food insecurity and malnutrition problems, in particular Zn and Fe deficiencies. Its government has proactively initiated the identification of alternative sources of nutrients, including biofortification of food products, particularly rice, to address these problems. Therefore, in this study, we have investigated the nutritional potential of foxtail millet as an alternative source of nutrients. We collected several accessions of this crop (Table 2), grown at dispersed locations within the country. The levels of selected micronutrients, N (as a proxy to crude protein), β-carotene and phenolic compounds were quantified. The levels of protein, measured as a proxy of N levels, found in this collection of foxtail millet accessions (5.63–13.38 g/100g) were comparable to levels found in other accessions of foxtail millet collected from Asian countries, including Bangladesh and India, where protein levels ranged from approx. 11.65 g/100g [7] to 12.3 g/100g [9,10], respectively. These protein levels are higher than those reported in brown rice by the USDA (∼2.7 g/100g; [51]).

While Zn concentrations in the soil lie on the medium scale, the foxtail millet accessions were able to accumulate high levels of this metal in the grain. This would suggest a greater ability of foxtail millet to transport Zn from the soil and store it at higher levels in the grain. Furthermore, most of the foxtail millet accessions demonstrated Zn levels higher than the recommended 40 mg/kg of Zn in flour [52], and higher than those reported in rice. Brown rice was reported to contain 2 mg/100g (or 20 mg/kg) [53] of Zn; while golden rice (GR) and the near isogenic control PSBRc82 contained Zn levels of 2.31 mg/100g (or 23.1 mg/kg dry basis (DB)) and 2.19 mg/100g (or 21.9 mg/kg DB), respectively [54]. The levels in foxtail millet are also far higher than the Zn levels found in tef (Eragrostis tef), another neglected and underutilised crop, where Zn levels range from 14.8 to 29.2 mg/kg [30]. However, it must be remembered that direct comparisons with the literature have to be considered with caution, as these crops were not grown in the same season and experimentation site.

Mean Fe concentrations in foxtail millet were comparable with or even higher than those reported in rice, which contains on average 40 mg/kg DB (for GR) and 46 mg/kg (for PSBRc82) [54]. The high concentration of Fe in the foxtail millet grains may be ascribed to the high soil concentration of Fe at the field site (Table 3). Mg, Ca and Cu levels were found to be comparable to previous reports [7]. These metals were found to have concentrations of around 454, 470 and 5.8 mg/kg, respectively.

Foxtail millet therefore presents as a very promising alternative source of micronutrients, in particular Zn, and an ideal crop to supplement the Filipino diet and address Zn deficiency. Adults require 8–11 mg Zn/day while lactating and pregnant women require 11–13 mg [55]. This means, ∼200 g of foxtail millet can satisfy the daily Recommended Nutrient Intake. It is interesting to note that while there was a minimal input applied (i.e., no fertilizer added, once-a-week watering), the crop exhibited high levels of nutrients, particularly protein, Zn and Fe. The Nitrogen use efficiency (NUE) of this crop would be an interesting subject of further inquiry. The genomic landscape of foxtail millet could be further explored to understand and improve the NUE of other important crops [56]. Furthermore, this crop may be a potential source of genetic features for the enhancement of the nutritional value of other staple cereal crops, viz. genetic modification.

Positive correlations were seen between the levels of Zn with both Ca and Cu, and between Mg and Cu, while a negative correlation was found between Mg and N. A study in spring wheat found that slightly acidic soils increased the level of ammonium and hydrogen ions, which may in turn have a competitive effect on the uptake of Mg [57]. The slightly acidic profile of the field sites (pH 5.97 to 6.12; Table 3) may explain the negative correlation seen in this study between N and Mg.

With regards to Zn and Ca, an antagonistic interaction has been shown between these metals which leads to an ameliorative effect of Ca on Zn deficiency [58]. However, in foxtail millet a moderate positive correlation was found between Zn and Ca. The synergistic assimilation of both metals suggests that there could be other factors in foxtail millet that are influencing uptake of these metals.

β-carotene has been a major target for nutritional improvement, especially in developing countries. In rice, conventional varieties show levels of β-carotene below the limit of quantification (LOQ) [54]. In the genetically engineered GR, total carotenoid levels in the of range 3.5–10.9 mg/kg DB (mean 5.88 mg/kg DB) were measured, while-trans-β-carotene levels ranged from 1.96 to 7.31 mg/kg (mean 3.57 mg/kg) [54], which is lower than the β-carotene concentrations found in most of the foxtail millet accessions. However, this study used 3-month-old endosperms. An earlier study, using freshly harvested rice seed, found up to 36.7 μg/g of carotenoid, 84.1 % of which was β-carotene, in GR [59]. Carotenoids are known to degrade with storage, and their stability is influenced by many other external factors [60]. The finding that foxtail millet is loaded with β-carotene provides an opportunity for future research, and the possibility of supplementing rice grain with foxtail millet seed as a pro-Vitamin A source in the diet. A study of the carotenoids lutein and zeaxanthin (β-carotene level was not measured) reported 13.58 mg/kg of lutein and 3.77 mg/kg of zeaxanthin in the foxtail millet variety Jingu21, and 0.81 mg/kg of lutein and 0.22 mg/kg of zeaxathin in the variety Zhisheng [61].

β-carotene and Mg were found to have low positive correlation (Fig. 8). Studies on this relationship have not been thoroughly investigated. However, in the β-carotene pathway, isopentenyl diphosphate isomerase which catalyses the interconversion of isopentenyl diphosphate (IPP) and dimethylallyl diphosphate (DMAPP), is Mg²⁺-dependent [62]. Further studies on the influence of the level of Mg on β-carotene pathway is highly suggested.

PA levels in the local foxtail millet accessions were found to be consistent with a previous study in which the concentrations of PA were found to be around 2.0 mg/g in polished varieties of foxtail millet [63]. Compared to other crops, this concentration is relatively low. For example, in tef PA levels were found to be between 8.3 and 25.6 mg/g [30]. In brown indica rice grains, phytate ranged from 3.99 to 7.34 mg/g [64]. In this study, we found no correlation between PA and any of the minerals analysed. Although statistically significant, the correlation between Ca and PA was negligible. PA is considered an antinutrient, often reported to inhibit the bioavailability of minerals such as Fe, Zn, and Ca. As foxtail millet hosts low level of phytate, this should render essential micronutrients bioavailable for absorption. This is of prime importance as the global population struggles with nutrient deficiency, further making foxtail millet an ideal crop to supplement the human diet.

Twelve phenolic compounds were detected in the foxtail millet accessions (Fig. 9). However, delphinidin, cyanidin and peonidin, and their glycosides, the anthocyanins which confer colour in plants and cereal grain, were not detected. Eight of the compounds were detected at relatively low levels (Fig. 9). However, kaempferol, ferulic acid, syringic acid and catechin were present at higher levels and exhibited considerable variation between the 20 accessions. Strong positive correlations were seen between these four compounds. The relationship between catechin and kaempferol is apparent, both being derived from naringenin, however ferulic acid and syringic acid sit on different arms of the shikimate pathway (Fig. 10A).

In rice, high catechin levels has been found to be associated with a low glycaemic index and antioxidant properties [65]. Studies on green tea (Camellia sinensis) showed that catechin has a hypocholesterolaemic effect and anti-inflammatory properties [66]. Syringic acid was previously shown to confer therapeutic effects on diabetes, cancer and cardiovascular diseases, having antimicrobial, antioxidant and anti-inflammatory properties (reviewed in Ref. [67]). Food rich in kaempferol have also been associated with a decreased risk of developing cancers such as skin and colon cancers [68].

Analysis of the genetic variation using high-quality SNPs generated from whole genome resequencing of the eight foxtail millet accessions divided the accessions into two groups, suggesting a rather modest diversity among the local accessions. Bayaras, Felicidad, de Sagon and GB61739 clearly clustered together, having one inferred ancestral population unadmixed. Mavaheng, Palacu, Ukig and GB61438 also appear to have one common unadmixed ancestry. Phylogenetic analysis showed that the accessions are monophyletic. This finding is consistent with a recent paper in which foxtail millet accessions are monophyletic with respect to the wild ancestor, green foxtail [24]. Variant calling analysis showed that Ukig carries more variants compared to the other accessions. Ukig is cultivated on an island of the Bicol Region called Catanduanes (see Fig. 1). Phenotypically, Palacu was observed to exhibit a shorter life cycle, flowering ∼40 DAS as compared to other accessions which flowered from 56 to 92 DAS. Furthermore, Palacu is cultivated in Cagayan, a different eco-geographical location relative to the other accessions (Table 2).

As Zn and Fe are actively accumulated in plants by transporters from the ZIP transport family of proteins, we screened the S. italica reference genome Yugu1 with the Pfam code PF02535 (integrated in Interpro IPR003689). This search identified 17 ZIP transporter protein domains in the S. italica reference genome Yugu1. This number of putative ZIP transporters is comparable to rice, a diploid cereal with 17 putative ZIP transporters. The cereal tef has been reported to have 32 putative ZIP transporters [28] and bread wheat 60 ZIP proteins [36], however these cereals are tetraploids and hexaploids, respectively. Several SNP variants were found among the foxtail millet accessions, located primarily within 3′ and 5’ regulatory regions and introns. This would suggest that variation in Zn and Fe levels may be due to variation in the regulation of ZIP transporter levels, rather than in protein structural differences. Many studies have reported the role of cis and trans elements in gene regulation [69,70], and promoter sequences and cis-regulatory elements have been shown to influence iron response mechanisms in rice [71]. However, transcription can also be influenced by the environment [72,73]. Therefore, the variation in Zn and Fe accumulation observed between foxtail millet accessions may be largely ascribed to the interaction of the environment (e.g., availability of the metals in the soil, pH) and the genotype (e.g., variations in regulatory elements) (G × E). In a study in A. thaliana, the interaction between transcription factors (bZIP) and the promoter region of the zinc deficiency-induced ZIP4 gene has been shown to be associated with low Zn supply adaptation [74]. This further supports our work in which variations in promoter (cis) regions and their interactions with the environment which in turn influences distal and mobile elements (trans) can largely influence Zn (and Fe) concentrations in the foxtail millet grains. All these, however, requires further study. Furthermore, to understand Zn and Fe uptake in foxtail millet, a high-resolution crystal structure of the ZIP should be elucidated [75]. Recently, the crystal structures of the ZIP zinc transporter in Bordetella bronchiseptica were obtained, which should aid in further understanding of this transport protein [76]. In foxtail millet, studies on the structure of the ZIP proteins of this crop are still limited. As previously demonstrated, homology modelling of this transporter may be an interesting area of further investigation to gain insights in to the mechanism of Zn transport in foxtail millet [75].

Future breeding of foxtail millet for enhanced nutritional value or biofortification (reviewed in Ref. [77]) would benefit from the identification of the underlying genes, gene-specific SNPs and haplotypes associated with Zn and Fe accumulation, as well as the other beneficial nutritional compounds identified in this study. While such studies would require analysis of a larger population of foxtail millet accessions the work reported here demonstrates the considerable phenotypic and genetic variation that exists in foxtail millet for nutritionally valuable traits, supporting further analyses.

6. Conclusion

In this study we report the potentials of foxtail millet, a neglected and under-utilised minor cereal crop, for addressing the issues associated with the double-burden of malnutrition. We have demonstrated the potential of foxtail millet to accumulate high levels of Zn, even in soils that have only an average level of this mineral, along with high levels of phenolic compounds such as catechin, which in rice has been shown to reduce glycaemic index, lowering the risk of type-2 diabetes. The local foxtail millet accessions found across the Philippines represent a potential alternative source of nutrients for humans (and animals). Due to its modest cultivation and diversity, we wish to highlight the need to ensure the conservation of this crop as it may contribute in addressing malnutrition particularly Zn, Fe, and β-carotene.

Ethical standards on the use of materials

We adhered to the highest ethical standards on the use of the biological materials. No ethical implications are associated on the use of these plant materials as foxtail millet is not a protected species in the Philippines.

Data availability statement

All sequencing datasets are available at the ENA under ArrayExpress accessions E-MTAB-12658 and E-MTAB-13027.

CRediT authorship contribution statement

Nelzo C. Ereful: Conceptualization, Formal analysis, Funding acquisition, Investigation, Methodology, Supervision, Writing – original draft, Writing – review & editing. Jose Arnel O. Reyes: Investigation, Methodology, Supervision. Don Emanuel M. Cardona: Formal analysis, Investigation, Methodology. Roneil Christian S. Alonday: Formal analysis, Methodology. Nel Oliver B. Mateo: Formal analysis. Huw Jones: Formal analysis, Investigation, Methodology. Lesley Boyd: Investigation, Methodology, Supervision, Writing – review & editing. Evelyn F. Delfin: Project administration, Supervision.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix A. Supplementary data

The following is the Supplementary data to this article.
