Rapid assessment of changes in phage bioactivity using dynamic light scattering

Abstract

Extensive efforts are underway to develop bacteriophages as therapies against antibiotic-resistant bacteria. However, these efforts are confounded by the instability of phage preparations and a lack of suitable tools to assess active phage concentrations over time. In this study, we use dynamic light scattering (DLS) to measure changes in phage physical state in response to environmental factors and time, finding that phages tend to decay and form aggregates and that the degree of aggregation can be used to predict phage bioactivity. We then use DLS to optimize phage storage conditions for phages from human clinical trials, predict bioactivity in 50-y-old archival stocks, and evaluate phage samples for use in a phage therapy/wound infection model. We also provide a web application (Phage-Estimator of Lytic Function) to facilitate DLS studies of phages. We conclude that DLS provides a rapid, convenient, and nondestructive tool for quality control of phage preparations in academic and commercial settings.

Significance Statement.

Phages are promising for use in treating antibiotic-resistant infections, but their decay over time in refrigerated storage and higher temperatures has been a difficult barrier to overcome. This is in part because there are no suitable methods to monitor phage activity over time, especially in clinical settings. Here, we show that dynamic light scattering (DLS) can be used to measure the physical state of phage preparations, which provides accurate and precise information on their lytic function—the key parameter underlying clinical efficacy. This study reveals a “structure–function” relationship for lytic phages and establishes DLS as a method to optimize the storage, handling, and clinical use of phages.

Introduction

As antimicrobial-resistant (AMR) pathogens have become increasingly prevalent (1–3), there is great interest in novel approaches to treat bacterial infections. Bacteriophages (phages), viruses that kill bacteria, offer a promising approach to treating AMR infections that is orthogonal to conventional antibiotics. Phages are safe, well-tolerated (4–10), and potent at subnanomolar concentrations (4–6). Phage therapy is already benefiting growing numbers of individual patients (10–12).

However, the development of standardized and reliable phage products—essential for clinical trials and commercial applications—has proved challenging. While long-term storage of phages can be achieved through freezing or lyophilization (13, 14), many phages are often unstable at higher temperatures (e.g. at refrigerated storage at 4°C or clinical use at 37°C), which limits their effectiveness (15–20). This has greatly impacted phage therapy clinical trials and commercial development. To this point, poor phage stability was implicated in the case of a recent phage therapy trial for Pseudomonas aeruginosa which failed to meet endpoints (9).

Phages, like other multimeric protein assemblies (21, 22), can exhibit poor aqueous stability and decay into noninfectious forms in aqueous solution over time (17). Oxidation contributes to the instability of viral particles (23–26), leading to noninfectious products including aggregates and fragments. For phage therapy and for other research applications involving phages, it is therefore essential to routinely monitor the bioactivity of phages and optimize conditions for their storage, handling, and transport (13, 14, 20, 27). Moreover, as phages are highly heterogeneous, optimal conditions must be determined separately for each phage using high-throughput techniques and none currently exist.

Existing methods to assess phage bioactivity/stability (plaque assays) are poorly suited for optimization of storage conditions and routine monitoring of phage preparations. Plaque assays are time-consuming, labor-intensive, destructive to phage stocks, and difficult to scale (18, 28). Rapid, high-throughput methods to assess phage stability would greatly improve the ability to optimize conditions for phage storage and use.

We hypothesized that dynamic light scattering (DLS), a method for determining the size distribution of nano-scale particles, could yield insights into the physical state of phage particles in solution and thereby serve as an adaptable, high-throughput method to rapidly assess phage stability and bioactivity. We were inspired by previous efforts using DLS to study the impact of ion gradients generated by bacteria on the aggregation/dispersal transitions of T4 phages (29).

Here, we perturb phages with external stressors, including time, temperature, oxidation, ions, and stabilizers. We study phages from human clinical trials and 50-y-old archival phage stocks, finding that external stresses impact the bioactivity of phages and induce aggregation, and that the degree of aggregation as measured by DLS constitutes a quantitative predictor of phage bioactivity, as tested by in vitro plaque assays. We also demonstrate how DLS might be used in a workflow to assess the potency of a phage sample for clinical use in a mouse model of wound infection/phage therapy. Building on these insights, we developed a web-based application (Phage-Estimator of Lytic Function [Phage-ELF]) to enable researchers to predict changes in phage activity from DLS data. These approaches can facilitate screens of phage activity with higher throughput than previously possible.

Results

DLS can assess the structural integrity of phages

Our laboratory and others have observed that phages lose potency in aqueous solution over time at nonfreezing temperatures. To explain this phenomenon, we proposed that phages are initially dispersed and functional and over time and in response to environmental conditions, phages fragment into noninfectious particles lacking necessary machinery for infection or aggregate into sterically inhibited clusters (Fig. 1A). Aggregates may also form via denaturation and not contain intact phage particles. We predicted that fragments and aggregates could be observed in small-volume samples of phage preparations (40 μL) and would be distinguishable from intact phages using a standard benchtop DLS device (Fig. 1B).

Fig. 1.

A model of entropic phage decay and assessment by DLS in phage preparations. A) A model describing mechanisms underlying loss of phage bioactivity. Fragmented and aggregated phages are expected to be distinguishable from intact phage by size. B) Hypothetical DLS spectra representing predicted particle sizes in intact vs. damaged phage preparations. DLS is a benchtop device with a simple workflow that can be used to study the distribution of phages and their byproducts in phage preparations. C) TEMs and DLS spectra of freshly prepared CYPHY phages. Shown are representative images at 80,000× magnification. D) TEMs of intact and sonicated LPS-5. Shown are representative images obtained at 20,000× magnification.

For these studies, phages were purified from bacterial lysates using standard polyethylene glycol (PEG)-based protocols well-established in the laboratory, as detailed in the Materials and Methods section (30). We focused most of the investigations on three antipseudomonal phages used in the Cystic Fibrosis Bacteriophage Study at Yale (CYPHY, NCT04684641; [31–34]): LPS-5, TIVP-H6, and OMKO1 (henceforth “CYPHY phages”). Transmission electron microscopies (TEMs) of these phages and DLS spectra of freshly prepared phages are shown in Fig. 1C. As predicted, each phage produced a single peak on the DLS spectrum, suggesting a uniform population of dispersed phages in each preparation. The hydrodynamic diameter (D_H) of each phage was similar to its actual dimensions as measured by TEM.

We analyzed LPS-5 before and after sonication by TEM and by DLS. LPS-5 was prepared at a concentration of 10¹⁰ plaque forming units (PFU)/mL and sonicated for 10 s. As predicted, LPS-5 particles were intact and dispersed before sonication. After sonication, phages denatured, with small fragments and large aggregates visible on TEM (Fig. 1D). A similar assessment of phage physical state could be concluded from the DLS spectra. Before sonication, LPS-5 produced a single Gaussian peak suggesting a uniform and dispersed population of phages. The hydrodynamic diameter (D_H) of the phage peak was ∼100 nm, similar to the actual dimensions of the phage (Table S1). After sonication, the phage peak was lost, and multiple new peaks appeared in the spectra corresponding to fragments with D_H = 90 nm, and aggregates with D_H = 500–8,000 nm (Fig. 1D). These data showed that DLS could be used to measure the physical state of phages, and that phages are intact and dispersed at baseline, and can form aggregates and fragments in response to environmental stress.

DLS enables monitoring of phage stability over time

Of course, harsh physical manipulations of phages would be expected to cause changes in the size of phage products in solution, and it remained unclear whether observed phage decay over time was also linked to phage aggregation. Therefore, we next applied DLS to investigate the behavior of phages in aqueous suspension over time. We propagated the CYPHY phages and stored them at 10⁹ PFU/mL in conditions in which we generally stored the phages and knew them to be stable (at 4°C in SM buffer) and in conditions where we expected the phages to be unstable [at 37°C in Phosphate Buffered Saline (PBS)]. We measured the bioactivity of the phages (reported as phage titer) in terms of PFU/mL and also measured the DLS spectra at baseline and then weekly for 3 weeks.

At 4°C, all of the phages were stable without loss of titer (Fig. 2A). However, at 37°C, phages TIVP-H6 and LPS-5 lost potency—0.5 and 5 logs, respectively, over the 3-week period (Fig. 2A). Correspondingly, the DLS spectra of all of the phages at 4°C showed no changes (Fig. 2B), and the DLS spectra of TIVP-H6 and LPS-5 at 37°C suggested aggregation, with right shifting of the phage peak and the emergence of large species over time (Fig. 2B). The degree of aggregation appeared to be correlated with the loss of titer, most obviously in the case of LPS-5. To quantify changes in the size distribution, we developed a scalar metric we called area-under-the-curve change, or AUCΔ, defined as the nonoverlapping area between two DLS spectra. Each DLS spectrum has an area of 100, so AUCΔ ranges from 0, representing completely overlapping (identical) spectra, to 200, representing completely distinct (entirely nonoverlapping) spectra (Fig. 2C). We measured AUCΔ for all phages over time against the average baseline measurement and found that AUCΔ diverged sharply from baseline under conditions where the phages lost potency (Fig. 2D). This result suggested that DLS measurements might be used to screen phage populations for preparations that have lost potency.

Fig. 2.

Phages spontaneously aggregate and lose bioactivity in solution over time. Phage preparations can degrade over time in ways that vary between phages. To assess this using DLS, we used a set of phages (TIVP-H6, LPS-5, and OMKO1) from an ongoing human clinical trial (the CYPHY trial). CYPHY phages (TIVP-H6, LPS-5, and OMKO1) were stored in stable conditions (SM at 4°C) or in conditions previously observed to result in titer loss (PBS at 37°C) for 3 weeks with weekly monitoring by plaque assay and DLS. Titer of CYPHY phages over time in A) SM at 4°C and PBS at 37°C. Results are from one experiment with n = 3 phages, n = 6 plaque assays per phage per timepoint. Ordinary two-way ANOVA with Tukey correction, ****P < 0.0001. B) The size-intensity DLS spectra of CYPHY phages over time reveal that aggregation underlies loss of phage activity. Shown are averages of n = 3 DLS measurements per timepoint. Darker colors and vertical staggering are used to show progression in time. C) We quantified the nonintersecting area (AUCΔ) between a subsequent DLS measurement and the baseline measurement to quantify changes in size distribution. AUCΔ is a scalar quantity with values ranging from 0 (completely overlapping spectra) to 200 (completely nonoverlapping spectra). D) AUCΔ over time for all phages. E) AUCΔ is linearly related to phage titer loss. Two-tailed Pearson's test for the significance of correlation.

We then assessed the quantitative relationship between AUCΔ and changes in phage titer. A negative linear correlation between AUCΔ and titer loss was observed for LPS-5 and TIVP-H6 in particular (Fig. 2G). Ninety percent of LPS-5 titer loss could be explained by changes in the DLS spectrum (i.e. aggregation). These data highlight that changes in the DLS spectrum can indicate a loss of phage titer.

We also screened a cohort of 13 phages from Belgium previously used in compassionate use cases. This cohort included phage therapy candidate phages that target P. aeruginosa, Xanthomonas campestris pv. campestris, and Staphylococcus aureus (Table S2). Our previous handling of these phages suggested that some of them were unstable even when stored at 4°C. We stored these phages at 4°C in SM buffer and measured their size distributions at baseline and subsequently every 3 weeks for 9 weeks. Many phages showed evidence of aggregation that increased over time (Fig. S1).

Together, these data indicate that an endpoint (and possible mechanism) for loss of phage potency over time in aqueous suspension is aggregation, aggregation can be tracked using DLS, and aggregation is closely related to changes in bioactivity. These data underscore that stability measurements need to be made for each phage.

Optimization of phage storage conditions using DLS

Next, we used DLS to dissect the effects of components of a common phage diluent and storage buffer (SM buffer) on the stability of CYPHY phages. SM buffer is a Tris-buffered solution with NaCl for counterions and osmotic support, often with added MgSO₄ and gelatin to promote phage stability.

We asked whether MgSO₄ and gelatin were essential for the stability of CYPHY phages at 37°C. Therefore, we assessed phage bioactivity and DLS spectrum after 1 week in storage at 37°C in Tris only, Tris + MgSO₄, Tris + gelatin, Tris + MgSO₄ + gelatin, and Tris + MgSO₄ + glycerol, and compared the change in titer and DLS spectrum relative to samples stored in the same buffers at 4°C. Glycerol is another common stabilizer for freezing phages, and we wanted to know whether it could stabilize CYPHY phages at 37°C too.

We observed that TIVP-H6 was stable in all buffers with no titer loss or change in DLS spectrum (Fig. 3A, D, G). LPS-5 was unstable at 37°C in buffers lacking MgSO₄: Tris only, Tris + MgSO₄, and Tris + MgSO₄ + glycerol, with >2 log titer loss relative to phage stored at 4°C (Fig. 3A). These conditions also showed marked aggregation (Fig. 3E). OMKO1 was unstable at 37°C in Tris only, losing 1 log (Fig. 3C). However, OMKO1 DLS spectra at 37°C were all similar to 4°C, suggesting some lack of sensitivity (Fig. 3F).

Fig. 3.

Optimization of phage storage conditions using DLS. Typically, temperature and buffer conditions must be optimized individually for each phage. We assessed this for the CYPHY phages using DLS. A–C) Titer of CYPHY phages after 1 week of storage in several buffers (Tris, Tris + gel, Tris + Mg, Tris + Mg + gelatin [SM buffer], and Tris + Mg + glycerol) at 4 or 37°C for 1 week. n = 3 plaque assays were performed for three phages for five buffer conditions each. Ordinary two-way ANOVA with Tukey correction. ***P < 0.001, ****P < 0.0001. D–F) DLS spectra of CYPHY phages in different buffers. The solid line represents phage stored at 4°C, while the dashed line represents phage stored at 37°C. Shown are averages of n = 3 DLS measurements for each phage and buffer condition. G–I) AUCΔ vs. titer loss for CYPHY phages. Data are shown from one experiment. Two-tailed Pearson's test for the significance of correlation.

Temperature and buffer selection are important variables that impact phage stability and function. These data support the use of DLS to select optimal conditions and identify necessary additives to support phage stability under the desired conditions.

Oxidative damage to phages is reflected in DLS measurements

We next investigated the relationship between AUCΔ and titer loss following oxidation. Our rationale for this was 2-fold. First, we wanted to simulate oxidative stress that occurs in aqueous suspension over time (23) or in tissues (35). Second, we wanted to test the linear relationship AUCΔ and titer loss in a controlled system. For this experiment, we prepared CYPHY phages at 1.25 × 10⁸ PFU/mL, titrated the phages with 0–20% H₂O₂ for 20 min at room temperature, and then removed the unreacted H₂O₂ by several rounds of dialysis. We recovered the phage from the dialysis cassettes and measured the resultant titer loss by plaque assay and changes in size by DLS and TEM.

We observed that phages were variably sensitive to oxidative stress. TIVP-H6 was most resistant to oxidation, with no titer loss with <2% peroxide, and ∼1 and ∼3 log loss with 2 and 20% H₂O₂, respectively (Fig. 4A). Correspondingly, aggregates were observed in the DLS spectrum at 2 and 20% H₂O₂ (Fig. 4B). LPS-5 suffered 1-log, 4-log, and complete titer loss in response to 0.2, 2, and 20% H₂O₂ (Fig. 4A). Right shifting of the DLS spectrum was observed at 0.2 and 2% H₂O₂, with marked aggregation at 20% (Fig. 4B). OMKO1 was most sensitive, suffering 1-log titer loss at 0.2% peroxide and complete loss thereafter (Fig. 4A). The DLS spectra were unchanged at 0.2% H₂O₂, but aggregates were visualized at higher peroxide concentrations (Fig. 4B). TEM showed that phages were intact and dispersed at baseline, but then formed aggregates upon oxidation with 20% H₂O₂ (Fig. 4E–J).

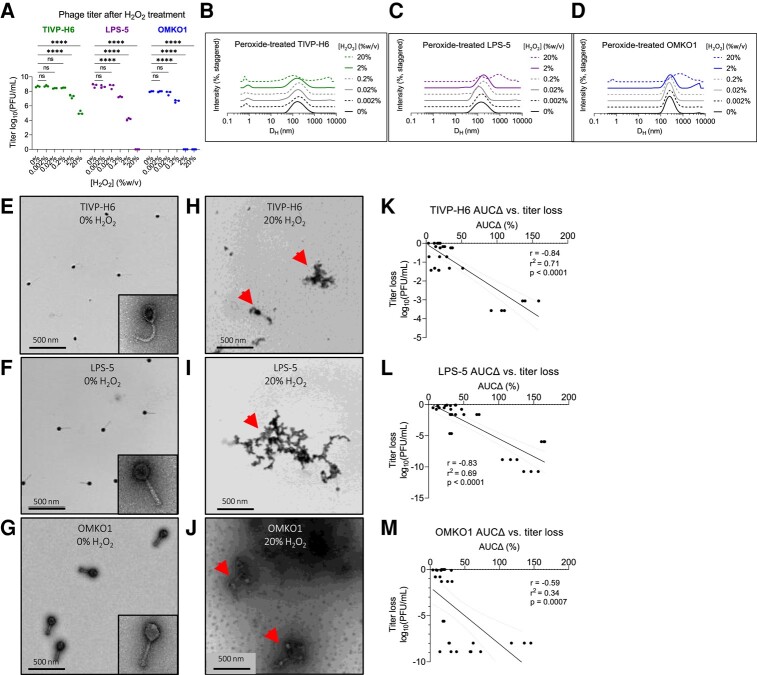

Fig. 4.

Oxidation drives aggregation of phage, which predicts loss of bioactivity. We assessed the impact of oxidative damage on the CYPHY phages using DLS and functional assessments of phage titer. A) Bioactivity titer of CYPHY phages in response to titration with 0–20% H₂O₂. Titer was measured by n = 3 plaque assays per concentration. Titration was representative of n = 2 independent experiments. Ordinary two-way ANOVA with Tukey correction, ****P < 0.0001. B–D) DLS spectra of titrated phages. Shown are averages of n = 3 DLS measurements for each peroxide concentration. Note peroxide concentration-dependent changes in size. E–J) TEMs of E–G) intact and dispersed CYPHY phages (inset: a single phage at 80,000× magnification) and H–J) aggregated CYPHY phages. Shown are representative images obtained at 12,000× magnification. Arrows point to phage aggregates. K–M) AUCΔ vs. titer loss for CYPHY phages. A high proportion of the variation in titer is explained by variation in AUCΔ (i.e. aggregation). Linear regression includes data pooled across n = 2 independent experiments. Two-tailed Pearson's test for the significance of correlation.

We measured AUCΔ for all phages and compared it with titer loss by simple linear regression. We observed negative correlations between AUCΔ and titer loss for all CYPHY phages (Fig. 4K–M). We additionally observed that variation in AUCΔ explained a high proportion of the variation in titer (r² = 0.71, 0.69, and 0.34 for TIVP-H6, LPS-5, and OMKO1, respectively).

Together, these data indicate that oxidative damage impacts phage bioactivity. Oxidative damage is reflected in DLS measurements as aggregation, and changes in size distribution are directly related to titer loss.

DLS measurements reflect changes in lytic function in 50-y-old T-series phages

Next, we used DLS to evaluate the status of phages that had been stored for long periods. For this, we evaluated five “T-series” Escherichia coli phages that were stored in sealed glass ampules at 4°C over 50 years, starting in 1972 (36) (Fig. 5A). Previous work identified that these phages had lost nearly all of their bioactivity, except phage T6 (36) (Fig. 5B).

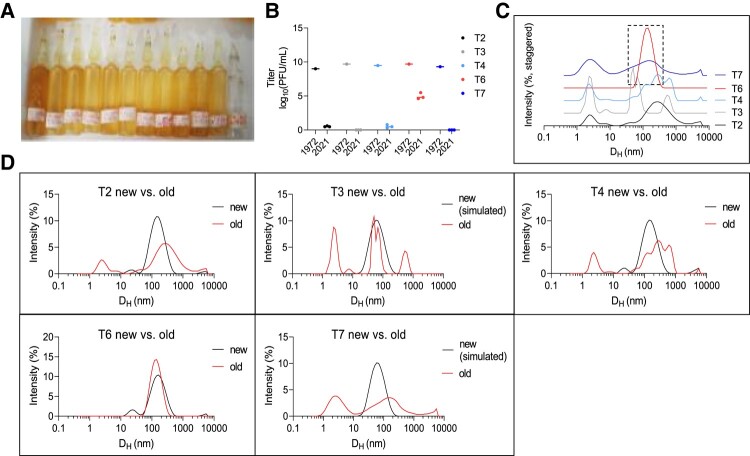

Fig. 5.

DLS accurately identifies active phage in a cohort of inactive phages stored for 50 years. To evaluate the ability of DLS to assess the stability of phage preparations, we studied a set of archival phage stocks. A) Picture of glass ampules in which T-series phages were stored for five decades. B) Titer of n = 5 T-series phages prior to storage in 1972 and after opening in 2021. Here, we include titer data from Subedi and Barr (36). 1972 data are reported as a single measurement. 2021 data are reported as n = 3 plaque assays per phage. C) DLS spectra of T-series phages measured in 2022. Shown are averages of n = 3 DLS measurements per phage. Only T6 remains as a monodisperse Gaussian with a mean hydrodynamic diameter of ∼100 nm and is accordingly the only phage to retain any activity. D) DLS spectra of old vs. newly propagated phage or simulated DLS spectra. Shown are averages of n = 3 DLS measurements per phage.

We used DLS to obtain the size distribution of the T-series phages. Most phage samples were highly polydisperse, reflecting both aggregates and fragments. The exception was phage T6, which produced a single Gaussian peak at 200 nm (Fig. 5C). We propagated fresh samples of T2, T4, and T6 to perform a comparison between an aged sample and a fresh one. This revealed substantial differences in the spectra in the cases of T2 and T4, but not in the case of T6 (Fig. 5D). We were unable to propagate T3 and T7, so we predicted the baseline spectra for these phages as Gaussians centered on D_H = 60 nm. This predicted significant differences in their spectra between aged and fresh samples (Fig. 5G and H).

These data indicate that DLS can be used to distinguish active from inactive phage samples and to identify active phage stocks in a collection.

Genomic damage is not reflected in DLS measurements

We predicted that environmental conditions that drive genomic damage alone would cause phage titer loss but not changes in phage size distribution and hence would not be reflected on the DLS spectra. To this end, we irradiated CYPHY phages as well as LUZ19 and LUZ24 from the Belgian cohort with germicidal UV-C light (254 nm) for 20 min, and measured the resultant titer loss by plaque assay and size distribution by DLS.

We observed that irradiation resulted in a near-total loss of activity for all phages (Fig. S2A), but did not affect their size distribution (Fig. S2B–F). Together with the data in previous sections, these data indicate that structural but not genomic damage drives phage aggregation and that DLS is best used to assess phage titer loss in samples that have been shielded from ionizing radiation.

DLS can prospectively evaluate phage samples for clinical use and inform in vivo phage therapy

We next modeled how DLS can be used to evaluate phage preparations for clinical use. We anticipate that prospective evaluation of phage samples could serve as a useful quality-control step before administration to patients. To this end, we first developed a web-based software application called “Phage-Estimator of Lytic Function” (Phage-ELF; https://jp22.shinyapps.io/shinyapp/). This tool accepts minimally processed DLS and lytic activity data in the .csv format to visualize DLS curves, calculate AUCΔ, train a linear or logistic model, and finally make predictions on new DLS data (Fig. 6A).

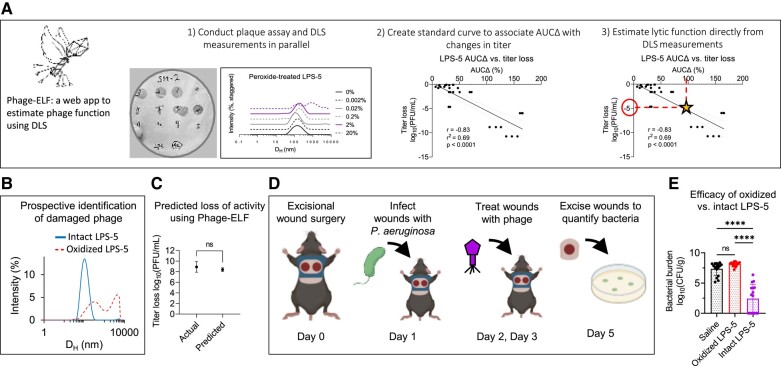

Fig. 6.

DLS-based predictions of lytic activity can inform the success of in vivo phage therapy. We developed a web-based application Phage-ELF to assess phage titer loss using a standard curve generated for a given phage strain and set of perturbations. A) Phage-ELF trains a linear model on paired DLS and lytic activity data, which can then be used to predict titer loss based on new DLS data and our AUCΔ analysis. This application and sample data are available for download directly from https://jp22.shinyapps.io/shinyapp/. B) DLS spectra of intact and oxidized LPS-5. C) Phage bioactivity titers predicted from DLS data and Phage-ELF and actual measurements from lytic plaque assays. Two-tailed two-sample Student's t-test. D) Schematic of topical phage therapy in a mouse model of P. aeruginosa wound infection. Mice were treated with saline, intact LPS-5 (10¹⁰ PFU/mL), or oxidized LPS-5 on days 1 and 2. Shown are averages of n = 3 DLS measurements per phage. E) Bacterial burden after treatment. One-way ANOVA with Tukey correction, ****P < 0.0001. Results from n = 16 wounds for n = 3 treatment conditions. Data are representative of n = 2 independent experiments.

We prepared paired samples of LPS-5 at 10¹⁰ PFU/mL and inactivated one by oxidation. The identity of each sample was blinded to the experimenters. Then, DLS spectra of each sample were measured, which identified one sample to have a single Gaussian peak and the other to be severely aggregated (Fig. 6B). Using the calibration curves for oxidized LPS-5 phage, Phage-ELF estimated the titer loss to be 8.4 ± 0.3 log₁₀PFU/mL. This closely compared with the observed titer loss of 8.9 ± 1.0 log₁₀PFU/mL that was later measured (Fig. 6C). We estimated a titer loss in a region that was well-sampled on our standard curve. We note that variance may be higher in other regions, and predictions derived from such regions may be less accurate. Nonetheless, there was strong agreement between titer loss determined by plaque assay and DLS in this experiment.

To further assess the functional properties of these samples, we used a mouse model of phage therapy. This incorporated a delayed inoculation model of P. aeruginosa infection previously published by our laboratory (37–39). Briefly, anesthetized mice received full-thickness bilateral dorsal wounds made using a 6-mm biopsy punch. The wound was then covered and inoculated the following day with 10³ colony-forming units (CFUs) of bacteria. Two hours after infection and after the inoculum had been absorbed into the wound bed, mice were treated with saline, the phage sample predicted to be active, or the phage sample predicted to be inactivated. Three days postinfection, bacterial infections were assessed by plating wound homogenates for CFUs (Fig. 6D).

We observed that treatment with the intact phages resulted in bacterial eradication in 50% of wounds and a significant reduction in colonization relative to control and oxidized phages (Fig. 6E). These data demonstrate that DLS predictions of phage titer loss were precise in this model, and that DLS can provide useful, clinically relevant information about the activity of a phage sample prior to its use.

DLS can be applied in a logistic fashion to predicted titer loss as a binary outcome

We observed linear correlations between AUCΔ and titer loss in several instances (Figs. 2E, 3H and 4K–M). Thus, we chose to evaluate the significance of linear association using the runs test for significant departure for linearity on all data points, finding it to be nonsignificant for all CYPHY phages both when each phage was considered individually (Fig. S3A–C) and all together (Fig. S3D). We also observed that the strength of the linear association improved when only LPS-5 and TIVP-H6 (phages with similar D_H) were considered together (Fig. S3E).

Nonetheless, since linear associations can be erroneously derived from data clustered around two points, we attempted another method of using AUCΔ to predict titer loss. We conducted logistic regressions on aggregated DLS and titer data for each CYPHY phage to assess the ability of AUCΔ thresholds to predict phage titer loss. Here, we treated titer loss as a discrete variable, with 1 representing >0.5-, 1-, 1.5-, 2-, 2.5-, or 3-log changes in titer. For each phage alone or in combination, we could produce statistically significant logistic models describing how incremental changes in AUCΔ predicted an increase in the likelihood of titer losses above these thresholds. For example, a 1-unit increase in AUCΔ was associated with an 8.6% increase in the odds of 1-log titer change for LPS-5 (95% CI: 4.2–15.3%, P < 0.0001). Similarly, the values were 3.2% for TIVP-H6 (95% CI: 1.3–5.5%, P = 0.0004), 7.3 for OMKO1 (95% CI: 3.3–12.7%, P < 0.0001), 4.5% for all CYPHY phages combined (95% CI: 3.1–6.3%, P < 0.0001), and 4.5% for LPS-5 and TIVP-H6 together (95% CI: 2.9–6.7%, P < 0.0001). The goodness of fit of these models (Tjur's Pseudo R-squared) was 0.49, 0.26, 0.32, 0.37, and 0.41, respectively. Summary statistics for all logistic models are given in Dataset S1.

We also evaluated the receiver operating characteristic (ROC) of these logistic models. In line with our expectations, we observed improved model performance for higher titer losses. For all phages together, the ROC-AUC was 0.74, suggesting strong classifier performance. In general, these data suggest that logistic models on DLS data can allow users to predict user-defined thresholds for titer loss with high performance even at low titer losses and with increasing sensitivity and specificity for higher titer losses.

Discussion

We report that DLS tracking of phage size distributions is an effective way to predict the bioactivity of phage preparations in a semi-quantitative to quantitative manner. We demonstrate that many environmental factors and handling procedures cause phage damage and titer loss, with aggregation being an associated endpoint. These findings were made using phages from human clinical trials and 50-y-old archival phage stocks. Thus, phage bioactivity is impacted in ways that can be predicted from their physical state.

DLS offers several advantages over plaque assays for assessing phage stability. Once standard curves are developed to associate changes in physical state and changes in bioactivity, DLS alone is faster, higher throughput, and less destructive than plaque assays. Our vision is that this tool will enable optimization of storage conditions for individual phages and quality control for postproduction batches of phages intended for clinical and research applications. Because DLS instruments are already common laboratory equipment, the approach developed here could be readily adapted to commercial and research settings where monitoring phage stability is essential.

Similar tools are suggested for product development and process analytics in gene therapy programs involving adenovirus (40). However, these approaches have not made inroads into phage therapy, perhaps because the heterogeneity of individual phage preparations and morphologies, and because of the critical importance of lytic activity as an endpoint. We show here that physical state can serve as an effective proxy of lytic activity, for phages with diverse morphologies.

To encourage and highlight the translational potential of this tool, we developed a web-based application to facilitate DLS analyses of phages, and demonstrated that DLS-based predictions of phage activity can inform in vivo phage therapy. For these studies, we established P. aeruginosa wound infections in mice using a delayed inoculation protocol and subsequently administered phage therapy. While animal models have previously been used to study phage therapy for wound infections (41), these typically co-administer bacteria and phages or involve indolent organisms or immunocompromised hosts. Our protocol, using conventional C57BL6 mice and a major cause of human wound infections (P. aeruginosa), will enable future work in this field. Our simple algorithms can be used to assess titer change using a standard curve for a given phage and set of perturbations, and we hope that these studies and tools will enable future therapeutic studies and research into the structure–function relationships of lytic phages.

Our approach has several limitations. First, calibration curves linking particle size to lytic activity must be re-derived for each phage and set of conditions. Second, such curves may only be accurate for well-sampled regions of the standard curve, and we suggest that future implementations adequately sample the desired predictive regimes. Third, the DLS spectra are sensitive to the sampling procedure employed—the measured sample must contain the aggregates, fragments, and intact components of the population. Fourth, DLS is insensitive to sources of direct genomic damage, such as UV light. Fifth, it is likely that DLS cannot distinguish “ghost” phage particles (i.e. virions that have expelled their genomes) from active phage particles. While phages are typically stored in ways that protect them from UV light; nonetheless, additional assays may be required to specifically control for these issues. Sixth, we hypothesize that phage decay products that are similar in size to intact particles (e.g. Fig. 4J) may lead to an underestimation of phage titer loss.

Many questions remain. Our studies identified that phages had different stability profiles, but the mechanisms underlying differential phage stability remain unknown. The relevance of these approaches to phage cocktails awaits further investigation. These studies may also benefit from including more diverse phages and other viruses (e.g. adeno-associated viruses and lentiviruses).

Materials and methods

Bacteriophage isolation and propagation

Phages and their bacterial hosts used in this study are listed in Table S2. CYPHY phages were a kind gift from Felix Biotechnology. Belgian cohort phages were a kind gift from Rob Lavigne and Jean Paul Pirnay. T-series phages were a kind gift from Jeremy Barr.

Phages were propagated using techniques that are well-established in our laboratory (38). Briefly, we infected mid-log or early log phase planktonic bacterial cultures until clearing was observed relative to a noninfected culture. We then removed gross bacterial debris by centrifugation (8,000 × g, 20 min, 4°C), and filtered the supernatant through a 0.22 μm polyethersulfone (PES) membrane (Corning, Corning, NY, Product #4311188). The supernatant was treated with 5 U/mL Benzonase nuclease (Sigma-Aldrich, Saint Louis, MO, USA; catalog #E8263) overnight at 37°C to digest free DNA. Phage was precipitated by adding 0.5 M NaCl + 4% w/v PEG, molecular weight 8,000 (Sigma-Aldrich, catalog #PHR2894) overnight at 4°C. Precipitated phage was then pelleted by centrifugation (14,000 × g, 20 min, 4°C) and washed in 30 mL of Tris-EDTA buffer (10 mM Tris-HCl, 1 mM EDTA, pH 8.0). Then, the resuspended phage was re-pelleted by centrifugation (14,000 × g, 20 min, 4°C) and resuspended in buffer appropriate to that phage/experiment and dialyzed against 4 L of the same buffer 3–4 times through a 10-kDa dialysis membrane to remove residual salts and PEG. This was repeated twice so that phages underwent two rounds of PEG precipitation (Thermo Fisher Scientific, Waltham, MA, USA; product #A52972).

Dynamic light scattering

All DLS size distributions were obtained using the Nano-Series Zeta Sizer (Nano-NS ZEN3600; Malvern Instruments, Worcestershire, UK) equipped with a 633-nm laser. Measurements were obtained at 25°C at a backscattering angle of 173°. Each individual DLS measurement (single replicate) reported in this study is the average of 11 10-s measurements obtained after a 1-min vortexing period on half-speed, 1-min equilibration period in the instrument, and with variable attenuation to generate count rates >100 kcps. Additional resuspension was performed in some cases due to sedimentation. Phage diffusion coefficients were calculated from auto-correlated light intensity data, and hydrodynamic diameters (D_H) were calculated using ZetaSizer version 7 software with the Stokes–Einstein equation.

Plaque assays

Plaque assays were used to quantify the number of infectious phage particles. We used a spot-dilution double-agar overlay technique. One hundred microliters of mid-log phase bacteria were added to 5 mL of top agar (5 g/L agar, 10 g/L tryptone, 10 g/L NaCl). Magnesium sulfate and calcium chloride were added to a final concentration of 20 mM. The mixture was poured onto nonselective Luria-Bertani (LB)-agar plates and allowed to solidify and dry briefly (5 min). Serial dilutions of phage were prepared in SM buffer (50 mM Tris-HCl, 100 mM NaCl, 8 mM MgSO₄, 0.01% w/v gelatin, pH 7.5) and 10 μL of each dilution was spotted onto the top agar, incubated at 37°C overnight, and plaques were counted.

Transmission electron microscopy

The size and morphology of phages were examined with TEM using a JEOL JEM1400 (JEOL USA Inc., Peabody, MA, USA) at 80 kV. Five microliters of diluted phage solution were dropped onto carbon-coated copper grids (FCF-200-Cu, Electron Microscopy Sciences, Hatfield, PA, USA). After 3 min, the grid was dipped into a ddH₂O droplet. One percentage of uranyl acetate was dropped onto the sample for staining and allowed to dry for 15 min before performing microscopy.

Sonication

Five hundred microliters of LPS-5 at 10¹⁰ PFU/mL in SM buffer were sonicated using a probe sonicator (Branson Sonifier 250; Branson Ultrasonics, Danbury, CT, USA) at maximum intensity for 10 s.

Phage time series

About 1.5 mL of freshly prepared CYPHY phages were prepared in SM buffer and dialyzed against 4 L of either SM buffer or PBS four times. Phages were then filtered through 0.22 µm PES membranes, titered by plaque assay, and then diluted to a final concentration of 10⁹ PFU/mL. Phages were stored in 2 mL polypropylene tubes at 4 or 37°C with weekly monitoring by triplicate DLS and six replicates of plaque assay. Belgian cohort phages were produced, filtered, stored for 1 month until all phages had been produced, and then monitored by triplicate DLS.

Phage stability in different buffers

Four hundred microliters of CYPHY phage were aliquoted to 1.5 mL polypropylene tubes at a concentration of 1.25 × 10⁸ PFU/mL in various buffers as described in the text. Paired samples were incubated at 4 and 37°C. Plaque assays and DLS size measurements were performed after 1 week of incubation to compare storage at 4 vs. 37°C.

Oxidation

Hydrogen peroxide was diluted from a 30% w/v stock into Tris-Mg buffer (50 mM Tris-HCl, 100 mM NaCl, 8 mM MgSO₄, pH 7.5) and mixed with phage to a final concentration of 0.002 to 20% w/v peroxide. Peroxide-phage mixtures were mixed by pipetting. Reactions proceeded for 20 min before dialysis against Tris-Mg buffer in micro-dialysis cassettes (Xpress Microdialyzer MD300, 6–8 kDa; Scienova GmbH, Jena, Germany).

In vivo murine full-thickness wound infection topical phage therapy model

All male C57BL/6J mice used for the in vivo wound infection phage therapy experiment were purchased from The Jackson Laboratory (Bar Harbor, ME, USA). All experiments and animal use procedures were approved by the Institutional Animal Care and Use Committee at the School of Medicine at Stanford University. The study design was adapted from previously published work (37–39).

Briefly, 7- to 8-week-old male mice were anesthetized using 3% isoflurane. Mice dorsum were shaved using a hair clipper and depilated using Nair hair removal cream (Church and Dwight, Ewing, NJ, USA). The shaved area was cleaned with betadine (Purdue Frederick Company, catalog# 19-065534) and alcohol swabs (Coviden WEBCOL). Mice received 0.1–0.5 mg/kg slow-release buprenorphine (ZooPharm, Wedgewood Pharmacy, Swedesboro, NJ, USA) subcutaneously as analgesic. Bilateral dorsal full-thickness wounds were created using 6-mm biopsy punches to outline the wounding area, and the epidermal and dermal layers (up to the fascia) were excised using sterilized scissors. The wounds were covered with Tegaderm (3M, catalog# 1642W). Luminescent PAO1:lux was grown under antibiotic selection (100 μg/mL carbenicillin, 12.5 μg/mL kanamycin) in LB at 37°C with shaking until mid-log phase. The inoculum was then diluted to 2.5 × 10⁴ CFU/mL in PBS and verified by plating. Mice received 10³ CFU/wound via injection into each wound under the Tegaderm patch. Control mice were treated with SM buffer. Two hours postinfection, all mice received the first treatment. Twenty-four hours after the first treatment, all mice received a second treatment dose. Mice were weighed daily and provided with Supplical Nutritional Supplement Gel (Henry Schein Animal Health, catalog# 0409-4888-10). Three days postinfection, mice were euthanized by CO₂ chamber and cervical dislocation, and the wound bed was excised, homogenized, and plated for CFUs onto LB-agar plates.

Statistical analysis

All column graphs and statistical analyses were performed using Prism version 9 software (GraphPad, Boston, MA, USA). Statistical significance was tested using two-tailed Pearson's test for simple linear regressions, two-way ANOVA with Tukey correction for multiple groups, and one-way ANOVA with Tukey correction in the in vivo study. Mean ± SD was depicted to describe spread of data unless otherwise indicated.

DLS spectra of perturbed phage samples were compared with control phage samples by computing the sum of the absolute values of bin-wise differences between the two histograms on the size-intensity spectra in log scale (AUCΔ). Simple linear regression was used to develop standard curves. Simple logistic regressions were used to develop classifiers to predict titer losses from DLS data.
