Promoter selectivity of the RhlR quorum-sensing transcription factor receptor in Pseudomonas aeruginosa is coordinated by distinct and overlapping dependencies on C₄-homoserine lactone and PqsE

Abstract

Quorum sensing is a mechanism of bacterial cell-cell communication that relies on the production and detection of small molecule autoinducers, which facilitate the synchronous expression of genes involved in group behaviors, such as virulence factor production and biofilm formation. The Pseudomonas aeruginosa quorum sensing network consists of multiple interconnected transcriptional regulators, with the transcription factor, RhlR, acting as one of the main drivers of quorum sensing behaviors. RhlR is a LuxR-type transcription factor that regulates its target genes when bound to its cognate autoinducer, C₄-homoserine lactone, which is synthesized by RhlI. RhlR function is also regulated by the metallo-β-hydrolase enzyme, PqsE. We recently showed that PqsE binds RhlR to alter its affinity for promoter DNA, a new mechanism of quorum-sensing receptor activation. Here, we perform ChIP-seq analyses of RhlR to map the binding of RhlR across the P. aeruginosa genome, and to determine the impact of C₄-homoserine lactone and PqsE on RhlR binding to different sites across the P. aeruginosa genome. We identify 40 RhlR binding sites, all but three of which are associated with genes known to be regulated by RhlR. C₄-homoserine lactone is required for maximal binding of RhlR to many of its DNA sites. Moreover, C₄-homoserine lactone is required for maximal RhlR-dependent transcription activation from all sites, regardless of whether it impacts RhlR binding to DNA. PqsE is required for maximal binding of RhlR to many DNA sites, with similar effects on RhlR-dependent transcription activation from those sites. However, the effects of PqsE on RhlR specificity are distinct from those of C₄-homoserine lactone, and PqsE is sufficient for RhlR binding to some DNA sites in the absence of C₄-homoserine lactone. Together, C₄-homoserine lactone and PqsE are required for RhlR binding at the large majority of its DNA sites. Thus, our work reveals three distinct modes of activation by RhlR: i) when RhlR is unbound by autoinducer but bound by PqsE, ii) when RhlR is bound by autoinducer but not bound by PqsE, and iii) when RhlR is bound by both autoinducer and PqsE, establishing a stepwise mechanism for the progression of the RhlR-RhlI-PqsE quorum sensing pathway in P. aeruginosa.

Author summary

Pseudomonas aeruginosa represents a serious threat to public health in the United States because of its intrinsic mechanisms of antimicrobial resistance. One of the primary drivers of its antimicrobial resistance profile is biofilm formation. Biofilms are multicellular communities that are formed in an ordered mechanism by the collective. In the case of P. aeruginosa, biofilm formation is controlled by a cell-cell communication process called quorum sensing. Quorum sensing underpins transcriptional changes in a bacterium, allowing for the transition from individual, planktonic behaviors to group, sessile behaviors. Group behaviors are behaviors that are only beneficial to engage in once a critical threshold of kin population is reached. The transition to group behaviors is mediated by quorum sensing through an interconnected regulatory system, with the transcription factor receptor RhlR regulating the expression of hundreds of genes. RhlR-dependent transcription relies on the detection of a ligand produced by its partner synthase, RhlI, and an accessory binding protein that alters its affinity for promoter DNA, PqsE, resulting in a dual regulatory mechanism that was not previously observed in quorum sensing. The main goal of this study was to determine the molecular basis for promoter selection by RhlR using bacterial genetics and DNA-based sequencing methods for measuring site-specific protein binding. Our approach established the entirety of the RhlR direct regulon and the contributions of each of the known regulators to RhlR-dependent promoter binding and gene regulation.

Introduction

Pseudomonas aeruginosa is a Gram-negative bacterium that can grow in nutrient-limited environments such as the reservoirs of water around sinks and in ventilators found in hospital settings. As a result, it is one of the most common nosocomial pathogens and is the primary cause of ventilator-associated pneumonia in the United States [1,2]. Quorum sensing (QS) is a process of bacterial cell-cell communication that controls pathogenesis in many bacterial species, including P. aeruginosa. QS relies on the production, accumulation, detection, and population-wide response to extracellular signal molecules called autoinducers (AI) [3]. QS allows bacteria to synchronously alter gene expression patterns that underpin collective behaviors, such as virulence factor production and biofilm formation [4,5]. QS signaling is relayed through a series of AI synthase/receptor pairs [6–12]. At high cell density, the synthase produces a secreted AI that diffuses across the membrane and binds its cognate cytosolic receptor, ultimately resulting in changes in gene expression [13–17].

P. aeruginosa has two LuxI/R-type synthase/receptor pairs that act in concert to regulate virulence factor expression: LasI/R and RhlI/R [8,18–20]. QS in P. aeruginosa is best described as a hierarchical system of interconnected regulatory networks, starting with the LasI/R circuit. LasI synthesizes the AI N-(3-oxododecanoyl)-L-homoserine lactone, which binds the transcription factor receptor LasR. LasR upregulates the expression of rhlI/R, thereby initiating a second wave of QS gene regulation [20–22]. Homologous to LasI/R, RhlI synthesizes the AI N-butyryl-L-homoserine lactone (C₄HSL), which binds the transcription factor receptor RhlR. Both systems function in a positive feedback manner with the receptor upregulating the transcription of its partner synthase, thus maximizing the transcriptional response of the system [8,11,21–27]. LasR and RhlR regulate the transcription of hundreds of genes, both directly and indirectly [13,19,21,28–32]. Each transcription factor has its own regulon, with a subset of genes co-regulated by both systems. LasR and RhlR co-regulate a third QS pathway, the Pseudomonas quinolone signaling (PQS) system [33–35]. LasR upregulates the transcription of pqsR. PqsR is a LysR transcription factor receptor that binds to the AI 2-heptyl-3-hydroxy-4(1H)-quinolone (PQS), which is produced by the biosynthetic pathway enzymes encoded by the pqsABCDE operon and pqsH [36–40]. Similar to the Las and Rhl system, PqsR upregulates the transcription of genes involved in the synthesis of its AI, thereby establishing another positive feedback loop, resulting in a fully activated QS network [35,36]. RhlR transcriptionally represses the pqsABCDE operon, highlighting the interconnected regulatory mechanisms that govern the progression of QS in P. aeruginosa [35]. PqsE is a metallo-β-hydrolase enzyme encoded in the pqsABCDE operon and is involved in PQS synthesis. Recent work from our group and others has shown that PqsE plays a more nuanced role in QS signaling, outside of its role as an enzyme in the PQS biosynthetic pathway [29,41–47]. Moreover, PqsE is dispensable for the production of PQS, as the deletion of pqsE results in wild-type (WT) levels of PQS [45,46].

Distinct from its role as an enzyme, PqsE plays an important role in the production of virulence factors; deletion of pqsE results in a failure of the strain to produce pyocyanin, an important virulence factor that is produced in a QS-dependent manner via the regulation of the paralogous phzABCDEFG1 and phzABCDEFG2 operons as well as phzH, phzM, and phzS [29,41,45,48,49]. Furthermore, pyocyanin production could not be restored by the addition of PQS, indicating a non-enzymatic role for PqsE in the regulation of pyocyanin production [50]. We recently discovered that PqsE physically interacts with RhlR to regulate the ability of RhlR to bind DNA and, thus, contributes to the regulation of pyocyanin production [29,44,47]. More globally, RNA-seq experiments revealed that the PqsE interaction with RhlR and C₄HSL-bound RhlR contribute to RhlR-dependent gene regulation in an overlapping manner, with a few notable exceptions [28,29]. For example, the gene encoding rhamnolipid synthase, rhlA, is regulated by RhlR in a C₄HSL-dependent manner, with PqsE exerting only a minor influence on its transcription. Conversely, the gene encoding hydrogen cyanide synthase, hcnA, is regulated by RhlR in a PqsE-dependent manner, with C₄HSL exerting only a minor influence on its transcription. RNA-seq analyses revealed that these two examples occur on the far ends of a wide spectrum of RhlR-dependent regulation. To date, the RhlR regulon has been inferred from gene expression analyses [42,50]. Thus, it is unknown which genes are directly regulated by RhlR promoter binding. Moreover, the dependence of RhlR on PqsE and C₄HSL for binding different DNA sites has not been determined. Here, we perform ChIP-seq analyses of RhlR in different genetic backgrounds to comprehensively map genes that are directly regulated by RhlR in P. aeruginosa. We also assess the different and overlapping contributions of C₄HSL and PqsE to RhlR-dependent regulation.

Results

Identification of 40 RhlR binding sites across the P. aeruginosa PA14 genome

Previous studies identified RhlR-regulated genes but could not determine the direct RhlR-mediated regulation due to the lack of binding data [19,27–29,42,50]. To distinguish between direct and indirect regulation, we mapped RhlR binding to the P. aeruginosa PA14 genome using ChIP-seq in WT PA14 with a polyclonal antibody raised against RhlR [41]. To account for the possibility that the antibody binds proteins other than RhlR, we performed a parallel ChIP-seq experiment in a ΔrhlR strain. Of the 168 genomic regions enriched in ChIP-seq with the WT strain (S1 Table), 40 had decreased enrichment in the ΔrhlR strain (S1 Fig). We consider these 40 regions to be true RhlR-bound regions (Table 1; see methods for details). We speculate that the other 128 regions are not RhlR-bound. Indeed, many of these 128 regions are known MvaT/U binding sites, suggesting that their enrichment in the RhlR ChIP-seq was due to cross-reactivity of the RhlR antibody with MvaT and/or MvaU [51,52].

Table 1. List of RhlR binding sites in WT PA14 and their associated expression and binding dependencies in different genetic backgrounds.

Expression values were determined using Rockhopper [65] with data from Simanek et al. 2022 [29]. Q-values represent the probability of a false discovery of differentially expressed genes. Expression values used to calculate relative expression all increased by 1 to prevent div/0.

Site Locationa	Synonymb	Motifc	WT Binding	ΔrhlR Binding	ΔpqsE Binding	ΔrhlI Binding	RhlR Expression Change	PqsE Expression Change	RhlI Expression Change	Previously Found
64211	phzH	CAACTATTGAATATAAGAGTT	2437.4	906.1	906.8	962.1	5.8	3.0	5.8	Mukherjee, Letizia, Asfahl
139733	PA14_01490 (rahU)	-	2364.4	24.5	640.1	2111.9	18.4	1.4	2.9	Asfahl, Letizia, Schuster, Mukherjee
560072	PA14_06320	CCCCTACTAGAATTCACAGGT	1010.4	8.9	596.4	1461.2	0.8	0.8	0.6	Letizia
754615	rpsL operon	GCCCTGCCAATTTTCGGGGTA	552.9	35.1	194.2	144.2	0.6	1.4	1.1	-
812427	phzB1*, phzC1	-	3931.3	966.2	1641.1	3353.5	264.5, 138.3	29.3, 20.8	44.1, 31.1	Asfahl, Letizia, Schuster, Cruz
813529	phzA1 operon, phzM	CACCTACCAGATCTTGTAGTT	10446.1	995.9	1676.3	5496.0	124, 19	15.5, 8.4	15.5, 7.0	Asfahl, Letizia, Mukherjee, Cruz
895433	PA14_10360 operon	GAACTGCCAGGATTAGCGGTT	6809.1	800.8	1376.8	794.7	28.9	1.9	12.9	Asfahl, Letizia, Mukherjee, Cruz, Schuster
1372370	PA14_16100*, PA14_16110	CACCTGCTTGAAATTGCAGTA	6758.9	66.6	1914.7	1152.0	1.5, 1.3	1.4, 0.7	1.6, 1.1	Mukherjee, Asfahl, Letizia
1387361	lasB	AACCTGCCAGAACTGGCAGGT	878.9	9.4	605.7	296.7	2.4	0.7	3.2	Cruz, Schuster, Mukherjee, Asfahl, Letizia
1620628	PA14_18800	TACCTGAGAGATTTATGAGTT	1315.4	395.0	863.9	629.5	4.0	1.1	3.6	Mukherjee, Asfahl, Letizia
1621028	PA14_18810 operon	-	481.3	189.0	481.7	257.6	0.6	1.3	1.3	Asfahl
1648391	rhlA operon	TAACTGCCAGATTTCACAGGA	11271.2	28.5	7736.8	2586.2	45.3	1.0	5.1	Asfahl, Letizia, Mukherjee, Schuster, Cruz
1651804	rhlI	-	1112.2	9.8	1080.2	1021.5	1.5	1.0	35.2	Cruz, Schuster, Asfahl
1735823	PA14_20130, PA14_20140 (fpr)	-	414.7	62.4	307.4	233.3	1.0, 1.2	1.0, 1.2	1.0, 1.1	Mukherjee, Asfahl
1774336	lecB, PA14_20620 operon	CCACTGCTAGAGTTCGCAGGA	32231.7	35.0	577.6	33814.6	5.6, 1.4	2.9, 1.1	2.2, 1.0	Asfahl, Cruz, Letizia, Mukherjee
1816906	PA14_21020 (azeB) operon, PA14_21030 (azeA)	TACCTACCAGAATTAACAGTT	15193.0	301.7	16297.0	6827.0	11.2, 4.3	2.3, 0.9	5.3, 2.2	Asfahl, Letizia, Cruz, Schuster, Mukherjee
1924465	PA14_22090	-	390.1	89.1	242.1	142.1	1.0	0.9	1.0	-
2444398	PA14_28250*, PA14_28260	AAGCTGCCGGATCTGGTAGGC	885.1	8.4	321.1	166.8	0.9, 1.2	0.8, 0.8	0.8, 1.1	Mukherjee
2568048	PA14_29620, fhp operon	AAACTACCAGAATTCACGGGC	7797.7	20.9	1780.0	1602.7	0.7, 0.02	0.9, 0.03	0.8, 1.1	Letizia, Asfahl
2647472	PA14_30570, PA14_30580 (vqsR)	CACCTACCAGAACTGGTAGTT	2294.2	118.2	3484.9	1094.3	1.8, 0.8	1.0, 0.6	1.4, 0.8	Cruz, Schuster, Mukherjee, Asfahl, Letizia
2677542	PA14_30840 *	-	17187.9	23.2	90.7	9811.6	1.3	0.8	0.9	Letizia
2721761	pa1L	CTCCTGCATGAATTGATAGGC	431.0	410.1	278.4	315.4	5.5	1.7	6.0	Mukherjee, Cruz, Asfahl, Letizia
3188223	tnpS, tnpT operon	-	556.8	243.6	339.1	258.0	1.3, 1.0	1.0, 1.2	1.0, 1.2	-
3236436	hcnA operon, exoY	-	3335.0	5.4	342.1	4885.0	10.2, 1.4	3.6, 0.8	2.4, 0.9	Asfahl, Letizia, Mukherjee, Schuster, Cruz
3364761	PA14_37745 operon	GCCCTGCCAGATTTCGCAGGC	423.7	4.9	112.0	37.0	34.2	1.5	14.6	Mukherjee, Letizia, Asfahl, Schuster
3561157	phzB2*, phzC2	-	453.4	340.6	420.0	336.5	100.1, 132.4	8.3, 14.9	40.0, 34.0	Mukherjee, Cruz, Letizia, Schuster, Asfahl
3561969	phzA2 operon	CACCTGTAATTTTTAAGGGGT	2238.4	314.8	1218.8	348.0	88.5	8.4	29.5	Letizia, Mukherjee, Cruz, Asfahl
3600666	lasA	CAACTATCAGCTTTTGCAGTA	555.5	6.0	277.4	206.6	2.3	0.9	2.5	Cruz, Mukherjee, Asfahl, Letizia
3831541	hsiA2 operon, hcpD	-	3119.5	373.5	1767.9	629.0	2.7, 2.2	1.9, 1.8	2.3, 2.7	Cruz, Schuster, Mukherjee, Asfahl, Letizia
4285523	PA14_48140 operon	CACCTGGCAGAACTGACAGGT	1059.8	136.6	405.7	272.9	0.9	0.7	0.9	Asfahl, Letizia
4313855	PA14_48530 operon	CAACTATGAGAATTGGTAGTT	2800.5	127.7	2597.9	2645.5	2.7	1.0	1.3	Mukherjee, Cruz, Asfahl, Letizia
4314560	PA14_48530 *	-	620.4	137.3	974.9	651.9	2.7	1.0	1.3	Mukherjee, Cruz, Asfahl, Letizia
4382169	PA14_49310	CAACTGCCAGATCTGGCAGGC	1136.8	39.3	880.7	1398.4	0.9	0.8	1.2	Asfahl, Letizia
4425570	PA14_49740, PA14_49750 operon	AAACTACCGGAATTCACAGGT	7939.2	8.7	6100.9	3189.2	0.9, 6.8	1.0, 0.9	0.8, 2.1	Mukherjee, Letizia, Asfahl, Cruz
5159548	PA14_57970*, PA14_57980	CAACTGTTACATATGAGCGGT	881.2	12.7	106.4	236.3	0.9, 1.0	1.2, 1.5	0.9, 1.1	-
5268881	PA14_59180 *	CAACTCGCAGAACTGGTGGGG	679.5	29.4	185.2	247.1	0.9	0.5	0.7	-
6082366	rmlB operon	CACCTACCAGATCTGGGGTTG	10477.0	23.2	4067.5	1291.5	2.3	0.9	1.8	Mukherjee, Letizia
6093032	arcD operon	TCCCTATAGGAATTGAGAGTG	3285.2	16.5	333.9	205.1	0.9	2.6	0.7	-

^aSite location refers to the genomic position of the base in the center of a given ChIP peak.

^bTwo genes are listed where a site is upstream of a gene on both strands, or within one gene and upstream of an adjacent gene on the same strand.

*Gene is associated with an internal binding site.

^cBinding motifs were identified using MEME analysis [63] and the sequence contributing to the consensus motif is listed in line with its associated ChIP site and gene(s) where identified.

The 40 RhlR-bound regions we identified include many with well-established RhlR regulatory elements, such as rhlA, hcnA, and phzA1 (Fig 1A–1C) [19,20,29,53,54]. We identified a strongly enriched DNA sequence motif associated with 26 of the 40 RhlR-bound regions (Fig 1D and Table 1). This sequence motif matches the known RhlR binding consensus, which was previously determined using promoter sequences from the core regulon, and is similar to those of other LuxR-type family proteins [55]. Interestingly, we did not find a match to the RhlR motif in the regions upstream of genes phzH and rahU (encodes hemolysin) that are well-established RhlR-regulated genes. These findings suggest that the presence of a lux-box sequence alone is insufficient to explain RhlR binding to all DNA targets, or that some lux-boxes deviate considerably from the consensus motif.

Fig 1. RhlR-, C₄HSL-, and PqsE-dependent binding occupancy and gene expression of known QS regulated genes.

Genome browser depictions of ChIP-seq and RNA-seq profiles for WT PA14 (JPS0222) (black), ΔrhlR (JPS0151) (red), ΔrhlI (JPS0154) (blue), and ΔpqsE (JPS0561) (purple) strains at the (A) rhlA operon, (B) hcnA operon, and (C) phzA1 operon. ChIP-seq read counts per base were normalized to reads/100,000,000 reads. RNA-seq data were normalized as a part of genome alignment using Rockhopper. The data depicted for both ChIP- and RNA-seq are the average of biological replicates. D) MEME analysis was conducted on all 40 RhlR-bound sequences using default parameters, optionally looking for any number of repetitions [64].

We next determined the position of RhlR-bound regions relative to genes (Table 1). 32 RhlR binding sites are in intergenic regions, <500 bp upstream of the start of a gene. This is an 8-fold enrichment over the number of intergenic regions expected by chance (~10% of the genome is intergenic). Eight RhlR binding sites are within genes; these include sites within phzB1 and phzB2 that also have stronger upstream RhlR binding sites (Fig 1C). Five of the eight intragenic RhlR-bound regions are <500 bp upstream of a neighboring gene, suggesting that RhlR bound to these regions may regulate transcription of the neighboring gene. Overall, RhlR binds predominantly to regions upstream of genes, consistent with its role as a transcription regulator.

Identification of directly RhlR-regulated genes

Intergenic RhlR binding sites are associated with 17 transcripts (defined as single-gene or multi-gene operons) that showed significant (q<0.01) differential expression +/- rhlR in our recent RNA-seq study (Figs 1A–1C and 2, and Table 1) [29]. An additional 26 transcripts with associated intergenic RhlR binding sites (e.g., lasB) did not have significant differential expression in our data, but 14 of these transcripts were shown to be regulated by RhlR in other RNA-seq studies, bringing the total number of transcripts with an upstream RhlR binding site and evidence of RhlR-dependent regulation to 31. We consider these 31 transcripts to be direct regulatory targets of RhlR (Table 1). RhlR-dependent regulation of some genes is likely to be condition-specific, which would explain apparent disparities in RNA-seq studies. All but one of the directly RhlR-regulated transcripts is positively regulated by RhlR (fhp is negatively regulated), consistent with the known function of RhlR as a transcription activator. Some genes (e.g., chiC, opmD, pelG, and mucA) have been shown to be rhlR-dependent by RNA-seq in multiple studies, but were not associated with RhlR binding [19,29,50]. These genes are likely indirectly regulated by RhlR. Consistent with this idea, multiple genes encoding known or predicted transcription regulators, including vqsR, have associated RhlR binding sites.

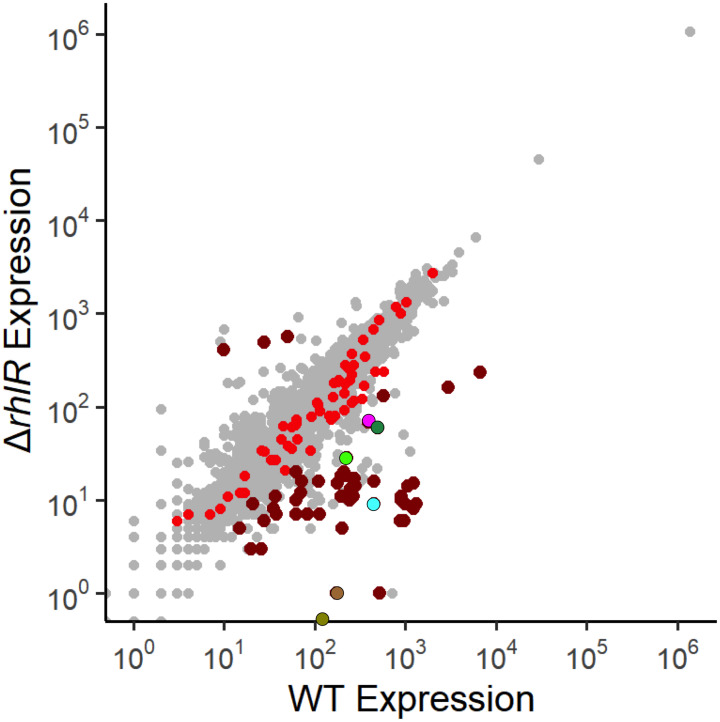

Fig 2. Identifying genes that are directly regulated by RhlR.

RNA-seq analysis comparing normalized RNA levels from the WT PA14 strain to normalized RNA levels from the ΔrhlR strain for all genes in the P. aeruginosa genome. Dark red dots correspond to genes with a RhlR binding site <500 bp upstream of the corresponding operon, as determined by ChIP-seq, that are also differentially expressed +/- rhlR (q < 0.01) as determined by RNA-seq in an earlier study [29]. Light red dots correspond to genes with a RhlR binding site <500 bp upstream of the corresponding operon, as determined by ChIP-seq, that are not differentially expressed +/- rhlR. Characterized QS genes of interest are highlighted: lecB (magenta), lasB (dark green), hcnA (light green), rhlA (cyan), phzA1 (olive), and phzA2 (brown).

Characterization of the role of RhlI-synthesized C₄HSL in selective RhlR promoter occupancy

Previous work in our lab and others suggested that RhlI-synthesized C₄HSL has an unequal impact on regulation of different genes by RhlR [19,29,56,57]. RNA-seq analyses of a ΔrhlR strain and a ΔrhlI strain revealed that RhlR-controlled genes are regulated by C₄HSL to varying degrees [19,29], suggesting that RhlR may bind and regulate transcription from some DNA sites in the absence of its ligand and/or that there are additional factors that assist RhlR binding DNA. To understand the impact of C₄HSL on RhlR binding to its DNA sites, we repeated ChIP-seq of RhlR in a ΔrhlI strain and compared the occupancy of RhlR at each of the 40 RhlR-bound regions. The ΔrhlI strain served to assess the role of C₄HSL in regulating RhlR binding; analysis of a strain lacking rhlI is viewed as a strain lacking C₄HSL. ChIP-seq data for WT and ΔrhlI strains report on differences in the relative binding of RhlR to the 40 DNA sites +/- rhlI. Differences in absolute ChIP-seq signal at individual DNA sites +/- rhlI likely reflect differences in absolute occupancy, although this cannot be confirmed without a spike-in control [58].

The effect of C₄HSL on RhlR binding to DNA varied considerably between RhlR-bound regions (Fig 3A and Table 1). For example, binding of RhlR upstream of rhlA decreased 4-fold in the ΔrhlI strain compared to WT PA14 (Fig 1A). Conversely, binding of RhlR upstream of hcnA increased 1.5-fold in the ΔrhlI strain relative to WT PA14 (Fig 1B and Table 1). Thus, our data support a variable role of C₄HSL in RhlR binding to DNA sites, with some sites requiring C₄HSL for maximal RhlR binding and other sites being unaffected by the loss of C₄HSL.

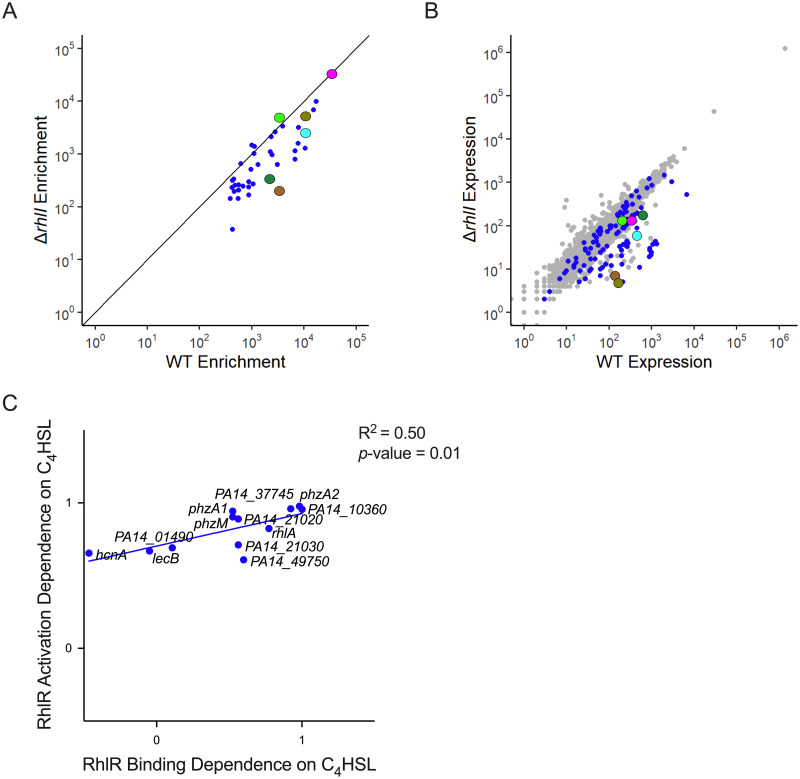

Fig 3. RhlR dependence on C₄HSL for gene activation correlates with its dependence on C₄HSL for binding to target sites.

(A) Comparison of ChIP enrichment from the WT PA14 and ΔrhlI strains, highlighting the 40 RhlR DNA binding sites from Fig 2. (B) Global RNA-seq analysis comparing normalized RNA levels from the WT PA14 strain to the normalized RNA levels from the ΔrhlI strain for all genes in the P. aeruginosa genome. Blue dots correspond to genes containing a RhlR binding site <500bp upstream of the start site as determined by ChIP-seq analyses. For (A) and (B) characterized QS genes of interest are highlighted: lecB (magenta), lasB (dark green), hcnA (light green), rhlA (cyan), phzA1 (olive), and phzA2 (brown). (C) Correlation of RhlR DNA binding dependence and gene activation dependence of RhlI. RhlR dependence on C₄HSL for both gene expression and binding at a given binding site were calculated by subtracting the expression (RNA-seq) or binding (ChIP-seq) values of the ΔrhlR strain from the WT control strain and dividing that value by the resulting value of the subtraction of the expression or binding values of the ΔrhlI from the WT control strain (i.e., (WT_expression—ΔrhlR_expression)/(WT_expression—ΔrhlI_expression)). A value approaching 1 indicates a strong dependency on C₄HSL for expression or binding. A value approaching 0 or lower indicates a low or lack of dependency on C₄HSL for expression or binding. A simple linear regression model was performed to calculate the goodness of fit (R²) and to determine if the regression coefficient is significantly different from zero (p-value).

The binding sites upstream of rhlA and hcnA are examples of two broad classes of RhlR-dependent binding sites that are more or less C₄HSL-dependent, respectively. However, these dependencies are not binary, and occur on a spectrum with the least C₄HSL-dependent binding site upstream of hcnA, and the most C₄HSL-dependent binding site upstream of arcD (16-fold decrease in RhlR binding when rhlI was deleted) (Table 1). Known QS-regulated genes associated with RhlR binding sites that are dependent on C₄HSL for RhlR binding include, in order from less to more C₄HSL-dependent: phzA1, phzH, lasA, lasB, and phzA2 (Table 1). Known QS-regulated genes associated with RhlR binding sites that are not dependent on C₄HSL for RhlR binding include lecB, phzB1, and phzB2 (Table 1). We note that few RhlR-bound regions are completely dependent upon C₄HSL for RhlR binding, indicating that RhlR can bind most of its DNA sites in the absence of C₄HSL, albeit with reduced affinity in many cases.

To determine the role of C₄HSL in the regulation of RhlR target genes, we compared expression of directly RhlR-regulated genes +/- rhlI from our recent RNA-seq study (Fig 3B and Table 1) [29]. We focused on genes associated with strong RhlR binding sites (see Methods for a description of strong sites) and at least a 2-fold difference in expression +/- rhlR. C₄HSL-dependent changes in expression of RhlR target genes correlated positively with C₄HSL-dependent changes in RhlR binding (Fig 3C). The effect of deleting rhlI on expression of rhlA was similar to the effect of deleting rhlR, consistent with strongly C₄HSL-dependent binding of RhlR upstream of rhlA. However, even for genes such as hcnA, where RhlR binding is unaffected by C₄HSL, we still observed a substantial requirement for C₄HSL for regulation by RhlR (Fig 3C). These data strongly suggest that even at sites where C₄HSL is not required for RhlR binding to DNA, C₄HSL is required for RhlR to maximally activate transcription.

Characterization of the role of PqsE in selective RhlR promoter occupancy

Previous studies showed that PqsE forms a complex with RhlR and increases the affinity of RhlR for some DNA sites [29,44]. PqsE also promotes transcription activation by RhlR [28,29,43]. We speculated that PqsE can selectively assist RhlR binding to DNA sites, which would explain the variable dependence of different RhlR binding sites for C₄HSL. To investigate the effect of PqsE on RhlR binding to its DNA sites, we repeated ChIP-seq of RhlR in a ΔpqsE strain and compared the binding of RhlR in the WT strain to each of the 40 RhlR-bound regions +/- pqsE (Fig 4A). ChIP-seq data for WT and ΔpqsE strains report on differences in the relative binding of RhlR to the 40 DNA sites +/- pqsE. Differences in absolute ChIP-seq signal at individual DNA sites +/- pqsE likely reflect differences in absolute occupancy, although this cannot be confirmed without a spike-in control [58].

Fig 4. RhlR dependence on PqsE for gene activation correlates with its dependence on PqsE for binding to target sites.

(A) Comparison of ChIP enrichment from the WT PA14 and ΔpqsE strains, highlighting the 40 RhlR DNA binding sites from Fig 2. (B) Global RNA-seq analysis comparing normalized RNA levels from the WT PA14 strain to the normalized RNA levels from the ΔpqsE strain for all genes in the P. aeruginosa genome. Purple dots correspond to genes containing a RhlR binding site <500bp upstream of the start site as determined by ChIP-seq analyses. For (A) and (B) characterized QS genes of interest are highlighted: lecB (magenta), lasB (dark green), hcnA (light green), rhlA (cyan), phzA1 (olive), and phzA2 (brown). (C) Correlation of RhlR DNA binding dependence and gene activation dependence of PqsE. RhlR dependence on PqsE for both gene expression and binding were calculated by subtracting the expression (RNA-seq) or binding (ChIP-seq) values for each in the ΔrhlR strain from the WT control strain and dividing that value by the resulting value of the subtraction of the expression or binding values of the ΔpqsE from the WT control strain, (i.e., (WT_expression—ΔrhlR_expression)/(WT_expression—ΔpqsE_expression)). A value approaching 1 indicates a strong dependency on PqsE for expression or binding. A value approaching 0 or lower indicates a low or lack of dependency on PqsE for expression or binding. A simple linear regression model was performed to calculate the goodness of fit (R²) and to determine if the regression coefficient is significantly different from zero (p-value).

The effect of pqsE deletion on RhlR binding varied dramatically for different RhlR-bound regions. For example, binding of RhlR upstream of hcnA decreased 10-fold in the ΔpqsE strain compared to WT PA14 (Fig 1B). Conversely, binding of RhlR upstream of rhlA decreased only 1.5-fold in the ΔpqsE strain (Fig 1A). Thus, our data support a variable role of PqsE in RhlR binding to its DNA sites, with some sites requiring PqsE for maximal RhlR binding and other sites being unaffected by loss of PqsE, similar to the role of C₄HSL.

The binding sites upstream of hcnA and rhlA are examples of two broad classes of RhlR-dependent binding sites that are more or less PqsE-dependent, respectively. However, these dependencies are not binary, and occur on a spectrum with the least PqsE-dependent binding site upstream of PA14_48530 (no impact of PqsE on RhlR binding), and the most PqsE-dependent binding site upstream of PA14_30840 (189-fold decrease in RhlR binding when pqsE was deleted). Known QS-regulated genes associated with RhlR binding sites that are dependent on PqsE for RhlR binding include lecB and hcnA. Known QS-regulated genes associated with RhlR binding sites that are not dependent on PqsE for RhlR binding include azeB, azeA, and rhlI [50]. We note that 14 of the 31 regulated sites had at least a 2-fold change in RhlR occupancy in the ΔpqsE strain relative to that in WT PA14, indicating that RhlR binding to many sites is enhanced by PqsE.

We previously showed that a D73A substitution in PqsE abolishes catalytic activity but has no impact on the interaction with RhlR [47]. We also showed that PqsE with the triple substitution R243A/R246A/R247A (the “Non-Interacting” [NI] mutant) is impaired for interaction with RhlR [29,44,59]. To test the effect of these mutations on the genome-wide binding profile of RhlR, we performed ChIP-seq of RhlR in strains expressing pqsE D73A or pqsE-NI. Consistent with our prior study, binding of RhlR in cells expressing pqsE D73A was more similar to that in WT cells than ΔpqsE cells (R² = 0.16 for WT vs ΔpqsE, and R² = 0.98 for WT vs pqsE D73A; compare Fig 4A and S2A Fig). Binding of RhlR in cells expressing pqsE-NI was more similar to that in ΔpqsE cells than WT cells (R² = 0.16 for WT vs ΔpqsE, and R² = 0.97 for pqsE-NI vs ΔpqsE; compare Fig 4A and S2B Fig). These data are consistent with the overlapping expression profiles of pqsE D73A with WT (S2C Fig), and pqsE-NI with ΔpqsE (S2D Fig) [29,47].

To determine the role of PqsE in the regulation of RhlR target genes, we compared expression of direct RhlR target genes +/- pqsE from our recent RNA-seq study (Fig 4B and Table 1). We focused on genes associated with strong RhlR binding sites and at least a two-fold difference in expression +/- rhlR. PqsE-dependent changes in expression of RhlR target genes correlated positively with PqsE-dependent changes in RhlR binding (Fig 4C). For example, the effect of deleting pqsE on the expression of hcnA was similar to the effect of deleting rhlR, consistent with strongly PqsE-dependent binding of RhlR upstream of hcnA. By contrast, deleting pqsE had no impact on expression of rhlA, consistent with a modest impact of PqsE on RhlR binding upstream of rhlA. Despite the positive correlation between the dependence on PqsE for RhlR binding and activation, the expression of some genes was largely independent of PqsE notwithstanding a strong dependence of RhlR binding on PqsE. For example, binding of RhlR upstream of PA14_01490 was 3.7-fold lower in the ΔpqsE strain than in WT PA14, but the effect of deleting pqsE on expression of PA14_01490 was only 30% the effect of deleting rhlR. This suggests that RhlR bound to DNA in the absence of PqsE is a stronger transcription activator than RhlR bound in complex with PqsE.

Comparison of the roles of C₄HSL and PqsE in selective RhlR promoter occupancy

ChIP-seq and RNA-seq data showed that RhlR binding and RhlR-dependent transcription activation of rhlA and lasB are more dependent on C₄HSL than PqsE, whereas the opposite is true for hcnA and lecB (Table 1). As an independent test of the impact of C₄HSL and PqsE on RhlR-dependent transcription activation of rhlA, lasB, hcnA, and lecB, we used quantitative RT-PCR to measure RNA levels for these genes in WT PA14, ΔrhlR, ΔrhlI, ΔpqsE, and ΔrhlIΔpqsE strains (Fig 5A). Expression of all five genes was reduced at least 2-fold in ΔrhlR relative to WT PA14. These data are largely consistent with RNA-seq data. Expression of rhlA and lasB was significantly more dependent upon rhlI than pqsE (one-tailed t test, p-values = 0.04 in both cases). By contrast, expression of hcnA was significantly more dependent upon pqsE than rhlI (one-tailed t test, p-value = 0.03). Expression of lecB was roughly equally dependent upon pqsE and rhlI (two-tailed t test, p-value = 0.23). For all five genes, simultaneous deletion of both rhlI and pqsE mirrored the effect of deleting rhlR, suggesting that RhlR requires one or both of C₄HSL and PqsE to bind DNA and activate transcription from any DNA site. The effect of deleting both rhlI and pqsE on expression of RhlR target genes was consistent with our ChIP-seq analyses of RhlR performed in a ΔrhlIΔpqsE strain, as deletion of both regulators resulted in nearly the same decrease in binding occupancy at almost all sites compared to the deletion of rhlR (Fig 5B and S3 Fig). Nonetheless, there are a handful of sites where RhlR retains some ability to bind DNA even in the absence of both rhlI and pqsE (S3 Fig). To further assess the role of C₄HSL and PqsE on gene expression, we performed quantitative RT-PCR on rhlA, hcnA, and lecB in ΔrhlI and ΔrhlIΔpqsE strain backgrounds with increasing concentrations of C₄HSL. Expression of rhlA was sensitive to the addition of C₄HSL in both the ΔrhlI and ΔrhlIΔpqsE backgrounds, indicating that C₄HSL is the main driver of its expression (Fig 5C). Conversely, hcnA and lecB expression levels were largely independent of C₄HSL across all concentration ranges tested in the ΔrhlI strain, and maximal expression was dependent on the presence of PqsE, as the ΔrhlI strain had higher expression levels for both genes than the ΔrhlIΔpqsE strain, although the differences are not statistically significant in every instance (p-value > 0.05), especially at the highest C₄HSL concentration (Fig 5C).

Fig 5. PqsE and C₄HSL coordinate full RhlR-dependent DNA binding and gene expression.

(A) Quantitative RT-PCR analysis of rhlA, lasB, hcnA, and lecB in ΔrhlR (red), ΔrhlI (blue), ΔpqsE (purple), and ΔrhlIΔpqsE (JPS0278) (orange) strains compared to WT expression levels (dotted line). gyrA was used as an internal housekeeping control. Bars represent the mean of three biological replicates. Two technical replicates were performed and averaged for each gene in each biological replicate. Error bars represent standard deviations of the means of biological replicates. Statistical analyses were performed using a paired one-tailed t test comparing the relative transcript levels of rhlA, lasB, and hcnA between ΔrhlI and ΔpqsE strains. Statistical analyses were performed using a paired two-tailed t test comparing the relative transcript level of lecB between ΔrhlI and ΔpqsE strains. (B) Comparison of ChIP enrichment from the WT PA14 and ΔrhlIΔpqsE strains, highlighting the 40 RhlR DNA binding sites from Fig 2. Characterized QS genes of interest are highlighted: lecB (magenta), lasB (dark green), hcnA (light green), rhlA (cyan), phzA1 (olive), and phzA2 (brown). (C) Quantitative RT-PCR analysis of rhlA (cyan), hcnA (light green), and lecB (magenta) in ΔrhlI and ΔrhlIΔpqsE strains without (-) or with increasing concentrations of C₄HSL. gyrA was used as an internal housekeeping control. Transcript levels were normalized to the ΔrhlIΔpqsE (-) C₄HSL control. Bars represent the mean of three biological replicates. Two technical replicates were performed and averaged for each gene in each biological replicate. Error bars represent standard deviations of the means of biological replicates. Statistical analyses were performed using multiple paired t tests to correct for multiple comparisons using Holm-Šídák method to compare between strains at the equivalent concentration of C₄HSL to assess the effect of PqsE on gene expression. Statistical analyses were performed using a paired one-tailed t test for rhlA, hcnA, and lecB comparing the no C₄HSL (-) control to the 1 μM supplementation within a strain to assess the effect of C₄HSL on gene expression.

To directly assess the role of C₄HSL and PqsE in gene expression, we compared the effect of C₄HSL and PqsE on RhlR-dependent transcription activation of rhlA, lasB, hcnA, and lecB using luciferase reporter fusions in Escherichia coli expressing either rhlR, or rhlR and pqsE, +/- C₄HSL (Fig 6A) [29,47,60]. We chose 4 μM C₄HSL for this assay because higher concentrations abrogate the effects of PqsE on RhlR activity [47]. These data are largely consistent with RNA-seq data, and the regulator dependencies described above. Expression of rhlA and lasB was strongly dependent upon C₄HSL and only modestly stimulated by PqsE. By contrast, expression of hcnA and lecB was not significantly enhanced by the addition of C₄HSL but was strongly stimulated by PqsE (Fig 6A). Since E. coli does not produce RhlR, PqsE, or C₄HSL, we view the E. coli heterologous reporter system as a way to study the regulatory effects at different promoters in the absence of other regulators, permitting us to draw inferences about the direct effects of the factors being tested. To determine the effect of PqsE on RhlR binding to DNA sites in vitro, we performed electrophoretic mobility shift assays (EMSA) using 200 bp fragments of the rhlA, hcnA, and lecB promoters centered around the determined RhlR DNA-binding motif sequence (Fig 1D) with purified RhlR +/- PqsE added at equimolar concentrations (Fig 6B and Table 1). We note that neither we, nor others in the field, have purified WT RhlR bound to its native AI. Instead, we solubilized and purified RhlR in the presence of the synthetic agonist meta-bromothiolactone (mBTL), as previously described [41]. mBTL behaves identically to C₄HSL in cell-based reporter assays [61,62]. To the best of our knowledge, native WT RhlR cannot be purified from E. coli without a ligand present. Thus, the reciprocal experiment with RhlR +/- C₄HSL could not be performed. We also note that the affinity of RhlR for the different binding sites is likely to be different. Consistent with our previous work and with the work shown above, RhlR bound the rhlA promoter in the absence of PqsE, but its binding was enhanced when in complex with PqsE [29]. Conversely, at the concentrations tested, RhlR alone could not bind the hcnA or lecB promoter, and required PqsE to bind DNA (Fig 6B). These data are consistent with our ChIP-seq, E. coli reporter, and P. aeruginosa transcription analyses, and indicate a potential hierarchy of promoter specificity that results from the mixture of C₄HSL and PqsE dependencies at RhlR-regulated promoters.

Fig 6. PqsE is required for RhlR binding to certain promoters and maximal gene expression.

(A) E. coli reporter system expressing RhlR alone or RhlR and PqsE in the presence of rhlA (JPS0477 and JPS0476, respectively), lasB (JPS0924 and JPS0925, respectively), hcnA (JPS0924 and JPS0925, respectively), and lecB (JPS0948 and JPS0949, respectively) promoters fused to the luxCDABE operon (luciferase). All samples received 0.1% arabinose to induce rhlR expression from the pBAD promoter. pqsE was constitutively expressed from the lac promoter. The strains expressing RhlR alone contained an empty vector plasmid equivalent to that of the plasmid containing pqsE. All samples received 4 μM of C₄HSL or the equivalent volume of DMSO as a carrier control. Bars represent the mean of three biological replicates. Two technical replicates were performed and averaged for each gene in each biological replicate. Error bars represent standard deviations of the means of biological replicates. Multiple unpaired one-tailed t tests were performed to compare the mean of each promoter fusion between the arabinose only control (gray) and C₄HSL (blue) or between C₄HSL and C₄HSL + PqsE (purple) treatments. (B) Representative images of electrophoretic mobility shift assays using 200 bp fragments of the rhlA, hcnA, and lecB promoters with increasing concentrations of RhlR (left) or RhlR complexed with PqsE (right). A representative SDS-PAGE loading control depicting the concentrations of RhlR and RhlR-PqsE (bottom). RhlR was purified using the synthetic agonist mBTL.

Discussion

This is the first comprehensive assessment of the direct RhlR regulon (i.e., genes where regulation by RhlR is due to RhlR binding upstream). Our findings are largely consistent with prior studies that focused on RhlR-dependent changes in RNA levels [27,29,42,50], but our data help to distinguish direct from indirect regulation. Moreover, apparent inconsistencies in RNA-seq data between studies, and the presence of RhlR binding sites upstream of genes without apparent RhlR-dependent changes in RNA levels, suggest that direct regulation of some genes by RhlR is condition-specific, requiring additional factors. Most genes in the direct RhlR regulon have established roles in QS. Direct RhlR regulation of several uncharacterized genes, such as PA14_59180, PA14_22090, and PA14_10360, strongly suggests a role for these genes in QS. Regarding the role of PqsE, our data are also largely consistent with an RNA-seq study that assessed the effect of RhlR and PqsE on transcript levels genome-wide [42]. However, the majority of RhlR-regulated and PqsE-regulated genes are likely to be indirectly regulated, highlighting the value of combining RNA-seq and ChIP-seq data.

Both C₄HSL and PqsE contribute to RhlR-dependent transcription activation, but to varying degrees depending on the RhlR site. In the absence of both C₄HSL and PqsE, RhlR binding to DNA was abolished for almost all sites (Fig 5B and S3 Fig), resulting in no RhlR-dependent gene activation (Fig 5A). We conclude that in most cases, RhlR needs to bind at least one of C₄HSL or PqsE for maximal activation of gene targets. We speculated that there is an inverse relationship between dependence on C₄HSL and dependence on PqsE, as appears to be the case for sites associated with rhlA, lasB, hcnA, and lecB (Figs 5 and 6). However, this is not generally the case, with an R² value of 0.08 when comparing RhlR binding dependence on C₄HSL to RhlR binding dependence on PqsE (Fig 7). Moreover, C₄HSL is required for binding at some sites more than others but is essential for maximal expression everywhere, suggesting that C₄HSL binding to RhlR imparts substantial conformational changes in RhlR without necessarily impacting the ability of RhlR to bind DNA. These findings indicate that RhlR can be stable without a small molecule ligand in P. aeruginosa, which is not the case in E.coli overexpression systems [61]. The prevailing dogma was that this class of LuxR-type receptors folded around their native ligand during complex assembly. However, previous Western blot analyses on RhlR in a ΔrhlI strain revealed that RhlR remained in the soluble fraction and was not targeted for degradation; it was unclear if the protein was functional [19]. Our results point to a scenario where RhlR is stable without C₄HSL because of the presence of PqsE. PqsE is required for RhlR binding to some sites more than others, but the ability of RhlR to activate transcription is only weakly affected by loss of pqsE at sites that lose a significant amount of RhlR binding when pqsE is absent. We speculate that C₄HSL:RhlR bound to PqsE, while having a higher affinity for promoter DNA than C₄HSL:RhlR alone, is an overall weaker activator of transcription.

Fig 7. PqsE and C₄HSL binding dependencies for RhlR occur on a spectrum.

Correlation of relative RhlR binding dependencies on both C₄HSL and PqsE. Correlation values for binding dependence from Figs 3C and 4C were plotted against each other. A value approaching 1 indicates a strong dependency on C₄HSL or PqsE for binding. A value approaching 0 or lower indicates a low or lack of dependency on C₄HSL or PqsE for binding. A simple linear regression model was performed to calculate the goodness of fit (R²) and to determine if the regression coefficient is significantly different from zero (p-value).

The dependence on C₄HSL and/or PqsE for RhlR binding is likely due to differences in the DNA sequences of the RhlR binding sites, or the surrounding sequence. Initially, we hypothesized that PqsE could drive RhlR to promoters with a more degenerate binding motif, or promoters without a detectable binding motif. While that appears to be the case with hcnA, it is not true for lecB (Table 1). We were unable to infer a PqsE-dependent motif because so few binding sites are strongly associated with PqsE for binding. Future experiments involving chimeric binding sites may reveal the molecular basis for PqsE promoter dependency. Additionally, regions surrounding the RhlR-dependent motif could have an effect on binding to the motif sequence in a PqsE-dependent or -independent manner. For example, integration host factor (IHF) in Vibrio harveyi regulates LuxR binding and transcription at the luxC promoter by binding to regions upstream of the lux-box binding motif, bending the DNA, and physically interacting with LuxR [63]. Thus, additional regulatory sequences or regulatory elements could alter PqsE-dependency by specifically interacting with PqsE only when it is in complex with RhlR.

The activation of a transcription factor, in this case, RhlR, via an accessory protein, such as PqsE, is unique in QS. We speculate that the relative abundance of C₄HSL and PqsE might differ according to different growth conditions, particularly with respect to cell density, and these relative differences affect the timing of RhlR-dependent gene expression. For example, conditions might exist where PqsE concentrations are low, which would result in a higher dependence on C₄HSL binding and activation, leading to a subset of RhlR-dependent genes being expressed. Given that RhlR represses pqsE expression, we speculate that expression of the PqsE-dependent RhlR regulon decreases as C₄HSL accumulates. Thus, there is likely a window at which the C₄HSL and PqsE concentrations are “optimal”, where maximal gene expression of both regulons can occur. Further studies are needed to determine whether the timing of RhlR activation for different genes is impacted by the dependence on PqsE.

Materials & methods

Bacterial strains and growth conditions

Specific growth conditions for the different strains of P. aeruginosa and E. coli are described below for their corresponding experiments. Standard molecular biology techniques were used to amplify and clone promoter fragments for the creation of luxCDABE fusions. The plasmids and strains used in this study are listed in S3 Table. The primers used in this study are listed in S4 Table.

Chromatin Immunoprecipitation Sequencing (ChIP-seq)

P. aeruginosa strains were grown overnight, back diluted 1:100 in fresh LB media and grown to OD_{600 nm} = 2.0. Crosslinking, lysis, and immunoprecipitation were performed as previously described [66] with the following changes: a polyclonal antibody raised against WT RhlR from PA14 from our previous work was used [41], and the DNA library preparation was performed using Q5 high-fidelity DNA polymerase (New England Biolabs). Peak-calling was performed as previously described [65].

Data analysis

Initial analysis of our previously published RNA-seq data [29] was conducted using Rockhopper [67] without strand specificity to normalize, align, and conduct a pairwise comparison of all WT and mutant strains combining two independent sequencing runs [66–68]. The total reads for each called peak in each replicate of the ChIP-seq data were calculated by summing the read count within 100 bases of the center of each peak and normalizing by the total reads of the replicate multiplied by 1,000,000. The read counts for each peak were then averaged with their duplicate. The value for each peak in the WT average was then divided by the scores for the rhlR deletion average, and peaks with a ratio > 1 were identified and referred to as “real” RhlR binding sites. We expect that these only include sites that are associated with RhlR binding, but it is formally possible that the antibody cross-reacts with proteins whose abundance is dependent upon RhlR. The original list of ChIP-sites was used to determine the genes with internal ChIP sites or a ChIP site within 500 bases upstream of the gene or its operon start (S1 Table). Genes were then further filtered by association with a “real” RhlR binding site as identified using R (Table 1). Values in Table 1 for RNA-seq data represent fold-change versus WT. Values plotted in Figs 3C and 4C show the effect of deleting rhlI or pqsE on RNA levels relative to that of deleting rhlR. For example, if we consider PA14_01490, normalized RNA levels in WT, ΔrhlR, and ΔpqsE strains are 2956, 160, and 2108, respectively. Hence, the ratios of RNA transcripts for WT to ΔrhlR and WT to ΔpqsE strains are 18.4 and 1.4, respectively. However, if we consider the absolute difference in RNA levels from WT to ΔpqsE strains, the number is 848, as compared to 2796 for WT to ΔrhlR, i.e., 30%. Similarly, the absolute difference in RNA levels for hcnA between ΔpqsE and WT cells is 80% of the difference between ΔrhlR and WT cells, despite the fold-change numbers being rather different. Plots of relative ChIP-enrichment and expression were generated using R. Genome browser images were generated using signal map. ChIP-seq data used in the genome browser were normalized to reads/100,000,000 reads. RNA seq data were normalized as part of Rockhopper alignment. To identify MvaT binding detected by RhlR-ChIP, the sequences of sites without a RhlR deletion-associated change in binding were entered into multiblast for PAO1. Previously detected MvaT binding sites in PAO1 were then compared to the artifactual sites [52,53]. The probability of a site being intergenic was calculated using a binomial test, predicting the likelihood of 32 sites being intergenic out of 40 total and testing with the proportion of the genome that is intergenic (non-coding bases/total bases). The code for data processing and analysis was deposited in the Wade Lab Github at: https://github.com/wade-lab.

E. coli luciferase reporter assay

E. coli TOP10 strains were constructed to express rhlR and pqsE with the following promoters fused to luxCDABE (luciferase): prhlA, phcnA, plecB, and plasB. The E. coli strains contained a pBAD vector harboring rhlR coupled with one of two pACYC vectors, either containing WT pqsE or an empty plasmid, as well as the pCS26 vector harboring promoters of interest fused to luxCDABE at the 3’-end of the promoter to assess transcriptional activity. The strains were inoculated from glycerol stocks and grown overnight at 37°C with shaking in 5 mL LB supplemented with ampicillin (100 μg/mL), kanamycin (50 μg/mL), and tetracycline (15 μg/mL). Overnight cultures were diluted 1:100 in 20 mL LB antibiotic media and incubated at 37°C with shaking for 3 h. Once the optimal cell density was reached (OD_{600 nm} = 0.6), each culture was supplied with 0.1% arabinose. A black-bottom 96-well plate was prepared with a final concentration of 4 μM C₄HSL or DMSO. To each well containing 1 μL of AI or DMSO, 99 μL of culture was added. The plates were incubated for 4 h at 37°C with shaking. The Veritas Microplate Luminometer (Promega) was used to measure and record luminescence.

RNA extraction, cDNA synthesis, and qPCR

WT PA14, ΔrhlI, and ΔrhlIΔpqsE strains were inoculated from glycerol stocks and grown in 5 mL LB overnight at 37°C with shaking. Overnight cultures were allocated to make 4 subcultures per strain, with each containing a 1:100 dilution in 20 mL LB. Two 5-fold serial dilutions of C₄HSL starting at 25 mM were dispensed into its corresponding flask to make a 1 μM, 5 μM, and 25 μM dilution for each strain. 20 μL of DMSO was added to the last flask for the equivalent volume of a carrier control. Cultures were grown for ~5 h until OD₆₀₀ = 2.0, and pyocyanin production was visualized. The cultures were pelleted via centrifugation and saved at -80°C. Cells were thawed on ice and then resuspended with 700 μL TRIzol reagent (ThermoFisher). Samples were transferred to screw-cap tubes with homogenization beads and homogenized for two 50 sec cycles. 100 μL chloroform was added, hand mixed for 15 sec, and left on ice for 2 min. Samples were pelleted via centrifugation at 12,000 x g for 20 min at 4°C. The aqueous, RNA-containing layer was extracted without disturbing the phenol layer and dispensed into a new microcentrifuge tube, where an additional 500 μL isopropanol was added. Samples were inverted to mix and left at RT for 10 min. Samples were pelleted by centrifugation at 12,000 x g for 10 min at 4°C, and the supernatant was discarded. Pellets were resuspended in 1 mL 70% ethanol and were pelleted by centrifugation at 7,500 x g for 5 min at 4°C. Supernatant was discarded and the pellets were resuspended in 100 μL sterile, nuclease-free water and solubilized in a 37°C water bath. RNA concentration and purity were measured on a Nanodrop (ThermoFisher). In new microcentrifuge tubes, DNase reactions were set up using 3 μg RNA, 3 μL 10X DNase Buffer, 1 μL TURBO DNase, and 1 μL SUPERase-IN RNase Inhibitor (ThermoFisher) in a total reaction volume of 30 μL. Samples were incubated in a 37°C water bath for 90 min, with an additional 1 μL DNase added at the 1 h mark. A volume of 3 μL DNase Inactivation Slurry (ThermoFisher) was added to each tube and samples were incubated with mixing at RT for 5 min. Samples were spun via centrifugation at 10,000 x g for 2 min at 4°C. Supernatant was transferred to new microcentrifuge tubes and stored at -80°C. Once thawed on ice, RNA concentration and purity was measured on the NanoDrop. cDNA reactions were set up in PCR tubes using 500 ng DNA-free RNA, 1 μL 10 mM random hexamer, and 1 μL 10 mM dNTPs. Sterile, nuclease-free water was added to each tube to bring the samples to a final volume of 13 μL. The reactions were incubated at 65°C for 5 min in a thermocycler (Bio-Rad) and chilled on ice for 5 min. From the SuperScript III Kit, reactions received 4 μL 5X First Strand Buffer, 1 μL 0.1 M DTT, 1 μL SUPERase-IN RNase Inhibitor, and 1 μL SuperScript III Reverse Transcriptase (ThermoFisher). Samples were incubated at 50°C for 45 min, 70°C for 15 min, and held at 4°C in a thermocycler (Bio-Rad). The newly synthesized 20 μL cDNA reactions were diluted 1:5 with 80 μL sterile, nuclease-free water. A master mix for each gene (hcnA, lasB, rhlA, lecB, gyrA, and sigX) was made using 10 μL SYBR Select Master Mix (ThermoFisher), 0.6 μL forward and reverse primers, as well as 6.8 μL sterile, nuclease-free water. Master mix volumes were multiplied by the number of samples for each gene. A 96-well reaction plate (ThermoFisher) was prepared by supplying each well with 2 μL diluted cDNA and 18 μL master mix. A clear plate sealer was firmly adhered to the plate and was quickly spun down via centrifugation at 4°C. A 7500 Fast real-time PCR system (Applied Biosystems) and software (v2.3) were utilized for relative gene expression analysis and cycle threshold quantification.

Protein expression and purification

1 L cultures of BL21 strains containing pET28b-pqsE or pETDuet-1-rhlR were grown in LB and protein production was induced as previously described [47]. RhlR was solubilized using 50 μM mBTL during expression. After growth, cells were pelleted via centrifugation at 12,000 x g at 4°C for 30 min. Cell pellet was frozen at -80°C until protein purification. Lysis was achieved via sonication by resuspending pellet in lysis buffer (50 mM Tris [pH 8.0], 150 mM NaCl, 20 mM imidazole), followed by centrifugation at 4°C for 30 min at 15,000 x g. Supernatants for each protein were saved for affinity purification pulldown. Different protocols were utilized for affinity purification pulldown for supernatants containing PqsE, and RhlR:mBTL. Supernatant containing PqsE was incubated with 1.5 mL of previously washed Ni-NTA resin (Qiagen) and mixed at 4°C for 1 h. After incubation, sample was washed 3 times with 25 mL of lysis buffer and then eluted 10x with 1 mL of elution buffer (50 mM Tris [pH 8.0], 150 mM NaCL, 500 mM imidazole). For supernatant containing RhlR:mBTL, Buffer A (20 mM Tris [pH 8.0], 1 mM dithiothreitol) was mixed with the sample for a total of 50 mL and loaded onto a column for affinity purification pulldown utilizing a HiTrap Heparin HP (Cytiva) column. Protein samples were then subjected to separation on a Superdex-200 column (Cytiva) equilibrated with 50 mM Tris HCl [pH 8.0] and 150 mM NaCl. Gels were then stained with Coomassie brilliant blue and imaged on a Bio-Rad EZ-Doc gel imager. SDS-Page was used to assess the purity of proteins after separation.

Electrophoretic mobility shift assays

Concentrations of PqsE, RhlR:mBTL, and PqsE-RhlR:mBTL were standardized to be equal per reaction. EMSA reactions consisted of 17 μL of EMSA Buffer (200 mM KCl, 50 mM Tris-HCl [pH 7.5], 250 μg/mL bovine serum albumin, 50 mM NaCl, 5 nM EDTA, 5 μM MgCl₂, 5 μM dithiothreitol), 2 μL of protein dilution, and 1 μL of 10 ng/μL of the DNA fragment to be tested. The reactions were initiated, vortexed briefly and incubated at RT for 15 min. 2 μL of Novex Hi-Density TBE 5X Sample Buffer (Invitrogen) was mixed with 8 μL of the completed EMSA reaction and loaded on an 8% acrylamide gel. Electrophoresis was performed in 1X TBE buffer at 100 V for 60 minutes followed by washing gel with 0.5X TB buffer at RT for 15 min. Gels were stained with 50 mL of 1X SYBR-Gold in 0.5X TB buffer for 30 minutes at RT and blocked from light. After staining, gel was washed with 50 mL of 0.5X TB buffer with shaking for 15 min. The washing step was repeated an additional two times, followed by visualization on a Bio-Rad EZ-Doc gel imager using a sample tray capable of detecting all SYBR dyes with an emission spectrum of 430–460 nm.

Supporting information

S1 Fig. RhlR binds to 40 sites in the PA14 genome.

Comparison of ChIP enrichment from the WT PA14 and ΔrhlR strains. The 40 sites bound specifically by RhlR are highlighted in red. All non-specific sites are shown in black. See Table 1 for details on all RhlR specific binding sites. See S1 Table for a list of all RhlR specific and non-specific sites.

(TIFF)

S2 Fig. The PqsE-RhlR interaction interface is required for PqsE-dependent DNA binding.

Comparison of ChIP enrichment between the (A) WT PA14 and pqsE-D73A strains and (B) ΔpqsE and pqsE-NI strains. Comparison of gene expression between the (C) WT PA14 and pqsE-D73A strains and (D) ΔpqsE and pqsE-NI strains. Cyan and pink dots correspond to genes with a RhlR binding site <500 bp upstream of the corresponding operon, as determined by ChIP-seq, that are also differentially expressed +/- rhlR (q < 0.01) as determined by RNA-seq in an earlier study [29].

(TIFF)

S3 Fig. The combined contribution of both RhlI and PqsE to RhlR binding.

The combined contribution of RhlI and PqsE to RhlR binding was calculated using ChIP-seq enrichment values from Table 1 at each ChIP-seq peak center using the following equation: (WTenrichment—ΔrhlIΔpqsE_enrichment)/(WTenrichment—ΔrhlR_enrichment)*100. We note that values were greater than 100% for ten sites (indicated by #), likely due to experimental noise (eight values were <140%). There were also three values <0, and those were set to 0 (indicated by ^). These were cases where RhlR binding increased in the ΔrhlIΔpqsE strain, but binding in the WT strain was also very low, and we were unable to identify a match to the RhlR consensus motif associated with these sites. Characterized QS genes of interest are highlighted: lecB (magenta), lasB (dark green), hcnA (light green), rhlA (cyan), phzA1 (olive), and phzA2 (brown).

(TIFF)

S1 Table. List of all RhlR ChIP-seq binding sites from WT PA14.

The average peak values are the average of two biological replicates and two independent ChIP experiments. Peak values were calculated as the sum of all enrichment within 100 bases upstream and downstream of the center of the ChIP peak.

(DOCX)

S2 Table. Gene expression levels for all genes in WT PA14 for the indicated genotype and their associated RhlR binding dependency.

Expression values were determined using Rockhopper [69] with data from Simanek et al. 2022 [29]. Q-values represent the probability of a false discovery of differentially expressed genes.

(DOCX)

S3 Table. List of all plasmids and strains used in this study.

(DOCX)

S4 Table. List of all primers used in this study.

(PDF)

Data Availability

EBI ArrayExpress accession numbers for all RhlR ChIP-seq data were deposited under E-MTAB-12966 (https://www.ebi.ac.uk/biostudies/arrayexpress/studies/E-MTAB-12966).
