Manipulating the growth environment through co-culture to enhance stress tolerance and viability of probiotic strains in the gastrointestinal tract

ABSTRACT

The viability of probiotics in the gastrointestinal tract is essential because it has an important role in their health benefits. Plasticity is a phenomenon associated with stress tolerance in bacteria, and stress tolerance of probiotic strains can be induced by the use of additives and weak stress. However, some of these processes are difficult to implement in the manufacture of probiotic beverages, and there are few methods that can be easily applied. Co-culture techniques have been used to produce fermented beverages and may impart distinct characteristics through differences in the culture environment compared with those of monoculture. Here, we show that the stress tolerance of a probiotic strain was altered by co-culture with other strains already used in product manufacturing. Stress tolerance in Lacticaseibacillus paracasei strain Shirota was enhanced by co-culture with Lactococcus lactis subsp. lactis YIT 2027 as a result of an earlier pH decrease. Therefore, the stress tolerance was similarly improved in monocultures where pH was manipulated. Strains with improved stress tolerance had an increase in dihydrosterculic acid in the cell membrane, with altered gene transcription in energy metabolism, lipid metabolism, and chaperone genes. Moreover, fermented beverage consumption studies revealed that the probiotics produced through co-culture were significantly more viable in the human gastrointestinal tract than those produced through monoculture. These data suggested that co-culture with specific strains can significantly enhance the viability of probiotic strains in the human gastrointestinal tract.

IMPORTANCE

The viability of probiotics in the human gastrointestinal tract is important, as some reports indicate that the health benefits of live bacteria are greater than those of dead ones. Therefore, the higher the viability of the probiotic strain, the better it may be. However, probiotic strains lose their viability due to gastrointestinal stress such as gastric acid and bile. This study provides an example of the use of co-culture or pH-controlled monoculture, which uses more stringent conditions (lower pH) than normal monoculture to produce probiotic strains that are more resistant to gastrointestinal stress. In addition, co-cultured beverages showed higher viability of the probiotic strain in the human gastrointestinal tract than monocultured beverages in our human study.

INTRODUCTION

Today, many kinds of probiotics are commercially available. The original term “probiotic” was intended to refer to substances that were the opposite of “antibiotic” (1). There is a widely accepted definition of probiotics, as stated by the British microbiologist Fuller in 1989, as “a live microbial feed supplement which beneficially affects the host animal by improving its intestinal microbial balance” (2). Additionally, in 2001, the Food and Agriculture Organization of the United Nations and the World Health Organization published a definition of probiotics as “live microorganisms which when administered in adequate amounts confer a health benefit on the host” (3). Lacticaseibacillus paracasei strain Shirota (LcS), formerly Lactobacillus casei strain Shirota, is a well-established probiotic organism. There are numerous reported health benefits associated with its consumption, including host defense against infection (4), improvement of gastrointestinal symptoms (5, 6), immuno-enhancing effect (7), control of upper respiratory tract infection (8), and improvement of sleep quality (9). The question of whether the viability of probiotic strains is necessary for their health benefits remains unresolved, but current evidence suggests that viable strains often produce more extensive biological responses than non-viable strains (10). Viable strains can regulate the gut microbiome and also affect the immune system, whereas non-viable strains primarily act on the immune system (11). Structured bacterial molecules (e.g., bacterial cell walls and lipoteichoic acids) are important for activating the immune system and are found in both live and dead probiotic strains (12). However, the improvement of the intestinal environment, such as the elimination of pathogens, is thought to involve the biological activity of live bacteria (13).

If probiotic strains that are alive at the time of consumption lose their viability in the gastrointestinal tract, then their consumption is considered equivalent to consuming dead bacteria. The viability of probiotic strains can be greatly influenced by various factors in the gastrointestinal tract, such as gastric acid, bile, and digestive enzymes, and these influences can reduce their viability (14). For probiotic strains to exert their physiological effects in a live state on the host, they need to withstand the harsh environment of the gastrointestinal tract. In the context of these circumstances, research has been performed to investigate the stress tolerance of probiotic strains (15). Studies have employed simulated gastric acid and bile to identify probiotic strains with elevated viability (16), and additional research has been conducted to uncover methods and mechanisms to enhance viability (17).

Three main methods have been considered to increase the viability of bacteria (18): using additives in the culture medium, inducing adaptive responses, and encapsulation. First, adding fatty acids, such as oleic acid, to the culture medium modulates the fatty acid composition of the bacteria and increases their resistance to stress (19). Second, many bacteria possess adaptive mechanisms that allow them to survive lethal stressors after prior exposure to non-lethal stressors (20). Research has been conducted by using various forms of mild stress stimuli, including heat, pH changes, exposure to ethanol, and the presence of salt, to induce adaptive responses and enhance the stress tolerance of probiotic strains (21). Third, encapsulation has been linked to recent technological advances, and a variety of capsules have been studied (22). Nevertheless, despite extensive research into improving the viability of probiotic strains, there are several challenges to overcome. For example, the safety of fatty acids has been verified by the US Food and Drug Administration, but alteration of the gut microbiome by these substances has been documented (23, 24). In addition, using stress stimuli to induce adaptive responses in the production of a probiotic beverage is difficult owing to the complexity of the manufacturing process (25). Furthermore, encapsulation has been applied to manufacturing only in a few cases (26). Therefore, we aimed to develop a novel method that could be applied to manufacturing and would enhance the viability of probiotic strains. Giving the probiotic strains high viability will allow us to verify the health benefits of more viable bacteria passing through the gastrointestinal tract. It is expected that such verification will provide a better understanding of the sufficient dose of viable probiotic strains.

Some probiotic beverages are produced by the monoculture of probiotic strains, whereas others are produced by co-culture with other strains. Considering that the culture environment affects the stress tolerance of bacteria (18), we hypothesized that co-culture would lead to different culture environments and result in different stress tolerances than would occur with monoculture. Here, we compared the stress tolerance of a representative probiotic strain, LcS, cultured under monoculture and co-culture conditions. By using simulated gastric acids and bile, we assessed the variations in stress tolerance of LcS and investigated the factors underlying these differences. Finally, differences in viability in the human gastrointestinal tract were examined by the consumption of LcS-fermented beverages produced by monoculture and by co-culture.

RESULTS

Co-culture enhances the tolerance of L. paracasei to simulated gastrointestinal stress

Among the fermented milk products containing LcS, there exists a probiotic beverage that is co-cultured with Lactococcus lactis subsp. lactis YIT 2027 (LL-1). To compare the stress tolerance of LcS in products produced by monoculture (Beverage A) and co-culture (Beverage B) or in bacterial solutions cultured by using these methods, a simulated gastrointestinal stress test, a gastric acid-bile continuous stress test, was performed (Fig. 1A). Although the LcS CFU densities in the two products were similar (Fig. 1B), Beverage B had a significantly higher CFU density after simulated gastrointestinal stress (Fig. 1C). Next, to compare the stress tolerance more rigorously, the same milk media and incubation conditions were used in the two cultures, as the culture media and conditions used routinely in product manufacturing differ. There was no significant difference in LcS CFU densities after 48 h of culture (Fig. 1D), but co-cultured LcS had significantly higher CFU densities than monocultured LcS after simulated gastrointestinal stress (Fig. 1E). The LcS CFU densities in both cultures increased similarly over time (Fig. 1F), but co-culture gave a drastic decrease in pH after 12 h of culture (Fig. 1G) and in dissolved oxygen (DO) after 6 h (Fig. 1H). The increase in LL-1 was greater than that in LcS at an early culture phase (Fig. S1). Since L. lactis produces lactic acid and consumes oxygen as it grows (27), the early increase in LL-1 was thought to cause a decrease in pH and DO.

Fig 1.

Comparison between LcS monoculture and co-culture with LL-1. (A) Simulated gastrointestinal stress test procedure. Monocultured or co-cultured fermented milk products or bacterial cultures were added to pH-4.0 simulated gastric acid. Bacteria were incubated for 1 h and then the pH was raised to 4.4, after which they were incubated with 0.3% oxgall for 5 min. Following the incubation, serial dilutions were plated onto lactitol-LBS-vancomycin (LLV) agar and CFUs were counted. (B) Log₁₀ (CFU/mL) of LcS in each beverage (mean ± SD, n = 3). (C) Log₁₀ (CFU/mL) of LcS in each beverage after simulated gastrointestinal stress (mean ± SD, n = 3). (D) Log₁₀ (CFU/mL) of LcS after each culture (mean ± SD, n = 3). (E) Log₁₀ (CFU/mL) of LcS after simulated gastrointestinal stress (mean ± SD, n = 3). (F–H) Log₁₀ (CFU/mL) (F), pH (G), and DO (H) changes during both cultures (mean ± SD, n = 3). Blue lines indicate monoculture and green lines indicate co-culture. (B–E) Statistical significances were determined by using a two-tailed Welch’s t-test (**P < 0.01; *P < 0.05; and NS, not significant).

Stress tolerance is improved in pH-controlled monoculture mimicking co-culture pH

To test the hypothesis that anaerobic or low pH conditions of co-culture improve stress tolerance, we first investigated whether an anaerobic environment contributed to enhanced stress tolerance. Anaerobically cultured LcS did not show enhanced stress tolerance after the simulated gastric acid challenge (Fig. S2). To confirm that the pH fluctuations in co-culture enhanced stress tolerance, a pH-controlled monoculture was designed to mimic the co-culture pH. The stress tolerance of LcS was then compared among the monoculture, co-culture, and pH-controlled monoculture (Fig. 2A). The pH-controlled monoculture mimicked the pH change of the co-culture (Fig. 2B), although the pattern of DO change in the pH-controlled monoculture differed from that of the co-culture (Fig. 2C). The LcS CFU densities after 48 h of culture were similar in all cultures (Fig. 2D). However, the pH-controlled monoculture gave significantly higher LcS CFU densities after simulated gastrointestinal stress than the monoculture (Fig. 2E), similar to the results obtained with the co-culture (Fig. 1E). These results indicated that culture pH was crucial for enhancing stress tolerance.

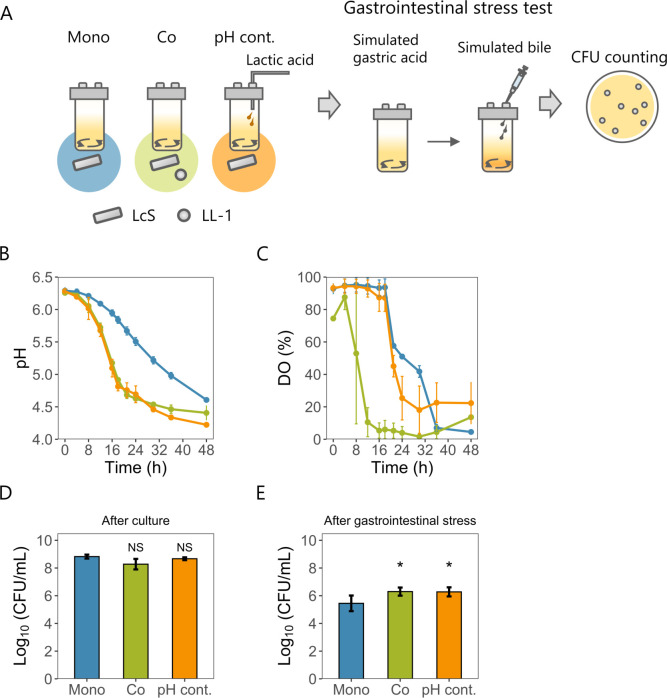

Fig 2.

Comparison among LcS monoculture, LcS co-culture with LL-1, and pH-controlled LcS monoculture. (A) Procedure for jar culture and simulated gastrointestinal stress test. Lactic acid was used for pH control in the pH-controlled monoculture. The simulated gastrointestinal stress tests were performed in a similar manner as shown in Fig. 1A. (B) pH changes under the three culture conditions (mean ± SD, n = 3). (C) DO changes under the three culture conditions (mean ± SD, n = 3). (B and C) Blue lines indicate monoculture, green lines indicate co-culture, and orange lines indicate pH-controlled monoculture. (D) Log₁₀ (CFU/mL) of LcS after each culture (mean ± SD, n = 3). (E) Log₁₀ (CFU/mL) of LcS after simulated gastrointestinal stress (mean ± SD, n = 4). (D–E) Statistical significances relative to monoculture were determined by using one-way analysis of variance (ANOVA) with Dunnett’s multiple comparison test (*P < 0.05 and NS, not significant).

Other combination of strains also gives improved stress tolerance

Next, we investigated whether co-culturing LcS with lactic acid bacteria strains other than LL-1 would improve stress tolerance. Simulated gastrointestinal stress was examined upon co-culture of LcS with three strains of Streptococcus thermophilus, which grows as well on milk media as LL-1 (Fig. 3A). The stress tolerance of LcS was significantly enhanced in co-culture with S. thermophilus YIT 2021 (Fig. 3B). Co-cultures with these strains gave an earlier decrease in pH than did LcS monoculture, although each pH fluctuation was different (Fig. 3C). The pH in co-culture with S. thermophilus YIT 2001 decreased earlier than that in LL-1 (mean pH 5.61 at 8 h vs LL-1 pH 6.13). In contrast, in co-culture with S. thermophilus YIT 2037, the pH decreased later than that in LL-1 (mean pH 5.30 at 16 h vs LL-1 pH 4.53). Calculation of the dissimilarity of the pH fluctuations revealed that the pH change in S. thermophilus YIT 2021 co-culture was the most similar to that in LL-1 co-culture (Fig. S3). This supported the hypothesis that pH fluctuation regulates LcS stress tolerance. Other Lactobacilli strains were also examined to assess whether co-culture with LL-1 would enhance their stress resistance (Fig. 3D). Co-culture with LL-1 significantly improved stress tolerance in the L. paracasei strains, but not in Lactobacillus gasseri or Lactobacillus helveticus (Fig. 3E).

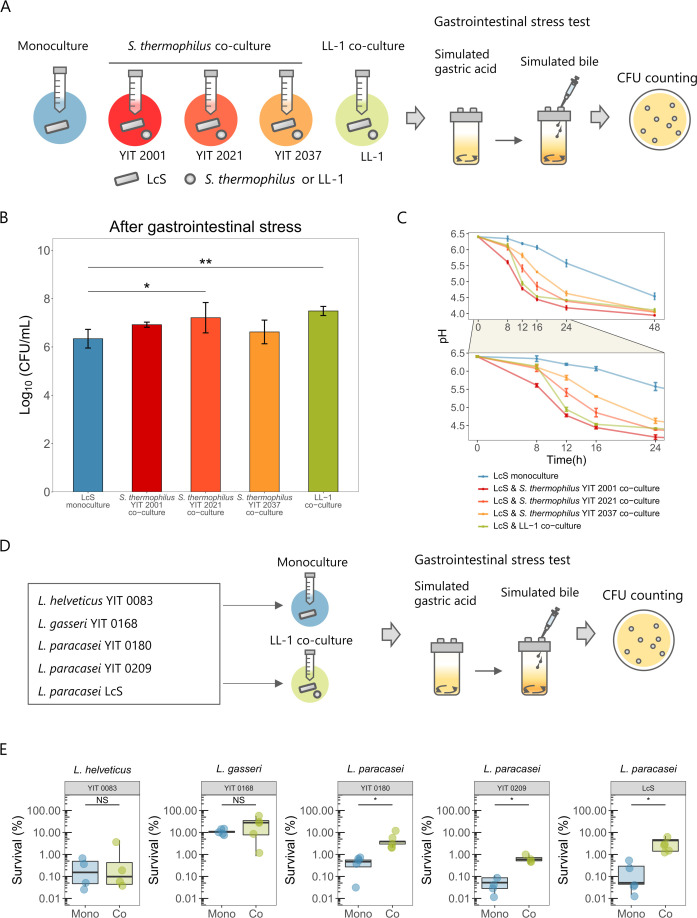

Fig 3.

Stress tolerance through co-culture in various combinations. (A) LcS was co-cultured with Streptococcus thermophilus YIT 2001, YIT 2021, or YIT 2037 in addition to being monocultured or co-cultured with LL-1. After 48 h of culture, a simulated gastrointestinal stress test was performed. (B) Log₁₀ (CFU/mL) of LcS after simulated gastrointestinal stress (mean ± SD, n = 4). (C) pH changes under the five culture conditions (mean ± SD, n = 3). The lower panel is an enlarged view of the 0- to 24-h period. (D) In addition to LcS, Lactobacillus helveticus YIT 0083, Lactobacillus gasseri YIT 0168, Lacticaseibacillus paracasei YIT 0180, or Lacticaseibacillus paracasei YIT 0209 were monocultured or co-cultured with LL-1. After 48 h of culture, a simulated gastrointestinal stress test was performed. Simulated gastric acid at pH 4.0 was used for all strains, and oxgall concentrations of 0.16% (YIT 0083 and YIT 0209) and 0.30% (YIT 0168, YIT 0180, and LcS) were used as simulated bile. (E) Percentage of bacteria surviving after the simulated gastrointestinal stress in each strain (mean ± SD, n = 4 or 5). (B) Statistical significances relative to LcS monoculture were determined by using one-way ANOVA with Dunnett’s multiple comparison test (**P < 0.01 and *P < 0.05). (E) Statistical significances were determined by using two-tailed Welch’s t-test (*P < 0.05 and NS, not significant).

Increased dihydrosterculic acid content of cell membrane improves stress tolerance

The cell-membrane fatty acid composition is known to change with the culture environment and affects stress tolerance (28). Owing to the difficulty of separating the two strains in co-culture, we compared the cell-membrane fatty acid composition of LcS between the monoculture and the pH-controlled monoculture (Fig. 4A; Fig. S4A). The major cell-membrane fatty acids of LcS in both cultures were palmitic acid, dihydrosterculic acid, myristic acid, oleic acid, and stearic acid (Fig. 4B). The content of stearic acid was significantly reduced in the pH-controlled monoculture, whereas those of oleic acid and dihydrosterculic acid were significantly increased (Fig. 4C). Dihydrosterculic acid (a cyclopropane-type fatty acid) enhances stress tolerance in some bacterial species (29, 30), and it is converted from oleic acid by a cyclopropane-type fatty acid synthase encoded by cfa (31). LcS has one cfa gene (DDBJ/EMBL/GenBank accession number: LC771591) in its genome. Therefore, we created a cfa-deficient strain to investigate whether increased dihydrosterculic acid by co-culture contributes to stress tolerance. The cfa-deficient strain had no detectable dihydrosterculic acid but had an increased content of its precursor, oleic acid (Fig. 4D; Fig. S4B). The wild-type and cfa-deficient strains were then monocultured or co-cultured with LL-1 to compare their stress tolerance (Fig. 4E). Unlike the wild-type strain, the cfa-deficient strain in co-culture with LL-1 had no significant enhancement of stress tolerance (Fig. 4F). These data suggested that an increased dihydrosterculic acid content by co-culture contributed to improved stress tolerance. Moreover (although the result was not significant), co-cultured cfa-deficient strain tended to have a higher LcS CFU density than the monocultured one, suggesting the presence of another adaptive mechanism.

Fig 4.

Relationship between culture-induced changes in cell-membrane fatty acid composition and stress tolerance of LcS. (A) After 48 h of culture, LcS in both monoculture and pH-controlled monoculture were harvested and analyzed for their cell-membrane fatty acid composition by gas chromatography (GC). (B) Major cell-membrane fatty acid compositions of LcS in each culture (mean, n = 3). (C) Comparison of cell-membrane fatty acid compositions of LcS in each culture (mean ± SD, n = 3). (D) Enzymatic reaction of dihydrosterculic acid and comparison of oleic acid and dihydrosterculic acid compositions in LcS wild-type (WT) and cfa-deficient (Δcfa) strains (n = 1). SAM, S-adenosylmethionine; SAH, S-adenosylhomocysteine. (E) Procedures used to examine simulated gastrointestinal stress resistance of WT and Δcfa strains in monoculture and co-culture. (F) Log₁₀ (CFU/mL) of LcS after simulated gastrointestinal stress in WT and Δcfa strains in monoculture and co-culture (mean ± SD, n = 3). (C) Statistical significances were determined by using two-tailed Student’s t-test (**P < 0.01; *P < 0.05; and NS, not significant). (F) Statistical significances were determined by using a two-tailed Welch’s t-test (**P < 0.01; †P < 0.1).

Transcriptome analysis reveals the genes involved in stress tolerance

Microarray analysis was used to investigate the presence of another mechanism behind the improved stress tolerance (Fig. 5A). We found that 243 genes were significantly upregulated, and 250 genes were significantly downregulated in both the co-culture and the pH-controlled monoculture compared with the monoculture (Fig. 5B). The top 10 annotated genes commonly upregulated were gatA, gatC, gatB, hsp1, clpL, cydA, galE, tag, luxS, and secA, and the top 10 downregulated genes were degV, fabH, metB, cysK, cysE, hly, lsa, dapB, ftsH, and accB (Fig. 5B). Highly expressed genes included hsp1 and clpL, encoding chaperone proteins, and luxS, contributing to methionine metabolism and autoinducer-2 production. These genes are involved in stress tolerance in Lactobacilli (32–34). Downregulated genes included dapB, which is involved in lysine biosynthesis from aspartate. Aspartate has been reported to be involved in stress tolerance (35), and other genes in this pathway were also significantly downregulated (Fig. S5A). Expression of the cfa gene did not differ significantly among the three cultures (Fig. S5B), suggesting that factors other than this gene altered the dihydrosterculic acid content of the cell membrane. Enrichment analysis of commonly altered genes by using COG (Clusters of Orthologous Groups) classification (36) revealed the upregulation of genes in COG classification C and downregulation of genes in COG classifications I and O (Fig. 5C). Genes in the COG C classification are involved in energy production and conversion. The expression levels of atpE, atpD, and atpG, which encode subunits of F₀F₁-ATPase (37), and of bkdD, bkdC, bkdB, and bkdA, which are involved in branched-chain amino acid metabolism (38), were increased (Fig. 5D). In contrast, the expression of ldh, which encodes an enzyme converting pyruvate to lactic acid (39), was decreased (Fig. 5D). Among the genes around the glycolytic system, prsA and murB, which are important for nucleic acid biosynthesis (40) and peptidoglycan biosynthesis (41), respectively, were downregulated (Fig. S5C and D). The cell-wall thickness of LcS in the pH-uncontrolled and pH-controlled monocultures was also evaluated but was not found to differ (Fig. S5E). The COG I classification comprises a group of genes involved in lipid transport and metabolism. The expression of fatty acid synthase genes, including accA, accB, accC, accD, fabD, fabH, fabG, fabZ, and fabF, was decreased (Fig. 5E). The COG O classification is a group of genes associated with post-translational modification, protein turnover, and chaperones. Expression of ftsH, htrA, dnaK, grpE, groES, groEL, clpP, and dnaJ was decreased, whereas that of clpX, clpC, hsp1, and clpL was increased (Fig. 5F). On the basis of these results, we summarized the inferred functions of the genes that were commonly differentially expressed in both co-culture and pH-controlled monoculture (Fig. 5G).

Fig 5.

Transcriptome analysis of LcS in monoculture, co-culture, and pH-controlled monoculture. (A) RNA was extracted from each culture after 48 h of growth, and transcriptome analysis was conducted by using microarray technology (n = 5). (B) The log₂ fold change (logFC) of each gene was determined in both co-culture and pH-controlled monoculture, relative to that in monoculture. Genes with Benjamini–Hochberg adjusted P-values (adj. P) >0.05 are indicated in gray. Among genes with adj. P <0.05, those with logFC > log₂ (1.25) are indicated in red, whereas those with logFC < -log₂ (1.25) are indicated in blue. The top and bottom 10 annotated genes are presented in the enlarged panels. Pearson’s correlation coefficient between co-culture and pH-controlled culture was 0.565. (C) COG enrichment analysis of genes commonly expressed at high or low levels in co-culture and pH-controlled monoculture. Asterisks indicate COG categories with Benjamini–Hochberg adjusted P-values < 0.05. (D–F) Levels of expression of genes in COG categories C (energy production and conversion), I (lipid transport and metabolism), and O (post-translational modification, protein turnover, and chaperones), which were commonly found to be expressed at higher or lower levels in both co-culture and pH-controlled monoculture compared to the monoculture . M1–M5: monoculture; C1–C5: co-culture; and P1–P5: pH-controlled monoculture. (G) Inference of alterations in gene function in both co-culture and pH-controlled monoculture, as determined by microarray analysis. BCAA, branched-chain amino acid; BCKA, branched-chain α-keto acid; Lac, lactose; Gal-6P, galactose-6-phosphate; Glc, glucose; G6P, glucose-6-phosphate; R5P, ribose 5-phosphate; PRPP, phosphoribosyl pyrophosphate; F6P, fructose 6-phosphate; UDP-MurNAc, uridine diphosphate N-acetylmuramic acid; Hcy, homocysteine; Met, methionine; SAM, S-adenosylmethionine; SAH, S-adenosylhomocysteine; and SRH, S-ribosylhomocysteine.

Probiotic beverages from co-culture show greater viability in the human gastrointestinal tract than those from monoculture

To compare LcS viability in the human gastrointestinal tract between different culture methods, we performed consumption studies by using fermented LcS products derived from monoculture (Beverage A) and from co-culture with LL-1 (Beverage B) (Fig. 6A, see Materials and Methods). Whole feces were collected during the 4 days after consumption to determine the viability rates of ingested LcS in the feces (Fig. 6B). As fecal weight and gastrointestinal transition time varied among the subjects (Fig. S6A), we considered that the viability rate would give a more accurate measure of viability in the gastrointestinal tract than CFU density, although in fact the viability rate and the CFU/g of LcS were highly correlated (Fig. S6B). The results of the consumption test showed that the viability rate of LcS in the feces was significantly higher when the subjects consumed Beverage B (Fig. 6C), at an average of 2.8 (10^0.450) times higher (Fig. 6D). In particular, five subjects with less than 1% LcS viability when they consumed Beverage A showed large improvements in LcS viability when they consumed Beverage B (Fig. 6E). It is difficult to determine the viability rate of consumed bacteria if they grow in the gastrointestinal tract. Since no LcS cells were lost due to the in vitro gastrointestinal stress (Fig. S7A through C), we investigated the total counts of LcS, including viable and non-viable, in fecal samples and beverages. The percentage of total counts of LcS in the feces relative to the beverage was approximately 80% of that in both beverages, and there was no significant difference between them (Fig. S7D). These data suggested that LcS in both beverages are unlikely to grow in the gastrointestinal tract.

Fig 6.

Comparison of numbers of LcS surviving after passing through the human gastrointestinal tract following the consumption of a monocultured or co-cultured LcS beverage. (A) Overview of the experiment. Participants were allocated to Groups I and II and underwent testing in a crossover design utilizing varying orders of beverage consumption. On day 7, after the initiation of dietary restriction, a single serving of either Beverage A or B was consumed, and whole-feces samples were collected for all defecations over the subsequent 4 days. After a 3-day washout period, a single serving of either beverage B or A was consumed, and all whole-feces samples were again collected over the next 4 days. A portion of feces was collected on day 5 or 6 and day 12, 13, or 14 before the consumption of each test beverage to ensure that LcS were not detectable. (B) Definition of LcS viability rate and its calculation method. LcS viability rate was calculated by dividing the total number of viable LcS in all feces during the test phase by the number of viable LcS in the test beverage and multiplying by 100. The number of viable LcS in the feces or beverages was calculated by multiplying the weight or volume by the LcS CFU density. (C) LcS viability rate in feces following a single consumption of each test beverage (n = 22). (D) Differences in viability rates of LcS between the test beverages. Blue circles indicate the log₁₀ (viability rate of Beverage B/viability rate of Beverage A) for each subject, and red circle indicates the mean of these differences, with a 95% confidence interval. (E) Viability rate of LcS per test beverage for each subject. The blue circles indicate the viability rate of Beverage A, and the green circles indicate the viability rate of Beverage B. The red dotted line indicates a 1% viability rate. (C) Statistical significance was determined by using a two-tailed paired t-test (*P < 0.05).

DISCUSSION

The viability of probiotics within the human gastrointestinal tract can be pivotal for their efficacy. Therefore, improving the stress tolerance of these bacteria is an important area of study in applied microbiology. Here, we hypothesized that the stress tolerance of probiotic strains would change with the method of culture, whether it be monoculture or co-culture. Our in vitro studies showed that co-culture enhanced stress tolerance, which was attributable to a reduction of pH in the early stages of culture. Additionally, the composition of fatty acids in the cell membrane was found to be a critical factor, and characteristic gene expression was noted in the LcS displaying improved stress tolerance. In vivo testing by using human consumption tests confirmed the greater viability of LcS produced by co-culture. In summary, we showed here that the stress tolerance of the probiotic strain changed depending on the method of culture.

When LcS was co-cultured with LL-1, the pH dropped faster than in monoculture, probably owing to lactic acid production by the LL-1. Increased stress tolerance of LcS was also observed in co-culture with S. thermophilus YIT 2021, which induced a pH fluctuation similar to that found in the LL-1 co-culture. However, a slower or faster pH decline than in LL-1 co-culture did not significantly improve stress tolerance, suggesting that the period of pH reduction that effectively increases stress tolerance is limited. Moreover, LL-1 co-culture improved stress tolerance in L. paracasei but not in L. helveticus and L. gasseri, which also have the cfa gene. We assumed that the degree and timing of the pH reduction required to induce increased stress tolerance varied among the strains. For the application of this strategy to other strains, it will be necessary to elucidate the mechanism of why it works with L. paracasei and not with L. helveticus or L. gasseri. Co-culture improved stress tolerance only in L. paracasei in this study, and it cannot be ruled out that this improvement is specific to this bacterial species. Further validations with different combinations of strains are required. Co-culture can also produce metabolites not available in monoculture owing to the inter-strain conversion of molecules. The combination of LcS and LL-1 can produce gamma-aminobutyrate through the degradation of casein protein in milk medium by LcS and the glutamic acid decarboxylase activity of LL-1 (42). The blood-pressure-lowering effect of this beverage has also been confirmed (43). Therefore, co-culture may improve not only probiotic survival but also the production of beneficial metabolites.

Several studies have reported that changes in the ratio of saturated to unsaturated fatty acids and cyclopropane-type fatty acids in the bacterial cell membrane are associated with stress tolerance (44). Increased cyclopropane-type fatty acid contents have been observed in various microorganisms with improved stress tolerance, including L. paracasei (45), but their contribution to stress tolerance in lactic acid bacteria has not yet been experimentally proven. By creating a cfa-deficient strain, we demonstrated here that the stress tolerance of LcS was not increased in co-culture when the dihydrosterculic fatty acid content was eliminated. The cfa-deficient strain itself also showed some increased stress tolerance via co-culture, suggesting the existence of additional mechanisms besides an increased cyclopropane-type fatty acid content.

Gene expression analysis suggested that co-cultured and pH-controlled monocultured LcS have increased energy production through branched-chain amino acid metabolism. In contrast, the conversion of pyruvate to lactate and the synthesis of nucleic acids, peptidoglycans, and fatty acids were reduced, suggesting that energy consumption was suppressed. Culture at a low pH may have altered the energy balance, thus enhancing viability in a harsh environment. Low environmental pH and exposure to bile acids decrease bacterial intracellular pH (46, 47), but increased expression of the F₀F₁-ATPase gene may increase proton efflux capacity and contribute to enhanced stress tolerance. These results are consistent with those of previous stress tolerance studies (21). Our gene-set enrichment analysis predicted that the mechanism of stress tolerance is a complex functional change in energy metabolism, lipid metabolism, and protein repair systems. However, the significance of the various functional changes revealed here is yet to be clarified. Further investigations using mutant strains are required.

Human consumption studies are important for evaluating probiotic viability because it is unclear whether simulated gastric acids and bile are comparable to those in the human gastrointestinal tract. We consider that calculation of the viability rates of bacteria through whole-feces collection is the most reliable method, and to our knowledge, this study is the first to use this method. However, the viability rates and CFU densities of LcS were strongly correlated, indicating that CFU density evaluation may also be sufficient. We believe that upper gastrointestinal stress is critical for probiotic survival because we have studied probiotic viability in the terminal ileum and found their recovery to be comparable to that from the feces (48). Therefore, we speculated that individual differences in the viability rate may be due to differences in the upper gastrointestinal tract environment (pH and retention time in the stomach, and composition and concentration of bile). Subjects with less than 1% LcS viability rates when they consumed Beverage A had increased viability rates when they consumed Beverage B. In contrast, those with more than 1% viability rates when they consumed Beverage A had similar viability rates when they consumed Beverage B. We consider that the former subjects had a harsher upper gastrointestinal tract environment with strong antimicrobial activity of the gastric acid and bile, suggesting that the stress-tolerant LcS in Beverage B were more advantageous for survival. In contrast, the latter subjects likely had a less severe upper gastrointestinal environment than the former subjects, so the LcS in both beverages survived to the same degree. However, this hypothesis needs to be confirmed by using a gastrointestinal environment monitoring system like a capsule endoscope. Our in vitro validation suggested that the culture conditions had a significant impact on LcS viability, but one limitation of this human study is that the influence of other factors, such as ingredients, cannot be excluded. As it takes time to ensure the safety of cultured bacterial solutions prepared in the laboratory, we used commercialized products in the consumption study. Live probiotic strains have been reported to have greater health benefits than dead strains [e.g., there is a difference in antidiabetic effect (49)], suggesting that highly viable probiotic strains would have greater health benefits. Health effects (e.g., improvement in bowel movements) due to differences in the viability of probiotics will be a topic that should be addressed in the future study. We hope that this research will advance the understanding of probiotics and their impacts on human health.

MATERIALS AND METHODS

Bacterial growth and media

The bacterial strains and culture conditions used in this study are listed in Table 1. All strains were cultured in a 10% skim milk medium (Difco Skim Milk, BD, Sparks, MD, USA). For the monoculture of bacterial strains, precultures were inoculated into fresh milk media at 0.5% (vol/vol). For co-culture, individual precultures were inoculated at 0.5% (vol/vol, L. paracasei, L. helveticus, and L. gasseri) or 0.01% (vol/vol, LL-1 and S. thermophilus). Both monocultures and co-cultures were grown for 48 h at 37°C.

TABLE 1.

Bacterial strains and culture conditions used in this study

Strain name	Abbreviation	Note	Other organization registration no.	Source	Culture conditions
Lacticaseibacillus paracasei Shirota YIT 9029	LcS		FERM P-5852; FERM BP-1366	Lab collection	37°C for 2 days
Lactococcus lactis subsp. lactis YIT 2027	LL-1		FERM P-16074; FERM BP-6224	Lab collection	30°C for 1 day
Streptococcus thermophilus YIT 2001			FERM P-1767; FERM P-11891; FERM P-18189; FERM BP-7538	Lab collection	37°C for 1 day
Streptococcus thermophilus YIT 2021			FERM P-15933; FERM BP-7537	Lab collection	37°C for 1 day
Streptococcus thermophilus YIT 2037		Type strain	ATCC 19258; NCDO 573; NCIB 8510; DSM 20617	Lab collection	37°C for 1 day
Lactobacillus helveticus YIT 0083		Type strain	ATCC 15009; JCM 1120; DSM 20075; IFO 15019; NCFB 2712; NRIC 1545	Lab collection	37°C for 2 days
Lactobacillus gasseri YIT 0168			JCM 5813; FERM P-6262; FERM BP-7536	Lab collection	37°C for 2 days
Lacticaseibacillus paracasei YIT 0180			ATCC 334	Lab collection	37°C for 2 days
Lacticaseibacillus paracasei YIT 0209		Type strain	NCDO 151; ATCC 25302; JCM 8130; DSM 5622; NCIMB 700151	Lab collection	37°C for 2 days
LcS Δcfa	Δcfa			This study	37°C for 2 days

CFU, pH, and DO measurement

To determine the number of viable bacteria, serial dilutions of the cultures were inoculated onto plates of lactitol-LBS-vancomycin (LLV) agar (50) (a selective agar medium for Lacticaseibacillus) or MRS agar plates with 0.5 µg/mL tetracycline in the case of L. gasseri and L. helveticus. After 3 days of incubation of the cultures at 37°C, the CFUs were counted. pH was measured with a pH meter (D-71, Horiba, Kyoto, Japan), and DO was measured with a DO meter (HQ30d, Hach Company, CO, USA).

pH-controlled culture

pH-controlled monoculture and its comparison with monoculture and co-culture were conducted by using a 250-mL jar fermenter (Bio Jr.8, Able Corp, Tokyo, Japan), which can control temperature, pH, DO, and stirring conditions. For all cultures, 100 mL of 10% skim milk medium was used. The temperature was set at 37°C with agitation at 75 rpm for 48 h. During pH-controlled culture, 2N lactic acid was automatically added according to a programmed protocol, by using the accompanying software. The preculture conditions and inoculation conditions were as described above.

Simulated gastrointestinal stress

Lactic acid bacteria cultures (2 mL) were added to 78 mL of simulated gastric acid containing 10 g of Proteose Peptone No. 3 (BD), 3 g of mucin (Wako, Osaka, Japan), 10 g of NaCl (Manac, Tokyo, Japan), 6 g of NaHCO₃ (Wako), 2 g of KH₂PO₄ (Wako), and a small amount of HCl (Wako) for pH adjustment per liter. Bacterial cultures were incubated in pH-4.0 simulated gastric acid with agitation at 75 rpm for 1 h, then 0.1 M NaHCO₃ was added to raise the pH to 4.4 and simulated bile containing 0.3% oxgall solution (BD) was added. This was followed by incubation for 5 min at 37°C. Then, 0.1 mL of the reaction fluid obtained after each incubation step was harvested in 0.9 mL of PBS and plate counting was performed as described above to determine the number of surviving LcS.

Total RNA extraction

For total RNA extraction, 20 mL of RNAprotect Bacteria Reagent (Qiagen, Hilden, Germany) was added to 10 mL of bacterial culture, and conditioning of cell pellets was done according to the Qiagen manual. The cell pellets were suspended in 5 mL of 50 mM glycine buffer (pH 3.0) with a final concentration of 10 mg/mL trypsin (Affymetrix, Santa Clara, CA, USA) and incubated at 37°C for 10 min to degrade casein. Cells were harvested by centrifugation for 10 min at 5,000 × g and suspended in RNA extraction buffer containing 343 µL of RLT (Qiagen), 100 µL of Tris-EDTA (TE), 7 µL of 2 M Dithiothreitol (DTT), and 0.3 g of φ 0.1 mm glass beads. After the bacterial cells had been disrupted by using a Shake Master (Biomedical Science, Tokyo, Japan), 500 µL of water-saturated phenol was added, and the mixture was allowed to stand at 60°C for 10 min. Then, 100 µL of chloroform/isoamyl alcohol (24:1) was added, the mixture was centrifuged at 13,000 × g for 5 min, and isopropanol precipitation and ethanol precipitation were performed. The RNA integrity of all samples was confirmed with an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA).

Microarray analysis

A custom oligonucleotide spotted microarray (ID: 074275) based on the genome sequence of LcS was designed, produced, and validated by using the eArray system (Agilent Technologies). Cyanine-3-labeled cRNA was obtained from 100 ng of extracted total RNA by using a Low Input Quick Amp WT Labeling Kit (Agilent Technologies). Hybridization was performed on custom microarrays at 65°C for 17 h by using the prepared cRNA. The slides were then washed, and images of the microarrays were acquired by using an Agilent G4900DA SureScan Scanner (Agilent Technologies). The signal data for each spot were subsequently quantified by using Feature Extraction software (Agilent Technologies). The limma package (v.3.36.5) (51) of the statistical analysis software R (v4.2.1) was used for background correction, quantile normalization of the probe signal data, and identification of differentially expressed genes. The NCBI’s Conserved Domain Search was utilized for the COG classification of genes. Enrichment analysis of COGs was performed by using the clusterProfiler package (v4.4.4) (52).

Membrane fatty acid composition analysis

To remove the milk components from the culture medium, 240 mL of Tris-EDTA solution (pH 9.5) was added to 80 mL of the bacterial culture, and the mixture was centrifuged at 5,000 × g for 20 min. The bacterial precipitates were then suspended in 30 mM EDTA (pH 12) and reacted at room temperature for 60 min to solubilize the milk components. The mixture was centrifuged again at 5,000 × g for 20 min to remove the supernatant, and the bacterial pellets were washed three times with saline solution. Fatty acid extraction and compositional measurements were performed by TechnoSuruga Laboratory Co. Ltd (Shizuoka, Japan).

Construction of the cfa-deficient strain

The cfa-deficient strain was constructed by deleting the cfa gene, as previously reported (53). The primer pairs used to amplify fragments containing the 5′- and 3′-terminal ends of the cfa gene are listed in Table 2. Gene-disrupting plasmid was introduced into LcS, and the cfa-deficient strain was constructed by using a stepwise double-crossover method.

TABLE 2.

Primers used in this study

Primer name	Sequence (5′–3′)	Application
InF_pYSSE3_F	ACCTGCAGGCATGCAAGCTT	Amplified pYSSE3 for In-Fusion cloning of upstream and downstream regions of the cfa
InF_pYSSE3_R	CGGGTACCGAGCTCGAATTC
cfa_A_F	AGCCTGAGCAGTGACATTTG	Amplified upstream region of the cfa
cfa_A_R	CTTAATTATCGCGGTTGACCGATGGCCTCCGTTTTGAGAA
cfa_B_F	TTCTCAAAACGGAGGCCATCGGTCAACCGCGATAATTAAG	Amplified downstream region of the cfa
cfa_B_R	TGAGTGGGTGGCTCATTTCT
cfa_Inf_F	CGAGCTCGGTACCCGAGCCTGAGCAGTGACATTT	Amplified flanking fragments upstream and downstream of cfa for In-Fusion cloning,
cfa_Inf_R	TGCATGCCTGCAGGTTGAGTGGGTGGCTCATTTC

Human trials

Before enrollment, participants provided written informed consent after being fully informed of the study’s objectives, methods, potential risks, and benefits. Twenty-four subjects were recruited and allocated to two groups (Groups I and II) to participate in a crossover trial evaluating the consumption of two test beverages: “Beverage A,” which comprised an LcS-fermented milk product, and “Beverage B,” which comprised an LcS and LL-1 co-fermented milk product. The mean age of the subjects was 36.9 years (SD, 7.6 years) and all were male. Following the study onset, participants were instructed to abstain from consuming yogurt, fermented milk beverages, oligosaccharide-added foods, and xylitol-added foods, in addition to products containing LcS. After a 6-day pre-consumption observation period, subjects consumed one bottle of Beverage A (Group I) or Beverage B (Group II), and all whole-stool samples expelled during the subsequent 4-day period were collected (Test Phase 1). Following a 3-day washout period, the subjects consumed one bottle of Beverage B (Group I) or Beverage A (Group II) and all whole-stool samples were again collected during the subsequent 4 days (Test Phase 2). To confirm that LcS was not detectable in the feces before consumption of the test beverage, feces were collected once during the pre-consumption observation period and once in the washout period. Two individuals were excluded from the analysis because of sample collection failure. Fecal dilutions were plated onto LLV agar, and the CFUs per gram of feces were determined. The numbers of viable LcS in the feces and test beverages were calculated by multiplying the CFU densities by the weight or volume, respectively. The viability rate of LcS was calculated by dividing the sum of the number of viable LcS recovered from all the feces by the number of viable LcS in the product consumed.

DATA AVAILABILITY

The raw microarray data and the differential expression analysis results obtained by using limma are available from the Zenodo database (https://zenodo.org/records/8260018).

ETHICS APPROVAL

The study involving human subjects adhered to the principles established by the Declaration of Helsinki and was subject to scientific and ethical review by the Yakult Central Institute.

SUPPLEMENTAL MATERIAL

The following material is available online at https://doi.org/10.1128/aem.01502-23.

Supplementary figure legends. aem.01502-23-s0001.doc.

Supplementary Figure Legends for Fig. S1 to Fig. S7

Fig. S1. aem.01502-23-s0002.pdf.

Changes in LcS CFU, LL-1 CFU, and medium pH during co-culture.

Fig. S2. aem.01502-23-s0003.pdf.

Stress tolerance and culture properties of anaerobically cultured LcS.

Fig. S3. aem.01502-23-s0004.pdf.

Dissimilarity of pH changes among the cultures in Fig. 3B.

Fig. S4. aem.01502-23-s0005.pdf.

Cell-membrane fatty acid composition of each culture and strain.

Fig. S5. aem.01502-23-s0006.pdf.

Gene expression analysis and morphological observation of LcS.

Fig. S6. aem.01502-23-s0007.pdf.

Weight of fecal material collected, and relationship between viability rate and CFU density of LcS.

Fig. S7. aem.01502-23-s0008.pdf.

Effect of in vitro gastrointestinal stress on the number of LcS cells and the percentage of LcS cell counts in feces after consumption of beverages.
