Selective dehydrogenation of ammonia borane to polycondensated BN rings catalysed by ruthenium olefin complexes

Abstract

Dehydrogenation of ammonia borane to well-defined products is an important but challenging reaction. A dinuclear ruthenium complex with a Ru–Ru bond bearing a diazadiene (dad) unit and olefins as non-innocent ligands catalyzes the highly selective formation of conjugated polycondensed borazine oligomers (B_xN_xH_y), predominantly B₂₁N₂₁H₁₈, the BN analogue of superbenzene.

Ammonia borane dehydrogenation is catalysed by a ruthenium bimetallic catalyst forming BN-superbenzene. The focus in this work on the BN-products rather than the hydrogen evolution aims for the potential use of BN nanosheets.

Ammonia borane, H₃N–BH₃ (AB) is an interesting chemical hydrogen carrier (19.6 wt% of hydrogen) and its dehydrogenation has been intensively investigated during the past few years.¹ To avoid the rather harsh and unselective conditions of thermal decomposition,² homogeneously metal-catalysed dehydrogenations using Sc,³ Y,⁴ Ti,⁵ Cr,⁶ Mo,^6,7 W,⁶ Re,⁸ Fe,⁹ Ru,¹⁰ Os,¹¹ Co,¹² Rh,¹³ Ir,^7b,10a,14 Ni,¹⁵ Pd,¹⁶ Th and U¹⁷ complexes have been studied, under aprotic conditions. Transition metal complexes are also well-established catalysts for the highly efficient hydrolysis of AB, frequently operating at ambient temperature.¹⁸ These reactions give hydrogen (as chemical energy carrier), but also ammonia – a poison for proton exchange membrane (PEM) fuel cells – and the formation of multiple borate products, whose reduction to regenerate the spent fuel is thermodynamically highly challenging. Numerous catalysts with main group element centres as active sites and organocatalysts also dehydrogenate AB, albeit with lesser efficacy.¹⁹ Up to 2.7 equivalents of hydrogen can be released by the most efficient Ru catalyst at 1 mol% loading (Fig. 1) in aprotic media.^10g,20 Most catalysts that dehydrogenate ammonia borane lead to the formation of insoluble poly(aminoborane) (NH₂BH₂)_n,^{7b,9a,c,10b,e,11,14} or a mixture of borazine and polycondensated borazines as reaction products.^{9a,10f,15,16,19a} The selectivity of these transformations depends on whether aminoborane (H₂B NH₂), a highly reactive intermediate formed in the first dehydrogenation step, remains coordinated to the metal centre or not. The “on-metal” reaction path leads to poly(aminoboranes) via a chain-growth mechanism reminiscent of ethylene polymerisation. In the “off-metal” reaction path, H₂B NH₂ is released to give oligomers (H₂NBH₂)_n, which upon further dehydrogenation might afford borazine, B₃N₃H₃, and polycondensed borazine molecules (B_nN_nH_x) (x < n).²¹ Both compounds, as well as other AB oligomers are suitable precursors for the generation of thin layers of h-BN (hexagonal boron nitrides).²² These have a wide range of applications, for example, as UV light emitters,²³ components of polymer nanocomposite membranes for hydrogen separation²⁴ or as precursors to BCN materials.²⁵ To the best of our knowledge, the synthesis of well-defined BN sheets by catalysed dehydrogenation of ammonia borane has not been reported so far.

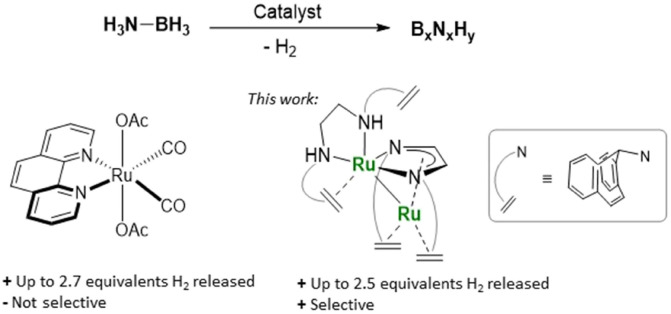

Fig. 1. Selected state-of-the-art catalyst for the dehydrogenation of H₃N–BH₃ (AB) and new Ru catalyst.

Here, we report a dinuclear Ru olefin complex as active and selective catalyst for the dehydrogenation of ammonia borane (Fig. 1). The catalyst forms selectively extended but well-defined polycondensed borazine rings (B_xN_xH_y), predominantly BN-hexabenzocoronene B₂₁N₂₁H₁₈ (BN21).

The diruthenium complex 2 was prepared by hydrolysis of the previously reported ruthenium hydride 1^26a in THF at 70 °C in a closed reaction vessel (Fig. 2a). Crystals suitable for X-ray diffraction analysis were obtained directly from the reaction mixture by slow cooling to room temperature.

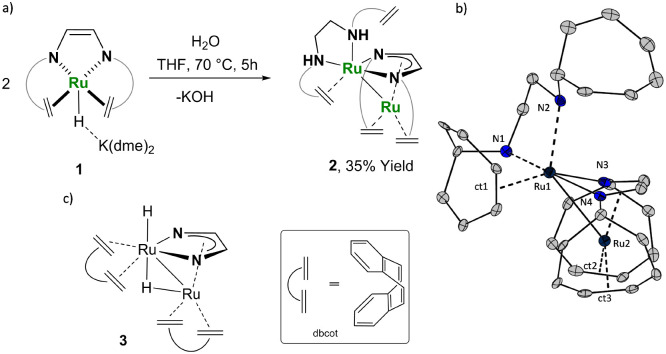

Fig. 2. (a) Synthesis of complex 2. (b) ORTEP drawing of the molecular structure of 2. Non-relevant hydrogen atoms, trop-benzo rings, and solvent molecules are omitted for clarity. Selected bond lengths (Å) and angles (°): Ru1-Ru2 2.7119(6), Ru1-N2 2.252(2), Ru1-N1 2.142(2), Ru1-N3 2.119(2), Ru1-N4 2.157(2), Ru2-N3 2.095(2), Ru2-N4 2.086(2), N1-C31 1.488(4), N2-C32 1.499(4), C31-C32 1.510(4), C19-C20 1.344(4), C36-C37 1.452(4), N1-Ru1-N2 79.3(1) N3-Ru2-N4 77.9(1). (c) Drawing of complex 3 [Ru₂H(μ-H)(Me₂dad)(dbcot)₂].

Complex 2 contains a dinuclear ruthenium core which is non-symmetrically bridged by a 1,4-bis(5H-dibenzo[a,d]cyclohepten-5-yl)-1,4-diazabuta-1,3-diene (trop₂dad) ligand (Fig. 2b). As such, 2 has a similar structure to the recently published dinuclear Ru complex [Ru₂H(μ-H)(Me₂dad)(dbcot)₂] 3 (Me₂dad = N,N′-dimethyl-1,4-diazadiene, dbcot = dibenzo[a,e]cyclooctatetraene; see Fig. 2c)^26b and the related Ru carbonyl diazadiene complexes [Ru₂(CO)₅(R₂dad)].²⁷ As in these complexes, the structure of 2 is best described with a folded ruthenadiazacyclopentadienide that undergoes η⁵-coordination to a second ruthenium centre (Ru2). This central five-membered ring is formed from Ru1 and a trop₂dad²⁻ enediamido ligand. The assignment of the electronic configuration of the ligand is based on the relatively long N–C_avg = 1.389 Å and comparatively short C C = 1.377 Å bond distances, which indicate a reduced form of a diazadiene ligand. Formally, this results in an oxidation state of +2 for Ru1 and consequently a zerovalent Ru2. The coordination sphere of Ru2 is completed by two olefinic C C_trop units from two trop units pending from the nitrogen centres of the RuN₂C₂ ring (indicated by the centroids ct2 and ct3 in Fig. 2b). Apart from the κ²-N,N′ coordination to one trop₂dad ligand, the coordination sphere of Ru1 is completed by κ²-N,N′ and C C_trop coordination of a trop₂dae ligand (dae = diaminoethane), of which one C C_trop unit remains uncoordinated. The short Ru–Ru distance (2.714 Å) indicates a direct bond (and would support the formulation of complex 2 with two d⁷-valence configured Ru(i) centres).²⁸ It is presently not possible to assign with certainty oxidation states to Ru1 or Ru2.²⁹ The relatively long bond distances of the coordinated olefinic C C_trop units [1.448(6) Å–1.450(6) Å] and significantly low frequency ¹³C chemical shifts assigned to the olefinic carbons [δ(¹³C) 44.5–69.9 ppm; compare to values >120 ppm for uncoordinated trop₂dad derivatives³⁰] indicate a substantial π-electron back donation from the metal centres into the antibonding π*(C C)-orbitals.³¹

Ammonia borane (AB) (2.2 M solution in THF) was catalytically dehydrogenated using 3 mol% of 1 or 2 in THF at 70 °C forming soluble polyborazine within 2.5 h (Fig. 3a). If the mononuclear ruthenium hydride 1 is used as a catalyst, it needs to be added to the reaction mixture in three subsequent separated batches. After each addition of 1 (1 mol%), hydrogen evolution is observed immediately (without induction period) but then the activity starts to decrease (see Fig. S6, ESI†). Once catalysts 1 is added, the initial red solution changes rapidly to purple, then subsequently to yellow and brown, which in combination with the loss of activity indicates catalyst deactivation. Attempts to analyse the reaction mixture after catalytic activity ceased failed. Note that if the total amount of catalyst (3 mol%) is added at once at the beginning of the reaction, no clear solution is obtained but a white precipitate appears due to the formation of polyaminoboranes, (BH₂NH₂)_n. In contrast, the dinuclear complex 2 does not suffer from deactivation and can be loaded in one batch. Complex 2 is sparingly soluble in THF but readily dissolves in the presence of AB. The catalysis proceeds in homogeneous solution: The addition of mercury has no impact on the conversion rate. But addition of triphenylphosphine in excess and sub-stoichiometric amounts (with respect to catalyst concentration) leads to complete or partial loss of activity, respectively. These experiments exclude metal nanoparticles as active species and indicate that soluble complexes with free-coordination sites are responsible for the catalytic activity. The dehydrogenation reaction with the mono-nuclear ruthenium complex 1 was followed by ¹¹B-NMR spectroscopy (Fig. S7, ESI†). After the addition of the 1st mol% of catalyst and heating for 1 h at 70 °C, several intermediates were detected, such as cyclotriborazane (CTB) and its constitutional isomer, B-(cyclodiborazanyl)amine-borane (BCDB) with a four-membered B₂N₂ ring (Fig. 3a). Both are trimers of aminoborane (H₂N BH₂). Furthermore, the tetramer B-(cyclotriborazanyl)amine-borane (BCTB) with a six-membered B₃N₃ ring to which an NH₂–BH₃ group is attached was detected (Fig. 3a).^21a,32 The same intermediates were detected in reactions with complex 2. After the second addition of catalyst 1 (1 mol%) and heating for an additional hour, the concentration of these intermediates significantly decreased, while the one assigned to the polyborazine product increased. After addition of the last 1 mol% of 1 and heating for an additional 1 h, all intermediates were converted. Only two broad ¹¹B NMR signals were detected in solution characteristic for polyborazylene-type structures.³³ The signal of higher intensity at δ(¹¹B) = 29 ppm indicates of tertiary boron nuclei in a trigonal planar coordination sphere bound to three nitrogen centres (BN₃). The signal at δ(¹¹B) = 32 ppm is lower in intensity and is assigned to secondary (BH)N₂ units, in agreement with reported literature.^10g,34

Fig. 3. (a) Synthesis of BN nanosheet BN21, showing the intermediates CTB, BCDB and BCTB, as observed by ¹¹B NMR analysis. (b) ¹⁵N MAS spectrum of BN21 and assignment of the resonances based on quantum chemical calculations.^33,35.

The ruthenium complexes 1 or 2 do not react with borazine, B₃N₃H₆. The catalytic dehydrogenative coupling of the diammoniate of diborane [H₂B(NH₃)₂]⁺[BH₄]⁻ (DADB) by complex 1 or 2 yielded only insoluble polyaminoborane (Fig. S8, ESI†). The soluble BN product was isolated by filtration over Florisil® followed by solvent evaporation and analysis by MALDI-TOF mass spectrometry and NMR spectroscopy. Observation of a main signal at 540 m/z and isotope distribution in the mass spectrum indicates that the main product of the catalytic reaction is B₂₁N₂₁H₁₈ (BN21) (Fig. 3a). Smaller signals were observed for molecular formulas of B₂₇N₂₇H₂₁, B_31–36N_31–36H_22–23, B₄₃N₄₃H₃₀ and B_48-50N₄₉H₂₈ (see Fig. S10–S15 in ESI† for details). To gain more structural information, ¹⁵N-MAS solid state NMR spectra were recorded of the dehydrogenated material formed from the ¹⁵N-labelled AB, revealing four signals of different intensities (Fig. 3b). The D_3h symmetric structure shown in Fig. 3a for this B₂₁N₂₁H₁₈ isomer was predicted by Gastreich et al. using DFT methods and will exhibit four ¹⁵N resonances in a 1 : 2 : 2 : 2 ratio (see Fig. S9 and Table S2, ESI†).³³ The relative intensity and experimentally observed chemical shifts are in good agreement with the proposed BN polycyclic structure of BN21 – an BN analogue of “superbenzene” or hexabenzocoronene³⁵ – with an estimated diameter of 11.4 Å.³⁶ We cannot exclude other structures such as those for the teranthene isomer but the corresponding BN analogue has lower symmetry (C_2v) and more signals would be expected in the ¹⁵N-NMR spectrum (see ESI† for details). Furthermore, dynamic light scattering experiments (DLS) were performed. The observed size distribution (Fig. S16, ESI†) is consistent with the expected average nanosheet length of BN21.^37,38 For the formation of BN21, 21 ammonia borane molecules have been coupled leading to the release of 54 molecules of hydrogen. This corresponds theoretically to the evolution of 2.57 equivalents of hydrogen, which is in good agreement with the experimentally measured amount (183.0 mL, 2.52 equiv., TON = 84). On the contrary, the dehydrogenative coupling reaction of AB catalysed by the related dinuclear ruthenium complex [Ru₂(μ-H)(H)(Me₂dad)(dbcot)₂] (3) (Fig. 1c) only produced one equivalent of hydrogen and insoluble polyaminoborane as only product (Fig. S18, ESI†).

In summary, the ruthenium complexes (1 or 2) are selective catalysts for the dehydrogenation of ammonia borane to polycondensed borazines compounds of nanometer size such as BN21. It is likely, that this “superbenzene” BN analogue has also been formed as soluble polycondensed borazine in previously investigated reactions, but was never characterized as such. In accord with previous studies, we assume that the first dehydrogenation step of AB leads to amino borane, H₂N BH₂ as highly reactive intermediate, which is released into solution forming cyclic oligomers (CTB, BCDB, and BCTB). These were detected as intermediates in reactions with the mononuclear Ru complex 1 or dinuclear complex 2. Although no further details on possible reaction mechanism can be given at this time and remains unclear whether mononuclear or polynucelar complexes are responsible for the formation of “superbenzene” type BN compounds, we are confident that our findings will help to find better catalysts to prepare and isolate these fascinating and potentially useful BN nanosheets in high yield.

We thank Jonas Bösken for the synthesis of complex 3. We also would like to acknowledge Bill Ewing, from BoronSpecialities LLC, for fruitful discussions and generous donation of BN substrates. This research was funded by the Austria Science Fund (FWF) (J-4571-N), SNF (grants 192106, 181966) and ETH-Zürich.
