. 1998 May;66(5):2207–2212. doi: 10.1128/iai.66.5.2207-2212.1998

Construction of a Functional Single-Chain Variable Fragment Antibody against Hemagglutinin from Porphyromonas gingivalis

Yasuko Shibata 1, Kimiyo Kurihara 1, Hisashi Takiguchi 1, Yoshimitsu Abiko 1,*
PMCID: PMC108183  PMID: 9573109

Abstract

Hemagglutinin is a major glycoprotein of Porphyromonas gingivalis vesicles and likely confers the ability to adsorb and penetrate into host tissue cells. To protect this bacterial invasion, murine monoclonal antibody (MAb) Pg-vc, which inhibited the hemagglutinating activity, was prepared by using P. gingivalis vesicles as an antigen. Western blot analysis revealed that when both MAb Pg-vc and anti-HA-Ag2 antibody raised against the P. gingivalis hemagglutinin adhesin (M. Deslauriers and C. Mouton, Infect. Immun. 60:2791–2799, 1992) were allowed to react with protein blots from P. gingivalis vesicles, a superimposable profile was observed. To obtain a recombinant antibody, cDNAs coding for the variable domains of the L and H chains of MAb Pg-vc were cloned by PCR, and a plasmid specifying a single-chain variable fragment (ScFv) was constructed. Following transformation of Escherichia coli cells, a recombinant ScFv protein was successfully expressed. The immunological properties of this protein were identical to those of the parental murine MAb, specifically recognizing the two proteins (43 and 49 kDa) originating from P. gingivalis vesicles. In addition, the ScFv antibody inhibited the P. gingivalis vesicle-associated hemagglutinating activity. The amino acid sequences deduced from nucleotide sequencing experiments confirmed that variable heavy-chain and variable light-chain regions belonged to VH1 and Vκ12/13 families, respectively. Since the expression system used in this study can readily provide large quantities of single-chain recombinant antibody, it may be a useful in developing a therapeutic agent for passive immunization in humans.

It is now well recognized that the adherence of bacteria to host tissues is a prerequisite for colonization and one of the causative factors of bacterial pathogenesis. The bacterial colonization of gingival tissues is critical in the pathogenic process of periodontal disease resulting in tissue destruction. Porphyromonas gingivalis has been implicated as a pathogen in the development of adult periodontitis, a chronic inflammatory disease of the supporting tissues of the teeth that leads to tooth loss (8, 12, 32, 33). Oral infection of nonhuman primates by P. gingivalis caused destructive disease in a ligature-induced model of periodontitis (7, 8, 22). However, the mechanisms by which P. gingivalis colonizes tooth surfaces and the adjacent periodontal tissues remain largely uncharacterized. Recently, various molecules present at the surface of this bacterium, such as fimbriae and vesicles, and potential molecular adhesins, including lectins, hemagglutinins, and lipopolysaccharide, have been characterized for their roles of adhesion (2, 9, 12, 15). Among these, the hemagglutinin is the major glycoprotein of bacterial vesicles (27) and may mediate the adsorption and penetration of bacteria into host cells (14, 24). Some hemagglutinin domains are encoded by a portion of a protease gene and possess the ability to degrade a broad range of host proteins, including structural and defense proteins (4, 5, 18, 28, 30), while the multivalent hemagglutinin is encoded by a different gene, such as hagA, which is larger than the protease genes (10). The hemagglutinin gene and other protease genes may share the hemagglutinin domain sequence from a multigene family (10, 19, 31).

Several investigators have attempted both active and passive immunization of nonhuman species and human to protect against periodontal disease by using antibodies against P. gingivalis (1, 7, 11, 26, 29). However, because of the sizes of the molecules and their inability to penetrate into tissue, the use of intact antibodies in humans may have several unexpected disadvantages. New technology using the single-chain variable fragment (ScFv) has been developed to overcome these problems (13, 34). This method relies on the single amino acid chain being expressed from the DNA in which two cDNAs specifying the variable (V) regions of both heavy (H) and light (L) chains are connected in frame to a linker sequence that encodes a flexible peptide.

To establish the passive immunization system in humans, we focused on the construction of ScFv antibody against the P. gingivalis hemagglutinin. We isolated a mouse monoclonal antibody (MAb) and prepared the ScFv antibody. The recombinant ScFv antibody produced from Escherichia coli cells inhibited the P. gingivalis vesicle-associated hemagglutinating activity.

MATERIALS AND METHODS

Materials.

The recombinant phage antibody system (mouse ScFv module, expression module, and detection module) and protein G-Sepharose 4 Fast Flow were purchased from Pharmacia Biotech (Uppsala, Sweden). The Taq DyeDeoxy terminator cycle sequencing kit for DNA sequencing and Taq DNA polymerase were from Applied Biosystems Inc. (Foster City, Calif.). The Geneclean II kit was from Bio 101 (Vista, Calif.). Other chemicals used in this study were of analytical grade.

Preparation of vesicles.

P. gingivalis 381 was grown in Todd-Hewitt broth (Difco Laboratories, Detroit, Mich.) supplemented with hemin (19 mg/ml) and vitamin K1 (1 mg/ml) in an anaerobic atmosphere (80% N2, 10% H2, 10% CO2) for 24 to 48 h. Vesicles were isolated by the method of Grenier and Mayrand (9), with slight modification. Briefly, P. gingivalis 381 cells from a 10-liter diffuse culture (3-day culture) were removed from the growth medium by centrifugation (10,000 × g for 30 min). The supernatant containing the vesicles was concentrated to 250 ml by passage through an ultrafiltration system (Millipore Co., Bedford, Mass.) with a membrane having a molecular weight cutoff of 10,000. This sample was dialyzed against 50 mM Tris-HCl (pH 9.5) containing 0.5 mM dithiothreitol at 4°C overnight to solubilize the pili. The vesicles were collected by centrifugation (90,000 × g) for 2 h and suspended in Dulbecco’s phosphate-buffered saline solution without Mg2+ and Ca2+ [PBS(−)]. This suspension was dialyzed against PBS(−) at 4°C overnight and kept at −20°C until used. For sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), P. gingivalis vesicles were solubilized in 0.1% SDS solution.

Generation of hybridoma antibody against the vesicles of P. gingivalis.

Six- to eight-week-old BALB/c mice were injected with 200 μg of vesicles in Freund’s complete adjuvant. Three times injections were given with the same amount of vesicles. First and second immunization were peritoneal cavity administration at 14-day interval. After another 14 days, a third injection was given through a tail vein. Four days later, the spleen cells of immunized mice were fused with SP2/Ag14 myeloma cells (1:5) in 50% polyethylene glycol 4000 (Sigma Chemical Co., St. Louis, Mo.). The hybridomas were tested by enzyme-linked immunosorbent assay (ELISA) for production of antibodies against solubilized P. gingivalis vesicles. Cells from positive wells were cloned twice by limiting dilution in microtiter plates. The resulting monoclonal cell lines were grown in medium containing a low serum concentration to obtain MAbs from the growth supernatant.

Construction of an ScFv antibody.

A schema representing the procedure used for cDNA cloning and construction of recombinant ScFv antibody is shown in Fig. 1. Total RNAs from hybridoma cells were isolated by the acid guanidinium thiocyanate-phenol-chloroform extraction method (3). Twenty micrograms of total RNA was used as a template for the reverse transcriptase reaction. First-strand cDNAs were synthesized by using primed first-strand reaction mixtures. The cDNAs coding for V regions of the H and L chains (VH and VL, respectively) were then amplified by PCR using a set of primers which were included in the mouse ScFv module/recombinant phage antibody system (Pharmacia Biotech). PCR amplification was run for 30 cycles (94°C for 1 min; 55°C for 2 min; 72°C for 2 min). Amplified DNAs of VH and VL fragments were purified separately by agarose gel electrophoresis to remove primers from amplification products.

FIG. 1.

FIG. 1

Open in a new tab

Overview of the production of recombinant ScFv antibody. For details, see text.

The purified VH and VL cDNAs (112 fmol of each) were each assembled into a single gene by using a DNA linker fragment (32 fmol) which codes for (GGGGS)3 peptide, connecting the two cDNAs in the correct reading frame. Assembly PCR was run for 7 cycles (94°C for 1 min; 63°C for 4 min). The assembled fragment was amplified by using two oligonucleotide primers with either an SfiI or NotI restriction site at the 5′ end to facilitate the cloning of the PCR product into the phagemid pCANTAB5E vector (GenBank accession no. U14321). pCANTAB5E was designed so that the antibody V-region genes could be cloned between the leader sequence and the main body of the M13 gene 3. pCANTAB5E also contains a sequence encoding a peptide tag (E tag [13]) followed by an amber translational stop codon at the junction between the cloned ScFv and the sequence for the g3p. The ligation mixture was transformed into cells of E. coli HB2151 cells [K-12 Δ(lac-pro) ara Nalr M15, thi/F′ proAB lacIq lacZΔ M15], a suppressor-deficient strain. The E. coli transformants harboring the plasmid were allowed to induce expression of the ScFv protein by adding isopropyl β-d-thiogalactoside (IPTG) to a final concentration of 1 mM for 3 h. Cells were collected by centrifugation at 5,000 × g for 20 min and incubated with 1 mM EDTA–PBS(−) for 10 min on ice to obtain the periplasmic fraction. The ScFv extract was filtered through a 0.45-μm-pore-size filter and purified by passage through an anti-E-tag affinity column with equilibrated PBS(−). After the column was washed with 0.1 M glycine-HCl (pH 5.0), the bound ScFv antibodies were eluted with 0.1 M glycine-HCl (pH 2.8). Each 1.5 ml of eluted fraction was treated with 175 μl of 2.0 M Tris-HCl (pH 8.0) to neutralize the pH.

Preparation of anti-E tag antibody affinity column.

Protein G-Sepharose 4 Fast Flow was equilibrated with 20 mM sodium phosphate buffer (pH 8.2). Diluted anti-E-tag antibody (5 mg) with 5 ml of 20 mM sodium phosphate buffer (pH 8.2) was added to the gel matrix in the column. This mixture was incubated for 2 h at room temperature with continuous gentle mixing by inversion. Next, the gel matrix was washed with 20 mM sodium phosphate buffer (pH 8.2), treated with 40 mg of dimethyl pimelimidate dihydrochloride dissolved in 10 ml of 0.2 M triethanolamine-HCl (pH 8.2), and allowed to stand for 15 min. The column was completely washed with 0.1 M glycine-HCl (pH 2.8) to remove any anti-E-tag antibody that was not covalently bound. Finally, 20 mM phosphate buffer (pH 8.2) was used to neutralize the gel matrix. This column was equilibrated with 10 bed volumes of PBS(−) when ScFv antibody fraction was purified.

Inhibition of hemagglutinating activity.

Ten microliters of vesicle solution (250 ng of protein/ml) and ScFv antibody solution (40 μl) were transferred to microtiter wells and incubated at a room temperature for 30 min with gentle shaking. Then 150 μl of human erythrocytes (2.7 × 105 cells) was added, and inhibition of hemagglutinating activity was assessed by photography following 1 h of incubation at room temperature.

Sequence analysis of ScFv H and L chains of pMDABG2-4.

Plasmid pMDABG 2-4 was extracted, and nucleotide sequencing was carried out by double-stranded dideoxynucleotide sequencing in both directions, using a Taq DyDeoxy terminator cycle sequencing kit (Applied Biosystems). The primers S1 (5′-CAA CGT GAA AAA ATT ATT ATT CGC-3′), S3 (5′-GGT TCA GGC GGA GGT GGC TCT GG-3′), S4 (5′-CCA GAG CCA CCT CCG CCT GAA CC-3′), and S6 (5′-GTA AAT GAA TTT TCT GTA TGA GG-3′) were complementary to the vector and linker DNA sequences. The sequence data obtained were subjected to a homology search using the GenBank and IMGT (integrated database for immunogenetics; http://www.genetik.uni-koeln.de/dnaplot/) databases.

Nucleotide sequence accession number.

The nucleotide sequence of ScFv-MDABG2-4 has been registered under DDBJ accession no. AB007986.

RESULTS

Isolation and characterization of a MAb against P. gingivalis vesicles.

Several hybridoma clones which recognize the P. gingivalis vesicles by ELISA were constructed, and three of the clones were selected in two steps: (i) Western blot analysis using the P. gingivalis vesicles and (ii) assay of the hemagglutination inhibition activity of P. gingivalis vesicles. As shown in Fig. 2A, the one of the three MAbs produced against the vesicles of P. gingivalis, designated MAb Pg-vc, strongly recognized the 43- and 49-kDa bands of the vesicle fraction by Western blot analysis. Furthermore, this blotting profile was exactly the same as that of the anti-HA-Ag2 antibody (kindly supplied by C. Mouton [6]), which also strongly recognized both 43- and 49-kDa proteins corresponding to hemagglutinating adhesin.

FIG. 2.

FIG. 2

Open in a new tab

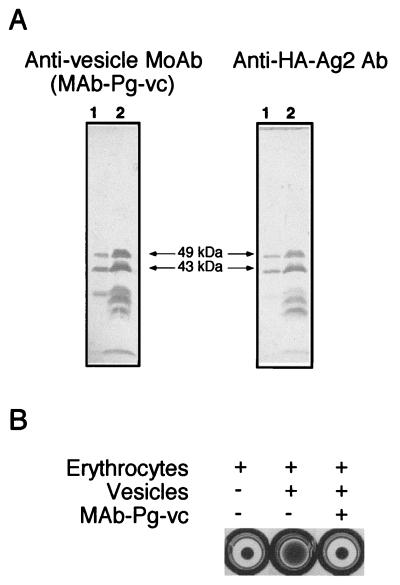

Immunological (A) and biological (B) activities of MAb Pg-vc. (A) To assess the immunological activity of MAb Pg-vc against the proteins isolated from P. gingivalis, Western blot analysis was carried out. For comparison, anti-HA-Ag2 Ab was used. Lanes 1, cell lysate; 2, vesicle fraction. (B) To examine the biological activity of MAb Pg-vc, 10 μl of vesicle solution (250 ng of protein/ml) and MAb Pg-vc in wells (total volume, 40 μl) were incubated for 30 min at room temperature, and then 150 μl of erythrocyte suspension (2.7 × 105 cells) was added.

Next, we tested the direct agglutination of erythrocytes caused by the P. gingivalis vesicle fraction. The agglutination of erythrocytes was induced by the addition of P. gingivalis vesicles, and this hemagglutinating activity was inhibited in the presence of MAb Pg-vc (Fig. 2B). This finding indicated that MAb Pg-vc recognized an epitope involved in hemagglutination at the surface of vesicles which might function as one of the virulence factors of this organism.

Preparation of the ScFv fragment.

After first-strand synthesis using 20 μg of total RNA purified from the hybridoma cells, the cDNAs of VH and VL were amplified by PCR. As shown in Fig. 3, approximately 340-bp (VH) and 320-bp (VL) products were visualized on the electrophoresed agarose gel (lanes 1 and 2). The purified cDNAs of VH and VL were assembled into a single gene by using a DNA linker fragment, and the PCR-amplified ScFv DNA fragment (approximately 750 bp) was obtained (lane 3). To separate the expected assembled products, the 750-bp cDNA band was purified with a Geneclean II kit. Following digestion with the restriction enzymes SfiI and NotI, the ScFv DNA fragment was ligated to a phagemid vector, pCANTAB5E. After transformation of E. coli HB2151, a total of 192 E. coli transformants harboring chimeric plasmids with inserts of approximately 750 bp were isolated. Cell lysates were obtained from eight of these transformants, and immunological properties were further examined by Western blotting against the P. gingivalis vesicles. Finally, we obtained the E. coli transformant harboring plasmid pMDABG2-4, which expressed the recombinant ScFv antibody (ScFv-MDABG2-4) against the P. gingivalis vesicles.

FIG. 3.

FIG. 3

Open in a new tab

Agarose gel electrophoresis of DNA fragments. Lanes: 1 and 2, PCR products of VH, and VL, respectively; 3, ligation mixture of VH and VL; 4, size marker (100-bp ladder DNA); 5, SfiI and NotI digest of pScFv-MDABG2-4. The arrow indicates the ScFv fragments.

Purification of the ScFv-MDABG2-4.

To purify the recombinant ScFv protein, we first examined the location of this protein in the E. coli transformant. As shown in Fig. 4A, this protein existed in both the periplasmic space and cell lysate. Subsequently, large-scale production of ScFv-MDABG2-4 was performed with a periplasmic extract fraction. The periplasmic fraction from 1 liter of cell culture was purified by the anti-E-tag antibody affinity column. This protein (31 kDa) was purified by passage through the anti-E-tag antibody affinity column (Fig. 4B).

FIG. 4.

FIG. 4

Open in a new tab

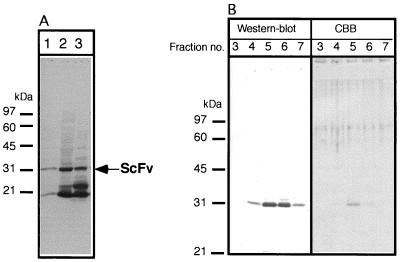

Location and purification of the ScFv-MDABG2-4. (A) To identify the location of the recombinant ScFv-MDABG2-4 protein, culture supernatant (lane 1), periplasmic fraction (lane 2), and cell lysate (lane 3) were prepared from an E. coli transformant, and Western blot analysis was carried out. Five milliliters of the overnight culture of clone MDABG2-4 was inoculated into 50 ml of fresh SB medium (35 g of tryptone, 20 g of yeast extract, and 5 g of NaCl in 1 liter of water) with 100 μg of ampicillin per ml and incubated for 1.5 h at 30°C. The expression of ScFv protein was induced by the addition of 1 mM IPTG and incubation for 3 h at 30°C. Supernatant was obtained by centrifugation of the culture medium. Cell pellets were resuspended in 0.5 ml of PBS(−)—1 mM EDTA for 10 min on ice and then centrifuged to obtain the periplasmic fraction. Other pellets of the same cells were resuspended in 0.5 ml of PBS(−) and boiled for 5 min. This supernatant after centrifugation is showed in lane 3 (as the cell lysate). The ScFv protein produced was detected by using the anti-E-tag antibody, since the ScFv antibody was a protein fused with the E-tag peptide. (B) Affinity-purified ScFv-MDABG2-4 examined by Coomassie brilliant blue staining (CBB) or by Western blot analysis using an anti-E-tag antibody (Western-blot).

Characterization of ScFv-MDABG2-4.

To assess the immunological activity of ScFv-MDABG2-4, Western blot analysis was carried out. For comparison, MAb Pg-vc, was also used. The solubilized vesicle proteins were transferred onto a nitrocellulose membrane and allowed to react with both antibodies. As shown in Fig. 5, MAb Pg-vc recognized several proteins, including 43- and 49-kDa proteins, and ScFv-MDABG2-4 could react with four protein blots, which were also recognized by parental MAb Pg-vc.

FIG. 5.

FIG. 5

Open in a new tab

Immunological activity of ScFv-MDABG2-4. The P. gingivalis vesicle fraction (2 μg of protein/lane) was separated by SDS-PAGE (12% gel) and transferred onto a nitrocellulose membrane. After overnight blocking with 5% skim milk solution, the membrane was exposed with ScFv-MDABG2-4 antibody (1:50 dilution with 5% skim milk solution; the eluted fraction [fraction 5] of the anti-E-tag antibody affinity column in Fig. 4B was directly used as ScFv-MDABG2-4) for 16 h. Next, the membrane was incubated with the mouse anti-E-tag antibody and then a goat anti-mouse IgG antibody (horseradish peroxidase conjugated) for 2 h. Protein bands were visualized by the standard method using horseradish peroxidase. For comparison, another membrane was exposed with MAb Pg-vc for 16 h, and protein bands were detected in the same way.

Next, we examined the biological activity of ScFv-MDABG2-4. As shown in Fig. 6, the ScFv-MDABG2-4 inhibited the vesicle-associated hemagglutinating activity in a dose-dependent manner.

FIG. 6.

FIG. 6

Open in a new tab

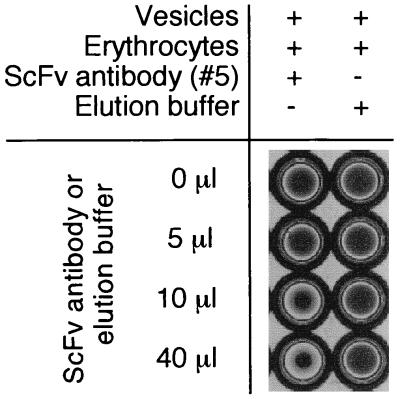

Biological activity of ScFv-MDABG2-4. To evaluate the biological activity of ScFv-MDABG2-4, indicated volumes of affinity-purified protein were added to microtiter wells, and inhibition of hemagglutinating activity was assayed as described in the legend to Fig. 2B. The eluted fraction (fraction 5) of anti-E-tag antibody affinity column in Fig. 4B was directly used as ScFv-MDABG2-4.

Nucleotide sequence analysis.

To identify the gene families for the VL and VH regions, nucleotide sequencing was carried out. As shown in Fig. 7, the deduced amino acid sequence of ScFv-MDABG2-4 confirmed the expected protein structure where VL and VH regions were connected with three consecutive GGGGS repeats which resulted from the linker sequence. Comparison of the nucleotide sequence with those deposited in the IMGT database revealed that the VH and VL regions were highly homologous to the murine VH1 and the mouse Vκ12/13 families, respectively. Interestingly, homology search using the GenBank database indicated that ScFv-MDABG2-4 resembled the antigenic site of the A/PR/8/34 influenza virus hemagglutinin (data not shown; see reference 17).

FIG. 7.

FIG. 7

Open in a new tab

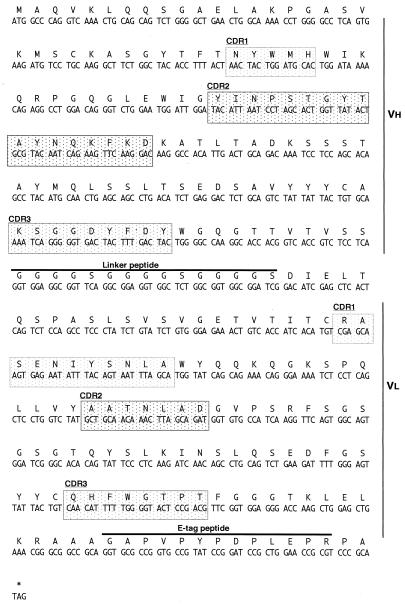

DNA and deduced amino acid sequences of pMDABG2-4. The three boxes in the area of the H and L chains of pMDABG2-4 indicate the CDRs in the V region of the antibody.

DISCUSSION

Various P. gingivalis hemagglutinins and aggregating factors with different biochemical properties and molecular weights have been reported by several research groups. Recently, several investigators demonstrated that fimbiae were involved in the adhesion of P. gingivalis but not in the agglutination of erythrocytes (15, 35). Deslauriers and Mouton have purified the surface protein complex, hemagglutinating adhesin HA-Ag2 (6), from vesicles capable of binding erythrocytes and demonstrated that this protein complex was distinct from fimbriae (25). Moreover, they showed that HA-Ag2 was composed of two proteins (43 and 49 kDa), while the fimbrilin subunit had an apparent molecular mass of 42 kDa in all extracts tested. As expected, the MAb against fimbriae inhibited the adhesion of P. gingivalis to epithelial cells but was unable to inhibit hemagglutinating activity (15, 35). MAb Pg-vc and the recombinant ScFv protein, ScFv-MDABG2-4, derived from it possessed almost the same immunological and biological properties; these two antibodies recognized two proteins, of 43 and 49 kDa, in Western blot analysis as anti-HA-Ag2 antibody did and inhibited the hemagglutinating activity caused by the P. gingivalis vesicles in human erythrocytes (Fig. 2, 5, and 6).

Several groups have attempted to administer MAbs to protect against disease. In experimental immunization for dental caries, MAbs specific to Streptococcus mutans or bovine milk containing antibodies to S. mutans could prevent the colonization of microorganisms and the development of caries in nonhuman primates or gnotobiotic rats (23). Furthermore, using MAbs against P. gingivalis, Booth et al. succeeded in passive immunization to prevent colonization of P. gingivalis for up to 9 months (1). However, unexpected disadvantages may be apparent if intact antibodies of nonhuman origin are used. To overcome this problem, one potential approach is the construction of the chimeric MAbs in which murine-origin VH and VL regions are combined with the constant (C) regions from human sequences (16, 20). In this “humanized” MAb, only the antigen recognition sites (complementarity-determining regions [CDRs]), were of nonhuman origin, whereas all frameworks in V and C regions were products of human genes. On the other hand, Ma et al. have demonstrated the expression of chimeric antibody in a plant (21). Four transgenic Nicotiana tabacum plants that expressed murine kappa-chain, hybrid IgA-G heavy-chain, a murine joining-chain, and rabbit secretory component MAbs, respectively were generated. Following the cross-breeding of these four plants in vivo, these chains were assembled into a functional secretory immunoglobulin that recognized the native streptococcal antigen I/II, the adhesion molecule present at the surface of bacterial cells. The functional recombinant ScFv antibody against the P. gingivalis hemagglutinin shown in this present study may be useful for establishing a passive mucosal immunotherapy since it is relatively easy to prepare large quantities of purified protein.

We have determined the nucleotide sequences around both the VH and VL regions and elucidated the gene families of these regions. There are no sequence data that completely match the V region of this antibody in the databases. However, the VH region exhibited a high degree of homology with that of the antigenic site of the influenza virus A/PR/8/34 hemagglutinin (17). The compilation of these data may help clarify the stereochemistry between antibody CDRs and antigen epitopes and thus be essential in designing novel antibody for establishing a passive immunization system.

In conclusion, we succeeded in expressing a functional ScFv antibody against the P. gingivalis hemagglutinin-like molecules, and this system could provide an abundant source of immunotherapeutic agent for protecting against periodontal diseases.

ACKNOWLEDGMENTS

This work was supported in part by Funds for Comprehensive Research on Aging and Health from the Ministry of Public Welfare of Japan (96A2303) and by Funds for Interdisciplinary General Joint Research Grant for Nihon University for 1995.

We thank C. Mouton for providing us with anti-HA-Ag2 antibody.

REFERENCES

  • 1.Booth V, Ashley F P, Lehner T. Passive immunization with monoclonal antibodies against Porphyromonas gingivalis in patients with periodontitis. Infect Immun. 1996;64:422–427. doi: 10.1128/iai.64.2.422-427.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Boyd J, McBride B C. Fractionation of hemagglutinating and bacterial binding adhesins of Bacteroides gingivalis. Infect Immun. 1984;45:403–409. doi: 10.1128/iai.45.2.403-409.1984. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Chomczynski P, Sacchi N. Single-step method of RNA isolation by acid guanidinium thiocyanate-phenol-chloroform extraction. Anal Biochem. 1987;162:156–159. doi: 10.1006/abio.1987.9999. [DOI] [PubMed] [Google Scholar]
  • 4.Curtis M A. Analysis of the protease and adhesin domains of the PrpR1 of Porphyromonas gingivalis. J Periodontal Res. 1997;32:133–139. doi: 10.1111/j.1600-0765.1997.tb01394.x. [DOI] [PubMed] [Google Scholar]
  • 5.DeCarlo A A, Harber G J. Hemagglutinin activity and heterogeneity of related Porphyromonas gingivalis proteinases. Oral Microbiol Immunol. 1997;12:47–56. doi: 10.1111/j.1399-302x.1997.tb00366.x. [DOI] [PubMed] [Google Scholar]
  • 6.Deslauriers M, Mouton C. Epitope mapping of hemagglutinating adhesin HA-Ag2 of Bacteroides (Porphyromonas) gingivalis. Infect Immun. 1992;60:2791–2799. doi: 10.1128/iai.60.7.2791-2799.1992. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Ebersole J L, Brunsvold M, Steffensen B, Wood R, Holt S C. Effects of immunization with Porphyromonas gingivalis and Prevotella intermedia on progression of ligature-induced periodontitis in the nonhuman primate Macaca fascicularis. Infect Immun. 1991;59:3351–3359. doi: 10.1128/iai.59.10.3351-3359.1991. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Genco R J, Zambon J J, Christersson L A. The origin of periodontal infections. Adv Dent Res. 1988;2:245–259. doi: 10.1177/08959374880020020901. [DOI] [PubMed] [Google Scholar]
  • 9.Grenier D, Mayrand D. Functional characterization of extracellular vesicles produced by Bacteroides gingivalis. Infect Immun. 1987;55:111–117. doi: 10.1128/iai.55.1.111-117.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Han N, Whitlock J, Progulske-Fox A. The hemagglutinin gene A (hagA) of Porphyromonas gingivalis 381 contains four large, contiguous, direct repeats. Infect Immun. 1996;64:4000–4007. doi: 10.1128/iai.64.10.4000-4007.1996. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Holt S C, Ebersole J, Felton J, Brunsvold M, Kornman K S. Implantation of Bacteroides gingivalis in nonhuman primates initiates progression of periodontitis. Science. 1988;239:55–57. doi: 10.1126/science.3336774. [DOI] [PubMed] [Google Scholar]
  • 12.Holt S C, Bramanti T E. Factors in virulence expression and their role in periodontal disease pathogenesis. Crit Rev Oral Biol Med. 1991;2:177–281. doi: 10.1177/10454411910020020301. [DOI] [PubMed] [Google Scholar]
  • 13.Hughes-Jones N C, Gorick B D, Bye J M, Finnern R, Scott M L, Voak D, Marks J D, Ouwehand W H. Characterization of human blood group scFv antibodies derived from a V gene phage-display library. Br J Haematol. 1994;88:180–186. doi: 10.1111/j.1365-2141.1994.tb04994.x. [DOI] [PubMed] [Google Scholar]
  • 14.Inoshita E, Amano A, Hanioka T, Tamagawa H, Shizukuishi S, Tsunemitsu A. Isolation and some properties of exohemagglutinin from the culture medium of Bacteroides gingivalis 381. Infect Immun. 1986;52:421–427. doi: 10.1128/iai.52.2.421-427.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Isogai H, Isogai E, Yoshimura F, Suzuki T, Kagota W, Takano K. Specific inhibition of adherence of an oral strain of Bacteroides gingivalis 381 to epithelial cells by monoclonal antibodies against the bacterial fimbriae. Arch Oral Biol. 1988;33:479–485. doi: 10.1016/0003-9969(88)90028-3. [DOI] [PubMed] [Google Scholar]
  • 16.Jones P T, Dear P H, Foote J, Neuberger M S, Winter G. Replacing the complementarity-determining regions in a human antibody with those from a mouse. Nature. 1986;321:522–525. doi: 10.1038/321522a0. [DOI] [PubMed] [Google Scholar]
  • 17.Kavaler J, Caton A J, Staudt L M, Schwartz D, Gerhard W. A set of closely related antibodies dominates the primary antibody response to the antigenic site CB of the A/PR/8/34 influenza virus hemagglutinin. J Immunol. 1990;145:2312–2321. [PubMed] [Google Scholar]
  • 18.Kirszbaum L, Sotiropoulos C, Jackson C, Cleal S, Slakeski N, Reynolds E C. Complete nucleotide sequence of a gene prtR of Porphyromonas gingivalis W50 encoding a 132 kDa protein that contains an arginine-specific thiol endopeptidase domain and a haemagglutinin domain. Biochem Biophys Res Commun. 1995;207:424–431. doi: 10.1006/bbrc.1995.1205. [DOI] [PubMed] [Google Scholar]
  • 19.Lépine G, Progulske-Fox A. Duplication and differential expression of hemagglutinin genes in Porphyromonas gingivalis. Oral Microbiol Immunol. 1996;11:65–78. doi: 10.1111/j.1399-302x.1996.tb00339.x. [DOI] [PubMed] [Google Scholar]
  • 20.LoBuglio A F, Wheeler R H, Trang J, Haynes A, Rogers K, Harvey E B, Sun L, Ghrayeb J, Khazaeli M B. Mouse/human chimeric monoclonal antibody in man: kinetics and immune response. Proc Natl Acad Sci USA. 1989;86:4220–4224. doi: 10.1073/pnas.86.11.4220. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Ma J K-C, Hiatt A, Hein M, Vine N D, Wang F, Stabila P, van Dolleweerd C, Mostov K, Lehner T. Generation and assembly of secretory antibodies in plants. Science. 1995;268:716–719. doi: 10.1126/science.7732380. [DOI] [PubMed] [Google Scholar]
  • 22.Mayrand D, Holt S C. Biology of asaccharolytic black-pigmented Bacteroides species. Microbiol Rev. 1988;52:134–152. doi: 10.1128/mr.52.1.134-152.1988. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Michalek S M, Gregory R L, Harmon C C, Katz J, Richardson G J, Hilton T, Filler S J, McGhee J R. Protection of gnotobiotic rats against dental caries by passive immunization with bovine milk antibodies to Streptococcus mutans. Infect Immun. 1987;55:2341–2347. doi: 10.1128/iai.55.10.2341-2347.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Mouton C, Bouchard D, Deslauriers M, Lamonde L. Immunochemical identification and preliminary characterization of a nonfimbrial hemagglutinating adhesin of Bacteroides gingivalis. Infect Immun. 1989;57:566–573. doi: 10.1128/iai.57.2.566-573.1989. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Mouton C, Ni Eidhin D, Deslauriers M, Lamy L. The hemagglutinating adhesin HA-Ag2 of Bacteroides gingivalis is distinct from fimbrilin. Oral Microbiol Immunol. 1991;6:6–11. doi: 10.1111/j.1399-302x.1991.tb00444.x. [DOI] [PubMed] [Google Scholar]
  • 26.Okuda K, Kato T, Naito Y, Takazoe I, Kikuchi Y, Nakamura T, Kiyoshige T, Sasaki S. Protective efficacy of active and passive immunizations against experimental infection with Bacteroides gingivalis in ligated hamsters. J Dent Res. 1988;67:807–811. doi: 10.1177/00220345880670050201. [DOI] [PubMed] [Google Scholar]
  • 27.Okuda K, Yamamoto A, Naito Y, Takazoe I, Slots J, Genco R J. Purification and properties of hemagglutinin from culture supernatant of Bacteroides gingivalis. Infect Immun. 1986;54:659–665. doi: 10.1128/iai.54.3.659-665.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Pavloff N, Potempa J, Pike R N, Prochazka V, Kiefer M C, Travis J, Barr P J. Molecular cloning and structural characterization of the Arg-gingipain proteinase of Porphyromonas gingivalis. Biosynthesis as a proteinase-adhesin polyprotein. J Biol Chem. 1995;270:1007–1010. doi: 10.1074/jbc.270.3.1007. [DOI] [PubMed] [Google Scholar]
  • 29.Persson G R, Engel D, Whitney C, Darveau R, Weinberg A, Brunsvold M, Page R C. Immunization against Porphyromonas gingivalis inhibits progression of experimental periodontitis in nonhuman primates. Infect Immun. 1994;62:1026–1031. doi: 10.1128/iai.62.3.1026-1031.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Pike R, McGraw W, Potempa J, Travis J. Lysine- and arginine-specific proteinases from Porphyromonas gingivalis. Isolation, characterization, and evidence for the existence of complexes with hemagglutinins. J Biol Chem. 1994;269:406–411. [PubMed] [Google Scholar]
  • 31.Progulske-Fox A, Tumwasorn S, Lépine G, Whitlock J, Savett D, Ferretti J J, Banas J A. The cloning, expression and sequence analysis of a second Porphyromonas gingivalis gene that codes for a protein involved in hemagglutination. Oral Microbiol Immunol. 1995;10:311–318. doi: 10.1111/j.1399-302x.1995.tb00160.x. [DOI] [PubMed] [Google Scholar]
  • 32.Slots J, Bragd L, Wikström M, Dahlén G. The occurrence of Actinobacillus actinomycetemcomitans, Bacteroides gingivalis and Bacteroides intermedius in destructive periodontal disease in adults. J Clin Periodontol. 1986;13:570–577. doi: 10.1111/j.1600-051x.1986.tb00849.x. [DOI] [PubMed] [Google Scholar]
  • 33.Spiegel C A, Hayduk S E, Minah G E, Krywolap G N. Black-pigmented Bacteroides from clinically characterized periodontal sites. J Periodont Res. 1979;14:376–382. doi: 10.1111/j.1600-0765.1979.tb00234.x. [DOI] [PubMed] [Google Scholar]
  • 34.Winter G, Milstein C. Man-made antibodies. Nature. 1991;349:293–299. doi: 10.1038/349293a0. [DOI] [PubMed] [Google Scholar]
  • 35.Yoshimura F, Takahashi K, Nodasaka Y, Suzuki T. Purification and characterization of a novel type of fimbriae from the oral anaerobe Bacteroides gingivalis. J Bacteriol. 1984;160:949–957. doi: 10.1128/jb.160.3.949-957.1984. [DOI] [PMC free article] [PubMed] [Google Scholar]
