Eco-Friendly Piper cubeba Official Extract Corrosion Inhibition of C-Steel in 1 M Sulfamic Acid

Aya M Salem †,*, Merfat S Al-Sharif ‡,*
PMCID: PMC10832010  PMID: 38313489

Abstract

graphic file with name ao3c09334_0013.jpg

This work offers a high-performing, environmentally friendly corrosion inhibitor for carbon steel in 1 M sulfamic acid (H2NSO3H). Potentiodynamic polarization and electrochemical impedance spectroscopy were used to evaluate the anticorrosion properties of Pipper cubeba official extract (P.cubebaOE) for carbon steel in 1 M H2NSO3H at 25 to 45 °C. At a temperature of 45 °C, the P.cubebaOE reached a maximum corrosion inhibition efficiency of 96%. P.cubebaOE was also subjected to Fourier transform infrared spectroscopy in order to ascertain its primary chemical composition. Additionally, the behavior of P.cubebaOE in terms of corrosion inhibition on carbon steel was examined at the microscopic level using scanning electron microscopy. The findings demonstrate that P.cubebaOE’s adsorption type on carbon steel conforms to the Langmuir adsorption isotherm model. Based on the adsorption isotherm model, the free energy was estimated to be approximately −20.0 kJ/mol, suggesting that P.cubebaOE is physically adsorbing on the surface of carbon steel. The results of the density functional theory and molecular dynamics simulations show that P.cubebaOE exhibits excellent inhibition performance on carbon steel in H2NSO3H solution and are consistent with the electrochemical experimental results. This work offers significant information on the development of environmentally friendly corrosion inhibitors for carbon steel.

1. Introduction

Metal corrosion is now a critical concern in a variety of sectors and the environment. As a result, efforts must be undertaken to lower the corrosion risks across many businesses. Inhibitors are added in insignificant amounts to the corrosive media to protect metals against corrosion-induced dissolution, which has a significant practical benefit.1−5 Due to these compounds’ high toxicity, there is a shortage of their inhibitors, which has prompted researchers to look for more environmentally friendly substitutes with functional groups that include sulfur, nitrogen, or oxygen atoms and have been approved as corrosion inhibitors.6,7 The last 10 years have seen an increase in curiosity about environmentally friendly products as a result of new environmental laws and heightened environmental awareness. Natural substitutes have been employed for their antibacterial, antifungal, anticancer, and antimicrobial properties.8−13 Many attempts are underway to create substances appropriate for use as anticorrosion agents in entertainment applications. The foundation of this research is the use of plant extracts that are safe for the environment to prevent metal and alloy corrosion. The use of plant extracts as corrosion barriers is supported by the research listed below. The extract of calicotome,14 Hibiscus rosa-sinensis Linn15 Spirulina solution verified by electrochemical methods,17 beet root extract in well water,16 spirulina.18 Finding a naturally occurring, inexpensive, and ecologically friendly chemical that might be utilized to prevent corrosion of C-steel is the goal of the current research. Utilizing natural resources will enable the achievement of both economic and environmental objectives. In several researches, plant extracts have been mentioned as prospective agents to lessen corrosion in different industrial solutions.19−31 As reported previously, the ethanolic extract of (P.cubebaOE) contains levels of Yatein, Cbenin, cubebinone, cubebininolide, Hinokinin and cubebinin, single aldehyde, and α, β-unsaturated ketone. From the Piper cubeba, several phenolic acids and flavonoids have been found and extracted. In addition to rutin (8 ppm) and catechin (5 ppm), researchers found that the aqueous extract of P. cubeba fruits also contained Gallic acid (8 ppm), caffeic acid (13 ppm), syringic acid (3 ppm), and ferulic acid (11 ppm).32 The aqueous extract from the same study contained 2.11 mg/g of total phenols.33 According to certain literature, each of the four ingredients’ centers of adsorption are oxygen atoms and aromatic rings.33,34 Consequently, P.cubebaOE could be investigated as a corrosion inhibitor that is friendly to the environment. Our work examined the inhibitory effect of this extract on C-steel in 1.0 M H2NSO3H acid using a classical method (wt loss), PD, and EIS. FTIR was used to examine the products’ composition and microstructure. We discussed the kinetic parameters, adsorption mechanism, and adsorption type. SEM was used to examine the carbon steel’s corrosion morphology with and without corrosion inhibitors. This work sheds important light on the creation of environmentally friendly corrosion inhibitors for carbon steel.

2. Experimental Section

2.1. Preparation of P.cubebaOE

To make the plant extract, the sample was purchased from a local market and ground into a fine powder, yielding 200 g of powdered materials. These were then extracted individually by soaking 500 mL of methanol at room temperature six times. Then, using a rotary evaporator set to 45 °C, the sample’s methanolic extract was concentrated to almost dryness under low pressure, yielding a crude methanolic extract that was saved for additional study. After that, the extract was dissolved in 500 mL of ethanol to create a 500 ppm concentration stock, which yielded fictitious inhibitor efficiency values.35 To prepare the various concentrations used in this study, deionized water was used. The molecular structures of the major constituents in P.cubebaOE, which are caffeic acid, ferulic acid, Gallic acid, syringic acid, (−)-catechin, and rutin, are shown in Figure 1.

Figure 1.

Figure 1

Open in a new tab

P.CubebaOE primary ingredient chemical composition.

2.2. Materials Preparation

Table 1 lists the chemical details of the pieces of C-steel that were used. For the electrochemical measurement studies, coupons with varying dimensions of 2 cm × 2 cm × 0.1 cm and 1 cm × 1 cm × 0.1 cm were formed. To get rid of the grease and dirt, deionized water and alcohol were used to scrub every specimen. Every preparation used deionized water. Sandpaper in a range of sizes was used to polish the samples. For all measurements, a 1.0 M sulfamic acid solution served as the corrosive medium. The P. cubeba extract was diluted in 1.0 M H2NSO3H corrosion medium to prepare (50, 100, 150, 200, 250, and 300 ppm) test solution, respectively.

Table 1. Lists the Chemical Details of the Contents of the Pieces of C-Steel.

element Fe C Mn P Si Cr Co
weight % balance 0.200 0.600 0.024 0.098 0.026 0.245
Open in a new tab

2.3. Mass Loss

C-steel specimens with a thickness of 2.0 cm × 2.0 cm × 0.2 cm were used for mass degradation measurements, and they were polished to varying degrees with sanded before being scrubbed with double distilled water, followed by alcohol for eliminating debris and then adequately dried and counted. The weight is then used to calculate WL at (25–45 °C) using standard methods; this data was computed using the formula below.36−39

2.3. 1

The diminution in mass of metal absent from and along with the evaluated extract is shown by W and W*, consequently.

2.4. Electrochemical Laboratory Tests

Electrochemical laboratory tests were performed using a traditional platinum, calomel, and C-steel three-electrode cell at an average temperature of 25 °C. In this model, the calomel conductor served as an indicator, the platinum-based electrode functioned as a sort of counter electrode, and the C-steel electrode operated as the actual working electrode. The C-steel wire was submerged at a closed loop to attain a semistable condition. In the present situation, impedance was recorded at multiple points, with attribute Hz from 10–2 to 10–5 Hz, in addition to the presence of intermittent current signals of 5 mV, employing the Gamry Instrumentation category G 750TM -Potentiostat/Galvanostat/ZRA device. To verify the reliability and reproducibility of the measurements of what was executed three times, and all output was gathered.

2.5. Theoretical Calculations

Gaussian 09, Revision A02 was used for the quantum chemical computations.40 Initially, the inhibitors in the examination were analyzed using molecular mechanics optimization of the conformers to determine which one had the lowest energy. The calculations began without any geometry restrictions and were performed for the neutral species of the molecules under investigation until complete geometry optimization was attained in the ground state. For every optimized structure, the calculated vibrational modes showed no imaginary frequency. The density functional theory (DFT) approach was used without symmetry constraints and at the 6-31G(d,p) basis-set level. The Becke three-parameter hybrid B341 with the L–Y–P (Lee–Yang–Parr) correction functional (B3LYP) was used for all geometry calculations using Gaussian 09.42 The solvent effect was more accurately represented by the polarized continuum model (PCM).43 Additionally, using calculation parameters that yield similar results, the DFT scale calculations were performed using the DMol3 module implemented in Materials Studio 7.0 (Accelrys Inc., San Diego, California).44,45 Using a double numeric plus polarization (DNP) basis set and BLYP functional, the gradient-corrected functional method (GGA) was applied.46,47 Through COSMO control, the effect of the solvent (aqueous phase) was incorporated into the DMol3 calculations. Other significant quantum parameters were calculated using the obtained quantum chemical parameters, which included the energies of highest-occupied-molecular-orbital (HOMO) and lowest-unoccupied-molecular-orbital (LUMO).48

2.6. Quantum Monte Carlo (MC) Simulations

The Materials Studio program, version 7.0 (Accelrys Inc., San Diego, California), was used to run MC simulations in a simulation box with periodic boundary conditions. In order to create a 30 Å vacuum slab, the pure Fe crystal was chosen and split along the plane that required the least amount of energy, which was 110. By lowering its energy, the flat Fe surface of (110) was made more flexible, allowing its surface to expand to a supercell (10/10). Utilizing the MC search in a test box with one molecule of each inhibitor and a simulated corrosive species, the simulation analysis was performed by assigning the high-quality force field known as COMPASS to combine inorganic substances and organic characteristics.49

2.7. Surface Characterization

Using a Z-imaging scanning electron microscope (SEM, FEI Inspect S, Oxford) with an X-ray diffractometer and an acceleration beam (25–30) kv. With a vacuum pressure of 60 Pa and spot size (5–6) utilizing a backscattering detector, the C-steel interface was completely screened with respect to its inhibitor- and inhibitor-free variations. Electron beam acceleration for the SEM occurs via 25 kV voltage systems. After going through the electromagnetic lens and apertures, the electron beam becomes narrower. With the aid of scan coils, the beam then scans the metal surface. Following the generation of SEM-type signals from the region of beam and specimen interaction, the C-steel surface was photographed. In the purpose of this research, two C-steel pieces were left submerged for 48 h in sulfamic acid alone (Blank) alongside one in sulfamic acid with 300 ppm of P.cubebaOE blends.36,37

2.8. AFM Technique

The AFM approach works well because it can measure the roughness of a variety of surfaces.50,51 Through the use of AFM, it was possible to gain a clear understanding of the changes in surface shape that occur at a distance of several hundred nanometers because of the development of consumption and the placement of minding successive layers on the metallic substrate when inhibiting agents have been added. The Pico SPM2100 is the AFM device model. An AFM device working in contact mode in the air was used to create images in three and two dimensions at the Nano unit of the College of Engineers at Mansoura University. 5 m × 5 m AFM imagery portions were generated at an average of 2.4 lines per second.

2.9. FTIR Technology Spectra

The spectral data from the P.cubebaOE extract (crude) have been employed with IR affinity (PerkinElmer). They were completed in the university’s school of pharmacy’s core laboratories at Mansoura Univ.

3. Results and Discussion

3.1. Mass Loss Method

The inhibition ratios at temperatures between (25 and 45 °C) were obtained using eq 1. The results showed that the values for the CR and % IE of the (P.cubebaOE) extract were established. The results are presented in Table 2 and Figure 2. The results showed that increasing the amount of (P.cubebaOE) extract increases the inhibition ratios, which were found to decrease as the temperature increased. This happens as a result of the plant extract desorbing from the metal’s surface. 300 ppm was found to be the ideal concentration for the inhibition process, resulting in a maximum inhibition rate of 96%. These results enable us to conclude that this plant extract has a high level of effectiveness in preventing C-steel corrosion in a 1.0 M H2NSO3H solution.

Table 2. Several Measures of Inhibition for 1 M H2NSO3H’s Corrosive Effects on C-Steel at Various Concentrations, Both with and without P.cubebaOE.

C., ppm kcorr, mg cm–2 min–1 % IE
50 0.0203 85.6
100 0.0025 87.7
150 0.0020 89.7
200 0.0016 92.0
250 0.0012 93.8
300 0.00083 96.0
Open in a new tab

Figure 2.

Figure 2

Open in a new tab

Impact of submerged intervals on the amount of mass loss of C-steel in 1 M H2NSO3H containing and not containing varied P.cubebaOE doses at 25 °C.

3.2. Adsorption Isotherm

Thermal isotherms determine that the corrosion process is essentially dependent on the surface coverage Θ, which means that it is a further part of the IE, where Θ = IE/100. One of the most useful tools for quantitatively expresses adsorption that describes the metal/inhibitor/environment system is the adsorption isotherm. The data was analyzed using standard adsorption isotherms such as Langmuir, Freundlich, Temkin, and Flory-Huggin Frumkin. The results of our experiment in this study showed that the Langmuir isotherm fit the data. Plotting C/Θ against C at 25 °C for P.cubebaOE, as indicated by eq 2, with a slope of 1 and an intercept of kads, is illustrated in Figure 3. The straight lines in this plot show that the Langmuir isotherm is followed by P. cubebaOE adsorption on the C-steel surface. After multiple attempts to adopt a relationship between the greatest concentration of the inhibitor at a given temperature and the degree of surface coverage, the Langmuir adsorption isotherm was shown to be the best curve to characterize the inhibitory performance. The equation52,53 below summarizes the idea that, in the case of the plant extract, the metallic surface contains a specific number of adsorption cores and that each center contains a specific type of adsorbent.

3.2. 2

The net energy ΔG°ads was derived using the formula after the adsorption factor Kads’ quantity had been established.

3.2. 3

The level of concentration of water on the metal surface is 55.5 in mol/L. The distributions of ΔGadso as a reflection of temperature are shown in Table 3 at an average temperature around 298 and 318 K. As a direct consequence of the findings, we derived an association between ΔGadso and T, which means that ΔGadso is strongly influenced by temperature. This formula54 can be used to compute the entropy (ΔSads) and enthalpy of Adsorption capacities (ΔHads)

3.2. 4

The negative ΔGadso values increased with the increase of % IE values, which confirm the stability of the adsorbent layer physical adsorption, can indicate the extract’s spontaneous sorption on the outer layer that covers C-steel. We discover that as ΔGadso increases, the values of the inhibition ratios rise as well, and as ΔHads has a sign that is negative, we infer that the adsorption of the extract on the surface of the C-steel is an exothermic operation, meaning that % IE decreases as temperature rises. On the other hand, the rise in solvent entropy when disorder develops at the metal/solution interface is what is responsible for the positive value of ΔSadso. This is a result of P.CubebaOE molecules dislodging H2O molecules from the metal surface in the test medium.

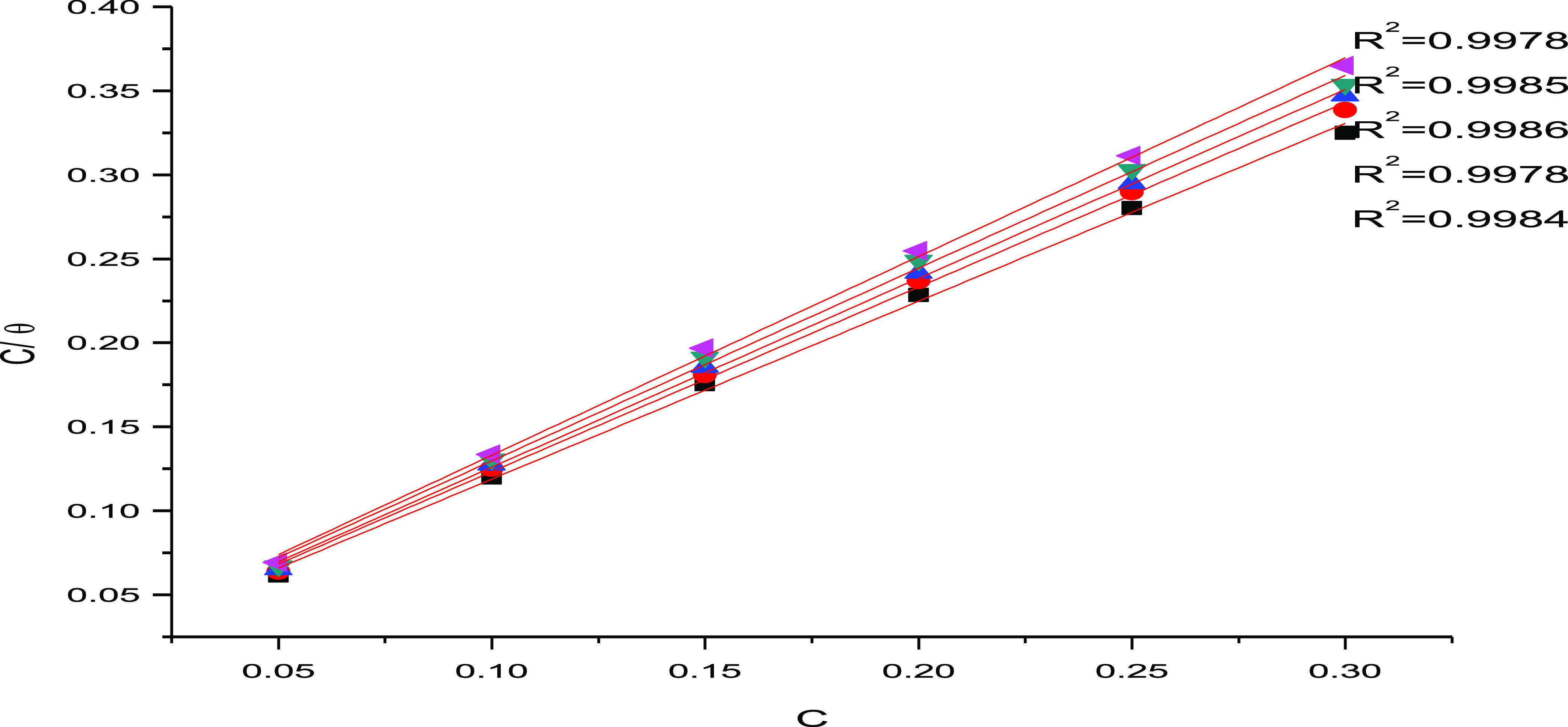

Figure 3.

Figure 3

Open in a new tab

Langmuir pattern produced by P.cubebaOE for rusting of C-steel in 1 M H2NSO3H solution at 25 °C as C/vs C, M.

Table 3. Data of P.cubebaOE Adsorption at Multiple Temperatures on a C-Steel Outer Layer in 1 M H2NSO3H.

temperature, °C Kads × 10–3 M–1 –ΔG°ads kJ mol–1 ΔH°ads kJ mol–1 ΔS°ads J mol–1 K–1
25 2.02 15.32 118.60 44.2
30 1.96 15.60 48.90
35 1.93 21.00 65.05
40 0.98 21.14 68.62
45 0.940 21.50 68.79
Open in a new tab

3.3. Potentiodynamic Polarization (PDP) Tests

Figure 4 displays the PDP bends of C-steel in 1 M H2NSO3H attendance and the absence of changed doses of P.cubebaOE. Table 4 lists the electrochemical properties, such as current density (icorr), corrosion potential (Ecorr), and anodic (βa) and cathodic (βc) slopes, that were derived by Tafel extrapolation at the corrosion potential. It has been noted that icorr diminishes as the inhibitor concentration is increased. IE % and (θ) were calculated using the polarization curves (eqs 5 and 6)

3.3. 5
3.3. 6

where the current corrosion densities of chemicals are represented by the variables icorro and icorr, respectively. The polarization resistance (Rp) of the test specimens in the 1 M H2NSO3H solution was calculated using the Stern–Geary eq 7 below, taking into account the presence or absence of P.cubebaOE inhibitor.27

3.3. 7

Figure 4.

Figure 4

Open in a new tab

Illuminates the potentiodynamic polarization diagrams for C-steel dissolving in 1 M H2NSO3H in both the existence and nonexistence of a variety of P.cubebaOE at 25 °C.

Table 4. Illustrates the Corrosive Potential (Ecorr), Corrosive Density of Current (icorr), the Tafel Slopes (a, c), Degree of Surface Coverage (θ), and the Inhibition Effectiveness (% IE) of C-Steel for P.cubebaOE in 1 M H2NSO3H at 25 °C.

inhibitor C., ppm –Ecorr mV vs SCE Icorr × 10–4 μA cm–2 βa, mV dec–1 –βc, mV dec–1 % IE
blank 0 867 301.0 366 390.0 0.0
P.cubebaOE 50 847 173.0 319 281 42.5
100 852 149.0 277 250 50.4
150 742 69.7 340 130 76.8
200 938 47.8 82 93 84.1
250 854 39.7 157 59 86.8
300 552 25.8 64 57 91.4
Open in a new tab

At 25 °C, the highest inhibition effectiveness of 91.4% was obtained with additions of 300 ppm of the examined corrosion inhibitors, P.cubebaOE. It is evident that the effectiveness of inhibition steadily improves as the inhibitor dose increases. As the dosage of the corrosion inhibitor is increased, icorr significantly drops and reaches a minimum of 25.8 μA cm–2. These results validate the examined extract’s excellent inhibition and film-forming capacity.27 The addition of P.cubebaOE to the 1 M H2NSO3H solution does not change the hydrogen evolution mechanism or the reduction of H+ ions at the C-steel surface, which mostly occurs through a charge-transfer mechanism,55−57 based on the parallel cathodic Tafel lines. Depending on whether the inhibitor causes a shift in corrosion-free potential Ecorr that is larger than 85 mV of SCE in either direction after being added, the inhibitor can be classified as either cathodic or anodic. If not, it is believed that the inhibitor affects both processes. After the addition of the corrosion inhibitor, the overall change in Ecorr in this experiment was determined to be minimal or less than 85 mV. Since the inhibitor suppresses both the anodic and cathodic processes,58 this proves that it is a mixed-type inhibitor. The anodic reaction is predominant, although the inhibitor is a mixed inhibitor, as indicated by the positive Ecorr displacement. The inhibitory characteristics of the inhibitors under study at the highest doses are indicated by the % IE values shown in Table 4. The outcomes of the MR and EIS measurements agree well with these findings.

3.4. Electrochemical Impedance Spectroscopy (EIS) Tests

EIS studies provide details about the kinetics of the electrode processes and the surface properties of the systems being studied. Information can be obtained from the shape of the impedance diagram.59 After immersing the steel for 30 min at 25 °C in a 1 M H2NSO3H solution with and without varying inhibitor concentrations, the corrosion efficiency of the steel was evaluated using the EIS method. attempting to take into consideration for all of the processes involved in the electrical response of the system, Figure 5 shows an equivalent circuit that is a parallel combination of the charge-transfer resistance (Rct) and the constant phase element (CPE), both in series with the solution resistance (Rs). The CPE element offers an explanation for the depression of the capacitance semicircle, which is attributed to surface heterogeneity caused by impurities, dislocations, grain boundaries, inhibitor adsorption, and the formation of porous layers.60 The impedance of the CPE is represented by the following equation

3.4. 8

where, n (−1 < n < 1) is the deviation index, ω is the angular frequency, and Yo is the CPE constant. The non-uniform distribution of current due to oxide surface flaws and roughness appears to be linked to the “n” values. While real capacitive behavior is extremely uncommon, CPE is the ideal capacitor for n = 1. “n” values close to 1 indicate the deviation from the ideal capacitor (Table 5). A constant phase element (CPE) was utilized for data fitting rather than an ideal capacitor; the capacitance was calculated using the value obtained from the data fitting because the “n” values obtained were within the range of 0.9. The fit quality to the analogous circuit was assessed using the chi-square value.61 The obtained chi-square values (0.0000135–0.000201) from Table 5 show that the suggested circuit fits the data well. Figure 6a,b shows the Nyquist and Bode graphs of the systems under study, respectively. In 1 M H2NSO3H solution, for the P.cubebaOE under examination, it is clear from Figure 6 that the C-steel displayed typical impedance behavior. The frequency dispersion caused the Nyquist graph of C-steel metal in 1 M H2NSO3H solution to stray from the perfect circular shape.61 The capacitive loop diameter noticeably increases upon the addition of the P.cubebaOE extract to the 1 M H2NSO3H solution. The inhibitor either adsorbs on the surface of Fe or thin films begin to form there as the concentration increases. This protective layer lowers the active surface area of Fe and enhances its corrosion resistance behavior, thereby significantly slowing down the corrosion of C-steel in a 1 M H2NSO3H solution. It is noteworthy that the profile of the impedance behavior remained unchanged when the concentration of the inhibitors under investigation was changed, indicating a similar mechanism for these inhibitors’ corrosion inhibition of C-steel. According to this, in the absence of inhibitors, the Nyquist plot for C-steel metal shows a slightly depressed semicircular pattern, suggesting that the charge-transfer mechanism is primarily responsible for controlling C-steel metal corrosion in the 1 M H2NSO3H solution.62 In Figure 6b, two temporal constants are displayed. The first one first appears in the middle-frequency range and is related to the capacitive loop of the oxide layer on the C-steel surface. The second time constant that appeared in the low-frequency region is caused by the inductive loop that results from the relaxation process of the adsorbed inhibitor molecules on the surface of C-steel or the redissolution of the Fe + 2 oxide layer surface.63 The semicircle’s diameter grew as the studied inhibitors were added to the solution, delaying the corrosion of the C-steel by raising Rp, the polarization resistance, and lowering CPE values. Therefore, lower CPE values and higher Rp values were linked to the examined extract’s effectiveness. As the concentration of the inhibitor increased, this increase became more noticeable, indicating that the inhibitors had adhered to the surface of the C-steel specimen. Bode graphs show the same patterns of activity. The capacitance loop was identified as the characteristic with a single time constant from the Bode plots. These findings imply that when P.cubebaOE is present, C-steel resists corrosion more effectively. Charge-transfer resistance (Rct), double-layer capacitance (Cdl), Y° (CPE), n, quality of fit (χ2), and percentage ηEIS are among the impedance metrics that are listed in Table 5. Double-layer capacitors with some holes are represented by the CPE and their n values.64 A decrease in the local dielectric constant and/or an increase in the double layer’s thickness caused the Y° (CPE) values to decrease as the concentration of inhibitors increased. This indicated that the inhibitor molecules prevented the corrosion of C-steel by adsorbing at the Fe/H2NSO3H interface. The fact that the Rct values increased as the inhibitor concentration increased and remained higher than when it was absent suggests that these additives are adsorbed on the C-steel surface and form a protective layer. This layer acts as a barrier to the transfer of charge and mass.65 As the inhibitor concentration increased as the additive concentration was raised, the Cdl values dropped.66

Figure 5.

Figure 5

Open in a new tab

Modeling a similar circuit to match a laboratory EIS.

Table 5. P.cubebaOE Doses with and without Respect to the Kinetics of the C-Steel Electrochemistry in H2NSO3H.

inhibitor C., ppm Yo, μΩ–1 sncm–2 Rct, Ω cm2 Cdl × 10–4, μF cm–2 θ % IE X2 × 10–3
blank 0 102 110.5 9.77 0.0 0.0 13.5
P.cubebaOE 50 81 339.7 8.03 0.674 67.4 20.1
100 79 498.5 3.91 0.778 77.8 17.2
150 71 544.5 3.62 0.797 79.7 15.6
200 61 1219 0.231 0.909 90.9 15.8
250 40 1397 0.129 0.921 92.1 16.9
300 35 1492 0.112 0.926 92.6 14.9
Open in a new tab

Figure 6.

Figure 6

Open in a new tab

Panels (a, b) show the Nyquist and Bode plots for the corrosion of C-steel in 1 M H2NSO3H in both the absence and the existence of multiple amounts of P.cubebaOE at 25 °C.

The following equation was used to determine the Cdl value67

3.4. 9

Using the following equation

3.4. 10

The corrosion percentage η was calculated, where Rct* is the charge-transfer resistance without the inhibitor and Rct is the charge-transfer resistance with the inhibitor. η% rises as a result of additions creating an adsorbed layer on the C-steel surface. This layer thickens with an increase in additive concentration.68 Furthermore, the inhibitory efficiency obtained from the EIS study was comparable to those of the WL and PDP tests.

3.5. Molecular Modeling

3.5.1. HOMO–LUMO Molecule Orbital

The LUMO and HOMO density profiles of the studied chemicals in the aqueous phase are shown in Figure 7. It demonstrates that green has a low electron density, whereas red has a high electron density. In situations where there is a high electron density, the metal surface can donate electrons. In the green area, electrons are attracted to the metal surface. The distribution of these two locations plays an important role as resonance is mainly caused by the bonds between the oxygen and nitrogen atoms on the benzene ring. The center of the LUMO in the meanwhile is made up of carbon atoms. E values that are lower may be an indication of improved inhibitory efficiency. The E value can be used to assess how reactive the inhibitor molecule is to the metal atom. Reduced E values could be a sign of more effective inhibition. The inhibitor molecule’s reactivity with the metal atom can be evaluated using the E value. The most stable is – (−) catechin (E = 2.79), according to the DFT simulations (Figure 8).

Figure 7.

Figure 7

Open in a new tab

HOMO and LUMO molecular orbitals of major ingredients of P.cubebaOE.

Figure 8.

Figure 8

Open in a new tab

ESP Pictures of P.cubebaOE.

3.5.2. 2D Maps of Electrostatic Potential

The distribution of electrons and, subsequently, where they are concentrated within each molecule can be seen by using ESP maps. According to the electron density contour maps, oxygen atoms on the examined molecule inhibitor appear to be favorable interaction locations, which is consistent with the different functions of oxygen and the other atoms. A dark red outline surrounds the contact regions that offer the bonding contacts between the inhibitor and metal surfaces. ESP maps can be used to observe the distribution of electrons and, consequently, where they are concentrated within each molecule.

3.5.3. Monte Carlo (MC) Simulation

MC simulation is a perfect simulation method to find the most stable adsorption conformations in 1 M H2NSO3H of P. cubebaOE. Table 6 contains a list of the simulation results for the examined extract, which are displayed in Figure 9. The ideal arrangement of the adsorbed molecules on Fe (110)’s metal surface is seen in Figure 9. The inhibitory molecules, which are abundant in electrons, cause the molecules listed to be adsorbed on the metal’s surface from the motive. Table 6 compiles the values of the inhibitors’ energetic ratios (dEads/ENi), rigid energy (Erigid), deformation energy (Edef), and adsorption energy (Eads). These values indicate the established interactions between the occupied orbitals of the studied derivatives and the unoccupied orbitals of Fe(110). These inhibitory structures act as active voltages according to the research. When two materials are combined during the adsorption process, which involves the bonding of an electron, ion, or molecule (adsorbent) to the solid surface, adsorption energy is defined as decreasing energy.69 These derivatives prevent corrosion on the C-steel.

Table 6. P.cubebaOE Compound Adsorption Characteristics from Monte Carlo Simulation on Fe(110) Surface.
structure total energy adsorption energy rigid adsorption energy deformation energy Eads: compound
Fe(110) -1 rutin –2524.269 –2567.303 –2676.787 109.48362879 –106.09305624
Fe(110) -1 caffeic acid –2602.874 –25194.88 –26403.60 120.87228885 –125.23564903
Fe(110)-1 ferulic acid –2646.979 –2582.141 –2702.923 120.78118244 –135.73621684
Fe(110)-1 gallic acid –2563.120 –2538.716 –2661.619 122.90336020 –117.54093563
Fe(110) -1-(−) catechin –2568.665 –2540.818 –2664.544 123.72645644 –44.24846043
Fe(110)-1 syringic acid –2514.338e –2523.172 –2643.922 120.75000213 –94.10524621
Open in a new tab
Figure 9.

Figure 9

Open in a new tab

Adsorption of P.cubebaOE compounds on the Fe surface.

3.6. SEM Examination

SEM research has verified the P.cubebaOE layer’s adsorption on the surface of C-steel. Figure 10a–c depicts SEM images of the C-steel’s surface before and after 48 h of immersion in 1 M H2NSO3H with a dosage of 300 ppm of P.cubebaOE. Without having P.cubebaOE, H2NSO3H corrosion has clearly harmed the C-steel surface, but the metallic edge is still discernible (Figure 10b). The metal surface, in variance with the material under assessment, appears not to rust (Figure 10c). It was found that the extract created a slight film on the C-steel’s outside that restricted corrosion.70

Figure 10.

Figure 10

Open in a new tab

SEM image of pure C-steel in 1.0 M H2NSO3H solution (a), without P.CubebaOE at the optimal concentration (b), and with P.CubebaOE present (c).

3.7. Atomic Force Microscopy (AFM)

The 3D picture of the C-steel indicates that, in the absence of the P.CubebaOE inhibitor under investigation, the metal surface of the steel has allegedly been repeatedly corroded by the corrosive attacks of 1 M sulfamic acid (Figure 11b). However, the 3D images (Figure 11c) indicate that the aggressive solution has smoother surfaces than the blank, indicating that the addition of an inhibitor reduces C-steel corrosion. The average RMS roughness (Sq) and mean roughness (Sa) of the films produced on the C-steel surface by using the Gwyddion modular program are displayed in Table 7. The data in Table 7 indicate that the compound is effective in protecting the surface of C-steel from corrosive media because the RMS roughness and mean roughness of the blank are higher than those of the inhibitor under study and pure metal. The sequence of inhibitory efficacy found by weight loss research and electrochemical tests is supported by additional data from the AFM.

Figure 11.

Figure 11

Open in a new tab

AFM image of pure C-steel (a) and steel that has been submerged in 1.0 M H2NSO3H solutions without P.CubebaOE (b) and with it (c), respectively.

Table 7. AFM Parameters of P.CubebaOE Compounds.

sample RMS roughness (Sq), nm mean roughness (Sa), nm
a 21.67 16.74
b 1254.8 995.72
c 289.82 183.60
Open in a new tab

3.8. Fourier Transform Infrared Spectroscopy (FTIR) Studies

Figure 12 confirms that “the –C=O stretching frequency occurs at 1640 cm–1, with the acute one at 1608 cm–1 referring to –C=C stretching, the O–H stretching has changed from 3225 to 3365 cm–1, and the –C=C stretching frequency shifts from 1647 to 1640 cm–1 in the film generated on the C-steel submerged in sulfamic acid. The alterations in the IR spectra hint that the bonding of P.cubebaOE with C-steel was accomplished through groups of functions that had already existed in it.

Figure 12.

Figure 12

Open in a new tab

FTIR spectra of P.cubebaOE.

3.9. Mechanism of the Corrosion Inhibitors Interaction

The results of the electrochemical experiment show that the P.cubebaOE inhibitor performs exceptionally well at inhibiting corrosion with an efficiency of up to 96.0%. The Langmuir isotherm adsorption model is determined through calculation to be appropriate for this system. The estimated value of ΔG°ads is 20.0 kJ/mol. By using the adsorption technique, P.cubebaOE has demonstrated a protective effect against the corrosion of C-steel in 1 M sulfamic acid solution. The interaction of donor and acceptor molecules between the P.cubebaOE electrons and vacant d orbitals on the C-steel surface or the interaction of heteroatoms in the inhibitor with the unoccupied d-orbital of the C-steel surface could have defined the mechanism of corrosion inhibition. Adsorption can be broadly classified into three types: chemisorption, physisorption, and retirodonation. Reterodonation is the interaction of pi electrons from unsaturated carbon vacant d orbitals of the steel surface with heteroatoms present in the inhibitor and the unoccupied d-orbital of the surface from Fe2+. Numerous scientists have looked into the ability of various plant extracts to prevent corrosion under acidic conditions at varying concentrations. According to these investigations, plant extracts with higher quantities demonstrated good corrosion inhibition qualities when used as inhibitors in mildly acidic environments. We examined P.cubebaOE anticorrosive qualities in a 1 M sulfamic acid solution in this investigation. Additionally, we employ plant waste, which is a cost-effective and environmentally responsible choice. A comparison between our studied plant and several of the published plant-based inhibitors is provided in Table 8.

Table 8. Comparison of P.CubebaOE with Some Other Studied (% IE Is Reported at the Maximum) Extracts.

source of extract test medium metal/alloy % IE references
olive leaf extract H2NSO3H C-steel 89.6 (71)
Citrus sinensis extract H2SO4 C-steel 83.6 (72)
aqueous extract of juniperus H2NSO3H C-steel 72.6 (73)
tragia involucrata HCl C-steel 88.0 (74)
myrtus communis extract H2NSO3H C-steel >85.0 (75)
P. cubeba official extract H2NSO3H C-steel 96.0 our results
Open in a new tab

4. Conclusions

The official extract of piper cubeba was utilized in this study to prevent corrosion in the C-steel while it was submerged in an acidic electrolyte (1 M sulfamic acid). By using computational approaches, EIS and polarization techniques, and gravimetrical calculations, we assessed the corrosion inhibition properties of P.cubebaOE were assessed. According to the results of the electrochemical test, P.cubebaOE inhibition efficiency increased dramatically with the addition of more inhibitor concentrations, reaching a maximum value of 96.0% in the presence of 300 ppm after the working electrode was submerged in the H2NSO3H solution for two hours with a mixed-type inhibition behavior. The working electrode surface was shielded from corrosive attacks by a protective coating that was created by the adsorption of P.cubebaOE based compounds on the immersed electrode surface, as shown by the results of the SEM and AFM experiments.

Acknowledgments

The researchers would like to acknowledge the Deanship of Scientific Research, Taif University, for funding this work.

Data Availability Statement

The authors confirm that the data supporting this study are available.

Author Contributions

M.S.A.-S. contributed to conceptualization, methodology, project administration, and funding acquisition. A.M.S. contributed to software, validation, and formal analysis; writing, editing and data analysis; and supervision. All authors have read and agreed to the published version of the manuscript.

The researchers would like to acknowledge the Deanship of Scientific Research, Taif University for funding this work

The authors declare no competing financial interest.
