An Atlas of Brain–Bone Sympathetic Neural Circuits

Abstract

There is clear evidence that the sympathetic nervous system (SNS) mediates bone metabolism. Histological studies show abundant SNS innervation of the periosteum and bone marrow––these nerves consist of noradrenergic fibers that immunostain for tyrosine hydroxylase, dopamine beta hydroxylase, or neuropeptide Y. Nonetheless, the brain sites that send efferent SNS outflow to bone have not yet been characterized. Using pseudorabies (PRV) viral transneuronal tracing, we report, for the first time, the identification of central SNS outflow sites that innervate bone. We find that the central SNS outflow to bone originates from 87 brain nuclei, sub–nuclei and regions of six brain divisions, namely the midbrain and pons, hypothalamus, hindbrain medulla, forebrain, cerebral cortex, and thalamus. We also find that certain sites, such as the raphe magnus (RMg) of the medulla and periaqueductal gray (PAG) of the midbrain, display greater degrees of PRV152 infection, suggesting that there is considerable site–specific variation in the levels of central SNS outflow to bone. This comprehensive compendium illustrating the central coding and control of SNS efferent signals to bone should allow for a greater understanding of the neural regulation of bone metabolism, and importantly and of clinical relevance, mechanisms for central bone pain.

INTRODUCTION

Elegant studies have suggested that increased sympathetic nervous system (SNS) tone causes bone loss through a reduction in bone formation, which is coupled with increased bone resorption (Elefteriou, 2018; Elefteriou et al, 2005; Takeda et al, 2002). It has also been shown using leptin–deficient mice with a high bone mass that the anti–osteogenic actions of leptin are mediated centrally by glucose–responsive neurons in the ventromedial hypothalamus through peripheral SNS pathways (Ducy et al, 2000; Takeda et al., 2002). Furthermore, both the periosteum and the bone marrow are innervated richly by the SNS as evidenced by immunoreactive tyrosine hydroxylase, dopamine beta hydroxylase, or neuropeptide Y fibers. These latter SNS markers are associated mostly with the vasculature and SNS vesicular acetylcholine transporter (VAChT), whereas vasoactive intestinal polypeptide (VIP) immunoreactive fibers display mainly a parenchymal location (Francis et al, 1997; Hill & Elde, 1991; Hohmann et al, 1986; Martin et al, 2007). Despite these studies, the distribution of SNS nerves within the mammalian skeleton and their connectivity to central neurons is far from being completely understood.

Viral transneuronal tracing has become an established technology to define central SNS outflow circuitry to peripheral organs. Bartha’s K strain of the pseudorabies virus (PRV) is a transneuronal tract tracer that provides the ability to map multi–synaptic circuits within the same animal (Ekstrand et al, 2008; Enquist, 2002; Song et al, 2005a). Once in the host, PRVs are endocytosed at axon terminal membranes after binding to viral attachment proteins, which act as ‘viral receptors’. Transported exclusively in a retrograde manner from the dendrites of the infected neurons to axons, PRVs first make synaptic contact with neuronal cell bodies and undergo self–amplification and thereafter continue their specific backward ascent (Curanovic & Enquist, 2009). This results in an infection that progresses along the neuroaxis chain from the periphery to higher CNS sites (Ekstrand et al., 2008; Enquist, 2002; Song et al., 2005a).

Utilizing this viral technology, we have previously shown postganglionic SNS innervation of specific white and brown adipose tissue depots with the separate and shared central SNS relay sites (Ryu & Bartness, 2014; Ryu et al, 2015). Moreover, we have established a direct neuroanatomical connection between phosphodiesterase 5A (PDE5A)–containing neurons in specific brain nuclei and bone, inferring a contribution of the central nodes to the bone–forming actions of PDE5A inhibitors (Kim et al, 2020). A hierarchical circuit controlling SNS output to rat femoral epiphyseal bone marrow has also been defined by identifying PRVs in ganglia and paravertebral chain in the intermediolateral column of the lower thoracic spinal cord (Denes et al, 2005). In addition, neurons in C1, A5, A7 catecholaminergic cell groups and several other nuclei of the ventrolateral and ventromedial medulla, periaqueductal gray, the paraventricular hypothalamic nucleus, among other hypothalamic nuclei, as well as the insular and piriform cortex comprise the known central network sending SNS outflow to bone marrow (Denes et al., 2005). However, no studies have yet mapped the exact localization and organization of the central SNS circuitry innervating the murine femur. The purpose of the present study was thus to identify central SNS sites innervating bone and to investigate whether separate or/and shared central SNS circuitries underpin the autonomic mediation of bone.

METHODS

Mice

Adult male mice (~3 to 4–month–old) were single–housed in a 12 h:12 h light:dark cycle at 22 ± 2 °C with ad libitum access to water and regular chow. All procedures were approved by the Mount Sinai Institutional Animal Care and Use Committee and were performed in accordance with Public Health Service and United States Department of Agriculture guidelines.

Viral injections

To identify brain sites sending the SNS outflow to bone, we used a transsynaptic tracing technique with a pseudorabies virus strain, PRV152. PRV152 expresses enhanced green fluorescent protein (EGFP) under control of the human cytomegalovirus immediate–early promoter. When injected into peripheral tissues, the virus travels exclusively in a retrograde manner and localizes to central neurons, thus allowing the mapping of the entire periphery–brain neuroaxis.

All virus injections were performed according to Biosafety Level 2 standards. Mice (N=6) were anesthetized with isoflurane (2–3% in oxygen; Baxter Healthcare, Deerfield, IL) and the right femur–tibia joint was exposed for a series of PRV152 microinjections (4.7 × 10⁹ pfu/mL) into five loci (150 nL/locus) evenly distributed across the bone metaphysis and periosteum areas, which are known to be enriched with SNS innervation. The syringe was held in place for 60 seconds to prevent efflux of virus after each injection. Finally, the incision was closed with sterile sutures and wound clips. Nitrofurozone powder (nfz Puffer; Hess & Clark, Lexington, KY) was applied locally to minimize the risk of bacterial infection. Note that, as a control for viral injection, we showed that no EGFP signal was detected when PRV152 was placed on the bone surface rather than injected into the periosteum or metaphyseal bone. In addition, we found PRV152–infected neurons in the intermediolateral cell column (IML) of the spinal cords, suggesting specific bone–SNS ganglia–IML–brain route of infection, which is in concordance with our previous findings where PRV152 individually infected the classic SNS spinal cord neurons (Bamshad et al, 1999; Ryu & Bartness, 2014; Ryu et al., 2015).

Histology

Animals were sacrificed 6 days after the last PRV152 injection based on the progression of both viruses to the brain in pilot studies (Ryu, V., unpublished observations). Mice were euthanized with carbon dioxide and perfused transcardially with 0.9% heparinized saline followed by 4% paraformaldehyde in 0.1 M phosphate–buffered saline (PBS; pH 7.4). Brains were collected and post–fixed in the same fixative for 3 to 4 hours at 4 °C, then transferred to a 30% sucrose solution in 0.1 M PBS with 0.1 % sodium azide and stored at 4 °C until sectioning on a freezing stage sliding microtome at 25 μm. Sections were stored in 0.1 M PBS solution with 0.1% sodium azide until processing for immunofluorescence.

For immunofluorescence, free–floating brain sections were rinsed in 0.1 M PBS (2 × 15 minutes) followed by a 30-minute blocking in 10% normal goat serum (NGS; Vector Laboratories, Burlingame, CA) and 0.4% Triton X-100 in 0.1 M PBS. Next, sections were incubated with a primary chicken anti–EGFP antibody (1:1000; Thermo Fisher Scientific, catalog no. A10262) for 18 hours. Sections were then incubated in the secondary AlexaFluor-488-coupled goat anti–chicken antibody (1:700; Jackson Immunoresearch, catalog no. 103–545-155) with 2% NGS and 0.4% Triton X-100 in 0.1 M PBS at room temperature for 2 hours. For immunofluorescence controls, the primary antibody was either omitted or pre–adsorbed with the immunizing peptide overnight at 4 °C resulting in no immunoreactive staining. Sections were mounted onto slides (Superfrost Plus) and cover–slipped using ProLong Gold Antifade Reagent (Thermo Fisher Scientific, catalog no. P36982). All steps were performed at room temperature.

Quantitation

Immunofluorescence images were viewed and captured using x10 and x20 magnification with an Observer.Z1 fluorescence microscope (Carl Zeiss, Germany) with appropriate filters for AlexaFluor-488 and DAPI. The single–labeled PRV152 and DAPI images were evaluated and overlaid using Zen software (Carl Zeiss, Germany) and ImageJ (NIH, Bethesda, MD). We counted cells positive for SNS PRV152 immunoreactivity in every sixth brain section using the manual tag feature of the Adobe Photoshop CS5.1 software, thus eliminating the likelihood of counting the same neurons more than once. Neuron numbers in the brain were averaged across each examined nucleus/sub–nucleus/region from all animals. A mouse brain atlas (Paxinos and Franklin, 2007) was used to identify brain areas. For the photomicrographs, we used Adobe Photoshop CS5.1 (Adobe Systems) only to adjust the brightness, contrast and sharpness, to remove artifactual obstacles (i.e., obscuring bubbles) and to make the composite plates.

RESULTS

Validation

Following PRV152 infections, mice remained asymptomatic until day 5 post–inoculation, after which time, mice began to display symptoms of infection, including occasional loss of body weight and decreased mobility, but most often an ungroomed coat. Mice were euthanized for histological analyses when such symptoms became apparent. Four of six mice were equally infected by PRV152 throughout the neuroaxis from the hindbrain to the forebrain and therefore were included in the analyses. Two mice exhibited over–infection by PRV152, as evidenced by widespread cloudy plaques surrounding the infected neurons; these mice were excluded from the analysis. We also found PRV152–labeled neurons in the IML of the spinal cord in accordance with our previous studies that defined SNS innervations of fat pads in the Siberian hamster (Ryu & Bartness, 2014; Ryu et al., 2015; Ryu et al, 2017).

Unilateral PRV152 microinjection into the right femur appeared bilaterally in the brain with almost no noticeable domination of the viral infection between the two hemispheres. Likewise, prior studies on SNS and sensory innervations of various fat depots, utilizing the SNS tract tracer PRV152 and sensory system tract tracer HSV-1 produced no ipsilateral differences between the innervation patterns of SNS or sensory system with unilateral viral inoculation (Bamshad et al., 1999; Leitner & Bartness, 2009; Song et al, 2008; Vaughan & Bartness, 2012).

To validate the retrograde tract tracing methodology, we placed PRV152 at the same titer on the bone surface, rather than injecting it into the periosteum or metaphysis. No EGFP signal was detected in the PVH that is known to possess sympathetic pre–autonomic neurons or in the RPa (Fig. 1A). By contrast, PRV152 injections into the periosteum or metaphysis resulted in positive EGFP immunostaining in the PVH (Fig. 1B). In addition, we found PRV152–infected neurons in the IML of the spinal cord, at T13–L2 levels (Fig. 1B), suggesting specific bone–SNS ganglia–IML–brain route of infection; this is consistent with prior findings wherein PRV152 individually infected the classic SNS spinal cord neurons (Bamshad et al., 1999; Ryu & Bartness, 2014; Ryu et al., 2015).

Figure 1: PRV152 transneuronal viral tract tracing.

As a control for viral injection, no EGFP signal was detected in the PVH, known to possess main sympathetic pre-autonomic neurons, and the RPa, when PRV152 was placed on the bone surface. By contrast, PRV152 injections into the periosteum or metaphyseal bone resulted in positive EGFP immunoreactivity in the PVH. In addition, we found PRV152–infected neurons in the intermediolateral cell column (IML) of the spinal cord at T13–L2 levels, suggesting specific bone–SNS ganglia–IML–brain route of infection which are in concordance with our previous findings where PRV152 individually infected the classic SNS spinal cord neurons. Also shown are representative microphotograph illustrating PRV152 immunolabeling in the PAG (midbrain and pons), RPa (medulla), LH (hypothalamus), MPOM (forebrain), S1HL (cerebral cortex), and pv (thalamus). PVH, paraventricular hypothalamic nucleus; PAG, periaqueductal gray; RPa, raphe pallidus; LH, lateral hypothalamus; MPOM, medial preoptic nucleus, medial part; S1HL, primary somatosensory cortex, hindlimb region; pv, periventricular fiber system. Scale bar = 50 μm.

Viral Infections in The Brain

We identified 87 PRV152–positive brain nuclei, sub–nuclei and regions within six brain divisions, with the hypothalamus having the most PRV152–infected SNS neurons connecting to bone (1177.25 ± 62.75), followed, in descending order, by midbrain and pons (1065 ± 22.39), hindbrain medulla (495.25 ± 33.49), forebrain (237.5 ± 15.08), cerebral cortex (104.75 ± 4.64) and thalamus (65.25 ± 7.78) (Fig. 2). Hypothalamic areas with the highest percentages of PRV152–labeled neurons included the lateral hypothalamus (LH), PVH and dorsomedial hypothalamus (DM) (Fig. 1B and Fig. 2; see Appendix for a glossary of brain nuclei, sub-nuclei and regions). The LH and PVH also were among the regions with the highest absolute numbers of infected neurons of the 25 PRV152–positive nuclei, sub–nuclei, and regions. In the midbrain and pons, areas with the highest percentages and counts of PRV152–infected neurons included the PAG, lateral PAG (LPAG) and pontine reticular nucleus, oral part (PnO), among 18 nuclei, sub–nuclei, and regions. Single–labeled neurons were also notable in the hindbrain medulla, where the raphe pallidus nucleus (RPa), RMg, and gigantocellular reticular nucleus (Gi) were among 23 nuclei, sub–nuclei and regions, heavily represented by the largest percentages and counts of PRV152–labeled neurons. The forebrain areas with the highest percentages and numbers of PRV152–labeled neurons were the medial preoptic nucleus, medial part (MPOM), bed nucleus of the stria terminalis (BST) and lateral septal nucleus, ventral part (LSV) among 15 PRV152–positive nuclei, sub–nuclei, and regions. In the cerebral cortex, there were only 3 regions containing PRV152–labeled neurons––namely, the primary somatosensory cortex, hindlimb region (S1HL), secondary and primary motor cortex (M2 and M1, respectively). The S1HL and M2 had both the highest percentages and numbers of PRV152–labeled neurons. Finally, we detected 3 brain sites with PRV152–infected neurons within the thalamus. Among the nuclei possessing the highest percentages and numbers of PRV152–labeled neurons were the periventricular fiber system (pv) and precommisural nucleus (PrC).

Figure 2: PRV152 immunolabeling in brain regions, sub-regions and nuclei.

Numbers of PRV152–labeled neurons in brain regions, namely, hypothalamus, midbrain and pons, medulla, forebrain, cerebral cortex and thalamus, as well as their sub-regions and nuclei, following viral injections into bone.

DISCUSSION

Using transneuronal tract tracers, we (Ryu & Bartness, 2014; Ryu et al., 2015; Ryu et al., 2017) and others (Bamshad et al, 1998; Bowers et al, 2004; Shi & Bartness, 2001; Song & Bartness, 2001) have documented postganglionic SNS innervation of white and brown adipose tissue depots with the separate and shared central SNS nodes. Moreover, we have recently established a direct neuroanatomical link between PDE5A–containing neurons in specific brain sites and bone (Kim et al., 2020). We report here, for the first time, a comprehensive atlas that defines with remarkable precision the crosstalk between the SNS and bone. Notably, the PRV152 neural tract tracer especially predominate in the PAG of the midbrain, LH of the hypothalamus, RPa of the medulla, MPOM of the forebrain, S1HL of the cortex and pv of the thalamus. Collectively, these data provide important insights into the distributed neural system integrating SNS neural circuitry with bone.

Neuroanatomical and functional evidence in mice suggests that the SNS regulates bone remodeling and bone mass (Ducy et al., 2000; Francis et al., 1997; Hill & Elde, 1991; Hohmann et al., 1986; Martin et al., 2007; Takeda et al., 2002). Furthermore, it is clear that leptin acts as an anti–osteogenesis signal through glucose responsive neurons in the VMH via peripheral SNS relay (Takeda et al., 2002). These data are consistent with histological evidence, using SNS markers in noradrenergic fibers, for a rich innervation of the periosteum and of bone marrow (Francis et al., 1997; Hill & Elde, 1991; Hohmann et al., 1986; Martin et al., 2007). Likewise, dopamine–transporter–deficient mice with no rapid uptake of dopamine into presynaptic terminals are osteopenic (Bliziotes et al, 2000). Multisynaptic tract tracing has identified limited hierarchical central circuitry controlling SNS innervation of rat femoral epiphyseal bone marrow and bone (Denes et al., 2005). Several SNS pathways from the brainstem and the hypothalamus relay to femoral bone marrow and the femur through preganglionic neurons in the lower thoracic and upper lumbar segments T4 to L1 of the IML and postganglionic neurons in paravertebral chain ganglia at lumbar levels (Denes et al., 2005).

Despite the fact that largely the same brain sites project to both the femur (our findings) and bone marrow (Denes et al., 2005), some sites display higher levels of PRV152 infectivity than others––this suggests that separate site–specific SNS circuits may project to the femur and femoral bone marrow. These overlapping SNS–innervating circuits to both sites include the midbrain PAG, somatosensory cortex, forebrain MPOM, thalamic periventricular nucleus, hypothalamic PVH and lateral hypothalamic nucleus (LA), and medulla RPa. The PAG receives afferent fibers not only from the parabrachial nucleus and RPa (Mantyh, 1982), which contain PDE5A–expressing neurons sending SNS outputs to bone (Kim et al., 2020), but also from the spinal cord (Pechura & Liu, 1986). We and others have previously shown that the PAG sends SNS outflow to WAT in Siberian hamsters (Bamshad et al., 1998; Nguyen et al, 2014; Ryu & Bartness, 2014; Song et al, 2005b) and the laboratory rat (Adler et al, 2012). Most notably, the PAG is largely responsible for SNS responses and descending modulation of pain perception (Baptista-de-Souza et al, 2018; Benarroch, 2008; Calvino & Grilo, 2006). Therefore, this midbrain node could receive sensory inflow relating to bone pain and provide SNS relay (Fig. 3).

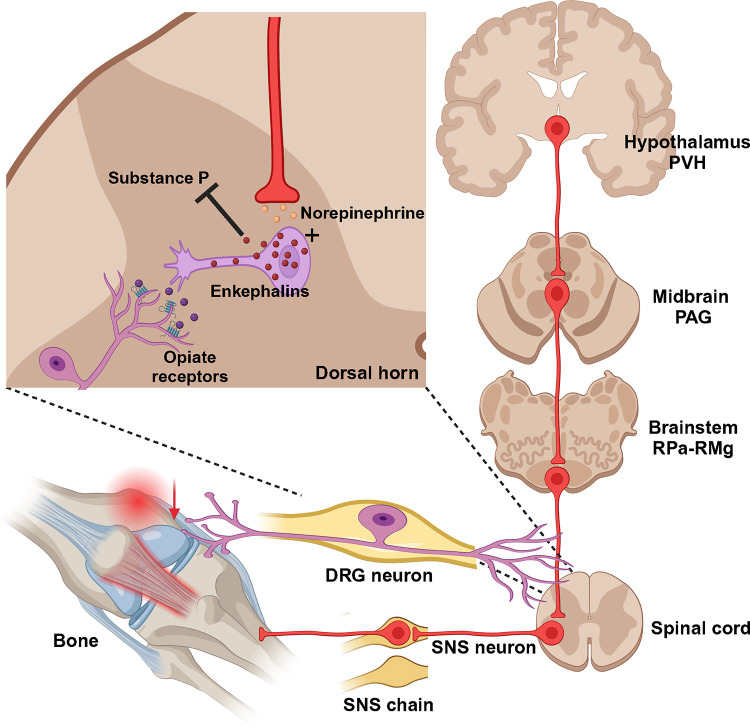

Figure 3: Diagrammatic outline of the SNS brain–bone neuroaxis relevant to pain.

The central SNS brain–bone circuit starts in the hypothalamic paraventricular nucleus (PVH) known to home SNS pre–autonomic neurons projecting to the SNS neurons of the periaqueductal gray (PAG) in the midbrain. From the PAG the SNS outflow is further relayed to the raphe pallidus—raphe magnus (RPa-RMg) neurons that are terminated in the dorsal horn of spinal gray matter, where they regulate the release of enkephalins that inhibit pain sensation by attenuating substance P (SP) release. In turn, opiates produce antinociception via the μ-opiate receptors, in part, through modulation of responses to SP. Neurons in the RMg are involved in the central modulation of noxious stimuli, therefore, the RMg—PAG could be the part of the ascending hierarchical circuit relating to the perception of bone pain.

We also find that two major nuclei in the hypothalamus––the PVH and LH––send SNS efferents to bone. While the PVH, which is a home to major SNS pre–autonomic neurons, sends SNS projections to the bone marrow (Denes et al., 2005), we find that LH predominantly innervates the femur. The functions of other hypothalamic SNS–bone feedback circuits are not presently known. However, given that the LH, PVH and DM are main brain regions that send SNS outflow to bone and also express leptin receptors (Flak & Myers, 2016), it is also possible that the anti–osteogenic relay for leptin might originate from neurons in the LH PVH, and/or DM.

Consistent with a prior study (Denes et al., 2005), the highest number of PRV152–infected neurons was in the medulla was the RPa and RMg. While we have previously established a contribution of PDE5A–containing neurons in the RPa to bone mass regulation (Kim et al., 2020), the functional role of the RMg in regulating bone remains unknown. Whereas projections from the raphe nuclei, including the RPa, terminate in the dorsal horn of spinal gray matter, where they regulate the release of enkephalins that inhibit pain sensation (Francois et al, 2017), RMg neurons are involved in the central modulation of noxious stimuli (Fields et al, 1991). Thus, the RMg—PAG could be the part of the ascending hierarchical circuit relating to the perception of bone pain. The importance of this circuit for the control of bone pain will require a more comprehensive demonstration of its pervasiveness across and within the mammalian species. Whether or not these findings can be extended to humans, they do provide important actionable targets for pain treatment.

In all, our results provide compelling evidence for a brain—bone SNS neuroaxis, likely part of coordinated and/or multiple redundant mechanisms that regulate bone metabolism and/or nociceptive functions. Furthermore, we show that bone is not innervated by unique neuron groups, but rather by overlapping SNS circuitry common to the control of other peripheral targets, such as bone marrow and adipose tissues. We believe our comprehensive atlas of the brain regions involved in coding and decoding SNS efferent signals to bone would stimulate further research into bone pain and the neural regulation of bone metabolism.

Appendix: Glossary of the brain nuclei, sub–nuclei and regions.

Cerebral cortex

M1

primary motor cortex

M2

secondary motor cortex

S1HL

primary somatosensory cortex, hindlimb region

Forebrain

AVPe

anteroventral periventricular nucleus

BST

bed nucleus of the stria terminalis

BSTMA

bed nucleus of the stria terminalis, medial division, anterior part

BSTMPL

bed nucleus of stria terminalis, medial division, posterolateral part

BSTMV

bed nucleus of the stria terminalis, medial division, ventral part

LPO

lateral preoptic area

LSI

lateral septal nucleus, intermediate part

LSV

lateral septal nucleus, ventral part

MnPO

median preoptic nucleus

MPOL

medial preoptic nucleus, lateral part

MPOM

medial preoptic nucleus, medial part

SFO

subfornical organ

VMPO

ventromedial preoptic nucleus

VOLT

vascular organ of the lamina terminalis

VP

ventral pallidum

Thalamus

LHbL

lateral habenular nucleus, lateral part

PrC

precommissural nucleus

pv

periventricular fiber system

Hypothalamus

AHP

anterior hypothalamic area, posterior part

Arc

arcuate hypothalamic nucleus

ArcLP

arcuate hypothalamic nucleus, lateroposterior part

ArcMP

arcuate hypothalamic nucleus, medial posterior part

BLA

basolateral amygdaloid nucleus, anterior part

CeM

central amygdaloid nucleus, medial division

DM

dorsomedial hypothalamic nucleus

DMD

dorsomedial hypothalamic nucleus, dorsal part

DMV

dorsomedial hypothalamic nucleus, ventral part

LA

lateroanterior hypothalamic nucleus

LH

lateral hypothalamic area

MPA

medial preoptic area

PaAP

paraventricular hypothalamic nucleus, anterior parvicellular part

PaLM

paraventricular hypothalamic nucleus, lateral magnocellular part

PaMM

paraventricular hypothalamic nucleus, medial magnocellular part

PaMP

paraventricular hypothalamic nucleus, medial parvicellular part

PaPo

paraventricular hypothalamic nucleus, posterior part

PaV

paraventricular hypothalamic nucleus, ventral part

PH

posterior hypothalamic area

PVH

paraventricular hypothalamic nucleus

SCh

suprachiasmatic nucleus

SChVL

suprachiasmatic nucleus, ventrolateral part

TC

tuber cinereum area

VMHC

ventromedial hypothalamic nucleus, central part

ZI

zona incerta

Midbrain and pons

CGPn

central gray of the pons

CnF

cuneiform nucleus

DLPAG

dorsolateral periaqueductal gray

DMPAG

dorsomedial periaqueductal gray

DMTg

dorsomedial tegmental area

DpMe

deep mesencephalic nucleu

DRD

dorsal raphe nucleus, dorsal part

DRI

dorsal raphe nucleus, interfascicular part

LC

locus coeruleus

LDTg

laterodorsal tegmental nucleus

LPAG

lateral periaqueductal gray

Mo5

motor trigeminal nucleus

MPB

medial parabrachial nucleus

PAG

periaqueductal gray

PnO

pontine reticular nucleus, oral part

SubCV

subcoeruleus nucleus, ventral part

VLPAG

ventrolateral periaqueductal gray

VTA

ventral tegmental area

Medulla

7N

facial nucleus

DPGi

dorsal paragigantocellular nucleus

Gi

gigantocellular reticular nucleus

GiA

gigantocellular reticular nucleus, alpha part

GiV

gigantocellular reticular nucleus, ventral part

IRt

intermediate reticular nucleus

LPGi

lateral paragigantocellular nucleus

MVePC

medial vestibular nucleus, parvicellular part

NTS

nucleus of the solitary tract

Pr

prepositus nucleus

RMg

raphe magnus nucleus

ROb

raphe obscurus nucleus

RPa

raphe pallidus nucleus

SolC

nucleus of the solitary tract, commissural part

SolCe

nucleus of the solitary tract, central part

SolDL

solitary nucleus, dorsolateral part

SolDM

nucleus of the solitary tract, dorsomedial part

SolG

nucleus of the solitary tract, gelatinous part

SolI

nucleus of the solitary tract, interstitial part

SolIM

nucleus of the solitary tract, intermediate part

SolM

nucleus of the solitary tract, medial part

SolV

solitary nucleus, ventral part

SolVL

nucleus of the solitary tract, ventrolateral part

DATA AVAILABILITY

Figure 2–source data 1 contains the numerical data used to generate the figures.
