. Author manuscript; available in PMC: 2025 Jan 15.
Published in final edited form as: Mol Omics. 2024 Jan 15;20(1):37–47. doi: 10.1039/d3mo00087g

Characterization of methionine dependence in melanoma cells

Sarita Garg 1, Lauren C Morehead 1, Jordan T Bird 1, Stefan Graw 1, Allen Gies 1, Aaron J Storey 1, Alan J Tackett 1, Rick D Edmondson 1, Samuel G Mackintosh 1, Stephanie D Byrum 1, Isabelle R Miousse 1
PMCID: PMC10903584  NIHMSID: NIHMS1956923  PMID: 37782107

Abstract

Dietary methionine restriction is associated with a reduction in tumor growth in preclinical studies and an increase in lifespan in animal models. The mechanism by which methionine restriction inhibits tumor growth while sparing normal cells is incompletely understood. We do know that normal cells can utilize methionine or homocysteine interchangeably (methionine independence) while most cancer cells are strictly dependent on methionine availability. Here, we compared a typical methionine dependent and a rare methionine independent melanoma cell line. We show that replacing methionine, a methyl donor, with its precursor homocysteine generally induced hypomethylation in gene promoters. This decrease was similar in methionine dependent and methionine independent cells. There was only a low level of pathway enrichment, suggesting that the hypomethylation is generalized rather than gene specific. Whole proteome and transcriptome were also analyzed. This analysis revealed that contrarily to the effect on methylation, the replacement of methionine with homocysteine had a much greater effect on the transcriptome and proteome of methionine dependent cells than methionine independent cells. Interestingly, methionine adenosyltransferase 2A (MAT2A), responsible for the synthesis of s-adenosylmethionine from methionine, was equally strongly upregulated in both cell lines. This suggests that the absence of methionine is equally detected but triggers different outcomes in methionine dependent versus independent cells. Our analysis reveals the importance of cell cycle control, DNA damage repair, translation, nutrient sensing, oxidative stress and immune functions in the cellular response to methionine stress in melanoma.

Keywords: Methionine, methylation, proteomics, melanoma, cell cycle, ribosome

Introduction

Fundamental differences in metabolism between normal and cancer cells represent optimal targets for cancer therapy, minimizing adverse effects. One such fundamental difference was identified over 40 years ago in the way normal cells and cancer cells respond to methionine depletion, and more particularly in their response to methionine depletion when the intermediate homocysteine is provided (1,2). Most normal cells experience a small and slow decrease in proliferation under methionine depletion. Addition of homocysteine to the culture media completely rescues proliferation. Cancer cells, on the other hand, die within 48-72h after the initiation of methionine depletion, and rescue by homocysteine is modest (1) . Exceptions exist to this rule. Activated T cells are not rescued by homocysteine (3). Conversely, rare cancer cell lines, such as the human melanoma MeWo, can be rescued nearly completely with homocysteine (3). In vivo, enzymatic and dietary methionine depletion reduces tumor growth and synergizes with many cancer therapies (5–9). At the same time, dietary methionine restriction is associated with improvements in glucose and lipid regulation, and in a general increase in lifespan (10). However, the molecular origin of the difference in response to methionine depletion between methionine independent and methionine dependent cells remains unknown.

Methionine is an essential amino acid fulfilling several crucial metabolic roles. In addition to protein synthesis, methionine is the precursor for the universal methyl donor S-adenosylmethionine. S-adenosyl methionine donates methyl groups to several acceptor molecules such as DNA, RNA, proteins (including, but not restricted to, histones), creatine, and phospholipids. The resulting demethylated molecule, S-adenosylhomocysteine, yields homocysteine which can then be either enter the remethylation pathway to methionine or the transulfuration pathway to the antioxidant glutathione. Alternatively, S-adenosylmethionine can be decarboxylated and enter the methionine salvage pathway, resulting in the production of polyamines.

While methionine synthase expression is similar between methionine dependent and independent cell lines, there may be differences in the rates of methionine remethylation and transmethylation (11). Treatment with an inhibitor of DNA methyltransferase was also found to cause a reversion from dependence to independence (11). Comparison of the methionine independent MeWo cell line with its more aggressive, methionine dependent variant MeWo-LC1 identified that hypermethylation of the promoter region of the vitamin B12 chaperone MMACHC explained the divergence in methionine phenotype (4). However, this finding was limited to this single cell line. The use of methyl groups is also different between methionine dependent and independent cells. The methyl group from methionine is used primarily for the synthesis of S-adenosylmethionine and methylated proteins in methionine independent cells (12). Methionine independent cells, on the other hand, primarily use this methyl group for the synthesis of creatine and phosphatidylcholine (12).

In this study, we sought to understand the many ramifications of the replacement of methionine with homocysteine in cell culture media. We compared the methylome and proteome of two human melanoma cell lines. One, A101D, is a prototypical cancer cell line displaying methionine dependence. The second, MeWo, has long been described as methionine independent, i.e. rescued by homocysteine. We identified a general decrease in promoter DNA methylation, with changes in the cellular transcriptome and proteome. Despite apparently sensing equally the shift from methionine to homocysteine, the effector response was noted to be much larger in methionine dependent than in methionine independent cells. Our analysis reveals the importance of cell cycle control, DNA damage repair, translation, nutrient sensing, oxidative stress, and tight junctions in the cellular response to methionine stress in melanoma.

Methods

Cell culture

A101D and MeWo cells were obtained from ATCC. Cells were cultured in high glucose, no glutamine, no methionine, no cystine DMEM (ThermoFisher Scientific, Waltham MA) supplemented with 5% dialyzed serum (BioTechne, Minneapolis, MN), 100 IU penicillin and streptomycin (ThermoFisher), 4 mM L-glutamine (ThermoFisher) and 1 mM sodium pyruvate (ThermoFisher). L-cystine (Millipore-Sigma, Burlington, MA) was resuspended in PBS with NaOH added until complete solubilization, and added to the cell media at a final concentration of 150 µM. For control medium, L-methionine (Millipore-Sigma) was resuspended in PBS and added to the cell media at a final concentration of 200 µM. For methionine-free, homocysteine containing media, L-homocysteine (Chem-impex, Wood Dale, IL) was resuspended in 1M HCl in PBS and added to the cell media at a final concentration of 200 µM.

Cell cycle

A101D and MeWo cells were cultured in either methionine or homocysteine media for 24 hours or 48 hours. Cells were fixed in ethanol, washed, and treated with ribonuclease. Finally, cells were stained with DAPI and analyzed for cell cycle by fluorescence activated sorting on a BD LSRFortessa instrument (Beckman Coulter, Brea, CA).

DNA methylation

A101D and MeWo cells were grown in either control media or homocysteine media for 24 hours. DNA and RNA was extracted using the AllPrep kit following the manufacturer’s instructions (Qiagen, Germantown, MD). After Qubit fluometric quantification (ThermoFisher), methylation was analyzed using the Infinium MethylationEPIC array (Illumina, San Diego, CA) at the Genomics Core of the University of Arkansas for Medical Sciences (UAMS). Data analysis was performed at the UAMS Bioinformatics Core. Methylation was expressed as the absolute difference between cells grown in methionine and cells grown in homocysteine. The data is available in the Gene Expression Omnibus database under accession number GSE225946.

For analysis of the LINE-1 promoter DNA methylation, 1 µg of genomic DNA was digested with 1 U of SmaI in 1X CutSmart buffer at 25°C for 2 h, HpaII, HhaI, and AciI at 37°C for 16 h, and then 0.5 U of BstUI for 4 h at 60°C (New England Biolabs, Ipswich, MA). Digested DNA was amplified by qRT-PCR with the iTaq Universal SYBR Green Supermix (Bio-Rad, Hercules, CA). DNA samples sonicated but not digested with the restriction enzyme mix were used for normalization. Fold changes were calculated from CT values using the ΔΔCT method. Primer sequences for LINE-1 element DNA methylation were F-AGT GGA TCA CAG TGC CTG C and R-GGG TAG CCT GCT TCC CTA TG as previously published (13).

RNA-Seq

Cells were culture for 24 hours in media containing 200 µM methionine or 200 µM homocysteine. RNA was extracted with a commercially available kit (RNeasy, Qiagen). After Qubit fluometric quantification (ThermoFisher), the NGS library was prepared with the Truseq Stranded Total RNA (Illumina, San Diego, CA) and ran on a HiSeq300 instrument at the UAMS Genomics Core. Data analysis was performed at the UAMS Bioinformatics Core. The data is available in the Gene Expression Omnibus database under accession number GSE225945.

Quantitative RT-PCR

Reverse transcription was performed on 1 μg of purified RNA using the iScript Reverse Transcription Supermix (Bio-Rad). For each quantitative real-time PCR reaction, 20 ng of cDNA was used and amplified with the iTaq Universal SYBR Green Supermix (Bio-Rad). Fold changes were calculated using the ΔΔCt method (14). The primers used were: RPLP0 (internal control; F- TGT CTG CTC CCA CAA TGA AAC, R- TCG TCT TTA AAC CCT GCG TG), MAT2A (F- GCA TCA AGG ACA GCA TCA CT, R- TCA ACG GCT TCC ACG AG), STING (F- CTT GAC TGT ATT GTG ACA TGG C, R- GCA TCA AGG ATC GGG TTT ACA G), and FGF21 (F- GCT TCG GAC TGG TAA ACA TTG, R- GGA GTC AAG ACA TCC AGG TT) (Integrated DNA Technologies, Coralville, IA).

Cell cycle

Cell cycle was assessed by flow cytometry. Cells were culture for 24 and 48 hours in media containing 200 µM methionine or 200 µM homocysteine. The cells were harvested then fixed in 70% ethanol. The day of the assay, the cells were rinsed in PBS and incubated in a solution containing 100 µg/mL RNAse A and 1 µg/mL DAPI. Analysis was performed at the UAMS flow cytometry core on a BD LSR Fortessa (BD, Franklin Lakes, NJ) instrument and using the FlowJo software (BD).

Proteomics

Purified proteins were reduced, alkylated, and digested using filter-aided sample preparation (15). Tryptic peptides were labeled using a tandem mass tag 10-plex isobaric label reagent set (ThermoFisher) following the manufacturer’s instructions. Labeled peptides will be separated into 36 fractions, and then consolidated into 12 super-fractions. Each super-fraction was further separated by reverse phase. Peptides were eluted and ionized by electrospray followed by mass spectrometric analysis on an Orbitrap Fusion Lumos mass spectrometer (ThermoFisher). MS data were acquired using the FTMS analyzer and MS/MS data using the ion trap analyzer. Up to 10 MS/MS precursors were selected for HCD activation, followed by acquisition of MS3 reporter ion data. Proteins were identified and reporter ions quantified by searching the UniprotKB database using MaxQuant (Max Planck Institute) with a parent ion tolerance of 3 ppm, a fragment ion tolerance of 0.5 Da, and a reporter ion tolerance of 0.001 Da. Protein identifications were accepted if they can be established <1.0% false discovery and contained at least 2 identified peptides. Protein probabilities were assigned by the Protein Prophet algorithm (16). TMT MS3 reporter ion intensity values were log2 transformed and missing values imputed by a normal distribution for each sample using Perseus (Max Planck Institute). TMT batch effects were removed using ComBat (17). Statistical analysis was performed using Linear Models for Microarray Data with empirical Bayes smoothing to the standard errors (18). Proteins with an FDR adjusted p-value <0.05 were considered to be significant. The data is available in the ProteomeXchange database under the ID PXD040655 and MassIVE MSV000091423.

Immunodetection

Protein lysates were mixed with LDS sample buffer, heated , and 10 µg of each protein lysate was loaded onto the lanes of a tris-glycine stain-free “Any KD” gel (Bio-Rad). Loading was verified on the gel before transfer. Proteins were then transferred onto a low fluorescence polyvinylidene difluoride (PVDF) membrane (Bio-Rad) and blocked with 1% casein in tris-buffered saline with 0.1% Tween-20 (TBST). The membrane was probed with a rabbit polyclonal antibody against Mat2a (ab 177484, Abcam, Cambridge, ME). Detection was performed with a DyLight 800 sheep anti-rabbit IgG secondary antibody and a rhodamine-linked primary antibody against β-actin on a ChemiDoc instrument (Bio-Rad).

IPA analysis

Significant proteins (FDR adjusted p-value <0.05) were utilized to identify important protein networks and pathways using Qiagen’s Ingenuity Pathway Analysis (19). For A101D RNA-Seq analysis, we limited the dataset to fold change >1.5X.

Results

Homocysteine induces hypomethylation in both MeWo and A101D cells

Methionine is an important methyl donor in cells and we therefore investigated the DNA methylation patterns in methionine dependent and independent human melanoma cells cultured with either methionine or homocysteine. We chose a time point of 24 hours to measure cells prior to cell death. Beta values were significantly decreased in homocysteine versus methionine for both cell lines, indicating a net decrease in methylation levels (Fig. 1A). Interestingly, the beta value was decreased to a greater extent in MeWo than in A101D, despite the cell cycle phenotype being significantly milder. Accordingly, a total of 252 probes were significantly differentially methylated between methionine and homocysteine in the methionine dependent A101D, compared to 1145 in MeWo (Supplementary data). All significant sites in both cell lines were hypomethylated in homocysteine compared to methionine. IPA analysis suggested that Sonic Hedgehog signaling was the main canonical pathway dysregulated in A101D, and calcium signaling in MeWo (Fig 1B). However, the relatively large p values associated with these keywords suggest a low-level enrichment. To confirm these results, we used a methylation-sensitive restriction digestion approach to measure changes in methylation in the promoter of the repetitive element LINE-1. LINE-1 represents 20% of the human genome and is silenced with DNA methylation in its promoter region. We measured a significant decrease in DNA methylation in the LINE-1 promoter in both cell lines when grown in homocysteine compared to control (Supplementary Fig. 1A).

Figure 1. Promoter hypomethylation in homocysteine-treated cell lines.

Figure 1.

Open in a new tab

A101D methionine-dependent cells were cultured with either methionine (Met) or homocysteine (Hcy) for 24h. (A) The ratio of methylated probe intensity and the overall intensity (β value) decreased in the Hcy group compared to the Met group. (B) IPA analysis showed only a low level of enrichment. (C) The β value for the MeWo Hcy group was lower than in A101D, and (D) IPA analysis also showed limited enrichment.

Homocysteine is associated with a stronger transcriptomic signature in methionine-dependent A101D than MeWo

In order to investigate further the signaling events suggested by the methylation array, we analyzed the transcriptome of cells growing in either methionine or homocysteine. As opposed to DNA methylation, the replacement of methionine with homocysteine induced much greater transcriptome-level changes in the methionine dependent cell line than in the methionine independent cell line. In the methionine-dependent A101D, over 12,000 genes were significantly altered, as defined by an adjusted p value < 0.05. This included 2580 genes altered with a change of more than 2X (1545 up and 1035 down)(Supplementary data).

In comparison, only 3843 genes were significantly altered in MeWo under the same culture conditions. Of these, only 110 by more than 2X (58 up and 52 down). To control for any experimental variable, we looked at MAT2A, the gene encoding methionine adenosyltransferase 2A. MAT2A catalyzes the conversion of methionine to S-adenosylmethionine and responds strongly to methionine stress. We found that MAT2A was increased 4.5X in A101D and 3.5X in MeWo following the switch to homocysteine. This indicated that the absence of methionine was sensed nearly equally in both cell lines. MAT2A was in fact the gene with the smallest adjusted p value in MeWo (6.35×10−33). We confirmed these results by qRT-PCR (Supplementary Fig. 1B).

We then analyzed pathway enrichment with IPA. Taking advantage of the large number of significantly altered target in A101D, we refined our analysis by separating upregulated and downregulated genes. In that methionine-dependent cell line, there was an enrichment for pathways related to the immune system among upregulated genes (Fig 2A). The analysis pointed to cytokines and pattern recognition receptors. This was somewhat unexpected but is in good agreement with new results from our laboratory showing that methionine restriction activates immune pathways in cancer (BIORXIV/2023/535695). This was also reflected in the upstream analysis, where the top hits were the immune-related factors TNF, IFNG, and IL1B.

Figure 2. Pathway enrichment in the transcriptomics analysis.

Figure 2.

Open in a new tab

IPA analysis of pathways enriched for gene transcripts (A) upregulated and (B) downregulated in A101D in homocysteine relative to methionine. Pathways enriched for all significant gene transcripts in (C) A101D and (D) MeWo.

Pathway enrichment was noticeably greater in genes downregulated in A101D (Fig 2B) than in any other condition presented in Figure 2, as reflected by the different scale on the X axis. In methionine-dependent A101D, pathways related to the cell cycle included “kinetochore metaphase signaling pathway” and “cell cycle control of chromosomal replication”. Genes supporting this pathway included centromere proteins and various components of the KMN network. Pathways related to DNA damage included “NER (nucleotide excision repair, enhanced pathway)”, and “role of BRCA1 in DNA damage response”. Genes supporting this pathway included genes encoding FANC proteins, BRCA1 and BRCA1 complex genes, RAD51 and TP53. The upstream analysis identified L-asparaginase as the top hit. This similarity identified with L-asparaginase treatment supports the hypothesis that the changes related to methionine dependence may be mostly related to its role as a protein building amino acids rather than as a methyl donor.

In methionine-independent MeWo, the limited number of genes altered by more than 2X led to pathways with lower confidence values (Fig 2CD). The pathway “S-adenosyl-L-methionine biosynthesis” was supported solely by MAT2A. “S100 family signaling pathway”, however, was supported by 7 genes and reflected the same keyword found in A101D. We decreased the threshold to 1.5X change without observing significant differences (data not shown). Other genes downregulated in MeWo included argininosuccinate synthase 1, which supported the keywords “citrulline-nitric oxide cycle”, “arginine biosynthesis IV”, and “urea cycle”.

One of the largest fold change increases in A101D was the gene FGF21 (38X, adj p value 4×10−4). FGF21 regulates the metabolic adaptations resulting from protein restriction in general (20,21), and methionine restriction in particular (22). FGF21 is a hepatic protein that plays an essential role in increasing insulin sensitivity, increasing energy expenditure, and activating thermogenesis in animals fed a methionine-restricted diet (22). Its role in cancer is less well defined but is thought to involve the SIRT1/PI3K/AKT axis (23). Another growth factor, growth differentiation factor 15 (GDF15), was also among the most highly upregulated genes in A101D. GDF15 has important metabolic functions and has been reported to be upregulated during mitochondrial dysfunction (24,25). FGF21 and GDF15 were not significantly upregulated in MeWo. We amplified FGF21 by qRT-PCR and expression was detectable only in A101D cells provided homocysteine, supporting the RNA-Seq findings (data not shown).

Homocysteine affects the cell cycle in methionine dependent A101D but not methionine independent MeWo.

To confirm the effect of methionine versus homocysteine on the cell cycle seen with the transcriptomics in A101D human melanoma cells, we performed a cell cycle analysis after 24 and 48 hours. After 24 hours, there was an increase in cells in the G1 phase and a decrease in cells in the S and G2-M phases in A101D. MeWo cells, on the other hand, had a decrease in G1 cells and an increase in G2-M cells (Fig 3AB). After 48 hours, there was a large increase in SubG1 cells that was specific to A101D (Fig 3C). This indicates the presence of fragmented DNA, in agreement with the decrease in DNA repair keywords in the transcriptomics. There was a decrease in cells in G1, S, and G2-M. In MeWo cells, there was still an increase in G2-M cells at 48h, with a decrease in cells in S phase (Fig 3D). This suggests that A101D methionine dependent cells first reduce their proliferation, then undergo apoptosis (26). Cell division may be briefly promoted by homocysteine in MeWo methionine independent cells.

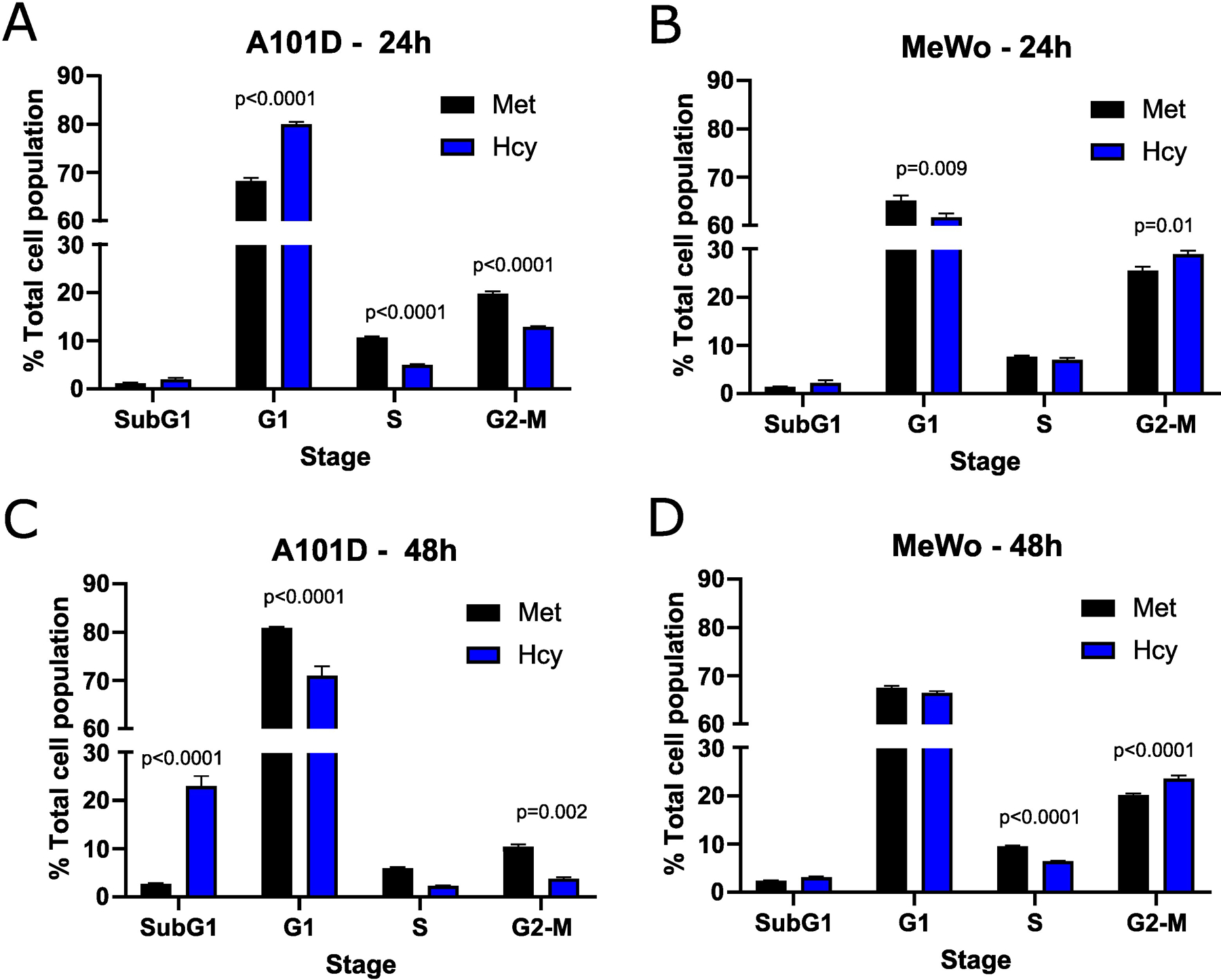

Figure 3. Cell cycle analysis.

Figure 3.

Open in a new tab

Flow cytometry analysis of cell cycle phases as a percentage of the total cell population at 24h (A and B) and 48h (C and D) in A101D (A and C) and MeWo (B and D) cells. Two-way ANOVA with Šídák’s multiple comparisons.

Proteomics provide additional insight into methionine dependence.

To gain additional information about the differences between methionine dependent and independent, we performed an analysis of the cellular proteome of A101D and MeWo cells in methionine versus homocysteine-containing media. This type of analysis provides further information about translational and post-translational changes in the cell. As for the transcriptomics data, the changes were more pronounced in A101D than MeWo (Fig 4 and Supplementary data). We first noticed that there were fewer significant changes in the proteomics analysis then in the transcriptomic analysis. Few displayed changes larger than 2X (4 proteins in A101D and 3 proteins in MeWo). Using a lower threshold of 1.25X change, there were 345 significantly altered proteins in A101D (142 downregulated and 203 upregulated) and only 115 proteins in MeWo (6 downregulated and 109 upregulated). We proceeded with the IPA analysis with the 1.25X threshold. There was a sufficient number of proteins in A101D to split the analysis between upregulated and downregulated proteins, but not in MeWo. Therefore, we are showing upregulated proteins (Fig. 4A), downregulated proteins (Fig. 4B), and combined (Fig. 4C) for A101D, and combined for MeWo (Fig. 4D).

Figure 4. Pathway enrichment in the proteomics analysis.

Figure 4.

Open in a new tab

IPA analysis of pathways enriched for proteins (A) upregulated and (B) downregulated in A101D in homocysteine relative to methionine. Pathways enriched for all significant proteins in (C) A101D and (D) MeWo.

Based on our transcriptomics data, we looked more closely at the abundance of the protein MAT2A. As suggested by the transcriptomic analysis, we found that the protein level of MAT2A was increased for both A101D and MeWo (1.6X and 1.5X, respectively). We confirmed the upregulation of MAT2A at the protein level in both cell lines with Western Blot (Supplementary Fig. 1C). Along with the gene expression data, this confirms previous reports in methionine dependent cells (27) and expands this observation to methionine independent cells.

Among upregulated proteins in A101D, the top pathway was “NRF2-mediated oxidative stress response”, with contributing increased proteins such as glutathione-S-transferases, PRDX1, SOD1/2, and TNX. This is in good agreement with previous reports (26,28). The glutathione-S-transferases also contributed to all other pathways in the top 10, except “sirtuin signaling pathway” and “glycolysis I”. We had previously shown that total glutathione is decreased by about 40% in A101D cells grown in homocysteine compared to cells grown in methionine (26). MeWo cells, on the other hand, show only a 14% decrease in total glutathione (Fig 5). Notably, the proteomic analysis did not indicate any enrichment for immune pathways, contrarily to the transcriptomic analysis. The growth factor FGF21 was not detected in our proteomics analysis. However, GDF15 was the most upregulated protein in A101D (3.7X), mirroring the gene expression data. The protein GDF15 was also upregulated 1.4X in MeWo.

Figure 5. Glutathione in cells.

Figure 5.

Open in a new tab

Reduced glutathione (GSH) in MeWo cells cultured for 24h in media containing 200 µM methionine (Met), 200 µM methionine and 200 µM homocysteine (Met+Hcy), neither methionine nor homocysteine (Met-), and 200 µM homocysteine (Hcy). One-way ANOVA with Dunnett’s multiple comparisons relative to the Met group.

Despite the larger number of upregulated versus downregulated proteins in A101D, it did not yield the largest pathway enrichment. It was rather found among downregulated proteins in A101D for the pathway “EIF2 signaling”. This analysis indicates a decrease in translation, caused in part by a decrease in the abundance of over 25 different ribosomal proteins. In contrast, no ribosomal protein was significantly altered by more than 25% in the methionine-independent MeWo. This is in good agreement with the data we published previously showing that proliferation was severely reduced in A101D cells grown in homocysteine compared to methionine, while being unchanged in MeWo (26). Analysis of the transcriptomics dataset showed similar changes, but it did not add to a significant pathway enrichment. Other pathways enriched in the downregulated proteins included “regulation of eIF4 and p70S6K signaling” and the related “mTOR signaling”, which responds to nutrient abundance and is regulated by the level of S-adenosylmethionine in the cell (29). The proteins contributing to this pathway were for the most part a subset of ribosomal proteins contributing to “EIF2 signaling”. The same was true for the keyword “coronavirus pathogenesis pathway”. These four top pathways in the downregulated proteins also formed the top 4 pathways for the combined upregulated and downregulated proteins (Fig. 3C).

The single pathway suggesting an involvement of DNA methylation in methionine dependence was found among downregulated proteins in A101D. Components of the NuRD and Sin3 complexes of histone and DNA modifications contributed to the pathway “DNA methylation and transcriptional repression signaling”. Interestingly, the analysis of downregulated proteins in A101D cells grown in homocysteine also produced an enrichment for pathways related to cholesterol. Methylsterol monooxygenase 1 and squalene epoxidase were both significantly decreased. This echoed the gene expression findings in MeWo, indicating a possible involvement of cholesterol and cholesterol-related molecules in the response to methionine stress both in methionine dependent and independent cells.

The top pathway enriched in MeWo cells was “ferroptosis signaling pathway”. It reflected an increase in proteins that have been linked to lipid peroxidation, such as the amino acid transporter SLC1A5, ferritin heavy chain1, cystathionine gamma-lyase, ADP ribosylation factor 5, and the transcription factor SP1. Both ferritin light chain and ferritin heavy chain were increased in A101D (1.7X and 1.3X, respectively). We have previously reported on the ferroptosis-like gene expression signature in methionine-restricted cells. We and others have shown that this gene signature is not accompanied by an increase in either lipid peroxidation nor death by ferroptosis, contrarily to cysteine depletion (26,30). Interestingly, the transferrin receptor was decreased both in A101D and in MeWo (0.6X and 0.8X, respectively). There was also an enrichment in the keyword “3-phosphoinositide degradation”, supported by an increase in MTMR1, MTMR14, NUDT3, PIP4P2, and SSH3. Finally, individual or pairs of genes contributed to some amino acid biosynthesis and degradation pathways.

Two cobalamin-related proteins were identified in the proteomics screen. Cobalamin is the cofactor for the cytoplasmic methionine synthase reaction, as well as the mitochondrial methylmalonyl-CoA mutase reaction. MMAA translocates cobalamin from the cytosol into the mitochondrion and was increased 1.7X in MeWo. The lysosomal cobalamin transporter ABCD4 was increased 1.8X in A101D.

Finally, we analyzed the networks enriched in the proteomics data. The networks with the highest network score in IPA, based on the number of proteins that have reported interactions, are shown in the supplementary data. In A101D cells, this top network centers around a decrease (green) in RNA polymerase II and ribosomal proteins, as well as an increase in elongation factors. In MeWo cells, the molecules at the heart of the network are immune-related, such as the NFκb complex, the B-cell receptor complex, and interferon α. However, these central nodes are not directly increased in the dataset but predicted to be activated based on associated proteins, as indicated by the orange color.

Discussion

Cancer cells are generally more resistant to harsh environmental conditions than normal cells. However, they also display specific vulnerabilities. Methionine dependence in cancer cells is one of such vulnerabilities, described over 45 years ago. We attempted to characterize the molecular bases behind the inability of most cancer cells to utilize homocysteine to sustain growth and metabolism.

A single methyl group differentiates methionine from homocysteine. We therefore looked at differences in DNA methylation between A101D and MeWo. We did identify wide-spread DNA hypomethylation in gene promoters in the methionine dependent cell line A101D when provided with homocysteine instead of methionine. However, DNA hypomethylation was a hallmark in both cell lines. Interestingly, the effect was more profound in MeWo cells. Continued proliferation in these cells in methionine-free, homocysteine-containing media may lead to a dilution effect compared to non-proliferating A101D cells. The inclusion of the methionine independent MeWo cell line in our experiment therefore contextualizes the decrease in promoter methylation. It supports a likely secondary rather than primary role for change in DNA methylation in response to methionine replacement with homocysteine. Although some signaling pathways were significantly enriched, both positive and negative regulators were hypomethylated, leading to an uncertain outcome on cellular function. Others have shown alterations in histone modification in connection with methionine metabolism (31–34). Our data suggest that these modifications may be more relevant to the control of gene expression following methionine depletion then DNA methylation. Further modifications such as protein homocysteinylation may also contribute to change in expression patterns.

To gain more insight into differences in metabolism between methionine dependent and methionine independent melanoma cells, we turned our attention to the analysis of the transcriptome and proteome. This revealed very clearly that methionine dependent cells show much greater changes in response to the change from methionine to homocysteine compared to methionine independent cells. In this experiment, the transcriptomics analysis performed better at identifying alterations in the cell cycle in methionine dependent cells. The impact on the cell cycle was readily validated by flow cytometry. As expected, proliferation was decreased at both 24 and 48h in A101D cells, in contrast to a slight increase in cells undergoing mitosis in MeWo. An increase in cells in the subG1 phase in A101D cells after 48h suggested an apoptotic mechanism of cell death in methionine dependent cells grown in methionine-free, homocysteine-containing media. Transcriptomics also put more emphasis on DNA damage.

A novel finding revealed during this analysis was the enrichment of immune pathways in methionine dependence, particularly cytokines and pattern recognition receptors. Interestingly, lymphocytes are the only non-cancer cell type reported to be methionine dependent (3). More recently, methionine uptake has been shown to crucial to the activation and proliferation of T cells (35–37). However, dietary methionine restriction was also shown to delay age-related changes in T cell subsets in mice, drawing a more complex picture of the immune effects of the treatment (38). Finally, reducing methionine in the diet has been reported to promote anti-tumor immunity (39). Our own results indicate that methionine restriction promotes the cGAS-STING pathway (submitted) in a similar fashion as arginine restriction (40). We were able to confirm that STING gene expression was increased over 2 fold in the A101D HCY group (Supplementary Fig. 1D). None of the immune-related change in the transcriptome of the methionine dependent A101D were identified in the methionine independent MeWo. Interestingly, the network analysis of the MeWo revealed somewhat analogous upregulations in immune factors at the protein level, although these upregulation were predicted rather than measured from the dataset. Clearly, more remains to be discovered about the immunomodulating function of homocysteine and methionine restriction/starvation.

In this experiment, proteomics provided a different and complementary picture of the response to methionine stress to transcriptomics. The proteomics analysis in MeWo revealed a limited number of significant changes and revealed fewer insights. In A101D however, the analysis revealed an increase in oxidative stress. This was specifically driven by an increase in proteins involved in glutathione synthesis. In cells with an active transulfuration pathway such as hepatocytes and cancer cells, methionine serves as a precursor for the main cellular antioxidant glutathione. The decrease in glutathione measured in the cells suggests that the activation of this pathway results from a decrease in products.

Another theme that was uniquely contributed by the proteomic analysis was a decrease in translation, driven by a decrease in ribosomal proteins. Processes such as ribophagy have been described that would fit a selective degradation of ribosomal proteins. However, the transcript-level downregulation of the ribosome receptor for ribophagy NUFIP1 (41) is downregulated (Log fold change = −0.31, -Log p value = 7.9) in these cells at 24 hours argues against this possibility. Ribosomopathies have been previously associated with mutations in genes related to cobalamin metabolism. Cobalamin is a cofactor in the methionine synthase reaction, and mutations in HCFC1 and RONIN have been associated with a reduction in the synthesis of adenosylcobalamin and methylcobalamin, and a decreased expression of ribosomal protein subunits, impeding ribosome biogenesis (42). Much remains to be uncovered about the relationship between cobalamin, methionine, and ribosomal biology. Given that translation lags behind transcription, there may rather be a rapid and transient decrease in the expression of the genes encoding these proteins that is resolved by our time point of 24 hours, leaving only protein levels decreased.

In summary, we found little evidence for a primary role of DNA methylation patterns in methionine dependence. We did however find strong evidence that the decrease in methionine is equally sensed by both methionine dependent and independent cells, leading to a reliable increase in MAT2A gene and protein expression in both methionine dependent and independent cell lines. This is different to what was previously published in glioma cells (43), but in good agreement with other results in breast cancer (27). The changes engendered in the methionine independent MeWo cell line were generally also found in the methionine dependent A101D. However, additional layers of changes were also observed in the latter, specifically oxidative stress, translation, and cell cycle control.

Supplementary Material

Methylation data
RNA Seq data
Proteomics data
Supplementary figure 1

(A) LINE-1 promoter methylation as measured by methylation-sensitive restriction digestion. (B) MAT2A gene expression by qRT-PCR. (C) MAT2A protein expression by Western blot compared to the loading control β-actin. (D) STING gene expression by qRT-PCR. Unpaired T-test comparing Met and Hcy for each cell line.

Supplementary figure 2

IPA protein network for A101D (highest network score; 58). Red indicates an increase and green indicates a decrease in protein abundance.

Supplementary figure 3

IPA protein network for MeWo (highest network score; 55). Red indicates an increase and green indicates a decrease in protein abundance. Orange indicates a predicted activation based on interacting proteins.

Acknowledgements

The authors would like to thank Drs. Giulia Baldini and Nükhet Aykin-Burns for guidance. Lisa Orr and Owen Stephens expertly processed samples at the National Resource for Quantitative Proteomics and the UAMS Genomics core. Kathy Bush provided emergency childcare during the COVID-19 crisis. This work was supported by the Winthrop P. Rockefeller Cancer Institute (WPRCI), the Arkansas Tobacco Settlement Commission, the National Center for Advancing Translational Sciences grant number 1KL2TR003108-01, and NIGMS grant P20 GM139768-01. The National Resource for Quantitative Proteomics is supported by the National Institute of General Medical Sciences (NIGMS) grant R24GM137786. The UAMS Bioinformatics core is supported by NIH/NIGMS grant P20GM121293 and WPRCI.

References

  • 1.Halpern BC, Clark BR, Hardy DN, Halpern RM, Smith RA. The effect of replacement of methionine by homocystine on survival of malignant and normal adult mammalian cells in culture. Proc Natl Acad Sci U S A 1974. Apr;71(4):1133–6. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Kreis W, Hession C. Biological effects of enzymatic deprivation of L-methionine in cell culture and an experimental tumor. Cancer Res 1973. Aug;33(8):1866–9. [PubMed] [Google Scholar]
  • 3.Hall CA, Begley JA, Chu RC. Methionine dependency of cultured human lymphocytes. Proc Soc Exp Biol Med Soc Exp Biol Med N Y N 1986. Jun;182(2):215–20. [DOI] [PubMed] [Google Scholar]
  • 4.Loewy AD, Niles KM, Anastasio N, Watkins D, Lavoie J, Lerner-Ellis JP, et al. Epigenetic modification of the gene for the vitamin B(12) chaperone MMACHC can result in increased tumorigenicity and methionine dependence. Mol Genet Metab 2009. Apr;96(4):261–7. [DOI] [PubMed] [Google Scholar]
  • 5.Miousse IR, Tobacyk J, Quick CM, Jamshidi-Parsian A, Skinner CM, Kore R, et al. Modulation of Dietary Methionine Intake Elicits Potent, yet Distinct, Anticancer Effects on Primary Versus Metastatic Tumors. Carcinogenesis 2018. Jun 23;39(9):1117–26. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Hoshiya Y, Kubota T, Matsuzaki SW, Kitajima M, Hoffman RM. Methionine starvation modulates the efficacy of cisplatin on human breast cancer in nude mice. Anticancer Res 1996. Dec;16(6B):3515–7. [PubMed] [Google Scholar]
  • 7.Yoshioka T, Wada T, Uchida N, Maki H, Yoshida H, Ide N, et al. Anticancer efficacy in vivo and in vitro, synergy with 5-fluorouracil, and safety of recombinant methioninase. Cancer Res 1998;58(12):2583–7. [PubMed] [Google Scholar]
  • 8.Kawaguchi K, Igarashi K, Li S, Han Q, Tan Y, Miyake K, et al. Recombinant methioninase (rMETase) is an effective therapeutic for BRAF-V600E-negative as well as -positive melanoma in patient-derived orthotopic xenograft (PDOX) mouse models. Oncotarget 2018. Jan 2;9(1):915–23. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Gao X, Sanderson SM, Dai Z, Reid MA, Cooper DE, Lu M, et al. Dietary methionine influences therapy in mouse cancer models and alters human metabolism. Nature 2019. Aug;572(7769):397–401. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Perrone CE, Malloy VL, Orentreich DS, Orentreich N. Metabolic adaptations to methionine restriction that benefit health and lifespan in rodents. Exp Gerontol 2013. Jul 1;48(7):654–60. [DOI] [PubMed] [Google Scholar]
  • 11.Fiskerstrand T, Christensen B, Tysnes OB, Ueland PM, Refsum H. Development and reversion of methionine dependence in a human glioma cell line: relation to homocysteine remethylation and cobalamin status. Cancer Res 1994. Sep 15;54(18):4899–906. [PubMed] [Google Scholar]
  • 12.Morvan D, Demidem A, Guenin S, Madelmont JC. Methionine-dependence phenotype of tumors: metabolite profiling in a melanoma model using L-[methyl-13C]methionine and high-resolution magic angle spinning 1H-13C nuclear magnetic resonance spectroscopy. Magn Reson Med 2006. May;55(5):984–96. [DOI] [PubMed] [Google Scholar]
  • 13.Miousse IR, Pathak R, Garg S, Skinner CM, Melnyk S, Pavliv O, et al. Short-term dietary methionine supplementation affects one-carbon metabolism and DNA methylation in the mouse gut and leads to altered microbiome profiles, barrier function, gene expression and histomorphology. Genes Nutr 2017;12:22. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods San Diego Calif 2001. Dec;25(4):402–8. [DOI] [PubMed] [Google Scholar]
  • 15.Wiśniewski JR, Zougman A, Nagaraj N, Mann M. Universal sample preparation method for proteome analysis. Nat Methods 2009. May;6(5):359–62. [DOI] [PubMed] [Google Scholar]
  • 16.Nesvizhskii AI, Keller A, Kolker E, Aebersold R. A statistical model for identifying proteins by tandem mass spectrometry. Anal Chem 2003. Sep 1;75(17):4646–58. [DOI] [PubMed] [Google Scholar]
  • 17.Leek J, Johnson W, Parker H, Fertig E, Jaffe A, Storey J, et al. sva: Surrogate Variable Analysis. R package version 3.32.1 2019.
  • 18.Ritchie ME, Phipson B, Wu D, Hu Y, Law CW, Shi W, et al. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res 2015. Apr 20;43(7):e47. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Alhamdoosh M, Ng M, Wilson NJ, Sheridan JM, Huynh H, Wilson MJ, et al. Combining multiple tools outperforms individual methods in gene set enrichment analyses. Bioinforma Oxf Engl 2017. 01;33(3):414–24. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Laeger T, Henagan TM, Albarado DC, Redman LM, Bray GA, Noland RC, et al. FGF21 is an endocrine signal of protein restriction. J Clin Invest 2014. Sep;124(9):3913–22. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Hill CM, Albarado DC, Coco LG, Spann RA, Khan MS, Qualls-Creekmore E, et al. FGF21 is required for protein restriction to extend lifespan and improve metabolic health in male mice. Nat Commun 2022. Apr 7;13(1):1897. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Wanders D, Forney LA, Stone KP, Burk DH, Pierse A, Gettys TW. FGF21 Mediates the Thermogenic and Insulin-Sensitizing Effects of Dietary Methionine Restriction but Not Its Effects on Hepatic Lipid Metabolism. Diabetes 2017. Apr;66(4):858–67. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Yu X, Li Y, Jiang G, Fang J, You Z, Shao G, et al. FGF21 promotes non-small cell lung cancer progression by SIRT1/PI3K/AKT signaling. Life Sci 2021. Mar 15;269:118875. [DOI] [PubMed] [Google Scholar]
  • 24.Poulsen NS, Madsen KL, Hornsyld TM, Eisum ASV, Fornander F, Buch AE, et al. Growth and differentiation factor 15 as a biomarker for mitochondrial myopathy. Mitochondrion 2020. Jan;50:35–41. [DOI] [PubMed] [Google Scholar]
  • 25.Kalko SG, Paco S, Jou C, Rodríguez MA, Meznaric M, Rogac M, et al. Transcriptomic profiling of TK2 deficient human skeletal muscle suggests a role for the p53 signalling pathway and identifies growth and differentiation factor-15 as a potential novel biomarker for mitochondrial myopathies. BMC Genomics 2014. Feb 1;15:91. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Wallis KF, Morehead LC, Bird JT, Byrum S, Miousse IR. Differences in cell death in methionine versus cysteine depletion. Environ Mol Mutagen 2021. Feb 21;62(3):216–26. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Strekalova E, Malin D, Weisenhorn EMM, Russell JD, Hoelper D, Jain A, et al. S-adenosylmethionine biosynthesis is a targetable metabolic vulnerability of cancer stem cells. Breast Cancer Res Treat 2019. May 1;175(1):39–50. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Malin D, Lee Y, Chepikova O, Strekalova E, Carlson A, Cryns VL. Methionine restriction exposes a targetable redox vulnerability of triple-negative breast cancer cells by inducing thioredoxin reductase. Breast Cancer Res Treat 2021. Sep 22;190(3):373–87. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Gu X, Orozco JM, Saxton RA, Condon KJ, Liu GY, Krawczyk PA, et al. SAMTOR is an S-adenosylmethionine sensor for the mTORC1 pathway. Science 2017. Nov 10;358(6364):813–8. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Homma T, Kobayashi S, Fujii J. Methionine Deprivation Reveals the Pivotal Roles of Cell Cycle Progression in Ferroptosis That Is Induced by Cysteine Starvation. Cells 2022. May 10;11(10):1603. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Bian Y, Li W, Kremer DM, Sajjakulnukit P, Li S, Crespo J, et al. Cancer SLC43A2 alters T cell methionine metabolism and histone methylation. Nature 2020. Sep;585(7824):277–82. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Haws SA, Denu JM. Regulation of Histone Methylation via Methionine Metabolism. FASEB J 2017;31(S1):755.9–755.9. [Google Scholar]
  • 33.Yamamoto J, Han Q, Inubushi S, Sugisawa N, Hamada K, Nishino H, et al. Histone methylation status of H3K4me3 and H3K9me3 under methionine restriction is unstable in methionine-addicted cancer cells, but stable in normal cells. Biochem Biophys Res Commun [Internet] 2020. Oct 3 [cited 2020 Oct 5]; Available from: http://www.sciencedirect.com/science/article/pii/S0006291X20318611 [DOI] [PubMed]
  • 34.Mentch SJ, Mehrmohamadi M, Huang L, Liu X, Gupta D, Mattocks D, et al. Histone Methylation Dynamics and Gene Regulation Occur through the Sensing of One-Carbon Metabolism. Cell Metab 2015. Nov 3;22(5):861–73. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Sinclair LV, Howden AJ, Brenes A, Spinelli L, Hukelmann JL, Macintyre AN, et al. Antigen receptor control of methionine metabolism in T cells. Germain RN, editor. eLife 2019. Mar 27;8:e44210. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Roy DG, Chen J, Mamane V, Ma EH, Muhire BM, Sheldon RD, et al. Methionine Metabolism Shapes T Helper Cell Responses through Regulation of Epigenetic Reprogramming. Cell Metab 2020. Feb 4;31(2):250–266.e9. [DOI] [PubMed] [Google Scholar]
  • 37.Saini N, Naaz A, Metur SP, Gahlot P, Walvekar A, Dutta A, et al. Methionine uptake via the SLC43A2 transporter is essential for regulatory T-cell survival. Life Sci Alliance 2022. Sep 9;5(12):e202201663. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Miller RA, Buehner G, Chang Y, Harper JM, Sigler R, Smith-Wheelock M. Methionine-deficient diet extends mouse lifespan, slows immune and lens aging, alters glucose, T4, IGF-I and insulin levels, and increases hepatocyte MIF levels and stress resistance. Aging Cell 2005. Jun;4(3):119–25. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 39.Li T, Tan YT, Chen YX, Zheng XJ, Wang W, Liao K, et al. Methionine deficiency facilitates antitumour immunity by altering m6A methylation of immune checkpoint transcripts. Gut [Internet] 2022. Jul 8 [cited 2022 Jul 12]; Available from: https://gut.bmj.com/content/early/2022/07/07/gutjnl-2022-326928 [DOI] [PMC free article] [PubMed]
  • 40.Hsu SC, Chen CL, Cheng ML, Chu CY, Changou CA, Yu YL, et al. Arginine starvation elicits chromatin leakage and cGAS-STING activation via epigenetic silencing of metabolic and DNA-repair genes. Theranostics 2021. Jun 4;11(15):7527–45. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 41.Wyant GA, Abu-Remaileh M, Frenkel EM, Laqtom NN, Dharamdasani V, Lewis CA, et al. NUFIP1 is a ribosome receptor for starvation-induced ribophagy. Science 2018. May 18;360(6390):751–8. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 42.Chern T, Achilleos A, Tong X, Hill MC, Saltzman AB, Reineke LC, et al. Mutations in Hcfc1 and Ronin result in an inborn error of cobalamin metabolism and ribosomopathy. Nat Commun 2022. Jan 10;13(1):134. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 43.Wang L, Hu B, Pan K, Chang J, Zhao X, Chen L, et al. SYVN1-MTR4-MAT2A Signaling Axis Regulates Methionine Metabolism in Glioma Cells. Front Cell Dev Biol 2021;9:633259. [DOI] [PMC free article] [PubMed] [Google Scholar]
