Identification and structural validation of purine nucleoside phosphorylase from Plasmodium falciparum as a target of MMV000848

Abstract

About 247 million cases of malaria occurred in 2021 with Plasmodium falciparum accounting for the majority of 619,000 deaths. In the absence of a widely available vaccine, chemotherapy remains crucial to prevent, treat, and contain the disease. The efficacy of several drugs currently used in the clinic is likely to suffer from the emergence of resistant parasites. A global effort to identify lead compounds led to several initiatives such as the Medicine for Malaria Ventures (MMV), a repository of compounds showing promising efficacy in killing the parasite in cell-based assays. Here, we used mass spectrometry coupled with cellular thermal shift assay to identify putative protein targets of MMV000848, a compound with an in vitro EC50 of 0.5 μM against the parasite. Thermal shift assays showed a strong increase of P. falciparum purine nucleoside phosphorylase (PfPNP) melting temperature by up to 15 °C upon incubation with MMV000848. Binding and enzymatic assays returned a K_D of 1.52 ± 0.495 μM and an IC₅₀ value of 21.5 ± 2.36 μM. The inhibition is competitive with respect to the substrate, as confirmed by a cocrystal structure of PfPNP bound with MMV000848 at the active site, determined at 1.85 Å resolution. In contrast to transition states inhibitors, MMV000848 specifically inhibits the parasite enzyme but not the human ortholog. An isobologram analysis shows subadditivity with immucillin H and with quinine respectively, suggesting overlapping modes of action between these compounds. These results point to PfPNP as a promising antimalarial target and suggest avenues to improve inhibitor potency.

The majority of over 619,000 deaths due to malaria occurs in sub-Saharan Africa with infants under 5 years paying the highest toll to the disease (https://www.who.int/publications/i/item/9789240064898). While malaria can be caused in humans by five species of Plasmodium merozoites with tropism for human erythrocytes: Plasmodium falciparum, Plasmodium vivax, Plasmodium ovale, Plasmodium malariae, and Plasmodium knowlesi, P. falciparum accounts for more than 98% of the observed mortality (1). Current measures to combat malaria include mosquito vector-control strategies, use of mosquito nets, and implementation of artemisinin combination therapies (2). Genetic resistance is gradually increasing against artemisinin (3, 4), with the first incidence reported in Cambodia over 20 years ago (5). Between 2014 and 2016, partial resistance to artemisinin was also noted in several African countries, raising serious public health concerns, because of the massive disease burden already suffered by this continent (6, 7). With a view to expand the drug armamentarium against malaria, several global initiatives were started to assemble lead compound libraries that showed promising antiparasite activities in cell-based phenotypic assays (8). These chemical repositories include the GlaxoSmithKline Tres Cantos antimalaria set (9) and the Medicines for Malaria Venture (MMV) (10).

The MMV “Malaria Box” contains about four hundred diverse drug-like compounds identified in phenotypic screens against P. falciparum, which were distributed to research laboratories for a concerted open-access effort for drug discovery against malaria (10). While phenotypic screens provide indispensable libraries of leads to combat malaria, in many cases little is known about the precise mechanism of action employed by these compounds to kill the parasite. A better knowledge of their targets is required to improve the selectivity and potency of promising hits and several methods were devised for target deconvolution. These comprise in vitro selection of resistant parasites grown in the presence of inhibitory compounds, associated with genome sequencing (11) and the use of clickable probes (12). Recently, a powerful label-free tool for identifying malaria drug targets was designed, by repurposing the mass spectrometry-cellular thermal shift assay (MS-CETSA) (13), a proteomics method initially designed for anticancer drug targets identification (14).

Several molecular drug targets from the Plasmodium proteome have been proposed and prioritized based on a number of criteria including genetic validation, resistance potential, druggability, availability of an activity assay, and structural information (15). This constitutes a paradigm shift from the conventional phenotypic approach that has been used so far, towards a more target-based approach. Along this line, that the malaria parasites lacks de novo purine biosynthesis indicates potential for targeting this pathway (16, 17) that comprises (i) purine nucleoside phosphorylase, (ii) hypoxanthine-guanine-xanthine-phosphoribosyl transferase, and (iii) adenosine deaminase (17, 18). Purines are obtained by the parasite from the host erythrocyte mostly via hypoxanthine, the major purine base salvaged by Plasmodium, through metabolizing adenosine via the sequential action of adenosine deaminase and purine nucleoside phosphorylase (PfPNP) (18, 19). PfPNP catalyzes the phosphorylation of inosine and guanosine to ribose-1 phosphate and hypoxanthine or guanine, respectively (Fig. 1A). Since hypoxanthine synthesized through this purine salvage pathway constitutes a major source of purines for the parasite, PfPNP is essential for parasite survival (19, 20, 21, 22, 23, 24, 25).

Figure 1.

Reaction catalyzed by PfPNP and identification of PfPNP as a target of MMV000848.A, PfPNP catalyzes the conversion of inosine into ribose-1-phosphate and hypoxanthine, the major precursor for the purine salvage pathway. Guanosine is a less favored substrate that leads to guanine formation by PfPNP. The middle panel depicts the ribo-cationic transition state (shown in brackets) (25). B, scatter plots representing the distribution of protein stabilization obtained from intact cell MS-CETSA, plotted as a function of R2 value (goodness of curve fit) against ΔAUC (area under the curve of heat-challenged sample normalized against non-denaturing 37 °C control) for all proteins detected in the assay. The cut-offs used: three times of median absolute deviation (MAD) of ΔAUC in each dataset (MAD × 3) and R2 = 0.8 are indicated on the graph. The parasite PNP (red dots) is the most stabilized protein of the proteome. The complete list of Plasmodium falciparum proteins stabilized by MMV000848 can be found in Tables 1 and 2. C, thermal stabilization profiles of PfPNP obtained by CETSA from intact cells (left) and cell lysate (right). Stabilization under thermal challenges (colored) is plotted relative to no-drug control with non-denaturing control (37 °C) plotted in black. Minimal dose threshold (MDT) values stated are from heat treatment temperature, where thermal stabilization was observed. MMV, Medicine for Malaria Ventures; MS-CETSA, mass spectrometry coupled with cellular thermal shift assay; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

The in vivo relevance of PfPNP as target was shown by Cassera et al. (2011) (26) who tested the efficacy of DADMe-immucillin G (or “BCX-4945”) in Aotus primates, an animal model for P. falciparum infections. Oral administration of BCX-4945 over a week resulted in parasite clearance in the animals (26). Pioneering studies by the Schramm group on Homo sapiens PNP (HsPNP) and PfPNP led to the identification of a transition-state analog immucillin H (ImmH) that showed 56 pM dissociation constant to HsPNP. This was followed by the development of several analogs of immucillin (18). Remarkably, ImmH also binds PfPNP with a K_D of 860 pM (27, 28) and kills P. falciparum cultured in human erythrocytes with an IC₅₀ of 35 nM (22, 29). Addition of a thio-methyl group at the 5′ carbon of ImmH to produce 5′ methylthio-Immucillin H (MT-ImmH) shifted the specificity towards the parasite enzyme over the human analog by a factor of 112, although this inhibitor still inhibits both the human and parasite enzymes (28, 30). This demonstrated that parasite-specific active site inhibitors could in principle be designed, despite similarity with the human enzyme. Using the MS-CETSA approach, PfPNP was shown to be targeted by quinine with a reported K_i of 138 nM while mefloquine was less potent (31). Both quinoline drugs bind to the enzyme active site and are competitive inhibitors with respect to the substrate, lending support to the hypothesis that PfPNP plays a role in their mechanism of action (31).

Here, over the course of a systematic malaria drug targets deconvolution campaign using MS-CETSA, we found that PfPNP is thermostabilized by compound MMV000848 from the malaria box (10). We show that MMV000848 strongly engages PfPNP both in cell lysate and in intact cell-based CETSA assays. We report biophysical, enzymatic, and structural data including a cocrystal structure of MMV000848 bound at the active site of PfPNP at a 1.85 Å resolution. An isobologram analysis demonstrates subadditivity between MMV000848 and other PfPNP inhibitors, including immucillin H and quinine, consistent with a degree of overlap in the mechanism of action used by these drugs. Taken together, these data show a competitive mode of inhibition of PfPNP by MMV000848 which is not observed for HsPNP and should help develop novel antimalarial compounds targeting PfPNP with improved specificity and potency.

Results

MS-CETSA identifies PfPNP as a target of MMV000848

Here we employed MS-CETSA to interrogate the mechanism of action of MMV000848. We used cellular lysates from in vitro blood-stage P. falciparum parasites to study direct drug–target interactions (“lysate”). In order to study drug-target engagements in an intact cell context, we also used live erythrocytes infected by P. falciparum (“intact cell”). We carried out an Iso-Thermal Dose Response (ITDR) assay. In this implementation of MS-CETSA, protein thermal stabilization is monitored at a single temperature in the presence of a range of drug concentrations (∼1 nM–10 μM) covering the in vitro IC50 value of MMV000848 of 0.5 μM. The complete list of P. falciparum proteins stabilized by MMV000848 can be found in Tables 1 and 2.

Table 1.

Protein hits identified from Lysate CETSA

PlasmoDB ID	Target name	Heat challenge (°C)	MDT (nM)
PF3D7_0513300	Purine nucleoside phosphorylase	55	1047.2
		60	2425.8
PF3D7_1358800	40S ribosomal protein S15	60	48,373.9
PF3D7_0210100	60S ribosomal protein L37ae (putative)	55	25,032.5
PF3D7_0531100	Conserved Plasmodium protein, unknown function	55	4798.9
PF3D7_1360800	Falcilysin	60	11,089.5
PF3D7_1416500	NADP-specific glutamate dehydrogenase	60	29.8

Analysis was conducted at 50 °C, 55 °C, and 60 °C across 1906, 1787, and 1676 proteins, respectively.

Table 2.

Protein hits identified from Intact Cell CETSA

PlasmoDB ID	Target name	Heat challenge (°C)	MDT (nM)
PF3D7_0513300	Purine nucleoside phosphorylase	60	22.23
PF3D7_0110800	Transcription initiation factor TFIIB putative	60	196.53
PF3D7_0204700	Hexose transporter	50	316.49
PF3D7_0311300	Phosphatidylinositol 3- and 4-kinase putative	60	985.85
PF3D7_0312800	60S ribosomal protein L26 putative	50	189.79
PF3D7_0407800	Conserved Plasmodium protein unknown function	60	609.72
PF3D7_0409400	Chaperone protein DnaJ	60	1605.60
PF3D7_0505500	DNA mismatch repair protein MSH6 putative	60	383.36
PF3D7_0505700	Conserved Plasmodium membrane protein unknown function	60	3846.84
PF3D7_0526200	ADP-ribosylation factor GTPase-activating protein putative	50	1290.89
PF3D7_0611600	Basal complex transmembrane protein 1	60	351.65
PF3D7_0710600	60S ribosomal protein L34	50	339.18
PF3D7_0819600	Conserved Plasmodium protein unknown function	50	1440.99
PF3D7_0822900	Conserved Plasmodium protein unknown function	60	1137.80
PF3D7_0914700	Major facilitator superfamily-related transporter putative	50	479.60
PF3D7_0919900	Regulator of chromosome condensation-PP1-interacting protein	60	620.45
PF3D7_1014900	Conserved Plasmodium protein unknown function	60	1221.07
PF3D7_1031600	Conserved Plasmodium protein unknown function	60	19,500.89
PF3D7_1037300	ADP/ATP transporter on adenylate translocase	50	240.00
PF3D7_1109900	60S ribosomal protein L36	50	150.27
PF3D7_1116800	Heat shock protein 101	50	817.34
PF3D7_1121600	Exported protein 1	50	982.29
PF3D7_1124700	GrpE protein homolog mitochondrial putative	60	735.92
PF3D7_1129000	Spermidine synthase	50	265.77
PF3D7_1134000	Heat shock protein 70	60	994.72
PF3D7_1211900	Non-SERCA-type Ca2+ -transporting P-ATPase	50	430.33
PF3D7_1341300	60S ribosomal protein L18-2 putative	50	534.94
PF3D7_1352800	Vacuolar fusion protein MON1 putative	60	384.28
PF3D7_1360800	Falcilysin	60	749.91
PF3D7_1417500	H/ACA ribonucleoprotein complex subunit 4 putative	60	784.24
PF3D7_1431700	60S ribosomal protein L14 putative	50	665.11
PF3D7_1434800	Mitochondrial acidic protein MAM33 putative	60	267.45
PF3D7_1471100	Exported protein 2	50	1188.97

Analysis was conducted at 50 °C and 60 °C across 1166 and 825 proteins, respectively.

Falcilysin (PF3D7_1360800) and PNP (PF3D7_0513300) appeared as two proteins exhibiting high-confidence stabilization levels among a total of 2157 and 2032 P. falciparum proteins detected simultaneously in both datasets (Tables 1 and 2). Having a large hydrophobic pocket, falcilysin is a promiscuous target from the hemoglobin digestion pathway that is able to engage many drugs including several quinolines but also investigational drugs such as MK-4815, a compound developed by Merck. A detailed analysis of the interactions formed between the active site chamber of falcilysin and these various drugs and drug candidates is given in a separate manuscript (32). Scatter plots representing the combined target selection matrix from different heat challenge temperatures are displayed in Figure 1B. A clear dose-dependent stabilization of PfPNP was observed upon MMV000848 treatment (Fig. 1C), with minimum dose threshold (minimum concentration needed to achieve thermal stabilization) ranging from ∼0.05 μM in intact cells and ∼1.0 and 2.4 μM for cell lysate at 55 °C and 60 °C heat challenge, respectively. (Fig. 1C). Although the precise origin of the ∼50 fold lower value of the minimum dose threshold (60 °C) observed in the intact-cell CETSA compared to the lysate CETSA is unknown, the difference might be due to a MMV000848 accumulation or concentration effect in the parasite. Next, we decided to explore the interactions between MMV000848 and PfPNP in more detail.

MMV000848 binds to PfPNP and inhibits its enzyme activity in vitro but does not bind the human ortholog

To validate the interaction between PfPNP and MMV000848 identified via MS-CETSA, we first determined the stabilizing effect against thermal denaturation imparted to the recombinant protein by this compound using differential scanning fluorimetry. We observed concentration-dependent stabilization of PfPNP similar to that of the positive control ImmH (Fig. S1) with a significant increase in the melting temperature T_m of 15.9 °C when the enzyme was incubated with a concentration of 100 μM of MMV000848 (Fig. 2A). Next, determination of the dissociation constant was done using isothermal titration calorimetry (ITC) returning a K_D of 1.52 ± 0.49 μM for a 1:1 interaction between MMV000848 and each PfPNP monomer (Fig. 2C). This value corresponds to a 7-fold higher affinity than the previously identified PfPNP active site inhibitor mefloquine (K_D = 11 μM) (31) while quinine, which also binds to the enzyme active site, has a reported K_D of 65 nM (although a biphasic fitting was performed to obtain the latter value, see ref. 32 and discussion). The thermodynamic parameters with ΔG of −7.91 kcal/mol reveal both significant enthalpic (ΔH = −3.97 kcal/mol) and entropic contributions (−TΔs = −3.84 kcal/mol), which are in line with the observation of several hydrogen bonds and water-mediated interactions, as discussed in the structural section. In contrast, no interaction could be detected between MMV000848 and the human enzyme indicating strict specificity of the inhibitor for the parasite enzyme (Fig. 2C right panel).

Figure 2.

MMV000848 shows direct binding to PfPNP but not to the human ortholog.A, normalized melting curve from DSF analysis of PfPNP stabilization by MMV000848 carried out with a concentration of 15 μM of PfPNP and various concentrations of MMV000848 (100 μM to 1.25625 μM). Each data point was measured in triplicates. The melting temperature Tm measured from Boltzmann sigmoidal analysis indicated dose-dependent stabilization of PfPNP. B, schematic structure of MMV000848. This compound from the MMV “malaria box” has an EC50 of 0.5 μM against the parasite. It is composed of a 5-carbon ring linked to a carbazole aromatic group composed of three fused rings. C, isothermal titration calorimetry measurement of the interaction between MMV000848 and PfPNP (left) or HsPNP (right). Top graph shows injection peaks with the area of each peak proportional to the heat released from each injection. Bottom profile shows the binding isotherms. The binding affinity, stoichiometry, and thermodynamic parameters for the interaction between MMV000848 and PfPNP are indicated. No interaction was observed between MMV000848 and HsPNP, indicating specificity of the inhibitor for the Plasmodium enzyme. DSF, differential scanning fluorimetry; MMV, Medicine for Malaria Ventures; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

Enzyme activity was measured by following the conversion of inosine to hypoxanthine (29, 33). A fixed concentration of 100 nM of PfPNP was incubated with various concentrations of MMV000848. Previously identified inhibitors of PfPNP: mefloquine, quinine, and ImmH (also named “BCX-1777”) (22, 28, 29, 30, 34) were used for comparison, and chloroquine as a negative control (Fig. 3). In this assay, MMV000848 inhibited PfPNP activity with a 50% inhibitory concentration, IC₅₀ of 21.49 μM, which is intermediate between the IC₅₀ values of mefloquine (IC₅₀ = 327.3 μM) and quinine (K_i =11.33 μM) (Fig. 3A, left panel and Table S1). Accordingly, the K_i of MMV000848 was 454.90 nM (Fig. 3B, left panel and Table S1), which is also comprised between previously reported values for quinine (K_i = 138 nM) and mefloquine (5.9 μM). This ranking in inhibition potency agrees with ITC results where MMV000848 has a binding affinity intermediate between mefloquine and quinine (31). In order to examine the mode of inhibition employed by MMV000848 with respect to the inosine substrate, a Lineweaver-Burk double reciprocal plot was computed (Fig. 3B, right panel). Increasing concentrations of compound MMV000848 only resulted in minimal changes of V_max values of PfPNP, while an increase of apparent K_M,app values for inosine was observed (Fig. 3C). This assay indicates that MMV000848 behaves as a competitive inhibitor of the interaction between PfPNP and inosine and is therefore likely to bind to the enzyme active site (Fig. 3B). To investigate potential toxicity due to off-target inhibition, we also carried out enzymatic inhibition assay with purified recombinant HsPNP in the presence of MMV000848, mefloquine, quinine, and ImmH. The transition state analog ImmH showed an IC₅₀ of 157.1 nM, while MMV000848, mefloquine, and quinine did not inhibit the human ortholog (Fig. 3A, right panel).

Figure 3.

In vitro enzymatic assay and mode of inhibition.A, a concentration of 100 nM of either PfPNP (left panel) or HsPNP (right panel) was incubated with 60 mU/ml xanthine oxidase and 200 μM inosine in the presence of various concentrations of the following inhibitors: MMV000848, quinine, mefloquine, and chloroquine. For HsPNP, the range of inhibitor concentrations used were as follows: 1 mM to 488.28 nM for MMV000848; 10 μM to 4.88 nM for immucillin H (ImmH). The IC₅₀ values were determined from sigmoidal, four-parameter logistic analysis. For PfPNP, IC₅₀ values are as follows: MMV000848: 21.49 μM, ImmH: 3.824 μM, quinine: 11.33 μM, and mefloquine: 327.3 μM. For HsPNP, the IC₅₀ value of ImmH is 157.1 nM. B, PfPNP enzyme kinetics parameters were measured to determine Ki (using competitive inhibition model) as well as values of V_max and apparent K_M,app (using Michaelis Menten model). Fixed concentrations of 50 nM of PfPNP, 60 mU/ml xanthine oxidase, and a range of concentrations from 500 μM to 7.8125 μM of inosine were used, in the presence of 50 μM to 1.5626 μM of MMV000848. The double-reciprocal Lineweaver-Burk plot (right panel) indicates competitive inhibition (see text for details). C, PfPNP kinetic parameters were determined from Michaelis Menten analysis. Measurements of K_M,app (apparent K_M) of inosine was made in the presence of various concentrations of MMV000848. The experiment was carried out in triplicates. MMV, Medicine for Malaria Ventures; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

Crystal structure of the PfPNP–MMV000848 complex

To understand the mode of inhibition at the atomic level, we co-crystallized PfPNP with MMV000848 and determined the structure of this complex at 1.85 Å in space group R32 (Fig. 4), which is isomorphous to the structures of PfPNP bound to quinine and mefloquine reported earlier (31). Data collection and refinement statistics are summarized in Table 3. Like in previously reported structures (28, 32, 35, 36), PfPNP forms a homo-hexamer, with three 2-fold symmetrical dimers arranged around a crystallographic three-fold symmetry axis running through the central aperture of the assembly (Fig. 4A). The overall structure of the PfPNP monomer (Fig. 4B and Video S1) is highly conserved with a r.m.s deviation of 0.30 Å compared to the complexes formed by PfPNP with quinine and 0.15 Å with mefloquine, for a total of 232 superimposed main-chain atoms (18, 37). A conspicuous difference is observed in the active site loop that joins residues Trp212 to Val222 of the enzyme. While this loop is ordered in the complex with transition state analogs such as ImmH where it folds into helix ɑ8, here it is disordered in the complex with MMV000848 (Figs. 4B and S3).

Figure 4.

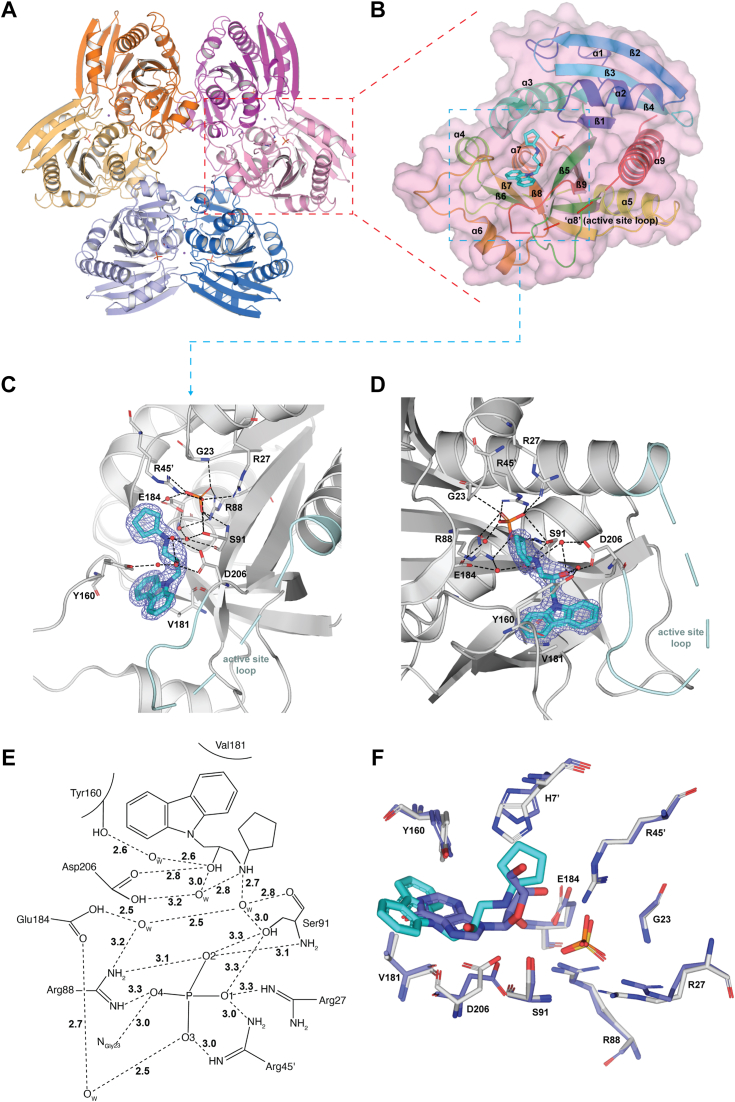

Structure of PfPNP-MMV000848 and comparison with the native enzyme-substrate complex.A, PfPNP hexameric structure with each dimer colored differently (as dark and lighter tone). The bound MMV000848 inhibitor and phosphate ions are shown as sticks. B, transparent surface representation of the PfPNP monomer with MMV000848 (cyan sticks) and phosphate (orange sticks) molecules bound at the active site. The PfPNP main chain is shown as ribbons colored from blue (N-terminus) to red (C-terminus). Several elements of secondary structures discussed in the text are indicated. C and D, magnified views (separated by about 90° rotation) of the active site highlighting residues interacting with MMV000848. A F₀–F_c difference Fourier electron density residual map with MMV000848 omitted from the phase calculation is contoured at a level of 3.0 σ and displayed as a slate mesh. The active site loop is colored in cyan and missing atoms are represented by dashed lines. Hydrogen bonds are depicted as dashes and water molecules mediating inhibitor–protein interactions as red spheres. E, 2D diagrammatic representation of interactions between PfPNP and MMV000848 and the phosphate. Dashes represent hydrogen bonds while residues with brackets make van der Waals interactions. F, superimposition of the PfPNP-MMV000848-PO₄ ternary complex (this work) and the two binary complexes: PfPNP-inosine (inosine in slate, PDB code: 2BSX) and PfPNP-SO₄ (PDB code: 1SQ6) (See also Fig. S5) (36). The panel shows as white sticks PfPNP residues surrounding the MMV000848 inhibitor and phosphate ion in the experimental ternary structure (this work).The phosphate and sulfate ions, shown as orange and yellow sticks respectively, occupy the same location in the active site. Residues involved in the PfPNP–inosine–SO₄ ternary complex formation (as modeled form the two binary complexes) are colored in slate. MMV, Medicine for Malaria Ventures; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

Table 3.

Data collection and refinement statistics of PfPNP-MMV000848

Data collection	PfPNP-MMV000848
Wavelength (Å)	1.000
Space group	R32
Unit cell parameters	a = 95.61 Å, b = 95.61 Å, c = 138.2 Å, ɑ = ß = 90°, ɣ = 120°
Resolution range (Å)a	33.17–1.85 (1.916–1.85)
R-mergeb	0.0743 (0.9243)
I/σ (I)	30.42 (3.73)
Completeness (%)	99.79 (99.32)
Redundancy	20.3 (20.7)
Total reflections	425,760 (42,793)
Unique reflections	20,977 (2065)
Model Refinement
R-workc	0.1736 (0.3293)
R-freed	0.1781 (0.3660)
CC1/2	1 (0.953)
No. of protein chains	1
No. of protein atoms	1806
No. of ligands	1 (MMV000848)
No. of ligand atoms	23
No. of solvent atoms	170
Wilson B-factor (Å2)	27.17
Average B-factor (Å2)	39.11
Macromolecules	38.30
Ligands	37.95
Solvent	47.15
R.M.S. deviations
Bonds (Å)	0.009
Angles (°)	1.14
Ramachandran plot (%)
Favored region	98.68
Allowed region	1.32
Outlier region	0.00
PDB access code	8W7H

Statistics for the highest-resolution shell are shown in parentheses.

^aStatistics for the highest-resolution shell are shown in parentheses.

^bR_merge = Σ_hΣ_i|I_hi-<I_h>|/Σ_h,i I_hi, where I_hi is the ith observation of the reflection h, while <I_h> is its mean intensity.

^cRwork = Σ ||F_obs| − |F_calc||/Σ |F_obs|. Calculated over 95% of reflections.

^dR_free was calculated with 5% of reflections excluded from the whole refinement procedure.

One MMV000848 molecule binds to the active site pocket of each PfPNP monomer, making interactions with residues from both monomers related by crystallographic dyads (having the same color in Fig. 4B). A phosphate group is bound in the enzyme active site at a location corresponding to the leaving phosphate ion of the enzyme-inosine product complex reported earlier (Fig. 4, B–E). The MMV000848 inhibitor (MW = 308.4 Da, 1-carbazol-9-yl-3-cyclopentylamino-propan-2-ol) is composed of one heterocyclic carbazole aromatic group of three fused rings connected to a cyclopentyl-amino five-carbon ring by a propane moiety that comprises a hydroxyl group at position 2 (Fig. 4E). The latter forms a hydrogen bond with Asp206, and several water-mediated contacts with Ser91, Asp206 and the hydroxyl group of Tyr160 (Fig. 4, C–E). The secondary amine of the cyclopentyl-amino group, which is protonated at physiological pH, also forms a water-mediated hydrogen bonds with Asp206 and Ser91 (Fig. 4, D and E). Thus, the conserved active site residue Asp206 appears key for the stabilization of MMV00848 in the active site pocket. The fused aromatic rings of the carbazole group of MMV000848 fits snugly in the inosine-binding region where it forms an edge-to-face π-π interactions with the Tyr160 phenyl ring and CH-π interactions with Val181 side chain. In addition to these direct contacts, a network of water molecules mediate interactions between the inhibitor and the protein (Fig. 4, C–E).

Although It does not form direct contacts with MMV000848, the bound phosphate ion plays a key role in stabilizing the complex: it forms hydrogen bonds with Ser91 and Arg88, bifurcated hydrogen bonds with Arg45′ from the other monomer (residues form the monomer partner in the dimer are labeled with a prime) and a water-mediated hydrogen bond with Glu184 (Fig. 4, C–E and Video S2). Superposition of the structures of PfPNP bound to the inosine substrate (PDB code: 2BSX) and to a sulfate ion (PDB code: 1SQ6) (36) shows a close overlap of the MMV000848 inhibitor with the inosine substrate: the carbazole group occupies the position of the purine ring while the five-carbon ring is located next to the ribose moiety and the phosphate groups completely overlap in the binding pocket (Fig. 4F). Only some slight shifts and rotations of side-chains of Tyr160 and His7′ are visible between the two bound structures as seen in Figure 4F, revealing an overall structurally well conserved pocket.

Unfavorable contacts prevents MMV00848 to bind HsPNP

To better understand the structural basis for the observed selectivity of MMV000848 for PfPNP and its lack of binding to the human homolog, MMV000848 was placed into the HsPNP active site using a superimposition of PfPNP with the experimental structures of HsPNP bound to the inosine substrate (38) (PDB code: 1RCT) and to the transition-state inhibitor, ImmH (28, 38) (Fig. S2). HsPNP operates through a “random sequential mechanism” where substrates can bind in any sequence to the enzyme (18, 33, 39, 40). Hence, binding of either the inosine substrate or inhibitor is independent of phosphate-binding. Inosine (18, 38, 41, 42, 43) makes hydrogen bonds with Asn243, Glu201, Tyr88, and His257 of HsPNP, while Met219 and Phe200 form additional interactions with the purine ring of inosine (Fig. S2A). Likewise, the HsPNP-ImmH structure (28) reveals a similar set of interactions (Fig. S2B). Asn243 initiates the protonation of the N7 atom of the purine ring (18, 33, 39, 40, 42) and Glu201 and Tyr88 are involved in substrate binding (18, 41, 42). An overlay of MMV000848 into either complex revealed that active site residues Asn243 and Glu201 create a polar patch that would provide unfavorable contacts with the hydrophobic carbazole ring of MMV000848. In PfPNP the corresponding patch is formed by hydrophobic residues Val66 of the main chain and Val73 of the neighboring chain, which is essential to accommodate the methyl-thio groups for PfPNP (18, 28, 30, 34, 44). In addition, the side-chain of Tyr88 would sterically clash with the MMV000848 cyclopentyl ring of MMV000848 (Fig. S2, C and D). Overall, the active site cavity of HsPNP is more hydrophilic and occupies a smaller volume compared to the PfPNP active site which can accommodate the hydrophobic ring of MMV000848. Taken together, these structural features are likely to account for the fine specificity of MMV000848 towards PfPNP and not HsPNP.

To date, most efforts in optimizing the specificity of drugs targeting PfPNP have taken advantage of the dual-specificity of PfPNP for both purines and methylthiopurines (18, 28, 30, 34, 44). This is specific to Plasmodium as PNP from other apicomplexa including from Toxoplasma (45) are devoid of this dual specificity. Hence, much effort has been given to provide specific interactions with residues next to the 5′ group of the ribose ring (28), specifically, the hydrophobic pocket including Val67, Val 73 and Tyr160 responsible for accommodating the methyl-thio group of immucillin (28, 30, 44). As a result, MT-ImmH is the compound from the immucillin family that discriminates best against HsPNP. Yet, MT-ImmH still binds HsPNP with nanomolar affinity (30) and inhibits HsPNP with a Ki of 0.3 nM (45), which could lead to some toxicity when used for human therapy.

The case of the active site loop

In contrast to MMV000848 that specifically binds and inhibits PfPNP but not the human ortholog, inhibitors of the immucillin family, such as ImmH and MT-ImmH strongly inhibit both HsPNP and PfPNP with K_i values of 0.6 nM and 2.7 nM respectively (22, 29, 45). An alignment of the amino-acid sequences of HsPNP and PfPNP is displayed in Fig. S4. Due to the low amino-acid sequence identity of 9% between PfPNP and HsPNP, a structure-based alignment (46) was performed, revealing a r.m.s deviation of 2.3 Å over 193 Cɑ atoms. To understand the origin of high-affinity binding and broad reactivity, we examined the structures of PfPNP bound with MT-ImmH (PDB code: 1Q1G) (28) and with ImmH-SO₄ (PDB code: 1NW4) (28) (Fig. 5). While the active site loop spanning residues 207 to 225 (28, 29, 45) of PfPNP-MMV000848 is flexible, the corresponding residues in both immucillin complex structures are ordered (Figs. 5 and S3). As a result, both immucillin inhibitors form water-mediated hydrogen bonds with Trp212 from the active site loop, while these interactions are not observed with MMV000848 due to disorder of the corresponding residue (Fig. 5). Moreover, compared to the PfPNP-MMV000848 complex, Asp206 is shifted by 1.5 Å deeper into the substrate-binding cavity enabling it to directly form a hydrogen bond with the N7 atom of the purine ring of ImmH and MT-ImmH. In contrast, Asp206 only forms a weaker water-mediated hydrogen bond with the hydroxyl group of MMV000848. Likewise His7′ forms a hydrogen bond with the 5′ hydroxyl group of ImmH but does not interact with MMV000848. (Fig. 5, A–C). Thus, additional hydrogen bonds with the immucillin in part due to the ordering of the active site loop to cover the inhibitor, are likely to explain the higher affinity of PfPNP for both immucillin compounds with respective K_D values of 2.7 nM and 860 PM respectively (45) compared with MMV000848. Examination of crystal lattice contacts in the vicinity of the active site loop revealed that its conformation was unlikely to be affected by crystal packing forces. The active site loop undergoes a disorder-order transition and is stabilized only in the transition state as shown for PNP from various species (18, 35, 47, 48). Hence, despite sharing an overlapping binding site in the PfPNP catalytic center with immucillin compounds, MMV000848 appears to use a different mode of action for inhibiting enzyme activity: instead of acting as an inhibitor of transition-state formation MMV000848 rather stabilizes a pre-transition state of the enzyme. This agrees with the observed conformation of Arg27, a residue that stabilizes the negative charge formed on the phosphate during this intermediate state (35, 42, 47, 49) as seen in the complex with MMV000848 and also in the PfPNP bound to inosine and sulfate (Fig. S5),while Arg27 points away from the phosphate group in the immucillin-bound complexes (Fig. 5, A–C).

Figure 5.

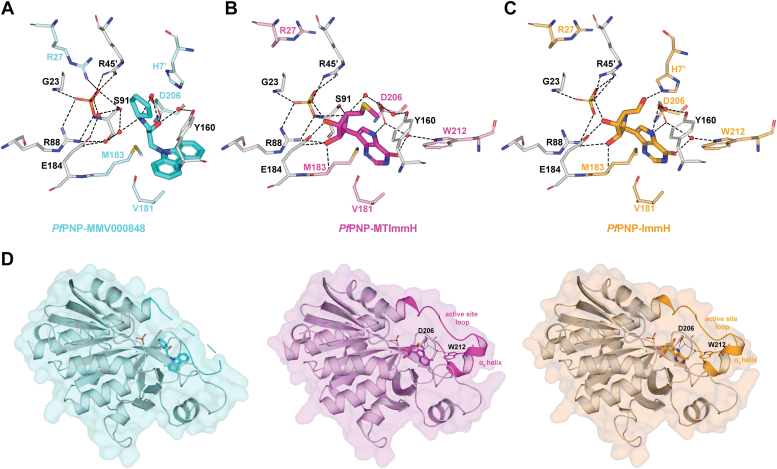

Flexibility of the active site loop of PfPNP.A–C, comparison of active site residues involved in binding inhibitor and phosphate between the following complexes: (A) PfPNP-MMV000848 (this work), (B) PfPNP-MT-ImmH (PDB code:1Q1G) (28), and (C) PfPNP-ImmH (PDB code: 1NW4) (28). MMV000848 is shown as sticks in cyan, MT-ImmH in magenta, and ImmH in orange. Active site residues are displayed as sticks and colored labels indicate residues whose side-chain adopt various conformations between complexes. D, the PfPNP monomer bound with MMV000848 (left panel), MT-ImmH (middle panel), and ImmH (right panel) shown as a transparent surface with the active site loop labeled. The active site loop is ordered in both the PfPNP–MTImmH and PfPNP–ImmH complexes, with the formation of helix ɑ₈. In particular, residue Trp212 of the active site loop and Asp206 are involved in water-mediated interactions with the ligands. Conversely, in the PfPNP–MMV000848 complex, the corresponding segment is disordered (residues 212–221 dashes). MMV, Medicine for Malaria Ventures; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

Comparison with quinolines inhibitors of PfPNP

Using a similar CETSA based approach as employed here, quinine and mefloquine were previously found to bind and inhibit PfPNP (31). A comparison of these two bound structures (PDB codes: 5ZNC and 5ZNI respectively) with the PfPNP-MMV000848 complex structure (this work) is given in Figure 6. A conserved feature is the formation of edge-to-face π-stacking interactions with the fused aromatic rings of each of the three compounds with Tyr160; e.g.: with the quinoline rings for quinine and mefloquine and the carbazole ring for MMV000848 (Fig. 6). While for all three structures, interactions with the phosphate ion remain largely conserved, the hypoxanthine-binding region of the active site reveals some differences: quinine makes additional hydrogen-bond interactions with Trp212 and Asp218, that project from the active site loop. These interactions are accompanied with an ordering of the active-site loop in the complex with quinine while the loop is flexible in the complex with mefloquine (Fig. 6B) and with MMV000848 (Fig. 5D). Thus, loop stabilization via interactions with quinine is likely to account for the stronger inhibition observed with this drug. Overall, these structural features agree with the ranking in inhibition potency and binding affinity of the three inhibitors: quinine> MMV000848> mefloquine and also correlates with a higher number of hydrogen bonds stabilizing the complexes with quinine and MMV000848 compared to the complex with mefloquine (Table S2). We also note variability in the active site loop whose conformation differs between PfPNP-quinine and transition state complexes (28, 29, 35). Hence, stabilization of the substrate loop appears crucial for the design of potent active site inhibitors. Our in vitro data also indicated that neither quinoline compounds inhibits HsPNP (Fig. 3A). This derives from the presence of the aromatic quinoline rings in both quinine and mefloquine, which would provoke steric clashes with HsPNP active site residues. Moreover, the presence of an aromatic ring moiety close to the active site loop appears crucial for designing PfPNP inhibitors that are able to discriminate against HsPNP.

Figure 6.

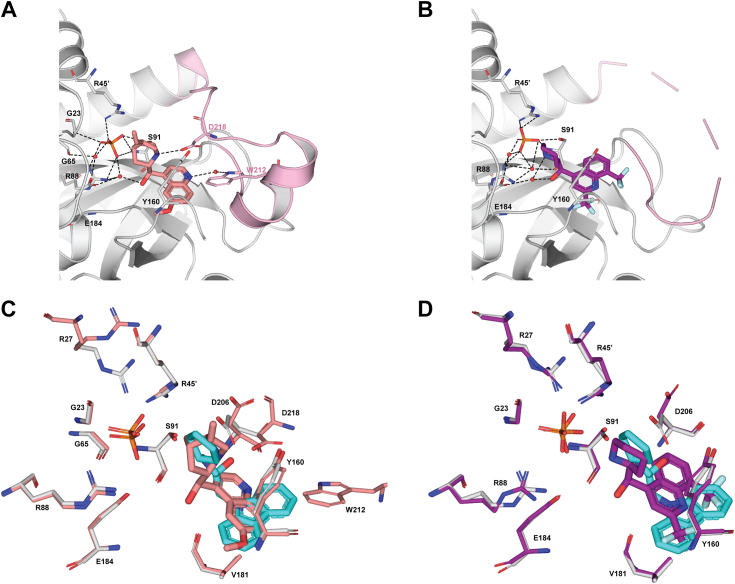

Comparisons with quinoline inhibitors.A, PfPNP–quinine complex (PDB code: 5ZNC) (31). Quinine is shown as salmon sticks and the phosphate group as orange sticks. Quinine forms hydrogen bond interactions with Trp212 (water-mediated) and Asp218 of the active site loop, as well as with Glu184. B, view of the PfPNP–mefloquine complex (PDB code: 5ZNI) (31). Mefloquine is shown as purple sticks and the phosphate ion as orange sticks. Mefloquine forms a single water-mediated hydrogen bond with Glu184. For (A and B), residues interacting with inhibitors are shown in sticks and the active site loop is colored in light pink with dashes representing missing atoms. Hydrogen bonds are depicted as black dashes and water molecules involved in binding as red spheres. C, superposition of the active site of PfPNP-MMV000848 (white sticks) with PfPNP-quinine (salmon sticks). D, superposition of the active site of PfPNP–MMV000848 (white sticks) with the PfPNP–Mefloquine complex (purple sticks). In panels (C and D), MMV000848 is shown as cyan sticks in the same orientation. MMV, Medicine for Malaria Ventures; PfPNP, Plasmodium falciparum purine nucleoside phosphorylase.

Isobologram analysis suggests antagonistic effect between MMV000848 and PfPNP inhibitors

Taken together, MS-CETSA, biophysical and structural data point to PfPNP as a possible target for MMV000848. To investigate this proposed mechanism of action to kill the parasite at the intra-erythrocyte stage, we tested whether any synergistic or antagonistic effect could be detected by pairing MMV000848 with known inhibitors of PfPNP enzymatic activity that can also kill the parasite. ImmH was previously shown to kill the parasite via a direct competition with the inosine substrate in binding PfPNP; importantly, ImmH also targets HsPNP (22, 28, 29, 30). The second drug tested was quinine which inhibits PfPNP but not HsPNP (Fig. 3A). For both pairs tested MMV000848/ImmH and MMV000848/quinine, a subadditivity effect was found in killing the falciparum 3D7 strain, although the antagonistic effect observed was weaker for the MMV000848/quinine pair (Fig. 7). Competition between MMV000848 and either quinine or ImmH for the same binding site on PfPNP is likely the cause of the observed antagonistic effect in this cell assay. As for the origin of the weaker subadditivity effect, it should be borne in mind that PfPNP inhibition constitutes only part of the proposed mechanism of action of quinine and other mechanisms such as inhibition of heme polymerization and heme catalase activity have been demonstrated (50).

Figure 7.

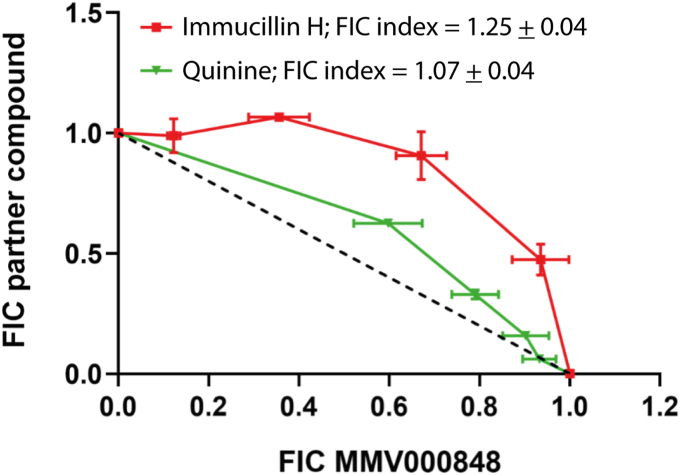

Isobologram analysis. Synergy analysis for MMV000848 in combination with either Immucillin H or quinine against the WT 3D7 parasite (“3D7 WT”). Isoboles representing fractional inhibitory concentration (FIC) of each drug in combination are plotted across a range of drug pair concentrations. FIC indexes and their respective SDs represent the average of all FICs in each strain. Dotted line represents reference isobole indicating Loewe additivity model. MMV, Medicine for Malaria Ventures.

Discussion

Despite decades of research efforts and the availability of several frontline prophylactic and chemotherapeutic treatments, malaria remains a major health problem with 247 million recorded cases in 2021 according to WHO (https://www.who.int/publications/i/item/9789240064898). The situation is aggravated by the emergence of parasites resistant to artemisinin based combination therapies that include -in addition to dihydro-artemisinin- a longer half-life partner drug such as lumefantrine, piperaquine or mefloquine. Thus, in order to combat malaria and the rise of resistant parasites, a better understanding of the mode(s) of action of existing drugs and drug candidates is likely to help the development of novel potent compounds. As part of this effort, we embarked in a systematic drug deconvolution program of known drugs such as quinolines and MK-4815 (a candidate compound from Merck (51)) and also on drug candidates such as those included in the MMV “malaria box” (10).

Quinine, a natural alkaloid initially isolated from the bark of cinchona trees, was historically extremely successful until resistance occurred leading to the development of several analogs. Remarkably, using an agnostic MS-CETSA method, PfPNP was proposed to constitute a possible target accounting for part of quinine mode of action (31). In addition to a protein thermal stabilization effect provided by quinine in a proteomics assay, evidence in favor of PfPNP as a target of quinine included a submicromolar dissociation constant, a competitive mode of inhibition with respect to the inosine substrate as well as structural evidence provided by X-ray crystallography showing quinine bound at the PfPNP active site (31).

However, as exemplified by the complex case of falcilysin which has a promiscuous pocket in its large active site chamber, binding and even enzyme inhibition provoked by binding does not necessarily imply a unique mode of action (32). Thus, it is possible that the mechanisms of action employed by several antimalarial drugs are pleiotropic i.e.: that these compounds work via hitting several targets in the parasite. Indeed, both knockdown and drug sensitivity assays point in the direction of a complex mode of action for many compounds and do not favor the simple paradigm of “one drug hitting one target”. In the case of MMV000848, a 3-fold difference was observed between its dissociation constant with PfPNP (K_D = 1.52 μM) and its anti-parasitic activity (EC₅₀ = 0.5 μM). When considering the higher enzymatic IC50 value as well, this indicates that PfPNP inhibition might account for only part of the mechanism of action of MMV000848 in killing the parasite. Indeed, the CETSA results indicate that MMV000848 can also interact with several other malarial proteins besides PfPNP (Tables 1 and 2) and the combined effects of several interactions could lead to the observed anti-parasitic EC50. Moreover, we cannot formally exclude that some interactions made by MMV000848 not detected by CETSA could also contribute to the mode of action of this drug candidate.

Nonetheless, even if not constitutive of a definitive proof of mode of action, the MS-CETSA method employed here to deconvolute possible targets for MMV00848 leads to identification of PfPNP as a prime candidate. In the present work, using MS-CETSA screening approach we were able to identify putative protein targets of MMV000848, a malaria box compound, which has demonstrated activity against asexual-stage P. falciparum. (10) We found that in the presence of MMV000848, PfPNP exhibited a very strong increase in its melting temperature. Moreover, further enzymatic, biophysical and structural characterization demonstrated a competitive mode of inhibition and binding to the active site of the plasmodium enzyme was unambiguously shown by X-ray crystallography, disclosing a mode of interaction that can now be improved using medicinal chemistry informed by a high resolution structure. Interestingly, in contrast to the immucillin family of inhibitors (29, 30), the human enzyme is not affected by MMV000848 which suggests that specific inhibition of the parasite enzyme is possible, which is advantageous from a toxicity perspective (28, 29, 30).

Structural comparison of MMV000848 with quinine and mefloquine shed light on a common pattern of interactions established between the aromatic ring and Tyr160. While the bulky aromatic rings of MMV000848, quinine and mefloquine are unable to fit in the active site of HsPNP, they are key in maintaining hydrophobic interactions with Tyr160 of PfPNP. Interestingly, while the corresponding loop is disordered in the Plasmodium enzyme bound to MMV000848, hydrophobic residues Pro209, Trp212 and Phe217 located on the active site loop forms significant π-stacking and van der Waals interactions with the hypoxanthine substrate (35). Thus, further drug design based on MMV000848 should aim at establishing additional interactions with residues projecting from the active site loop which is likely to yield more potent inhibitors against PfPNP while retaining specificity for the Plasmodium enzyme. Another possible avenue for improving inhibitor potency is to attempt to grow the molecule to reach into the phosphate-binding site which is systematically found in ternary complexes formed between the enzyme with either an inhibitor or substrate respectively. Compared to previously reported PfPNP inhibitors (Fig. S6) which all contain an aromatic 2-ring system (pyrrolopyrimidinone for ImmH and MT-ImmH; quinoline for mefloquine and quinine), MMV000848 contains an aromatic 3-ring system. This feature should facilitate the design of antimalarials by expanding the available choices of scaffolds for the rational design of PfPNP inhibitors.

Experimental procedures

Parasite culture

P. falciparum 3D7 cultures were maintained in Malaria Culture Media (MCM) containing RPMI-1640 medium (Gibco) supplemented with 0.25% Albumax II (Gibco), 0.1 mM hypoxanthine (Sigma), 0.2% sodium bicarbonate (Sigma), and 10 mg/l gentamycin. Human blood group O were used for parasite culture and cultures were maintained at 37 °C with 5% CO₂, 3% O₂, and 92% N₂. Culture media were replenished daily with freshly packed RBC added to the culture when necessary.

Sample preparation for ITDR MS-CETSA and LC/MS analysis

Samples for intact-cell and lysate ITDR MS-CETSA and LC/MS analysis were prepared as described in Dziekan et al. (13) For both intact-cell and lysate MS-CETSA, synchronized mid-trophozoite stage (28 + 4 HPI) culture at 10% parasitemia and 2% hematocrit was used. In case of intact-cell MS-CETSA, 1 ml of packed blood was loaded on MACS CS column (Milteny Biotech), washed, and eluted. Enriched infected RBC (>80% parasitemia) were then incubated for 1 h in MCM at 37 °C with agitation for recovery and equilibration. The infected RBC were then divided into ten aliquots (75–90 million cells in 6 ml MCM for each aliquot) and treated with 4-fold dilution series of MMV000848 at 10 μM top concentration or an equivalent volume of their respective solvent at 0.1% concentration, and incubated for 1 h at 37 °C with agitation. Cells were pelleted by centrifugation at 2500 rpm for 5 min, washed with PBS, resuspended in 150 μl PBS per aliquot, and transferred in 50 μl aliquots to three 96-well plates, each representing different heat challenge temperature (37 °C, 50 °C, or 60 °C). Samples were subjected to thermal challenge for 3 min, followed by 3 min cooling at 4 °C. After heat treatment, 50 μl of lysis buffer (50 mM Hepes pH 7.5, 5 mM ß-glycerophosphate, 0.1 mM Na₃VO₄, 10 mM MgCl₂, 2 mM tris(2-carboxyethyl)phosphine) (TCEP), and cocktail EDTA-free protease inhibitors (Sigma)) were added to each well. Samples were then subjected to three times of freeze/thaw cycle, followed by mechanical shearing and centrifugation at 20,000g for 20 min at 4 °C to isolate the soluble protein fraction. Protein quantification was then performed with bicinchoninic acid protein assay kit (Pierce). In case of lysate MS-CETSA, the parasite culture was pelleted and incubated with 10× volume of 0.1% saponin in PBS (pH 7.2) for 5 min. Following centrifugation at 2500g for 5 min, the supernatant containing RBC cytosol was removed, while intact parasite pellet was washed three times with 50 ml of ice-cold PBS. Parasite was then resuspended in 1 ml of lysis buffer and subjected to three times of freeze/thaw cycle, followed by mechanical shearing. Parasite lysate was then centrifuged at 20,000g for 20 min at 4 °C and supernatant containing soluble parasite proteins was isolated. Protein concentration was quantified with bicinchoninic acid protein assay kit. Ten aliquots of 20 μg of proteins were added to MMV000848 100 μM top concentration or an equivalent volume of their respective solvent at 0.1% concentration, incubated at room temperature for 3 min, and heated (37 °C, 50 °C, 55 °C, or 60 °C) for 3 min followed by 3 min cooling at 4 °C. The post-heating lysates were centrifuged at 20,000g for 20 min at 4 °C and the supernatant was transferred to a fresh Eppendorf tube for further processing.

Peptide preparation and labeling

Following quantification of lysate and intact-cell samples, the volume equivalent to 20 μg total protein in post-heating treatment was aliquoted and incubated with denaturation and reduction buffer (100 mM triethylammonium bicarbonate (pH 8.5), 20 mM TCEP (pH 7.0), and 1% (w/v) Rapigest (Waters)) at 55 °C for 20 min, followed by alkylation with 55 mM chloroacetamide at room temperature for 30 min. Samples were then sequentially digested with Lys-C (0.23 AU LysC/μg of protein, Wako) for 3 h, followed by trypsin (0.05 μg trypsin/μg of protein) for 18 h at 37 °C. Enzyme activation and Rapigest degradation was performed by incubation with 1% TFA (Sigma) for 45 min at 37 °C and the sample supernatant containing peptides was collected by centrifugation at 20,000g for 10 min. The samples were then dried in a centrifugal vacuum evaporator and resolubilized with 200 mM triethylammonium bicarbonate to 1 μg/μl concentration. Peptides were labeled with TMT10plex Isobaric Label Reagent Set (Thermo Fisher Scientific) according to manufacturer’s protocol. Briefly, 4 μg of the digested protein was labeled for at least 1 h at a condition of pH >6 and then quenched with 1 M Tris, pH 7.4. The labeled samples were subsequently pooled and desalted using an Oasis HLB column (Waters), followed by vacuum drying. Samples were resuspended in 5% (v/v) acetonitrile, 5% (v/v) ammonia and separated using high pH reverse phase Zorbax 300 extend C-18 4.6 mm × 250 mm (Agilent) column and 1260 Infinity II LC system (Agilent) was used for offline sample pre-fractionation into 96 fractions. The fractions were concatenated into 20 fractions and dried with a centrifugal vacuum concentrator.

LC/MS analysis

The dried peptide sample fractions were resuspended in 1% acetonitrile, 0.5% (v/v) acetic acid, and 0.06% TFA in water prior to analysis on LC/MS. Online chromatography was performed using the reverse phase liquid chromatography Dionex 3000 UHPLC system coupled to a Q Exactive HF mass spectrometer (Thermo Fisher Scientific). Each fraction was separated on a 50 cm × 75 μm Easy-Spray analytical column (Thermo Fisher Scientific) in 70 min gradient of programmed mixture of mobile phase A (0.1% formic acid) and mobile phase B (99.9% acetonitrile, 0.1% formic acid) to the following gradient over time: 1 to 55 min (2–25%), 55 to 57 min (25–50%), 57 to 58 min (50–85%), 58 to 63 min (85%), 63 to 70 min (2%). MS data were acquired using data-dependent acquisition with full scan MS spectra acquired in the range of 350 to 1550 m/z at a resolution of 70,000 and AGC target of 3e6; Top12 MS2 35,000 and AGC target of 1e5, and 1e5 isolation window at 1.2 m/z.

PfPNP expression and purification

PfPNP was expressed and purified as previously described (36). Briefly, PfPNP gene was subcloned into pNIC-CH vector and expressed in Rosetta BL21-DE3 Escherichia coli in LB broth supplied with 50 μg/ml kanamycin and 34 μg/ml chloramphenicol. Cells were grown at 37 °C until an OD₆₀₀ of 0.6 to 0.8 was reached and expression was induced with 0.8 mM IPTG at 16 °C overnight. Cells were harvested by centrifugation at 4000g for 20 min at 4 °C. The cell pellet was resuspended in lysis buffer (20 mM Hepes, 500 mM NaCl, 10% (v/v) glycerol and 1 mM TCEP, pH 7.5) and lysed via sonication on ice at 55% amplitude, 5 s ON/OFF for 5 min. Lysate was clarified by centrifugation at 47,000g for 45 min at 4 °C, and the supernatant was filtered using a 0.22 μM filter to remove cell debris. Filtered supernatant was purified using a 2-step purification process of immobilized metal affinity chromatography (IMAC) followed by size exclusion chromatography (SEC). The supernatant was first loaded on a pre-equilibrated HisTrapHP column (GE Healthcare) and washed with IMAC wash buffer 1 (20 mM Hepes, 500 mM NaCl, 15 mM imidazole, 10% (v/v) glycerol and 1 mM TCEP, pH 7.5) and IMAC wash buffer 2 (20 mM Hepes, 500 mM NaCl, 30 mM imidazole, 10% (v/v) glycerol, and 1 mM TCEP, pH 7.5). Bound protein was eluted with a gradient from 30 mM imidazole to 500 mM imidazole. The protein was then concentrated and loaded onto a HiLoad 16/60 Superdex 200 column (GE Healthcare) pre-equilibrated with SEC buffer (50 mM KH₂PO₄, 10% (v/v) glycerol, 1 mM TCEP, pH 7.4). Fractions containing the final purified protein were confirmed using SDS-PAGE, pooled, and concentrated.

In vitro thermal shift assay

Initial confirmation of in vitro stabilization of PfPNP by MMV000848 was determined using the thermal shift assay in SEC buffer. In a 25 μl reaction, 15 μM PfPNP protein was incubated with 5X SYPRO orange dye and various concentrations of MMV000848, chloroquine, or ImmH (ranging from 100 μM to 1.5625 μM). RFU was measured in triplicates using the CFX96 Touch Real-Time PCR Detection System (Bio-Rad) on the FRET channel from 25 °C to 95 °C. Raw RFU values were exported and analyzed using Graphpad Prism to determine the melting temperatures (T_m) of PfPNP in the presence of MMV000848.

Isothermal titration calorimetry

ITC experiments were carried out in using the MicroCal PEAQ-ITC system (Malvern Panalytical). The cell contained PfPNP or HsPNp and the titration syringe contained the compound solution. Both cell and syringe contents were diluted in SEC buffer with the same DMSO concentration. Titrations were initiated with a single 0.4 μl injection followed by 18 2 μl injections at 25 °C in a single ITC experiment. Stirring speed was kept at 750 rpm. The heat peaks integration and nonlinear regression analysis were carried out using MicroCal PEAQ-ITC analysis software (Malvern Panalytical) and fitted using the One Set of Sites fitted offset model to determine the K_D, N (sites) and ΔH.

PfPNP enzymatic activity assay

The PfPNP enzymatic activity assay (36) was used to determine the IC₅₀ of MMV000848 and quinoline compounds as well as the enzyme kinetics of MMV000848. Experiments were carried out in triplicates in a reaction buffer of 50 mM potassium phosphate pH 7.5.

For determination of IC₅₀, each 100 μl reaction mixture contained 60 mU/ml xanthine oxidase (Sigma) and 200 μM inosine (Sigma) in the presence and absence of varying concentrations of inhibitors quinine, mefloquine and MMV000848 (1 mM – 488.28 nM), and ImmH (10 μM–4.88 nM for HsPNP and 200 μM–97.66 nM for PfPNP). Reactions were initiated with the automated addition of 100 nM PfPNP and followed for a total duration of 1 min. TECAN 10 M plate reader was used to monitor the coupled reaction by measuring absorbance at OD_293nm. The initial velocity was calculated automatically using Magellan software provided by the manufacturer. The V_mean values obtained were plotted against the log of the inhibitor concentration in GraphPad Prism to obtain the IC₅₀ values.

For determination of enzyme kinetics, a similar set-up was used whereby each 100 μl reaction mixture contained 60 mU/ml xanthine oxidase but in the presence of varying concentrations of inosine (500 μM–7.8125 μM) and MMV000848 (50 μM–1.5625 μM). V_mean values obtained were plotted against substrate concentration in GraphPad Prism and fit using the Michaelis Menten model to obtain the V_max and apparent K_M,app of PfPNP for inosine in the presence of different concentrations of MMV000848. V_max values in μmol • mg⁻¹ • min⁻¹ were obtained by converting ΔOD_293nm measured using the Beer-Lambert law and taking into account the extinction coefficient of uric acid (12.9 mM¹ • cm⁻¹). To obtain K_i, the same values were fit to the competitive inhibition model in GraphPad Prism. Measurements were performed on multiple 96-well plates. To account for plate-to-plate variation, a control, which contains 100 nM PfPNP, 60 mU/ml xanthine oxidase, 500 μM inosine, and 1% DMSO, was included in each plate, representing 100% velocity. All velocities were normalized to the control on the same plate. Lineweaver-Burk graph was obtained by plotting reciprocal of normalized velocities against reciprocal of inosine concentrations. Error bars denote SD in all graphs.

Crystallization, data collection, and processing

The PfPNP-MMV000848 complex structure was obtained by incubating 37 mg/ml of PfPNP with 3 mM of MMV000848 on ice for 15 min followed by screening for crystallization conditions of co-crystals with commercial screening kits (JCSG-plus and Morpheus from Molecular Dimensions, PEG/Ion Screen from Hampton Research). Co-crystal screens were set up with a mosquito crystallization robot (TTP Labtech) and sitting-drop vapor diffusion method at 20 °C. Multiple crystal hits were observed after 5 days and left to grow up to 14 days. Crystals were fished in nylon loops and flash-frozen in liquid nitrogen for data collection. The complex structure of PfPNP and MMV000848 was obtained from co-crystals grown in buffer condition of JCSG+ C12 (10% (w/v) PEG 1000).

X-ray diffraction intensities were collected at the ANSTO MXI beamline, integrated, and scaled using XDS (52). Structures were solved with molecular replacement as implemented in the program Phaser (53) using the P. falciparum ligand-free structure (PDB access code: 5ZNI (31)) as a search probe. Refinement was done using the Phenix (54) package and interspersed with manual model correction using Coot (55).

Isobologram analysis

For drug interaction study, normal MCM was replaced with MCM without hypoxanthine supplementation (purine-free media). Prior to the start of assay, ring stage parasites (∼4–10 h post-infection) were washed with PBS for three times to remove residual hypoxanthine from the culture. IC₅₀ measurements were conducted for each drug alone and for combinations at fixed volumetric ratios (i.e., immucillin H or quinine: MMV000848 ratio - 5:0, 4:1, 3:2, 2:3, 1:4, 0:5). Parasites were incubated for 48 h at 37 °C. After incubation, the number of new, viable parasites in each well on the subsequent replication cycle was quantified by flow cytometry. Cells were stained using 50 μl of 8 μM Hoechst 33,342 in PBS (pH 7.2) for 15 min at 37 °C, followed by addition of ice-cold 200 μl of PBS. Cells were quantified using LSR Fortessa X-20 Flow Cytometer (BD Biosciences) using UV laser (355 nm) and results were analyzed with FACS Diva Software (BD Biosciences). The assay was performed as biological triplicates. The isobologram analysis was conducted according to the Loewe additivity model, in which the average sum of fractional inhibitory concentrations (FIC index) for the two inhibitors in a combination is indicative of additivity, synergism, or antagonism. The combination with FIC index greater than 1 is considered antagonistic, less than 1 synergistic and if equal to 1 additive (56).

Data availability

Atomic coordinates and structure factors for the PfPNP-MMV000848 complex reported here have been deposited with the PDB (www.rcsb.org) with access code 8W7H.
