. 2024 Feb 8;65(2):205–214. doi: 10.1093/jrr/rrad107

MHY1485 potentiates immunogenic cell death induction and anti-cancer immunity following irradiation

Lue Sun 1,✉, Kumi Morikawa 2, Yu Sogo 3, Yuki Sugiura 4
PMCID: PMC10959436  PMID: 38330507

Abstract

Recent in vitro experiments showed that combined treatment with MHY1485, a low-molecular-weight compound, and X-ray irradiation significantly increased apoptosis and senescence in tumor cells, which was associated with oxidative stress, endoplasmic reticulum (ER) stress and p21 stabilization, compared to radiation treatment alone. However, evidence for MHY1485 treatment-mediated suppression of tumor growth in animals is still lacking. Furthermore, it has been shown that ER stress enhances immunogenic cell death (ICD) in tumor cells, as it can exert a favorable influence on the anti-cancer immune system. In the present study, we examined whether co-treatment of MHY1485 and X-ray irradiation induces ICD and in vivo tumor growth suppression using the CT26 and Lewis lung carcinoma murine tumor cell lines. We found that MHY1485 + X-ray treatment promotes ICD more effectively than X-ray treatment alone. MHY1485 suppresses tumor growth in vivo under co-treatment with X-rays and increases INF-γ, tumor necrosis factor, interleukin-2 and interleukin-12 levels in the spleen as well as the presence of CD8+ cells in the tumor. The results suggest that MHY1485 treatment leads to the conversion of irradiated tumors into effective vaccines. Thus, MHY1485 is a promising lead compound for use in combination with radiotherapy.

Keywords: MHY1485, radiation, anti-cancer immunity, DAMPs, immunogenic cell death

INTRODUCTION

The anti-cancer immune system is thought to play a very important role in improving post-radiotherapy prognosis. Apetoh et al. reported that radiotherapy reduced tumor growth and prolonged the survival of tumor-bearing immunocompetent wild-type mice, yet was less effective in immunodeficient mice [1]. Takeshima et al. reported that the inhibition of CD8+ T cells by administration of an anti-CD8 mAb into tumor-bearing mice negated radiation-induced tumor growth inhibition [2]. It is also known that adequate radiotherapy can enhance anti-tumor immune responses through immunogenic cell death (ICD) via the release of damage-associated molecular patterns and exposure of MHC Class I and calreticulin [2–4]. Moreover, radiation treatment is also able to downregulate anti-cancer immunity associated with increased tumor infiltration of immunosuppressive cells, such as myeloid-derived suppressive cells [5], regulatory T cells [6] and cancer-associated fibroblasts [7], and upregulate immunosuppressive molecules, such as programmed cell death ligand 1 (PD-L1) [8] and transforming growth factor-β (TGF-β) [9]. These findings suggest that radiotherapy exhibits a functional duality, delicately regulating the balance between immune inhibition and promotion. Similarly, several anti-cancer drugs, such as doxorubicin, can induce ICD [10], while other anti-cancer drugs (e.g. everolimus and others) have strong immunosuppressive effects [11]. Everolimus showed a marked radiosensitizing ability in an immunodeficient mouse tumor model [12]. However, this combination therapy failed in clinical trials [13], which highlights the importance of evaluating cytotoxicity as well as the effects on immunity when developing radiosensitizers.

MHY1485 is a low-molecular-weight compound that has an inhibitory effect on autophagy and activates the mechanistic target of rapamycin [14]. Sun et al. have reported that MHY1485 exhibits radiosensitizing activity and that the combination of MHY1485 and radiation treatment induced higher endoplasmic reticulum (ER) stress than radiation treatment alone in vitro [15]. ER stress is defined as a perturbation impacting ER homeostasis and is primarily characterized by the accumulation of aberrant proteins [16]. The unfolded protein response (UPR) is a mechanism for detecting and removing aberrant proteins to achieve ER homeostasis, which is partly mediated via the activation of autophagy [17]. However, an excessive accumulation of aberrant proteins induced by ionizing radiation or certain anti-cancer drugs promotes apoptotic cell death via the UPR [18, 19]. It has been reported that ER stress loading on cancer cells enhances anti-tumor immunity by generating ‘find-me’ and ‘eat-me’ signals such as adenosine triphosphate (ATP) release and increased membrane expression of calreticulin via the activation of protein kinase ribonucleic acid-like endoplasmic reticulum kinase endoplasmic reticulum kinase [20]. Therefore, in this study, we investigated the potential of MHY1485 to enhance the radiation-induced ICD. Further, we used a radiotherapy allogeneic model to determine whether MHY1485 inhibits tumor growth and affects anti-tumor immunity.

MATERIALS AND METHODS

Reagents and irradiation

MHY1485 was obtained from Selleck Chemicals (Tokyo, Japan). A CP-160 X-ray generator (Faxitron, AZ, USA) was used for X-ray irradiation. Irradiation was performed using a tube voltage of 160 kV, a tube current of 6.2 mA, filters of 0.2 mm Cu and 0.5 mm Al. The dose rate was ~0.92 Gy/min.

Cell line and culture conditions

The murine colon carcinoma cell line CT26 (American Type Culture Collection, VA, USA) and the Lewis lung carcinoma (LLC) cell line (Riken Bioresource Center, Ibaraki, Japan) were cultured as described previously [15]. CT26 cells express the gp70423–431 (AH1) antigen [21] and are known as a ‘hot tumor’ that readily responds to immunotherapy [22]. To the best of our knowledge, LLC cells do not have a distinctive antigen and are known as a ‘cold tumor’ that responds poorly to immunotherapy [23]. CT26 cells showed higher MHC Class I expression and lower PD-L1 levels than LLC cells (Supplementary Fig. 1).

The number of cells was counted with a Countess II FL (Thermo Fisher Scientific, Tokyo, Japan). According to a previous report [15], the cells were plated in culture flasks or dishes at Day 0; 10 μM of MHY1485 or vehicle control (dimethyl sulfoxide (DMSO)) were added on Day 1 (24 h after cell plating); 6 Gy X-ray irradiation was delivered on Day 2 (24 h after drug treatment) and the culture medium and cells were collected for experiments on Day 3 (24 h after irradiation).

ATP and HMGB1 production analysis

ATP and HMGB1 levels in the medium were measured using a CellTiter-Glo® Luminescent Cell Viability Assay (Promega, WI, USA) and an HMGB1 Measuring Kit FUSO (Fuso Pharmaceutical Industries, Osaka, Japan), respectively, according to the recommended protocol. Luminescent intensity and absorbance (OD 450 nm) were measured using an MTP-900Lab plate reader (Hitachi High-Tech Science Corporation, Tokyo, Japan).

Cell surface calreticulin, MHC Class I (H-2Kd in murine models) and PD-L1 expression analysis

The cells were trypsinized and stained for 30 min with PE anti-mouse calreticulin (Cat. ab83220; Abcam, Cambridge, UK), H-2Kd (Cat. 116 607; Biolegend, CA, USA) and PD-L1 antibodies (Cat. 124 307, Biolegend). Dead cells were detected using propidium iodide (FUJIFILM Wako Pure Chemical Corporation, Osaka, Japan) and were excluded from the analysis. The median fluorescence intensity (MFI) was analyzed by flow cytometry using a BD Accuri C6 Plus (BD Biosciences, CA, USA) [24].

Phosphorylated H2AX analysis

It has been reported that radiation induces MHC Class I and PD-L1 expression via the deoxyribonucleic acid (DNA) damage response pathway [25, 26]. Thus, we analyzed the phosphorylated H2AX (γH2AX levels), a marker of DNA double-strand breaks (DSB), according to previous methods [15]. Briefly, cells were trypsinized and fixed in 4% paraformaldehyde (FUJIFILM Wako) for 10 min, then permeabilized in Permeabilization Wash Buffer (BioLegend, San Diego, CA, USA). The cells were then sequentially incubated with anti-phospho-histone H2AX (Ser139) antibody (Merck KGaA, Darmstadt, Germany) and an Alexa Fluor 488-conjugated secondary antibody (Abcam). The MFI was analyzed using a BD Accuri C6 Plus [24].

Mice and treatment

The vaccination-rechallenge assay is considered as the gold standard for evaluating ICD [27]. In this assay, cancer cells are inactivated in vitro and are administered as a vaccine to mice. The untreated (healthy) cancer cells are subsequently transplanted into the mice and the rate of tumor growth is evaluated. If the inactivated cancer cells function as a vaccine, the tumor growth rate is reduced or no tumor is produced at all. For the vaccination-rechallenge assay, CT26 and LLC cells were treated with 10 μM of MHY1485 or DMSO 24 h before being subjected to 20 Gy X-ray irradiation in vitro. The 20 Gy dose used in this study was based on a previous study [28]. The cells were trypsinized and suspended in Ca++- and Mg++-free phosphate-buffered saline (PBS; FUJIFILM Wako) 24 h after irradiation. Irradiated CT26 and LLC cells (1 × 105) were vaccinated (subcutaneously injected into the right flank area) to male BALB/c and female C57BL/6 J mice (CLEA Japan, Tokyo, Japan), respectively. Ten days after injection, healthy CT26 (6 × 105 cells/mouse) and LLC (3 × 105 cells/mouse) cells were implanted (subcutaneously injected into the left flank area) in the mice, respectively.

For the therapeutic model, CT26 (6 × 105 cells/mouse) and LLC (5 × 105 cells/mouse) cells were subcutaneously implanted in the left hind leg of male BALB/c and female C57BL/6 J mice, respectively. When the tumor size reached ~100 mm3, the mice were treated with MHY1485 and irradiation. The tumor size of 100 mm3 was selected in this study based on a previous study [29]. MHY1485 (15 or 30 mg/kg) or vehicle control (DMSO) were mixed with corn oil and injected into the tumors twice (24 h between injections). Combination therapy was provided 3 h after the last MHY1485 injection. Anesthetized mice were locally irradiated with an X-ray dose of 8 Gy. The 8 Gy dose was selected based on a previous study [30]. Mice were anesthetized during radiation exposure using a mixture of anesthetic agents (0.75 mg/kg of medetomidine (Nippon Zenyaku Kogyo Co., Fukushima, Japan), 4.0 mg/kg of midazolam (Maruishi Pharmaceutical Co., Osaka, Japan) and 5.0 mg/kg of butorphanol (Meiji Seika Pharma Co., Tokyo, Japan). In addition, 0.75 mg/kg of atipamezole (Nippon Zenyaku Kogyo Co.) was administered after radiation exposure to reverse the effects of medetomidine [31].

The tumor length and width were measured using calipers. Tumor size was calculated using the equation V = (a × b2)/2, where V is the tumor volume, a is the length and b is the width of the tumor. According to the animal welfare requirements, the time required to observe a tumor volume of 1500 mm3 was designated as the survival period. Animals were euthanized when their tumor size exceeded 1500 mm3.

Cytokine levels in spleen

The mice were sacrificed by cervical dislocation and spleens were collected when the mice met the endpoint conditions (tumor size: 1500 mm3 or >60 days after tumor cell transplantation) in the therapeutic model. Spleen tissues (100 mg) were homogenized and suspended in 1 ml of RPMI1640 medium. Interferon-gamma, tumor necrosis factor (TNF), interleukin-2 (IL-2) and interleukin-12 (IL-12p70) levels were measured using a Cytometric Bead Array (BD Biosciences) according to the manufacturer’s protocols.

Immunofluorescence staining

The tumors were collected 7 days after X-ray irradiation, mounted in Optimal Cutting Temperature Compound (Sakura Finetek Japan, Tokyo, Japan) and frozen at −80°C. The frozen tissue was sliced into 8-μm thick sections using a cryostat (Tissue-Tek Polar DM; Sakura Finetek Japan) and was placed on precoated glass slides (Matsunami Glass, Osaka, Japan). The tissue sections were stored at −80°C until staining.

After drying at room temperature, the tumor sections were fixed with 4% paraformaldehyde solution (FUJIFILM Wako) for 10 min at room temperature. The tumor sections were washed three times with PBS for 5 min each at room temperature. The tumor sections were blocked with 10% goat serum (FUJIFILM Wako) in PBS with 0.5% Tween-20 (FUJIFILM Wako) overnight at 4°C. The tumor sections were then incubated overnight at 4°C with a 1:500 dilution of anti-mouse CD8α antibody (Cat. 98 941; Cell Signaling Technology, MA, USA) in PBS with 1% goat serum buffer. The cells were then incubated for 1 h at room temperature with a 1:500 dilution of Alexa Fluor 488-conjugated goat anti-rabbit IgG secondary antibody (Abcam). The cells were counterstained with 4′,6-diamidino-2-phenylindole (DAPI), mounted using a TrueVIEW™ Autofluorescence Quenching Kit with DAPI (Vector Laboratories, CA, USA) and viewed using a fluorescence microscope (BZ-X700; Keyence, Osaka, Japan). A minimum of five images were obtained from each tumor and the number of CD8+ cells per mm2 was determined.

Statistical analysis

The mean and standard deviation (SD) were calculated for each quantitative parameter. A two-tailed two-way analysis of variance (ANOVA) with Sidak’s multiple comparisons post hoc test was used for comparing the statistical differences between multiple groups. A two-tailed Student’s t-test was used for comparing the statistical differences between two groups. A log-rank test was used to compare the survival distributions. A P-value of <0.05 was considered to be statistically significant.

RESULTS

MHY1485 enhances radiation-induced ICD

First, we investigated whether MHY1485 treatment increases the expression of ICD-related molecules. In CT26 cells, MHY1485 treatment significantly increased HMGB1 release and cell surface H-2Kd expression in the absence of irradiation and significantly increased ATP and HMGB1 release and cell surface calreticulin and H-2Kd expression under irradiation (Fig. 1A–D). In LLC cells, MHY1485 treatment significantly increased ATP and HMGB1 release and cell surface calreticulin expression in the absence of irradiation and significantly increased ATP and HMGB1 release and cell surface calreticulin and H-2Kd expression under irradiation (Fig. 1A–D). These results suggest that MHY1485 enhances the expression levels of ICD markers, especially under irradiation. In addition, we analyzed the PD-L1 and DSB (γH2AX) levels, which are factors that affect the anti-tumor immunity after radiotherapy [25, 26]. We found that MHY1485 treatment did not alter the PD-L1 expression levels under both non-irradiated and irradiated conditions in both CT26 and LLC cells (Fig. 1E). In CT26 cells, MHY1485 treatment significantly increased DSB (γH2AX) levels in both the absence and presence of irradiation (Fig. 1F). In LLC cells, MHY1485 treatment significantly increased the DSB (γH2AX) levels under irradiation only (Fig. 1F).

Fig. 1.

Fig. 1

Open in a new tab

Expression of ICD markers CT26 and LLC cells. (A) ATP and (B) HMGB1 levels were determined in medium. Cell surface (C) calreticulin, (D) H-2Kd, (E) PD-L1 and (F) γH2AX expression levels in CT26 and LLC cells. All quantitative data are presented as mean ± SD (n = 3–4). *P < 0.05, **P < 0.01, ****P < 0.0001, two-way ANOVA with Sidak’s multiple comparisons post hoc test vs respective DMSO control.

We then performed a vaccination-rechallenge assay for analyzing ICD. Both the CT26 and LLC models showed large differences in tumor growth rates even within the same group (in particular, mice that failed to develop tumors contributed to the increase in SD) (Supplementary Fig. 2 and Fig. 2). We were unable to identify significant differences in the tumor volume analysis (Fig. 2). Hence, instead of the average tumor volume, the time required for the tumor volume to reach 1500 mm3 was used as the analysis index. We found that the MHY1485 and radiation co-treated tumor cell vaccine group did not prevent rechallenged tumor growth as compared with the irradiation-only tumor cell vaccine group when using CT26 cells (Fig. 2A). However, the MHY1485 and radiation co-treated tumor cell vaccine group significantly reduced rechallenged tumor growth as compared with the irradiation-only tumor cell vaccine group with LLC cells (Fig. 2B). These results suggest that MHY1485 potentially enhances radiation-induced ICD.

Fig. 2.

Fig. 2

Open in a new tab

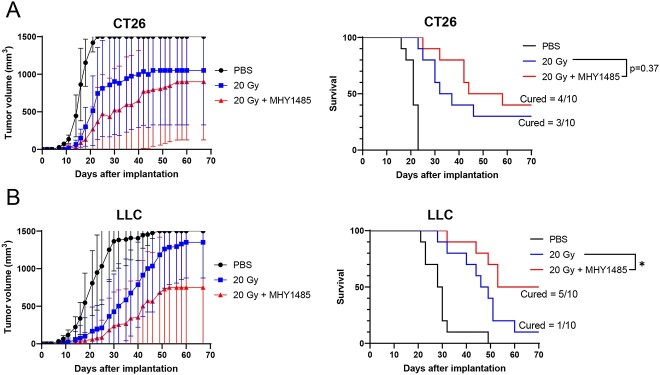

Tumor growth and survival curves of the vaccination-rechallenge model. (A) CT26 and (B) LLC tumor models (n = 10 for each group). The mice received subcutaneous injections of PBS (no cells), in vivo 20 Gy irradiated tumor cells and in vivo MHY1485 treated and 20 Gy irradiated tumor cells as tumor vaccines. Healthy tumor cells were subsequently injected subcutaneously and tumor sizes were measured. The time required to develop tumors of 1500 mm3 was determined as the survival period. We substituted the value of 1500 mm3 when tumor size exceeded 1500 mm3. The symbols indicate average tumor volume, and the error bars indicate SD for tumor growth curves. Significant differences between the irradiated tumor cell vaccine groups and co-treated MHY1485 and radiation tumor cell vaccine groups were analyzed using the two-tailed Student’s t-test or log-rank test, *P < 0.05.

Treatment with MHY1485 potentiates radiotherapy and increases anti-cancer immunity in tumor allogeneic models

We further investigated whether MHY1485 treatment inhibits tumor growth in a therapeutic model. As with the vaccination-rechallenge experiment, the time required for tumor volume to reach 1500 mm3 was used as the analysis index. In both the CT26 and LLC models, the groups administered with 30 mg/kg MHY1485 alone showed no tumor growth suppression in comparison with the DMSO group; by contrast, the group administered with 30 mg/kg MHY1485 with radiation showed significant tumor growth suppression as compared to the radiation + DMSO group (Fig. 3 and Supplementary Fig. 3). However, tumor growth suppression was not observed in animals receiving 15 mg/kg MHY1485 (Supplementary Fig. 4). Further, the radiation +30 mg/kg MHY1485-treated group showed higher INF-γ, TNF, IL-2 and IL-12p70 levels in the spleen in comparison to the radiation + DMSO-treated group in the CT26 model (Fig. 4A). The radiation +30 mg/kg MHY1485-treated group showed higher IL-2 and IL-12p70 levels in the spleen in comparison to the radiation + DMSO-treated group in the LLC model (Fig. 4B). In both the CT26 and LLC models, a high percentage of CD8+ cells were observed in the radiation +30 mg/kg MHY1485-treated tumors as compared with the radiation + DMSO-treated tumors (Fig. 5). These results indicate that MHY1485 enhances radiation-induced tumor growth suppression and anti-cancer immune responses in vivo.

Fig. 3.

Fig. 3

Open in a new tab

Tumor growth and survival curves of the therapeutic model. (A) CT26 and (B) LLC tumor models (n = 9–10). In the CT26 model, 30 mg/kg of MHY1485 was administered on Days 12 and 13, and 8 Gy irradiation was delivered on Day 13. In the LLC model, 30 mg/kg of MHY1485 was administered on Days 10 and 11, and 8 Gy irradiation was delivered on Day 11. The time required to develop tumors of 1500 mm3 was determined as the survival period. We substituted the value of 1500 mm3 when the tumor size exceeded 1500 mm3. The symbols indicate average tumor volume, and the error bars indicate SD for tumor growth curves. Significant differences between radiation + DMSO groups and radiation + MHY1485 groups were analyzed using the two-tailed Student’s t-test or log-rank test, *P < 0.05.

Fig. 4.

Fig. 4

Open in a new tab

Cytokine levels in spleen. Spleens from therapeutic model mice were collected from the radiation + DMSO and radiation + MHY1485 groups. (A) CT26 and (B) LLC (n = 9–10). *P < 0.05, **P < 0.01, two-tailed Student’s t-test.

Fig. 5.

Fig. 5

Open in a new tab

CD8+ cells in tumors. Tumors from therapeutic model mice were collected from the radiation + DMSO and radiation + MHY1485 groups 7 days after irradiation. (A) CT26 and (B) LLC (n = 5). Five images or more were obtained from each tumor and the numbers of CD8+ cells per mm2 were determined. *P < 0.05, **P < 0.01, two-tailed Student’s t-test.

DISCUSSION

Sun et al. found that MHY1485 produced a radiosensitizing effect in vitro, which was partly associated with ER and oxidative stress overloading [15]. In this study, we analyzed MHY1485’s radiosensitizing effect using a tumor-bearing mouse model and investigated whether MHY1485 treatment affects the anti-tumor immune system. We found that combination treatment of MHY1485 with radiation increased the expression of ICD markers (such as ATP and HMGB1 secretion, calreticulin and MHC Class I expression) in comparison to radiation-alone treatment (Fig. 1A–D). Extracellular ATP functions as a prominent ‘find-me’ signal for dendritic cell (DC) precursors and macrophages [32]. HMGB1 accelerates the processing of phagocytic cargo in DCs and facilitates antigen presentation by DCs to T cells [33]. Surface-exposed calreticulin binds to CD91 expressed by antigen-presenting cells and promotes the engulfment of dead cells and debris [32]. CD8 T cells identify cancers by recognizing peptide–MHC Class I complexes that are generated through the MHC Class I antigen presentation pathway [34]. Together with previous studies, this study shows that MHY1485 promotes ICD marker expression and release, which may be associated with ER and oxidative stress overloading [15,35–38]. The activation of anti-tumor immunity induced from whole-cell vaccines is influenced by various immune activators and suppressors. For example, it has been reported that enhancing the GM-CSF and IL-2 release from whole-cell vaccines can improve their efficacy [39, 40]. It has also been reported that optimally irradiated apoptotic whole-cell vaccines have higher efficacy than freeze-thawed necrotic whole-cell vaccines [41]. This is thought to be because necrotic cells stimulate the release of immunosuppressive factors (IL-10 and TGF-β) from macrophages. In addition, the activation of DCs and T cells is essential for the activation of anti-tumor immunity [41]. These observations suggest that an increased expression of ICD markers may not directly lead to the activation of anti-tumor immunity. The present study showed that MHY1485 + radiation-treated whole-cell vaccines significantly delayed tumor growth as compared to whole-cell vaccines treated with radiation alone in the LLC model (Fig. 2B). By contrast, no significant difference was observed in the CT26 model (Fig. 2A). These results indicate that the degree of enhancement of radiation-induced ICD by MHY1485 varies depending on the type or nature of cancer and that further elucidation of the mechanism is needed.

In a therapeutic model, we found that MHY1485 treatment on its own did not affect tumor growth, whereas MHY1485 + radiation treatment significantly delays tumor growth in comparison to radiation treatment alone in both the CT26 and LLC models (Fig. 3). In addition, the MHY1485 + radiation group showed a higher CD8+ cell ratio in tumors and anti-cancer immunity-related cytokines than the radiation-alone group, suggesting that anti-cancer immunity was activated in the MHY1485 + radiation group (Figs 4 and 5). Interestingly, 40% of mice completely rejected the tumors in the MHY1485 + radiation group in the CT26 model, but only 10% of mice completed rejected the tumors in the MHY1485 + radiation group in the LLC model (Fig. 3). An analysis of cytokine levels indicated that all four cytokines (INF-γ, TNF, IL-2 and IL-12p70) were upregulated in the MHY1485 + radiation group in the CT26 model, but only two cytokines (IL-2 and IL-12p70) were upregulated in the MHY1485 + radiation group in the LLC model (Fig. 4). Our results suggest that MHY1485 was capable of activating the anti-cancer immune system when combined with radiotherapy.

This study found that MHY1485 is active as a radiosensitizing agent. Further, our results suggest that MHY1485 enhances anti-tumor immunity associated with the induction of ICD. However, to achieve these effects in vivo, high concentrations, such as a 30 mg/kg intratumor (i.t.) injection, are required. Intraperitoneal and intravenous administrations are the common administration routes for antitumor drugs in clinical practice; however, i.t. administration allows for higher intra-tumoral drug concentrations and may reduce systemic side effects [42]. Thus, it may be difficult to achieve the same therapeutic effect using intraperitoneal and intravenous administration. Moreover, it is possible that MHY1485 can be used as a lead compound for synthesizing more powerful radiosensitizers since it has been reported that ICD inducers are rare compounds, with only ~5% of FDA-approved anti-cancer drugs capable of stimulating ICD [43]. However, the detailed molecular mechanism of ICD induction by MHY1485 remains unclear, and our findings are somewhat inconsistent with previous reports. We and Sun et al. showed that MHY1485 + radiation treatment increased the oxidative stress, DSB levels, MHC Class I expression and ER stress loading but that it did not affect the PD-L1 levels as compared with radiation treatment alone (Fig. 1D–F) [15]. It has been reported that radiation-induced DNA damage promotes ER stress and HLA Class I presentation, while Ulianich et al. showed that ER stress loading decreases MHC Class I expression [26, 44, 45]. Moreover, it has been reported that the DNA DSB repair pathway and oxidative stress regulate PD-L1 expression [25, 46]. These inconsistencies should be clarified in future studies.

CONCLUSION

MHY1485 treatment led to the conversion of irradiated tumors into effective vaccines. Moreover, MHY1485 may be a promising lead compound for use in combination with radiotherapy.

CONFLICT OF INTEREST

The authors declare no conflicts of interest associated with this manuscript.

ETHICAL CONSIDERATIONS

All animal experiments were performed in accordance with the National Institute of Advanced Industrial Science and Technology (AIST). All animal husbandry procedures and experiments were approved by the Animal Experiment Committee of AIST (Permit Number: 2021-0283 and 2021-0381).
