. 2024 Mar 12;9(12):14558–14579. doi: 10.1021/acsomega.4c00686

Curcumin-Conjugated PAMAM Dendrimers of Two Generations: Comparative Analysis of Physiochemical Properties Using Adriatic Topological Indices

Anuradha D S †, Konsalraj Julietraja ‡, B Jaganathan †, Ammar Alsinai §,*
PMCID: PMC10976413  PMID: 38559925

Abstract

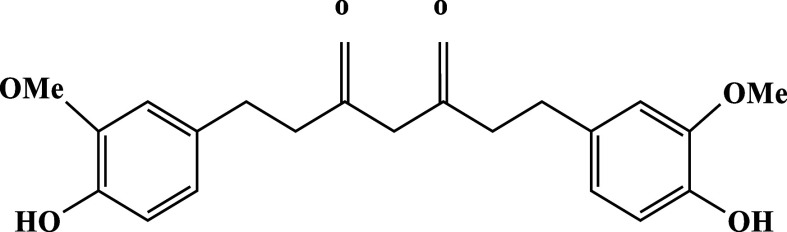

graphic file with name ao4c00686_0025.jpg

Curcumin (C21H20O6) is a polyphenol found in the plant Curcuma longa. Even though it possesses many pharmacological effects, owing to its limited intestinal absorption, solubility, and oral bioavailability, it is more often used as a health supplement than as a lead chemical. The poly(amido)amine (PAMAM) dendrimer (nanostructure) is utilized to enhance the stability and targeted delivery of drugs. Recently, curcumin was conjugated with the PAMAM dendrimer and analyzed for its photostability. Further investigation into the physiochemical characteristics of different generations can facilitate curcumins’ targeted delivery for many diseases, including cancer. However, many of these conjugates’ physiochemical properties are not available in databases since they have not been explored theoretically or experimentally. In this article, QSAR/QSPR (quantitative structure–activity relationship/quantitative structure–property relationship) analysis of physiochemical properties was carried out for component structures, which produced encouraging results. Hence, 16 discrete adriatic topological indices and their associated entropy measures were evaluated to theoretically predict a few physiochemical properties of the conjugated structure. The predictions will aid the chemist in drug designing.

1. Introduction

Curcumin, a polyphenol isolated from the perennial plant Curcuma longa in 1815, possesses a symmetric molecular structure (C21H20O6) depicted in Figure 1 and has a molecular weight of 368.38. The IUPAC name of curcumin is (1E,6E)-1,7-bis (4-hydroxy-3-methoxyphenyl)-1,6-heptadiene-3,5-dione.1

Figure 1.

Figure 1

Open in a new tab

Residue R1—molecular structure of curcumin residue.

Curcumin possesses abundant pharmacologic properties and are used as anti-inflammatory,2 antioxidant,3 antimicrobial,4 anti-HIV,5 antifungal,6 antibacterial,7 antiviral,8 antitumoral,9 anticancer, antiamyloid,10 anti-Alzheimers agents,10 and so on.11 It also acts as an immune modulator, metabolism regulator, neuroprotector,12 and tissue protector.2 It has a wide range of applications apart from dietary supplements, namely, in the food industry (colorant and preservative), cosmetics manufacturing,13 and textile manufacturing (dyeing).14

However, curcumin’s limited absorption in the stomach leads to nonsignificant levels in the bloodstream which affects its wide usage as a lead compound.15 This is because of its poor oral bioavailability, poor solubility, and hydrophobicity.16 A study of literature based on biological investigations, including patients, healthy individuals, laboratory animals, and human cells, concluded that further theoretical and experimental research is required to fully utilize the medical benefits of curcumin.17,18

Nowadays, medical research is focusing on certain incurable diseases affecting the skin, lungs, tumors, and other internal organs. Brain tumor, cancer, and genetic disorders are some of incurable diseases that are treated and managed only on a day-to-day basis.19 Once the pharmacological property of curcumin is improved, it may be used as a therapy for illnesses, including cancer, COVID-19, and so on.

Numerous strategies have been used to increase curcumin’s bioavailability. These methods include the use of piperine (present in black pepper), nanoparticles, and liposomes.18 Even the conjugates that are considered as appropriate curcumin transporters have shown constrained, unreliable, and inconsistent results in clinical studies20,21

1.1. PAMAM Dendrimers

Dendrimers are one among the nanostructures that possess tenable sizes and branch compositions,22 which help to tackle the difficulties in solubility, stability, and bioavailability,23,24 and hence regarded as a breakthrough in nanosized bioactive delivery mechanisms. PAMAM dendrimers are one among the five main types of identified dendrimers, and each class differs from the others in terms of its process of synthesis, base core, structural behavior, and terminal groups. They are nanoformulations which act as a nanocarrier for bioactive chemicals to address problems with solubility, stability, and bioavailability.25

“PAMAM” stands for Poly(AMido)AMine which refers to dendrimer types built by polyamide branches with tertiary amines as focal points and has potential usage in improving the solubility of drug delivery systems.26

They are possibly the oldest complete dendrimer family grown using two reaction stages and divergent layer-by-layer (inside-out) development.27 The molecular structure of PAMAM dendrimer used as the core for developing the conjugation is depicted in Figure 2.

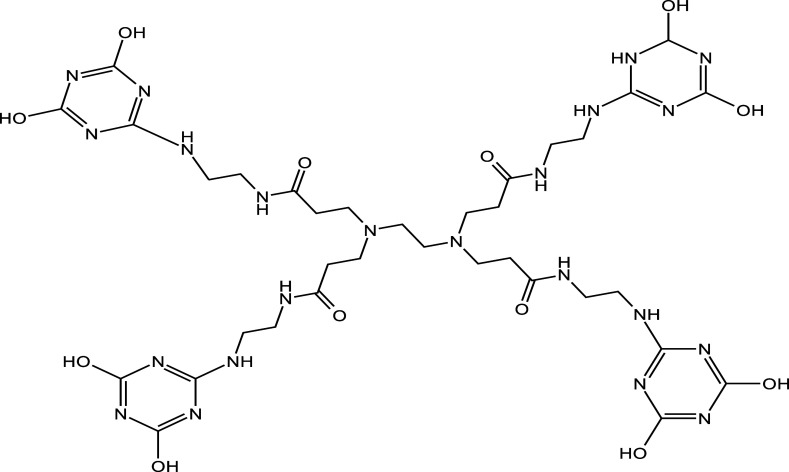

Figure 2.

Figure 2

Open in a new tab

Core of PAMAM dendrimer first generation.

One popular method in the ligand-based drug design process is quantitative structure–activity relationship/quantitative structure–property relationship (QSAR/QSPR). This is used to predict and optimize current leads and enhance their biological activities and physiochemical characteristics of untested and unavailable substances.28−30 Three kinds of dendrimer networks,31 biconjugate networks,32 nanostructures of cerium oxide,33 and Sudoku nanosheets,34 are analyzed using topological indices (TIs).

1.2. QSAR/QSPR Analysis

Correlations between the biological activities of substances and their analogues are derived through QSAR/QSPR. The mathematical regression methods are widely used in pharmacodynamics, chemometrics, toxicology, and pharmacokinetics.35 Several TIs are defined for hypoglycemic agents, anti-Alzheimers drugs, antiparasitic drugs, headache medications, and cancer medications to aid researchers in understanding their physical properties and related chemical processes.36−40

The conjugated structures’ physiochemical properties are not available in globally recognized databases. Hence, QSAR/QSPR analysis is performed for individual structures by using data available in ChemSpider.

Randomly chosen discrete adriatic TIs (explained in Section 4.5) are utilized to evaluate the physiochemical properties of individual molecular structures that were employed to form conjugates: curcumin and PAMAM dendrimer first generation. The physiochemical properties taken from ChemSpider are listed in Table 1.

Table 1. Physiochemical Properties Taken from ChemSpider.

s. no. physiochemical properties curcumin PAMAM dendrimer first generation
1 molar volume 287.9 444.6
2 enthalpy of vaporization 91.5 131.2
3 density 1.3 1.2
4 Log P 2.92 –5.83
5 refraction index 104 1.543
6 vapor pressure 1.7 0
7 surface tension 54.3 54.3
8 polarizability 41.2 55.5
9 flash point 208.9 499.3
10 boiling point 591.4 902
Open in a new tab

The ten randomly selected numerical values of discrete adriatic TIs calculated for curcumin (Figure 1) and PAMAM dendrimer first generation (Figure 2) are enumerated in Table 2.

Table 2. TIs of Curcumin and PAMAM Dendrimer First Generation.

s. no TIs curcumin PAMAM dendrimer first generation
1 SLI 43.3038 281.0548
2 ISLI 28.3 178.8
3 MLSI –2.9342 113.4256
4 MII 6.3333 34.33333
5 MIRI 4.412 24.034
6 MRI –8.844 50.388
7 MMRI 20.877776 137.91648
8 MMDI 8 270
9 SDDI 62.3333 387
10 MMSDI 91.5 508.5
Open in a new tab

The correlation coefficient values obtained for the chemical structure and its corresponding TIs were 0.92243 and 0.91698. These promising results enable further linear regression analysis. The correlation coefficient (r) expresses the level of predictability of the relationship, the model’s fit, and the degree of variance in the data. The squared correlation coefficient, or r2, is used to determine how repeatable the model’s experimental data is.41 The statistical parameters derived from the linear regression are given in Table 3.

Table 3. Statistical Parameters Obtained from Linear Regression Analysis.

chemical structure
statistical parameter curcumin PAMAMfirst generation
no. of observations 10 10
correlation coefficient (r) 0.92243 0.91698
r2 0.850879 0.840859
F-statistics 45.648 42.2699
significance level (p) 0.0001 0.0001
A 5.3498 1.7466
B 3.0115 –138.4
Open in a new tab

For better interpretation, the linear regression is presented graphically in Figures 3 and 4.

Figure 3.

Figure 3

Open in a new tab

Linear regression plots for curcumin.

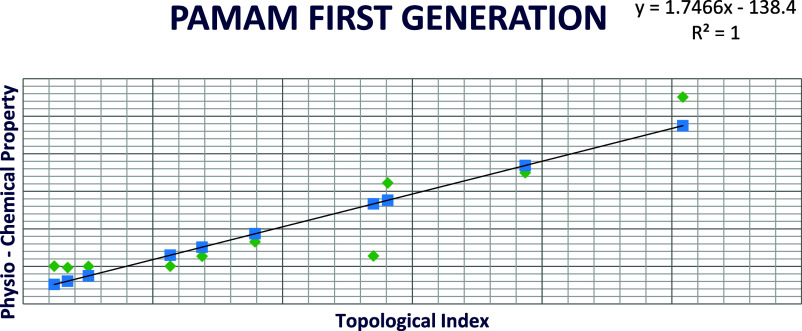

Figure 4.

Figure 4

Open in a new tab

Linear regression plots for PAMAM dendrimer first generation.

The statistical significance and precision of the chemical activity prediction are key factors in QSAR model reliability. A dependable QSAR/QSPR model of best fit is determined by statistical data, an r value closer to 1, and r2 of at least 0.6, and a significance level less than 0.05.42 From Table 3, it is evident that both of the molecular structures exhibit a good significance level and a strong correlation. The relevance and optimal fit of the linear regression models are confirmed by each of the statistical parameters mentioned above. The TIs under examination and the physicochemical characteristics of the compounds under exploration show a strong correlation in this QSPR model.

1.3. Necessity for Further Investigation

When curcumin’s bioavailability is increased, it can be used to treat dermatological conditions, suppress the growth of tumors, treat HIV and cancer, and regulate the immune system and metabolism.43 Researchers have synthesized and investigated the photostability of curcumin conjugated with PAMAM dendrimers.44,45 An analysis of different generations of these conjugates must also be explored. However, the investigation of physiochemical characteristics and the comparative analysis of different generations demand time, labor, and experimental costs. To overcome these difficulties, this article attempts to predict a few physiochemical properties related to drug designing theoretically. The comparative analysis of the first and second generations is also presented graphically along with the predictions.

The main factors that are crucial at every step of drug discovery and development are mainly determined by the drug-likeness filters. These are based on physiochemical properties, namely water partition coefficient (octanol), molecular weight, vaporization, enthalpy of vaporization, retention time, biological activity, etc. which speed up the process of drug development.46,47

Discrete adriatic TIs exhibit strong correlations to physiochemical parameters, namely octanol–water partition coefficient (Log P), heat capacity, biological activity, total surface area, enthalpy of vaporization, standard enthalpy of vaporization, and relative retention time.48−50 In this regard, discrete adriatic TIs and their respective entropy measures are calculated for first- and second-generation curcumin-conjugated PAMAM dendrimers. A comparative analysis of these generations is presented graphically. Curcumin conjugated with PAMAM dendrimers has not yet been studied theoretically through any TIs. Since the research is still evolving, the theoretical predictions made through discrete adriatic TIs may be used for potential applications.49

2. Curcumin-Conjugated PAMAM Dendrimers

When PAMAM dendrimers are combined with curcumin, van der Waals forces, interactions with hydrophobic molecules, and hydrogen bonds help to retain the conjugated structure of the compound.51 The behavior of the interface among curcumin and PAMAM dendrimers was studied using UV spectroscopy, molecular model, and fluorescence methods.52 To improve curcumin’s oral bioavailability, PAMAM fourth-generation dendrimers conjugated with curcumin were developed. This promoted absorption in the gastrointestinal tract and sustained therapeutic medication administration.53 The glioblastoma (a fatal and aggressive tumor) cell line viability was specifically decreased by curcumin-loaded dendrimers. Utilizing and improving PAMAM dendrimer conjugates offer a promising new method of delivering cancer therapies. The outcomes also revealed that curcumin antioxidants are effective in glioblastoma treatment.12

In the forthcoming section, some of the key information necessary to understand conjugation and discrete adriatic TIs-associated physiochemical properties is briefly explained. The analytical formula for the molecular structure of the first and second generations of adriatic discrete TIs of curcumin-conjugated PAMAM dendrimers is determined in a subsequent section. In the consecutive section, entropy measures are briefly described, and the analytical expression of the associated entropy measures of the TIs is derived. The predicted characteristics of the molecular structure under investigation are compared quantitatively and are presented graphically.

2.1. Topological Indices

“ Topological Indices is the final result of a logic and mathematical procedure which transforms chemical information encoded within a symbolic representation of a molecule into a useful number or the result of some standardized experiment”—Todeschini & Consonni.54

TIs are obtained from fundamental information based on the molecular connection. They are basic numerical descriptors that provide a numerical value for the relationship between atom arrangement and intrinsic physical attributes of any chemical structure.54 This predicts and supplies the data sets to QSAR/QSPR/QSTR (QSTR = quantitative structure–toxicity relationship) about the physiochemical and biochemical behavior of substances in terms of ecological impacts and medicinal aspects. The workflow is depicted in Figure 5.

Figure 5.

Figure 5

Open in a new tab

Workflow from molecular structure to drug designing.

The atoms of molecules are represented by dots, while the covalent bonds are represented by connecting lines. In chemical graphs, the dots are called vertices and the lines are called edges. Basic terminologies of the chemical graph corresponding to a molecular structure are provided in the Supporting Information.

The TIs are determined by applying some analytical techniques from graph theory, such as edge partition, vertex partition, eccentricity-based, and degree-based strategies. Many types of dendrimers, coronoid systems, benzoid systems, graphene, hexabenzocoronene, superphenalene, PAHs, carbon nanocones, antitubercular drugs, and drugs used for vitiligo treatment, are studied using degree-based indices.36,55−75 Discrete adriatic indices, a category of degree-based indices, are used to analyze the conjugated structure.

Throughout this article, Ω denotes any chemical graph, E(Ω) signifies the collection of all edges {∂,∂1,∂2,∂3...}, and V(Ω) is the set of all vertices {α,α1,α2...}. Two vertices, α, and α1, are neighboring if there exists an edge to link them. Let ∂ = αα1 represent an edge in the graph E(G) with ends at α and α1. The number of edges incident on any vertex α is the degree of vertex and is denoted by dα. The total number of vertices in the graph is its order and is represented by |V|. The number of edges in graph Ω is its size and is represented by |E|.

The TIs considered for the study are all degree-based indices which are based on the edge-partition technique. The summation runs over all of the edge partitions in the respective molecular structure of the chemical compound. The number of edges present in each partition is called edge cardinality48 and is denoted by |Ei|.

2.2. Discrete Adriatic Indices

This study evaluates and discusses a group of 16 bond additive descriptor indices based on the physiochemical properties they describe. The definition, terminology, nomenclature, and classification are provided in the Supporting Information. The index formulation, with their abbreviation, is given in the following.

1. Randic type lodeg index (good interpreter of heat capacity) is defined as

2.2.

2. Sum lordeg index (good interpreter of Log P value) is defined as

2.2.

3. Inverse sum lordeg index (good interpreter of TSA) is defined as

2.2.

4. Misbalance lodeg index (good interpreter of enthalpy of vaporization) is defined as

2.2.

5. Misbalance losdeg index (good interpreter of enthalpy of vaporization) is defined as

2.2.

6. Misbalance indeg index (good interpreter of biological activity) is defined as

2.2.

7. Misbalance irdeg index (good interpreter of enthalpy of vaporization) is defined as

2.2.

8. Misbalance rodeg index (good interpreter of standard enthalpy of vaporization) is defined as

2.2.

9. Misbalance deg index (good interpreter of standard enthalpy of vaporization) is defined as

2.2.

10. Misbalance hadeg index (good interpreter of standard enthalpy of vaporization) is defined as

2.2.

11. Min-max rodeg index (good interpreter of enthalpy) is defined as

2.2.

12. Max-min rodeg index (good interpreter of density) is defined as

2.2.

13. Max-min deg index (good interpreter of relative retention time) defined as

2.2.

14. Max-min sdeg index (good interpreter of relative retention time) is defined as

2.2.

15. Symmetric division deg index (good interpreter of TSA) is defined as

2.2.

16. Inverse sum indeg index (good interpreter of heat capacity) is defined as

2.2.

An overview of the correlating physiochemical property is also mentioned along with the formulations presented above.50

2.3. Entropy Measures

Entropy is used in the study of complexity of molecular structures and their quantum chemical electron densities.76 Dehmer developed graph entropies to quantify the topological information on chemical networks and graphs.77 Estrada et al. examined the walk-based graph entropies and presented physically valid graph entropy indices.78

Information entropy is directly related to the formal carbon atom oxidation states and rotational symmetry numbers in several kinds of natural compounds.56 Quantitatively characterizing a molecule structure and examining the chemical and biological characteristics of molecular graphs are two uses for entropy measures.64

The entropy measure for TI is defined by

2.3.

where the function p∂ is given by

2.3.

Therefore

2.3.
2.3.

In literature, prominent illustrations of degree-based entropy metrics being applied to comprehend chemical structures.79

3. Curcumin—PAMAM Dendrimers (CD)

The peripheral primary amino groups of PAMAM dendrimers of various generations have been modified with curcumin (residue R1). The synthesized modified PAMAM dendrimers of zero generation (core) at the first growth stage are illustrated in Figure 6.

Figure 6.

Figure 6

Open in a new tab

PAMAM dendrimer first generation bonded with R1 represented as Ω0(1).

Ωγ[μ] represents the graph of the molecular structure, γ represents the generation, and μ represents the growth stage of the corresponding generation. The first and second generations with covalently bonded curcumin residues were considered for the study.44

3.1. First Generation (CD1)

Ω1[2] represents the first-generation curcumin-conjugated PAMAM dendrimer in the second development stage. The properties of Ω1[2] (denoted CD1) are examined. The size of CD1 is 2μ+1(71) + 3 and the order of CD1 is 2μ+1(68) + 4. The vertex set is partitioned into three categories as 2μ+1(11) + 4, 2μ+1(35) + 6, and 2μ+1(21) + 2, which are the cardinality of vertices of one, two, and three degrees, respectively. The chemical structure of Ω1[2] is illustrated in Figure 7.

Figure 7.

Figure 7

Open in a new tab

First-generation PAMAM dendrimer bonded with R1, represented as Ω1(2).

By edge partition, E(Ω) of CD1 is divided into four parts as follows

3.1.
3.1.
3.1.
3.1.

The cardinality of every partition of CD1 represented by |Ei| is stated in Table 4.

Table 4. Edge Partition and Cardinality of Ω1(2).

Ei (dα,dα1) |Ei|
E1 (1,2) (2μ+1)8 + 4
E2 (2,2) (2μ+1)14 + 7
E3 (2,3) (2μ+1)44 + 2
E4 (3,3) (2μ+1)4
Open in a new tab

Theorem 1: For the molecular structures of the first-generation curcumin-conjugated PAMAM dendrimer represented in Figure CD1, μ ≥ 1, with edge partitions as |E1| = (2μ+1)8 + 4, |E2| = (2μ+1)14 + 7, |E3| = (2μ+1)44 + 2, and |E4| = (2μ+1)4, the adriatic indices are

3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.

Following is the proof

3.1.

The proof of other TIs is analogous to that of RLI.

Theorem 2: For the molecular structure of PAMAM dendrimer of first generation with curcumin conjugation (CD1), μ ≥ 1, the entropy measures of adriatic indices are

3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.

Following is the proof

3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.
3.1.

3.2. Second Generation (CD2)

Ω2[3] represents the molecular structure of second-generation curcumin-conjugated PAMAM dendrimer in the third development stage. The respective molecular structure is depicted in Figure 8.45

Figure 8.

Figure 8

Open in a new tab

Second-generation PAMAM dendrimer bonded with R1, represented as Ω2(3).

The edges of CD2 are partitioned into four segments by edge partition as follows.

3.2.
3.2.
3.2.
3.2.

The cardinality of the aforementioned partitions of CD2 represented by |Ei| is stated in Table 5.

Table 5. Edge Partition and Cardinality of Ω2(3).

Ei (dα,dα1) |Ei|
E1 (1,2) 11(2μ+1) + 12
E2 (2,2) 14(2μ+1) + 5
E3 (2,3) 44(2μ+1) + 14
E4 (3,3) 4(2μ+1)
Open in a new tab

Theorem 3: The discrete adriatic indices for molecular structures of curcumin-conjugated PAMAM dendrimer of second generation Ω2(3) where μ ≥ 1, with edge partitions as |E1| = 11(2μ+1) + 12, |E2| = 14(2μ+1) + 5, |E3| = 44(2μ+1) + 14, and |E4| = 4(2μ+1) are

3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.

Proof: The proof is similar to the proof of Theorem 1.

Theorem 4: The entropy measures of CD2 is as follows

3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.
3.2.

Proof: The proof is analogous to the proof of Theorem 2.

4. Graphical Representation

The calculation of 16°-based TIs of the CD1 and CD2 structures incurred the generalized linear equation of parameter μ, the growth stage. The linear equations incurred from 16 discrete adriatic indices can be better comprehended by visualization. The numerical values obtained from the molecular descriptors for the first and second generations are shown graphically and contrasted to facilitate the understanding of the descriptors’ behaviors. These comparative plots of physiochemical attributes are shown in Figures 9–24.

Figure 9.

Figure 9

Open in a new tab

Comparative plot of RLI for heat capacity.

Figure 24.

Figure 24

Open in a new tab

Comparative plot of ISLI for total surface area.

Figure 10.

Figure 10

Open in a new tab

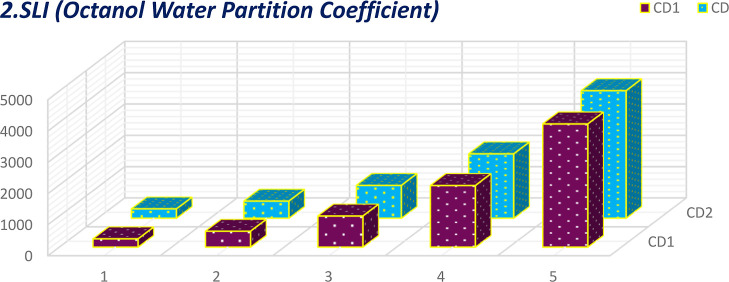

Comparative plot of SLI for octanol–water partition coefficient.

Figure 11.

Figure 11

Open in a new tab

Comparative plot of ISI for total surface area.

Figure 12.

Figure 12

Open in a new tab

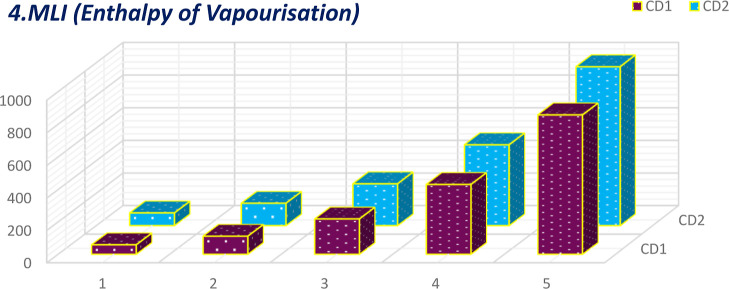

Comparative plot of MLI for enthalpy of vaporization.

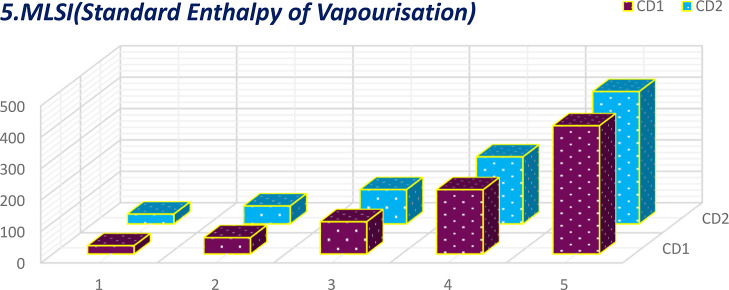

Figure 13.

Figure 13

Open in a new tab

Comparative plot of MLSI for standard enthalpy of vaporization.

Figure 14.

Figure 14

Open in a new tab

Comparative plot of MII for standard enthalpy of vaporization.

Figure 15.

Figure 15

Open in a new tab

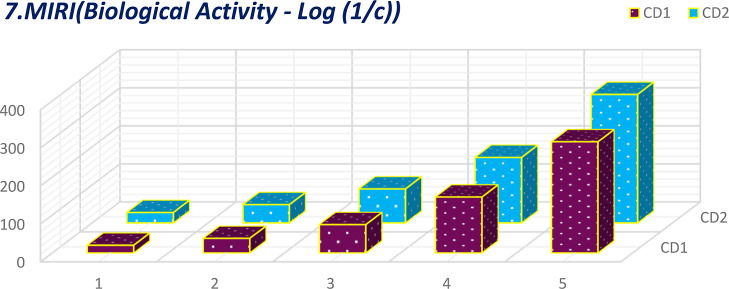

Comparative plot of MIRI for biological activity.

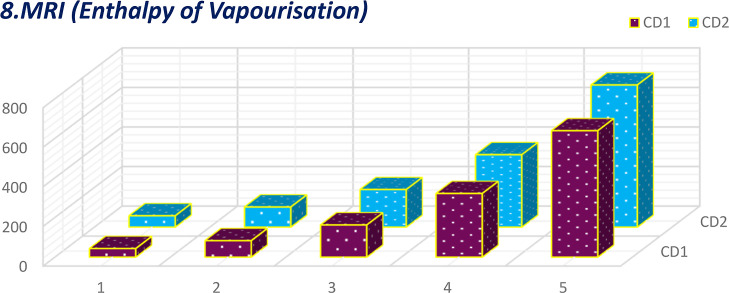

Figure 16.

Figure 16

Open in a new tab

Comparative plot of MRI for enthalpy of vaporization.

Figure 17.

Figure 17

Open in a new tab

Comparative plot of MDI for standard enthalpy of vaporization.

Figure 18.

Figure 18

Open in a new tab

Comparative plot of MHI for enthalpy of vaporization.

Figure 19.

Figure 19

Open in a new tab

Comparative plot of MMRI for standard enthalpy of vaporization.

Figure 20.

Figure 20

Open in a new tab

Comparative plot of MMRDI for Log water activity coefficient.

Figure 21.

Figure 21

Open in a new tab

Comparative plot of MMDI for enthalpy of vaporization.

Figure 22.

Figure 22

Open in a new tab

Comparative plot of MMSDI for Log water activity coefficient.

Figure 23.

Figure 23

Open in a new tab

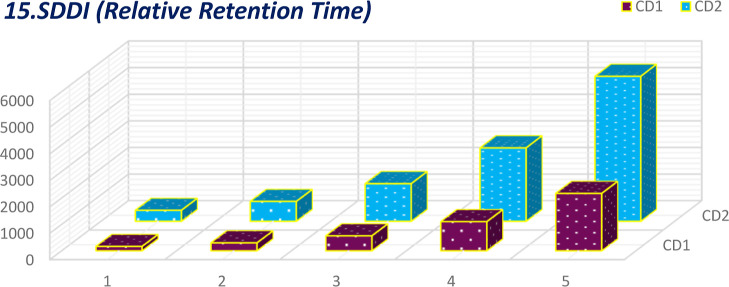

Comparative plot of SDDI for relative retention time.

5. Discussion

Curcumin longa is one of the most researched phytochemicals for enhancing its solubility and bioavailability. From the studies, it can be observed that curcumin bioavailability has been enhanced by Longvida and CurQfen (https://www.curqfen.net/) and PAMAM dendrimer’s toxicity has been reported. But PAMAM dendrimers deliver drugs to the target better than any other means. This drug targeting would help curcumin to be delivered to the specific protein80 which can cure many diseases that are not curable completely. This effort is meant to address the research gap theoretically as an alternative to laboratory experiments. The graphical depiction makes it clear that the physiochemical properties of the first and second generations differ in terms of total surface area, octanol–water partition coefficient, and relative retention time. Thus, the research suggests that there is a need to synthesize higher generations.

The results will facilitate the researchers for virtual screening of the molecular structure for any purpose since exploring the properties is an open problem for the chemist now. These results offer a profound insight into the topological structure of these dendrimers by predicting the physiochemical properties and comparative analysis.

The physiochemical properties of these conjugates are not widely available in globally acknowledged databases; thus, it is an open problem for the chemist to establish all of these properties through experimental results in these databases. The theoretical prediction for many widely used TIs has also not been performed by researchers so far. Prospectives involving several steps are explained in the next paragraph.

6. Future Prospectives

The following phases can be used to optimize the molecular structure as a lead chemical drug: (a) using software packages like DRAGON, MathChem, GRAPHTEA, Molgen-QSPR, Generate MD, PowerMV, Molconn-Z, CODESSA, Chemical Descriptors library, AZOrange, PaDEL—Descriptors etc., various TIs/molecular descriptors required for drug design can be predicted. (b) Chemists can explore the physiochemical properties of these structures experimentally, which is still an open problem. (c) The experimental findings of CD1 and CD2 can be made available in international databases like EMBASE, PubChem, Drug Design Data Resource, and PubMed and used in QSPR and QSAR analyses. (d) Computer-aided drug design employing different software programs can be used for virtual screening and further optimization. (e) The true effectiveness can be finally validated through animal studies and biological lab experiments in vitro and in vivo.

7. Conclusions

In this article, the discrete adriatic indices and their entropy measures of the curcumin-conjugated PAMAM dendrimer of first and second generations are calculated and compared. Since there has never been a theoretical evaluation done previously, this work becomes distinctive and essential. The results can be very helpful in understanding the physiochemical properties of the structure which chemists have not yet fully investigated and recorded in recognized databases. Our world confronts newly identified diseases in addition to the incurable illnesses that currently exist. Therefore, the search for novel drugs is constantly needed. This process can be streamlined and made more effective by employing TIs to test a variety of substances and evaluate them in a notably short amount of time. The findings of this study support the encouraging claims regarding pharmacy engineering.

Acknowledgments

The authors wish to thank the anonymous reviewers.

Data Availability Statement

The data sets used and/or analyzed during the current study available in this article.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.4c00686.

  • Synchronization of graph theory and molecular structure, bond additive TIs, and classification and nomenclature (PDF)

This work was not funded by government or any private agency.

The authors declare no competing financial interest.

Supplementary Material

ao4c00686_si_001.pdf (204.6KB, pdf)

References

  1. Priyadarsini K. I. The Chemistry of Curcumin: From Extraction to Therapeutic Agent. Molecules 2014, 19 (12), 20091–20112. 10.3390/molecules191220091. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Fadus M. C.; Lau C.; Bikhchandani J.; Lynch H. T. Curcumin: An Age-Old Anti-Inflammatory and Anti-Neoplastic Agent. J. Tradit. Complementary Med. 2017, 7 (3), 339–346. 10.1016/j.jtcme.2016.08.002. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Pizzo P.; Scapin C.; Vitadello M.; Florean C.; Gorza L. Grp94 Acts as a Mediator of Curcumin-Induced Antioxidant Defence in Myogenic Cells. J. Cell. Mol. Med. 2010, 14 (4), 970–981. 10.1111/j.1582-4934.2008.00681.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Li J.; Shin G. H.; Chen X.; Park H. J. Modified Curcumin with Hyaluronic Acid: Combination of pro-Drug and Nano-Micelle Strategy to Address the Curcumin Challenge. Food Res. Int. 2015, 69, 202–208. 10.1016/j.foodres.2014.12.045. [DOI] [Google Scholar]
  5. Butnariu M.; Quispe C.; Koirala N.; Khadka S.; Salgado-Castillo C. M.; Akram M.; Anum R.; Yeskaliyeva B.; Cruz-Martins N.; Martorell M.; Kumar M.; Vasile Bagiu R.; Abdull Razis A. F.; Sunusi U.; Muhammad Kamal R.; et al. Bioactive Effects of Curcumin in Human Immunodeficiency Virus Infection Along with the Most Effective Isolation Techniques and Type of Nanoformulations. Int. J. Nanomed. 2022, 17 (August), 3619–3632. 10.2147/IJN.S364501. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Zorofchian Moghadamtousi S.; Abdul Kadir H.; Hassandarvish P.; Tajik H.; Abubakar S.; Zandi K. A Review on Antibacterial, Antiviral, and Antifungal Activity of Curcumin. BioMed Res. Int. 2014, 2014, 186864. 10.1155/2014/186864. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Sharma M.; Sahu K.; Singh S. P.; Jain B. Wound Healing Activity of Curcumin Conjugated to Hyaluronic Acid: In Vitro and in Vivo Evaluation. Artif. Cells, Nanomed. Biotechnol. 2018, 46 (5), 1009–1017. 10.1080/21691401.2017.1358731. [DOI] [PubMed] [Google Scholar]
  8. Kalirajan R.; Potlapati Varakumar A. B. Activity of Phytochemical Constituents of Curcuma Longa (Turmeric) Against SARS-CoV-2 Main Protease (Covid19): Anin-Silico Approach. Futur. J. Pharm. Sci. 2020, 6, 104. 10.1186/s43094-020-00126-x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Suvarna V.; Sawant N.; Desai N. Curcumin-Conjugated Nanoparticles: An Approach to Target Mitochondria. Nat. Prod. 2024, 14 (1), 105–117. 10.2174/2210315513666230515143651. [DOI] [Google Scholar]
  10. Hemachandra Reddy P.; Manczak M.; Yin X.; Grady M. C.; Mitchell A.; Tonk S.; Kuruva C. S.; Bhatti J. S.; Kandimalla R.; Vijayan M.; Kumar S.; Wang R.; Pradeepkiran J. A.; Ogunmokun G.; Thamarai K.; Quesada K.; Reddy A. P. Protective Effects of Indian Spice Curcumin Against Amyloid Beta in Alzheimer’s Disease. Physiol. Behav. 2018, 176 (10), 139–148. 10.3233/JAD-170512. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Giordano A.; Tommonara G. Curcumin and Cancer. Nutrients 2019, 11 (10), 2376. 10.3390/nu11102376. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Gallien J.; Srinageshwar B.; Gallo K.; Holtgrefe G.; Koneru S.; Otero P. S.; Bueno C. A.; Mosher J.; Roh A.; Kohtz D. S.; Swanson D.; Sharma A.; Dunbar G.; Rossignol J. Curcumin Loaded Dendrimers Specifically Reduce Viability of Glioblastoma Cell Lines. Molecules 2021, 26 (19), 6050. 10.3390/molecules26196050. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Rafiee Z.; Nejatian M.; Daeihamed M.; Jafari S. M. Application of Curcumin-Loaded Nanocarriers for Food, Drug and Cosmetic Purposes. Trends Food Sci. Technol. 2019, 88, 445–458. 10.1016/j.tifs.2019.04.017. [DOI] [PubMed] [Google Scholar]
  14. Hsu K. Y.; Ho C. T.; Pan M. H. The Therapeutic Potential of Curcumin and Its Related Substances in Turmeric: From Raw Material Selection to Application Strategies. J. Food Drug Anal. 2023, 31 (2), 194–211. 10.38212/2224-6614.3454. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Wahlstrom B.; Blennow G. A Study on the Fate of Curcumin in the Rat. Acta Pharmacol. Toxicol. 1978, 43 (2), 86–92. 10.1111/j.1600-0773.1978.tb02240.x. [DOI] [PubMed] [Google Scholar]
  16. Kirmani S. A. K. Note on Topological Indices of Hyaluronic Acid-Paclitaxel Conjugates. Lett. Appl. NanoBioScience 2022, 12 (1), 4. 10.33263/lianbs121.004. [DOI] [Google Scholar]
  17. Kirmani S. A. K.; Ali P. CoM-Polynomial and Topological Coindices of Hyaluronic Acid Conjugates. Arab. J. Chem. 2022, 15 (7), 103911. 10.1016/j.arabjc.2022.103911. [DOI] [Google Scholar]
  18. Stohs S. J.; Chen O.; Ray S. D.; Ji J.; Bucci L. R.; Preuss H. G. Highly Bioavailable Forms of Curcumin and Promising Avenues for Curcumin-Based Research and Application: A Review. Molecules 2020, 25 (6), 1397. 10.3390/molecules25061397. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Mahara G.; Tian C.; Xu X.; Wang W. Revolutionising Health Care: Exploring the Latest Advances in Medical Sciences. J. Commun. Healthcare 2023, 13, 03042. 10.7189/jogh.13.03042. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Charan T. R.; Bhutto M. A.; Bhutto M. A.; Tunio A. A.; Khuhro G. M.; Khaskheli S. A.; Mughal A. A. Nanomaterials of Curcumin-Hyaluronic Acid”: Their Various Methods of Formulations, Clinical and Therapeutic Applications, Present Gap, and Future Directions. Futur. J. Pharm. Sci 2021, 7 (1), 126. 10.1186/s43094-021-00281-9. [DOI] [Google Scholar]
  21. Czyzynska-Cichon I.; Janik-Hazuka M.; Szafraniec-Szczęsny J.; Jasinski K.; Węglarz W. P.; Zapotoczny S.; Chlopicki S. Low Dose Curcumin Administered in Hyaluronic Acid-Based Nanocapsules Induces Hypotensive Effect in Hypertensive Rats. Int. J. Nanomed. 2021, 16, 1377–1390. 10.2147/IJN.S291945. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Yousefi M.; Narmani A.; Jafari S. M. Dendrimers as Efficient Nanocarriers for the Protection and Delivery of Bioactive Phytochemicals. Adv. Colloid Interface Sci. 2020, 278, 102125. 10.1016/j.cis.2020.102125. [DOI] [PubMed] [Google Scholar]
  23. Sorokina S. A.; Krasnova I. Yu. Dendrimers: Potential Applications in Biomedicine. INEOS Open 2018, 1 (2), 85–96. 10.32931/io1807r. [DOI] [Google Scholar]
  24. Sherje A. P.; Jadhav M.; Dravyakar B. R.; Kadam D. Dendrimers: A Versatile Nanocarrier for Drug Delivery and Targeting. Int. J. Pharm. 2018, 548 (1), 707–720. 10.1016/j.ijpharm.2018.07.030. [DOI] [PubMed] [Google Scholar]
  25. Ghaffari M.; Dehghan G.; Baradaran B.; Zarebkohan A.; Mansoori B.; Soleymani J.; Ezzati Nazhad Dolatabadi J.; Hamblin M. R. Co-Delivery of Curcumin and Bcl-2 SiRNA by PAMAM Dendrimers for Enhancement of the Therapeutic Efficacy in HeLa Cancer Cells. Colloids Surf., B 2020, 188, 110762. 10.1016/j.colsurfb.2019.110762. [DOI] [PMC free article] [PubMed] [Google Scholar]
  26. Abbasi E.; Aval S. F.; Akbarzadeh A.; Milani M.; Nasrabadi H. T.; Joo S. W.; Hanifehpour Y.; Nejati-Koshki K.; Pashaei-Asl R. Dendrimers: Synthesis, Applications, and Properties. Nanoscale Res. Lett. 2014, 9 (1), 247. 10.1186/1556-276X-9-247. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Tomalia D. A.; Baker H.; Dewald J.; Hall M.; Kallos G.; Martin S.; Roeck S.. New Class of Polymers: Starburst-Dendritic Macromolecules. Polym. J.. 1385, pp 117–132. 10.1295/polymj.17.117. [DOI] [Google Scholar]
  28. Kwon S.; Bae H.; Jo J.; Yoon S. Comprehensive Ensemble in QSAR Prediction for Drug Discovery. BMC Bioinf. 2019, 20 (1), 521. 10.1186/s12859-019-3135-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Sahu S. K.; Ojha K. K. Applications of QSAR Study in Drug Design of Tubulin Binding Inhibitors. J. Biomol. Struct. Dyn. 2023, 1–16. 10.1080/07391102.2023.2273437. [DOI] [PubMed] [Google Scholar]
  30. Murugan G.; Julietraja K.; Alsinai A. Computation of Neighborhood M-Polynomial of Cycloparaphenylene and Its Variants. ACS Omega 2023, 8, 49165–49174. 10.1021/acsomega.3c07294. [DOI] [PMC free article] [PubMed] [Google Scholar]
  31. Zaman S.; Ullah A.; Shafaqat A. Structural Modeling and Topological Characterization of Three Kinds of Dendrimer Networks. Eur. Phys. J. E Soft Matter 2023, 46 (5), 36. 10.1140/epje/s10189-023-00297-4. [DOI] [PubMed] [Google Scholar]
  32. Ullah A.; Zaman S.; Hamraz A.; Muzammal M. On the Construction of Some Bioconjugate Networks and Their Structural Modeling via Irregularity Topological Indices. Eur. Phys. J. E 2023, 46 (8), 72. 10.1140/epje/s10189-023-00333-3. [DOI] [PubMed] [Google Scholar]
  33. Zaman S.; Jalani M.; Ullah A.; Ali M.; Shahzadi T. On the Topological Descriptors and Structural Analysis of Cerium Oxide Nanostructures. Chem. Pap. 2023, 77 (5), 2917–2922. 10.1007/s11696-023-02675-w. [DOI] [Google Scholar]
  34. Zaman S.; Jalani M.; Ullah A.; Saeedi G. Structural Analysis and Topological Characterization of Sudoku Nanosheet. J. Math. 2022, 2022, 5915740. 10.1155/2022/5915740. [DOI] [Google Scholar]
  35. Liu P.; Long W. Current Mathematical Methods Used in QSAR/QSPR Studies. Int. J. Mol. Sci. 2009, 10 (5), 1978–1998. 10.3390/ijms10051978. [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Shanmukha M. C.; Basavarajappa N. S.; Shilpa K. C.; Usha A. Degree-Based Topological Indices on Anticancer Drugs with QSPR Analysis. Heliyon 2020, 6 (6), e04235 10.1016/j.heliyon.2020.e04235. [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Sardar M. S.; Ali M. A.; Farahani M. R.; Alaeiyan M.; Cancan M.; Campus Z. Topological Indices and QSPR/QSAR Analysis of Some Drugs Being Investigated for the Treatment of Headaches. Eur. Chem. Bull. 2023, 12 (5), 69–83. [Google Scholar]
  38. Kirmani S. A. K.; Ali P.; Azam F. Topological Indices and QSPR/QSAR Analysis of Some Antiviral Drugs Being Investigated for the Treatment of COVID-19 Patients. Int. J. Quantum Chem. 2021, 121 (9), 1–22. 10.1002/qua.26594. [DOI] [PMC free article] [PubMed] [Google Scholar]
  39. Gnanaraj L. R. M.; Ganesan D.; Siddiqui M. K. Topological Indices and QSPR Analysis of NSAID Drugs. Polycyclic Aromat. Compd. 2023, 43 (10), 9479–9495. 10.1080/10406638.2022.2164315. [DOI] [Google Scholar]
  40. Zhang X.; Saif M. J.; Idrees N.; Kanwal S.; Parveen S.; Saeed F. QSPR Analysis of Drugs for Treatment of Schizophrenia Using Topological Indices. ACS Omega 2023, 8 (44), 41417–41426. 10.1021/acsomega.3c05000. [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Verma J.; Khedkar V.; Coutinho E. 3D-QSAR in Drug Design - A Review. Curr. Top. Med. Chem. 2010, 10 (1), 95–115. 10.2174/156802610790232260. [DOI] [PubMed] [Google Scholar]
  42. Abdel-Ilah L.; Veljović E.; Gurbeta L.; Badnjević A. Applications of QSAR Study in. Drug Design. Int. J. Eng. Res. Technol. 2017, 6 (06), 582–587. [Google Scholar]
  43. Vaughn A. R.; Branum A.; Sivamani R. K. Effects of Turmeric (Curcuma Longa) on Skin Health: A Systematic Review of the Clinical Evidence. Phytother Res. 2016, 30, 1243–1264. 10.1002/ptr.5640. [DOI] [PubMed] [Google Scholar]
  44. Dodangeh M.; Gharanjig K.; Tang R. C.; Grabchev I. Functionalization of PAMAM Dendrimers with Curcumin: Synthesis, Characterization, Fluorescent Improvement and Application on PET Polymer. Dyes Pigm. 2020, 174, 108081. 10.1016/j.dyepig.2019.108081. [DOI] [Google Scholar]
  45. Dodangeh M.; Grabchev I.; Gharanjig K.; Staneva D.; Tang R. C.; Sheridan M. Modified PAMAM Dendrimers as a Matrix for the Photostabilization of Curcumin. New J. Chem. 2020, 44 (39), 17112–17121. 10.1039/D0NJ02737E. [DOI] [Google Scholar]
  46. Zanni R.; Galvez-Llompart M.; García-Domenech R.; Galvez J. Latest Advances in Molecular Topology Applications for Drug Discovery. Expert Opin. Drug Discovery 2015, 10 (9), 945–957. 10.1517/17460441.2015.1062751. [DOI] [PubMed] [Google Scholar]
  47. Estrada E.; Uriarte E. Recent Advances on the Role of Topological Indices in Drug Discovery Research. Curr. Med. Chem. 2001, 8 (13), 1573–1588. 10.2174/0929867013371923. [DOI] [PubMed] [Google Scholar]; http://www.cas.org/cgiweb-
  48. Sathyanarayanan A. D.; Jaganathan B. Topological Properties of Boron Triangular Sheet for Robotic Finger Flex Motion through Indices. AIP Conf. Proc. 2023, 2946 (1), 020013. 10.1063/5.0178070. [DOI] [Google Scholar]
  49. Ds A.; Jaganathan B. PhysioChemical Properties of Benzophenone and Curcumin Conjugated PAMAM Dendrimers Using Topological Indices. Polycycl. Aromat. Comp. 2023, 1–23. 10.1080/10406638.2023.2234542. [DOI] [Google Scholar]
  50. Vukicevic D.; Gasperov M. Bond Additive Modeling 1. Adriatic Indices. Croat. Chem. Acta 2010, 83 (3), 243–260. [Google Scholar]
  51. Cao J.; Zhang H.; Wang Y.; Yang J.; Jiang F. Investigation on the Interaction Behavior between Curcumin and PAMAM Dendrimer by Spectral and Docking Studies. Spectrochim. Acta, Part A 2013, 108, 251–255. 10.1016/j.saa.2013.02.003. [DOI] [PubMed] [Google Scholar]
  52. Fernandes G.; Pandey A.; Kulkarni S.; Mutalik S. P.; Nikam A. N.; Seetharam R. N.; Kulkarni S. S.; Mutalik S. Supramolecular dendrimers based novel platforms for effective oral delivery of therapeutic moieties. J. Drug Deliv. Sci. Technol. 2021, 64, 102647. 10.1016/j.jddst.2021.102647. [DOI] [Google Scholar]
  53. Tripathi P. K.; Gupta S.; Rai S.; Shrivatava A.; Tripathi S.; Singh S.; Khopade A. J.; Kesharwani P. Curcumin Loaded Poly (Amidoamine) Dendrimer-Plamitic Acid Core-Shell Nanoparticles as Anti-Stress Therapeutics. Drug Dev. Ind. Pharm. 2020, 46 (3), 412–426. 10.1080/03639045.2020.1724132. [DOI] [PubMed] [Google Scholar]
  54. Todeschini R.; Consonni V.. Handbook of Molecular Descriptors; MAnnhold R., Kubinyi H. H. T., Eds.; Wiley VCH, 2008. [Google Scholar]
  55. Baby A.; Julietraja K.; Xavier D. A. On Molecular Structural Characterization of Cyclen Cored Dendrimers. Polycycl. Aromat. Comp. 2024, 44, 707–729. 10.1080/10406638.2023.2179641. [DOI] [Google Scholar]
  56. Rahul M. P.; Clement J.; Singh Junias J.; Arockiaraj M.; Balasubramanian K. Degree-Based Entropies of Graphene, Graphyne and Graphdiyne Using Shannon’s Approach. J. Mol. Struct. 2022, 1260, 132797. 10.1016/j.molstruc.2022.132797. [DOI] [Google Scholar]
  57. Julietraja K.; Venugopal P. Computation of Degree-Based Topological Descriptors Using M-Polynomial for Coronoid Systems. Polycyclic Aromat. Compd. 2022, 42 (4), 1770–1793. 10.1080/10406638.2020.1804415. [DOI] [Google Scholar]
  58. Julietraja K.; Venugopal P.; Prabhu S.; S D.; Siddiqui M. K. Molecular Structural Descriptors of Donut Benzenoid Systems. Polycyclic Aromat. Compd. 2022, 42 (7), 4146–4172. 10.1080/10406638.2021.1885456. [DOI] [Google Scholar]
  59. Julietraja K.; Alsinai A.; Alameri A. Theoretical Analysis of Superphenalene Using Different Kinds of VDB Indices. J. Chem. 2022, 2022, 5683644. 10.1155/2022/5683644. [DOI] [Google Scholar]
  60. Julietraja K.; Venugopal P.; Prabhu S.; Liu J. B. M-Polynomial and Degree-Based Molecular Descriptors of Certain Classes of Benzenoid Systems. Polycyclic Aromat. Compd. 2022, 42 (6), 3450–3477. 10.1080/10406638.2020.1867205. [DOI] [Google Scholar]
  61. Chu Y. M.; Julietraja K.; Venugopal P.; Siddiqui M. K.; Prabhu S. Degree- and Irregularity-Based Molecular Descriptors for Benzenoid Systems. Eur. Phys. J. Plus 2021, 136 (1), 78. 10.1140/epjp/s13360-020-01033-z. [DOI] [Google Scholar]
  62. Konsalraj J.; Padmanabhan V.; Perumal C. Topological Analysis of PAHs Using Irregularity Based Indices. Biointerface Res. Appl. Chem. 2022, 12 (3), 2970–2987. 10.33263/BRIAC123.29702987. [DOI] [Google Scholar]
  63. Zhao W.; Julietraja K.; Venugopal P.; Zhang X. VDB Entropy Measures and Irregularity-Based Indices for the Rectangular Kekulene System. J. Math. 2021, 2021, 7404529. 10.1155/2021/7404529. [DOI] [Google Scholar]
  64. Yang J.; Konsalraj J.; Raja S A. A. Neighbourhood Sum Degree-Based Indices and Entropy Measures for Certain Family of Graphene Molecules. Molecules 2022, 28 (1), 168. 10.3390/molecules28010168. [DOI] [PMC free article] [PubMed] [Google Scholar]
  65. Tharmalingam G.; Ponnusamy K.; Govindhan M.; Konsalraj J. On Certain Degree Based and Bond Additive Molecular Descriptors of Hexabenzocorenene. Biointerface Res. Appl. Chem. 2023, 13 (5), 495. 10.33263/BRIAC135.495. [DOI] [Google Scholar]
  66. Sharma K.; Bhat V. K.; Sharma S. K. On Degree-Based Topological Indices of Carbon Nanocones. ACS Omega 2022, 7 (49), 45562–45573. 10.1021/acsomega.2c06287. [DOI] [PMC free article] [PubMed] [Google Scholar]
  67. Konsalraj J.; Padmanabhan V.; Perumal C. Vdb Analysis for Zeolites Lta Structures. Biointerface Res. Appl. Chem. 2022, 12 (5), 6960–6977. 10.33263/BRIAC125.69606977. [DOI] [Google Scholar]
  68. Adnan M.; Bokhary S. A. U. H.; Abbas G.; Iqbal T. Degree-Based Topological Indices and QSPR Analysis of Antituberculosis Drugs. J. Chem. 2022, 2022, 5748626. 10.1155/2022/5748626. [DOI] [Google Scholar]
  69. Parveen S.; Awan N. U. H.; Farooq F. B.; Fanja R.; Anjum Q. U. A. Topological Indices of Novel Drugs Used in Autoimmune Disease Vitiligo Treatment and Its QSPR Modeling. BioMed Res. Int. 2022, 2022, 6045066. 10.1155/2022/6045066. [DOI] [PMC free article] [PubMed] [Google Scholar]
  70. Hussain S.; Afzal F.; Afzal D.; Thapa D. K. The Study about Relationship of Direct Form of Topological Indices via M-Polynomial and Computational Analysis of Dexamethasone. J. Chem. 2022, 2022, 4912143. 10.1155/2022/4912143. [DOI] [Google Scholar]
  71. Wang W.; Naeem M.; Rauf A.; Riasat A.; Aslam A.; Anoh Yannick K. On Analysis of Banhatti Indices for Hyaluronic Acid Curcumin and Hydroxychloroquine. J. Chem. 2021, 2021, 7468857. 10.1155/2021/7468857. [DOI] [Google Scholar]
  72. Gao W.; Siddiqui M. K.; Rehman N. A.; Muhammad M. H. Topological Characterization of Dendrimer, Benzenoid, and Nanocone. Z. Naturforsch., C: J. Biosci. 2018, 74 (1–2), 35–43. 10.1515/znc-2018-0153. [DOI] [PubMed] [Google Scholar]
  73. Xavier D. A.; Julietraja K.; Nair A T.; Baby A.; Julietraja K.; Xavier D. A.; Alsinai A.; Alameri A.; Yang J.; Konsalraj J.; Raja S A. A.; Saravanan B.; Prabhu S.; Arulperumjothi M.; Julietraja K.; Siddiqui M. K.; Xavier D. A.; Akhila S.; Alsinai A.; Julietraja K.; Ahmed H.; Raja A. A.; Varghese E. S.; Zhao W.; Julietraja K.; Venugopal P.; Zhang X.; Prabhu S.; Arulmozhi A. K.; Siddiqui M. K.; Liu J. B.; K J.; P V.; S P.; S D.; Siddiqui M. K.; Chu Y. M.; Julietraja K.; Venugopal P.; Siddiqui M. K.; Prabhu S. Computation of Degree-Based Topological Descriptors Using M-Polynomial for Coronoid Systems. Polycyclic Aromat. Compd. 2022, 42 (0), 1770–1793. 10.1155/2022/2911196. [DOI] [Google Scholar]
  74. Balasubramaniyan D.; Chidambaram N. On Some Neighbourhood Degree-Based Topological Indices with QSPR Analysis of Asthma Drugs. Eur. Phys. J. Plus 2023, 138, 823. 10.1140/epjp/s13360-023-04439-7. [DOI] [Google Scholar]
  75. Ali P.; Kirmani S. A. K.; Al Rugaie O.; Azam F. Degree-Based Topological Indices and Polynomials of Hyaluronic Acid-Curcumin Conjugates. Saudi Pharmaceut. J. 2020, 28 (9), 1093–1100. 10.1016/j.jsps.2020.07.010. [DOI] [PMC free article] [PubMed] [Google Scholar]
  76. Sabirov D. S.; Shepelevich I. S. Information Entropy in Chemistry: An Overview. Entropy 2021, 23 (10), 1240. 10.3390/e23101240. [DOI] [PMC free article] [PubMed] [Google Scholar]
  77. Mowshowitz A.; Dehmer M. Entropy and the Complexity of Graphs Revisited. Entropy 2012, 14 (3), 559–570. 10.3390/e14030559. [DOI] [Google Scholar]
  78. Estrada E.; de la Peña J. A.; Hatano N. Walk Entropies in Graphs. Lin. Algebra Appl. 2014, 443, 235–244. 10.1016/j.laa.2013.11.009. [DOI] [Google Scholar]
  79. Julietraja K.; Venugopal P.; Prabhu S.; Arulmozhi A. K.; Siddiqui M. K. Structural Analysis of Three Types of PAHs Using Entropy Measures. Polycyclic Aromat. Compd. 2022, 42 (7), 4101–4131. 10.1080/10406638.2021.1884101. [DOI] [Google Scholar]
  80. Wang J.; Li B.; Qiu L.; Qiao X.; Yang H. Dendrimer-Based Drug Delivery Systems: History, Challenges, and Latest Developments. J. Biol. Eng. 2022, 16 (1), 18. 10.1186/s13036-022-00298-5. [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

ao4c00686_si_001.pdf (204.6KB, pdf)

Data Availability Statement

The data sets used and/or analyzed during the current study available in this article.

Articles from ACS Omega are provided here courtesy of American Chemical Society

RESOURCES
