FHOD-1/profilin-mediated actin assembly protects sarcomeres against contraction-induced deformation in C. elegans

Abstract

Formin HOmology Domain 2-containing (FHOD) proteins are a subfamily of actin-organizing formins that are important for proper striated muscle development in many animals. We had shown previously that absence of the sole FHOD protein, FHOD-1, in C. elegans results in thin body-wall muscles with misshapen dense bodies, structures that serve as sarcomere Z-lines in body-wall muscle. However, the mechanism of FHOD-1 action was unclear. Using mutations that target the actin assembly activity of FHOD-1, we demonstrate here that actin polymerization by FHOD-1 is required for its function in muscle development. Moreover, we show FHOD-1 cooperates with profilin PFN-3 to promote dense body morphogenesis, and profilins PFN-2 and PFN-3 to promote body-wall muscle growth. This is the first demonstration that a FHOD protein works with profilin partners in striated muscle development. Utilizing worms expressing fluorescently tagged dense body proteins PAT-3/b-integrin and ATN-1/a-actinin, we demonstrate dense bodies in fhod-1 and pfn-3 mutants are less stable than in wild type animals, having a higher proportion of dynamic protein, and becoming highly distorted by prolonged muscle contraction. We also observe the accumulation of actin depolymerization factor/cofilin homolog UNC-60B/cofilin in the body-wall muscle of these mutants. We suggest such accumulations may indicate targeting of thin filaments dislodged from unstable dense bodies disassembly. Similar failures in sarcomere assembly might account for the slow growth of body-wall muscle in fhod-1 mutants compared to wild type animals, and the coincident muscle weakness that we measure in these animals. Overall, these results show the importance of FHOD protein-mediated actin assembly to forming stable sarcomere Z-lines, and identify profilin as a new contributor to FHOD activity in striated muscle development.

INTRODUCTION

Striated muscle across the animal kingdom is defined by a regularly repeating arrangement of well-ordered contractile units called sarcomeres, whose presence allows for rapid muscle contraction. The ends of sarcomeres, termed Z-lines, serve as sites where actin-based thin filaments are crosslinked and anchored in place, while the free ends of thin filaments project toward the sarcomere center to interdigitate with myosin-based thick filaments (Henderson et al., 2017). During contraction, thick filaments pull the thin filaments so that the two filament types slide past each other, shortening the sarcomere (Huxley & Hanson, 1954).

Formin HOmology-2 Domain-containing (FHOD) proteins are a subgroup of actin-organizing formin proteins that have been implicated in proper striated muscle development in animals ranging from humans to nematodes. However, the contribution of FHOD homologs to sarcomere organization varies from organism to organism. Among mammals, FHOD3 is essential for sarcomere organization in cardiomyocytes. Rat- or human induced pluripotent stem cell-derived cultured cardiomyocytes are unable to assemble mature sarcomeres when FHOD3 is knocked down (Taniguchi et al., 2009; Iskratsch et al., 2010; Fenix et al., 2018). In mice deleted for the fhod3 gene, cardiomyocytes make immature plasma membrane-associated sarcomeres, but these fail to mature and accumulate much lower levels of filamentous actin (F-actin) than in wild type mice (Kan-O et al., 2012). Drosophila indirect flight muscles (IFMs) also strongly depend on their sole FHOD homolog (called FHOS or FHOD), with FHOS knockout IFMs assembling less F-actin, and completely failing to organize these actin filaments into sarcomeres (Shwartz et al., 2016). Study of FHOS knockdown later in development in fly IFMs showed FHOD is also required to incorporate new thin filaments into growing sarcomeres, and to elongate the barbed ends of thin filaments already present in sarcomeres (Shwartz et al., 2016). In contrast to these examples, the striated body-wall muscle (BWM) of the simple nematode Caenorhabditis elegans is able to assemble sarcomeres even in absence of its sole FHOD homolog, FHOD-1. Worms lacking FHOD-1 assemble fewer sarcomeres per muscle cell, but these sarcomeres are functional and the ability of the worm to crawl or swim is not grossly affected (Mi-Mi et al., 2012; Mi-Mi & Pruyne, 2015). The formation of functional sarcomeres in these worms is not due to redundancy with any of the other five worm formins, as we have shown the formin CYK-1 affects BWM development through pleiotropic effects on overall body growth, while the remaining formins play no apparent role in BWM development (Mi-Mi et al., 2012; Sundaramurthy et al., 2020).

Formins are best known for their ability to stimulate actin filament assembly. Functioning as dimers, formins nucleate new actin filaments from monomers through their formin homolog-2 (FH2) domains, often in conjunction with additional actin-binding sites in the adjacent carboxy-terminal (C-terminal) extension or “tail” (Pruyne et al., 2002; Sagot et al., 2002; Gould et al., 2011; Vizcarra et al., 2014; Bremer et al., 2024). The ring-shaped FH2 dimer remains wrapped around the terminal actin subunits of the growing barbed end (Kovar & Pollard, 2004; Maufront et al., 2023). Depending on the formin, the effects of this can vary from blocking further actin incorporation (“tight capping”) to allowing actin monomer incorporation at the barbed end without displacement of the formin (“processive capping”) (Aydin et al., 2018). The formin homology-1 (FH1) domain contributes to actin assembly by binding the small actin monomer-binding protein, profilin, via FH1 domain poly-proline motifs, and transferring profilin-bound actin monomers to the FH2-bound barbed end (Kovar et al., 2003; Romero et al., 2004; Moseley et al., 2004). For many formins, including FHOD homologs, nucleation and processive capping depend on a universally conserved isoleucine of the FH2 domain (Xu et al., 2004; Patel et al., 2018; Antoku et al., 2019). For mammalian FHOD3, mutation of this isoleucine (I1127) to alanine prevents the formin from supporting sarcomere formation in cultured cardiomyocytes (Taniguchi et al., 2009), while overexpression of FHOD3(I1127A) in the mouse heart recapitulates fhod3 gene knockout phenotypes (Fujimoto et al., 2016). Similarly, Drosophila FHOD(I966A) is only partially functional, organizing actin filaments into small sarcomeres, but failing to support further sarcomere thickening or elongation (Shwartz et al., 2016). Thus, mammalian FHOD3 and Drosophila FHOS require their actin assembly activity in order to function properly in their respective muscles. Considering worm FHOD-1 is not required to assemble functional sarcomeres in BWM, we questioned whether worm FHOD-1 might function in a manner that does not depend on its actin assembly activity.

Here, we demonstrate that in fact actin polymerization by FHOD-1 is critical to proper BWM development in C. elegans. Moreover, we show that FHOD-1 works in conjunction with profilin, the first demonstration of formin/profilin cooperation in a striated muscle model. Finally, we show FHOD-1 and profilin are critical for ensuring resilient resiliency in the Z-line structures of BWM sarcomeres against severe deformation by the force of muscle contraction.

RESULTS

Mutant FHOD-1 predicted to be defective for actin filament assembly activity does not support BWM growth or normal dense body morphogenesis.

The striated BWMs of C. elegans are strips of flat muscle cells that stretch from nose to tail. Each BWM cell is tightly adherent to a basement membrane shared with the overlying hypodermis (Waterston, 1988). F-actin- and myosin-rich sarcomeres are arranged in obliquely oriented striations that define the spindle shapes of these cells. Most BWM cells arise during embryogenesis, and grow through larval development and early adulthood, accumulating additional striations over time. We previously demonstrated the requirement for FHOD-1 for normal BWM growth through RNA interference (RNAi), or using deletion alleles fhod-1(tm3138), predicted to eliminate a portion of the diaphanous inhibitory domain, and fhod-1(tm2363), predicted to eliminate part of the FH2 domain and introduce a frameshift that prevents translation of downstream sequence (referred to here as fhod-1(ΔFH2), Fig.1A) (Mi-Mi et al., 2012). That is, the spindle-shaped BWM cells in animals lacking fhod-1 activity are narrower than those in wild type animals when measured at their widest point (Fig.1B, solid arrows), resulting in similarly narrow BWMs (Fig.1B, dashed arrows).

Figure 1. FHOD-1 is required for normal and timely formation of striations during BWM cell growth.

(A) Predicted effects of missense mutations (black arrowheads) or deletions (black bars) in mutants used in this study relative to FHOD-1 structural domains GTPase-binding domain (GBD), diaphanous inhibitory domain (DID), formin homology-1 domain (FH1), formin homology-2 domain (FH2), and two predicted diaphanous autoregulatory domains (dark red bars). Numbers indicate amino acid residues of FHOD-1 isoform A. (B) Maximum intensity projections of deconvolved confocal z-stacks showing BWMs in dorsal views of phalloidin-stained animals, with examples of the widths of BWMs (dashed arrows) and of individual muscle cells (solid arrows) indicated. Scale bars, 6 μm. (C) BWM widths and (D) muscle cell widths were measured in phalloidin-stained worms of larval stages L1 and L4, and animals after one day of adulthood (A1), three days (A3), or four days (A4) (n = 10 animals per genotype per age per trial, 4 BWMs or 4 muscle cells per animal, in two independent trials). Growth of muscle cells in fhod-1(ΔFH2) animals lags behind that of wild types. (E) Maximum intensity projections of deconvolved confocal z-stacks showing BWMs in dorsal views of animals expressing ATN-1::mCH dense body marker. Intersecting non-parallel striations are more commonly observed in fhod-1(ΔFH2) animals (arrows) than in wild type animals (arrowheads). Scale bars, 6 μm. (F) Numbers of ANT-1::mCH-marked striations per muscle cell and (G) numbers of non-parallel ANT-1::mCH-marked striations per muscle cell were counted for indicated ages and genotypes (n = 10 animals per genotype per age per trial, 4 BWM cells per animal, in two independent trials). Muscle cells in fhod-1(ΔFH2) animals add new striations slower than wild type animals, but accumulate more non-parallel striations. (H) Wide-field dorsal views of worms immunostained for MYO-3 show that intersections between non-parallel striations (arrowheads) are more prevalent in fhod-1(ΔFH2) animals. Scale bars, 50 μm. (I) Shown are numbers of non-parallel MYO-3 striations counted per combined measured length of MYO-3 striations visible in wide-field views (n = 6 wild type or 13 fhod-1(ΔFH2) worms in one trial). (J) Muscle strengths of young (day 0) adults and day 3 adults were measured using the Nemaflex platform. Young adult fhod-1(ΔFH2) animals are weaker than wild types, but come close to matching wild type animal strength by the third day of adulthood. Numerical results shown as individual measures and averages ± standard deviation, except J showing mean ± SEM. (*) p < 0.05; (**) p < 0.01; (***) p < 0.001; (ns, not significant) p > 0.05.

Expanding on our previous analysis (Mi-Mi et al., 2012), we confirmed BWM grows more slowly in larval and adult fhod-1(ΔFH2) animals compared to wild type, but observed these mutants proportionately narrow this size deficiency in older animals (Fig.1B–D). Examining the Z-line marker a-actinin (ATN-1 in C. elegans) to delineate the oblique striations of BWM cells, we observed that this slow growth of BWM cells in fhod-1(ΔFH2) animals correlates with a slower addition of new striations (Fig.1E,F). Additionally, as compared to wild type animals, more striations formed in fhod-1(ΔFH2) animals are misoriented, making fork-like intersections, a defect also observable when the central A band marker muscle myosin II heavy chain A/MYO-3 (Fig.1E,G–I). To test whether fhod-1(ΔFH2) also results in BWM weakness, we quantitatively measured force production using the NemaFlex platform, which calculates forces exerted by individual worms based on the degree to which they are able to deflect micropillars (Rahman et al., 2018). Consistent with their ~ 30% narrower BWMs, young adult fhod-1(ΔFH2) animals exert 29% less force, while by the third day of adulthood, fhod-1(ΔFH2) BWM is only 10% narrower than wild type, and these animals apply a statistically insignificant 4% less force than wild type (Fig.1J). Thus, thinning of fhod-1(ΔFH2) BWM correlates well with muscle weakness.

To test the importance of the actin filament assembly activity of FHOD-1 in promoting BWM cell growth, we used CRISPR-Cas9 to introduce FH2 domain missense mutations I904A and K1051A (Fig.1A). Both mutations target universally conserved actin-binding residues, with mutation of the isoleucine to alanine generally eliminating actin filament assembly activity in many formins, and mutation of the lysine to alanine typically having a milder effect (Xu et al., 2004; Ramabhadran et al., 2012). Immunoblot of whole worm extracts using an antibody raised against the FHOD-1 FH2 domain shows fhod-1(I904A) and fhod-1(K1051A) worms express FHOD-1 proteins at the correct predicted molecular weights (Fig.2A), including a higher molecular weight isoform we have shown previously is expressed in BWM (Refai et al., 2018). In contrast, extracts from fhod-1(ΔFH2) animals show only nonspecific immunoreactivity we have observed previously (Mi-Mi et al., 2012). Staining for F-actin showed that BWM cells in fhod-1(I904A) animals are narrower than wild type, but identical to BWM cells of age-matched fhod-1(ΔFH2) worms, and have nearly identically narrowed BWM cells with fewer striations than wild type (Fig.2B–D). In contrast, BWM cells of fhod-1(K1051A) were not significantly different from wild type (Fig.2B–D). Consistent with this, in tests for the ability of worms to burrow through 26% Pluronic gel (Lesanpezeshki et al., 2019), fhod-1(ΔFH2) and fhod-1(I904A) mutants perform worse than wild type animals to a very similar degree, while fhod-1(K1051A) worms are nearly as efficient as wild type animals (Fig.2E). Thus, the ability to assemble actin filaments appears critical for FHOD-1 function in promoting BWM cell growth and for normal BWM performance.

Figure 2. FHOD-1-stimulated actin filament polymerization is required for BWM growth and dense body morphogenesis.

(A) Two anti-FHOD-1 immunoblots of whole worm extracts show expected ~150 kDa and ~165 kDa FHOD-1 isoforms in animals bearing missense mutations fhod-1(I904A) and fhod-1(K1051A) and deletion mutation fhod-1(ΔFH1), but not in animals bearing the deletion and frameshift mutation fhod-1(ΔFH2). Previously observed nonspecific immunoreactivity to lower molecular weight proteins is visible for all strains. (B) BWM widths and (C) widths of individual muscle cells were measured, and (D) numbers of striations per muscle cell were counted in phalloidin-stained day 1 adults (n = 20 animals per genotype per trial, two to four BWMs or muscle cells per animal, in three independent trials), showing muscle cells of fhod-1(I904A) animals are nearly identically to those of fhod-1(ΔFH2) mutants, while fhod-1(K1051A) muscle cells are nearly wild type. Numerical results shown as individual measures and averages ± standard deviation. All comparisons are statistically significant, p < 0.001, except those indicated (ns, not significant, p > 0.05). (E) Fraction of day 1 adult worms able to successfully burrow through 26% pluronic gel was determined every 10 min for 1 h (n = 30 worms per genotype per trial, in four independent trials). Results shown as averages ± standard deviation. No differences were statistically significant owing to large trial-to-trial differences, but fhod-1(I904A) and fhod-1(ΔFH2) animals consistently perform poorly compared to wild type and fhod-1(K1051A) animals in each trial. (F) Maximum intensity projections of confocal z-stacks show dorsal views of day 1 adults immunostained for dense body marker ATN-1. Dense bodies appear regular in shape and spacing in wild type animals, but irregular in shape and spacing in fhod-1(ΔFH2) and fhod-1(I904A) mutants. Dense bodies in fhod-1(K1051A) animals are very similar to those in wild type animals. Scale bar, 5 μm.

Another defect observed in fhod-1(ΔFH2) animals is malformation of their dense bodies. Dense bodies play two roles in BWM, serving as sarcomere Z-lines to anchor thin filaments, and as costameres to anchor sarcomeres to the plasma membrane (Gieseler et al., 2018). When viewed by immunostain for a-actinin/ATN-1, dense bodies are peg shaped structures arranged with fairly consistent spacing along striations in wild type animals (Sundaramurthy et al., 2020). We had shown previously that dense bodies in adult fhod-1(ΔFH2) mutants appear fragmented and irregular in shape, with irregular spacing along striations (Sundaramurthy et al., 2020). Immunostain for ATN-1 showed adult worms bearing fhod-1(I904A) also have irregular dense bodies identical to those of fhod-1(ΔFH2) animals, while dense bodies in fhod-1(K1051A) worms appear more regular in shape and spacing along striations, similar to those of wild type animals (Fig.2F). These data suggest FHOD-1 mediated actin assembly is essential for proper dense body morphology, with mutation of the conserved I904 having the greatest effect.

Profilin contributes to BWM cell growth and dense body formation similar to FHOD-1.

The C. elegans genome encodes three profilins: PFN-1, which is essential and expressed embryonically and in the adult nerve ring; PFN-2, which is non-essential and expressed primarily in pharyngeal muscle; and PFN-3, which is also non-essential and expressed primarily in BWM (Polet et al., 2006). Worms bearing the whole-gene deletion pfn-3(tm1362), referred to here as pfn-3(Δ), were reported to have no apparent phenotype, while RNAi against pfn-2 in the pfn-3(Δ) background resulted in modestly misshapen dense bodies and sarcomeres that were slightly wider than in wild type worms (Polet et al., 2006). Additionally, pfn-3(Δ) worms performed worse in Pluronic gel burrowing assays than wild type animals (Lesanpezeshki et al., 2021). To directly compare profilin- and fhod-1-deficient BWM, we stained F-actin in worms bearing pfn-3(Δ), as well as worms bearing the whole-gene deletion pfn-2(ok458), referred to here as pfn-2(Δ), or animals deleted for both pfn-2 and pfn-3. BWM cells of pfn-2(Δ) animals are nearly identical in size to age-matched wild type animals, while pfn-3(Δ) animals average one fewer striation per BWM cell compared to wild type, and double pfn-2(Δ) pfn-3(Δ) mutants have modestly narrower BWM cells and an average of two fewer striations per BWM cell (Fig.3A–F), effects similar to fhod-1(ΔFH2) but of lesser magnitude. Immunostain for ATN-1 revealed dense bodies are normal in pfn-2(Δ) animals, but somewhat irregular in shape and spacing in pfn-3(Δ) mutants or in double pfn-2(Δ) pfn-3(Δ) mutants, although often appearing not as irregular as in fhod-1(ΔFH2) animals (Fig.3G). Thus, PFN-3 and to a lesser extent PFN-2 contribute to BWM cell growth, and PFN-3 contributes to proper dense body morphogenesis, similar to FHOD-1.

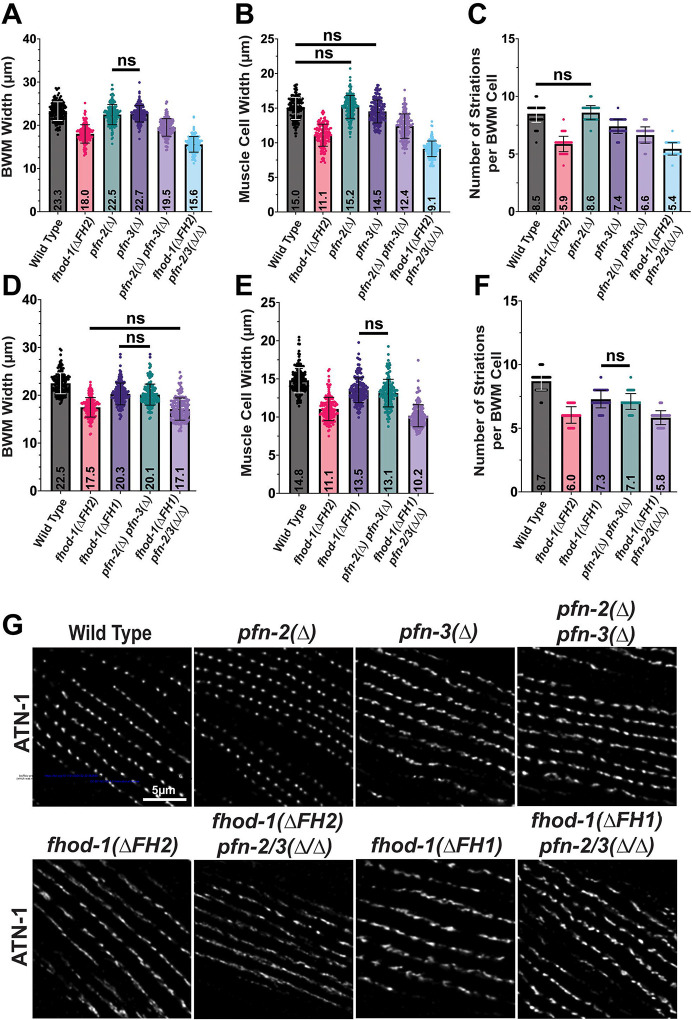

Figure 3. Profilins and FHOD-1 FH1 domain are required for normal BWM cell growth and dense body morphogenesis.

(A-C) Comparison of single and double profilin mutants to fhod-1(ΔFH2) mutants for (A) BWM width, (B) widths of individual muscle cells, and (C) numbers of striations per muscle cell, in day 1 adults (n = 20 animals per genotype per trial, two to four BWMs or muscle cells per animal, in three independent trials). Loss of the profilin genes pfn-2 and pfn-3 contribute to all three BWM metrics, although their combined effects are less than that of fhod-1(ΔFH2). (D-F) Comparison of fhod-1(ΔFH1) mutants to single and double profilin mutants for (D) BWM width, (E) widths of individual muscle cells, and (F) numbers of striations per muscle cell, in day 1 adults (n = 20 animals per genotype per trial, two to four BWMs or muscle cells per animal, in three independent trials). The effects of the loss of profilin genes pfn-2 and pfn-3 on BWM metrics closely match the effects of fhod-1(ΔFH1). Results shown as individual measures and averages ± standard deviation. All comparisons are statistically significant, p < 0.001, except those indicated (ns, not significant, p > 0.05). (F) Maximum intensity projections of confocal z-stacks show dorsal views of day 1 adults immunostained for dense body marker ATN-1. Dense bodies appear similarly irregular in pfn-3(Δ) mutants, double pfn-2(Δ) pfn-3(Δ) mutants, and fhod-1(ΔFH1) mutants. Scale bar, 5 μm.

To test whether the ability of the FHOD-1 FH1 domain to interact with profilin is important for muscle development, we used CRISPR-Cas9 to delete the three putative profiling-binding poly-proline stretches in the FH1 domain-coding sequence of fhod-1 (Fig.1A). Immunoblotting verified fhod-1(ΔFH1) animals produce FHOD-1 protein of the expected molecular weights (Fig. 2A). By F-actin stain, BWM cells in fhod-1(ΔFH1) animals are smaller than those of wild type animals, with an identical width and striation number as age-matched double pfn-2(Δ) pfn-3(Δ) mutants (Fig.3D–F). And by immunostain for ATN-1, dense bodies in fhod-1(FH1Δ) animals are highly similar to those of pfn-3(Δ) mutants (Fig.4E). Thus, eliminating the predicted profilin-binding sites in the FHOD-1 FH1 domain has nearly identical effects on BWM development as elimination of PFN-2 and PFN-3.

Figure 4. a-actinin is more mobile in dense bodies formed in the absence of FHOD-1.

(A) Maximum intensity projection of a deconvolved confocal z-stack of a day 1 adult expressing PAT-3::GFP and ATN-1::mCH. Both markers are associated with dense bodies, although dense body composition varies along striations, starting as small dense bodies at striation ends (DB1) with PAT-3::GFP only, and becoming progressively larger (DB2 to DB3) and associated with ATN-1::mCH. PAT-3::GFP is also associated with M-lines (M) and attachment plaques (A), both of which can be identified based on their differing morphologies. Scale bar, 10 μm. (B) Three-dimensional reconstructions from deconvolved confocal z-stacks show dense bodies from PAT-3::GFP/ATN-1::mCH-expressing adults. PAT-3::GFP is present at the plasma membrane and ATN-1::mCH is present in elongated projections embedded in the sarcomere lattice. Dense bodies tend to be shorter and wider in fhod-1(ΔFH2) animals. Scale bars, 1 μm. (C) Single confocal images of live L4 larvae show PAT-3::GFP- or ATN-1::mCH-marked dense bodies prior to photobleaching, immediately after photobleaching targeted dense bodies, and after 24 min of recovery. Scale bars, 5 μm. (D) Quantification of fluorescence recovery of photobleached dense bodies in images similar to C (for PAT-3::GFP, n = 4 worms of each genotype, 4 dense bodies per animal; for ATN-1::mCH, n = 5 worms of each genotype, 4 dense bodies per animal). PAT-3::GFP recovers slowly and to similar degrees in wild type and fhod-1(ΔFH2) animals, while ATN-1::mCH recovers more rapidly in both strains, but to a greater degree in fhod-1(ΔFH2) animals. Results shown are averages ± standard deviation. (*) p < 0.05. No differences were significant between wild type and fhod-1(ΔFH2) animals at any time point for PAT-3::GFP (p > 0.05).

To test whether profilins and FHOD-1 contribute to muscle development through a common mechanism or separate mechanisms, we examined BWM of animals mutated simultaneously for fhod-1, pfn-2, and pfn-3. We expected that if profilins contribute to BWM development strictly through FHOD-1-mediated actin filament assembly, the effect of these combined mutations should be no worse that the effect of eliminating only FHOD-1. Conversely, if profilins contribute to BWM development through additional FHOD-1-independent mechanisms, then the phenotype of triple mutants would exceed that of mutating fhod-1 alone. Based on immunostain for ATN-1, dense bodies in triple fhod-1(ΔFH1) pfn-2(Δ) pfn-3(Δ) mutants appear similar to those of fhod-1(ΔFH1) or pfn-3(Δ) mutants (Fig.3G). Similarly, dense bodies in triple fhod-1(ΔFH2) pfn-2(Δ) pfn-3(Δ) appear similar to those of fhod-1(ΔFH2) mutants. These results suggest profilin, and particularly PFN-3, likely contributes to dense body morphogenesis through interaction with the FHOD-1 FH1 domain.

However, the effects of triple mutants on BWM cell growth were less straightforward. F-actin stain showed BWM cells of triple fhod-1(ΔFH1) pfn-2(Δ) pfn-3(Δ) mutants are narrower and have fewer striations than those of fhod-1(FH1Δ) or of double pfn-2(Δ) pfn-3(Δ) mutants (Fig.3D–F). Similarly, BWM growth was more reduced in triple fhod-1(ΔFH2) pfn-2(Δ) pfn-3(Δ) mutants than in fhod-1(ΔFH2) mutants (Fig.3A–C). These results suggest the profilins PFN-2 and PFN-3 make contributions to BWM cell growth independently of FHOD-1, although they may also contribute to BWM cell growth through FHOD-1-mediated actin filament assembly.

Dense bodies formed in absence of PFN-3 or FHOD-1 are unstable.

C. elegans dense bodies have a layered organization similar to focal adhesions, with a membrane-proximal zone with a-integrin/PAT-2 and b-integrin/PAT-3, an intermediate layer rich in vinculin/DEB-1, and an elongated segment rich in a-actinin/ATN-1 for thin filament attachment (Francis & Waterston, 1985; Barstead & Waterston, 1989; Gettner et al., 1995; Moulder et al., 2010). To better understand the effects of FHOD-1 on dense body dynamics, we examined animals expressing functional GFP-tagged b-integrin (GFP::PAT-3) and functional mCherry-tagged a-actinin (ATN-1::mCH) (Fig.4A,B, S1). As described previously, GFP::PAT-3 decorates all dense bodies, as well as M-lines and muscle cell-to-muscle cell adhesions called attachment plaques (Plenefisch et al., 2000). ATN-1::mCH also decorated most dense bodies, but was absent from small dense bodies at the ends of striations, at the edges of BWM cells (Fig.4A), a trait observed in wild type and fhod-1(ΔFH2) animals. However, ATN-1::mCH-positive dense bodies of fhod-1(ΔFH2) of all ages are more lobulated and variably shaped than in wild type worms (Figs 4B, S1), consistent with our previous ATN-1 immunostain of adult animals (Sundadarmurthy et al., 2020). Past analysis of dense body spacing in ATN-1-immunostained adults by fast Fourier transform (FFT) had shown wild type animals exhibit a semi-regular 1-μm spacing between dense bodies, while fhod-1(ΔFH2) animals have no preferred spacing (Sundaramurthy et al., 2020). Consistent with and expanding upon this, FFT analysis of dense bodies in ATN-1::mCH-expressing animals showed wild type animals exhibit regular spacing throughout growth, trending from ~ 0.7 μm between dense bodies in the youngest stage-1 larvae (L1) to > 1.8 μm at the fourth day of adulthood (Table 1, Figs S2, S3). Conversely, FFT analysis of fhod-1(ΔFH2) dense bodies shows no preferred spacing through larval development, and only weak and inconsistent preferred spacing in older fhod-1(ΔFH2) adults (Table 1, Figs S2, S3). Thus, dense body malformation appears to be present throughout development.

Table 1.

Dense body spacing along striations.

Age	Predominant Dense Body Spacing†
	Wild Type	fhod-1(ΔFH2)
L1	0.73 μm, n/a‡	n/a‡, n/a‡
L4	1.17 μm, 1.45 μm	n/a‡, n/a‡
Day 1 Adult	1.50 μm, 2.38 μm	n/a‡, 2.00 μm
Day 3 Adult	1.58 μm, 2.09 μm	3.74 μm, n/a‡
Day 4 Adult	1.84 μm, 2.25 μm	2.64 μm, n/a‡

^†Values shown are calculated as the inverse of the primary frequency (μm⁻¹) determined by FFT analysis of ATN-1::mCH fluorescence along striations (Figs S1, S2). Values from each of two trials are shown, determined from fluorescence profiles of all dense body-containing striations of two muscle cells (for L1 larvae) or eight dense body-containing striations in one muscle cell (for other ages) in each of ten animals per strain per developmental stage.

^‡No primary frequency was present, or the calculated predominant dense body spacing spanned multiple dense bodies.

To test whether protein dynamics in fhod-1(ΔFH2) dense bodies are abnormal, we performed fluorescence recovery after photobleaching (FRAP). Individual dense bodies were photobleached in immobilized L4 larvae and monitored for recovery for 40 or 72 min (Fig.4C,D). GFP::PAT-3 showed a slow, linear recovery of fluorescence that did not saturate, and did not differ between wild type and fhod-1(ΔFH2) animals (Fig.4C,D). ATN-1::mCH recovered more rapidly in wild type and fhod-1(ΔFH2) animals, with fhod-1(ΔFH2) dense bodies showing a greater degree of fluorescence recovery (Fig.4C,D), suggesting the a-actinin-rich portion of dense bodies that anchors thin filaments is more dynamic in absence of FHOD-1. We reasoned that if dense bodies were defective in anchoring thin filaments in fhod-1(ΔFH2) animals, we might observe enhanced recruitment of the muscle-specific actin depolymerization factor (ADF)/cofilin homolog, UNC-60B, a protein essential for actin filament turnover in BWM (Ono et al., 1999). In wild type animals, we observed UNC-60B in low amounts along the Z-lines (Fig.5), as shown previously (Ono et al., 1999). However, in fhod-1(ΔFH2) animals, UNC-60B also accumulates at the pointed ends of BWM cells (Fig.5, arrows). We had not previously noted F-actin accumulation at BWM cell ends in fhod-1(ΔFH2) animals, but ADF/cofilin and phalloidin bind competitively to actin filaments (Nishida et al., 1987; Ono et al., 1996; Ono & Ono, 2009). Probing for actin by immunostain showed UNC-60B at the fhod-1(ΔFH2) BWM cell ends overlaps with actin (Fig.5, arrows). We observed similar but fainter UNC-60B accumulation at BWM cell ends in double pfn-2(Δ) pfn-3(Δ) mutants, with faint overlapping actin immunostain (Fig.5). Distinct from fhod-1(ΔFH2) animals, profilin mutants also accumulate UNC-60B puncta in the BWM cytoplasm outside the layer of sarcomeres (Fig.5, arrowheads in Organellar Layer), consistent with profilins playing at least some FHOD-1-independent roles in BWM cell development.

Figure 5. BWM cells lacking FHOD-1 or PFN-3 accumulate ADF/cofilin-associated actin filaments.

Maximum intensity projections of deconvolved confocal z-stacks show day 1 adults immunostained for actin and UNC-60B. UNC-60B and actin are organized into striations in BWM. In fhod-1(ΔFH2) animals, and to a lesser extent in pfn-2(Δ) pfn-3(Δ) animals, UNC-60B also accumulates at the pointed ends of muscle cells (arrows). Additionally, pfn-2(Δ) pfn-3(Δ) animals accumulate small puncta of UNC-60B (arrowheads) in the portion of the muscle cell cytoplasm occupied by organelles, below the layer of sarcomeres. Scale bar, 5 μm.

Based on our evidence that the thin filament-binding portion of dense bodies in fhod-1(ΔFH2) mutants is more dynamic than in wild type, we hypothesized that the deformed shape of fhod-1(ΔFH2) dense bodies might arise from an inability to resist pulling forces during muscle contraction. To test this, worms were grown on a bacterial lawn containing 2.5 mM levamisole, a nicotinic acetylcholine receptor agonist. This maintained BWMs in a partially contracted state, as verified by a tauter appearance of the animals, although the worms were still able to crawl. After 24 h treatment, 100% wild type and 95% fhod-1(ΔFH2) levamisole-treated worms remained alive. Where sarcomeres in wild type BWM are largely unaffected by this treatment, sarcomeres of levamisole-treated fhod-1(ΔFH2) animals are highly distorted compared to untreated controls (Fig.6A). Dense bodies in treated fhod-1(ΔFH2) animals, as viewed through ATN-1::mCH and PAT-3::GFP, are stretched to form nearly continuous-appearing Z-lines rather than discontinuous bodies (Fig.6A, arrows), and striations are contorted rather than straight. There is also an increased presence of diffuse PAT-3::GFP across the BWM cell membrane in levamisole-treated fhod-1(ΔFH2) muscle, while M-line-associated PAT-3::GFP is reduced (Fig.6A). We also tested whether prolonged muscle relaxation reversed dense body morphological defects by growing fhod-1(ΔFH2) worms on a bacterial lawn containing 10 mM muscimol, a g-aminobutyric acid receptor agonist. However, this treatment did not dramatically improve fhod-1(ΔFH2) dense bodies, suggesting deformation of dense bodies may be irreversible (Fig.6A).

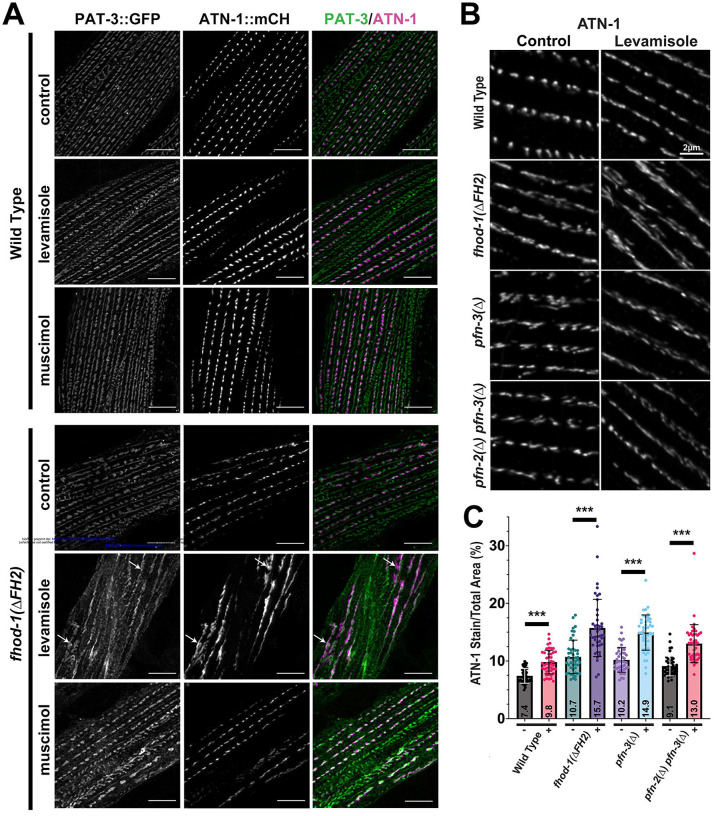

Figure 6. Dense bodies formed in absence of FHOD-1 or PFN-2/PFN-3 are highly deformed by prolonged contraction.

(A) Maximum intensity projections of deconvolved confocal z-stacks show day 1 adults expressing PAT-3::GFP and ATN-1::mCH. Dense bodies in wild type animals were largely unaffected after 24 h treatment with 2.5 mM levamisole, which stimulates muscle contraction, or with 10 μM muscimol, which inhibits muscle contraction. In contrast, dense bodies in fhod-1(ΔFH2) animals were highly distorted by levamisole treatment, forming nearly continuous stripes of dense body material (arrows). Scale bars, 6 μm. (B) Maximum intensity projections of deconvolved confocal z-stacks show day 1 adults immunostained for ATN-1. Scale bar, 2 μm. (C) Levamisole treatment more strongly distorts dense bodies in fhod-1(Δ), pfn-3(Δ), and double pfn-2(Δ) pfn-3(Δ) mutants than in wild-type animals, as quantified by the total area occupied by ATN-1 in maximum intensity projections in untreated (−) and levamisole-treated (+) animals (n = 1 image from each of 15 worms per genotype per condition per trial, with three independent trials). All were significantly changed by levamisole treatment (p < 0.001), although effects on mutants were of greater magnitude than on wild type worms.

As a quantitative measure of the effects of levamisole treatment on dense bodies, we immunostained control- or levamisole-treated worms for ATN-1, and measured the percent surface area taken up by the dense body marker in two-dimensional projections of the sarcomeres (Fig.6B,C). By this metric, wild type animals exhibit very modest dense body deformation resulting ATN-1 occupying 2.4% more of the total area after levamisole treatment. Dense body deformation was quantitatively greater in fhod-1(ΔFH2) mutants, with ATN-1 occupying 5% more of the total area (Fig.6B,C). Similarly, dense bodies in pfn-3(Δ) mutants occupy 4.7% greater area, and those in double pfn-2(Δ) pfn-3(Δ) occupy 3.9% greater area (Fig.6B,C), supporting a common FHOD-1/profilin pathway for dense body morphogenesis.

Considering FHOD-1 is important for the ability of dense bodies to resist prolonged muscle contraction, we tested whether FHOD-1 is actively recruited to dense bodies during levamisole treatment. Under normal conditions, a functional GFP-tagged FHOD-1 (FHOD-1::GFP) localizes to small bodies along the lateral edges of BWM cells (Fig.7, white arrows), and fainter bodies within sarcomeres, particularly around and between dense bodies (Fig.7, cyan arrows). This is consistent with the localization of endogenous FHOD-1 (Mi-Mi et al., 2012). Localized FHOD-1::GFP remains visible through larval development and young adulthood, but fades to nearly undetectable by the third day of adulthood when BWM cell growth has ceased (Fig.7, L4 versus Day 3 Adult). Interestingly, in levamisole-treated wild type animals, FHOD-1::GFP is largely absent from BWMs (Fig.7, control versus levamisole), consistent with our observation that growth of BWM cells is strongly reduced in levamisole-treated animals compared to untreated controls (Fig.S4). Notably, this result suggests FHOD-1 is not recruited to strengthen dense bodies during prolonged contraction. Instead, we suggest stability is established in dense bodies in a FHOD-1-dependent manner during their formation.

Figure 7. FHOD-1 is present among sarcomeres during BWM growth, but not under conditions of prolonged contraction.

Maximum intensity projections of deconvolved confocal z-stacks show dorsal views of animals expressing FHOD-1::GFP and ATN-1::mCH. In L4 larvae, FHOD-1 is present in bodies along the edges of BWM cells (white arrows), and in faint striations (cyan arrows) that intersect dense bodies. By day 3 adulthood, most localized FHOD-1::GFP is gone. Treatment of day 1 adults with levamisole for 24 h results in delocalization of FHOD-1::GFP, as compared to untreated controls. Scale bars, 10 μm.

DISCUSSION

In vivo cooperation between FHOD-1 and profilin in striated muscle development

We had shown previously that among six members of the formin family of actin organizing proteins in C. elegans, only FHOD-1 directly contributes to the development of the body-wall muscle (BWM) in a cell autonomous manner (Mi-Mi et al., 2012; Sundaramurthy et al., 2020). In absence of FHOD-1, BWM cells add new striations more slowly during development, resulting in slower BWM growth (Fig.1E,F). Additionally, dense bodies, which serve as sarcomere Z-lines, are misshapen and irregular in shape and spacing when formed in absence of FHOD-1 (Figs 4A, S1). However, unlike mouse and fly models for FHOD-dependent muscle development, sarcomeres of FHOD-1-deficient BWMs are functional, and contain abundant actin-based thin filaments (Mi-Mi & Pruyne, 2015). This led to the question of whether FHOD-1 functions independently of the ability to stimulate the actin filament polymerization. We show here that a fhod-1 mutant bearing the FH2 domain missense mutation I904A predicted disrupt actin filament assembly phenocopies a functionally null fhod-1 allele for BWM cell growth, dense body morphology, and muscle performance in burrowing assays (Fig.2). A second FH2 missense mutation K1051A predicted to have milder impact on actin filament assembly had little observable effect on these phenotypes.

Many formins have been shown to work with the actin monomer-binding protein profilin in vivo to promote actin filament assembly, using the FH1 domain to recruit profilin with bound actin to the growing ends of elongating actin filaments (Coutemanche, 2018). We provide here the first in vivo demonstration of cooperation between a FHOD homolog and profilin in straited muscle development. Absence of the profilin PFN-3, which is primarily expressed in BWM (Polet et al., 2006), results in similar dense body morphological defects as seen in fhod-1 mutants, and particularly animals mutated to lack the FHOD-1 FH1 domain (Fig.3G). Moreover, we saw no additive effects on dense bodies with simultaneous loss of PFN-3 and the FHOD-1 FH1 domain, suggesting PFN-3 and the FHOD-1 FH1 domain cooperate to promote dense body morphogenesis (Fig.3G).

These results differ slightly from Polet and colleagues, who noted dense body morphology defects only when both PFN-3 and a second profilin, PFN-2, were perturbed (Polet et al., 2006). One possible explanation for this discrepancy is that that study probed dense body morphology through observation of vinculin/DEB-1, which occupies a relatively smaller proportion of the dense body than does a-actinin/ATN-1 (Barstead & Waterston, 1989; Moulder et al., 2010), making observation of small morphological changes challenging. Additionally, our FRAP analysis suggests the a-actinin-rich portion of dense bodies may be particularly sensitive to loss of FHOD-1/profilin activity (Fig.4C,D). However, their results may indicate PFN-2 also contributes to dense body morphogenesis, although to a lesser degree than PFN-3.

We did observe PFN-2 contributes to BWM cell growth redundantly with PFN-3. Thus, worms lacking PFN-3 have only very modest BWM cell growth defects, but worms lacking both PFN-2 and PFN-3 have greater defects (Fig.3A–C). However, combined absence of PFN-2, PFN-3, and FHOD-1 results in BWM growth defects even greater than those caused by absence of profilins or FHOD-1 alone, indicating the profilins must make FHOD-1-independent contributions to BWM growth (Fig.3A–C). Considering profilins also mediate ATP/ADP-nucleotide exchange for actin, suppress pointed end elongation of actin filaments, and interact with other proteins, this result is not surprising (Pimm et al., 2020). Perhaps related to this, we noted worms doubly mutated for pfn-2 and pfn-3 accumulate small puncta of ADF/cofilin/UNC-60B in their cytoplasm (Fig.5), possibly indicating a wider disturbance in cytoskeletal organization in the BWM cell. Alternatively, PFN-2 is predominantly expressed in the pharyngeal muscle that is required for feeding (Polet et al., 2006), so that some of the effects of that profilin on BWM growth might be secondary to overall reduced growth, consistent with our observation that worms triply mutated for fhod-1, pfn-2, and pfn-3 are smaller than age-matched single or double mutant counterparts.

Cooperation between FHOD homologs and profilin has not been demonstrated in vivo in other striated muscle systems, but we believe this is likely to be a conserved mechanism. Supporting this, normal sarcomere growth in indirect flight muscles (IFMs) of Drosophila requires its FHOD homolog FHOS to be competent to assemble actin filaments (Shwartz et al., 2016), and FHOS cooperates with profilin in vitro to promote actin filament assembly (Patel et al., 2018). There is also indirect supporting evidence from studies with cultured rat cardiomyocytes showing hyperactivation of FHOD3 or overexpression of profilin-1 is each sufficient to induce hypertrophy (Kooij et al., 2016; Zhou et al., 2017). Additionally, in humans, autosomal dominant mutations in fhod3 cause between 1–2% of inherited cases of hypertrophic cardiomyopathy (HCM) (Ochoa et al., 2018), and expression of FHOD3 is elevated in the HCM heart in humans (Wooten et al., 2013), while mouse models of HCM show elevated profilin-1 expression (Kooij et al., 2016). Based on these and on our results, we suggest it is likely FHOD3 and profilin function as partners in promoting cardiomyocyte hypertrophy, analogous to how FHOD-1 and profilin promote BWM cell growth in the worm.

FHOD-1 and profilin impart stability onto dense bodies.

When viewed by electron microscopy, dense bodies in wild type animals appear as solid electron-dense structures, but in fhod-1(ΔFH2) mutants appear partially fragmented (Mi-Mi & Pruyne, 2015). Considering thin filaments are anchored to dense bodies, we hypothesized this partial fragmentation of dense bodies in fhod-1(ΔFH2) animals might result from the pulling forces of muscle contraction on thin filaments, with fhod-1(ΔFH2) dense bodies being physically less stable than those of wild type animals. We show here by several metrics that dense bodies are less stable in worms lacking functional FHOD-1 or PFN-3, and this particularly affects the α-actinin-rich portion where thin filaments are anchored. Confirming that muscle contraction is a deforming force, dense bodies in BWM of fhod-1 and pfn-3 mutants become highly distorted during prolonged pharmacologically induced contraction (Fig.6). Even under normal conditions, a higher proportion of a-actinin in dense bodies is exchangeable with the cytoplasm in fhod-1(ΔFH2) mutant BWM cells (Fig.4C,D), suggesting less of the substance of the dense body is firmly anchored in place. Possibly related, fhod-1 and pfn-3 mutant BWM cells also accumulate ADF/cofilin at BWM cell ends (Fig.5). An intriguing hypothesis is that these accumulations represent regions where thin filaments dislodged from dense bodies have accumulated and been targeted for depolymerization.

Despite our evidence FHOD-1 and PFN-3 cooperate in vivo, the distribution of the two proteins in BWM cells differ. Previous immunostain for PFN-3 shows this profilin isoform concentrates at the tips of dense bodies in BWM cells (Polet et al., 2016). In contrast, FHOD-1 is found in small bodies distinct from dense bodies along BWM cell edges, as well as in small amounts around and between dense bodies (Fig.7) (Mi-Mi et al., 2012). Interestingly, we also observe incomplete dense bodies lacking ATN-1 at BWM cell edges (Fig.4A), which may indicate these are immature dense bodies that formed most recently in the BWM cell. FHOD-1 does not colocalize with these dense bodies, but their proximity might indicate FHOD-1-generated actin filaments might affect them during to their formation. Similarly, the presence of FHOD-1 near dense bodies deeper in the muscle cell may support their continued development, as dense bodies continue to grow in size through larval development and early adulthood (Figs 4B, S1) (Moerman & Williams, 2006). However, it is unlikely FHOD-1 actively maintains dense body integrity after dense bodies have finished assembling, as after BWM cell growth ceases, FHOD-1 is no longer localized near dense bodies (Fig.7, L4 versus Day 3 Adult). Additionally, FHOD-1 is not recruited to dense bodies during prolonged muscle contraction, when dense bodies are subject to deforming forces (Fig.7). As yet, it is unclear exactly how FHOD-1/PFN-3-mediated actin filament assembly strengthens dense bodies. One model is FHOD-1 and PFN-3 might elongate thin filament barbed ends sufficiently to ensure the filaments are firmly embedded through the full mass of the dense body. Alternatively, FHOD-1/PFN-3 might polymerize an as-yet unidentified population of nonsarcomeric actin filaments that plays a supporting role for dense bodies, analogous to the role that intermediate filaments play in bridging Z-discs in vertebrate striated muscles (Henderson et al., 2017).

We suggest the small BWM sizes of fhod-1 and pfn-3 mutants are secondary consequences of dense body fragility. As sarcomeres form and enlarge during BWM growth, we suggest subsets of thin filaments in fhod-1 and pfn-3 mutants become dislodged and are disassembled. A base rate of sarcomere assembly failure might also explain our previous observation that muscle myosin II heavy chain/MYO-3 is subject to elevated levels of proteasome-driven proteolysis in fhod-1(ΔFH2) BWM (Yingling & Pruyne, 2021). However, a net productive sarcomere assembly permits formation of new striations at a slowed rate, resulting in narrow muscle (Figs 1J, 2E). With all other factors remaining equal, we expect muscle strength to be proportional to cross-sectional area (Moss et al., 1997). BWM cells in fhod-1(ΔFH2) adults have the same length as wild type animals, and the same radial thickness when viewed in cross sections (Mi-Mi et al., 2012). Thus, the degree of lateral narrowing in BWM correlates directly with changes in cross-sectional area. In line with this, the measured muscle weakness observed in fhod-1(ΔFH2) animals correlates very well with their width of their BWM relative to wild type animals (Fig.1J).

In several ways, the relationship between FHOD-1 and dense bodies resembles the relationship between FHOD3 and sarcomeres in the mouse heart. During heart development in the mouse, cardiomyocytes assemble immature sarcomeres that organize into stress fiber-like premyofibrils that support an early heartbeat (Kan-O et al., 2012). Normally, sarcomeres in premyofibrils mature by forming proper Z-lines and incorporating additional thin filaments, but in fhod3 knockout cardiomyocytes, sarcomeric organization is lost, and a-actinin- and F-actin-rich aggregates form (Kan-O et al., 2012). An intriguing possibility is that in the absence of FHOD3, nascent cardiomyocyte sarcomeres are unstable, similar to fhod-1 mutant dense bodies. The mouse heart begins beating as premyofibrils are forming in the mouse heart, leaving open the possibility that sarcomeres in the fhod3 knockout become disrupted by the increasing contractile forces of the developing heart. It would be interesting to test whether modest reductions in contractility would support more advanced sarcomere assembly in fhod3-deficienty cardiomyocytes. Another parallel between worm FHOD-1 and mouse FHOD3 is that neither seems strictly required to maintain sarcomeres after they have assembled. Thus, after conditional knockout of FHOD3 from the adult mouse heart, sarcomeres are maintained and the heart becomes mildly enlarged (Ushijima et al., 2018). These commonalities may suggest that despite the difference in the magnitude of their phenotypes, the loss of these conserved proteins in worm and mouse may have very similar mechanistic consequences on sarcomeric organization.

MATERIALS AND METHODS

Worms strains and growth conditions

Worms were grown on nematode growth medium (NGM) plates with OP50–1 Escherichia coli bacterial food at 20°C following standard protocols (Brenner, 1974). Where needed, worms were age-synchronized by dissolving gravid adults in 1:2 ratio reagent grade bleach:5 M NaOH to liberate embryos (Bartel, 1991), and hatching embryos into L1 larvae overnight at 20°C in M9 buffer (Ausubel et al., 2002). To induce prolonged partial muscle contraction or relaxation (for Figs 6,7), OP50–1 culture was mixed with 2.5 mM levamisole, 10 mM muscimol, or no drug (control) prior to seeding 500 μl to 60-mm NGM plates, or 250 μl to 35-mm NGM plates, similar to as described (Brouilly et al., 2018). L4 stage larvae were washed once with M9 buffer and added to dried plates for 24 h treatment at 20°C.

All worm strains used in this study are listed in Table 2. Worm strain DWP294 (genotype rhIs2[pat-3::HA::gfp]) was previously created (Plenefisch et al., 2000) but was not previously named. CRISPR-Cas9-mediated mutagenesis was performed on worms by injecting the syncytial gonad with Cas9 protein (Integrated DNA Technologies, IDT, Coralville, IA), tracrRNA (IDT), gene-specific crRNAs (IDT), and single-stranded oligodeoxynucleodites (ssODNs) (IDT) for homology-directed repair, as described (Paix et al., 2015). Allele fhod-1(ups176), encoding amino acid change I904A and a novel MwoI cut site for PCR-based genotyping, was generated using crRNA [UUU AGU UAG ACC AAU GUU GAG UUU UAG AGC UAU GCU] and ssODN [AAA CTC TAT CTG TTC TTC CTC TGA AAA GAT CGC AAG CAA TCA ACG CAG GTC TAA CTA AAT TGC CAC CGA TCA ACG TCA TCC CTG CAG CAA TTA T]. Allele fhod-1(ups177), encoding K1051A and eliminating an endogenous BamHI site, was generated with crRNA [AAC AAA AGC AUC AGA AGU AAG UUU UAG AGC UAU GCU] and ssODN [GGA ACT GAT ATT AAG GGT TTC TAT CTG GAT TAT TTA ACA AAA GCA TCA GAA GTA GCA GAT CCA GTC TAC AAG CAT ACT TTG ACA TAT CAC]. Allele fhod-1(ups185), encoding a deletion of G768 to G805 of the FH1 domain, was generated with crRNAs [CGU GGA GGU CCU GGU GUG UUU UAG AGC UAU GCU] and [AUU CCU CCA CCU CCU CCU CCG UUU UAG AGC UAU GCU], and ssODN [CGG AGA ATG GAA TGC GTG GAG GTC CTG TTG GTG TTA ATT TGC TTA TGA ACG GTA TAA ATC GAG GAG ATA T]. All CRISPR-generated fhod-1 alleles were verified by sequencing the modified loci, and were outcrossed six times to a clean N2 (wild type) background. All amino acid residue numbers are relative to FHOD-1 isoform A, as currently defined on WormBase http://www.wormbase.org/db/get?name=CE41309#06--10;class=protein.

Table 2.

Worm strains used in this study.

Strain	Genotype	Source†	Figure(s)
DWP3	qaIs8001[fhod-1::GFP mini-unc-119(+)]	Mi-Mi et al., 2012	Parental stain
DWP229	atn-1(ftw35) V; rhIs2[pat-3::HA::GFP]	RSL62, DWP294	1E–G, 4A–D, 6A, S1, S2, S3, S4
DWP230	fhod-1(tm2363) I; atn-1(ftw35) V; rhIs2[pat-3::HA::GFP]	XA8001, DWP229	1E–G, 4B–D, 6A, S1, S2, S3, S4
DWP231	atn-1(ftw35 atn-1::mCH::ICR::GFPnls] V; rhIs2[pat-3::HA::GFP]; qaIs[fhod-1::GFP mini-unc-119(+)]	DWP3, RSL62	7
DWP284	pfn-3(tm1362) X	N2 outcross of ON167	3A–C,G, 6B,C
DWP285	fhod-1(ups175 [I904A]) I	CRISPR N2	2A–F
DWP286	fhod-1(ups180 [K1051A]) I	CRISPR N2	2A–F
DWP287	pfn-2(ok458) X	N2 outcross of RB694	3A–C,G
DWP292	pfn-3(tm1362) pfn-2(ok458) X	DWP284, DWP287	3A–G, 6B,C
DWP294	rhIs2[pat-3::HA::GFP]	Plenefisch et al., 2000	Parental strain
DWP296	fhod-1(tm2363) I; pfn-3(tm1362) pfn-2(ok458) X	XA8001, DWP292	3A–C,G
DWP303	fhod-1(ups185 [ΔFH1]) I	CRISPR N2	3D–G
DWP314	fhod-1(ups185) I; pfn-3(tm1362) pfn-2(ok458) X	DWP292, DWP303	3D–G
N2	Bristol wild type	CGC‡	1B–D, H–J, 2A–F, 3A–G, 5, 6B,C
ON167	pfn-3(tm1362) X	CGC‡	Parental strain
RB694	pfn-2(ok458) X	CGC‡	Parental strain
RSL62	atn-1(ftw35 [atn-1::mCH::ICR::GFPnls]) V	Ryan Littlefield	Parental strain
XA8001	fhod-1(tm2363 [ΔFH2]) I	Mi-Mi et al., 2012	1B–D, H–J, 2A–F, 3A–G, 5, 6B, C

^†Reference for initial isolation of strain, or parental strains for strains produced in this study.

^‡Caenorhabditis Genetic Center (University of Minnesota, Minneapolis, MN)

For visualization of a-actinin in live animals, RSL62 was generated by CRISPR-Cas9 mediated homology directed repair (Dickenson et al., 2013) using a co-conversion strategy (Arribere et al., 2014). Briefly, the repair plasmid was generated in two steps: blunt-end cloning of N2 genomic DNA to isolate upstream and downstream homology arms, followed by isothermal assembly to incorporate the bicistronic tagging cassette consisting of linker-mCherry::ICR::GFP-nls in-frame at the 3’ end of the atn-1 coding sequence. The trans-splicing ICR was derived from operon CEOP1032. The GFP and mCherry sequences were respectively derived from pJA245 and pJA281, which were gifts from Julie Ahringer (Addgene plasmids #21506 and #22513) (Zeiser et al., 2011). The Cas9 sgRNA plasmid was generated according to Arribere and colleagues (2014) using pRB1017, a gift from Andrew Fire (Addgene plasmid #59936). For further details on targeting of atn-1 with Cas9, see Supplemental Methods. The RSL62 strain was outcrossed five times with wildtype N2 worms without any noticeable change in fluorescence.

Western blot analysis

Worms were collected and lysed after washing from plates, as previously described (Yingling & Pruyne, 2021). Sample loads for western blot analysis were normalized based on Coomassie brilliant blue stain of extracts after SDS-PAGE. Normalized extract samples were resolved by SDS-PAGE followed by transfer to nitrocellulose for probing with polyclonal antibody DPMSP2 (affinity-purified anti-FHOD-1 FH2 domain; Mi-Mi et al., 2012) diluted 1:200 in 1% milk/Tris-buffered saline, pH 8.3 (Fig.2A).

Fixation and staining for fluorescence microscopy

Fixation and stain for F-actin with Alexa Fluor 568-phalloidin was as previously (Mi-Mi et al., 2012). Fixation and immunostain was as previously (Finney & Ruvkun, 1990), but with omission of spermidine-HCl and an increased methanol concentration (75%) during fixation. Monoclonal antibody MH35 (anti-ATN-1) developed by R.H. Waterston (Francis & Waterston, 1985) was a generous gift from P. Hoppe (Western Michigan University, Kalamazoo, MI). Monoclonal antibody 5–6-s (anti-MYO-3) developed by H.F. Epstein (Miller et al., 1983) was obtained through the Developmental Studies Hybridoma Bank, created by the NICHD of the NIH and maintained at The University of Iowa, Department of Biology, Iowa City, IA 52242. Polyclonal anti-UNC-60B (Ono & Ono, 2002) was a gift from S. Ono (Emory University, Atlanta, GA). Monoclonal antibody clone C4 (anti-actin) is commercially available (Thermo Fisher Scientific, Waltham, MA). Primary antibody dilutions were MH35 1:10⁴, 5–6-s 1:10³, anti-UNC-70B 1:200, DPMSP2 1:200, and C4 1:50. Secondary antibodies Texas red-conjugated goat anti-rabbit and fluorescein isothiocyanate-conjugated goat-anti-mouse (Rockland Immunochemicals, Limerick, PA) were diluted 1:500.

Fluorescence microscopy and image analysis

Wide-field fluorescence images (Fig.1H) were acquired using an Eclipse 90i upright microscope (Nikon, Tokyo, Japan) with a CFI Plan Apochromat 40X/NA 1.0 oil immersion objective or CFI Plan Apochromat violet corrected 60X/NA 1.4 oil immersion objective with a Cool-SNAP HA2 digital monochrome charge-coupled device camera (Photometrics, Tucson, AZ) at room temperature, driven by NIS-Elements AR acquisition and analysis software (version 3.1; Nikon). Confocal images (all other figure images) were acquired using an SP8 Laser Scanning Confocal Microscope (Leica, Wetzlar, Germany) driven by LAS X Software (version 3.5.2, build 4758; Leica), and using an HCX Plan Apochromat 63X/NA 1.4 oil immersion lambda objective. Confocal z-stacks of BWMs were collected at 0.1 μm intervals (Figs 1B,E, 4A,B, 6A, 7) or 0.3 μm intervals (Figs 2F, 3G, 5, 6B) before deconvolution using Huygens Essential software (Huygens compute engine 18.10.0, Scientific Volume Imaging B.V.), Classic Maximum Likelihood Estimation deconvolution algorithm, with 40 iterations and a signal/noise ratio of 20. Maximum intensity projections (MIPs) were generated from deconvolved confocal z-stacks using LAS X software or ImageJ (version 2.0.0-rc-65/1.51 g) (Schneider et al., 2012). Images were linearly processed to enhance contrast and false colored in Adobe Photoshop CS4 or CC2018 (Adobe, San Jose, CA). Deconvolved confocal z-stacks were also used to construct 3D renderings (Figs 4B, S1) using Imaris x64 software (version 9.2.1; Bitplane AG, Belfast, United Kingdom).

Measuring of BWM widths and muscle cell widths, and counting of striations per BWM cell were all performed on BWM cells positioned within four to five cells of the vulva to ensure consistency in size, as BWM cells taper in width toward the head and tail. For results shown in Fig,1C, D, F, and G, four BWM cells in ten animals of each genotype and age were analyzed, in each of two independent replicates. For results shown in 2B-D and 3A-F, two to four BWM cells in 20 animals of each genotype were analyzed in each of three independent replicates. BWM and BWM cell widths were measured and striations per BWM cells were counted on phalloidin-stained worms (Figs 1C,D, 2B–D, 3A–F), as previously (Sundaramurthy et al., 2020). In young larvae, it is difficult to unambiguously identify BWM striations based on F-actin stain. Therefore, ATN-1::mCH-positive dense bodies were used to identify striations for counting in BWM cells across multiple ages (Fig.1F). Non-parallel striations, identified as those that intersect other striations, were also counted in these cells (Fig.1G). The prevalence of non-parallel striations was also quantified by acquiring single focal plane images of MYO-3 immunostain in six wild type and 13 fhod-1(ΔFH2) worms, counting all non-parallel striations in all intact BWM cells, and measuring the combined length of all visible MYO-3 striations in those cells. The prevalence of non-parallel striations was expressed as the number of occurrences per 10,000 μm of striation measured in each image (Fig.1I). ATN-1::mCH-positive dense bodies were also used to identify striations for determining the effects of drug treatments on BWM cell growth (Fig.S4).

FFT analyses on ATN-1::mCH fluorescence intensity profiles (Table 1, Figs S2, S3) were performed as previously for ATN-1 immunostain (Sundaramurthy et al., 2020). Fluorescence profiles were measured over eight dense body-containing striations in one muscle cell (or all striations in two muscle cells for L1 larvae) in each of ten animals per strain and per developmental stage. To quantify the effects of 24 h levamisole treatment on dense body morphology (Fig.6C), confocal images showing four to five BWM cell striations were acquired from 15 ATN-1 immunostained worms per genotype per condition, in each of three independent replicates. Images were deconvolved as above, and maximum intensity projections were processed through a macro that set a binary threshold of grey values 20–255 to generously mask ATN-1 signal with minimal background, and analyzed particles as % Area. This assay was performed three times. All quantitative measures were performed while blinded to strain genotype.

FRAP analysis

For analysis of dense body protein dynamics in live animals (Fig.4C,D), L4 stage larvae were immobilized in 3.5 μl polystyrene nanobead suspension (2.5% by volume, 0.1 μm diameter; Polysciences, Warrington, PA) sandwiched between a coverslip and a 10% agarose pad. Worms were viewed for PAT-3::GFP or ATN-1::mCH fluorescence on an SP8 Laser Scanning Confocal Microscope, as above. For each of four (for PAT-3::GFP FRAP) or five (for ATN-1::mCH FRAP) worms of each genotype tested, four regions of interest (ROIs), each encompassing one dense body were photobleached twice under the FRAP application with 100% laser power, and subsequently imaged for 40 min (for PAT-3::GFP) or 72 min (for ATN-1::mCH). Animals were confirmed to be alive at the end of each experiment. Fluorescence analysis was conducted in ImageJ, measuring at each time point (t) maximum fluorescence intensity values in same-sized ROIs surrounding the four experimental photobleached dense bodies (F_exp) and two control unbleached dense bodies (F_unb), as well as mean fluorescence intensity values for same-sized ROIs surrounding three background areas of BWM with no dense bodies or other PAT-3::GFP/ATN-1::mCH-containing structures (${\overline{\text{F}}}_{\text{back}}$). Percent fluorescence was calculated as: $\left(100*\left({{\text{F}}_{\text{exp}}}^{\text{t}}-{{\overline{\text{F}}}_{\text{back}}}^{\text{t}}\right)*\left({{\text{F}}_{\text{unb}}}^0-{{\overline{\text{F}}}_{\text{back}}}^0\right)\right)/\left(\left({{\text{F}}_{\text{exp}}}^0-{{\overline{\text{F}}}_{\text{back}}}^0\right)*\left({{\text{F}}_{\text{unb}}}^{\text{t}}-{{\overline{\text{F}}}_{\text{back}}}^{\text{t}}\right)\right)$

Pluronic gel burrowing assay

Worms at one day of adulthood were analyzed for the ability to burrow through 26% (w/v) pluronic F-127 (Sigma-Aldrich, St. Louis, MO) gel (Fig.2E), as previously described (Lesanpezeshki et al., 2019). Every 10 min, worms that had burrowed successfully through 0.76 cm gel to chemoattractant OP50–1 on the surface were counted. This assay was performed four times on 30 worms per genotype per replicate.

Muscle strength measurements using the Nemaflex platform

Strength measurements were conducted using the NemaFlex platform (Fig.1J) as previously described (Rahman et al.., 2018). Briefly, at least 30 animals were loaded individually into polydimethylsiloxane microfluidic chambers filled with M9 buffer, where they crawled between free-end deflectable micropillars with diameter, gap, and height of 44 μm, 71 μm, and 87 μm, respectively. Animals were imaged for 1 min at 5 fps at 20 ± 1°C using a Ti-E microscope (Nikon) with an Andor Zyla sCMOS 5.5 camera (Oxford Instruments, Abingdon, United Kingdom). Movies were analyzed using a custom-built image processing software (MATLAB, R2016a; https://github.com/VanapalliLabs/NemaFlex). Muscle strength was calculated based on the maximum pillar deflection identified in each frame, using the Timoshenko theory for an elastic rod (Timoshenko & Gere, 1972). The maximum exerted force f₉₅ was calculated as the 95^th percentile of all maximal deflections for each animal and reported as muscle strength by averaging over the population tested.

Statistical analysis

Data are expressed as average ± standard deviation, except Fig.1J reporting average ± SEM. Graphs were made in Excel:Windows (version 21H1; Microsoft Corporation, Redmond, WA) or Prism 10 (version 10.1.1; GraphPad Software, Boston, MA). For muscle strength measurements, statistical analysis was performed using a Wilcoxon rank-sum test. For other experiments, where two groups were compared, data were analyzed using a student t-test, and where three or more groups were compared, data were analyzed using a one-way analysis of variation, followed by Tukey’s multiple comparisons post hoc test. p ≤ 0.05 was considered statistically significant.

Supplementary Material

Supplement 2

Figure S1. Three-dimensional reconstructions from deconvolved confocal z-stacks show BWM from PAT-3::GFP/ATN-1::mCH-expressing animals. Dense bodies at ends of striations frequently contain PAT-3::GFP only (cyan arrowheads), while dense bodies away from the striation ends have ATN-1::mCH-rich projections (white arrows). PAT-3::GFP is also present in M-lines (white arrowheads). Dense bodies in fhod-1(ΔFH2) animals are short, wide, and sometimes lobulated (cyan arrows) compared to wild type. Scale bars, 1 μm.

Supplement 3

Figure S2. Loss of FHOD-1 disrupts dense body spacing in all ages of animals. Maximum intensity projections of deconvolved confocal z-stacks show ATN-1::mCH-expressing larvae and adults. Scale bars, 4 μm. Dense body spacing along striations was analyzed by performing FFT analysis on ATN-1::mCH fluorescence intensity profiles from images such as these (n = 10 animals per strains per developmental stage, 8 dense body-containing striations from 1 BWM cell or 2 BWM cells for L1 larvae, data shown for first of two trials).

Supplement 4

Figure S3. Loss of FHOD-1 disrupts dense body spacing in all ages of animals. Maximum intensity projections of deconvolved confocal z-stacks show ATN-1::mCH-expressing larvae and adults. Scale bars, 4 μm. Dense body spacing along striations was analyzed by performing FFT analysis on ATN-1::mCH fluorescence intensity profiles from images such as these (n = 10 animals per strains per developmental stage, 8 dense body-containing striations from 1 BWM cell or 2 BWM cells for L1 larvae, data shown for second of two trials).

Supplement 5

Figure S4. Assembly of new striations in BWM is inhibited by prolonged treatment with low doses of levamisole or muscimol. Striations were counted in age-matched ATN-1::mCH-expressing animals that had been grown 24 h in the absence of drug, or the presence of 2.5 mM levamisole or 10 mM muscimol (n = 10 animals per strain per experiment, once muscle cell per animal). Both drugs inhibited accumulation of new striations, with levamisole having a much greater effect. Results shown as individual measures and averages ± standard deviation.
