. 2024 Apr 1;19(4):e0297028. doi: 10.1371/journal.pone.0297028

Domain adaptive learning for multi realm sentiment classification on big data

Maha Ijaz 1,#, Naveed Anwar 1,#, Mejdl Safran 2,*,#, Sultan Alfarhood 2,#, Tariq Sadad 3,#, Imran 4,#
Editor: Toqir Rana5
PMCID: PMC10984522  PMID: 38557742

Abstract

Machine learning techniques that rely on textual features or sentiment lexicons can lead to erroneous sentiment analysis. These techniques are especially vulnerable to domain-related difficulties, especially when dealing in Big data. In addition, labeling is time-consuming and supervised machine learning algorithms often lack labeled data. Transfer learning can help save time and obtain high performance with fewer datasets in this field. To cope this, we used a transfer learning-based Multi-Domain Sentiment Classification (MDSC) technique. We are able to identify the sentiment polarity of text in a target domain that is unlabeled by looking at reviews in a labelled source domain. This research aims to evaluate the impact of domain adaptation and measure the extent to which transfer learning enhances sentiment analysis outcomes. We employed transfer learning models BERT, RoBERTa, ELECTRA, and ULMFiT to improve the performance in sentiment analysis. We analyzed sentiment through various transformer models and compared the performance of LSTM and CNN. The experiments are carried on five publicly available sentiment analysis datasets, namely Hotel Reviews (HR), Movie Reviews (MR), Sentiment140 Tweets (ST), Citation Sentiment Corpus (CSC), and Bioinformatics Citation Corpus (BCC), to adapt multi-target domains. The performance of numerous models employing transfer learning from diverse datasets demonstrating how various factors influence the outputs.

Introduction

Blogs, Weibo, Social Networks and other similar sites are an important source of information for several analysts, politicians, and entrepreneurs who want to use the vast amount of text created by users to grow their business and provide continuous feedback through sentiment, opinions and comments specific subjects [1]. For example, in the travel industry, operators can identify opportunities to attract new tourists and improve services by analyzing reviews and ratings on points of interest [2]. The practice of evaluating text to predict how a person’s attitude will be oriented toward an event or opinion is called sentiment classification. Text polarity is often used to assess sentiment. Sentiment refers to two respective types of thoughts, whether positive or negative, on multiple platforms where public opinion is valuable [2, 3]. Sentiment extraction is the cornerstone of sentiment classification, and a lot of research has been done. The subsequent vital phase is sentiment mining, which has recently grown quickly as a result of the rising number of global text data. Due to the tremendous growth in knowledge, finding and sharing information on a particular topic on the Internet has become an easy task. However, we are now left with a wealth of textual data that users generate when expressing opinions about various things. People are increasingly voicing their thoughts online on a number of subjects, including online product reviews, film studies, or political commentary, and literary. Therefore, it becomes crucial to consider different perspectives when interpreting people’s intentions [4]. Sentiment analysis has become an significant job in Natural Language Processing (NLP) in the modern day across many fields. Online social platforms contain massive amounts of unstructured data. Sentiment analysis is employed to extract sentiments, assess their polarity, and measure the intensity of sentiment expressed in this unstructured content [5, 6]. In response to consumer feedback, for instance, online shops and food suppliers are constantly upgrading their services. The difficulty in this situation is that manually examining the feedback requires too much time and effort. The emergence of the field of NLP is the result of various breakthrough ideas and the perseverance of researchers. Research has introduced various methods and approaches for sentiment analysis. Existing sentiment analysis methods are roughly classified into three categories: sentiment dictionary-based models [7, 8], machine learning-based methods [9], and deep learning-based methods [10].

Recent years have witnessed a rise in popularity of deep learning (DL) approaches due to improvements in processing power and the volume of data that is readily accessible online. They provide automatic feature extraction as well as deeper visualization capabilities and improved performance compared to standard feature-based methods. Sentiment analysis mainly relies on supervised classification methods to estimate polarity and requires manual labeling of news sentiment to train models. Labeling is expensive, and there may not be enough training data to produce reliable results. Transfer learning [11] has been suggested as an alternative to manually creating datasets since it allows knowledge to be transferred from one neural network (the source) to another (the destination). The basic objective is to increase performance on the target domain while using a minimal quantity of training data by extracting more information from the source. Implementing a cutting-edge system that does not overfit despite the small dataset provided is another challenge. The main concept behind our solution is to reuse what has been learned, rather than starting from scratch, and save expensive computing power by adapting it in different realms. In theory, transfer learning, especially domain adaptation, will greatly reduce the time it takes to build new models. Transfer learning will revolutionize the way deep learning solutions are delivered to customers, allowing them to adapt general models to different realms in a time-and cost-optimized manner. Inspired by these recent advances, this study aims to determine whether transfer learning, especially domain adaptation, is a promising approach for NLP professionals. The chosen evaluation route was to measure the impact of domain vocabulary insertion and fine-tuning on downstream tasks. The research question is, “How does domain adaptation affect the performance of pretrained models on numerous downstream tasks?”

The main question is then broken down into sub-questions that assist us comprehend the many components that go into a thorough and comprehensive response:

  1. What conditions must ULMFiT, BERT, RoBERTa and ELECTRA models meet for domain adaptation?

  2. How does vocabulary affect the model’s domain adaptation?

  3. What are the benefits of fine-tuning the language model for the specific task?

  4. To what extent has applied transfer learning improved sentiment analysis results in different realms?

In this work, we use Transformers through a novel framework, FARM, to apply transfer learning to many corpora written in English from different contexts, sources, and sample sizes. FARM supports parallel processing, making the model more computationally efficient and therefore suitable for commercial use. Tune the hyperparameters of the model to best suit the learning task. FARM’s modular approach to language models and prediction heads simplifies transfer learning. Then, we employ latest deep learning model classifiers CNN and LSTM in different domains to resolve the sentiment analysis problem. Here, we present two types of comparisons of our work: the first involves transfer learning techniques such as BERT, ROBERTA, ELECTRA, and ULMFiT; the second compares different transfer learning models with deep learning algorithms to get the best performance. The major contributions of this study can be summed up as:

  1. The FARM framework, with its highly modular design, is utilized by the Transformer architecture model to effectively recognize emotions across a variety of domains.

  2. We test ULMFiT, BERT, ROBERTA, and ELECTRA on multiple domains including binary and multi-class datasets.

  3. We compare ULMFiT, ROBERTA, ELECTRA, and BERT and demonstrate how the transformer-based approach surpasses all prior latest models and replaces them as the new latest model when the FARM framework is used with the appropriate fine-tuning.

  4. Using binary and multi-class datasets, we experimented with deep learning methods including LSTM and CNN.

  5. To better understand how transfer learning functions in multi-domain sentiment analysis, we did a number of experiments.

A comparison of findings demonstrates that FARM-fine-tuned transformer architecture beats latest methods for sentiment analysis across many realms. The rest of the document is structured as follows: The Related Work section analyzes the research, and the Methodology section describes the method we employed. The Results and Discussion section details the experiments and their findings, while the Conclusion section draws a conclusion.

Related work

Sentiment analysis is sometimes referred to as polarity decision, evaluation extraction and opinion mining [12, 13]. According to previous studies on sentiment analysis come up with different categories of methods that had been applied in the past. Different learning methods that been performed sentiment analysis earlier discuss below.

Traditional sentiment analysis methods

Traditional approaches to sentiment analysis rely on classifiers other than neural networks and do not use neural networks at all. These classifiers are usually referred to as supervised classifiers for sentiment analysis and are a component of machine learning. These methods need supervised training data to make decisions [14]. Most mutual techniques that had been used in the past are Support Vector Machine (SVM) [1517], Maximum Entropy [18], naive Bayes (NB) [1921]. Explored techniques for identifying the FourSquare tips polarity by utilizing SVM, NB, and Maximum Entropy supervised learning approaches and the SentiWordNet unsupervised learning approach [22]. This study demonstrates a supervised model for the expansion of the sentiment lexicon. The researchers used a labelled dataset of tweets from Twitter to train the SVM classifier. They used attributes based on part-of-speech tags and information calculated from data streams that contained emoticons [23]. The lexicon-based type Sentiment Analysis required a dictionary of sentiments. For computing & sentimental lexicon modeling, the author uses an improved sentiment-oriented pointwise mutual information (SO-PMI) method which is a more effective technique for this kind of Sentiment Analysis [24]. This work provided a classification approach meant for the identification of ADRs for which the SVM was employed. The researchers have discussed various types of features, comprising features of sentiments, and showed that they enhanced Adverse Drug Reactions (ADR) recognition proficiency [25]. The article in [26] describes an automated sentiment analysis method, conducted through an online cancer survivor group, and compares it to a previously used method. Machine learning techniques, including Rotation Forest, Logistic Regression, Adaboost, and Random Forest were employed for classification. This study evaluated the negative impacts and related sentiments of HIV treatment. AdaBoost, SVM, Bagging, Neural Network Machine Learning Classifiers were used for analysis [27]. They presented a method in this article to expose the temporal cause and effect of sentiment changes in the Cancer Survivors Network (CSN) of the American Cancer Society. Using a machine learning classification model (Adaboost), they created a sentiment classifier, and through Probabilistic reasoning, they describe and clarify the changes between sentimental posts in a thread over time [28]. In this article, they addressed the categories of emotions and classified user comments into the emotion groups found in online medical forums. Machine learning classifiers such as Random Forest, Logistic Regression and Neural Network used for an automated multi-class classification framework [29]. This article highlighted an aspect-level approach for sentiment analysis and examined the diabetes-related topics on the Twitter and classification approach dependent on SentiWordNet scores [30]. The authors presented a news-based, sentiment-analysis-based approach to financial market forecasting. They created a predictive model using SVM and Particle Swarm Optimisation (PSO) to improve its parameters [31]. This paper comes up with query-based search value separation for negative and positive tweet classification using k-nearest neighbors (KNN) and Thresholding method [32].

Deep learning sentiment analysis methods

Traditional methods are dependent on attributes along with Bag of words or a combination of terms with their sentiment scores. An algorithm and some manual manipulation often assign such sentiment scores to terms. Deep networks such as CNNs and Recurrent Neural Networks (RNNs) and word embedding methods such as GloVe, Word2Vec, and so forth turn over a new leaf of machine learning techniques in which feature engineering manually is not necessary. Word embedding and the deep neural network together have outscored traditional methods. Using a single convolutional layer, a neural net was introduced utilizing various widths and filters, preceded over time by a max-pooling layer. The ultimate classifier uses a layer that is entirely linked including drop-out, six datasets, especially Stanford Sentiment Treebank (SST), delineate performance [33]. A method was introduced, employing five convolutional layers, and implementing multiple temporal k max-pooling layers is a major difference in this study. This approach enables the most valuable features to be identified in a phrase, regardless of their particular position, maintaining their relative order [34]. In this study, they introduce a new deep CNN to predict sentiment polarity of short texts, employing collective knowledge of word-level, character-level and sentence-level representations to evaluate an opinion score for a required phrase [35]. This article presents an evaluation of the use of the Convolutional Networks on character-level for text classification. Up to six convolution layers were used in these frameworks, preceded by three fully integrated classification layers along with simple max-pooling layers [36]. This research employed the very deep CNN to Natural language processing and created a new VDCNN framework for text processing tasks. The platform integrates VGGNet (Visual Geometry Group) with a deep residual network (ResNet). The authors have shown that it is possible to achieve more with 29 convolutional layers [37]. RNN is used more often in the NLP area compared to CNN, while RNN can manage sequence data and has benefits in contextual relationships, dependencies, and so forth, and that makes it more suited for processing text data. In this study, they used the LSTM for text classification tasks, LSTM can embed variable text regions. they incorporate LSTM region embedding with convolutional layers to produce maximum results, and LSTM’s combined with CNN is more beneficial than the regional embedding approach [38, 39]. This study developed a fusion deep learning structure that first learned the sentiment embedding vector from the CNN and then used the Multi-Objective Optimisation (MOO) model to produce a set of optimisation features, and last used SVM to classify the optimised vector sentiment. They evaluate their presented method at the level of both the sentence and the aspect. It was the first effort to introduce this method of deep learning to the sentiment analysis in languages through fewer resources [40]. This article presents a dividing-and-conquer method that first categorizes sentences into different types and then analyzes sentiments independently on the base of sentences category using BiLSTM-CRF and 1d-CNN [41]. In this article, they presented a model focused on the integration of multiple attention mechanisms and recurrent neural network (RNN) to detect the sentiment of opinions. The research results indicate that on various data sets this approach performs better [42]. Interpreting the sentiments regarding medical conditions posted on social media by users by creating a deep CNN for sentiment analysis [43]. In another research, the neural model Hierarchical Tweet Representation and Multi-head Self-Attention (HTR-MSA) is introduced. The model is constructed with word and character embedding, CNN, LSTM, and multi-head attention for uncovering of drug names (DNs) and adverse drug reactions (ADRs) mentioned in tweets [44]. This article presents an established study of classification utilizing deep learning models on sentiment analysis and presents comparative outcomes of numerous deep learning networks. The dataset pre-processed through Word2Vec, and then corresponding word embedding employed. As a benchmark Multilayer Perceptron (MLP) was created. CNN, LSTM, RNN and a hybrid model of LSTM and CNN were built and implemented on the IMDB dataset. The results indicate that the hybrid model CNN LSTM perform better than the MLP and the distinctive networks CNN and LSTM [45].

Transfer learning sentiment analysis methods

In this research, the Transfer learning approach is leverage through an unlabeled dataset from Twitter to Turkish political columns. The proposed study collected and transferred features extracted from Twitter and using them in labeled data for the Sentiment Analysis task. They also reported an improvement in classification performance [46]. This article developed a DeepMoji model using the transfer learning approach to identify sentiments, emotions, and sarcasm. So far, they have demonstrated how emojis’ widespread use in social media communications can also be used to pre-train models, allowing them to pick up on emotional expression from textual data and transmit it to the target domain. Using a single pre- trained construct, they employ 8 datasets from 5 domains. They have shown that this approach will work well and is capable of achieving better outcomes that are comparable to other methods [47]. In another article, the authors presented a multi-Task Learning-based bidirectional transformer architecture for topic and sentiment classification tasks. They simultaneously trained on a variety of datasets, including AG News, Stanford Sentiment Treebank (SST-2), and Movie Review (MR), and showed gradual advancements over current designs [48]. A transfer learning strategy for sentiment analysis employing a sizable dataset is presented by the authors in another publication. They used a pre-trained model to determine the tweet’s sentiment intensity level among seven categories after training a model to predict if a Twitter post is good, negative, or neutral. The application of transfer learning and BiLSTM led to improved outcomes [49]. In this paper, the researchers introduce the Universal Language Model Fine-tuning (ULMFiT) model as a useful transfer learning method for carrying out NLP tasks. By utilising a sizable Wikipedia corpus, they created a language model, which they then improved using the IMDB dataset. They showed that in both transfer learning and modern text categorization tasks, this methodology beat all previously introduced strategies [50]. In this article, they presented a ULMFiT based transfer learning technique method for the Sentiment Analysis task. a pre-trained model built using Wikipedia and then fine-tuned the language model independently on two datasets and the Transfer Learning model outperformed in both datasets [51]. In this work they experimentally compare hierarchical models and transfer learning for classification of sentiments at the document level. They demonstrate that non-trivial hierarchical models outperform subsequent benchmarks and transfer learning in five languages on document-level sentiment classification [51].

  • (1) Traditional transfer learning using the Manifold Dynamic Distribution Adaptation (MDDA).

  • (2) Deep transfer learning using the Dynamic Distribution Adaptation Network (DDAN).

Experiments indicate that MDDA and DDAN improve transfer learning [51]. In this research [52] they propose a probabilistic generative model of words that enable them to handle multi-source and multi- target domains. They have employed the transfer learning approach referred to the situation where what has learned in one setting (source domain) is exploited to improve generalization to another setting. Document level polarity classification tasks have performed by employing multi-source and target domain data. This model enables them to extract words to create domain-dependent word polarity dictionaries. They use the Gibbs Sampling method for learning parameter values. They performed two trials:

  1. Fix the number of targets domain and increase the number of source domain.

  2. Fixing the number of source domain, increase the number of target domain.

Datasets: they used 17 domains and 10000 documents from Multi-Domain Sentiment Dataset.

Unlabeled data was used in the beginning to estimate word-level or phrase-level statistics, which were later included in supervised model-like features. Unlabeled data was observed and allowed for broad adoption in recent techniques than word-level data. Text for various target tasks was encoded into appropriate vector representations using phrase-level or sentence-level embedding, which could be learned from an unlabeled corpus. The more literature of the previous models can be found in Table 1.

Table 1. List of previously applied transfer learning models for sentiment analysis.

Literature Technique Dataset Accuracy %
[53] LSTM IMDB 91.80%
SST- 5 53.70%
[54] biLM (bidirectional LSTM) SST- 5 54.70%
[55] DC-MCNN SST 86.99%
AFF 90.08%
SE16-T5 85.02%
[50] AWD-LSTM IMDB 95.40%
[56] CNN_FT Amazon reviews 85.35%
[57] ART (aligned recurrent transfer) Amazon reviews 85.80%

It is challenging to construct a model from scratch owing to time restrictions or computing limits, pre-trained models with broad potential and possibilities are presented. They serve as a baseline against which to either refine an existing model or compare a newly generated model. Language models that have been pre-trained and are frequently loaded with generic corpora such as Wikipedia The distribution of the target domain corpus, on the other hand, is usually distinct (in our case, a movie or product review). As a result, prior to training each classifier, we spend a few iterations fine-tuning the source language model on the target corpus (without labels). The semi-supervised learning group is the primary focus of our research on natural language processing. Finding a good starting point rather than modifying the supervised learning subject is the aim of unsupervised pre-training, a sort of semi-supervised learning. In NLP, transfer learning is presently commonly done as a multi-step procedure in which a complete network is initially unsupervised pre-trained with a language modeling purpose. The model is then fine-tuned on a new task using a supervised technique (with some labeled data) before being employed for tasks like text categorization. In order to study a semi-supervised approach to language understanding issues, we combined unsupervised pre-training and supervised fine-tuning. We would acquire a general representation that requires little modification and can be applied to a variety of tasks. We presume that we have access to a large, unlabeled text corpus as well as numerous datasets with manually annotated training examples (target tasks). The study’s key contribution is the application of transfer learning to the multi-domain Sentiment categorization task using a fine-tuning approach and deep learning architecture.

Methodology

Based on the history, literature study, and state of the art from the previously-mentioned two sections, this section delves deeper into the techniques adopted in this paper. To be precise, we intend to perform Sentiment Analysis leveraging Natural Language Processing (NLP) technologies. The sentiment analysis ought to polarize the data set by identifying positive, negative, and neutral sentiment. The proposed methodology is presented in Fig 1 and details description is found in Fig 2.

Fig 1. Proposed steps.

Fig 1

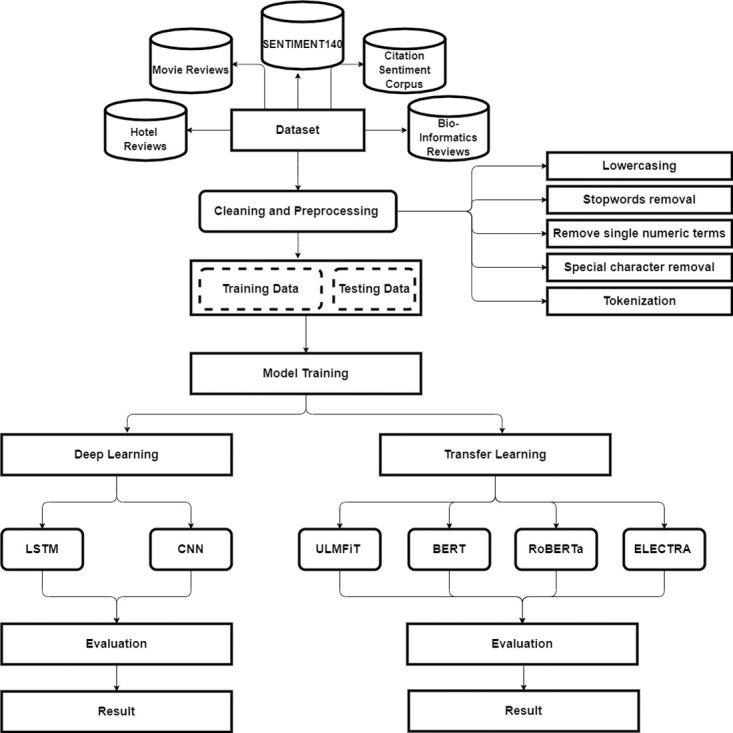

Fig 2. Methodology.

Fig 2

Dataset

In the relatively young field of sentiment analysis, enormous amounts of data are analysed to provide insightful information about a particular topic. Sentiment analysis has drawn a lot of attention as a result of the wide accessibility of review websites like CNET2, IMDB, and Rotten Tomatoes4, as well as the quick adoption of social media sites like Facebook, Twitter, and Reddit. In this study, we conduct experiments and assess how well different Transfer Learning approaches combined with deep learning techniques address the issue of sparse annotated data by using less annotated datasets from the multiple-domain.

We ran trials on five distinct domain datasets.

Hotel reviews

We used the hotel reviews dataset gathered from the Booking.com website, and all of the information in the file is already publicly available. Booking.com owns the data. This database comprises 20,000 customer reviews marked as negative and positive. The dataset is unbalanced, and the majority of the response is positive, which implies that people are generally satisfied with the service. We conducted tests by choosing K instances and producing training datasets of 7, 10, 15, and 20K to explore the effects of variations in dataset size (see Table 2) [58].

Table 2. Hotel reviews data statistics.
Labels of Reviews Total Number of samples Train samples Test samples
Positive/Negative 7000 6000 1000
Positive/Negative 10000 8000 2000
Positive/Negative 15000 12000 3000
Positive/Negative 20000 16000 4000

Movie reviews

We used the dataset of movie reviews obtained from the IMDb website compiled by Andrew Maas [59]. The dataset is freely accessible to the public, and we took 20,000 movie reviews from the dataset that classified as positive or negative sentiment. The dataset is evenly split between positive and negative entries, making it well-balanced. We carried out additional experiments to evaluate the consequences of the dataset adjustments. 7K, 10K, 15K, and 20K training datasets were produced overall [60] (see Table 3).

Table 3. Movie reviews data statistics.
Labels of Reviews Total Number of samples Train samples Test samples
Positive/Negative 7000 6000 1000
Positive/Negative 10000 8000 2000
Positive/Negative 15000 12000 3000
Positive/Negative 20000 16000 4000

Sentiment140 tweets

Sentiment classification on social networking sites is challenging, specifically on microblog textual content based on short status posts, flexible words and emoji’s, a mixing of several text representations and patterns. We used the dataset of tweets Sentiment140 from Stanford University. This dataset contains 20,000 tweets obtained through the Twitter API, a binary-class dataset with positive and negative sentiment target classes. The dataset is balanced, with positive and negative records. We have conducted additional experiments to test the effects of modification in only datasets sizes. The formation data is set to 7K, 10K, 15K and 20K [61] (see Table 4).

Table 4. Sentiment140 tweet statistics.
Labels of Reviews Total Number of samples Train samples Test samples
Positive/Negative 7000 6000 1000
Positive/Negative 10000 8000 2000
Positive/Negative 15000 12000 3000
Positive/Negative 20000 16000 4000

Citation sentiment corpus (CSC)

When it comes to exploiting publicly accessible high-quality datasets for citation sentiment analysis, data is rare. The class distribution of Athar’s Citation Sentiment Corpus, also known as CSC, is extremely uneven. The dataset has a total of 8,736 instances and is divided into three categories: target classes for positive, negative, and neutral sentiment (see Table 5). 756 records were eliminated during the dataset cleaning process. These records were removed because they either duplicated content that already existed or gave different [62].

Table 5. Citation sentiment corpus statistics.
Positive Negative Neutral
829 280 7627
9.49% 3.21% 87.30%

Bioinformatics citation corpus (BCC)

For the bioinformatics citation corpus, we used a collection of clinical trial articles that included 4,123 annotated citations (neutral, negative and positive) as presented in Table 6. The class distribution of this dataset is unbalanced. We isolated 20% of the reviews from the training set for validation [63].

Table 6. Bioinformatics Citation Corpus (BCC) statistics.
Positive Negative Neutral
1984 959 1180
48.12% 48.12% 23.26%

Research design

This section describes the methodology employed in this paper based on the premise of introduction, literature review, and state-of-the-art presented in the previous two chapters. More specifically, sentiment analysis leveraging NLP methods is a cornerstone of the workflow. This section discusses preprocessing techniques as well as the evaluation of different classification techniques.

When directed towards a specific domain, all sentiment-analysis method works fine. However, when domain borders have exceeded, they experience substantial performance loss. In terms of sentiment analysis, writing style has an influence, and It referred to as a domain boundary. For instance, the expression “Nice perfume. Must you marinate in it?” contains words that express a positive sentiment, yet it has to label as a negative sentiment line of text. This article aims to evaluate the efficacy of various transfer learning approaches in addressing the challenge of sparse annotated data. By utilizing a limited amount of annotated datasets in a multi-domain setting, we intend to demonstrate the potential of these approaches.

Data cleaning and preprocessing

In most situations, data selection is the initial stage because raw data is often insufficient. The first and most essential stage is data preparation. A good outcome can be achievable from well-executed data preprocessing and vice versa. For a variety of reasons, raw data might be disorganized and confusing. Some characteristics are lost because they include incorrect values or duplicate data. Data selection can minimize data redundancy by a substantial amount.

Data attributes selection. A single record can include a variety of data, according to Hotel Reviews Dataset, comprises properties such as “Hotel Address,” “Review Date,” “Hotel Name,” “Negative Review,” “Positive Review,” “Reviewer Nationality,” “Total Number of Reviews,” “lat”, “lng” “days since the review,” “Tags,” and so forth. The relevant qualities for subsequent usage of this paper are “Negative Review” and “Positive Review”. All the other attributes can be removed in order to decrease the duplication of the dataset.

Integrity check. After data selection, the data is still not “clean” and not suitable to process. Performing an integrity check entails removing all incorrect data. First, check the data type to ensure that it is accurate and consistent. Second, then check for any null records that may exist. Finally, it is necessary to determine whether there are any outliers. For instance, check If the score column has an int64 type, or see if there are any insertions with no text attribute at all. Delete the incorrect data or change it to the proper data if necessary.

Deduplication. There are often duplicate values in datasets, whether those are due to a variety of technical reasons or human-caused errors. Duplication increases data redundancy, which can lead to statistical bias and negatively impact experiment findings.

Data preparation. Text processing is imperative for the efficacy of the analysis as textual information contains a lot of noisy and unstructured text.

spaCy and NLTK. Spacy is a Python open-source toolkit for natural language processing (NLP) activities that allows implementations for textual preprocessing, deep learning, and several other tasks in the realm of NLP. It parses and analyses enormous amounts of text. It tackles NLP tasks by implementing standard methods in the most efficient way possible. Natural Language Toolkit (NLTK), in the same vein as Spacy, with user-friendly interfaces for over 50 corpora and lexical resources, such as WordNet. It contains several text processing modules, such as tokenization and stemming, and classification. For text preparation, the NLTK package was employed for tokenization, lemmatization, and stop word removal.

Tokenization. In NLP, tokenization has a significant impact on the rest of your system. Tokenization is the process of separating the raw text into small parts as illustrated in Fig 3. Unstructured data and natural language text are broken down into distinct parts using a tokenizer. When a phrase, paragraph, or full-text document gets tokenized, it has broken down into smaller groupings, such as single words or phrases that mark as a token.

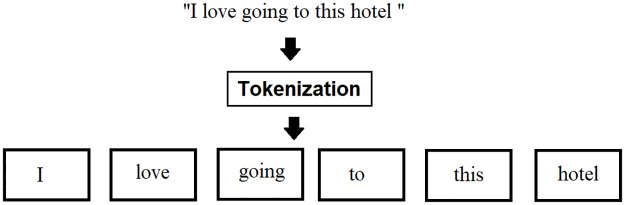

Fig 3. Tokenization.

Fig 3

The most common way of creating it is through whitespace, assuming that whitespace worked as a delimiter. It helps in understanding the context or building a model for the NLP. By examining the word order, tokenization assists in deciphering its content by analyzing how words are. The occurrences of tokens in a document can be employed explicitly as a vector representing that content.

Stopwords removal. In NLP, to minimize the raw text input, stopwords are a considerable step. Most languages have stop words (e.g., modal verbs, pronouns, etc.). Every language has common words that emerge more frequently than others, and Natural Language Processing tools provide a list of stopwords. Stopwords are the most prevalent words in any natural language. This, the, and an are all examples of stopwords in English. These stopwords may not add much value to the meaning of the text when it comes to analyzing textual data and building NLP models. Stop word removal should utilize with discretion in sentiment analysis. Terms such as “not” and “none” can flip the polarity of sentences from negative to positive. Consider the following text string: “There is a book on the desk.” While parsing the sentence, the terms “is,” “a,” “on,” and “the” have no meaning as illustrated in Fig 4. Words as “there,” “book,” and “desk” are keywords that indicate what the sentence seems to be about.

Fig 4. Stopwords removal.

Fig 4

Lowercasing. It is the most basic preprocessing approach, which involves lowercasing every single character in the incoming text. Lowercasing is a common approach in deep learning library modules and word embedding packages owing to its simplicity. Although its beneficial characteristic of lowering sparsity and vocabulary size. Lowercasing may possess a detrimental influence on system performance by raising ambiguity.

For instance, “Apple is asking its manufacturers to move MacBook Air production to the United States.” after lowercasing would be like “Apple is asking its manufacturers to move macbook air production to the United States.” In this hypothetical scenario, the apple firm and the apple fruit would deem to be identical entities as shown in Fig 5.

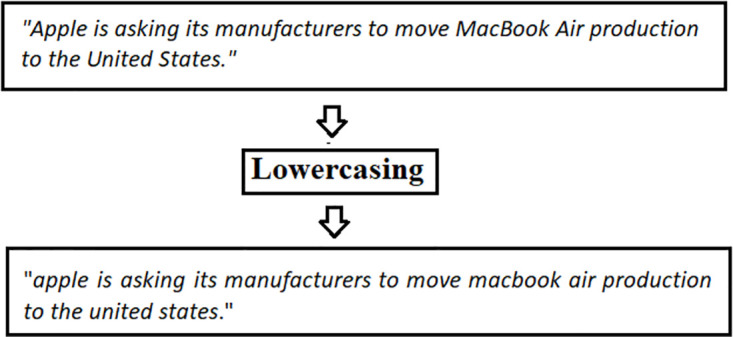

Fig 5. Lowercasing.

Fig 5

Special character and single numeric term removal. Non-alphanumeric characters refer to as Special Characters (SC) and numeric terms. These characters commonly contain reviews, references, figures, and so forth. No emotion conveyed by Special Characters (SC) and numbers. Thus eliminating them could help in combining multiple terms that previously unrelated terms. These characters do not contribute to text understanding and create noise in algorithms.

Fine-tuning with farm framework

Transfer learning involves adapting knowledge gained from one task to another. The FARM Framework for Adapting Representation Models, with its modular design, simplifies the adoption of transfer learning for NLP. The given modules enable the user to do fine-tuning for downstream tasks conveniently, observe the training, and finally assess the model result. The structure of every module is rendered as precise as feasible, and the building blocks omit the majority of the standard implementation overhead. In many situations, applying a language model to your particular NLP challenge necessitates extensive preprocessing. FARM’s modular structure makes preprocessing far more efficient and can be easily customized. Processors are used to converting input files into PyTorch datasets. In this research, FARM is used to fine-tune BERT for predicting sentiment from textual data. It is created with transformers and possesses a modular structure for the language models and prediction heads.

Data handling

Especially likening to BERT wordpiece tokenization, which employs the typical Hugging Face technique, the FARM modular structure makes preprocessing far more straightforward and adaptable. Data handling is crucial in any deep learning setting. The framework accepts input files and provides processing-ready datasets that could be utilized for additional downstream operations like training, fine-tuning, or conducting inference. Processors are used to converting input files into PyTorch datasets. The processor requires a tokenizer for this purpose, which could also be loaded based on the language model. Data Silo controls the provided dataset and sends it into the Dataloader, which involves parallelization to speed up data processing. After reading and formatting the data, the Datasilo sends it to the related module based on the task.

Modelling

FARM offers a broad and adaptable technique to transfer learning. The modeling in the FARM framework is formed on the idea of Adaptive Models. FARM’s adaptive model serves as the foundation for end-to-end transfer learning. It includes the language model and the prediction heads as its two primary parts.

  1. Language model: Tokens are transformed into vector representations using pre-trained language models, including BERT or XLNet [64]. As previously stated, the pre-trained language model in our situation is BERTbase, RoBERTa, and ELECTRA.

  2. Prediction head: A prediction head is a layer added to the language model to represent a specific downstream task. Vector representations from the language model are given into the prediction head, which generates predictions for the downstream task. Based on a pre-trained Language Model, this parent class inserts one or more Prediction Heads for a given downstream job. It runs forward passes, figures out the neural network’s overall loss, and then uses the result to back-propagate the weights of the entire Adaptive Model. Many combinations can be rapidly executed using this building block technique.

Training

The user must first configure the data handlers and the Adaptive Model in order to start training a new model. The training procedure, which may be used as a method within the Adaptive Model class, should then be executed after they have specified the hyperparameters. On the development set, frequent evaluations were carried out throughout the training. After the procedure is finished, the performance on the validation (or test) set is evaluated once more, and a new Adaptive Model object with adjusted weights is returned.

Hyperparameters

The hyperparameters can be adjusted to produce the best outcomes. These variables need to be manually adjusted because the model itself cannot learn them. The term “hyperparameters” refers to a wide range of variables, such as the learning rate, training batch size, dropout rate, number of training epochs, and any other optimizer-related variables that can be altered, like the Adam optimisation technique. We employ bert-base-cased for BERT [48], roberta-base for RoBERTa [65], and google/electra-base-discriminator for ELECTRA [66] as baselines for deep neural network techniques.

We use FARM to build an adaptive model with a classification prediction head to fine-tune for this purpose. By using weightings through CrossEntropy, FARM classifiers successfully handle unbalanced classes. A straightforward feed-forward network is used in the newly added output layer to calculate prediction probabilities using Softmax. We used the following hyperparameters for the fine-tuning procedure: a maximum sequence length of 512 tokens, 5 iterations, a batch size of 10, and a learning rate of 3e − 5. Table 7 summarizes information on the fine-tuning hyperparameters that we employ for BERT, RoBERTa, and ELECTRA.

(MSL=MaximumSequenceLength)
Table 7. Hyperparameters employed for Bert, Roberta and Electra.
Task Model Learning rate Batch-size Epochs MSL
HOTEL REVIEW BERT base 3e − 5 10 5 512
RoBERTa base
ELECTRA base
MOVIE REVIEW BERT base 3e − 5 10 5 512
RoBERTa base
ELECTRA base
SENTIMENT140 BERT base 3e − 5, 2e − 5, 1e − 5 10 5 512
RoBERTa base
ELECTRA base
CITATION SENTIMENT CORPUS(CSC) BERT base 1e − 5 5 5 512
RoBERTa base
ELECTRA base 8 8
BIOINFORMATICS CITATION CORPUS (BCC) BERT base 2e − 5 9 9 512
RoBERTa base 1e − 5 6 6
ELECTRA base 3e − 5 8 8

Hyperparameters of universal language model

We are concerned about a model that could do a wide range of tasks with efficiency. With this intention, we employed the same set of hyperparameters across works. We used the ULMFiT authors Howard and Ruder’s AWD-LSTM language model, which had a 400 embedding size, three LSTM layers, and 1152 hidden activations per layer. Using Backpropagation Through Time (BPTT) and a batch size of 70, the model was trained. A hidden layer with a size of 50 made up the classifier. With β1 = 0.9 and β2 = 0.99, we used the Adam optimisation approach. We utilised a dropout multiplicity of 0.3 and a batch size of 32 for language model fine-tuning. The learning rate was adjusted to 0.001 for fine-tuning the language model and to 0.015 for the classifier.

Deep learning experiment

Keras [67], a deep learning toolkit, includes an easy-to-use import method for acquiring these preprocessed reviews. By mapping reviews to a dictionary that contains the D most frequently occurring terms in the dataset, where D is a number, the function transforms reviews into a series of word indices. According to word frequency, the indices are assigned, with index 2 designating the second-most frequent term in the dataset. Unknown terms that are absent from dictionaries are placed in index zero. They are terminated for longer reviews, while shorter reviews are padded with zeros to match a predetermined maximum sequence length. Ultimately, these indices are converted into E-dimensional embeddings by the neural network’s first layer. For this experiment, the maximum padded sequence length was 2000 words.

Embedding

The network is divided into numerous branches, each having integrated kernels for data input and convolution. 128 embeddings are used during the network’s training and testing processes. The input reviews are initially supplied into the network’s first layer as a series of indices. The first layer encapsulates each word in a ‘e’-sized vector of a particular length. For instance, if we use an embedding size of 32 and we have a vector of 300 word indices, the resulting vector will have 300 individual vectors, each of which will have a length of 32. The embedding layer is a matrix of trainable weights in and of itself. To create vectors corresponding to each word index, it multiplies matrices. In order to improve each word’s representation in the network during training, the embedding layer continuously improves its embeddings.

Convolution

Each of the b branches retrieves the output of the embedding layer. A 1-dimensional convolution layer with a distinct kernel size c is the first layer on each branch. In 1-dimensional convolution, the kernel is formatted as kernel size by embedding size (c x e). Convolution is applied to every word, and various outputs are produced using various filters f. With a kernel size of c, the CNN layer’s job is to collect word combinations. This makes it possible to comprehend how words interact when they are used in combination. In the case of c = 3, the layer, for instance, recognises three words at once, resulting in the formation of three-word pairings. The input height of this layer, which is affected by the filters, determines the output shape (words by f).

Activation

Each branch processes the CNN layer output using a ReLU activation function, replacing all negative outputs with zero. The ReLU layer’s goal is to give the network some nonlinearity. This layer’s output keeps the same shape as its input.

Max pooling

Following ReLU activation, each network branch goes through a 1-dimensional max pooling operation, which condenses the input by choosing the highest value within each kernel size. By using this method, the input’s size is decreased without losing any of its key components. The main goal of this layer is to avoid overfitting while preserving the ability for subsequent processing. The 1-dimensional max-pooling kernel’s shape is intended to correspond to the data’s width, much like the CNN layer does. As a result, the parameter ‘p’ provides the kernel’s width and denotes a kernel shape of ‘p’ by the data width. This method makes sure that pooling is done while taking the nature of the word-based data into account. The height of the output of this layer therefore decreases and is influenced by the kernel size ‘p’ (inputheight ÷ p).

Dropout

In this layer, a predetermined percentage of the input values are arbitrarily set to 0. This approach is used to a subset of the insights (d). The dropout layer reduces overfitting by allowing the network to be more generalist and less focused on particular input components. The input and output shapes are the same.

Long short-term memory (LSTM)

The model includes an LSTM layer with a specified number of units, 1. The LSTM is chosen for its ability to handle sequential data, where previous inputs can influence subsequent outputs due to the layer’s persistence. The output length is equal to one unit.

Dense

The final layer is a completely linked layer that outputs a single value from the input. A simplified sigmoid activation function is then used to adjust the output between 0 and 1. In the end, there is only one output.

Loss function and optimizer

A binary cross-entropy loss function is used to calculate the loss in two classes, namely 0 and 1, throughout the network’s construction. In this study, a score of 0 signifies negative emotion while a score of 1 indicates positive emotion. The loss is computed using the single and final outputs of the dense layer. For multi-class, the categorical_crossentropy function is used for compilation. This function estimates the loss in three classes (0,1 and 2). For this study, 0 denotes negative, 1 indicates neutral and 2 intimates positive emotion. The architecture is also built using an optimizer; the RMSprop, Adam and Stochastic Gradient Descent (SGD) were employed in the tests. Each optimizer utilized different learning rates and decay variables.

CNN model

The first CNN layer manipulates 32 filters to process the word embedding matrix, while the next layer employs MaxPooling1D of size 2. The flattened vectors were transmitted to a dense layer of 10 neurons. Finally, the dense layer’s output is being sent to a sigmoid layer, which calculates the class probability. Because the performance of deep neural networks is highly dependent on the hyper-parameters chosen, we experimented with batch sizes and epochs.

LSTM model

This architecture includes a tokenizer, embedding layer, SpatialDropout1D layer, LSTM layer, and dense layer. The input is passed through a tokenizer, which converts each token into an integer value based on the vocabulary index. After that, they’re converted into representative vectors using an embedding layer. We use SpatialDropout1D to decrease the parameters after each train to reduce overfitting. To extract abstract characteristics, we use a LSTM layer built-up of 100 LSTMs with recurrent_dropout of 0.2. After normalizing in the dense layer, the labels of the sub-tasks are acquired.

Technical resources. For training model, we used Nvidia K80 GPU with 12 GB GDDR5 VRAM, Intel(R) Xeon(R) processor with two cores @ 2.30GHz, and 12.6 GB RAM. We used Pytorch to implemented our model deep learning framework with leveraged Fastai v1 libraries to fine-tune the LM.

Evaluation

Training, Testing accuracies are primarily employed in the study to evaluate the various Transformer-based pre-trained models and deep learning models. Furthermore, F1 scores were utilized to evaluate the model performance while applied to balanced and unbalanced data.

Accuracy

The accuracy of a method is a measure of its correctness. It is generally computed as the proportion of the number of right categories to the total number of classifications. Training accuracy is frequently employed to evaluate the model’s performance after a single training epoch. Test accuracy, on the other hand is the model’s accuracy once it has been fully trained. Model accuracy is not the foremost assessment metric since the data is skewed. The accuracy measure can be considered as the prominent assessment metric for the balanced.

Accuracy=TP+TNTP+FP+TN+FN (1)

Where TP, TN, FP, and FN stand for True Positives, True Negatives and False Positives respectively.

F1-score

The precision P and recall R of the test are considered to compute the F1-score. Eq 2 gives the formula, where TP is true positives, FP is false positives, and FN is false negatives. F1 is the harmonic mean of precision and recall; while both precision and recall are flawless, F1 yields 1.

F1=2PRP+R=2TP2TP+FP+FN (2)

A macro-average F1 score calculates the metric separately for each class and then averages it, thereby treating all classes equally.

F1M=I=1nwiF1i (3)

A micro-average F1 score computes the average metric by aggregating the contributions of all classes. Micro-average is preferred in a multi-class classification setup to decline class imbalance:

F1μ=2k=1nTPk2k=1nFPk+k=1nTPk+k=1nFNk (4)

The True Negatives determine a model’s reliability, which is frequently measured by the F1 score. A balanced score such as F1 considers the weighted average of Precision and Recall when evaluating a model’s performance when comprehending both False Negatives and False Positives of a model bears a financial penalty. When the distribution of target labels in the data is uneven, the F1 score is especially useful.

Results and discussion

The findings for the deep learning and transfer learning approaches used in this study are presented in this part. For evaluation, we consider accuracy and F1-score as our key performance indicators. Tables 8 and 9 show the results of the models with transfer learning and deep learning. We found that the models with transfer learning performed significantly better than the deep learning models. We conducted investigations to see how different dataset sizes affected the results. We generated training data by selecting K instances of sizes 7K, 10K, 15K, and 20K. The Transfer Learning model works well across a dataset of different domain knowledge and achieves better accuracy. For sentiment classification of five distinct datasets, the researchers used four transfer learning techniques anointed (ULMFIT, BERT, ROBERTA, and ELECTRA) and two Deep Learning techniques named (LSTM, CNN). The results are reported in the tables below.

Table 8. Results of applied transfer learning models for sentiment analysis.

Datasets Size ULMFIT BERT ROBERTA ELECTRA
A F1 A F1 A F1 A F1
Hotel review 7K 0.928 0.927 0.941 0.941 0.946 0.945 0.918 0.917
10K 0.940 0.939 0.942 0.942 0.946 0.946 0.918 0.917
15K 0.941 0.941 0.948 0.948 0.950 0.949 0.924 0.923
20K 0.952 0.951 0.947 0.947 0.955 0.954 0.931 0.930
Movie Review 7K 0.921 0.921 0.917 0.917 0.936 0.936 0.944 0.944
10K 0.921 0.921 0.908 0.908 0.941 0.941 0.936 0.936
15K 0.926 0.926 0.918 0.918 0.935 0.935 0.938 0.938
20K 0.931 0.931 0.911 0.911 0.940 0.940 0.941 0.941
Sentiment140 7K 0.754 0.754 0.804 0.804 0.836 0.836 0.795 0.795
10K 0.770 0.770 0.805 0.804 0.823 0.823 0.801 0.800
15K 0.770 0.770 0.810 0.810 0.834 0.834 0.801 0.801
20K 0.780 0.780 0.814 0.814 0.836 0.836 0.812 0.812
CSC 8K 0.910 0.897 0.938 0.902 0.937 0.902 0.932 0.898
BCC 4K 0.855 0.853 0.920 0.880 0.894 0.840 0.885 0.829

Table 9. Results of applied transfer learning models for sentiment analysis.

DATASETS SIZE LSTM CNN
A F1 A F1
HOTEL REVIEW 7K 0.924 0.924 0.901 0.901
10K 0.925 0.924 0.898 0.897
15K 0.925 0.924 0.898 0.897
20K 0.941 0.940 0.904 0.903
MOVIE REVIEW 7K 0.801 0.801 0.839 0.839
10K 0.820 0.820 0.840 0.840
15K 0.862 0.862 0.857 0.856
20K 0.885 0.885 0.867 0.866
SENTIMENT140 7K 0.688 0.690 0.656 0.654
10K 0.730 0.730 0.684 0.683
15K 0.730 0.729 0.691 0.691
20K 0.757 0.757 0.726 0.726
CITATION SENTIMENT CORPUS (CSC) 8K 0.872 0.863 0.838 0.842
BIOINFORMATICS CITATION CORPUS (BCC) 4K 0.695 0.696 0.693 0.691

Table 8 presents a comparison of the transfer learning method’s performance on five datasets: the hotel review dataset, movie review dataset, SENTIMENT140, Citation Sentiment Corpus (CSC), and Bioinformatics Citation Corpus (BCC). The table summarizes the findings of the transfer learning technique on these datasets. The accuracy measure was utilized as the primary assessment metric. Other assessment measures, such as (F1-score), will be evaluated along with it. Other experiments have been performed to examine the influence of modifying merely the size of the datasets. We formed training data by picking K instances set to 7K, 10K, 15K, and 20K. On the Hotel Review datasets, the model ROBERTA outperforms all other TL models with an accuracy of 94.57 percent, 94.6 percent, 94.97 percent, and 95.48 percent, respectively. On the Movie Review datasets, the model ELECTRA outperforms all other TL models with an accuracy of 94.36 percent, 93.55 percent, 93.8 percent, and 94.13 percent, respectively. On the SENTIMENT140, the model ROBERTA outperforms all other TL models with an accuracy of 83.64 percent, 82.3 percent, 83.4 percent, and 83.59 percent, respectively. The CSC (CITATION SENTIMENT CORPUS) originally had 7980 citations, with almost 8K citations dataset highly unbalanced. Experiments were conducted by running the models on the entire dataset. BERT outperforms with an accuracy of 93.77 percent. The Bioinformatics Citation Corpus (BCC) originally had 4123 instances. Experiments were conducted by running the models on the entire dataset. BERT outperforms with an accuracy of 92.04percent, indicating the effectiveness of fine-tuning with FARM using adjusted hyperparameters values. The findings of the transformer models and the Universal Language Model Fine-tuning model are displayed, and transformers all-around produce better results than ULMFiT.

In this study, we consider accuracy and F1-score as our primary metrics. The table shows the performance of the proposed model with transfer learning (with-TL). On the Hotel Review datasets, the model ROBERTA outperforms all other TL models with an F1-score of 94.53 percent, 94.56 percent, 94.93 percent, and 95.41 percent, respectively. The ROBERTA model approach outperformed the other three models. On the Movie Review datasets, the model ELECTRA outperforms all other TL models with an F1-score of 94.35 percent, 93.55 percent, 93.8 percent, and 94.12 percent, respectively. The ELECTRA model approach outperformed the other three models. On the SENTIMENT140, the model ROBERTA outperforms all other TL models with an F1-score of 83.64 percent, 82.3 percent, 83.39 percent, and 83.59 percent, respectively. The ROBERTA model approach outperformed the other three models. The CSC (CITATION SENTIMENT CORPUS) originally had 7980 citations, with almost 8K citations dataset highly unbalanced. Experiments were conducted by running the models on the entire dataset. BERT outperforms with an F1-score of 90.22 percent. The Bioinformatics Citation Corpus (BCC) originally had 4123 instances. Experiments were conducted by running the models on the entire dataset. BERT outperforms with an F1-score of 87.98 percent, indicating the effectiveness of fine-tuning with FARM using adjusted hyperparameters values. The findings of the transformer models and the Universal Language Model Fine-tuning model are displayed, and transformers all-around produce better results than ULMFiT.

A combined perspective of the assessment metrics for datasets is shown in Table 9. Because the datasets are mainly unbalanced, with a majority of Positive and Neutral target labels, the accuracy measure alone cannot be employed as the primary performance assessment metric; instead, the weighted average (F1-score) of precision and recall is used. The table results showed the LSTM model outperformed the CNN model across all datasets. We assembled training data by randomly selecting K instances with sizes of 7K, 10K, 15K, and 20K. On the Hotel Review datasets, the model LSTM surpasses the CNN model with an accuracy of 92.4 percent, 92.5 percent, 92.5 percent, and 94.1 percent, and with F1-Scores of 92.4 percent, 92.4 percent, 92.4 percent, and 94.0 percent, respectively. The CNN model outperforms the LSTM model on the Movie Reviews datasets, with accuracy rates of 83.9 percent, 84.0 percent, 85.7 percent, and 86.7 percent, respectively, and F1-Scores of 83.9 percent, 84.0 percent, 85.6 percent, and 86.6 percent. The LSTM beats the CNN on the SENTIMENT140 Tweet datasets by accuracy rates of 68.8 percent, 73.0 percent, 73.0 percent, and 75.7 percent, F1-Scores of 69.0 percent, 73.0 percent, 72.9 percent, and 75.7 percent, respectively. CITATION SENTIMENT CORPUS (CSC) fared well employing Long Short-Term Memory with an accuracy of 87.2 percent and an F1-Score of 86.3 percent. The accuracy and F1-Score of the Bioinformatics Citation Corpus (BCC) utilizing LSTM are higher at 69.5 percent and 69.6 percent, respectively. CNN also performed admirably across all datasets except LSTM was marginally more promising.

The Table 10 illustrates the comparison of the model with transfer learning (with-TL) and without transfer learning (without-TL) in terms of accuracy. In Fig 6, we could demonstrate that the TL significantly outperform the non-TL model. ROBERTA surpasses all other TL techniques and deep learning models on the Hotel Review datasets, yielding accuracy of 94.57 percent, 94.6 percent, 94.97 percent, and 95.48 percent, correspondingly. LSTM beat CNN among deep learning models. LSTM exceeds CNN because LSTM captures long-term dependencies effectively.

Table 10. Comparison of TL and DL results based on accuracy.

DATASETS SIZE Transfer Learning Deep Learning
ULMFIT BERT ROBERTA ELECTRA LSTM CNN
A A A A A A
HOTEL REVIEW 7K 0.928 0.941 0.946 0.918 0.924 0.901
10K 0.940 0.942 0.946 0.918 0.925 0.898
15K 0.941 0.948 0.950 0.924 0.924 0.883
20K 0.952 0.947 0.955 0.931 0.941 0.904
MOVIE REVIEW 7K 0.921 0.917 0.936 0.944 0.801 0.839
10K 0.921 0.908 0.941 0.936 0.820 0.840
15K 0.926 0.918 0.935 0.938 0.862 0.857
20K 0.931 0.911 0.940 0.941 0.885 0.867
SENTIMENT140 7K 0.754 0.804 0.836 0.795 0.688 0.656
10K 0.770 0.805 0.823 0.801 0.730 0.684
15K 0.770 0.810 0.834 0.801 0.730 0.691
20K 0.780 0.814 0.836 0.812 0.757 0.726
CITATION SENTIMENT CORPUS (CSC) 8K 0.910 0.938 0.937 0.932 0.872 0.838
BIOINFORMATICS CITATION CORPUS (BCC) 4K 0.855 0.920 0.894 0.885 0.695 0.693

Fig 6. Comparison graph of hotel reviews TL AND DL results based on accuracy.

Fig 6

In Fig 7, we were inclined to emphasize that the TL substantially beats the non-TL model in the Movie Review datasets. Initially, the ELECTRA model outperforms all other models with an accuracy of 94.4 percent on 7k, followed by ROBERTA with an accuracy of 94.1 percent on 10k. However, on 15k and 20k, the ELECTRA significantly achieves all other models, with an accuracy of 93.8 percent and 94.1 percent, respectively.

Fig 7. Comparison graph of movie review TL AND DL results based on accuracy.

Fig 7

On the SENTIMENT140 datasets, TL significantly outperforms the non-TL model. ROBERTA trumps all other TL methods and deep learning models, yielding accuracy rates of 83.6 percent on 7k, 82.3 percent on 10k, 83.4 percent on 15k, and 83.6 percent on 20k. Among deep learning models, LSTM outscored CNN, achieving accuracy rates of 68.8 percent, 73.0 percent, 73.0 percent, and 75.7 percent, correspondingly shown in Fig 8. In the CITATION SENTIMENT CORPUS, we demonstrate that the TL model surpasses the non-TL model significantly. BERT exceeds all other TL approaches and deep learning models with an accuracy of 93.77 percent, while without TL, LSTM outperforms CNN with an accuracy rate of 87.22 percent shown in Fig 9.

Fig 8. Comparison graph of Sentiment140 TL AND DL results based on accuracy.

Fig 8

Fig 9. Comparison graph of CSC TL AND DL results based on accuracy.

Fig 9

We illustrate that the TL model significantly beats the non-TL model in the Bioinformatics Citation Corpus (BCC). With an accuracy rate of 92.04 percent, BERT surpasses all other TL methods and deep learning models, whereas without TL, LSTM outdoes CNN with an accuracy rate of 69.45 percent shown in Fig 10.

Fig 10. Comparison graph of BCC TL AND DL results based on accuracy.

Fig 10

The Table 11 illustrates the comparison of the model with-TL and without-TL in terms of F1-SCORE.

Table 11. Comparison graph of TL AND DL results based on F1-score.

DATASETS SIZE Transfer Learning Deep Learning
ULMFIT BERT ROBERTA ELECTRA LSTM CNN
F1 F1 F1 F1 F1 F1
HOTEL REVIEW 7K 0.927 0.941 0.945 0.917 0.924 0.901
10K 0.927 0.941 0.945 0.917 0.924 0.901
15K 0.941 0.948 0.949 0.923 0.920 0.882
20K 0.951 0.947 0.954 0.930 0.940 0.903
MOVIE REVIEW 7K 0.921 0.917 0.936 0.944 0.801 0.839
10K 0.921 0.908 0.941 0.936 0.820 0.840
15K 0.926 0.918 0.935 0.938 0.862 0.856
20K 0.931 0.911 0.940 0.941 0.885 0.866
SENTIMENT140 7K 0.754 0.804 0.836 0.795 0.690 0.654
10K 0.770 0.804 0.823 0.800 0.730 0.683
15K 0.770 0.810 0.834 0.801 0.729 0.691
20K 0.780 0.814 0.836 0.812 0.757 0.726
CITATION SENTIMENT CORPUS (CSC) 8K 0.897 0.902 0.902 0.898 0.863 0.842
BIOINFORMATICS CITATION CORPUS (BCC) 4K 0.853 0.880 0.840 0.829 0.696 0.691

We compare TL and non-TL models in our demonstration. The non-TL variant performs noticeably worse than the TL. In the Hotel Review datasets, ROBERTA outpaces all other TL techniques and deep learning models, yielding F1-scores of 94.53 percent, 94.56 percent, 94.93 percent, and 95.41 percent, respectively. In terms of deep learning models, LSTM outdid CNN. By comparison, F1 values obtained without TL are 92.36 percent, 92.36 percent, 92.0 percent, and 94.0 percent shown in Fig 11.

Fig 11. Comparison graph of hotel reviews TL AND DL results based on F1-score.

Fig 11

We compare TL and non-TL models in the Movie Review datasets for our study. The TL variant outperforms the non-TL model decisively. Initially, the ELECTRA model surpasses all other models, giving F1-scores of 94.35 percent on the 7k, followed by ROBERTA bettered with F1-scores of 93.55 percent on the 10k. Conversely, the ELECTRA model outperforms all other models on the 15k and 20k scales, attaining F1-scores of 93.8 percent and 94.12 percent, respectively. Regarding deep learning models, Initially, CNN outperformed LSTM with F1-scores of 83.9 and 92.36 percent, but LSTM eventually triumphed with 86.2 and 88.5 percent, respectively shown in Fig 12.

Fig 12. Comparison graph of movie reviews TL AND DL results based on F1-score.

Fig 12

On the SENTIMENT140, the model ROBERTA leads all other TL models and deep learning models, with F1 scores of 83.64 percent, 82.3 percent, 83.39 percent, and 83.59 percent, correspondingly. Regarding deep learning models, LSTM outscored CNN, and F1 scores without TL are 69 percent, 73 percent, 72.29 percent, and 75.68 percent, respectively shown in Fig 13.

Fig 13. Comparison graph of Sentiment140 TL AND DL results based on F1-score.

Fig 13

We assess TL and non-TL models in the CSC. We illustrate that the TL model outperforms the non-TL model by a wide margin. With an F1-score of 90.22 percent, BERT and ROBERTA both outperform all other TL methods and deep learning models. Regarding deep learning models, reaching F1-score of 86.30 percent, LSTM outdoes CNN shown in Fig 14.

Fig 14. Comparison graph of CSC TL AND DL results based on F1-score.

Fig 14

We compare TL and non-TL models employing the BCC. The TL variant significantly outperforms the non-TL model. BERT excels all other TL approaches and deep learning models with an F1-score of 87.98 percent, whereas without TL, the F1-score is 69.6 percent shown in Fig 15.

Fig 15. Comparison graph of BCC TL and DL results based on F1-score.

Fig 15

Conclusion

This research demonstrated contemporary transfer learning models in multi-realm sentiment classification. Based on relevant research, we went with techniques that do not necessitate pretraining the whole model from scratch, despite resetting the model’s weights using an existing one. It is a practical method for a plethora of reasons: First, when the quantity of accessible textual data is insufficient to meet the requirements for pretraining a completely new model. Second, the computational time, although still significant and depends on the quantity of extra training data, is substantially less than typical pretraining, which would take a week. The primary goal of this study is to address the challenge of limited labeled data for predicting sentiment polarity in a target domain by using a classifier trained on a source domain. This research explores the use of fine-tuned transformers and the highly modular Framework for Adapting Representation Models (FARM) to model sentiment analysis from text. The pretrained models BERT, RoBERTa, and ELECTRA are employed, which are subsequently fine-tuned with FARM to represent the downstream assessment to identify sentiments, along with ULMFiT. Experiments are conducted on five publicly available sentiment analysis datasets, namely Hotel Reviews (HR), Movie Reviews (MR), Sentiment140 Tweets (ST), Citation Sentiment Corpus (CSC), and Bioinformatics Citation Corpus (BCC). LSTM performs better than CNN in most domains when the results are compared to deep learning models like CNN. FARM framework-based models extensively beat deep learning techniques. Other domain adaption situations, such as named entity recognition, question answering, and reading comprehension, might benefit from the proposed post-training technique. We would want to examine the use of this idea in these domain adaptation tasks in the future.

Data Availability

We used publicly available datasets, the link of each dataset is mentioned below Movie reviews dataset available at: https://ai.stanford.edu/~amaas/data/sentiment/ Sentiment140 dataset available at: https://www.kaggle.com/datasets/kazanova/sentiment140 Citation Sentiment Corpus available at: https://cl.awaisathar.com/citation-sentiment-corpus/ Hotel reviews dataset available at: https://www.kaggle.com/datasets/jiashenliu/515k-hotel-reviews-data-in-europe.

Funding Statement

This research is funded by the Researchers Supporting Project Number (RSPD2024R1027), King Saud University, Riyadh, Saudi Arabia.

References

  • 1. Araque O, Corcuera-Platas I, Sánchez-Rada JF, Iglesias CA. Enhancing deep learning sentiment analysis with ensemble techniques in social applications. Expert Systems with Applications. 2017;77:236–246. doi: 10.1016/j.eswa.2017.02.002 [DOI] [Google Scholar]
  • 2. Becken S, Stantic B, Chen J, Alaei AR, Connolly RM. Monitoring the environment and human sentiment on the Great Barrier Reef: assessing the potential of collective sensing. Journal of environmental management. 2017;203:87–97. doi: 10.1016/j.jenvman.2017.07.007 [DOI] [PubMed] [Google Scholar]
  • 3.Kowsher M, Afrin F, Sanjid ZI, et al. Machine Learning and Deep Learning-Based Computing Pipelines for Bangla Sentiment Analysis. In: Proceedings of International Joint Conference on Advances in Computational Intelligence. Springer; 2021. p. 343–354.
  • 4. Prottasha NJ, Sami AA, Kowsher M, Murad SA, Bairagi AK, Masud M, et al. Transfer Learning for Sentiment Analysis Using BERT Based Supervised Fine-Tuning. Sensors. 2022;22(11):4157. doi: 10.3390/s22114157 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5. Bollen J, Mao H, Zeng X. Twitter mood predicts the stock market. Journal of computational science. 2011;2(1):1–8. doi: 10.1016/j.jocs.2010.12.007 [DOI] [Google Scholar]
  • 6. Hassan Khan F, Qamar U, Bashir S. Building normalized SentiMI to enhance semi-supervised sentiment analysis. Journal of Intelligent Fuzzy Systems. 2015;29(5):1805–1816. doi: 10.3233/IFS-151658 [DOI] [Google Scholar]
  • 7. Cambria E, Grassi M, Hussain A, Havasi C. Sentic computing for social media marketing. Multimedia tools and applications. 2012;59(2):557–577. doi: 10.1007/s11042-011-0815-0 [DOI] [Google Scholar]
  • 8.Lin L, Li J, Zhang R, Yu W, Sun C. Opinion mining and sentiment analysis in social networks: A retweeting structure-aware approach. In: 2014 IEEE/ACM 7th International Conference on Utility and Cloud Computing. IEEE; 2014. p. 890–895.
  • 9.Wan X. Co-training for cross-lingual sentiment classification. In: Proceedings of the Joint Conference of the 47th Annual Meeting of the ACL and the 4th International Joint Conference on Natural Language Processing of the AFNLP; 2009. p. 235–243.
  • 10. Zhang L, Wang S, Liu B. Deep learning for sentiment analysis: A survey. Wiley Interdisciplinary Reviews: Data Mining and Knowledge Discovery. 2018;8(4):e1253. [Google Scholar]
  • 11. Pan SJ, Yang Q. A survey on transfer learning. IEEE Transactions on knowledge and data engineering. 2009;22(10):1345–1359. doi: 10.1109/TKDE.2009.191 [DOI] [Google Scholar]
  • 12. Cambria E, Schuller B, Xia Y, Havasi C. New avenues in opinion mining and sentiment analysis. IEEE Intelligent systems. 2013;28(2):15–21. doi: 10.1109/MIS.2013.30 [DOI] [Google Scholar]
  • 13. Xia R, Xu F, Zong C, Li Q, Qi Y, Li T. Dual sentiment analysis: Considering two sides of one review. IEEE transactions on knowledge and data engineering. 2015;27(8):2120–2133. doi: 10.1109/TKDE.2015.2407371 [DOI] [Google Scholar]
  • 14. Hassan MA, Ali S, Imad M, Bibi S. New advancements in cybersecurity: A comprehensive survey. Big Data Analytics and Computational Intelligence for Cybersecurity. 2022; p. 3–17. doi: 10.1007/978-3-031-05752-6_1 [DOI] [Google Scholar]
  • 15. Liu R, Shi Y, Ji C, Jia M. A survey of sentiment analysis based on transfer learning. IEEE Access. 2019;7:85401–85412. doi: 10.1109/ACCESS.2019.2925059 [DOI] [Google Scholar]
  • 16. Pan J, Hu X, Zhang Y, Li P, Lin Y, Li H, et al. Quadruple Transfer Learning: Exploiting both shared and non-shared concepts for text classification. Knowledge-Based Systems. 2015;90:199–210. doi: 10.1016/j.knosys.2015.09.017 [DOI] [Google Scholar]
  • 17. Smailović J, Grčar M, Lavrač N, Žnidaršič M. Stream-based active learning for sentiment analysis in the financial domain. Information sciences. 2014;285:181–203. doi: 10.1016/j.ins.2014.04.034 [DOI] [Google Scholar]
  • 18.Lee HY, Renganathan H. Chinese sentiment analysis using maximum entropy. In: Proceedings of the Workshop on Sentiment Analysis where AI meets Psychology (SAAIP 2011); 2011. p. 89–93.
  • 19. Bilal M, Israr H, Shahid M, Khan A. Sentiment classification of Roman-Urdu opinions using Naïve Bayesian, Decision Tree and KNN classification techniques. Journal of King Saud University-Computer and Information Sciences. 2016;28(3):330–344. doi: 10.1016/j.jksuci.2015.11.003 [DOI] [Google Scholar]
  • 20.Wikarsa L, Thahir SN. A text mining application of emotion classifications of Twitter’s users using Naive Bayes method. In: 2015 1st International Conference on Wireless and Telematics (ICWT). IEEE; 2015. p. 1–6.
  • 21.Yoshida S, Kitazono J, Ozawa S, Sugawara T, Haga T, Nakamura S. Sentiment analysis for various SNS media using Naïve Bayes classifier and its application to flaming detection. In: 2014 IEEE Symposium on Computational Intelligence in Big Data (CIBD). IEEE; 2014. p. 1–6.
  • 22.Moraes F, Vasconcelos M, Prado P, Dalip D, Almeida JM, Gon¸calves M. Polarity detection of foursquare tips. In: International Conference on Social Informatics. Springer; 2013. p. 153–162.
  • 23.Bravo-Marquez F, Frank E, Pfahringer B. Positive, negative, or neutral: Learning an expanded opinion lexicon from emoticon-annotated tweets. In: Twenty-Fourth International Joint Conference on Artificial Intelligence; 2015.
  • 24.Yang AM, Lin JH, Zhou YM, Chen J. Research on building a Chinese sentiment lexicon based on SO-PMI. In: Applied Mechanics and Materials. vol. 263. Trans Tech Publ; 2013. p. 1688–1693.
  • 25.Alimova I, Tutubalina E. Automated detection of adverse drug reactions from social media posts with machine learning. In: International Conference on Analysis of Images, Social Networks and Texts. Springer; 2017. p. 3–15.
  • 26.Ofek N, Caragea C, Rokach L, Biyani P, Mitra P, Yen J, et al. Improving sentiment analysis in an online cancer survivor community using dynamic sentiment lexicon. In: 2013 international conference on social intelligence and technology. IEEE; 2013. p. 109–113.
  • 27. Adrover C, Bodnar T, Huang Z, Telenti A, Salathé M. Identifying adverse effects of HIV drug treatment and associated sentiments using Twitter. JMIR public health and surveillance. 2015;1(2):e7. doi: 10.2196/publichealth.4488 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28. Bui N, Yen J, Honavar V. Temporal causality analysis of sentiment change in a cancer survivor network. IEEE transactions on computational social systems. 2016;3(2):75–87. doi: 10.1109/TCSS.2016.2591880 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Alnashwan R, Sorensen H, O’Riordan A, Hoare C. Multiclass sentiment classification of online health forums using both domain-independent and domain-specific features. In: proceedings of the Fourth IEEE/ACM International Conference on Big Data Computing, Applications and Technologies; 2017. p. 75–83.
  • 30. Salas-Źarate MdP, Medina-Moreira J, Lagos-Ortiz K, Luna-Aveiga H, Rodriguez-Garcia MA, Valencia-Garcia R. Sentiment analysis on tweets about diabetes: an aspect-level approach. Computational and mathematical methods in medicine. 2017;2017. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Chiong R, Fan Z, Hu Z, Adam MT, Lutz B, Neumann D. A sentiment analysis-based machine learning approach for financial market prediction via news disclosures. In: Proceedings of the Genetic and Evolutionary Computation Conference Companion; 2018. p. 278–279.
  • 32. Raghavendra T, Mohan K. Web mining and minimization framework design on sentimental analysis for social tweets using machine learning. Procedia Computer Science. 2019;152:230–235. doi: 10.1016/j.procs.2019.05.047 [DOI] [Google Scholar]
  • 33.Zhang Y, Wallace B. A sensitivity analysis of (and practitioners’ guide to) convolutional neural networks for sentence classification. arXiv preprint arXiv:151003820. 2015;.
  • 34.Kalchbrenner N, Grefenstette E, Blunsom P. A convolutional neural network for modelling sentences. arXiv preprint arXiv:14042188. 2014;.
  • 35.Dos Santos C, Gatti M. Deep convolutional neural networks for sentiment analysis of short texts. In: Proceedings of COLING 2014, the 25th International Conference on Computational Linguistics: Technical Papers; 2014. p. 69–78.
  • 36. Zhang X, Zhao J, LeCun Y. Character-level convolutional networks for text classification. Advances in neural information processing systems. 2015;28:649–657. [PMC free article] [PubMed] [Google Scholar]
  • 37.Conneau A, Schwenk H, Barrault L, Lecun Y. Very deep convolutional networks for text classification. arXiv preprint arXiv:160601781. 2016;.
  • 38.Johnson R, Zhang T. Supervised and semi-supervised text categorization using LSTM for region embeddings. In: International Conference on Machine Learning. PMLR; 2016. p. 526–534.
  • 39. Ullah F, Chen X, Shah SBH, Mahfoudh S, Hassan MA, Saeed N. A novel approach for emotion detection and sentiment analysis for low resource Urdu language based on CNN-LSTM. Electronics. 2022;11(24):4096. doi: 10.3390/electronics11244096 [DOI] [Google Scholar]
  • 40.Akhtar MS, Kumar A, Ekbal A, Bhattacharyya P. A hybrid deep learning architecture for sentiment analysis. In: Proceedings of COLING 2016, the 26th International Conference on Computational Linguistics: Technical Papers; 2016. p. 482–493.
  • 41. Chen T, Xu R, He Y, Wang X. Improving sentiment analysis via sentence type classification using BiLSTM-CRF and CNN. Expert Systems with Applications. 2017;72:221–230. doi: 10.1016/j.eswa.2016.10.065 [DOI] [Google Scholar]
  • 42.Chen P, Sun Z, Bing L, Yang W. Recurrent attention network on memory for aspect sentiment analysis. In: Proceedings of the 2017 conference on empirical methods in natural language processing; 2017. p. 452–461.
  • 43.Yadav S, Ekbal A, Saha S, Bhattacharyya P. Medical sentiment analysis using social media: towards building a patient assisted system. In: Proceedings of the Eleventh International Conference on Language Resources and Evaluation (LREC 2018); 2018.
  • 44.Wu C, Wu F, Liu J, Wu S, Huang Y, Xie X. Detecting tweets mentioning drug name and adverse drug reaction with hierarchical tweet representation and multi-head self-attention. In: Proceedings of the 2018 EMNLP workshop SMM4H: the 3rd social media mining for health applications workshop shared task; 2018. p. 34–37.
  • 45. Ali NM, Abd El Hamid MM, Youssif A. Sentiment analysis for movies reviews dataset using deep learning models. International Journal of Data Mining Knowledge Management Process (IJDKP) Vol. 2019;9. [Google Scholar]
  • 46.Kaya M, Fidan G, Toroslu IH. Transfer learning using Twitter data for improving sentiment classification of Turkish political news. In: Information sciences and systems 2013. Springer; 2013. p. 139–148.
  • 47.Felbo B, Mislove A, Søgaard A, Rahwan I, Lehmann S. Using millions of emoji occurrences to learn any-domain representations for detecting sentiment, emotion and sarcasm. arXiv preprint arXiv:170800524. 2017;.
  • 48.Devlin J, Chang MW, Lee K, Toutanova K. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:181004805. 2018;.
  • 49.Daval-Frerot G, Bouchekif A, Moreau A. Epita at SemEval-2018 Task 1: Sentiment analysis using transfer learning approach. In: Proceedings of The 12th International Workshop on Semantic Evaluation; 2018. p. 151–155.
  • 50.Howard J, Ruder S. Universal language model fine-tuning for text classification. arXiv preprint arXiv:180106146. 2018;.
  • 51.Akin SE, Yildiz T. Sentiment Analysis through Transfer Learning for Turkish Language. In: 2019 IEEE International Symposium on INnovations in Intelligent SysTems and Applications (INISTA). IEEE; 2019. p. 1–6.
  • 52.Yoshida Y, Hirao T, Iwata T, Nagata M, Matsumoto Y. Transfer learning for multiple-domain sentiment analysis—identifying domain dependent/independent word polarity. In: Twenty-Fifth AAAI Conference on Artificial Intelligence; 2011.
  • 53.McCann B, Bradbury J, Xiong C, Socher R. Learned in translation: Contextualized word vectors. arXiv preprint arXiv:170800107. 2017;.
  • 54.Peters M, Neumann M, Iyyer M, Gardner M, Clark C, Lee K, et al. Deep contextualized word representations. 2018. arXiv preprint arXiv:180205365. 2021;.
  • 55.Dong XL, De Melo G. A helping hand: Transfer learning for deep sentiment analysis. In: Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers); 2018. p. 2524–2534.
  • 56. Meng J, Long Y, Yu Y, Zhao D, Liu S. Cross-domain text sentiment analysis based on CNN FT method. Information. 2019;10(5):162. doi: 10.3390/info10050162 [DOI] [Google Scholar]
  • 57.Cui W, Zheng G, Shen Z, Jiang S, Wang W. Transfer learning for sequences via learning to collocate. arXiv preprint arXiv:190209092. 2019;
  • 58.Liu J. 515K hotel reviews data in Europe; 2017. Available from: https://www.kaggle.com/datasets/jiashenliu/515k-hotel-reviews-data-in-europe.
  • 59.Maas A, Daly RE, Pham PT, Huang D, Ng AY, Potts C. Learning word vectors for sentiment analysis. In: Proceedings of the 49th annual meeting of the association for computational linguistics: Human language technologies; 2011. p. 142–150.
  • 60.Maas A. Large Movie Review Dataset;. Available from: http://ai.stanford.edu/amaas/data/sentiment/.
  • 61.KazAnova. Sentiment140 dataset with 1.6 million tweets; 2017. Available from: https://www.kaggle.com/datasets/kazanova/sentiment140.
  • 62.Athar A. Citation Sentiment Corpus: Citation Sentiment Corpus;. Available from: https://cl.awaisathar.com/citation-sentiment-corpus/.
  • 63.Xu J, Zhang Y, Wu Y, Wang J, Dong X, Xu H. Citation sentiment analysis in clinical trial papers. In: AMIA annual symposium proceedings. vol. 2015. American Medical Informatics Association; 2015. p. 1334. [PMC free article] [PubMed]
  • 64.Yang Z, Dai Z, Yang Y, Carbonell J, Salakhutdinov RR, Le QV. Xlnet: Generalized autoregressive pretraining for language understanding. Advances in neural information processing systems. 2019;32.
  • 65.Liu Y, Ott M, Goyal N, Du J, Joshi M, Chen D, et al. Roberta: A robustly optimized bert pretraining approach. arXiv preprint arXiv:190711692. 2019;.
  • 66.Clark K, Luong MT, Le QV, Manning CD. Electra: Pre-training text encoders as discriminators rather than generators. arXiv preprint arXiv:200310555. 2020;.
  • 67. Arnold TB. kerasR: R interface to the keras deep learning library. Journal of Open Source Software. 2017;2(14):296 doi: 10.21105/joss.00296 [DOI] [Google Scholar]

Decision Letter 0

Toqir Rana

1 Sep 2023

PONE-D-23-20322Domain Adaptive Learning for Multi Realm Sentiment Classification on Big DataPLOS ONE

Dear Dr. Sadad,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please submit your revised manuscript by Oct 16 2023 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

  • A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.

  • A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.

  • An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: https://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Toqir Rana

Academic Editor

PLOS ONE

Journal requirements:

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. In your Methods section, please include additional information about your dataset and ensure that you have included a statement specifying whether the collection and analysis method complied with the terms and conditions for the source of the data.

3. Please note that PLOS ONE has specific guidelines on code sharing for submissions in which author-generated code underpins the findings in the manuscript. In these cases, all author-generated code must be made available without restrictions upon publication of the work. Please review our guidelines at https://journals.plos.org/plosone/s/materials-and-software-sharing#loc-sharing-code and ensure that your code is shared in a way that follows best practice and facilitates reproducibility and reuse.

4. We note that the grant information you provided in the ‘Funding Information’ and ‘Financial Disclosure’ sections do not match.

When you resubmit, please ensure that you provide the correct grant numbers for the awards you received for your study in the ‘Funding Information’ section.

3. Thank you for stating the following in the Acknowledgments Section of your manuscript:

“The authors extend their appreciation to the Deputyship for Research and

Innovation, "Ministry of Education" in Saudi Arabia for funding this

research (IFKSUOR3-013-2)”

We note that you have provided funding information that is not currently declared in your Funding Statement. However, funding information should not appear in the Acknowledgments section or other areas of your manuscript. We will only publish funding information present in the Funding Statement section of the online submission form.

Please remove any funding-related text from the manuscript and let us know how you would like to update your Funding Statement. Currently, your Funding Statement reads as follows:

“The funders had a role in writing, reviewing, and editing the manuscript”

Please include your amended statements within your cover letter; we will change the online submission form on your behalf.

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: No

Reviewer #2: Yes

Reviewer #3: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

Reviewer #3: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: The paper highlighted the benefits of transfer learning concept for Multi domain Sentimental classification(MDSC)technique on BIG DATA.Transform learning Models like BERT,ULMFiT etc. have been used to study the analysis. Various reliable Sentiment Analysis Datasets were used to influence the outputs.

A thorough Literature Survey of the various transfer learning methods were also done which added a feather to the work done.Analysis using metrics like accuracy & F1 score was done.

Th work can be extended with more relevant metrices and inculsion of statistical analysis will take the wok to a high level.

Reviewer #2: The following comments are required to be incorporated in order to improve the quality of paper and to meet the journal standards.

1 the authors used various Bert based semantic encoding mechanisms, however to make the methods clearer to the readers, it will be better to provide a complete graphical framework of the these methods to illustrate their mechanisms.

2. I did not found any cross validation test for model training.

3. the author should provide complete Hyper-parameters for model training in a tabular form, authors may increase epochs for better training results.

4. The authors should add a model training section in the discussion to explain the effects of the used parameters on the training model by mentioning the following latest predictors such as iHBP-DeepPSSM , cACP-DeepGram, and Deep-AntiFP.

5. The authors should provide an ablution study to visually interpret the proposed model.

Reviewer #3: The proposed idea is interesting, but clarification and corrections are needed.

1.The statistical indicators macro-average F1 score and micro-average F1 score has mentioned in equation 3 and 4 but results were reported of F1 score only. Need to be clarify.

2. write down limitations in current literature.

3. Which split ratio you used for training/testing division?

4. Several typos and grammatical errors are found.

5. Some paragraphs are too long to read.

The authors should try for readability and comprehensibility by dividing paragraphs into two or more.

6.The conclusion section is weak. The conclusion section needs significant revisions. It should briefly describe the findings of the study and some directions for further research.

7. following research papers can be considered in your manuscript for possible references:

a)Hassan, Muhammad Abul, et al. "Intelligent transportation systems in smart city: a systematic survey." 2023 International Conference on Robotics and Automation in Industry (ICRAI). IEEE, 2023.

b)Ullah, Farhat, et al. "A novel approach for emotion detection and sentiment analysis for low resource Urdu language based on CNN-LSTM." Electronics 11.24 (2022): 4096.

c)Hassan, Muhammad Abul, et al. "New advancements in cybersecurity: A comprehensive survey." Big Data Analytics and Computational Intelligence for Cybersecurity (2022): 3-17.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: Yes: Dr. Hashim Ali

Reviewer #3: No

**********

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2024 Apr 1;19(4):e0297028. doi: 10.1371/journal.pone.0297028.r002

Author response to Decision Letter 0


14 Nov 2023

Manuscript ID:  PAPER ID: PONE-D-23-20322

Reviewer Comments, Author Responses and Manuscript Changes

We are very grateful for the reviews provided by the editors and each of the external reviewers of this manuscript titled “Domain Adaptive Learning for Multi Realm Sentiment Classification on Big Data”. The comments are encouraging, and we thank you for giving us the opportunity to resubmit our research work. The suggestions offered by the reviewers have been immensely helpful, and we have responded to them individually, indicating precisely how we addressed each concern or problem and describing the changes we have made. Please see below for our detailed response to the comments. All section numbers refer to the updated manuscript file with tracked changes.

Responses to Reviewer 1

Comment 1:

The paper highlighted the benefits of transfer learning concept for Multi domain Sentiment classification (MDSC) technique on BIG DATA. Transform learning Models like BERT, ULMFiT etc. have been used to study the analysis. Various reliable Sentiment Analysis Datasets were used to influence the outputs.A thorough Literature Survey of the various transfer learning methods were also done which added a feather to the work done .Analysis using metrics like accuracy & F1 score was done.

The work can be extended with more relevant metrices and inculsion of statistical analysis will take the wok to a high level.

Response: Thank you for the approval. According to the reviewer’s comment, the answer is as follows:

Thank you for pointing this out. In general, if you are working with an imbalanced dataset where all classes are equally important, using the macro average would be a good choice as it treats all classes equally. If you have an imbalanced dataset but want to assign greater contribution to classes with more examples in the dataset, then the weighted average is preferred. This is because, in weighted averaging, the contribution of each class to the F1 average is weighted by its size. Suppose we have a balanced dataset and want an easily understandable metric for overall performance regardless of the class. In that case, we can go with accuracy, which is essentially our micro F1 score.

Responses to Reviewer 2

Comment 1:

The authors used various Bert based semantic encoding mechanisms, however to make the methods clearer to the readers, it will be better to provide a complete graphical framework of the these methods to illustrate their mechanisms.

Response: Thank you for bringing this to our attention.

We employed five distinct datasets as well as transfer learning models such as BERT, RoBERTa, ELECTRA, and ULMFiT. We use that Models Graphical Framework to demonstrate its mechanism.

Comment 2: I did not found any cross validation test for model training.

Response:

Following are the reasons for not using cross-validation test with transformers (or deep learning).

Transfer Learning Effectiveness: Transfer learning, especially in the context of pre-trained transformer models like BERT, GPT-3, and their variants, has been remarkably effective in a wide range of natural language understanding tasks. These models are typically pre-trained on massive datasets containing a diverse range of text, making them strong feature extractors. Fine-tuning these pre-trained models on task-specific data often yields excellent results, and this approach reduces the need for extensive cross-validation. With transfer learning, you can effectively leverage pre-trained weights and fine-tune them on your specific task with a relatively small dataset.

Large Datasets: When you have a substantial amount of data, the impact of selecting a bad train/test split becomes less significant. With a small dataset, a poor split could lead to overfitting or under-fitting, making cross-validation crucial for assessing model performance. However, with large datasets, you can often afford to set aside a substantial portion for training and still have a reasonable-sized test set for evaluation.

Comment 3: The author should provide complete Hyper-parameters for model training in a tabular form, authors may increase epochs for better training results.

Response: SECTION: 3.3.4 HYPERPARAMETERS

The Hyper-parameters for each model training with fields Learning Rate, Batch-Size, Epochs and MSL has been mentioned in table 7.

The hyper parameters can be adjusted to produce the best outcomes. These variables need to be manually adjusted because the model itself cannot learn them. The term "hyperparameters" refers to a wide range of variables, such as the learning rate, training batch size, dropout rate, number of training epochs, and any other optimizer-related variables that can be altered, like the Adam optimisation technique. We employ bert-base-cased for BERT [46], roberta-base for RoBERTa [64], and google/electra-base-discriminator for ELECTRA [65] as baselines for deep neural network techniques.

Table 7: HYPERPARAMETERS EMPLOYED FOR BERT, ROBERTA, AND ELECTRA

Responses to Reviewer 3

Comment 1: The statistical indicators macro-average F1 score and micro-average F1 score has mentioned in equation 3 and 4 but results were reported of F1 score only. Need to be clarify.

Response:

We mentioned weighted average F1 score. If you have an imbalanced dataset but want to assign greater contribution to classes with more examples in the dataset, then the weighted average is preferred. This is because, in weighted averaging, the contribution of each class to the F1 average is weighted by its size. Suppose you have a balanced dataset and want an easily understandable metric for overall performance regardless of the class. In that case, you can go with accuracy, which is essentially our micro F1 score.

Comment 2: Write down limitations in current literature.

Response:

We agree with the reviewer’s assessment. Accordingly, throughout the manuscript, we have revised the literature review according to the current literature and added limitations of the work.

Comment 3: Which split ratio you used for training/testing division?

Response:

We’ve used five (5) different datasets and in three of them we used four (4) different samples size for training. And for each sample we have used 70:30 split ratio.

Comment 4: Several typos and grammatical errors are found.

Response: The grammatical errors have been corrected on [insert the exact location where the change can be found in the revised manuscript].

Comment 5: Some paragraphs are too long to read. The authors should try for readability and comprehensibility by dividing paragraphs into two or more.

Response:

The partition of paragraphs has been corrected accordingly.

Comment 6: The conclusion section is weak. The conclusion section needs significant revisions. It should briefly describe the findings of the study and some directions for further research.

Response:

This research demonstrated contemporary transfer learning models in multi-realm sentiment classification. This research focuses on evaluating the impact of transfer learning on sentiment analysis results and investigating the effectiveness of domain adaptation. The study employs well-known transfer learning models such as BERT, RoBERTa, ELECTRA, and ULMFiT to enhance the performance of sentiment analysis. Various transformer models are used to analyze sentiment, and the performance of LSTM and CNN is compared.

Based on relevant research, we went with techniques that do not necessitate pretraining the whole model from scratch, despite resetting the model’s weights using an existing one. It is a practical method for a plethora of reasons: First, when the quantity of accessible textual data is insufficient to meet the requirements for pretraining a completely new model. Second, the computational time, although still significant and depends on the quantity of extra training data, is substantially less than typical pretraining, which would take a week. The primary goal of this study is to address the challenge of limited labeled data for predicting sentiment polarity in a target domain by using a classifier trained on a source domain. This research explores the use of fine-tuned transformers and the highly modular Framework for Adapting Representation Models (FARM) to model sentiment analysis from text.

The pretrained models BERT, RoBERTa, and ELECTRA are employed, which are subsequently fine-tuned with FARM to represent the downstream assessment to identify sentiments, along with ULMFiT. Experiments are conducted on five publicly available sentiment analysis datasets, namely Hotel Reviews (HR), Movie Reviews (MR), Sentiment140 Tweets (ST), Citation Sentiment Corpus (CSC), and Bioinformatics Citation Corpus (BCC). LSTM performs better than CNN in most domains when the results are compared to deep learning models like CNN. FARM framework-based models extensively beat deep learning techniques. Other domain adaption situations, such as named entity recognition, question answering, and reading comprehension, might benefit from the proposed post-training technique. In future work, we intend to further assess our approach for these domain adaptation challenges and to explore other pretrained models.

Comment 7: Following research papers can be considered in your manuscript for possible references:

Response:

It would have been interesting to explore this aspect. we agree that this is an important consideration in this manuscript.

Attachment

Submitted filename: Response Sheet.docx

pone.0297028.s001.docx (59.4KB, docx)

Decision Letter 1

Toqir Rana

27 Dec 2023

Domain Adaptive Learning for Multi Realm Sentiment Classification on Big Data

PONE-D-23-20322R1

Dear Dr. Sadad,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Toqir Rana, Ph.D.

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #2: All comments have been addressed

Reviewer #3: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #2: Yes

Reviewer #3: Yes

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #2: Yes

Reviewer #3: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #2: Yes

Reviewer #3: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #2: Yes

Reviewer #3: Yes

**********

6. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #2: The paper is in good shape now. All the technical details are met by the authors. Furthermore, emhasis may olease be made to refine the work in upcoming research

Reviewer #3: Authors in this research article have addressed all the required suggestions given by previous reviewers and i believe this paper is now in the scope of the journal.

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #2: No

Reviewer #3: No

**********

Acceptance letter

Toqir Rana

30 Jan 2024

PONE-D-23-20322R1

PLOS ONE

Dear Dr. Sadad,

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now being handed over to our production team.

At this stage, our production department will prepare your paper for publication. This includes ensuring the following:

* All references, tables, and figures are properly cited

* All relevant supporting information is included in the manuscript submission,

* There are no issues that prevent the paper from being properly typeset

If revisions are needed, the production department will contact you directly to resolve them. If no revisions are needed, you will receive an email when the publication date has been set. At this time, we do not offer pre-publication proofs to authors during production of the accepted work. Please keep in mind that we are working through a large volume of accepted articles, so please give us a few weeks to review your paper and let you know the next and final steps.

Lastly, if your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

If we can help with anything else, please email us at customercare@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Toqir Rana

Academic Editor

PLOS ONE

Associated Data

    This section collects any data citations, data availability statements, or supplementary materials included in this article.

    Supplementary Materials

    Attachment

    Submitted filename: Response Sheet.docx

    pone.0297028.s001.docx (59.4KB, docx)

    Data Availability Statement

    We used publicly available datasets, the link of each dataset is mentioned below Movie reviews dataset available at: https://ai.stanford.edu/~amaas/data/sentiment/ Sentiment140 dataset available at: https://www.kaggle.com/datasets/kazanova/sentiment140 Citation Sentiment Corpus available at: https://cl.awaisathar.com/citation-sentiment-corpus/ Hotel reviews dataset available at: https://www.kaggle.com/datasets/jiashenliu/515k-hotel-reviews-data-in-europe.


    Articles from PLOS ONE are provided here courtesy of PLOS

    RESOURCES
