ZIF-67 MOF-Derived Mn3O4 @ N-Doped C as a Supercapacitor Electrode in Different Alkaline Media

Amal F Seliem †, Ayeda Y A Mohammed †, A Attia †, Salma Aman ‡,*, Naseeb Ahmad ‡, Mohamed M Ibrahim §
PMCID: PMC11025101  PMID: 38645369

Abstract

graphic file with name ao4c00676_0013.jpg

Transition-metal oxide has been identified as an auspicious material for supercapacitors due to its exceptional capacity. The inadequate electrochemical characteristics, such as prolonged cycle stability, can be ascribed to factors, such as low electrical conductivity, sluggish reaction kinetics, and a deficiency of active sites. The transition-metal oxides derived from the MOF materials offer a larger surface area with enriched active sites and a faster reaction rate along with good electrical conductivity. The manganese (Mn)-based metal–organic framework (MOF)-derived materials were produced using the pyrolysis method. Zeolitic imidazolate frameworks (ZIF-67) were fabricated in water at ambient temperature with the aid of triethylamine. Multiple techniques were used to examine the characteristics of the fabricated electrode materials. The influence of the electrolyte on the electrochemical activity of the Mn3O4@N-doped C electrode materials was determined in KOH, NaOH, and LiOH. For manufacturing of “Mn3O4@N-doped C”, ZIF-67 was used as a precursor. The capacitive performance of the Mn3O4@N-doped C electrode increased as a result of nitrogen-doped carbon; after 5000th cycles, the electrode retained an excellent rate capability and a high specific capacitance (Cs) of 980 F g–1 at 1 A g–1 under 2.0 KOH electrolyte in a three electrode system. The carbonized manganese oxide displays also had a high Cs of 686 F g–1 in two electrode systems in 2.0 M KOH. Materials made from MOFs show promise as capacitive materials for applications in energy conversion storage owing to their straightforward synthesis and strong electrochemical performance.

1. Introduction

Transition-metal oxides (TMOs) have larger theoretical capacitances because of the many oxidation states of transition metals (TMs). Therefore, several types of TMOs have been employed as potent electrocatalysts for supercapacitor (SC) electrodes.1−3 These include binary metal oxides, Co3O4,4 RuO2,5 NiO,6 ZnO,7 Mn2O3,8 Fe2O3,9 and Cu2O.10 Of these TMOs, Mn3O4 has garnered the greatest attention due to its extraordinarily high theoretical capacitance.11−14 Due to its low electrical conductivity, Mn3O4 is not useful in practical settings. This makes it challenging to harness the material’s electrochemical potential.15,16 Adding carbon nanofibers,17 graphene,18 carbon nanotubes,19 or amorphous carbon to Mn3O4 electrodes has been shown to improve electron and ion mobility. High electron and ion-transfer efficiencies may be achieved by fabricating nanostructured Mn3O4 materials, which improves electrochemical performance.20−23 The majority of published ways to combine carbon with Mn3O4, however, need either lengthy processes or expensive carbon sources.24−26

Interesting porous coordination polymers called zeolitic imidazolate frameworks (ZIFs) combine metal cations with organic linkers (metal–organic frameworks or MOFs).27,28 The framework architecture surface area and pore size may be readily controlled by an organic linker and metal positive ion.29−32 The MOFs have been reported in a number of fields, such as CO2 gas conversion,33 water purification34 and photocatalysis,35 electronics and biomedicine,36 and electrochemical biosensors.37

The excellent capacitive performance of MOx and MOFs made from MOFs depends on their uniform nanostructure, N2 doping, high porosity, or rich carbon hybrids. To create porous Mn3O4 structures, Mn-based MOFs (Mn-MOFs) have been shown to be intriguing substrates.38,39 Mixed-valence manganese (i.e., Mn3O4) is a potent candidate for SCs due to greater theoretical capacitance, simplicity in production and abundance of redox processes.40 Various researchers have synthesized MOF-derived metal oxides, such as Ruoyu Wang et al.41 which developed the Mn3O4@C/rGO nanocomposite and analyzed their potential capability for energy-saving applications. The results revealed that the Mn3O4@C/rGO exhibited 328.6 F cm–2 high Cs, revealing the efficiency for supercapacitor applications. Zhao et al.42 used a simple carbonization of Mn-MOFs with poly(styrene-co-AA) spheres to develop a Mn3O4@N-doped C/graphene nanocomposite. In a 1.0 M Na2SO4 electrolyte solution, the Mn3O4@N-doped C/graphene (MCG) exhibits exceptional electrochemical capabilities, with maximal specific capacitances of 456 and 246 F g–1 @ 1 and 20 A g–1. Additionally, the Mn3O4@N-doped C/graphene exhibits excellent cycling life, 98.1% of the capacitance @ 5 A g–1 after 2000 cycles. Babak Rezaei et al.43 synthesized the three-dimensional pyrolytic carbon/Mn3O4 nanostructure via wet chemical deposition for energy conversion devices. The use of MOF-derived materials as effective sacrificial templates or precursors for producing different porous carbon, metal compounds, and composites have been studied.44−48 The novelty of the work includes the material made from MOFs to maintain the morphology and form of the original MOFs. Carbon, nitrogen-doped carbon, porous metal oxides, and nanohybrid may all be produced by the heating method. The electrochemical performance of electrodes made of Mn3O4 may be improved by carbon doping.49,50 Moreover, the electrochemical features of prepared samples were also investigated by using three different electrolytes (KOH, NaOH, and LiOH), and better results were obtained by using the KOH electrolyte because of its smaller hydration sphere which causes increase in the migration rate of ions. The fabricated materials exhibited very good retention capacitance and longer life stability of >92%. All of the ascribed information suggests that MOF-derived metal oxide exhibited high Cs and other fascinating electrical features inspired to develop MOF-derived MOx for supercapacitor applications.

Herein, triethylamine (TEA) was used to help create the porous construction of ZIF-67, which contains meso- and microporous regimes. Mn3O4 embedded in N-doped carbon was prepared using the fabricated product as a precursor (Mn3O4@N-doped carbon). At ambient temperature, H2O is used as a solvent during the fabrication process. The supercapacitor’s electrode material was Mn3O4@N-doped carbon and measured its electrochemical applications in different basic electrolytes, such as NaOH, LiOH, and KOH. The electrochemical result revealed that the MOF-derived electrocatalyst exhibited the high Cs in KOH than other basic electrolytes. Furthermore, the longer life cycles also indicate the longer stability of the fabricated electrode compared to other reported materials.

2. Experimental Section

2.1. Fabrication of ZIF-67 and Mn3O4@N-doped C

All of the reagents used in the ZIF-67 and Mn3O4@N-doped C fabrication were purchased from Sigma-Aldrich. The TEA (Sigma-Aldrich, ≥99.5%)-assisted approach was used to complete the ZIF-67 synthesis procedure. In a nutshell, 6.9 mmol of 2-methyl imidazole (Hmim, Sigma-Aldrich, 99%) as a source of nitrogen was added after 7.4 mmol of TEA (1 mL) was inserted to 0.68 mmol of manganese nitrate under the vigorous stirring for 60 min. The precipitates were separated and then washed several times with H2O and absolute C2H5OH (Sigma-Aldrich, 99.99%) solution. The material was dehydrated in an electric oven set to 85 °C naturally. Mn3O4@N-doped C was created by using ZIF-67. The material was heated to 700 °C in a crucible for 4 h in a muffle oven. The Mn3O4@N-doped C was rinsed twice, once with H2O and once with C2H5OH (each 20 mL wash). The schematic procedure for the fabrication of carbonized metal oxide and ZIF-67 is illustrated in Scheme 1. The physiochemical and electrochemical studies of the synthesized material are provided in the Supporting Information.

Scheme 1. Fabrication of ZIF-67 and Mn3O4@Nitrogen-Doped C.

Scheme 1

Open in a new tab

3. Results and Discussion

3.1. Physiochemical Evaluation

X-ray diffraction (XRD) of fabricated ZIF-67 is well consistent with the simulated XRD for ZIF MOFs (CSD no.: GITTOT02), space group of I43m (217), and cell parameter of α = β = γ = 90° and a = b = c = 16.9077 Å and is well matched with the previous report,51 suggesting that the pure phase was synthesized without any additional peaks for any unwanted phases, as illustrated in Figure 1a. Furthermore, Figure 1b displays the Braggs angles of successful formation of 28.76, 32.34, 35.87, 37.81, 44.55, 50.74, 58.35, 59.95, and 64.55° corresponds to hkl indexes of (112), (103), (211), (004), (213), (105), (321), (215), and (323), respectively, which are well consistent with the JCPDS no. 01-080-0382. The crystallographic parameter of Mn3O4@N-doped C exhibited a tetragonal crystal system, space group of 141/amd, and space group number of 141 with a crystal parameter of a = 5.76, b = 5.76, and c = 9.44 Å. The presence of all the peaks confirms the effective synthesis of Mn3O4@N-doped C and the presence or absence of peaks confirm the pureness of the materials. The lack of a significant band for “C” indicates the low concentration or amorphous state of carbon in the final product following carbonization.

Figure 1.

Figure 1

Open in a new tab

XRD of (a) ZIF-67 and (b) Mn3O4@N-doped C.

The structural analysis and surface functionalities of ZIF-67 MOF and carbonized-doped manganese oxide nanoarray were further confirmed by Fourier transform infrared (FT-IR) of 4000 to 500 cm–1, as represented in Figure 2a. The transmittance band that appeared at 3010–3714 cm–1 in both fabricated materials is related to the hydroxyl stretching vibration mode of H2O that are adsorbed on interfaces of electrocatalyst. The FT-IR spectrum of ZIF-67 display reflection bands in the range of 2909.96 cm–1 are owing to the C–H stretching band in the aliphatic chain and aromatic structure in 2-methylimidazole. The distinct transmittance bands at 1597.43, 1392.34, and 1076.54 cm–1 are owed to the imidazole ring and 723.68 cm–1 corresponds to a carbon nitrogen double bond in ligand 2-methylimidazole.52 The FTIR peak detected at 430.72 cm–1 is related to the Mn–N bond.53 The existence of distinctive peaks confirms the successful fabrication of ZIF-67 MOF. The Mn3O4@N-doped C display the characteristic peaks at 1614.77, 1392.66, and 1106.54 cm–1 are associated with nitrogen and carbon stretching bonds like C–N, C=C, and C–C, and the bands appeared below 1000 cm–1 are characteristic peaks of metal oxide (Mn–O) stretching bands. Their analysis is well consistent with the XRD analysis with no extra peaks revealing the purity of the fabricated materials. Figure 2b illustrates the thermogravimetric analysis (TGA) curve of fabricated ZIF MOFs measured under a nitrogen environment. The preliminary stages of mass reduction of 38% below the 250 °C and 16% from 490 °C are attributed to the elimination of potential guest species, such as solvents, nitrates, surface moisture, and physically attached linker species, respectively. The last phase found at 490 °C can be measured by the pyrolysis of organic groups and ZIF-67 nanostructure.

Figure 2.

Figure 2

Open in a new tab

(a) FT-IR analysis of the ZIF MOF and carbonized manganese oxide and (b) TGA curve of the ZIF MOF.

Scanning electron microscopy (SEM) microanalysis was employed to examine the morphology of both synthesized material at 500 nm. The SEM analysis of ZIF-67 revealed the rhombic dodecahedron morphology are displayed in Figure 3a. The present morphology of ZIF-67 also confirms the successful formation of ZIF-67 MOF. The Mn3O4@N-doped C exhibited an irregular spherical morphology, as represented in Figure 3b. The irregular shape Mn3O4@N-doped C exhibited a greater number of active regions that are more desirable for supercapacitive applications. The internal morphology of synthesized ZIF-67- and Mn3O4@N-doped C was investigated with transmission electron microscopy (TEM) analysis at 300 nm. The results revealed that ZIF-67- and Mn3O4@N-doped C exhibited the rhombic dodecahedron and nanoparticles, respectively, labeled with a yellow mark, as illustrated in Figure 3c,d. ZIF-67 and Mn3O4@N-doped C nanoarrays were employed to determined N2 sorption isotherms, BET specific surface area (SSA), and the characteristic parameter of porous features. This work is illustrated Figure 3e,f, which suggests the type I–IV hybrid isotherms related to IUPAC classification and demonstrates the coexistence of porous states.54 The obtained SSA values were 615 and 160 m2 g–1 for ZIF MOFs and carbonized manganese oxide, respectively. Furthermore, the Barrett, Joyner, and Halenda technique was employed to investigate the size of pores of 1.45 and 6.45 nm for ZIF MOFs and carbonized manganese oxide, respectively.

Figure 3.

Figure 3

Open in a new tab

SEM micrograph of (a) ZIF MOF and (b) carbonized manganese oxide, TEM analysis of (c) ZIF MOF, (d) carbonized manganese oxide, and BET of (e) ZIF MOF and (f) Mn3O4@N-doped C.

In order to better understand the material’s properties, the electronic states and chemicals of the structure were measured using XPS. The compilation of all the elements found in Mn3O4@N-doped C from the overall scan is shown in Figure 4a. Using a Gaussian model, high-resolution scans of the component element peaks are represented in Figure 4b–d. The carbon spectrum Figure 4b displays the three peaks for C–C, O–C, and O–C=O related to 284.03, 285.5, and 288.38 eV, correspondingly. The N 1s display the XPS peaks at 399.42, 401.77, 403.45, and 407.06 cm–1 are corresponding to –N=C–, –N–, –HN–C–, and –HN–C=O, correspondingly. The oxygen 1s spectrum exhibited the XPS band at 528.74 and 531.2 eV owing to Mn–O and C=O and are displayed in Figure 4d. Mn 2p (Figure 4e) represents the two deconvoluted curves at 654.4 and 649.9 eV owing to Mn 2p1/2 and Mn 2p3/2, correspondingly. Further, the presence of no other peaks confirms the purity of the materials.

Figure 4.

Figure 4

Open in a new tab

XPS spectra of (a) width survey, (b) carbon 1s, (c) nitrogen 1s, (d) oxygen 1s, and (e) Mn 2p spectrum.

3.2. Electrochemical Evaluation for Supercapacitive Application

Mn3O4@N-doped C and ZIF-67 was subjected to a wide range of electrochemical studies to investigate the electrochemical performance in different electrolytes. Cyclic voltammetry (CV) analysis may be used to get a qualitative understanding of the electrochemical application taking place in the material and whether or not they are faradic in nature. First, it is important to make sure the electrode and electrolyte are compatible before investigating the material’s electrochemical behavior. Capacitance changes as electrolyte ions are either removed from or absorbed by the electrode substance. Functionality of an electrolyte is significantly affected by the diffusion rate and the size of the solvated ions present.

The electrochemical characteristics of the carbonized manganese oxide electrode (thickness = 1.7 mm) have been investigated using a three-electrode configuration (CHI660e). Figure 5a–c displays the CV peak of Mn3O4@N-doped C in three distinct electrolyte media, such as 2.0 M lithium hydroxide, sodium hydroxide, and potassium hydroxide at different sweeping speeds (5–30 mV s–1). Mn3O4@N-doped C exhibits a pair of redox curve in all electrolytes, which help to explain the pseudocapacitive nature.55 These redox curves are brought on by the reduction and oxidation processes. Peak potentials for reduction and oxidation in a potassium hydroxide solution are similar to those in carbonized manganese oxide electrolytes. The reaction of metal oxide in the electrolyte ion is represented in eq 1.

3.2. 1

Figure 5.

Figure 5

Open in a new tab

CV curve of Mn3O4@N-doped C in a variety of electrolytes (a) KOH, (b) sodium hydroxide, and (c) LiOH.

The reduction of Mn3+ to Mn/Mn2+ metal and the oxidation of metal Mn/Mn2+ to Mn3+, correspondingly, are responsible for the reduction peaks appearing at approximately 0.083 V and the oxidation band at 0.28 V at 5 mV s–1 in the potassium hydroxide electrolyte. All curves that deviate from the perfectly rectangular form are said to exhibit pseudocapacitive behavior. As can be observed in Figure 5, the cathodic and anodic peaks move to lower and higher potentials, respectively, as a result of the scan rate rising, which is a result of the restricted ion movement during oxidation reduction processes. The CV peaks for carbonized materials in the 0.0–0.5 V in alkaline electrolytes are shown in Figure 5 at different scanning rates. Compared to the carbonized manganese oxide in potassium hydroxide, lithium hydroxide, and sodium hydroxide electrolytes, the capacitance of the carbonized manganese oxide in the KOH electrolyte is bigger because of the stronger redox characteristics and CV polygonal area. The current responsiveness of carbonized manganese oxide declines in different electrolytes in the sequence of KOH < NaOH < LiOH.

According to the reported research, the cations (Na+, Li+, and K+) tend to form hydrated ions in water containing electrolytes. When a larger ion is hydrated, a wider variety of hydrated ions is commonly produced, but a higher quantity of hydrated ions is frequently produced when a smaller ion is hydrated. The larger K+ and Na+ cations produce lesser hydrated ions with radii of 3.31 and 3.58 nm, correspondingly, while the lesser Li+ cation produces a greater hydrated ion with a radius of 3.82 nm. That is why the specific capacitance is greater when 2.0 M KOH is used as the electrolyte rather than NaOH or LiOH.56 The reported conductivity of K+ ions at 25 °C is larger than that of sodium ions at 50 °C and Li+ ions at 38 °C, suggesting that K+ would have a higher ion mobility. Improved electrochemical performance is the consequence of greater ionic mobility and contact with the electrode material due to the K+ ions’ reduced hydration radius. The fact that K+ ions gained a small charge density, indicating poor solvation attraction with H2O species, allows for improved polarization during the desolvation processes. This is an additional advantage of K+ ions. In redox processes, this enables K+ ions to readily enter the electrode. The results mentioned above show that cations play a crucial function in electrochemical processes.

The CV comparison with the effect of different electrolytes on carbonized manganese oxide are displayed in Figure 6a. The comparative analysis revealed that the Mn3O4@N-doped carbon exhibited a high current density in KOH with a larger polygonal area than LiOH and NaOH. The variations in Cs values with sweeping speed for various electrolytes are illustrated in Figure 6b. The material capacitance reduces with increased scan speed, which may be due to a reduction in the greater number of active regions engaged in oxidation and reduction processes. This relationship demonstrates the total number of active redox reaction sites. The greater number of reduction and oxidation regions participating at smaller sweeping rates is greater than at larger scan rates. Low scan rates would provide the ions sufficient time to reach the electrode interface, enabling the deep penetration of electrolyte ions on the active site of interface materials. Only the surface adsorption process happens at a faster sweeping speed because the electrolyte ions do not have sufficient time to adsorb the substance. The 2.0 M potassium hydroxide electrolyte has the largest capacitance compared to the sodium hydroxide and lithium hydroxide electrolytes because K+ ions may easily access the inner surface of the electrocatalyst materials.

Figure 6.

Figure 6

Open in a new tab

Comparative analysis of (a) CV and (b) Cs plots in a variety of electrolyte.

For comparison purposes, the CV analysis of ZIF-67 was conducted under the same electrochemical conditions in 2.0 M KOH as described for Mn3O4@N-doped C at 5–30 mV s–1. The ZIF-67 exhibited the Cs of 432.16, 303.96, 171.92, and 143.27 F g–1 for 5–30 mV s–1 calculated with eq. S1. Furthermore, the ZIF-67 displays a maximum current of 0.177 A for 30 mV s–1, as represented in Figure 7a. The comparison between the CV curve of ZIF MOF and carbonized manganese oxide is displayed in Figure 7b. The comparative analysis suggests that the ZIF-67 exhibited a small polygonal area and smaller current compared to Mn3O4@N-doped C resulting in small Cs. The redox peak indicates the pseudocapacitive behavior of the synthesized material. The redox peak was responsible for the transition of Mn2+/Mn3+.57

Figure 7.

Figure 7

Open in a new tab

(a) CV of ZIF MOF and (b) comparison between the ZIF MOF and carbonized manganese oxide.

Studies of charge–discharge behavior in 2.0 M KOH, LiOH, and NaOH electrolytes are employed to understand more about the electrochemical features of the Mn3O4@N-doped C material, which works best in the 2.0 M KOH electrolyte concerning capacitance. The galvanostatic charge–discharge (GCD) of carbonized manganese oxide is illustrated in Figure 8a–c at different current densities, such as 1, 2, and 3 A g–1. The electrochemical reaction is driven by a redox mechanism, as suggested by the nonlinearity of the discharge curve, which agrees with the cyclic voltametric results. A smaller current density results in a slower discharge of the material, whereas a higher current density results in a faster discharge, as shown by the graph. The Cs increases in proportion to the square of the discharge period. As a result, the Cs grows at a small current density (C.D.) and is reduced at high densities. According to the discharge curve’s nonlinear nature, a redox mechanism drives the electrochemical reaction, which is in line with the CV findings. The graph shows that while the C.D is low, the material discharges more slowly, and as the current density rises, the material discharges more quickly. As the discharge time increases, the Cs rise. The Cs thus increases at smaller C.D. and less as C.D increases.

Figure 8.

Figure 8

Open in a new tab

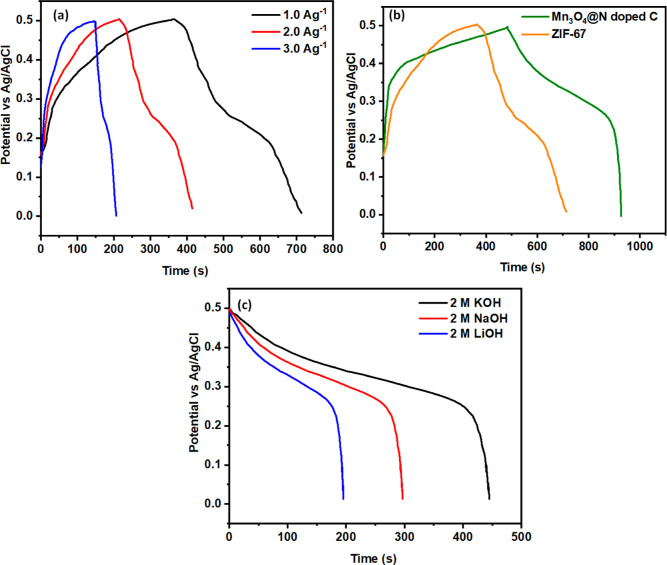

GCD analysis of 2.0 M (a) KOH, (b) NaOH, (c) LiOH, (d) Cs plot profile, and (e) Ragone plot profile of carbonized manganese oxide in different electrolytes.

Mn3O4@N-doped C exhibits nonlinear discharge and asymmetrical behavior. Pseudocapacitance was due to reversible interactions between electrolyte ions and rich surface heteroatoms, as shown by deviations from triangular shapes in the GCD curves. Cs values for carbonized carbon in potassium hydroxide, lithium hydroxide, and sodium hydroxide @ of 1, 2, and 3 A g–1 are 980.64, 721.55, and 584.90 F g–1, 451.22, 319.47, and 146.47 F g–1 and 602.65, 474.72, and 241.22 F g–1, respectively, as measured in eq S2, and their comparison with the reported literature is given in Table 1. Furthermore, a comparative analysis among the Cs of Mn3O4@N-doped C in the different electrolytes is given in Figure 8d. Specific capacitance is observed to be smaller with increasing C.D. This is linked to increased ionic resistance and decreased charge diffusion into the inner active sites. The main factor for the reduction at higher current densities is an increased voltage (IR) drop, which often occurs in transition-metal oxides. The capacitance decreases with increasing current density, which may be explained by the sample’s delayed response to abrupt changes in current and potential. At 1 A g–1, the diffusion of electrolyte ions can reach the whole interface of the electrode material, resulting in an increase in the Cs. Increases in current density cause a decrease in capacitance because they lessen the effective intercalation between the electrode and electrolyte ions. The Ragone plot was used to display the relationship among the energy density (Ed) and power density (Pd) in Figure 8e and measured with the help of eqs S3 and S4.

Table 1. Comparative Analysis among the Published MOF-Derived and -Synthesized Materials.

Sr no materials specific capacitance (F g–1) current density (A g–1) electrolyte ref
1 ZIF-derived N-doped porous carbon-ZS 285.8 0.1 6.0 M KOH (58)
2 RhB@ZIF-8-derived ZnO@C 1200 1.0 2.0 M KOH (27)
3 ZIF-derived ZnS/CoS 1646 1.0 6.0 M KOH (59)
4 ZIF-8-derived ZnO/C@f-MWCNT 650 1.0 3.0 M KOH (60)
5 ZIF-8 derived ZnS@C 145.7 2.0 1.0 M Na2SO4 (61)
6 ZIF-8 derived N-doped PC-CNTs 250 0.1 6.0 M KOH (62)
7 HPZIF-67-derived Co3O4@N-doped C 709 1.0 2.0 M KOH (20)
8 MOF-derived ZnMn2O4/C 589 1.0 1.0 M Na2SO4 (63)
10 ZIF-8-based carbon@MnO2 247.9 0.5 2.0 M Na2SO4 (64)
11 ZIF-67 MOF-derived Mn3O4@ N doped C 980 1 2.0 M KOH this work
Open in a new tab

The GCD curve of ZIF-67 GCD in 2.0 M potassium hydroxide solutions with C.D of 1, 2, and 3 is illustrated in Figure 9a. The Cs of ZIF-67 is observed in the range of 519.88, 410.66, and 257 F g–1 @ 1, 2, and 3 A g–1. The GCD curves of both ZIF MOF and carbonized manganese oxide are displayed in Figure 9b, suggesting that the doped material displays a longer discharge time than the MOF. The result revealed that the carbonized manganese oxide has a greater discharge time than the ZIF MOF, resulting in higher Cs. “N” different atoms, which improve the gravimetric efficiency of carbon-based supercapacitors, may be the cause for the rise in Cs. Capacitance and rate performance of energy storage devices have both increased dramatically as a consequence of improved electrolyte accessibility and carbon wettability, as well as enhanced pseudocapacitance given by “N” doping. Figure 9c displays the comparison between the GCD profile of Mn3O4@N-doped C in the different electrolytes. The results suggest that the N-doped material exhibited the 2.0 M KOH having the longest discharge curve compared to that of another alkaline electrolyte that gives high Cs.

Figure 9.

Figure 9

Open in a new tab

(a) GCD curve of ZIF-67, (b) comparison between the ZIF MOF and carbonized manganese oxide, and (c) comparison of Mn3O4@N-doped C among the different electrolytes.

The electrochemical impedance spectroscopy (EIS) Nyquist plot displays the association among the imaginary and real parts of impedance (Z′ and Z″) in the range of 0.1 to 100 000 Hz. The starting frequency of EIS is 0.1 Hz and ending frequency is 100 000 Hz. The Mn3O4@N-doped C Nyquist curve in different alkaline electrolytes is given in Figure 10a. All electrolytes have a characteristic impedance profile known as Warburg impedance, which consists of a linear region with a depressed circle in the greater frequency range. The slope line present in the low-frequency region of Nyquist plot indicates Warburg impedance displaying the diffusion process and the slope line toward 45° indicates the faster diffusion of electrolyte ions.65,66 However, the slope line of KOH in Mn3O4@N-doped C toward 45° indicates the more capacitive nature and faster diffusion of OH– electrolyte ions on the electrode surfaces than the other electrolyte solution. The small depressed circle shows the charge-transfer resistance (Rct) of the electrocatalytic materials. The measured Rct values for Mn3O4@N-doped C in potassium hydroxide, sodium hydroxide, and lithium hydroxide are 2.35 , 5.63 , and 8.31 Ω, respectively. The results suggest that KOH exhibited a small Rct value than NaOH and LiOH, which might be attributed to the conductive nature and diverse morphology of Mn-doped material than the carbonaceous MOFs.

Figure 10.

Figure 10

Open in a new tab

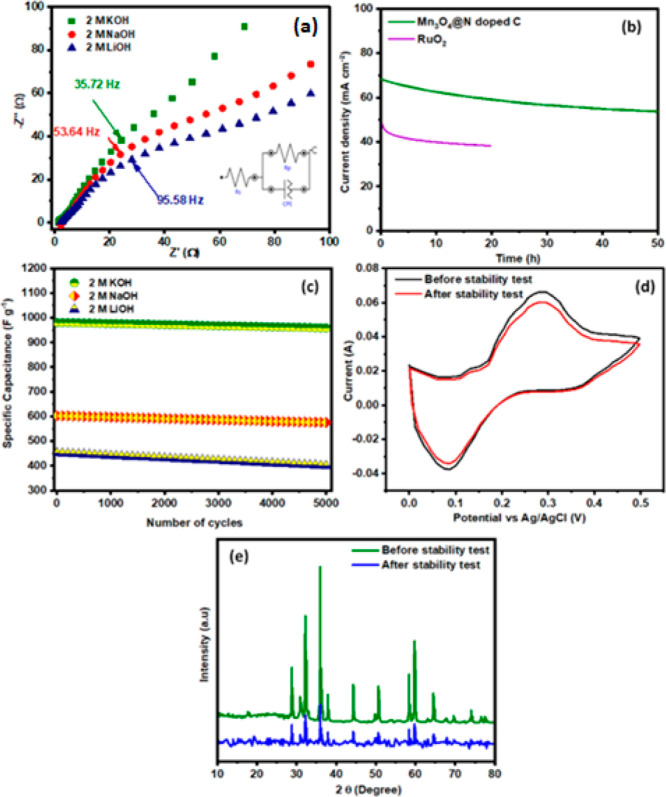

(a) EIS profile of carbonized manganese oxide in different electrolytes, (b) chronoamperometry analysis in KOH, (c) GCD rate capability comparative analysis in different electrolytes, (d) cyclic stability in KOH, and (e) XRD of Mn3O4@N-doped C.

The chronoamperometry analysis (Figure 10b) was used to examine the stable behavior of Mn-doped material in potassium hydroxide at 0.75 V. The results revealed that the Mn-doped material showed a very small decline in the current density in the first few hours, and then they showed a straight line up to 50 h. The slight decline was due to the activation of active sites, and a straight line indicates stable behavior than the benchmark (RuO2). To determine the electrochemical stability of carbonized manganese oxide, galvanostatic charge–discharge studies are performed. Mn3O4@N-doped C was evaluated @ 1 A g–1 for 5000th cycles, and the analysis is displayed in Figure 10c. Mn3O4@N-doped C also shows the retention capacitances of 97.77, 95.54, and 88.41% in the electrolyte of KOH, NaOH, and LiOH. The high-rate capability of N-doped carbon facilitates ion transport in a large number of porous states. The cycling stability of doped material materials was determined with CV analysis under a KOH solution, as represented in Figure 10d. The CV analysis shows the very small change in the current density of indicates the cyclic stability of the synthesized products.67,68 The structural stability of the Mn3O4@N-doped C was evaluated with XRD analysis to confirm the lattice property of the materials. The XRD pattern (Figure 10e) of doped materials displays reduction in intensity, and the absence of some diffraction peaks is attributed to blockage of some active zones and destruction of some active sites that cannot perform the catalytic activity.

3.3. Two-Electrode Evaluation

The real-time potential capability of Mn-doped materials as supercapacitor electrodes was evaluated with two electrode systems with GCD and CV profile analyses in a potassium hydroxide solution. Figure 11a displays the CV curve having a more significant current of 0.10 A with a different sweep speed of 5–30 mV s–1. All of the CV peaks show the quasi-symmetrical shape at a larger scanning speed at 30 mV s–1, displaying good retention capacitance and ideal capacitive behavior. The analysis revealed that the current rises with the rise of sweeping speed, as it is directly linearly proportional to the sweeping rate. Figure 11b displays the Cs profile obtained from CV analysis, which suggests that the Cs values of the obtained materials declined with the increase in sweeping speed. The highest Cs was obtained in a small sweeping speed of 432.16 @ 5 mV s–1. It was attributed to the short time available at a high scan rate for the intercalation of KOH ions to the surface of the electrocatalyst. The GCD profile analysis of Mn-doped material displays the nonlinear curve, as demonstrated in Figure 11c. The outcomes revealed that the Mn-doped material at 1 A g–1 exhibited a more significant discharge curve, indicating the good capacitive properties of the material at a small current density. Further, GCD analysis (Figure 11d) was employed to investigate the Cs with eq S2, which was found in the range of 686.27, 523.80, and 367.5 F g–1 @ 1, 2, and 3 A g–1 and the relationship between the Cs and current density. The gradual decline in the Cs of Mn-doped material with rising current density was due to less time for electrolyte ions to penetrate the depth of the electrode materials. Based on our experimental results, the produced Mn3O4 @ N-doped C nanostructures constitute a promising electrocatalytic nanostructure for a more significant-performance symmetrical electrode materials, with higher capacitive performance than previously published electrodes. This research focuses on supercapacitor properties with two and three electrodes. The three-electrode system outperformed the two-electrode technique in terms of the electrochemical efficiency. Mobile electrolyte ions have unrestricted access to the electrode material during a charge storage process, resulting in a very high Cs response, which may result from an electrode being exposed to an excessive quantity of potassium hydroxide solution. A three-electrode chemical cell architecture, while theoretically conceivable, is unsuitable for real-world applications because commercial supercapacitors are built using a two-electrode structure. By using only two electrodes, we can reduce the volume of electrolyte ions, allowing for the low-cost mass production of supercapacitors. The Cs of Mn3O4 @ N-doped C is observed to be lower (686 F g–1) in a two-electrode system as compared to the three-electrode system (980 F g–1) due to the polarization of the symmetric electrode. The combined effects of Mn3O4 and N-doped C and high surface area all contribute to excellent electrochemical performance.

Figure 11.

Figure 11

Open in a new tab

(a) CV profile, (b) Cs profile, (c) GCD plot, and (d) Cs from GCD of carbonized manganese oxide.

4. Conclusions

The fabrication of a porous ZIF MOF was made with a TEA-assisted technique. The fabricated ZIF-67 was employed as a precursor to generate carbonized manganese oxide via a pyrolysis of one-step carbonization. The effect of the different electrolytes, such as potassium hydroxide, lithium hydroxide, and sodium hydroxide on the capacitive properties of the Mn3O4@N-doped C was also investigated in this study. Their electrochemical analysis revealed that Mn3O4@N-doped C displays a high electrochemical efficiency of 980 F g–1 in potassium hydroxide, which is larger than the other basic electrolyte solution. Further, the comparative analysis was conducted with ZIF-67 and Mn3O4@N-doped C in 2.0 M KOH solution, and their electrochemical analysis suggested that Mn3O4@N-doped C exhibited higher Cs of 980 F g–1 than ZIF-67 (686 F g–1). The EIS results display the smaller Rct value of 2.35 Ω for Mn3O4@N-doped C in KOH, which further confirms the good electrochemical behavior of other electrolyte solutions. The Mn3O4@N-doped C exhibited higher cycling stability in KOH at a rate capability of 97.77% compared to other electrolyte solutions. To determine the real potential capability of the carbonized doped manganese oxide, an electrode system was conducted in KOH. The Mn3O4@ N-doped C displays a high Cs of 519 F g–1, smaller than the three-electrode system. In light of the above found results, carbonized doped manganese oxide exhibited a higher electrochemical efficiency in KOH than another basic electrolytes. It was attributed to the higher ionic mobility, reduced hydration sphere of K+, and low charge density. Our work shows that Mn3O4@ N-doped C is a suitable pseudocapacitive material for high-performance supercapacitors, in addition to verifying the practicality of rational design of enhanced integrated electrode materials.

Acknowledgments

The authors are thankful to the Deanship of Scientific Research at Najran University for funding this work under the Research Priorities and Najran Research funding program. grant code (NU/NRP/SERC/12/12).

Data Availability Statement

Data will be made available on reasonable request.
