. 2024 Apr 23;11:417. doi: 10.1038/s41597-024-03270-8

Chromosome-level genome assembly of the predatory stink bug Arma custos

Yuqin Wang 1,#, Yunfei Luo 1,#, Yunkang Ge 1,#, Sha Liu 1, Wenkai Liang 1, Chaoyan Wu 1, Shujun Wei 1,2, Jiaying Zhu 1,3,✉
PMCID: PMC11039643  PMID: 38654007

Abstract

The stink bug Arma custos (Hemiptera: Pentatomidae) is a predatory enemy successfully used for biocontrol of lepidopteran and coleopteran pests in notorious invasive species. In this study, a high-quality chromosome-scale genome assembly of A. custos was achieved through a combination of Illumina sequencing, PacBio HiFi sequencing, and Hi-C scaffolding techniques. The final assembled genome was 969.02 Mb in size, with 935.94 Mb anchored to seven chromosomes, and a scaffold N50 length of 135.75 Mb. This genome comprised 52.78% repetitive elements. The detected complete BUSCO score was 99.34%, indicating its completeness. A total of 13,708 protein-coding genes were predicted in the genome, and 13219 of them were annotated. This genome provides an invaluable resource for further research on various aspects of predatory bugs, such as biology, genetics, and functional genomics.

Subject terms: Entomology, Genome

Background & Summary

The stink bug Arma custos (Fabricius, 1794) (Hemiptera: Pentatomidae) is synonymous with Arma chinensis (Fallou, 1881), which has been recorded in China, Mongolia and Korea, as well as central and southern Europe (except the British Islands) and the neighboring parts of the Middle East1,2. Both nymphs and adults of this zoophytophagous bug can predate many agricultural and forestry pests belonging to the orders of Coleoptera, Lepidoptera, Hemiptera and Hymenoptera by utilizing a venomous cocktail produced by the salivary gland to capture and digest preys3,4. It can be easily mass-reared using artificial diet in a factory and exhibits strong adaptability to diverse ecological niches, enabling its successful use as a commercialized biocontrol agent3,5. Notably, it has shown effective management of notorious invasive pests such as the fall webworm Hyphantria cunea, the Colorado potato beetle Leptinotarsa decemlineata, and the fall armyworm Spodoptera frugiperda through the augmentative release6–8. However, limited attention has been given to the investigation of the biological characteristics9–11, artificial rearing methods3,5,12, chemoecology13, response to temperature and drought stresses8,14–17, and developmental regulation by miRNA18 of this predatory bug. In terms of its genetic information, only the mitochondrial genome and several transcriptomic datasets are available as the current genetic resources13,15,16,18,19. Obtaining high-quality genome for providing a whole set of gene resources of A. custos will greatly facilitate a wide range of biological researches and allow further investigations, such as population genetic diversity, venomics, adaptive evolution, and comparative genomics.

In this study, we have assembled a chromosome-level genome of A. custos by combining PacBio HiFi sequencing and High-throughput chromosome conformation capture (Hi-C) technologies. The genome assembly allowed us to identify repeat sequences and protein-coding genes. Predicted genes were annotated. The generated genomic resources will facilitate to the investigation of this predatory bug.

Methods

Sample collection and rearing

The population of A. custos used in this study originated from a colony collected in the suburb of Kunming, Yunnan Province, China. These bugs have been maintained in our laboratory for more than 20 generations. They were fed with larvae of the yellow mealworm Tenebrio molitor, the greater wax moth Galleria mellonella, and the fall armyworm S. frugiperda. Cages measuring 40 cm × 40 cm × 40 cm, constructed with Nylon netting (44 × 32 mesh) on all sides, were used to rear the bugs. Each cage housed approximately 100 bugs. Soybean plants were also provided in the cage for feeding and perching. The bugs were reared at a constant temperature of 25 ± 1 °C, 70 ± 5% relative humidity, and a photoperiod of 14 L:10D.

Sequencing

Genomic DNA was extracted from one newly emerged male adult using the QIAamp DNA Mini Kit (Qiagen, Hilden, Germany). Total RNA was isolated from various adult tissues including different glands of the salivary venom apparatus (anterior main gland, posterior main gland, and accessary gland), gut and residual body (adult deprived of salivary venom apparatus and gut). The integrity and contamination of the DNA and RNA were assessed on a 1% agarose gel. The purity of the DNA and RNA was measured with a NanoDrop 2000c spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). The DNA and RNA concentration of was determined using the Qubit DNA Assay Kit in Qubit 3.0 Flurometer (Invitrogen, Carlsbad, CA, USA).

For short-read genomic and transcriptome sequencing, the library with an insert size of 350 bp was constructed using the NEBNext Ultra DNA Library Prep Kit (Illumina, San Diego, CA, USA) following manufacturer’s recommendations. This library was then sequenced on the Illumina NovaSeq 6000 platform (Illumina, San Diego, CA, USA). The genomic short-read data yielded from the Illumina NovaSeq 6000 platform amounted to 74.86 Gb with a Q20 value of 96.56% and a Q30 value of 90.84% (Table 1). A total of 72.86 Gb transcriptomic data were generated, which have Q20 values over 96.56% and Q30 values more than 90.84%.

Table 1.

Statistics of sequencing data for genome assembly and annotation.

Library type Sequencing platform Sample Reads number Raw data (Gb) NCBI SRA accession no.
Genome Illumina NovaSeq 6000 Male adult 249,518,674 74.86 SRR25498178
Genome PacBio sequel II Male adult 2,299,735 34.41 SRR25503034
Hi-C Illumina NovaSeq 6000 Male adult 8,661,026 163.62 SRR25518321
Transcriptome Illumina NovaSeq 6000 Anterior main gland of male 42,024,044 12.61 SRR25541878 SRR25541877
Transcriptome Illumina NovaSeq 6000 Posterior main gland of male 45,376,382 13.61 SRR25541873 SRR25541872
Transcriptome Illumina NovaSeq 6000 Accessary gland of male 42,227,792 12.67 SRR25541880 SRR25541879
Transcriptome Illumina NovaSeq 6000 Duct of accessary gland of male 43,771,219 13.13 SRR25541882 SRR25541881
Transcriptome Illumina NovaSeq 6000 Gut of male 40,425,550 12.13 SRR25541876 SRR25541875
Transcriptome Illumina NovaSeq 6000 Residual body of male 44,540,809 13.36 SRR25541871 SRR25541870
Transcriptome Illumina NovaSeq 6000 Anterior main gland of female 44,301,583 13.29 SRR25541868 SRR25541867
Transcriptome Illumina NovaSeq 6000 Posterior main gland of female 61,418,417 18.52 SRR25541864 SRR25541863
Transcriptome Illumina NovaSeq 6000 Accessary gland of female 43,782,125 13.13 SRR25541874 SRR25541869
Transcriptome Illumina NovaSeq 6000 Duct of accessary gland of female 44,006,115 13.2 SRR25541886 SRR25541885
Transcriptome Illumina NovaSeq 6000 Gut of female 41,769,353 12.53 SRR25541866 SRR25541865
Transcriptome Illumina NovaSeq 6000 Residual body of female 45,693,537 13.71 SRR25541884 SRR25541883
Open in a new tab

For PacBio HiFi long-read sequencing, the SMRTbell library was prepared with the SMRTbell Express template preparation kit 2.0 (Pacific Biosciences, Menlo Park, CA) and subsequently sequenced using the Sequel II Sequencing Kit 2.0 with SMRT Cell 8 M Tray on a PacBio sequel II instrument (Pacific Biosciences, Menlo Park, CA). In total, 34.41 Gb high-quality HiFi reads (34.85 × coverage) were obtained with an average length of 14.96 kb and an N50 length of 15.18 kb (Table 1).

The Hi-C library was generated using the restriction endonuclease Mbol following the standard protocol described previously20, which was sequenced on the Illumina NovaSeq 6000 platform (Illumina, San Diego, CA, USA) using a 150-bp paired-end strategy. A total of 163.62 Gb (165.72 × coverage) of raw data was generated.

Genome survey

To ensure data quality, adapter sequences and low-quality reads were removed with fastp v0.21.021. The resulting clean reads were used to generate a histogram of the 17-mer distribution with Jellyfish v2.2.7 with parameters ‘count -g generators -G 4 -s 5 G -m 17 -C -t 10’22 (Fig. 1), followed by calculation of genome heterozygosity. Based on these analyses, the estimated genome size was determined to be 987.35 Mb, with a heterozygosity of 0.80%.

Fig. 1.

Fig. 1

Open in a new tab

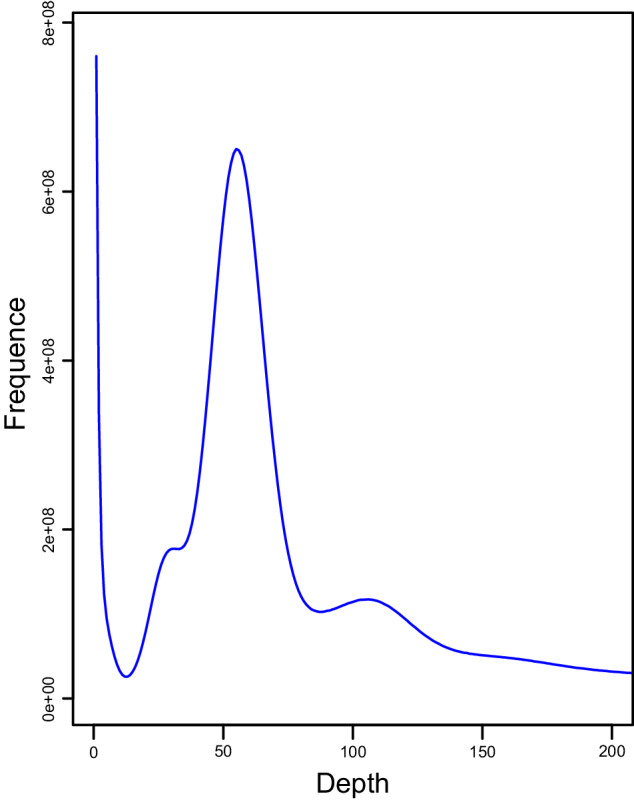

The 17-mer analysis of the genome of Arma custos. The X-axis represents the k-mer depth. The Y-axis indicates the k-mer frequency for a given depth.

Genome assembly

The PacBio HiFi reads were utilized to assemble the genome into contigs using hifiasm v0.16.123. The assembled draft genome was polished by employing the genomic short-reads generated by Illumina NovaSeq 6000 sequencer with the NextPolish v1.4.024. To identify and remove potential contaminant sequences, Kraken2 was employed against a custom database25. A total of 137 contigs were identified as bacteria and subsequently eliminated. The resulting draft genome was 969.02 Mb with a contig N50 of 2.11 Mb, and the GC content of 33.18% (Table 2).

Table 2.

Statistics of the Arma custos genome assembly.

Features Statistics
Total contig length (bp) 969,016,255
Number of contigs 1,142
Contig N50 size (bp) 2,105,537
Maximum contig size (bp) 11,334,306
Number of chromosomes 7
Total length of chromosomes (bp) 935,936,572
GC content (%) 33.18
Open in a new tab

Hi-C scaffolding

The raw HiC data were processed using Hi-C-Pro v2.8.026, followed by quality control with fastp v0.21.021. The resulting data were aligned to the draft genome assembly utilizing bowtie 2 v2.2.327 to obtain the uniquely mapped paired-end reads. Among the 8,661,026 reads, 4,330,513 reads were paired, with a total paired ratio of 38.70%. And a total of 1,470,719 reads were uniquely mapped to the genome, with an effect rate of 33.96%, representing valid interaction pairs. These valid interaction pairs were used to anchor the assembled contigs to near-chromosomal level using the Allhic v0.9.828. Then, juicebox v1.11.0829 was employed for manual correction based on chromosome interaction strength, ultimately resulting a chromosome-level genome. After curation, a total of 935.94 Mb of contigs, accounting for 96.58% of the assembled draft genome, were anchored into seven chromosomes, ranging from 77.33 Mb to 234.11 Mb (Table 3). The number of anchored chromosomes matched the result of chromosome karyotype analysis following the previously reported method30 (Fig. 2). The final genome exhibited an N50 of 135.75 Mb. A genome-wide chromatin interaction HiC heatmap was constructed using the ggplot2 software in the R package. According to the heatmap, all chromosomes were clearly distinguishable from each other (Fig. 3). The Advanced Circos tool implanted in TBtools v1.09876531 was used to visualize the landscape of the chromosomes (Fig. 4).

Table 3.

Summary of the assembled seven chromosomes of Arma custos.

Chr ID Contig number Chr length (bp)
Chr1 174 234,112,533
Chr2 138 135,751,263
Chr3 147 124,603,657
Chr4 97 115,729,252
Chr5 97 108,710,392
Chr6 168 139,701,585
Chr7 149 77,327,890
Open in a new tab

Fig. 2.

Fig. 2

Open in a new tab

Karyotype analysis of Arma custos reveals a chromosome count of seven. The chromosomes from two nuclei are shown.

Fig. 3.

Fig. 3

Open in a new tab

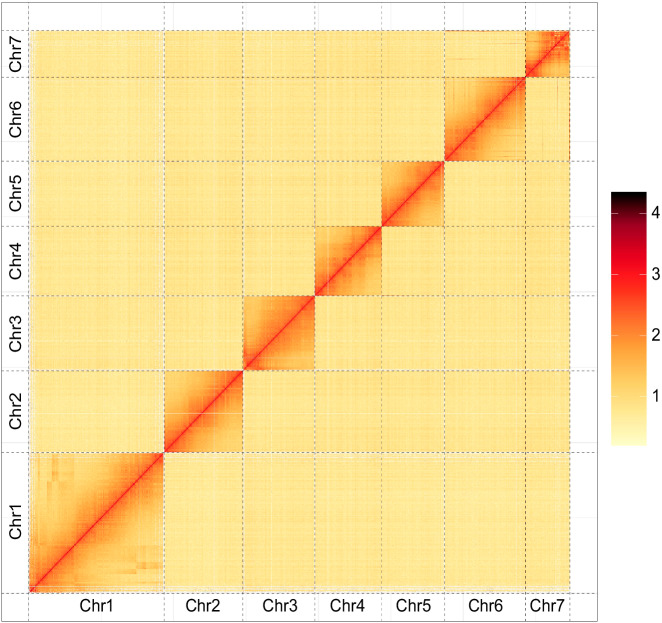

Heatmap of the Hi-C assembly of Arma custos. The interaction intensity of Hi-C links represents by colors shown in the left bar, ranging from yellow (low) to red (high).

Fig. 4.

Fig. 4

Open in a new tab

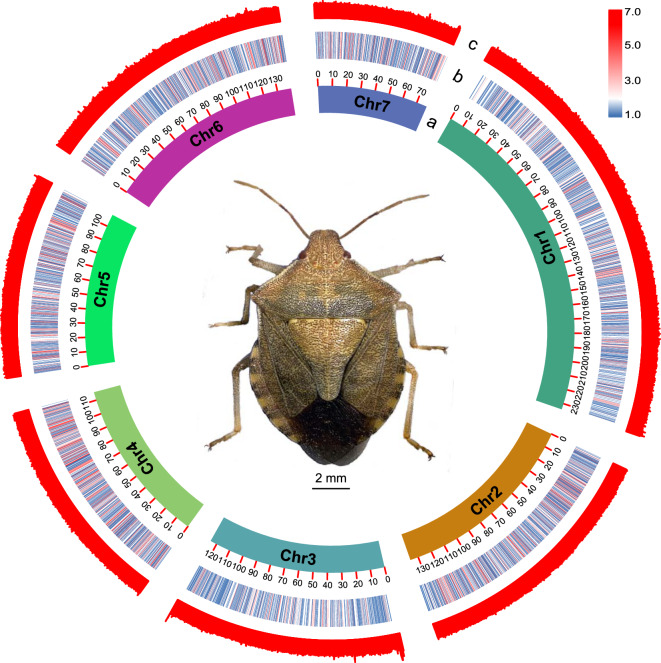

Overview of the genome characteristics of Arma custos in a circos plot. (a), length of chromosomes at the Mb scale; (b), gene density per Mb; (c), CG content per Mb.

Genome annotation

A combined strategy of homology alignment and de novo search was applied to identify repetitive elements in the genome. Tandem repeats were detected using Tandem Repeats Finder (TRF) v4.0932. Repetitive elements homologous to those available in the Repbase28.0633 were identified with RepeatMasker v4.1.0 and RepeatProteinMask v4.1.034. In addition, a de novo repetitive elements database was generated using LTR_FINDER v1.0.635, RepeatScout v1.0.536, and RepeatModeler v2.0.137. The resulting repeat sequences with lengths greater than 100 bp and gap ‘N’ less than 5%, obtained from both two strategies, were combined to construct the raw transposable element library. This library was then processed by UCLUST algorithm38 to yield a non-redundant library, followed by DNA-level repeat identification using RepeatMasker v2.0.137. The results indicated that the genome contained 52.78% repetitive elements, most of which were long terminal repeat (LTR) retrotransposons, representing 40.05% of the genome (Table 4).

Table 4.

Summary of repetitive sequences identified in the genome of Arma custos.

Repeat family De novo + Repbase TE Proteins Combined TEs
Length (bp) % of genome Length (bp) % of genome Length (bp) % of genome
DNA transposon 35,910,229 3.71 4,460,637 0.46 38,432,048 3.97
LINE 51,833,697 5.35 50,304,093 5.19 84,751,997 8.75
SINE 727,401 0.08 0 0 727,401 0.08
LTR 386,285,131 39.86 22,523,095 2.32 388,095,502 40.05
Unknown 45,755,684 4.72 222 0 45,755,906 4.72
Total (TRF not included) 502,619,694 51.86 77,280,191 7.97 505,079,672 52.12
Open in a new tab

For non-coding RNA (ncRNAs) annotation, the transfer RNAs (tRNAs) were predicted using tRNAscan-SE v1.439. As ribosomal RNAs (rRNAs) are highly conserved, they were predicted by searching against selected rRNA sequences from closely related species as references using the BLAST v2.2.2640. Other ncRNAs, including micro RNAs (miRNAs) and small nuclear RNAs (snRNAs), were identified by searching against the Rfam database v14.141 using the Infernal v1.1.242. Overall, 20,337 tRNAs, 1,556 rRNAs, 2,790 miRNAs and 596 snRNAs were predicted, resulting in a total of 25,279 ncRNAs (Table 5).

Table 5.

Summary of non-coding RNAs predicted in the genome of Arma custos.

Class Type Number Average length (bp) Total length (bp) % of genome
miRNA 2,790 125.08 348,971 0.036009
tRNA 20,337 73.44 1,493,526 0.15
rRNA rRNA 778 207.06 161,090 0.016622
18 S 214 244.99 52,428 0.00541
28 S 477 211.16 100,722 0.010393
5.8 S 2 110 220 0.000023
5 S 85 90.82 7,720 0.000797
snRNA snRNA 298 131.52 39,193 0.004044
CD-box 46 141.17 6,494 0.00067
HACA-box 16 187.44 2,999 0.000309
splicing 231 124.84 28,837 0.002976
scaRNA 5 172.6 863 0.000089
Open in a new tab

A combined three-pronged strategy, involving de novo prediction, homology-based gene prediction, and transcriptome-based prediction, was employed to annotate the genes in the genome. De novo gene models were generated by multiple programs, namely Augustus v3.3.343, GlimmerHMM v3.0.444, SNAP v2013.11.2945, Geneid v1.446, and Genscan v1.047. For homology-based prediction, protein sets from five bugs including Halyomorpha halys48, Nesidiocoris tenui49, Oncopeltus fasciatus50, Rhodnius prolixus51 and Apolygus lucorum52 were downloaded from Insectbase 2.053 on January 3, 2022. These protein sets were aligned to the assembled genome using TblastN v2.2.2640 with an E-value threshold of ≤1e−5. The matching proteins from these bugs were used to predict the gene structure of the assembled genome with GeneWise v2.4.154. For transcriptome-based prediction, raw reads from five transcriptomic libraries were subjected to quality control with fastp v0.21.021. After eliminating adapter sequences and low-quality reads with Trimmomatic v1.455, clean data were assembled into transcripts using Trinity v2.11.056 and StringTie2 v2.1.657. The candidate coding regions in these transcripts were predicted using TransDecoder v5.5.056, which is implemented in the Trinity software. The resulting protein sequences were used to predict the gene structures following the procedure as described for homology-based prediction. In addition, the clean transcriptomic data were aligned to the assembled genome using HISAT2 v2.2.158 to identify the exons and splice sites, and these were used to extract the gene structures using PASA v2.4.159. A non-redundant reference gene set was generated by merging genes predicted by the three strategies with EVidenceModeler (EVM) v1.1.160. The gene models were further updated with PASA v2.4.159 to identify untranslated regions. Finally, the final comprehensive gene set was generated, resulting in a total of 13,708 protein-coding genes (Table 6). These genes had an average gene length of 25,698.42 bp. The average lengths of their coding sequence (CDS), exon, and intron length were 1,400.68 bp, 192.17 bp, and 3,863.69 bp, respectively. On average, each gene contained 7.29 exons (Table 7).

Table 6.

Summary of protein-coding genes annotated in Arma custos genome by three strategies.

Gene set Number Average transcript length (bp) Average CDS length (bp) Average exons per gene Average exon length (bp) Average intron length (bp)
De novo Augustus 19,761 14,722.95 1,082.37 5.26 205.61 3,198.78
GlimmerHMM 58,896 10,708.91 415.56 3.21 129.28 4,648.56
SNAP 13,204 64,327.32 600.21 9.76 61.49 7,274.35
Geneid 17,994 24,118.89 970.43 4.28 226.78 7,059.29
Genscan 19,234 31,631.85 1,038.01 5.3 195.91 7,117.62
Homolog Nten 7,909 8,905.95 957.12 4.39 218.25 2,347.9
Aluc 11,081 11,029.78 1,076.08 5.24 205.26 2,346.15
Hhal 15,287 12,849.29 1,176.33 5.82 202.21 2,423.1
Ofas 14,804 5,945.94 795.81 3.76 211.46 1,863.76
Rpro 11,814 8,474.72 932.33 4.63 201.46 2,079.04
Transcriptome PASA 20,975 25,353.77 1,278.69 6.62 193.13 4,283.15
Transcripts 35,938 44,647.4 2,807.63 8.33 336.92 5,705.45
EVM 19,234 17,188.62 1,098.45 5.64 194.8 3,468.63
PASA update 19,029 20,359.35 1,128.47 5.79 195.06 4,018.72
Final set 13,708 25,698.42 1,400.68 7.29 192.17 3,863.69
Open in a new tab

Nten, Nesidiocoris tenui; Aluc, Apolygus lucorum; Hhal, Halyomorpha halys; Ofas, Oncopeltus fasciatus; Rpro, Rhodnius prolixus.

Table 7.

Comparison of protein-coding genes annotated in the genomes of Arma custos and other bugs.

Species Number Average transcript length (bp) Average CDS length (bp) Average exons per gene Average exon length (bp) Average intron length (bp)
Acus 13,708 25,698.42 1,400.68 7.29 192.17 3,863.69
Rpro 15,438 7,353.42 1,059.56 5.77 183.5 1,318.33
Ofas 19,587 11,934.86 899.86 5.09 176.68 2,695.92
Aluc 20,111 22,559.88 1,348.05 6.6 204.18 3,786.2
Nten 24,514 7,117.77 957.91 4.22 226.79 1,910.8
Hhal 14,454 22,935.31 1,445.21 7.39 195.44 3,360.68
Open in a new tab

Achi, Arma custos; Rpro, Rhodnius prolixus; Ofas, Oncopeltus fasciatus; Aluc, Apolygus lucorum; Nten, Nesidiocoris tenui; Hhal, Halyomorpha halys.

The annotation of the protein-coding genes was performed using BLAST v2.2.2640 against SwissProt and National Center for Biotechnology Information (NCBI) non-redundant (Nr) database with DIAMOND v2.2.2261, parameters used ‘-ultra-sensitive -max-target-seqs. 1 -evalue 1e−5’ with a threshold of E-value ≤ 1e−5. The motifs and domains present in the predicted proteins encoding by these genes were annotated using InterProScan v86.0 with parameters ‘-disable-precalc, -goterms, -pathways’ and Pfam62. Additionally, these genes were classified into functional categories based on KEGG63 and GO64 with a threshold of E-value ≤ 1e−5. Overall, 13,219 predicted genes were annotated using the databases of Nr, SwissProt, InterProScan, Pfam, KEGG and GO, representing 96.43% of the total gene set (Table 8).

Table 8.

Summary of functional annotation of protein-coding genes encoded in genome of Arma custos.

Database Number Percent (%)
Nr 12864 93.84
Swissprot 9933 72.46
InterPro 12353 90.12
Pfam 9729 70.97
KEGG 10228 74.61
GO 7810 56.97
Annotated at least one database 13219 96.43
Unannotated 489 3.57
Total 13708
Open in a new tab

Data Records

The raw data of Illumina short reads, PacBio HiFi long reads and Hi-C reads for assembling the genome of A. custos, as well as the transcriptome Illumina sequencing data for genomic annotation, have been deposited in the NCBI SRA (Sequence Read Archive) database under BioProject number PRJNA1001510. Illumina sequencing data for genome survey can be accessed and downloaded with accession number SRR2549817865. PacBio sequel II sequencing data for genome assembly can be accessed and downloaded with accession number SRR2550303466. Hi-C sequencing data can be accessed and downloaded with accession number SRR2551832167. Transcriptome sequencing data for genome annotation can be accessed and downloaded from NCBI SRA database (https://identifiers.org/ncbi/insdc.sra:SRP453032)68. The genome sequence has been deposited in Genbank under the accession number JBBAGI000000000 (https://www.ncbi.nlm.nih.gov/nuccore/JBBAGI000000000)69. The final chromosome assembly, genome structure annotation, amino acid sequences and CDS sequences data are available at the Figshare database (10.6084/m9.figshare.25284943)70.

Technical Validation

The accuracy of the assembled genome was assessed using two methods. Firstly, the clean Illumina genomic short reads were aligned back to the genome by Burrows–Wheeler Aligner (BWA) v.0.7.12-r103971. Approximately 97.81% of the short reads were successfully aligned to the genome, providing a genome coverage of 99.95%. The heterozygous and homozygous nucleotide polymorphisms (SNPs) in the genome were 0.407191% and 0.00011%, respectively. The results indicate a high accuracy of the genome assembly. Secondly, the accuracy of the assembled genome was evaluated using Merqury v1.472. A quality value of 46.78 was obtained, affirming the base-level accuracy genome assembly. The completeness of the assembled genome was evaluated using three methods. Firstly, Benchmarking Universal Single-Copy Orthologs (BUSCO) v5.4.7 (-l insecta_odb10 -m genome)73 was employed. The results showed that the complete and fragment scores were 99.34% and 0.22%, respectively. Among the retrieved complete single-copy genes, only 2.3% of them are duplicated. Secondly, Core Eukaryotic Genes Mapping Approach (CEGMA, v2.5)74 was employed. Among the 248 most highly conserved core eukaryotic genes (CEGs) within CEGMA, 230 CEGs were successfully assembled, accounting for 92.74%, and 222 CEGs were complete, accounting for 89.52%. Thirdly, LTR Assembly Index (LAI) was assessed using LTR_retriever v. 2.9.075, resulting in a value of 8.44. These results indicated a high level of completeness in the genome assembly.

Acknowledgements

This work was supported by the Joint Special Key Project of Agricultural Basic Research in Yunnan Province (202101BD070001-024), the National Natural Science Foundation of China (32360686); the Xing Dian Talents Support Program of Yunnan Province to Shujun Wei, the National Science and Technology Innovation Talent Program in Forestry and Grassland for Young Top-notch Talents (2019132615), and the Funding for the Construction of First-Class Discipline of Forestry in Yunnan Province.

Author contributions

J.Z. and S.W. conceived this study. Y.W., Y.L., Y.G. and C.W. collected the samples, and prepared DNA and RNA for sequencing. Y.W., Y.L. and Y.G. performed the experiments and analysed the data. Y.W. drew the figures. S.L., W.L. and C.W. assisted in data analysis. J.Z. drafted the manuscript. J.Z. and S.W. revised the manuscript. All authors read the final manuscript for submission.

Code availability

In this study, no custom scripts or command lines were utilized. All software employed for data processing and analysis are publicly available. The specific versions and parameters of each software are detailed in the Methods section. If no specific parameters were mentioned for a particular software, default parameters were used. The software was applied following the manuals and protocols provided by the respective bioinformatic tools.

Competing interests

The authors declare no competing interests.
