. 2024 Apr 22;9(17):18922–18931. doi: 10.1021/acsomega.3c08557

Investigating the Acid Erosion Characteristics of Carbonate Rocks under Hydrodynamic Action

Jiaxin Zhang 1, Xuewei Chu 1,*, Hai Fu 1, Qilin Zhang 1, Shaokang Zong 1
PMCID: PMC11064002  PMID: 38708240

Abstract

graphic file with name ao3c08557_0013.jpg

In carbonate areas, the unique dissolution features bring a lot of resistance to engineering constructions. The acidic filtrate will definitely cause accelerated dissolution of the surrounding rocks, and the mechanism of accelerated dissolution of such rocks in acid is not clear. In order to explore the dissolution pattern of carbonate rocks after the alteration of their primary environments, a self-made rotating reaction device was used to conduct laboratory dissolution experiments on carbonate cores under three conditions. The mass loss, the change of pH, the molar concentration of Ca2+ and Mg2+, and the morphological changes before and after acid erosion were obtained. The results of correlation analysis show that the dissolution characteristics of carbonate are significantly related to dissolution time, composition of rocks, liquid flow rate, and acid concentration. Segmented characteristics were recorded between CaO/MgO and the reaction sequence (m). When 2 < CaO/MgO < 30, the increase of CaO/MgO has a significant contribution to the chemical dissolution rate; however, when 30 < CaO/MgO < 66, the increase of CaO/MgO does not contribute significantly to the chemical dissolution rate. The dissolution rate is positively correlated with the liquid flow rate. Also, liquid flow rate changes affect dolomite more than they do limestone. The mass loss rate (Rc) order of the rocks of the five carbonate formations was Maocaopu > Qingyan > Falang > Anshun > Dengying. Differences in dissolution induced by the acidic fluids in different formations will eventually form complex dissolution channels.

1. Introduction

The impact of acid leakage in karst areas is very prominent and has caused a great burden on the ecological environment. At the same time, various undesirable geological environmental problems have arisen. Acid mainly comes from landfills, slag landfills, and acid rain.1−5 More specifically, the leakage of acidic liquid has caused pollution of the groundwater system and significantly accelerates the changes in the rock structure, mineral composition, pore structure, and mechanical properties in the acid etching area. These changes will lead to various problems, such as the foundation of the rock’s strength and the leakage of the foundation of the rock.6,7 Therefore, acidic liquid leakage will accelerate the erosion effect in the rock-soluble areas. The base rock around the filling area may also lead to the formation of a cycle of erosion and leakage. In this context, the impact of further exploring the lymation of acid liquid on carbonate rock is important and is considered to be of great significance in analyzing the stability and safety of the tailings and filling places.

Different types of acid–rock reaction experiments have been carried out in the literature to study and control the dissolution of soluble rocks. Remarkable results have been achieved on key issues, such as slowing or speeding up the acid–rock reaction rate. Many works have focused on controlling or changing the influencing factors of the reaction (acid concentration, temperature, rotational speed, lithology, and partial pressure of CO2) so that the kinetic parameters, such as acid–rock reaction rate, H+ consumption rate, reaction activation energy, reaction rate constant, and H+ effective mass transfer coefficient can be changed during the dissolution process.8−13 Experimental works have demonstrated that under the action of the hydrodynamic pressure, the dissolution of carbonate rocks mainly occurs outside the surface of the rock, and the voids inside the rock continue to deepen.6,14 The correlation between the pore size distribution and the diffusion coefficient has been analyzed, suggesting that the dissolution rate and diffusion coefficient of limestone are affected by the pore size distribution, whereas the influence of porosity and permeability is inferior to that of the pore size distribution.15 Other works have shown that the diffusion coefficient of hydrogen ions is affected by the flow rate of the acid solution, and the acid–rock reaction rate can be significantly accelerated by increasing the concentration of the acid solution, reaction temperature, and flow rate.16,17 CaCO3 and MgCa(CO3)2 are the main mineral components of carbonate rocks, and the release patterns of calcium and magnesium ions are regular. Interestingly, the release of Ca is always prior to that of Mg to reach a stable state. The analysis of the various changes, such as carbonate rock crystals, pore structure, and microcracking diversion capabilities, is usually performed from a microscopic angle.5,18−22 Carrying out the rotating disk experiment,17 it was proven that the dissolution quality is positively correlated with the dissolution volume and the acid–rock reaction rate. The main controlling factors of the surface dissolution morphology in the parallel and perpendicular directions of the acid flow are the acid–rock reaction rate and mineral composition distribution, respectively. At present, the majority of the reported works in the literature have examined the dissolution characteristics of carbonate rocks under single-factor conditions. Nonetheless, the dissolution mechanism under multifactor conditions has been scarcely reported. Along these lines, in this work, an indoor dynamic dissolution simulation experiment was carried out to study the dissolution mechanism of the different carbonate rocks after the original burial environment was changed. On top of that, the surface dissolution characteristics and chemical dissolution characteristics of carbonate rocks were thoroughly explored to clarify the hydrodynamic conditions and acid conditions, as well as the dissolution rate characteristics of carbonate rocks under joint action.

2. Materials and Methods

2.1. Experimental Materials

2.1.1. Carbonate Sample

Guizhou Province in China is a typical karst mountain area, and most of the tailings reservoirs are located in karst valleys. If the antiseepage treatment of such types of storage areas is not appropriate, leakage often occurs. The leaching filtrate of some stored tailings is acidic, which not only affects the surrounding water environment but also accelerates the dissolution of carbonate rocks.

In this work, five different carbonate rock stratas located in Baiji Village, Fuquan City, Jiaoyishan in Xifeng County, and Longjingwan in Kaiyang County were selected as research objects within the scope of leaching filtrate leakage in three phosphogypsum stack dumps (Figure 1). The samples included limestone of the Lower Triassic Maocaopu Formation (T1m), dolomite of the Anshun Formation (T1a), limestone of the Middle Triassic Qingyan Formation (T2q2), limestone of the Falang Formation (T2f2), and dolomite of the Late Aurora Dengying Formation (Z2dy). A fresh cylindrical core sample with a diameter of 25 mm and a height of 50 mm was drilled. Each stratum was screened for six pieces according to the appearance, morphology, chemical composition, and mineral composition similarity characteristics of the sample. A total of 30 rock samples exist in five groups of strata. Before the experiment, the rock samples were fully rinsed with deionized water and dried at 105–110 °C for 72 h.

Figure 1.

Figure 1

Open in a new tab

Overview map of the geographical location of the research area.

The mineralogical composition of the sample was determined by performing X-ray diffraction (XRD) measurements. The chemical components of the sample are determined by using an X-ray fluorescence spectrum analyzer (XRF). Carbonate rock types were classified according to the relative content of calcite and dolomite. The test results of the main compounds and mineral composition content are presented in Table 1. The X-ray diffraction analysis showed that sample M contained 96.7% calcite and 2.7% quartz, sample Q contained 94.1% calcite, 3.7% dolomite, and 2.1% quartz, sample F contained 47.2% calcite and 51.9% dolomite, sample A contained 99.6% dolomite, and sample D contained 85.09% dolomite and 14.9% quartz. Both samples M and Q were extremely pure limestone; sample F was lime dolomite; sample A was pure dolomite; and sample D was dolomite sandwiched with siliceous rocks.

Table 1. Test Results of the Main Compounds and Mineral Composition Content.
  compound content
 minerals, %

strata CaO, % MgO, % CaO/MgO calcite dolomite quartz plaster type
Maocaopu 51.26 0.78 65.59 96.72 0.04 2.75 0.49 limestone
Qingyan 54.93 0.91 60.14 94.15 3.69 2.15   limestone
Falang 53.58 3.01 17.83 47.22 51.93 0.85   lime dolomite
Anshun 43.01 13.33 3.23 0.28 99.65   0.06 dolomite
Dengying 24.10 11.54 2.09   85.09 14.91   siliceous banded dolomite
Open in a new tab

2.1.2. Acid Fluid

The pH values of the leaching filtrate of three phosphogypsum stack dumps were measured in the range of 1.12–2.64. Hydrochloric acid was used as the reaction medium in this work to simplify the reaction process and to avoid other ions from affecting the test process, such as ion effects.

2.2. Experimental Method

2.2.1. Dynamic Dissolution Experiment

To analyze the influence of hydrodynamic conditions on the acid erosion of carbonate rocks, a self-made rotating rock plate reactor was used to carry out dynamic dissolution simulation experiments at room temperature and pressure conditions (Figure 2).15,23 The hydrochloric acid solution with a concentration of 67% was diluted with deionized water, and the acid solution with two concentrations of pH 1 and 2 was configured. The capacity of each group of the acid solution was 3500 mL. The sample rotated at a rate of 200, 400, and 600 rpm at the two acid concentrations of each stratum, corresponding to flow rates of 0.263, 0.523, and 0.785 m/s. The timing has been timed since the acid–rock contact, at 0, 1, 2, 3, 4, 5, 8, 12, 16, 20, and 24 h, collect the solution. Each time, 30 mL of the reaction solution was collected, and the same volume of deionized water was added after sampling to maintain the volume of the solution. Because the volume of the water sample accounted for only 0.86% of the total volume of the reaction solution, the impact was negligible. The experiment was stopped after 24 h of reaction, and the rock sample was taken out and dried for 72 h to calculate the amount of core dissolution. The experimental design is shown in Table 2.

Figure 2.

Figure 2

Open in a new tab

Self-made rotating rock plate reactor.

Table 2. Experimental Design.
  flow rate
initial pH 200 rpm 400 rpm 600 rpm
1 M1 M2 M3
Q1 Q2 Q3
F1 F2 F3
A1 A2 A3
D1 D2 D3
2 M4 M5 M6
Q4 Q5 Q6
F4 F5 F6
A4 A5 A6
D4 D5 D6
Open in a new tab

2.2.2. Analysis Method

Three parameters of mass loss percent (Rc), chemical dissolution rate (R), and acid–rock reaction rate were defined to quantitatively reflect the dissolution process and dissolution characteristics of carbonate rocks.

2.2.2. 1

where Rc is the mass loss percent (%), W1 is the dry mass of the sample before the experiment (g), and W2 is to the dry mass of the sample after the experiment (g).

2.2.2. 2

where R is the chemical dissolution rate (mg·D–1·L–1), X is the content of Ca in the dissolution solution (mg·L–1), Y is the content of Mg in the dissolution solution (mg·L–1), and t is the elapsed time (D).

2.2.2. 3

where J is the chemical response rate at time t (mol·L–1·s–1), C is the acid concentration at time t (mol·L–1), K is the reaction speed constant ((mol·L–1)−m+1·s), and m is the reaction sequence.

3. Result

The based dissolution data of carbonate rocks were obtained by an atomic absorption test, SEM test, and pH test.

3.1. Rock Surface Morphological after the Acid–Rock Reaction

3.1.1. Morphological Changes of the Sample

After carrying out the dynamic dissolution experiment, to observe the surface morphology characteristics of the rock samples in various strata, three representative groups of samples were selected, which are shown in Figure 3. These included samples under experimental conditions of pH 1 and 200 rpm (a), pH 1 and 600 rpm (b), and pH 2 and 400 rpm (c). After being subjected to acid etching, the volume and surface morphology of the sample underwent significant changes. As can be observed in Figure 3a, the original crack in the upper left corner of F1 and the gap in the lower left corner of A1 were severely corroded by acid, and a significant depression compared to other uniform parts was detected. In the Q3 and Q5 samples shown in Figure 3b,c, the impurities were exposed and dissolution pits around them can be observed. There are dissolution pits on the surface of the M1, M3, and M5 samples, and the calcite veins on the surface of the M5 samples were preferentially dissolved. After the D1, D3, and D5 samples were dissolved, reticulated quartz veins were distributed on the surface. These quartz veins were extremely fragile and could easily be stripped off the surface of the rock sample. Compared with other strata, the surfaces of the M and Q samples were smoother after dissolution.

Figure 3.

Figure 3

Open in a new tab

Morphological comparison of some rock samples before and after acid dissolution (a) at pH 1 and 200 rpm, (b) at pH 1 and 600 rpm, and (c) at pH 2 and 400 rpm.

Figure 4 illustrates the mass loss percent (Rc) of each group of samples under different conditions, and the abscissa is the number of each experimental group. The dissolution rate Rc under pH 1 conditions exceeded 40%, and it exceeded 5% under pH 2 conditions. The Rc values of the first three groups of strata were all expressed as M > Q > F. Under pH 1 conditions, the Rc value was expressed as A > D (Figure 4a); under pH 2 conditions, it was expressed as D > A (Figure 4b).

Figure 4.

Figure 4

Open in a new tab

Mass loss percent (Rc) of the samples.

Figure 5 shows the increment of the mass loss percent (Rc) of the strata at 400 and 600 rpm based on 200 rpm. Particularly, in Figure 5a, it is indicated that with the increase in the hydrodynamic conditions, the Rc of each group of samples was increased to a certain extent. At pH 1, the rotation speed was increased from 200 to 400 rpm, and the increment of the mass loss rate of the two F (27.30%) and A (27.16%) samples was greater than that of the M (18.52%), Q (21.87%), and D (20.25%) samples. The rotation speed was increased from 400 to 600 rpm, and the increment of the mass loss rate of the two groups of samples F (1.95%) and A (1.99%) was smaller than that of the samples M (6.30%), Q (3.20%), and D (8.14%). When the disk speed was increased from 200 to 400 rpm, the increment of the mass loss percent of Group F was still the highest. At pH 2, the mass loss percent of some samples did not increase with the increase in the hydrodynamic conditions (Figure 5b). When the disk speed was increased from 200 to 400 rpm, the increment of the mass loss percent of sample F was still the highest. From 400 to 600 rpm, only the mass loss percent of pure limestone in samples M and Q increased, while the mass loss percent of samples in samples F, A, and D decreased by 1.24–2.87%.

Figure 5.

Figure 5

Open in a new tab

Increment of the mass loss rate (Rc) of the strata at 400 and 600 rpm based on the flow at 200 rpm.

3.1.2. SEM Observation

A scanning electron microscope (SEM) was also used to observe the microstructure of the sample surface before and after the dissolution. The sample was made into small round pieces with a diameter of 1 cm and a thickness of 1–2 mm. After gold spraying, it was observed in the field of view of a 1000-fold electron microscope. An illustration of the pristine and the reacted samples’ surface topographies was provided by the SEM images in Figure 6. Before being acidized, the original samples exhibited micropores but a few cracks. After acidizing, an elevated number of cracks were generated. However, their dissolution patterns were completely different. The surface crystal shape of Group M sample (a) was neat, with upright clusters of crystals, and the number of pores increased. After acid dissolution was performed, the crystals of sample M (a) were arranged in upright clusters. Sample Q (b) dissolved into more obvious staggered microcracks. The crystals of sample F (c) were attached in flakes. Furthermore, the original cracks in samples A and D (d, e) deepened, and the connection between the crystals weakened. The surface of the specimens was uneven and easily peeled off.

Figure 6.

Figure 6

Open in a new tab

Microstructure of the samples’ surface before and after acid dissolution: (a) Maocaopu, (b) Qingyan, (c) Falang, (d) Anshun, and (e) Dengying.

3.2. Evolution of the pH Value

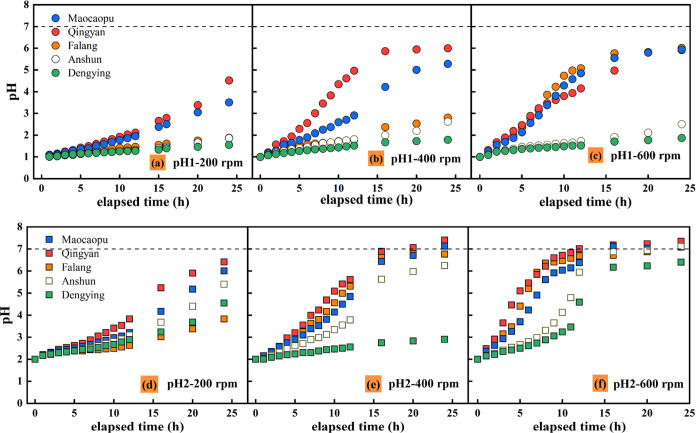

Figure 7 displays the evolution of the pH values of the experimental solution at 200, 400, and 600 rpm. The pH value of each group of solutions continuously evolved with the reaction time. At different speeds, the pH of the samples M, Q, and F increased by 0.88–3.52, 1.81–5.00, and 4.92–5.02, respectively. The pH of samples A and D increased by 0.56 and 0.86, 0.79 and 1.62, and 0.87 and 1.51, respectively. In the pH 1 solution, the disk speed increased from 200 to 600 rpm, and the pH values of samples M, Q, and F increased by 1.40–4.14, those of samples A and D only increased by 0.29–0.37, and those of the first three groups were 3.78–14.28 times those of the two groups.

Figure 7.

Figure 7

Open in a new tab

Evolution of the pH value of the experimental solution at 200, 400, and 600 rpm.

3.3. Ca and Mg Release Characteristics

The concentrations of Ca and Mg released by the dissolution of the five samples were plotted as a function of the time and the release characteristics, as can be seen in Figure 8. At the initial acid pH of 1 or 2, the release of Ca and Mg increased with the reaction time. A significant correlation between the reaction time and the release amount (R2 ≥ 0.977) was detected. Overall, in pH 1 and pH 2 solutions, the Ca and Mg releases of M, Q, and F samples increased rapidly within 0–5 h. They were in a slow-increasing stage within 5–8 h, and they reached a relatively stable state in 8–24 h.24 The release of Ca and Mg in samples A and D also rapidly increased within 0–5 h. Nonetheless, within 5–24 h, it basically showed uniform or small deceleration release characteristics and occasionally increased.

Figure 8.

Figure 8

Open in a new tab

Concentrations of Ca and Mg released by the dissolution of the five samples plotted as a function of the time and the release characteristics.

The characteristics of Ca release in each stratum under pH 1 conditions are also provided. The Ca release of the M sample was 0.135 mol/L, 0.151 mol/L, and 0.153 mol/L at 200, 400, and 600 rpm, respectively. The release of Ca in the F sample was 0.114 mol/L at 200 rpm and 0.140 mol/L at 400 and 600 rpm. The Ca release amount of sample D was 0.065 mol/L at 200 rpm, and the release amounts were 0.067 and 0.073 mol/L at 400 and 600 rpm, respectively. The evolution of the Ca/Mg ratio in the dissolution of samples from five strata is reported in Figure 9a. In the first stage of the reaction, the release rate of Ca was much higher than that of Mg, and then the Ca/Mg mole ratio tended to stabilize.25

Figure 9.

Figure 9

Open in a new tab

(a) Evolution of the Ca/Mg molar ratio in the dissolution of samples from five strata. (b) In the pH 1 solution, the chemical reaction rate (R) of each group of samples.

3.4. Reaction Rate Constant (K)

The reaction rate constant (K) increased with the increase in the CaO/MgO (%) ratio and R2 = 0.9985. According to the difference in the CaO/MgO ratio, the five groups of strata were divided into three series: α (Maocaopu, Qingyan), β (Falang), and γ (Anshun, Dengying). The acid–rock reaction rate constant (K) under different conditions is given in Table 3. At 200 rpm, sample F had a CaO/MgO ratio of 17.83 and a reaction rate constant of 0.964 × 10–6. Sample M had a CaO/MgO ratio of 65.59 and a reaction rate constant of 1.023 × 10–6. The difference between the K values was 5.9 × 10–8, while at 400 rpm, the difference in K values was 5.38 × 10–6. The K value differs by 2 orders of magnitude between 200 and 400 rpm. When the hydrodynamic force is strong, the reaction rate constant shows a significant difference. The K values of sample D were 0.051 × 10–8 and 1.069 × 10–6 at 200 and 400 rpm, respectively.

Table 3. Reaction Rate Constants at 200 and 400 rpm for Different Strata at pH 2.

series stratum CaO/MgO rotating speed (rpm) K, ×10–6 J R2
α M 65.59 200 0.964 9.638 × 10–7 C0.73 0.6804
Q 60.14 1.107 1.107 × 10–6 C0.66 0.8751
β F 17.83 1.023 1.023 × 10–6 C0.50 0.7686
γ A 3.23 0.142 1.418 × 10–7 C0.38 0.8382
D 2.09 0.051 5.129 × 10–8 C0.23 0.8214
α M 65.59 400 3.928 3.928 × 10–6 C0.81 0.9204
Q 60.14 9.312 9.312 × 10–6 C0.91 0.9430
β F 17.83 9.308 9.308 × 10–6 C0.90 0.9258
γ A 3.23 1.302 1.302 × 10–6 C0.69 0.8120
D 2.09 1.069 1.069 × 10–6 C0.53 0.8756
Open in a new tab

4. Discussion

The dissolution characteristics of natural rocks are affected by complex factors. Changes in the native environment of the rocks may accelerate uneven dissolution of the underlying surface. In this work, indoor dissolution experiments on samples from five carbonate formations were performed to explore the influence of leachate leakage in hydrochloric acid solutions at 200, 400, and 600 rpm and pH 1 and pH 2, respectively. The results indicated the relationship among the rock dissolution rate, dissolution rate, acid concentration, hydrodynamic force, and lithology.

4.1. Impact of Microstructure on the Dissolution Morphology

The dissolution surface morphology is controlled by rock mineral composition and reaction conditions. The difference in the crystal morphology of the rock leads to the difference in the dissolution of the crystal. When the external conditions are changed to speed up the overall reaction rate, different minerals will react with acids at different rates. After a period of reaction, uneven erosion of the surface will gradually appear and the regional differences will become more obvious.26,27 The calcite percentage content of sample M is 96.72%, and the mineral composition was relatively single, which caused uniform dissolution and made the surface of the sample smooth and flat. The calcite of sample F accounted for 47.22%, and dolomite accounted for 51.93%. Dissolution differences in minerals result in uneven forms on the dissolved surface.28 The connection between the contact surfaces of the different minerals was also weakened, resulting in easy peeling of rock surface materials. Therefore, the dissolution rate of the sample was more susceptible to the hydrodynamic changes. In addition, native defects in the crystal could lead to a microscopic pit etching morphology. The size of the crystal also had a certain influence on the reactivity of the rock (Figure 6a,b), and the reactivity of small crystals was greater than that of large crystals.29−32

4.2. Impact of Hydrodynamics on the Dissolution Rate

Under the condition of pH 1, the mass loss percent (Rc) of each group of samples increased to a certain extent with the increase in the disk speed (Figure 5a). According to the literature, enhanced hydrodynamic conditions increase the dissolution rate of calcite and dolomite, and a greater difference in flow rate could lead to a stronger dissolution.33,34 The disk speed in the first gradient was from 200 to 400 rpm and in the second gradient was 400–600 rpm. The increment of the mass loss percent of the five groups of samples was 18.25–27.30% in the first gradient, while that in the second gradient was 1.95–8.14%. As shown in Figure 10, the percentage of Ca release increments calculated at 400 and 600 rpm was calculated using a sample at 200 rpm. In the pH 1 solution, the increment of Ca ion release was significantly correlated with the flow rate. The Ca release of sample M at 400 and 600 rpm was 11.97 and 13.47% higher than that at 200 rpm, respectively. The release of Ca from sample F at 400 and 600 rpm was 22.48% higher than that at 200 rpm. The release of Ca at 400 and 600 rpm in sample D was 4.07 and 12.52% higher than that at 200 rpm. In pH 2 solutions, Ca release also increased with increasing hydrodynamic conditions. However, the increment was small, with an average increment of less than 1% (Figure 10b). From both the increase in the dissolution rate and Ca and Mg content, the increase in the release of the second gradient was significantly smaller than that of the first gradient. Additionally, the increase in the two gradients was the same, but a significant difference in the increment of the dissolution amount was detected, indicating that the increase in the acid flow rate can promote the upper limit of the rock dissolution rate.

Figure 10.

Figure 10

Open in a new tab

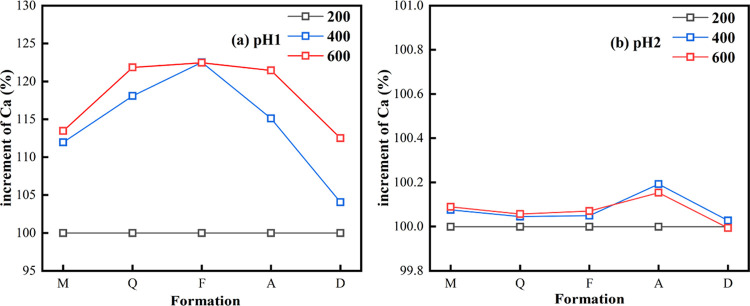

Percentage of Ca release increment calculated at 400 and 600 rpm using a sample at 200 rpm as reference.

The mass loss percent (Rc) decreased with the decrease in the acid concentration.23 As shown in Figures 5b and 10b, the mass loss percent and Ca dissolution of a part of the sample in the pH 2 solution were not increased with the increase in the disk speed. In the first gradient, the Rc increment of sample F was still the largest, and in the second gradient, only the Rc of samples M and Q increased, and the Rc of the remaining three groups of samples F, A, and D decreased by 1.24–2.87%. In acidic solutions, the mineral monolith made the mass loss percent and dissolution rate of the specimen regular. Due to the complex mineral composition of samples F, A, and D, an uneven distribution of minerals was induced, resulting in poor regularity of dissolution. When the acid concentration was high, the hydrodynamic effect enhanced the promotion effect on the rock dissolution more than that under the condition of low acid concentration.

4.3. Combined Impact

In the pH 1 solution, the chemical reaction rate (R) of each group of samples is illustrated in Figure 8b. Regression analysis of the relationship between reaction time and the chemical reaction rate (R) was conducted by using the logistic model (R2 > 0.990). Under acidic conditions, an ideal correlation between the chemical reaction rate (R) and the acid–rock reaction time was extracted, and the acid–rock reaction time was one of the important influencing factors of the chemical reaction rate (R).35 During the elapsed time, carbonate rocks were continuously dissolved and calcite dominated. If the acid solution was not replenished during the reaction, the reaction time increased and the concentration of reactants in the solution gradually decreased, which will lead to a decrease in the acid–rock reaction rate. Since all cutting surfaces of the rock sample were fresh-cut, the reaction rate was the largest at the beginning of the experiment, and the dissolution rate of calcium and magnesium was limited by the available fresh surface of the sample.36 In the first 0.4 D of the reaction, the value of R is shown as sample Q was the largest, and sample A was the smallest. Among them, the CaO content of sample Q accounted for 54.93% and the MgO of sample A accounted for 13.33%, both of which accounted for the maximum values of each group. Previous works in the literature have reported that the high CaO content of rocks can promote dissolution and MgO has a strong inhibitory dissolution effect. In the pH 1 solution, the impact of the percentage content of CaO and MgO on the chemical reaction rate (R) is shown in Figure 11. The value of R decreased with an increase in the MgO content and increased with an increase in the CaO content. From the analysis of the compound content of samples Q and F, it was demonstrated that when the content of CaO was constant, the higher MgO content led to a lower chemical reaction rate (R), and less soluble carbonate rocks were observed in acids. From the compound content of samples M and Q, when the MgO content was constant, a higher CaO content indicates a greater value of R.37

Figure 11.

Figure 11

Open in a new tab

Impact of the percentage content of CaO and MgO on the chemical reaction rate (R).

As shown in Figure 12, the reaction sequence (m) and CaO/MgO (%) correspond to the exponential function relationship (R2 = 0.91394). The number of the reaction sequence (m) increased with the increase in the CaO/MgO ratio, and when 2 < CaO/MgO < 30, the value of m significantly changed in the range of 0.588–0.879. When 30 < CaO/MgO < 66, m was in the range of 0.879–0.901 and gradually tended to be stable. The difference in the CaO and MgO content in the sample had different degrees of promotion and inhibition of dissolution, so the relationship between CaO/MgO and chemical dissolution rate showed obvious segmentation characteristics. The increase in the reaction rate constant caused the acid–rock reaction rate to accelerate and the solubility to increase. The higher proportion of MgO in the rock indicates the existence of more obvious changes in the reaction sequence (m), and conversely, the reaction sequence (m) tended to be stable.

Figure 12.

Figure 12

Open in a new tab

Reaction sequence (m) and CaO/MgO (%) correspond to the exponential function relationship.

The main mineral composition of sample M was 96.72% calcite and 0.04% dolomite. The main minerals in sample M became 0.28% calcite and 99.65% dolomite. Therefore, the main dissolved components were CaCO3 in limestone and CaMg(CO3)2 in dolomite. In acidic solutions, the solid solubility of CaCO3 is greater than that of CaMg(CO3)2. There are significant differences in the dissolution rates of Ca and Mg in different types of carbonate rocks, which are related to the content of calcite and dolomite in the various layers. The difference in the dissolution between calcite and dolomite will form irregular dissolution channels, which is also responsible for the complexity of the underground dissolution system.

5. Conclusions

Dissolution experiments on carbonate cores from different formations have led to the following conclusions through basic physical and chemical tests, SEM tests, and correlation analyses:

  • (1)

    The mass loss rate (Rc) order of the rocks of the five carbonate formations was Maocaopu > Qingyan > Falang > Anshun > Dengying, and the initial chemical dissolution rate (R) order was Qingyan > Maocaopu > Falang > Dengying > Anshun.

  • (2)

    After being eroded by the acidic liquid, the macroscopic and microscopic morphologies of the cores changed significantly. Minerals were gradually dissolved, forming obvious dissolution pores and cracks. The changes in rock structure revealed the dissolution mechanism of carbonate under acidic conditions. In addition, the dissolution morphology of rocks was mainly affected by the composition and distribution of minerals, and the more single the composition, the more uniform the morphology.

  • (3)

    The relationship between CaO/MgO and chemical dissolution rate (R) showed obvious segmentation characteristics. When 2 < CaO/MgO < 30, m was in the range of 0.588–0.879, the change was obvious, while when 30 < CaO/MgO < 66, m was in the range of 0.879–0.901, and it gradually tended to be stabilized.

  • (4)

    In the dissolution process of carbonate rocks, there was an interaction between three conditions: liquid flow rate, acid concentration, and composition of rocks. The higher the acid concentration, the more significant the difference in dissolution caused by adjusting the liquid flow rate; the faster the liquid flow rate, the more the effect of the difference in carbonate composition on dissolution will be highlighted. The results of the study can provide some reference for tailings ponds and landfills in karst areas.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (42062016 and 42107080) and the Science and Technology Fund of Guizhou Province (QKHZC[2020]4Y005).

The authors declare no competing financial interest.
