Gain-of-function and loss-of-function variants in GRIA3 lead to distinct neurodevelopmental phenotypes

Abstract

AMPA (α-amino-3-hydroxy-5-methyl-4-isoxazole propionic acid) receptors (AMPARs) mediate fast excitatory neurotransmission in the brain. AMPARs form by homo- or heteromeric assembly of subunits encoded by the GRIA1–GRIA4 genes, of which only GRIA3 is X-chromosomal. Increasing numbers of GRIA3 missense variants are reported in patients with neurodevelopmental disorders (NDD), but only a few have been examined functionally.

Here, we evaluated the impact on AMPAR function of one frameshift and 43 rare missense GRIA3 variants identified in patients with NDD by electrophysiological assays. Thirty-one variants alter receptor function and show loss-of-function or gain-of-function properties, whereas 13 appeared neutral.

We collected detailed clinical data from 25 patients (from 23 families) harbouring 17 of these variants. All patients had global developmental impairment, mostly moderate (9/25) or severe (12/25). Twelve patients had seizures, including focal motor (6/12), unknown onset motor (4/12), focal impaired awareness (1/12), (atypical) absence (2/12), myoclonic (5/12) and generalized tonic-clonic (1/12) or atonic (1/12) seizures. The epilepsy syndrome was classified as developmental and epileptic encephalopathy in eight patients, developmental encephalopathy without seizures in 13 patients, and intellectual disability with epilepsy in four patients. Limb muscular hypotonia was reported in 13/25, and hypertonia in 10/25. Movement disorders were reported in 14/25, with hyperekplexia or non-epileptic erratic myoclonus being the most prevalent feature (8/25).

Correlating receptor functional phenotype with clinical features revealed clinical features for GRIA3-associated NDDs and distinct NDD phenotypes for loss-of-function and gain-of-function variants. Gain-of-function variants were associated with more severe outcomes: patients were younger at the time of seizure onset (median age: 1 month), hypertonic and more often had movement disorders, including hyperekplexia. Patients with loss-of-function variants were older at the time of seizure onset (median age: 16 months), hypotonic and had sleeping disturbances. Loss-of-function and gain-of-function variants were disease-causing in both sexes but affected males often carried de novo or hemizygous loss-of-function variants inherited from healthy mothers, whereas affected females had mostly de novo heterozygous gain-of-function variants.

AMPA receptors are important for normal brain development and function. Rinaldi et al. investigate genetic variants of the GRIA3 gene—which encodes a subunit of the AMPA receptor—in patients with neurodevelopmental disorders and show that most variants either increase or decrease AMPA receptor function, leading to distinct symptoms.

Introduction

AMPA (α-amino-3-hydroxy-5-methyl-4-isoxazole propionic acid) receptors (AMPARs) belong to the ionotropic glutamate receptor (iGluR) superfamily of ligand-gated cation channels.¹ AMPARs are activated by glutamate (Glu) binding, which triggers the transient opening of a central pore leading to a millisecond influx of cations, denoted excitatory postsynaptic current (EPSC) that depolarizes the postsynaptic membrane and promotes neuronal firing.^2-4 AMPAR-mediated EPSCs are essential components in most excitatory glutamatergic signalling pathways, and normal AMPAR function is critical for most brain functions, including learning and memory formation.^5-13 The assembly of GluA1–A4 subunits into homo- or heterotetrameric receptor complexes forms diverse subtypes of AMPARs with distinct properties and expression patterns.^14,15 The GluA1–4 subunit proteins are highly similar and have a modular architecture of two extracellular domains, the N-terminal domain (NTD) and the agonist binding domain (ABD), a channel-forming transmembrane domain (TMD), and an intracellular carboxy-terminal domain (CTD) of unknown structure (Fig. 1A). The bilobed ABD of each subunit contains a single site where Glu binding initiates conformational changes that are transmitted via semi-flexible linkers to the channel gate in the TMD. Rare genetic variants in the GRIA1–4 genes^16-21 may disrupt AMPAR physiology and cause developmental and cognitive impairment, behavioural and psychiatric comorbidities, seizures and cerebral malformations.^19,22-56GRIA1, GRIA2 and GRIA4 are autosomal genes, whereas GRIA3 is located on the X-chromosome. While pathogenic missense variants in GRIA1, GRIA2 and GRIA4 appear to arise almost exclusively de novo,^23,25,28 pathogenic variants in GRIA3 may be transmitted from healthy mothers to affected male children, which is observed in several X-linked neurodevelopmental disorders (NDDs).^27,30

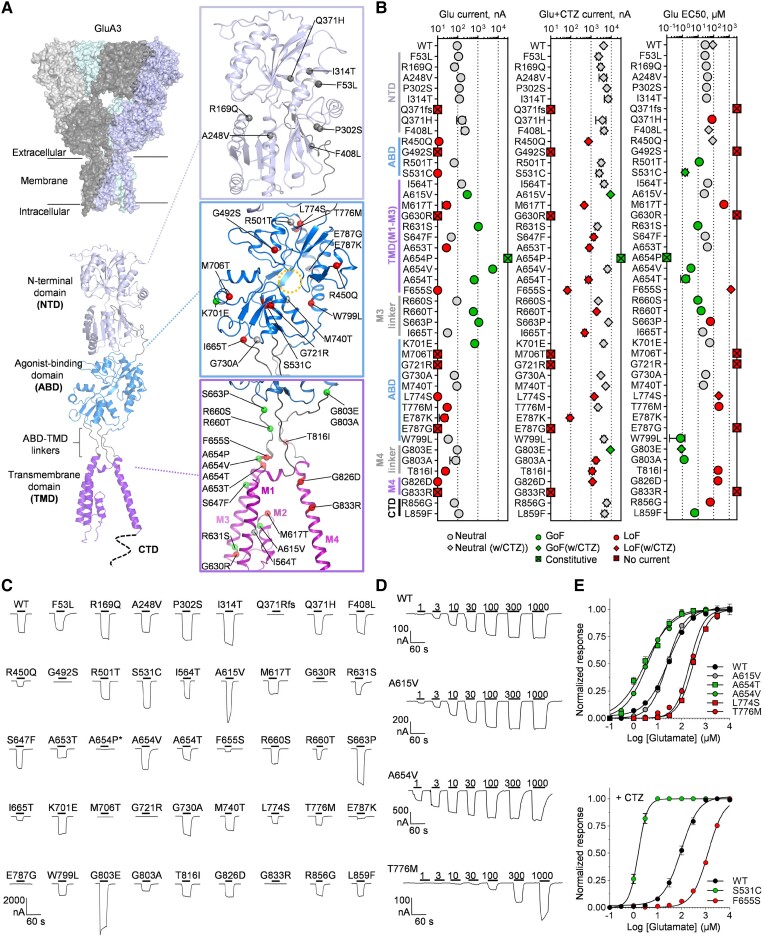

Figure 1.

Location of GRIA3 variants in the GluA3 receptor and effect on glutamate-gated channel function. (A) Structural model of homomeric GluA3 receptor encoded by the GRIA3 gene built from structures of the GluA2 receptor (Supplementary material, ‘Materials and methods’ section). The top left panel shows a surface representation of the tetrameric receptor complex with the four identical subunits. The bottom panel shows a cartoon representation of a single GluA3 subunit with the N-terminal domain (NTD), the agonist-binding domain (ABD), and the transmembrane domain (TMD). Zoomed views of the NTD, ABD and TMD show the position of genetic variants caused by GRIA3 missense variants highlighted by different colours according to the apparent effect on homomeric GluA3 function as neutral, loss-of-function (LoF) and gain-of-function (GoF). The stippled circle indicates the position of the Glu binding site in the ABD. (B) Summary of desensitized (Glu) and non-desensitized (Glu + CTZ) current amplitudes and Glu EC50 for homomeric GluA3 receptors containing genetic variants encoded by the GRIA3 variants evaluated in this study. Values, number of measurements, and statistical parameters are given in Supplementary Tables 2 and 3. Individual data-points are colour-coded according to the effect on currents or EC50 (LoF effect) or increase (GoF effect). For the EC50 panel, data-points shown as squares represent EC50 values determined with cyclothiazide (CTZ). (C) Representative current responses from two-electrode voltage-clamp (TEVC) recordings of Xenopus laevis oocytes (XOs) (V_HOLD −40 mV) expressing wild-type (WT) or GRIA3 variant-containing GluA3 receptors in response to Glu application (300 µM, black bar) in the presence of CTZ (100 µM) to block desensitization. (D) Representative current recordings from TEVC Glu concentration-response experiments of wild-type GluA3 and selected variants exemplifying neutral [p.(Ala615Val)], increasing [p.(Ala654Val)] or decreasing [p.(Thr776Met)] effect on receptor responsiveness to Glu. (E) Composite concentration-response curves for wild-type and selected GRIA3 variant-containing GluA3 receptors. Data-points represent the mean of 6–12 oocytes. Error bars are the standard error of the mean (SEM) and are shown when larger than the symbol size. The current responses are normalized to the maximal response evoked by Glu. In all panels, variants are labelled with single-letter amino acid codes.

Currently, 20 GRIA3 missense variants are reported in 30 patients, of whom four are female.^{22,26,27,29-35,38,46-49,55} Of these variants, nine have been functionally tested, revealing or suggesting loss-of-function (LoF) effects for seven variants detected in 15 affected males and in one female^{22,29,30,33,35} and gain-of-function (GoF) effects in two variants detected in one female and one male.^32,34 Thus, the phenotypic and genetic landscape in GRIA3-related disorders remains ill-defined, lacking genotype-phenotype correlations or clinical biomarkers, particularly in females.

We have therefore systematically interrogated the impact on GluA3-containing AMPAR function of 44 rare inherited or de novo GRIA3 variants identified in patients with NDD to assess these for pathogenicity and establish LoF or GoF effects for overall receptor signalling function. Also, for 25 patients with pathogenic LoF or GoF variants, we compared the clinical features with the functional outcomes to identify genotype-phenotype correlations and clinical biomarkers that could potentially predict the functional outcome of rare GRIA3 variants. Our results show that GRIA3-related disorders encompass two patient groups with distinct clinical features that correlate with the GoF or LoF effect of the variant on receptor function. Also, our findings expand the general knowledge of the pathogenic contribution of rare genetic alterations in GRIA3 to NDDs in the human population with diverse manifestations, influencing both the timing of disease onset and main clinical symptoms.

Materials and methods

Materials

Unless otherwise stated, all chemicals were from Sigma-Aldrich. Dulbecco’s modified Eagle medium (DMEM), fetal bovine serum, trypsin and penicillin-streptomycin were from Invitrogen. DNA-modifying enzymes were from New England Biolabs, except PfuUltra II Fusion HS DNA polymerase. Cyclothiazide (CTZ), kainic acid and 1-naphthyl acetyl spermine (NASPM) were from HelloBio.

Molecular biology

GRIA3 (MIM 138248) variants were introduced by site-directed mutagenesis into their corresponding positions in cDNA expression constructs encoding GluA3. Specifically, the plasmid vectors pXOOF and pCAGGS-IRES-EGFP containing cDNA for the unedited GluA3 flip and flop isoforms (GluA3_i and GluA3_o, respectively) were used for heterologous expression in HEK293 cells or generation of mRNA for microinjection in Xenopus laevis oocytes (XOs). For pCAGGS-IRES-EGFP, cDNA for GluA3_i and GluA3_o were subcloned into the NheI and XhoI restriction sites of the vector. For pXOOF, the cDNA for GluA3_i was subcloned into the EcoRI and XhoI restriction sites. For co-expression with GluA2, GluA2 was subcloned into the vector pCAGGS-IRES-mCherry. Base pair changes in GluA3 were made by the overlapping PCR method or the QuickChange mutagenesis kit (Stratagene). Genetic changes were verified by Sanger DNA sequencing of the entire GluA3 coding region (GATC Biotech). When used as templates for in vitro transcription of mRNA, plasmid constructs were linearized downstream of the 3′ untranslated region using the restriction enzyme NheI, column purified using NucleoSpin DNA clean-up kit (Macherey-Nagel) and stored at a concentration of 1.0 µg/µl at −20°C until use. cRNA transcription was performed using the ARCA mRNA synthesis kit (NEB). The resulting mRNA was purified using the NucleoSpin RNA Clean-up kit (Macherey-Nagel), diluted to 0.5 ng/nl, and stored at −80°C until use.

Xenopus laevis oocyte preparation and injection

Defolliculated XOs (stage V to VI) were prepared and injected with mRNA as previously described.⁵⁷ The care and use of X. laevis animals strictly adhered to a protocol (license 2014-15-0201-00031) approved by the Danish Veterinary and Food Administration. Injected XOs were incubated at 18°C in modified Barth’s solution (MBS) containing (in mM) 88 NaCl, 1 KCl, 0.41 CaCl₂, 2.4 NaHCO₃, 0.33 Ca(NO₃)₂, 0.82 MgSO₄, 5 Tris (pH 7.4) supplemented with 50 µg/ml gentamicin until use. For expression of homomeric GluA3 receptors, XOs were injected with 10 ng cRNA in a volume of 25 nl per oocyte and incubated for 3 days at 18°C in MBS until the experiment. For expression of heteromeric GluA2/A3 receptors, injection of 10 ng of a 2:1 mix ratio of GluA2/GluA3 cRNA was used.

HEK293 cell culturing and transfection

HEK293T cells were cultured in a 37°C incubator with 5% CO₂. Transfection was performed in 35-mm dishes using Lipofectamine 2000 reagents (Invitrogen). For co-expression of GluA3 and GluA2, the ratio of GluA3 to GluA2 cDNA was 1:1. The competitive antagonist NBQX (100 µM) was included in culture media to block receptor-induced cytotoxicity. Twenty-four hours post-transfection, cells were dissociated with 0.05% trypsin, plated on coverslips pre-treated with poly-D-lysine, and used for experiments 4 h after plating.

Electrophysiology

Two-electrode voltage-clamp electrophysiology in Xenopus laevis oocytes

Glass micropipettes (0.69 mm ID/1.2 mm OD, Harvard Apparatus) were pulled on a Sutter P-1000 micropipette puller (Sutter Instruments) to a tip resistance of 0.5–2.5 MΩ and filled with 3 M KCl. Oocytes were clamped using a two-electrode voltage-clamp amplifier (OC-725C, Warner Instruments) and continuously perfused with Frog Ringer’s solution containing 115 mM NaCl, 2 mM KCl, 5 mM HEPES and 1.8 mM BaCl₂ (pH 7.6) by gravity-assisted perfusion at flow rates of 2–4 ml/min into a vertical oocyte flow chamber. Compounds were dissolved in Frog Ringer’s solution and added by bath application. Concentration-response data were recorded at holding potentials in the −40 to −80 mV range. Each compound solution was applied for 10–60 s depending on the time needed to obtain steady state currents. Current signals were low-pass filtered at 5 Hz using an USBPGF-S1 programmable instrumentation low-pass filter (Alliagator Technologies) and digitized with a sampling frequency of 10 Hz using a CED 1401plus analogue-digital converter (Cambridge Electronic Design) interfaced with a PC running WinWCP software (available from Strathclyde Electrophysiology Software, University of Strathclyde, Glasgow, UK). Concentration-response experiments were performed by measuring agonist-evoked current during stepwise application of increasing concentrations of agonist, as illustrated in Fig. 1D. All experiments were performed at room temperature.

Whole-cell voltage-clamp electrophysiology in HEK293 cells

The deactivation and desensitization kinetics of glutamate-evoked currents from wild-type (WT) and mutant GluA3 and GluA2/3 receptors were determined in the whole-cell configuration in HEK293 cells. After the formation of whole-cell configuration, individual HEK293 cells were lifted with 3–5 MΩ borosilicate glass pipettes filled with the following internal solution: 135 mM KF, 33 mM KOH, 2 mM MgCl₂, 1 mM CaCl₂, 11 mM EGTA, 10 mM HEPES (pH 7.2). Glu (10 mM) was dissolved in the extracellular solution: 140 mM NaCl, 2.5 mM KCl, 2 mM CaCl₂, 1 mM MgCl₂, 10 mM HEPES, 5 mM glucose (pH 7.2). Glutamate pulses of 1 or 500 ms were applied to cells using a theta-glass pipette mounted on a piezoelectric bimorph driven by gravity. Glutamate-induced currents were recorded using a MultiClamp 700B amplifier (Axon Instruments) with membrane potential held at −70 mV. Current signals were recorded with an Axon Digidata 1440 data acquisition system and with a sampling frequency of 100 kHz following low-pass filtration over 2 kHz. All experiments were performed at room temperature.

Cohort

Patients with inherited or de novo GRIA3 variants were recruited through an international collaboration with epilepsy and NDD research groups, the Leipzig GRI-registry (https://www.uniklinikum-leipzig.de/einrichtungen/humangenetik/Seiten/GRI-registry.aspx), Decipher,⁵⁸ ClinVar⁵⁹ and via GeneMatcher.⁶⁰ We also contacted the healthcare providers of previously published patients to collect new or updated clinical information or used that previously reported in the literature^{26,29,33,34,61} (seven patients). Clinical information was collected by the local physicians or caregivers and included data on the age of seizure onset and offset, seizure semiology, developmental trajectory, medical history, physical examination, EEG and neuroimaging. The study was conducted in agreement with the Declaration of Helsinki. The Leipzig GRI-registry was approved by the local ethical committee; Leipzig/Germany (224/16-ek and 379/21-ek). As all probands were minors or had cognitive impairment, their parents or legal guardians provided written informed consent.

Data and statistical analysis

Data for concentration-response curves were obtained from analysis of electrophysiological recordings of agonist-evoked current responses using ClampFit 10 software (Molecular Devices). Current responses were normalized to the current response by maximal agonist concentration and used to construct composite concentration-response plots from at least eight oocytes and fitted using GraphPad Prism v9 (GraphPad Software, San Diego, CA, USA) to a four-variable Hill equation:

$$response=bottom+{\displaystyle \frac{top-bottom}{1+{10}^{(logE{C}_{50}-X)\times nH}}}$$ (1)

where bottom is the fitted minimum response, top is the fitted maximum response, nH is the Hill slope, X is the agonist concentration, and EC₅₀ is the half-maximally effective agonist concentration, respectively. The time constants for the rate of desensitization (τ_desens) and deactivation (τ_deact) were obtained by fitting current responses evoked by 500 and 1 ms Glu pulses with an exponential function using a non-linear least square algorithm (ClampFit):

$$I=I1\times \left(\exp \left(-{\displaystyle \frac{time}{\tau 1}}\right)\right)+I2\times \left(\exp \left(-{\displaystyle \frac{time}{\tau 2}}\right)\right)$$ (2)

where I is the total current amplitude, I1 and I2 are the amplitudes of the fast and slow current components, respectively, and τ1 and τ2 are the time constants for the decay of the fast and slow current components. The weighted average τ was then calculated as follows:

$${\tau }_{\mathrm{weighted}}=\left({\displaystyle \frac{I1\times \tau 1+I2\times \tau 2}{I1+I2}}\right)$$ (3)

All desensitization time constants were determined using the two-component fitting and τ_desens is reported as the weighted average τ. Unless otherwise stated, all deactivation time constants were determined using mono-exponential fitting, using Eq. 2 with I2 fixed at 0. Statistical analyses of data were performed in GraphPad Prism 9. Unless otherwise stated, summary patch-clamp and two-electrode voltage-clamp (TEVC) electrophysiology data are represented as mean with a 95% confidence interval (CI). One-way ANOVA with Dunnett’s post hoc multiple comparison test was performed for comparisons of three or more groups in which the data were normally distributed and where a P-value <0.05 was considered significant. For statistical analysis of clinical data, quantitative statistics were analysed using SPSS software (version 24, IBM, UK). Two-sided T-test was used to determine the association of clinical features with the LoF and GoF patient groups. P-value < 0.05 was considered significant. Unless otherwise stated, the level of statistical significance is denoted as *P < 0.05, **P < 0.01 and ***P < 0.001. Extended statistical information including specific P-values are provided in the Supplementary material.

Results

GRIA3 missense variants concentrate on domains responsible for glutamate binding and channel gating

To investigate the pathogenicity of GRIA3 variants identified in NDD patients, we collected one frameshift variant and 43 GRIA3 missense variants identified in patients with presumed GRIA3-related NDD (see the ‘Materials and methods’ section) (Fig. 1 and Supplementary Table 1). Notably, although the central elements for channel function (the ABD, TMD and ABD-TMD linkers) constitute <50% of the GluA3 subunit protein, the majority of the GRIA3 missense variants are located in the ABD (15 variants) and TMD (13 variants) domains, and the ABD-TMD linkers (six variants). In addition, none of these 34/43 variants are reported in the Genome Aggregation Database (gnomAD) and GRIA3 is predicted to be constrained to missense variants (Z = 4.23), which indicates intolerance to missense variation and the majority are predicted to be damaging by in silico prediction of deleteriousness (Supplementary Table 1). In contrast, only nine variants affect residues in the NTD and CTD, which are non-critical domains for the core ligand-gated channel function (Fig. 1A and Supplementary Table 1).

GRIA3 variants have gain-of-function or loss-of-function effects on GluA3 receptor function

The majority of the identified GRIA3 missense variants have not been functionally evaluated for effects on GluA3-containing AMPAR function, except for variants p.(Arg450Glu), p.(Ala615Val), p.(Arg631Ser), p.(Ala653Thr), p.(Arg660Thr), p.(Met706Thr), p.(Glu787Gly), p.(Glu787Lys), p.(Gly826Asp) and p.(Gly833Arg),^{22,29,30,32-35} although not in a systematic manner. Therefore, we first evaluated all variants with TEVC electrophysiology to directly compare effects, focusing on key receptor functional features that included current amplitude, Glu sensitivity, receptor activation and desensitization properties (Fig. 1B and C). Specifically, GRIA3 variants were introduced in cDNA encoding GluA3 and expressed in XOs as homomeric receptors. We first recorded current responses following the application of a single high Glu concentration (300 µM) with pharmacological blockade of receptor desensitization (Fig. 1C). Twenty of the variants showed currents that were significantly lower than wild-type, including nine variants with undetectable or very small (e.g. 50-fold lower than wild-type) current amplitude (Fig. 1B and C and Supplementary Table 2), indicating that these variants have severe LoF effects on GluA3 subunit function or expression. The single frameshift variant p.(Gln371Argfs*6) is located in the 5′ end of the NTD-encoding segment of the GRIA3 coding sequence (Fig. 1A). Therefore, this variant results in the expression of only the NTD that cannot form a functional receptor. Indeed, the expression of p.(Gln371Argfs*6) in XOs did not yield any current response (Fig. 1C) and is assigned a complete LoF status. The remaining variants produced current responses with amplitudes similar to or within 2-fold range of wild-type (Fig. 1B and C and Supplementary Table 2), except for the variants p.(Ala615Val), p.(Ser663Pro) and p.(Gly803Glu), which showed more than 2-fold significantly increased currents compared to wild-type, suggesting an overall GoF effect on receptor function.

For all functional variants, we performed dose-response experiments with increasing concentrations of Glu (Fig. 1D) and determined the half-maximally effective concentration (EC₅₀) for receptor activation (Fig. 1E, Supplementary Fig. 2 and Supplementary Table 3). As summarized in Fig. 1B, 20 variants changed the EC₅₀ significantly by more than 2-fold. The most pronounced changes were observed for the p.(Ser531Cys), p.(Ala654Thr), p.(Trp799Leu) and p.(Gly803Ala) variants, which decreased EC₅₀ more than 20-fold (considered a GoF effect) and p.(Met617Thr) and p.(Phe655Ser), which increased EC₅₀ by more than 20-fold (considered a LoF effect) (Fig. 1B and E, Supplementary Fig. 2 and Supplementary Table 3).

AMPARs undergo profound desensitization in the continued presence of Glu, which is a key property for EPSC shape and protects against excitotoxicity due to glutamatergic hyperfunction.^1,62,63 For variants with a residual function, we assessed potential effects on receptor desensitization by recording consecutive Glu currents in the absence (I_GLU) and presence (I_GLU+TZ) of CTZ block of desensitization (Fig. 2A). The wild-type GluA3 receptor showed desensitized current amplitude of 2.8 ± 0.4%, n = 79, of the non-desensitized current amplitude (Fig. 2A and B and Supplementary Table 3); corresponding well with previously reported ratios for homomeric GluA3.^64-66 Eight variants displayed significant increases in the desensitized current as illustrated for a representative variant [p.(Ala654Val)] in Fig. 2A. The variants p.(Arg631Ser), p.(Ala654Pro), p.(Ala654Val) and p.(Ala654Thr) showed the most profound effects, with near identical current amplitudes under desensitizing and non-desensitizing conditions (Fig. 2A and B and Supplementary Table 3), which indicate that the variants decrease or fully block receptor desensitization, which is a GoF effect for AMPAR signalling. In contrast, seven variants [p.(Ser531Cys, p.(Leu774Ser), p.(Thr776Met), p.(Trp799Leu), p.(Gly803Ala), p.(Thr816Ile), p.(Gly826Asp)] significantly decreased the desensitized current relative to the non-desensitized current, indicating an increase in receptor desensitization, which is considered a LoF effect (Fig. 2B and Supplementary Table 3).

Figure 2.

Variant effects on receptor desensitization and activation properties. (A) Representative currents evoked by sequential 10–20 s applications of Glu (1 mM, black bar) alone and in the presence of cyclothiazide (CTZ) (100 μM, grey bar) from oocytes expressing wild-type (WT) GluA3 and GluA3 carrying selected GRIA3 missense variants. The p.(Pro302Ser) variant shows no change in the size of the desensitized current relative to the non-desensitized Glu current compared to wild-type, the p.(Ala654Val) variant shows increased desensitized current, and the p.(Thr816Ile) variant show decreased desensitized current. (B) Representative currents evoked by sequential 10–20 s applications of Glu (1 mM, black bar) and kainic acid (KA) (300 µM; blue bars) in the presence of CTZ (100 μM, grey bar) from oocytes expressing wild-type GluA3 and GluA3 containing selected variants exemplifying different types of variant effects on KA/GLU response ratio. For wild-type GluA3 and the p.(Pro302Ser) variant, the KA-evoked current has an amplitude of 16% of the Glu current amplitude. In contrast, the p.(Ala654Val) variant has a relative KA current of 41%, indicating an increase in activation properties, and p.(Ala653Thr) variant has decreased relative KA response amplitude of 3.5%, indicating decreased activation properties. The holding potential was −40 mV in all shown recordings. (C) Representative currents illustrating 1-naphthyl acetyl spermine (NASPM) (1 µM, red bar) inhibition of Glu-evoked currents for wild-type GluA3 and GluA3 containing the variants p.(Arg631Ser) and p.(Ala654Pro). (D) Summary of the ratio of desensitized and non-desensitized current amplitude (I_GLU/I_GLU+CTZ), non-desensitized Glu and KA (I_KA+CTZ/I_GLU+CTZ) current amplitudes and NASPM inhibition of Glu-evoked current for homomeric GluA3 receptors containing genetic variants encoded by the GRIA3 variants evaluated in this study. Values, number of measurements and statistical parameters are given in Supplementary Table 2. Individual data-points are colour-coded according to the effect on currents or EC₅₀ [loss-of-function (LoF) effect; red] or increase [gain-of-function (GoF) effect; green]. (E–G) Summary of phenotype and domain location of variants with overall GoF (E), LoF (F) and neutral (G) effect on homomeric GluA3 receptor function. Inverted triangle = decrease; triangle = increase; filled circle = no change; dash = not determined. Colour-coding indicates a predicted LoF (red) or GoF (green) effect of change on overall receptor function. (H) Missense tolerance ratio (MTR) of GRIA3 variants analysed with a 31 amino acid window calculated using the MTR-viewer online tool (https://biosig.lab.uq.edu.au/mtr-viewer/).⁶⁷ A line graph displays the MTR distribution for GRIA3 (gene transcript NM_000828) with regions in orange indicating observed variation differs significantly from neutrality. Dashed lines on the plot denote gene-specific MTRs: green = fifth percentile; purple = 25th percentile; black = 50th percentile. Above the MTR distribution is shown the domain structure of the GluA3 subunit. Variant positions are shown as circles on the MTR line graph and coloured according to functional effect as: neutral (grey), GoF (green) and LoF (red). Orange line segments indicate regions where the observed variation differs significantly from neutrality. In all panels, variants are labelled with single-letter amino acid codes. ABD = agonist binding domain; CTD = carboxy-terminal domain; NTD = N-terminal domain; TMD = transmembrane domain.

We screened for changes in the activation properties of GluA3, comparing the receptor current evoked by application of the weak partial agonist kainic acid (KA) versus the current evoked by Glu^68,69 (Fig. 2C). When desensitization was blocked, the KA current (I_KA+CTZ) at wild-type GluA3 was 21 ± 0.1%, n = 85, of the Glu current (Fig. 2B and Supplementary Table 3). The results from the screening showed an increased KA efficacy for 12 variants [p. (Ala615Val), p.(Arg631Ser), p.(Ser647Phe), p.(Ala654Pro), p.(Ala654Val), p.(Ala654Thr), p.(Arg660Ser), p.(Arg660Thr), p.(Ser663Pro), p.(Trp799Leu), p.(Gly803Glu) and p.(Gly803Ala) (Fig. 2C and Supplementary Table 3). This effect indicates an increase in the ability of GluA3 to translate agonist binding to channel opening and is to be considered a GoF effect for overall receptor function. In contrast, six variants [p.(Met617Thr), p.(Ala653Thr), p.(Phe655Ser), p.(Ile665Thr), p.(Lys701Glu) and p.(Gly826Asp)] displayed decreased KA efficacy and, therefore, reduced ability to activate, which is a LoF effect for overall receptor function (Fig. 2B and C and Supplementary Table 3). Notably, the KA/Glu current ratio has previously been electrophysiologically characterized for homomeric GluA3 with the p.(Ala653Thr) variant with similar results.²⁹

Last, we screened for constitutive receptor activity, e.g. channel opening in the absence of Glu, using NASPM, a selective open-channel blocker for GluA2-lacking calcium-permeable AMPARs.^70,71 Applying 1 µM NASPM produced near-complete inhibition of the Glu-evoked current for wild-type GluA3 and most variants (Fig. 2C and D and Supplementary Table 3). However, for two variants [p.(Arg631Ser) and p.(Ala654Pro)], NASPM application inhibited the membrane current below the level observed in the absence of Glu (Fig. 2C), indicating constitutive channel activity. This effect was most profound for the variant p.(Ala654Pro) (Fig. 2D and Supplementary Table 3). Specifically, in the absence of an agonist and at a holding potential of −40 mV, XOs expressing the p.(Ala654Pro) variant displayed ∼10-fold increased membrane current (564 ± 123 nA; n = 21) compared to XOs expressing the wild-type (receptor 61 ± 32 nA; n = 20). Also, the elevated membrane current for p.(Ala654Pro) increased relatively little upon Glu application in the presence of block of desensitization (I_GLU+CTZ = 89 ± 20 nA; n = 18) compared to the membrane current in wild-type expressing (I_GLU+CTZ = 4230 ±490 nA; n = 140), but decreased by >300% upon NASPM application (Fig. 2D and Supplementary Table 3). Three variants [p.(Ala615Val), p.(Met617Thr) and p.(Gly826Asp)] showed decreased inhibition by NASPM. These variants change residues located close to the NASPM binding site in the channel, and the decreased inhibition by NASPM likely reflects a direct effect on the binding affinity of NASPM.⁷²

The TEVC functional characterizations of the 43 missense GRIA3 variants showed that 70% (30/43) changed one or more of the evaluated receptor parameters. As summarized in Fig. 2E, 18 of the missense variants showed a pattern of functional effects that point to an overall LoF effect on receptor signalling function, including decreased or complete loss of desensitized and non-desensitized current response to Glu (no or decreased I_GLU or I_GLU+CTZ, respectively), reduced agonist sensitivity (increased EC₅₀), reduced activation ability (decreased I_KA/I_GLU ratio) or increased desensitization (decreased I_GLU/I_GLU+CTZ ratio). In contrast, 12 variants showed effect patterns that suggest an overall GoF effect; e.g. increased current amplitudes, agonist sensitivity, activation, including constitutive activity and significantly reduced or completely blocked desensitization (Fig. 2F). Two variants [p.(Trp799Leu) and p.(Ser531Cys)] showed a mixed pattern of both GoF and LoF effects. Specifically, these variants showed no [p.(Ser531Cys)] or greatly reduced [p.(Trp799Leu)] desensitized current, but wild-type-like current amplitude upon block of desensitization (Fig. 1B and C and Supplementary Tables 2 and 3). These results suggest a LoF functional phenotype due to increased desensitization. On the other hand, both variants decreased Glu EC₅₀ dramatically (Fig. 1E; measured in the presence of CTZ), which is a GoF effect, and for p.(Trp799Leu) also increased the KA efficacy, indicating increased ability to be activated (Fig. 1B and Supplementary Table 3). However, we classified both variants to have an overall LoF effect based on the reduced Glu current without blocked desensitization. Last, 13 variants did not show significant changes in any of the evaluated functional parameters (Fig. 2G) and, therefore, appeared neutral for the core ligand-gated channel function and were not investigated further. However, we cannot rule out that these variants may affect other aspects of GluA3-containing receptors beyond the functions studied here, such as receptor trafficking, regulation and interactions with synaptic proteins important for native AMPARs.

The domain distribution of the GoF, LoF and functionally neutral variants shows that GoF and LoF variants exclusively affect residues in the ABD, TMD and ABD-TMD linkers, whereas most neutral variants affect residues in the NTD and CTD (Fig. 2E–G). Overall, the positions in the GluA3 sequence that are affected by LoF and GoF variants fit well with analysis of missense tolerance ratio⁷³ (MTR) (Fig. 2H), as 87% (27/31) of the variants with functional LoF or GoF affect residues in segments that appear highly intolerant to missense variation (Fig. 2H), whereas 69% (9/13) of the functionally neutral variants affect positions with no unusual sensitivity to missense variation. This observation suggests that MTR analysis is a highly effective predictor of potential pathogenicity of missense variants for GRIA3. In comparison, the accuracy of the in silico prediction tools SIFT and PolyPhen in predicting the LoF/GoF variants as pathogenic was 72% and 74%, respectively (Supplementary Table 1).

GRIA3 variant effects are dominant in heteromeric AMPA receptors

GluA3 subunits are thought to preferentially assemble with GluA2 subunits into heteromeric GluA2/3 receptors in the brain, although triheteromeric GluA1/2/3 receptors have also recently been shown.^74-77 Thus, native GluA3-containing AMPARs in affected patients will have two subunits containing the variant. To assess whether variant effects were also present in heteromeric GluA2/A3 receptors, we expressed the LoF or GoF variants together with wild-type GluA2 and determined desensitized and non-desensitized current amplitudes, the degree of desensitization, and the KA/GLU response ratio (Fig. 3A–C and Supplementary Table 4). For each variant expressed with GluA2, the current-voltage (IV) relationship was determined, as this provides a measure for formation of heteromeric GluA2/A3 receptors (Fig. 3E). Specifically, incorporation of GluA2 subunits shifts the IV curve from inwardly-rectifying to linear (as illustrated for wild-type and selected variants in Fig. 3E). All functional variants exhibited linear IV relationships when expressed with GluA2, which shows that the variants retain their ability of GluA3 to form heteromeric GluA2/A3 receptors. As summarized in Fig. 3D, the results showed that GoF effects observed in homomeric GluA3 were highly penetrant to heteromeric GluA2/A3. Specifically, significant changes for the affected parameters were also observed in GluA2/A3 receptors for all variants exhibiting one or more GoF effects. Similarly, for variants that induced a LoF phenotype for homomeric GluA3, LoF effects were also observed in the heteromeric receptor background. Notably, among the variants that completely abolished the Glu response in homomeric GluA3 [p.(Gly492Ser), p.(Gly630Arg), p.(Met706Thr), p.(Gly721Arg), p.(Glu787Lys), p.(Glu787Gly) and p.(Gly833Arg)], currents could be measured for all when expressed as heteromers with GluA2, although with profoundly lower current amplitudes than wild-type GluA2/A3 (Fig. 3D and Supplementary Table 2). The only exception was the p.(Gly721Arg) variant, which showed a current amplitude similar to wild-type in heteromeric GluA2/A3 receptors (Supplementary Table 2). For all of these variants, a linear IV relationship similar to wild-type GluA2/3 was observed (Supplementary Fig. 3), confirming the presence of the GluA2 subunit in the heteromeric receptor complex.

Figure 3.

Variant effects in heteromeric GluA2/A3 receptors. (A) Representative currents evoked by sequential 10–20 s applications of Glu (1 mM) alone and in the presence of cyclothiazide (CTZ) (100 μM) from oocytes expressing wild-type (WT) GluA2, wild-type GluA3 and wild-type GluA2 with GluA3 carrying selected GRIA3 missense variants illustrating increased [p.(Ala654Val), middle trace] and decreased [p.(Leu774Ser); lower trace] desensitized current. (B) Representative currents evoked by sequential 10–20 s applications of Glu (1 mM) and kainic acid (KA) (300 µM) the presence of CTZ (100 μM) from oocytes expressing wild-type GluA2, wild-type GluA3 and wild-type GluA2 with GluA3 carrying selected GRIA3 missense variants illustrating increased [p.(Ala615Val), middle trace] and decreased [p.(Ala653Thr); lower trace] current response to KA relative to Glu. (C) Representative current recordings from two-electrode voltage-clamp (TEVC) Glu concentration-response experiments of wild-type and selected variants in heteromeric GluA2/A3 receptors with corresponding fitted dose-response curves for homomeric (A3) and heteromeric (A2/A3) receptors. The p.(Trp799Leu) exemplifies a variant changing the EC₅₀ in both homomeric and heteromeric receptors, whereas p.(Thr776Met) exemplifies a variant affecting only homomeric receptors. (D) Overview and summary of the effects on heteromeric GluA2/A3 receptor parameters (squares) of GRIA3 variants with gain-of-function (GoF) and loss-of-function (LoF) effects. Data-points represent the mean and 95% confidence interval (CI) values (Supplementary Tables 2 and 3). (E) Current-voltage (IV) relationships of Glu-evoked currents from oocytes expressing homomeric wild-type and variant-containing GluA3 alone and with wild-type GluA2R. The current amplitude at the different holding potentials is normalized to the current at −40 mV. Data-points represent the mean from 6 to 10 oocytes. Error bars indicate the standard error of the mean (SEM) and are shown when larger than the symbol size. In all panels, variants are labelled with single-letter amino acid codes.

In summary, the characterization of the effects of the 43 GRIA3 missense variants revealed 31 (72%) to alter electrophysiological functions in both homomeric GluA3 and heteromeric GluA2/3 receptors, strongly indicating these variants as pathogenic.

Kinetic characterization and classification of the pathogenic variants

Based on the TEVC evaluations, we next aimed to collect detailed phenotypic and genetic information from patients carrying the 31 GRIA3 variants associated with significant LoF or GoF effects on receptor function and, therefore, are strongly indicated as a monogenetic cause of NDD. For 17 of these variants, we obtained detailed clinical information from 25 NDD patients, resulting in a cohort of 14 males (Patients M1–M14) and 11 females (Patients F1–F11). The genetic and phenotypic details of the patient cohort are described in the Supplementary material and Supplementary Table 7. To further characterize how the 17 cohort variants perturb the receptor functional phenotype, we utilized fast-application patch-clamp electrophysiology, which can model the synaptic Glu pulses that evoke EPSCs on a millisecond timescale and can accurately identify changes in receptor deactivation and desensitization rates that are particularly important for shaping AMPAR synaptic signals. Specifically, the cohort variants were expressed in HEK293 cells as homomeric GluA3 and heteromeric GluA2/A3 receptors. Current responses to pulses of 10 mM Glu were recorded (Fig. 4A for an illustration of the recording protocol and representative current traces), except for variants p.(Ala653Thr), p.(Gly630Arg) and p.(Arg660Thr), which have previously been characterized with fast-application patch-clamp electrophysiology in both homomeric GluA3 and heteromeric GluA2/A3 receptors.^29,34,61 AMPAR subunits occur in two isoforms, denoted flip and flop, which result from alternative splicing of the two mutually exclusive exons, 14 and 15, respectively, and have important differences in receptor kinetics.⁷⁸ This alternative flip/flop splicing affects nine amino acid positions in a 38 amino acid segment close to the ABD-M4 linker. The p.(Glu787Gly) (Patient M7), p.(Glu787Lys) (Patient M8–9 and F11) and p.(Trp799Leu) (Patient F9) variants originate in exon 14 and specifically affect the flop isoform. Therefore, these variants were characterized in the flop isoform of GluA3 (GluA3_o). The remaining variants are located outside the flip/flop segment and were characterized in the flip isoform (GluA3_i), which predominates before birth and continues to be expressed in the adult brain.⁷⁹

Figure 4.

Characterization of variant effect on fast receptor kinetics. (A) Representative whole-cell currents evoked by a 500 ms application of glutamate (Glu) (10 mM, black bar) from homomeric GluA3 (left) and heteromeric GluA2/A3 receptors carrying the indicated GRIA3 variants subunits expressed in HEK293 cells. The holding potential was −70 mV in all recordings. Note that scale bars for current amplitude differ between recordings. (B) The time constant (τ_des) and level (I_ss) of current desensitization determined from the fitting of the current decay (insert) during 500 ms applications of Glu (10 mM, black bars) fitted to two-exponential decay functions weighted by proportional contributions for wild-type (WT) and variant homomeric GluA3 (left) and heteromeric GluA2/A3 (right) receptors. (C) Summary of the τ_des and I_ss values. Bars represent the mean with standard error of the mean (SEM) error. Values not determined due to low or no current are labelled ‘nd’. (D) Deactivation rates (τ_deact) determined from the fitting of the current decay (insert) following 1 ms application of Glu (10 mM, black bars) fitted to a mono-exponential decay function (inserts) for wild-type and variant homomeric GluA3 (left) and heteromeric GluA2/A3 (right) receptors. (E) Summary of τ_deact values. Bars represent the mean with SEM error. Values not determined due to low or no current are labelled ‘nd’. (F) Summary of effects of patient variants on current kinetics and location in GluA3 subunit. Variants with loss-of-function (LoF) effects are shown in red and gain-of-function (GoF) in green. Inverted triangle = decrease; triangle = increase; filled circle = no change; dash = not determined. In all panels, variants are labelled with single-letter amino acid codes.

The results showed a complete or very severe LoF effect on the current response to fast Glu applications for the variants p.(Gly492Ser) (Patient M2), p.(Phe655Ser) (Patient M10), p.(Ile665Thr) (Patient F10) and p.(Glu787Gly) (Patient M7) (Fig. 4A). In addition, the variants p.(Gly630Arg) (Patients M3–6) and p.(Glu787Lys) (Patients M8–9 and F11) that previously have been characterized with identical recording protocols, also have a complete LoF phenotype.⁶¹ Moreover, expressed together with wild-type GluA2, all these variants also abolished the current response in heteromeric GluA2/A3 receptors, except for p.(Ile665Thr) (Patient F10), which showed a robust and desensitizing current response (Fig. 4A). To test whether the complete or severe LoF effect was due to the variants perturbing expression and folding of the GluA3 subunit protein, or subunit ability to assemble into receptors that traffic to the membrane, we expressed β-lac-tagged wild-type and variant GluA3 constructs in HEK293 cells (Supplementary material, ‘Methods’ section). Analysis of the conversion rates of the β-lac substrate nitrocefin from transfected HEK293 cells revealed no significant difference in cell-surface expression between wild-type and variant receptors (Supplementary Fig. 4). Thus, we conclude that the LoF effect that these variants have on Glu current is due to disruption of the core ligand-gated channel function of the receptor. The p.(Trp799Leu) variant showed measurable currents but with greatly reduced peak amplitude. In homomeric GluA3, due to the reduced currents, we were only able to reliably determine the desensitization rate of the p.(Trp799Leu) variant in a single experiment, which showed 3-fold increased rate of desensitization (τ_des = 0.57 ms versus 1.58 ± 0.05 ms; n = 15 for wild-type GluA3_o) and no measurable steady-state current (Fig. 4A and B and Supplementary Table 5). These effects were also observed in the heteromeric GluA2/A3 receptor (Fig. 4A and B and Supplementary Table 5), where slightly more robust currents allowed us to accurately determine the desensitization kinetics, and suggest p.(Trp799Leu) is a severe LoF variant by greatly reducing charge transfer due to an increased rate and extent of receptor desensitization. Notably, this is supported by the TEVC characterizations that showed that the diminished Glu current for p.(Trp799Leu) could be fully rescued by the pharmacological block of desensitization (Figs 2 and 3).

The GoF variants p.(Ala654Val), p.(Ala654Thr), p.(Ala654Pro), p.(Ser663Pro), p.(Lys701Glu), p.(Gly803Ala) and p.(Gly803Glu) all produced robust currents when expressed as homomeric and heteromeric receptors (Fig. 4A). For these variants we determined the desensitization rate (τ_des) and peak-to-steady-state current ratio (I_ss) from 500 ms lutamate stimulations (Fig. 4B and C) and the deactivation rate (τ_deact) from 1 ms stimulations (Fig. 4D and E and Supplementary Table 5). As predicted from the TEVC results, p.(Ala654Val) (Patient F5), p.(Ala654Thr) (Patient F7) and p.(Ala654Pro) (Patient F6) displayed greatly decreased desensitization. Specifically, whereas wild-type GluA3_i currents almost completely decayed within milliseconds (τ_des = 5.3 ± 0.3 ms; n = 12) to a small fraction of the peak current (I_ss = 1.1 ± 0.1%; n = 16), the p.(Ala654Pro) variant completely blocked (I_ss = 100 ± 0.0%, n = 4) and the p.(Ala654Thr) and p.(Ala654Val) variants greatly reduced the level of desensitization (I_ss = 82 ± 3%, n = 9, and 61 ± 2%, n = 9, respectively). In addition, the deactivation rates for these variants were also slowed (τ_deact = 5–22 ms; n = 3–9) compared to wild-type (τ_deact = 2.1 ± 0.2 ms; n = 9) for homomeric GluA3 receptors (Fig. 4D and E and Supplementary Table 5). These effects were maintained for the heteromeric GluA2/A3 receptor, where the p.(Ala654Pro) variant completely blocked desensitization and slowed deactivation, and the p.(Ala654Val) and p.(Ala654Thr) decreased desensitization and slowed deactivation, except for p.(Ala654Val), which showed a deactivation rate not different from wild-type (Fig. 4B and C and Supplementary Table 5). Thus, the three variants affecting Ala654 can be classified as severe GoF due to profoundly decreased desensitization and reduced deactivation rates. The variants p.(Ser663Pro) (Patient F4) and p.(Lys701Glu) (Patient F3) displayed phenotypes quite similar to each other, which included significantly increased I_ss levels, slowed desensitization rates and modestly but significantly slowed deactivation rates in both homomeric and heteromeric receptors (Fig. 4B and C and Supplementary Table 5). Lastly, the two variants affecting Gly803 [p.(Gly803Ala) and p.(Gly803Glu)] showed normal I_ss levels but reduced desensitization and deactivation rates (Fig. 4B and C and Supplementary Table 5). These changes, as a consequence of p.(Ser663Pro), p.(Lys701Glu), p.(Gly803Ala) and p.(Gly803Glu) variants, are predicted to have a clear GoF effect on the synaptic charge carried by GluA3-containing AMPARs, although to a less severe extent than the variants affecting Ala654.

Correlation of loss-of-function and gain-of-function receptor effects with patient clinical phenotype

We next compared patient clinical information with the receptor phenotypic information. As summarized in Fig. 5A, we classified the variants based on the GoF and LoF effects identified in the electrophysiological analyses as severe or mild. In addition, data from previously reported evaluations of the p.(Ala653Thr)²⁹ and p.(Arg660Thr)³⁴ variants were included. For LoF variants, the severe class includes seven variants in 12 patients (Patients M1–M10 and F10–F11; Fig. 5A) that completely abolish the current response to millisecond Glu stimulation, whereas the mild class includes two variants from three patients [p.(Ala653Thr) in Patients M11 and M12 and p.(Trp799Leu) in Patient F9], which show current response to fast Glu stimulation, but with greatly reduced amplitude and profound changes in desensitization and deactivation kinetics that overall are predicted to reduce synaptic charge transfer. For GoF variants, the mild class includes four patients with variants p.(Gly803Ala) (Patient M13) and p.(Gly803Glu) (Patients M14 and F1 and F2), which slow desensitization and deactivation rates significantly increase Glu sensitivity, but do not appear to change peak or desensitized current levels. The severe GoF class includes the variants p.(Ala654Val), p.(Ala654Pro) and p.(Ala654Thr) (Patients F5–F7), respectively, in addition to p.(Ser663Pro) (Patient F4), p.(Arg660Thr) (Patient F8) and p.(Lys701Glu) (Patient F3), which all significantly reduce desensitization and deactivation rates, increase Glu sensitivity and increase steady state current amplitudes in the TEVC experiments (Fig. 5A).

Figure 5.

Variant classification and phenotype correlations for Patients M1–M14 and F1–F11. (A) Schematic overview of the classification of receptor phenotype for Patients M1–M14 and F1–F11 into severe and mild gain-of-function (GoF; green) and loss-of-function (LoF; red) categories based on variant effect patterns on GluA3-containing receptor function together with an overview of the number of patients and prevalence of key patient symptoms for each category. (B) Summary of key and supporting features for the clinical phenotypes associated with LoF and GoF variants. The diagram summarizes several clinical findings that can help predict if a GRIA3 variant leads to LoF and GoF. GoF variants manifest with seizures occurring before the first year of life (with a median age of 1 month) and are characterized by supporting features such as hypertonia, hyperekplexia/excessive startle reflex, and the absence of sleep disturbances. LoF variants manifest with key features such as seizure onset after the first year of life (with a median age of 16 months) and supporting features including hypotonia, sleep disturbances and the absence of hyperekplexia/excessive startle reflex. If a patient’s phenotypical presentation displays a combination of these features, functional testing of the variant is required to determine whether a GRIA3 variant displays LoF or GoF characteristics. ^a–dP-values for comparing proportions of clinical indicators between the LoF or GoF patients. ^aAge of seizure onset 12 months; P = 0.004. ^bHypertonia versus hypotonia; P = 0.0004. ^cHyperekplexia/startle versus no hyperekplexia/startle; P = 0.003. ^dSleep disturbance versus no sleep disturbance; P = 0.018.

Several differences between the GoF and LoF patient classes (10 patients with GoF variants and 15 patients with LoF variants) were identified (Table 1 and Fig. 5B). Importantly, LoF and GoF variants are disease-causing in both sexes but affected males predominantly (12/14) carry hemizygous LoF variants. In contrast, most affected females (8/11) carry heterozygous GoF variants. Another striking difference includes the age of seizure onset in the subgroup of patients with epileptic comorbidities, muscle tone (hypo- versus hypertonia), sleep difficulties and movement disorders, including hyperekplexia (Fig. 5B and Table 1). Specifically, for the patients with epileptic comorbidities, the median age of seizure onset in patients harbouring a GoF was 1 month (range first day to 12 months, n = 5), being significantly earlier than in patients with LoF variants, being 16.5 months (range 12–36 months, n = 6, P = 0.004). We detected no significant differences between the GoF and LoF groups when comparing seizure types (P = 0.85) and treatment response (P = 1). For body tone, most patients harbouring a LoF variant had congenital muscular hypotonia (n = 10/15), which was not reported in any of the 10 patients with GoF variants (P = 0.0004). In contrast, congenital muscular hypertonia was present in 8/10 patients with GoF variants, while it was only reported in 1/15 patients with LoF variants (P = 0.0002). Sleep disturbances were reported in 10/15 patients with LoF variants, while they were only present in 2/10 patients with GoF variants (P = 0.0018). Movement disorders of any kind were reported in 5/15 patients with LoF variants, while they were present in 8/10 patients with a GoF variant (P = 0.04). In particular, an excessive startle response to external stimuli, also known as hyperekplexia, was more prevalent in the group with GoF variants (n = 5) compared to the group with LoF variants (n = 1) (P = 0.003). For behavioural abnormalities, aggressive outbursts were more prevalent in the LoF cohort (n = 6) compared to the GoF cohort (n = 2), although the difference was not significant (P = 0.29). There were no significant differences in the other behavioural abnormalities reported in the GoF (n = 6) compared to the LoF cohort (n = 10) (P = 0.75). Although all patients had intellectual disability (ID), we found no significant difference in severity between the GoF and LoF cohorts (P = 0.26). Specifically, ID was reported to be borderline/mildly (n = 1), moderately (n = 5), severely (n = 8) or profoundly (n = 1) affected in the LoF cohort, while moderately (n = 4), severely (n = 3) or profoundly (n = 3) affected in the GoF cohort.

Table 1.

Comparison of clinical features reported in patients with loss-of-function GRIA3 variants compared to features reported in those with gain-of-function GRIA3 variants

Feature	Loss-of-function	Gain-of-function
Number of patients	15	10
Male	12/15 (80%)	2/10 (20%)
Female	3/15 (20%)	8/10 (80%)
Epilepsy diagnosis	6/15 (40%)	6/10 (60%)
Median age at onset of seizures	16 months (range 9 months to 3 years)	1 month (range first day to 27 years)
Treatment resistant seizures	3/5 (60%)	4/6 (66%)
Developmental delay or cognitive impairment	15/15 (100%)	10/10 (100%)
	Degree: borderline = 1 mild-moderate = 1 moderate = 4 severe = 7 severe-profound = 1 profound = 1	Degree: moderate = 4 severe = 2 severe-profound = 1 profound = 3
Muscular hypotonia	12/15 (80%)	0/10 (0%)
Muscular hypertonia	2/15 (13%)	9/10 (90%)
Hyporeflexia	10/15 (66%)	0/10 (0%)
Hyper-reflexes	1/15 (6%)	7/10 (70%)
Spasticity	1/15 (6%)	4/10 (40%)
Movement disorder or any kind	7/15 (46%)	8/10 (80%)
Hyperexplexia or stimulus sensitive non-epilepticus myoclonia	2/15 (13%)	6/10 (60%)
Sleep disorder	10/15 (66%)	3/10 (33%)
Behavioural issues of any kind	10/15 (66%)	5/10 (50%)
Aggressive outburst or self-damaging behaviour	6/15 (40%)	2/10 (20%)
MRI performed	9/15 (60%)	9/10 (90%)
Abnormal MRI	2/9 (22%)	2/9 (22%)

The table summarizes key clinical features in the loss-of-function and gain-of-function patient groups. Detailed clinical information for individual patients is provided in the Supplementary material and Supplementary Table 7.

In summary, the phenotypic assessment indicates that GoF variants are objectively associated with more severe outcomes: patients were younger at the time of seizure onset, hypertonic and more often had movement disorders, including hyperekplexia. In contrast, patients with LoF variants were older at seizure onset, hypotonic and had sleep difficulties.

Discussion

Missense variants in GRIA3 are by far the most prevalently reported GRIA genetic defects in NDD patients. However, the extent to which the variants underlie NDDs is not clear, as few have been studied in cellular or animal models to confirm them as pathogenic variations. The present work systematically evaluates 44 rare GRIA3 variants in NDD patients to establish whether these have functional effects on GluA3-containing AMPARs. Focusing on effects on core ligand-gated ion channel function, we found that 31 variants produced significant effects and were classified as LoF or GoF concerning overall receptor signalling capability. We correlated the identified effects on receptor function with the clinical features and found distinct GoF and LoF phenotypes. This specific LoF-GoF difference in clinical phenotype is in line with several other CNS ion channel gene families, including the GRIN iGluR gene subfamily,⁸⁰ where studies applying detailed electrophysiological analysis of rare missense variant effects have established both LoF and GoF effects as pathogenic, with each category often leading to different disease phenotypes.^81-86 In addition to the clinical importance of providing a diagnosis and new disease understanding, identifying pathogenic variants as having LoF or GoF effects on channel function is also of therapeutic relevance as it potentially guides pharmacological intervention. For the iGluR gene families, this approach of systematic and detailed testing of pathogenic variants from patient cohorts and their clinical and therapeutic relevance has been successfully implemented for the NMDAR-encoding GRIN gene family, leading to a definition of specific neurological conditions associated with types of variant effect and examples of successful therapeutic intervention.^1,87,88 In this paper, we extend the value of this approach to the GRIA family. Moreover, our data advance the understanding of the role of abnormal function of AMPARs in general and GluA3-containing subtypes in particular in NDD syndromes. First, as 71% of the evaluated variants altered GluA3-containing AMPAR function, GRIA3 can be firmly classified as a general disease gene in NDDs, and underscores the importance of appropriate AMPAR signalling for CNS development, as also suggested in single case or smaller cohort studies for GRIA1, GRIA2 and GRIA3.^{22,29,30,32-34} Second, our work expands the spectrum and frequency of functional effects of pathogenic GRIA3 variants by identifying distinct types of LoF and GoF effects and providing clear genotype-phenotype correlations that define two clinical phenotypes associated with predicted LoF and GoF effects: LoF variants often lead to muscular hypotonia, hyporeflexia, a sleep disorder, aggressive behaviour and later onset of seizures, whereas GoF variants are associated with muscular hypertonia, hyperreflexia, startle-induced non-epileptic myoclonia and earlier onset of seizures.

Although the GoF variants appear to be associated with more severe outcomes, such as earlier seizure onset and a higher prevalence of movement disorders, including hyperekplexia, all patients present with overall severe NDD phenotypes independent of the type of LoF or GoF effect of the GRIA3 variants. This observation suggests that even quantitatively small alterations from wild-type AMPAR function lead to severe outcomes, which likely reflects the crucial role of AMPARs in the ability of excitatory synapses to detect transmission events rapidly. As excitatory synaptic currents can occur at rates of up to several hundred Hz, AMPARs have likely evolved with precisely balanced Glu sensitivity and extremely fast rates of activation, desensitization and deactivation within a very narrow range. Thus, although some LoF and all GoF effects do not prevent the contribution of GluA3-containing AMPARs to synaptic transmission, they are likely to perturb the fidelity of neuronal activation. It is also noteworthy that Patient M1, who is hemizygous for the protein-truncating complete LoF variant p.(Gln371Argfs*6), appears to have the least severe symptoms compared to those with missense LoF variants, in particular in respect to the severity of ID (Table 1). This finding suggests that the complete loss of GluA3-containing receptors from synaptic AMPAR populations is better tolerated than the existence of GluA3-containing receptors with perturbed function. Interestingly, similar findings have been reported for γ-aminobutyric acid A (GABA_A) receptors.⁸⁹ Further detailed evaluation of more pathogenic GRIA3 variants is warranted to explore how clinical severity correlates to variant effects on receptor function and will likely require establishing models for studying the variant impact on synaptic transmission and animal behavioural phenotypes.

The current dataset also provides insight into emerging associations among sex and inheritance, which often is complicated for morbid genes on the X-chromosome, as it is not always possible to predict the phenotypical effect in heterozygous females. Our dataset establishes that LoF and GoF variants as disease-causing, but that affected males more often (12/14) carry hemizygous LoF variants, whereas most affected females (8/11) carry heterozygous GoF variants. Although our data do not support a strict model, the prevalence of de novo GoF in females is consistent with the general understanding that LoF variants are likely to be less harmful in heterozygous females.⁹⁰ However, evaluation of further GRIA3 variants in males and females is needed to explore (i) the prevalence of GoF variants in females and LoF variants in males; and (ii) to describe if males with GoF variants are equally or more severely affected than females with similar variants.

Next-generation sequencing has become routine in hospitals and the number of NDD patients with a genetic aetiology is increasing.^91,92 As a result, the number of new GRIA variants needing a functional assessment is expected to rise. In addition to confirming pathogenicity, functional testing provides knowledge crucial for treatment, as choosing the right drug (effective and not exacerbating the existing symptoms) depends on establishing LoF or GoF status. In this respect, establishing the impact of new variants on AMPAR function via electrophysiological evaluation may become a critical bottleneck in individual cases, highlighting a need to develop approaches for the theoretical prediction of variant pathogenicity and LoF/GoF effects. Notably, recent large-scale bioinformatical efforts for exploring new approaches for prediction of pathogenicity of variants in genes encoding voltage- and ligand-gated ion channel subunits have suggested that clinical decision support algorithms that predict LoF/GoF status based on location in protein structure may become feasible.⁹³ Specifically, it was shown that certain positional measures of the variant in the structures of voltage-gated sodium channels and NMDA receptors could be correlated to functional effect and clinical phenotype.⁹³ For similar purpose in GluA3-containing AMPA receptors, we note that when considering the variant distribution throughout the GluA3 structure, it is observed that functionally neutral variants are enriched in the NTD, whereas LoF or GoF variants localize in the ABD, linker and TMD segments (Figs 1 and 2). However, we found several examples of close clustering of neutral, LoF and GoF variants in these domains, which suggests that the clinical interpretation of missense variants in GRIA3 as well as GoF/LoF classifications based on general localization measures in the receptor structure should be cautious.

For several pathogenic GRIA3 variants, our analysis allows us to pinpoint the mechanistic cause of the overall LoF or GoF effect. This knowledge provides an opportunity for exploring clinically relevant AMPAR drugs for the pharmacological rescue of receptor function among different classes of variant phenotypes. Notably, for variants with LoF effects on AMPAR kinetics, positive allosteric modulators (PAMs) exist, in particular of the ampakine class, that can modulate AMPAR current amplitude and waveform via selective effects on receptor kinetics.⁹⁴ Although no AMPAR PAM currently is FDA/EMA approved, several have passed phase I/II clinical trials, such as CX516,⁹⁵ CX717 (fasoracetam),⁹⁶ Org 24448 (aniracetam)⁹⁷ and CX1739,⁹⁸ including early proof-of-concept trials in patients with cognitive impairments⁹⁹ and are subjects for ongoing clinical development. Similarly, for variants with GoF effects (e.g. increased activation or decreased desensitization), negative allosteric modulators (NAMs) can be explored, including perampanel, which inhibits activation and accelerates desensitization.¹⁰⁰ Importantly, perampanel is approved for chronic treatment of several types of epilepsy¹⁰¹ and therefore, directly available as a potential precision medicine for patients with GoF AMPAR mutations, as recently has been demonstrated for GoF variants in other GRIA genes.¹⁰²

The present study represents the largest functional evaluation of missense variants in any GRIA gene. Together with previous work on GRIA1, GRIA2 and GRIA3, the volume of validated pathogenic GRIA variants has now reached a critical point that firmly establishes GRIA genetic defects as the cause of an emerging neurological disease, recently referred to as GRIA disorder.¹⁰² However, further understanding of GRIA disorder disease mechanisms and potentially devising standard rescue pharmacological strategies is complicated by the diversity of the native AMPAR subtypes that a pathogenic variant can affect. Notably, we focused our functional work on the homomeric GluA3 and the heteromeric GluA2/A3 subtypes in two heterologous expression models, which lack the postsynaptic proteins that interact with native AMPARs and contribute to their synaptic functions. Most native AMPARs assemble with different transmembrane AMPA receptor regulatory proteins (TARPs), which act as auxiliary subunits and have distinct effects on receptor function, including modulation of receptor gating and desensitization properties.^1,103 These effects may have significant implications for the variant effect on synaptic transmission, and further work is required to provide insights into how GRIA variants affect AMPAR function involving auxiliary subunits. Also, the absence of a neuronal environment presents a caveat to the classification of variants that do not display functional effects, as functionally neutral variants may have detrimental effects on other aspects of AMPAR cellular biology, such as receptor incorporation and positioning at synapses and regulation during synaptic plasticity mechanisms. Specifically, our evaluation did not reveal effects on the core function of GluA3-containing AMPARs for 13 variants when evaluated in recombinant GluA3 receptors (Fig. 1). Recent progress in mapping the AMPAR interactome in the brain shows that native AMPARs during the receptor lifetime interact with more than 40 intracellular, extracellular or membrane-embedded proteins, which are important for proper receptor biogenesis, postsynaptic positioning and function.¹⁰⁴ We cannot rule out that apparently neutral variants may indeed influence expression and function of native GluA3-constaining AMPARs by interfering with the ability of the GluA3 subunit to interact with synaptic constituents, and confident classification of GRIA3 variants as neutral is thus not possible in current practice. Therefore, studies beyond establishing the functional defects of GRIA variants are needed to describe effects in a synaptic context. Importantly, the impact of LoF/GoF variants on the AMPAR-component of EPSC currents should be determined and correlated with the effects on kinetic parameters obtained from heterologous expression systems. This will improve the framework of predicting synaptic effects for variants based on functional evaluations in reduced systems such as XOs or HEK293 cells.

We have characterized the consequences of 44 GRIA3 variants identified in NDD patients on GluA3-containing receptor function. Although the spectrum of variant effects on AMPAR signalling mechanisms that underlie the phenotype of each patient is likely to be complex, our analysis shows two significant genotype-phenotype correlations that correspond to predicted GoF or LoF effects on the signalling function of GluA3-containing AMPARs.
