FVIII regulates the molecular profile of endothelial cells: functional impact on the blood barrier and macrophage behavior

Abstract

Hemophilia A is an inherited X-linked recessive bleeding disorder caused by deficient activity of blood coagulation factor VIII (FVIII). In addition, hemophilia patients show associated diseases including osteopenia, altered inflammation and vascular fragility which may represent the consequence of recurrent bleeding or may be related to the direct FVIII deficiency. Nowadays, recombinant FVIII is proposed to treat hemophilia patients with no circulating FVIII inhibitor. Initially described as a coenzyme to factor IXa for initiating thrombin generation, there is emerging evidence that FVIII is involved in multiple biological systems, including bone, vascular and immune systems. The present study investigated: (i) the functional activities of recombinant human FVIII (rFVIII) on endothelial cells, and (ii) the impact of rFVIII activities on the functional interactions of human monocytes and endothelial cells. We then investigated whether rFVIII had a direct effect on the adhesion of monocytes to the endothelium under physiological flow conditions. We observed that direct biological activities for rFVIII in endothelial cells were characterized by: (i) a decrease in endothelial cell adhesion to the underlying extracellular matrix; (ii) regulation of the transcriptomic and protein profiles of endothelial cells; (iii) an increase in the vascular tubes formed and vascular permeability in vitro; and (iv) an increase in monocyte adhesion activated endothelium and transendothelial migration. By regulating vascular permeability plus leukocyte adhesion and transendothelial migration, the present work highlights new biological functions for FVIII.

Supplementary Information

The online version contains supplementary material available at 10.1007/s00018-022-04178-5.

Introduction

Under physiological conditions, blood components interact permanently with the intact endothelium barrier in a dynamic manner. Endothelial cells play a key role in the hemostatic cascade [1]. Vascular endothelium acts as a hemostatic barrier with potent anti-coagulant properties leading to the inhibition of platelet activation and aggregation. On the contrary, endothelial cells can respond to injury by switching from an anticoagulant to prothrombotic/pro-coagulant surface, initiating the coagulation cascade and thrombus formation [2, 3]. Along with activating coagulation, endothelial cells play a part in recruiting leukocytes to the inflamed tissue, following already identified processes: tethering, rolling, arrest, adhesion strengthening, and transendothelial migration [4]. In addition, leukocyte rolling, arrest and spreading on activated vascular endothelium under flow are controlled by a sequential process mediated by membrane-bound receptors for numerous factors including proteins, lipids, metabolites, cytokines, and hormones, and by specific junctional proteins and receptors that orchestrate cell–cell and cell–matrix interactions [5].

Hemostasis is a dynamic process characterized by three consecutive steps: (i) vasoconstriction to restrict blood loss and promote accumulation of pro-coagulants at the site of injury, (ii) platelet activation and aggregation (platelet plug formation) through their contact with the sub-endothelial components and (iii) coagulation cascade leading to thrombin activation and the formation of the fibrin clot [4, 6, 7]. The pivotal role played by FVIII in the coagulation cascade is now well established [6–8]. The active form of FVIII (FVIIIa) acts as a cofactor in the tenase complex (FIXa/FVIIIa), making it possible to convert FX to its active form, FXa, through the serine protease FIXa [9, 10]. FXa contributes to the prothrombinase complex with cofactor FVa, which catalyzes the conversion of prothrombin into thrombin. In fine, formed thrombin (FIIa) induces the conversion of fibrinogen into fibrin, resulting in clotting. The thrombin binds to protease-activated receptor (PAR)-1 and -4 expressed at the membrane of platelets and induces their activation and aggregation [11]. Even if thrombin is the main FVIII activator, FXa can also induce the activation of FVIII into FVIIIa. Activation by factor Xa cannot occur if FVIII is linked to von Willebrand Factor (VWF), which preserves FVIII integrity in the bloodstream and increases both its half-life and its bioavailability [12].

Although the cellular origin of FVIII remains uncertain and controversial, the liver plays a major role in its production. Other sites of production, including the lymph nodes, spleen, or lungs, have been identified [13–15]. Endothelial cells, like liver sinusoidal endothelial cells (LSECs), are the main cellular component capable of producing and secreting FVIII [16–18]. Endothelial cells also express several receptors involved in the clearance of FVIII and controlling its bioavailability [4, 19–21]. The low-density lipoprotein receptor-related protein-1 (LRP1) is of them. LRP-1 binds to FVIII and is the major hepatic receptor controlling the clearance of FVIII [19–21]. The interaction of LRP-1 to FVIII is controlled by VWF. Interestingly, in addition to its scavenger role, LRP1 is functionally related to the control of blood–brain barrier transcytosis, vascular permeability, and angiogenesis [22–24]. Indeed, mouse brain endothelial cells express functional LRP-1 and by comparing wild type and LRP-1 knockout mice, Pflanzner et al. demonstrated that LRP-1 was involved in the clearance of amyloid-β peptides across the blood–brain barrier [22]. In a breast cancer model, the repression of LRP-1 by silencing approach decreased the formation of neo-vessels highlighting the functional impact of LRP-1 in angiogenesis [23]. The treatment of diabetic mice by short peptide mimicking the LRP-1 binding region of human apolipoprotein E significantly reduced Evans blue extravasation in the retinas and restored the blood–retinal-barrier tight junction proteins occludin and ZO-1 that demonstrated the key role of LRP-1 in the control of vascular permeability [24].

Based on this observation, we hypothesized that FVIII may exhibit direct undetermined biological functions on endothelial cells. The aim of the present manuscript is to characterize the biological activities of FVIII on human endothelial cells. We then studied the impact of recombinant FVIII on the transcriptomic and protein profile of human umbilical vein endothelial cells (HUVECs), and on various biological functions of the endothelial barrier, such as vascular permeability, vascular tube formation, the adherence/tethering/rolling of monocytes to the endothelium under physiological flow conditions, and their trans-endothelial migration.

Materials and methods

Reagents

The recombinant antihemophilic human FVIII (rFVIII, ADVATE^®) and VWF (rVWF, VONVENDI^®) used in all the experiments were kindly supplied by Takeda Pharmaceutical Company Limited (Bannockburn, IL, USA). Advate^® was composed of the full-length human antihemophilic factor VIII (INN: octocog alfa) synthesized by a genetically engineered Chinese hamster ovary cell line. The physiological range of FVIII is considered between 0.5 and 1.5 IU/mL and HA referred to FVIII levels below 0.4 IU/mL. rFVIII was used from was used from o.62 IU/mL “physiological level” to 20 IU/mL “supra-physiological level” in the experiments described below. The recombinant human OPG (rOPG), TNF-α and IFN-γ were purchased from R&D Systems (Abingdon, UK) and MCP-1 and RANTES from Peprotech (Neuilly-sur-Seine, France).

Cell cultures

Human umbilical vein endothelial cells (HUVECs) were purchased from Lonza (CC-2519, Lonza), and cultured in endothelial cell growth medium-2 (EGM-2, Lonza). Cells were detached with Versene^® (Millipore) and washed twice with PBS before use. Endothelial basal medium-2 (EBM-2, Lonza) was used for the “treated conditions” supplemented or not with 2% fetal calf serum (FCS), depending on the experiment. A single batch of FCS (Eurobio, CVFSVF 00-01, batch: 566809-0222/A) was used for all experiments. Endothelial colony-forming cells (ECFCs) were isolated from human umbilical cord blood, blood obtained from AP-HP, Hôpital Saint-Louis, Unité de Thérapie Cellulaire, CRB-Banque de Sang de Cordon, Paris, France (AC-2016-2759), expanded, and characterized as previously described [25].

Cell adhesion assay

Cell adhesion was measured with the xCELLigence Real-Time Cell Analyzer (RTCA)-MP system (Acea Biosciences, Les Ulis, France). In a first set of experiments, HUVECs were seeded at 15,000 cells per well in an E-plate 96 (Roche Applied Science, Les Ulis, France) with EGM-2 medium in the presence or absence of increasing concentrations of rFVIII. In a second set of experiments, HUVECs seeded in an E-plate 96 cells were growth-arrested overnight in EBM-2 supplemented with 2% FCS and released from growth arrest by adding EBM-2 supplemented with 5% of FCS, with or without increasing doses of various rFVIII concentrations. Growth factor deprivation aimed to better analyze the specific impact of rFVIII in endothelial cells and to distinguish cell adhesion from cell proliferation. Cell adhesion was then monitored in real time for 2 h and the cell index was read automatically every 15 min. The impedance relative to the cells was reflected by the measurement of the Cell Index (CI) value, according to the following formula: CI = impedance at time point n-impedance in the absence of cells/nominal impedance value [26].

RNA sequencing

After overnight deprivation of growth factors in EBM-2 with 2% of FCS, HUVECs were seeded in EBM-2 with 5% of FCS and treated or not with 10 IU/mL of rFVIII, 50 ng/mL of rVWF or 100 ng/mL of rOPG for 7 h [24, 27]. RNA extraction (all RIN > 9.0), library preparation and RNAseq analyses were performed with Active Motif (Carlsbad, California, USA). Briefly, 2 μg of total RNA was isolated using the Qiagen RNeasy Mini Kit and further processed in Illumina's TruSeq Stranded mRNA Library kit. Libraries were sequenced on Illumina NextSeq 500 as paired‐end 42‐nt reads. The reads were aligned with the hg38 reference genome STAR [28] and the count matrix was obtained using feature counts function from R package Rsubread [29]. The list of differentially expressed genes from DESeq2 output [30] was selected based on the adjusted p value using the Benjamini–Hochberg procedure. Gene ontology, KEGG and Reactome pathway enrichment analyses were carried out using the open source Cytoscape software platform [31]. STRING database and MCODE Cytoscape’s app were used to determine molecular complexes [32, 33].

Protein profiling and flow cytometry

5 × 10³ HUVEC cells per well in a 96-multiwell plate were cultured with EGM-2 supplemented with 2% of FCS for 96 h and treated with increasing doses of rFVIII (2.5, 5, 10 and 20 IU/mL) in the presence (“Inflammatory condition”) or absence (“Non-inflammatory condition”) of 10 ng/mL of TNF-α or 20 ng/mL of IFN-γ for 48 h. The expression of a large series of proteins (Supplementary Table 1) was studied after specific immune-staining using a FACSCanto™ II cell analyzer (BD Biosciences, Le Pont de Claix, France). A difference of 15% between the rFVIII-treated and -untreated cells was considered significant.

Cytoskeleton analysis using CytooChip™ micropatterns

Actin cytoskeleton, focal adhesion proteins (Phospho-Paxillin) and tight junctions (Zonula Occludens-1, ZO-1) were studied using Arena and Crossbow CytooChip™ (Grenoble, France), respectively. Both CytooChips™ were composed of micropatterns pre-coated with fibronectin (Sigma-Aldrich, Saint-Quentin Fallavier, France). HUVECs were seeded at 12,000 cells per well over Crossbow or Arena CytooChip™ in the presence or absence of increasing doses of rFVIII (0.62, 5, 10 IU/mL) for 18 h. Cells were then fixed for 10 min in PBS containing 1% formaldehyde, washed with PBS, and permeabilized with PBS containing 1% BSA (Sigma-Aldrich) and Triton 0.3% (Sigma-Aldrich) for 20 min. Cells were then incubated with anti-vinculin Alexa Fluor 488 Phalloidin (1:1000 dilution) (ThermoFischer, Courtaboeuf, France), anti phospho-paxillin (#2541, 1:50 dilution) or anti ZO-1 antibody (#8193, dilution 1/100, Cell Signaling) overnight at 4 °C. For the two last conditions, cells were rewashed and incubated for 1 h with goat anti-rabbit Alexa Fluor 555 antibody (1:2000 dilution; Thermofisher). Cells were washed in PBS containing 1% BSA, and mounted with ProLong antifade reagent (Molecular Probes, Eugene, OR, USA). Specimens were examined with immunofluorescence microscopy using a Nikon A1 RSi microscope (Nikon, Tokyo, Japan). Confocal images were analyzed with ImageJ software (NIH, USA).

Permeability assay

Permeability across HUVEC monolayers was measured using Transwell units (Boyden chambers) [8 μm pore size polycarbonate filter; Corning Costar; Pittston, PA, USA]. Transwell units were pre-coated with 40 μg/mL of human fibronectin and HUVECs were plated at the density of 70,000 per well (upper chamber). After 3 h of incubation at 37 °C, HUVEC monolayers were treated with increasing doses of rFVIII (2.5, 5, 10 and 20 IU/mL) or 10 ng/mL of TNF-α (positive control) for 1 h to 20 h and a solution of 250 μg/mL of 70 kDa FITC-labelled dextran was added simultaneously to the top chamber. Endothelial permeability was determined by measuring the flux of FITC-labeled dextran (through the HUVEC monolayer) in the medium collected from the bottom compartment using a Victor 3 reader (excitation 485 nm, emission 520 nm, Perkin Elmer, Villepinte, France).

Shear-flow adhesion assay

Mononuclear cells were isolated by density-gradient centrifugation from fresh peripheral blood mononuclear cells collected from healthy donors provided by the French blood bank institute (EFS) in accordance with an agreement with Paris Descartes University (C CPSL UNT n°12/EFS/064). Monocytes were isolated with the Monocyte Isolation Kit II (MACS Miltenyi Biotec, Paris, France) by negative selection. Flow adhesion experiments were conducted with a parallel-plate chamber in physiological shear stress conditions as previously described [34–36]. Three experimental conditions were tested: (1) control in the absence of rFVIII treatment; (2) monocytes treated with 10 IU/mL of rFVIII for 10 min; (3) HUVECs treated with 10 IU/mL of rFVIII for 24 h. Briefly, calcein-labeled freshly isolated monocytes (1 × 10⁶) were perfused on activated HUVEC monolayers for 15 min at 37 °C at a shear rate of 50 s⁻¹. Adherent cells were visualized with phase-contrast microscopy. All experiments were observed in real-time and videotaped for offline analysis. Fluorescence micrographs of 28 random microscopic fields (obj. × 10, 1 cm²) were collected with Replay software (Microvision Instruments, France). The pattern of adhesion at 50 s⁻¹ was also analyzed to determine the number of tethering cells and adherent cells (immediate full arrest). Data were expressed as the number of adherent cells per field. In addition, adherent monocytes were tested for resistance to detachment from the modeled endothelium by increasing the flow rate from 50 to 5000 s⁻¹ over 1 min, and by counting the number of remaining adherent cells at one-minute intervals.

Monocyte-transendothelial migration assay

Assays were performed with Boyden chambers (Transwell, 8 µm pore size; ThinCert™, Greiner bio-one, Les Ulis, France). Membranes were coated with type I collagen (Sigma Aldrich) overnight at 4 °C. HUVECs were grown in EGM-2 medium to confluency for 3 days until an endothelial monolayer was formed [37]. Monocytes were purified from anonymized whole blood samples (Centre de Ressources Biologiques—Tumorothèque of the Institut de Cancérologie de l'Ouest, DC-2018-3321, Saint-Herblain, France [38]) using a negative selection method (isolation Kit II, Miltenyi Biotec). After 3 days of HUVEC culture, purified monocytes were added to the upper part of the insert, in the presence or absence of 0.62 and 10 IU/mL of rFVIII in EBM-2 with 2% FCS. The lower chamber contained 15 ng/mL of MCP1 and 5 ng/mL of RANTES (Peprotech) as monocyte chemoattractants. Monocyte-transmigration was determined by the number of CD14⁺ cells detected in the lower chamber with flow cytometry.

In vitro angiogenesis assays

Briefly, for the in vitro tube formation assay, ECFCs pretreated or not with 10 IU/mL of rFVIII for 6 h were seeded on Matrigel™ in EBM2. After 18 h of culture, the cells were fixed with glutaraldehyde, stained with Giemsa and the total length of the tubules was measured under microscopy (original × 20).

Statistical analysis

Statistical analyses were performed using GraphPad Prism 6.0 software (GraphPad Software, La Jolla, CA, USA). Significance was determined using the Mann–Whitney, Kruskal–Wallis test, or One-way ANOVA. Error bars show mean ± standard error of the mean. A p value ≤ 0.05 was considered statistically significant.

Results

FVIII lowers endothelial cell adhesion

The effects of rFVIII on HUVEC adhesion to the underlying extracellular matrix were studied by measuring the cellular impedance dynamically followed by the xCELLigence RTCA system. As shown in Fig. 1, rFVIII significantly decreased HUVEC cell adhesion to the electronic E-plate surface compared to the untreated cells. In EGM2 medium, while 1, 2 and 5 IU/mL of rFVIII did not modulate HUVEC adhesion, 10 IU/mL reduced the cell index by 1.01 (± 0.11) after 2 h of treatment compared to the control (Fig. 1A). When cultured in the growth factor deprived of EBM2 medium, rFVIII induced more pronounced effects than in EGM-2 and significantly decreased the cell index (p < 0.05, Fig. 1B). A decrease of 0.28 (± 0.03) and 0.33 (± 0.013) in the cell index was observed after treatment with 1 IU/mL and 10 IU/mL of rFVIII for 2 h, respectively. The maximum effect of rFVIII on cell adhesion was observed at 10 UI/mL and consequently this concentration was used as a reference dose in the following experiments.

Fig. 1.

rFVIII inhibits HUVEC adhesion. HUVECs (15,000 cells/well) were seeded in 96-multi-well electronic micro-plates (E-Plate 96) in EGM2 (A) or EBM2 (B) medium in the presence or absence of increasing concentrations of rFVIII. Cell index related to the cellular impedance was measured in real-time using the xCELLigence RTCA MP instrument. Mean cell index ± SEM of 3 or 4 independent experiments. *p < 0.05, **p < 0.01

FVIII, but not OPG and VWF, modulates the transcriptomic profile of HUVECs

To better characterize the functional impact of FVIII on endothelial cells, we analyzed the differential transcriptomic profile of HUVECs treated with recombinant factor using a comparative RNA sequencing (RNA-seq) approach (Fig. 2). Principal component analysis (PCA) demonstrated that rFVIII-treated HUVECs showed a differential transcriptomic profile compared to both VWF- and OPG-treated HUVECs, and to the untreated control cells, with inter-experiment variability reflecting the variability between HUVEC batches (Fig. 2A). rFVIII induced a reproducible effect in all HUVEC batches assessed. Hierarchical clustering confirmed this observation and identified 563 genes (|log2FC| > 1, p value-adjusted < 0.05) that were significantly differentially expressed in the presence of rFVIII (Fig. 2B–D). A total of 168 and 395 genes were under- and overexpressed, respectively. Thirty-one genes were modulated by a fold-change of more than 2 (|log2FC| > 1, p value-adjusted < 0.05) (Fig. 2D). Functional analysis of these genes was carried out using Cyoscape software and the SRING database (Fig. 2E) and the most differentially expressed genes were related to functional pathways involved in tube morphogenesis, cell adhesion/migration, and immune response (Fig. 2D, Supplementary Fig. 1).

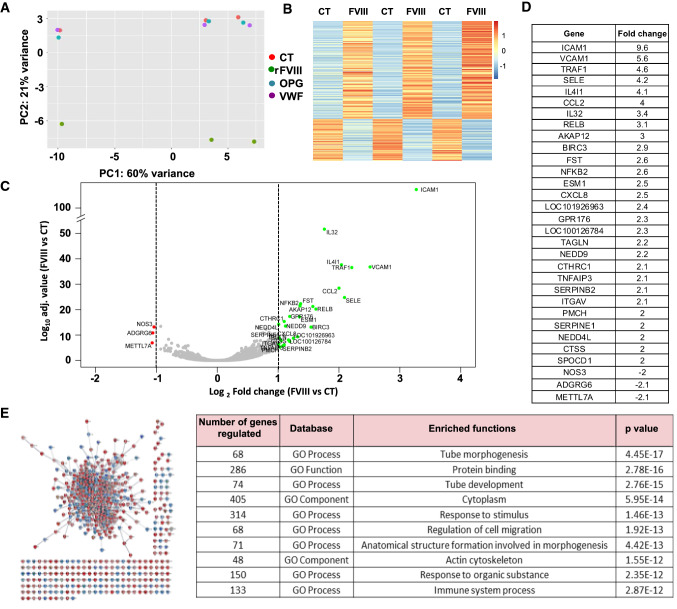

Fig. 2.

rFVIII, but not rOPG and rVWF modulates the transcriptomic profile of HUVECs. A PCA plot of three independent experiments. HUVECs were cultured in the presence or absence (CT, red points) of 10 UI/mL of rFVIII (green points), 100 ng/mL of rOPG (blue points), 50 ng/mL of rVWF (purple points) for 7 h; B Heatmap visualization of the z-scored expression of the 563 genes (|log2FC| > 1, p value adjusted < 0.05) that were differentially expressed in rFVIII-treated cells compared to the other groups; C Volcano plot analysis of differentially expressed genes in rFVIII-treated HUVECs compared to the control group. The genes with twofold overexpression or under-expression appear in green and red, respectively. D List of the twofold overexpressed and under-expressed genes. E Protein network generated with Cytoscape, showing the 563 proteins corresponding to the 563 differentially expressed genes. Each point represents one protein, and each line represents one protein interaction. Red circles represent the overexpressed genes, and blue circles the under-expressed genes. The table summarizes the ten main functional pathways related to the genes most significantly modulated by rFVIII

FVIII regulates the protein expression related to cell adhesion

A protein profile analysis of HUVECs was performed with flow cytometry under physiological or inflammatory conditions (Supplementary Fig. 2). HUVECs were then treated with or without increasing doses of rFVIII (2.5, 5, 10 and 20 IU/mL) (“basal condition”) or inflammatory cytokines 10 ng/mL of TNF-α and 20 ng/mL of IFN-γ to mimick the “inflammatory condition” [39, 40]. In the basal condition, rFVIII modulated the expression of cell adhesion molecules (ICAM-1, VCAM-1 and E-Selectin) at the HUVEC surface, confirming the data obtained by RNAseq (Table 1). E-Selectin was modulated from 2.5 IU/mL (+ 18.2%). E-Selectin and VCAM-1 expressions were simultaneously increased at 5 IU/mL of rFVIII (+ 26.9% and 20.6%, respectively) whereas ICAM-1 and VCAM-1 were upmodulated at 10 IU/mL of rFVIII (+ 16% and 20.3%, respectively). At 20 IU/mL of rFVIII, ICAM-1 was increased by 32% compared to the untreated cells. The complementary functional pathways regulated by rFVIII in HUVECs were:

• the immune response (increase in TNFR1, TLR4 and MICA/B in the basal condition; in the inflammatory condition: increase of HLA-1 correlating with the increasing doses of rFVIII, decrease in HLA-2; upmodulation of CD137L and HVEM by 33.4% and 17.4%, respectively with 5 IU/mL of rFVIII in the inflammatory condition),

• reorganization of the cytoskeleton and cell adhesion/migration (decreased expression of tight junction proteins, such as ZO-1 and Claudin-1, in the presence of 5 IU/mL of rFVIII by 15.7% and 20.8%, respectively; upmodulation of CD29 expression by 38.3% in the presence of 20 IU/mL),

• coagulation/vascular permeability: increase in CD41 and EPCR in the basal condition,

• regulation of lipid metabolism: increase in LDL metabolism associated with an increase in LDL uptake and LDL degradation by 37.9% and 26.9%, respectively, in the presence of 20 UI/mL of rFVIII.

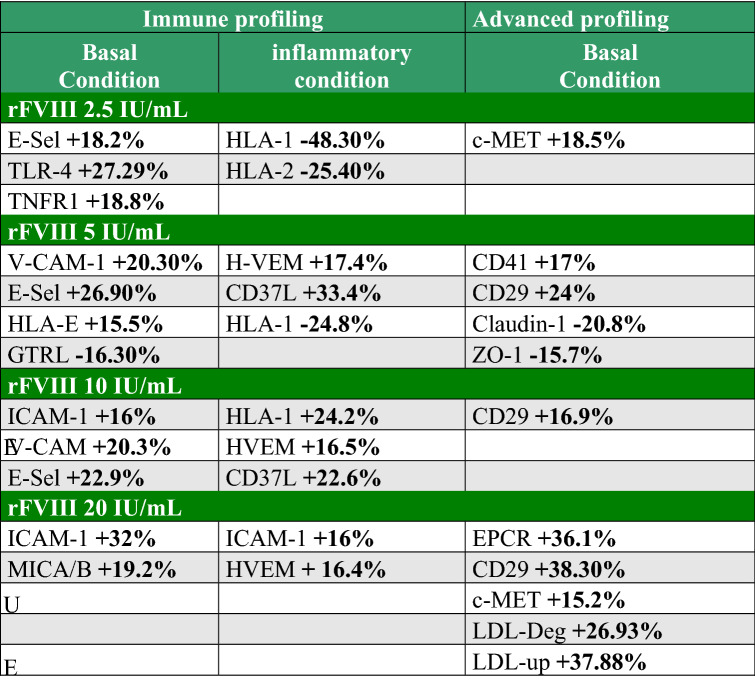

Table 1.

List of proteins modulated by rFVIII at the HUVEC surface

HUVECs HUVEHUVECs were treated with increasing doses of rFVIII in the absence (“Basal condition”) or presence (“inflammatory condition”) of 10 ng/mL TNF-α or 20 ng/mL IFN-γ for 48h. Results are expressed as the percentage of modulation of each protein analyzed by flow cytometry

Organization of the actin cytoskeleton and PAX phosphorylation are regulated by FVIII in endothelial cells

We first analyzed the functional impact of rFVIII on vascular tubule formation in vitro (Supplementary Fig. 3). ECFCs were incubated overnight in starvation medium (EBM2 + 2.5% FCS) and stimulated for 6 h with 10 IU/mL of rFVIII in basal medium (EBM2 + 5% FCS) before seeding on Matrigel^® for 18 h. The tubular network was significantly more extensive in the presence of rFVIII compared to the control cells (54 418 ± 1939 μm in the presence of rFVIII vs 40 418 ± 5509 μm for the control, p < 0.001).

Actin fibers (F-actin) form a dynamic network associated with the inside cell membrane, which defines cellular shape and plasticity, controlling in particular key cellular process, such as migration, endocytosis, division, and phagocytosis [41, 42]. This cytoskeleton is connected to the extracellular matrix by focal adhesions, protein complexes that enable signaling, and cell adhesion [43]. In a second step, we then studied organization of the cytoskeleton of HUVEC cells using crossbow CytooChip™. After 18 h of treatment with or without rFVIII, actin fibers were detected with immunocytochemistry (Fig. 3). In the retraction zone of endothelial cells, the total stained surface of the stress fibers was significantly decreased in the presence of rFVIII (Fig. 3A, B). The total stained surface of stress fibers was 721.6 ± 32.6 µm² in the presence of 10 IU/mL of rFVIII compared to 930.8 ± 55.7 µm² in the control group (p < 0.01). Similarly, the fiber-stained surfaces were significantly decreased after treatment in the retraction zone (Fig. 3B). In the protrusion zone, the total stained surfaces of the actin network were also significantly decreased in the presence of rFVIII (Fig. 3B). At 0.62 IU/mL, rFVIII significantly reduced the surface of the actin network (885.4 ± 97 μm² after treatment compared to 1335.8 ± 101 μm² without any treatment, p < 0.001) and 10 IU/mL of rFVIII decreased the corresponding surface by approximately 18% (1119.8 ± 50.9 μm², p < 0.05). Measuring the stained surfaces of each fiber confirmed this observation.

Fig. 3.

rFVIII modifies the organization of the actin cytoskeleton and paxillin phosphorylation in endothelial cells and increases the permeability of the HUVEC endothelium. HUVECs were cultured over adhesive crossbow CytooChip™ micro-patterns and left to spread in the presence or absence of increasing doses of rFVIII for 18 h. The organization of the actin fibers and the localization of phospho-PAX were analyzed in HUVECs polarized on each micro-pattern using immunocytochemistry. A Actin stress fibers and the actin network were observed at the retraction and protrusion zones, respectively. Standardized images of actin fibers (in green) observed at the retraction of single cells treated with different concentrations of rFVIII. White arrow: directional polarity and migration. B From each cell analyzed, quantification of the F-actin-stained surface was determined using confocal microscopy coupled to Image J analysis: total stained surface and surface of one fiber (fiber-stained surface) in µm². n ≥ 23 per condition. C Standardized images of P-PAX (in red) observed at the retraction zone where mature focal adhesions were formed (upper panel). Histograms representing the P-PAX surface stained per cell (total stained surface), the mean surface per phosphorylated event (mean stained surface), the number of phosphorylated events (number of events) and the perimeter of each phosphorylated event (perimeter of events). Mean ± SEM, n ≥ 65 per condition. E Standardized images of P-PAX at the protrusion zone (upper panel). Cell ruffling takes place at the front of cell migration. Histograms representing the P-PAX surface stained per cell (total stained surface), the mean surface per phosphorylated event (mean stained surface), the number of phosphorylated events (number of events) and the perimeter of each phosphorylated event (perimeter of events). Mean ± SEM, n ≥ 65 per condition. Mean ± SEM, one-way ANOVA *p < 0.05, **p < 0.01, ***p < 0.001

We then analyzed the phosphorylation levels of PAX in HUVECs polarized on fibronectin-pre-coated micro-patterns (Fig. 3C). As shown in Fig. 3C, a significant decrease in the total stained surface of P-PAX was observed in the retraction zone after treatment with rFVIII (66.2 ± 3.6 μm² in the presence of 10 IU/mL of rFVIII compared to 89.7 ± 4.8 μm² in the control cells, p < 0.001). Similarly, the number of phosphorylated events was significantly lower in rFVIII-treated cells (25.4 ± 1.4 in the presence of 0.62 IU/mL of rFVIII compared to 32 ± 1.6 control cells) with no modification to the perimeter of each event. In the protrusion zone, in contrast to the retraction zone, the number of phosphorylated events was significantly upmodulated by 0.62 IU/mL of rFVIII (35.3 ± 1.9 P-PAX events without treatment compared to 85.2 ± 5 in the presence of rFVIII, p < 0.001) (Fig. 3D). This increase was associated with a significant decrease in the mean staining surface of the phosphorylated events (12 ± 1.7 μm² without treatment and 4.5 ± 0.5 μm² in the presence of rFVIII).

Functional impact of FVIII on vascular permeability, monocyte adhesion, and transendothelial migration

RNAseq and protein profiling identified molecules (e.g. ICAM1, VCAM1 and E-selectin) significantly regulated by rFVIII that may be involved in vascular permeability, adhesion, rolling, tethering and the transmigration of leukocytes [44–46]. The functional impact of rFVIII was thus assessed in the various physiological parameters.

FVIII increases vascular permeability

Vascular permeability was measured by the diffusion of FITC-labeled dextran through preformed HUVEC endothelium, treated or not with increasing doses of rFVIII or TNF-α as a positive control. As shown in Fig. 4A, rFVIII increased vascular permeability in a dose-dependent manner. Whereas 2.5 and 5 IU/mL of rFVIII did not modulate the FITC-labeled dextran flux, 10 and 20 IU/mL of rFVIII increased vascular permeability by 75% compared to the untreated control and was similar to the positive control (Fig. 4A, p < 0.05). Zonula occludens-1 (ZO-1) protein belongs to the protein families involved in the maintenance of the endothelial barrier [47, 48]. We studied the effect of rFVIII on the expression of ZO-1 in HUVECs using arena CYTOOChip^® (Fig. 4B). The total ZO-1 stained surface was 1049.14 ± 43.29 μm² in untreated cells compared to 394.16 ± 20.35 μm² in the presence of 5 IU/mL of rFVIII (p < 0.0001) (Fig. 4B). Similarly, at the same concentration, the staining surface per event (p < 0.05) and the number of events observed (p < 0.01) were significantly reduced. Overall, these data demonstrate that rFVIII significantly downmodulated ZO-1 expression in HUVECs.

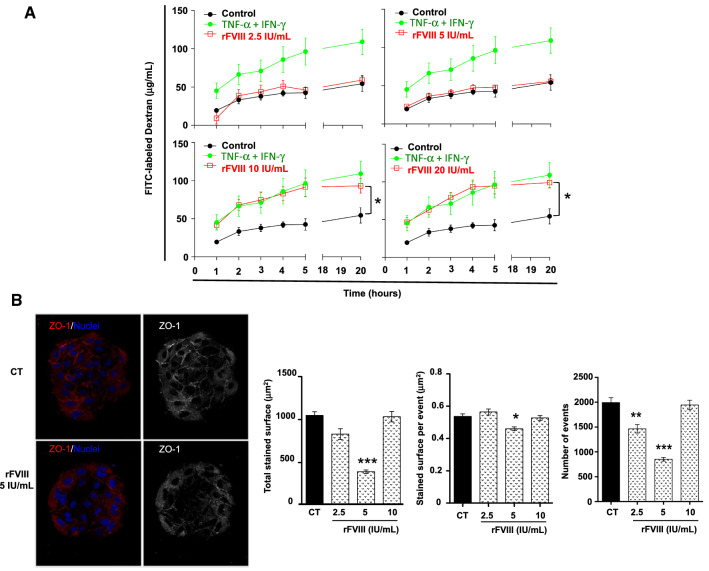

Fig. 4.

rFVIII increases the vascular permeability: functional relationship with decreased ZO-1 expression at the surface of the HUVEC endothelium. A HUVECs were seeded on fibronectin-coated inserts. After 3 days of culture, vehicle (black curves) or 2.5, 5, 10 or 20 IU/mL of rFVIII (red line) or 10 ng/mL of TNF-α (green line) was added to the upper compartment of the insert concomitantly to a solution of 250 μg/mL of FITC-labeled dextran (70 kDa). The flux of FITC-labeled dextran through the HUVEC monolayer was determined in the medium collected from the bottom compartment using a Victor 3 reader (excitation 485 nm, emission 520 nm). Mean FITC-labeled dextran concentration ± SEM of an experiment carried out in six replicates, Kruskal–Wallis test, *p < 0.05 compared to the control condition. B HUVECs were cultured over adhesive arena CytooChip™ micro-patterns and left to spread in the presence or absence or increasing doses of rFVIII for 18 h. ZO-1 expression was assessed using immunocytochemistry. A ZO-1 immuno-staining (in red), nuclei observed after DAPI staining (in blue). Overview of thresholding for the quantification of the ZO-1 surface, in greyscale (right panel). B Quantification of total ZO-1 staining surface per disc in μm² (left), staining surface per event in μm² (middle) and number of events (right). Mean ± SEM, n = 24 discs per condition, Kruskal–Wallis test. *p < 0.05, **p < 0.01, ***p < 0.001

rFVIII promotes monocyte rolling and adhesion to activated HUVEC monolayers under physiological shear stress conditions

We next investigated whether rFVIII had a functional impact on monocyte adhesion to the endothelium, under physiological flow conditions. Freshly isolated human monocytes were stimulated for 10 min with 10 IU/mL of rFVIII in medium supplemented with 5% FCS, prior to adhesion. A monocyte adhesion assay was also performed on endothelium monolayers pretreated with 10 IU/mL of rFVIII for 24 h. We used a flow-based adhesion assay using HUVEC monolayers to investigate the binding of monocytes to an activated preformed endothelium. The experimental conditions used mimicked the shear forces encountered by leukocytes adhering to vascular endothelial cells in vivo. As shown in Fig. 5A, pre-treatment of endothelial cells with rFVIII significantly increased the number of rolling monocytes at a shear rate of 50 s⁻¹ (15.3 ± 0.24 in the presence of 10 IU/mL of rFVIII versus 6.8 ± 0.2 monocytes/s for the untreated cells, p < 0.001). Similar results were obtained when monocytes were pretreated with rFVIII (14.2 ± 0.22 monocytes/s, p < 0.001) (Fig. 5A). In contrast, the effect of rFVIII on monocyte tethering was comparable in all the experimental conditions tested (Fig. 5A). Monocyte resistance to detachment was similar at higher shear stress (up to 2500 s⁻¹) in all conditions assessed (Supplementary Fig. 4). The number of adherent monocytes was counted at the end of the perfusion process and confirmed the effect of rFVIII on monocyte rolling observed above (Fig. 5B). The number of pretreated monocytes adhering to rFVIII increased 1.8-fold compared to the control (279.2 ± 17.9 monocytes per field versus 151.5 ± 10.5, p > 0.0001). Similarly, the number of adherent monocytes markedly increased when monocytes were pretreated with 10 IU/mL of rFVIII (535.9 ± 26.8 adherent monocytes per field, p < 0.0001) (Fig. 5B). Interestingly, monocyte adherence to endothelium monolayers was significantly speeded up when monocytes were pretreated with rFVIII (Supplementary Fig. 5).

Fig. 5.

Human monocyte rolling on the HUVEC endothelium and monocyte transendothelial migration are enhanced by rFVIII. Calcein-labeled freshly isolated human monocytes or HUVEC endothelium were treated or not with 10 IU/mL of rFVIII for 6 h and 24 h, respectively. Monocytes were perfused over the endothelium at 0.1 mL/min. One image per second was captured for 1.5 min on a central field. A Images of rolling monocytes (in green) after 45 s of perfusion. The white arrows show the rolling monocytes. The number of adherent monocytes per second was counted in the same field. The total number of tethered monocytes in the same field for 1.5 min was counted. Mean ± SEM of ≥ 257 images per condition. One-way ANOVA, ***p < 0.001. B Freshly isolated human monocytes were labelled with calcein and then perfused over a confluent HUVEC monolayer previously activated at a shear rate of 50 s⁻¹. Monocytes and HUVEC endothelium were treated or not with 10 IU/mL of rFVIII for 6 h and 24 h, respectively. Images were captured over the entire chamber (28 fields). Images of monocytes (in green) adherent to the HUVEC endothelium. The number of adherent monocytes was counted on each field (84 fields per condition). Mean ± SEM, one-way ANOVA, ***p < 0.001. C HUVECs were cultured in collagen-coated chambers (8 µm pore size) for 3 days. Monocytes were isolated using negative selection from whole blood collected from donors. Monocytes were added to the upper compartment in the presence or absence of 10 IU/mL of rFVIII for 4.5 h or 20 h. A cocktail of cytokines composed of 15 ng/mL of MCP1 and 5 ng/mL of RANTES used as monocyte chemo-attractants was added to the sub-compartment. After transendothelial migration, monocytes were collected in the bottom chamber and counting using flow cytometry. The number of transmigrated monocytes is expressed as a percentage of monocytes collected after transendothelial migration compared to the untreated control

Monocyte migration through HUVEC endothelium is modulated by rFVIII

Based on the functional regulation of monocyte adhesion to HUVEC endothelium by rFVIII, we then studied the transendothelial migration of human monocytes isolated from six donors and cultured in the presence of 0.62 and 10 IIU/mL of rFVIII for 4.5 h or 20 h (Fig. 5C). The results revealed the heterogeneous response of isolated monocytes to rFVIII. rFVIII stimulated monocyte transendothelial migration in 4 donors (donors 1, 2, 4 and 6) with differential sensitivity. rFVIII increased transendothelial migration from 0.62 IU/mL of rFVIII for donors 1 and 6 and from 10 IU/mL for donors 2, and 4.

Discussion

FVIII is a blood-clotting protein that plays a prominent role in the coagulation cascade as a cofactor for FIXa. In addition to being the main source of FVIII currently identified, endothelial cells express a series of scavenger receptors that control the bioavailability of this factor and that are suspected of being associated with specific vascular functions, such as permeability and angiogenesis [19, 23–25]. The potential activities of FVIII in endothelial cells remain poorly characterized. The present work studied the effects of recombinant FVIII (rFVIII) on HUVECs and demonstrated its impact on transcriptomic regulation and the protein profile of endothelial cells. Correlating with the gene and protein expression profiles modulated by rFVIII, rFVIII regulated the polarization of endothelial cells. rFVIII also upmodulated vascular permeability in vitro, the adhesion of monocytes to a pre-formed endothelium, and transendothelial migration of human monocytes. Overall, these results give new insights into both the implication of rFVIII in the biology of endothelial cells and its functional impact in hemophilia patients.

An xCelligence real-time adhesion assay demonstrated that rFVIII downregulated the adhesion potential of HUVECs. Complementary investigations based on microscopic observation of HUVEC cultures on CytooChip™ micropatterns, which allow normalization of cell polarity and internal cell organization, revealed the role played by FVIII in regulating stress actin fibers and PAX phosphorylation. Cellular adhesion results from the cooperation of several molecular protagonists (e.g. integrins and cell adhesion molecules) linking the cytoskeleton and the extracellular matrix (ECM) and then leading to the formation of dynamic adhesion structures [49, 50]. The binding of integrins to the ECM results in the formation of focal adhesions (FA) associated with the phosphorylation of paxillin (PAX), a focal adhesion-associated phosphotyrosine-adaptor protein, and the assembly of actin fibers necessary for stabilizing and strengthening the interaction between cells and the ECM [51–55]. FA mature with the following dynamic steps: (i) the formation of small (< 1 μm in diameter, lifetime: 60 s) so-called nascent adhesions; (ii) nascent adhesions mature into focal complexes which are larger (1–2 μm in diameter) and less dynamic (lifetime: a few minutes); (iii) FAs from the final maturation of focal complexes and characterized by large structures that are 2 μm wide and 3–10 μm long, with a long lifetime (30–90 min) and connected to actomyosin stress fibers [50, 51]. rFVIII decreased the total phospho-PAX stained surface and the number of phosphorylated events in the retraction zone, which may reflect lower PAX activity and disturbed disassembly of the FAs [46–48]. In the protrusion zone, rFVIII induced the opposite effect and increased the number of P-PAX events. These results may reflect an increase in incipient adhesion formation at the level of the protrusion zone, where lamellipods form, and may favor cell migration. Nascent adhesions form in front of migrating cells [51]. These data may appear contradictory with regard to cell migration, but the discrepancy may be explained by the sequential phases in the cell migratory cycle. A migratory cycle is divided into four stages: protrusion, adhesion, contraction, and retraction [51]. The protrusion step corresponds to the formation of a thin lamellipod by the actin network. The adhesion stage coincides with the adhesion of the lamellipod to the ECM, forming incipient adhesions at the front of these structures, and FAs at the cell rear. The actin stress fibers organize themselves from these FAs and connect themselves to the nascent adhesions. Maturation and growth of the focal complexes in FAs are dependent on actin tensile forces and extracellular stresses. The actin stress fiber contraction step then strengthens the FAs in the front of the cell, and weakens those at the rear. This contraction induces the forward movement of the cell body. Finally, the retraction step corresponds to the detachment of the FAs from the rear of the cell, allowing the retraction of the rear membrane [51–55]. In the presence of rFVIII, HUVECs may be blocked at the intermediate stage between protrusion, possibly explaining the formation of incipient adhesions at the front, associated with stronger adhesion at the rear. In addition, rFVIII induced a rearrangement of the actin network, characterized by lower density and smaller fibers both in the protrusion zone and the retraction zone. This information concurs with an increased formation of nascent adhesions in the presence of a low dose of rFVIII where the actin network initiates its early stages of formation [56–61]. Overall, our data demonstrated the modulation of HUVEC adhesion and migration properties by rFVIII.

Actin stress fibers are also anchored to adherence junctions which control cell–cell adhesion, endothelial permeability, and metabolite/nutrient/cellular exchanges through the endothelial barrier [42, 62, 63]. rFVIII increased endothelium permeability, monocyte adhesion, and transmigration. ZO-1 belongs to the zonula occluding family, which are tight junction-associated proteins that establish a link between the occluding trans-membrane protein and the actin cytoskeleton [64]. The tight junctions limit molecular and cellular transfers through the paracellular space and play a part in cell polarization and endothelial barrier formation [47, 65]. The down-modulation of ZO-1 expression coincides with the increase in vascular permeability induced by rFVIII. In addition to modulating ZO-1 expression, rFVIII upmodulated several key adhesion molecules, including ICAM1, VCAM1 and E-selectin, suggesting an activation mechanism for HUVEC cells induced by FVIIIr. ICAM1, VCAM1 and E-selectin are involved in the process of leukocyte trans-endothelial migration that integrates: (i) the tethering and rolling of leukocytes over the endothelium, (ii) leukocyte activation, (iii) leukocyte arrest and (iv) leukocyte migration across the endothelium [66, 67]. E-selectin is involved more particularly in step 1, while ICAM1 and VCAM1 are preferentially involved in steps 3 and 4 [44–46]. The increase in monocyte rolling and adhesion to the HUVEC endothelium in the presence of rFVIII under physiological flow conditions can be directly related to the observed overexpression of ICAM1, VCAM1 and E-selectin (Fig. 2D). The transmigration assay highlighted a donor-dependent effect of rFVIII that may be related to FVIII or VWF levels in donor blood, gender, or age [68–71]. The increase in tube formation (Supplementary Fig. 3) and decrease in intercellular adhesion (Fig. 4) could appear contradictory. However, the experimental conditions used in both assays were totally different. Indeed, The formation of new vascular tubes was studied after 18 h of pre-treatment with rFVIII and the effect of rFVIII on cell adhesion was assessed after addition of rFVIII for 2 h. We can hypothesize that FVIII decreases cell adhesion in a short period of time (“acute exposure”) and positively modulates the formation of new vascular tubes in a long period of time (“chronic exposure”). In this context, the local tissue concentrations of FVIII could fluctuate along the days according the pathophysiological context (e.g. vascular injury, inflammation associated bleeding) and the time of tissue exposure to FVIII may explain the dose-dependent activities of FVIII highlighted in the present study. Consequently, in HA patients, angiogenesis and vascular permeability may be strongly altered according the circulating and local tissue FVIII levels.

Neoangiogenesis and vascular remodeling have been reported in the development of hemophilic arthropathy [72, 73]. This neoangiogenesis is characterized by the formation of large, irregular vessels, with an increase in the expression of vascular remodeling markers, such as αSMA, endoglin and VEGF [74]. These authors observed synovial neo-angiogenesis in FVIII-deficient mice, with abnormal vascular architecture after induction of hemarthrosis. This vascular remodeling was maintained for several months, and also occurred on the control joint which did not have induced hemarthrosis. No similar phenomenon was observed in mice with osteoarthritis or rheumatoid arthritis, suggesting that it is specifically linked to FVIII deficiency [74]. Similar observations have been reported in patients [72, 73, 75, 76]. The degree of arthropathy is greater in patients with hemophilia A than in those with hemophilia B (factor IX deficiency) [77]. This observation underlines the functional impact of FVIII on the properties of the vascular barrier. Our study has also some limitations. Indeed, it remains very difficult to determine the local concentrations of FVIII at the tissue level in healthy as well as HA patients. The “physiological level” in the local vascular microenvironment should be higher than into the bloodstream. We used a large range of rFVIII concentrations in order to mimic the variability that we could observe in vivo and we considered 1 IU/mL as “physiological level” in the circulating blood. However, the effects of exogenous rFVIII may be impacted by the endogenous production of coagulation factors. Indeed, HUVECs express endogenous VWF, FVIII which could functionally interact with rFVIII in addition to potential other partners of FVIII, such as OPG or scavenger receptors, then increasing the complexity of the system. The expression of endogenous FVIII is also dependent of the VVF levels, age, sex, ethnic origin, blood group type of HUVEC donors. This differential endogenous expression may explain the variability observed in the transmigration assay for instance. In HA patients, endogenous FVIII levels are also variable and may be potentially higher in the local endothelial environment. In the light of our results and of the literature, the notion of “acute” and “chronic” exposure to FVIII appears a crucial aspect to consider. Regulatory loops could be progressively established in vivo in case of long-term dysregulation of FVIII levels. Similar works should be then carried out from FVIII-deficient endothelial cells. Based on the effects of rFVIII on vascular tube formation, vascular permeability, monocyte adhesion/transmigration, it would be speculated that HA patients may have some advantages when suffering inflammatory diseases, such as bacterial/viral infections. To our knowledge, there are no published reports describing that HA patient susceptibility to bacterial/viral infections. However, there is recent publication investigating the role of the human antithrombin isoforms in inflammatory response associated to bacterial infection [78]. These authors demonstrated the survival rates of mice suffering from lethal E. coli infection increased after treatment with human β-antithrombin. In addition, they observed a reduction of the inflammatory response and less severe organ damage. By extrapolation, we can speculate that a reduction of the coagulation cascade and a reduction of thrombin generation by FVIII-deficient may result in partial protection against bacterial infection.

Overall, our results show that FVIII can regulate the biological properties of endothelial cells in vitro, with a functional impact on transcriptomic and protein profiles, vascular permeability, angiogenesis, monocyte adhesion, and trans-endothelial migration. FVIII can interact with numerous receptors (e.g. scavenger receptor or other) associated with various signals (signaling mediated receptor, non-specific internalization, etc.) that may explained the FVIII-induced transcriptomic profile identified. Even if LRP-1 is a key receptor for FVIII, FVIII binds to a large variety of proteins [3] and consequently the future investigations cannot be restricted to LRP-1. In future investigations, the effects of rFVIII should be compared between endothelial cells originating from various tissues and a large expression profile of FVIII partners should be looked for. Knock-out and knock-in experiments should be done and correlated to the transcriptomic profile modifications observed for helping to identify candidates for these mechanisms. The mechanisms of action of FVIII on endothelial cells then remain to be defined to better manage bleeding and hemarthrosis in hemophilia patients. Although hemarthrosis can be reduced by replacement therapy, bleeding cannot be completely suppressed [79, 80]. Despite prophylactic treatment with recombinant FVIII, 30–50% of hemophiliac patients suffer from hemophilic arthropathy [81–83]. The role played by thrombin generation in the functional impact observed in endothelial cells also remains to be explored. FXa also modulated vascular tube formation in vitro and in vivo in a mouse model of lower limb ischemia; inhibiting it with rivaroxaban restored angiogenesis [84]. In the context of hemophilia, the absence of FXa and thrombin caused by FVIII deficiency may then promote this abnormal angiogenesis.
