Synthesis of Bottlebrush Polymers with Spontaneous Self-Assembly for Dielectric Generators

Abstract

Cross-linked bottlebrush polymers received significant attention as dielectrics in transducers due to their unique softness and strain stiffening caused by their structure. Despite some progress, there is still a great challenge in increasing their dielectric permittivity beyond 3.5 and cross-linking them to defect-free ultrathin films efficiently under ambient conditions. Here, we report the synthesis of bottlebrush copolymers based on ring-opening metathesis polymerization (ROMP) starting from a 5-norbornene-2-carbonitrile and a norbornene modified with a poly(dimethylsiloxane) (PDMS) chain as a macromonomer. The resulting copolymer was subjected to a postpolymerization modification, whereby the double bonds were used both for functionalization with thiopropionitrile and subsequent cross-linking via a thiol–ene reaction. The solutions of both bottlebrush copolymers formed free-standing elastic films by simple casting. DMA and broadband impedance spectroscopy revealed two glass transition temperatures uncommon for a random copolymer. The self-segregation of the nonpolar PDMS chains and the polynorbornane backbone is responsible for this and is supported by the interfacial polarization observed in broadband impedance spectroscopy and the scattering peaks observed in small-angle X-ray scattering (SAXS). Additionally, the modified bottlebrush copolymer was cross-linked to an elastomer that exhibits increased dielectric permittivity and good mechanical properties with significant strain stiffening, an attractive property of dielectric elastomer generators. It has a relative permittivity of 5.24, strain at break of 290%, elastic modulus at 10% strain of 380 kPa, a breakdown field of 62 V μm^–1, and a small actuation of 5% at high electric fields of 48.5 V μm^–1. All of these characteristics are attractive for dielectric elastomer generator applications. The current work is a milestone in designing functional elastomers based on bottlebrush polymers for transducer applications.

1. Introduction

Bottlebrush polymers are composed of repeat units bearing long side chains.¹ The side chains stretch the polymer backbone and prevent it from coiling and entangling because of steric hindrance and entropic repulsion. Therefore, unlike elastomers made by cross-linking linear polymers with many entanglements, bottlebrush polymers entangle less.²⁻⁴ Therefore, cross-linked bottlebrush polymeric materials exhibit unique mechanical properties, such as super softness at small strains due to the brush’s plasticizing effect and stiffness at large strains due to the backbone being stretched toward its full contour length.⁵ Strain stiffening is desired in many applications such as dielectric elastomer actuators and generators, which are thin elastic capacitors. Because materials with an increased elastic modulus exhibit higher dielectric breakdown strength, strain stiffening of an elastomer can prevent premature breakdown^6,7 and improve devices’ performance. For example, dielectric generators can be operated at higher voltages and thus harvest more energy per cycle, and dielectric actuators may not experience electromechanical instability (EMI).⁸ As the voltage increases, soft elastomer films undergo thinning, increasing the local electric field and leading to further thinning of the film. This kind of positive feedback between the thickness of a film and the local electric field often causes dielectric breakdown. As a result, the materials fail before reaching their full potential. Strain stiffening in elastomers disrupts the positive feedback between the thinning of the membrane under increasing electric fields and, thus, can prevent EMI from happening.

Ring-opening metathesis polymerization (ROMP)⁹ has been used to prepare bottlebrush polymers¹⁰⁻¹⁷ because it is compatible with various functional groups¹⁸⁻²¹ and has a fast living polymerization rate.²²⁻²⁴ In 2018, Beers et al. synthesized a bottlebrush polymer elastomer via ROMP. They used a norbornene macromonomer functionalized with a poly(n-butyl acrylate) chain and a bifunctional norbornene macromonomer as a cross-linker.²⁵ In 2020, Bates et al. reported a bottlebrush polymer with poly(dimethylsiloxane) (PDMS) side chains prepared by ROMP, which was subsequently cross-linked by a PDMS containing two benzophenone end groups.²⁶ The cross-linking reaction was conducted in a special mold to avoid oxygen inhibiting the free-radical-based reaction. Therefore, constrained by the indispensable mold, the resulting membrane exhibited a substantial thickness of 0.4 mm. Recently, Cushman et al. reported a bottlebrush polymer prepared starting from a macromonomer consisting of a PDMS chain with one norbornene end group and a PDMS cross-linker with two norbornene end groups.²⁷ The cross-linking and polymerization were accomplished in situ inside a glovebox. Despite the increasing number of publications on elastomers based on bottlebrush polymers, efficient ways to produce thin films with no defects under air are scarce. Furthermore, the bottlebrush polymer prepared had the desired mechanical properties, but none exhibited a dielectric permittivity (ε′) above 3.5.

Soft and stretchable dielectric elastomers with high dielectric permittivity are required in many applications, including transducers,²⁸⁻³⁰ soft robots,³¹⁻³⁵ energy harvesting,^36,37 energy storage,³⁸ and printable and stretchable electronics.³⁹ For example, in energy harvesting devices, high ε′ and high strain at break can enhance the maximum energy harvested, while a small elastic modulus can be helpful to couple material’s response with various intensities and frequencies of input excitations.⁴⁰ Besides, since materials with high dielectric permittivity and good mechanical properties are also used as electrolytes, they are highly demanded in ionic actuators, solid-state Li-ion batteries, and electrochromic devices.³⁸

Recently, we demonstrated a series of ROMP-based bottlebrush polymers with PDMS brushes and could cross-link them in the air to defect-less thin films with good mechanical properties.⁴¹ However, the employed nonpolar macromonomer resulted in elastomers with a relatively low dielectric permittivity. Here, we want to explore the possibility of achieving soft and elastic materials by a ROMP starting from a polar norbornene monomer and a macromonomer consisting of a norbornene modified with a PDMS chain. The formed copolymer was expected to exhibit increased dielectric permittivity and an enhanced strain stiffening effect since the polar small monomer reduced the density of brushes.⁴² Additionally, the C–C double bonds in the polymer backbone offer the possibility of postpolymerization modification via thiol–ene addition with polar thiols to increase the dielectric permittivity and cross-linking with multifunctional thiols to tune the mechanical properties.

2. Experimental Section

2.1. Materials

PDMS, monohydride terminated (AB250915, viscosity 5–9 cSt.) (M_n = 1136 g/mol determined by ¹H NMR end-group analysis), was purchased from ABCR. Karstedt’s catalyst (platinum(0)-1,3-divinyl-1,1,3,3-tetramethyldisiloxane complex solution in xylene, Pt ≈ 2%), allyl alcohol, 4-(dimethylamino)pyridine (DMAP), N,N′-diisopropylcarbodiimid (DIC, 18.4 mL, 122.4 mmol, 3.4 equiv), 5-norbornene-2-carboxylic acid (mixture of endo and exo, predominantly endo), 5-norbornene-2-carbonitrile, first-generation Grubbs’ catalyst, 2,2-dimethoxy-2-phenylacetophenone (DMPA), and 2,2′-(ethylenedioxy)diethanethiol (CL) were purchased from Sigma-Aldrich. Poly(vinyl alcohol) (PVA, R&G-PVA-Folientrennmittel) was purchased from Suter-Kunststoff AG. Methanol (MeOH), dichloromethane (DCM), ethyl acetate (EA), toluene (Tol), tetrahydrofuran (THF), and heptane were purchased from VWR. All chemicals were of reagent grade and used without purification; only toluene was dried over sodium using benzophenone as an indicator and DCM over calcium hydride and distilled before use.

2.2. Characterization

More details about the characterization and equipment used can be found in the Supporting Information.

The macromonomer mix-M was synthesized according to our previous publication.⁴¹

2.3. Synthesis of Bottlebrush Polymer mix-co-P

The macromonomer, mix-M (20 g, 21.3 mmol, 2 equiv), and the co-monomer, 5-norbornene-2-carbonitrile (3.8 g, 31.9 mmol, 3 equiv), were put in a flask and backfilled with Ar, followed by the addition of dry DCM (250 mL). Then, the mixture was degassed 3 times, and to the degassed mixture, the first-generation Grubbs’ catalyst (23 mg, 26.6 μmol, 0.00625 equiv) was added. After the mixture was heated to reflux at 45 °C for 32 h, ethyl vinyl ether (2 mL) was added to quench the reaction. Next, the product was purified by precipitation from DCM with MeOH. After purification, the bottlebrush polymer (mix-co-P) was kept as a solution of toluene at a concentration of 200–500 mg/mL.

To prepare thin films, the solution was placed on a Teflon substrate and cast by a doctor blade. The blade thickness was adjusted to 400–500 μm, for a concentration of polymer of about 200–500 mg/mL. After blade casting the solution mixture, the solvent was let to evaporate for 1 h at room temperature and then put in a vacuum oven at 60 °C overnight to remove the residual solvents.

2.4. Synthesis of mix-co-CN

The mixture of bottlebrush polymer, mix-co-P (10 g, ∼10.0 mmol, 1 equiv), 3-mercapto propionitrile (1.776 g, 20 mmol, 2 equiv), and DMPA (20 mg, 0.1 mmol, 1 mol %) was put in a flask and degassed and backfilled with Ar 3 times, followed by ultraviolet (UV) irradiation for 20 min. Next, the product was purified by precipitation from DCM to MeOH. After the purification, the bottlebrush polymer (mix-co-CN) was kept as a toluene solution at a 200–500 mg/mL concentration. The preparation of thin films mix-co-CN is the same as that of mix-co-P.

2.5. Preparation of Material mix-co-E

A solution of CL (10%, v/v) in toluene was prepared. A mixture of the corresponding amount of bottlebrush polymer solution, CL, and 2,2-dimethoxy-2-phenylacetophenone (DMPA, 2 wt % to bottlebrush polymer) was put in a vial and mixed well by centrifugation. Next, the mixture was put on a Teflon substrate and cast with a doctor blade with a certain thickness. After blade coating the solution mixture, it was irradiated for 5 min with UV to cross-link the films. A Hönle UVA HAND 250 GS UV lamp was used 12 cm from the substrate as the UV source. Before the characterization, all of the materials were put in a vacuum oven at 60 °C overnight to remove the residual solvents.

3. Results and Discussion

The synthetic strategy for chemically cross-linked bottlebrush polymers is illustrated in Scheme 1. A mixture of endo and exo 5-norbornene-2-carbonitrile was chosen as a polar monomer to increase the dielectric permittivity and reduce the brush density on the polymer backbone, while the second monomer was a mixture of endo and exo norbornene modified with a commercially available short PDMS chain with a viscosity of 5–9 cSt. and M_n = 1136 g/mol as determined by ¹H NMR end-group analysis. The mechanical properties of bottlebrush polymeric elastomers with various brush densities are influenced by many factors like side chain length, degree of polymerization, the chemical structure of the bottlebrush polymer, etc., and thus, are difficult to predict.^42,43 It has been shown that strain stiffening is more pronounced for materials obtained by cross-linking bottlebrush polymers with a reduced density of brushes on the backbone; however, the price is an increased elastic modulus.⁴³ Additionally, it was observed that the mechanical properties of the cross-linked bottlebrush polymer material did not change so much when the density of brushes was 50%. Therefore, the molar ratio between the macromonomer and 5-norbornene-2-carbonitrile was chosen to be 4:6. This will allow us to achieve bottlebrush polymers with increased dielectric permittivity and reduced brush density so that eventually, an elastomer soft at small strains, which stiffens with the strain, is achieved.

Scheme 1. Synthetic Path to Bottlebrush Elastomers via ROMP of Macromonomer mix-M and Monomer 5-Norbornene-2-carbonitrile.

(a) Followed by polar group functionalization by the Thiol–Ene reaction of 3-mercapto propionitrile with double bonds from mix-co-P Backbone to give mix-co-CN (b), and subsequent cross-linking by the Thiol–Ene reaction of 2,2′-(ethylenedioxy)diethanethiol (CL) with double bonds from mix-co-CN backbone to form elastomers mix-co-E (c).

A mixture of endo and exo monofunctional norbornene end-terminated PDMS macromonomers (mix-M) was first prepared according to the literature by an esterification reaction between a mixture of exo and endo isomers of 5-norbornene-2-carboxylic acid and a monohydroxyl terminated PDMS with an average of 14 dimethylsiloxy repeat units (Scheme 1).⁴¹ Though the macromonomer prepared from exo 5-norbornene-2-carboxylic acid possesses a higher reactivity and is favored in ROMP, it is more expensive than its counterpart with mixed configurations.

ROMP of mix-M and 5-norbornene-2-carbonitrile with a molar ratio of (2:3) using first-generation Grubbs’ catalysis as an initiator allowed the formation of a bottlebrush polymer mix-co-P (Scheme 1a). The shifting of starting materials’ vinylene group signals from 6.0 to 6.5 of the monomer to 5.1 to 5.6 ppm in the polymer in ¹H NMR spectra marked the formation of product mix-co-P and accomplishment of the co-polymerization (Figure 1). Furthermore, the molar ratio between the two repeating units of bottlebrush polymer mix-co-P was determined by ¹H NMR spectroscopy by using the signal of the methyl end group from the brush of the macromonomer at 0.9 ppm and the one on the vinylene groups between 5.1–5.6 ppm (p/q = 2:2.7), resembling the initial ratio before the reaction (Figures S1 and S2).

Figure 1.

¹H NMR spectra of macromonomer mix-M (top), 5-norbornene-2-carbonitrile (middle), and polymermix-co-P (bottom).

Additionally, ¹H NMR spectra of samples taken from the reaction mixture at different reaction times show that the proportion of the vinylene hydrogens of the different monomers remained unchanged throughout the polymerization, suggesting a random incorporation of the monomers into the polymer chain (Figures 2a, S2 and S3 and Table S1). Moreover, the molar mass of the polymer increases with the reaction time (Figure S4). Although macromonomer mix-M had a much larger molar mass than that of 5-norbornene-2-carbonitrile, they exhibited similar reactivity. However, the overall conversion after about 40 h was only 40%, probably due to the interference of nitrile groups with the Ru initiator. While the literature suggests that the third-generation Grubbs’ initiator gives higher conversion in homopolymerization of 5-norbornene-2-carbonitrile, the first-generation Grubbs’ initiator is much cheaper.⁴⁴ The purification of the polymer from the unreacted monomers was by precipitation.

Figure 2.

Conversion of mix-M and 5-norbornene-2-carbonitrile over time. The dashed line is a guide to the eye. (a) Engineering stress–strain curves for materials mix-co-P, mix-co-CN, mix-co-E, and VHB. The light curves are the results from 3 independent measurements of the same material, while the bold curves are the averaged curves of the same material, using Origin software, whereby the smaller strain at break is shown. For the average strain at break, see Table 1 (b) and the curves of dσ/ds at different strains (c).

Polymers of high molar mass are indispensable for good elastic properties.⁴⁵ Therefore, the bottlebrush polymer mix-co-P was characterized by gel permeation chromatography (GPC) to determine its molar mass and polydispersity index (PDI), which gave M_n = 136.4 kDa and PDI = 1.89 (Figure S5 and Table S2). However, these values should be taken with precaution due to the compact structure of bottlebrush polymers and the great difference between the GPC standard structure and the polymer analyzed.

After the solvent was removed, we observed that the bottlebrush polymer exhibited interesting elastic properties even when not chemically cross-linked. Thus, thin films were made by doctor blading a solution of bottlebrush polymer on a Teflon substrate and letting the solvent evaporate. It should be noted that the homopolymer synthesized starting from mix-M previously reported by our group behaved differently, e.g., the bottlebrush polymer was a viscous liquid that did not cross-link after solvent evaporation.⁴¹ Therefore, it can be concluded that the presence of the second polar repeat unit in mix-co-P is responsible for the film cohesion, as will be discussed later.⁴⁶ PDMS easily undergoes phase segregation even when mixed with polysiloxanes that carry different functional groups. Therefore, it is very likely that the polysiloxane brushes and the polynorbornene backbone phase segregate, whereby self-segregation of the polynorbornene backbone is facilitated by the dipole–dipole interaction of the repeat units that carry a nitrile group.

Additionally, the double bonds from the polynorbornene backbone offered us the possibility of postpolymerization modification by thiol–ene reaction with 3-mercapto propionitrile to enhance the dielectric permittivity and possibly reduce the elastic modulus. The resulting polymer was named mix-co-CN (Scheme 1b).⁴¹ The result from GPC showed the M_n to be 209.3 kDa and the PDI to be 2.16 (Figure S5 and Table S2). According to the ¹H NMR spectroscopy analysis, the double bond conversion reached 9% (Figure S6). Also this modified bottlebrush polymer forms free-standing films when dried. It should be noted that films of mix-co-P and mix-co-CN can be reprocessed by dissolving in suitable solvents such as THF. The unreacted double bonds of mix-co-CN were further used for cross-lining into thin films using 2,2′-(ethylenedioxy)diethanethiol to give mix-co-E.

The films were subjected to tensile tests on samples in the shape of a dumbbell (Figure 2b). An average curve in bold lines was calculated from three independent measurements (light curves) for each material. Furthermore, we also tested VHB, a double-sided acrylate adhesive tape produced by the company 3 M known for its high strength, as a model material for comparison as it has been intensively explored as a dielectric in actuators and generators. We calculated the elastic modulus and average strain at break of different materials presented in Figure 2b (Table 1). All materials showed a rather large strain at break, with some reaching values as high as 1553%. Both materials mix-co-P and mix-co-CN had a strain at break larger than that of VHB. The high Y_10% elastic modulus of all materials should be noted, which is likely due to the dipolar interaction since this behavior was absent in the homo bottlebrush polymer without polar blocks previously reported by our group.⁴¹ Although they showed a relatively large elastic modulus at small strains, it dropped to lower levels above a certain strain and increased again at higher strain levels.

Table 1. Mechanical Properties of mix-co-P, mix-co-CN, mix-co-E, and VHB.

entry	Y10% [kPa]a	s0 [%]b	Ymin [kPa]c	Ymax [kPa]d	Ymax/Ymin	smax [%]e
mix-co-P	166 ± 28	220	34 ± 9	199 ± 53	5.9	830 ± 43
mix-co-CN	151 ± 8	300	17 ± 2	68 ± 6f	3.9	1553 ± 159
mix-co-E	381 ± 27	65	147 ± 17	902 ± 84	6.1	289 ± 45
VHB	230 ± 3	200	38 ± 3	103 ± 26	2.7	757 ± 62

^aElastic modulus at 10% strain.

^bThe strain where the materials start stiffening.

^cElastic modulus at s₀.

^dElastic modulus at the strain of break.

^eAverage strain at break of three samples.

^fElastic modulus at 1000% strain.

Furthermore, gaining insight into the extent of stiffening effects is also important, as it offers us opportunities to choose the most suitable material for applications. Thus, the dσ/ds curves at different strain levels describe the change in modulus with the strain and allow evaluation of the stiffening range of the materials (Figure 2c). Accordingly, the stiffening range of material mix-co-P and VHB started at 220 and 200%, respectively, defined as the starting point of the stiffening range (s₀). Next, the elastic modulus at s₀, which was supposed to be the minimum elastic modulus, Y_min, was determined. From observation, both materials had stiffening effects from s₀ until strain at break. Thus, all materials’ elastic modulus at the end of the stiffening effect, which is the maximum elastic modulus Y_max, were obtained accordingly (Table 1). mix-co-P resembles VHB in many mechanical properties, such as similar Y_min (34 vs VHB’s 38 kPa) and similar s₀ (220% vs VHB’s 200%). However, mix-co-P stiffened more dramatically than VHB, showing higher Y_max (199 vs VHB’s 103 kPa) and higher Y_max/Y_min ratio (5.9 vs VHB’s 2.7) (Figure 2c and Table 1). In addition to mix-co-P’s superior stiffening effect over VHB, mix-co-P also had longer strain at break (830% vs VHB’s 757%), suggesting that mix-co-P may be a more advantageous material for DEG than VHB in terms of mechanical properties.

mix-co-P was modified by a thiol–ene reaction with thiopropionitrile, whereby some of the double bonds of the polynorbornene backbone were converted to more flexible single bonds. Accordingly, modified polymer mix-co-CN is expected to have a decreased elastic modulus compared to mix-co-P. On the other hand, the density of dipoles in the modified polymer is increased, which should lead to an increased elastic modulus after the chemical modification. The overall result depends on the trade-off between the two effects. For instance, in our previous work, a homo bottlebrush polymer synthesized starting from mix-M and modified by the same polar thiol gave a material with an elevated elastic modulus.⁴¹ This is probably due to the homo bottlebrush polymer’s high density of the side chains that hampered the flexibility of the backbone to a certain degree. Therefore, the dipolar interaction was dominated by a material with an increased elastic modulus. However, due to the polar group modification, self-segregation of the polynorbornene in mix-co-CN may be less effective, leading to a softer material with a smaller Y_min (17 vs mix-co-P’s 34 kPa) and extended strain at break (1553% vs mix-co-P’s 830%) (Figure 2b). The sparse long side chains may account for this outcome since they boost the backbone’s flexibility. However, the strain stiffening effect weakened for mix-co-CN after the polar group modification since the Y_max/Y_min ratio reduced to 3.9 (vs mix-co-P’s 5.9). Unlike the other materials, the end of the stiffening range of mix-co-CN is not marked by its strain at break, but occurs at 1000% strain (Figure 2c). Therefore, the Y_max value of mix-co-CN is the elastic modulus at 1000% strain. Besides, though the stiffening effect of mix-co-CN did not improve after the functionalization, it is still better than VHB, as indicated by the higher Y_max/Y_min ratio (3.9 vs VHB’s 2.7).

The stiffening effect plays a key role in multiple applications. Therefore, restoring the undermined stiffening capability of mix-co-CN may still be worthwhile at some cost of other aspects like increased elastic modulus. Therefore, we chemically cross-linked the polymer mix-co-CN by a bifunctional cross-linker (2,2′-(ethylenedioxy)diethanethiol) with a thiol group concentration of 1.1 mmol/g versus the mass of polymer mix-co-CN, via thiol–ene reaction using 2,2-dimethoxy-2-phenylacetophenone (DMPA) as UV initiator (Scheme 1c). The new material was defined as mix-co-E. To our delight, the stiffening ability of mix-co-E was indeed achieved since the Y_max/Y_min ratio increased to 6.1 (vs mix-co-CN’s 3.9 and mix-co-P’s 5.9). However, it did not come without any price, as s_max decreased to 289% and Y_min elevated to 147 kPa (Figure 2b,c and Table 1).

It should be noted that the change in the shape of the samples during the tensile test is not neglectable. Therefore, we also calculated the materials’ true stress from the engineering stress (Figure S7). Table S3 summarizes different mechanical parameters obtained by using the true stress. Although the mechanical performance of the materials in a biaxial stress–strain experiment might be more relevant to the materials’ deformation in a circular actuator, we provide evidence from the tensile test that it is important to consider the real stress for the particular mechanical setup being used.

After the tensile test, we explored the materials’ dielectric properties (Figure 3a). The relative permittivity of mix-co-P was 3.83 at 20 Hz. After the polar group modification, the dielectric permittivity increased to 5.23, which is higher than the VHB of 4.45–4.48 (1–10 Hz).⁴⁶⁻⁴⁹ Besides, tan δ (ε″/ε′ ratio) revealed that our materials can be operated at frequencies above 1 Hz where tan δ remains lower than 0.1. Additionally, the conductivity of all materials was below 10^–12 S/cm, which is rather low and further confirms the good dielectric properties of our materials.

Figure 3.

Dielectric permittivity (ε′), dielectric loss (ε″), loss factor (tan δ), and conductivity (σ) of the materials as a function of frequency at room temperature (a). The dynamic mechanical response of different materials at frequencies ranging from 0.05 to 10 Hz at 2% strain (b). The dynamic mechanical response of different materials at a frequency of 6 Hz at 2% strain in the temperature between −120 and −20 °C (c).

In addition, a dynamic mechanical analysis (DMA) was conducted (Figure 3b). For every material, three samples in stripe shapes were tested independently at room temperature at a strain of 2%. In the figure, the averaged parameters, including storage modulus (E′), loss moduli (E″), and mechanical loss factor (tan δ) within the frequency of 50 mHz and 10 Hz were presented. All materials showed storage modulus ranging from 160 to 750 kPa. Compared with VHB, our materials showed significantly lower mechanical loss factors. Additionally, VHB shows a stronger change in the elastic modulus with the frequency. Therefore, it can be foreseen that our materials exhibit superior properties for DEG applications due to the lower mechanical losses during operation. Mechanical losses heat the material and may cause an early dielectric breakdown.

Temperature-dependent DMA measurements were conducted to find the different transition temperatures in our materials (Figure 3c). Although the measurements at higher temperatures were noisy, the data from −120 to −20 °C was good. Since the interplay between the flexibility brought by newly formed single bonds and the dipolar interaction from increasing polar group density was uncertain, it is interesting to compare the T_g of mix-co-P and mix-co-CN. The measurement revealed a T_g for mix-co-P at −105.6 °C, while the T_g of mix-co-CN was −108.7 °C. The decreased T_g of mix-co-CN complied with the result of mechanical characterization. Besides, the T_g of mix-co-E was −106.9 °C, which slightly increased compared with mix-co-CN as expected for a cross-linked material. However, it was still lower than that of the precursor mix-co-P. Table S4 gives an overview of the transition temperatures observed in the different measurements.

Measurement of the dielectric permittivity and losses at different temperatures allows us to observe the various relaxations and transitions occurring in the bottlebrush polymer elastomers. Figure 4a contains the isochronal plot of the real and imaginary parts of complex dielectric permittivity ε* commonly termed dielectric permittivity ε′ and dielectric loss ε″, respectively, of the polar bottlebrush copolymer mix-co-CN.

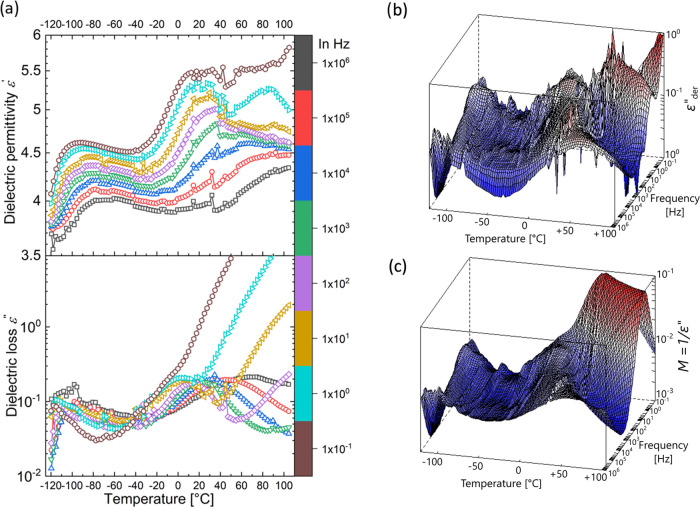

Figure 4.

Real and imaginary parts of dielectric permittivity of mix-co-CN as a function of temperature from −120 to 105 °C at selected frequencies from 10^–1 to 10⁶ Hz (a). 3D plot of conduction-free ε″_der curves of a mix-co-CN cross-linked brush polymer as a function of frequency from 10^–1 to 10⁶ Hz and temperatures from −120 to 105 °C (b). 3D plot of imaginary electric modulus, M″ of a mix-co-CN brush polymer as a function of frequency from 10^–1 to 10⁶ Hz and temperatures from −120 to 105 °C (c). It should be noted that mix-co-CN makes free-standing films by physical cross-linking.

Permittivity curves reveal two frequency-dependent relaxations, i.e., processes whose curves shift to higher temperatures with increased frequency. These two processes are manifested in the loss plot as peaks in the same temperature ranges. The contribution from DC conductivity commonly observed at high temperatures and low frequencies in the form of a steep increase in permittivity or losses obscures the information from other relaxation processes occurring in these conditions. Subjecting the dielectric data to a derivative analysis makes it possible to separate the ohmic conduction.^50,51 Commonly, a frequency derivative of permittivity, which is referred to as the conduction-free dielectric loss derivative ε″_der is used as shown in eq 1.

1

A three-dimensional (3D) plot of the conduction-free loss of mix-co-CN is shown in Figure 4b, which reveals an additional frequency-dependent process at temperatures above 50 °C in addition to the two relaxations observed in Figure 4a at lower temperatures.

The Havriliak–Negami (HN) function was used to fit the relaxation peaks and to derive Arrhenius plots for each of the three processes. DCALC program developed by Wübbenhorst et al. was used for the fitting process and the plots are shown in Figure 5a,b.^50,51 The two processes observed in Figure 4a show a nonlinear dependence of relaxation times with temperature in Figure 5a, which is characteristic of a Vogel–Fulcher–Tammann (VFT) relaxation.⁵² A VFT behavior denotes the dipolar relaxation occurring at the onset of segmental motions in amorphous polymers as the polymer is heated through its T_g. This is the strongest relaxation; hence, it is referred to as the α relaxation. Since both relaxations show VFT behavior, we can conclude that the brush copolymer shows two T_g’s, which is unexpected for a random copolymer. Therefore, the presence of a second T_g is an indirect proof for the self-segregation of the nonpolar PDMS brushes and the polar and less flexible polynorbornene backbone.

Figure 5.

Arrhenius plot of relaxation processes showing a VFT fit for the mix-co-CN sample (a). Arrhenius plot of the high-temperature process shows the Arrhenius type of relaxation in the mix-co-CN sample (b). Dissipation factor tan δ for the three polymer brush samples as a function of temperature measured with a frequency of 1 kHz (c). Arrhenius plot showing the VFT fit for a mix-co-P sample (d).

From an Arrhenius plot showing VFT behavior, one can calculate the dynamic T_g by extrapolating the curve to a relaxation time of 100 s (log τ = 2s).⁵³ Starting from low to high temperature, two T_g’s can be estimated for the brush copolymer, as shown in Figure 5a. While α₁ relaxation yields a value of −118 °C, α₂ relaxation shows a higher value around 5 °C. Concerning the structure, as mentioned earlier, a mix-co-CN sample is essentially a mix-co-P sample modified by a polar group (3-mercapto propionitrile) via a thiolene reaction. Hence, assigning the lower T_g to arise from the PDMS brushes is reasonable but slightly higher than regular PDMS with T_g = −127 °C (Figure 5a). The second T_g is likely due to polynorbornene aggregation. Also, the DMA analysis at different temperatures suggests the presence of two T_g values for the three synthesized materials. The first is at temperatures below −110 °C, while the second can be observed above −20 °C. Unfortunately, the DMA measurement is too noisy, so the maximum in the tan δ, which gives the value of the second T_g cannot be easily read.

It can be concluded that the current polar bottlebrush copolymers exhibit phase segregation, and therefore, two T_g’s can be observed. Phase segregation introduces interfaces that lead to Maxwell–Wagner Interface (MWI) polarization, which occurs above T_g and can be observed by impedance spectroscopy.^54,55 Looking at Figure 5b, which shows the Arrhenius plot of the high-temperature relaxation observed in Figure 4a, we can assign the Arrhenius type of relaxation behavior with a higher activation energy to MWI polarization. However, it is important to consider the contributions from electrode polarization, whose effects are observed at these elevated temperatures and low frequencies,⁵⁶ leading to electrical conductivity relaxation (ECR).⁵⁷ This typically arises due to an accumulation of space charges at the interface of the electrode and the dielectric sample. Plotting the complex electric modulus, M* = M′ + jM″, which is the inverse of complex dielectric permittivity (M* = 1/ε*) can help in this regard. Accordingly, in Figure 4c, the imaginary part of M* (M″ = ε″/(ε′² + ε″²)) of a mix-co-CN sample is plotted as a function of temperature and frequency. The advantage of using electric modulus is that the effects of electrode polarization are suppressed at low frequencies and at high temperatures.^58,59Figure 4c shows the 3D temperature and frequency plot of M″ of the sample under consideration. The strong presence of the high-temperature relaxation supports the idea that it arises from MWI interface polarization rather than from electrode polarization.

Relaxations in mix-co-P and mix-co-E samples were also studied (Figure S8), where the conduction-free loss ε″_der was plotted in 3D versus temperature and frequency. Both samples show a low T_g that can be assigned to the polymer brushes, as observed in mix-co-CN (Figure 5a). While a mix-co-P sample shows a second transition between −75 and 25 °C (Figure S8), a mix-co-E sample shows a higher and broader second transition between −25 and 70 °C. For the latter sample, this can be labeled as the second T_g based on a similar assignment in the mix-co-CN sample, where the transition is observed in the same temperature range. For the former sample, an HN fit was made, followed by the plotting of an Arrhenius curve (Figure 5d). From the plot, VFT behavior is observed, denoting a downshifted second T_g at −48 °C. Finally, both samples above their respective second T_g showed an MWI polarization starting from 50 °C that shifts to higher temperatures with increasing frequency, confirming the phase segregation occurring within these materials.

Figure 5c compares the dissipation loss factor tan δ (tan δ = ε″/ε′) of all three samples at a frequency of 1 kHz. As mentioned above, all three samples have a low-temperature T_g relaxation peak associated with the polymer brushes. While the mix-co-CN and mix-co-E samples show a second glass transition temperature of around 20 °C, the mix-co-P sample has a lower T_g of −65 °C. Since the former two samples have polar nitrile groups, they can be expected to unfreeze at a higher temperature than mix-co-P. Carefully looking at Figure 5c shows a shoulder between −40 and −20 °C in a mix-co-E sample. Attempts to fit the relaxation peaks with an HN fit were not successful, which suggests the shoulder is likely an artifact. However, further measurements and analysis will help to elucidate the behavior.

Additionally, SAXS/wide-angle X-ray scattering (SAXS/WAXS) measurements were also conducted and revealed the presence of several peaks (Figure 6a). The first peak was observed at q₁ = 0.105 Å^–1, confirming phase segregation at a length scale of 6 nm. This peak corresponds to backbone–backbone space correlations among the bottlebrush chains.⁶⁰ A WAXS higher order reflection at around q₂ = 0.9 Å^–1, characteristic of segmental electron density contrasts among chains, is indicative of the side chain-side chain packing at a length scale of 7 Å. A further WAXS Bragg reflection (third peak, q₃) at these length scales is located at about 1.5 times q₂, at a length of 4.5 Å. As there is no straightforward Bragg ratio corresponding to q₃:q₂ = 1.5, we tentatively suggest a rectangular packing with these two length scales (7 and 4.5 Å). More complex oblique columnar packing is also possible but would require additional reflections to resolve the angle, which are not visible and, therefore, cannot be proposed.

Figure 6.

SAXS measurements of mix-co-P, mix-co-CN, and mix-co-E. Thermogravimetric analysis (TGA) of the materials (a), and lateral actuation strains of thin films under different electric fields (mix-co-P prestrained by 100%, mix-co-E prestrained by 150%) (b), and lateral actuation strain at different electric fields of the different materials (c).

Thermogravimetric analysis (TGA) disclosed the thermal stability of the materials from RT to 700 °C under an inert atmosphere (Figure 6b). No significant loss was spotted up to 200 °C for all materials. Interestingly, mix-co-CN exhibited a more stable feature with a loss peak above 350 °C, while mix-co-P started to lose mass at 200 °C. Mix-co-P has double bonds in the repeat unit that make this polymer susceptible to degradation. Mix-co-CN was achieved by chemical modification of mix-co-P with a polar thiol, whereby likely the most reactive double bonds were consumed, which may explain its higher thermal stability. Finally, mix-co-E was obtained by cross-linking mix-co-CN with a thiol. The lower thermal stability of mix-co-E may be explained by the presence of some residual thiols or disulfide, which can generate radicals, lowering the degradation temperature.

After verifying the dielectric and mechanical properties, our materials were investigated as dielectrics in electromechanical tests. Circular actuators were constructed by fixing a thin membrane between two rigid circular frames and applying overlapping carbon black electrodes on both sides of the membrane. All films were free-standing, without additional pressure, unless otherwise noted concerning the prestraining percentage. We summarized the materials’ lateral actuation versus the electric field in Figure 6c. As we have pointed out, ideally, it is better to prestrain these elastomers at least until their s₀ strain to get access to higher breakdown fields by entering the stiffening range and thus circumventing the EMI effect. However, some materials have quite low Y_max, values, as shown in Table 1. For instance, mix-co-P exhibited a Y_max = 199 kPa and mix-co-CN a Y_max = 68 kPa. Hence, as the membrane undergoes prestretching and thinning, the maximum force that the film can withstand diminishes. Consequently, even if some membranes survived prestretching, most still ruptured when manually applying the carbon black electrodes. Consequently, some materials can only be prestrained until a strain that is less than s₀ without rupturing. Film of mix-co-P was biaxially prestrained by 100% instead of 220% (Figure 6c). Nevertheless, the breakdown field of mix-co-P still reached 30.7 V/μm, while it actuated laterally by 5.7%. Due to the chemical modification of mix-co-CN, the elastic modulus was decreased and gave similar actuation at lower electric fields. Furthermore, the breakdown field of mix-co-CN decreased as well, which is expected since the stiffening effect decreased. The strain stiffening effect was most pronounced in material mix-co-E, which substantially improved the dielectric breakdown field. However, this material was rather stiff and had a low actuation. Table 2 summarizes the breakdown fields of mix-co-P, mix-co-CN, and mix-co-E as 30.7, 33.9, and 62.4 V/μm, respectively. Figure S9 shows the cyclic actuation of mix-co-E at 0.25 Hz, which has a small hysteresis in the five cycles and after that stabilizes. The low actuation strain, high dielectric breakdown field, increased dielectric permittivity, and good stretchability make mix-co-E attractive as a dielectric elastomer in energy generators. The theoretical amount of energy harvested was calculated as 0.44 J/g for mix-co-P, 0.98 J/g for mix-co-CN, and 0.5 J/g for mix-co-E, respectively (Table 2). More details regarding the calculations can be found in the SI. The amount of energy calculated is in the same range as VHB and thus in agreement with the literature.⁴⁰

Table 2. Lateral Actuation Strain at the Maximum Electric Breakdown (s), Dielectric Breakdown (E_b,max), and Original Film Thickness (d₀).

entry	sa [%]	sarealb [%]	voltagec [V]	d0d [μm]	Δde [μm]	Eb,maxf [V/μm]	ε′h	ΔEdens [J/g]
mix-co-Pg	5.7	11.7	2500	91	9.5	30.7	3.83	0.44
mix-co-CN	4.2	8.6	500	16	1.3	33.9	5.23	0.98
mix-co-E	5	10.2	600	36	0.4	62.4	5.24	0.5

^aLateral strain at the maximum electric breakdown.

^bAreal strain at the maximum electric breakdown.

^cVoltage at the maximum electric breakdown.

^dOriginal thickness of the thin film.

^eChange in thickness Δd = d₀ – d, considering the corresponding thickness d: d = d₀/(s + 1)².

^fExact breakdown fields of the thin film given by E_b,act = [Voltage]/d.

^gPrestrained by 100%.

^hTaken at 20 Hz.

4. Conclusions

A bottlebrush polymer was synthesized by copolymerizing a macromonomer of norbornene ester modified with a PDMS chain and 5-norbornene-2-carbonitrile via ROMP. ¹H NMR investigations show that the two monomers are randomly incorporated into the polymer chain. The copolymer formed has double bonds in its backbone, facilitating a thiol–ene reaction with thiopropionitrile to enhance the dielectric permittivity and enable cross-linking with a bifunctional thiol. The as-prepared bottlebrush polymer and the one resulting from postpolymerization modification with thiopropionitrile form free-standing films with good elastic properties after solvent casting. Bottlebrush polymers entangle much less than their common counterparts. Since both candidates discussed here are random copolymers, it was questionable what physical interactions keep these two polymers in shape. DMA and impedance spectroscopy analysis reveal the presence of two T_g in both cases, which is surprising for random copolymers and asks for an explanation. Additionally, the presence of a third relaxation process at higher temperatures in impedance spectroscopy suggests the presence of interfaces, giving rise to interfacial polarization. Furthermore, SAXS measurements confirmed the presence of segregation, with PDMS domains with a T_g at below −100 °C in both cases and polynorbornene backbone domains with T_g’s at −48 °C (for mix-co-P) and 4.9 °C (for mix-co-CN), respectively. It is reasonable to assume that this domain formation is triggered by the polynorbornene backbone’s poor flexibility and the many nitrile groups on the backbone. Moreover, the remaining double bonds of the bottlebrush polymer modified with polar groups allow for chemical cross-linking via a thiolene reaction with a bifunctional thiol, thus further optimizing the mechanical properties. The chemically cross-linked bottlebrush polymer exhibits a dielectric permittivity of 5.24 and strain stiffening, which may prevent the dielectric from EMI. Additionally, the material exhibits large strain at break of about 300% and lower mechanical losses than VHB, one of the most explored dielectrics in generators. Due to the increased elastic modulus, the material is poorly actuated but withstands a high breakdown field of up to 62.4 V/μm. Therefore, this material exhibits attractive properties for applications as a dielectric in dielectric elastomer generators, which should be explored in the future.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsapm.3c03053.

• NMR spectra; GPC curves; true stress–strain curves; 3D ε″_der plot as a function of temperature; electromechanical measurements; photos of the elastomer; and calculations of the maximum theoretical energy that can be harvested from a DEG operated in uniaxial stretching mode (PDF)
