Post-translational add-ons mark the path in exosomal protein sorting

Abstract

Extracellular vesicles (EVs) are released by cells to the extracellular environment to mediate inter-cellular communication. Proteins, lipids, nucleic acids and metabolites shuttled in these vesicles modulate specific functions in recipient cells. The enrichment of selected sets of proteins in EVs compared with global cellular levels suggests the existence of specific sorting mechanisms to specify EV loading. Diverse post-translational modifications (PTMs) of proteins participate in the loading of specific elements into EVs. In this review, we offer a perspective on PTMs found in EVs and discuss the specific role of some PTMs, specifically Ubiquitin and Ubiquitin-like modifiers, in exosomal sorting of protein components. The understanding of these mechanisms will provide new strategies for biomedical applications. Examples include the presence of defined PTM marks on EVs as novel biomarkers for the diagnosis and prognosis of certain diseases, or the specific import of immunogenic components into EVs for vaccine generation.

Introduction

Extracellular vesicles

Extracellular vesicles (EVs) are 50–300 nm-sized nanovesicles secreted to the extracellular milieu by a vast variety of cell types to promote inter-cellular communication on cells that capture them. Such vesicle exchange is involved in many physio-pathological situations such as tumour progression, metastasis, immunomodulation and the spreading of infections [1]. EVs have a heterogeneous nature, thus they are classified according to their origin into three groups: exosomes, shedding vesicles and apoptotic bodies [2]. Exosomes are of endosomal origin. Cells release them by fusing multivesicular bodies (MVBs)-containing intraluminal vesicles (ILVs) with the plasma membrane. Shedding vesicles form directly at the plasma membrane. Finally, apoptotic bodies are vesicles that result from apoptosis and contain cellular waste [3, 4]. EVs are membrane-covered vesicles that contain proteins, nucleic acids (DNA, mRNA and miRNAs), lipids and metabolites [5]. Proteins that are enriched in exosomes include tetraspanins (CD9, CD63, CD81), cytoskeleton components (Syntenin, Drebrin, ERMs), Endosomal Sorting Complexes Required for Transport (ESCRT complex) (TSG101, ALIX), Heat-Shock proteins (HSP70 and 90), Annexins, Rab proteins, among others [6]. Exosome membranes are also different from the membrane of their producer cells, mainly enriched in ceramide, sphingolipids, glycerophospholipids and cholesterol [7, 8].

Almost every cell, prokaryotic and eukaryotic, can secrete EVs. These particles appear in many fluids, including urine, amniotic fluid, blood, bile, semen, cerebrospinal fluid, breast milk, ascites and cell cultures (reviewed in [2]). Moreover, EVs contain specific external and internal markers, which vary depending on their origin. For instance, CD24 is a marker for urine and amniotic fluid exosomes [9]. In addition, a single cell type can simultaneously secrete different populations of exosomes [10, 11]. For example, polarized cells can deliver different populations of exosomes through the apical and basolateral poles [12].

Regarding cargo sorting, EVs receive cargoes through both ESCRT-dependent and independent mechanisms [13, 14]. The existence of heterogeneous MVBs populations becomes apparent when different components of endosomal trafficking or the ESCRT pathway are silenced or overexpressed, and when exosomal secretion is disturbed and not all exosomal markers are affected to the same extent [10, 15]. This enables distinguishing between global markers, e.g. TSG101, ALIX or HSP70; and cell-specific markers, e.g. class II Major Histocompatibility Complex (MHC-II) [3]. EV cargo also evolves with global changes to the whole cells. For example, oxidative stress modulates MVB biogenesis, endocytosis and consequently EVs composition [12].

Post-translational modifications

Post-translational modifications (PTMs) include a collection of add-ons that provide variability to a defined set of proteins that all cells use to enable most biological processes, adapting the functionality of those proteins by varying their interactive capability, resistance to degradation, etc. In this sense, PTMs exponentially increase the level of the proteome complexity [16]. These add-ons are molecules of diverse nature that attach to specific amino acids. Multiple amino acids can receive varied PTMs. The types of added molecule include chemical groups, carbohydrates, lipids, aminoacids, proteins and nucleotides. This process is controlled by specialized enzymes responsible for the addition or removal of each modification [17]. PTMs and their regulation constitute a cellular communication code to respond in a fast, versatile and accurate mode. The fulcrum of this review is that PTMs can direct exosome loading. Exosomes do not mirror the protein composition of their parental cells, and some proteins appear enriched in exosomes by selective mechanisms of protein cargo sorting controlled by specific PTMs [18]. The main PTMs are summarized in Table 1. These include addition of chemical groups (phosphorylation, acetylation, methylation, oxidation, hydroxylation, S-nitrosylation, sulfation or sulfonation, and others), carbohydrates [N-glycosylation, O-glycosylation, glycosylphosphatidylinositol (GPI)-anchoring], lipids (myristoylation, palmitoylation, prenylation) and nucleotides (ADP-rybosylation, PARylation). To make this large problem tractable, we focus in Ubiquitin and Ubiquitin-like modifiers (UBLs) as major controllers of EV protein loading.

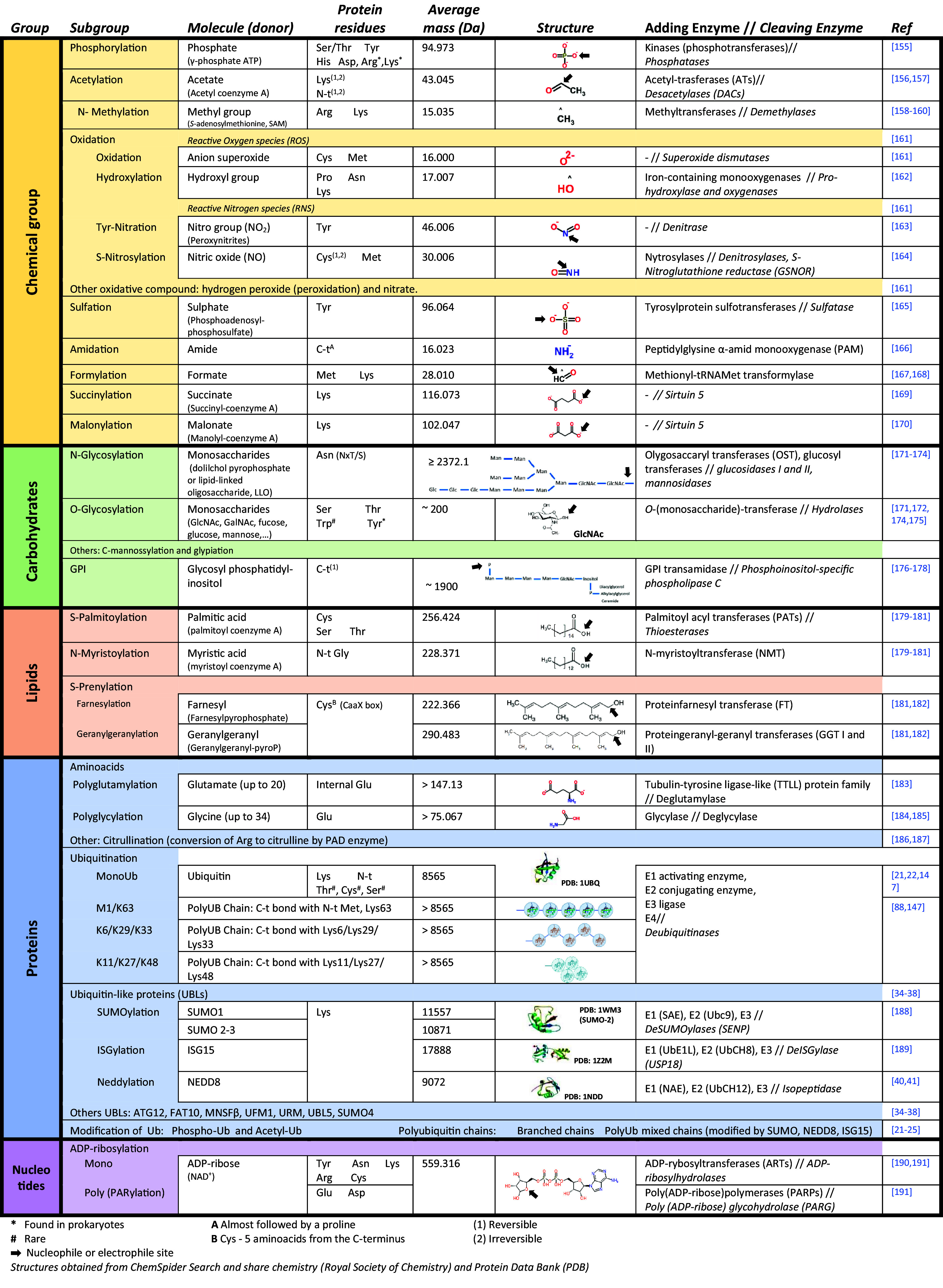

Table 1.

Post-translational modifications of proteins

Ubiquitination and Ubiquitin-like modifiers (UBLs)

This group of PTMs represents one of the most important regulatory systems of protein location, stability and function. The C-terminal (C-t) Gly of ubiquitin and most UBLs attaches covalently mainly to the ε-amino group of a Lys (K) residue of the substrate protein, forming an isopeptide bond. The conjugation of ubiquitin and UBLs requires the consecutive action of three specific enzymes: Ubl-activating enzymes (E1s), Ubl-conjugating enzymes (E2s) and Ubl-protein ligases (E3s). Specific proteases reverse this process, removing ubiquitin from target proteins [19, 20]. Ubiquitin is a highly conserved, small protein of 8.5 kDa involved in diverse functions, such as protein degradation, endocytic trafficking, signal transduction and DNA repair, among others. Mono-ubiquitination is the modification of a specific Lys in a target protein. The same protein can bear multiple mono-ubiquitinated residues simultaneously. Besides, the ubiquitin protein itself contains seven Lys (K6, 11, 27, 29, 33, 48 and 63) in its sequence. These Lys can bind to other molecules of ubiquitin, generating seven types of polymeric ubiquitin chains, constituting the so called “ubiquitin code”. Moreover, M1 chains are polymeric chains formed by ubiquitin N-terminal (N-t) Met. All these chains vary in length, ranging from two to more than ten residues. They can be homotypic if the same residue is modified during elongation as in M1, K11, 48 or 63-linked chains, or heterotypic if the same chain displays different linkages [21, 22]. Moreover, a single ubiquitin can be modified with multiple chains or UBLs (NEDD8, SUMO, ISG15), generating branched chains or mixed chains, respectively. Finally, ubiquitin can be acetylated or phosphorylated [21–25]. K48-linked ubiquitin was the first described poly-ubiquitin chain related to degradation [21, 26]. On the other hand, K63-linked chains relate to many biological processes, and K63-modified proteins play important roles in diverse cellular signalling pathways, e.g. Toll-like receptor (TLR) cascade and endosomal transport [21, 27–30]. However, the specific functions of other mixed, branched or heterogeneous chains remain almost unknown [28] (Table 1). The consensus is that proteins modified with K29 and K48-linked chains are proteasome-bound for degradation. Nevertheless, M1, K6, K11, K27 and K63 chains and mono-ubiquitination regulate different cellular processes such as DNA repair, translation, inflammation and endocytic trafficking [21, 27–33] (Table 1).

UBLs share many features with ubiquitin, including their sequence and three-dimensional structure, which is a compact β-grasp fold. The main members of this group are SUMO1, SUMO2-3, SUMO4, ISG15, NEDD8, ATG12, FAT10, MNSFβ, UFM1, URM and UBL5 (reviewed in [34–38]). Neural precursor cells-Expressed Developmentally Down-regulated protein 8 (NEDD8) is the closest UBL to ubiquitin. NEDD8 mainly modifies proteins from the Cullin RING Ligases (CRLs) superfamily. RING E3 Ligases transfer ubiquitin directly from E2 enzymes to the substrate protein forming a complex scaffolding by Cullin. CRLs play an important role in protein ubiquitination for proteasomal degradation under the control of NEDD8 [39, 40]. NEDD8 also forms chains through one of its six Lys [41]. Small ubiquitin-related modifier (SUMO) is an UBL involved in nuclear transport and organization, DNA repair, transcription, chromatin remodelling and ribosome biogenesis. It is an essential modification to maintain cell homeostasis in stress responses and has become relevant in many diseases [42]. Interferon-stimulated gene 15 (ISG15) is induced by type I interferons (IFN-I), exposure to bacterial lipopolysaccharide (LPS), viral double-stranded RNA (dsRNA), ischemia and aging [43]. It is an essential part of the innate immune response to fight against bacterial and virus infections [44]. Besides, ISG15 is also overrepresented in various types of tumours [45]. Interestingly, ISG15 can also function as a free unconjugated form with an immunomodulatory role [46].

Exploring the sorting of modified proteins into EVs

Sorting mechanisms to MVBs

Exosomes originate in the endocytic pathway, whereas shedding vesicles form from direct budding of plasma membrane. Therefore, the mechanisms involved in protein secretion are different [18]. Here, we will discuss how PTMs could be involved in the sorting of proteins into EVs.

ESCRT-dependent and independent sorting mechanisms into ILVs

Presently, mechanisms of protein incorporation into the ILVs of MVBs for exosomal secretion or lysosomal degradation remain unclear. One key part of the machinery that controls the incorporation of ubiquitinated proteins into ILVs is the ESCRT complex [47, 48]. This complex includes four sub-complexes that sequentially recognize protein cargos and include them into ILVs. ESCRT-0 comprises HRS and STAM1/2 subunits, which are proteins with several distinct ubiquitin-binding domains (UBDs) that form a cargo-recognition module. HRS recognizes ubiquitinated proteins through a FYVE domain necessary to interact with phosphatidyl inositol 3-phosphate (PI3-P) molecules of endosomal membranes. HRS also displays PSAP domains that connect with the ESCRT-I subunit TSG101, which also binds ubiquitinated proteins. Moreover, the PSAP domains of small integral membrane protein of the lysosome/late endosome (SIMPLE) also bind TSG101. SIMPLE has a PPxY motif that interacts with NEDD4 to be ubiquitinated, and di-Leu and YKRL motives, which are signatures of endocytic functions [14, 49]. Mutations in these motifs impair the secretion of SIMPLE to exosomes, altering MVBs biogenesis [49]. Moreover, Hrs conditional knock-out (KO) in dendritic cells (DC) significantly reduces exosome release, pointing to an important role for ESCRT components in exosome secretion [50].

Deubiquitination is mandatory prior to packaging cargo into ILVs. To remove ubiquitin, ESCRT-III recruits deubiquitinating enzymes. ESCRT-III subunits CHMP2 A, B, CHMP3, CHMP4 A, B, C and CHMP6 bind to lipid membranes through their positively charged N-t domains, allowing high order oligomerization that results in structures over 600 kDa. Yeast ESCRT-III Snf7 (CHMP4 in humans), is not only implicated in neck-shaped oligomeric assembly for vesicle budding, but also in its scission. In this regard, the necessary energy to dissociate budding vesicles from membrane is provided by the ATPase activity of the Vacuolar protein 4 (VPS4) Complex (SKD1, CHMP5, LIP5) (reviewed in [47, 48]).

Ubiquitination of cargo proteins is necessary for recognition by ESCRT-0 components, whereas deubiquitination is a crucial step for sorting them into ILVs. However, whether ubiquitination is mandatory for driving proteins into exosomes is currently controversial. The sorting of some proteins seems independent of ubiquitination, e.g. MHCII loading into DC exosomes after T cell activation, which is associated to tetraspanin-enriched microdomains (TEMs) formed by CD9 [13, 51]. Furthermore, CD81 is important for the sorting of its associated proteins into exosomes [42]. Other studies support that the ubiquitination drives MHCII-containing MVBs to degradation upon fusion with the lysosomal system [52] (Fig. 1).

Fig. 1.

Schematic representation of some PTMs found in EVs. Endocytosis of plasma membrane receptors (MHC-II, LMP2A and EGFR) transfer them into the endocytic pathway. Depending on the added PTMs, these receptors can have different fates. Ubiquitinated-MHC-II is preferentially directed to degradative MVBs for degradation in lysosomes, whereas, Ub-LMP2A and ph-EGFR are usually incorporated into ILVs of exocytic MVBs, which are fused with plasma membrane to be secreted as EVs [52, 77, 116]. In the case of acetylated-GRP78 and ISGylated-TSG101, these PTMs act as cellular retention tags, promoting their degradation in lysosomes [128, 129]. However, Ub-HSP70, SUMOylated-hnRNPA2B1, SUMOylated-α-synuclein, ph-AKT, oxidized and phosphorylated γ-synuclein and citrullinated vimentin are loaded into ILVs and driven to EVs [80, 104, 106, 108, 118, 154]. Besides, unmodified TSG101 and GRP78 proteins can also be present in EVs [128, 129]. Figure key is shown at the right side. The images in the figures are not scaled

In addition, ESCRT components can be ubiquitinated themselves, for example HRS. HRS mono-ubiquitination prevents binding of ubiquitinated cargo, regulating the flow of specific proteins into MVBs [47]. The E3 ubiquitin ligase implicated in ubiquitin turnover can thus control the destiny of MVBs. For example, the activity of Mahogunin on TSG101 disrupts MVB lysosomal trafficking, whereas another E3 ubiquitin ligase called Tal abrogates MVB biogenesis [53, 54]. Associated molecule with the SH3 domain of STAM (AMSH) ubiquitin isopeptidase and ubiquitin isopeptidase Y (UBPY) removes mono-ubiquitin from HRS to recycle ESCRT components, preventing their degradation. Moreover, AMSH deubiquitinates cargoes modified with K63-linked chains, whereas UBPY recognizes both K63 and K48-linked chains. The action of these enzymes indicated a deubiquitination step that is required to sort cargoes into ILVs, and hence, into exosomes [55, 56].

However, mono and poly-ubiquitinated proteins can be found in exosomes, but not associated to the exosomal membrane [57]. Cargo deubiquitination before its packaging into ILVs seems essential, but how some ubiquitinated proteins end up in exosomes remains controversial. These contradictory results suggest that ubiquitinated proteins can evade deubiquitination; or finish up in exosomes through ESCRT-independent mechanisms. Such mechanisms do exist. In these, sorting depends on tetraspanins, sphingolipids and ceramide [58–60]. For example, LYPX(n)L motifs in the protein ALIX are implicated in its interaction with CD63 tetraspanin, and together with transmembrane proteins syndecans and syntenin induce budding and membrane abscission of ILVs [61]. In fact, an extensive study of ESCRT components downregulation revealed that of 23 ESCRT proteins studied, not all of them interfered with exosome secretion in the same way [11]. When HRS, TSG101, VPS22 and VPS24 are simultaneously silenced, MVBs are still produced and only the formation of Epidermal Growth Factor (EGF)⁺-MVBs is affected, highlighting a possible mechanism of substrate selectivity [62]. Proteolipid (PLP)⁺-exosomes localize together with flotillin and GPI in endosomal compartments, but not with HRS. These vesicles were enriched in cholesterol and ceramide, and their secretion depended on ceramide production by the activity of sphingomyelinase 2 (nSMase2) [63]. The enzyme sphingomyelin synthase SMS2 regulates the secretion of amyloid-β (Aβ)-peptide⁺-exosomes. In addition, the transfer of CD63⁺-exosomes from T cells to APCs during immune synapse is ceramide-dependent [59, 60]. This is likely related to the fact that ceramide creates spontaneous curvature of endosomal membranes, triggering ILVs budding. Besides, other lipids metabolites such as sphingosine-1-phosphate (S1P), diacylglycerol (DAG), cholesterol, phosphatidyl choline, or lysobisphosphatidic acid (LBPA) are involved in the MVB biogenesis and exosome secretion, although how protein cargoes are selectively transported into this kind of vesicles remains unknown [64–71].

Ubiquitinated proteins in EVs

Ubiquitin was first observed in human urine exosomes showing a wide range of molecular weight complexes by Western blot, which suggested the presence of ubiquitinated proteins in exosomes [72]. Specific antibodies for ubiquitin and poly-ubiquitin chains allowed to identify mono-, oligo- and poly-ubiquitinated proteins in exosomes [57]. Various studies and proteomic analysis identified specific ubiquitinated proteins (reviewed in [73]) (Table 2 and Fig. 1). For example, myeloid-derived suppressor cells (MDSC) secrete exosomes enriched in ubiquitinated proteins, including endosomal trafficking proteins and histones [74]. Moreover, high molecular weight complexes of non-classical human leukocyte antigen-G (HLA-G) are ubiquitinated, but not glycosylated, in exosomes obtained from ascitic and pleural exudates of patients [75]. Shedding vesicles also contain modified proteins such as arrestin domain-containing protein 1 (ARRDC1), which is ubiquitinated by the E3 ubiquitin ligase WW domain-containing protein 2 (WWP2). An arrestin domain in ARRDC1 anchors it to the plasma membrane, enabling its interaction with the PSAP domain of TSG101 to generate direct membrane budding [76]. In the case of ubiquitinated Epstein–Bar virus latent membrane protein 2A (LMP2A), exosome sorting depends on cholesterol, whereas the phosphorylated form was not detected in exosomes [77] (Table 2 and Fig. 1).

Table 2.

Post-translational modified proteins found in EVs

Phosphatase and tensin homolog deleted on chromosome 10 (PTEN) is ubiquitinated on Lys13 by the association and regulation of Nedd4 family-interacting protein 1 (Ndfip1), an adaptor protein of the Nedd4 family E3 ubiquitin ligases, appearing in this form in exosomes, although modified-Ndfip1 does not. However, its presence is necessary for the import of Nedd4, Nedd4-2 and ITCH to exosomes [14, 78]. Alanine replacement on di-Leu (LL) and YKRL motifs of SIMPLE reduces it secretion into exosomes, as well as a mutation on its PTAP motif, which controls SIMPLE binding to TSG101 for incorporation into ILVs. However, point mutations of the two PPxY motifs of SIMPLE, a binding domain for Nedd4 type E3 ubiquitin ligases, such as Nedd4 and ITCH, increase exosomal incorporation; hence SIMPLE ubiquitination does not direct its own sorting [49]. In other cases, such as Fas Ligand (FasL), ubiquitination of the proline-rich domain (PRD)-flanking Lys and phosphorylation of multiple tyrosines promote its internalization in MVBs and its secretion into EVs [79]. The COP9 signalosome (CSN)-associated protein CSN5 mediates ubiquitin isopeptidase activity. Deletion of its JAB1/MPN/Mov34 metalloenzyme (JAMM) domain increases the sorting of ubiquitinated HSP70 and HIV Gag proteins into exosomes; whereas a mutation of its associated deubiquitin activity domain promotes the enrichment of non-modified proteins in EVs [80]. These results highlight that CSN5 participates in ubiquitin-dependent and independent protein vectorization into exosomes [80] (Table 2). MARCH1, an E3 ubiquitin ligase for MHCII and CD86, is incorporated into exosomes dependent on its C-t tyrosin-based motifs [81]. This endosome sorting motif is also important for sorting of transferrin receptor into exosomes due to its interaction with ALIX [82]. Nevertheless, whether MARCH1 is ubiquitinated or not in exosomes remains unclear, although this region is important for MARCH1 auto-ubiquitination [83].

Human urine exosomes contain approximately 15% of ubiquitinated proteins. Of these, 21% are transmembrane proteins, underscoring that deubiquitination is not mandatory for the incorporation of protein cargo into MVBs and exosomes [84]. Although, ubiquitination-specific motifs remain unidentified, this PTM has preference for basic amino acids and positively charged residues upstream of the ubiquitination site, hydrophobic residues adjacent to it and additional Lys 6 amino acids upstream [84]. Besides, poly-ubiquitin chains appear following this order of enrichment: K63 > K48 > K11 > K6 > K29 > K33 > K27. This shows that K63, K48 and K11-linked chains are the most representative poly-ubiquitin topologies in exosomes [84]. Furthermore, platelet exosomes contain poly-ubiquitin chains and in higher numbers compared to platelets microparticles [85] (Table 2).

Deciphering the ubiquitin code in EVs

The ubiquitin code comprises the combination of mono-, poly- and branched-ubiquitin chains and even other PTMs, which allow a wide range of possibilities for the regulation of proteins. K48-linked chains require at least four ubiquitin units to attach to the target protein to enable recognition by the 26S proteasome [86, 87]. In particular, the proteasome subunit S5a/Rpn10 contains an ubiquitin-interacting motif (UIM) in the hydrophobic patch of its C-t region, which enables recognition of this specific poly-ubiquitin chain. Inside the proteasome, ubiquitin molecules are removed from target proteins for recycling, whereas the rest of the proteins are cleaved into small peptides (3–25 amino acids of length). There is some evidence suggesting that other chains, e.g. M1, K6, K11, K27 and K29 could be involved in proteasomal degradation of target proteins [21, 30, 33, 86]. Moreover, a new conjugation factor, named E4, participates in the generation of efficient poly-ubiquitinated-linked chains under stress conditions to direct modified proteins to the proteasome, demonstrating the existence of an E4-dependent multi-ubiquitination pathway for degradation [88] (Fig. 2). K63-linked chains do not end up in the proteasome as they bind specifically to the ESCRT-0 complex, specifically to UIMs found in HRS and STAM1 components [27, 89]. These interactions condense proteins modified with K63-linked poly-ubiquitin chains into endosomes, promoting their import into ILVs of MVBs and possibly, their subsequent delivery into exosomes [90]. In fact, K63-linked chain is the most representative ubiquitin topology found in EVs [84] (Fig. 2).

Fig. 2.

The ubiquitin code in cellular functions. MHC-I and II and TCR are preferentially retained in endosomes by the action of specific E3-Ub-ligases MARCH-IV, I and Cbl, respectively. Whereas Ub-MHC-II is mainly degraded by lysosomes, Ub-MHC-I (HLA-G) can be sorted into EVs. Signalling proteins downstream of TCR, TNFR or TLR can be modified by K63-linked chains to mediate signal transduction or by K48-linked ones, such as IκBα to be degraded in the proteasome. M1-linked chain is added to NF-κB to allow its nuclear translocation to start gene transcription. K27-linked chains are related with DNA repair processes, while K6, K11 and K63 chains can modify mitochondrial proteins to initiate mitophagy of damaged mitochondria by the E3-Ub-ligase Parkin. Proteins with K11 and K48-chains are principally transported to the proteasome to be degraded. Most of the proteins modified with K63-linked chains interact with ESCRT-0 and are vectorised in ILVs of exocytic MVBs to be delivered into EVs. Although Ub-MHC-II is mainly degraded, unmodified MHC-II and Ub-MHC-I (HLA-G) are usually incorporated in exosome membrane. Besides, K11, K48 and K63-linked chains can be found in EVs. Figure key is shown at the right side. The images in the figures are not scaled

How ubiquitin-binding proteins detect unequivocally a specific conformation of poly-ubiquitin chains may explain the selective targeting of a given protein within the cell. For example, M1 and K63-linked chains display a fairly linear or open space conformation, whereas K6, K11, and K48-linked chains create closed structures [21, 33, 91, 92] (Table 1). Open-conformation chains only limitation is that imposed by isopeptide bonds that connect them [21, 33]. However, closed conformation chains have multiple steric hindrances, which alters ubiquitin space structure by exposing and concealing different parts of ubiquitin residues, creating diverse topologies intrinsic to a specific type of linkage [21, 91]. In the cell, specific proteins bind to a unique type of ubiquitin linkage topology [91]. Because distances between ubiquitin units within a chain are different in K63 or K48-linked chains, UBDs of cellular machinery display small spaces between UIMs to specifically recognize K48-chains, whereas larger spacers are used for K63 binding [91, 92]. The use of a variety of UBDs structures not only allows discriminating between open and close conformations, it also enables distinguishing among different open structures such as K63- and M1-linked chains [91, 92]. All these possibilities of ubiquitin topologies and UBDs compose a fine and selective language among ubiquitinated-target proteins and ubiquitin-interacting proteins.

In a similar way, depending on the different distances between UIMs inside UBDs, certain E3-ubiquitin ligases elongate specific types of K-linked chains associated to target proteins. Besides, the wide variety of E3-ubiquitin ligases described in eukaryotic cells and their tissue restrictions amplify the code of ubiquitin chains. For example, the Cbl family of E3-ubiquitin ligases are highly expressed in hematopoietic cells and are involved in the downregulation of many signalling pathways controlling T and B cell receptors and integrins [93, 94]. However, MARCH1 is represented in antigen presenting cells (APCs), modifying class II MHC molecules, downregulating their expression in the plasma membrane, whereas MARCH-IV regulates class I MHC molecules using a similar mechanism [95, 96]. In this regard, a possible explanation regarding how K48-linked poly-ubiquitin chains evade proteasomal degradation and travel into exosome involves the collaboration of certain ubiquitin-binding proteins located in endosomal pathway (Fig. 2).

Branched poly-ubiquitin chains display the particular signalling properties of their K48 or K63 components, although they are recognized by multiple linkage-specific enzymes [97]. This underscores the predominance of certain chain topologies within a mixed-linkage poly-ubiquitin chain. The sorting of ubiquitin chains other than K63-linked requires mechanisms different from those dependent on ESCRT components. The incorporation of SUMO-2/3 following ubiquitination creates heterologous SUMO-2/3-Ubiquitin chains responsible for enhancing the degradation of IκBα by the proteasome after the activation of the Tumour Necrosis α (TNFα) signalling pathway [23]. In stress situations, NEDD8 can also modify ubiquitin Lys48 [25]. A recent study described how ISGylation of ubiquitin Lys29 negatively controls the turnover of ubiquitinated proteins [24].

Interestingly, ubiquitin can be phosphorylated on Ser65 by PTEN induced putative kinase 1 (PINK1), enhancing its interaction with the mitochondrial E3 ubiquitin ligase parkin [98]. This phosphorylation-dependent mechanism increases the enzymatic activity of parkin, decreasing the mitochondrial membrane potential [98]. Moreover, ubiquitin becomes acetylated in Lys6 and Lys48 without affecting substrate mono-ubiquitination of histone H2B [99]. However, both acetylations inhibit K11, K48 and K63-linked poly-ubiquitin chain elongation, providing a novel regulatory step of control of mono- and poly-ubiquitination [99].

Because many PTMs can modify proteins in the same residue, competition and crosstalk between different PTMs depending on different cell factors can change protein function and localization [100]. In summary, deciphering the sophisticated ubiquitin code is necessary to unveil specific functions of every chain topology in the selective import of proteins into exosomes.

Other PTMs in EVs

Proteomic studies have contributed extensively to define the protein composition of EVs [72, 84, 101–103]. Heterogeneous nuclear ribonucleoprotein A2/B1 (hnRNPA2B1) is present in exosomes in its sumoylated form, and that is necessary for the sorting of EXOmotif-containing microRNAs into exosomes [104]. On the other hand, a study suggested that SUMO-1 could modulate the toxicity of α-synuclein in neurodegenerative disorders such as Parkinson’s disease (PD) [105]. Besides, EVs can contribute to disseminate neurotoxic proteins, which favours the development of PD pathogenesis. Hence, sumoylated α-synuclein is incorporated into exosomes by a mechanism dependent on the ESCRT complex and phospholipids [106] (Table 2 and Fig. 1).

Nevertheless, ubiquitin and UBLs are not the only PTMs detected in EVs [73, 107]. For example, many phosphorylated proteins appear in exosomes, including the calcium-dependent phospholipid-binding protein Annexin A2, which is enriched in cholesterol-rich lipid raft micro-domains of exosome membranes [101, 108, 109]. The localization of this protein depends on the phosphorylation of Tyr23, which prevents its endosomal degradation and allows its incorporation into exosomal membranes [109]. Other phosphorylated proteins found in exosomes include Tau, type 1 insulin receptor substrate (IRS-1), Crystalline alphaB (CryAB), Epidermal Growth Factor Receptor (EGFR), Na⁺-Cl⁻ co-transporter (NCC), Aquaporin 2, FasL and proteins implicated in cellular processes such as apoptosis, survival and metabolism [79, 101, 108, 110–117] (Table 2 and Fig. 1).

γ-Synuclein acquires features of prion-like proteins by oxidation, which triggers the aggregation of other proteins, e.g. α-synuclein [118]. The most frequent oxidized residues of γ-synuclein are Met38 and Tyr39. Oxidized γ-synuclein is released into exosomes and incorporated in neighbouring cells, amplifying the toxic protein-aggregation cascade that finally causes a degenerative synucleinopathy [118]. Besides, other oxidized proteins appear in EVs as described in other studies (reviewed in [107]) (Table 2 and Fig. 1). Moreover, several studies have revealed the presence of glycosylated proteins in EVs (reviewed in [73, 107]). Notably, EVs contain mainly mannose or sialic acid enriched-glycans and N-linked glycoproteins. In particular, exosomes contain large amounts of the sialoglycoprotein galectin-3-binding protein (LGALS3BP) [119–122] (Table 2).

Additionally, plasma membrane anchors induce vesicle budding directly from the plasma membrane of highly oligomeric proteins, such as the HIV Gag protein and the yeast cytoplasmic protein Tya [123, 124]. An evaluation of different membrane anchors for Tya demonstrated that myristoylation was the most effective enhancer of the formation of shedding vesicles, whereas other types such as, phosphatidylinositol-(4,5)-bisphosphate and phosphatidylinositol-(3,4,5)-trisphosphate-binding domains, prenylation/palmitoylation tag or the type-1 plasma membrane protein CD43 did not cause this effect [124]. This illustrates the role of protein anchors for the induction of shedding vesicles, which is similar to retrovirus budding [124] (Table 2). Besides, CD55 or decay-accelerating factor (DAF) anchored to a GPI molecules is selectively secreted to EVs [125].

The role of UBL and other PTMs in the sorting of proteins to EVs

The function of PTMs such as oxidation, phosphorylation, glycosylation and citrullination in the incorporation of proteins into EVs, has been recently reviewed in [107]. Briefly, these PTMs can regulate EVs release and uptake, acting as a disposal mechanism for cellular harmful components or as a repair mechanism in physio-pathological conditions [107]. Similar to ubiquitin, the UBL SUMO also plays an important role in protein sorting to EVs. For example, SUMOylation is necessary for α-synuclein sorting into exosomes in an ESCRT-dependent manner [106] (Table 2). A recent study showed that other UBL called autophagy-related protein 12 (ATG12) and its E3 ligase ATG3 interact with ALIX, regulating diverse functions carried out by ALIX, for example, viral budding and MVBs biogenesis [126]. This observation suggests that ATG12 could also participate in exosome biogenesis. Besides, isoprenylation and palmitoylation may also participate in protein delivery into exosomes, as in the case of the CINCCKVL palmitoylation and isoprenylation motif, which is present in human Ras Homolog Family Member B (RhoB), determines its incorporation into ILVs in a cholesterol-dependent way and consequently in exosomes [127]. Furthermore, the expression of reporter proteins containing this palmitoylation/isoprenylation motif is enough to define a late-endosomal fate for these proteins [127].

On the contrary, ISG15, which is recognized as an immune alarm signal by cells, has an opposite role in protein sorting to exosomes. A recent study showed that ISGylation tags proteins for degradation, thereby avoiding exosome secretion and spreading [43, 128] (Fig. 1). Besides, acetylation can abrogate the sorting of proteins into exosomes. High glucose-regulated protein 78 (GRP78) is expressed and secreted into exosomes by colon cancer cells to prepare the tumor microenvironment [129]. Its secretion in exosomes is impaired by chemical inhibitors of histone deacetylases (HDACs) and silencing of HDAC6 protein, which causes the dissociation of GRP78 from HDAC6 and promotes GRP78 aggregation and interaction with VPS34 complex [129]. The use of an acetylation mimetic mutant of GRP78 (K633Q) also impairs exosome sorting and blocks tumour cell growth in vivo [129] (Fig. 1).

On the other side, the role of the other PTMs, gathered in Table 1, remains largely unexplored. This could suggest that a role for these PTMs is unlikely, or that they can work as a cellular retaining signal for some proteins, directing them to other cellular processes such as the autophagy-lysosome degradation pathway.

Targeting post-translationally modified proteins into EVs for biomedical applications

Deciphering the role of PTMs for protein sorting into exosomes could be useful for medical purposes, such as association of certain modified proteins with concrete physio-pathological situations, highlighting PTMs of exosomal proteins as biomarkers for prognosis, diagnosis and treatment of diseases.

PTM marks in EVs as biomarkers for diagnosis and prognosis

EVs have potential as non-invasive biomarkers for several pathological conditions, particularly due to their accessibility from biological fluids, facilitating the detection of certain pathologies [130–133]. A specific PTM of a protein in EVs in particular diseases could constitute a potential biomarker (Fig. 3). For example, the secretion of modified Tau protein aggravates development and progression of neurodegenerative processes. The majority of modified (phospho-Thr-181) Tau detected in human cerebrospinal fluid samples is secreted via exosomes, constituting a well-characterized biomarker for Alzheimer’s disease (AD) [115]. In fact, ph-Tau in combination with Aβ activate diverse signalling pathways, increasing the production of hyperphosphorylated Tau oligomers, which are then secreted by exosomes within the brain, accelerating neurodegeneration [110]. Moreover, some AD-related proteins such as ph-Tau, Aβ1-42, neurogranin (NRGN) and the repressor element 1-silencing transcription factor (REST) contained in neuronal-derived exosomes appear in plasma [117]. The transference of these proteins contained in exosomes isolated from AD patients’ plasma into the central nervous system of a normal mouse causes Tau aggregation and induces AD-like neuropathology [117]. Other studies carried out with Tau-transgenic mice (rTg4510) revealed a high grade of pathology and higher accumulation of Tau in their exosomes compared to control ones [113].

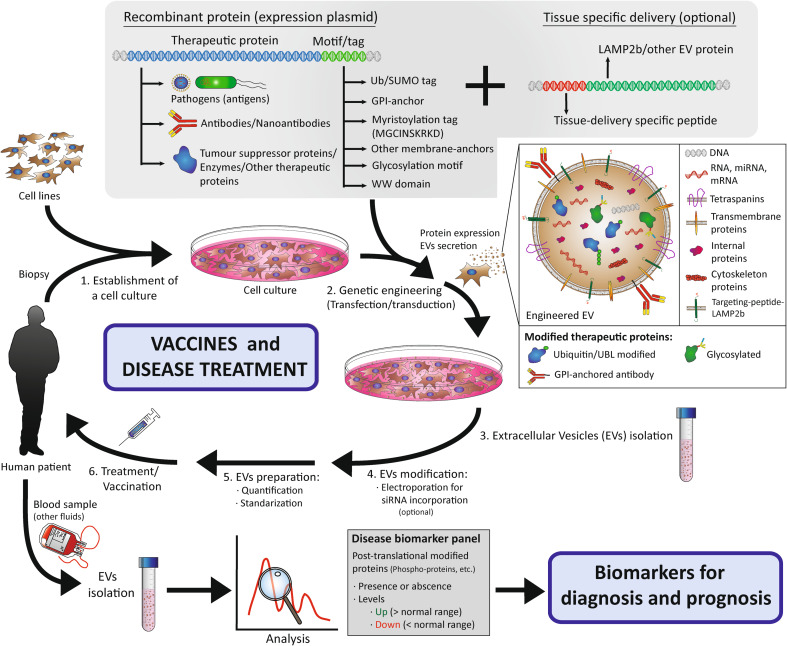

Fig. 3.

Targeting post-translationally modified proteins into EVs for biomedical applications. The process for exosome engineering to use as a vaccine or treatment comprises various steps: (1) EVs can be isolated from different cell cultures, either cell lines or cells obtained from human biopsies. (2) These cells can be transfected or transduced with specific constructs coding for engineered therapeutic proteins, that will be targeted to EVs by the addition of a specific PTM motif or tag. Therapeutic proteins include: pathogen antigens for the generation of vaccines; antibodies or nanoantibodies for activation or blocking of signalling pathways, or any kind of protein with a therapeutic potential. Besides, the expression of LAMP2b fused to a tissue-delivery targeting-peptide defines a specific fate for these EVs once in the blood stream. (3) The EVs can be isolated by diverse procedures. (4) Additionally, an extra step can be performed to incorporate inside EVs therapeutic small interference RNAs by electroporation. (5, 6) Finally, EVs preparations, once standardized and quantified, could be administered intravenously for disease treatment or vaccination. On the other hand, EVs obtained from blood samples (or other fluids) can be analysed to identify certain condition biomarkers (post-translational modified protein) for disease prognosis and diagnosis. The images in the figures are not scaled

On the other hand, several phosphorylations of IRS-1 in different residues associate to insulin resistance syndrome in diabetes mellitus as well as to degenerative diseases such as AD and fronto-temporal dementia [111]. Exosomes released by retinal pigment epithelial (RPE) cells into vitreous humour contain a vast subset of phosphorylated proteins in age-related macular degeneration (AMD) patients [108]. Oxidative stressed RPE cells modify the phosphorylation profile of exosomal proteins compared to control cells, thus their detection could represent a source of biomarkers for diagnosis and prognosis of eye-degenerative diseases [108].

Besides, detection of modified exosomal proteins bears potential as a biomarker of treatment progression. For instance, cetuximab works as a therapeutic antibody to block EGFR activation in tumour cells [116]. EVs coming from cetuximab-treated cells represent well their originating cells, containing lower level of phosphorylated EGFR after treatment [116]. Monitoring total and phosphorylated forms of EGFR present in EVs from patient blood could reflect the efficacy of anti-tumour therapy [116].

Moreover, detection of some exosomal biomarkers can reveal the existence of side effects during treatment. For example, a fraction of kidney transplant patients treated with tacrolimus as part of the immunosuppressive therapy developed hypertension 6 months after surgery [114]. Urinary exosomes of hypertensive patients are enriched in the phosphorylated form of thiazide-sensitive NCC compared to non-hypertensive patients [114]. Hence, the measurement of total and phosphorylated NCC in urinary exosomes can be used as a biomarker of hypertension [114].

Vaccines

EVs also represent a promising tool for other therapeutic applications, such as generation of vaccines. EVs and many viruses share common mechanisms for protein sorting and particle release [134]. The study of EVs physiology can help us to understand virus infections, but also to generate virus-like particles suitable for vaccination exploiting the exosome pathway by sorting virus proteins into exosomes. For instance, exosomes isolated from infected cells can prime mice and protect them from a following lethal infection [135]. In the case of macrophages infected with the intracellular bacteria Mycobacterium tuberculosis, more than 40 mycobacterial components appear in exosomes [136] (Table 2). In addition, the administration of soluble mycobacterial proteins in human epithelial and mouse macrophage cell lines promotes sorting of similar bacterial proteins into exosomes [136]. Ubiquitination of mycobacterial proteins such as HspX and GroES acts as a signal for their incorporation into ILVs and secretion as EVs [136]. Moreover, vaccination using these exosomes in mice protects them against subsequent aerosolized infection with the whole infective bacteria [136]. This is just an example of how vaccination with a PTM-protein is a new strategy to initiate a protective immune response against a specific pathogen. An option for heterologous protein sorting into exosomes, which can be used as a vaccine, consists of protein overexpression with the addition of an ubiquitin tag, avoiding strategies based on inactivated or non-replicative pathogens [128, 137] (Fig. 3). This approach enables the exosomal delivery of proteins not usually found in exosomes, e.g. GFP. For instance, the use of exosomes produced by a stable cell line and containing recombinant fusion proteins from M. tuberculosis evoked T cell immune responses [137]. However, although exosome-based vaccines could trigger antigen-specific immune responses, they also contain other proteins that could trigger side- or off-target effects. In addition to ubiquitin, GFP SUMOylation drives it into exosomes, suggesting that SUMO could work as a specific sorting tool for antigen incorporation into exosomes for vaccination schemes [106] (Fig. 3).

Disease treatment

EVs are a promising tool to design new strategies for disease treatment. The size of these small particles make them suitable to carry proteins, lipids, RNA, DNA or small chemical drugs, protecting them from external factors in the blood stream [138, 139]. They can be easily isolated in high amounts from diverse culture cells types. Furthermore, the target specificity of EVs prevents some secondary effects observed in traditional therapies [138]. One of the most potent advantages of exosomes is their capability of crossing the brain blood barrier (BBB), which opens a wide variety of possibilities for diagnosis and treatment of neurodegenerative diseases [140]. In fact, exosomes carrying a specific siRNA and a brain-delivery peptide signal could even silence the expression of the targeted gene [141]. Generating exosomes targeted to a certain type of tissue can be accomplished by the expression of specific tissue-delivery peptide fused to the N-t of lysosome-associated membrane glycoprotein 2 (LAMP2), a transmembrane protein which causes their incorporation into EVs [141]. Engineered targeting peptides-LAMP2 sometimes undergo degradation even when localized to exosomes, reducing their potential as therapeutic tools. A recent study has discovered that the incorporation of glycosylating motifs enhances their delivery and protects them from damage [142].

The use of engineered EVs based on biologically active proteins could be used to treat some diseases. The addition of a WW tag (a domain-containing PPxY motif) to a certain protein determines its incorporation into exosomes [139]. The l-domains of Ndfip1 recognize this particular mark, targeting this protein to exosomes [14]. In the same way, we propose the use of known PTMs motifs, such as the myristoylation sequence MGCINSKRKD, in the N-t of the protein of interest to drive it specifically into exosomes, as other authors have described for Tya [124]. Moreover, addition of a C-t ubiquitin or SUMO tag could deliver proteins into exosomes, including targeting-peptides-LAMP2 with glycosylated motifs for specific tissue delivery [106, 137, 142]. Besides, protein glycosylation has improved the efficacy of therapeutic proteins [143]. Thus, addition of glycosylating motifs to the protein of interest could also mediate its incorporation to exosomes, although protein glycosylation is still technically complex for industrial production [73, 107] (Fig. 3).

PTM-dependent sorting approaches could contribute to halting tumour progression and development. PTEN, a tumour suppressor phosphatase, is ubiquitinated in exosomes and is active in recipient cells, promoting the dephosphorylation of AKT [78]. Hence, the uptake of exosomes containing the C-t domain of PTEN by cancer cells reduces proliferation, migration and metastasis, postulating such a strategy as an anti-tumour treatment [144]. On the other hand, GPI modification of blocking-nanoantibodies that recognize receptors present in tumour cells, favours their attachment to exosomes. Exosome-attached EGFR-nanoantibodies approach can confer a specific selectivity to EVs against tumour cells, decreasing their EGFR-proliferative signalling pathways [145]. Hence, GPI anchors can be used to target particular proteins to EVs for biomedical applications [146] (Fig. 3). To sum up, all these strategies remark the potential application of EVs-containing post-translational modified proteins for selective delivery of therapeutic components into specific tissues.

Concluding remarks

Although the mechanisms that define the sorting of proteins into EVs are not fully understood, PTMs are likely to play an important role. Many post-translationally modified proteins have been detected in EVs [73, 107], whereas others that have not been identified in EVs could have a role in protein delivery, participating in the incorporation of other proteins, or being removed before secretion. Ubiquitination or SUMOylation of some proteins have a clear role in their incorporation into exosomes, whereas others such as ISGylation or acetylation oppose such mechanisms, driving the modified protein to degradation [106, 128, 137]. Moreover, exosome secretion can be mediated by diverse mechanisms, such as the ESCRT complex, lipids and tetraspanins, increasing the complexity and diversity of ILV-protein sorting and exosome release [18]. In this regard, EVs populations are heterogeneous as each vesicle contains a specific repertoire of proteins potentially different from its neighbours [10, 11]. In addition, there are other factors that increase the complexity of this system, for example the fact that almost every cell can secrete EVs containing common and cell-type-specific markers. Then, the final destination of each population of EVs can be different, working as an autocrine or paracrine signal or even travelling throughout the blood stream to other tissues.

Regarding ubiquitination, its own structure and functional complexity increases the number of factors to be taken into consideration. Compartimentalization and specificity of the different E3 ligases participate in protein localization [93, 94]. In addition, competition or crosstalk with other PTMs such as SUMOylation or Neddylation alters the fate of the modified protein [100]. Also, the complexity of the ubiquitin code includes homotypic, heterotypic, mixed or branched chains that distribute protein populations among many cellular processes such as proteasome degradation or endocytic trafficking, forming a ubiquitin-based protein ZIP code that has yet to be revealed [20–25, 33, 147]. Finally, the study of ubiquitinated proteins or even UBLs is difficult technically. Proteomics approaches to find ubiquitinated proteins in whole proteome typically used trypsin digestion of the sample. Nowadays, the discovery of new UBLs highlights that the sole use of this enzyme may mask the appearance of additional variations due to the same di-Gly residue shared by all these kind of modifications [148]. Hence, this information can only be used to localize specific sites on proteins susceptible to be modified by these kind of PTMs [148]. Nevertheless, some approaches tried to discern among these PTMs by terminal mutation and protein overexpression [149]. Besides, these proteomic approaches could also help to discover or define any possible consensus sequence for protein delivery into EVs, either protein mono-ubiquitination and selective chain formation or other PTMs [102, 150, 151].

In addition, EVs represent a novel non-invasive and selective therapeutic tool to be developed for prognosis, diagnosis or treatment of diverse diseases, with very promising preliminary results [138, 139, 152, 153]. PTMs confer specific properties to proteins, playing a relevant role in EVs protein sorting. Hence, the use of PTMs represents a useful tool for the generation of therapeutically engineered EVs.
